Killshot Fusion
4-bbl TBI system with an internal ECU for classic engines up to 650 hp

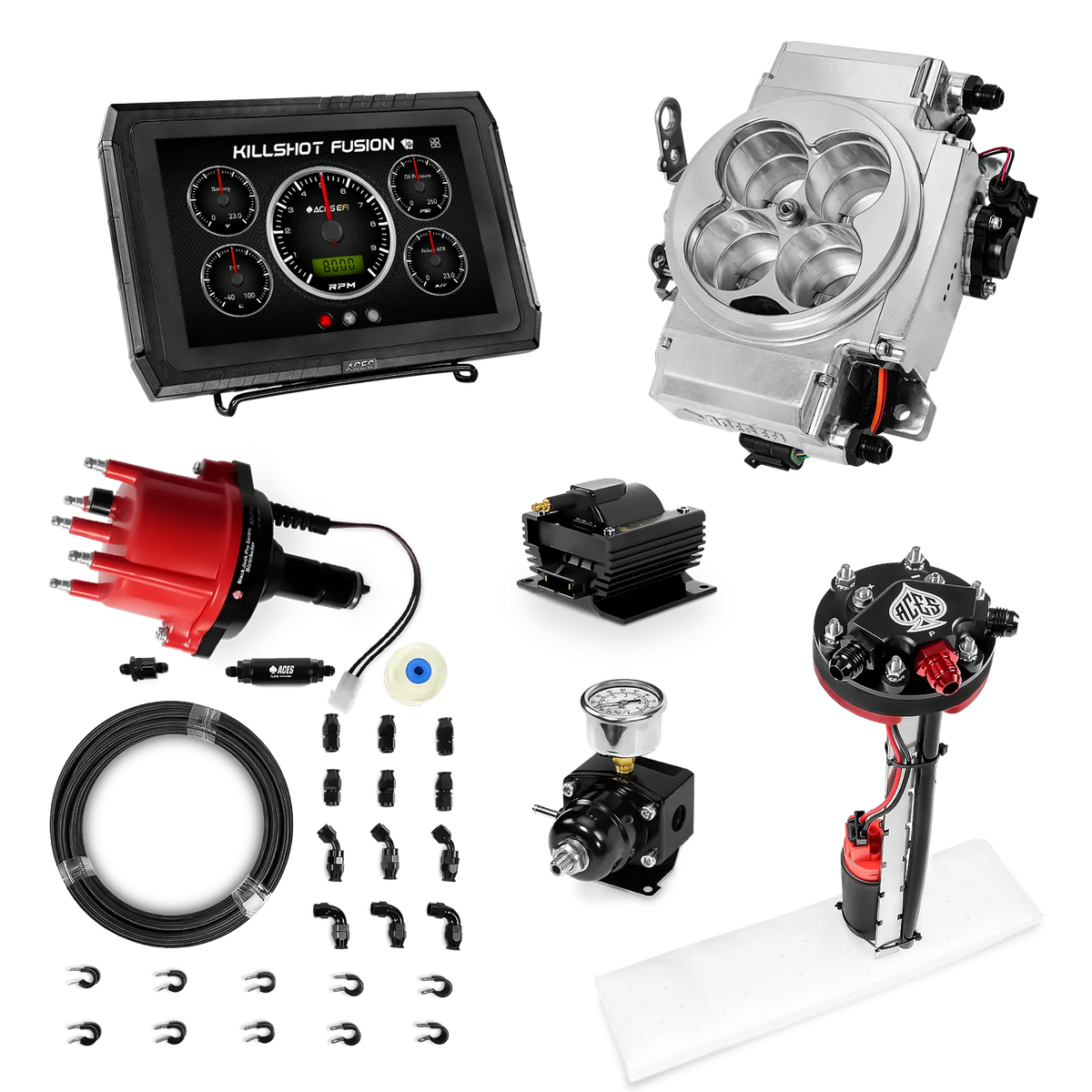

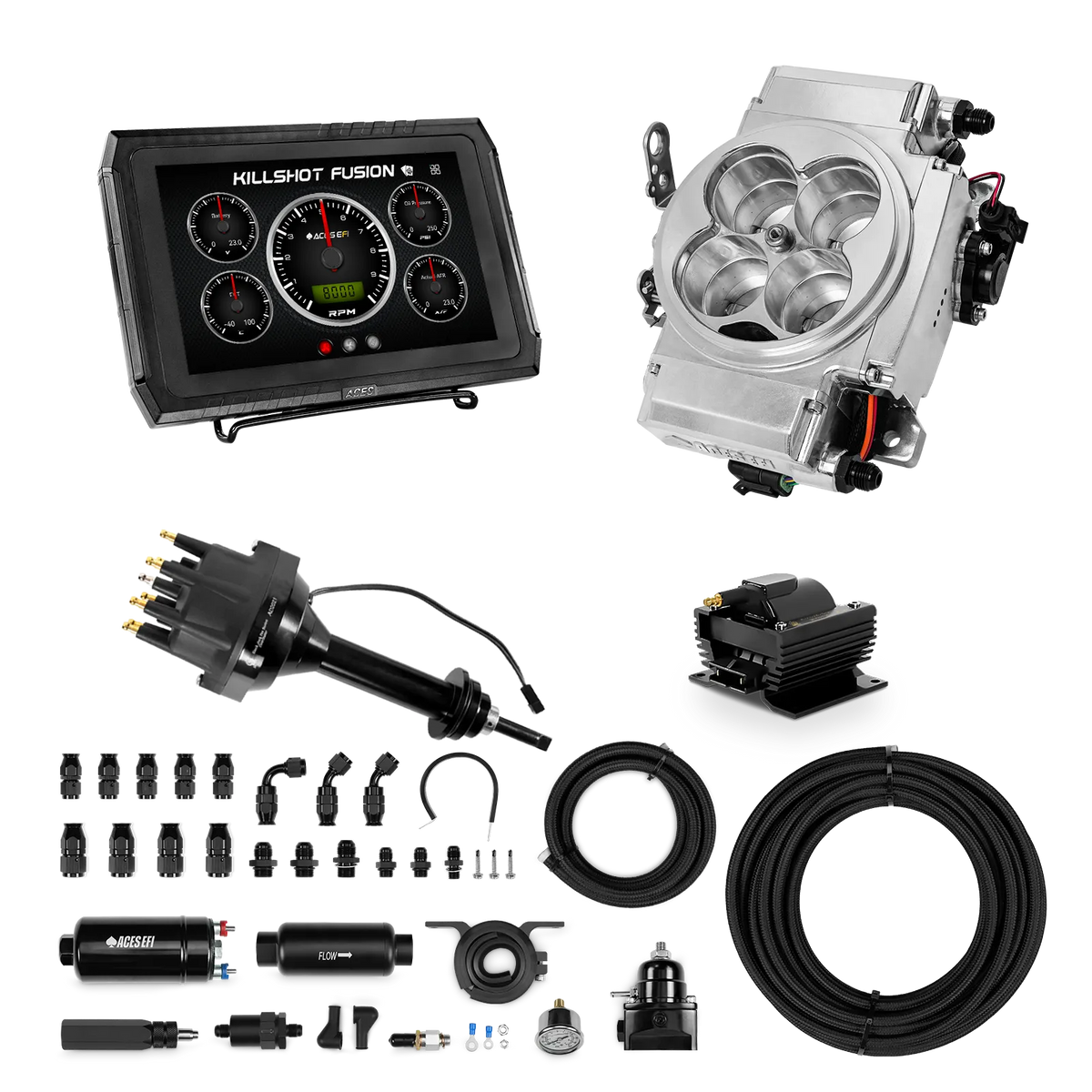

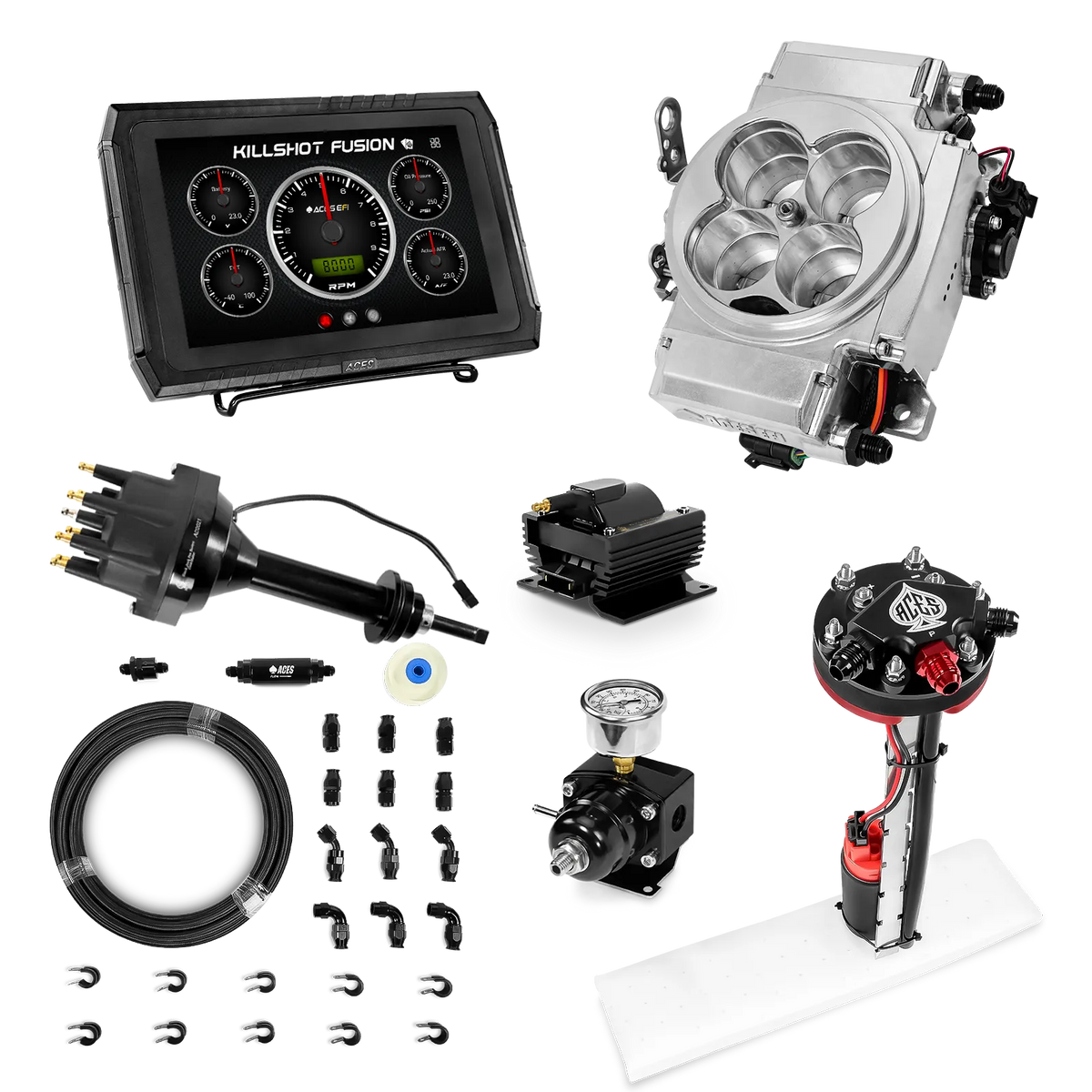

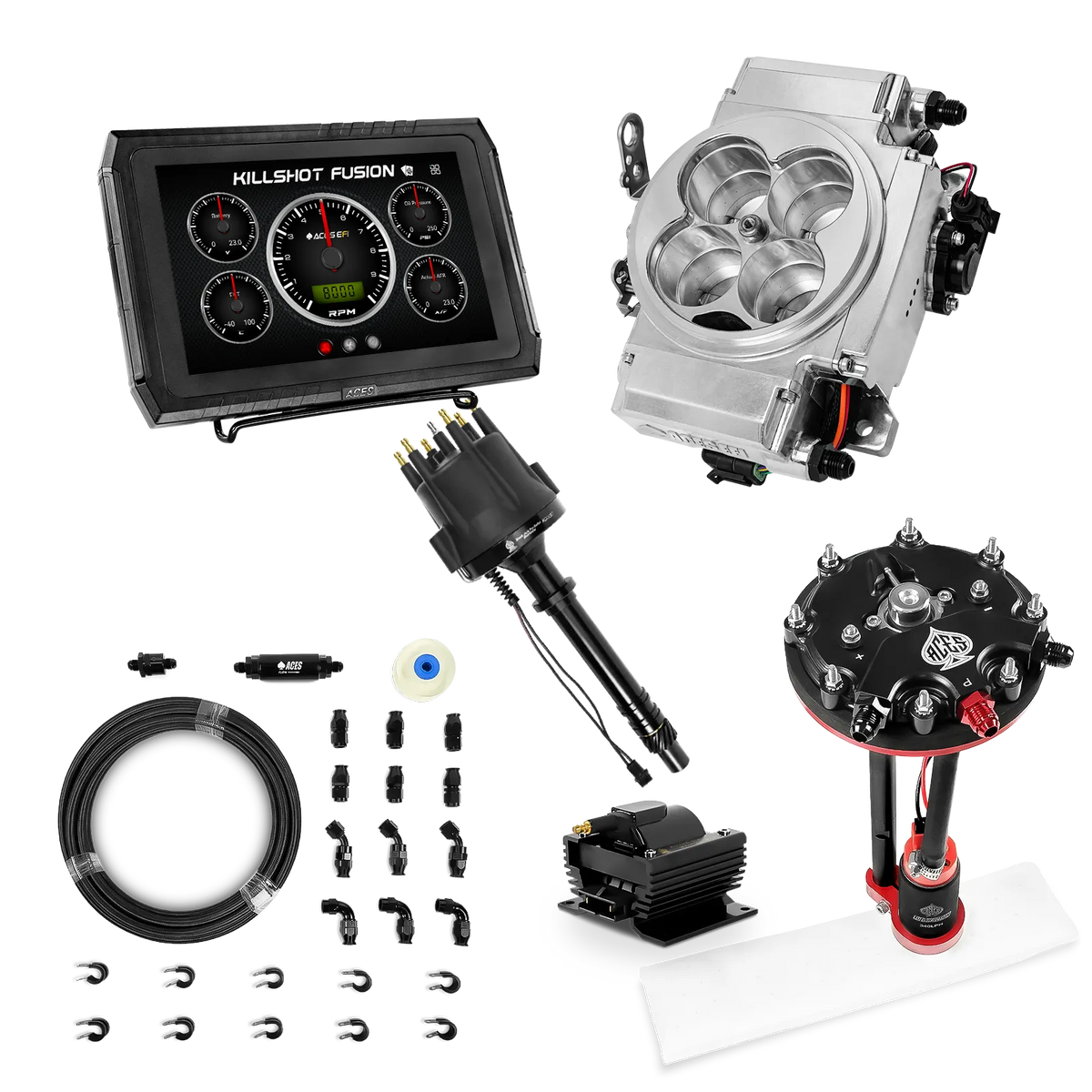

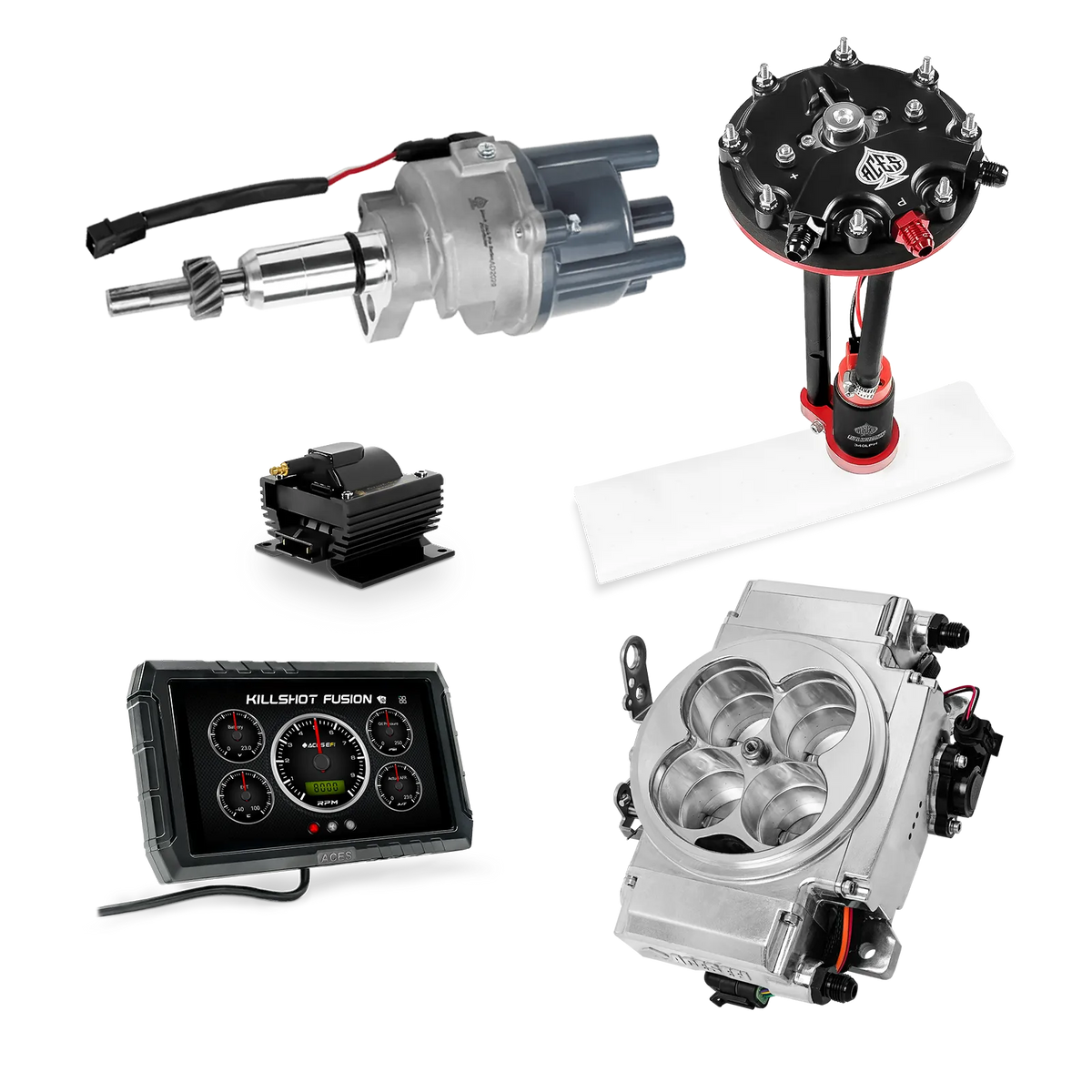

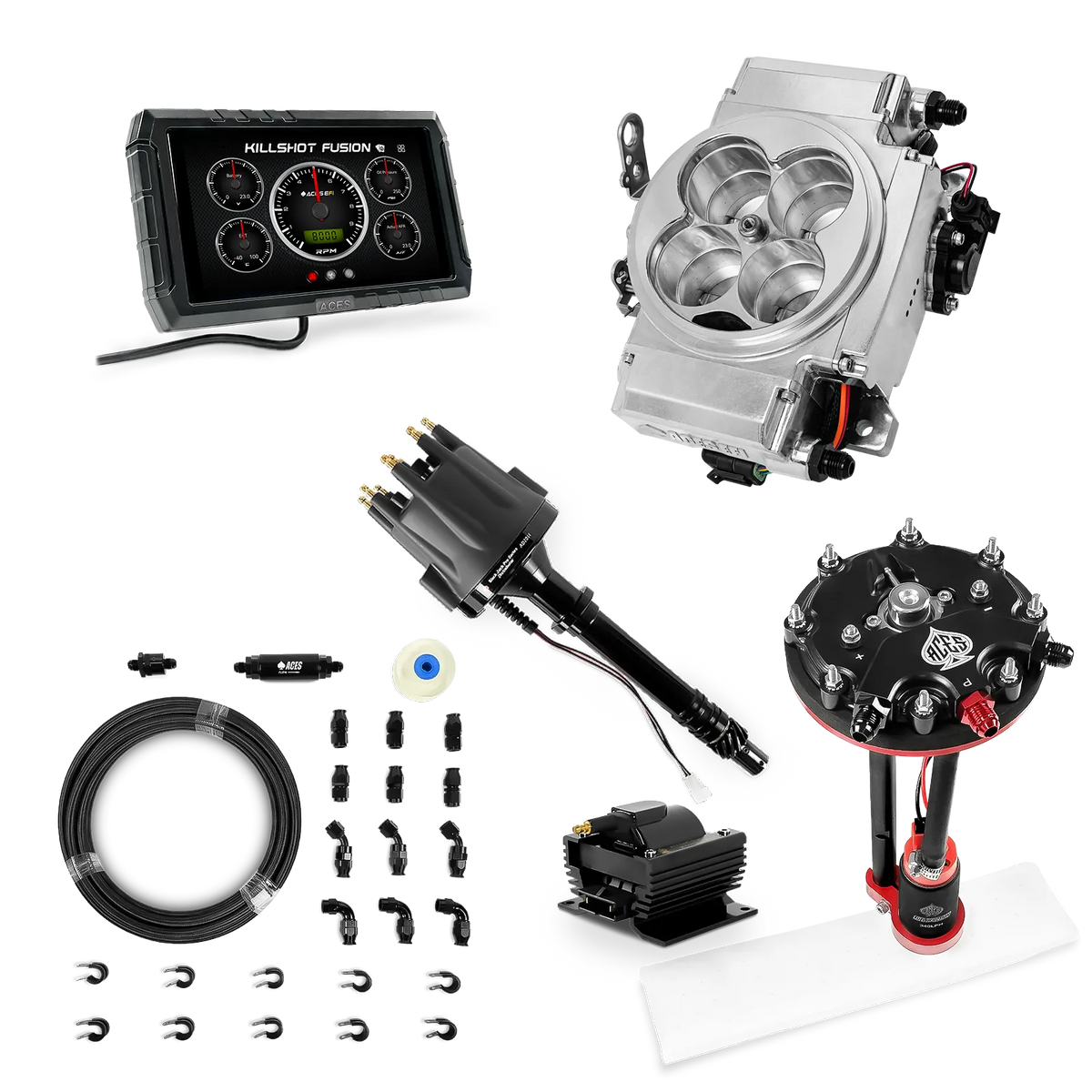

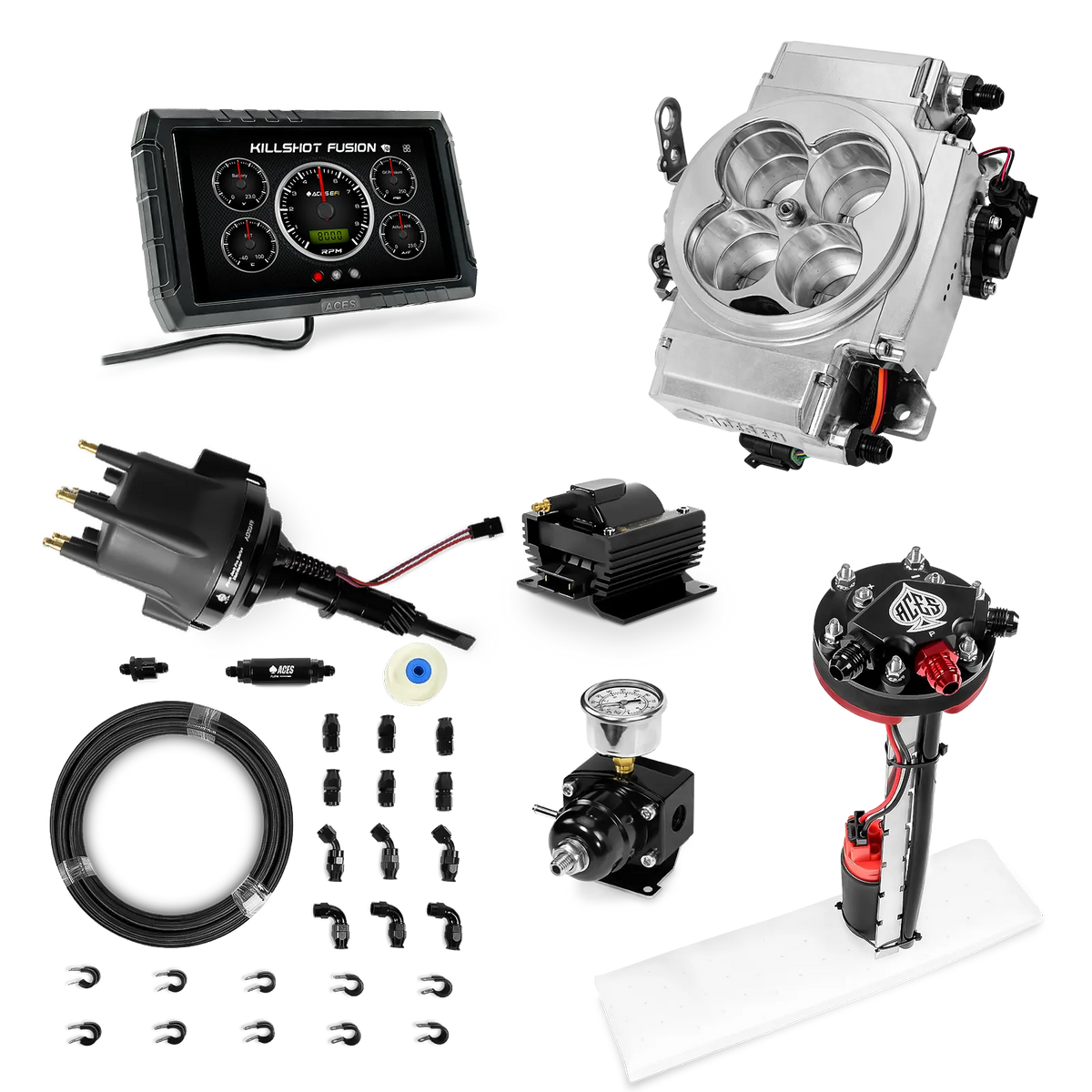

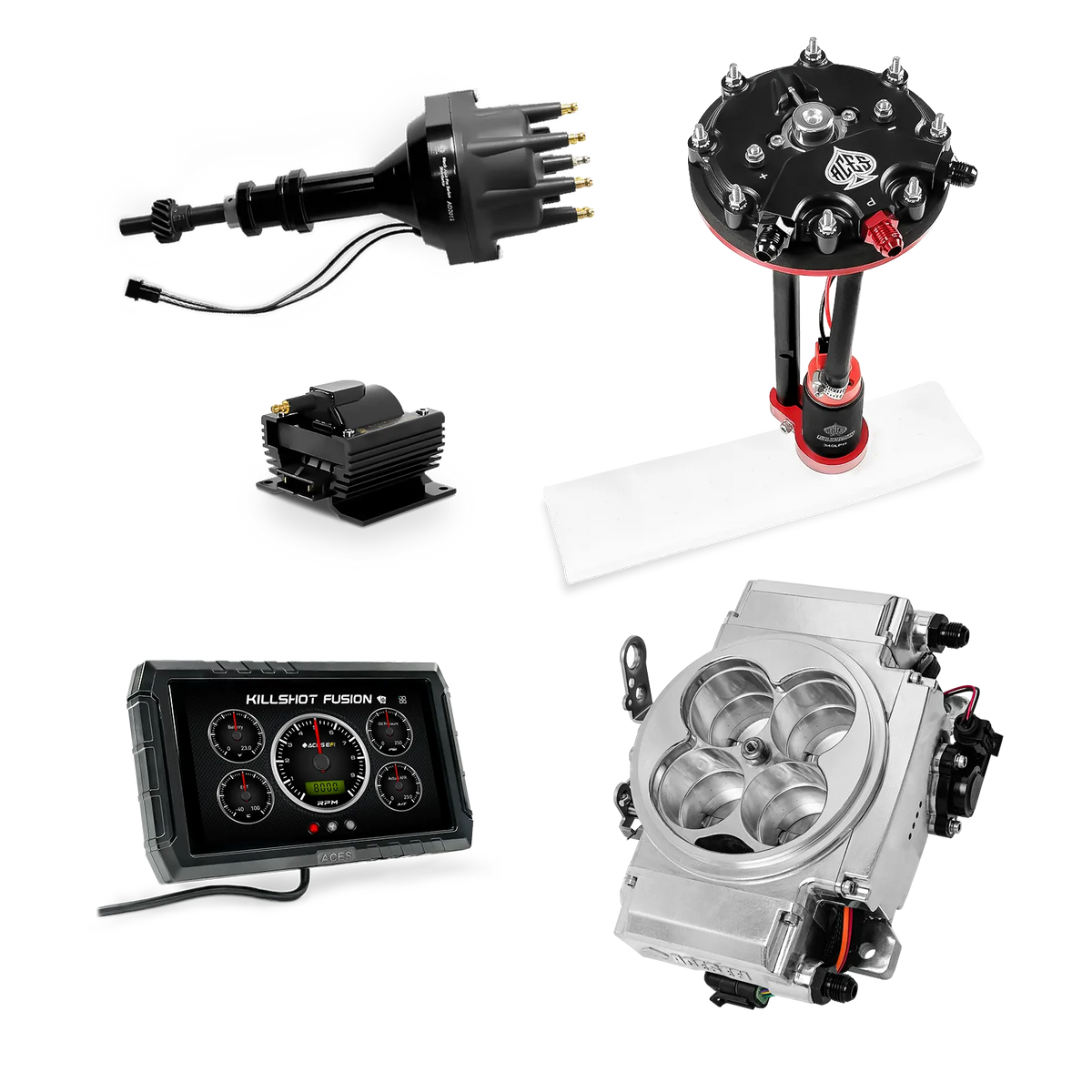

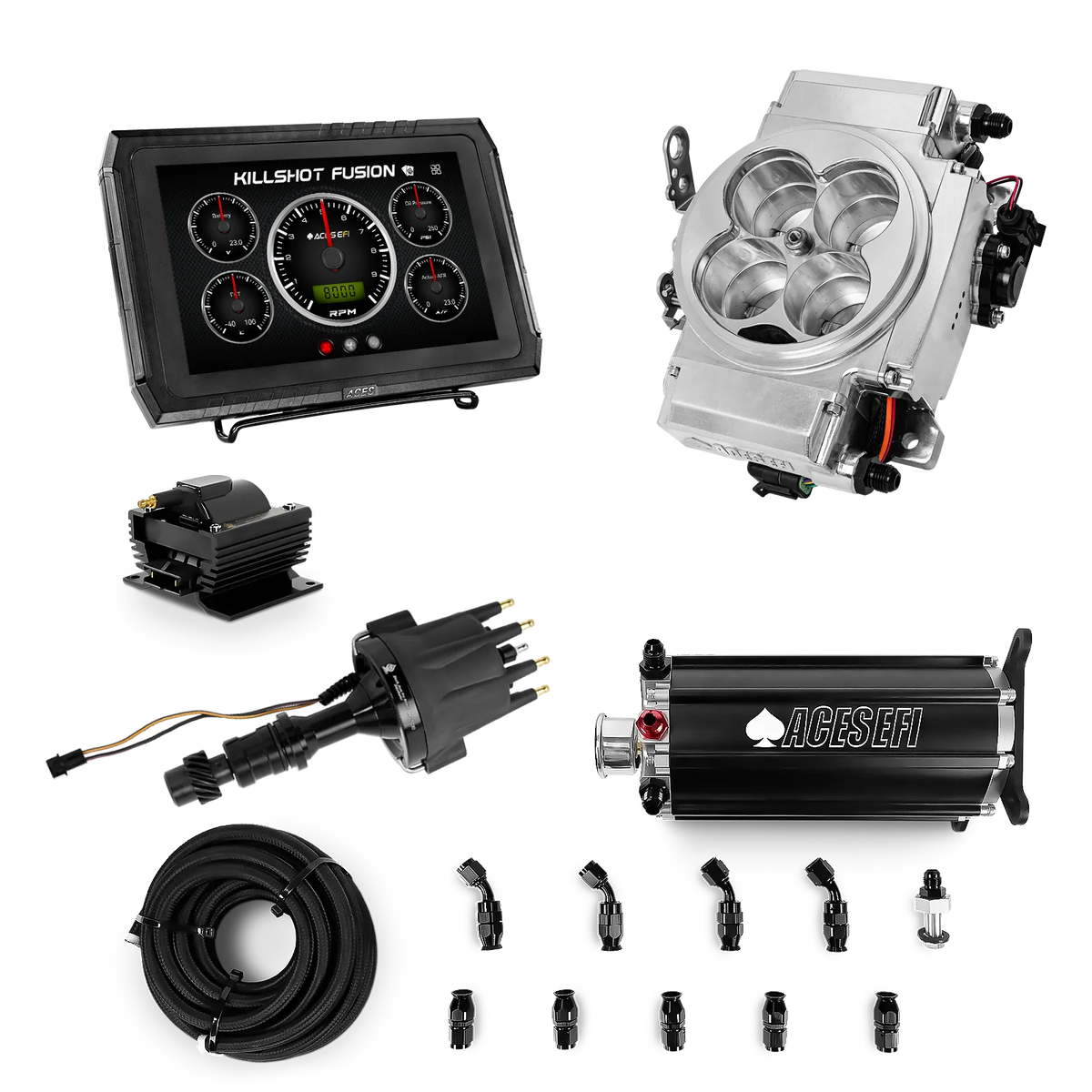

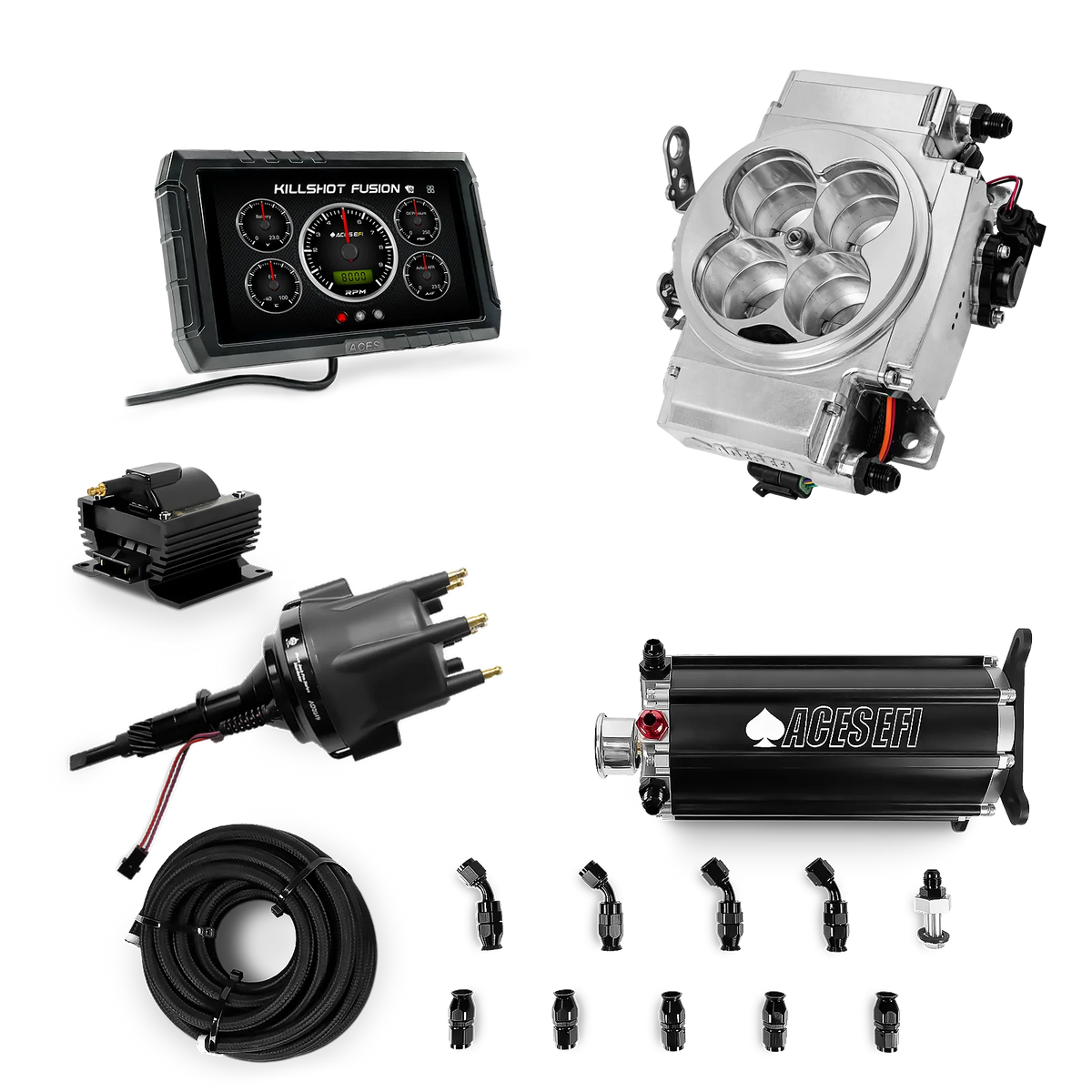

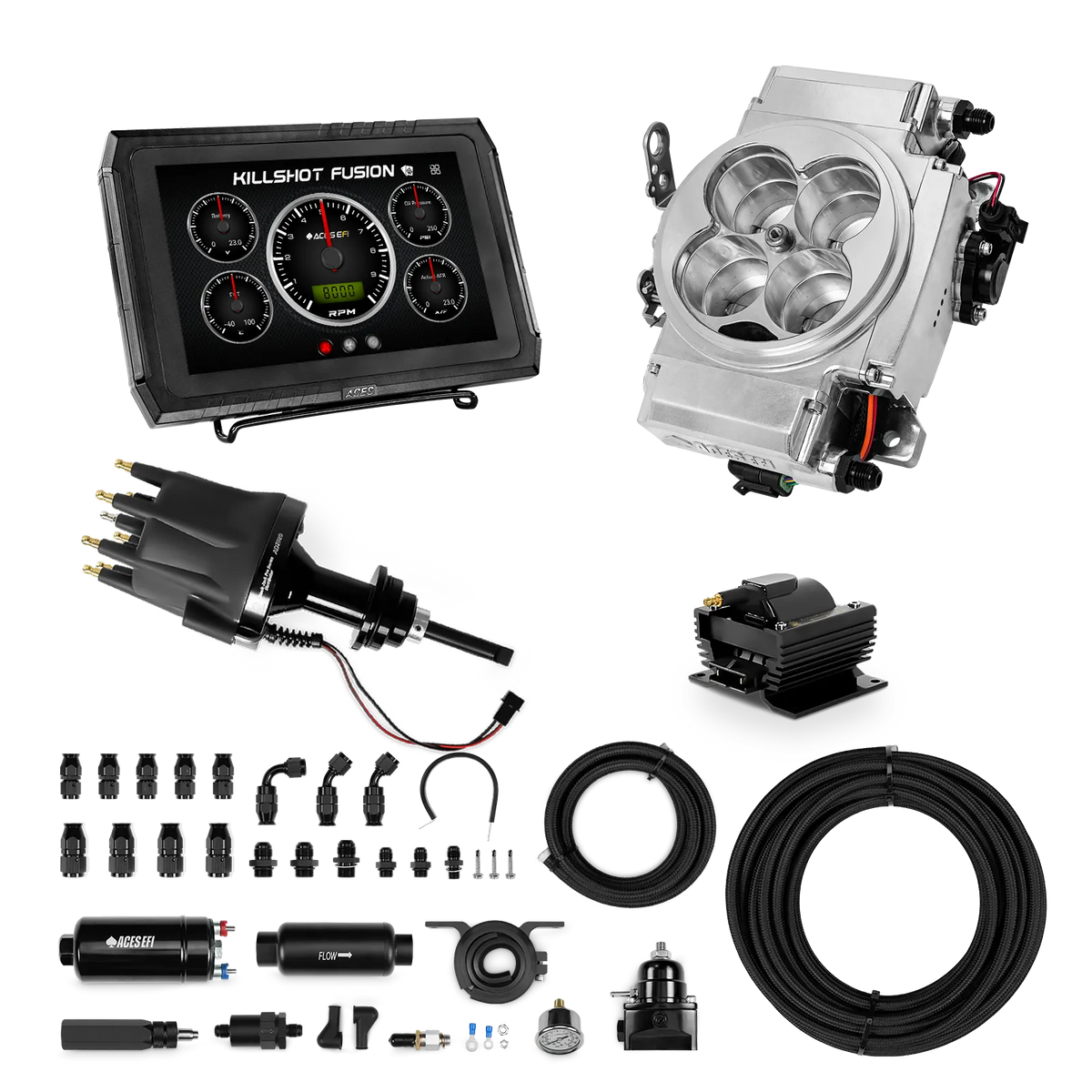

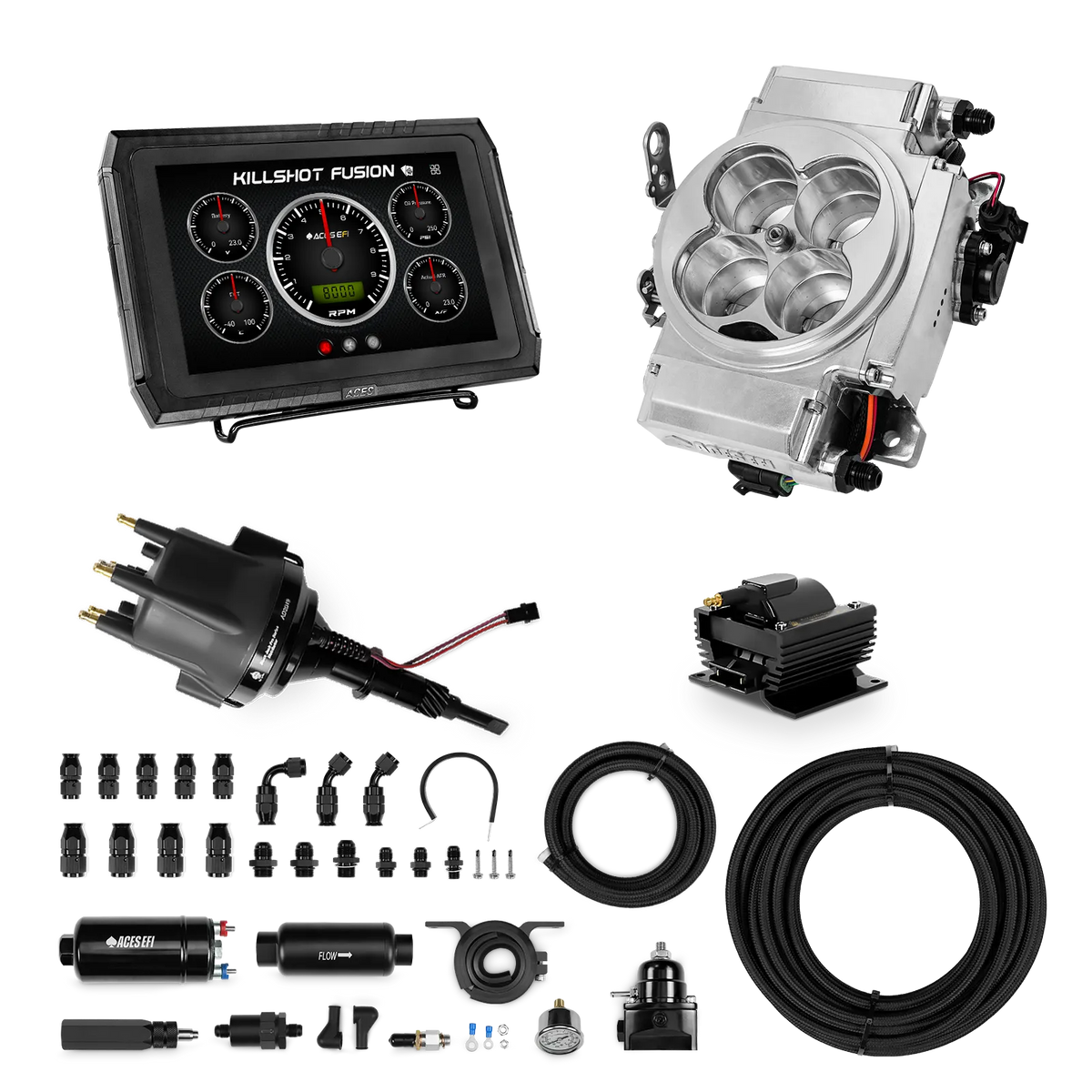

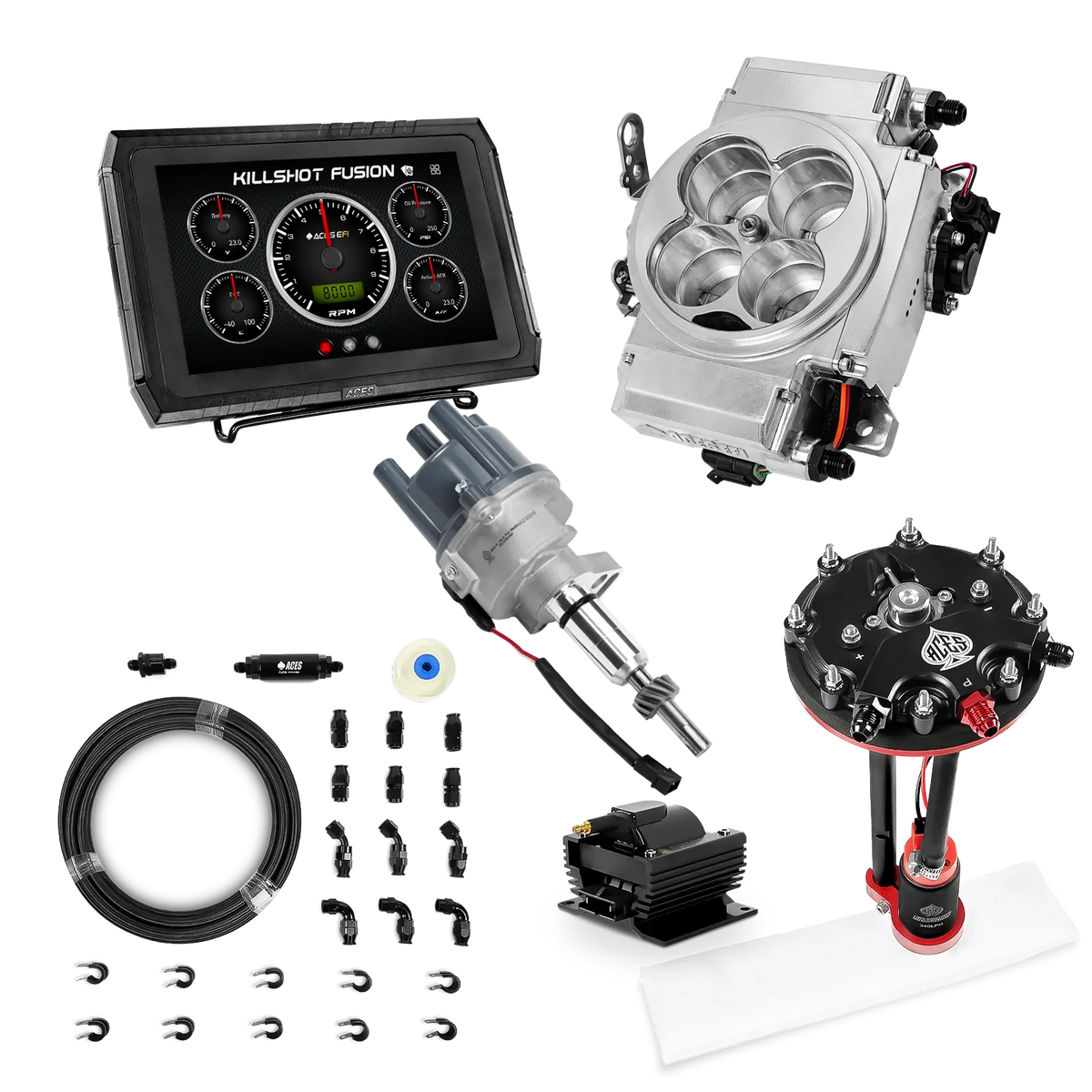

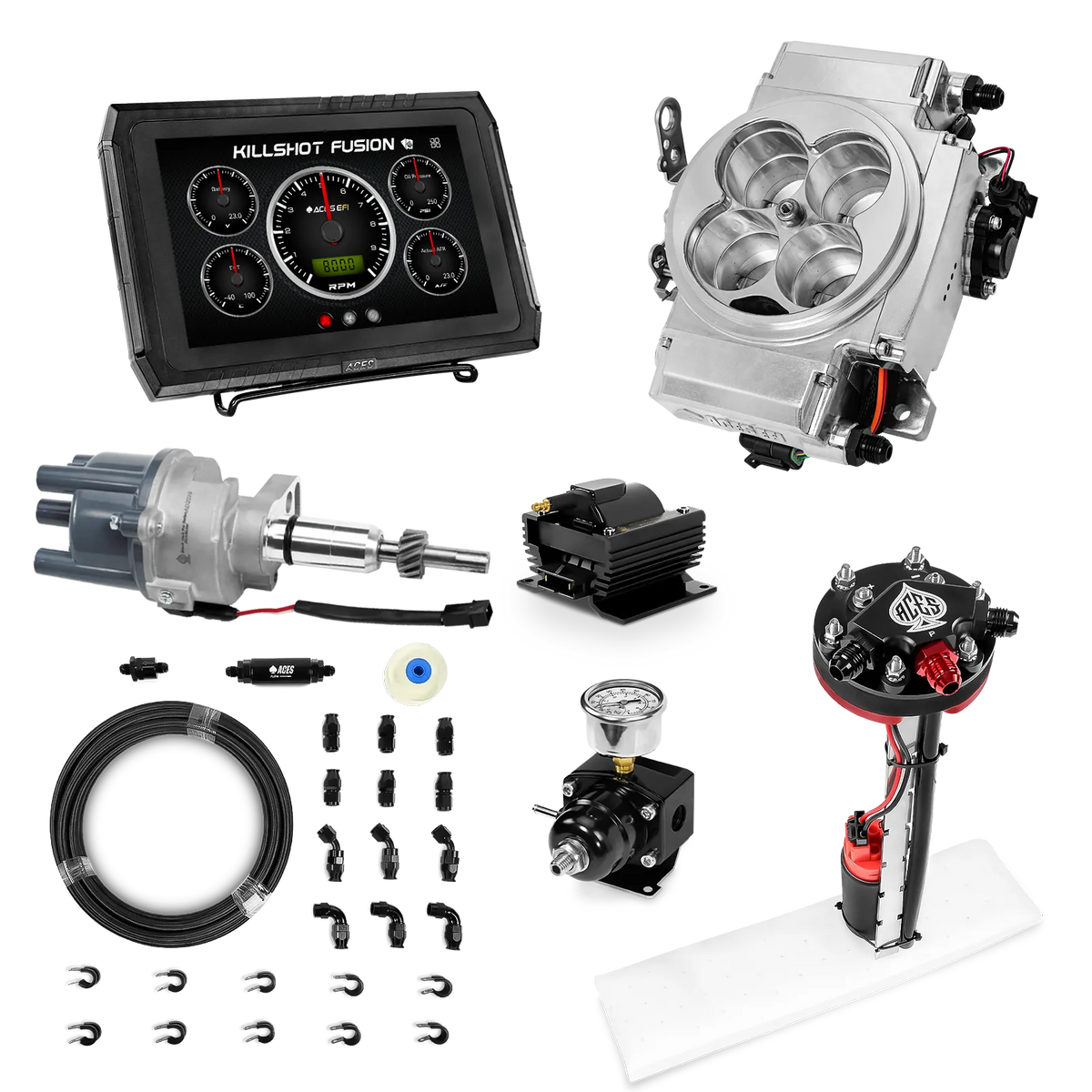

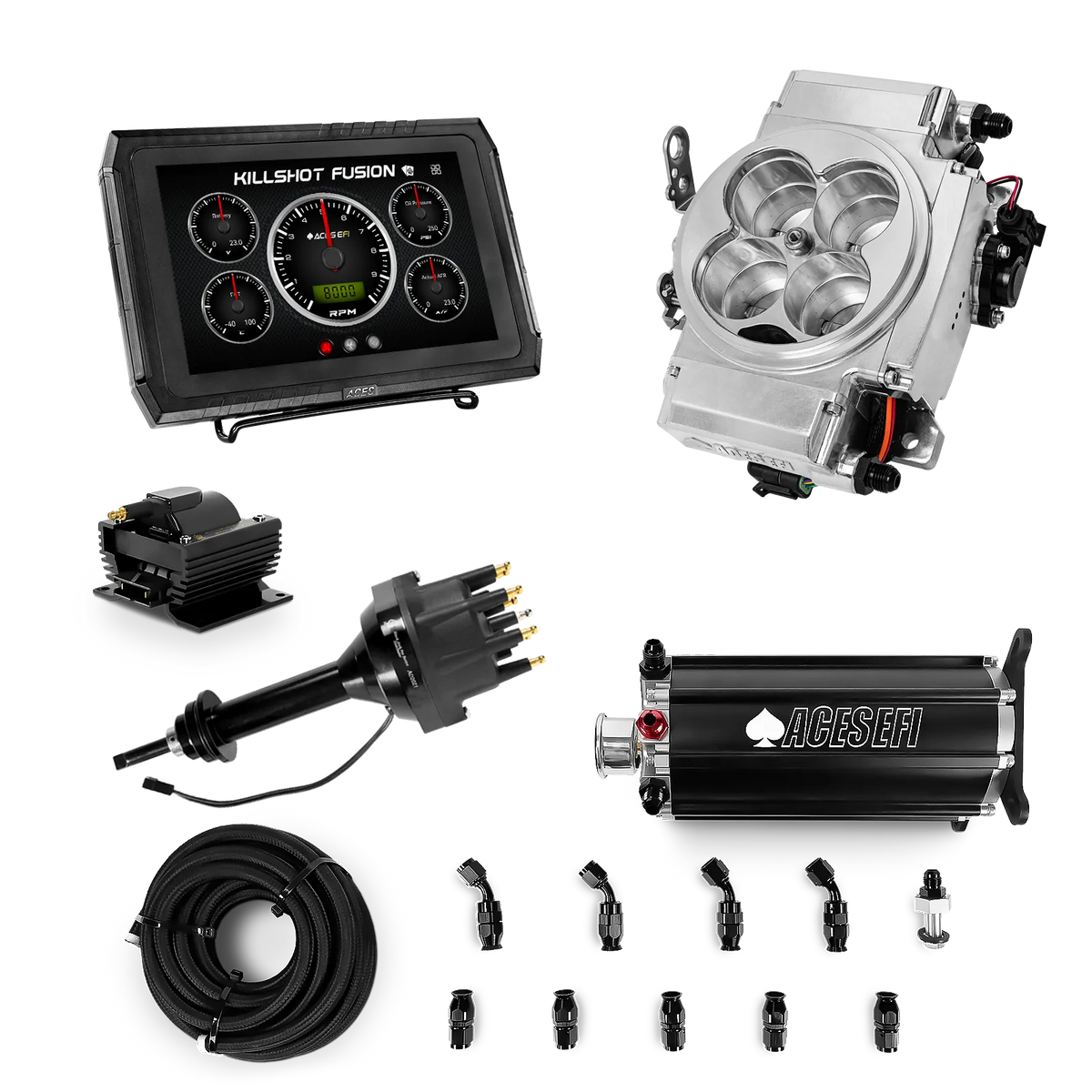

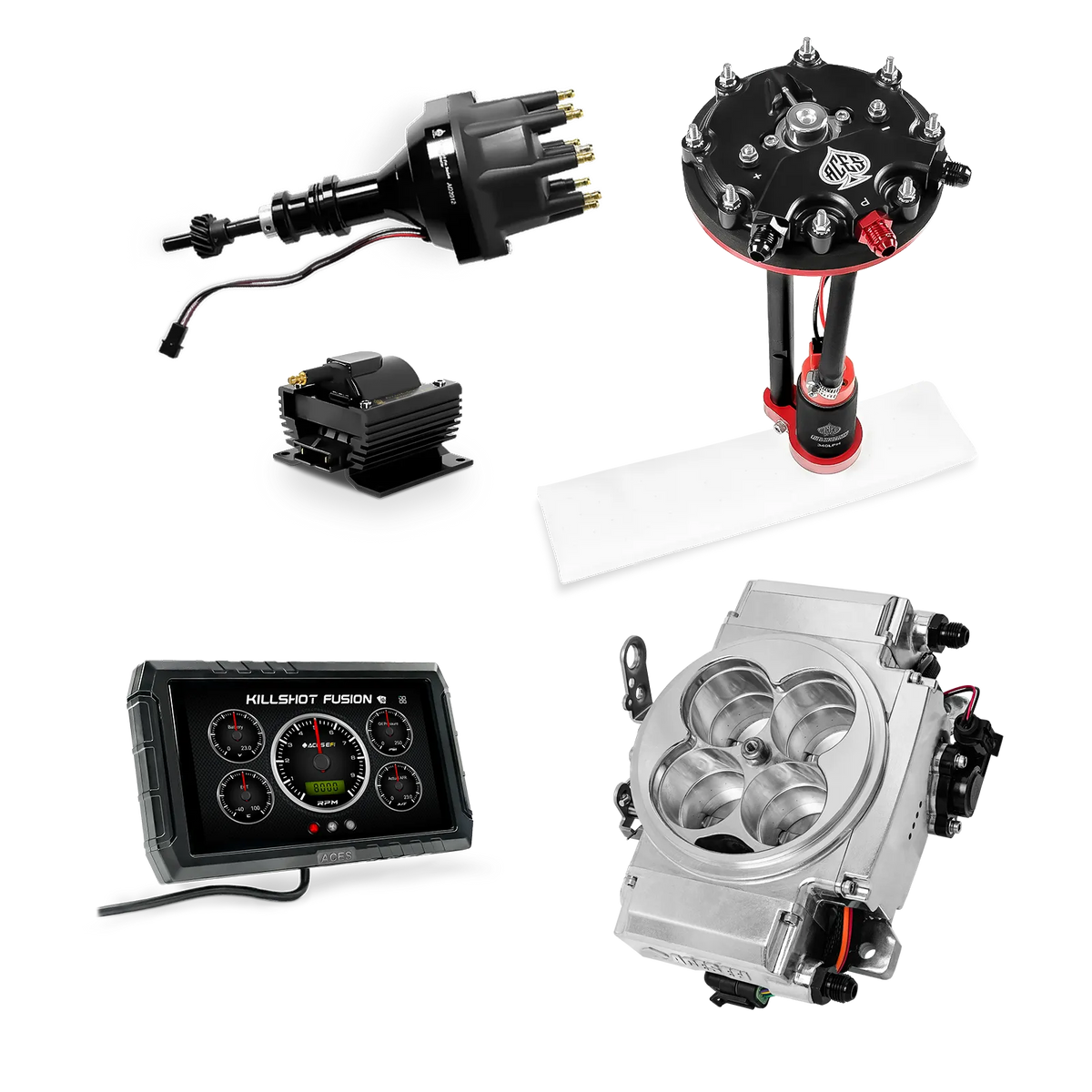

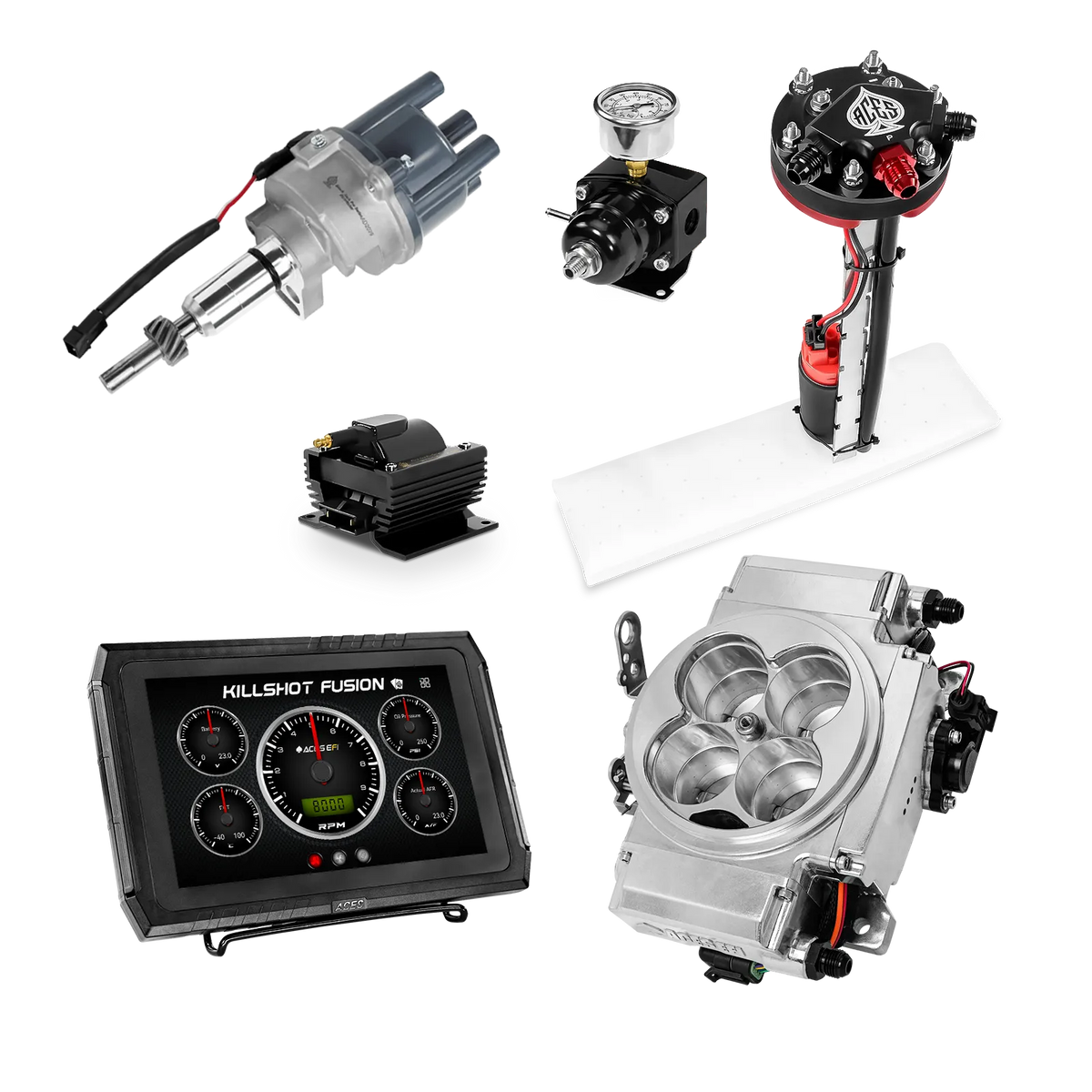

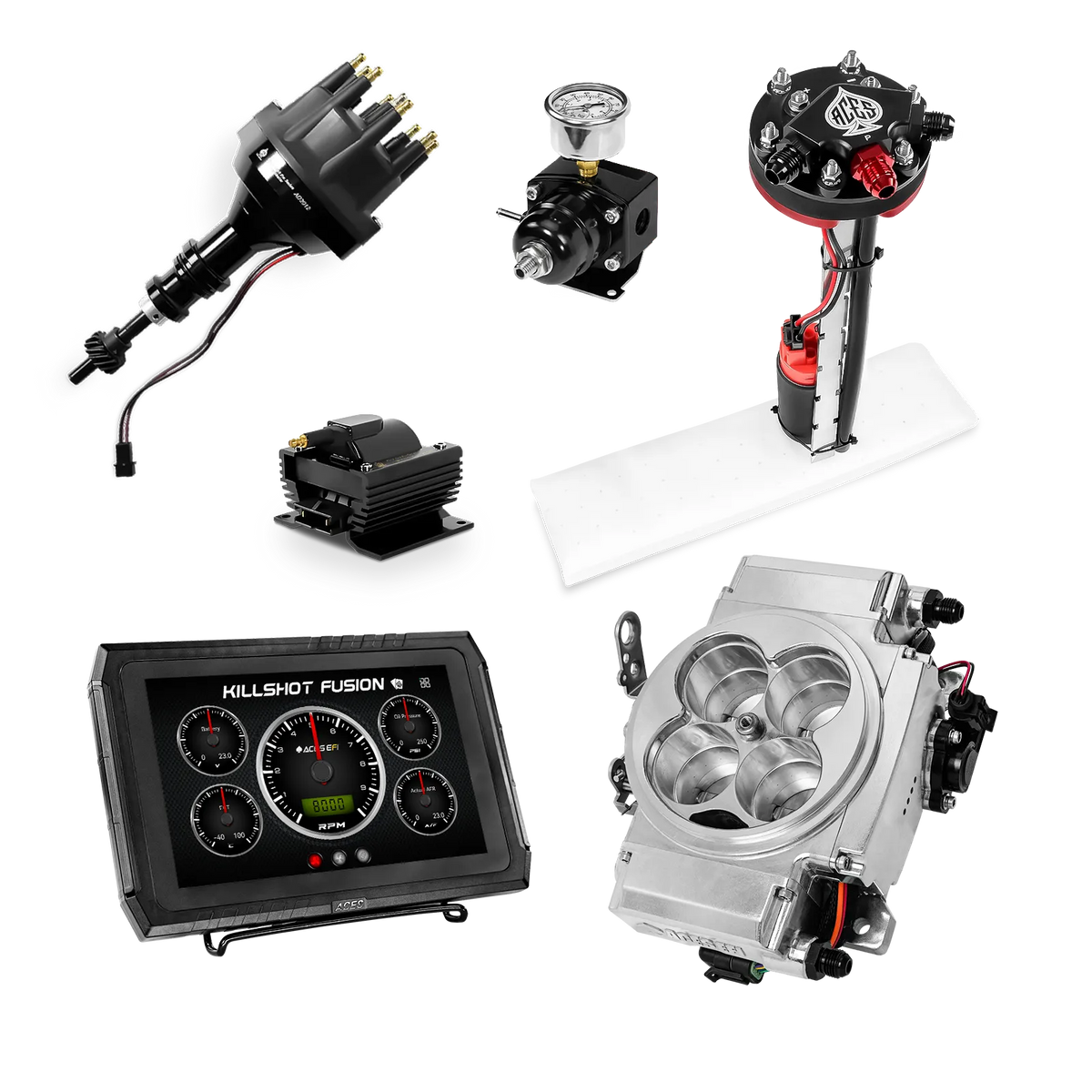

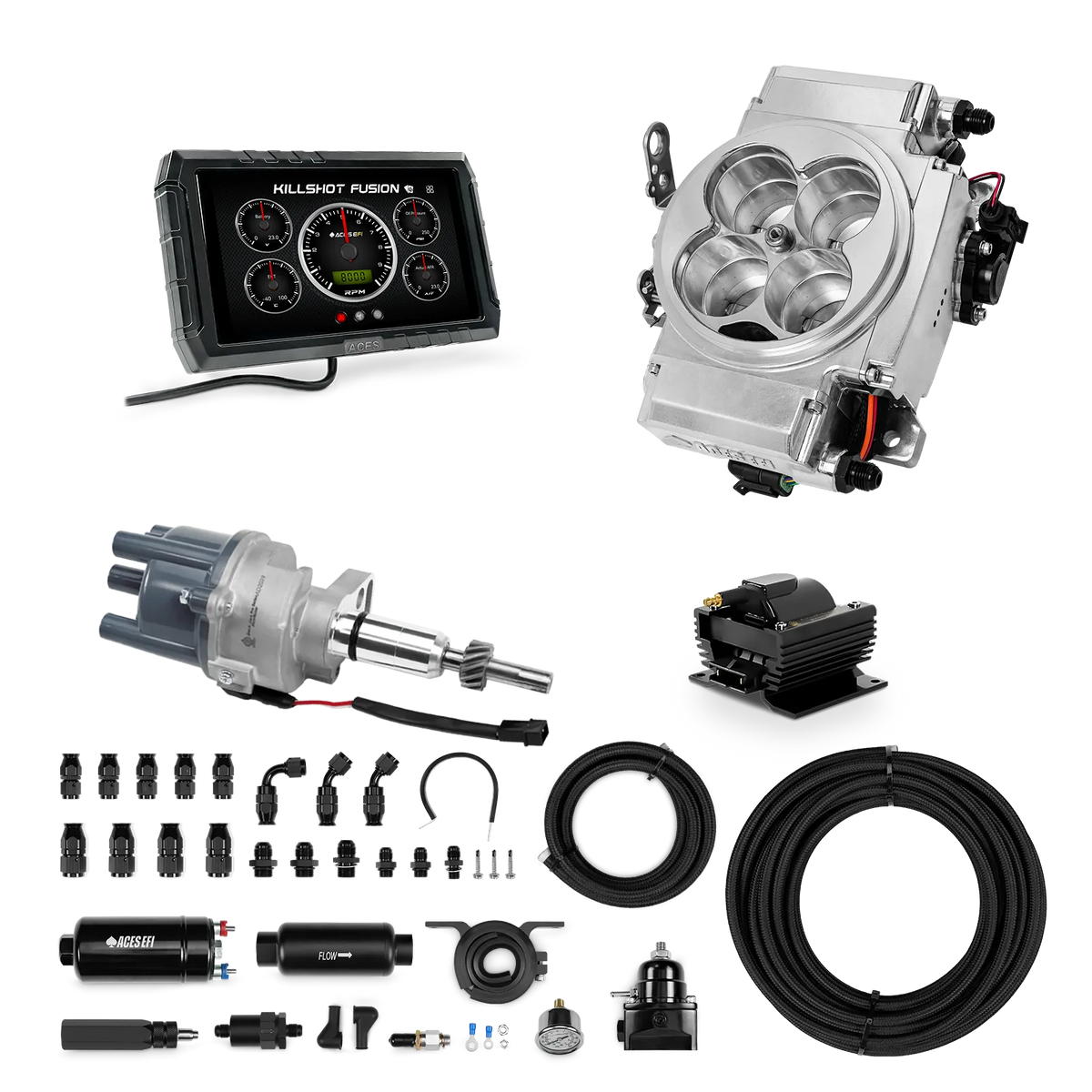

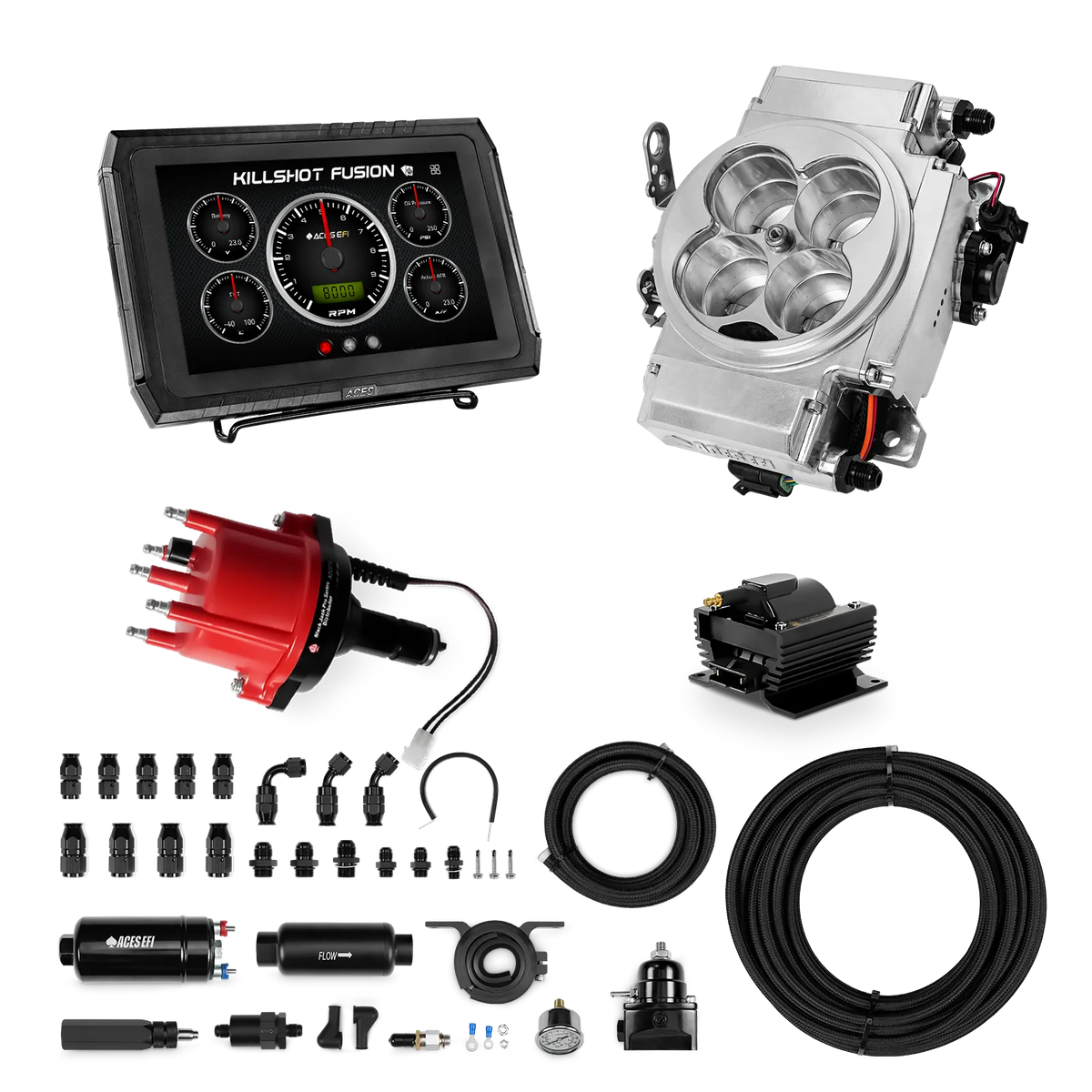

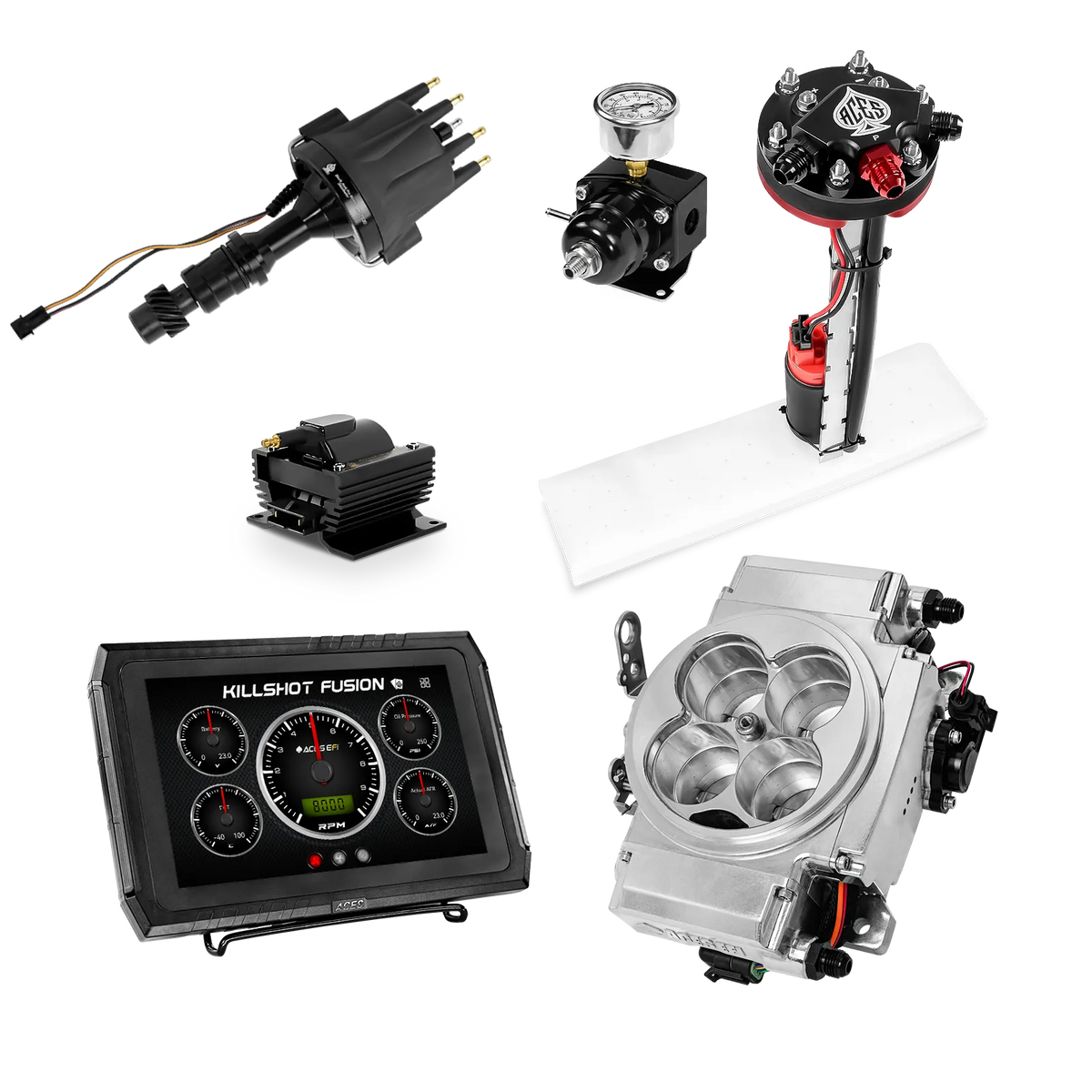

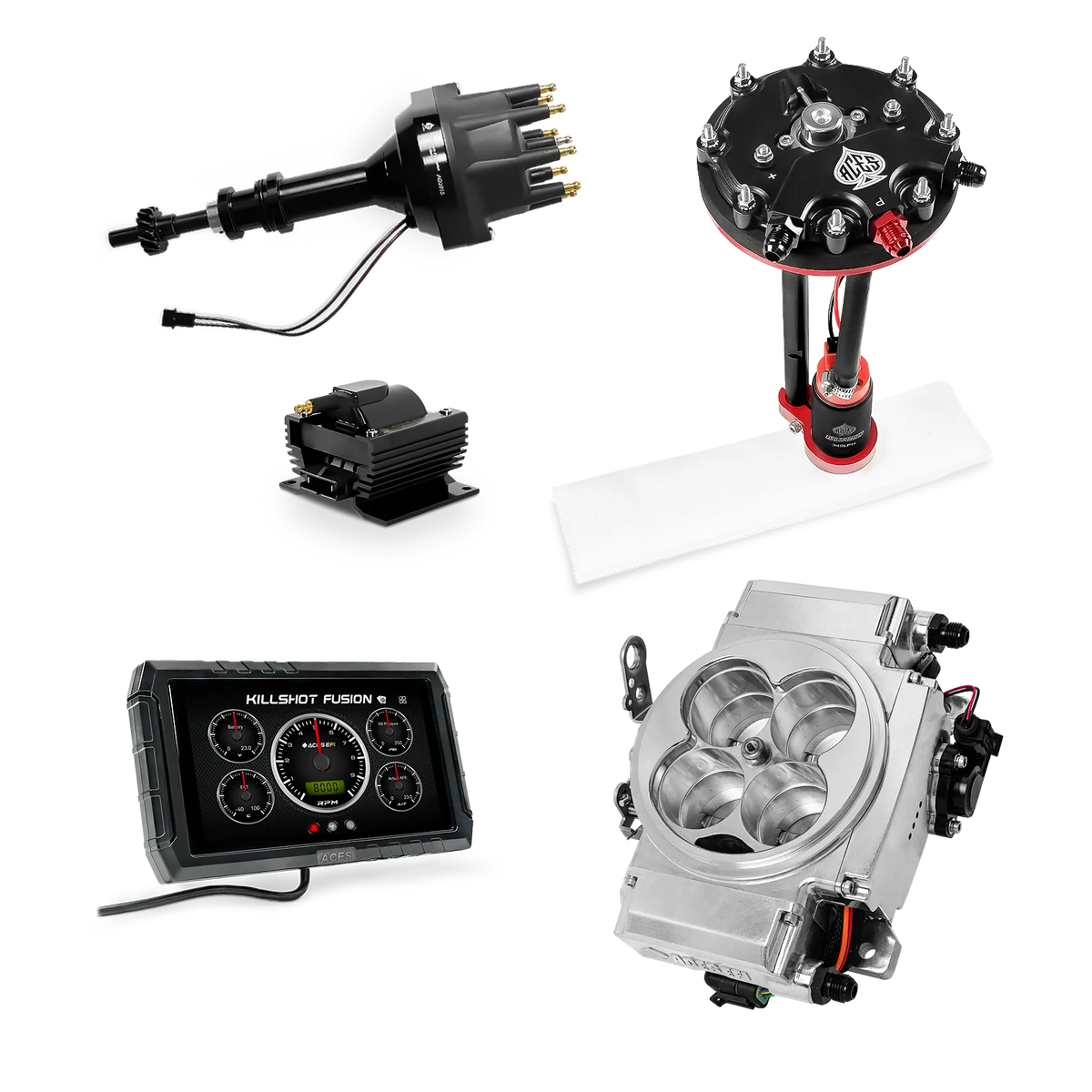

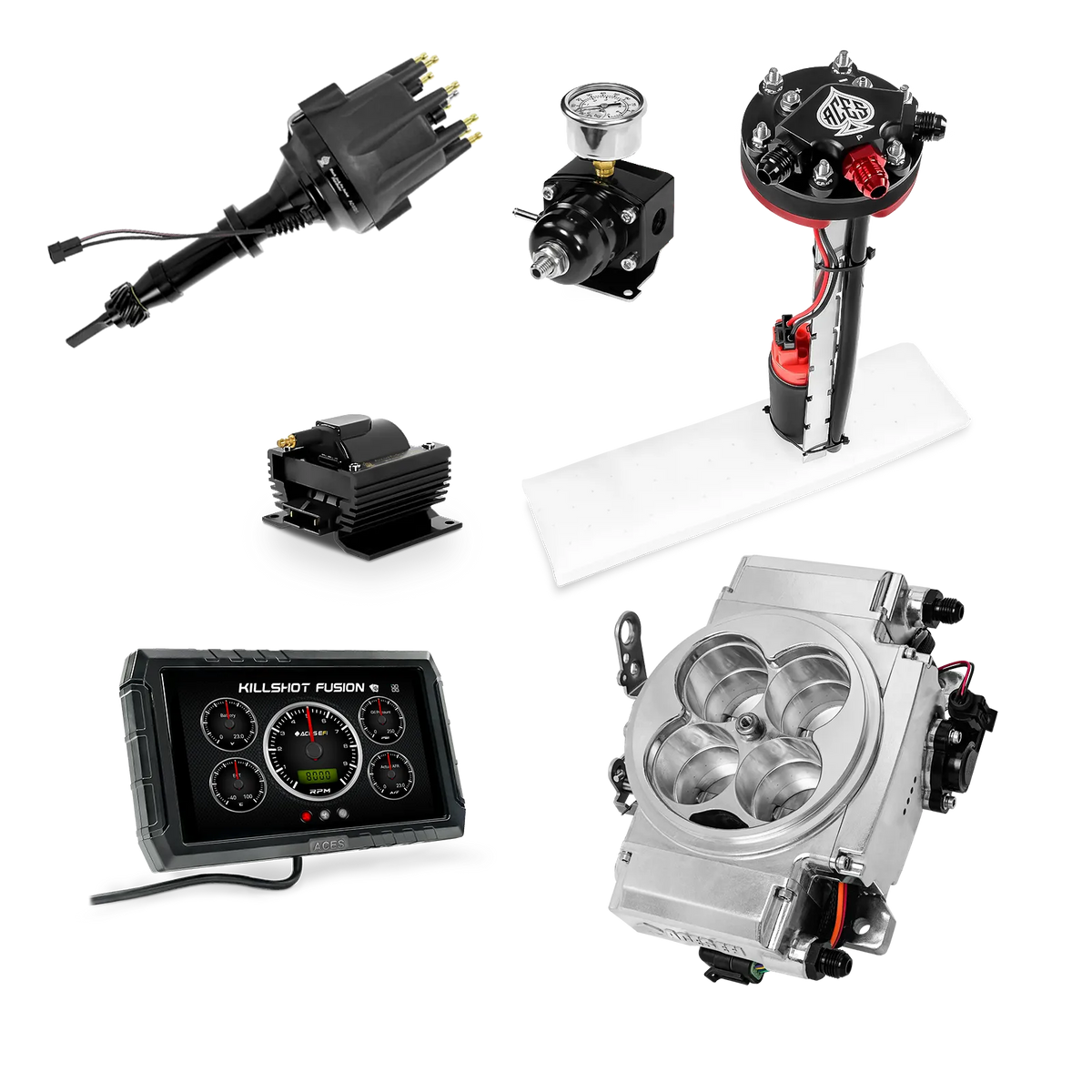

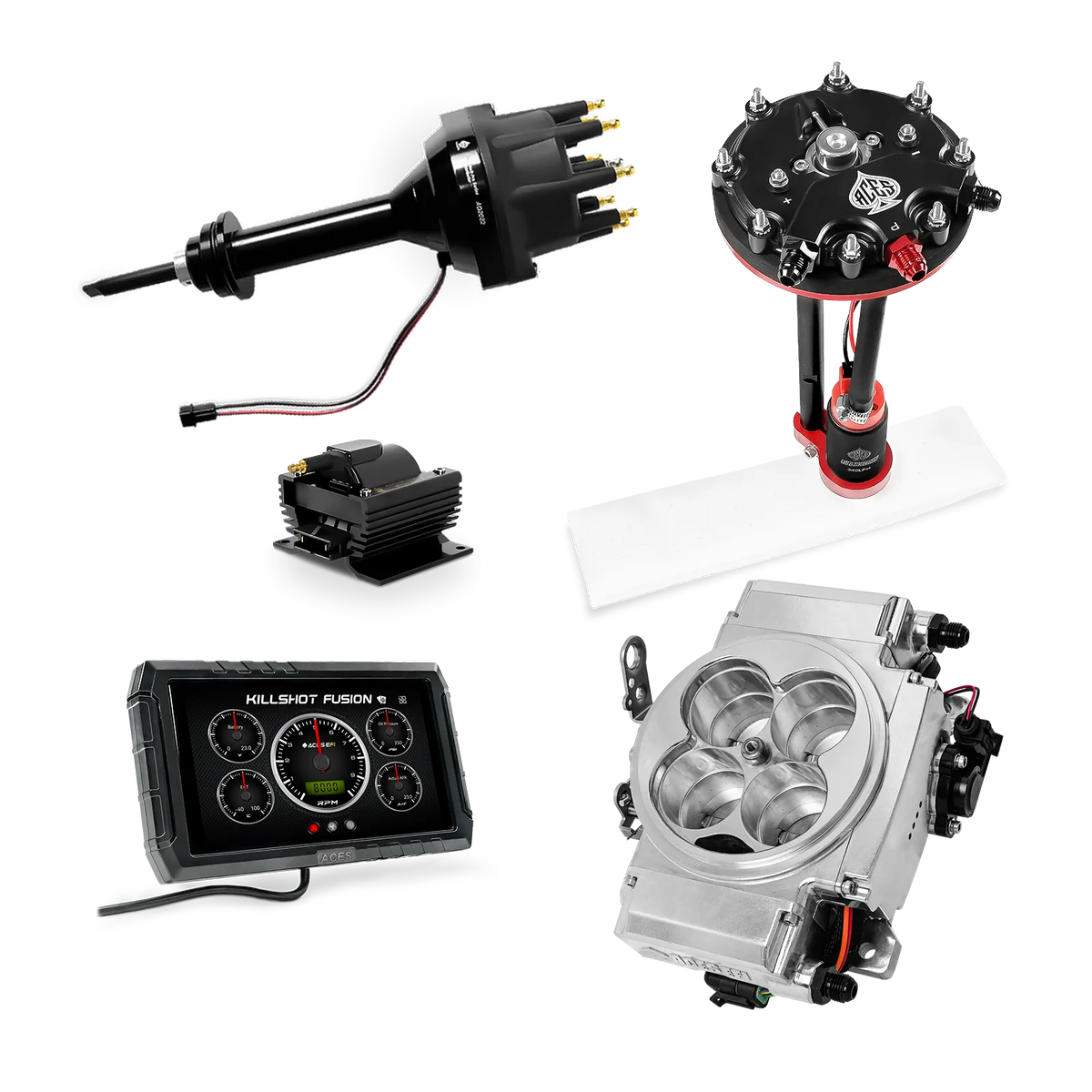

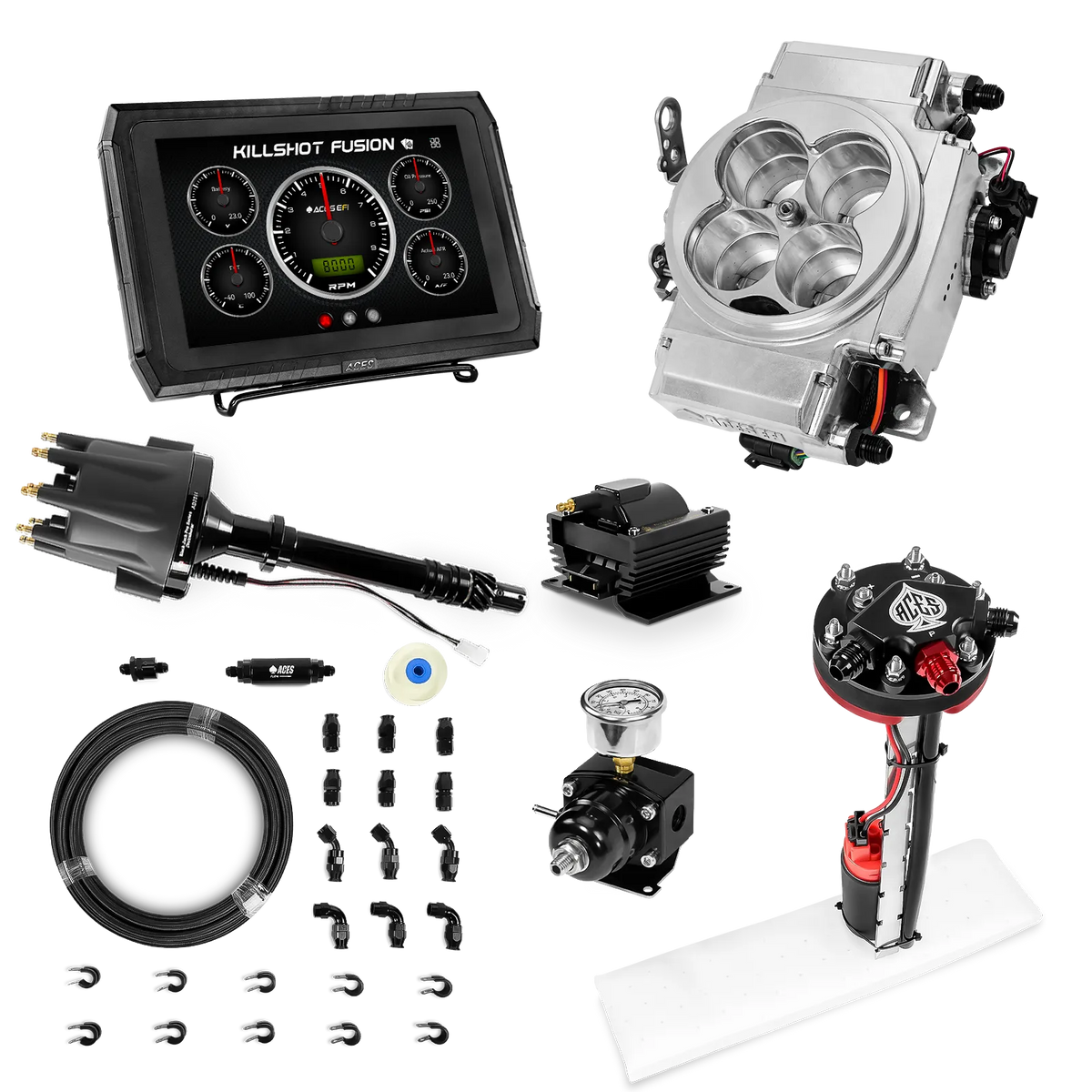

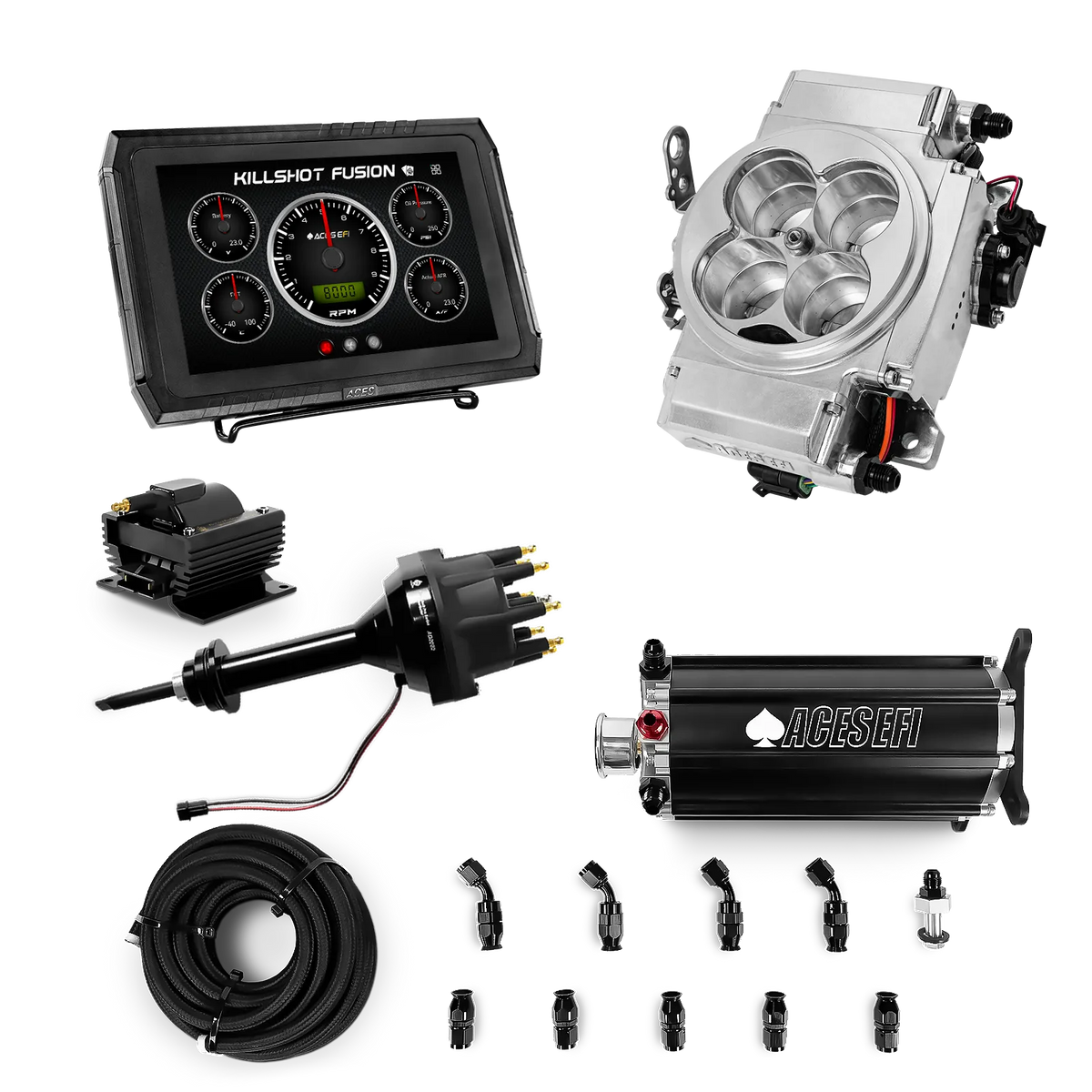

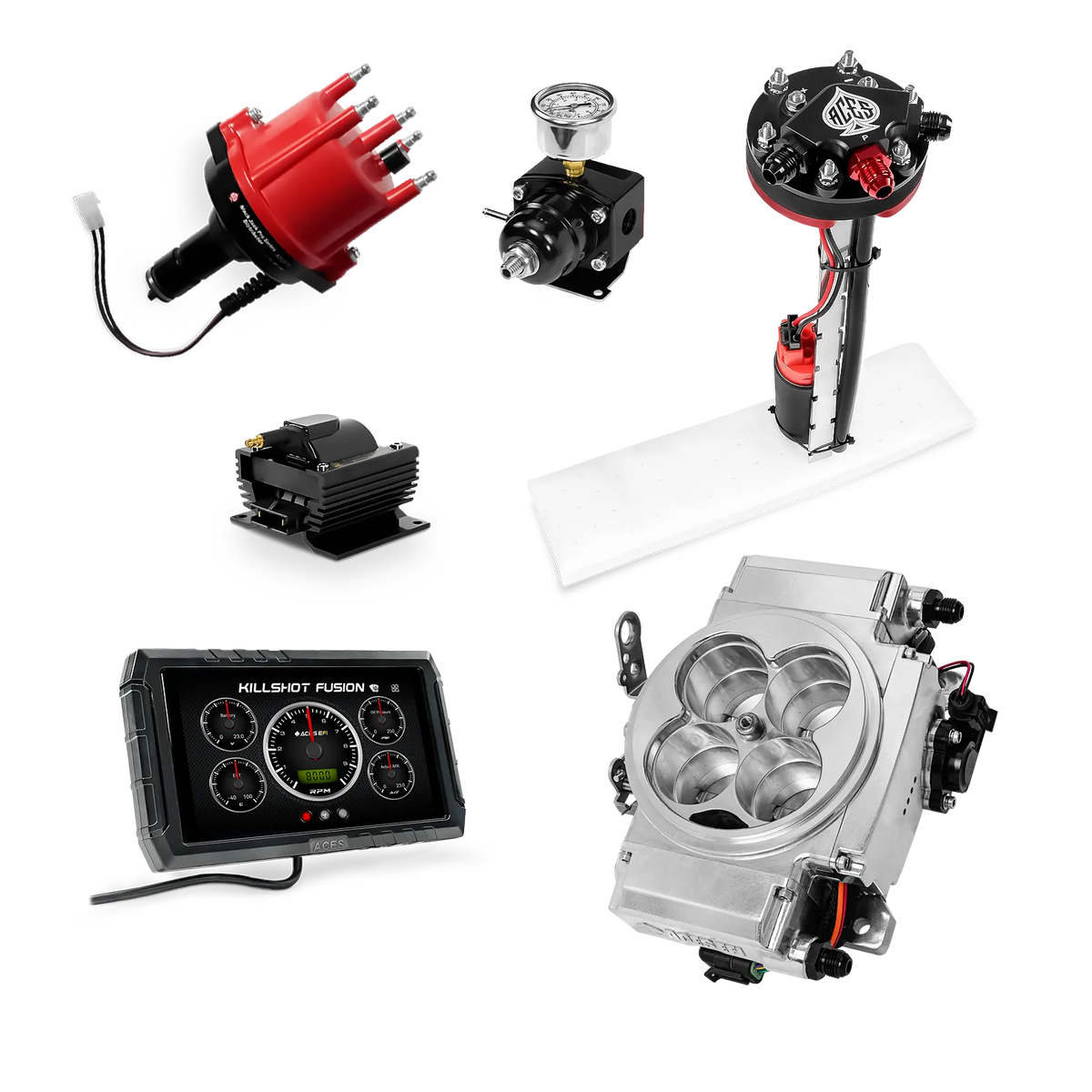

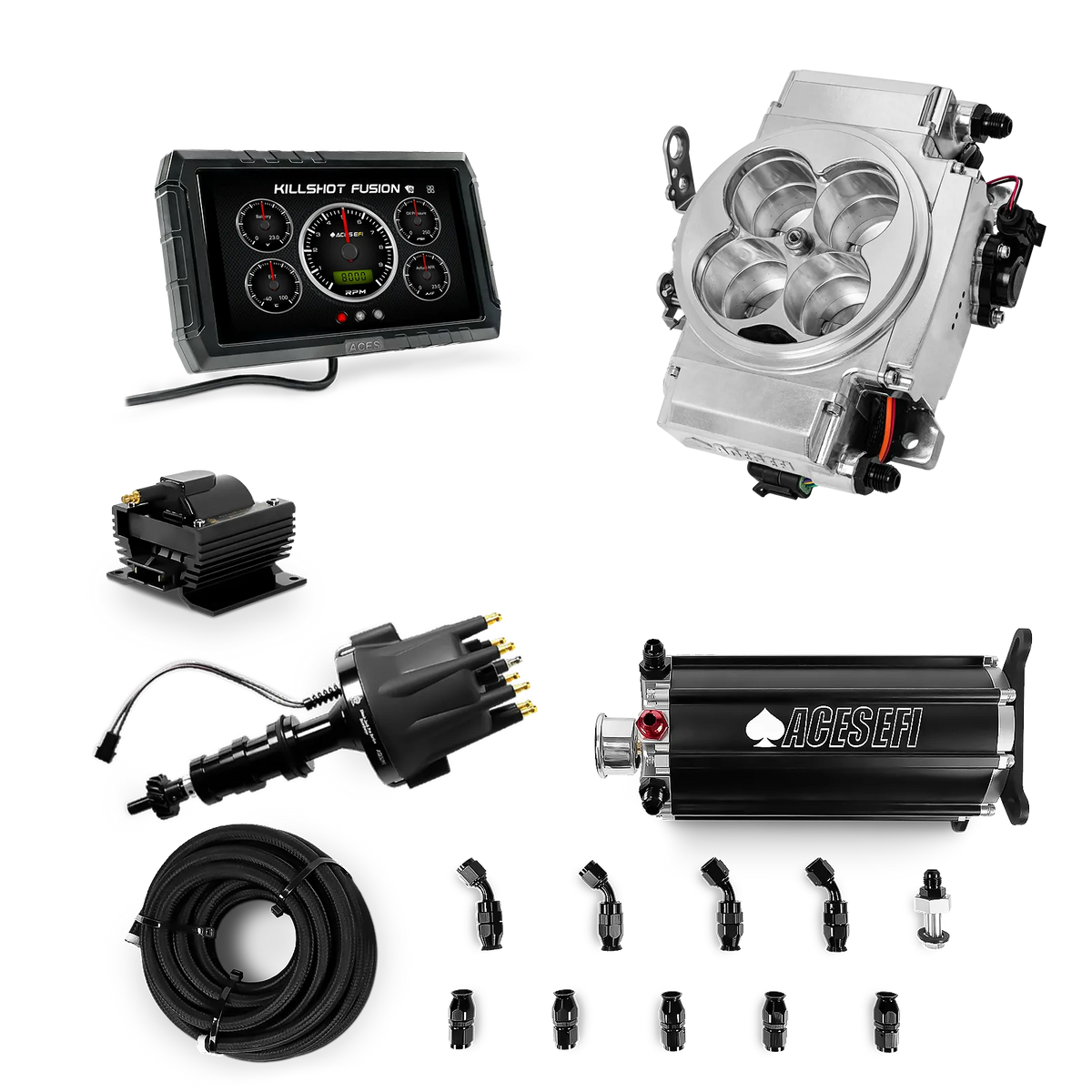

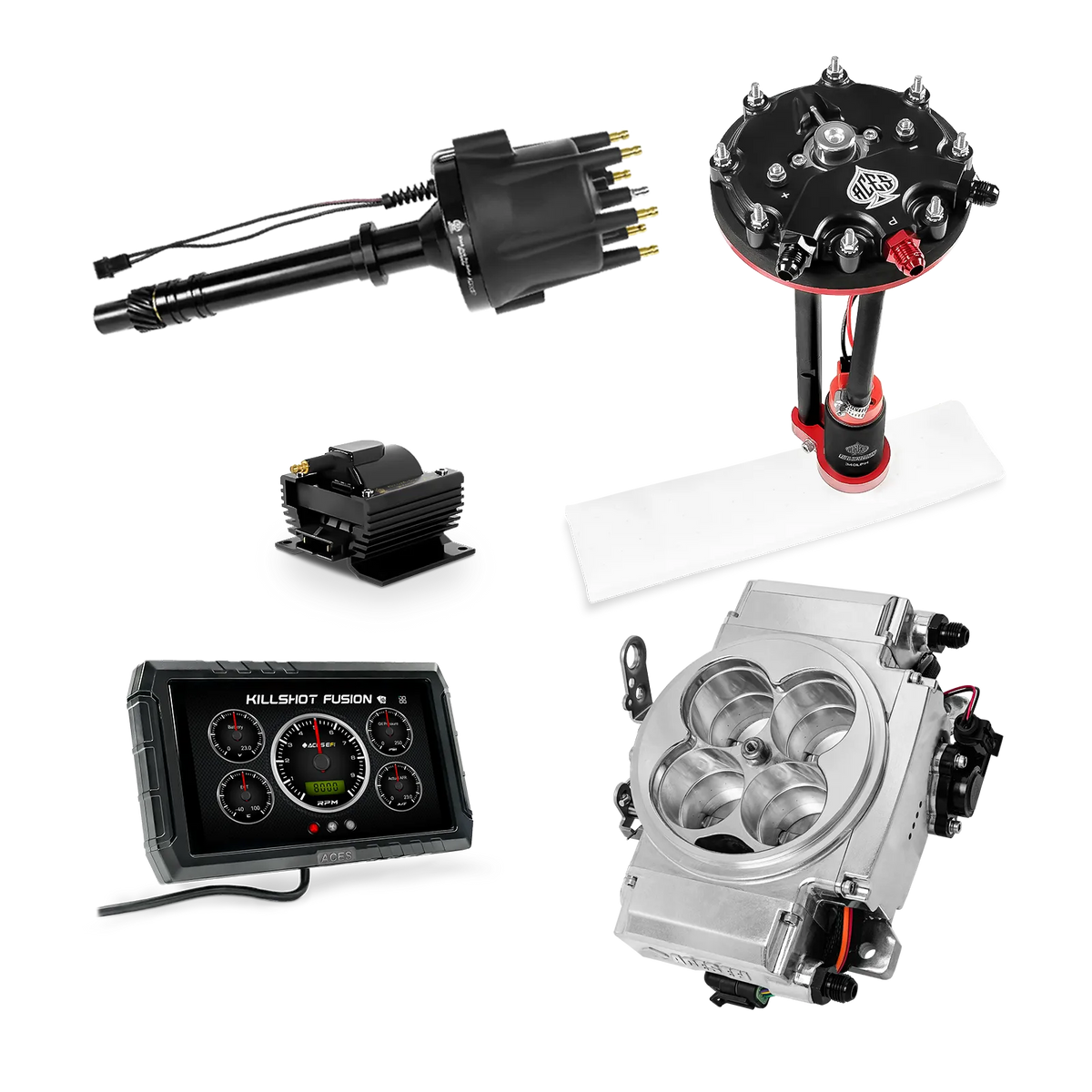

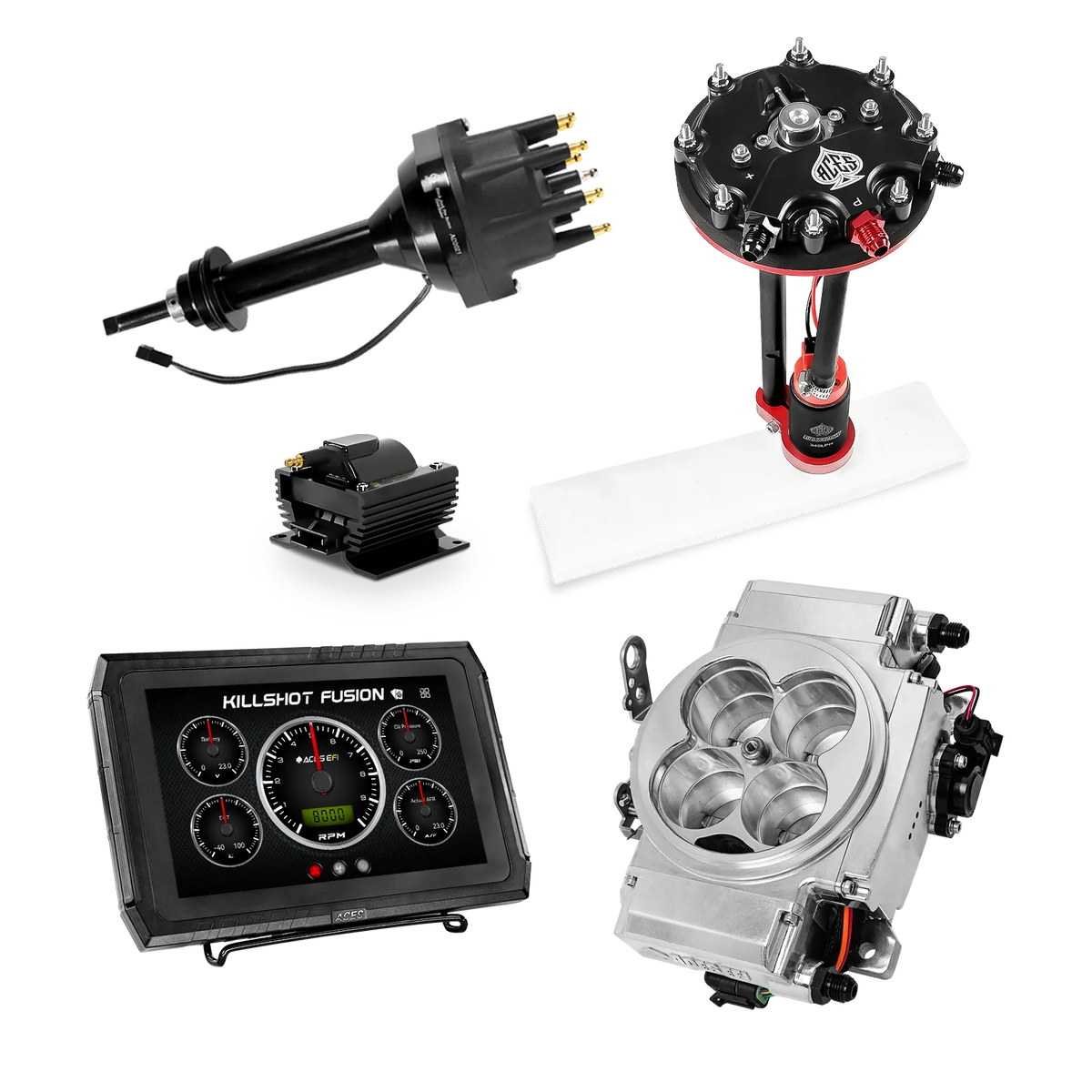

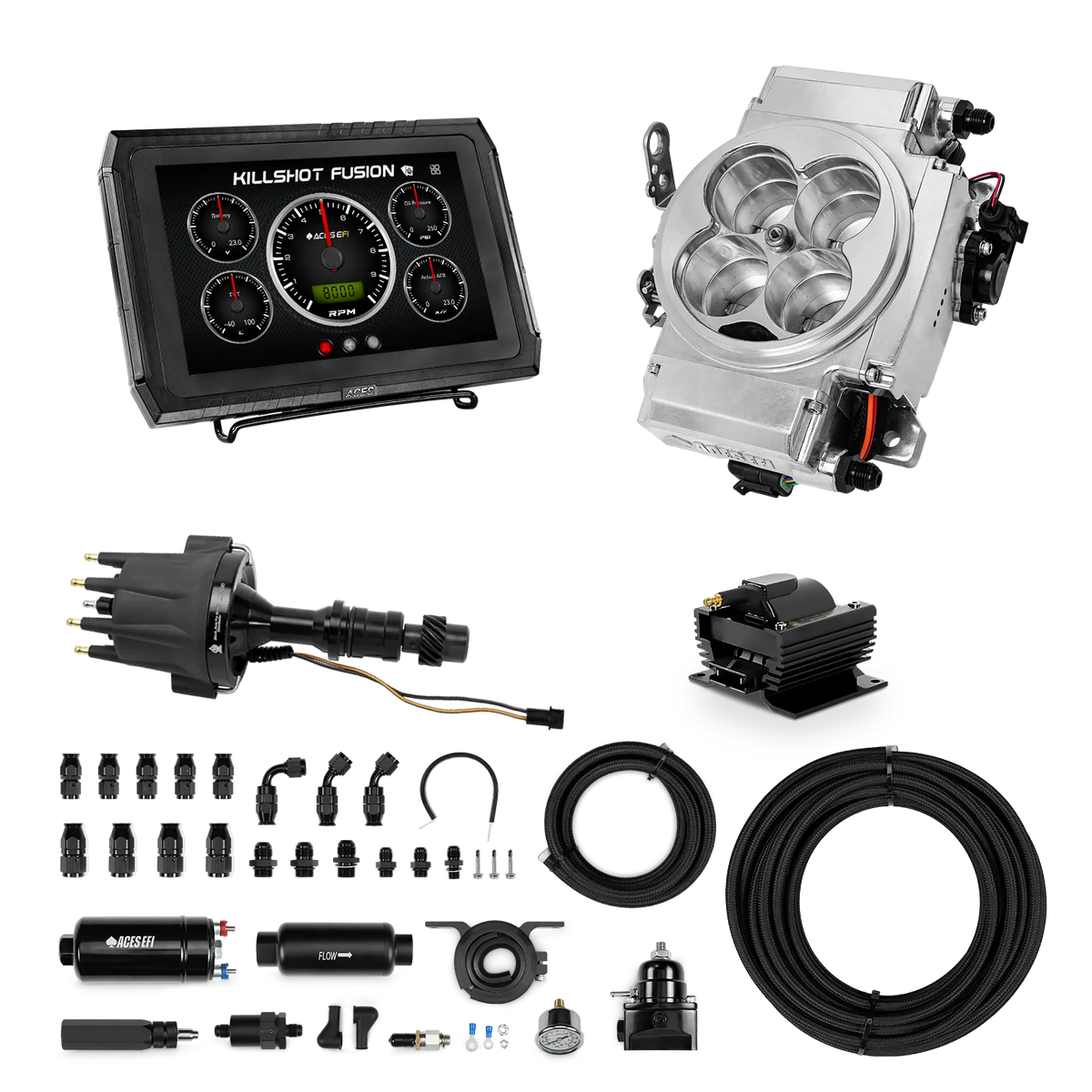

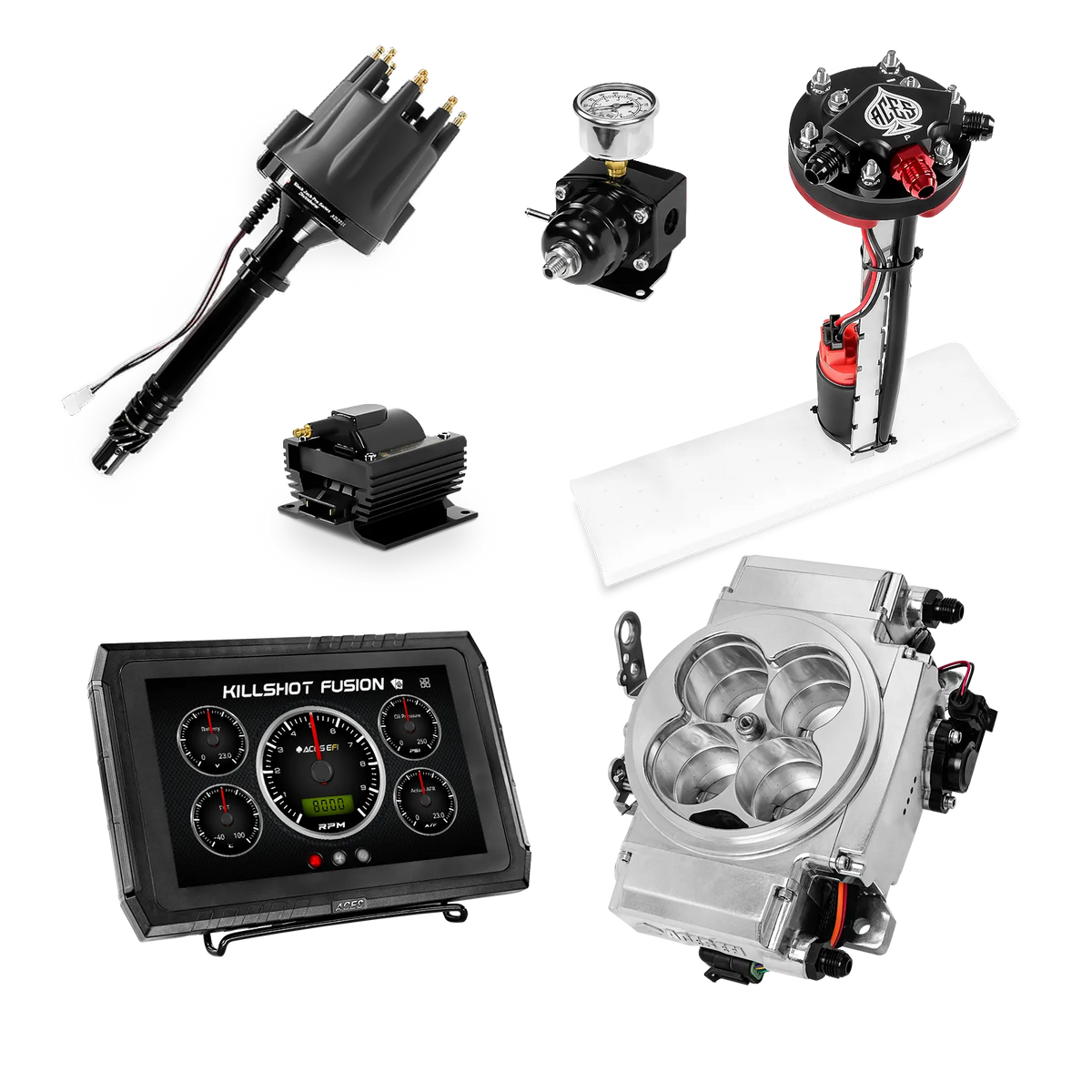

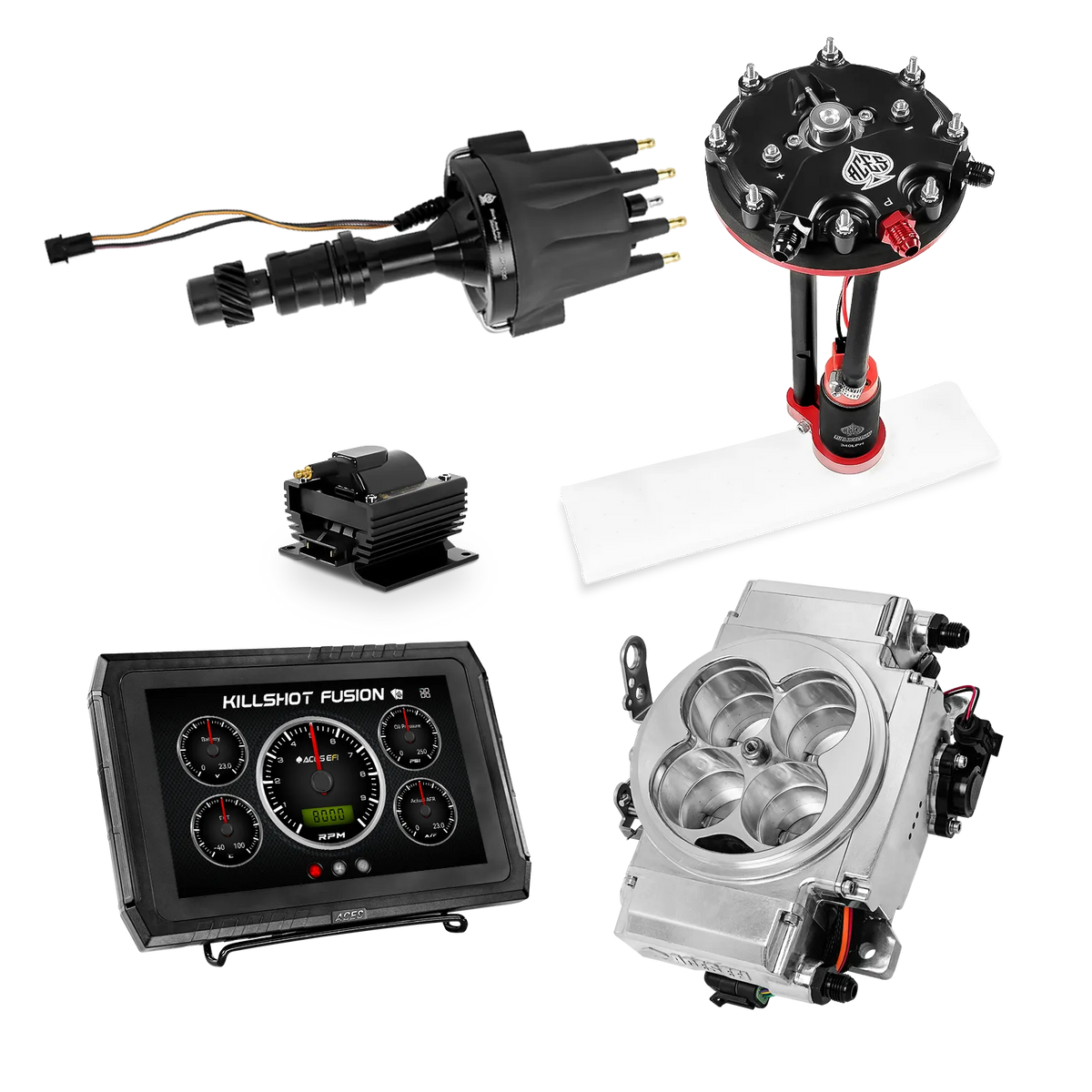

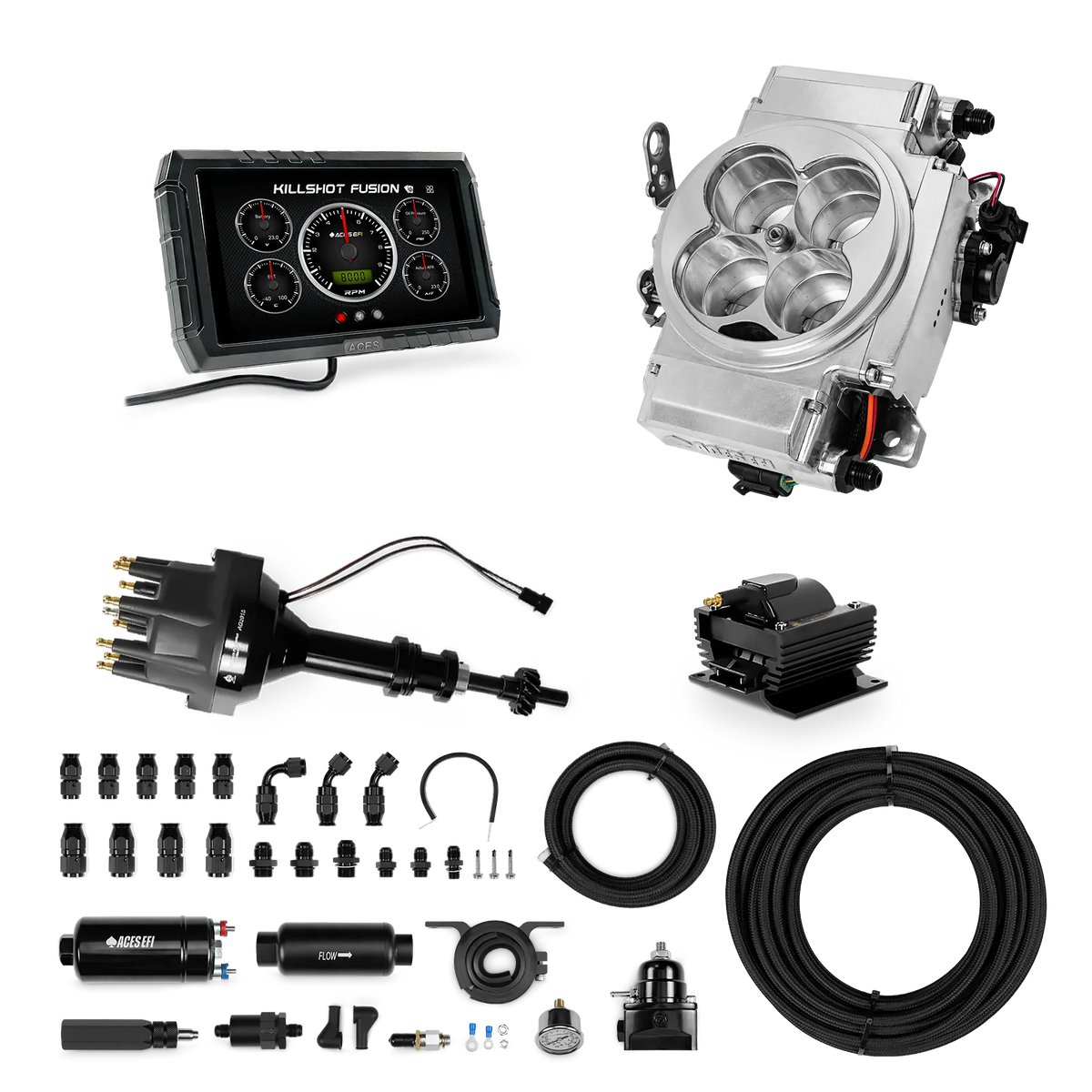

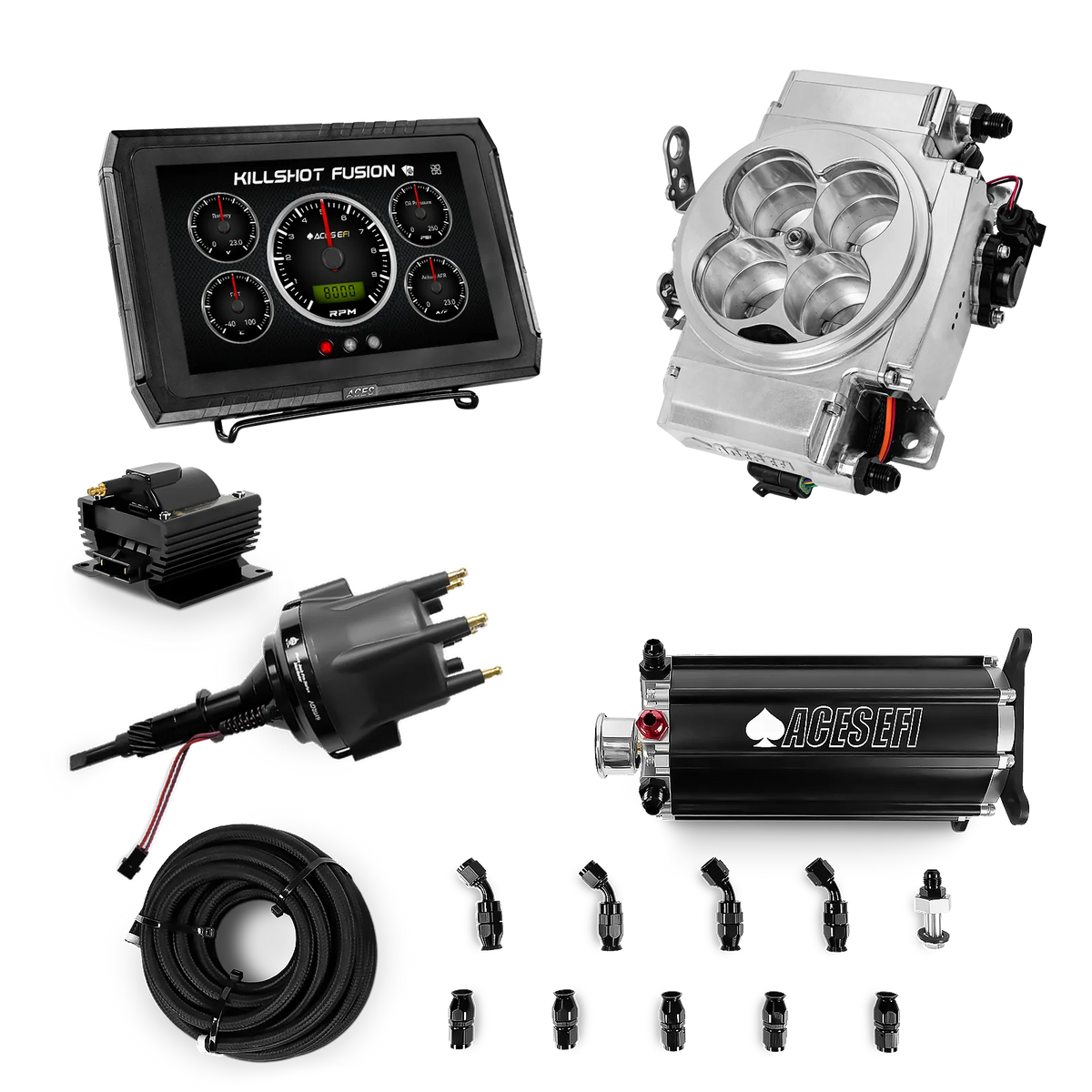

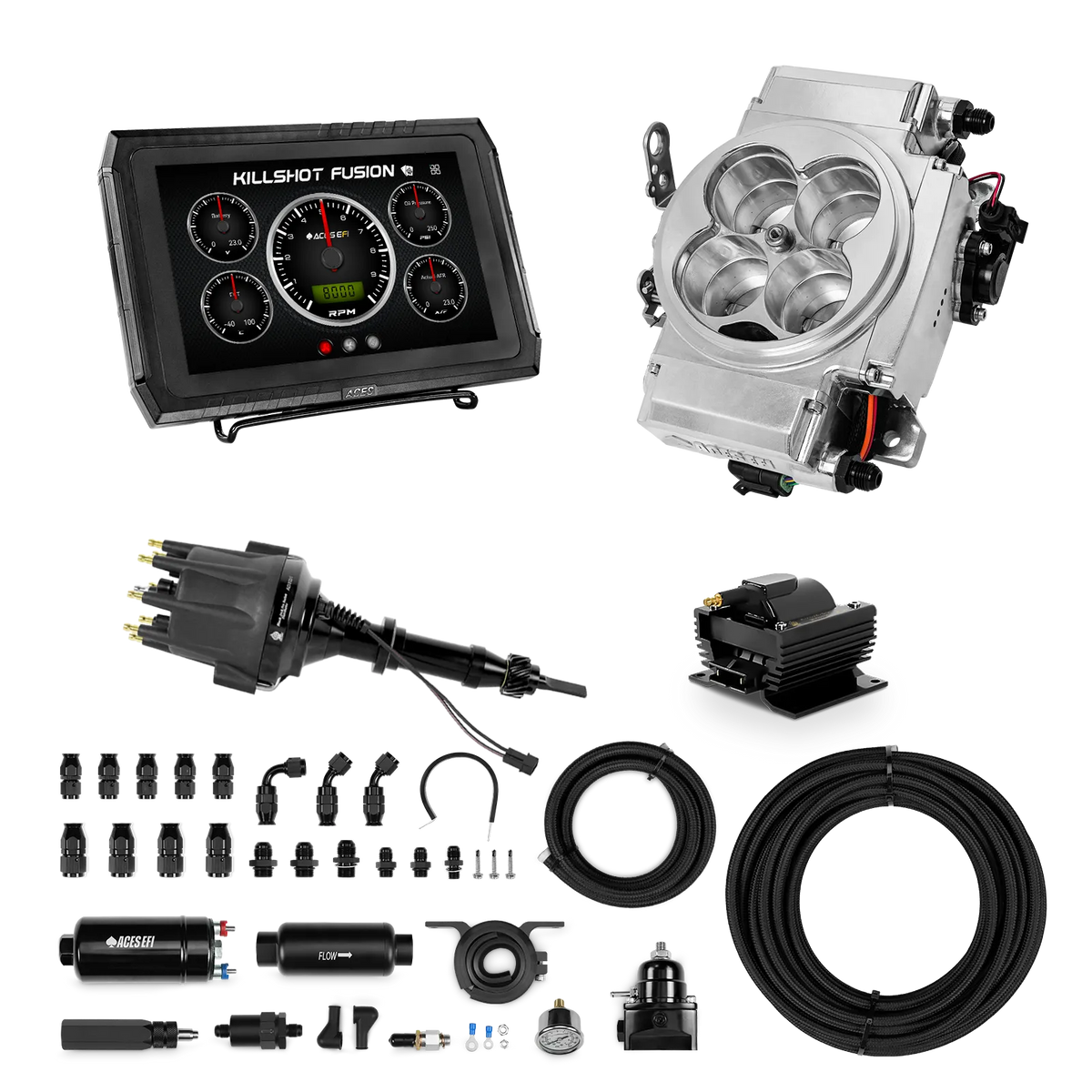

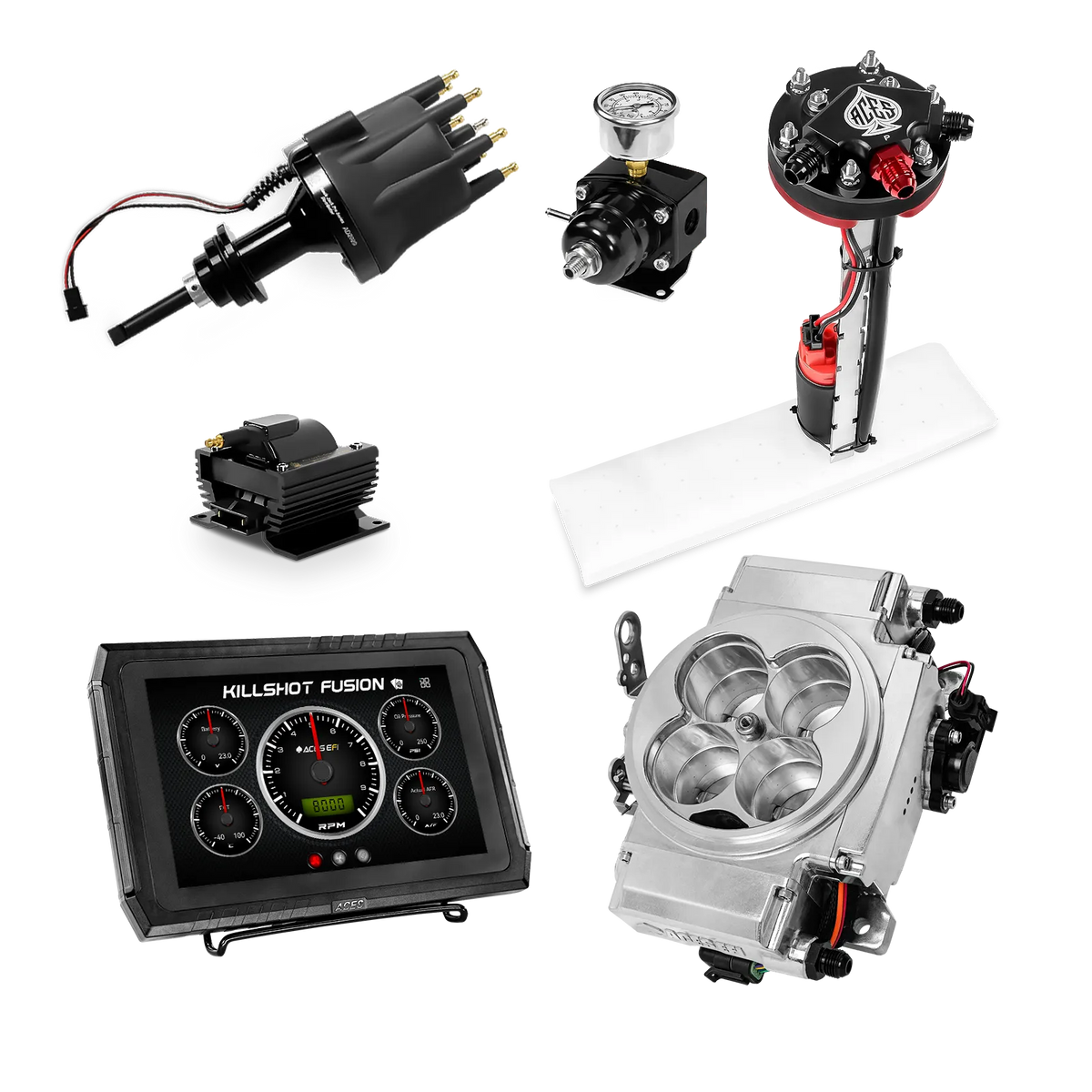

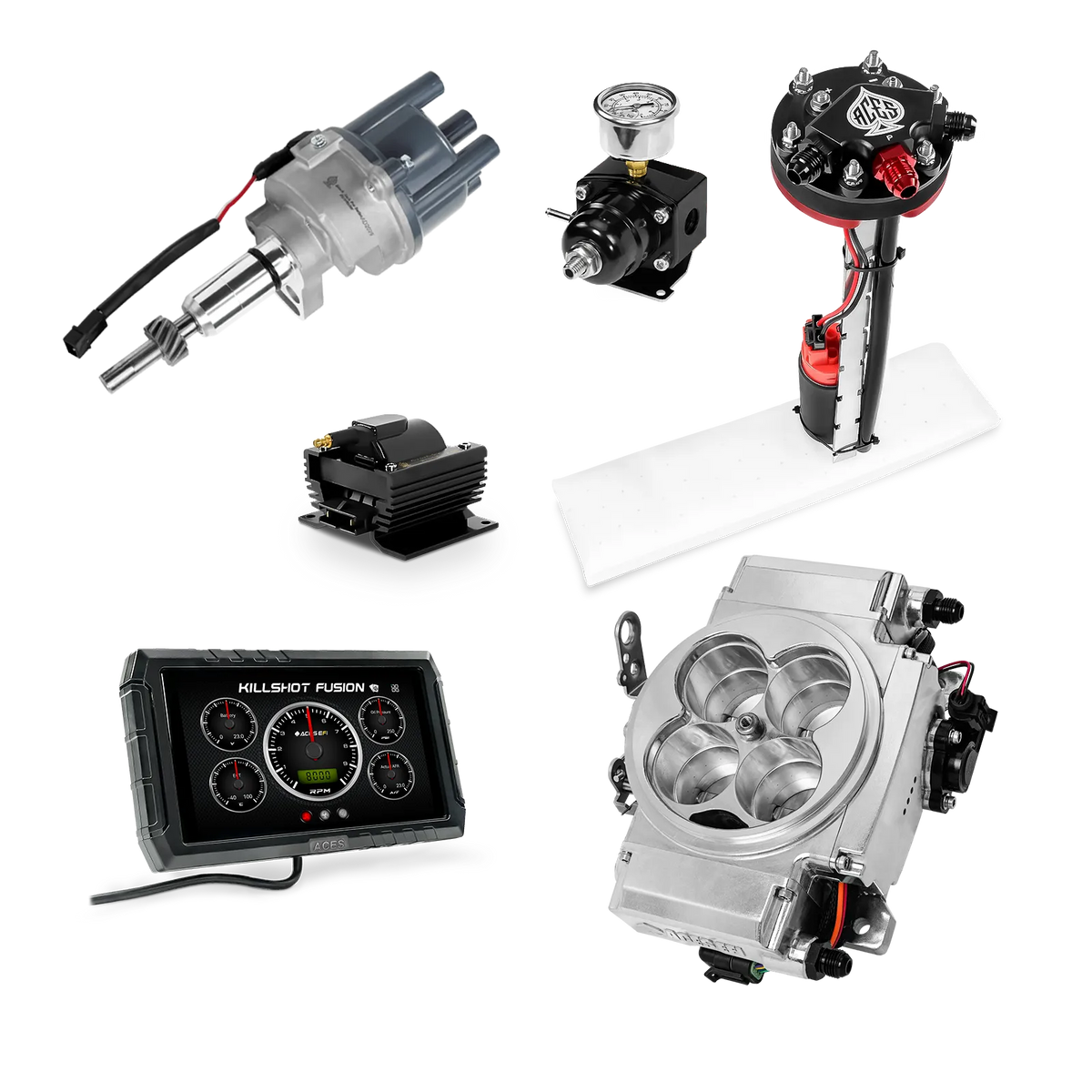

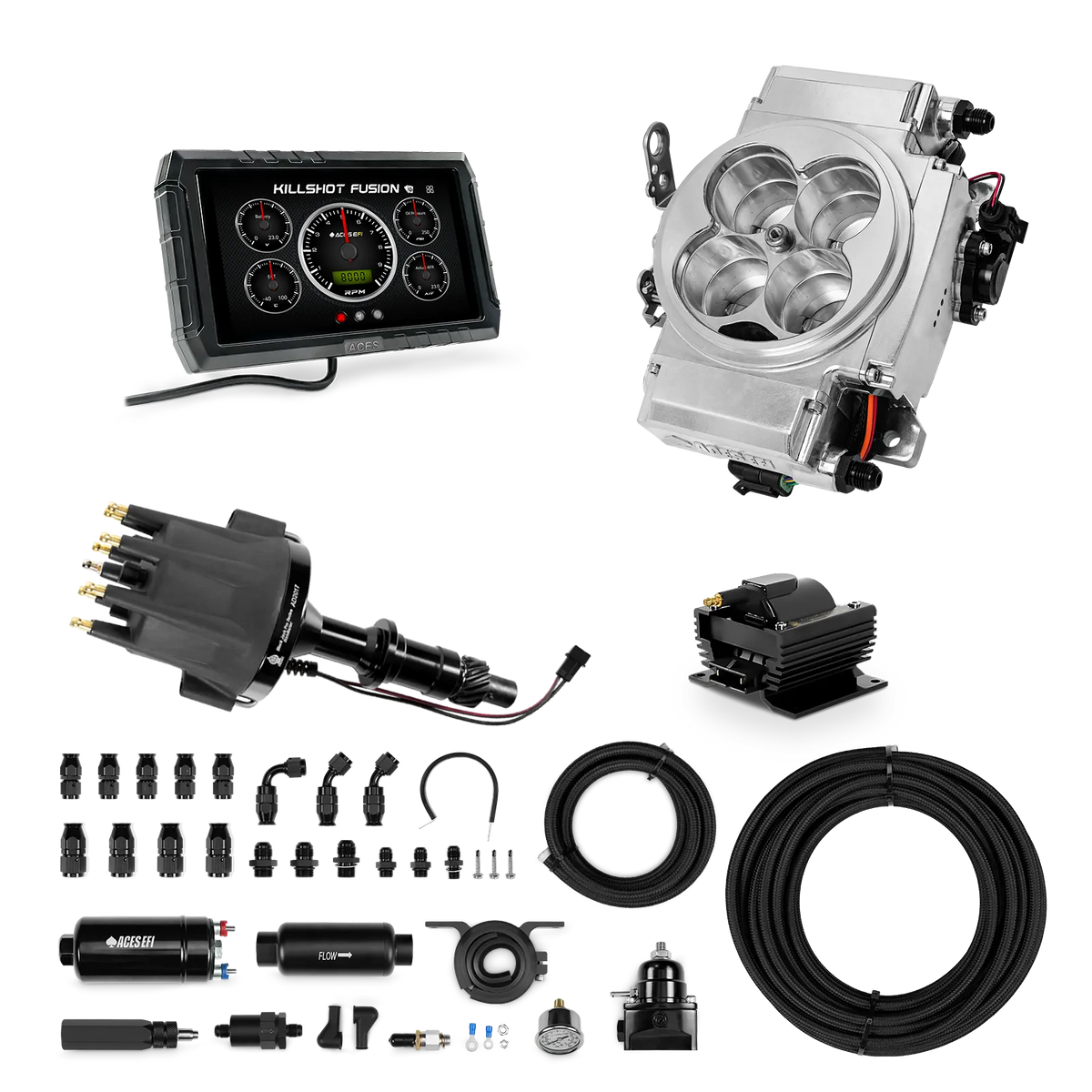

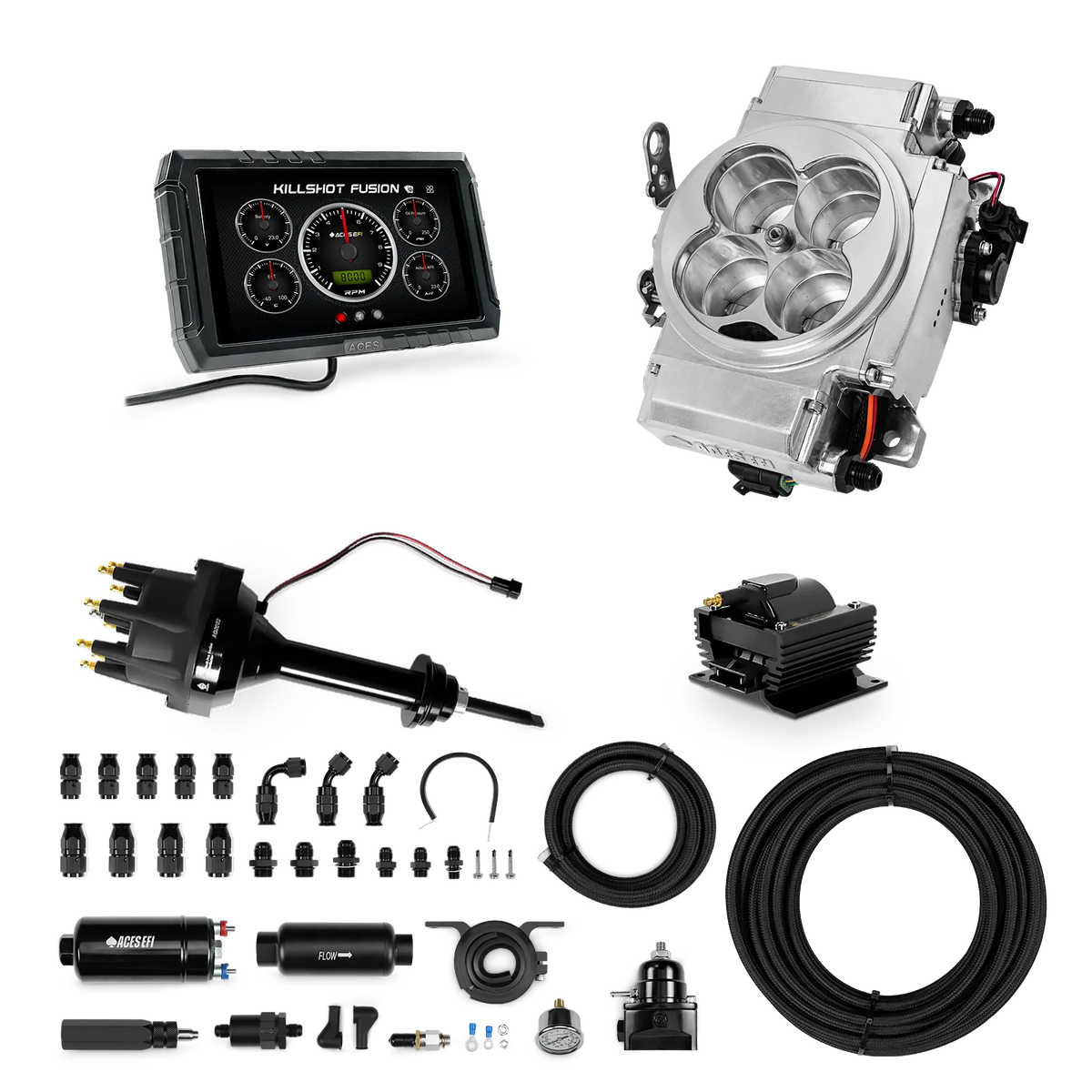

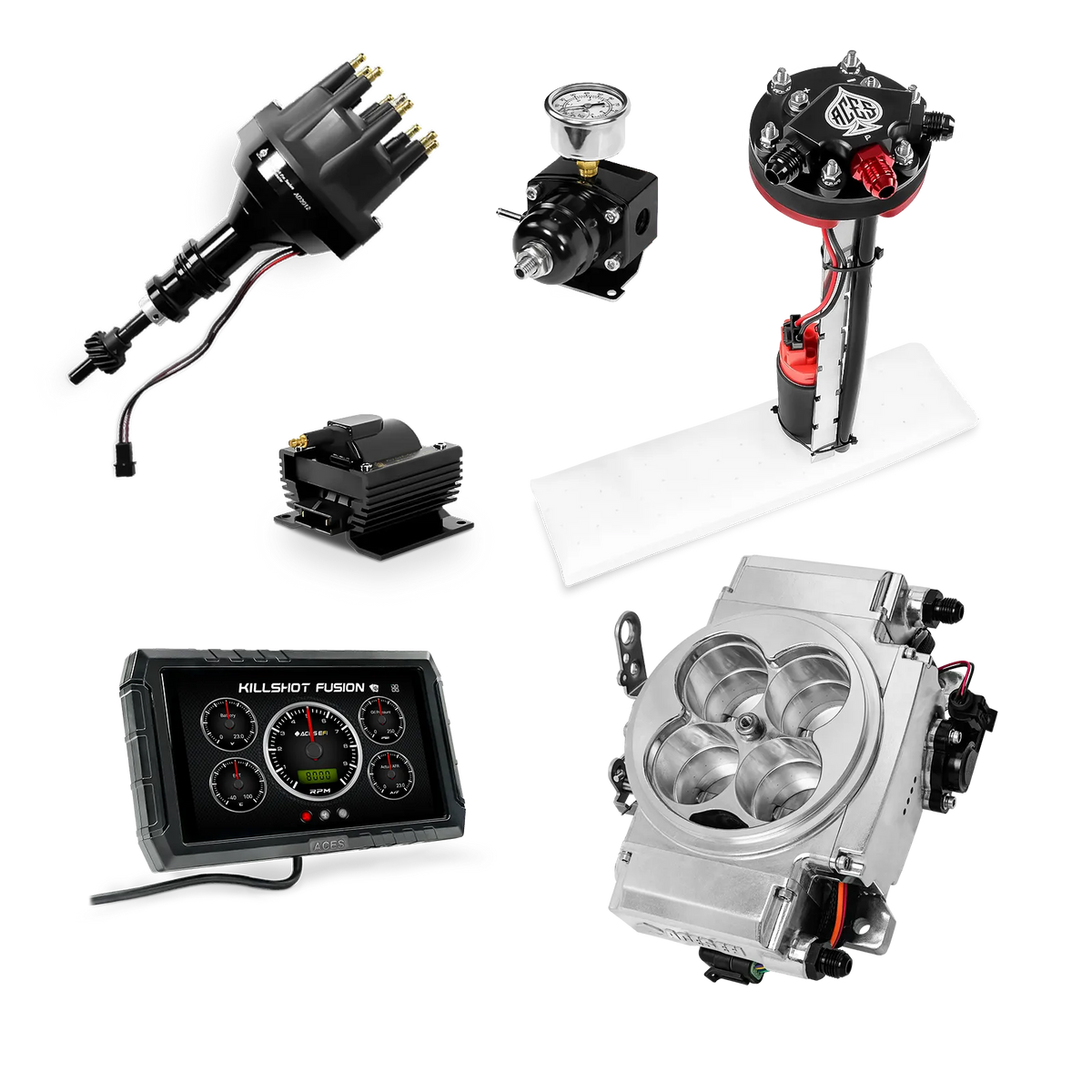

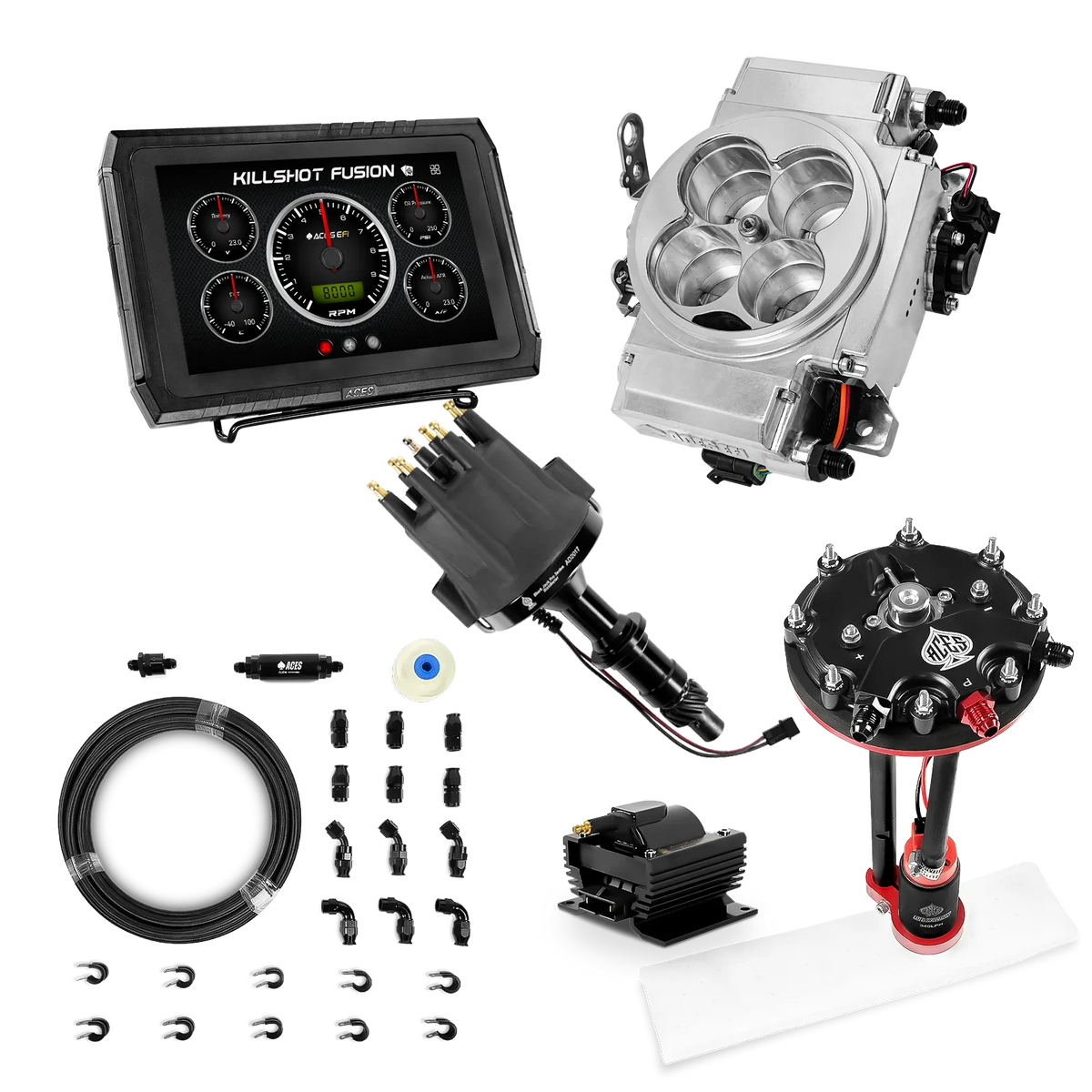

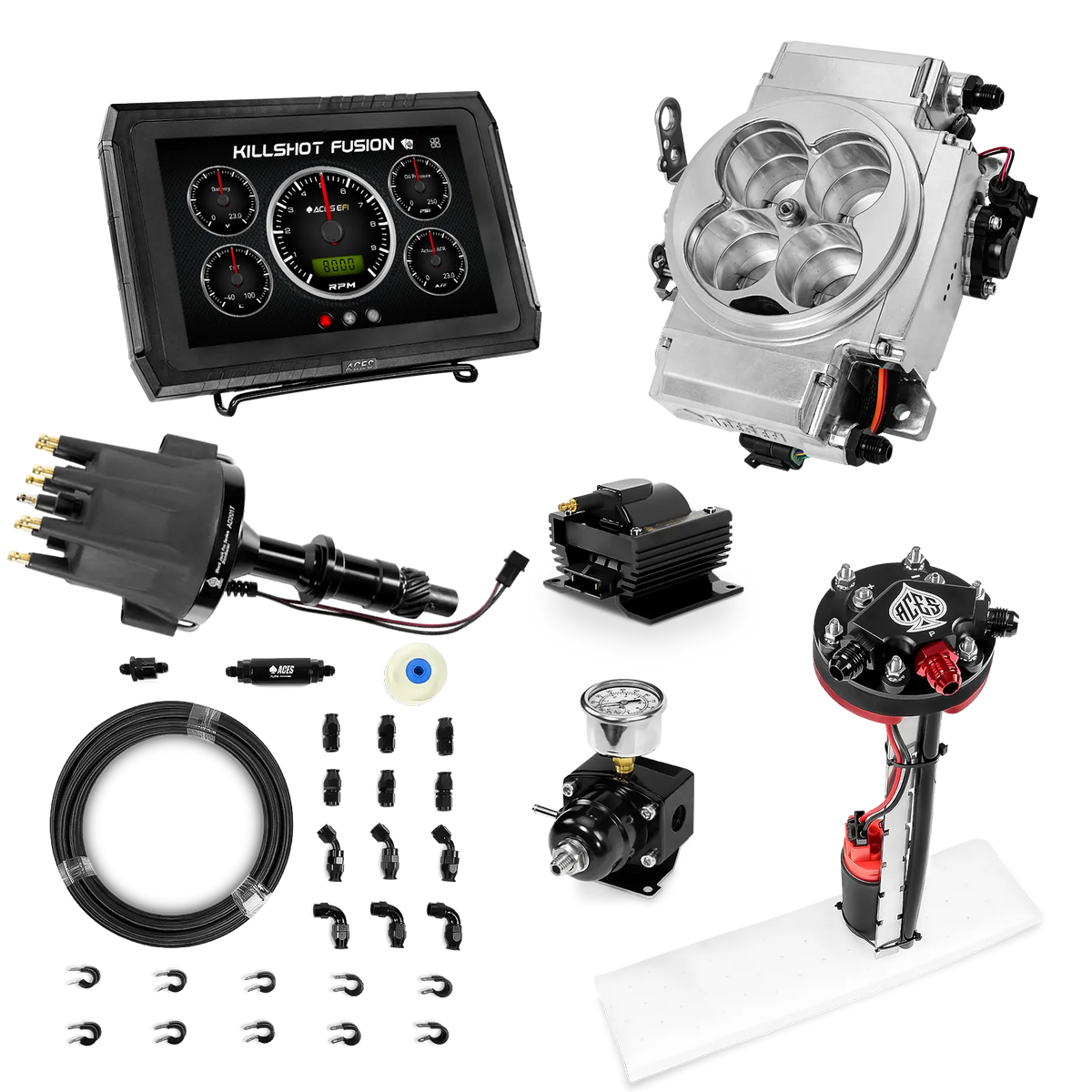

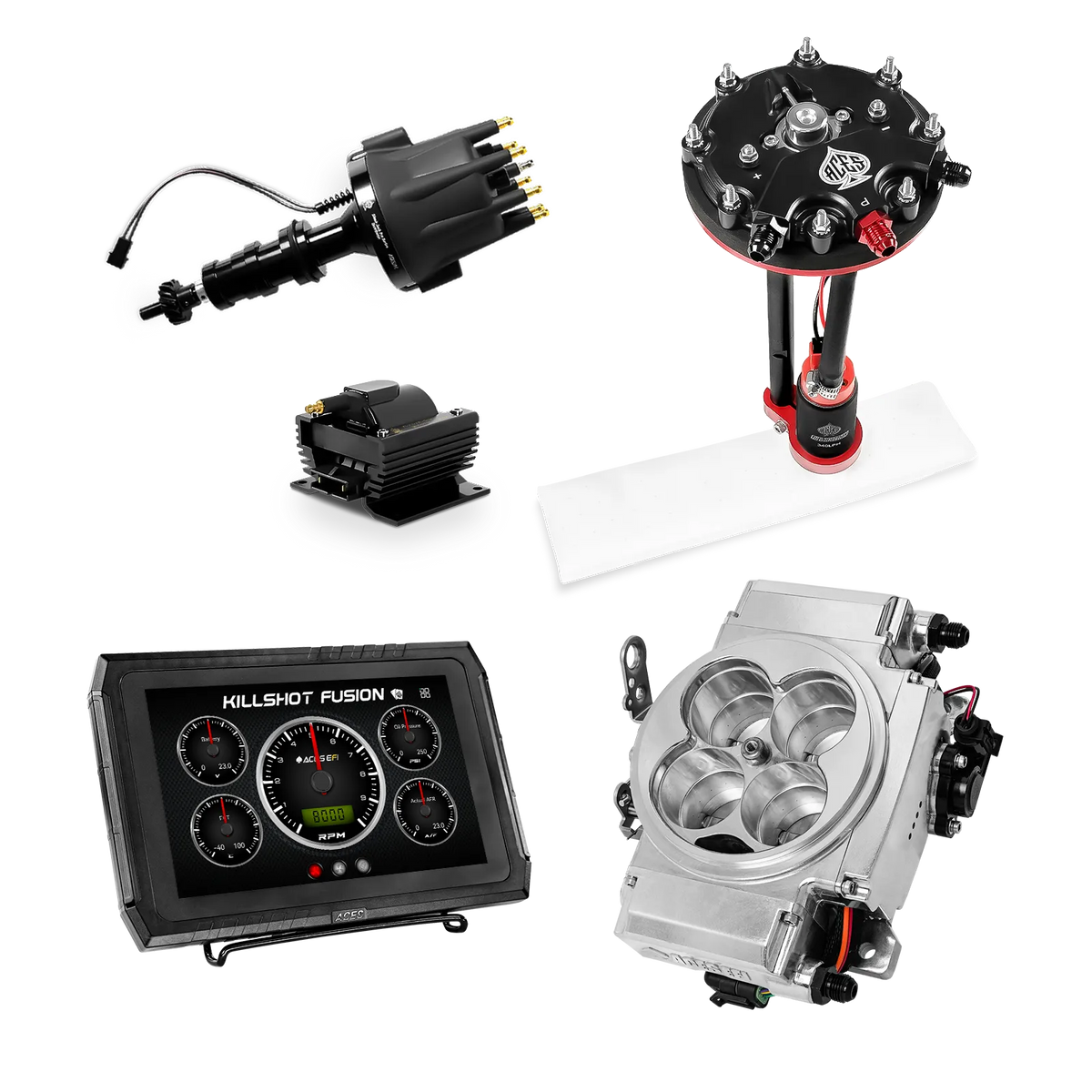

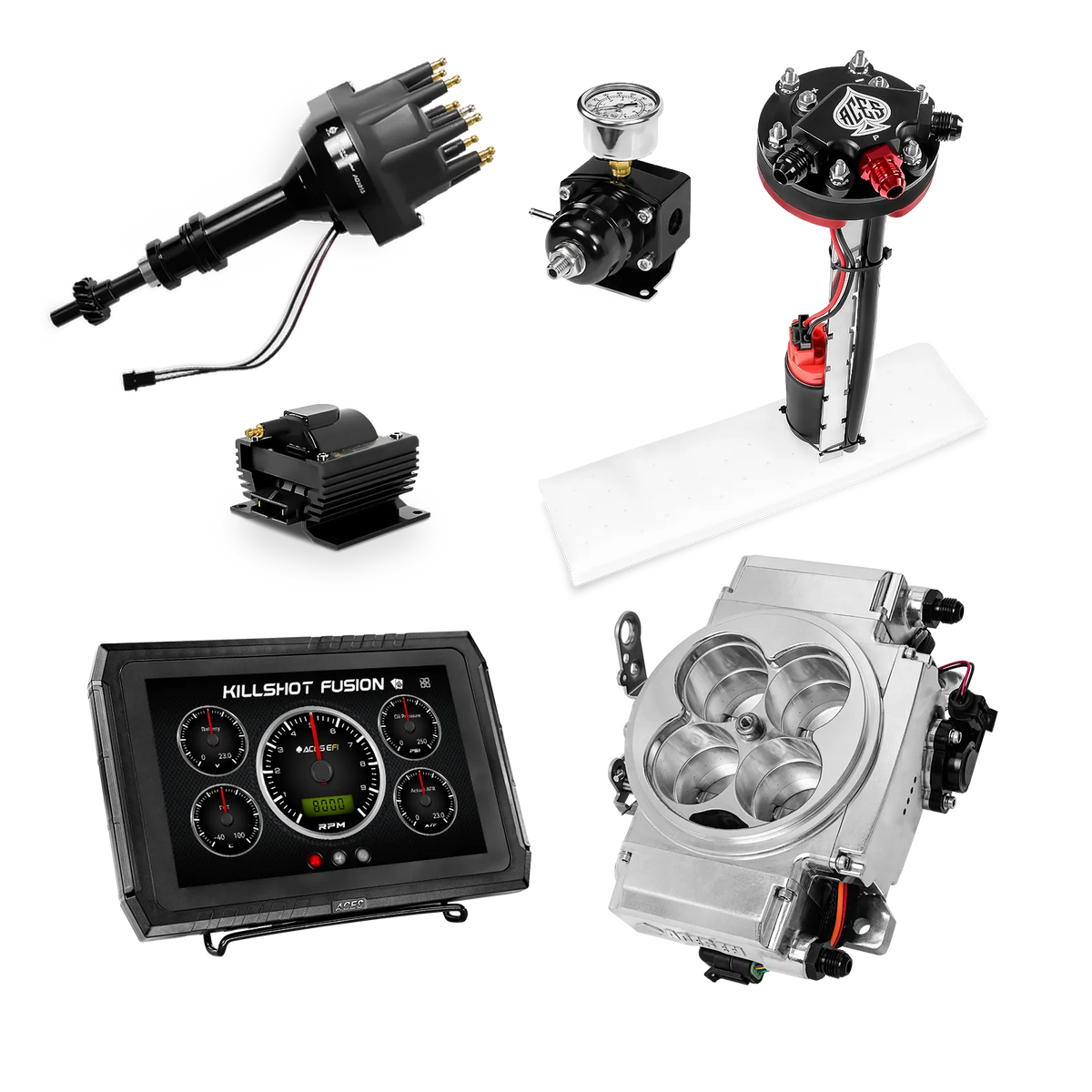

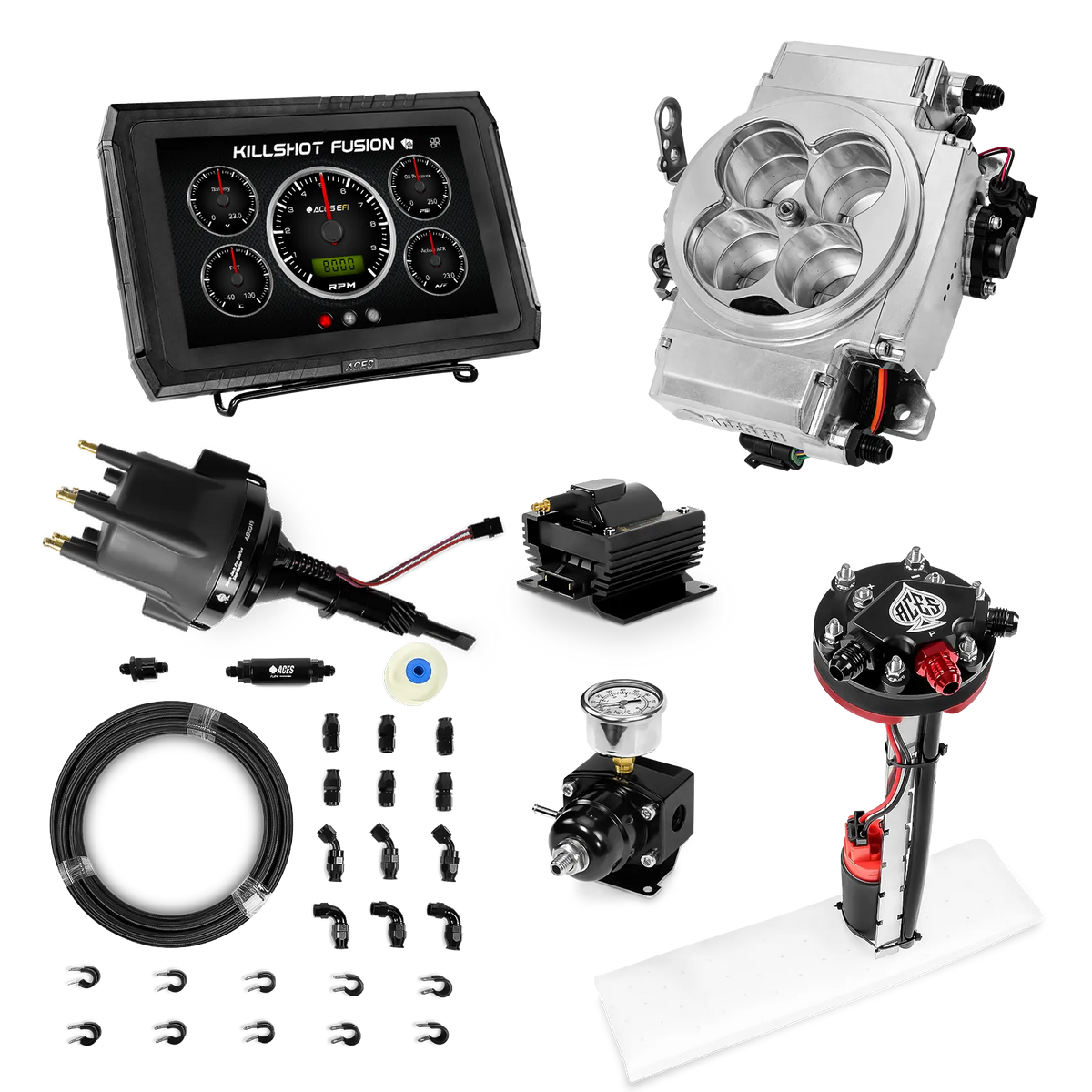

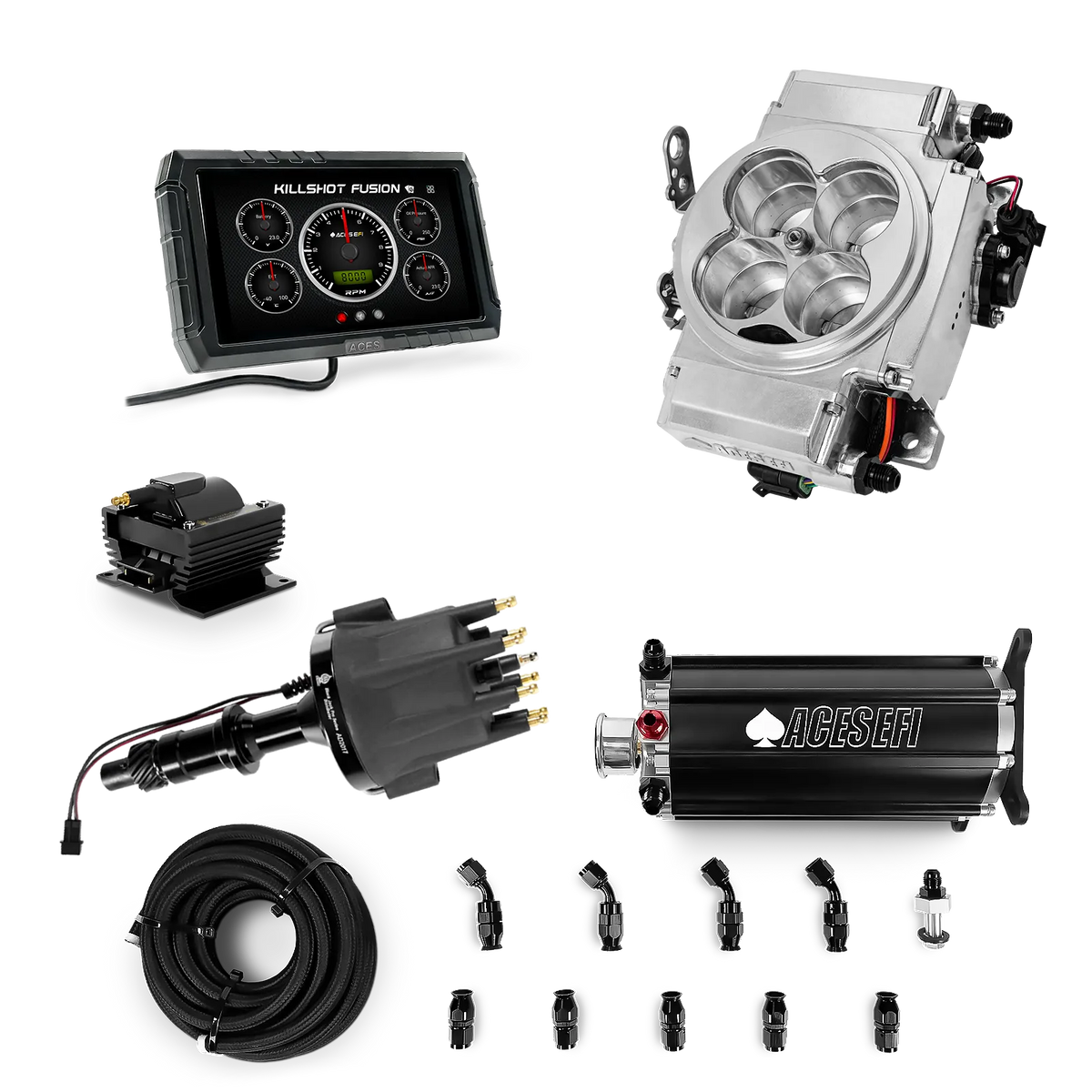

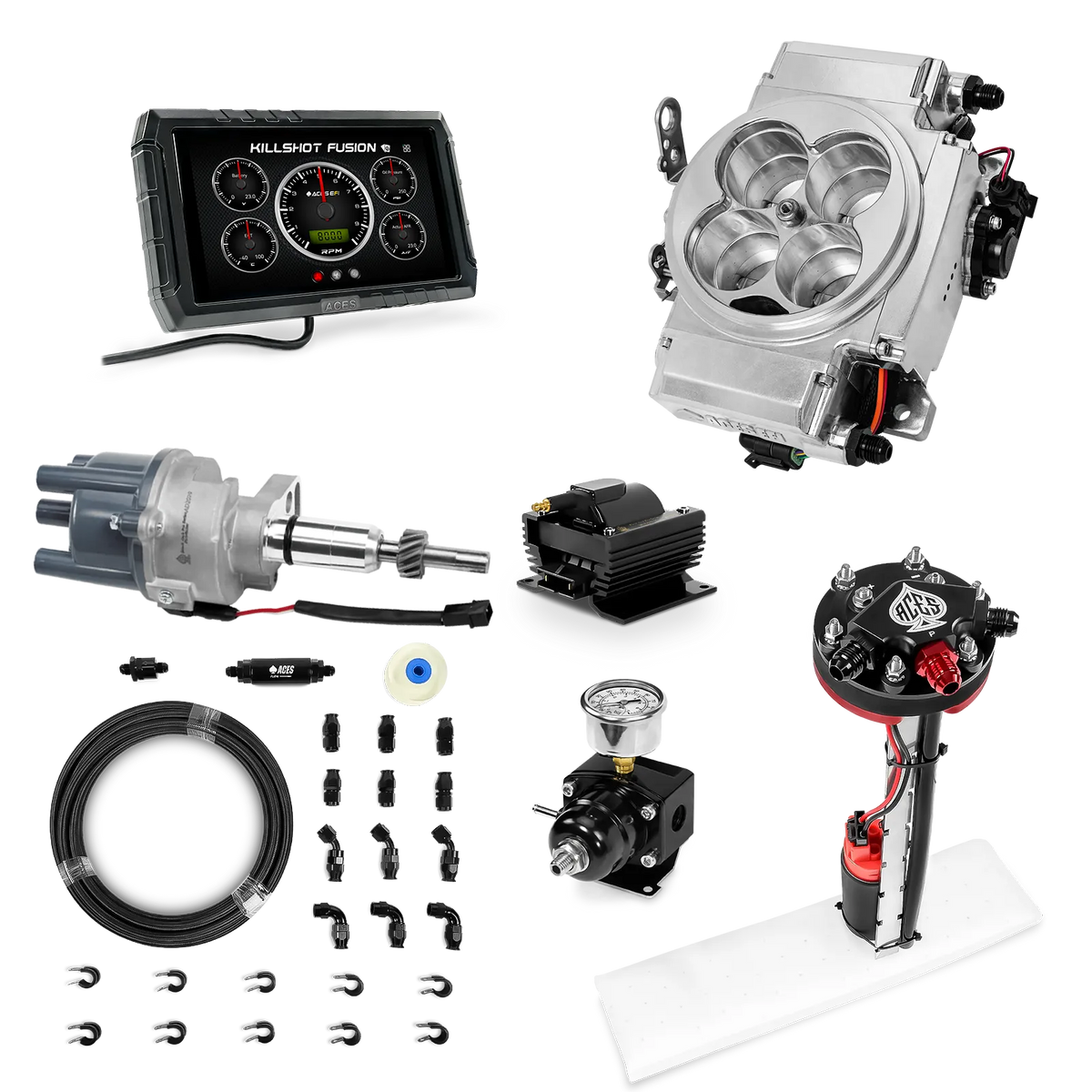

Kits maestros de fusión Killshot
Must select 5" Handheld variant to get the free gifts
3-Year Warranty
30-Day Returns
Secure Payment
- Self-learning fuel control with full laptop tunability
- Integrated 32-bit automotive-grade ECU
- Engineered to withstand underhood heat, vibration, and electromagnetic interference
- Clean installation with no separately mounted ECU
- Four 100 lb/hr fuel injectors
- Supports up to 650 naturally aspirated horsepower
- Boost compatible
- Dual electric fan control
- Two-stage rev limiter
- 10 × 14 VE, fuel, and spark tables
Product Info
Overview

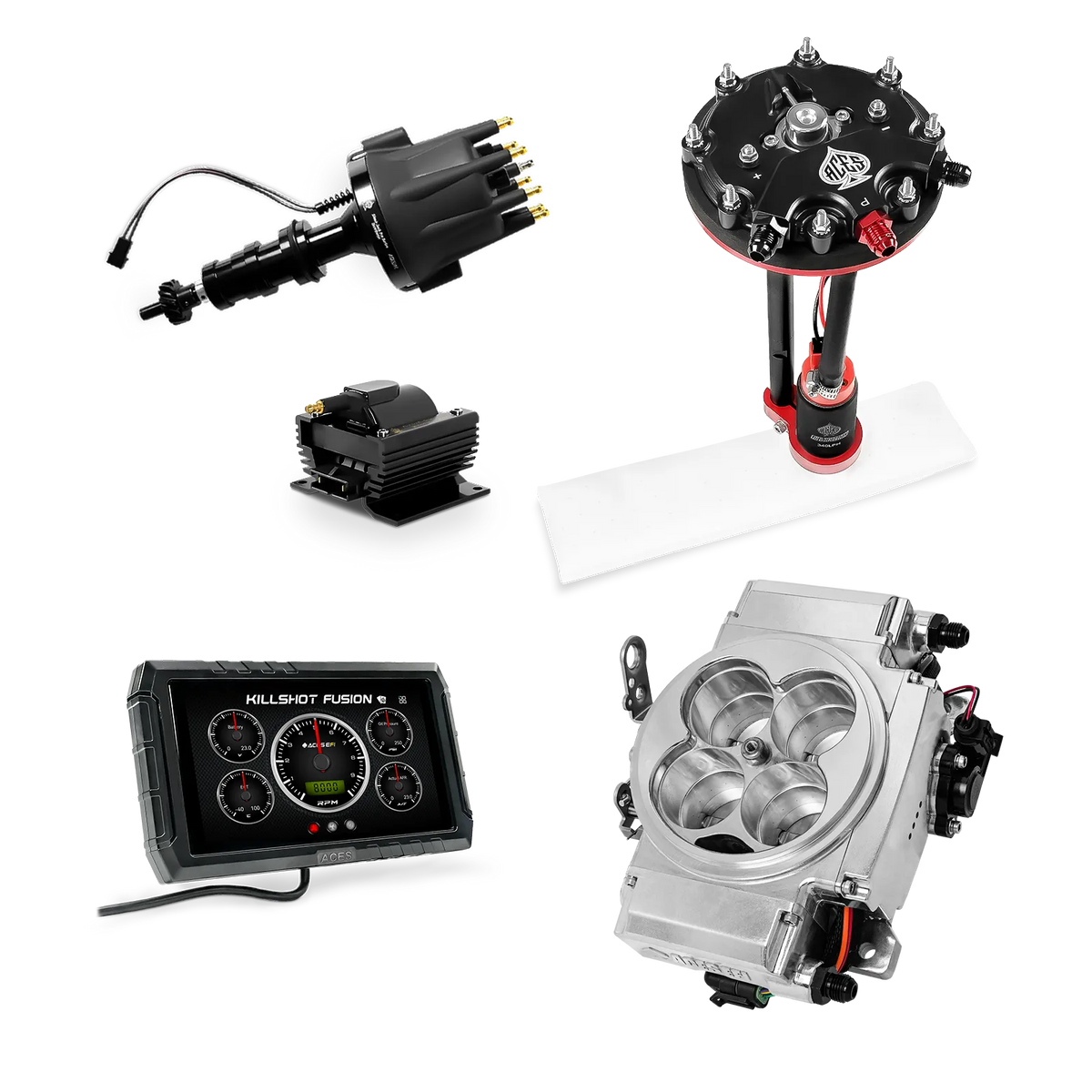

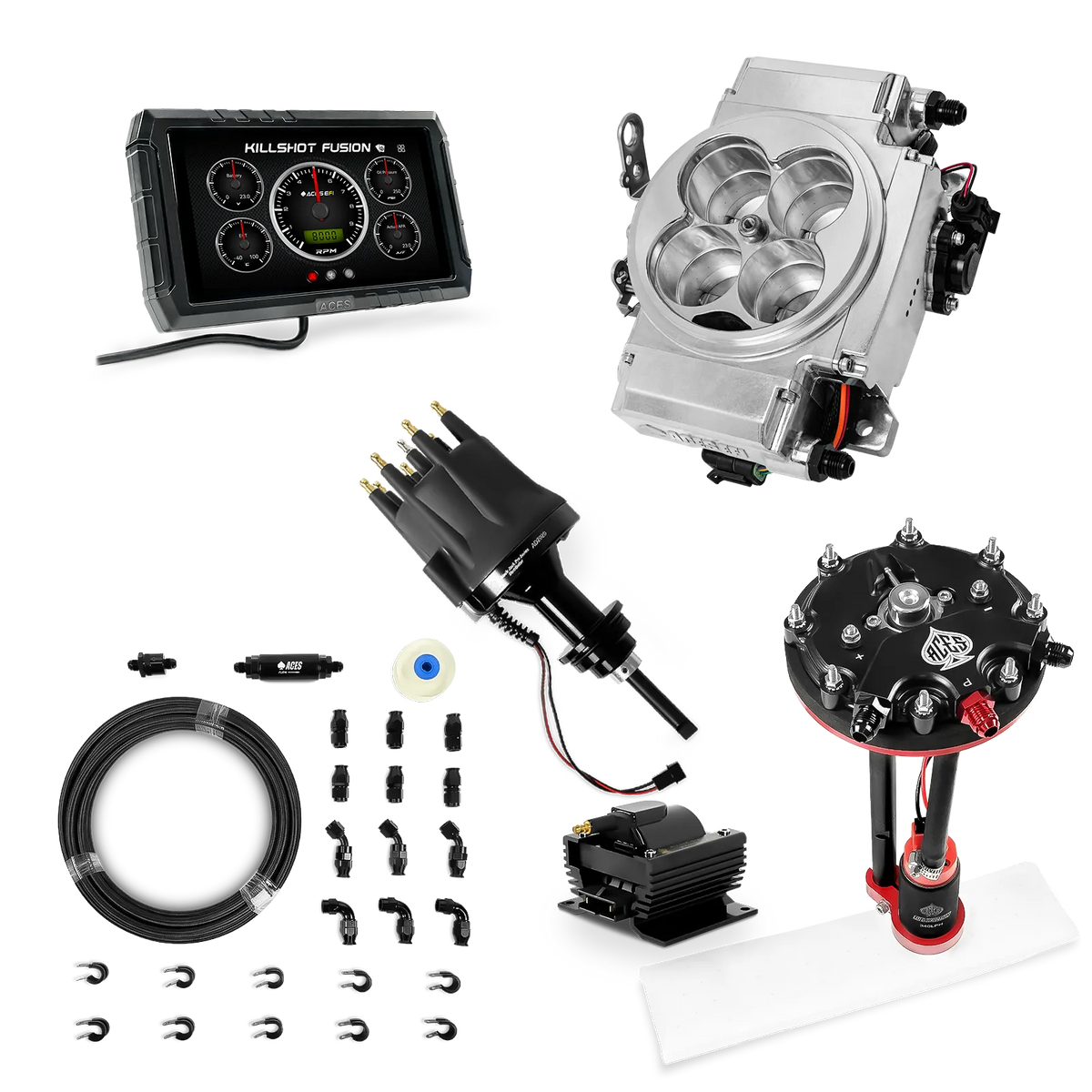

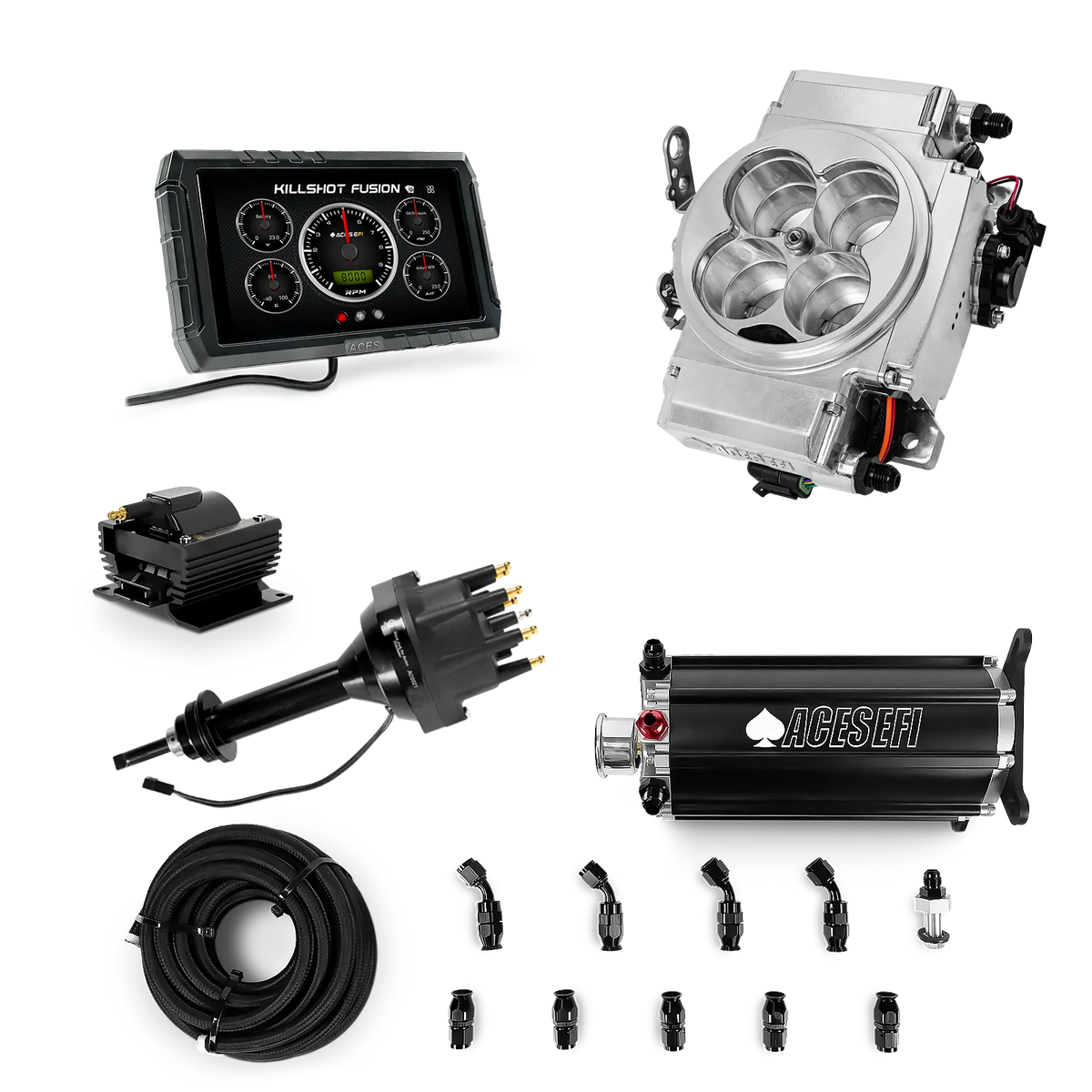

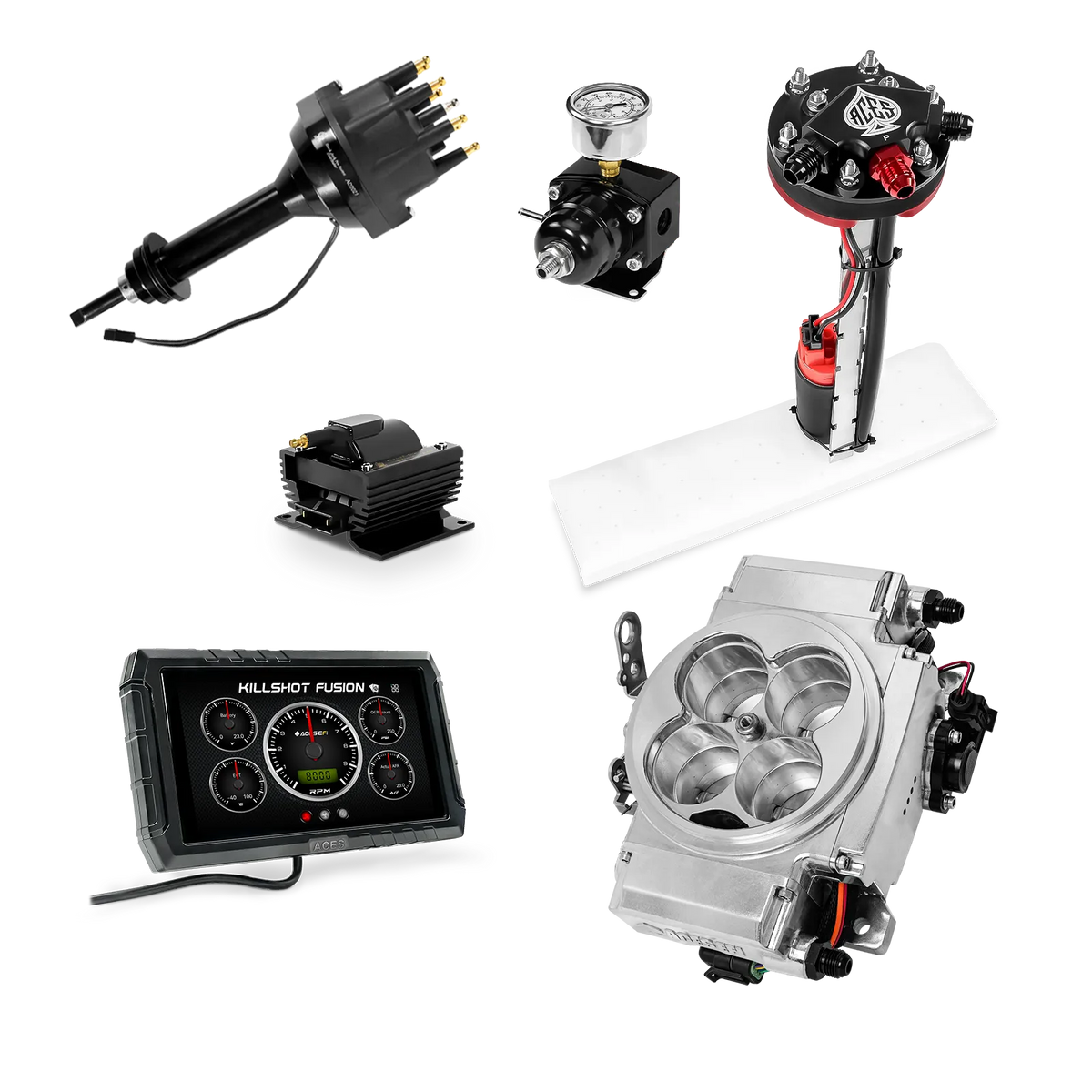

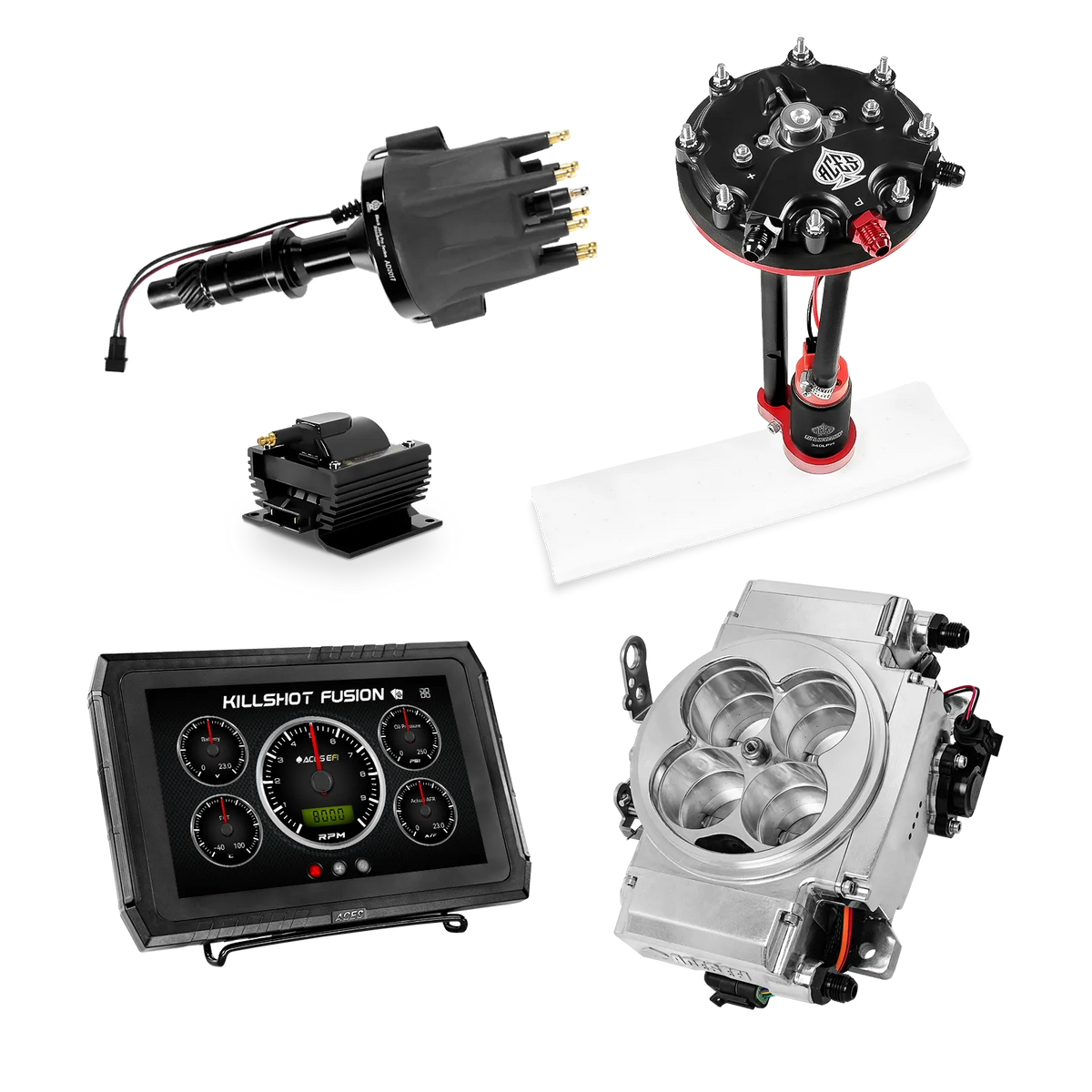

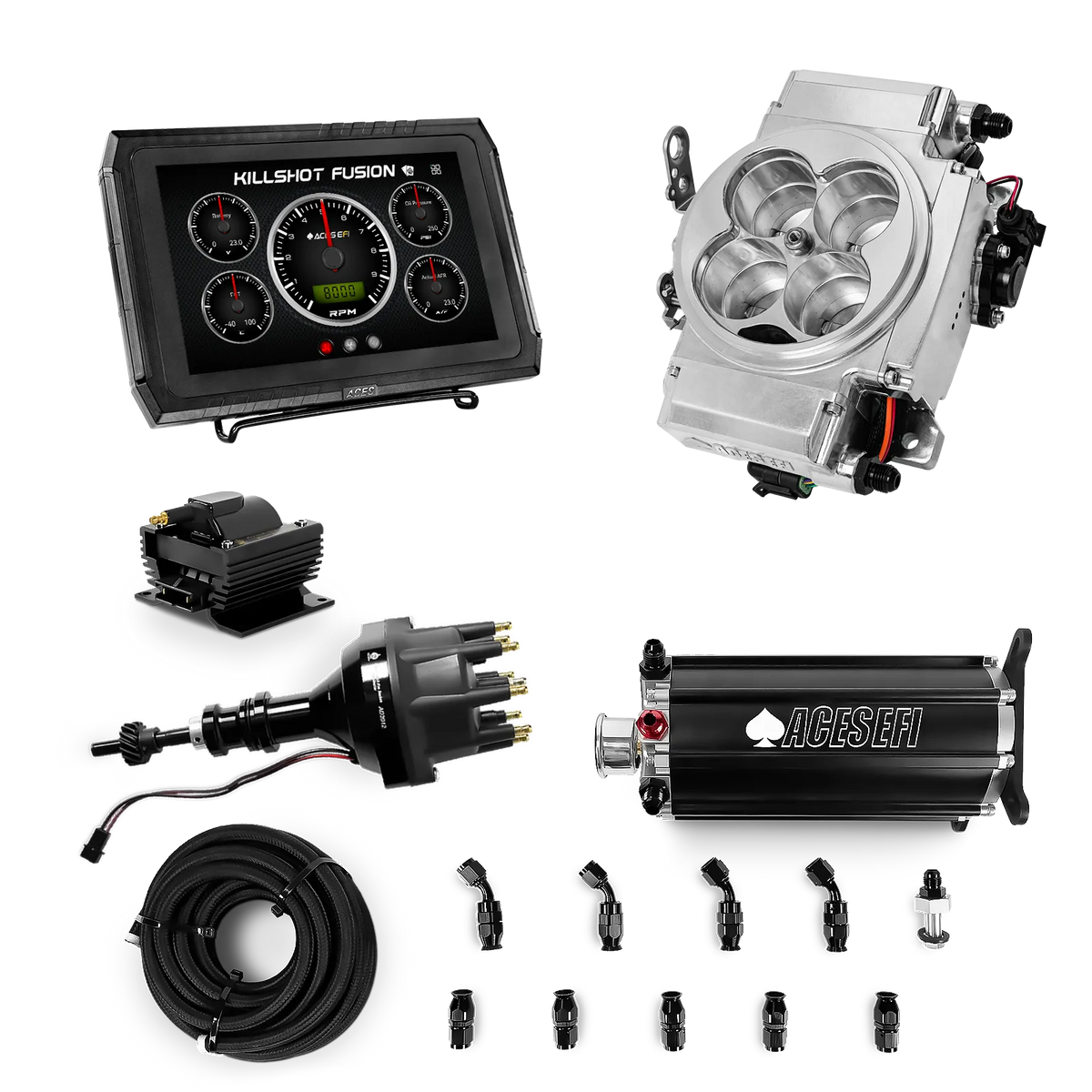

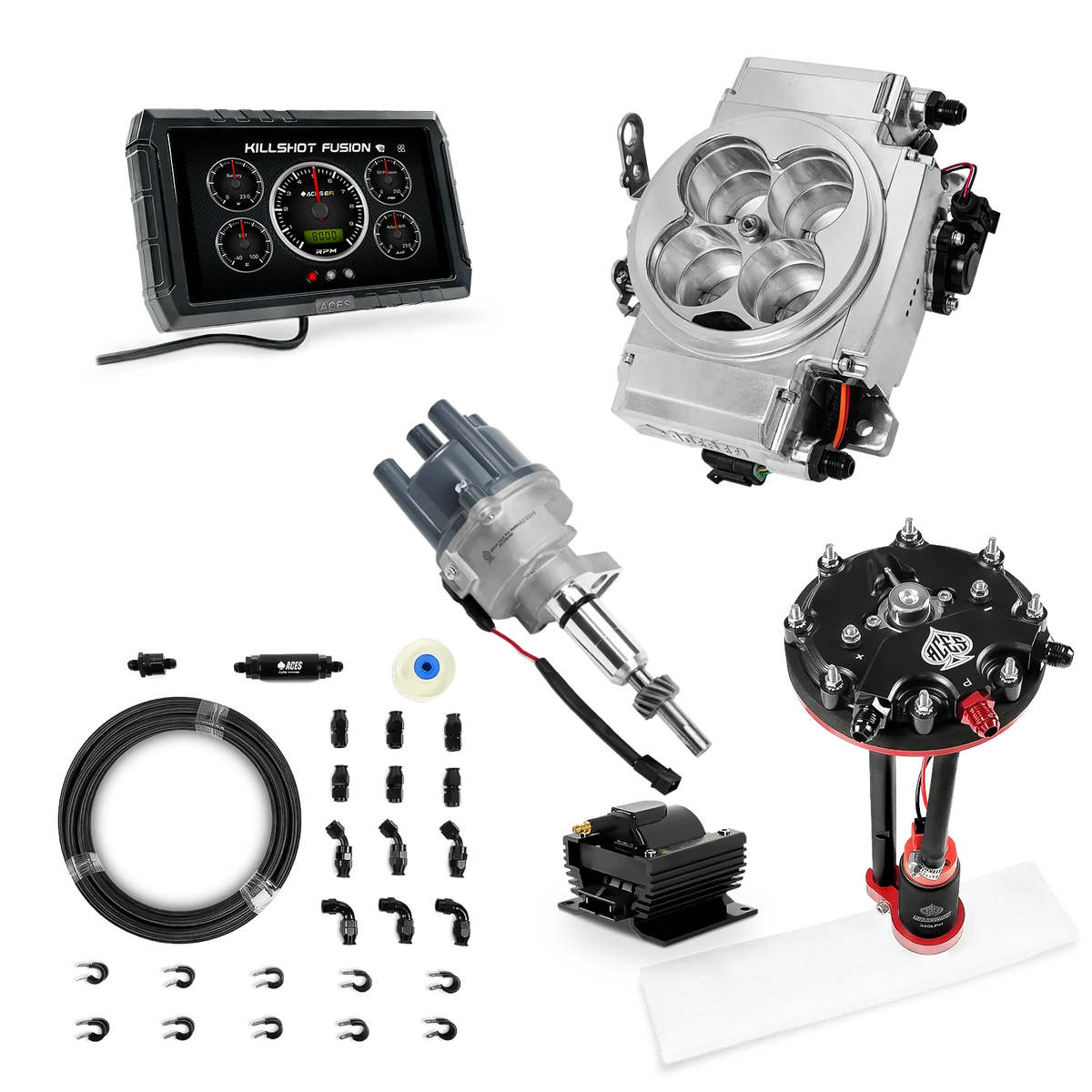

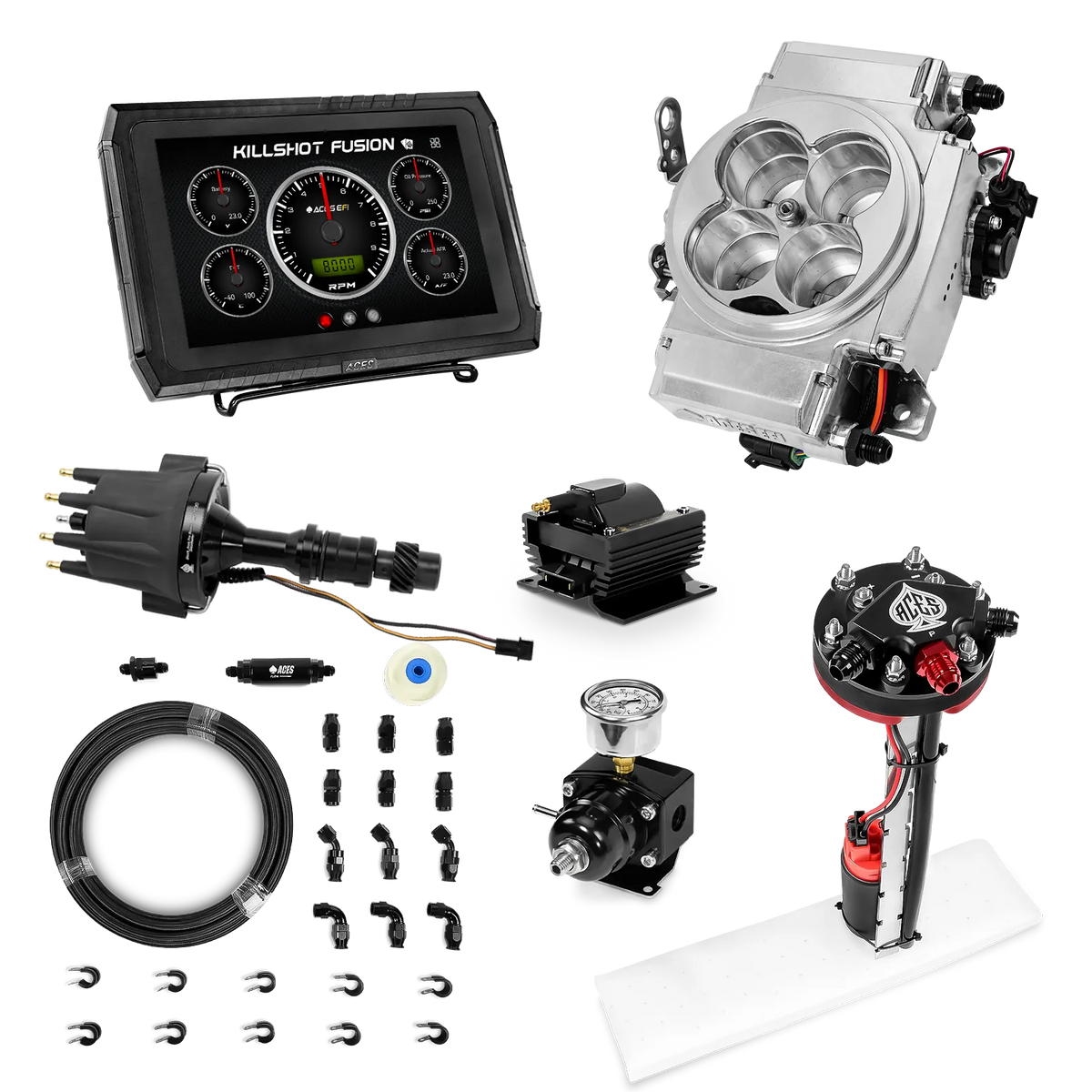

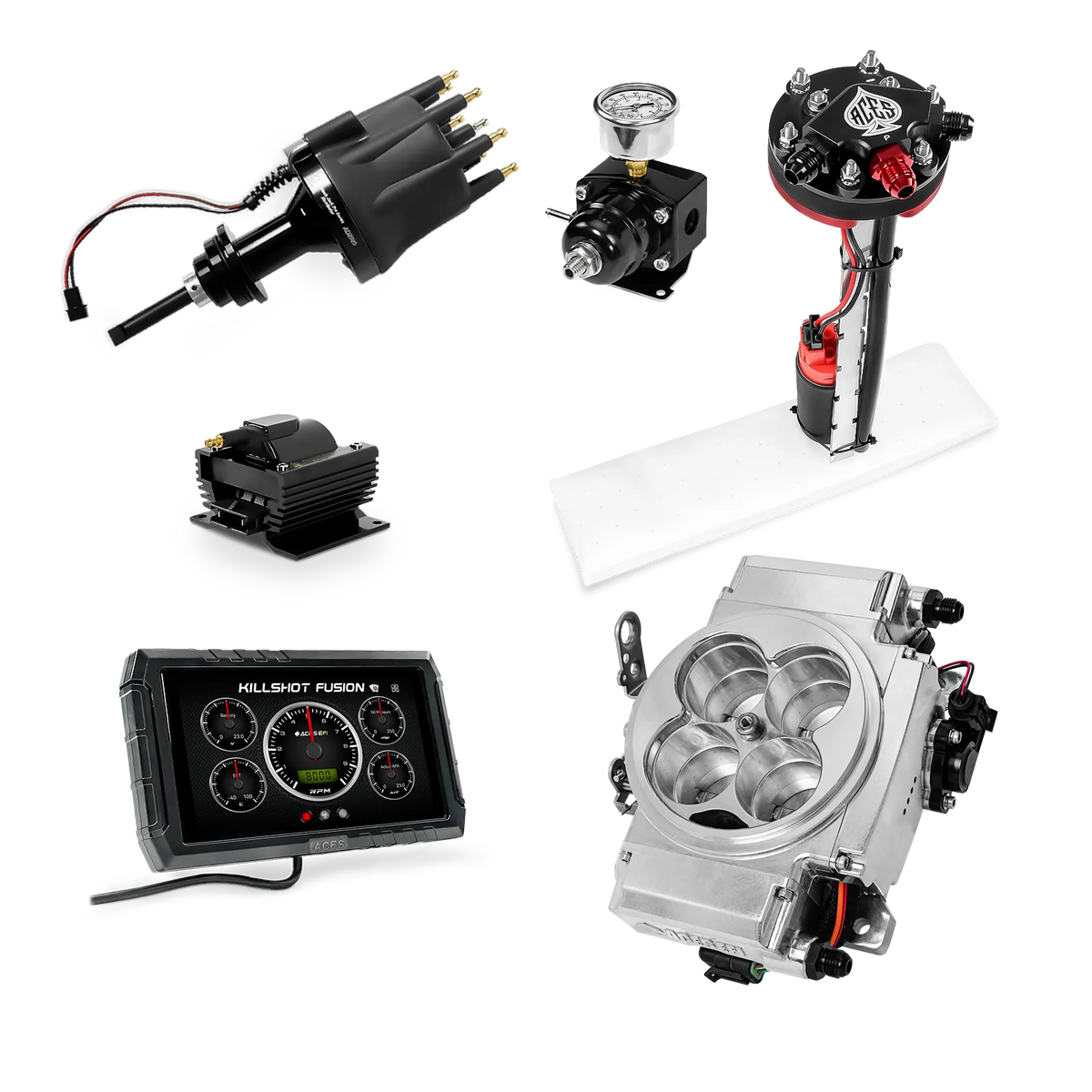

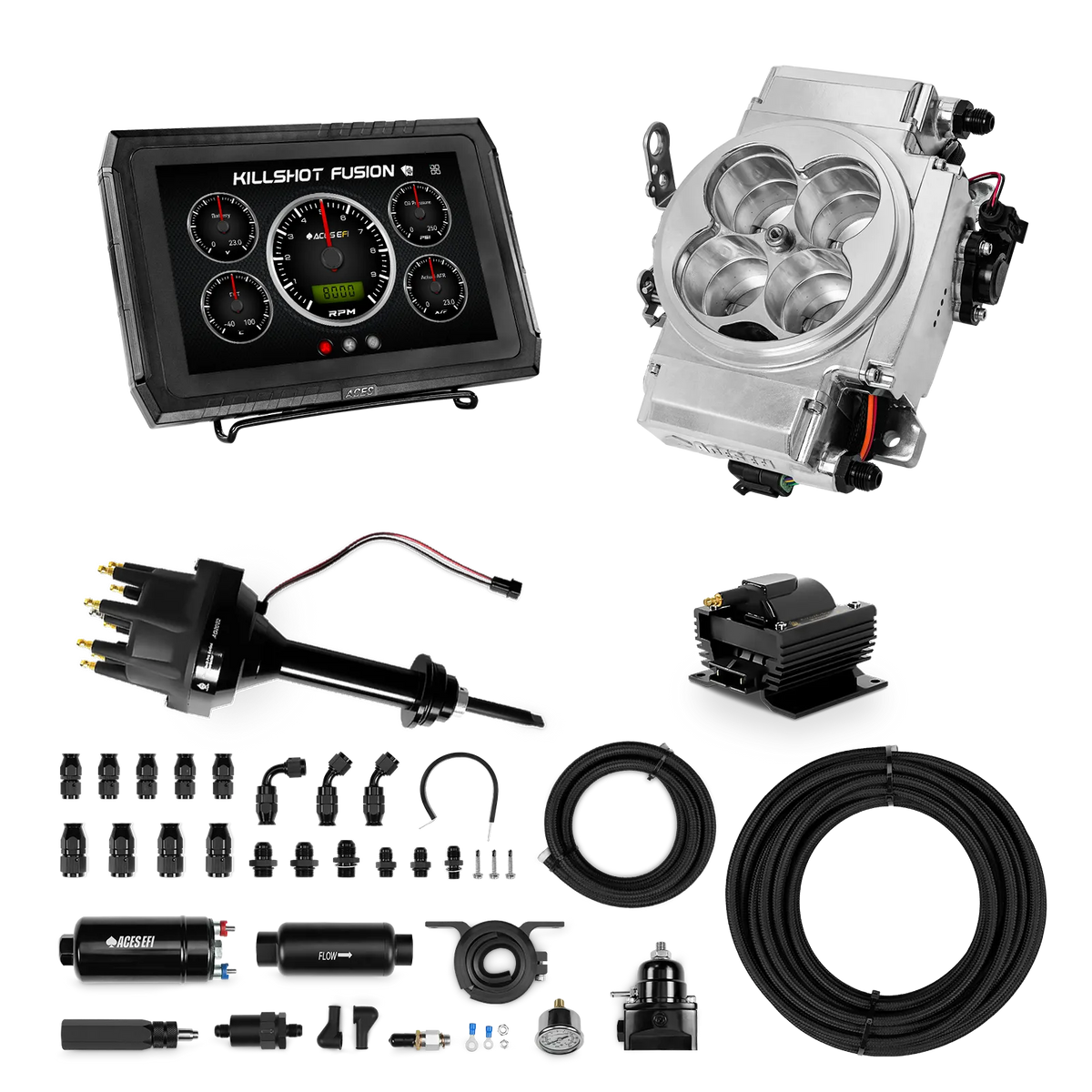

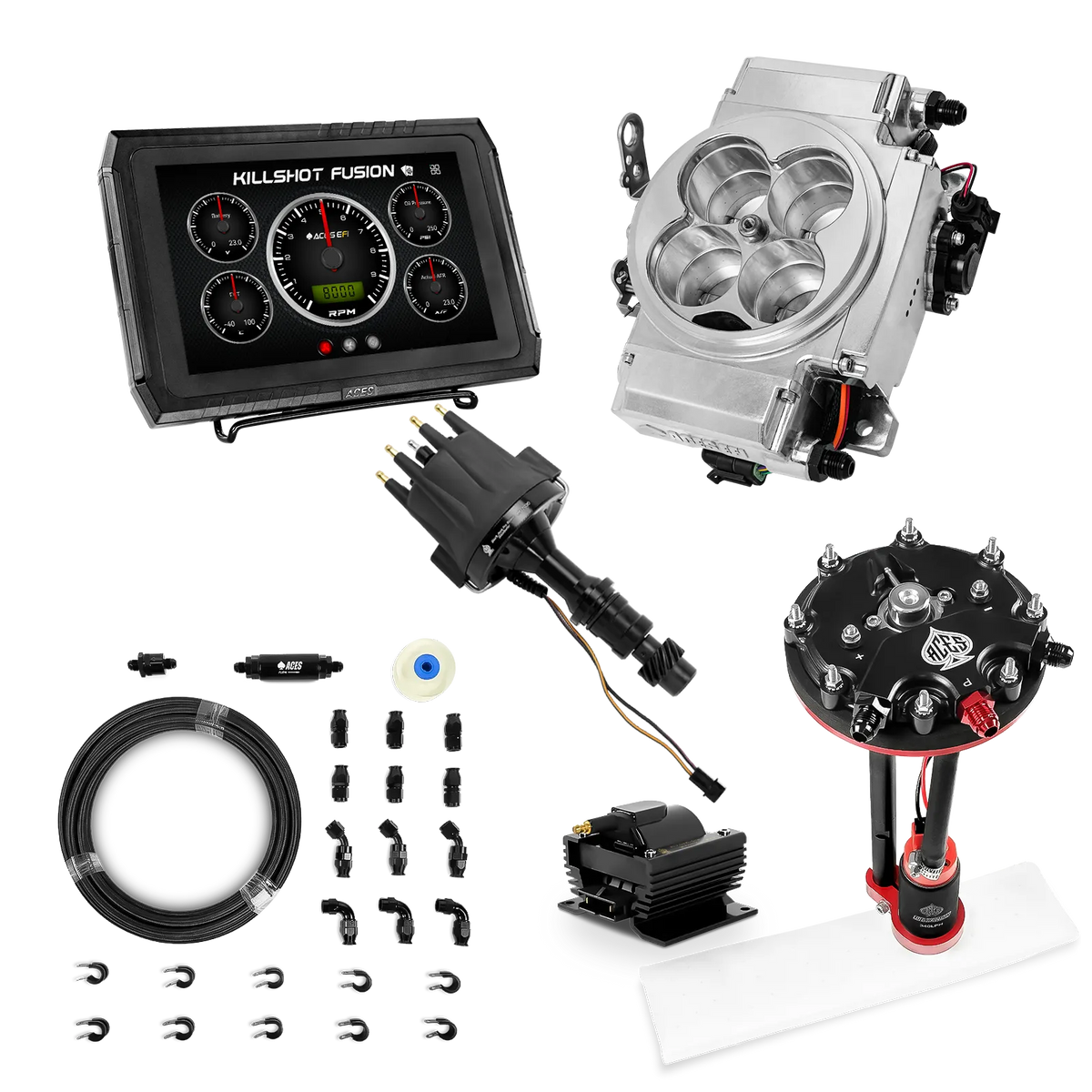

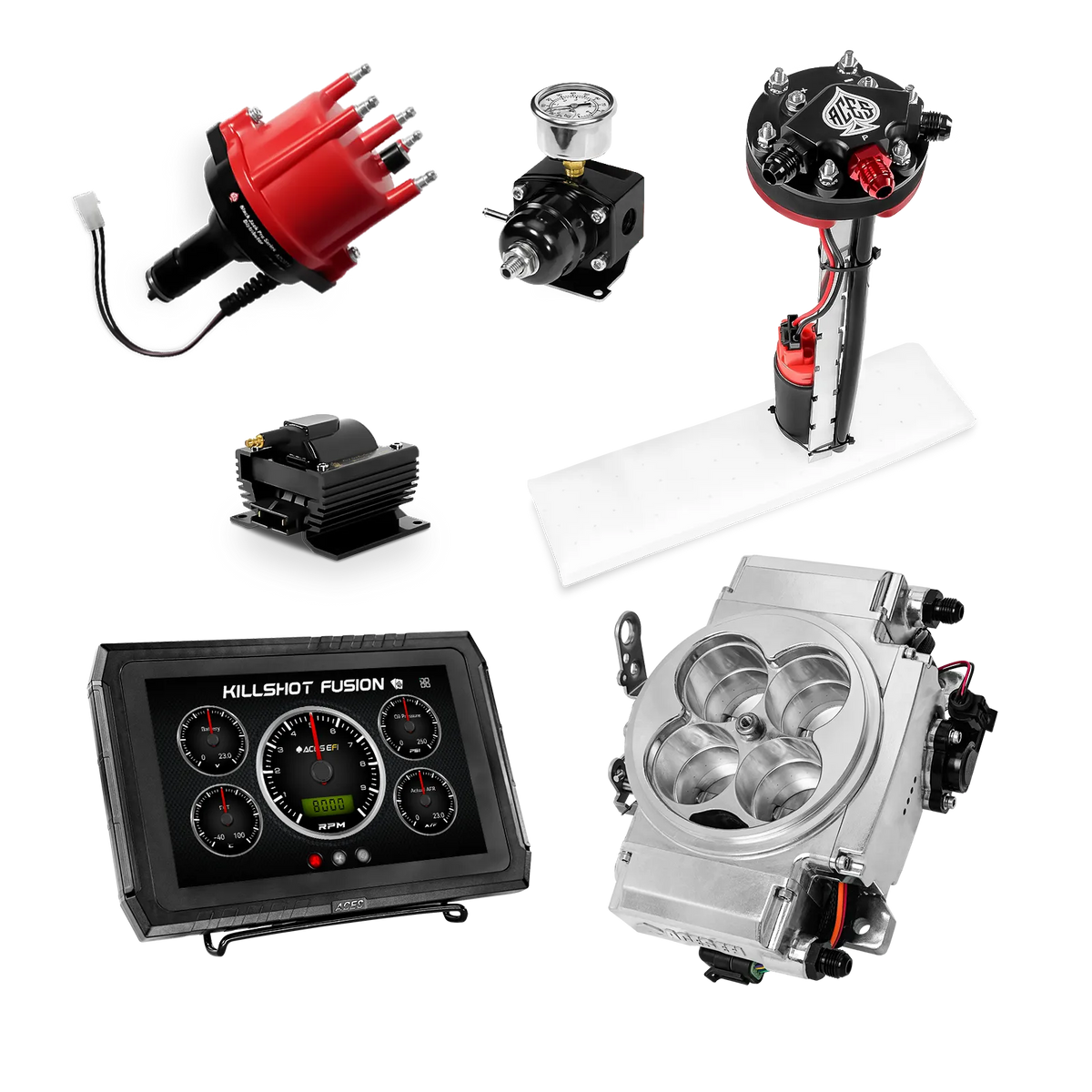

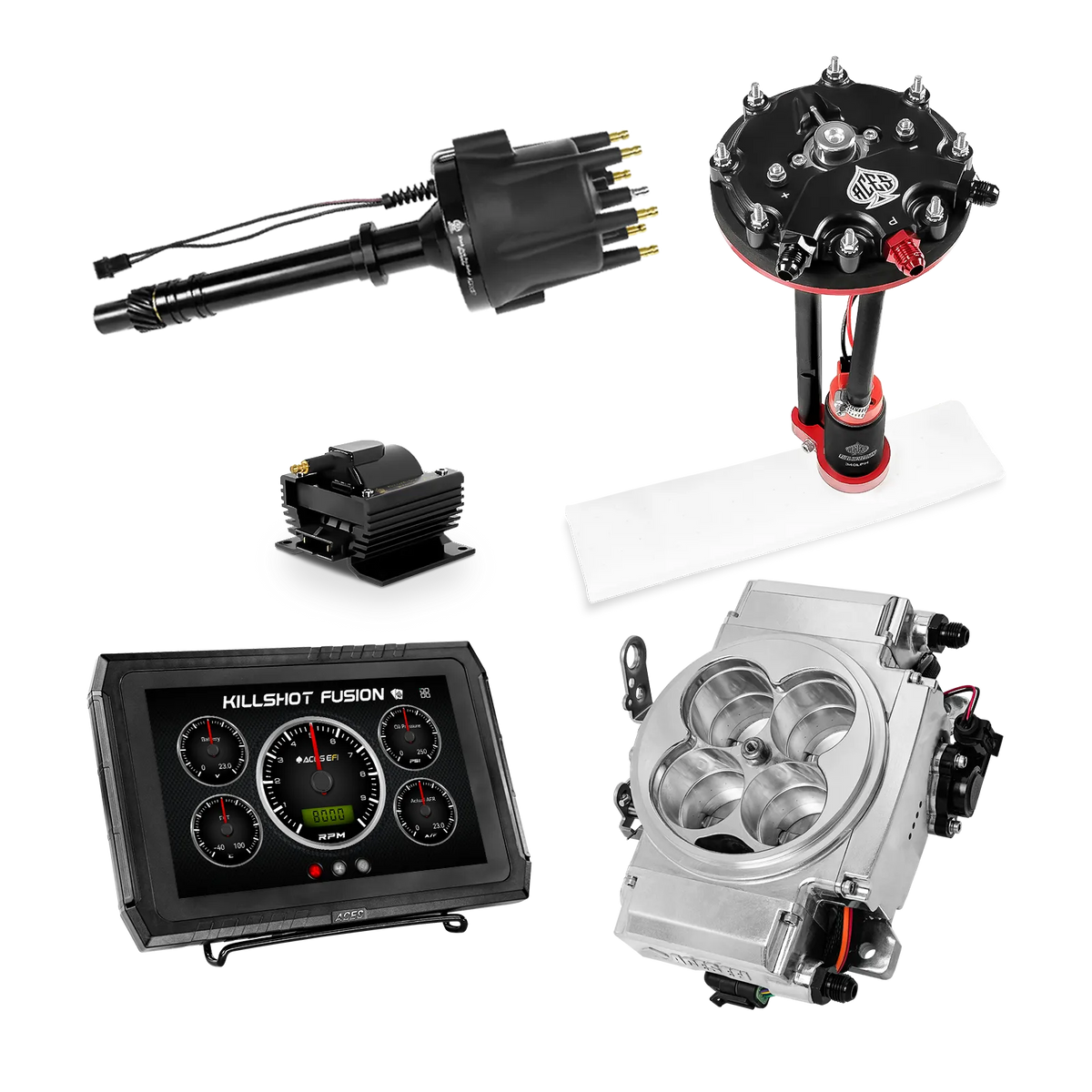

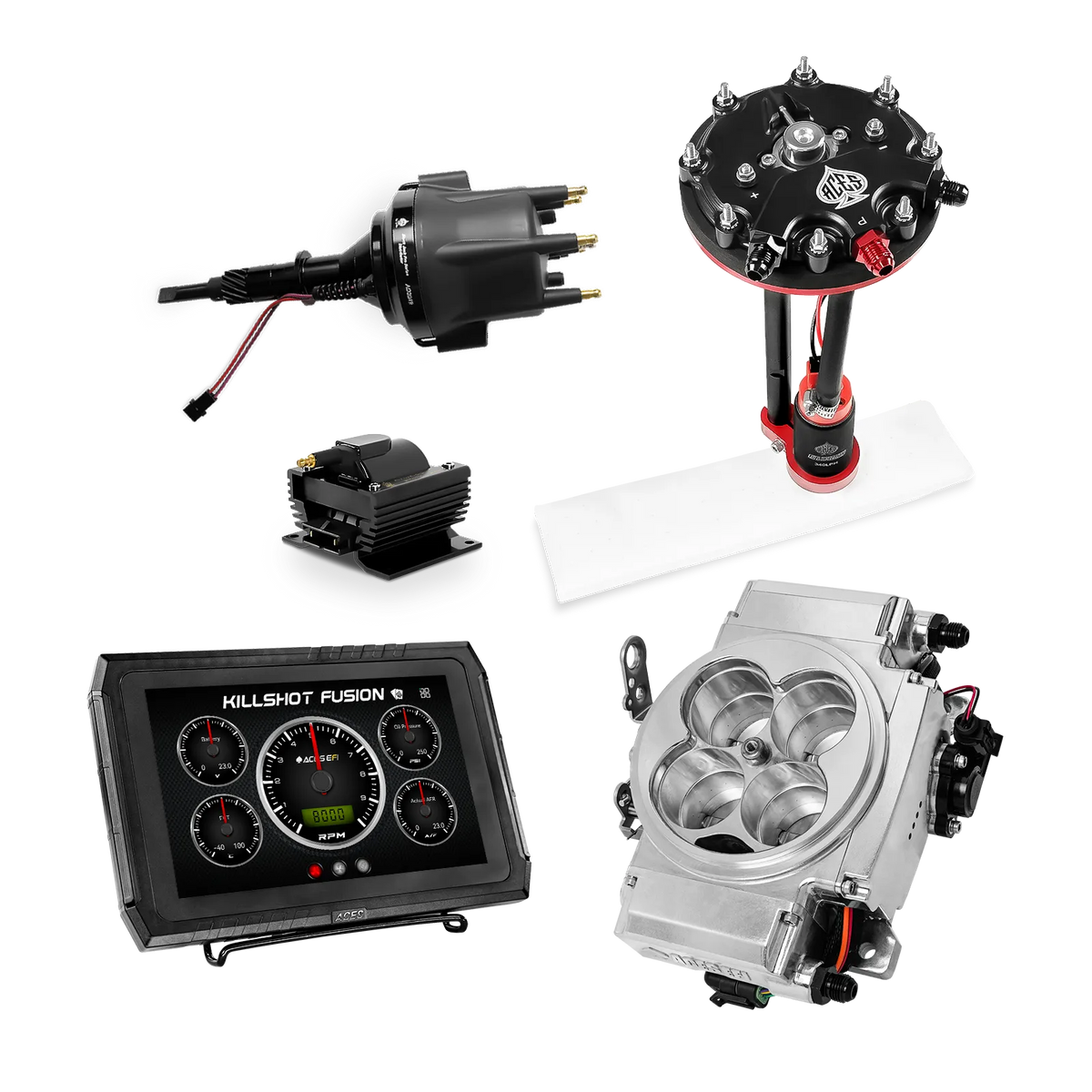

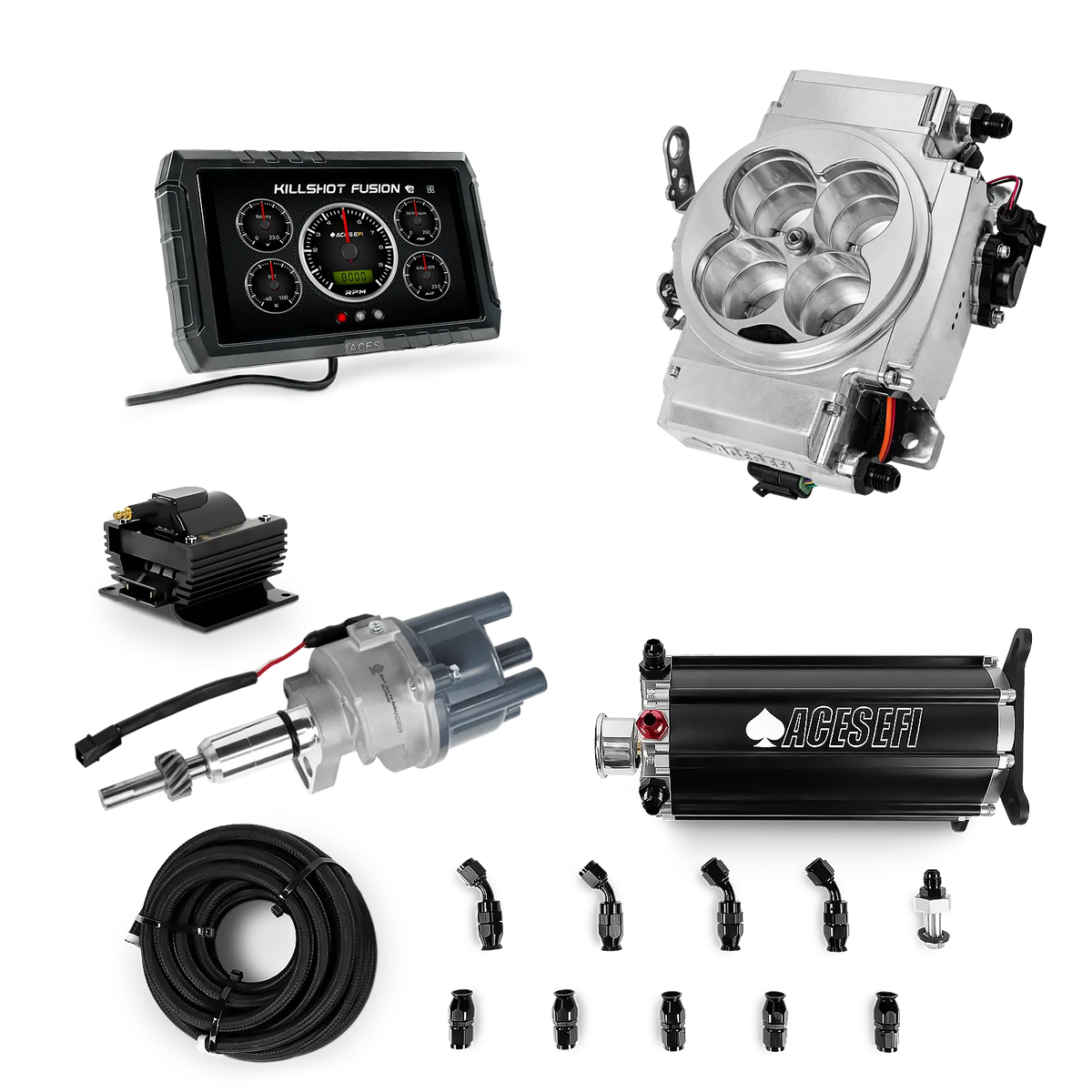

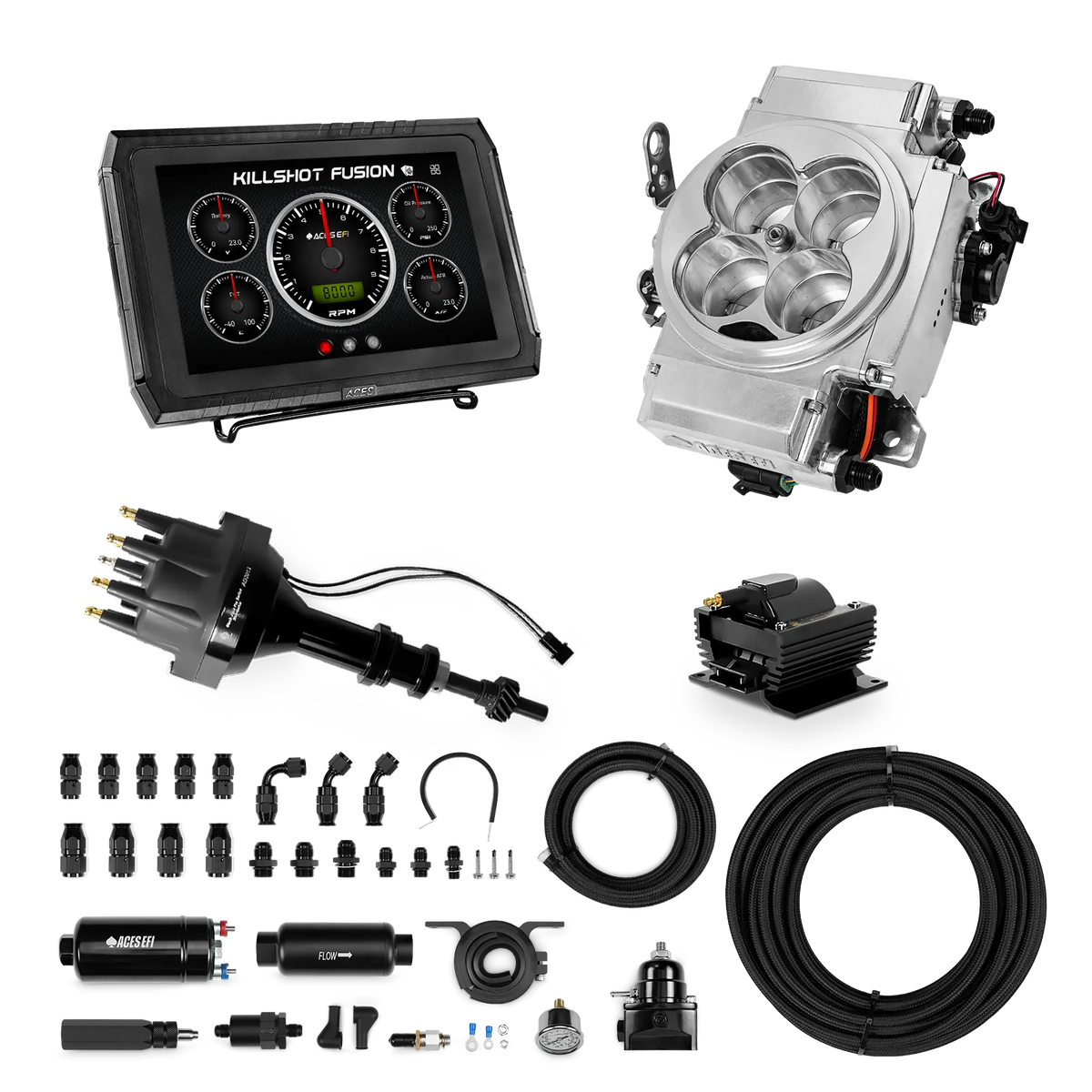

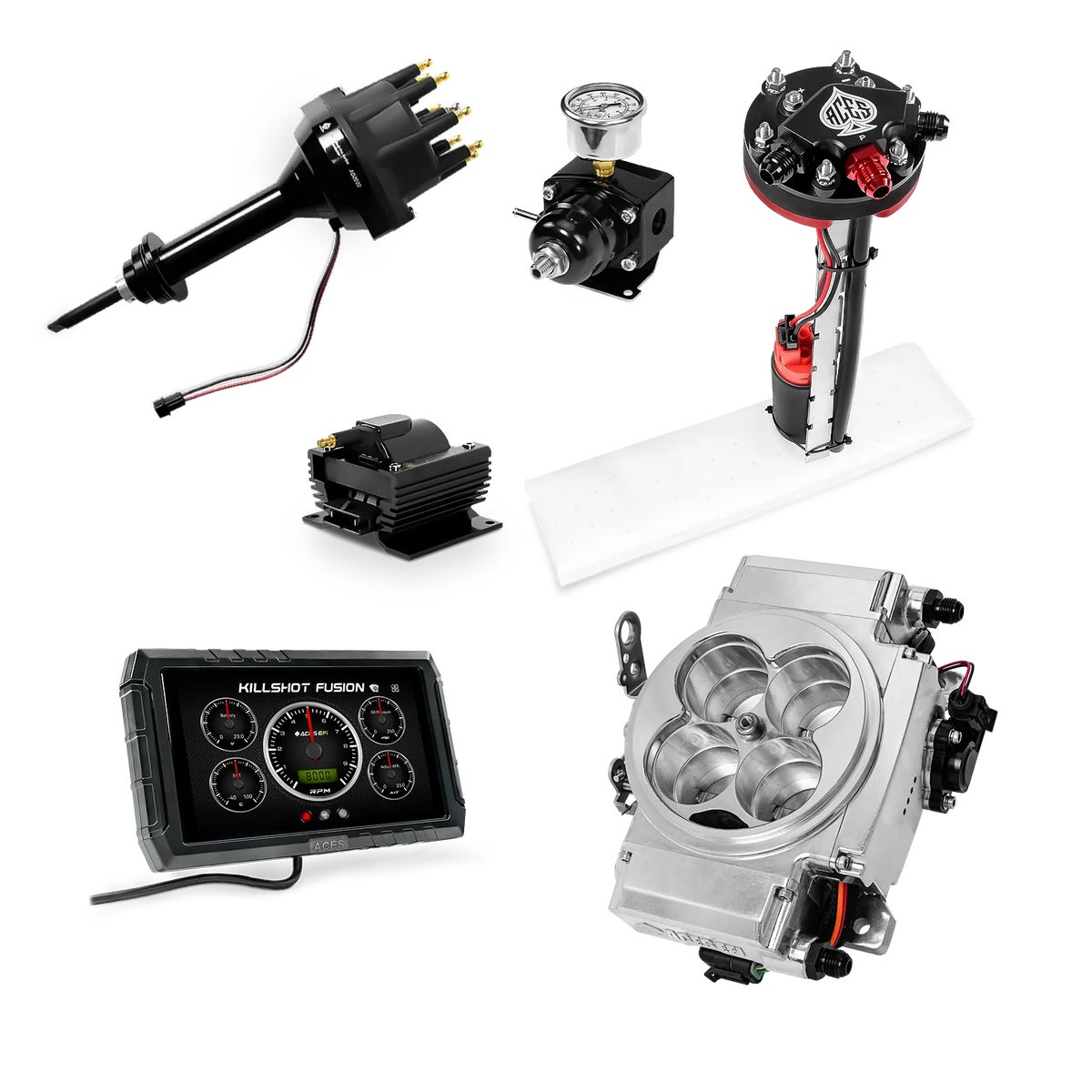

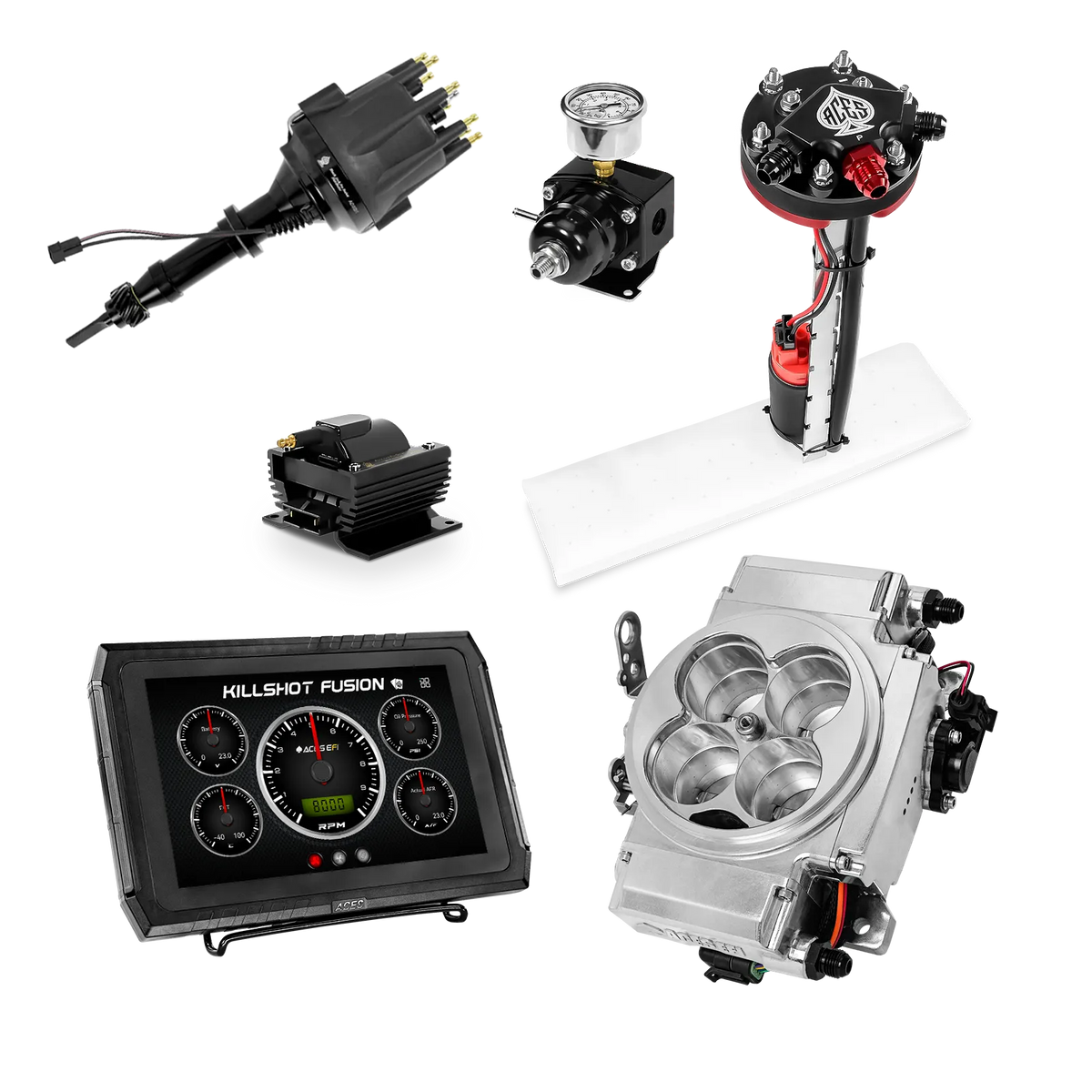

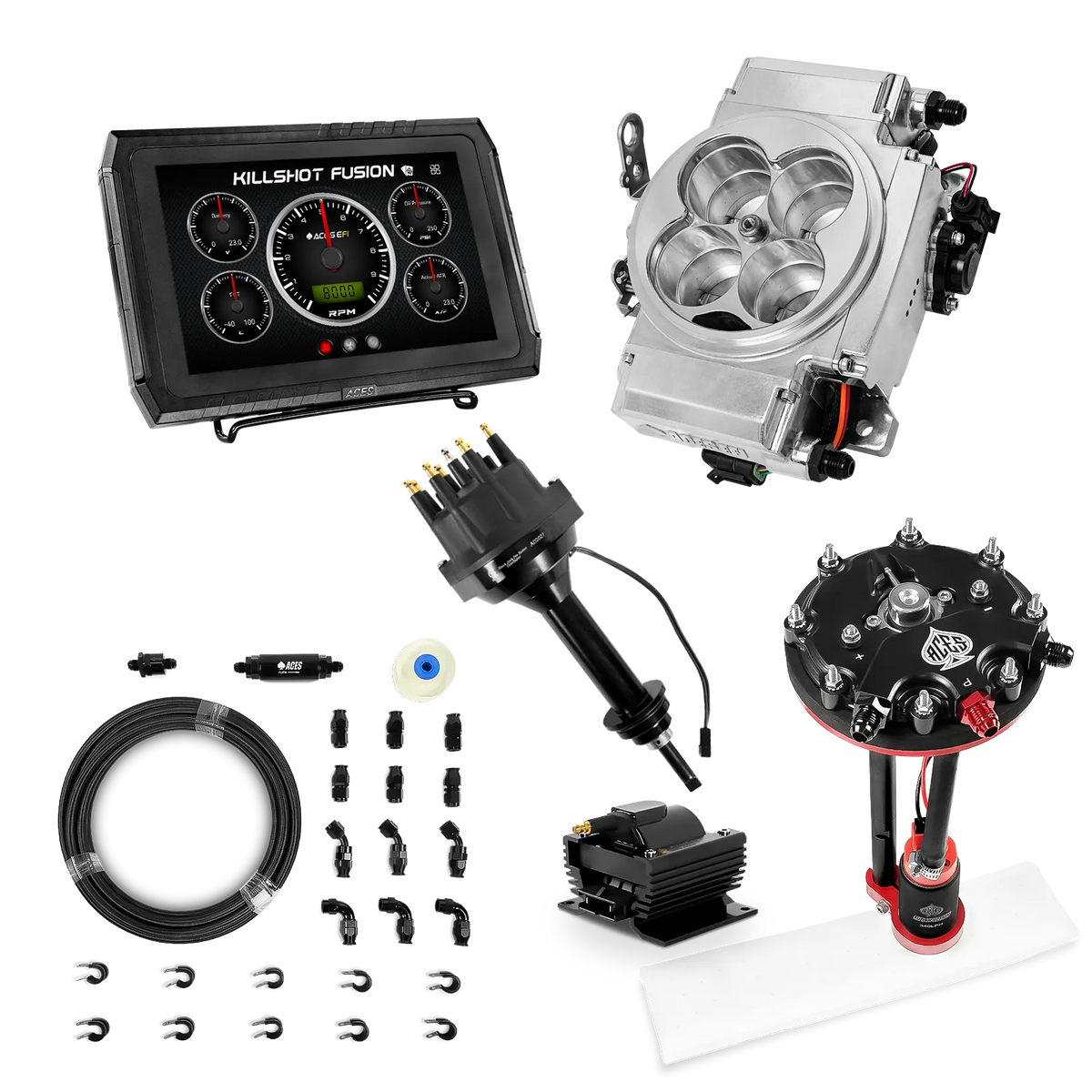

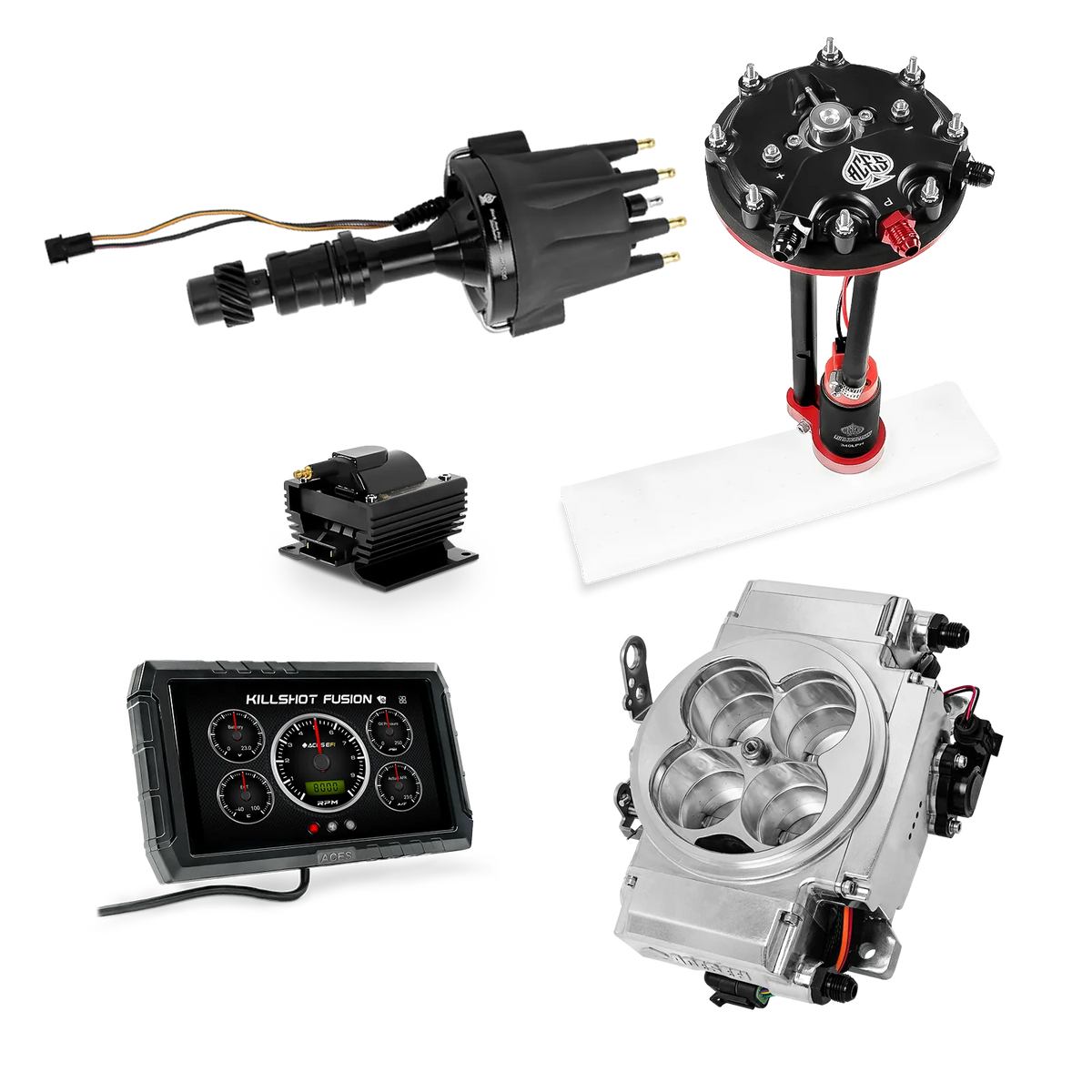

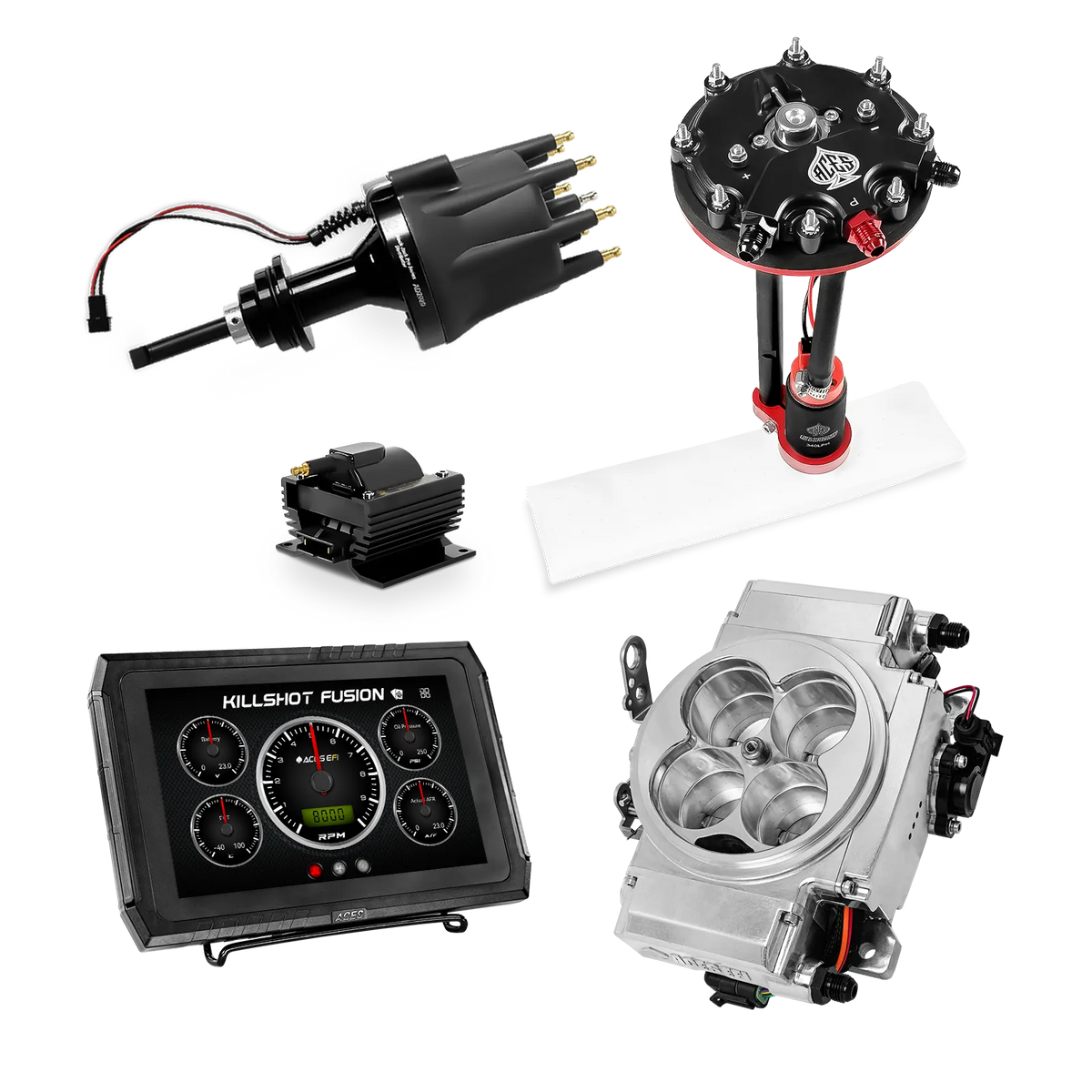

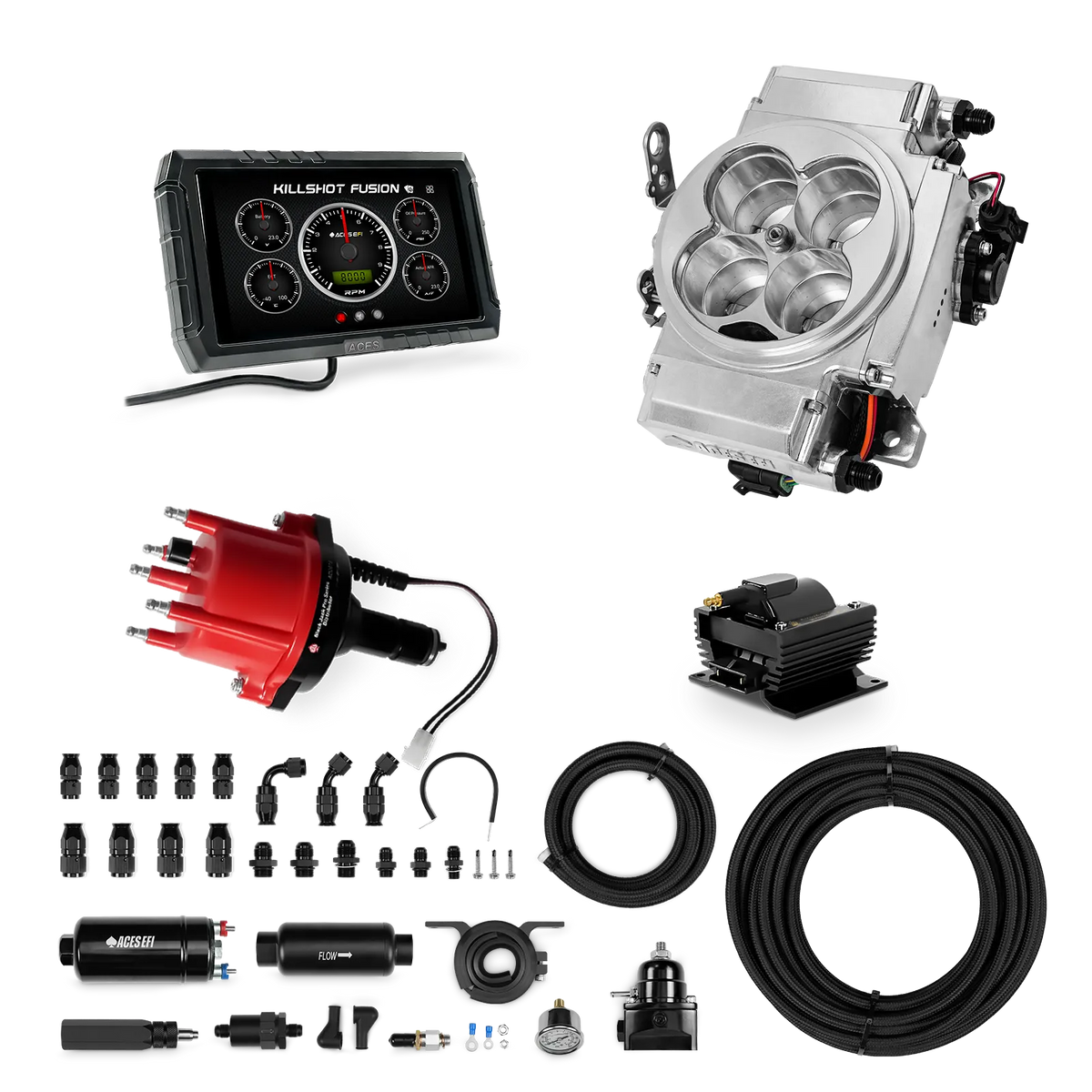

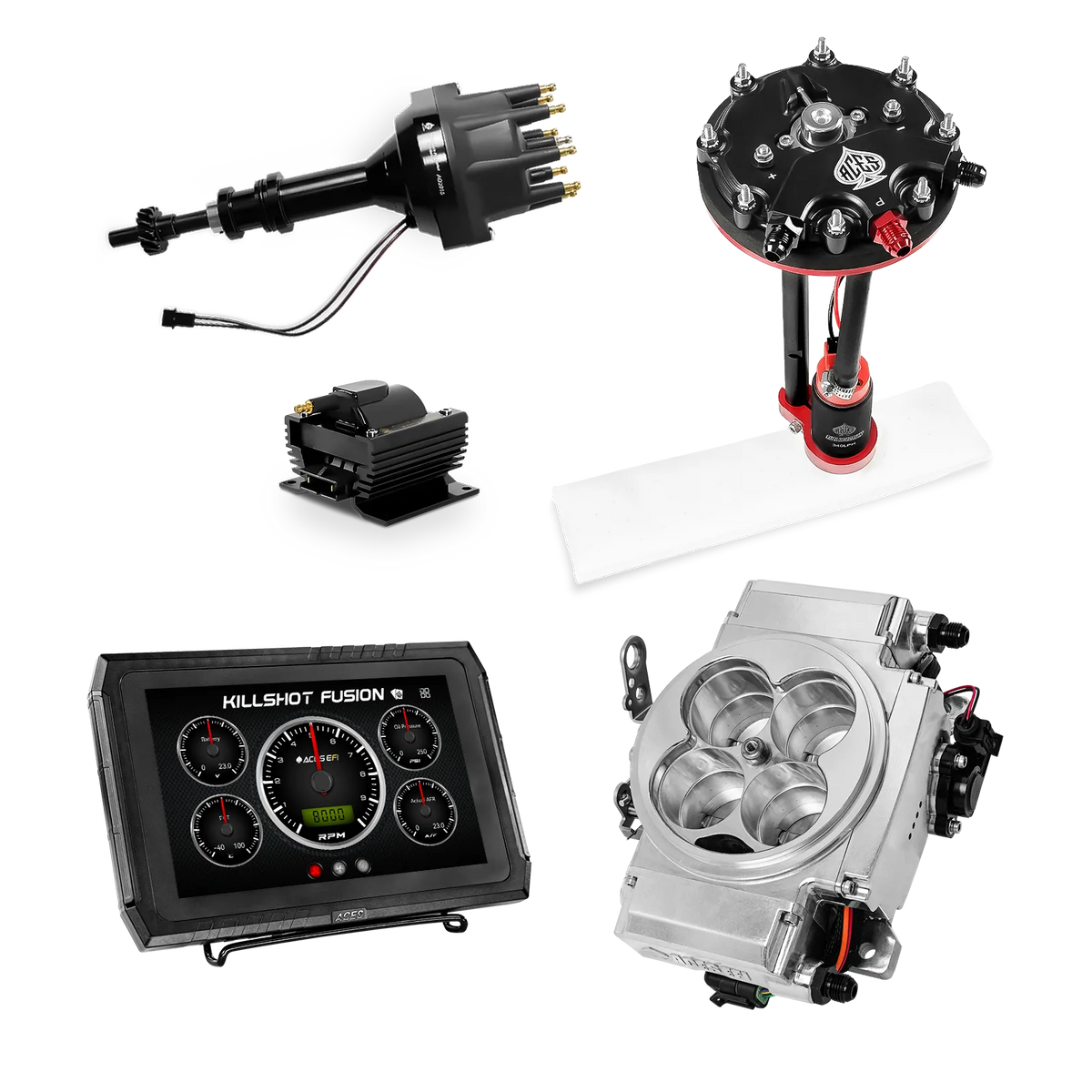

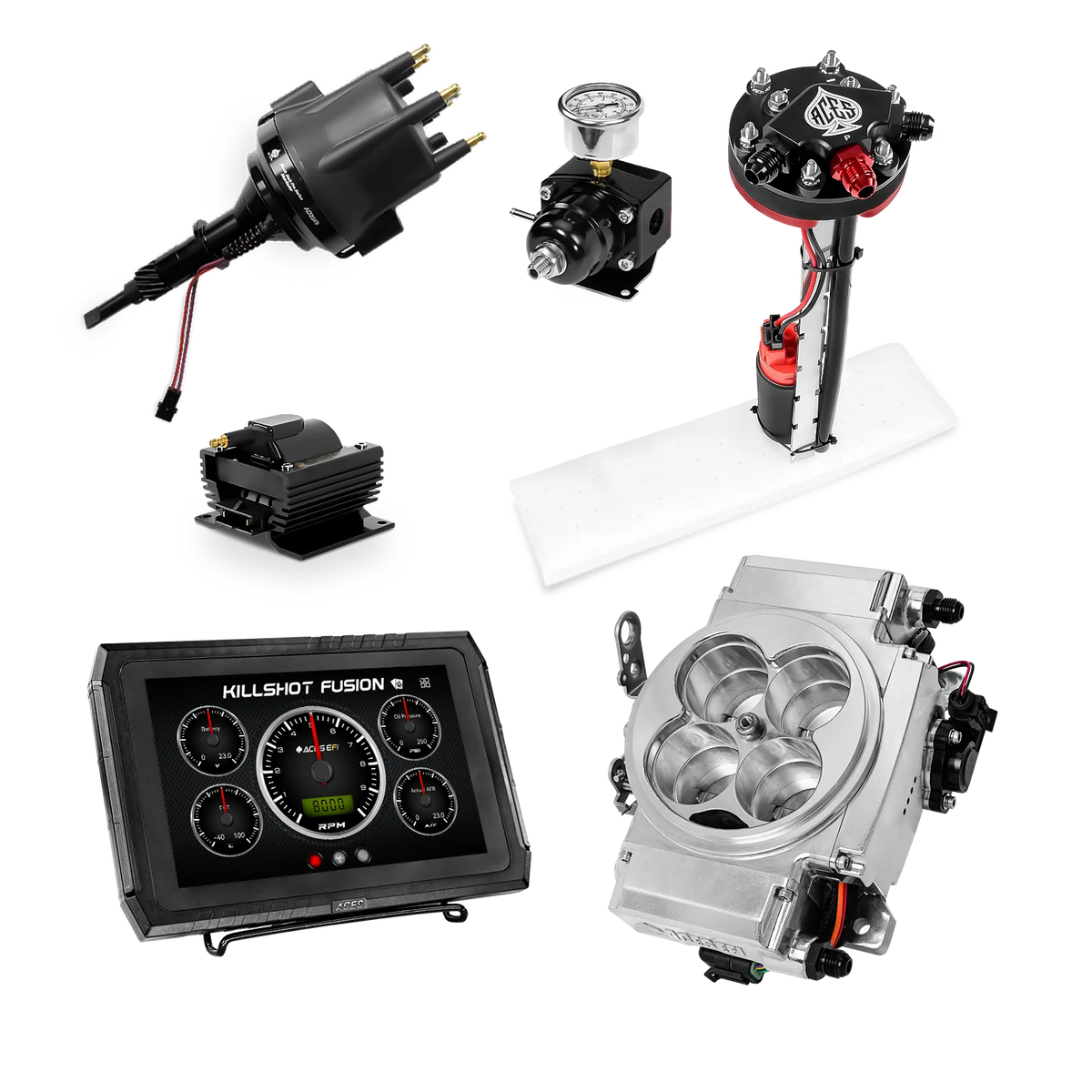

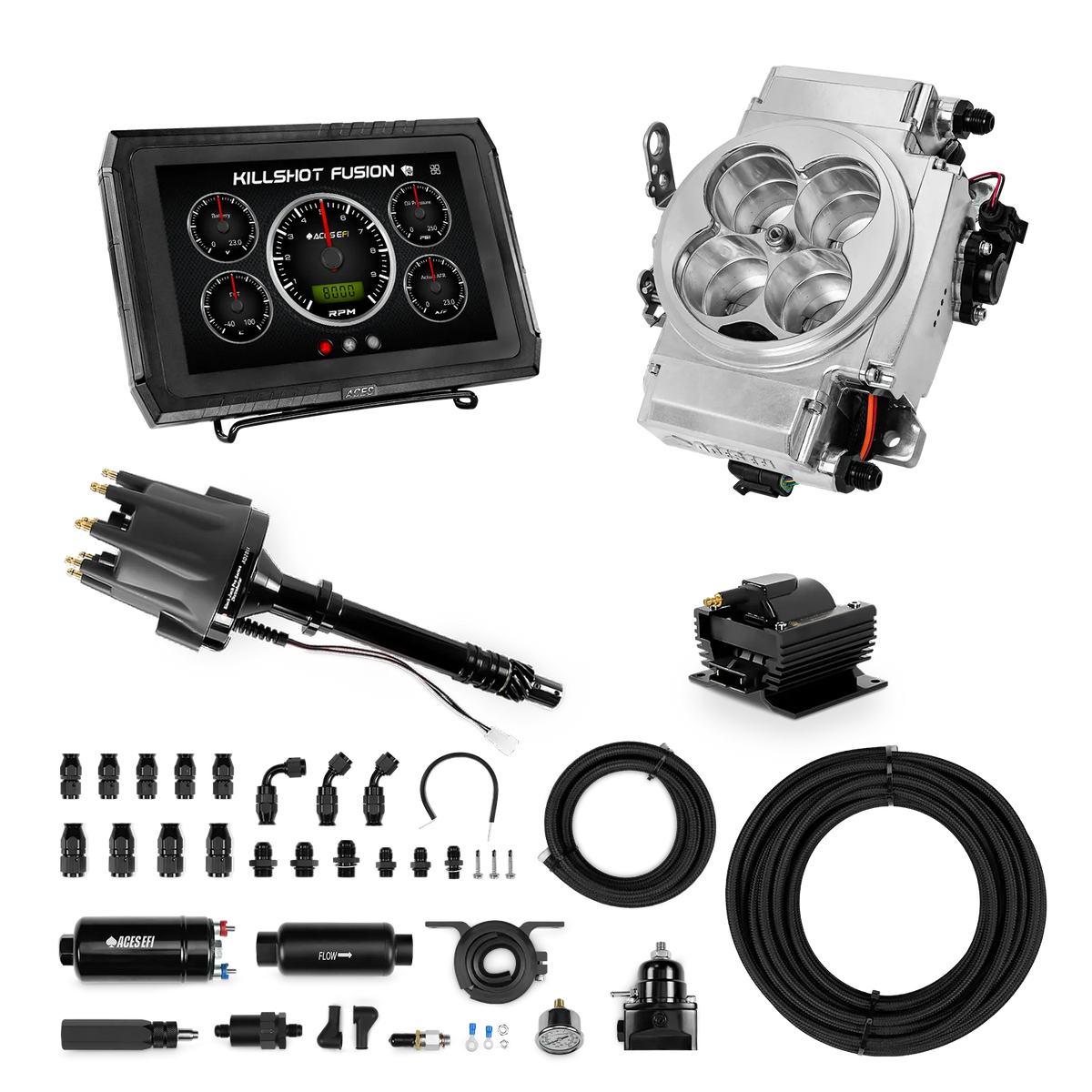

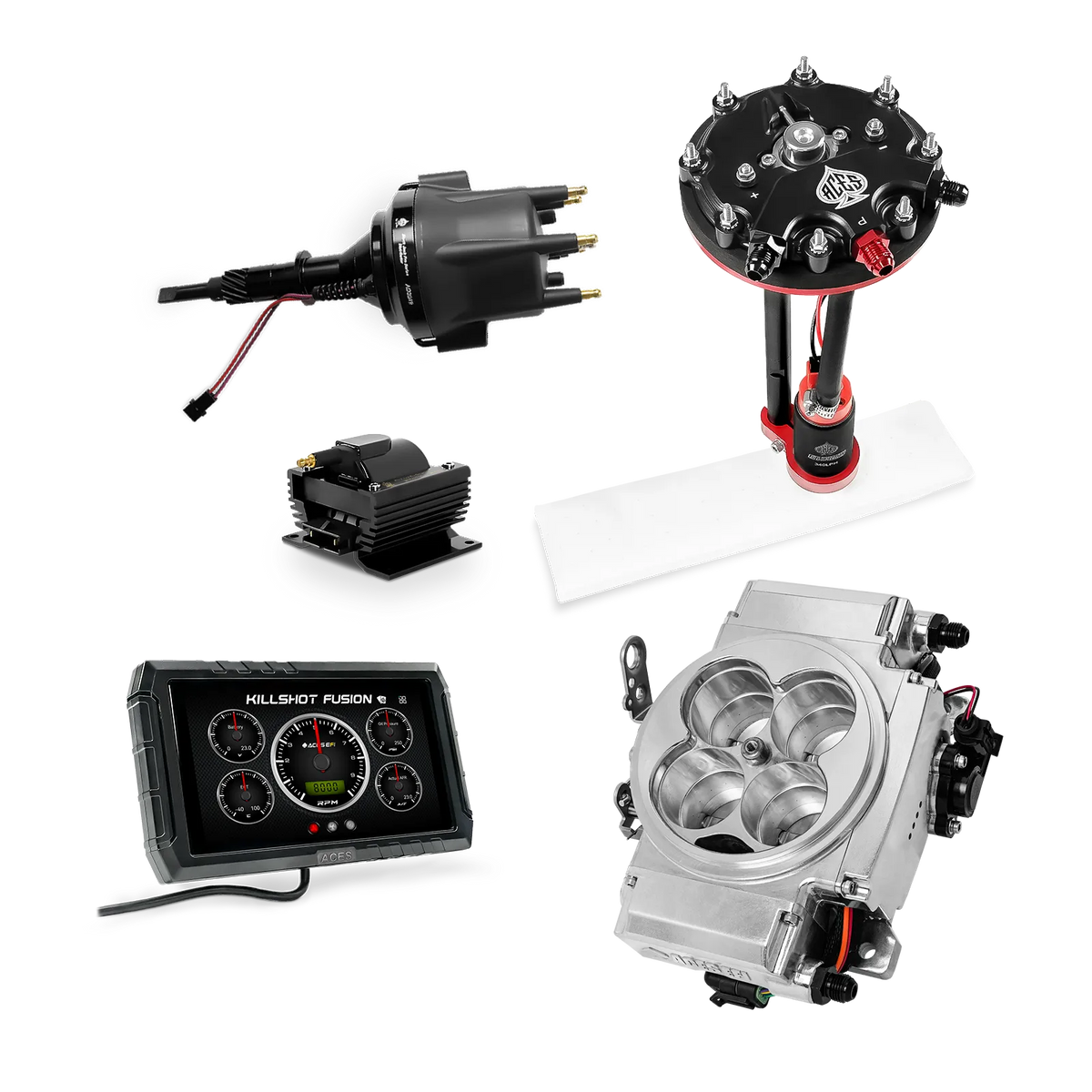

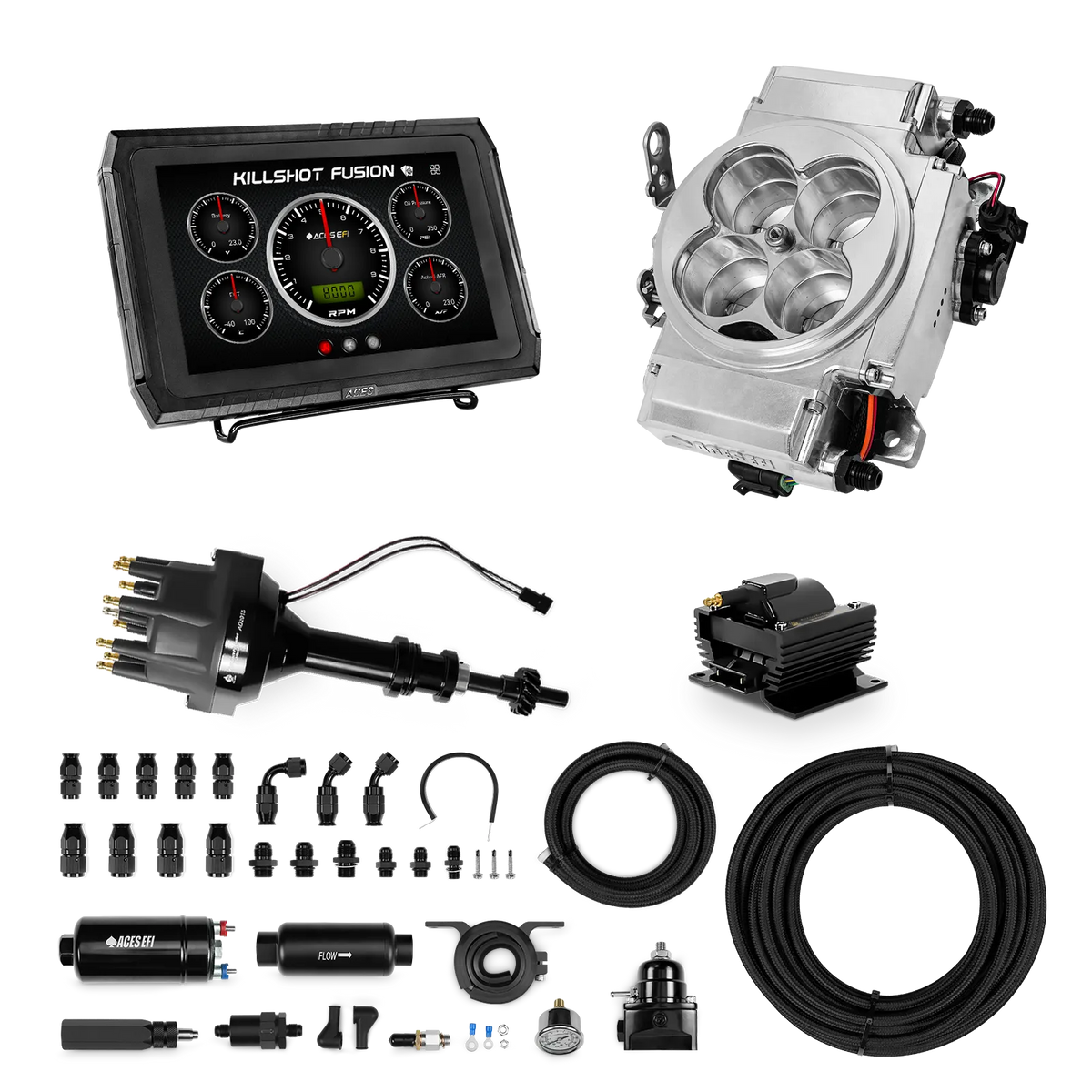

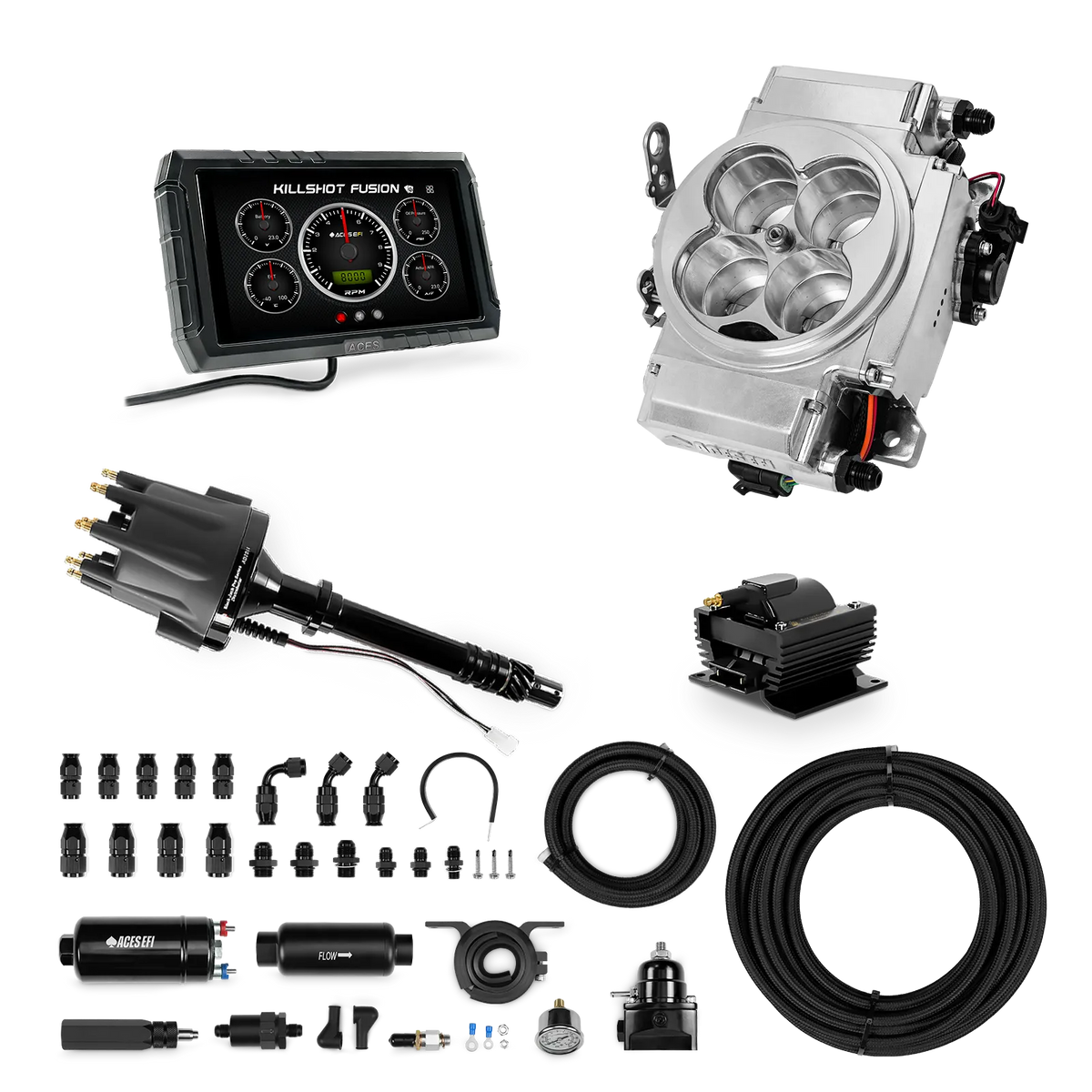

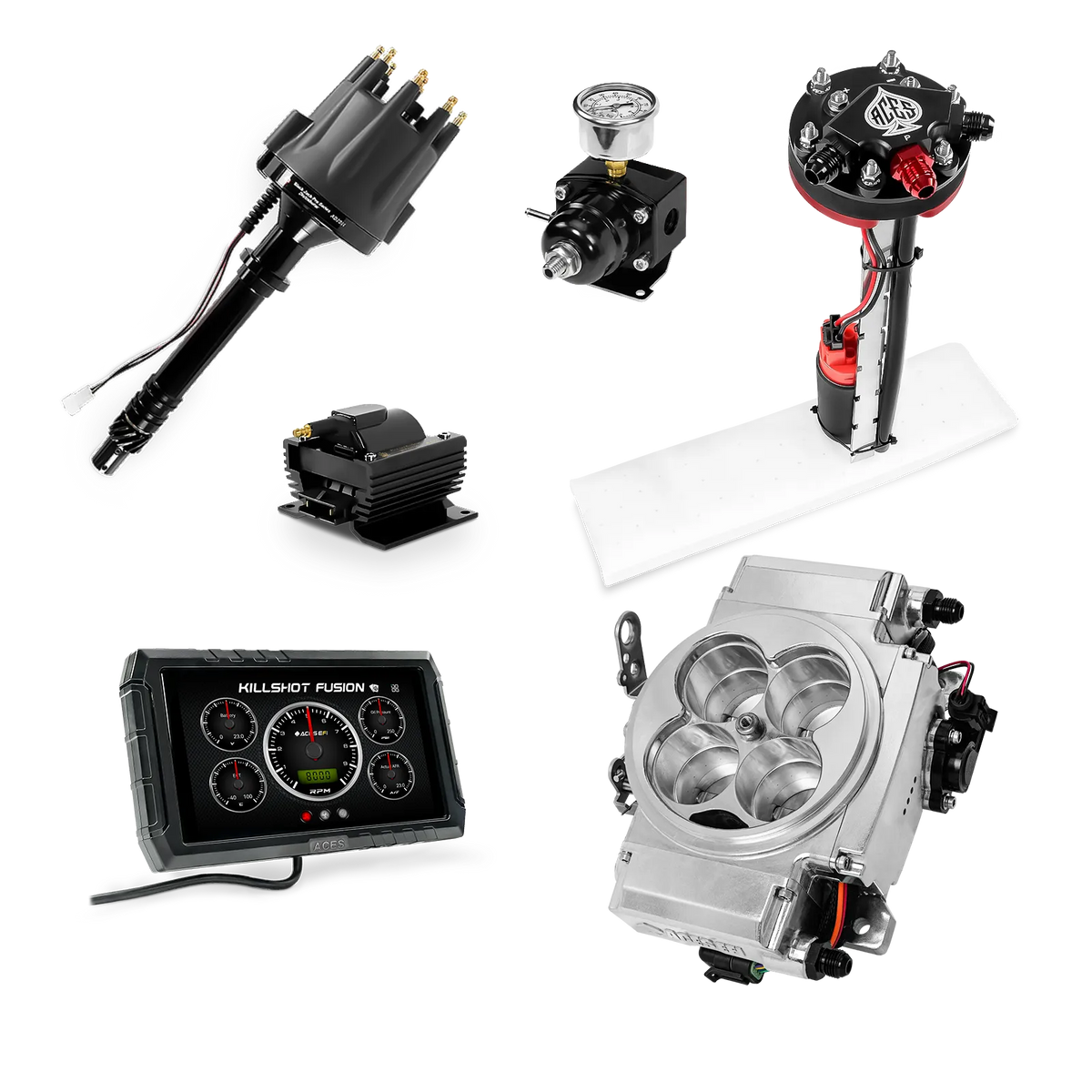

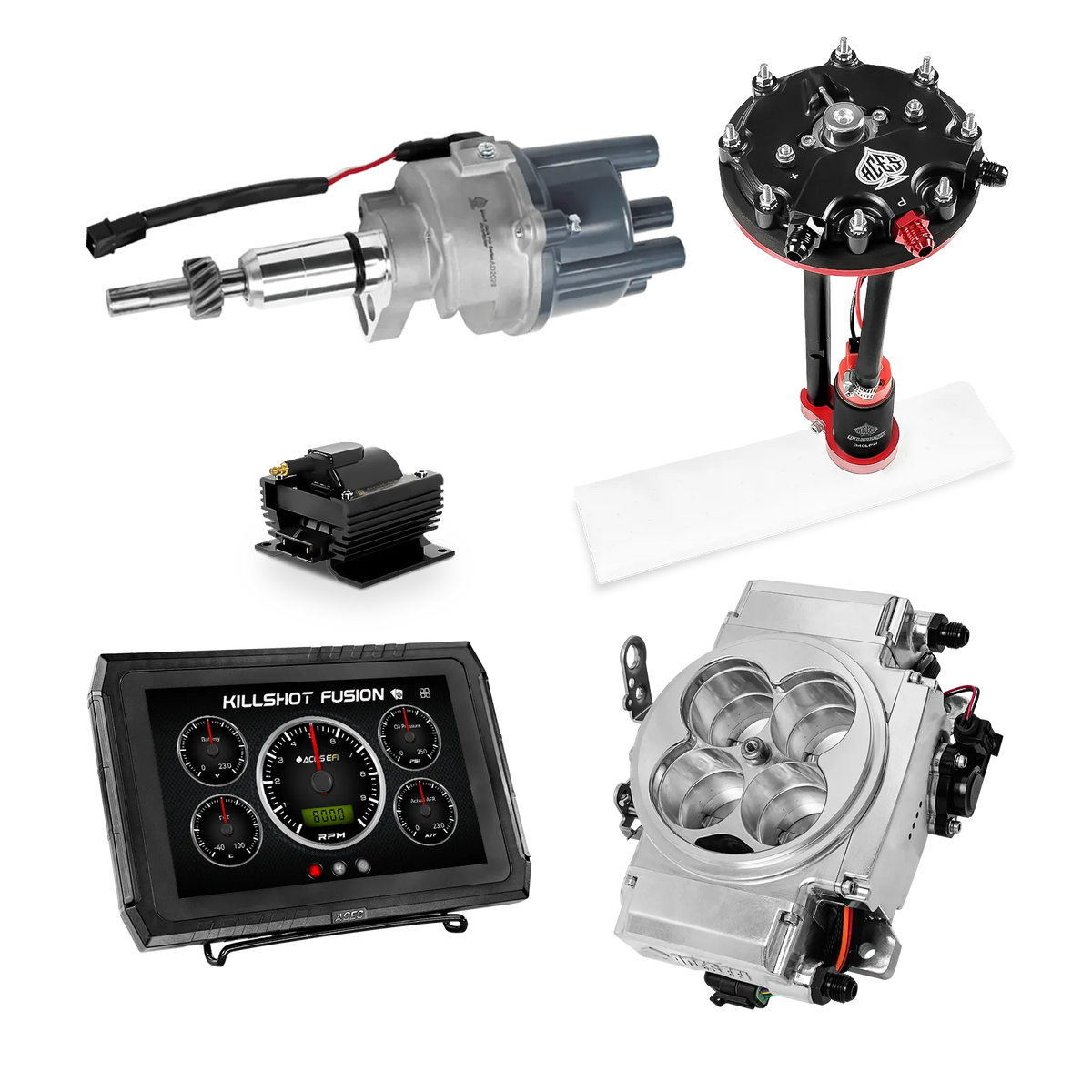

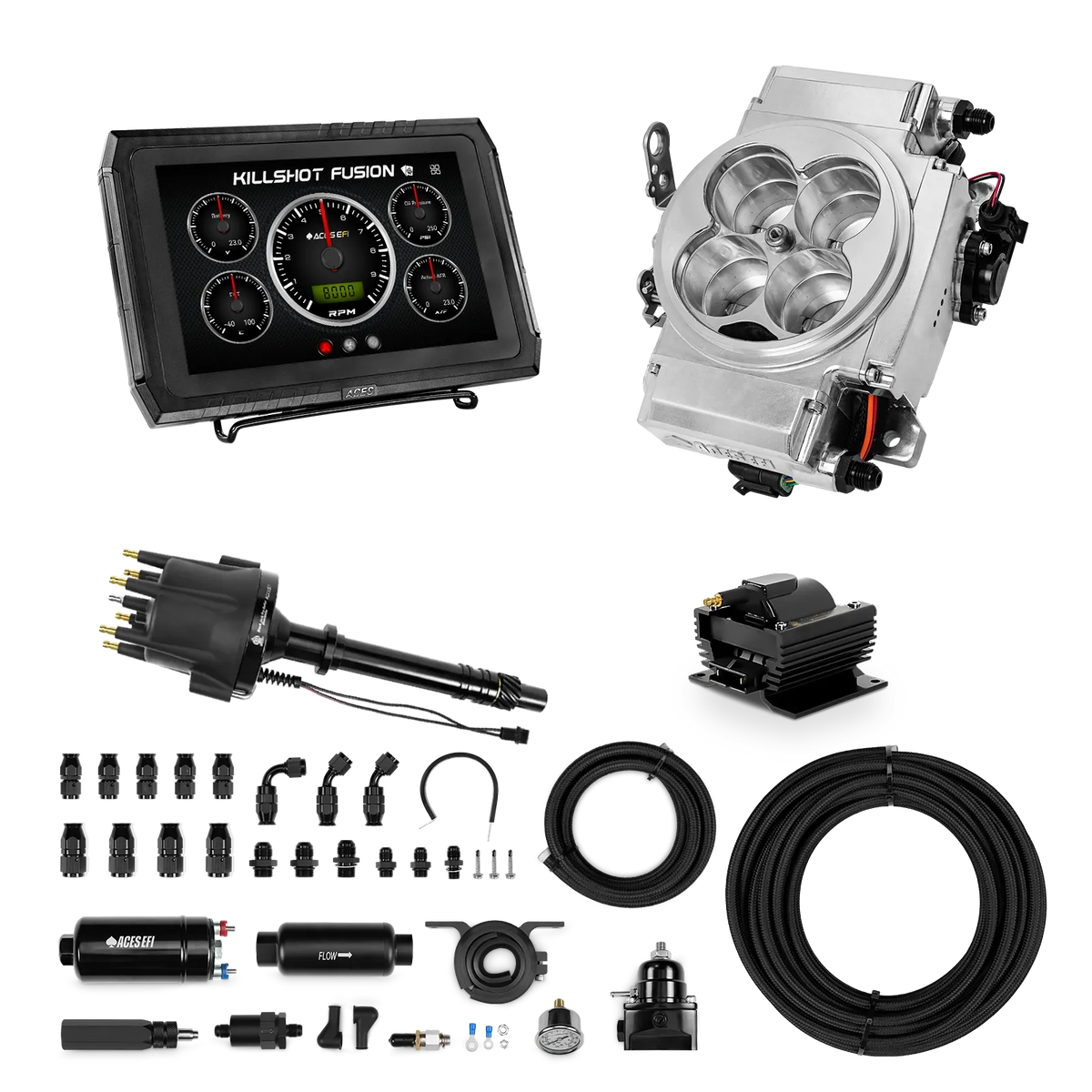

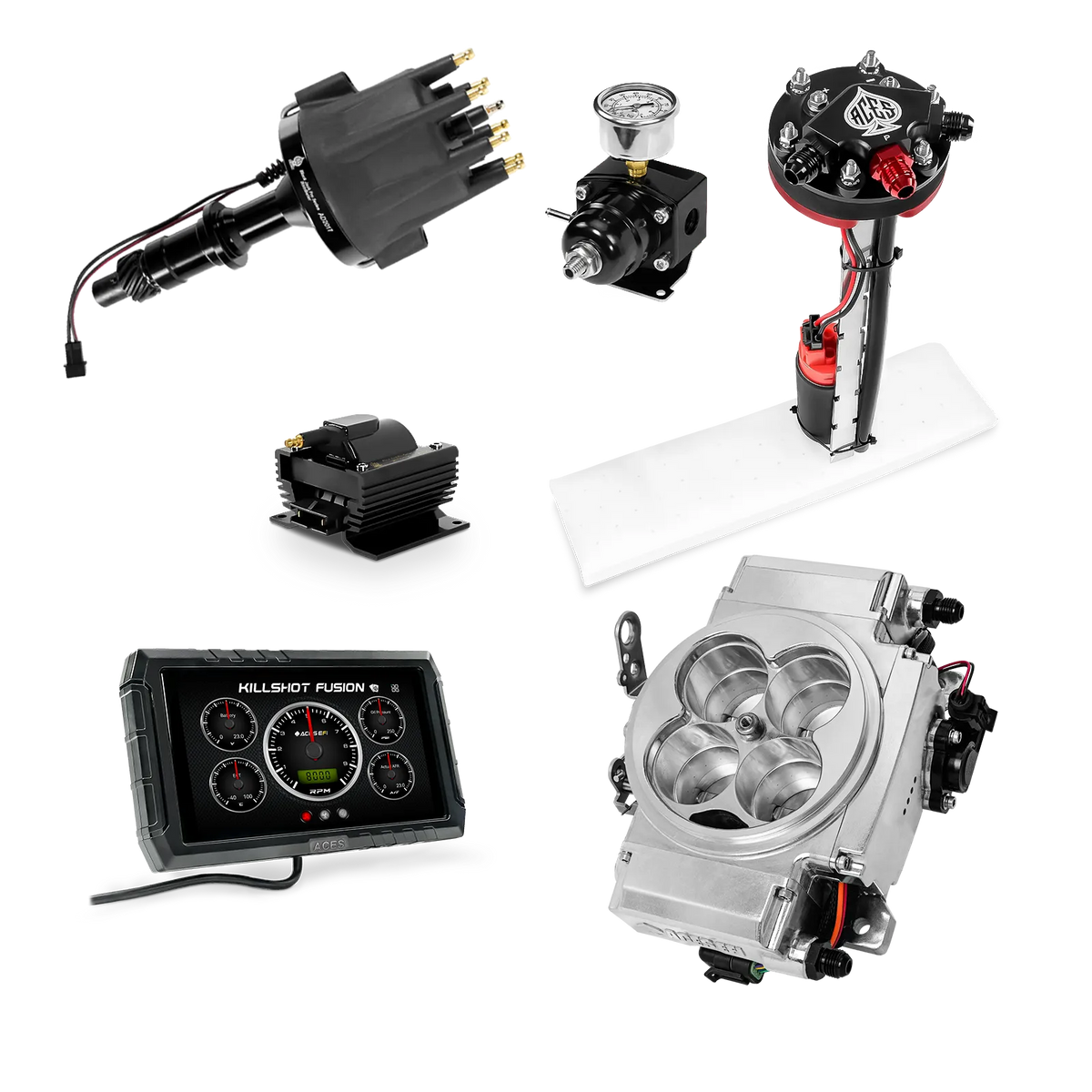

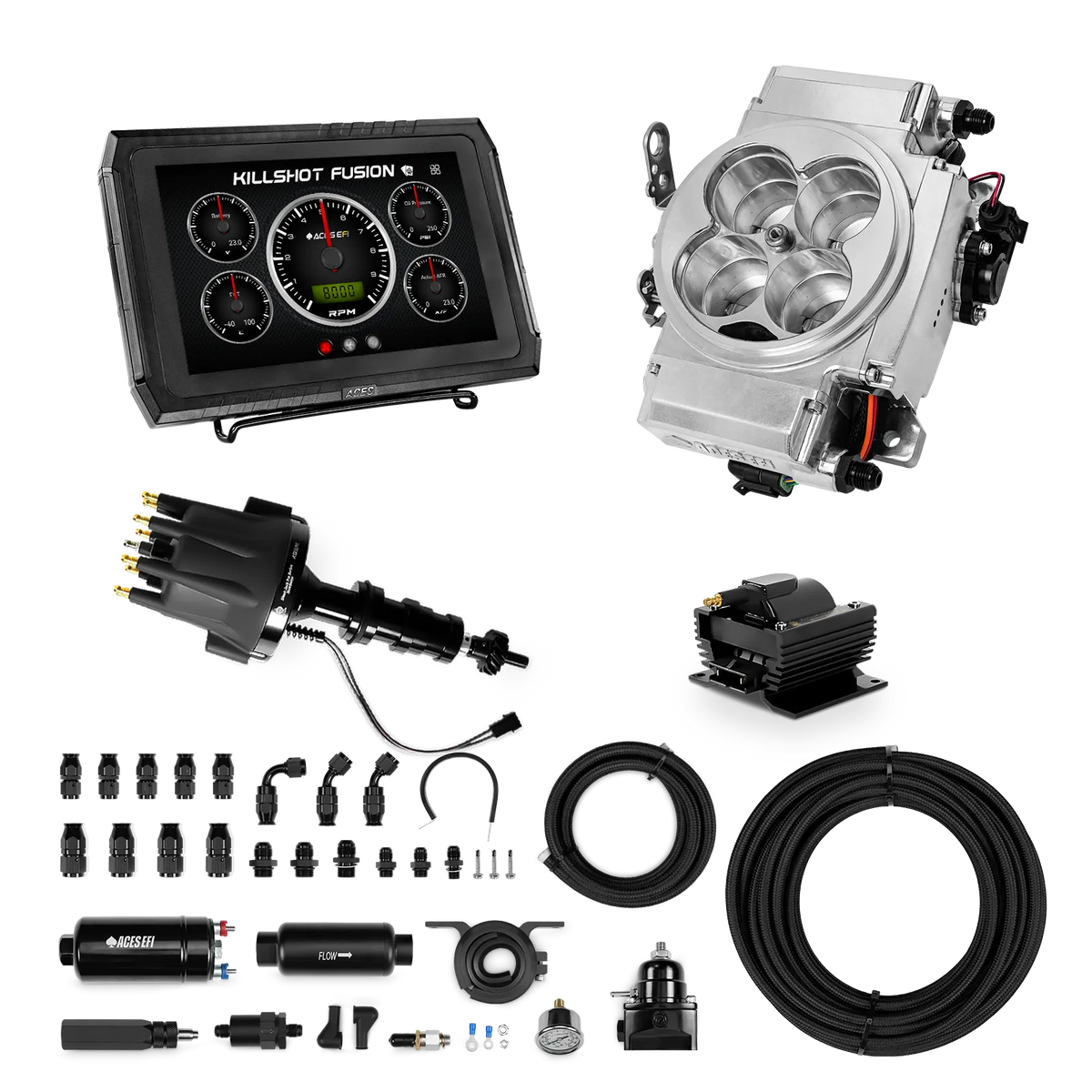

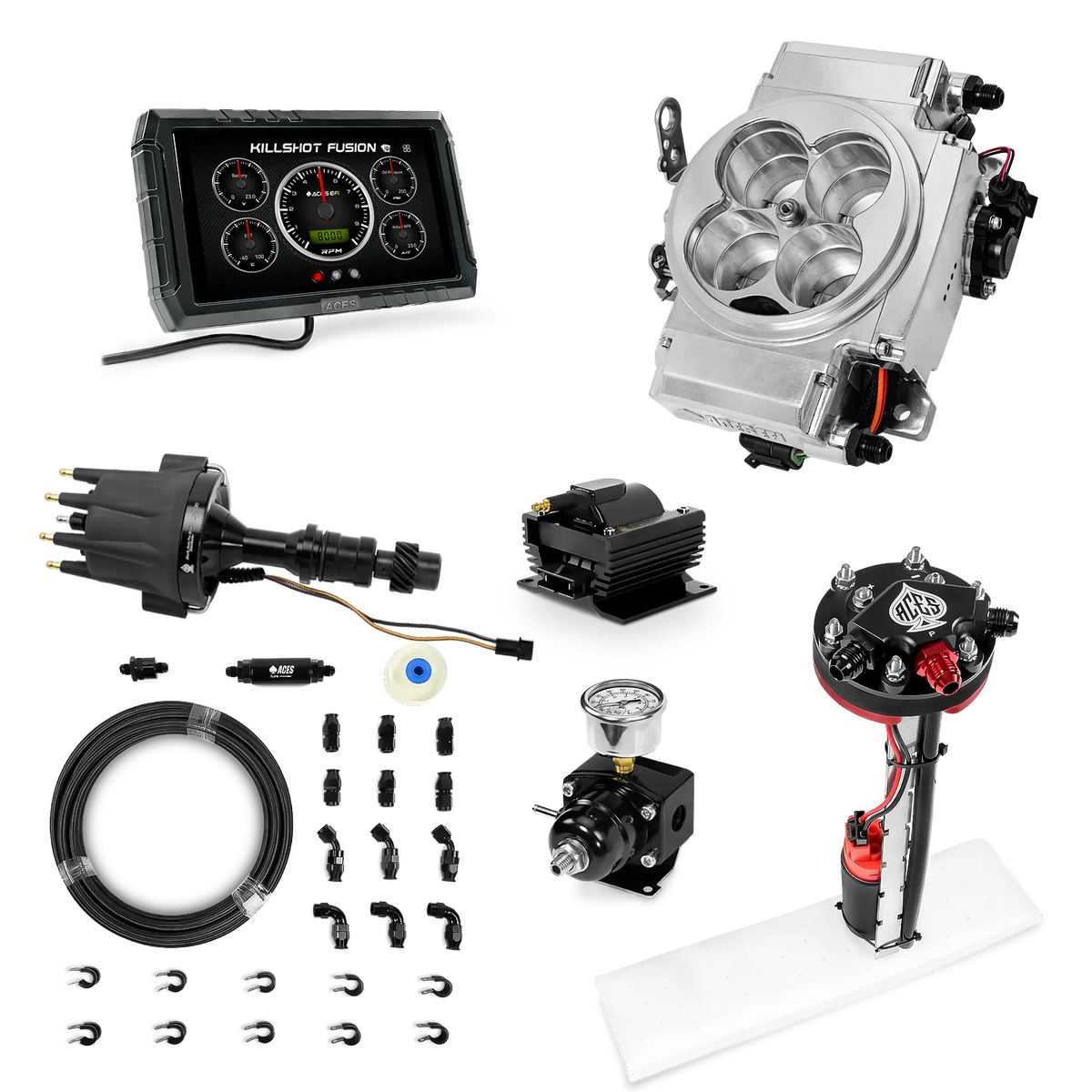

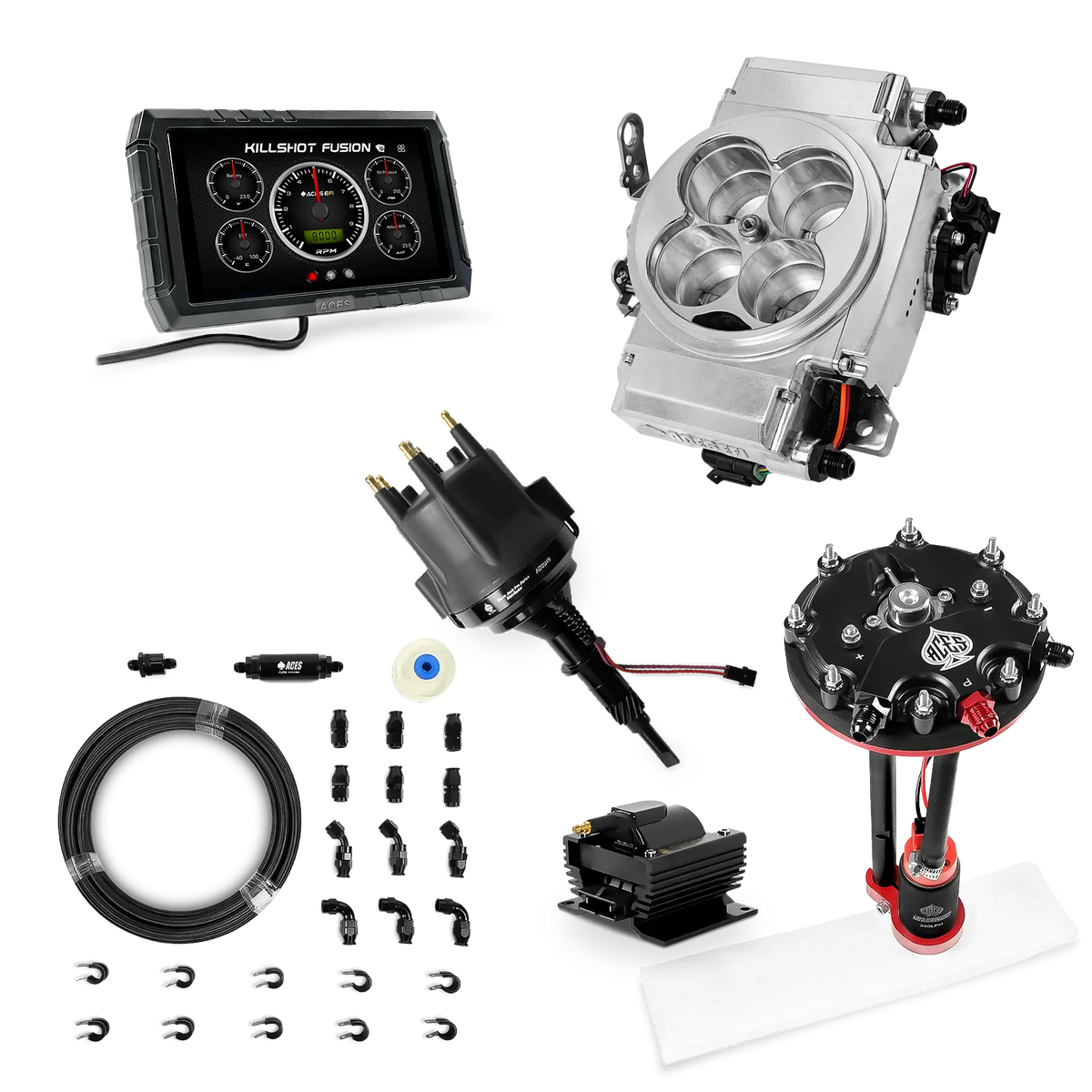

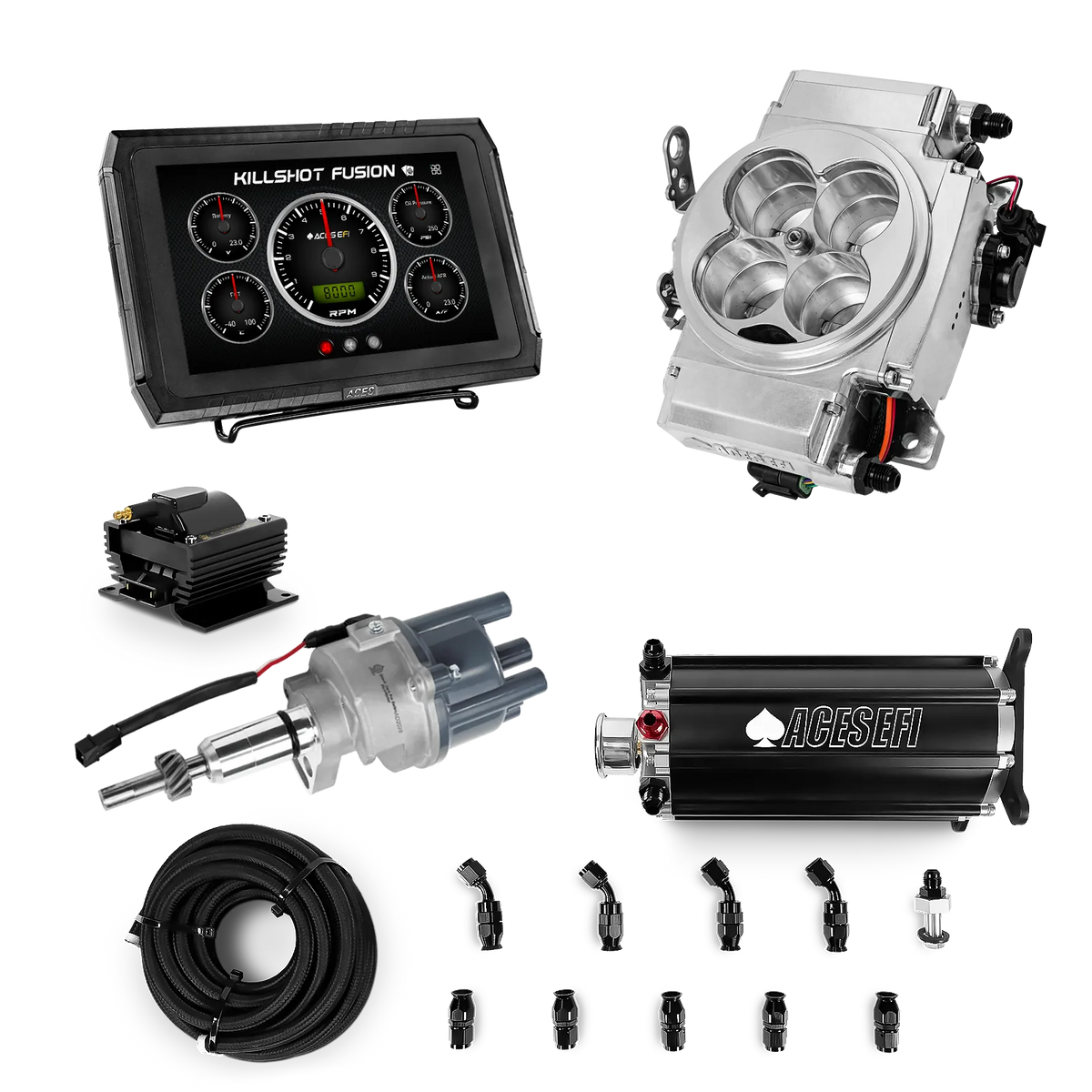

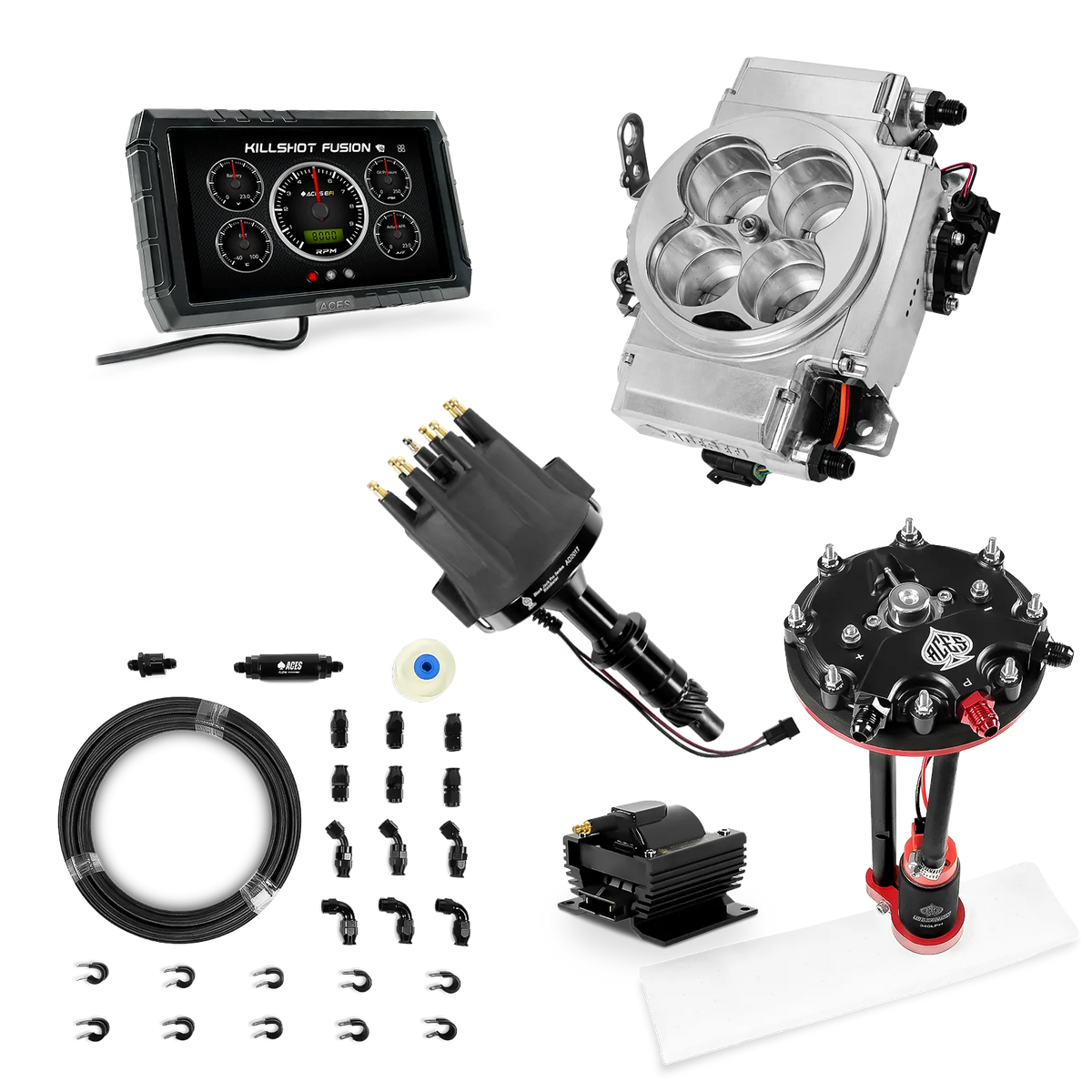

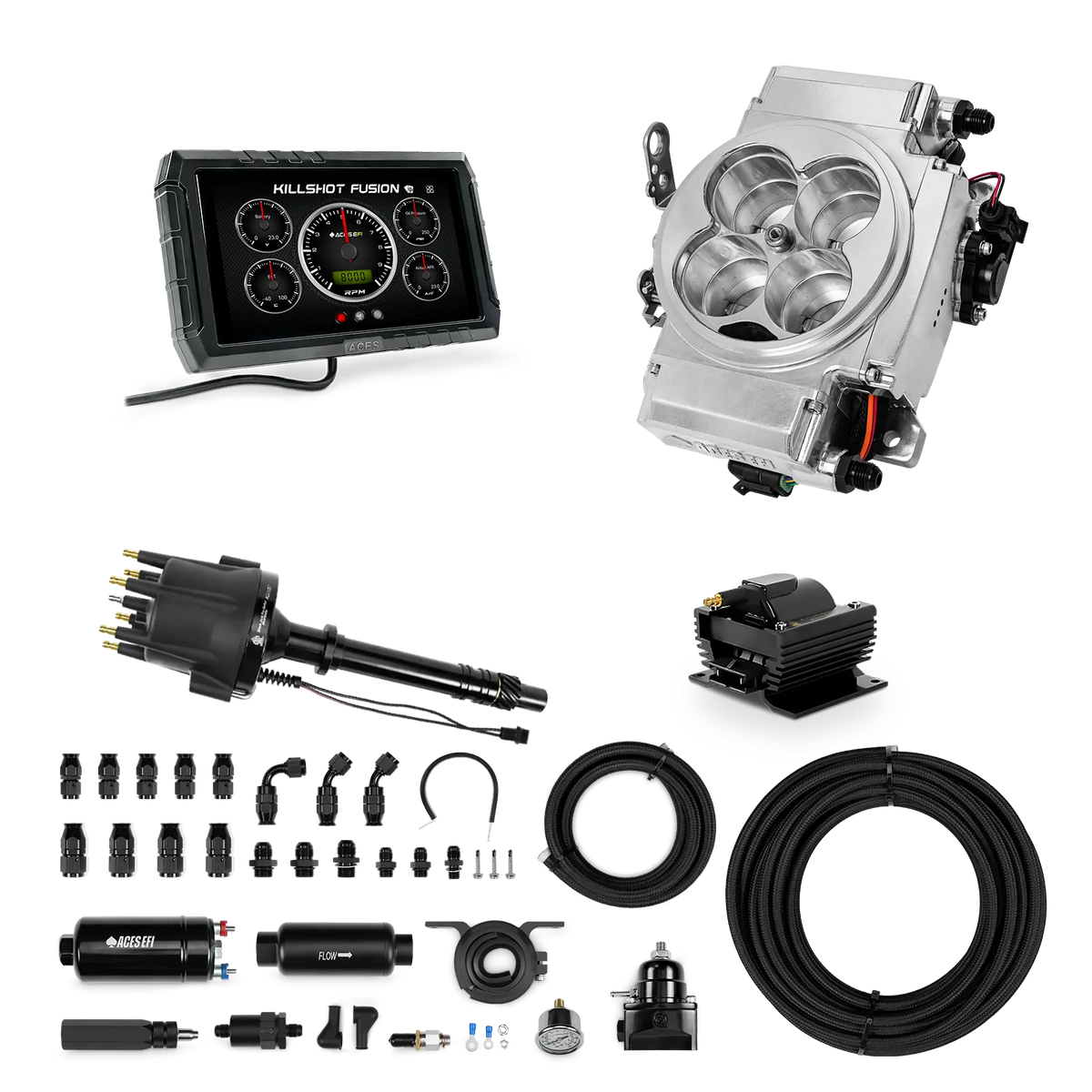

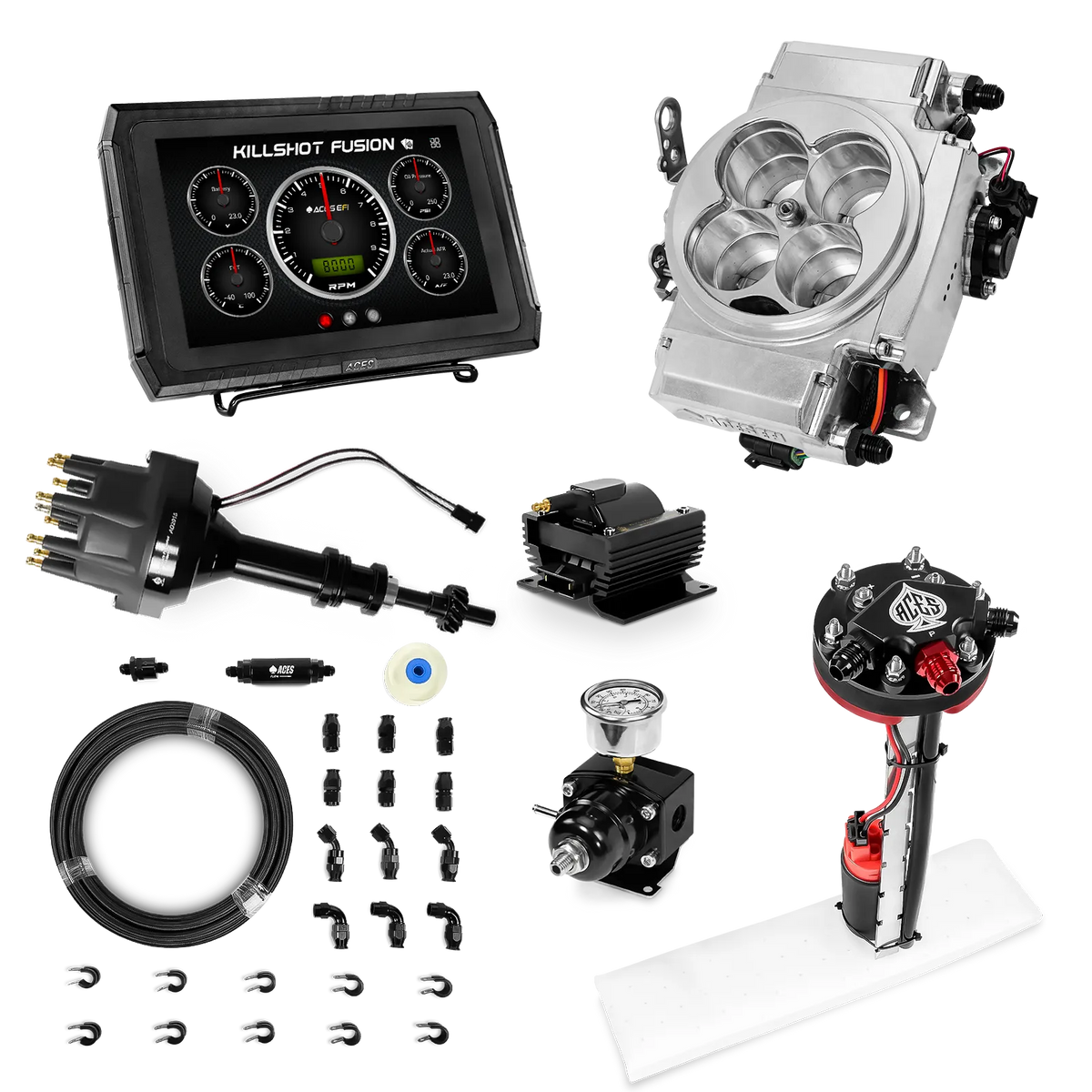

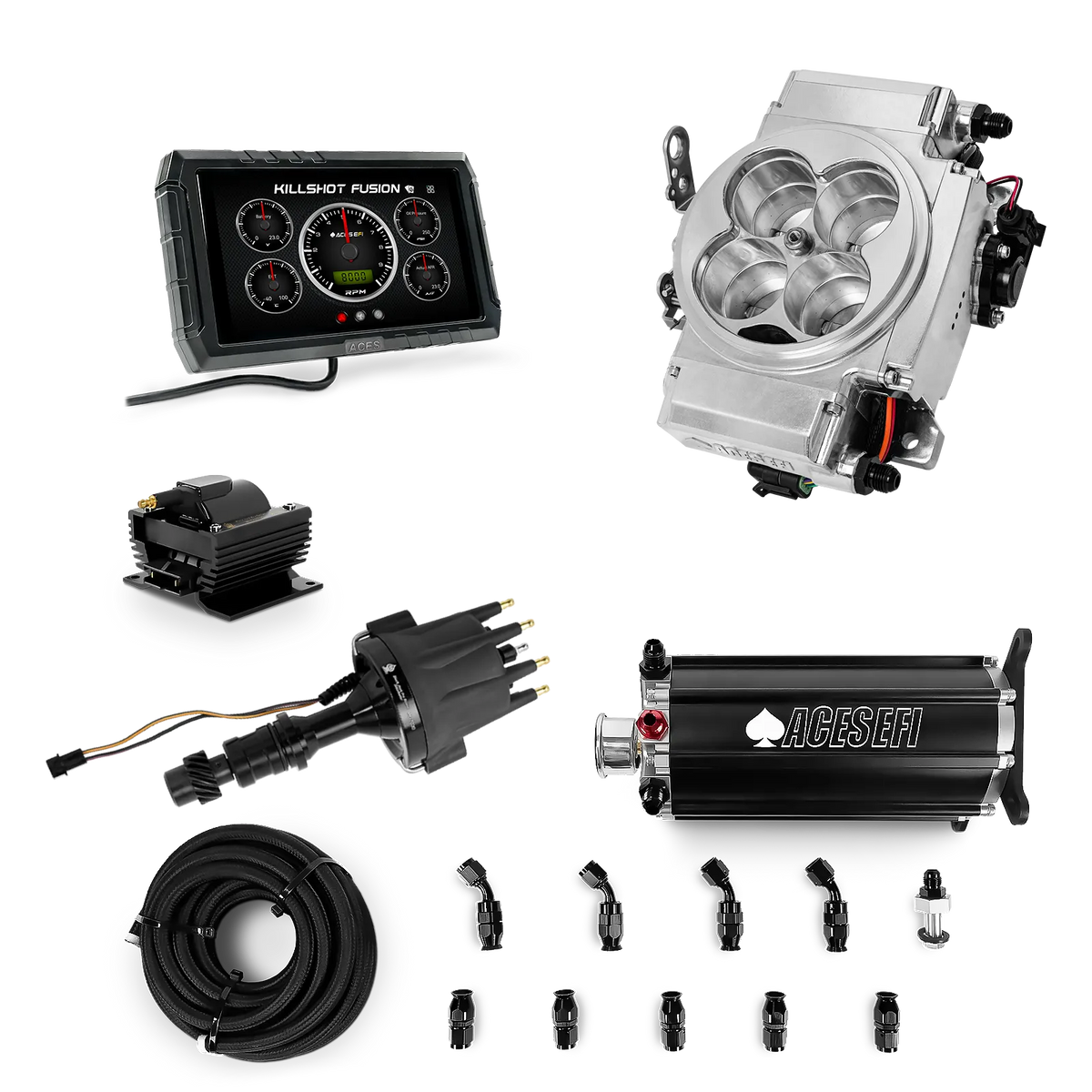

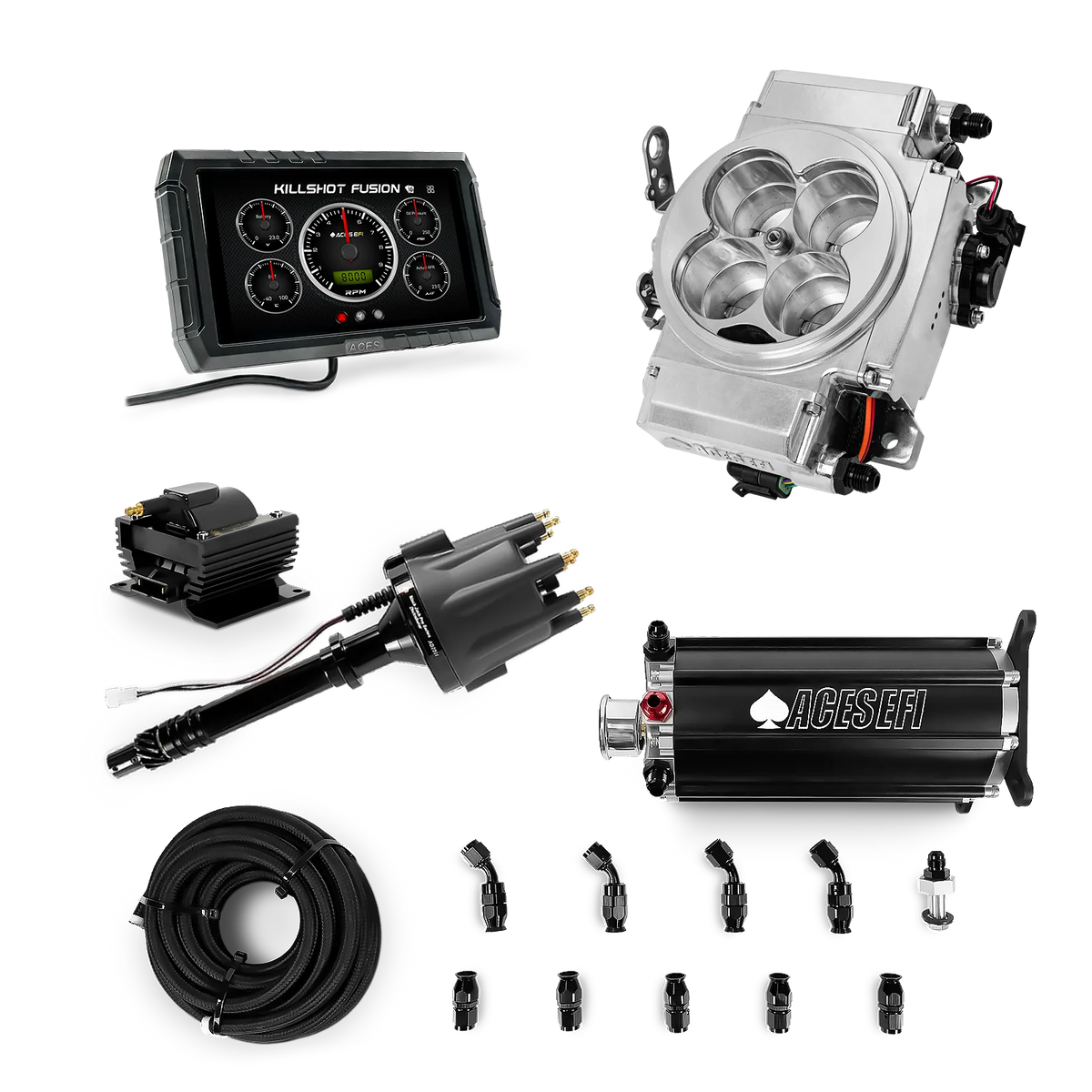

¿Qué es ?: La solución completa Killshot Fusion. Disfruta del sistema Fusion EFI, la inyección de combustible que prefieras, además del distribuidor y la bobina. El kit Fusion Master es la opción más económica y rápida para empezar a usarlo por primera vez.
Incluye:
-

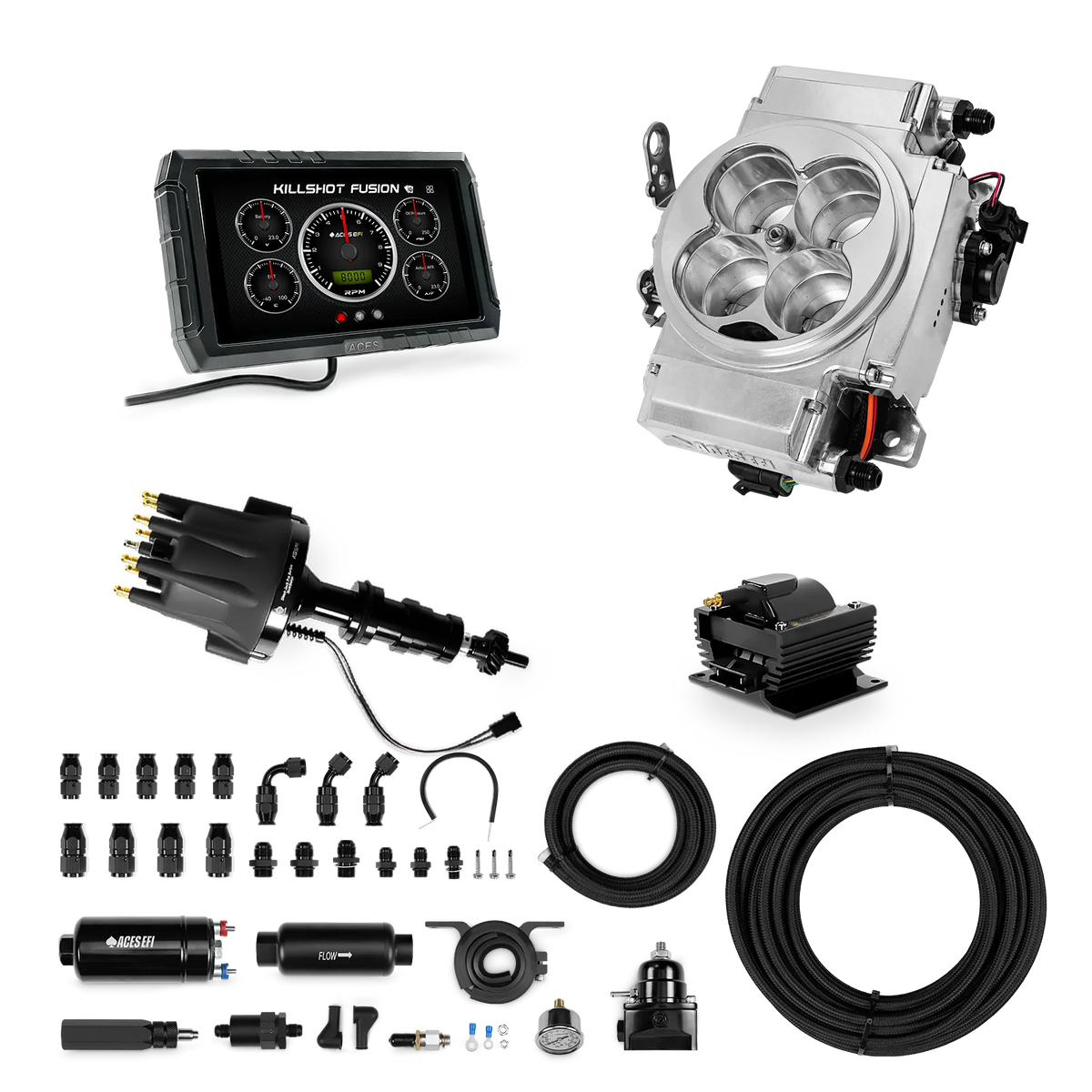

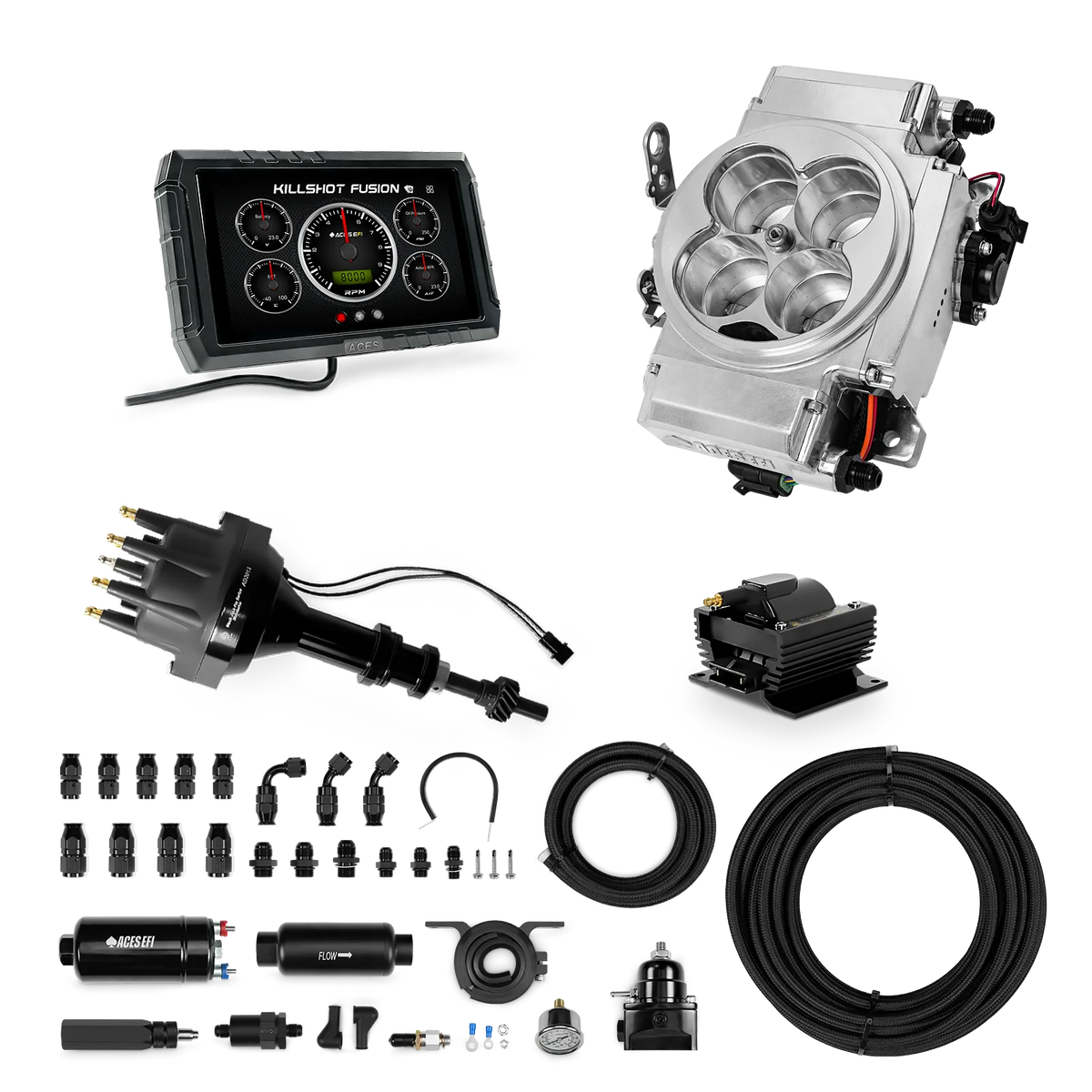

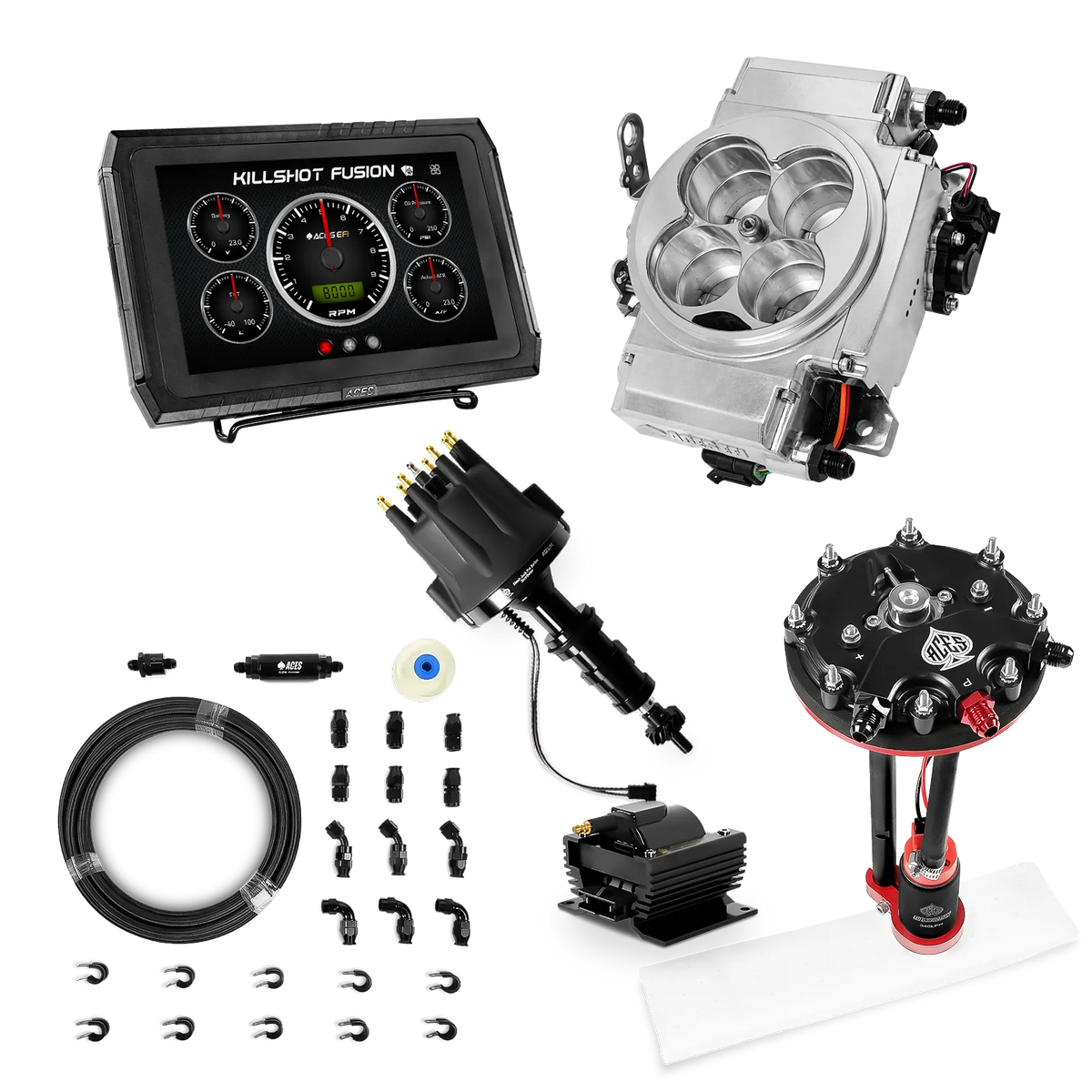

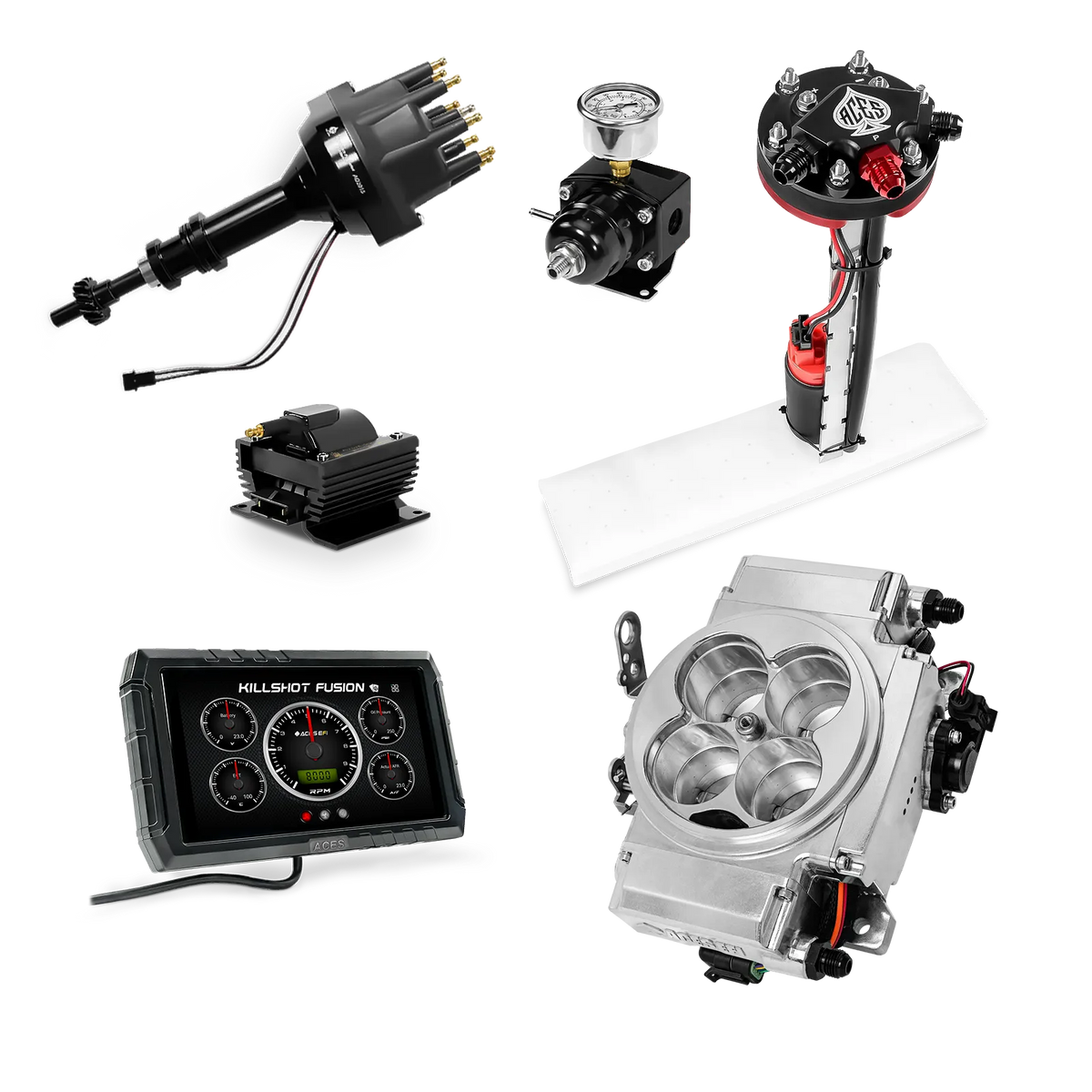

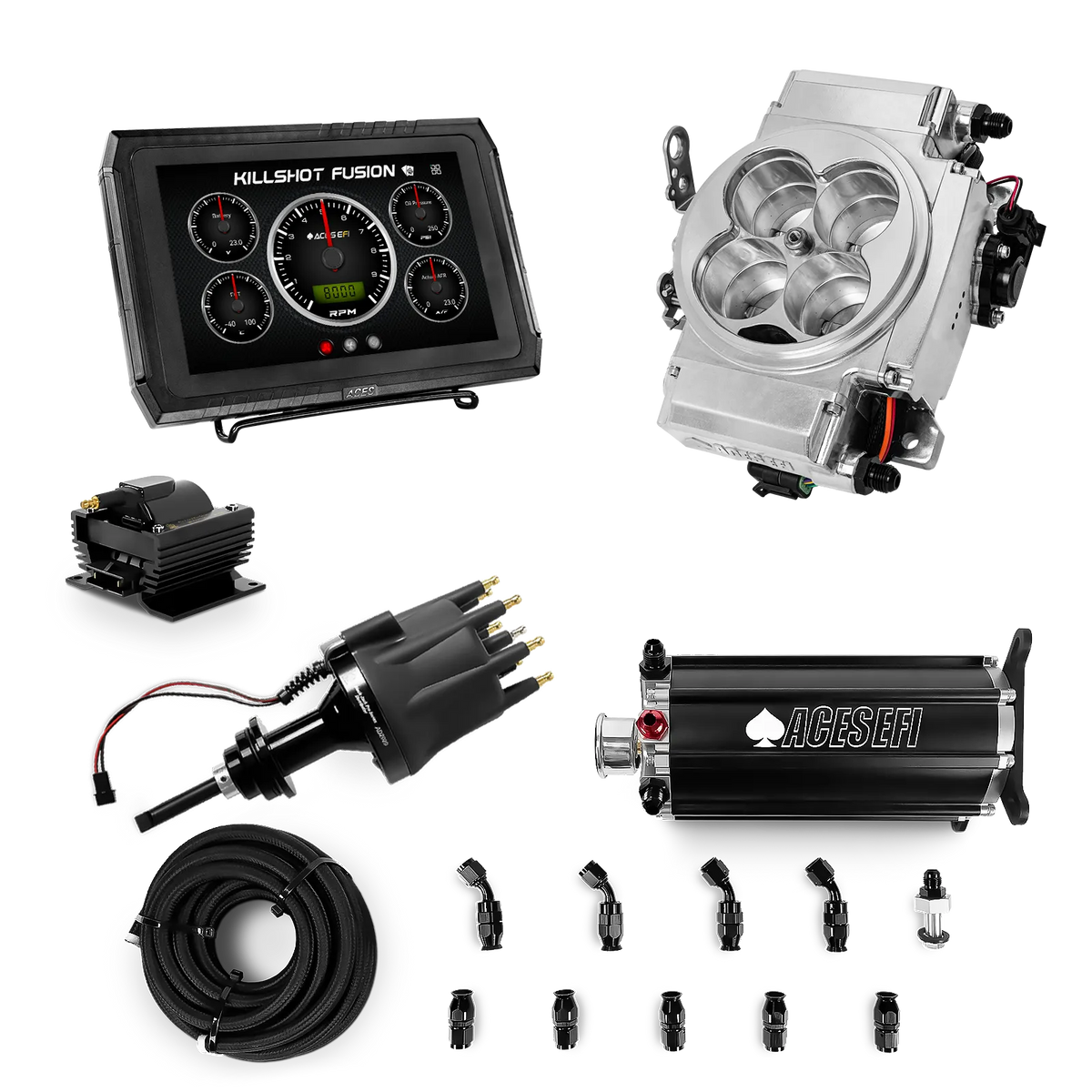

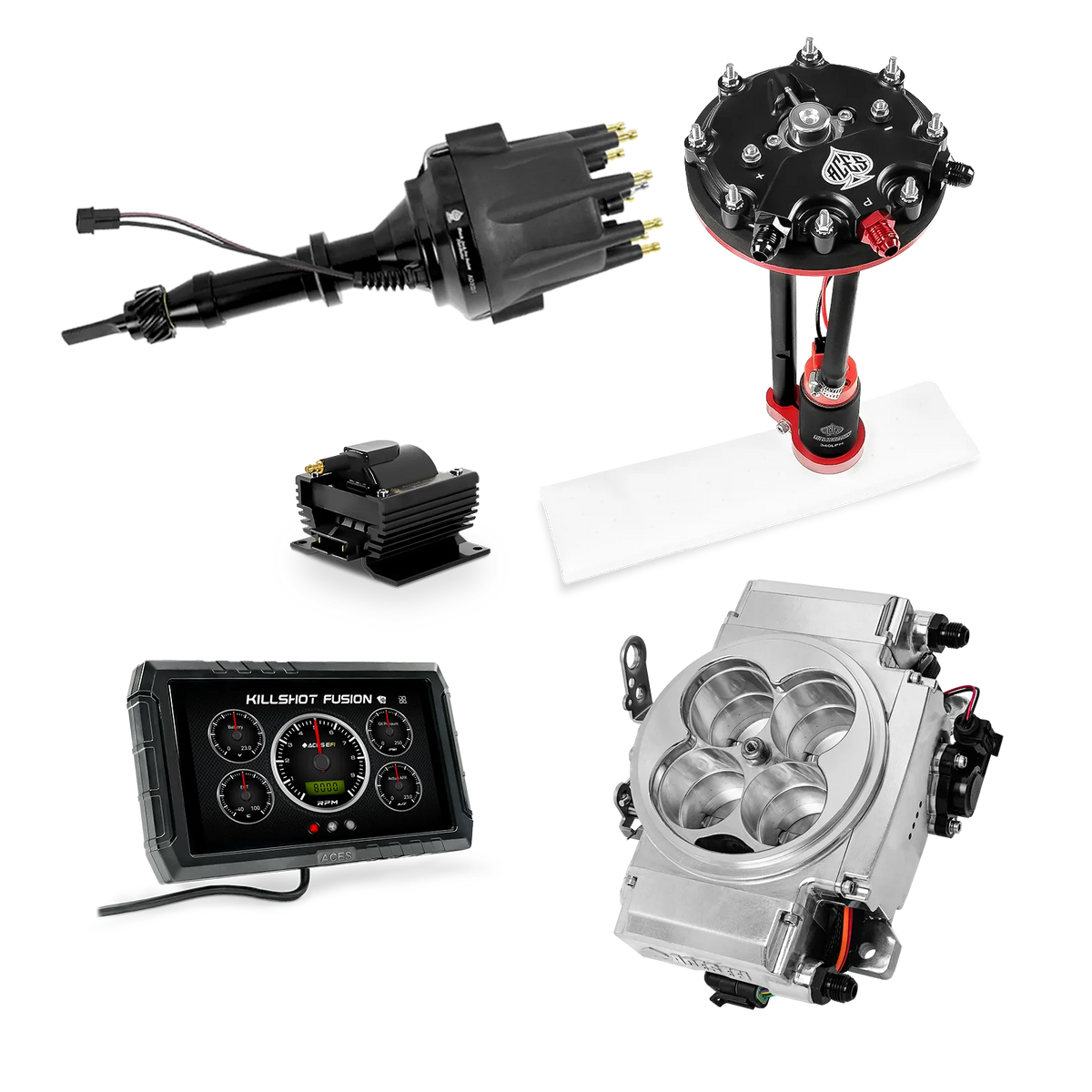

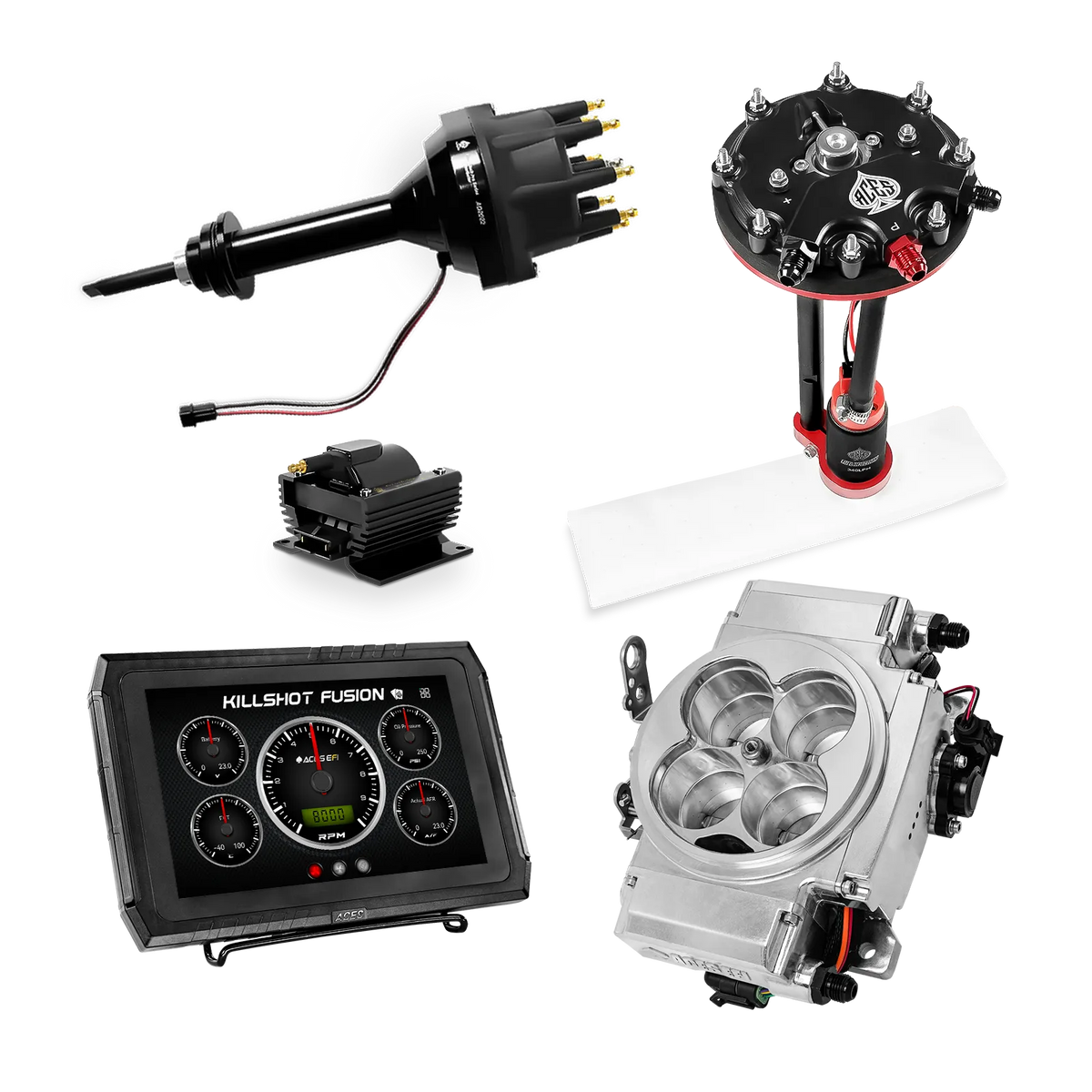

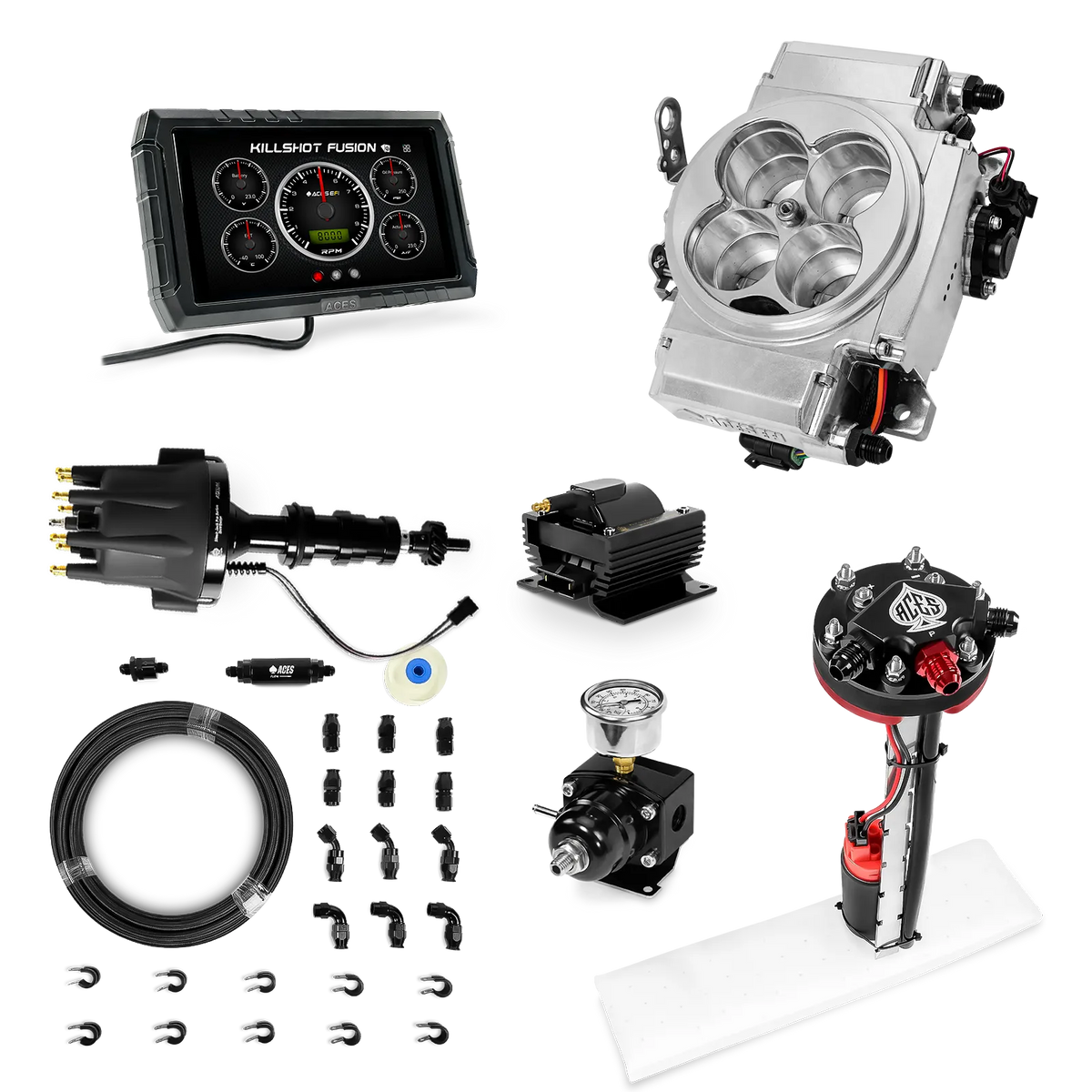

Todo lo que incluye el kit de combustible Killshot Fusion.
-
Todo lo que incluye el kit Killshot Fusion Top End.
Elija una opción de entrega de combustible:
-
Sistema de combustible en línea Aces 255: consulte los detalles en el kit de combustible.
-
Módulo de bomba de combustible de ajuste preciso dentro del tanque: consulte los detalles en el kit de combustible.
-
Depósito de compensación Command Center 2: consulte los detalles en el kit de combustible.
-
Módulo de bomba de conversión de tanque con regulador interno: consulte los detalles en el kit de combustible.
Ideal para
Conversiones completas de carburador a inyección electrónica, motores recién armados y configuraciones turboalimentadas de hasta 650 hp donde la confiabilidad, la limpieza y la simplicidad son primordiales. Si eres nuevo en el mundo de la inyección electrónica o simplemente necesitas algo sencillo, el kit Fusion Master es la forma más rápida y fácil de empezar a disfrutar de sus ventajas.
Specs
Kits maestros de fusión Killshot Specifications
| Specification | Value |
|---|---|
| Accelerometer Support | No |
| Air Cleaner Diameter | 5" |
| Air Inlet Location | Center top |
| Basic Operating RPM Range | Up to 8,000 RPM |
| Boost Compatible | Yes |
| Boost Control | No |
| CAN-BUS Support | Yes (Aces) |
| Category | Electronic Fuel Injection |
| CFM | 1,000 |
| Coil Per Cylinder Ignition Support | No |
| Color | Black, Gold, or Polished |
| Datalogging Support | Yes |
| Distributor Included | Only in Top End & Master Kits |
| Dry Nitrous Compatibility | No |
| Dry Nitrous Control | No |
| E85 Support | Yes |
| EFI Type | Throttle Body Injection (TBI) |
| EGT Support | Yes (Aces) |
| Emission Code | 3 |
| Engine | Utilizes a 4150 style flange. Not specific to any one engine. |
| Finish | Powder coating for Black or Gold. Polished finish |
| Flange Style | 4150 |
| Forced Induction Support | Yes |
| Fuel Filter Included | Only in Fuel Kits & Master Kits. |
| Fuel Hose Included | Only in Fuel Kits & Master Kits. |
| Fuel Injectors Included | Yes. (4) 100 lb/hr injectors which are built in. |
| Fuel Pressure Regulator Included | Only in Fuel Kits & Master Kits. |
| Fuel PSI Required | 42-48 PSI. 60 PSI Max. |
| Fuel Pump Included | Only in Fuel Kits & Master Kits. |
| Fuel Rail(s) Included | Not applicable to TBI style systems. |
| Fuel System Type | Depends on selection and only in Fuel Kits & Master Kits. |
| Gasket Or Seal Included | Yes |
| Gasket Type | Fiber |
| Grade Type | Performance |
| Handheld Included | Yes, except in Bluetooth Module only variants |
| Handheld MCU Architecture | 64-bit |
| Idle Air Control Motor Included | Yes, built-in. |
| Ignition Timing Control | Yes |
| Ignition Compatibility | Most stock, CDI, magnetic, hall effect, or points style distributor. |
| Individual Cylinder Fuel Corrections | No |
| Injector Connector | EV1 (internal) |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Intake Manifold Included | No |
| Knock Retard Support | No |
| MAP Sensor | 3 Bar |
| MAP Sensor Included | Yes, built-in. |
| Material | Cast Aluminum (throttle body) |
| Maximum Horsepower Supported | 650 Naturally Aspirated |
| MCU Architechture | 32-bit ST56 Power PC |
| Minimum Horsepower Supported | 150 |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Bung(s) Included | No |
| Product Type | Electronic Fuel Injection System |
| Progressive Nitrous Control | No |
| Recommended Use | Stock to Mild applications for best results |
| Self-Learning | Yes, for stock-mild setups |
| Sequential Injection | No |
| Single Or Dual Plane Type | Compatible with either |
| Throttle Body Bore Diameter | 42.8mm |
| Throttle Body Height | 3.46" |
| Throttle Body Included | Yes |
| Throttle Position Sensor Included | Yes, built-in |
| Transmission Control | Not included |
| WBO2 Sensor | 4.9 Wideband |
| WBO2 Sensor Included | Yes, one. |
| User-Tuneable | Yes |
| Wet Nitrous Control | No |
Resource Documents
For additional manuals, diagrams, measurements, and more, check out our documents page in our Resource Center by clicking here.
What's in the box?
¿Qué es ?: La solución completa Killshot Fusion. Disfruta del sistema Fusion EFI, la inyección de combustible que prefieras, además del distribuidor y la bobina. El kit Fusion Master es la opción más económica y rápida para empezar a usarlo por primera vez.
Incluye:
-
Todo lo que incluye el kit de combustible Killshot Fusion.
-
Todo lo que incluye el kit Killshot Fusion Top End.
Elija una opción de entrega de combustible:
-
Sistema de combustible en línea Aces 255: consulte los detalles en el kit de combustible.
-
Módulo de bomba de combustible de ajuste preciso dentro del tanque: consulte los detalles en el kit de combustible.
-
Depósito de compensación Command Center 2: consulte los detalles en el kit de combustible.
-
Módulo de bomba de conversión de tanque con regulador interno: consulte los detalles en el kit de combustible.
Ideal para
Conversiones completas de carburador a inyección electrónica, motores recién armados y configuraciones turboalimentadas de hasta 650 hp donde la confiabilidad, la limpieza y la simplicidad son primordiales. Si eres nuevo en el mundo de la inyección electrónica o simplemente necesitas algo sencillo, el kit Fusion Master es la forma más rápida y fácil de empezar a disfrutar de sus ventajas.
Kits maestros de fusión Killshot Specifications
| Specification | Value |
|---|---|
| Accelerometer Support | No |
| Air Cleaner Diameter | 5" |
| Air Inlet Location | Center top |
| Basic Operating RPM Range | Up to 8,000 RPM |
| Boost Compatible | Yes |
| Boost Control | No |
| CAN-BUS Support | Yes (Aces) |
| Category | Electronic Fuel Injection |
| CFM | 1,000 |
| Coil Per Cylinder Ignition Support | No |
| Color | Black, Gold, or Polished |
| Datalogging Support | Yes |
| Distributor Included | Only in Top End & Master Kits |
| Dry Nitrous Compatibility | No |
| Dry Nitrous Control | No |
| E85 Support | Yes |
| EFI Type | Throttle Body Injection (TBI) |
| EGT Support | Yes (Aces) |
| Emission Code | 3 |
| Engine | Utilizes a 4150 style flange. Not specific to any one engine. |
| Finish | Powder coating for Black or Gold. Polished finish |
| Flange Style | 4150 |
| Forced Induction Support | Yes |
| Fuel Filter Included | Only in Fuel Kits & Master Kits. |
| Fuel Hose Included | Only in Fuel Kits & Master Kits. |
| Fuel Injectors Included | Yes. (4) 100 lb/hr injectors which are built in. |
| Fuel Pressure Regulator Included | Only in Fuel Kits & Master Kits. |
| Fuel PSI Required | 42-48 PSI. 60 PSI Max. |
| Fuel Pump Included | Only in Fuel Kits & Master Kits. |
| Fuel Rail(s) Included | Not applicable to TBI style systems. |
| Fuel System Type | Depends on selection and only in Fuel Kits & Master Kits. |
| Gasket Or Seal Included | Yes |
| Gasket Type | Fiber |
| Grade Type | Performance |
| Handheld Included | Yes, except in Bluetooth Module only variants |
| Handheld MCU Architecture | 64-bit |
| Idle Air Control Motor Included | Yes, built-in. |
| Ignition Timing Control | Yes |
| Ignition Compatibility | Most stock, CDI, magnetic, hall effect, or points style distributor. |
| Individual Cylinder Fuel Corrections | No |
| Injector Connector | EV1 (internal) |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Intake Manifold Included | No |
| Knock Retard Support | No |
| MAP Sensor | 3 Bar |
| MAP Sensor Included | Yes, built-in. |
| Material | Cast Aluminum (throttle body) |
| Maximum Horsepower Supported | 650 Naturally Aspirated |
| MCU Architechture | 32-bit ST56 Power PC |
| Minimum Horsepower Supported | 150 |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Bung(s) Included | No |
| Product Type | Electronic Fuel Injection System |
| Progressive Nitrous Control | No |
| Recommended Use | Stock to Mild applications for best results |
| Self-Learning | Yes, for stock-mild setups |
| Sequential Injection | No |
| Single Or Dual Plane Type | Compatible with either |
| Throttle Body Bore Diameter | 42.8mm |
| Throttle Body Height | 3.46" |
| Throttle Body Included | Yes |
| Throttle Position Sensor Included | Yes, built-in |
| Transmission Control | Not included |
| WBO2 Sensor | 4.9 Wideband |
| WBO2 Sensor Included | Yes, one. |
| User-Tuneable | Yes |
| Wet Nitrous Control | No |
For additional manuals, diagrams, measurements, and more, check out our documents page in our Resource Center by clicking here.
650 hp
Supports up to 650 naturally-aspirated ponies
550 hp
Supports up to 550 boosted ones
Internal ECU
No room on the firewall? No problem. The Fusion's internal ECU makes for a much cleaner look under the hood. Read about our durability testing and R&D behind it here.
Minimal Wires
Designed for simplicity, the wire harness has only a few wires to connect:
- Main power
- Ground
- Key on power wire
- Fuel pump wire
- Distributor wire
Better Ingredients. Better Performance.
Industrial-grade components? Never heard of her. Only automotive-grade components here. Aces only uses OEM-level components, which means better reliability and capbility.
Disco under the hood.
We spent the last 5 years making sure our onboard ECU would hold up under the same conditions that plagued other companies. What better way to celebrate than with a mini rave?
If the shoe (throttle body) fits.
The Killshot Fusion uses the common 4150 style flange found on many classic engine manifolds, making it very versatile when it comes to compatibility. As long as the TBI unit fits, is within the appropriate HP range, and your engine uses a classic distributor, it's a match made in heaven...or the garage.
Master Kit Feature
(Fuel) Pump Up the Jam
Each Master Kit will come with a fuel system of your choosing. You can scroll down to read more about the available options below.
255 In-line Fuel System
A frame-mounted in-line pump with all of the necessary fittings and hose.
Command Center 2
A surge tank system that allows you to keep your mechanical pump in place. A better option for classic trucks or other vehicles where the tank is hard to access.
Tight-fit In Tank Pump Module
An in-tank fuel pump module available with or without PTFE hose.
Requires a return line to the tank.
Tank Conversion Fuel Pump Module
An in-tank fuel pump module with an internal regulator. Ideal for fuel cells.
Does not require a return line to the tank.
Master Kit Feature
Distributors for Days
Each Master Kit will also come with a Distributor of your choosing and an ignition coil to allow you to run timing control.
Magnetic Pickup Distributor
With over 15 options to choose from, our line of Black Jack Pro Magnetic Pickup Distributors lets you run your EFI with mechanical advance or lock it out to allow the ECU to control timing.
Ignition Coil
The high-output magnet in the Black Jack Pro Ignition Coil creates 50,000 volts, or about 70% more spark energy over most stock-style applications, giving you a significantly hotter and larger spark for more complete combustion. This helps create more horsepower and torque, providing smooth acceleration throughout the entire RPM band.
How do I set up and program my system?
Interface Options
Our EFI systems are self-learning for most stock-to-mild engine builds. You’ll use one of the included interface modules (depending on the option selected at purchase) to complete the initial setup and make adjustments on the fly. The startup wizard will prompt you with 6–12 setup questions, after which the self-learn feature takes over.
Additional fine-tuning may be required later, depending on your specific build.
5" Handheld (3rd Gen)
- Capacitive touch screen
- 64-bit processor
- 1280x720 resolution
- Cable connection via main harness
8" Handheld (1st Gen)
- Capacitive touch screen
- 64-bit processor
- 1280x800 resolution
- Wifi chip for software updates via the internet
- Cable connection via main harness
Compare EFI Systems
What's the Difference?
Killshot Lite?
Killshot Fusion?
Killshot 2 Pro Max Plus Ultra Wideband 4K?????
See what makes each system unique below.
- Internal ECU
- Designed for stock-race builds under 650 hp (NA)
- External ECU
- Designed for stock-race builds under 650 hp (NA)
- Largest resolution tables (31x31)
- Dual quad compatible to support up to 1,200 hp
Designed to work with any classic 4, 6, or 8 cylinder engine that is under 650 hp, uses a 4150 style flange, and has a fuel system rated for EFI (43 PSI).
Designed to work with any classic 4, 6, or 8 cylinder engine that is under 650 hp, uses a 4150 style flange, and has a fuel system rated for EFI (43 PSI).
4150
4150
100 lb/hr
100 lb/hr
Yes! This works best for stock-mild builds and for anything beyond that, the system is fully tunable.
Yes! This works best for stock-mild builds and for anything beyond that, the system is fully tunable.
Yes
Yes
Internal
External
Yes
Yes
- Canister Style
- Aces Brand
- Standard Aftermarket
- Aces Brand
- Standard Aftermarket
Bundle & Save!
Save 5% when you purchase a fuel, top-end, or master kit! See the 4 different kit types that we offer below.
Standalone
Includes the following:
- Throttle body
- ECU
- Handheld or Bluetooth Module
- Full Harness
- Sensors
- Accessories
Fuel Kit
Top End Kit

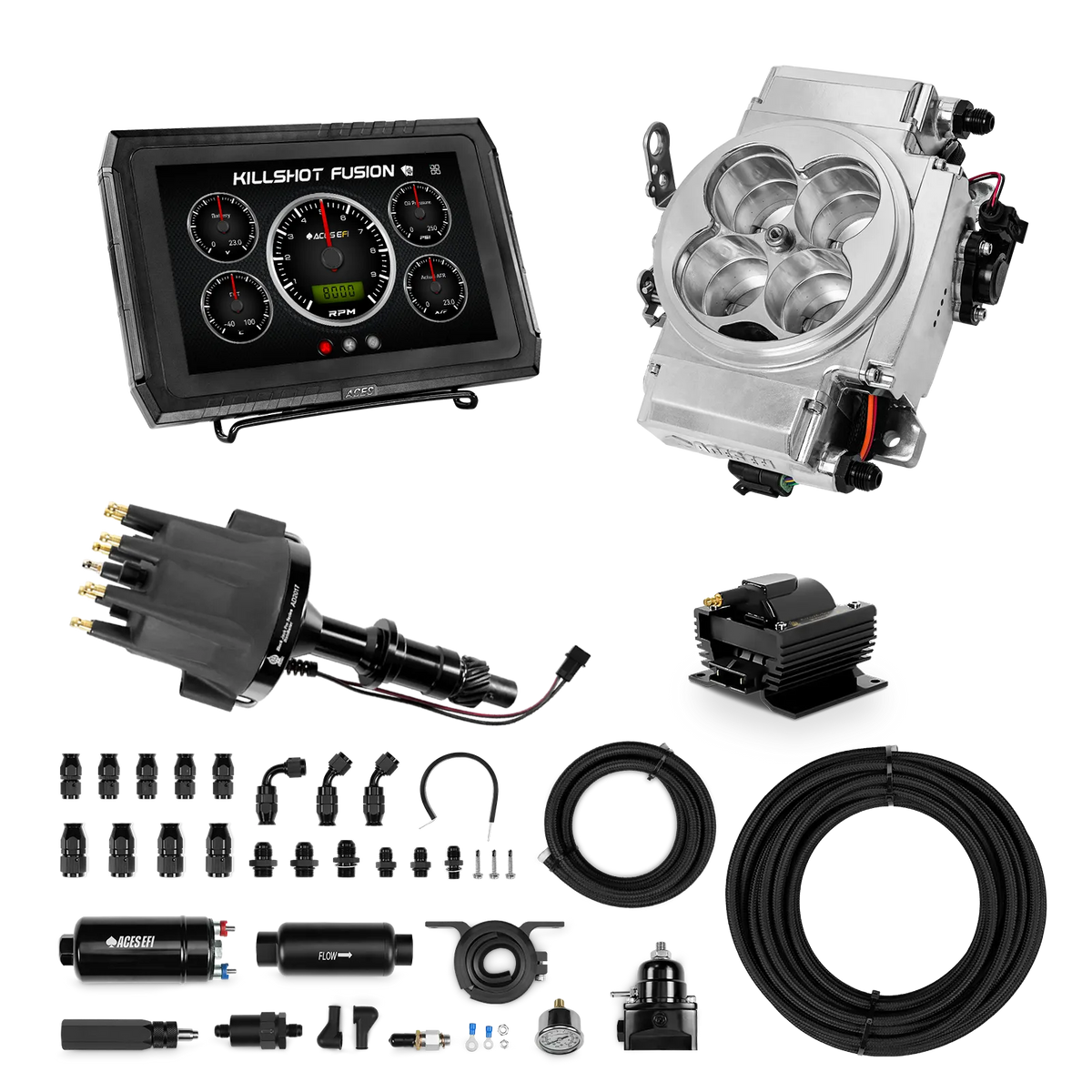

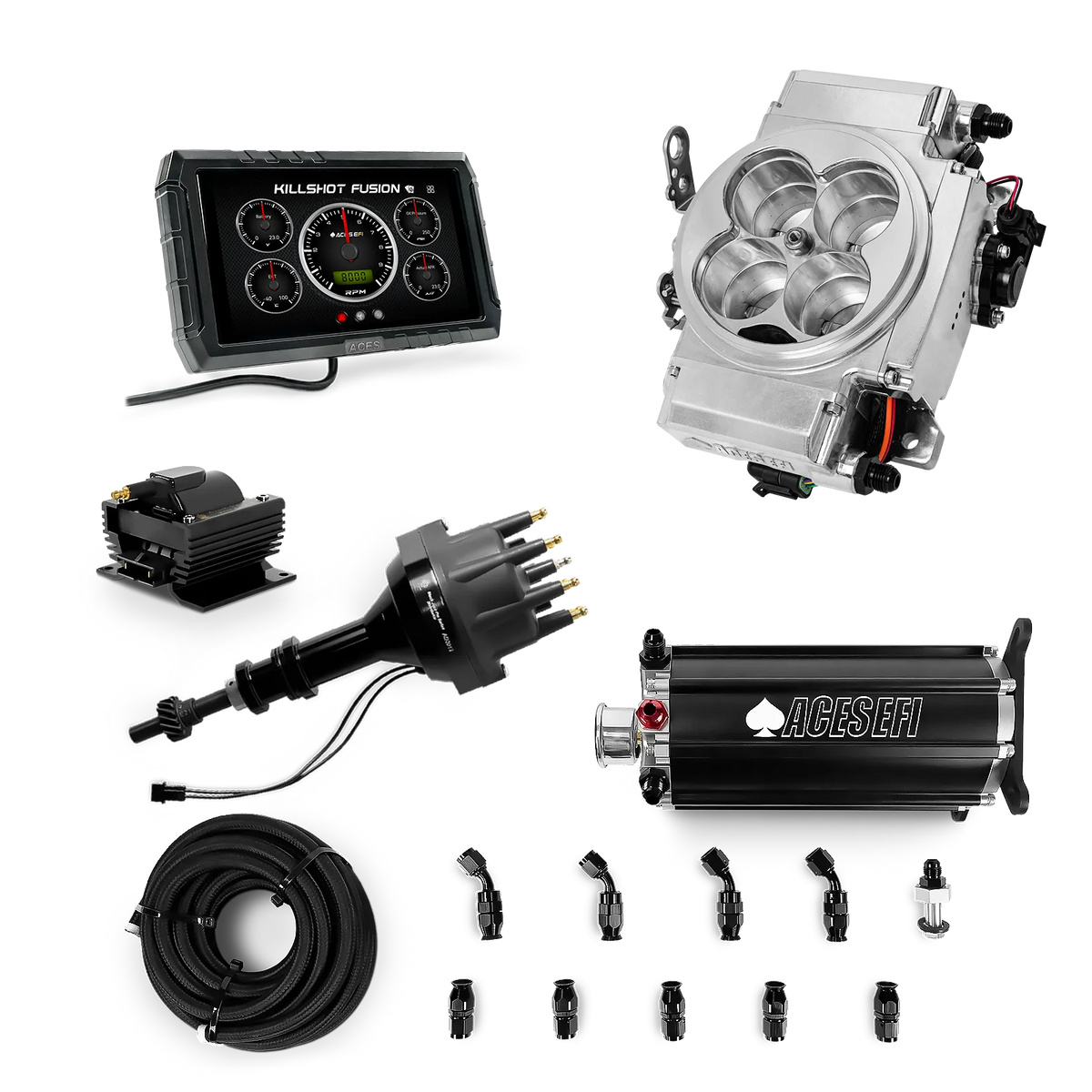

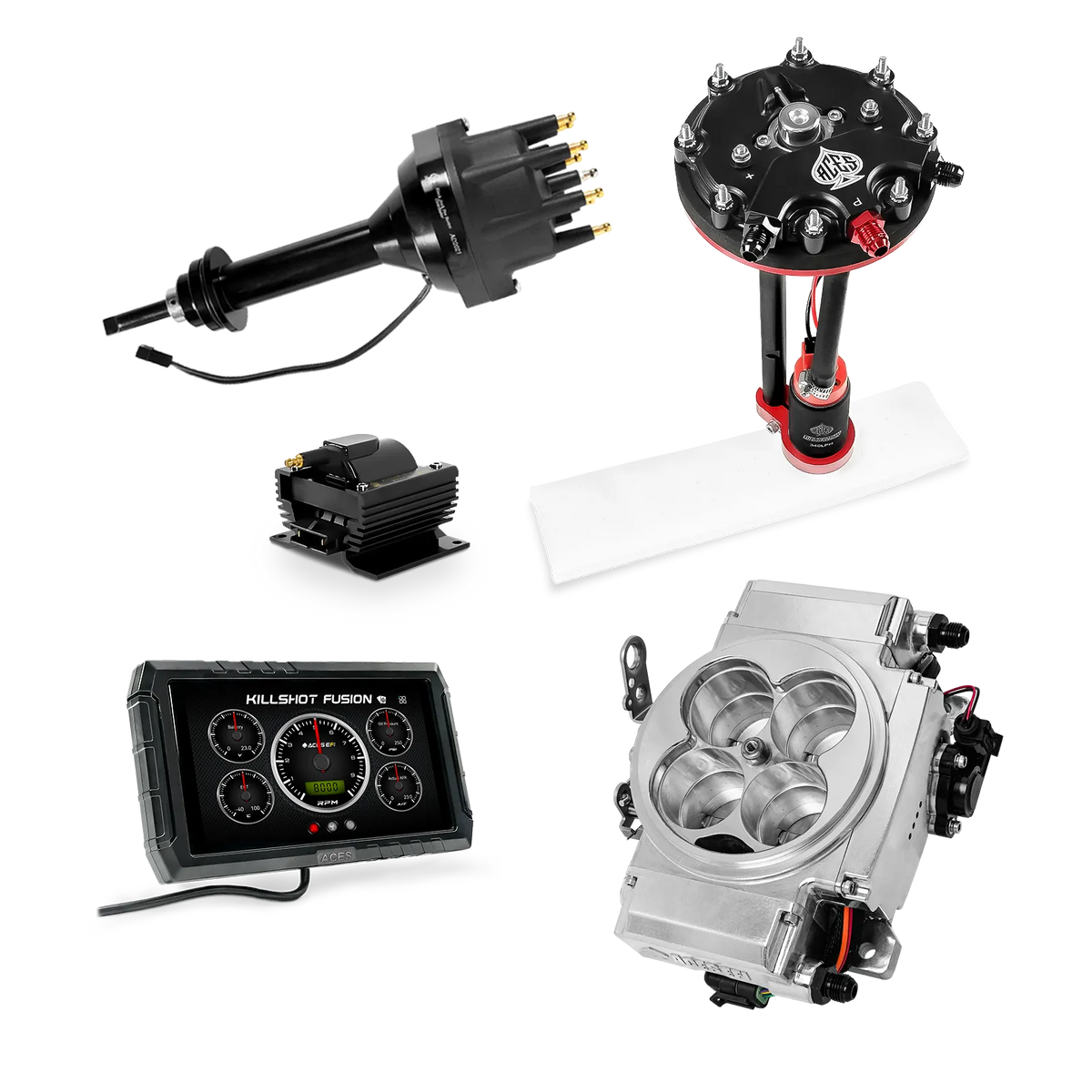

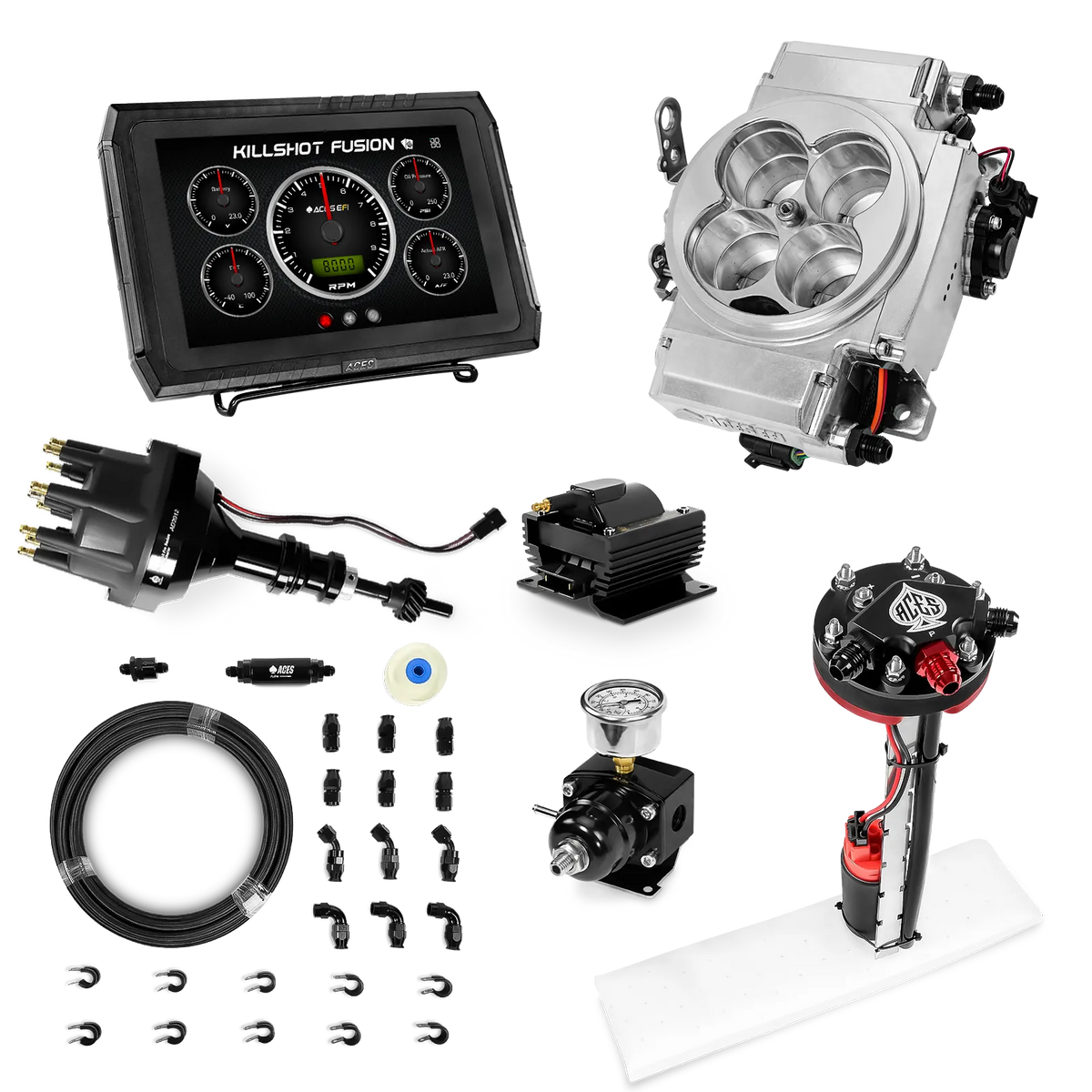

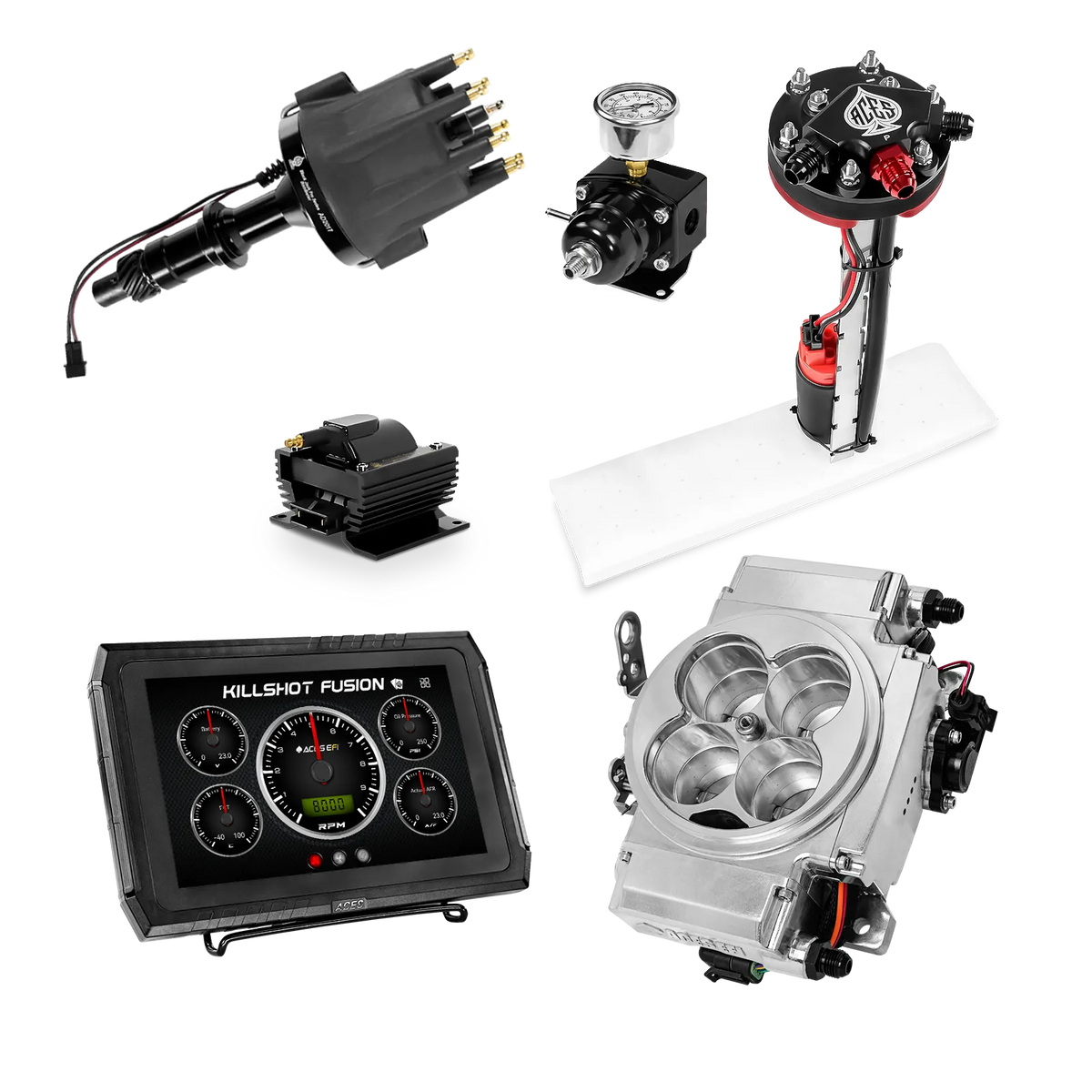

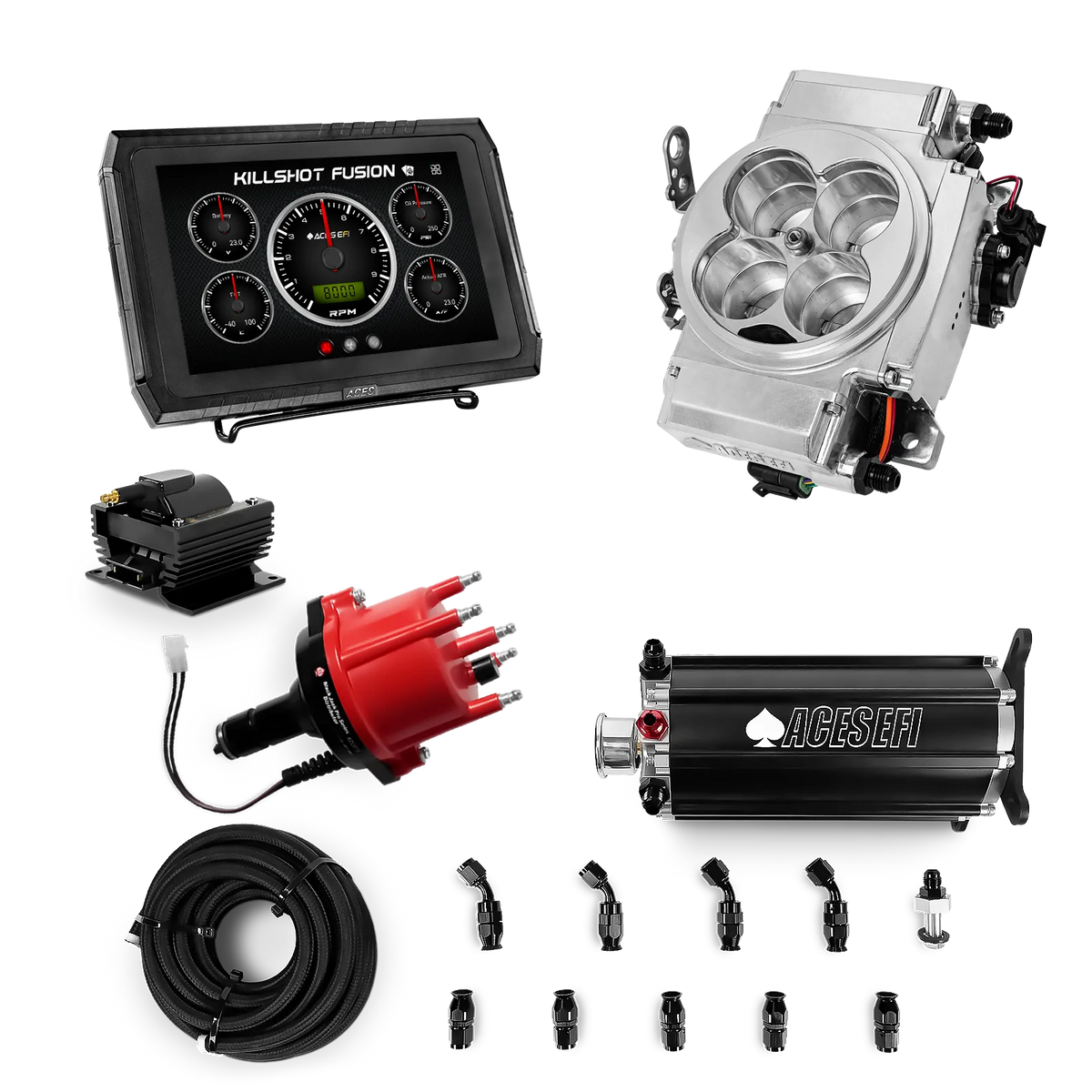

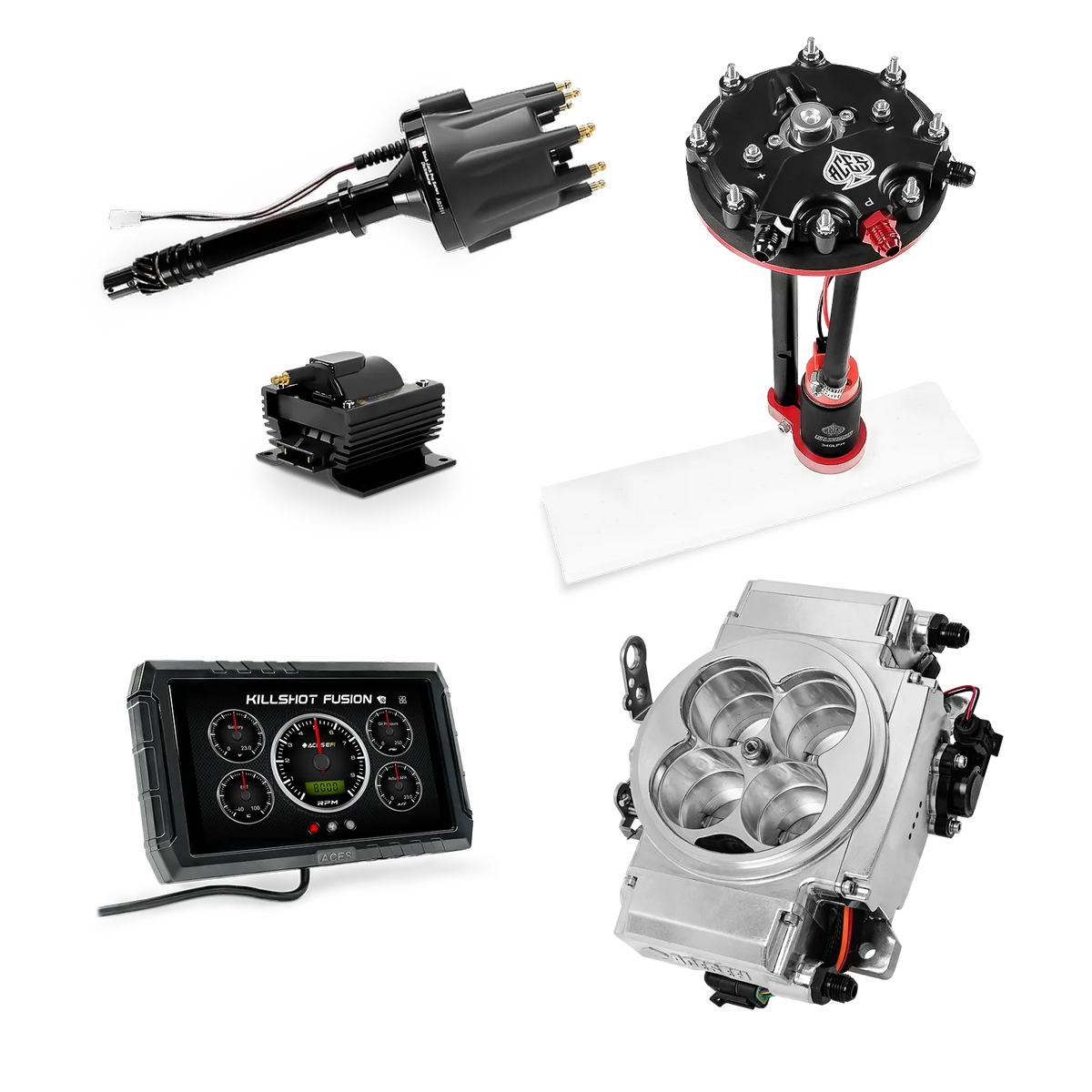

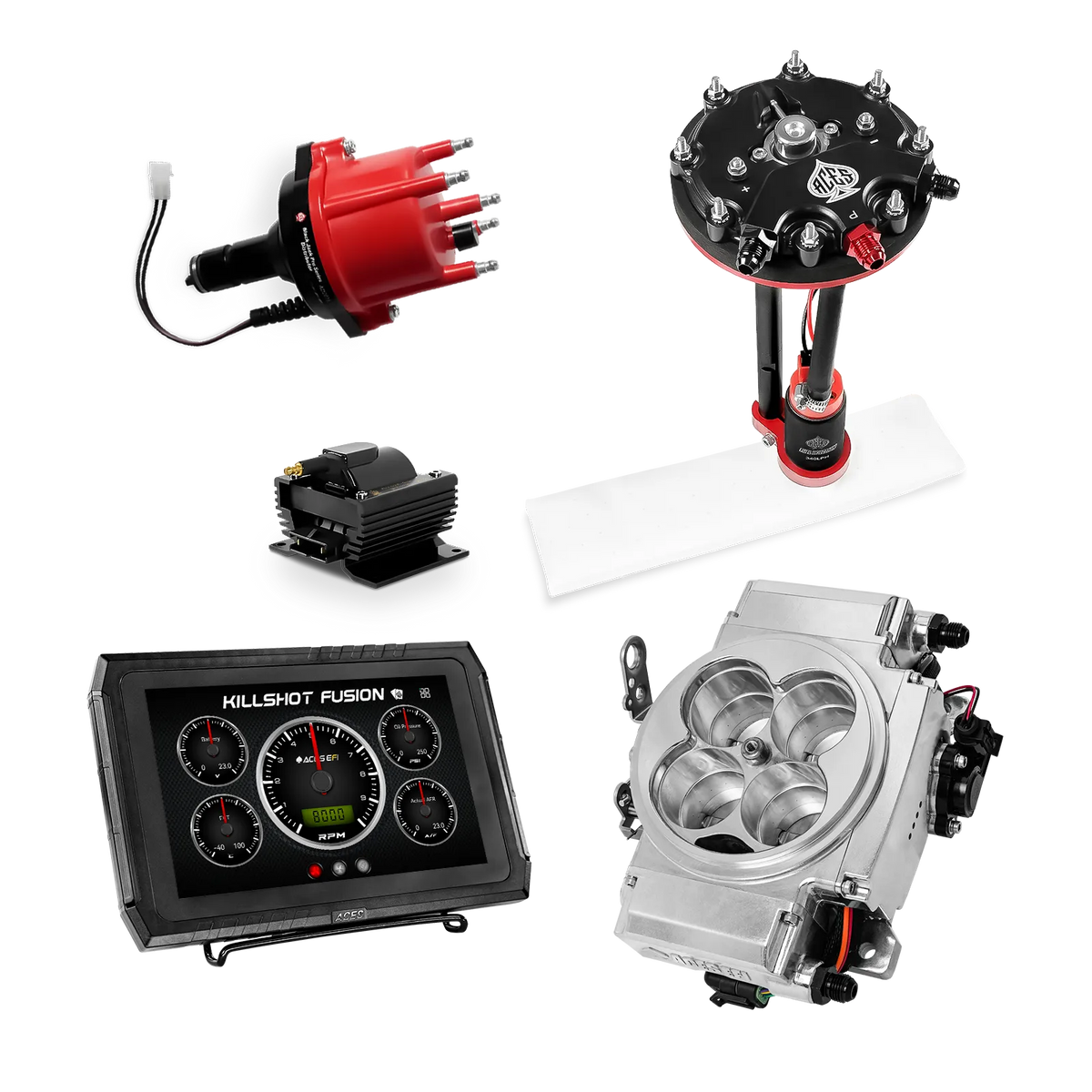

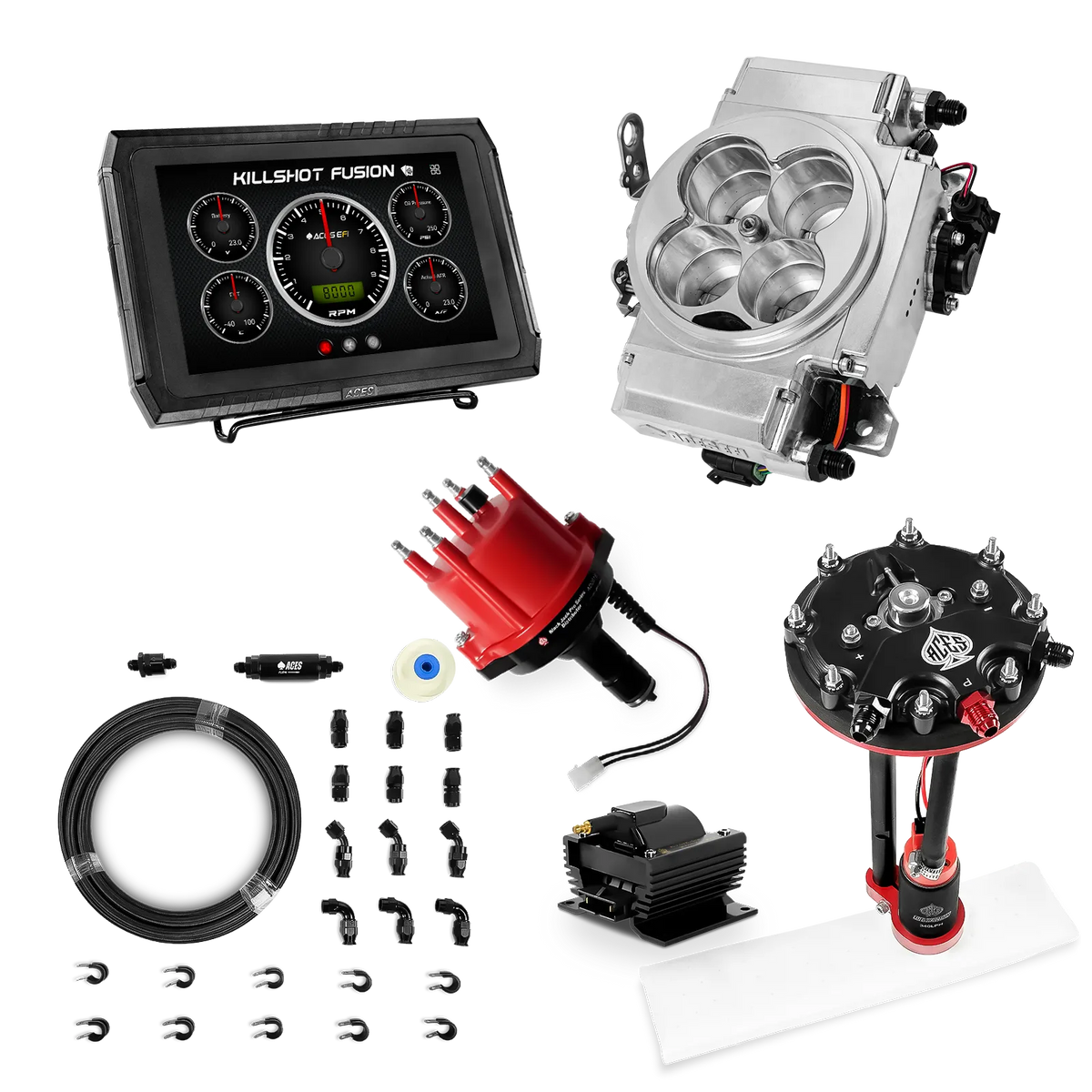

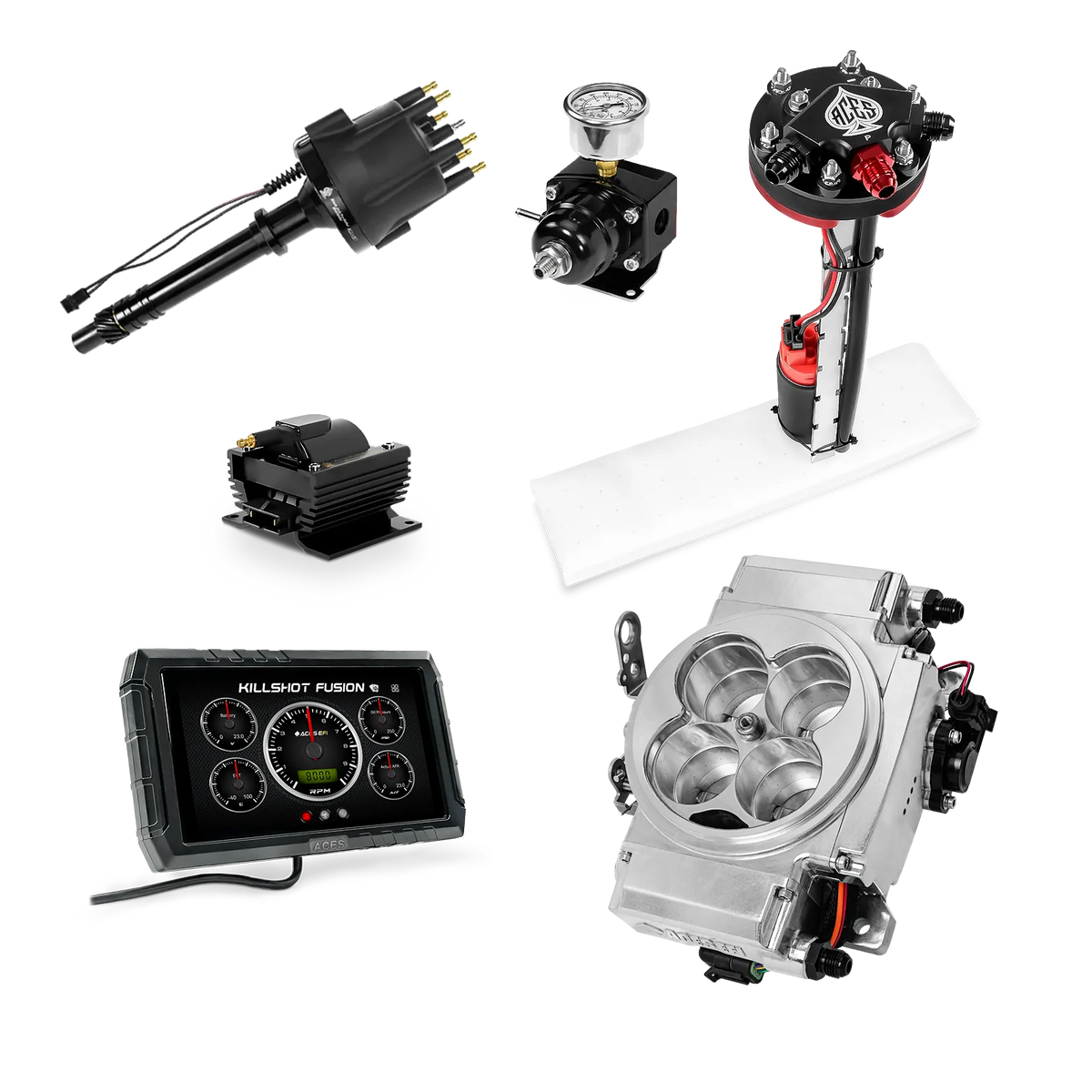

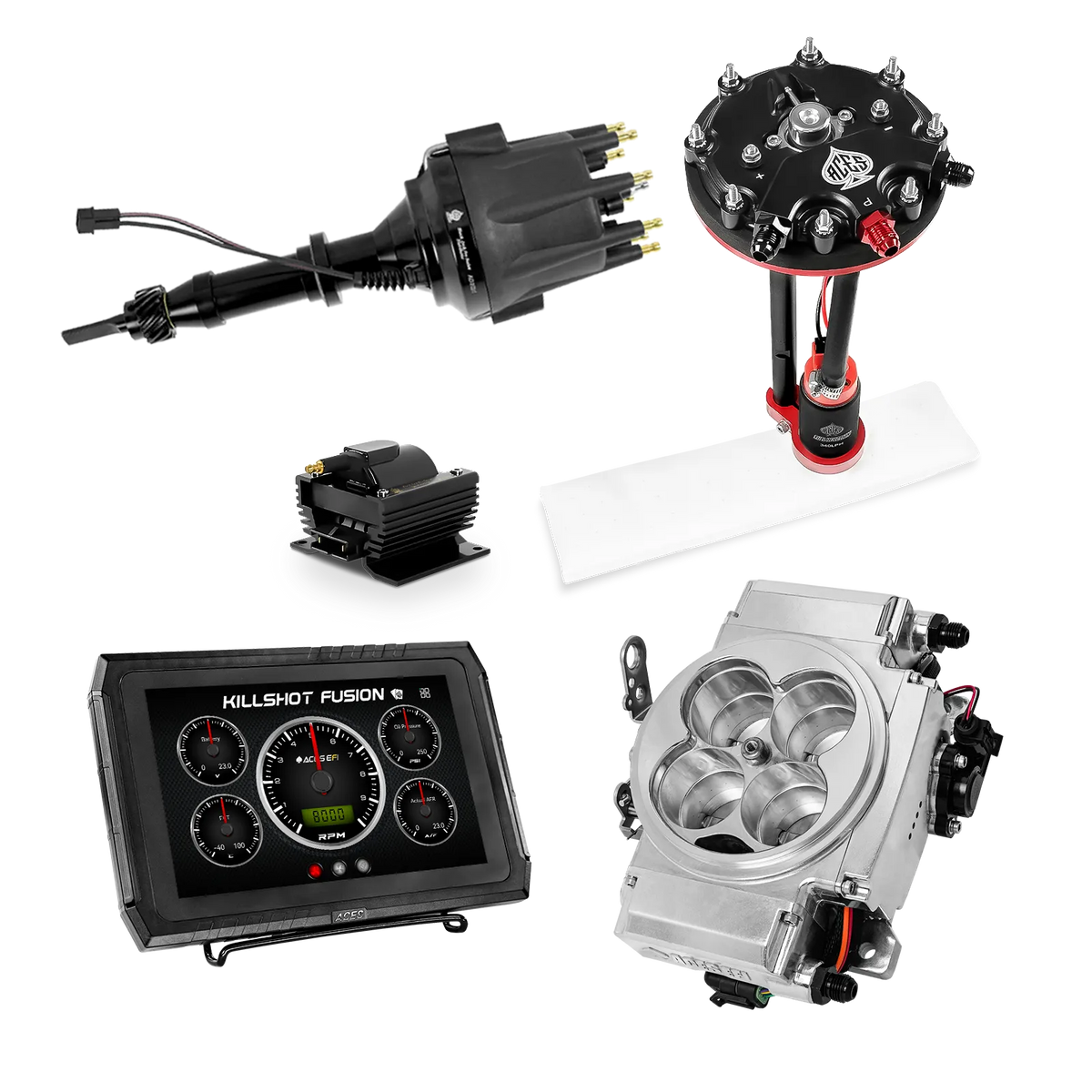

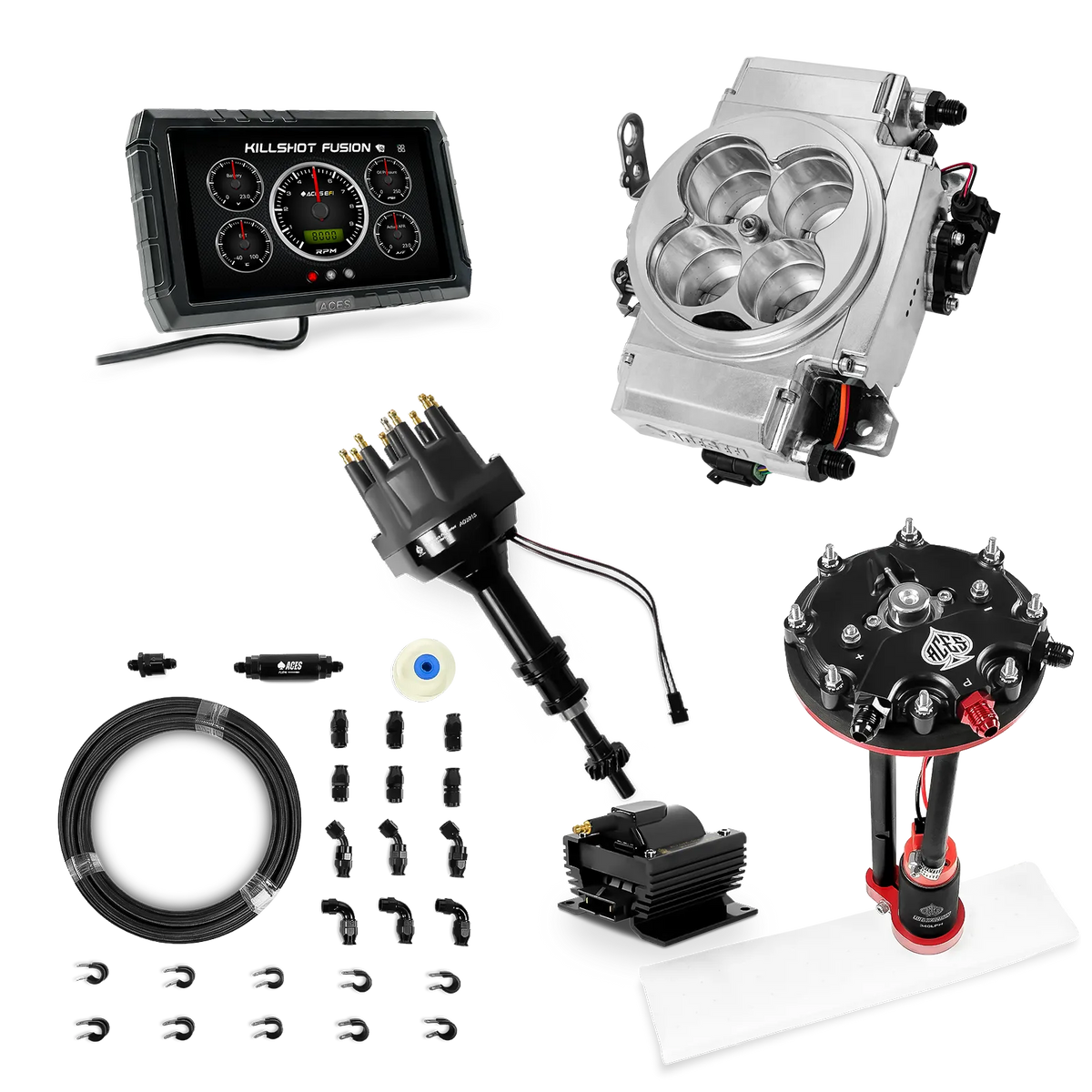

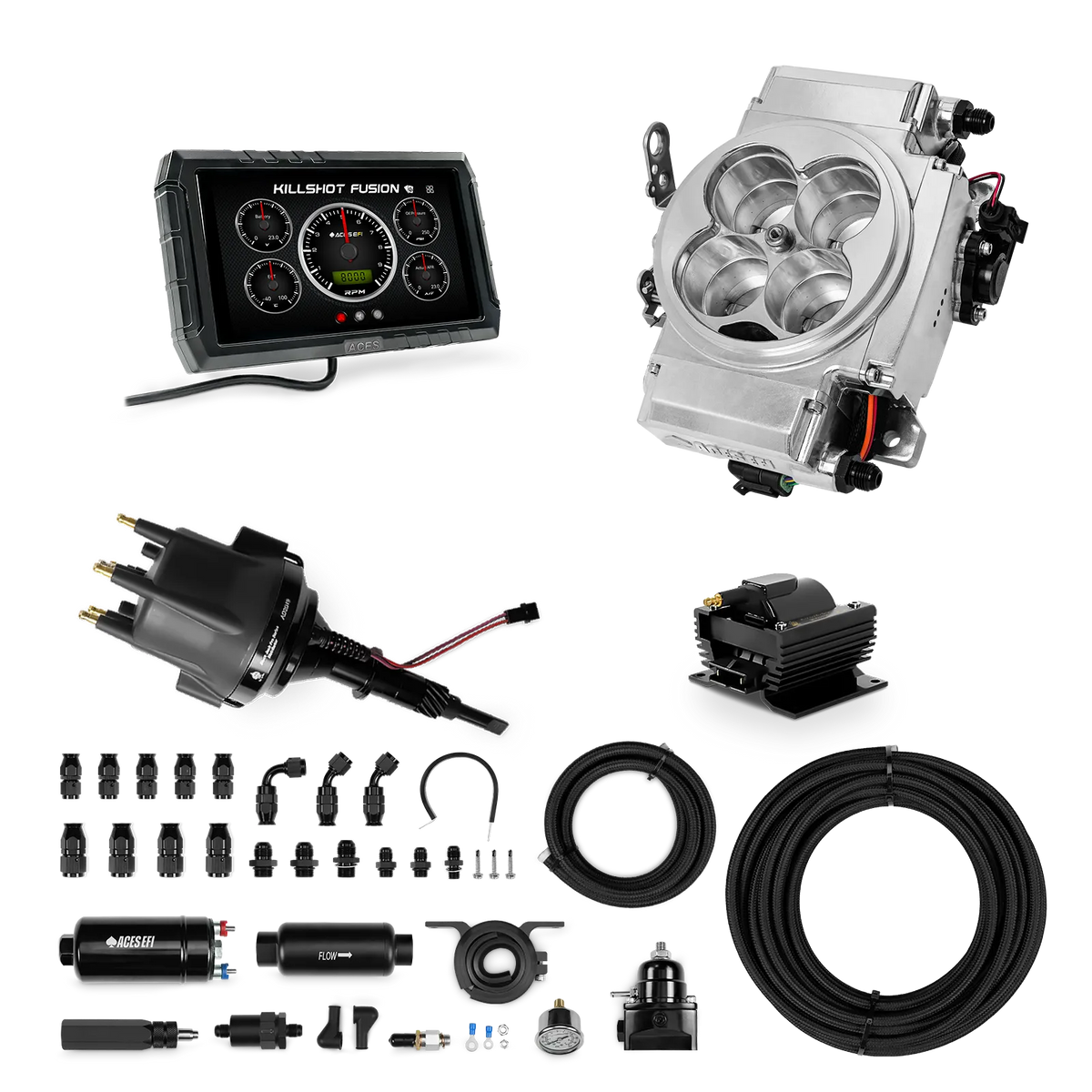

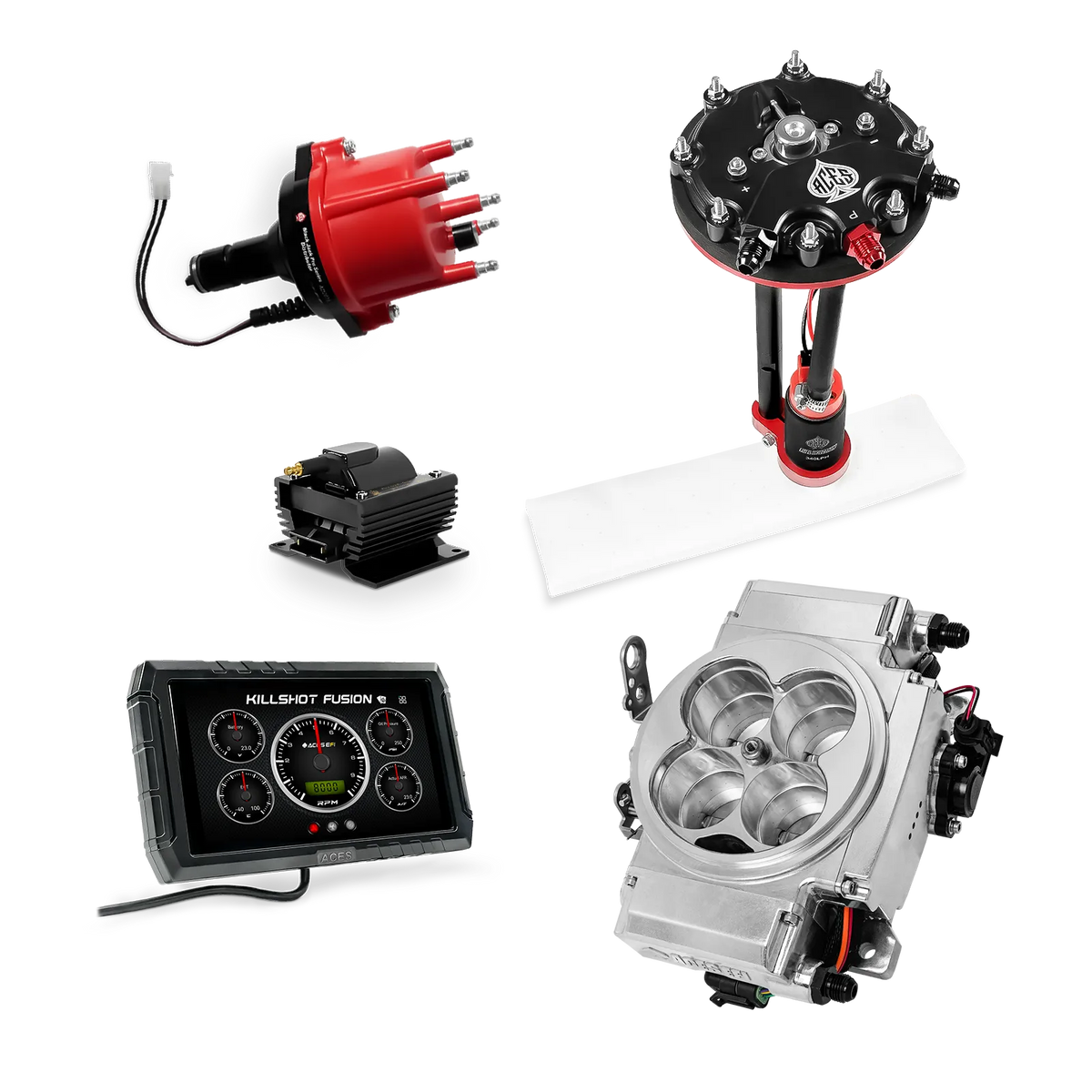

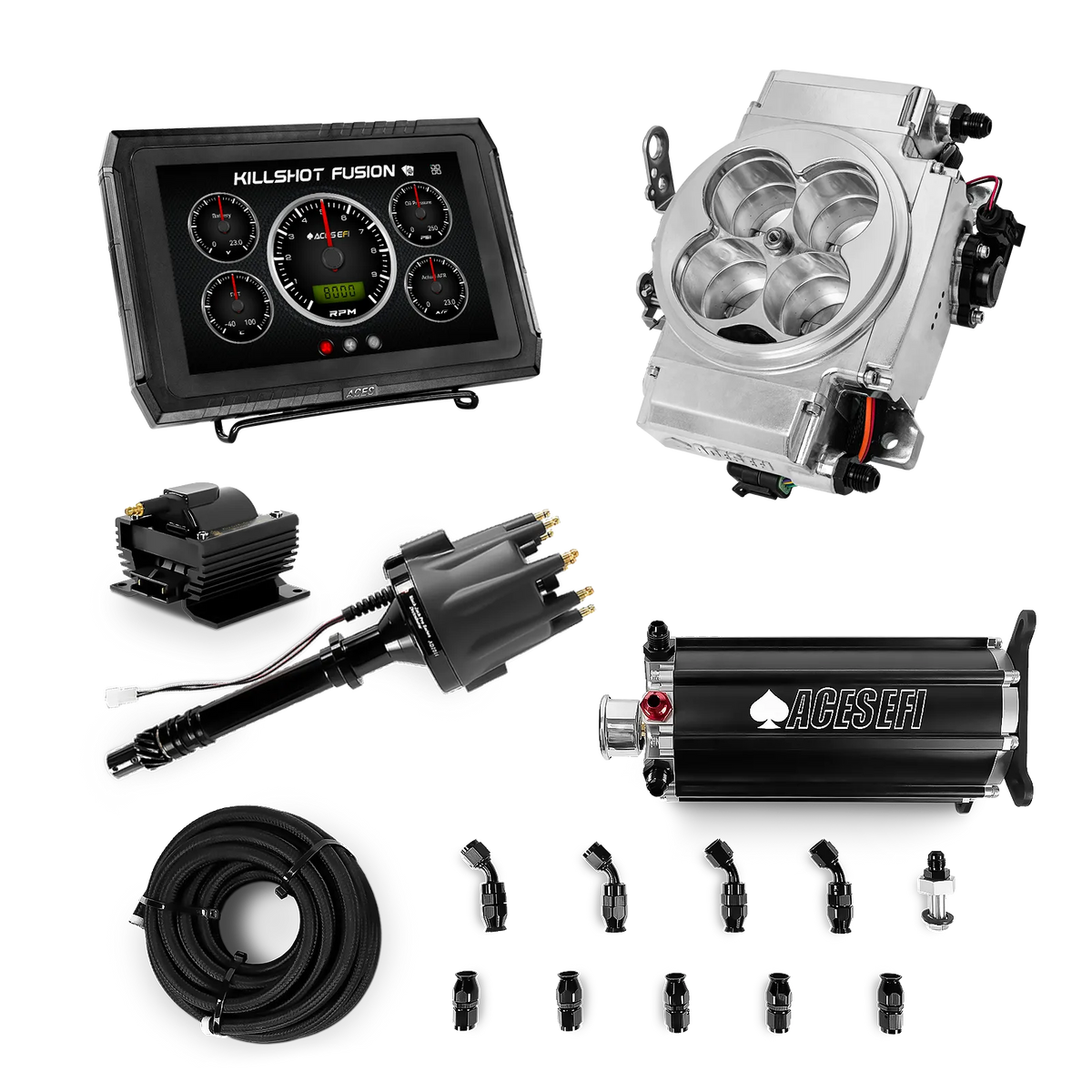

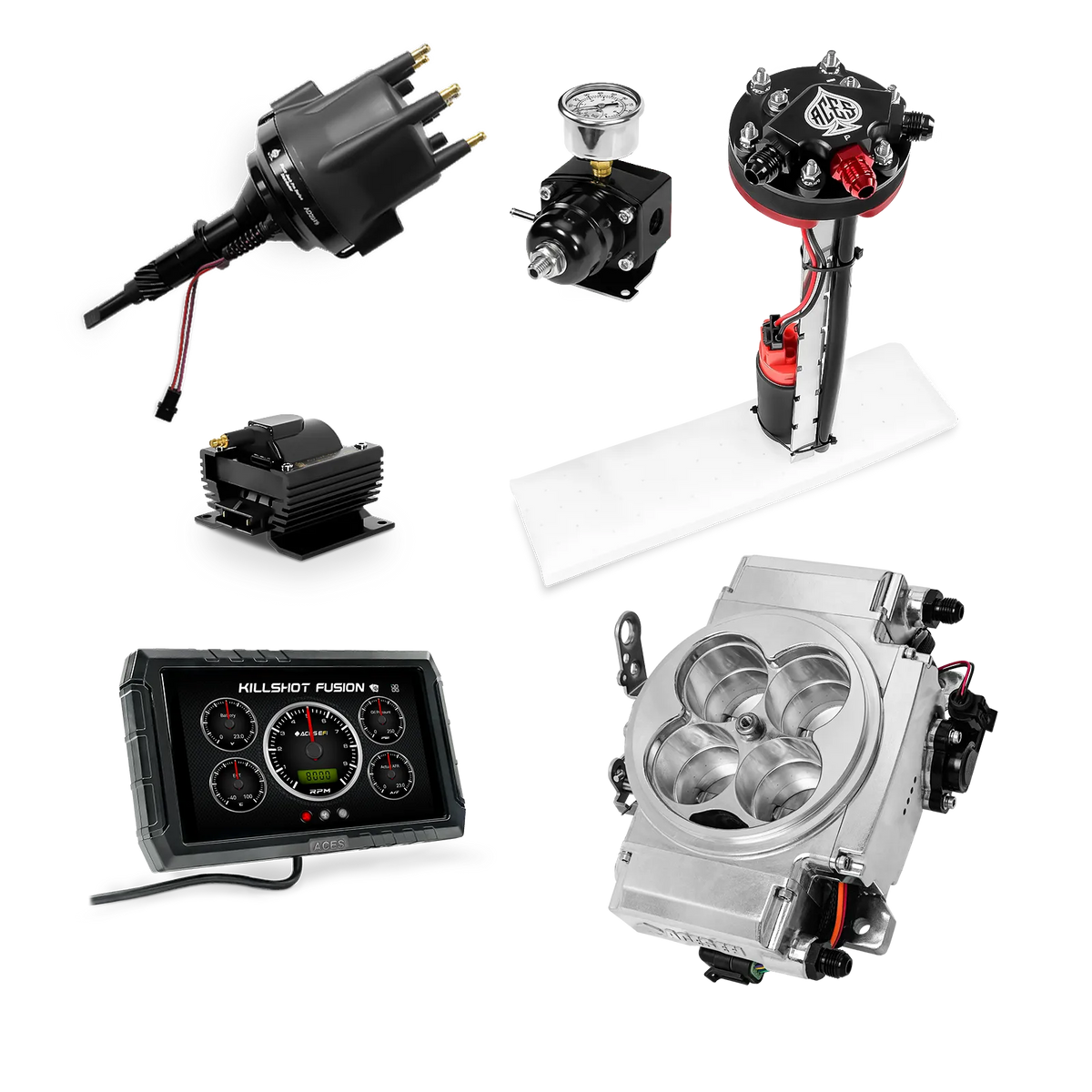

Master Kit
Any TBI Standalone Kit plus:
- Any Fuel Delivery System
- Any Distributor
- An AC2008 Ignition Coil
Videos
Product Overview
Initial Adjustments
Using Advanced Tuning Software (optional)
Tech Tuesday Ep. 80
Answering all of your Killshot Fusion questions.
Killshot Fusion EFI + Gambler Distributor + Tank Conversion Kit Install on a FOX BODY MUSTANG!!
@acesfuelinjection
The Killshot Fusion on Joseph's Camaro
@acesfuelinjection
Killshot Fusion — The "Out of the Box" EFI System
@acesfuelinjection
Killshot Fusion: Kat's Firebird
Video Reviews
From the People
Justin Richardson
1932 Roadster @AcesFuelInjection Killshot Fusion
Proto-Tech LLC
Bryant Stilwell
Aces EFI Fusion! Throttle Body Comparison
Nomadic Dyno
@wasatchtruckfarm
Aces EFI killshot fusion 1967 c20 Chevy
Share what your customers are saying about your products, customer service or shipping rates.
Most common questions
Quick answers to our most common queries for this product.
The Kits maestros de fusión Killshot are designed to work with any classic 4, 6, or 8 cylinder engine that is under 650 hp, uses a 4150 style flange, and has a fuel system rated for EFI (43 PSI).
The self learn will work for most stock-mild builds, while some mild and more advanced builds may require manual tuning.
The Kits maestros de fusión Killshot are designed to work with most stock or aftermarket ignition components. They will work with most tachometers and are compatible with Dakota Digital dashes using their Aces BIM Module (BIM-EFI-1).
Self-tuning is a common term used among aftermarket EFI companies, but we prefer the term "self-learning" as that is more accurate, even for our competitors who advertise "self-tuning."
Our systems are designed to self-learn the fuel MAPs and work best for stock-mild builds. Some mild builds and anything beyond that would require manual tuning, of which the system is fully capable. Additional features like nitrous and boost are also considered beyond stock and require manual adjustments to enable and configure these kinds of features.
Yes! You can make many changes using the Bluetooth or handheld interface, and we also offer a free PC app for more advanced tuning.
The Kits maestros de fusión Killshot can work with standard stock or aftermarket ignition components, but if you want to run timing control, it will need either a magnetic pickup distributor that has been locked out or a Hall Effect distributor. You will also need to make sure that your fuel delivery system can support 43-58 PSI. Whether or not you need a return line will depend on your fuel delivery system and if the regulator is inside or outside the tank. Whether or not you need to replace your tank will depend on which fuel delivery system you choose. We offer complete Master Kits for each EFI system that come with new ignition components and a fuel delivery system. You can visit the Killshot Fusion Master Kits page here.
Yes to both! The Kits maestros de fusión Killshot are compatible with both blow-through, draw-through, and nitrous applications and are also compatible with E85 Fuels. The Kits maestros de fusión Killshot' MAP sensor can be scaled for up to 26 lbs of boost and can be set to retard timing.
Note that for boost, the system is compatible, but cannot control the boost. You will need to use a separate controller for things such as wastegate control or solenoid activation. Use of these features will require manual tuning.
You may also like
