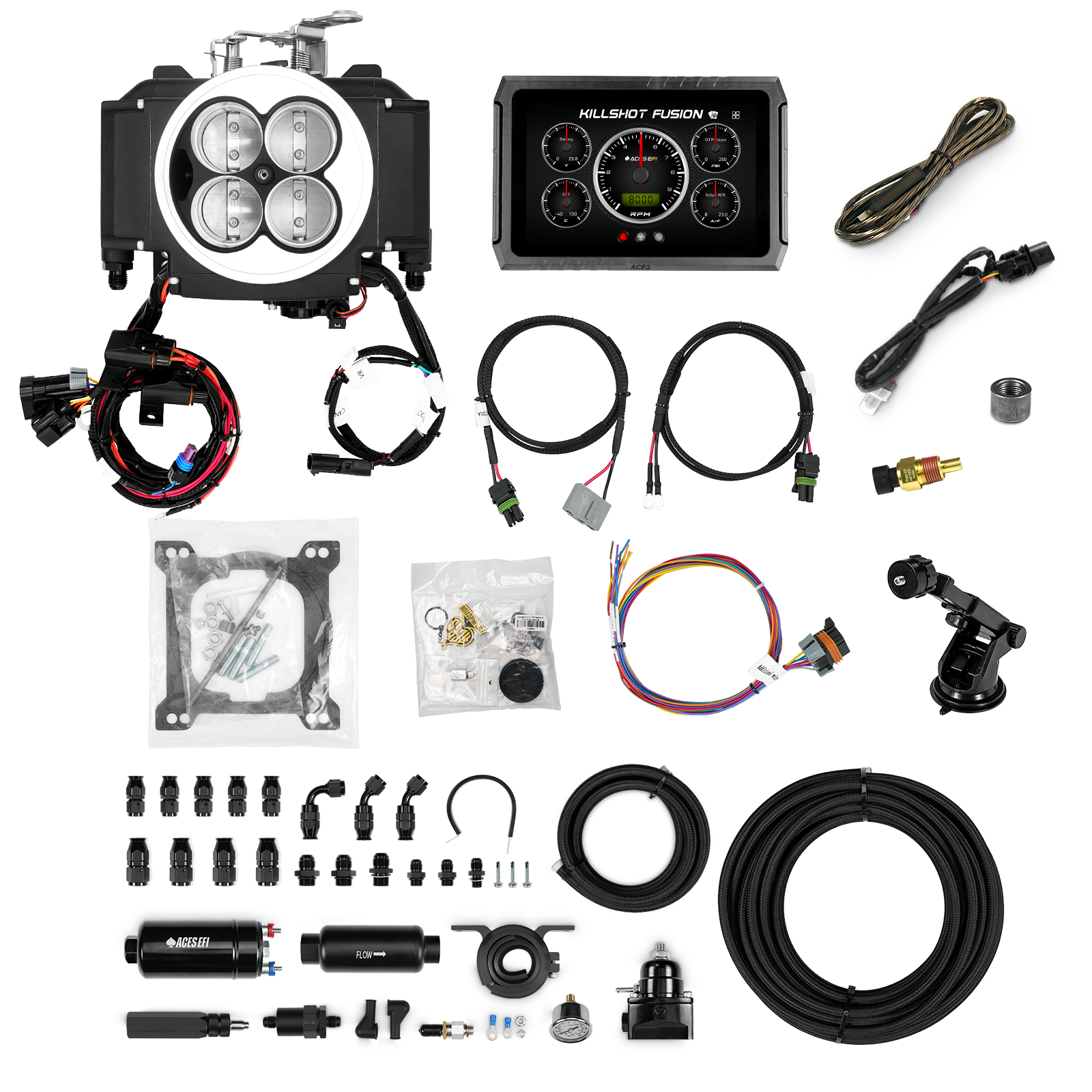

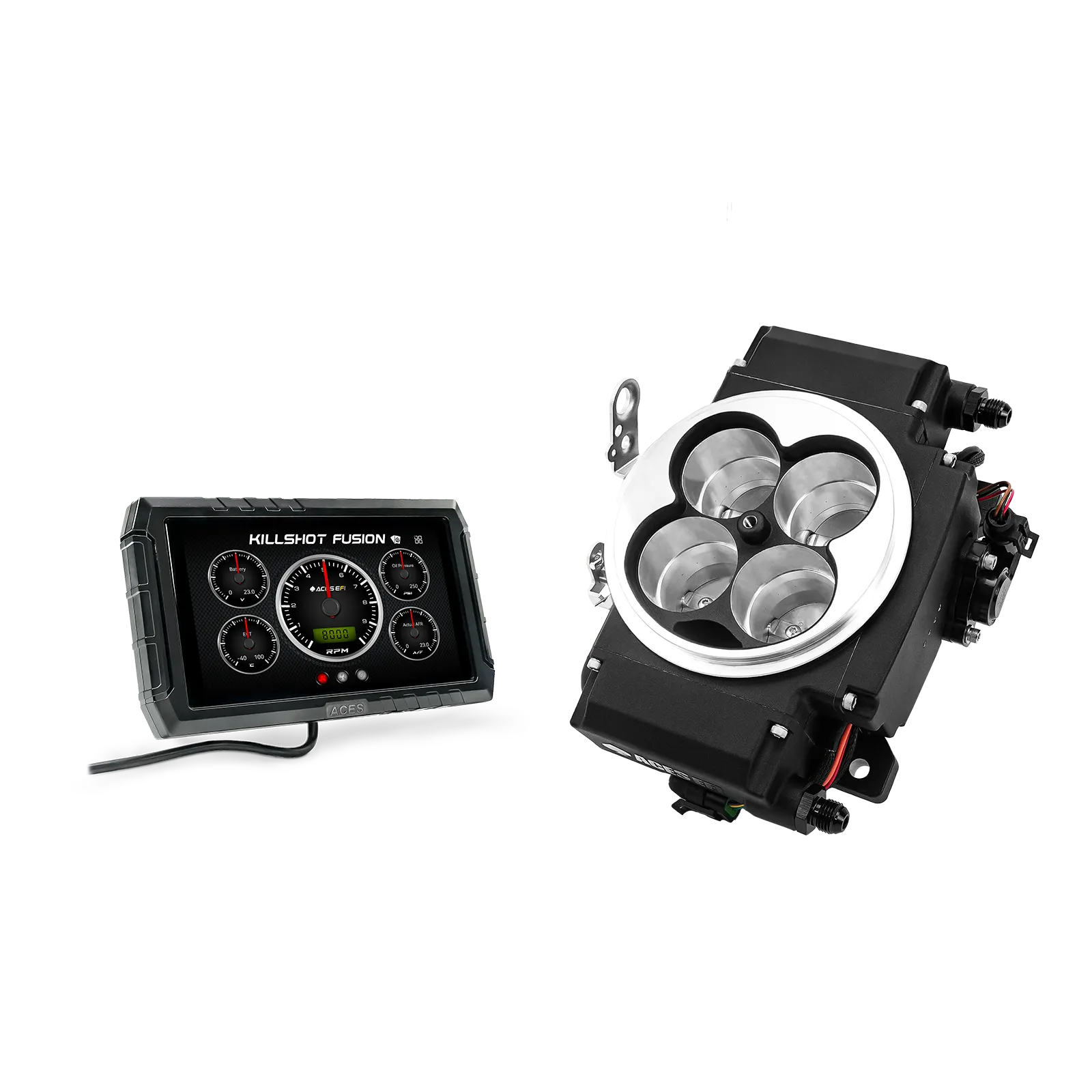

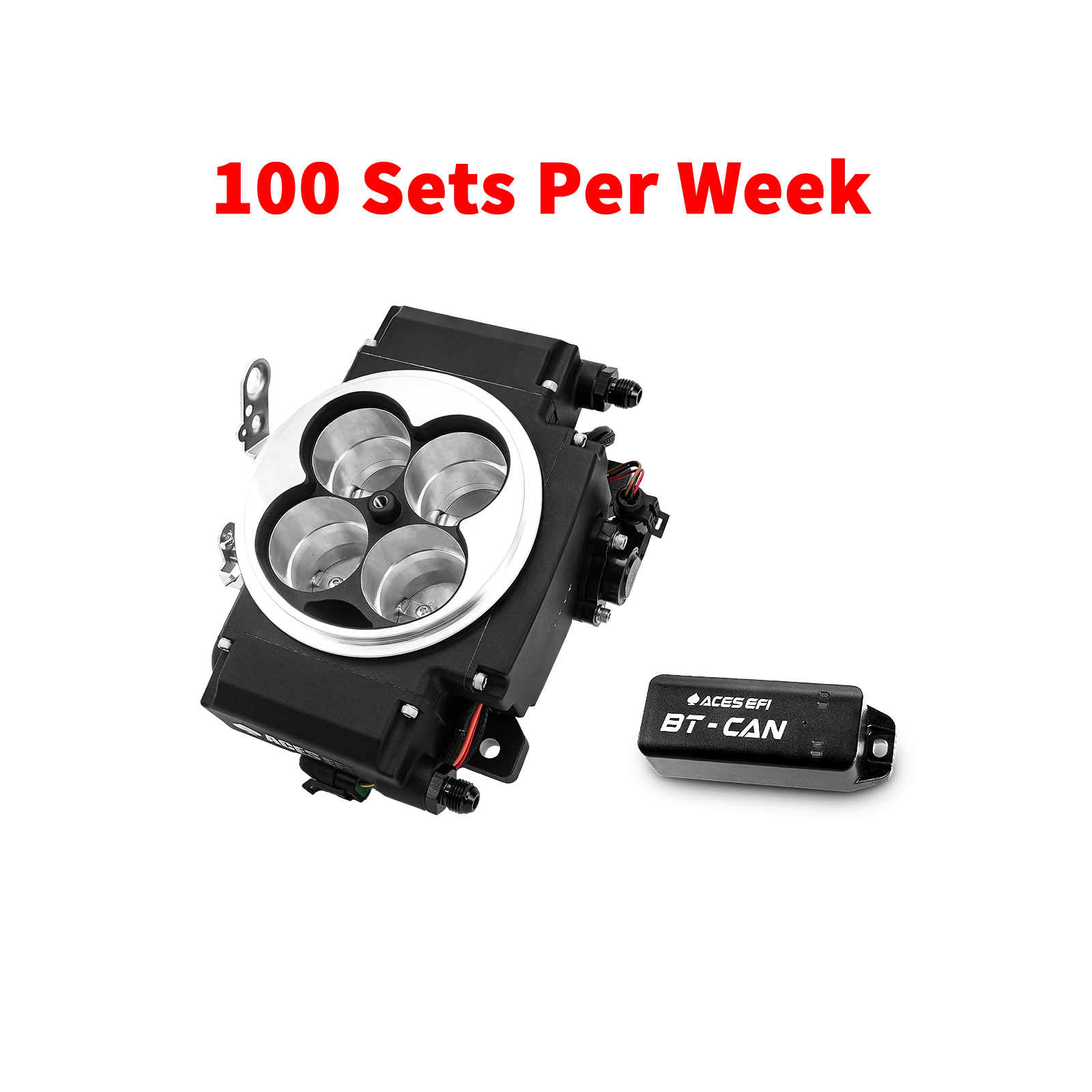

Killshot Fusion
Protect your system & clean up your wiring!
Precise pressure monitoring!

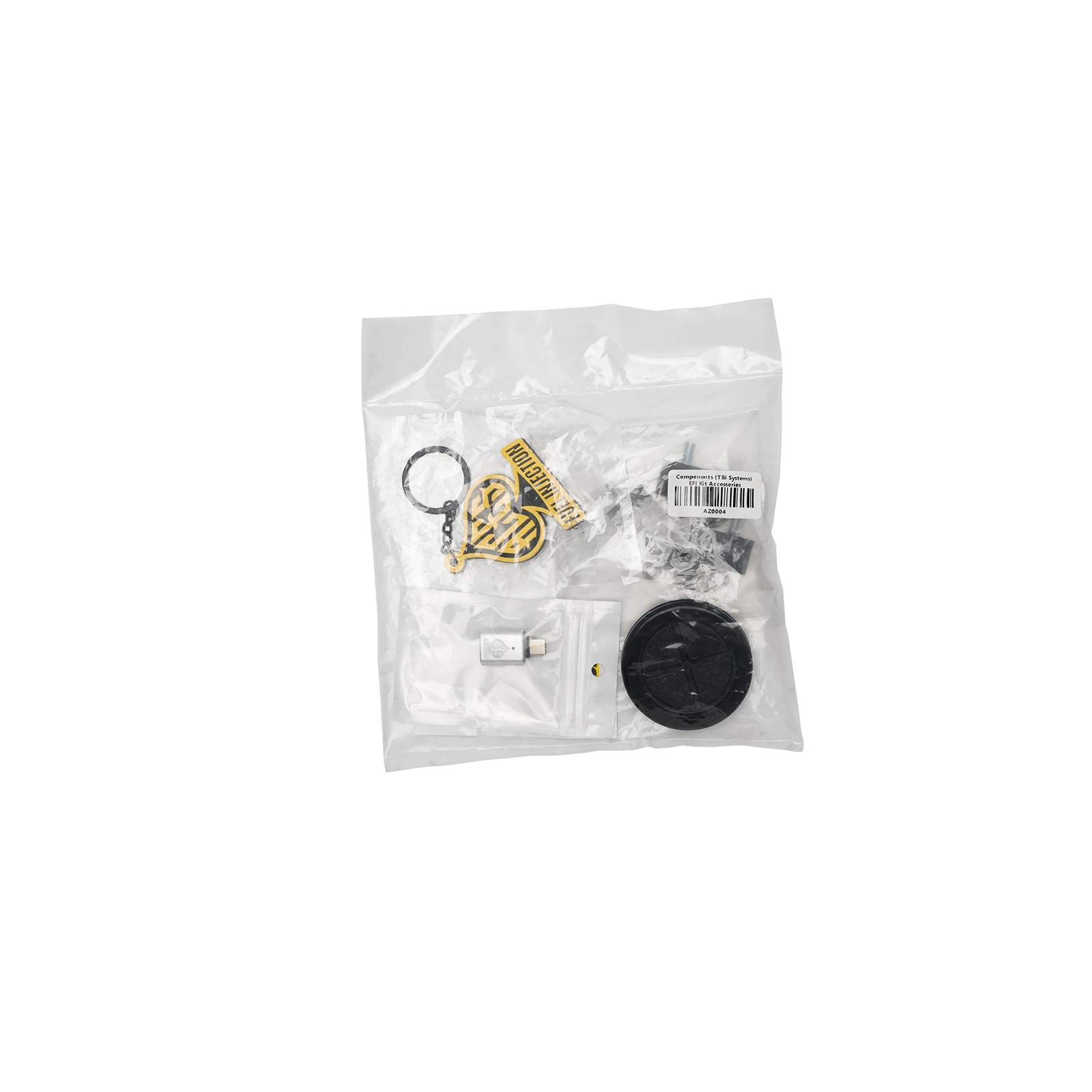

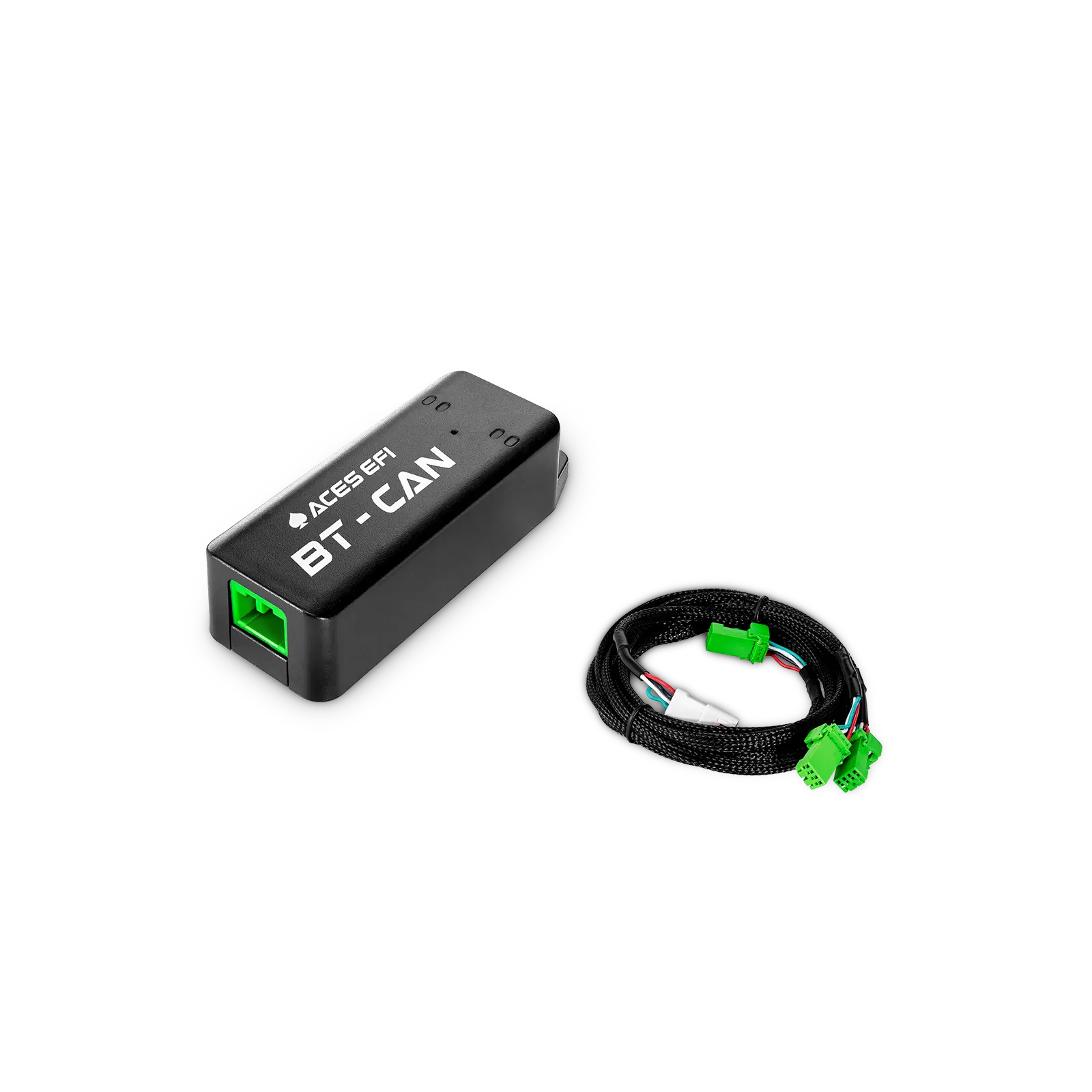

Includes the following free items!
Details
Power Distribution Module (PDM)
Discover the next evolution in performance and reliability with the Aces Fuel Injection Power Distribution Module (PDM) —your ultimate solution for seamless power management in high-performance EFI systems. The PDM uses IGBT transistors in the place of solid state or electro-mechanical relays which helps to filter bad transient voltage, ultimately providing greater protection for your electronics which are connected to the PDM.
Our PDM is engineered to integrate effortlessly with Aces Fuel Injection Systems, providing robust, efficient power distribution for essential components such as:
- Ignition Systems
- Fuel Pumps
- Cooling Fans
- Auxiliary Accessories
Key Features
- Comprehensive Power Management: Supports ignition, fuel pumps, fans, and more.
- Simplified Wiring: Clearly marked terminals for ease of installation.
- Enhanced Safety: Fuse-protected circuits for optimal performance and reliability.
- Flexibility: Tailored control for auxiliary devices with relay support.
Pressure Sensor Kit
Aces EFI pressure sensor kits utilize top-quality parts for use with EFI systems. Kits include plastic/steel sensors with 1/8" -27 NPT threads and include a -6 AN fuel pressure take-off adapter fitting and 2 sets of 45 push lock hose ends.
Pressure sensors are great for logging oil pressure, fuel pressure, or boost pressure. Display the pressure reading on any Aces Handheld or Dash screen and on your data log files!
EGT CAN Module Kit
High-Performance Tuning with the Aces EGT Module
When it comes to high-performance tuning, accurate Exhaust Gas Temperature (EGT) monitoring is crucial. Whether you're running a naturally aspirated, turbocharged, or nitrous-fed setup, precise temperature data helps you optimize fuel tuning, prevent engine damage, and maximize efficiency. The Aces EGT Module is built for precision, durability, and seamless integration, ensuring you get real-time data to fine-tune your engine like never before.
Why You Need the Aces EGT Module
- Prevent Engine Damage – High exhaust temperatures can lead to pre-detonation, melted pistons, and turbo failures. Monitoring EGTs allows you to adjust fueling and timing before damage occurs.
- Optimize Air/Fuel Ratios – Fine-tune your AFRs based on real-time EGT data for better power, efficiency, and reliability.
- Monitor Cylinder Balancing – Detect uneven fuel distribution or ignition issues to avoid power loss and potential engine stress.
- Essential for Forced Induction & Nitrous Builds – Turbocharged, supercharged, and nitrous-fed engines run hotter. Accurate EGT readings ensure you're not pushing past safe limits.
- Seamless Integration with Aces EFI Systems – Easily expands via CAN connectivity to work with all Aces controllers and displays.
Aces EGT Module Features
- 32-bit RISC-V Core Processor – Ultra-fast processing for real-time data accuracy.
- 480MHz Multi-Stage Pipeline Processor – Handles high-speed temperature changes with precision.
- Hardware Floating-Point Unit (FPU) – Ensures stable, high-speed calculations for consistent performance.
- 16-bit ADC for High-Precision Signal Acquisition – Delivers accurate, reliable temperature readings.
- Supports 2 or 4 EGT Channels – Ideal for both single-bank and dual-bank monitoring setups. (2 channels for two banks, 4 channels for one bank but 4 per exhaust runner)
- Automotive-Grade Type N Thermocouple Sensor – High-durability sensor for extreme conditions.
- Wide Temperature Measurement Range – Capable of reading from -150°C to 1024°C with a rapid 150ms response per channel.
- High-Quality Construction – Silicone fiberglass sleeve, PTFE insulation, and Type N thermocouple conductor ensure long-term durability.
- CAN Expansion Accessory – Easily integrates with all Aces EFI units and display modules.
The Aces EGT Module is an essential tool for serious tuners and racers looking for accurate exhaust temperature data, better tuning capabilities, and enhanced engine protection. Take control of your performance with real-time monitoring and seamless EFI integration.
Hold your horses
Experience the same quality and reliability you have come to know with the Killshot line of products. The Killshot Fusion supports up to 650 HP with 4, 100lbs injectors.
Boost it, baby.

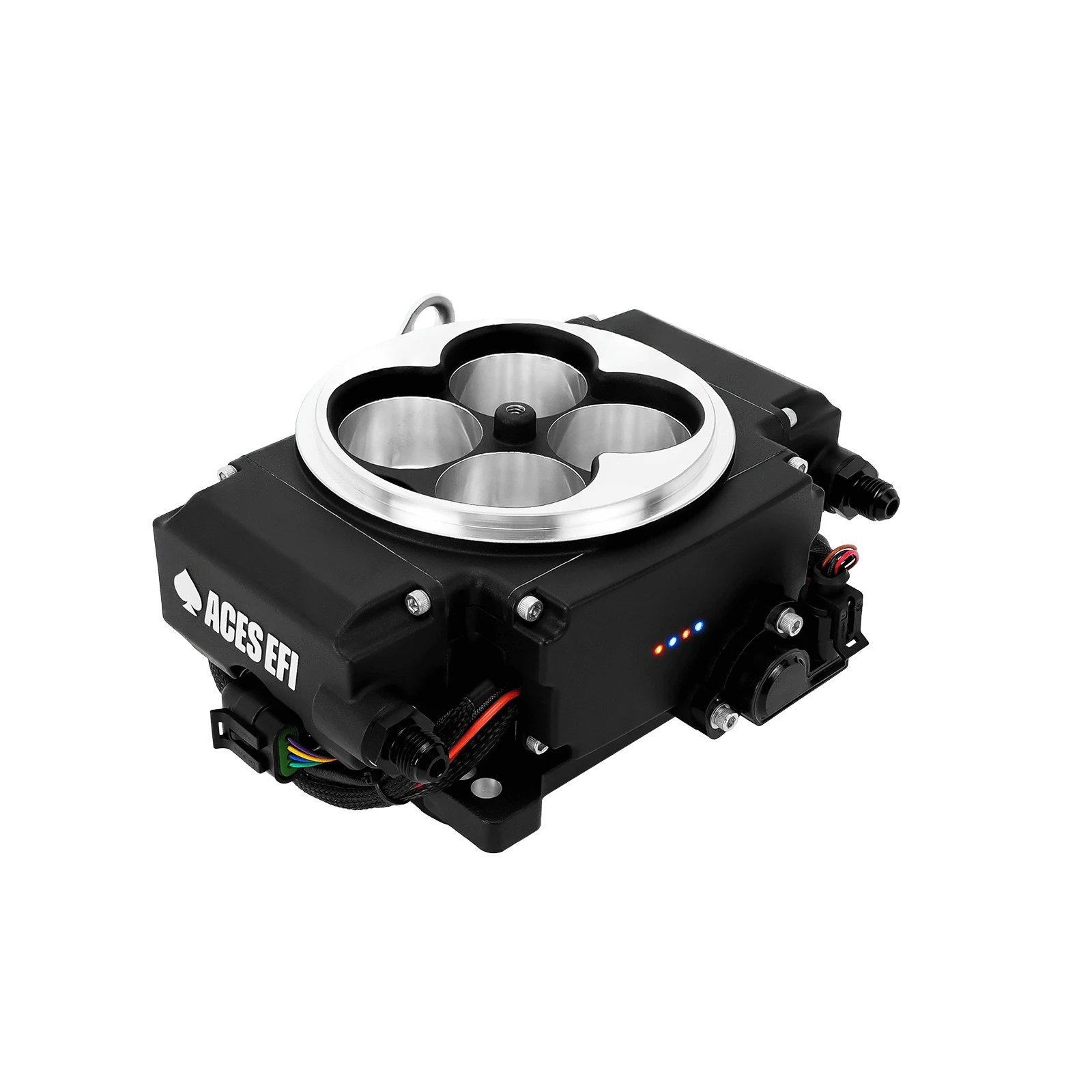

As you have come to expect, the Killshot Fusion also has a built in 3-bar TMAP sensor that allows you run draw through or blow through setups and support up to 27 lbs of boost.
We Did It. But Better.
Yes, the ECU is attached, but we have taken steps to ensure RFI will never be an issue with this system. Two built-in coil drivers allow for more flexibility on install, no matter what ignition system you are running. Oh...and every chip set is automotive grade.

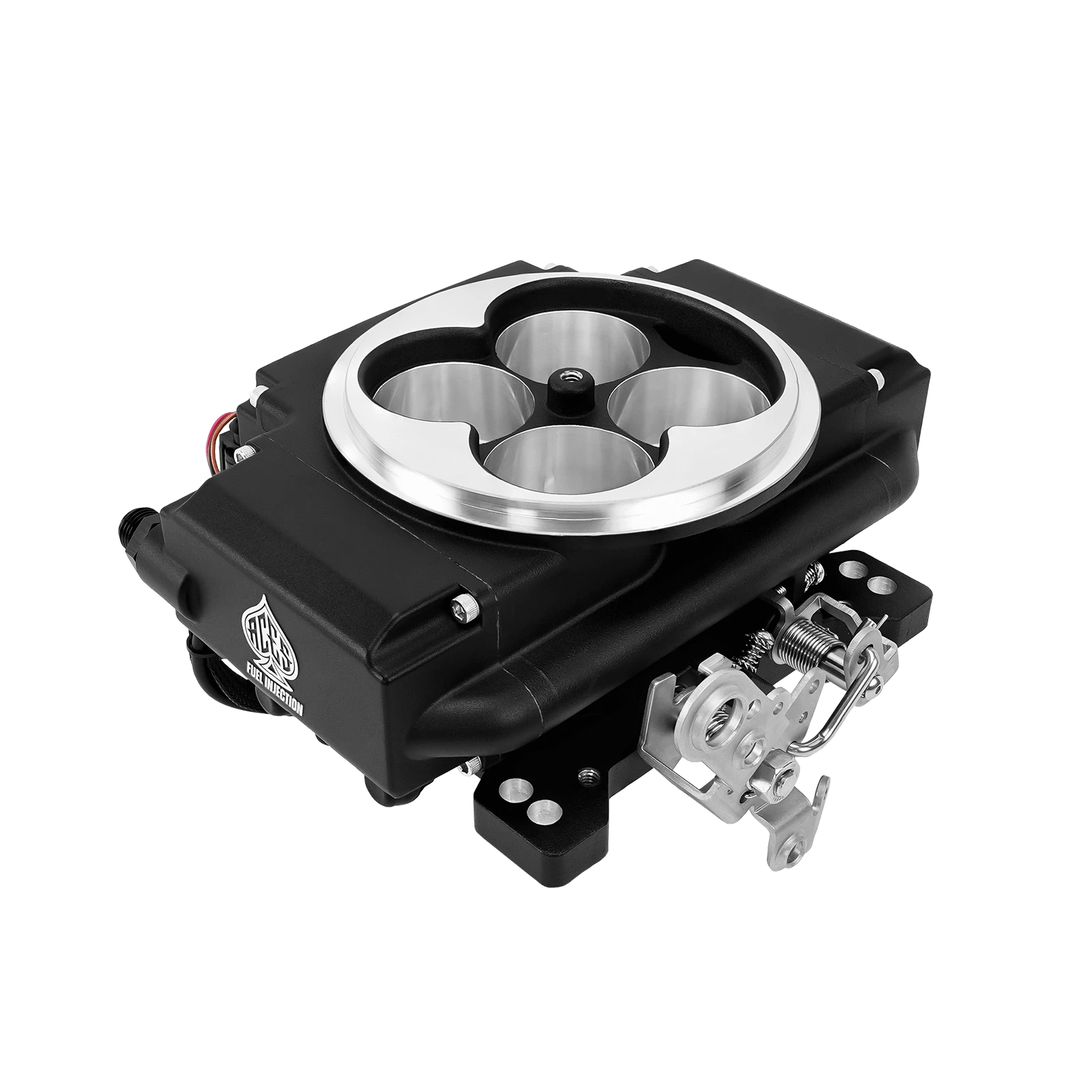

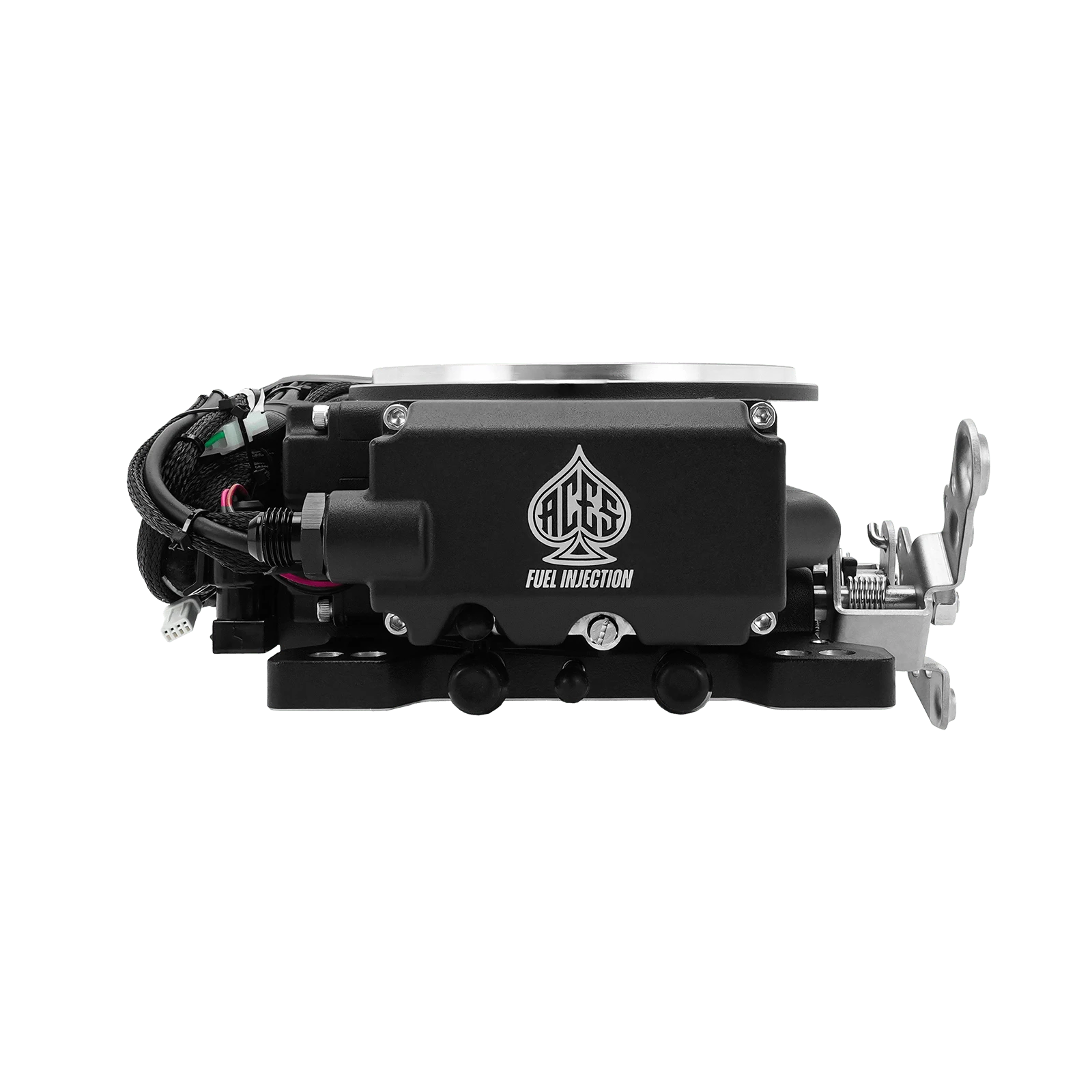

If the shoe (throttle body) fits
The Killshot Fusion still uses the common 4150 style flange found on many classic engine manifolds making it a very versatile when it comes to compatibility. As long as the TBI unit fits, is within the appropriate HP range, and your engine uses a classic distributor, it's a match made in heaven...or the garage.
Everything in one Place
The built-in ECU and harness gives you a simple install to give a cleaner finish. For those of you not wanting to put the ECU in the Firewall or Fender!
Product Info
Overview
The Future of Throttle Body EFI is Here
Engineered Precision. Integrated Simplicity. Real-World Durability.

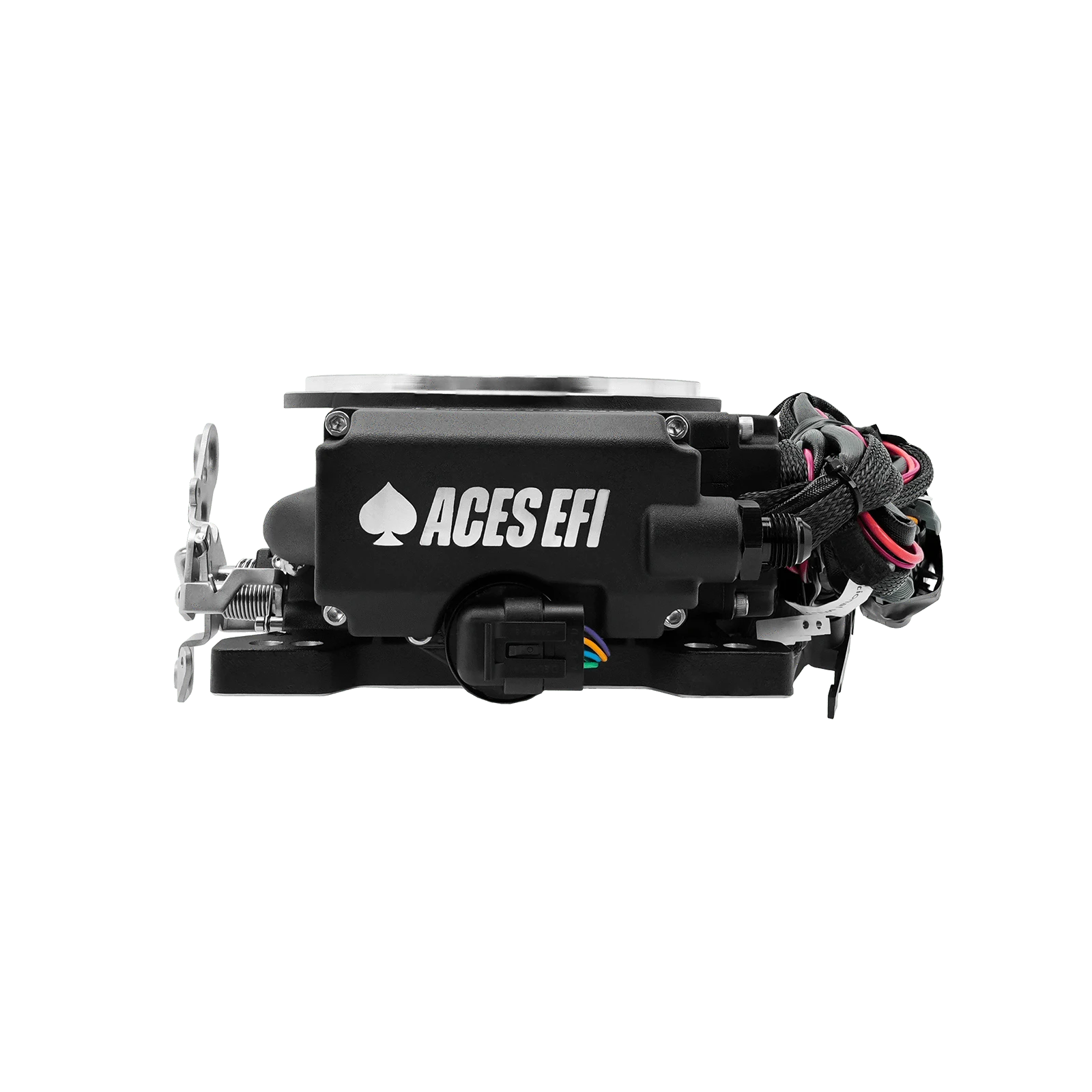

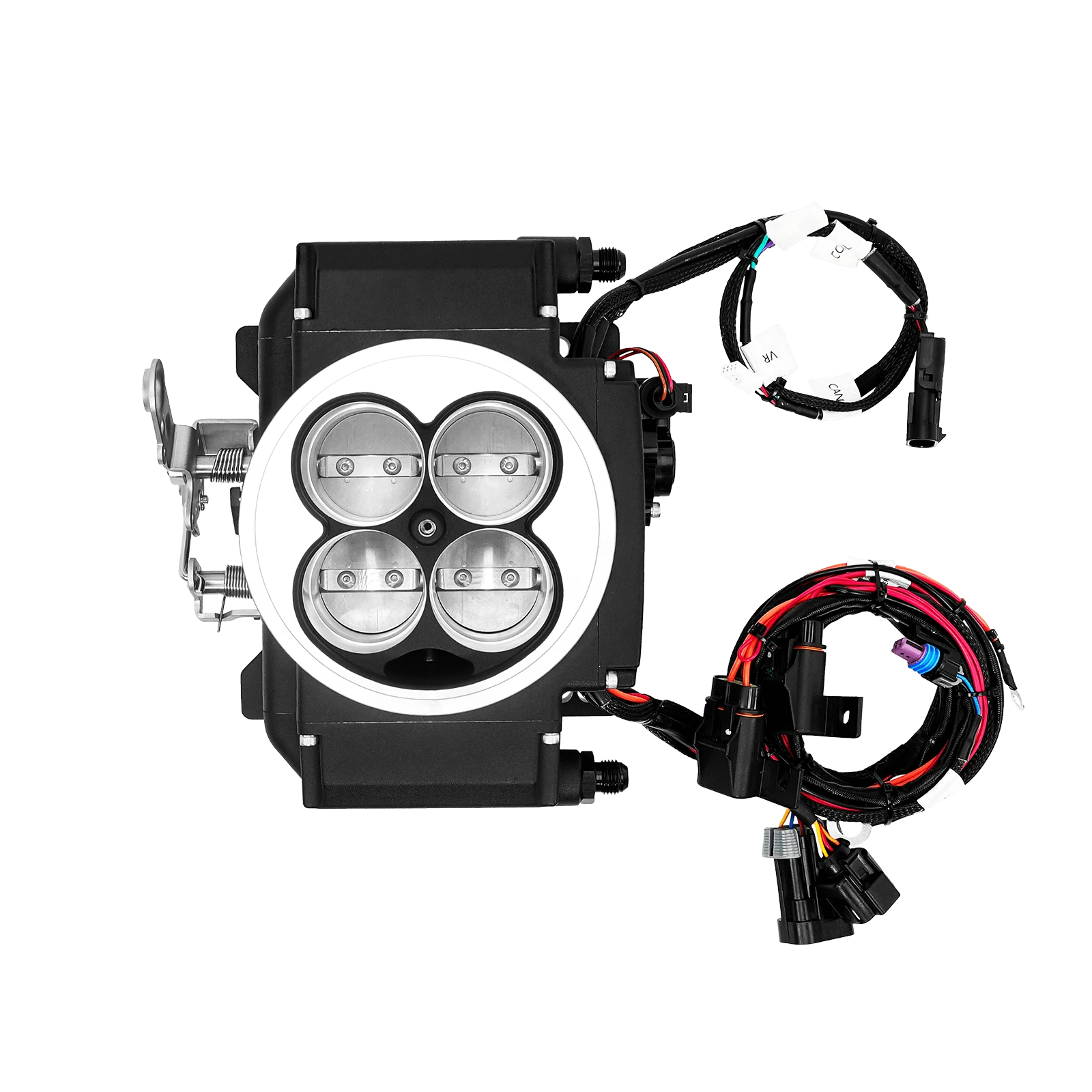

The Killshot Fusion is the next evolution in throttle body EFI systems. Building upon the success of the original Killshot, the Fusion takes everything users loved, robust hardware, accurate fuel delivery, and ease of tuning, and reimagines it with a fully integrated design that eliminates clutter, simplifies installation, and dramatically boosts reliability.
In a world where many EFI manufacturers rushed to integrate ECUs onto the throttle body and paid the price in failures, Aces EFI took a different path: more time, more engineering, and more testing. The result is Killshot Fusion, a true all-in-one TBI system that thrives where others fail.
Built from the Core Up – Smart, Strong, Stable
At the heart of the Killshot Fusion is a high-performance 32-bit automotive-grade microcontroller based on the PowerPC e200z0h core. This platform enables lightning-fast input/output processing, superior sensor management, and high-resolution fuel and spark control. Combined with Aces’ proprietary software and a proven B50 control chip, it delivers performance you can trust in any application, from street cruising to competitive racing.
Fusion also includes advanced ECC memory protection, a Memory Protection Unit (MPU), and a 4-layer PCB with a dedicated power plane. This design significantly reduces voltage fluctuations and impedance, ensuring system stability and durability, even in extreme environments.
Re-Engineered for the Harshest Realities
Many EFI systems fail because they ignore the reality of engine bay conditions, heat, vibration, electromagnetic interference (EMI), and moisture. The Killshot Fusion addresses each of these with purpose-built solutions:

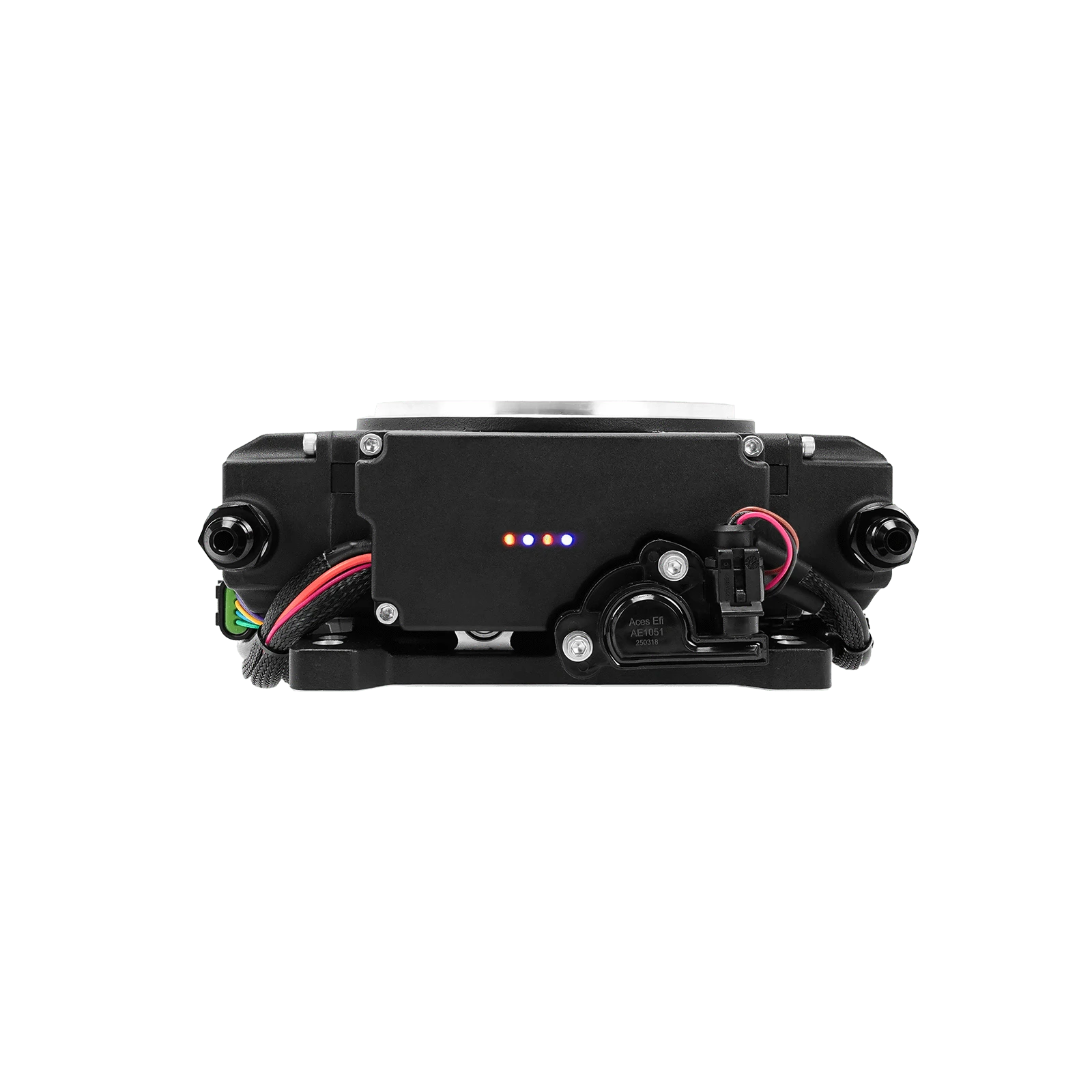

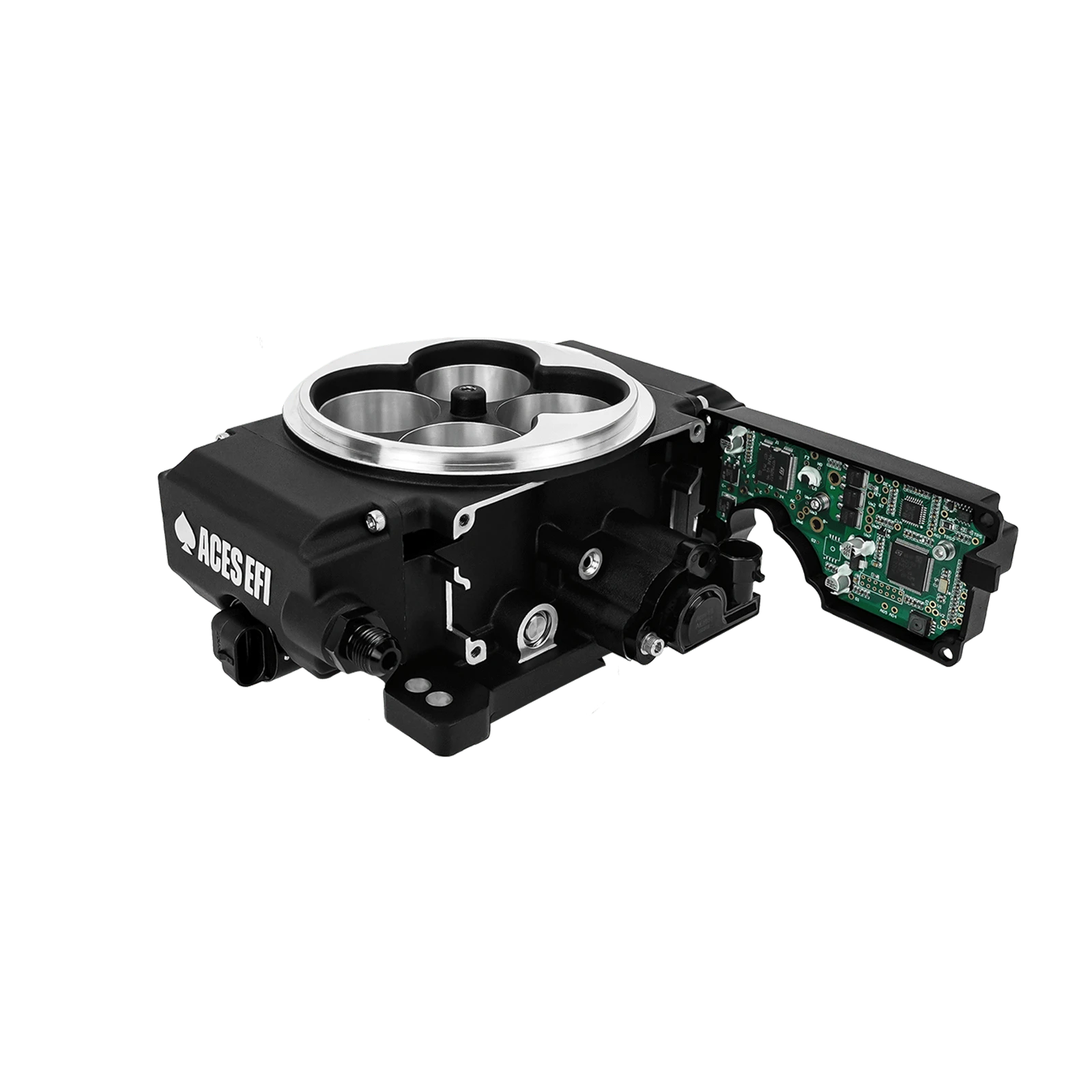

- Potting-Protected ECU: The Fusion’s internal PCB is encapsulated in specialized potting material that insulates electronics from heat and shields against vibration, impact, and contamination.
- Dual Ignition MOSFET Drivers: Enhance ignition reliability by providing strong and stable spark energy under all conditions.
- Multi-Stage Filtering & Active Digital Shielding: Prevents noise interference from ignition systems and surrounding electronics, preserving signal clarity.
- EMI & Environmental Testing: The Fusion has passed extensive vibration, salt spray, and EMI validations, tests where competitor systems often fail. This isn’t just rugged, it’s refined, lab-proven durability.
Integrated Design, Maximum Simplicity

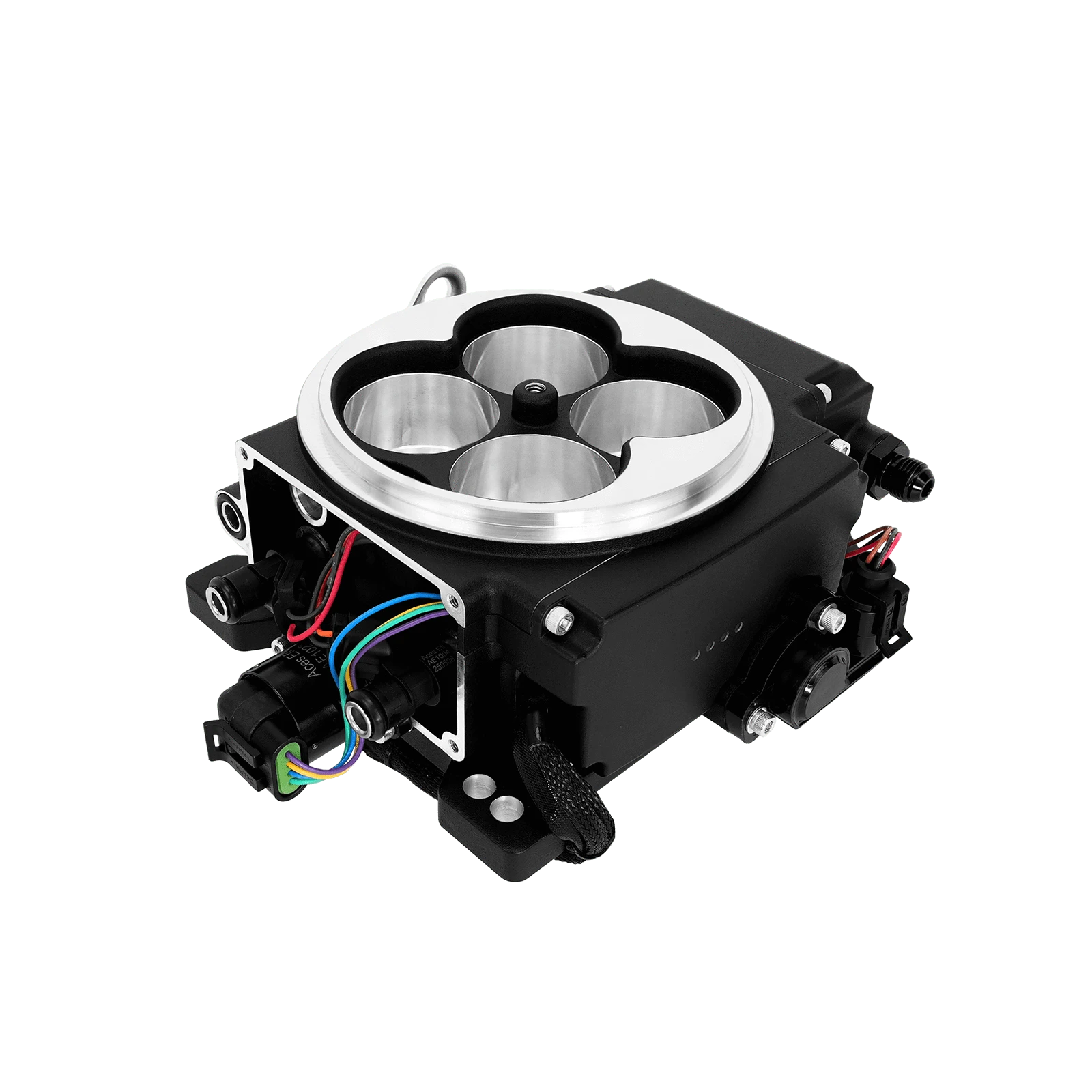

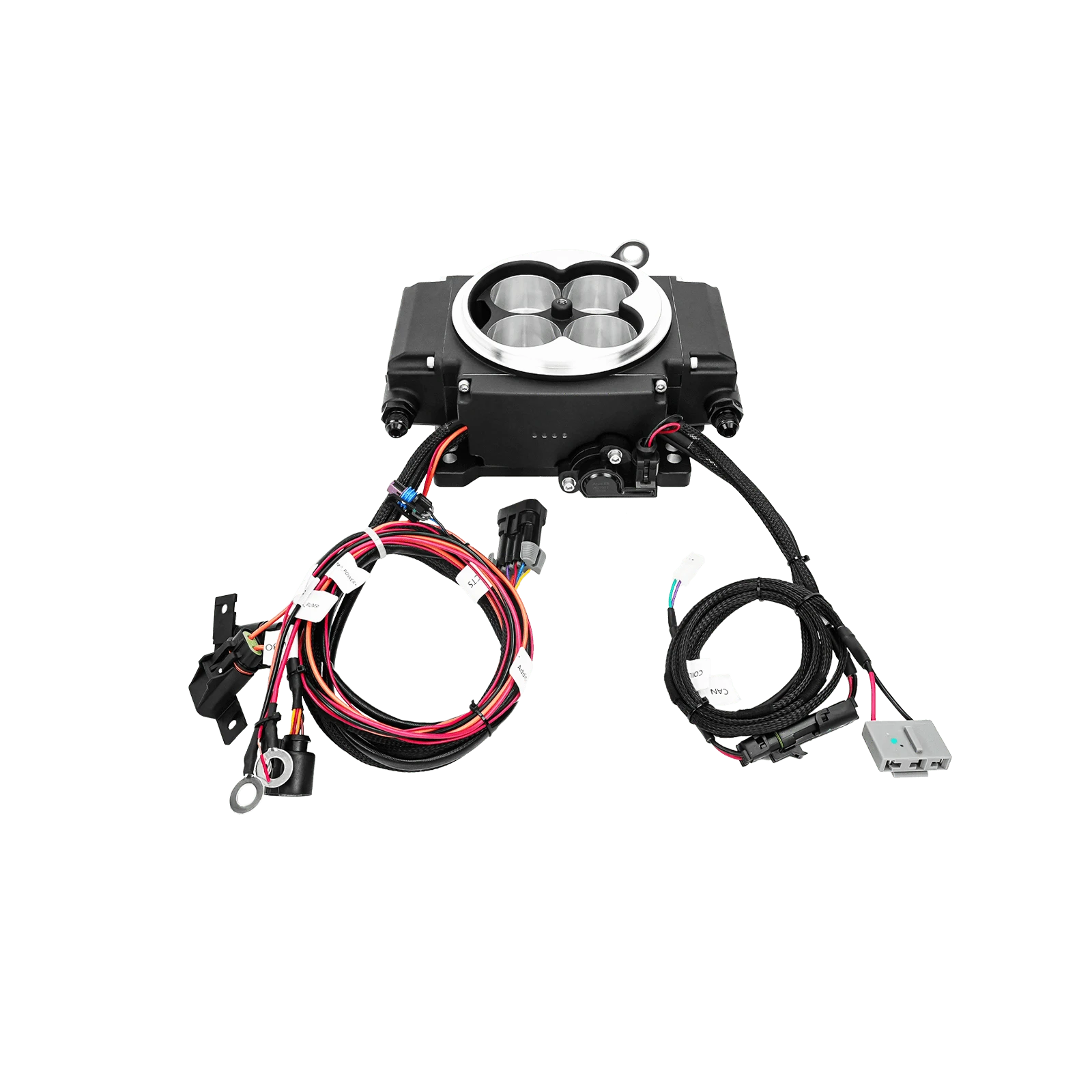

With the ECU and harness connectors integrated directly onto the throttle body, installation is faster, cleaner, and more reliable. There’s no need to mount an external ECU, route long harnesses, or deal with complex wiring. Just bolt it on, plug it in, and fire it up.

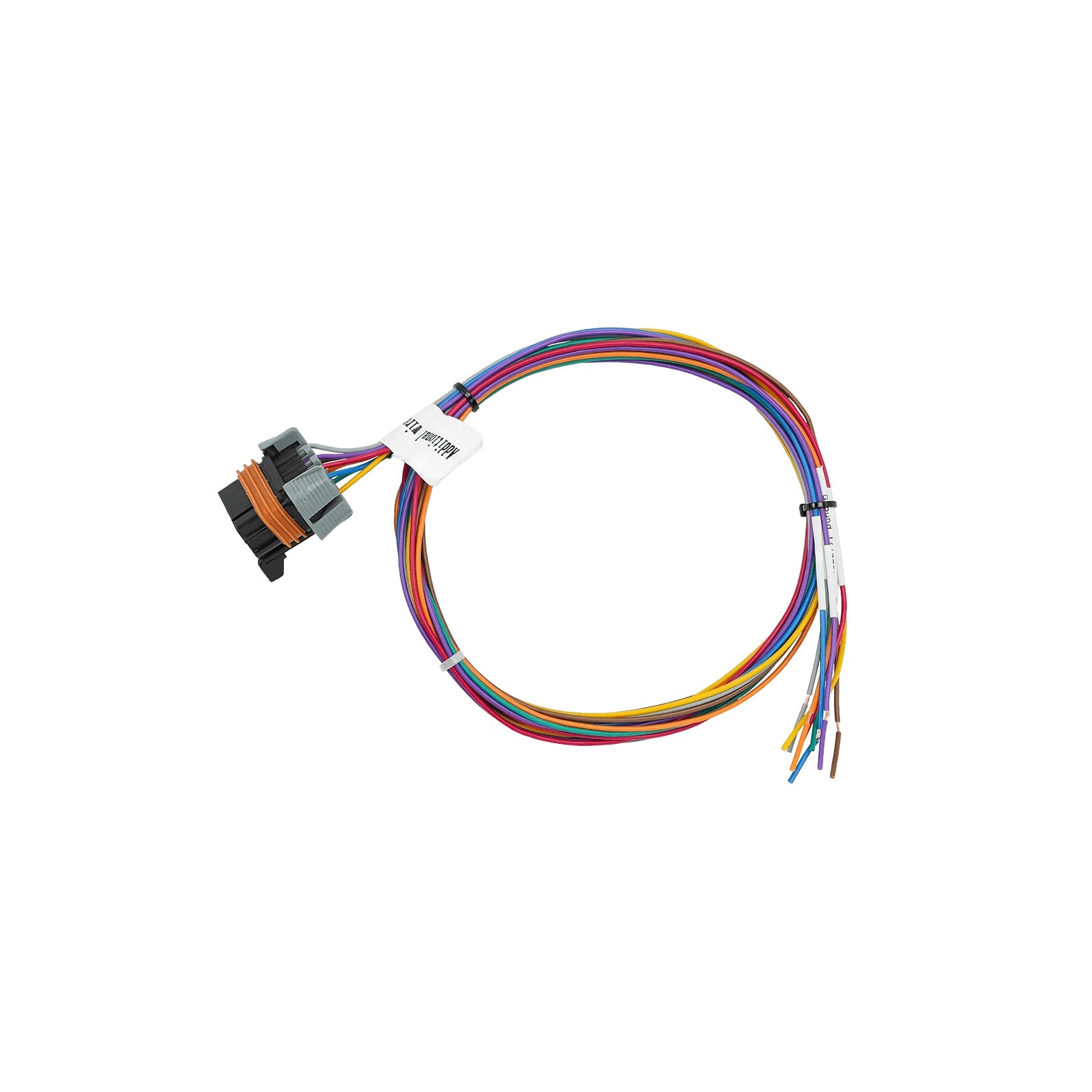

- Symmetrical Harness Layout: Connectors on both sides of the unit allow for clean cable routing no matter your engine bay configuration.
- Reduced Points of Failure: Fewer connectors and wires mean fewer potential problems down the road.
- No External ECU: Fewer boxes, fewer mounting brackets, and a dramatically cleaner engine bay appearance.
Advanced Software with Self-Learning Intelligence
Killshot Fusion’s control software doesn’t just respond to your engine, it learns it. Every second the system is running, it’s analyzing, adapting, and refining its control strategy for your unique build.
- Predictive Ignition Timing: Software anticipates and adjusts spark timing for optimal combustion under dynamic conditions to better meet timing targets.
- Accurate Injector Phasing: Improved synchronization between injectors enhances performance and fuel economy.
- Rapid Self-Learning: The ECU quickly adapts to your engine's fueling needs—no laptop required during setup.
- Anti-Interference Control: Predictive shielding algorithms mitigate signal disruptions before they occur.
Whether you’re adjusting idle quality or optimizing for boost, Fusion’s software is tuned to perform.
Performance Hardware – Loaded and Ready
- (4) 100 lb/hr Injectors – Supports up to 650 horsepower

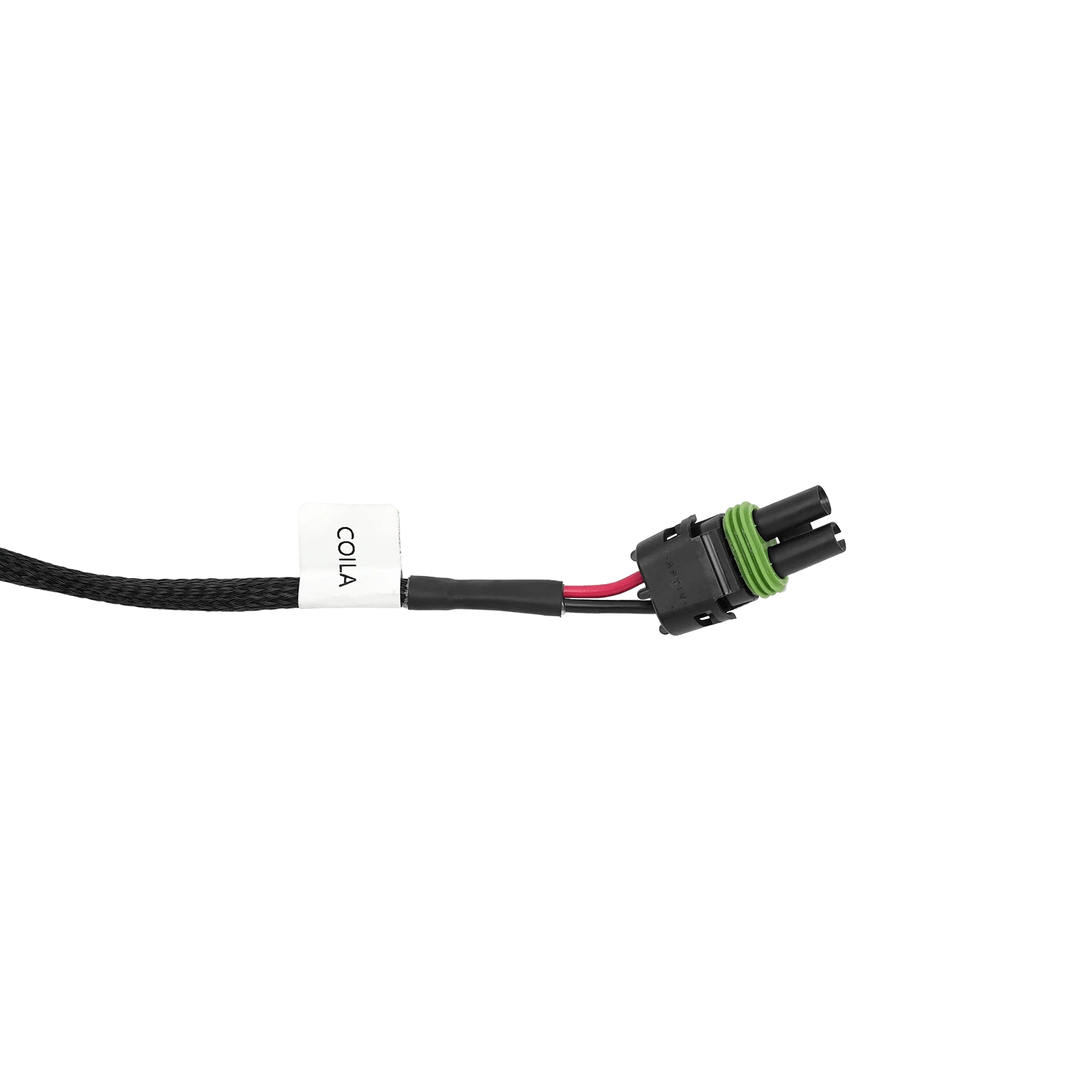

- Integrated Coil Driver – For direct ignition control
- Step Retard – Built-in timing control for nitrous applications
- Boost-Ready – 3-bar TMAP sensor included for high-performance turbo or supercharged setups
- Built-in Sensors – MAP, TPS, IAT, and 4.9 Wideband O2 included
- Dual Fan Control – Optimize cooling strategy

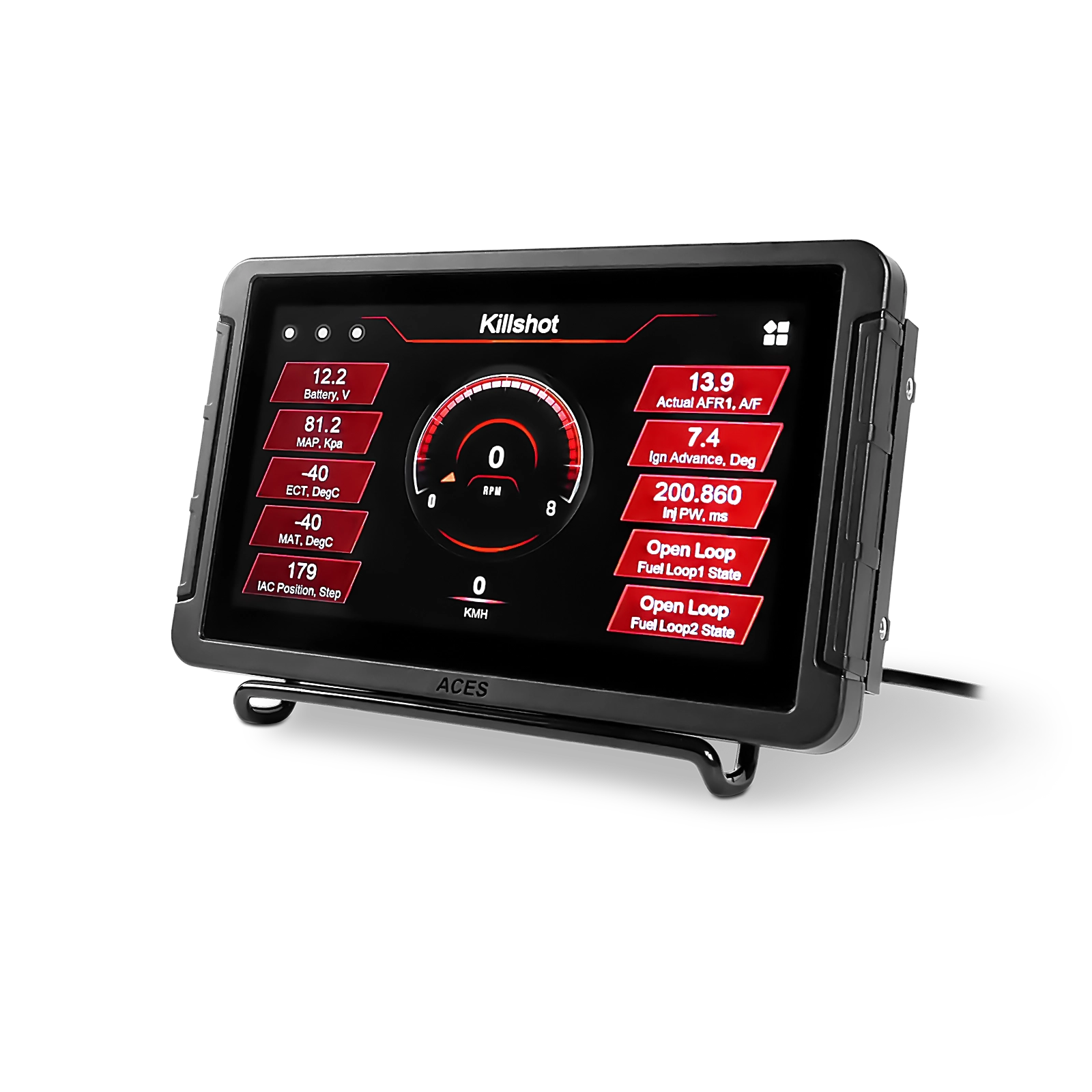

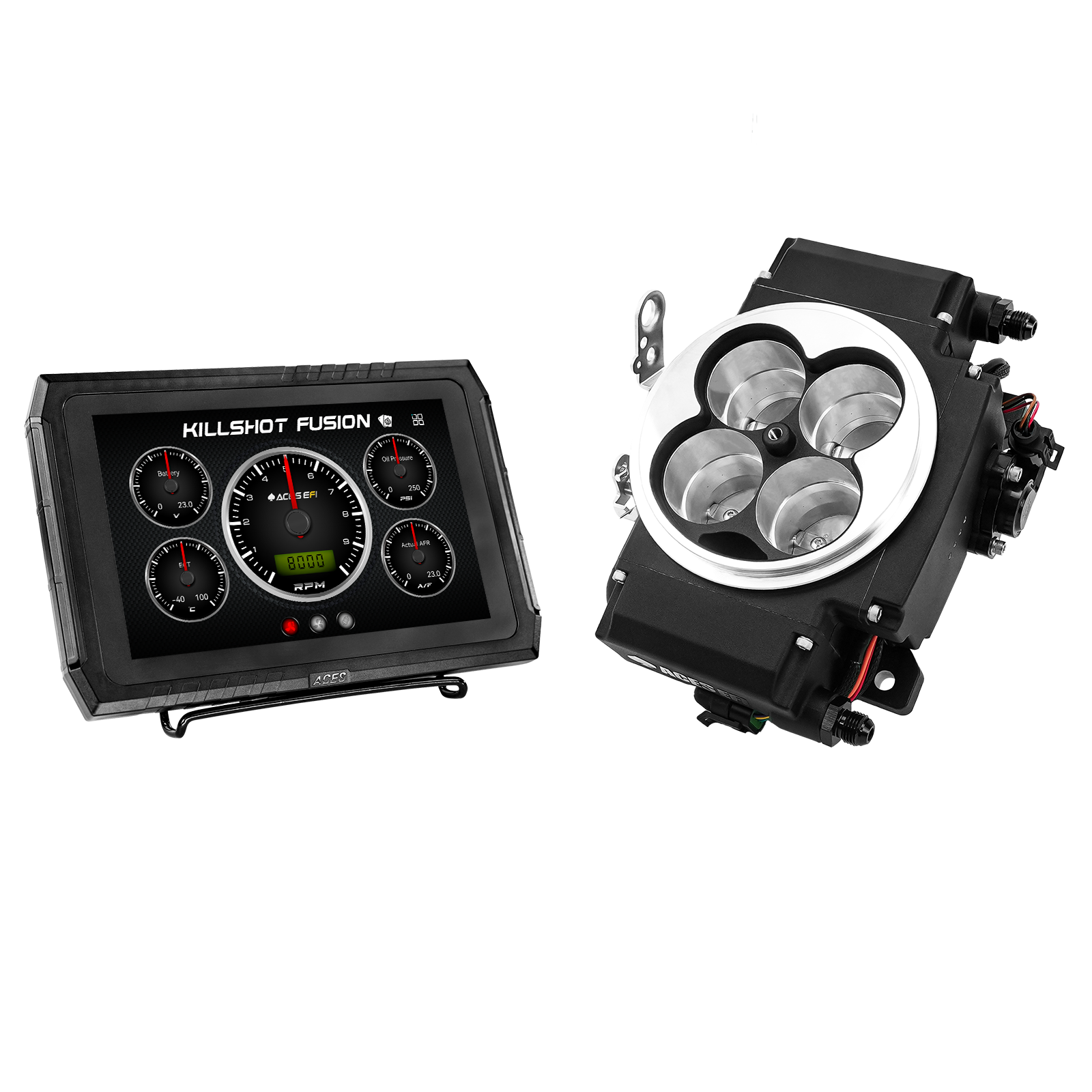

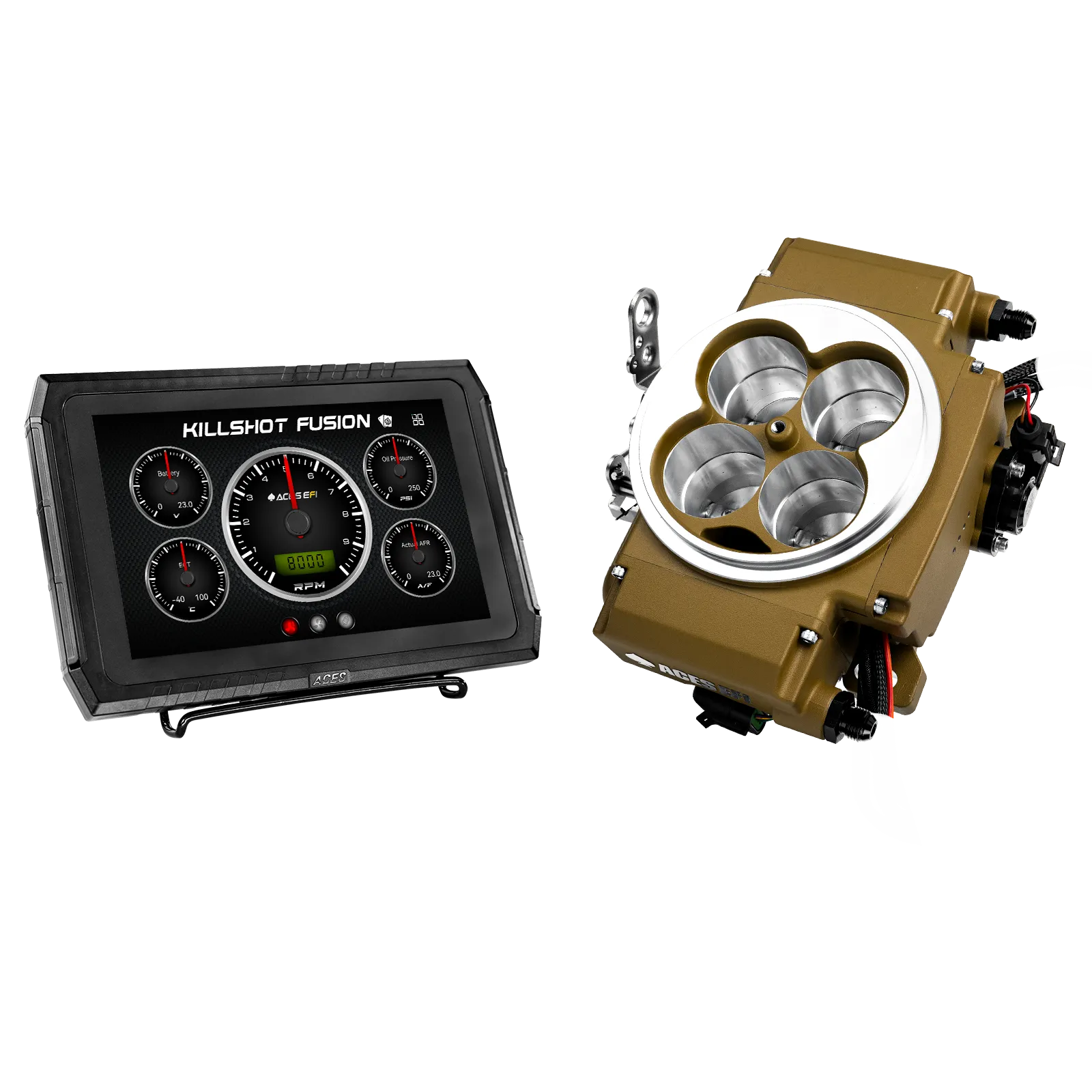

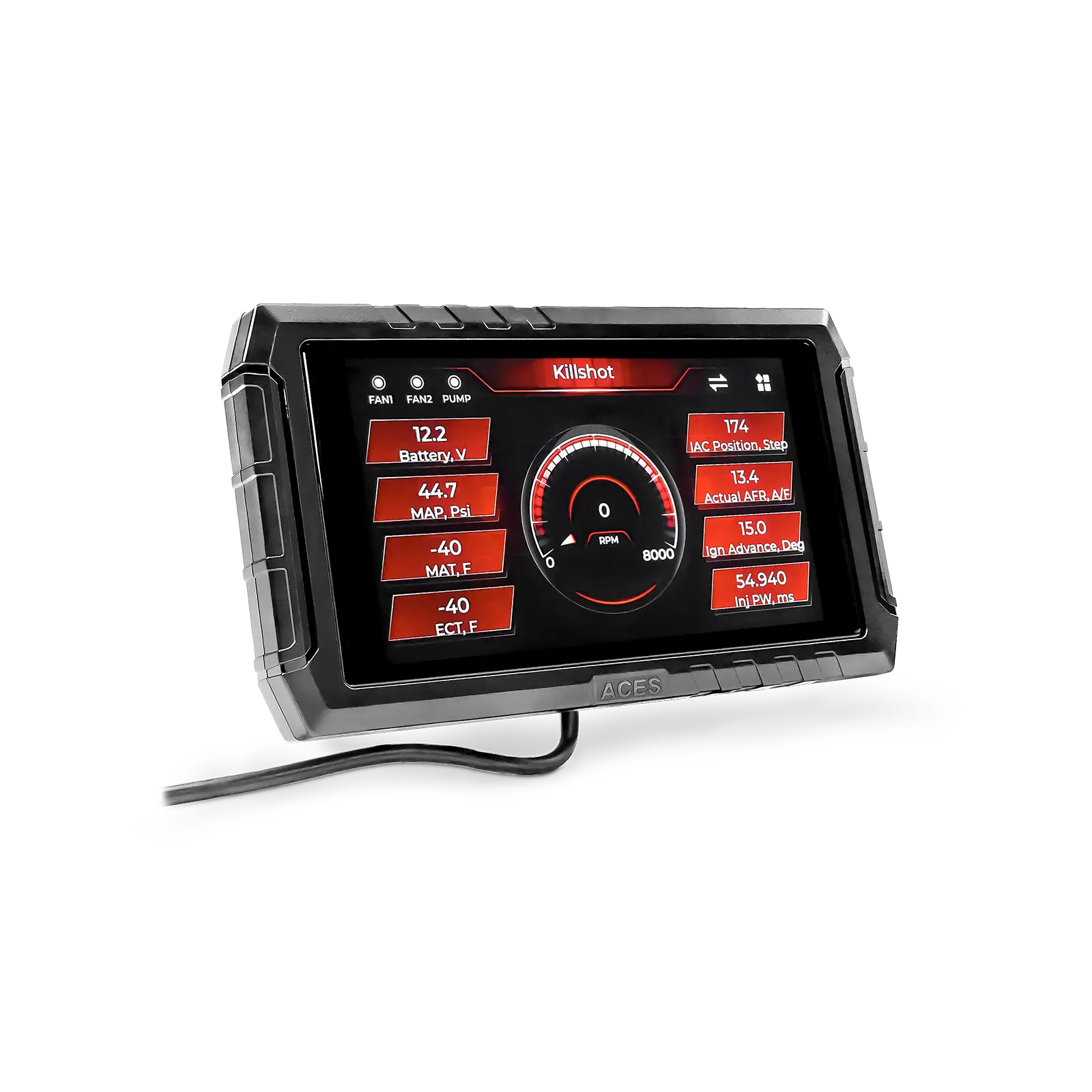

- 5” Full-Color Touchscreen Handheld – Includes GPS speedometer, monitoring, and intuitive setup wizard
- Advanced Tuning Software – Free laptop-based tuning with pro-level tables and live data
- Fully Compatible – Works with Aces CAN accessories, digital dashes, and transmission controllers
Why Killshot Fusion? Why Aces EFI?
While others shipped flawed designs to meet a trend, Aces EFI held the line—refining, validating, and testing until we had a product worthy of our name. The Killshot Fusion is the culmination of five years of ECU and TBI development, engineered specifically for real-world performance and long-term reliability.
From weekend warriors to serious tuners, Killshot Fusion offers the confidence of clean installation, the control of pro-level tuning, and the backbone of proven engineering.
If you’re ready for a throttle body EFI system that does more than look the part, this is it.
System Specs
Killshot Fusion Specifications

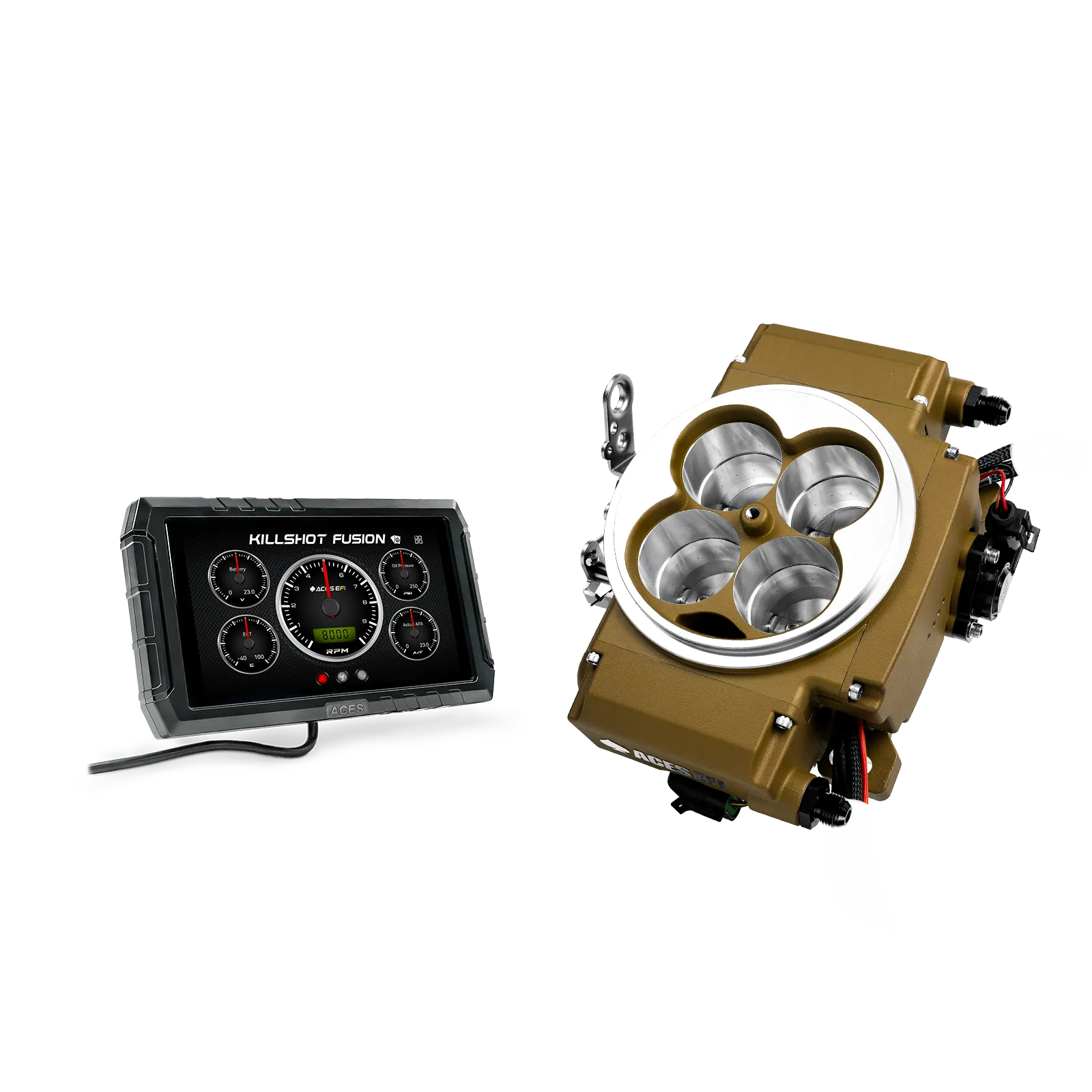

| Specification | Value |
|---|---|
| Accelerometer Support | No |
| Air Cleaner Diameter | 5" |
| Air Inlet Location | Center top |
| Basic Operating RPM Range | Up to 8,000 RPM |
| Boost Compatible | Yes |
| Boost Control | No |
| CAN-BUS Support | Yes (Aces) |
| Category | Electronic Fuel Injection |
| CFM | 1,000 |
| Coil Per Cylinder Ignition Support | No |
| Color | Black, Gold, or Polished |
| Datalogging Support | Yes |
| Distributor Included | Only in Top End & Master Kits |
| Dry Nitrous Compatibility | No |
| Dry Nitrous Control | No |
| E85 Support | Yes |
| EFI Type | Throttle Body Injection (TBI) |
| EGT Support | Yes (Aces) |
| Emission Code | 3 |
| Engine | Utilizes a 4150 style flange. Not specific to any one engine. |
| Finish | Powder coating for Black or Gold. Polished finish |
| Flange Style | 4150 |
| Forced Induction Support | Yes |
| Fuel Filter Included | Only in Fuel Kits & Master Kits. |
| Fuel Hose Included | Only in Fuel Kits & Master Kits. |
| Fuel Injectors Included | Yes. (4) 100 lb/hr injectors which are built in. |
| Fuel Pressure Regulator Included | Only in Fuel Kits & Master Kits. |
| Fuel PSI Required | 42-48 PSI. 60 PSI Max. |
| Fuel Pump Included | Only in Fuel Kits & Master Kits. |
| Fuel Rail(s) Included | Not applicable to TBI style systems. |
| Fuel System Type | Depends on selection and only in Fuel Kits & Master Kits. |
| Gasket Or Seal Included | Yes |
| Gasket Type | Fiber |
| Grade Type | Performance |
| Handheld Included | Yes |
| Handheld MCU Architecture | 64-bit |
| Idle Air Control Motor Included | Yes, built-in. |
| Ignition Timing Control | Yes |
| Ignition Type | CDI, magnetic, hall effect, or points style distributor. |
| Individual Cylinder Fuel Corrections | No |
| Injector Connector | EV1 (internal) |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Intake Manifold Included | No |
| Knock Retard Support | No |
| MAP Sensor | 3 Bar |
| MAP Sensor Included | Yes, built-in. |
| Material | Cast Aluminum (throttle body) |
| Maximum Horsepower Supported | 650 Naturally Aspirated |
| MCU Architechture | 32-bit ST56 Power PC |
| Minimum Horsepower Supported | 150 |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Bung(s) Included | No |
| Product Type | Electronic Fuel Injection System |
| Progressive Nitrous Control | No |
| Recommended Use | Stock to Mild applications for best results |
| Self-Learning | Yes |
| Sequential Injection | No |
| Single Or Dual Plane Type | Compatible with either |
| Throttle Body Bore Diameter | 42.8mm |
| Throttle Body Height | 3.46" |
| Throttle Body Included | Yes |
| Throttle Position Sensor Included | Yes, built-in |
| Transmission Control | Not included |
| WBO2 Sensor | 4.9 Wideband |
| WBO2 Sensor Included | Yes, one. |
| UPC | |
| User-Tuneable | Yes |
| Wet Nitrous Control | No |
| SKU |
Documents

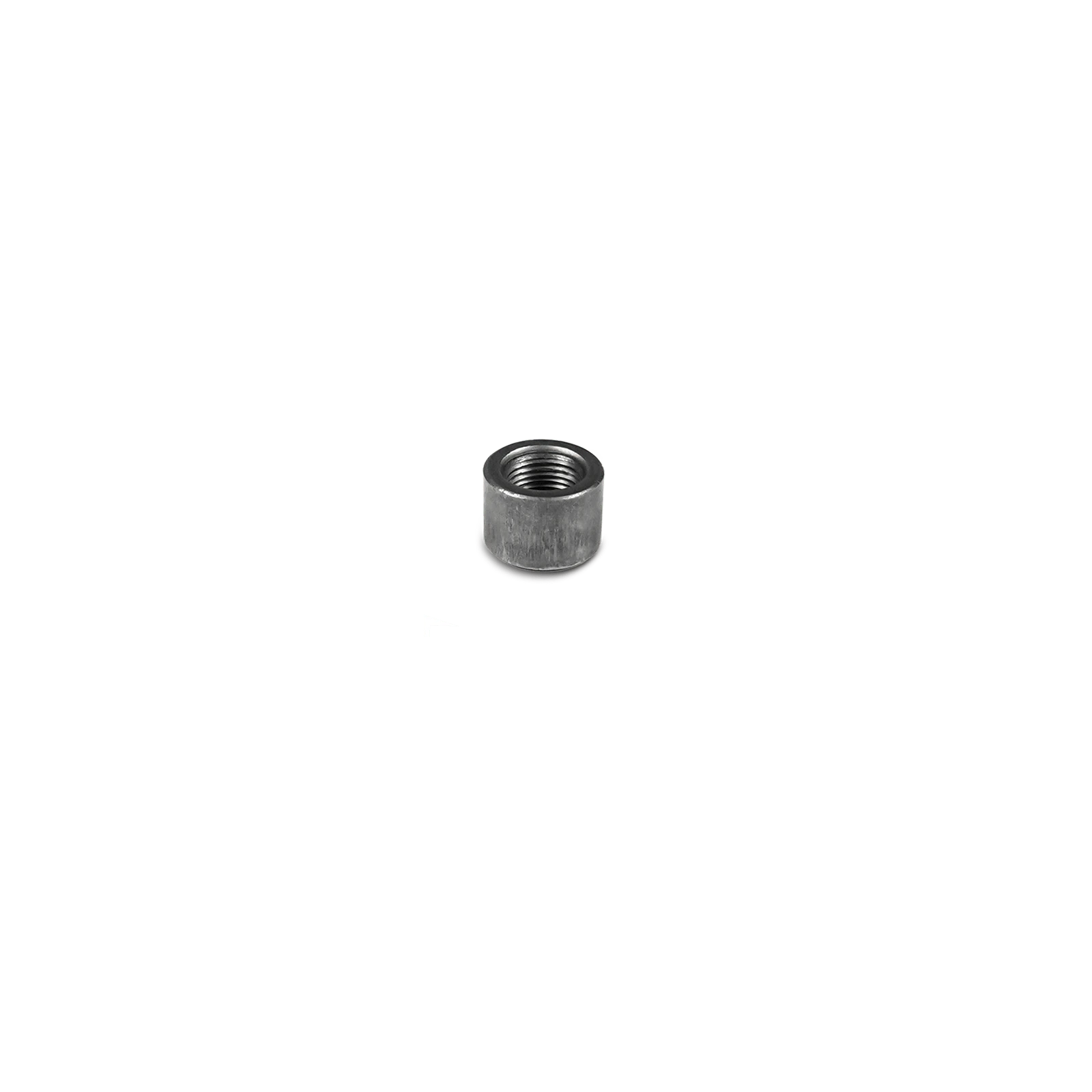

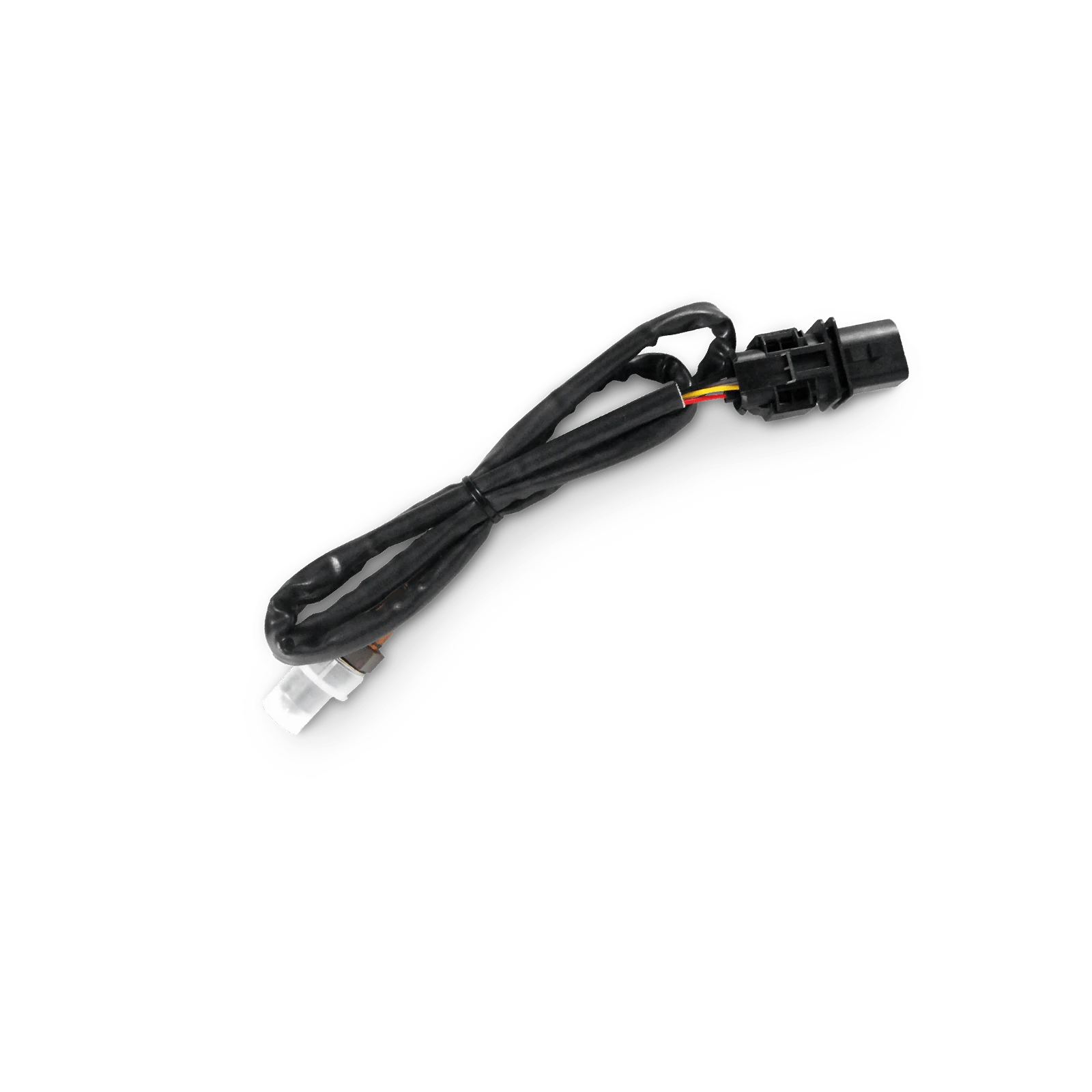

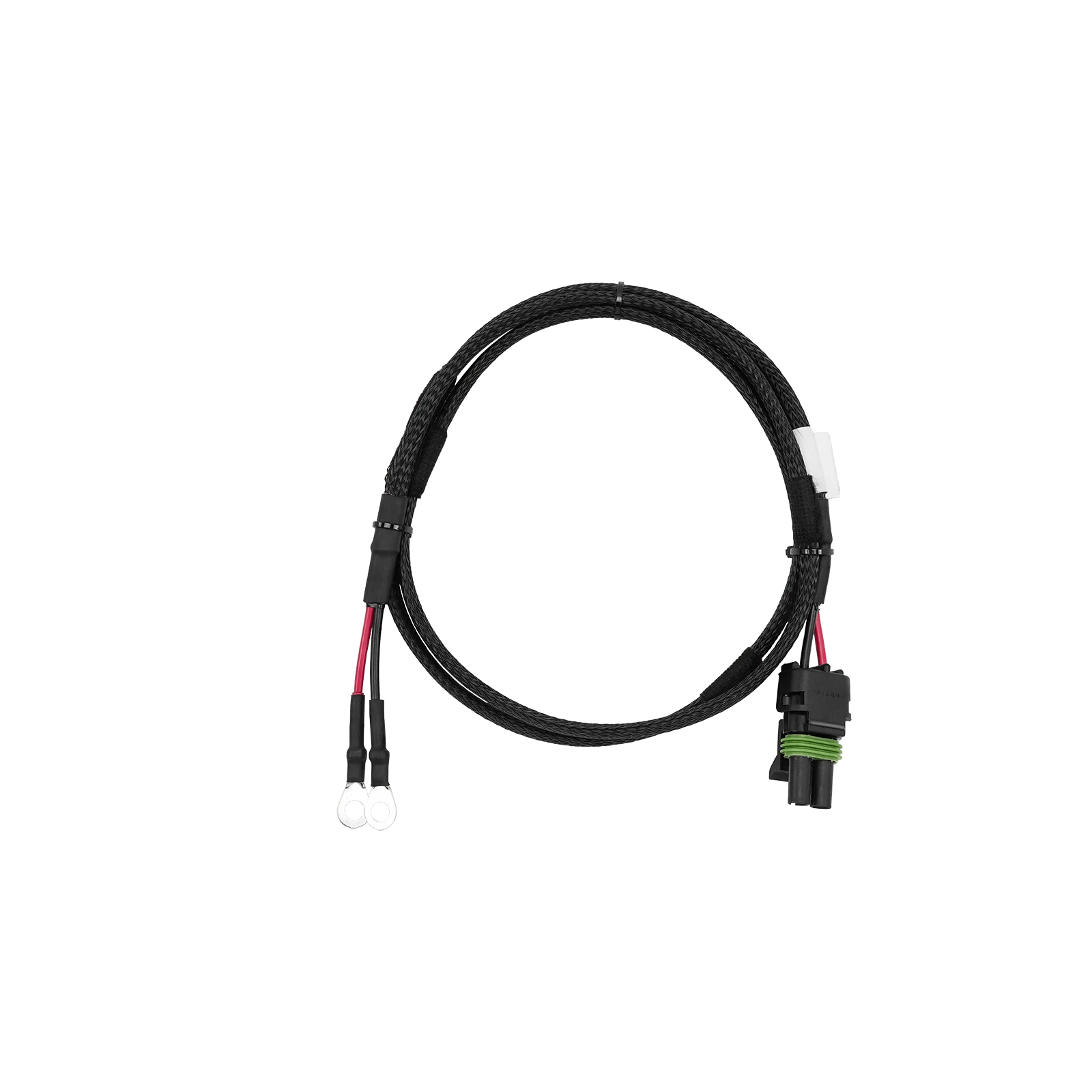

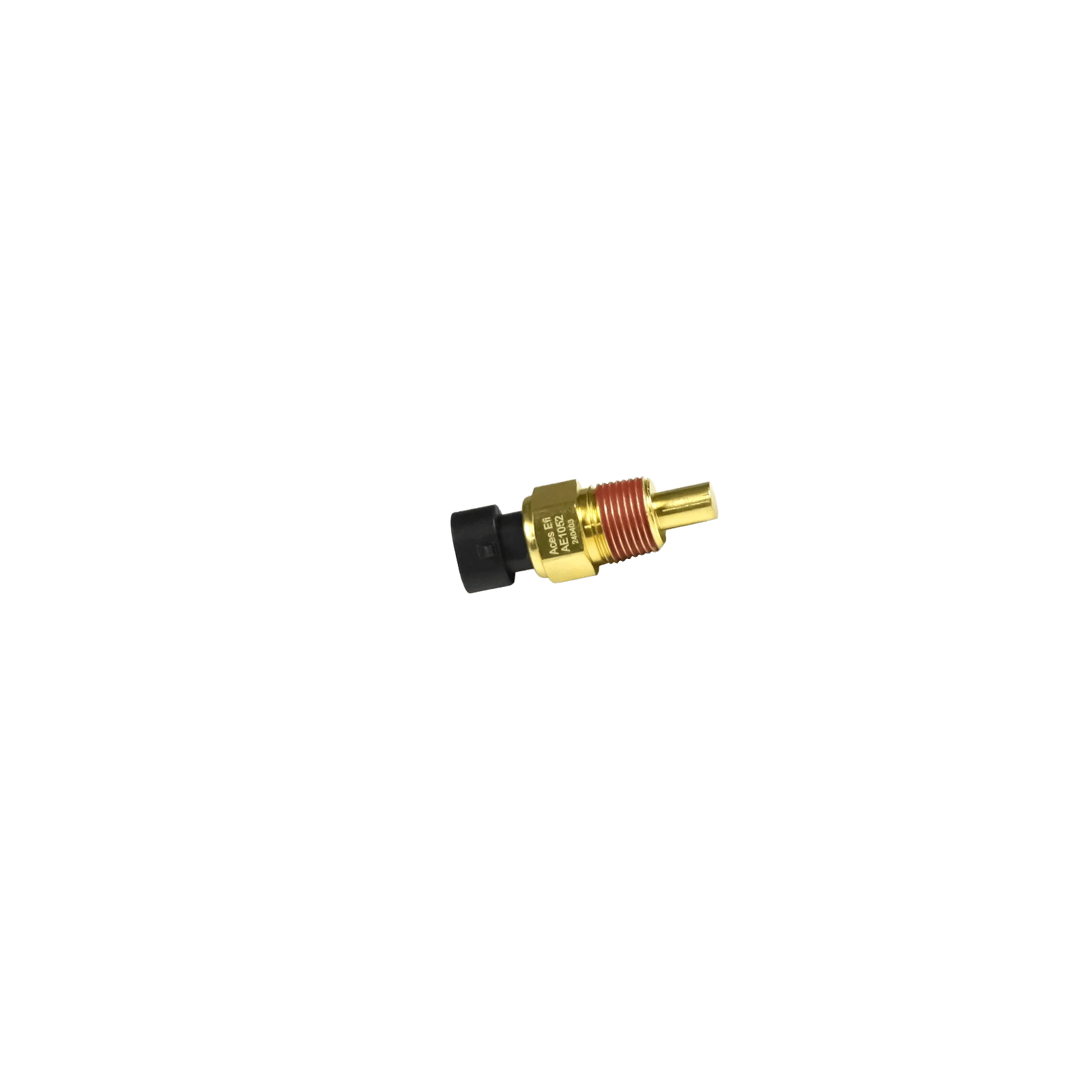

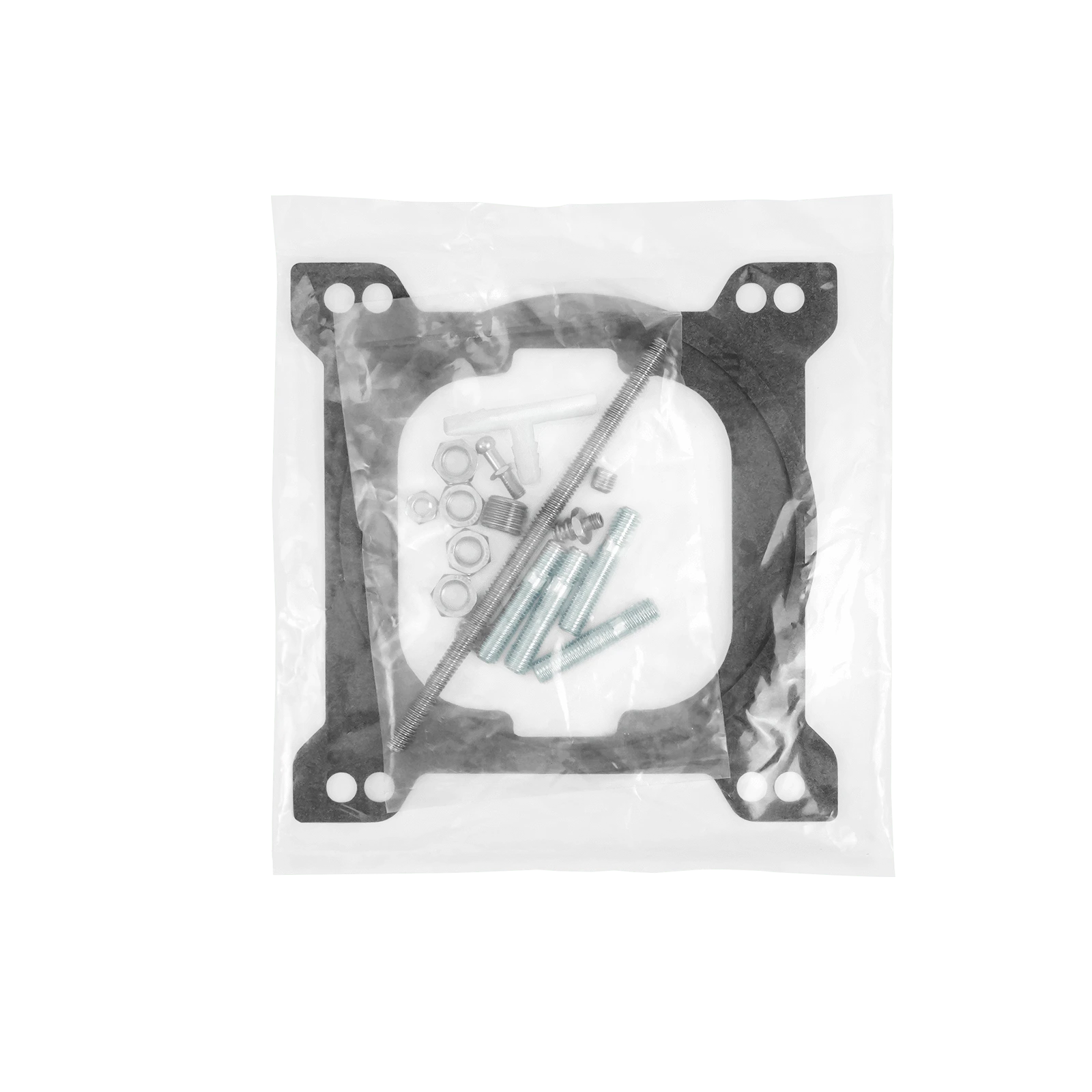

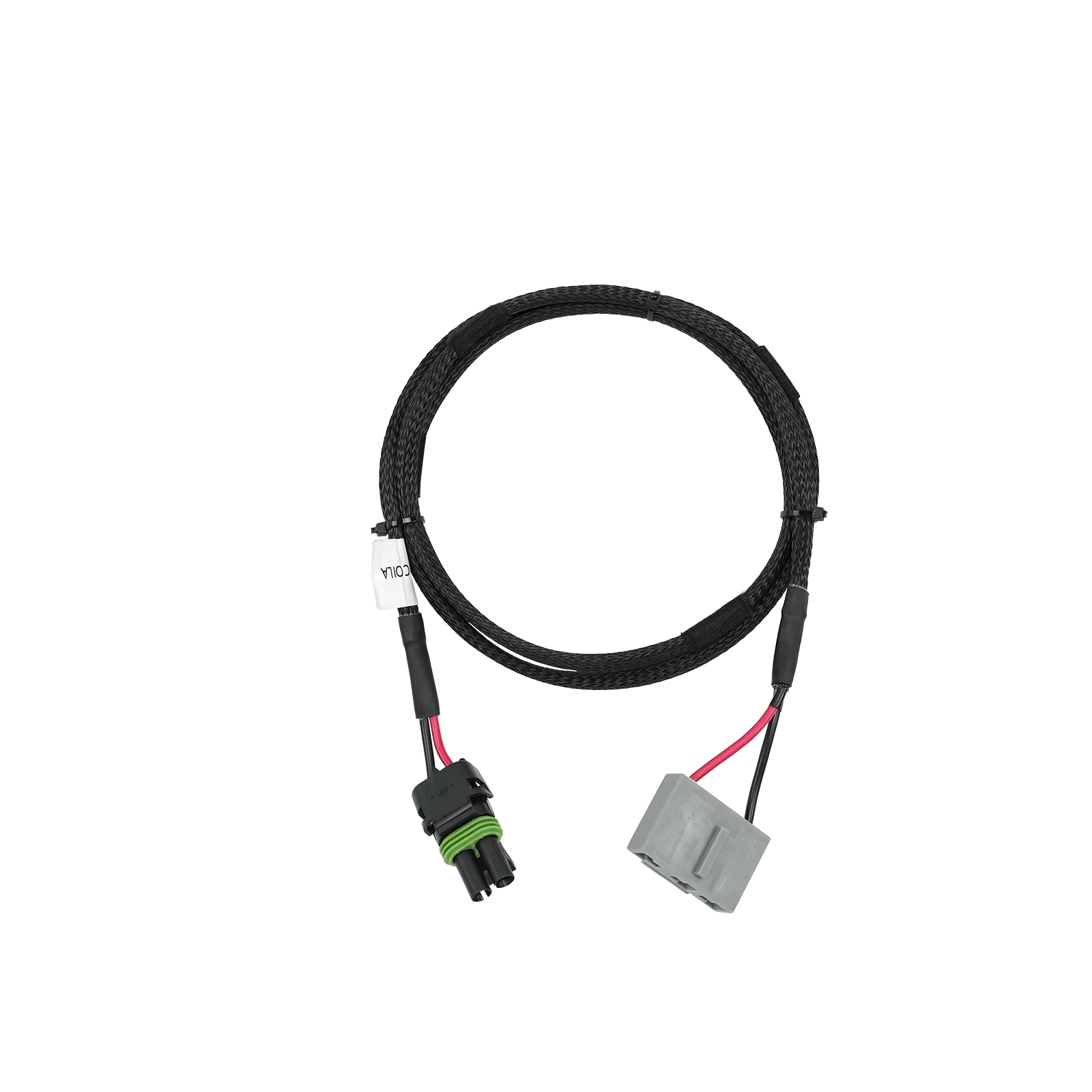

What's Included?
Bundle Options
No bundle comparison available.
Competitor Comparisons
The Future of Throttle Body EFI is Here
Engineered Precision. Integrated Simplicity. Real-World Durability.
The Killshot Fusion is the next evolution in throttle body EFI systems. Building upon the success of the original Killshot, the Fusion takes everything users loved, robust hardware, accurate fuel delivery, and ease of tuning, and reimagines it with a fully integrated design that eliminates clutter, simplifies installation, and dramatically boosts reliability.
In a world where many EFI manufacturers rushed to integrate ECUs onto the throttle body and paid the price in failures, Aces EFI took a different path: more time, more engineering, and more testing. The result is Killshot Fusion, a true all-in-one TBI system that thrives where others fail.
Built from the Core Up – Smart, Strong, Stable
At the heart of the Killshot Fusion is a high-performance 32-bit automotive-grade microcontroller based on the PowerPC e200z0h core. This platform enables lightning-fast input/output processing, superior sensor management, and high-resolution fuel and spark control. Combined with Aces’ proprietary software and a proven B50 control chip, it delivers performance you can trust in any application, from street cruising to competitive racing.
Fusion also includes advanced ECC memory protection, a Memory Protection Unit (MPU), and a 4-layer PCB with a dedicated power plane. This design significantly reduces voltage fluctuations and impedance, ensuring system stability and durability, even in extreme environments.
Re-Engineered for the Harshest Realities
Many EFI systems fail because they ignore the reality of engine bay conditions, heat, vibration, electromagnetic interference (EMI), and moisture. The Killshot Fusion addresses each of these with purpose-built solutions:
- Potting-Protected ECU: The Fusion’s internal PCB is encapsulated in specialized potting material that insulates electronics from heat and shields against vibration, impact, and contamination.
- Dual Ignition MOSFET Drivers: Enhance ignition reliability by providing strong and stable spark energy under all conditions.
- Multi-Stage Filtering & Active Digital Shielding: Prevents noise interference from ignition systems and surrounding electronics, preserving signal clarity.
- EMI & Environmental Testing: The Fusion has passed extensive vibration, salt spray, and EMI validations, tests where competitor systems often fail. This isn’t just rugged, it’s refined, lab-proven durability.
Integrated Design, Maximum Simplicity
With the ECU and harness connectors integrated directly onto the throttle body, installation is faster, cleaner, and more reliable. There’s no need to mount an external ECU, route long harnesses, or deal with complex wiring. Just bolt it on, plug it in, and fire it up.
- Symmetrical Harness Layout: Connectors on both sides of the unit allow for clean cable routing no matter your engine bay configuration.
- Reduced Points of Failure: Fewer connectors and wires mean fewer potential problems down the road.
- No External ECU: Fewer boxes, fewer mounting brackets, and a dramatically cleaner engine bay appearance.
Advanced Software with Self-Learning Intelligence
Killshot Fusion’s control software doesn’t just respond to your engine, it learns it. Every second the system is running, it’s analyzing, adapting, and refining its control strategy for your unique build.
- Predictive Ignition Timing: Software anticipates and adjusts spark timing for optimal combustion under dynamic conditions to better meet timing targets.
- Accurate Injector Phasing: Improved synchronization between injectors enhances performance and fuel economy.
- Rapid Self-Learning: The ECU quickly adapts to your engine's fueling needs—no laptop required during setup.
- Anti-Interference Control: Predictive shielding algorithms mitigate signal disruptions before they occur.
Whether you’re adjusting idle quality or optimizing for boost, Fusion’s software is tuned to perform.
Performance Hardware – Loaded and Ready
- (4) 100 lb/hr Injectors – Supports up to 650 horsepower
- Integrated Coil Driver – For direct ignition control
- Step Retard – Built-in timing control for nitrous applications
- Boost-Ready – 3-bar TMAP sensor included for high-performance turbo or supercharged setups
- Built-in Sensors – MAP, TPS, IAT, and 4.9 Wideband O2 included
- Dual Fan Control – Optimize cooling strategy
- 5” Full-Color Touchscreen Handheld – Includes GPS speedometer, monitoring, and intuitive setup wizard
- Advanced Tuning Software – Free laptop-based tuning with pro-level tables and live data
- Fully Compatible – Works with Aces CAN accessories, digital dashes, and transmission controllers
Why Killshot Fusion? Why Aces EFI?
While others shipped flawed designs to meet a trend, Aces EFI held the line—refining, validating, and testing until we had a product worthy of our name. The Killshot Fusion is the culmination of five years of ECU and TBI development, engineered specifically for real-world performance and long-term reliability.
From weekend warriors to serious tuners, Killshot Fusion offers the confidence of clean installation, the control of pro-level tuning, and the backbone of proven engineering.
If you’re ready for a throttle body EFI system that does more than look the part, this is it.
Killshot Fusion Specifications
| Specification | Value |
|---|---|
| Accelerometer Support | No |
| Air Cleaner Diameter | 5" |
| Air Inlet Location | Center top |
| Basic Operating RPM Range | Up to 8,000 RPM |
| Boost Compatible | Yes |
| Boost Control | No |
| CAN-BUS Support | Yes (Aces) |
| Category | Electronic Fuel Injection |
| CFM | 1,000 |
| Coil Per Cylinder Ignition Support | No |
| Color | Black, Gold, or Polished |
| Datalogging Support | Yes |
| Distributor Included | Only in Top End & Master Kits |
| Dry Nitrous Compatibility | No |
| Dry Nitrous Control | No |
| E85 Support | Yes |
| EFI Type | Throttle Body Injection (TBI) |
| EGT Support | Yes (Aces) |
| Emission Code | 3 |
| Engine | Utilizes a 4150 style flange. Not specific to any one engine. |
| Finish | Powder coating for Black or Gold. Polished finish |
| Flange Style | 4150 |
| Forced Induction Support | Yes |
| Fuel Filter Included | Only in Fuel Kits & Master Kits. |
| Fuel Hose Included | Only in Fuel Kits & Master Kits. |
| Fuel Injectors Included | Yes. (4) 100 lb/hr injectors which are built in. |
| Fuel Pressure Regulator Included | Only in Fuel Kits & Master Kits. |
| Fuel PSI Required | 42-48 PSI. 60 PSI Max. |
| Fuel Pump Included | Only in Fuel Kits & Master Kits. |
| Fuel Rail(s) Included | Not applicable to TBI style systems. |
| Fuel System Type | Depends on selection and only in Fuel Kits & Master Kits. |
| Gasket Or Seal Included | Yes |
| Gasket Type | Fiber |
| Grade Type | Performance |
| Handheld Included | Yes |
| Handheld MCU Architecture | 64-bit |
| Idle Air Control Motor Included | Yes, built-in. |
| Ignition Timing Control | Yes |
| Ignition Type | CDI, magnetic, hall effect, or points style distributor. |
| Individual Cylinder Fuel Corrections | No |
| Injector Connector | EV1 (internal) |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Intake Manifold Included | No |
| Knock Retard Support | No |
| MAP Sensor | 3 Bar |
| MAP Sensor Included | Yes, built-in. |
| Material | Cast Aluminum (throttle body) |
| Maximum Horsepower Supported | 650 Naturally Aspirated |
| MCU Architechture | 32-bit ST56 Power PC |
| Minimum Horsepower Supported | 150 |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Bung(s) Included | No |
| Product Type | Electronic Fuel Injection System |
| Progressive Nitrous Control | No |
| Recommended Use | Stock to Mild applications for best results |
| Self-Learning | Yes |
| Sequential Injection | No |
| Single Or Dual Plane Type | Compatible with either |
| Throttle Body Bore Diameter | 42.8mm |
| Throttle Body Height | 3.46" |
| Throttle Body Included | Yes |
| Throttle Position Sensor Included | Yes, built-in |
| Transmission Control | Not included |
| WBO2 Sensor | 4.9 Wideband |
| WBO2 Sensor Included | Yes, one. |
| UPC | |
| User-Tuneable | Yes |
| Wet Nitrous Control | No |
| SKU |
No bundle comparison available.
Customer Reviews

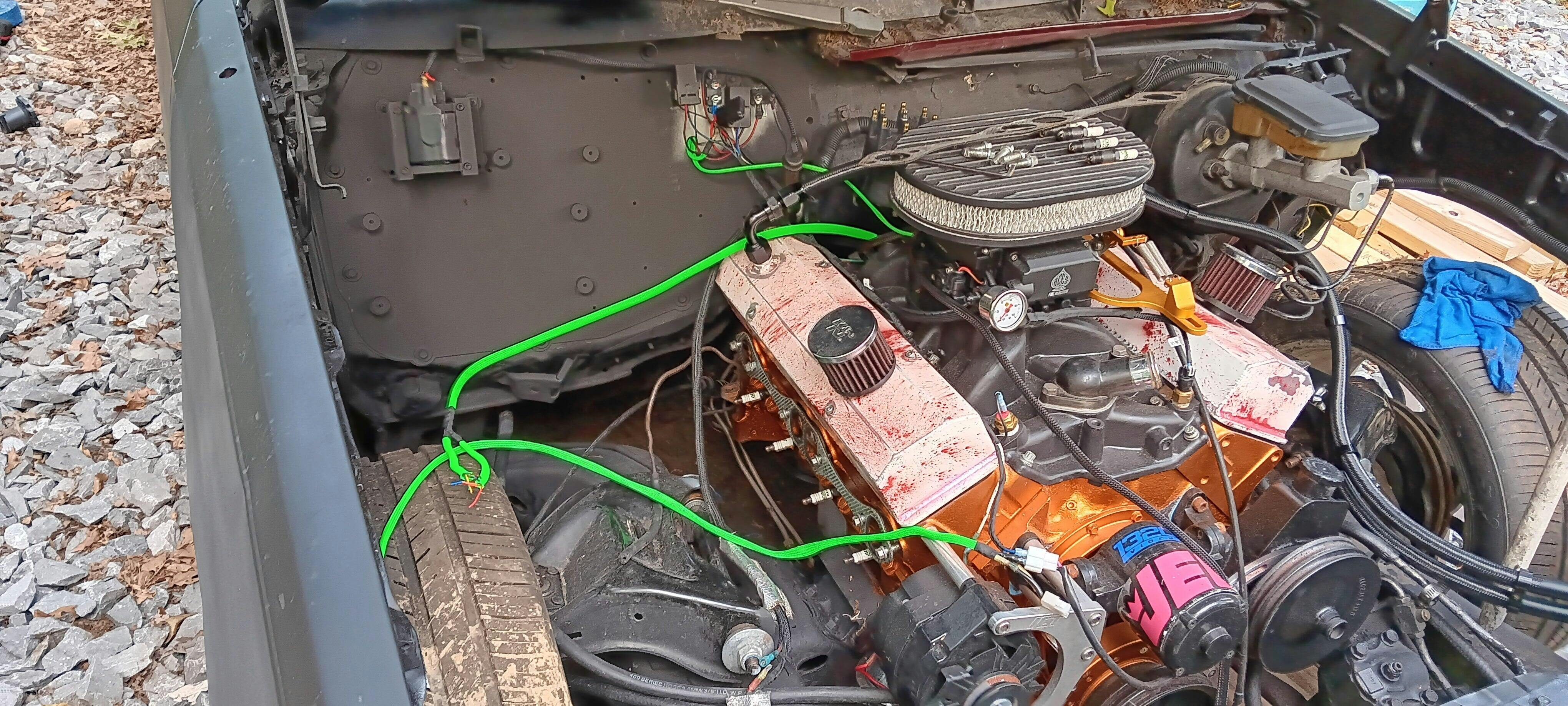

The Killshot Fusion was very easy to install. The slimmer throttle body design allows for a wide range of air cleaner configurations, making it versatile for different setups.

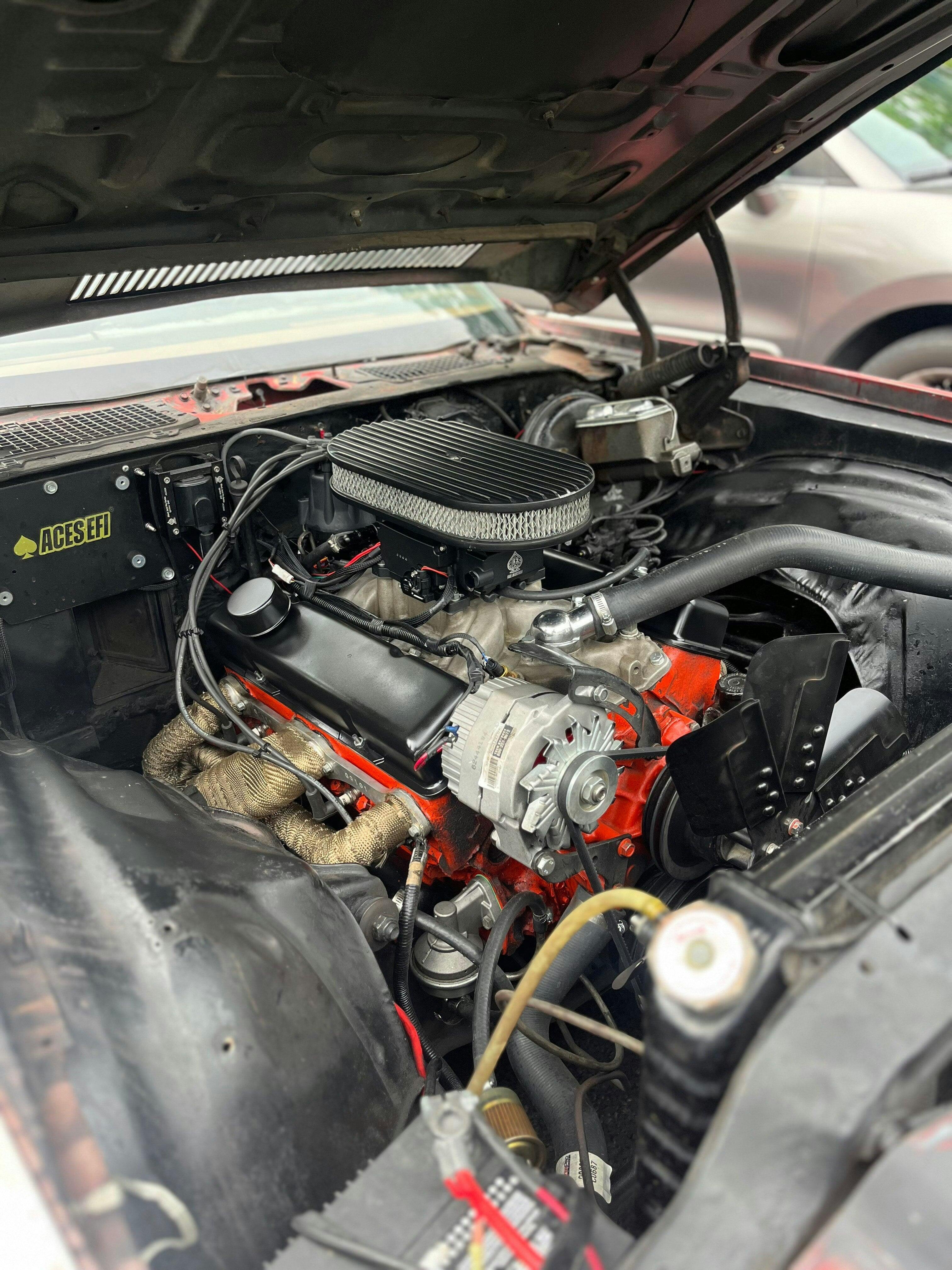

Once installed and the wiring was tucked away, it blended seamlessly into the engine bay—maintaining a classic look while delivering the reliability and tunability Aces EFI is known for.
On a stock engine, I had to make little to no adjustments. I simply bolted it on, ran the Start Wizard, and was on the road the next day.
This unit was super easy to install and fired right up. I only needed minimal adjustments to the IAC and a little tuning to get it to idle and run smoothly. Although the vehicle has suspension issues that need to be addressed, it ran great before I had to park it. Even after sitting for a week or two at a time, it still fires right up without a problem. Very satisfied so far!
We have been testing the new ACES KS Fusion for a few months now and have been impressed with its ease of installation, product packaging, and out-of-the-box success. The KS Fusion uses a 4150-style flange, side-mounted integrated ECU, and a simplified harness to make any carb guy say “this is too easy.” The system came with the older 5” screen and mount, harnesses, wideband O2, and CTS sensor. Installation took about 15 minutes to complete from removal of the Aces KS2 to installation of the KS Fusion and wizard setup. The wizard tune fired up using the ACES Gambler distributor, I let it get to operating temperature, adjusted the IAC, and went on a short drive to evaluate the system functionality. I am really impressed with the ease of use, less wires, and plug and play approach. ACES EFI is truly for the people and passionate about EFI technology, 5 out 5 stars from Justin at Proto-Tech LLC. 5/5

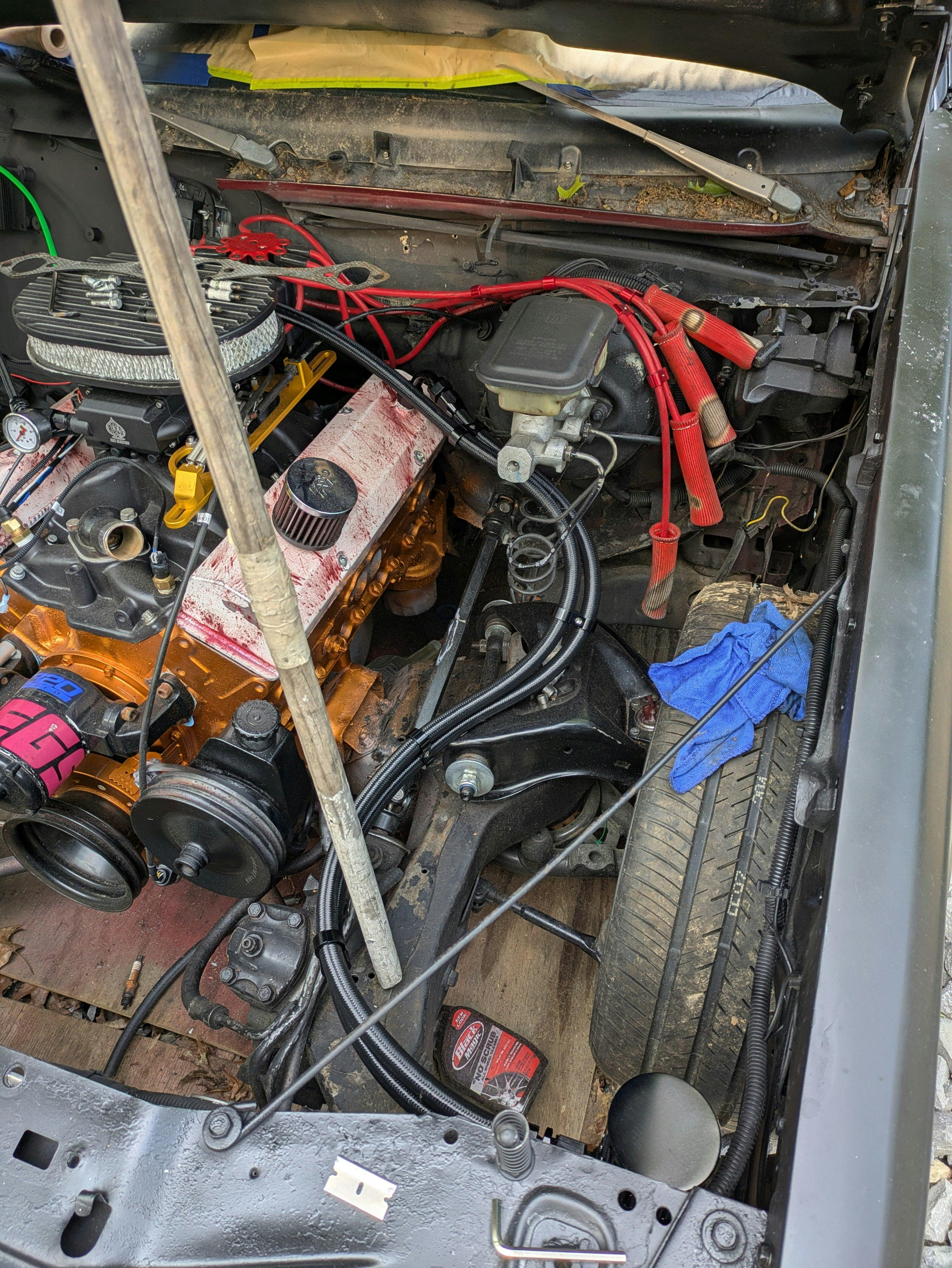

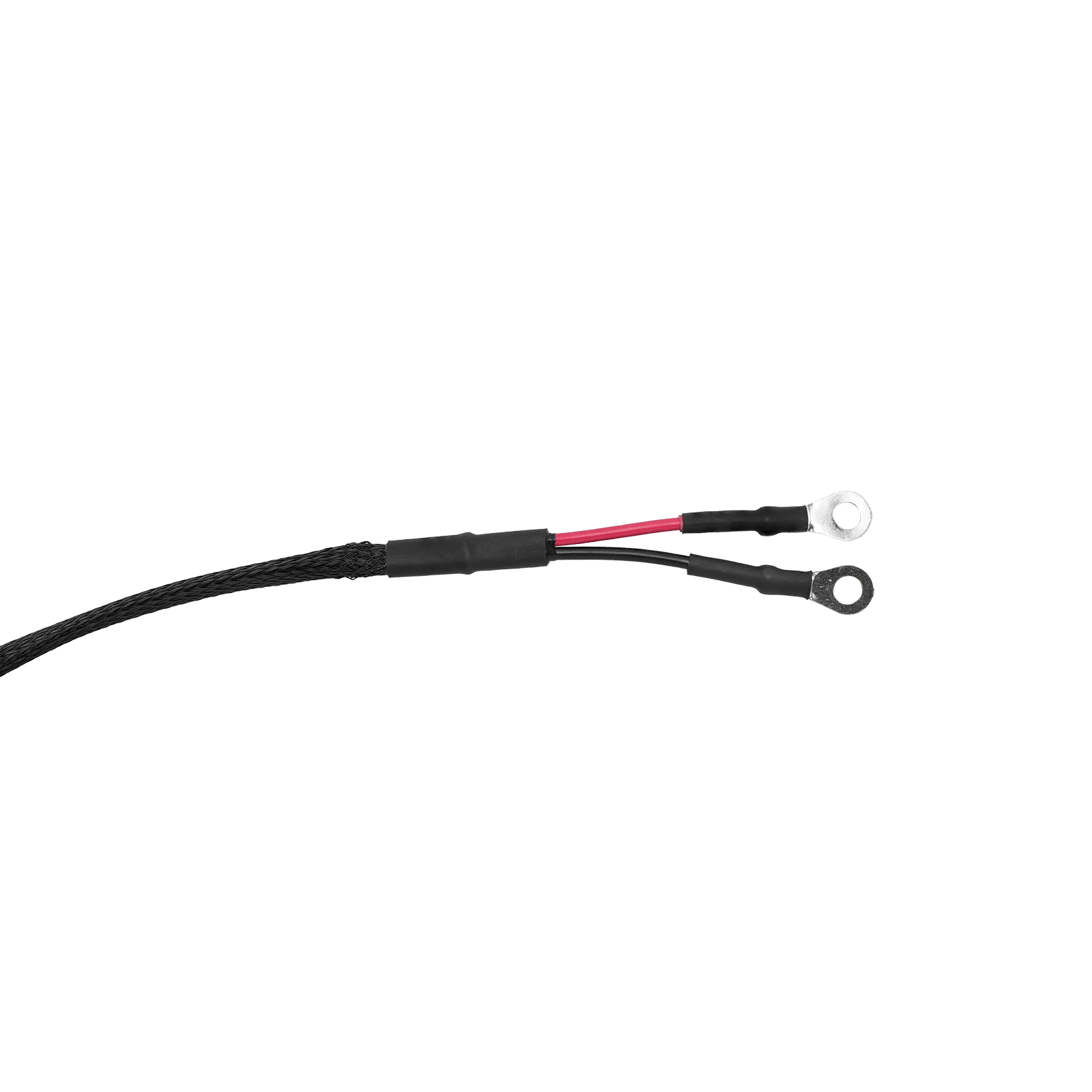

Super easy installation, everything just bolted on and plugged in with the exception of the battery + and -. With my setup, I was able to set the timing and it fired up with very little adjustments. My setup is pretty mild but I had more time messing with the Killshot 1 settings than I spent doing the entire Fusion install beginning to end. The integrated ecu is a nice touch and makes the under hood appearance much cleaner. Time will tell how it holds up, but so far so good! I will be removing this from my 1984 Cutlass and transferring it over to my wife's 1985 F150 for more testing from a non-car person's standpoint here later this year.

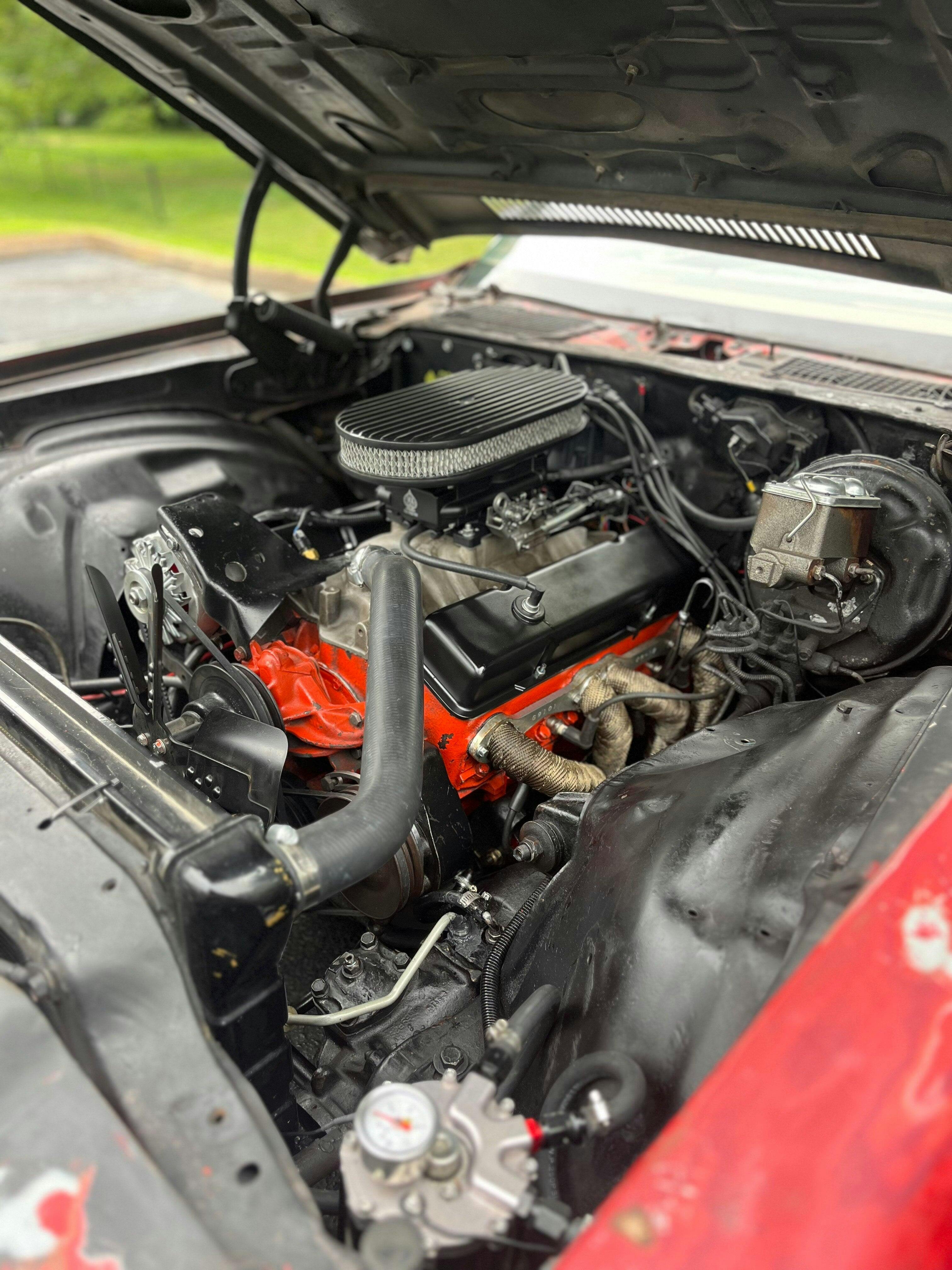

We like the smaller size of the unit, it has a good look to it.
The installation is simpler without the external ECU.
We haven't had any runtime on the unit yet due to an electrical issue, and a transmission swap with the car, but that is coming soon, and I will provide that feedback soon. 5/5
People also shop for
