Deuces Wild 2 Top End Kits

What it is: Deuces Wild 2 BBL TBI plus a matched distributor and coil for timing control in one convenient package. This kit is ideal for those who already have an EFI rated fuel delivery system.

Includes the full Deuces Wild standalone system plus:

• Blackjack Pro Series Billet Distributor: CNC-machined black anodized body, hardened steel shaft, sealed ball bearing on top and sintered steel bushing on the bottom for stability to 10,000 rpm. Lockout capable. Solid brass terminals. Color-matched wire retainer. Melonized steel gear. Note: Deuces Wild requires a magnetic pickup or hall effects distributor and a separate ignition coil for timing control. The Blackjack Pro pair provides a plug and play experience.


• Blackjack Pro Ignition Coil: 50,000 volts, about 70 percent more spark energy than most stock-style coils, improved heat dissipation, square housing for easy mounting, stronger spark for complete combustion and smooth throttle response.


What you get:

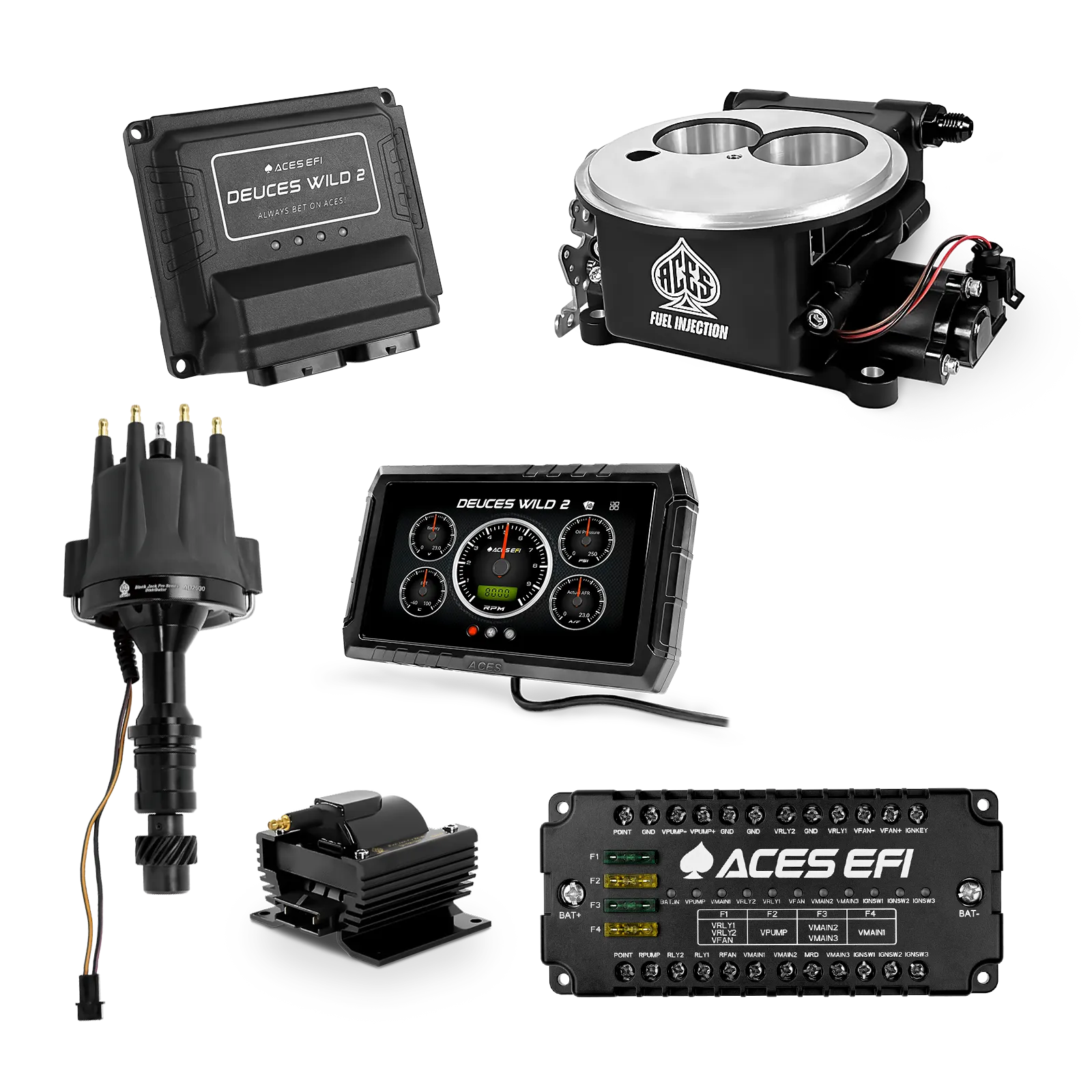

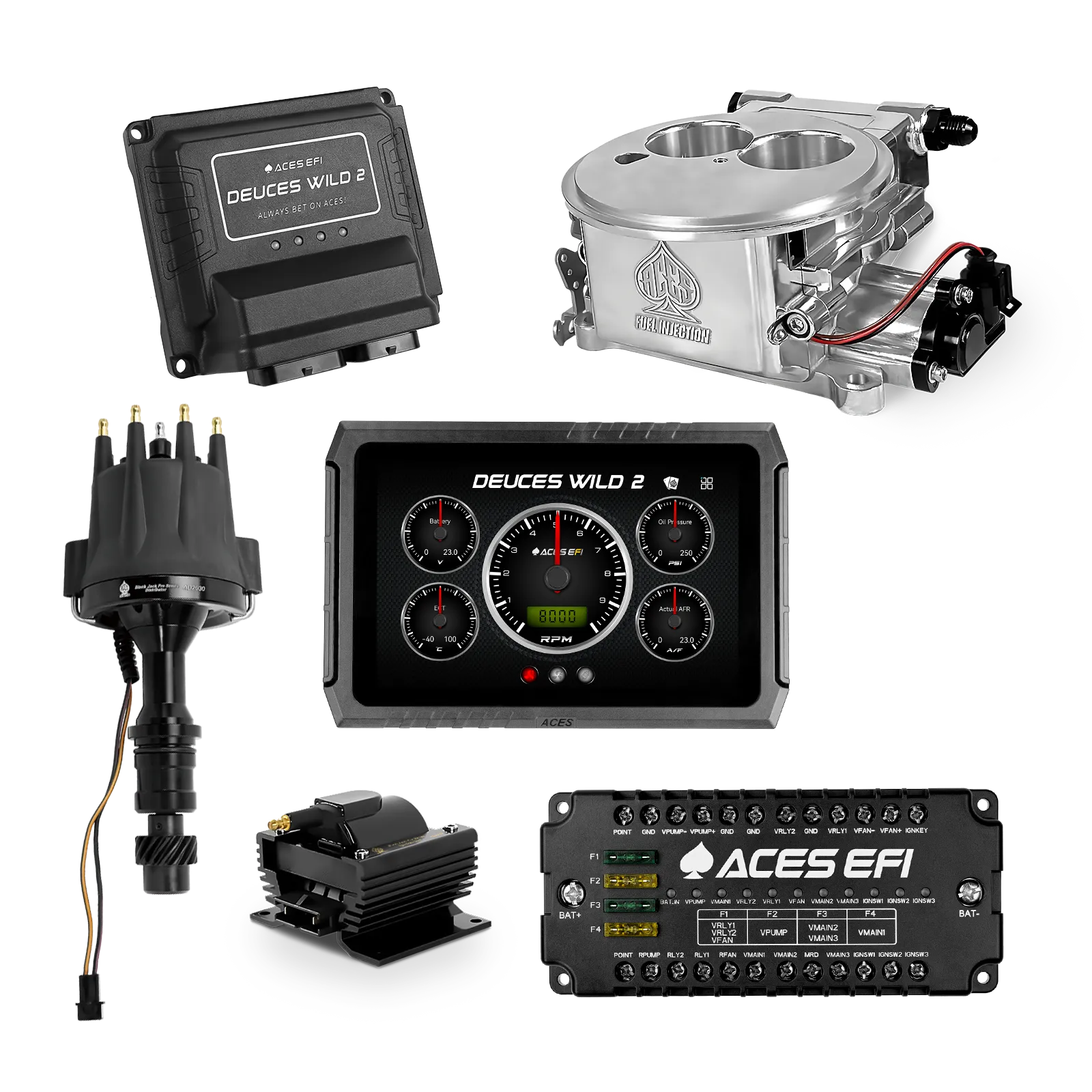

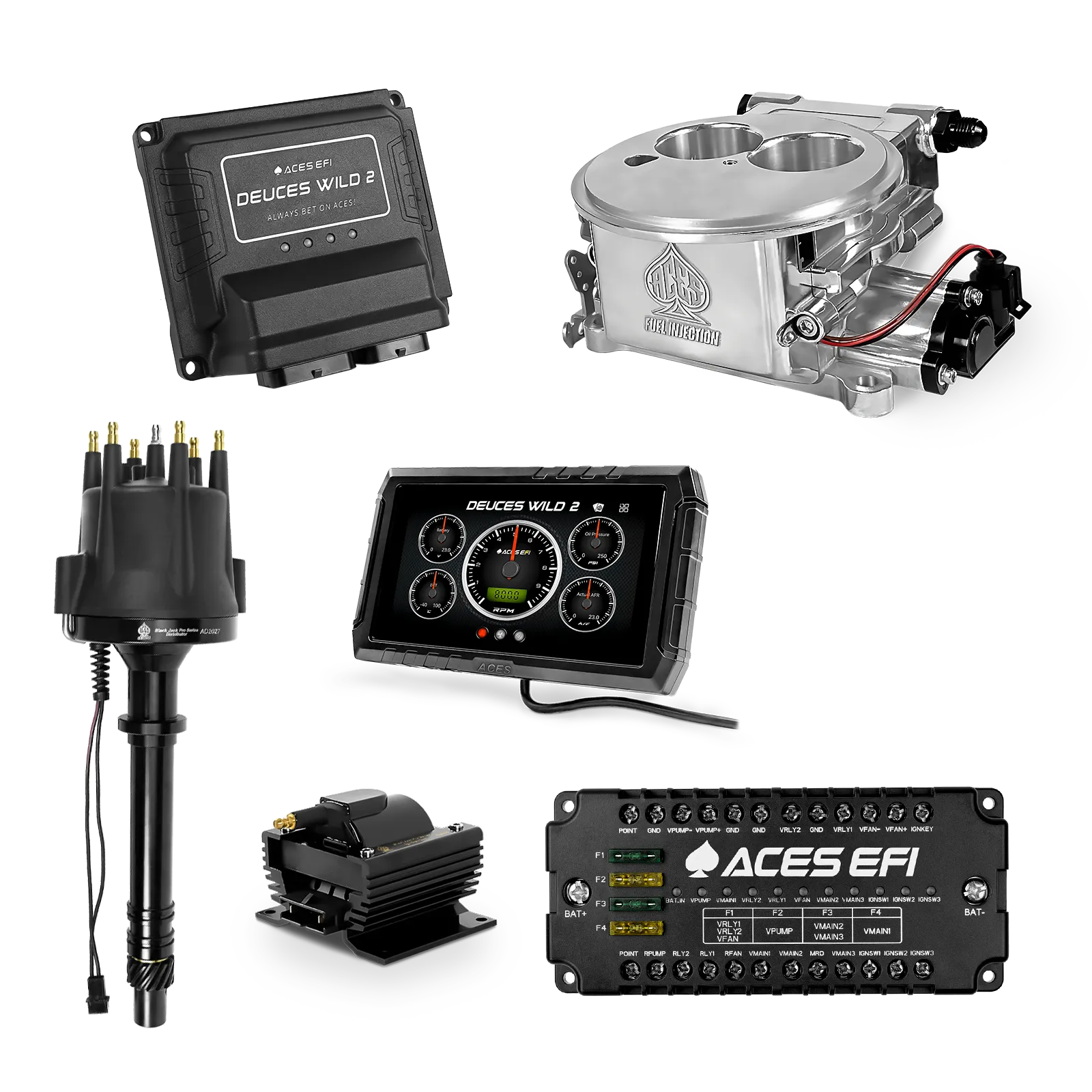

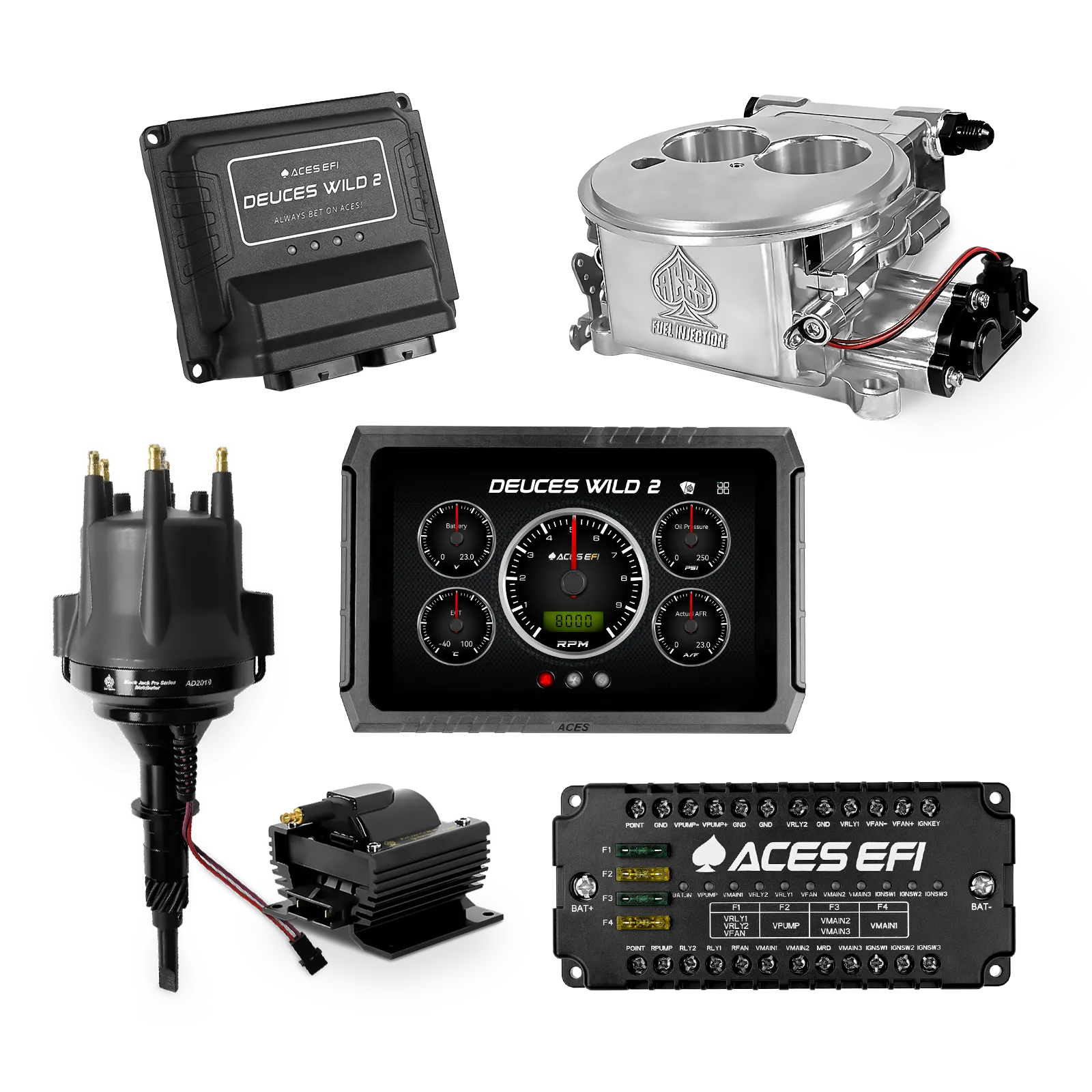

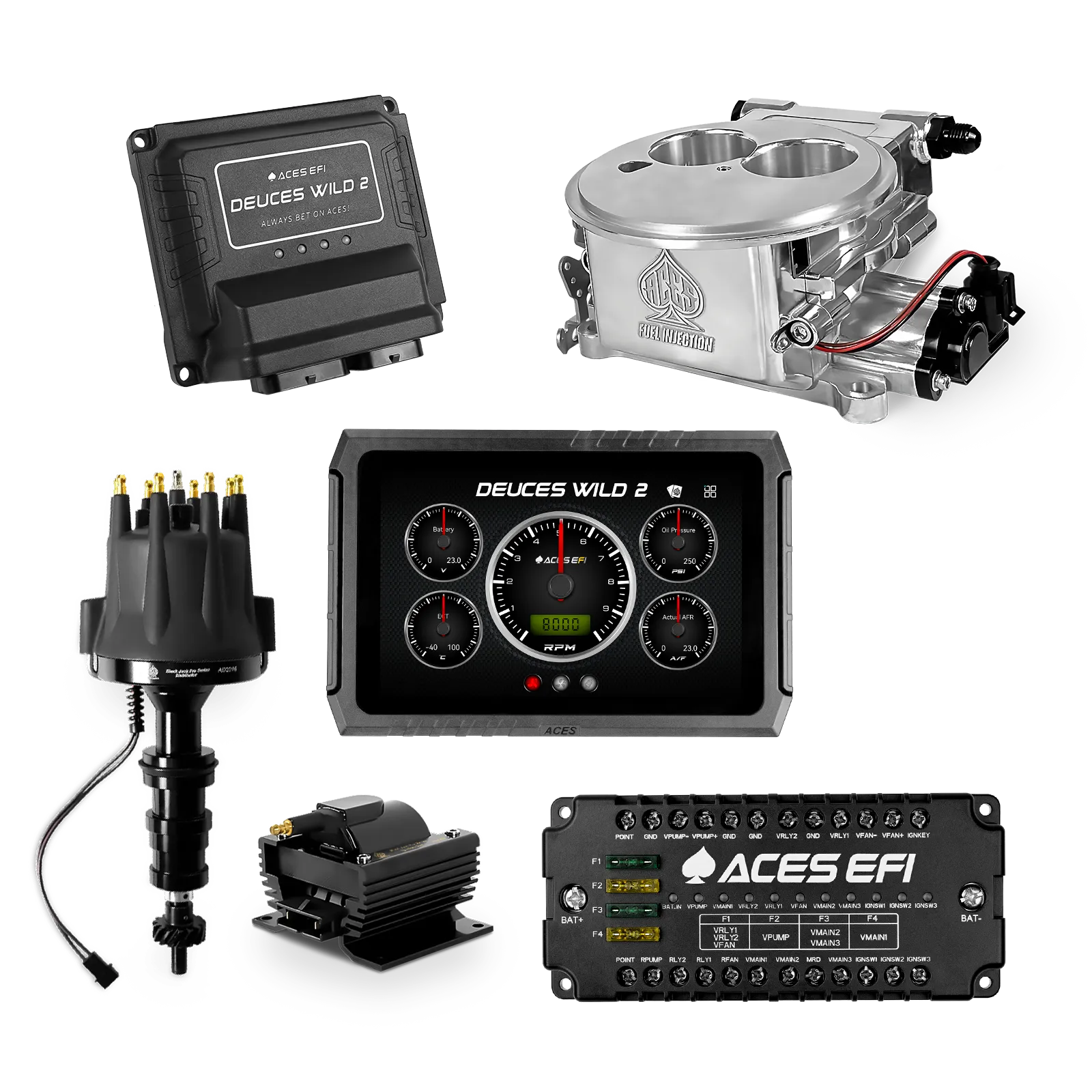

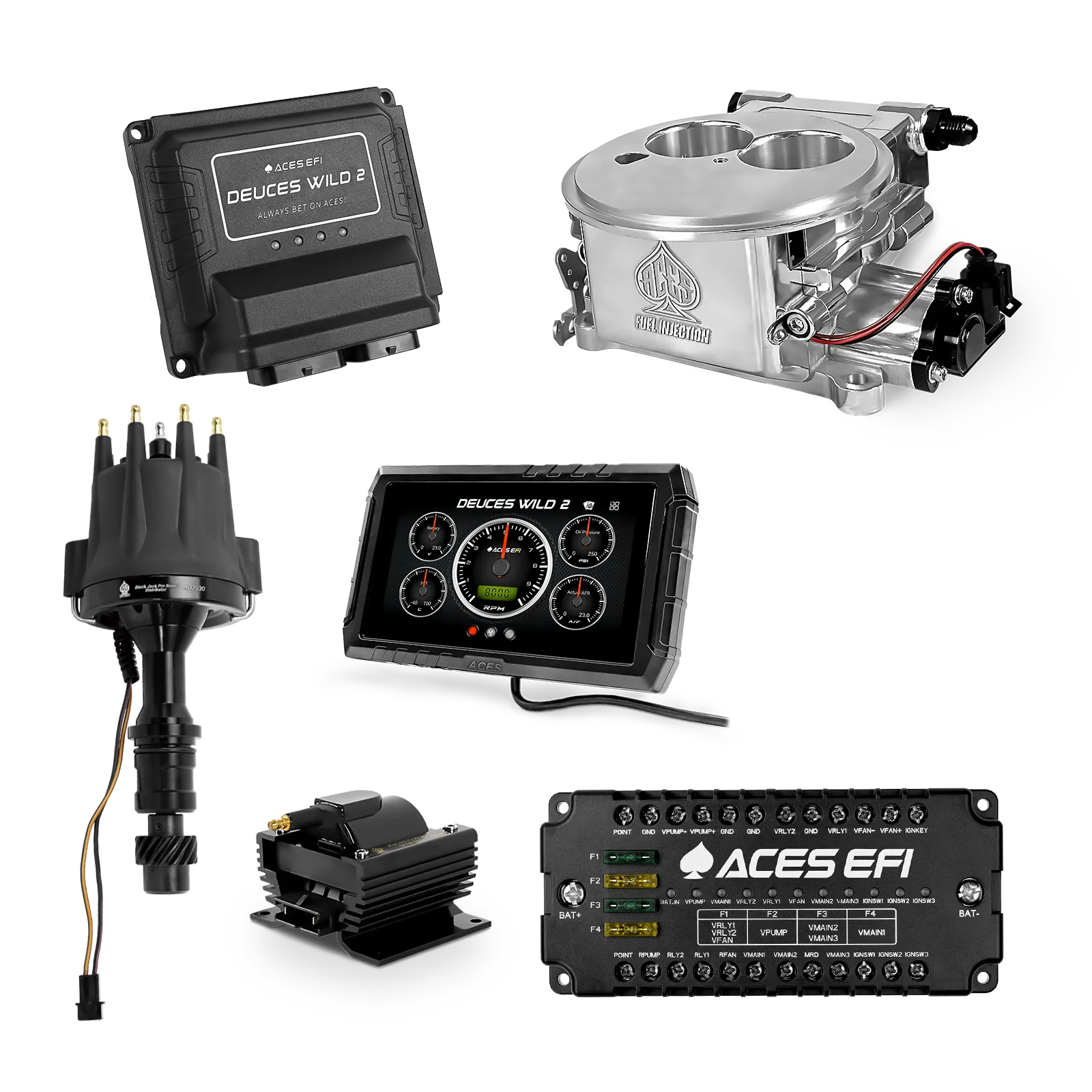

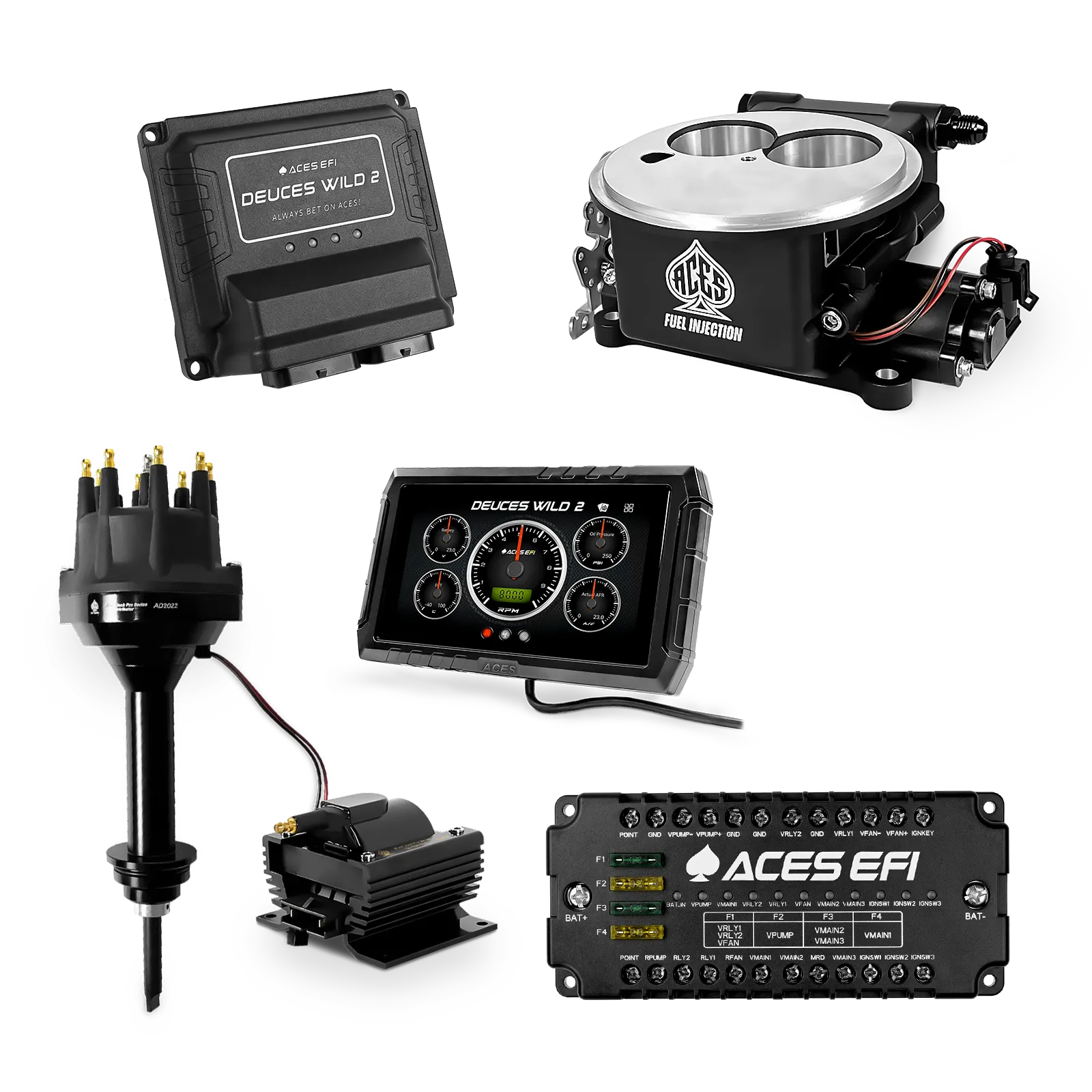

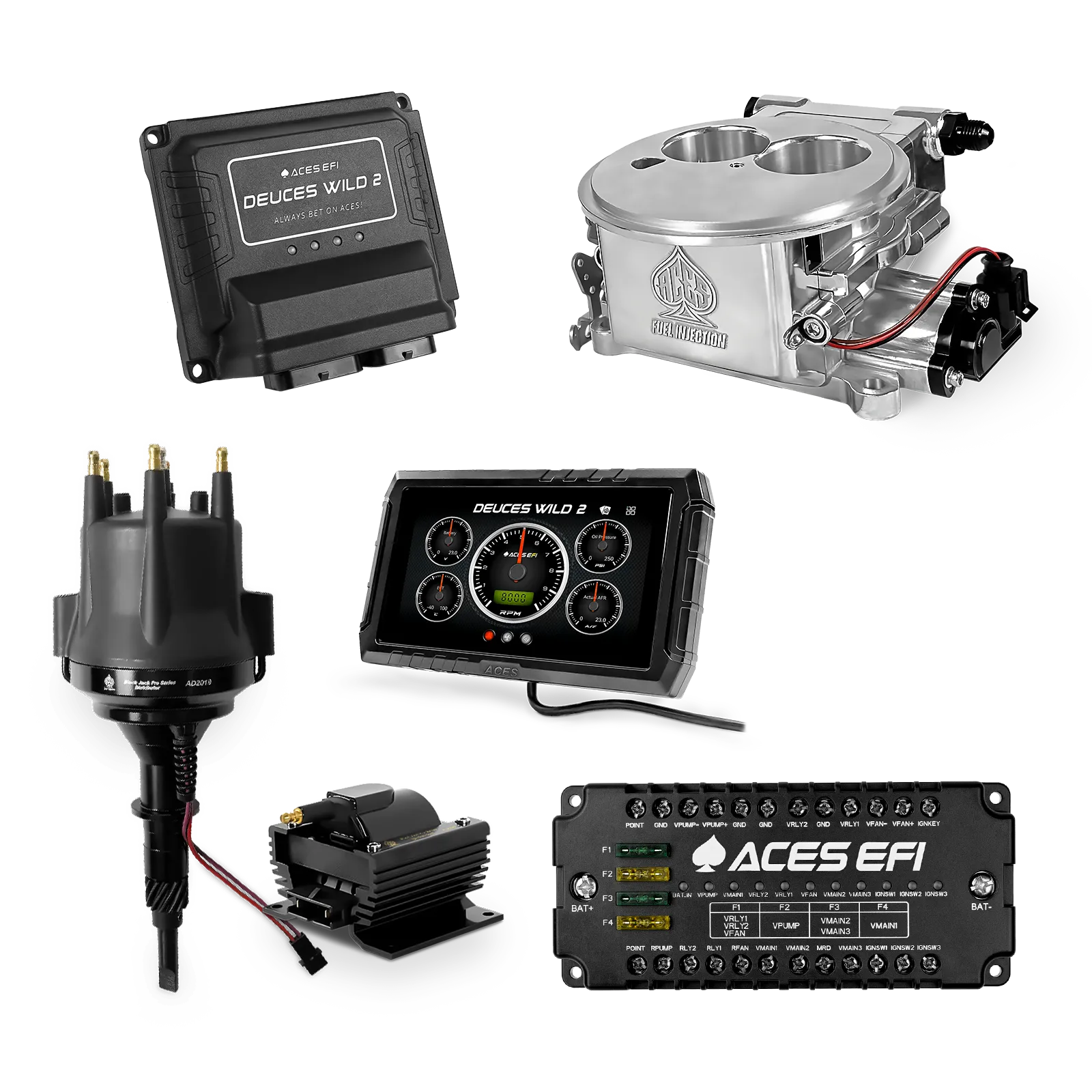

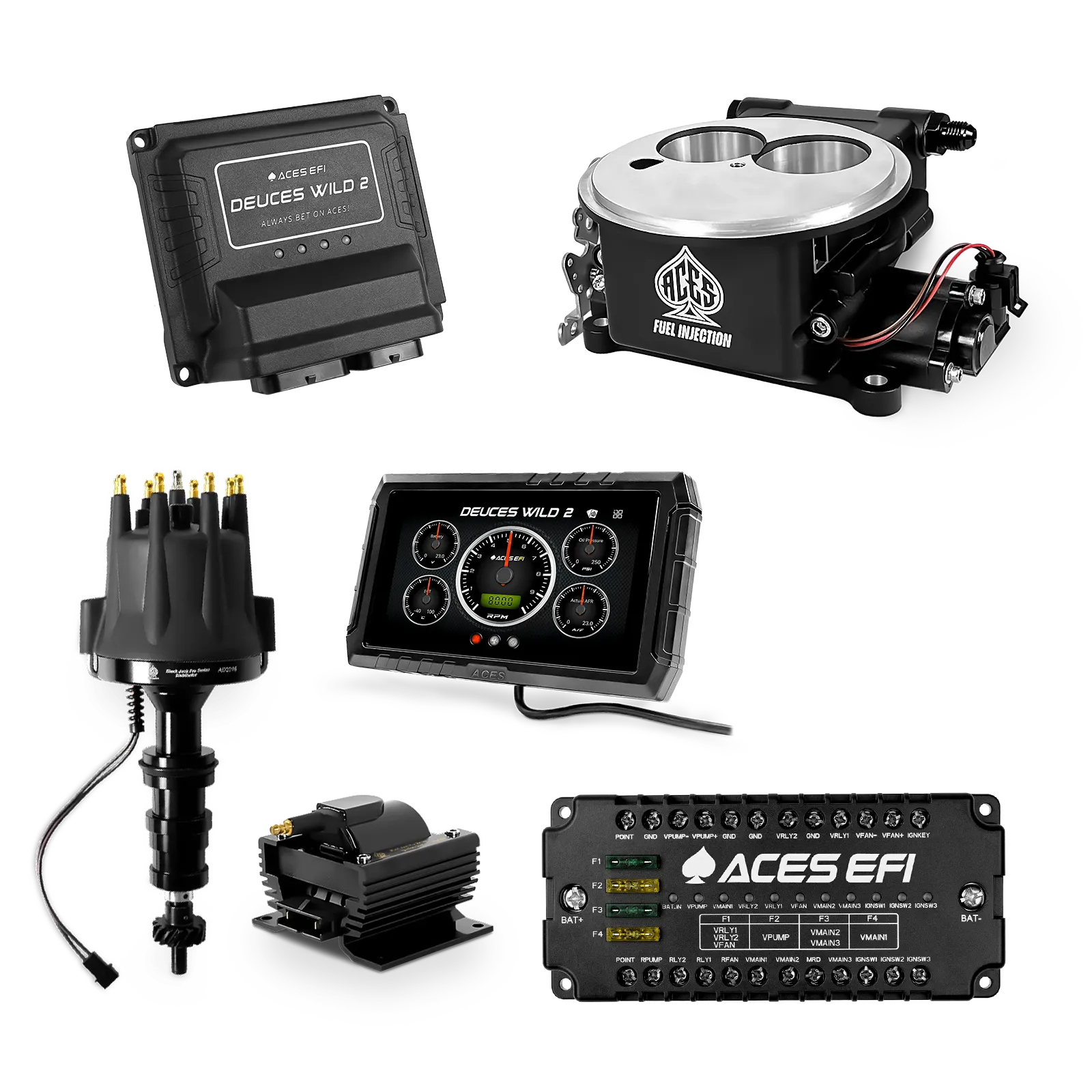

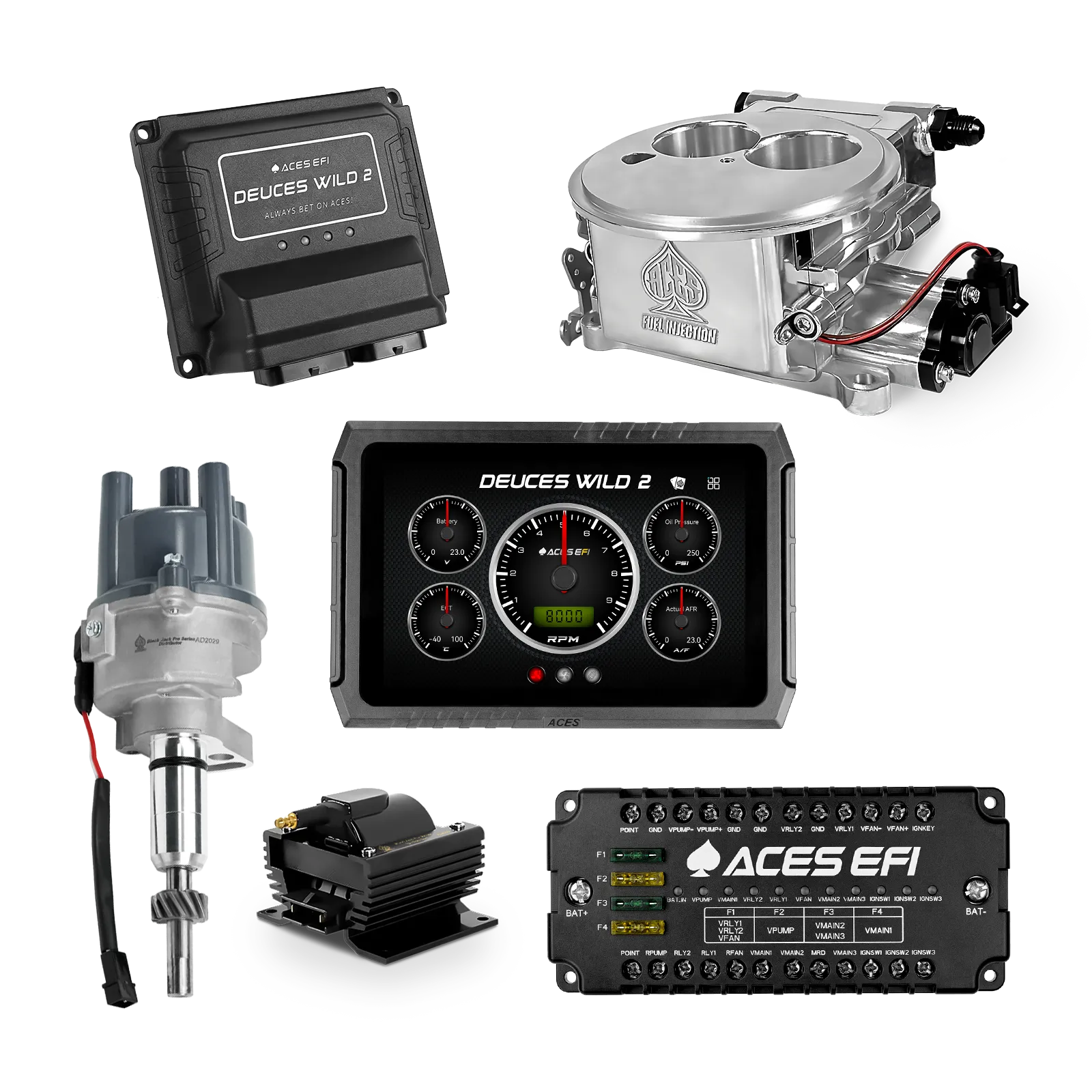

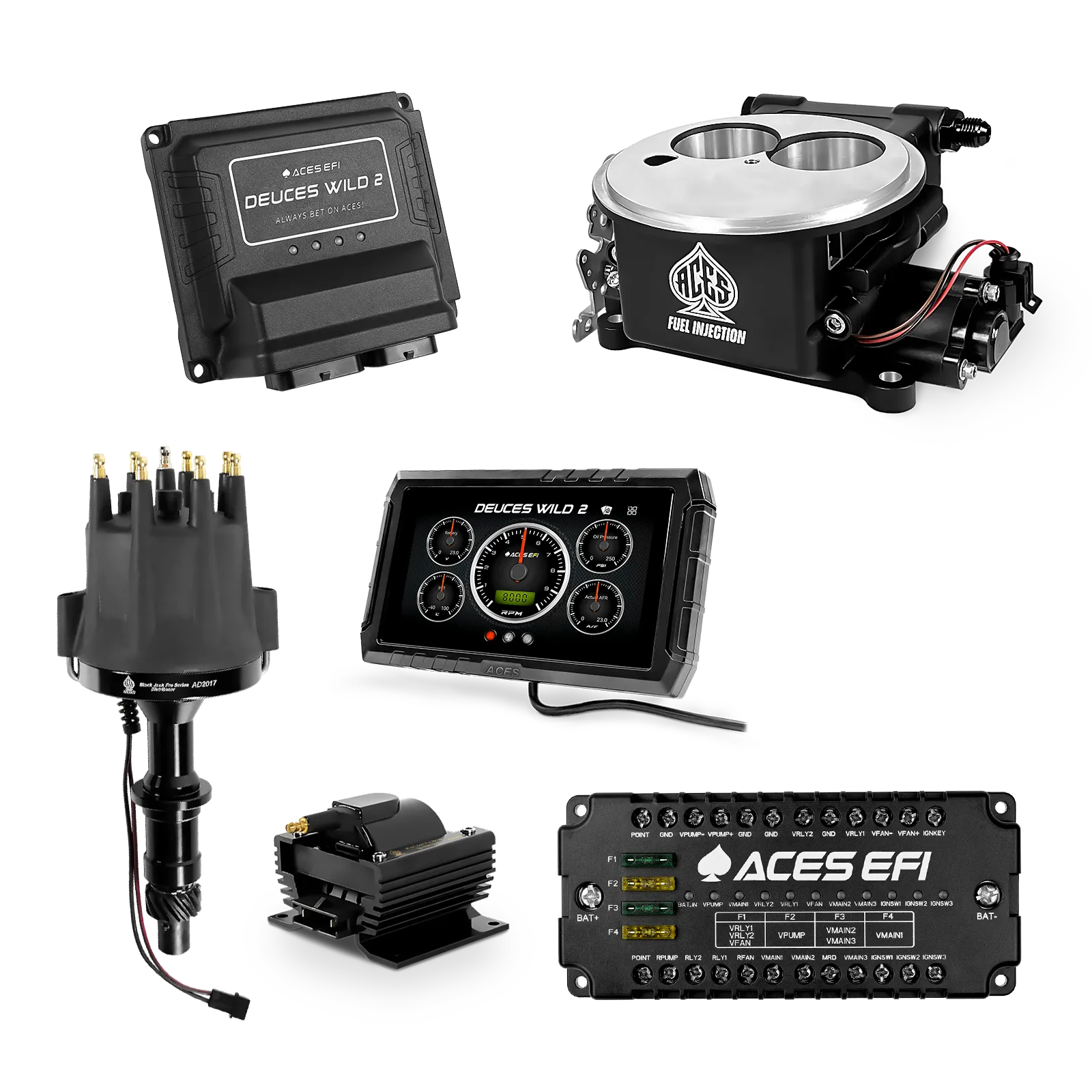

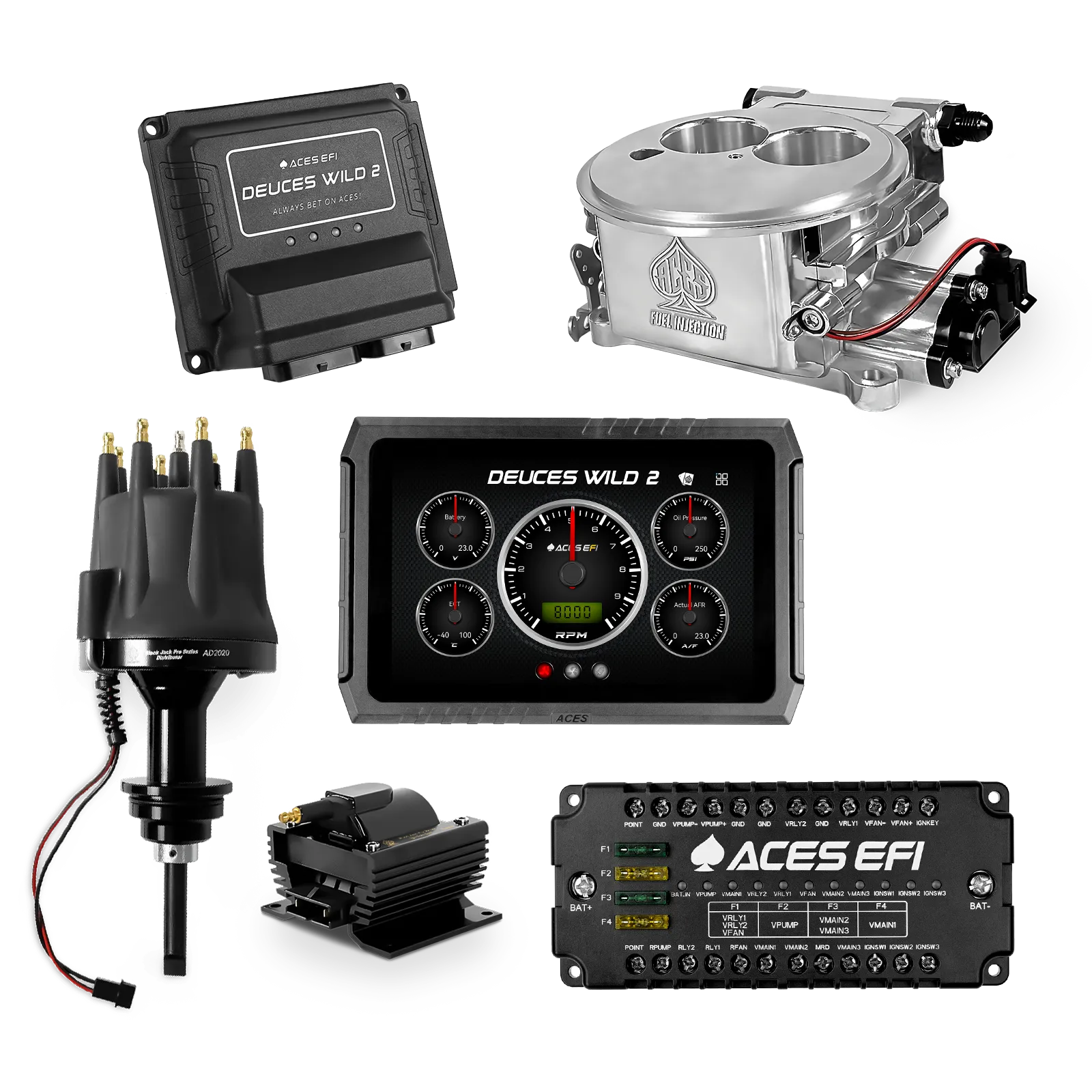

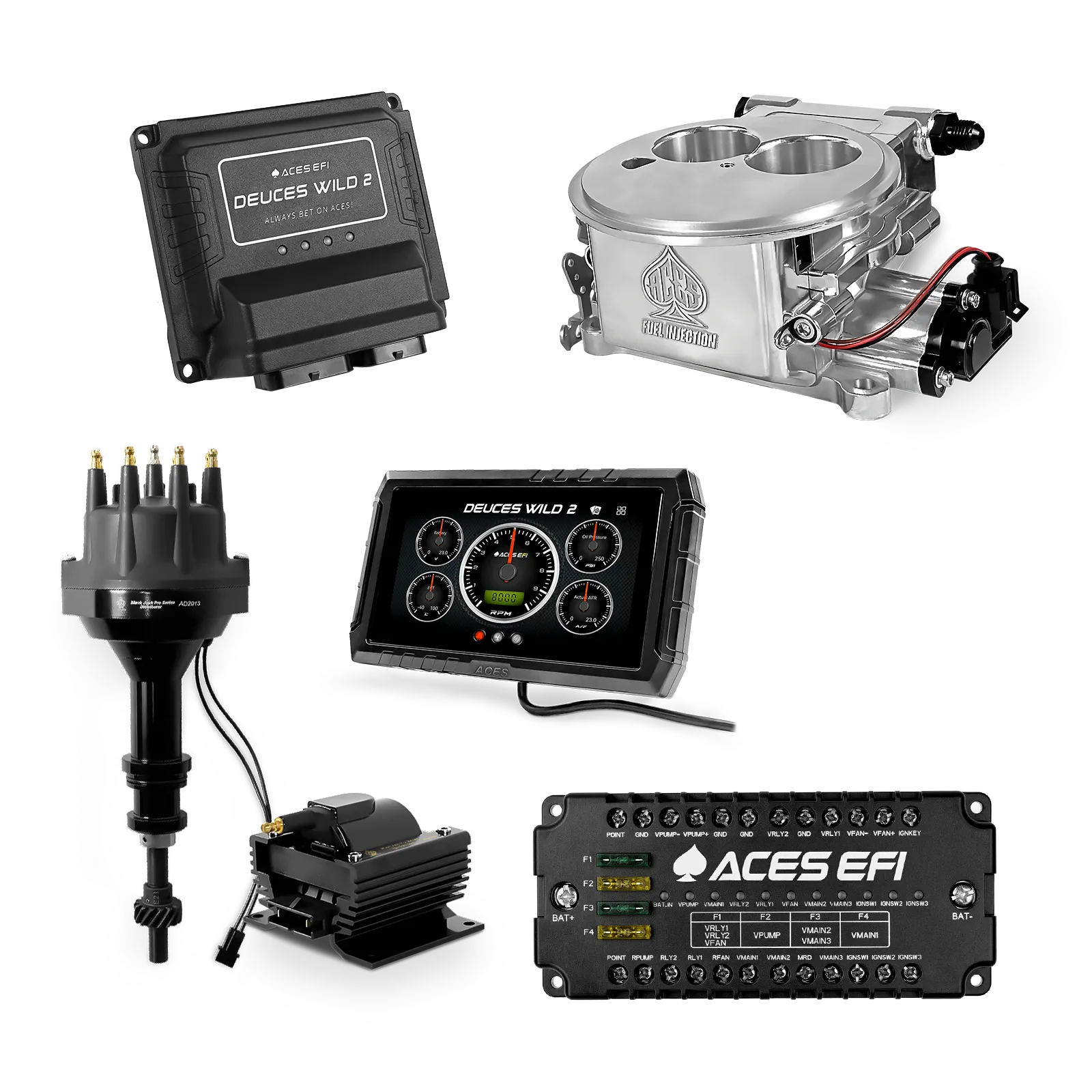

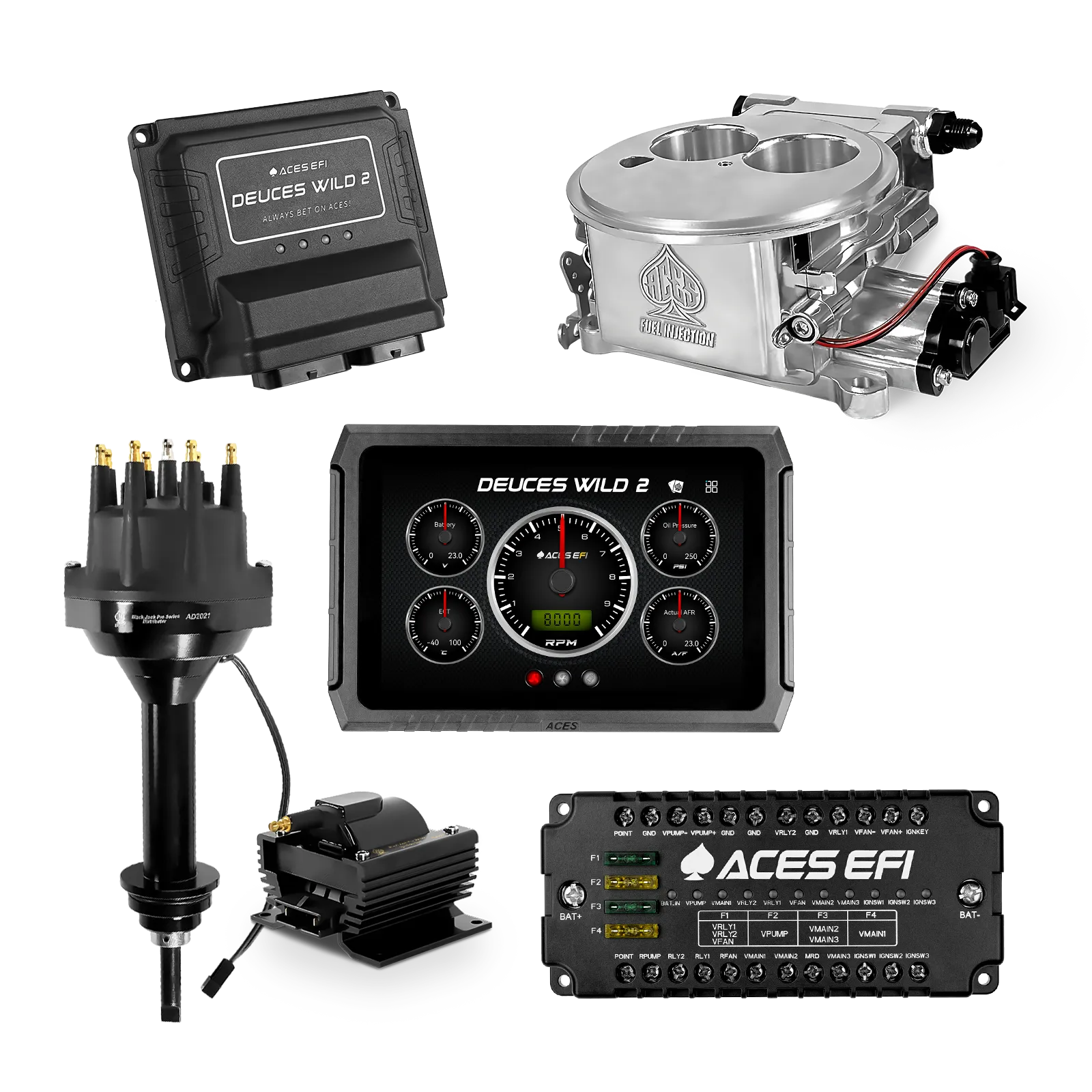

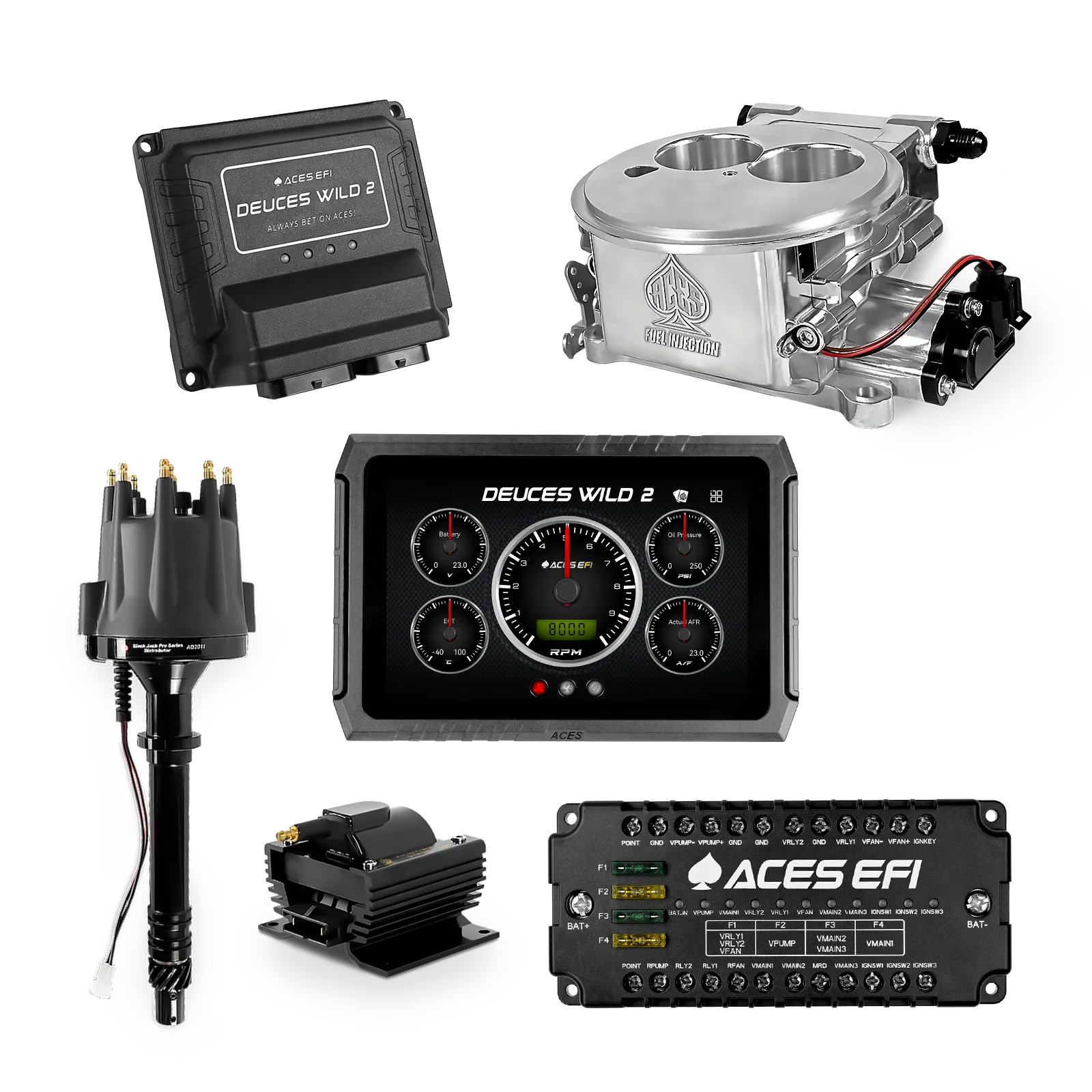

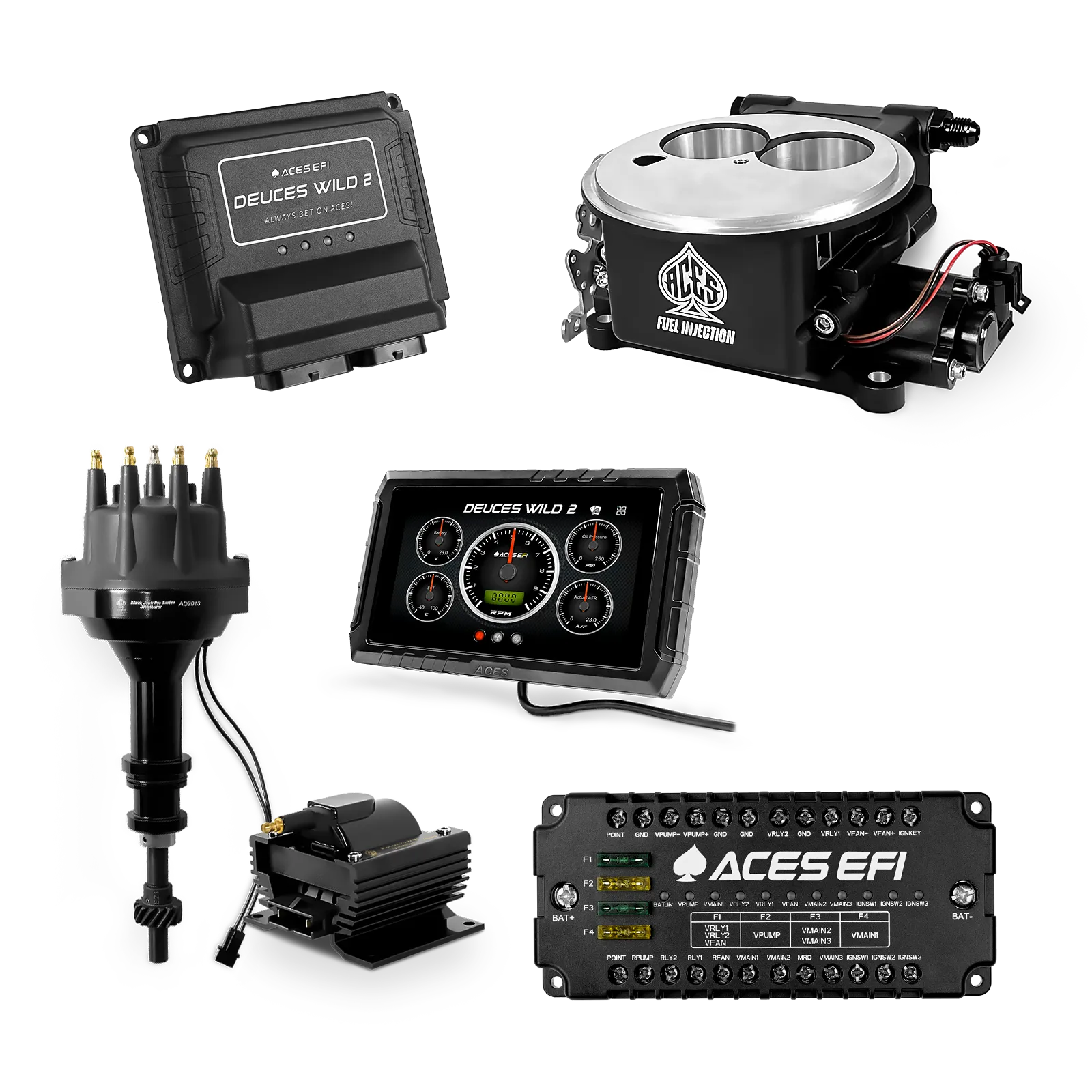

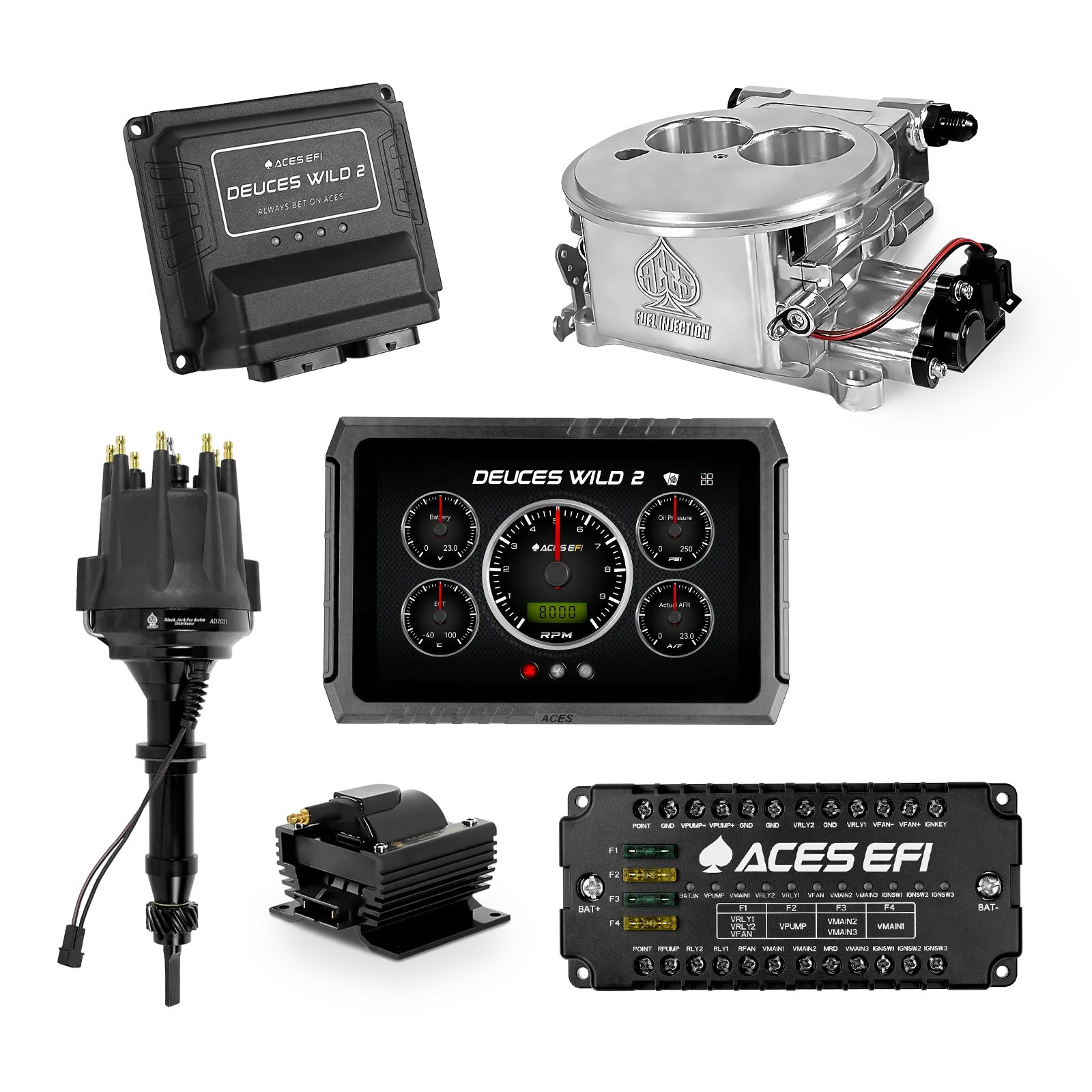

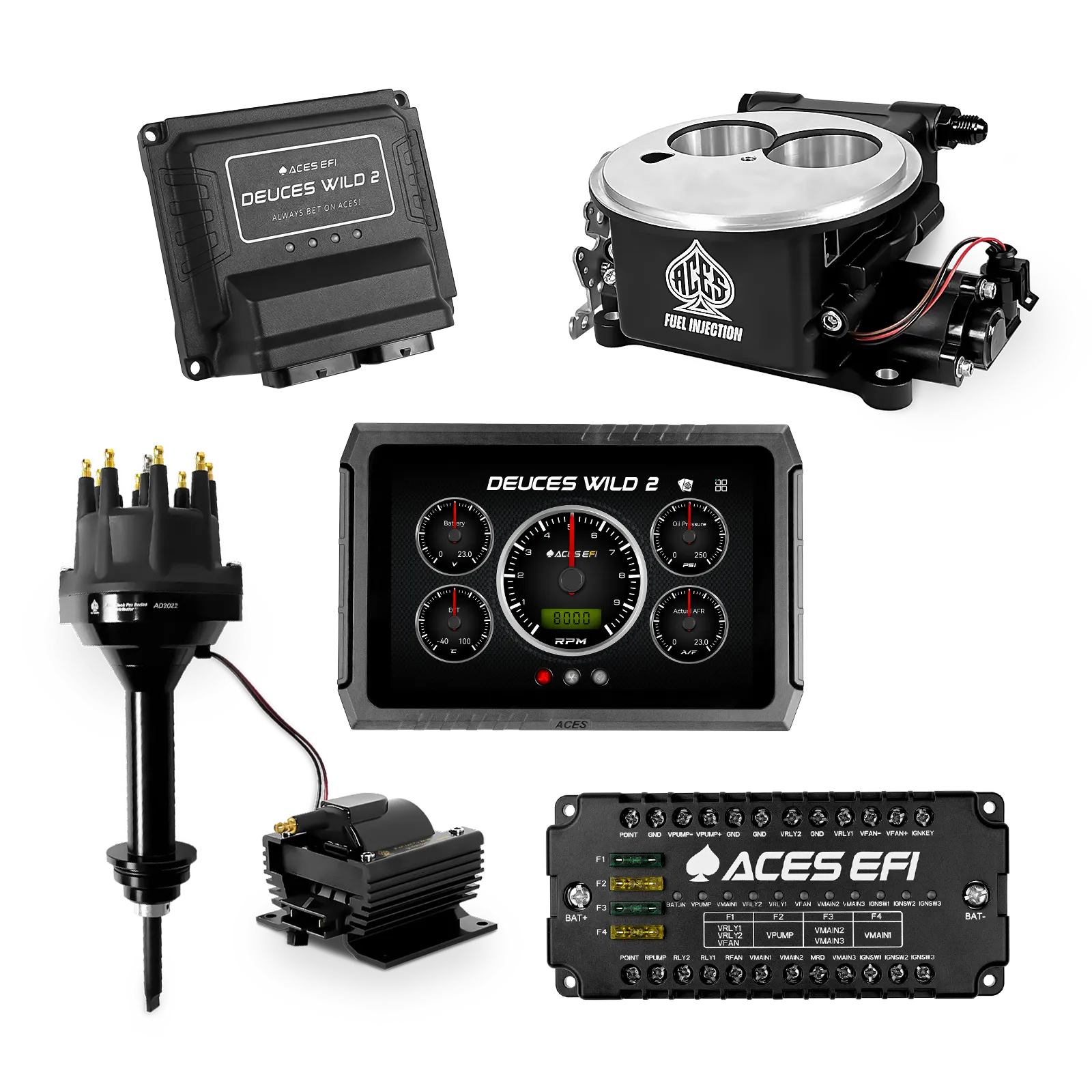

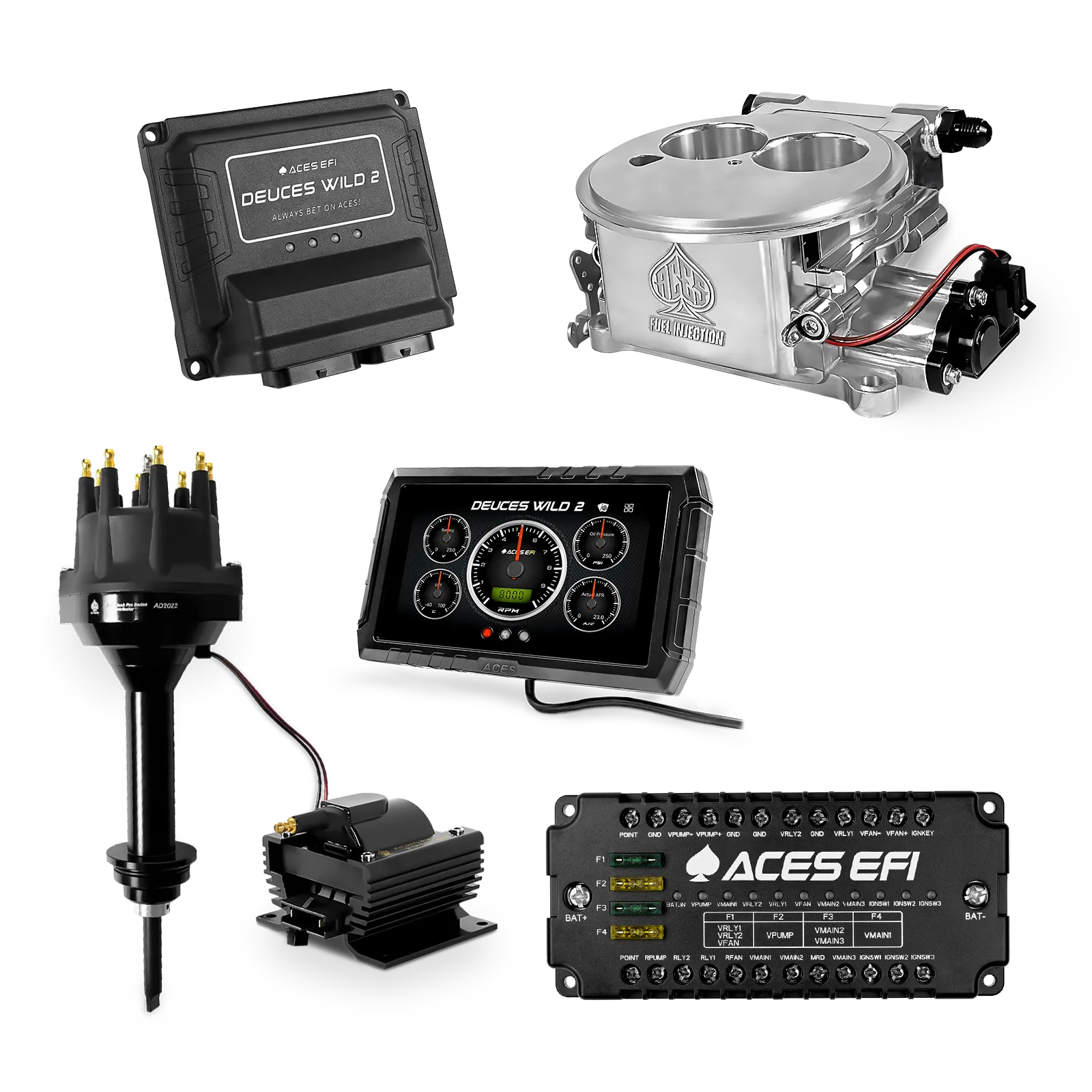

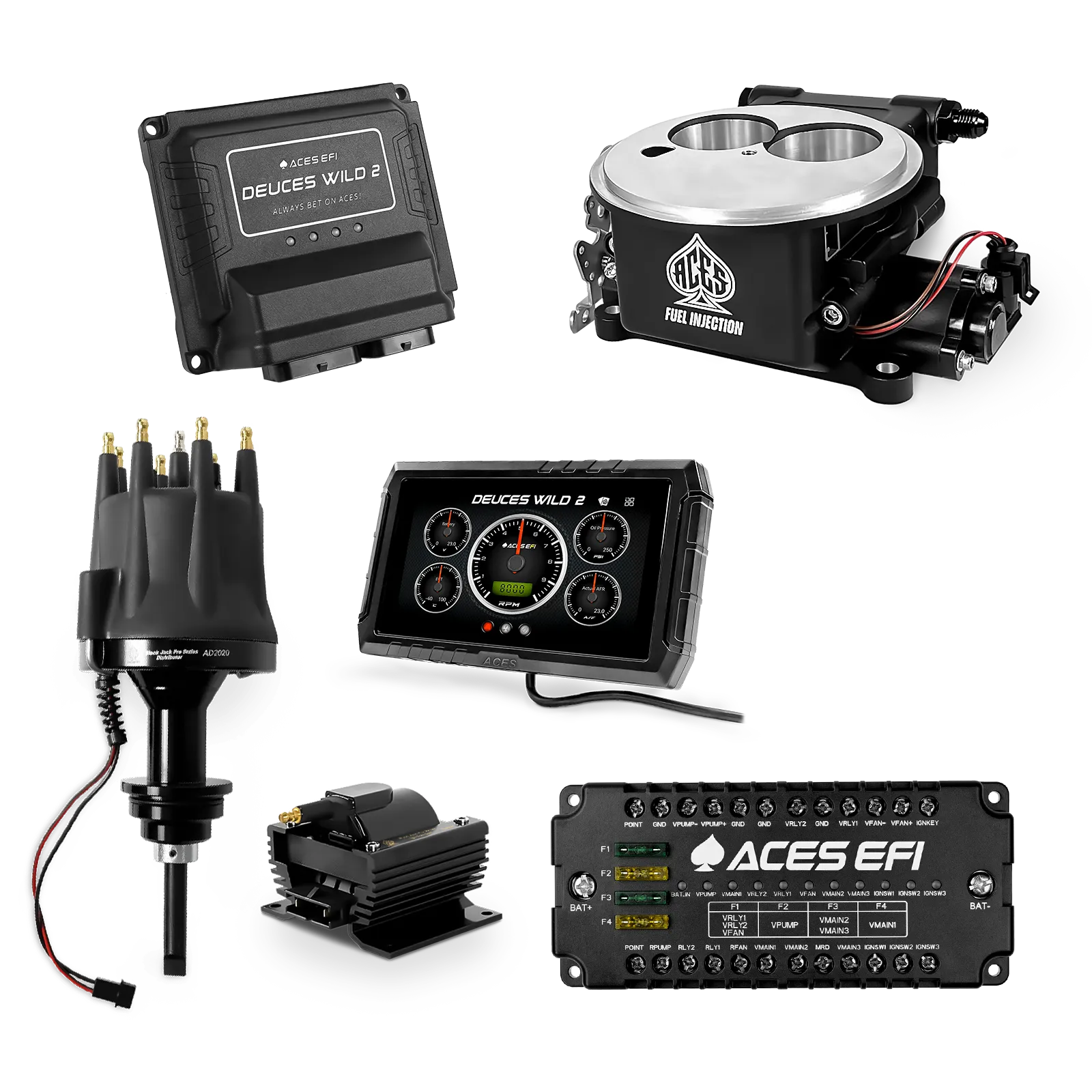

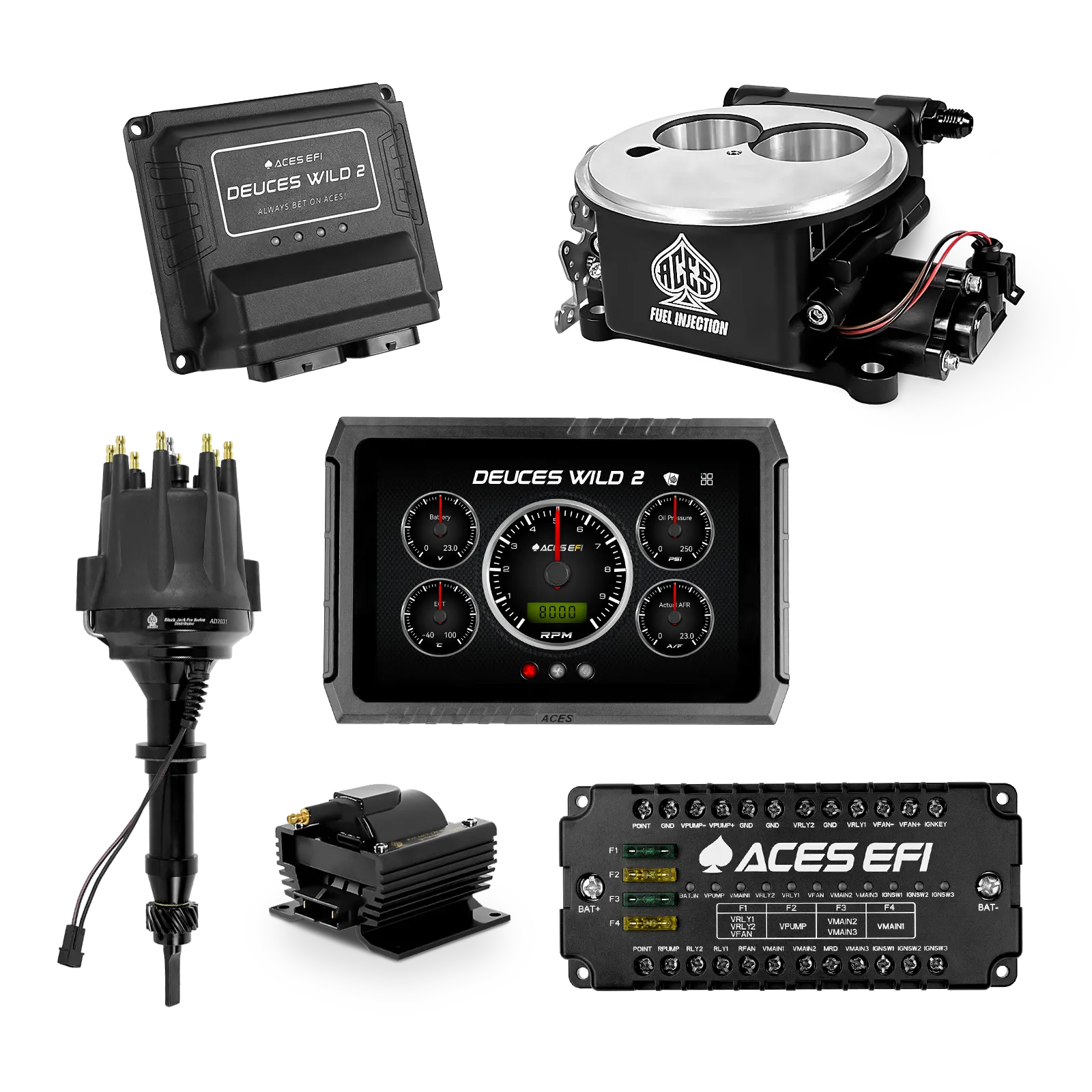

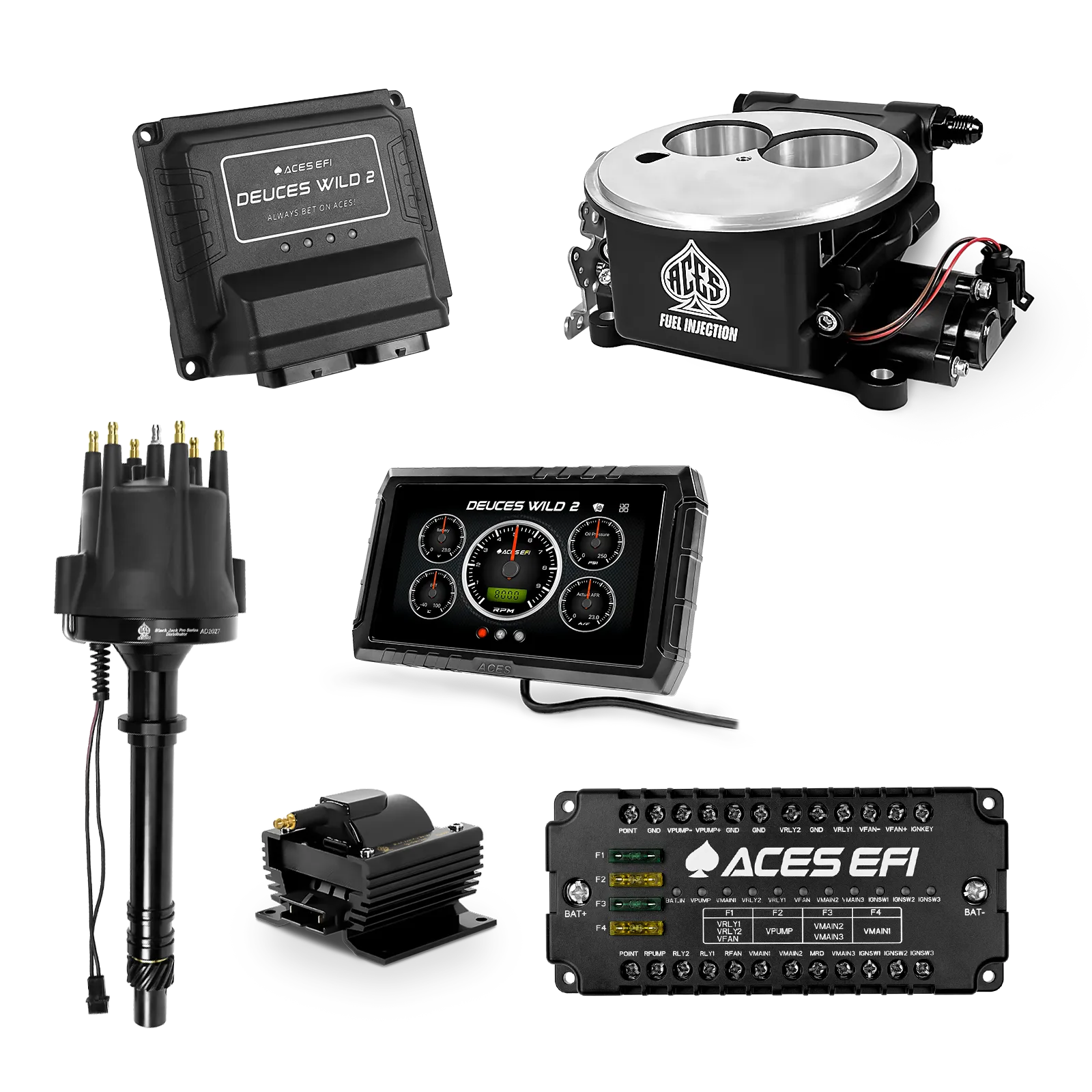

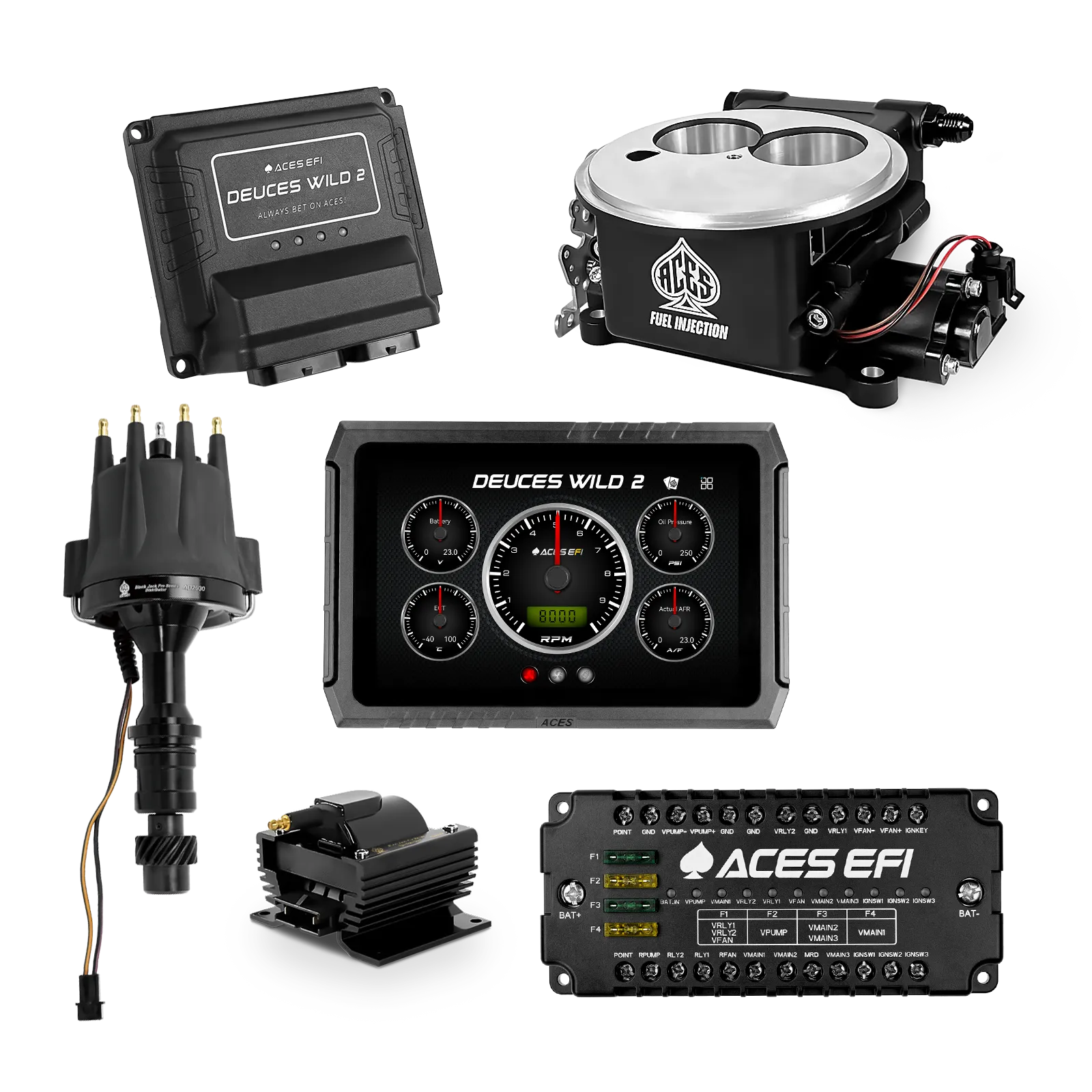

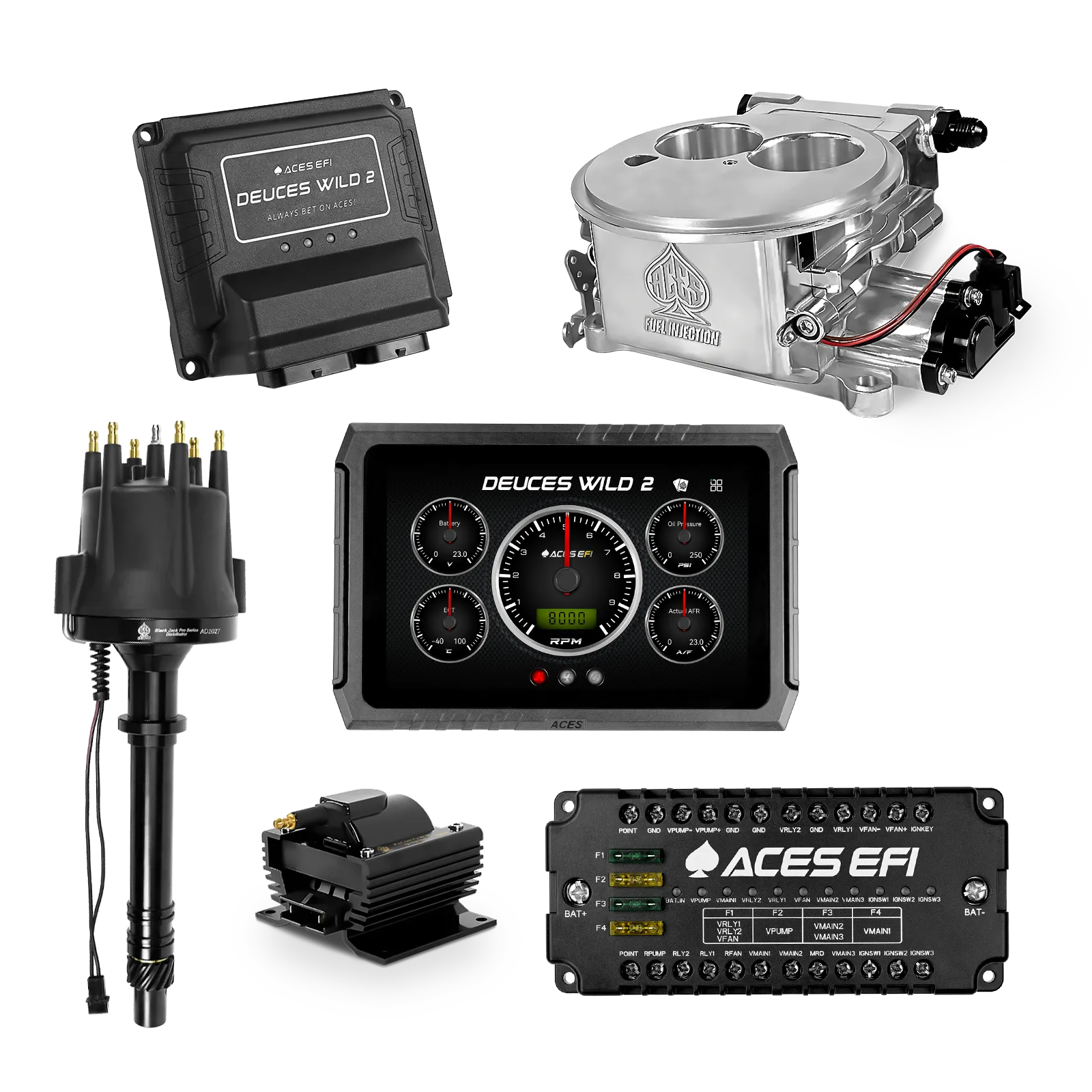

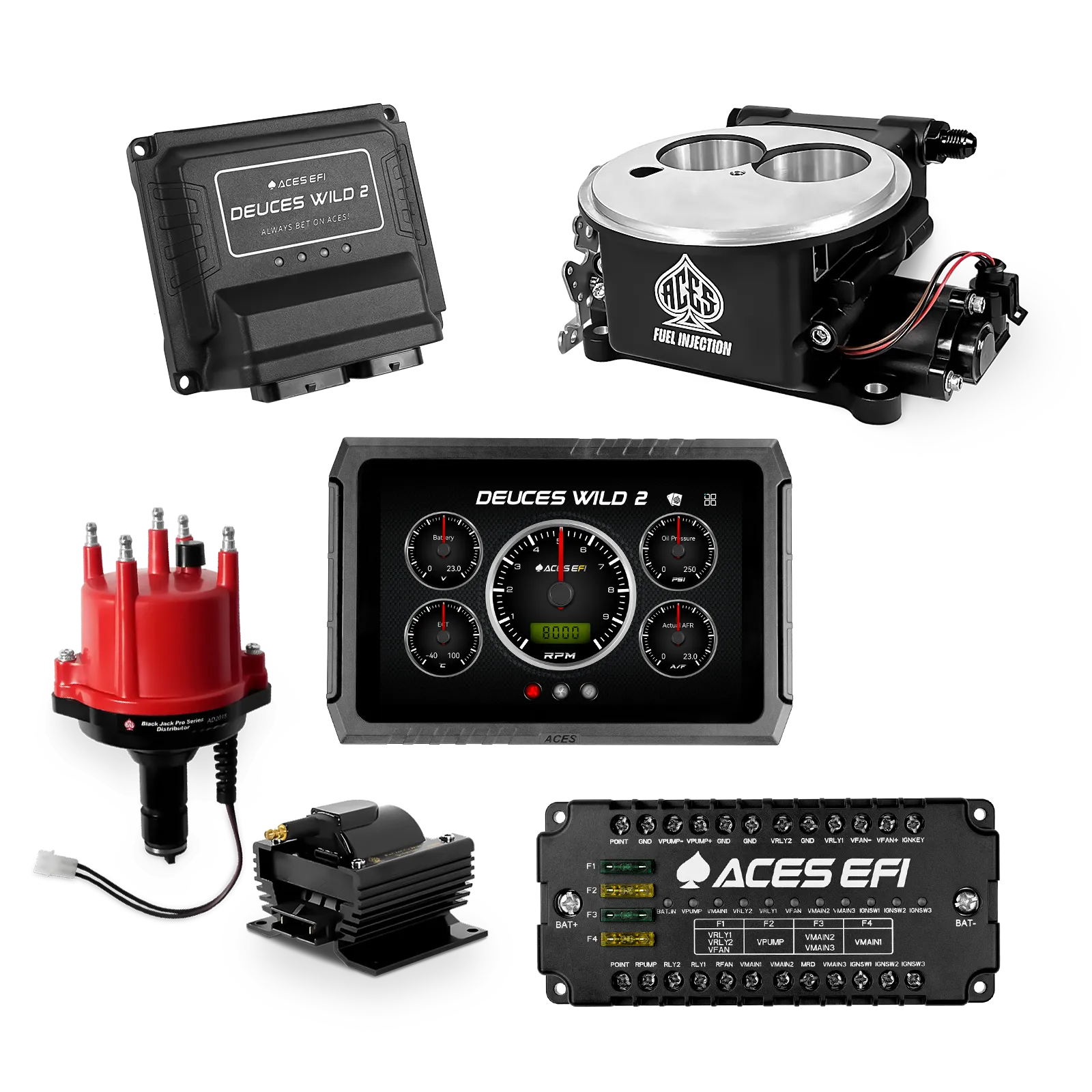

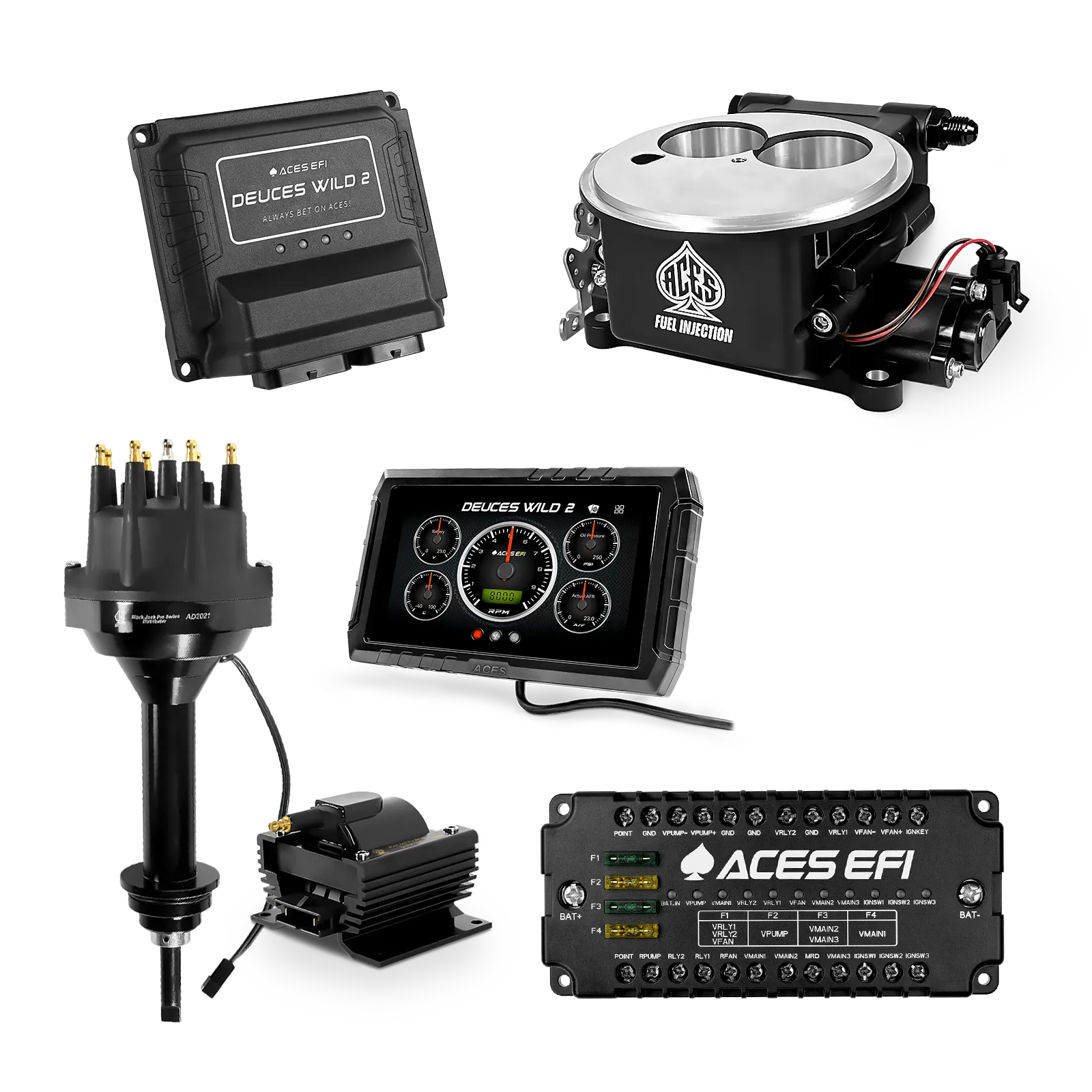

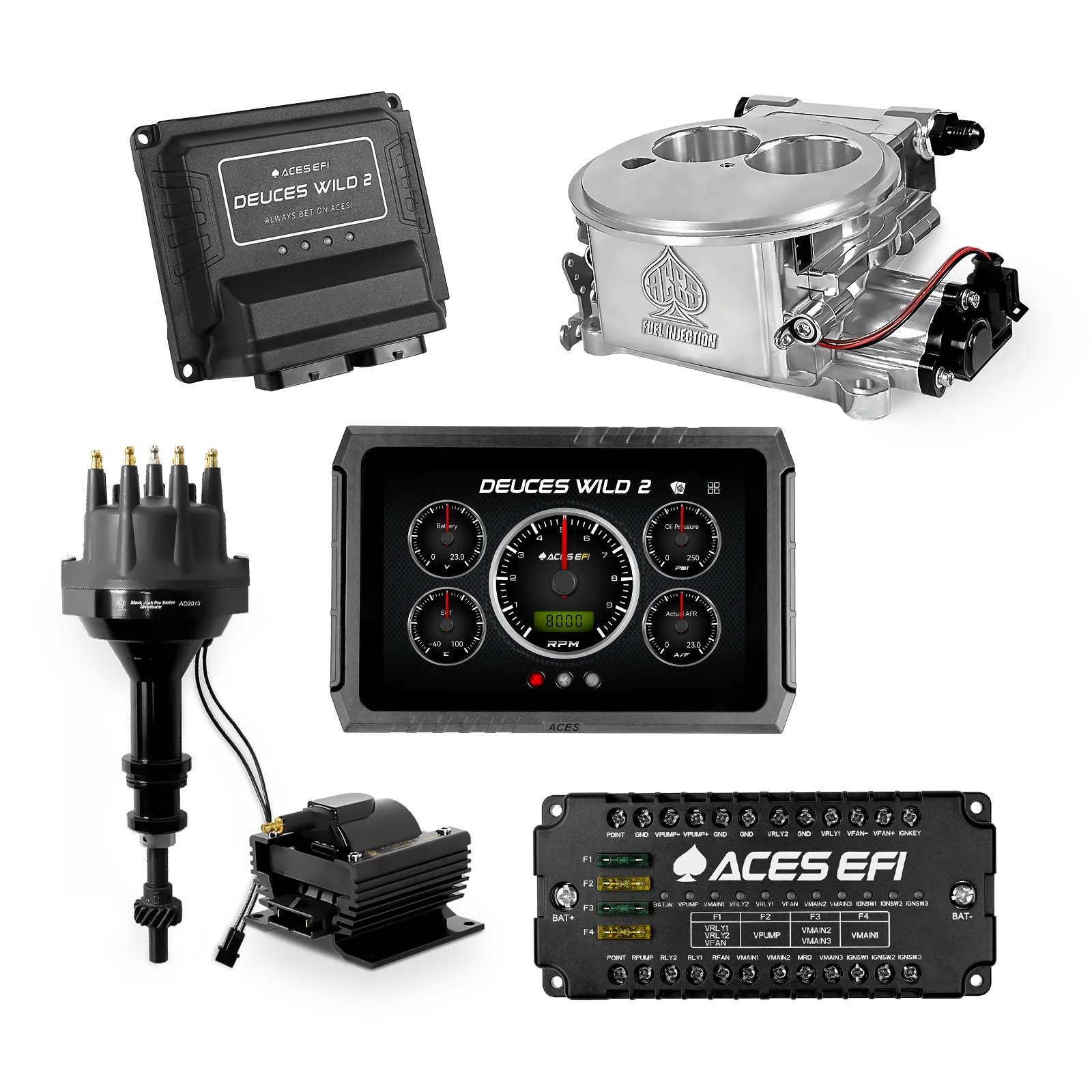

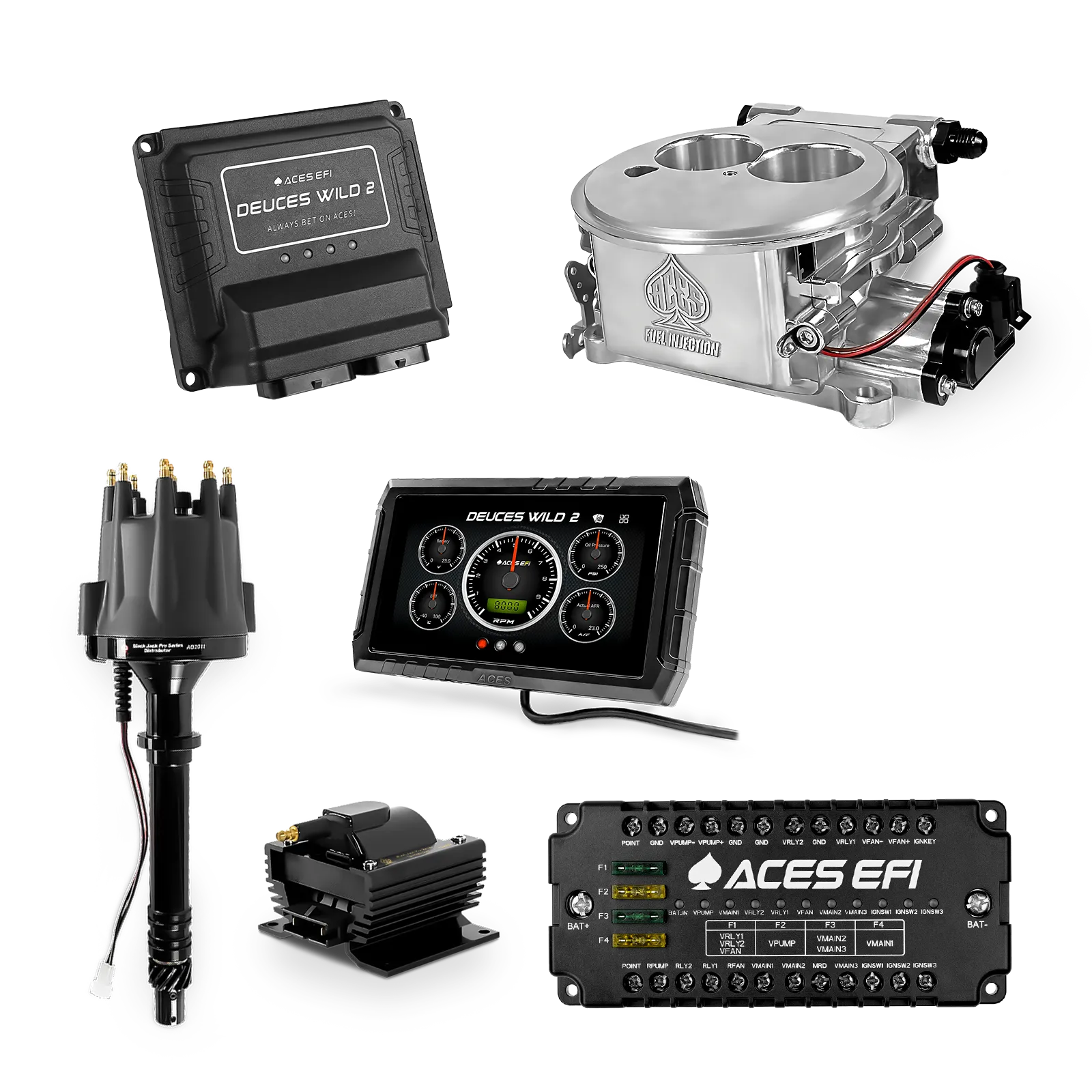

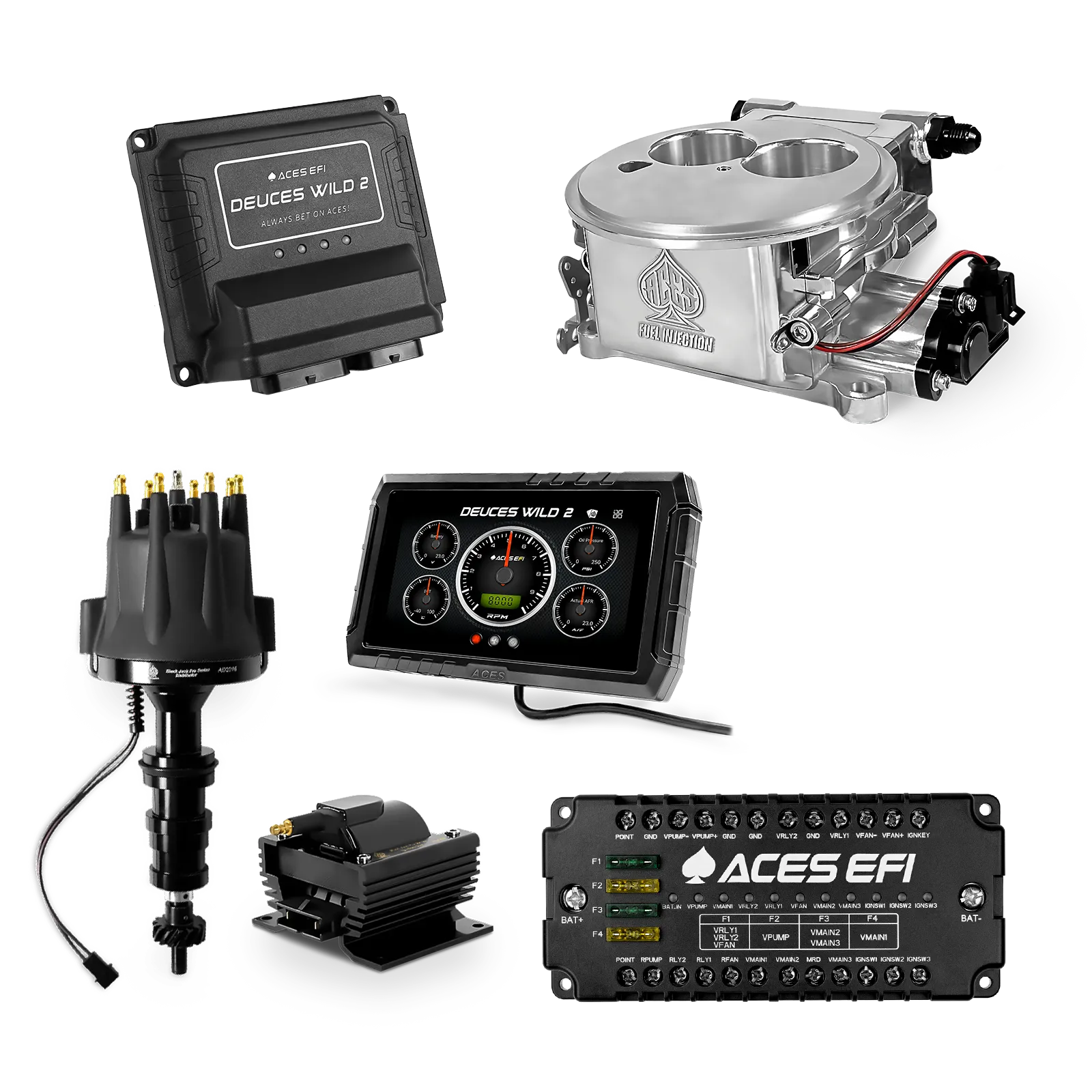

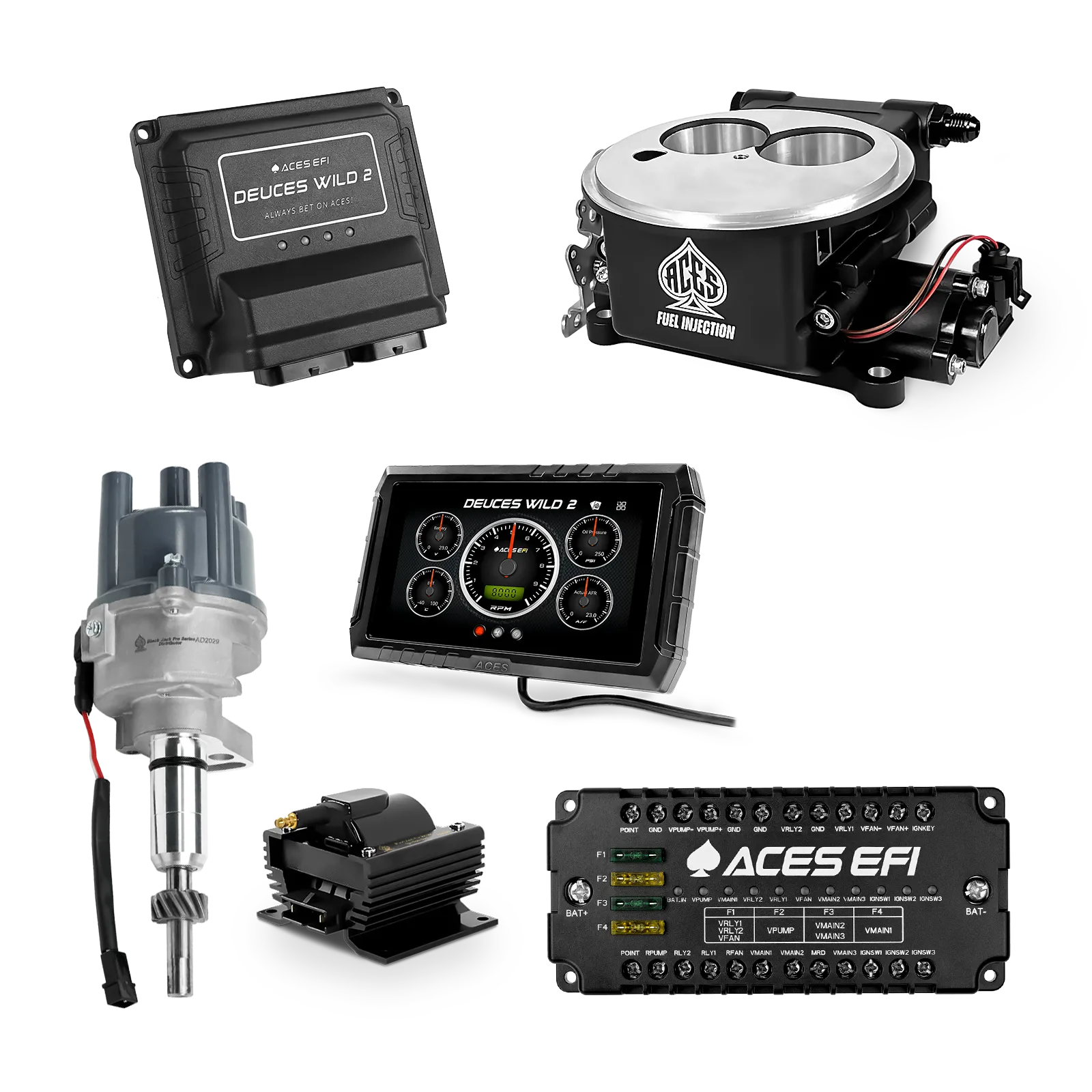

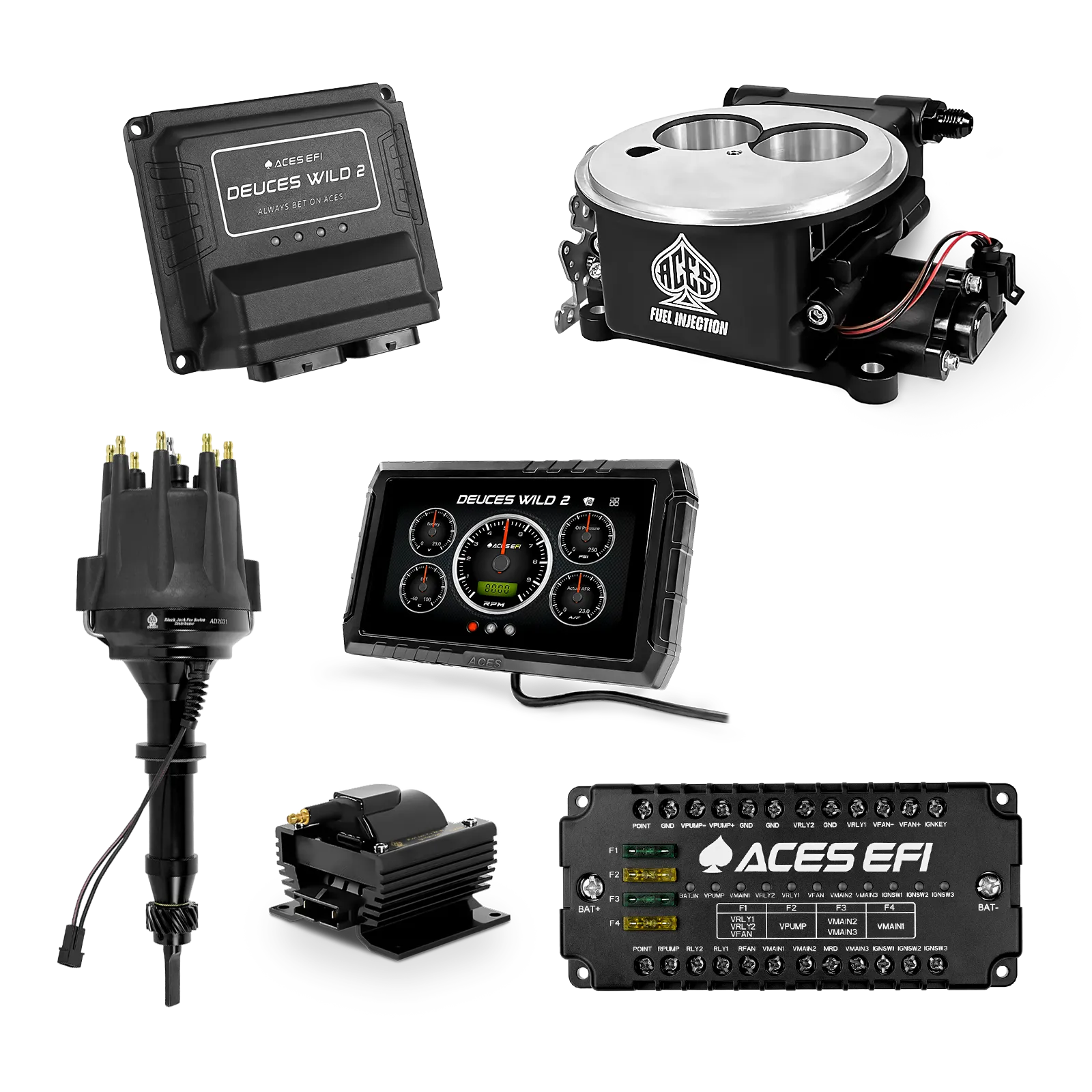

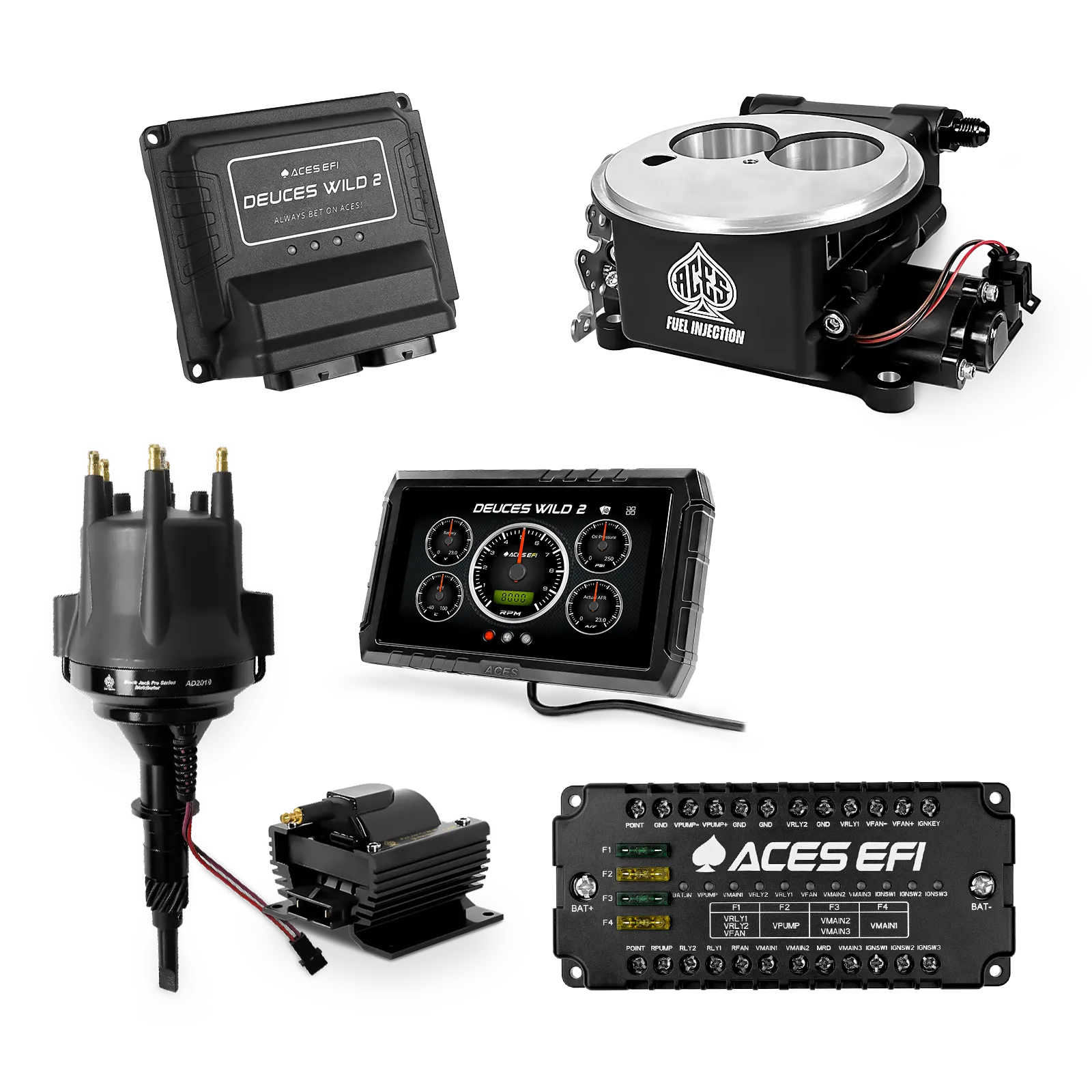

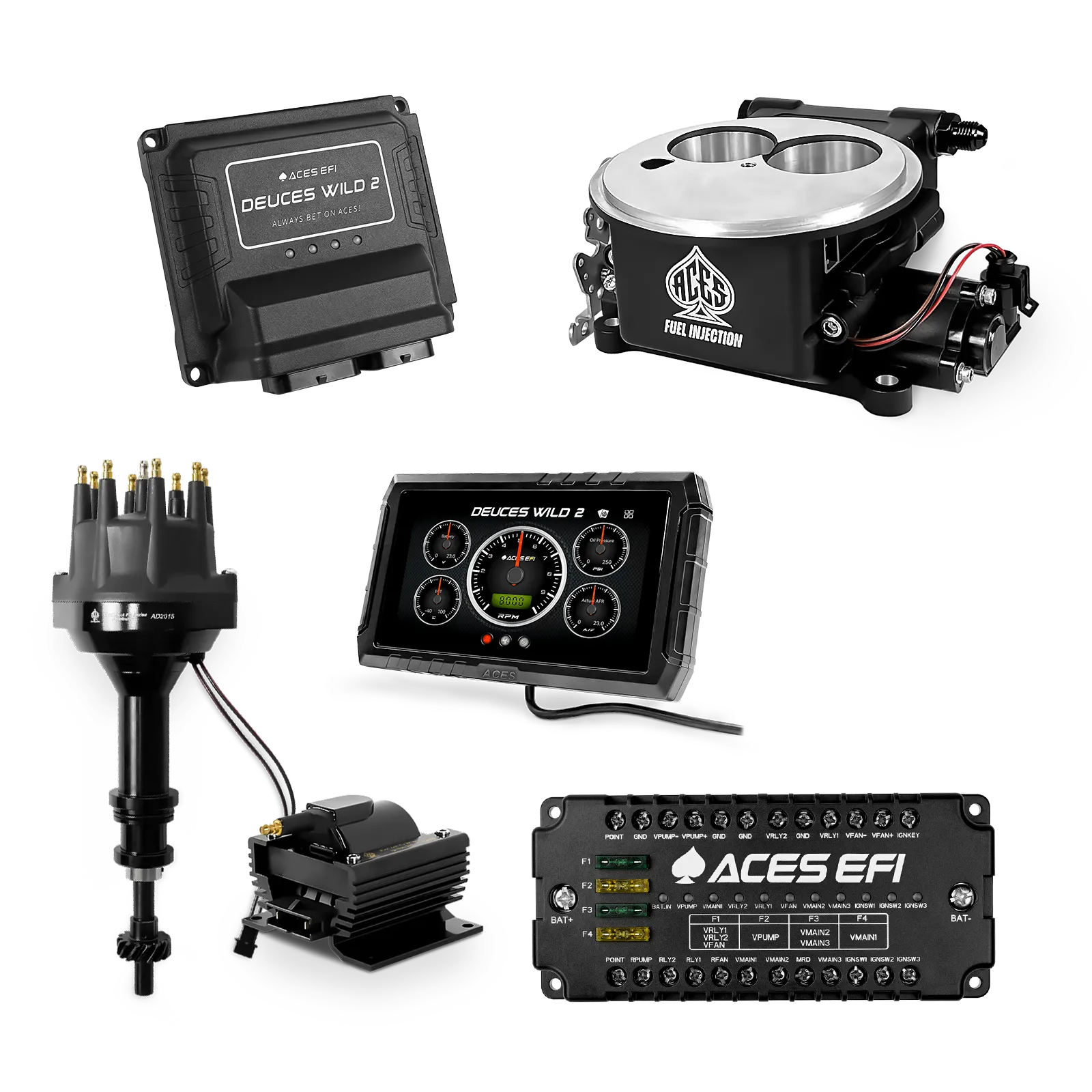

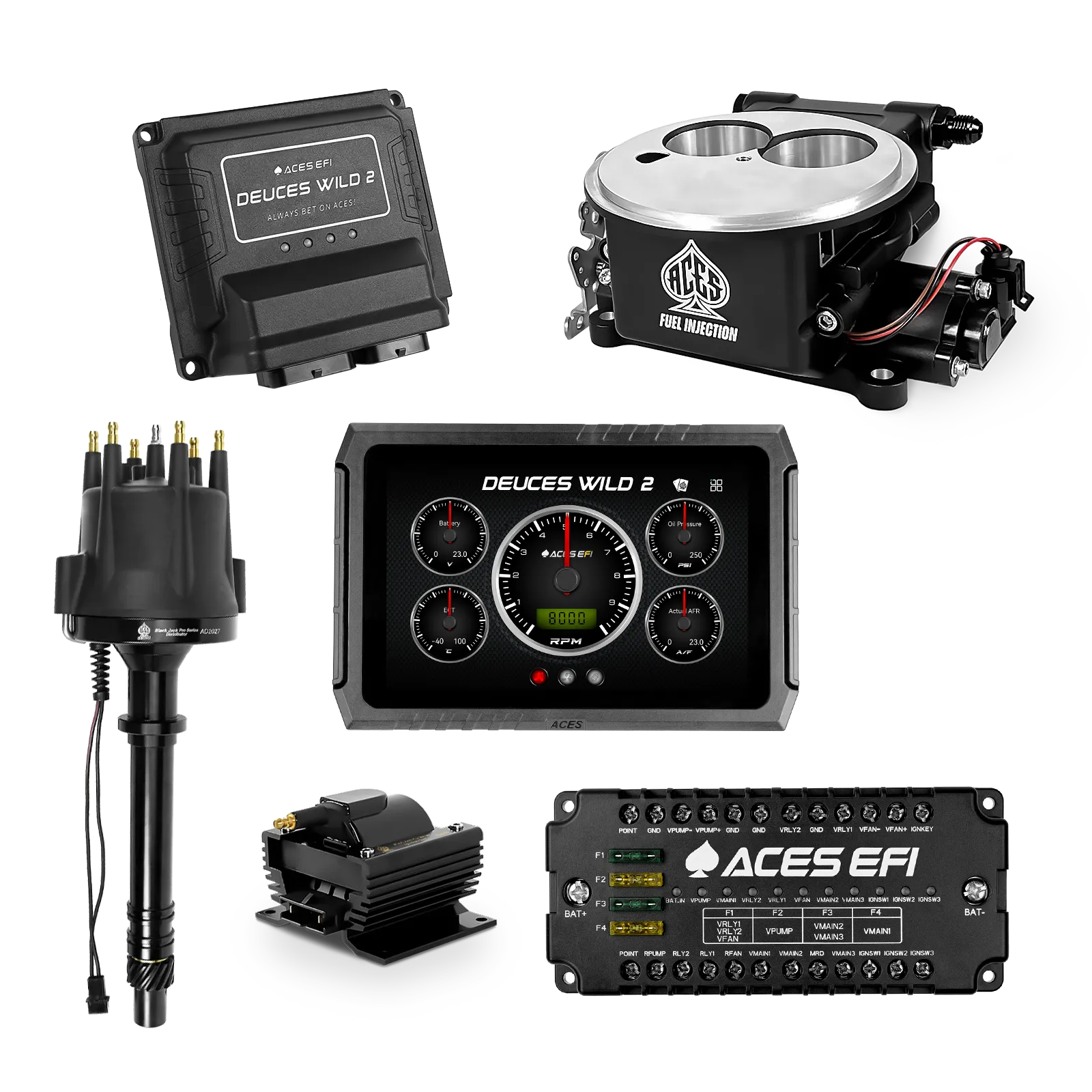

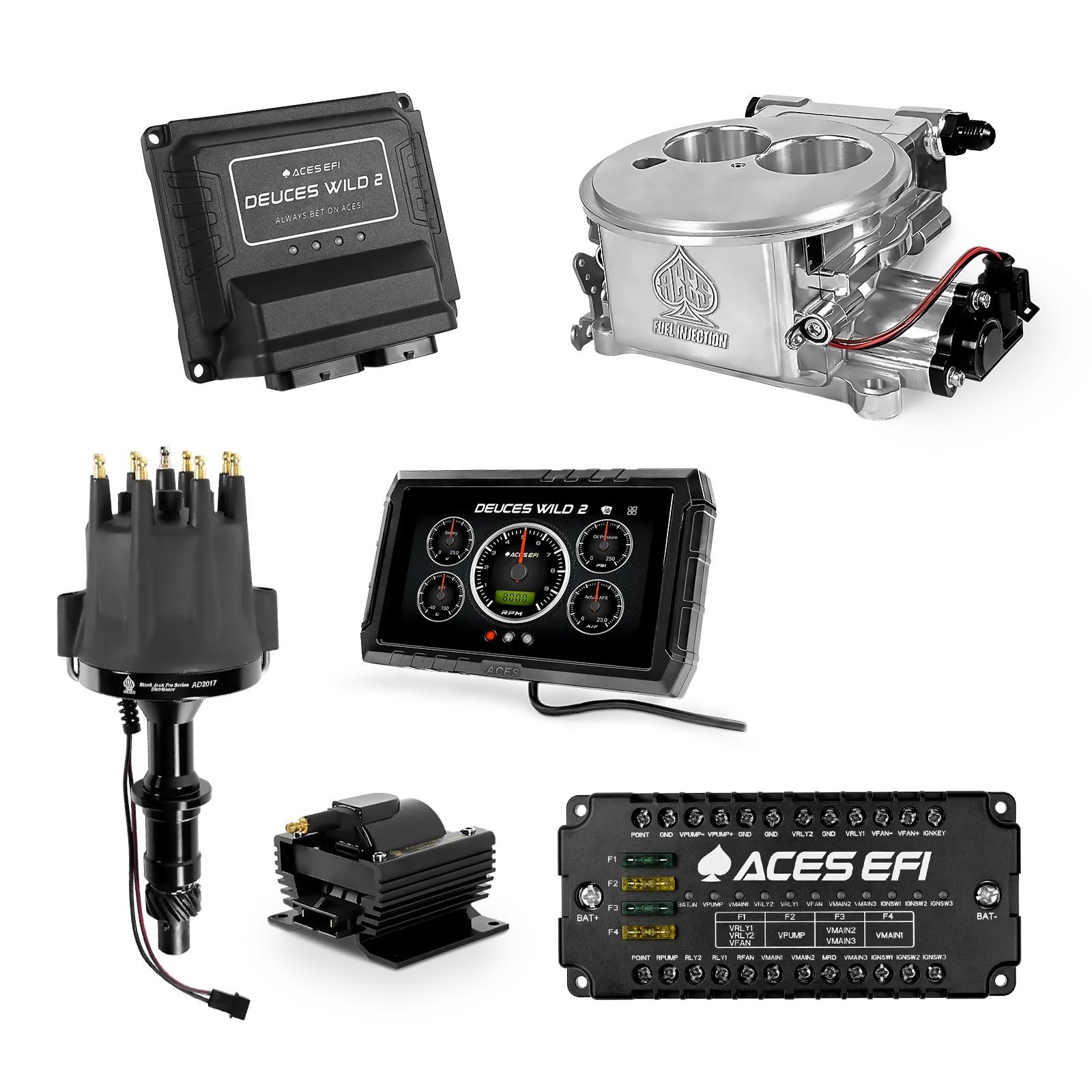

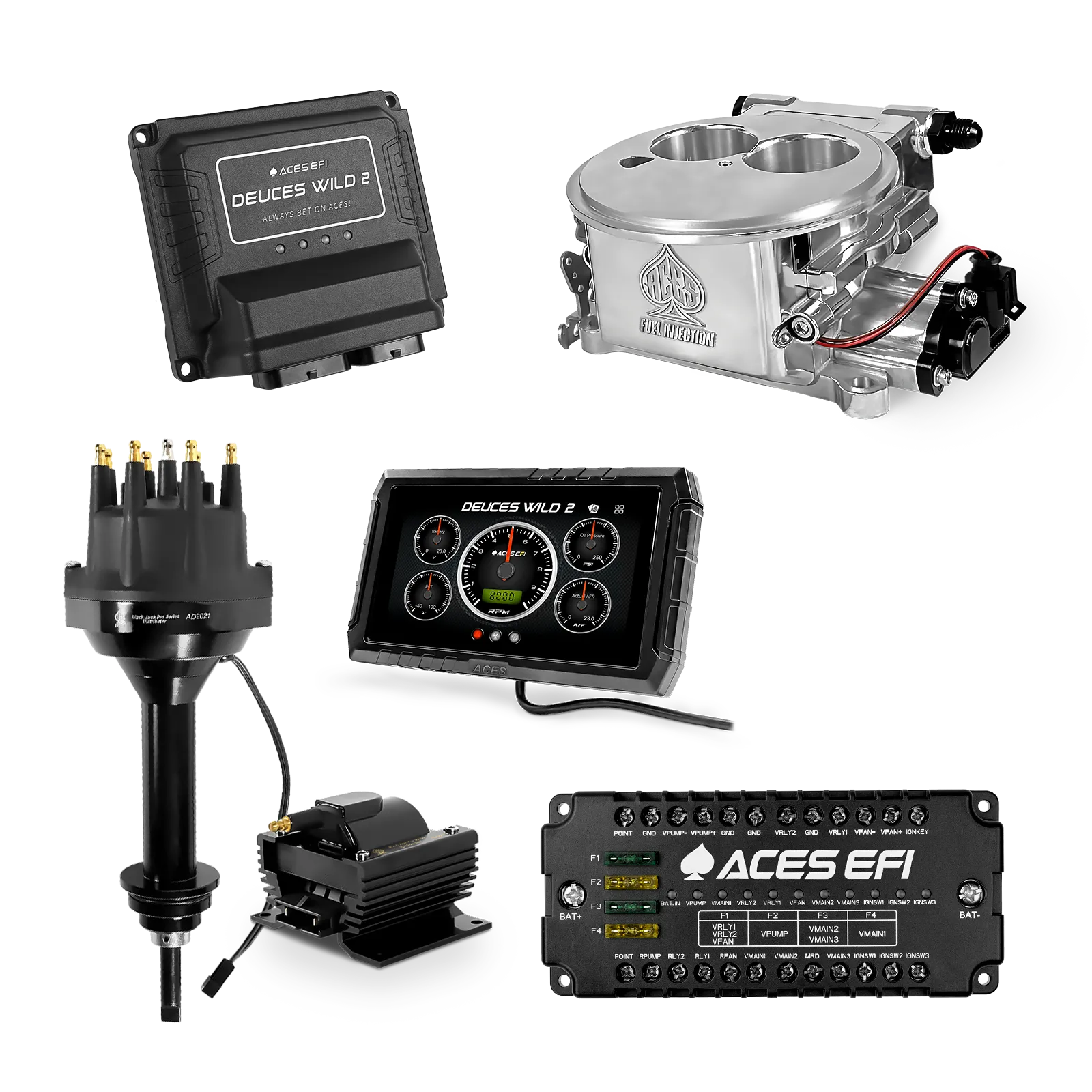

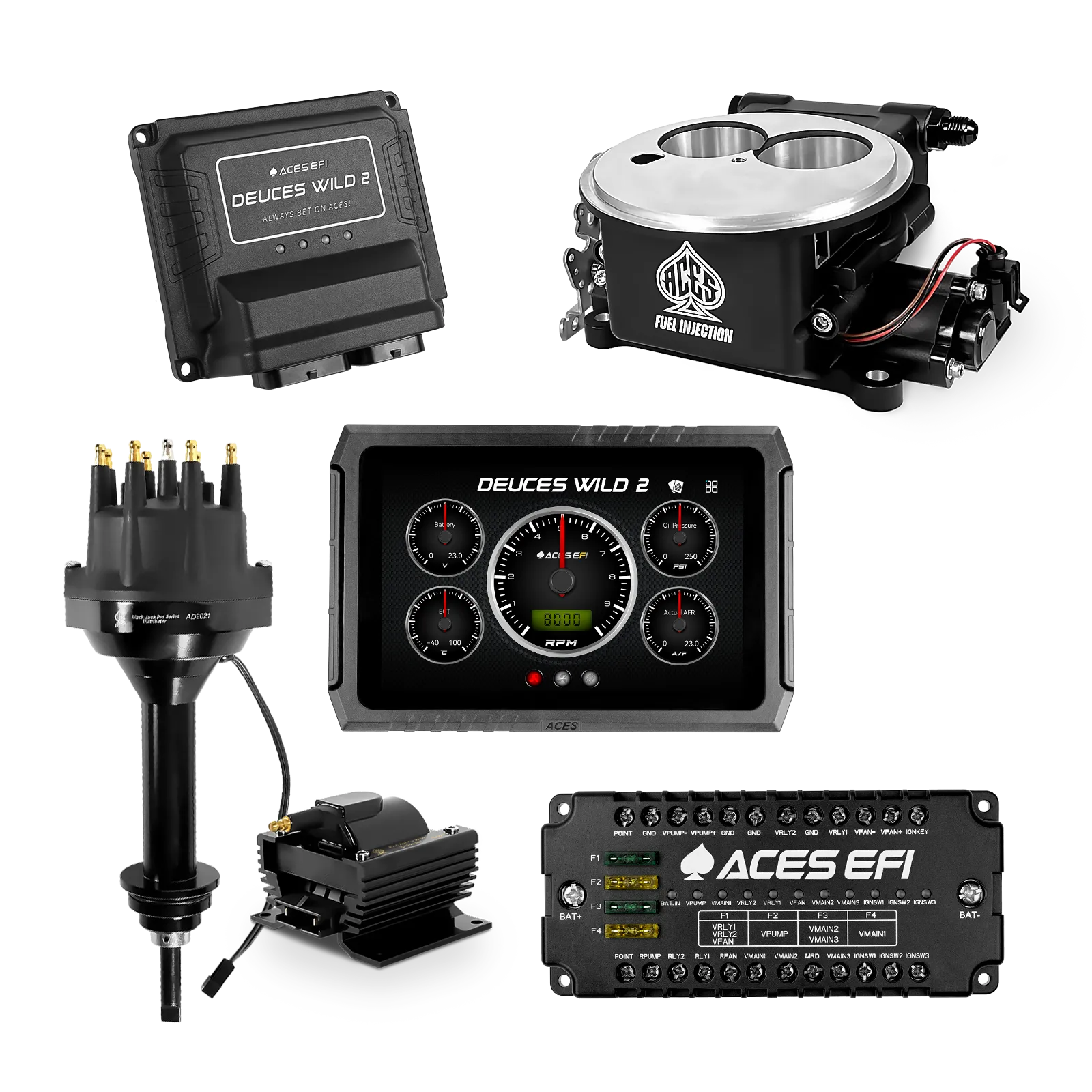

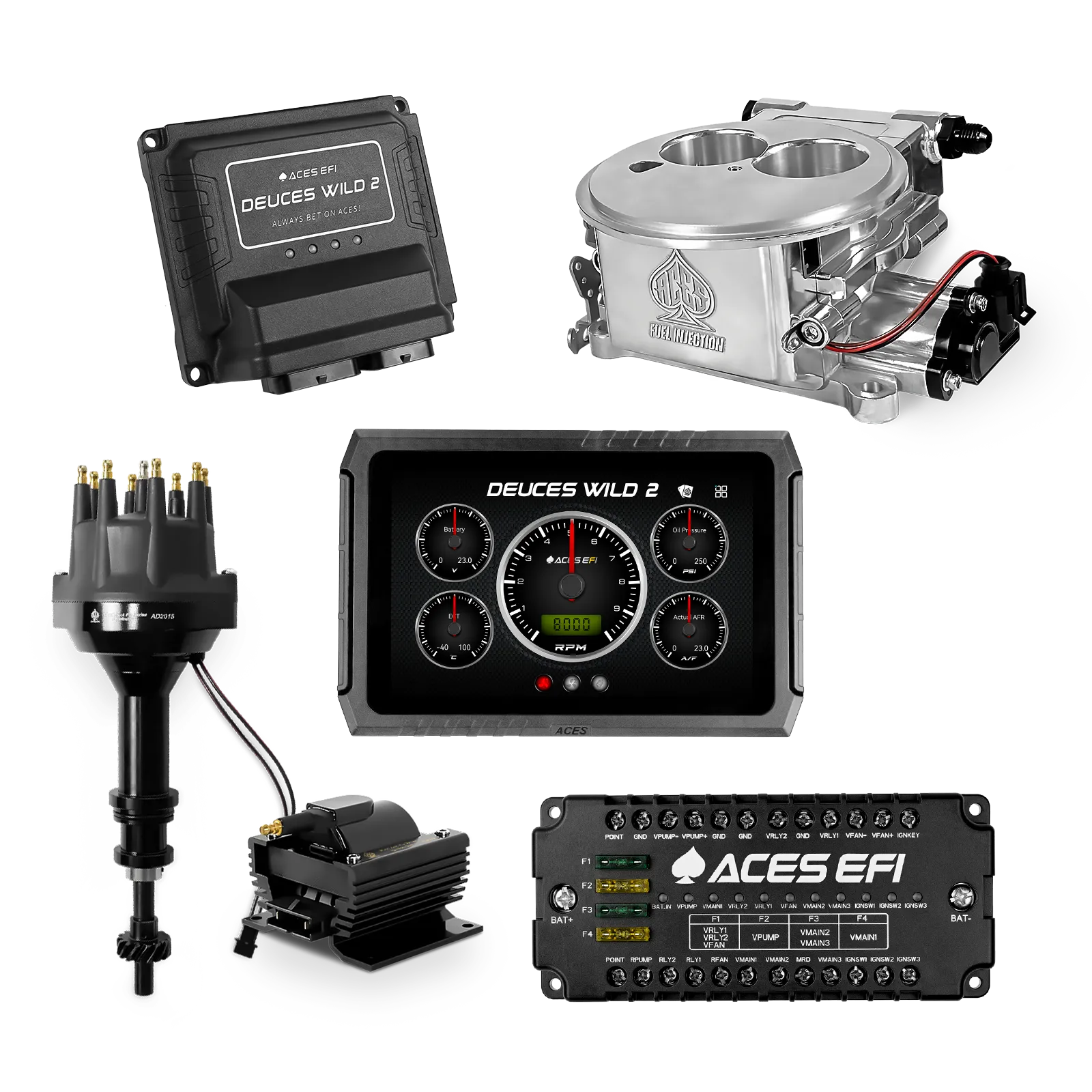

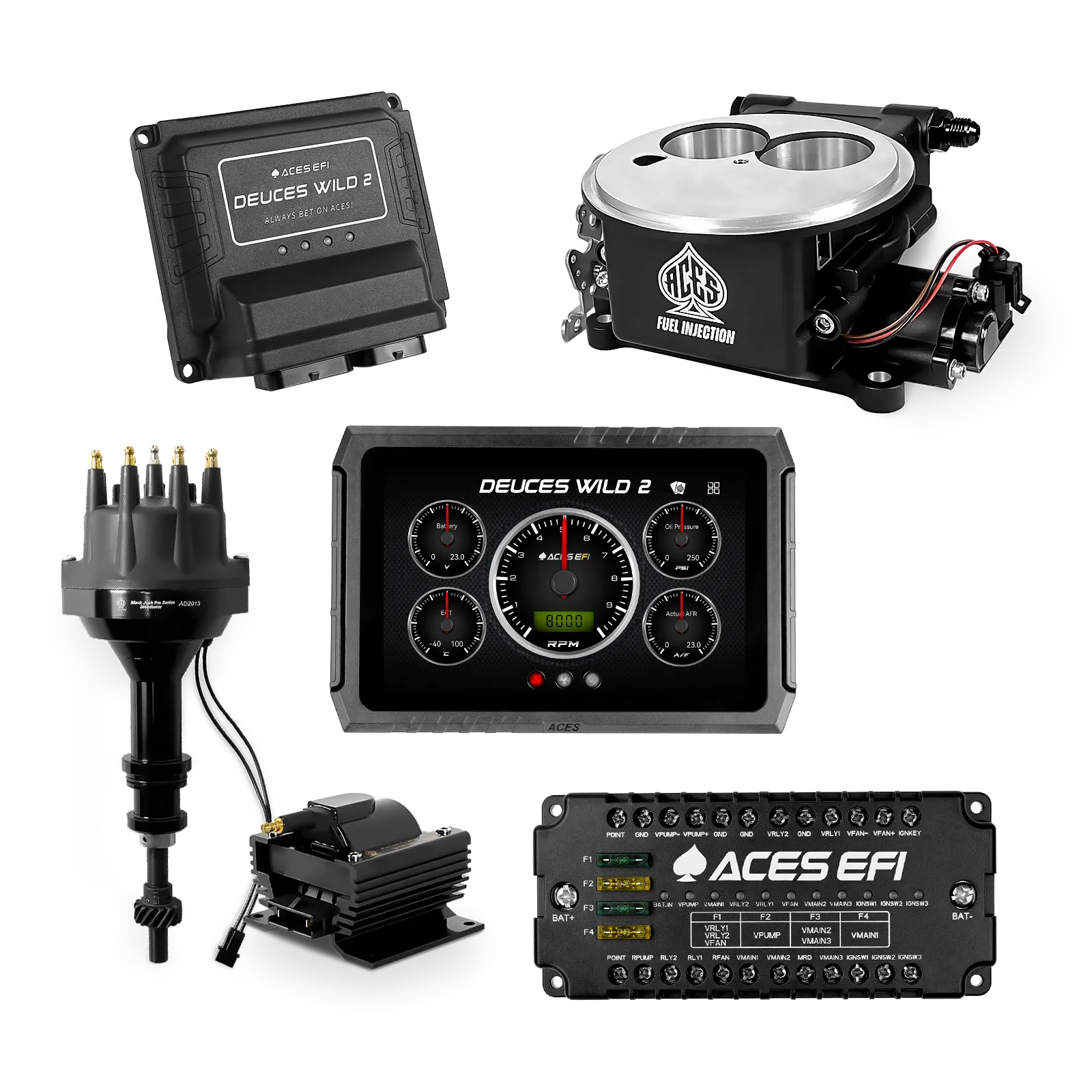

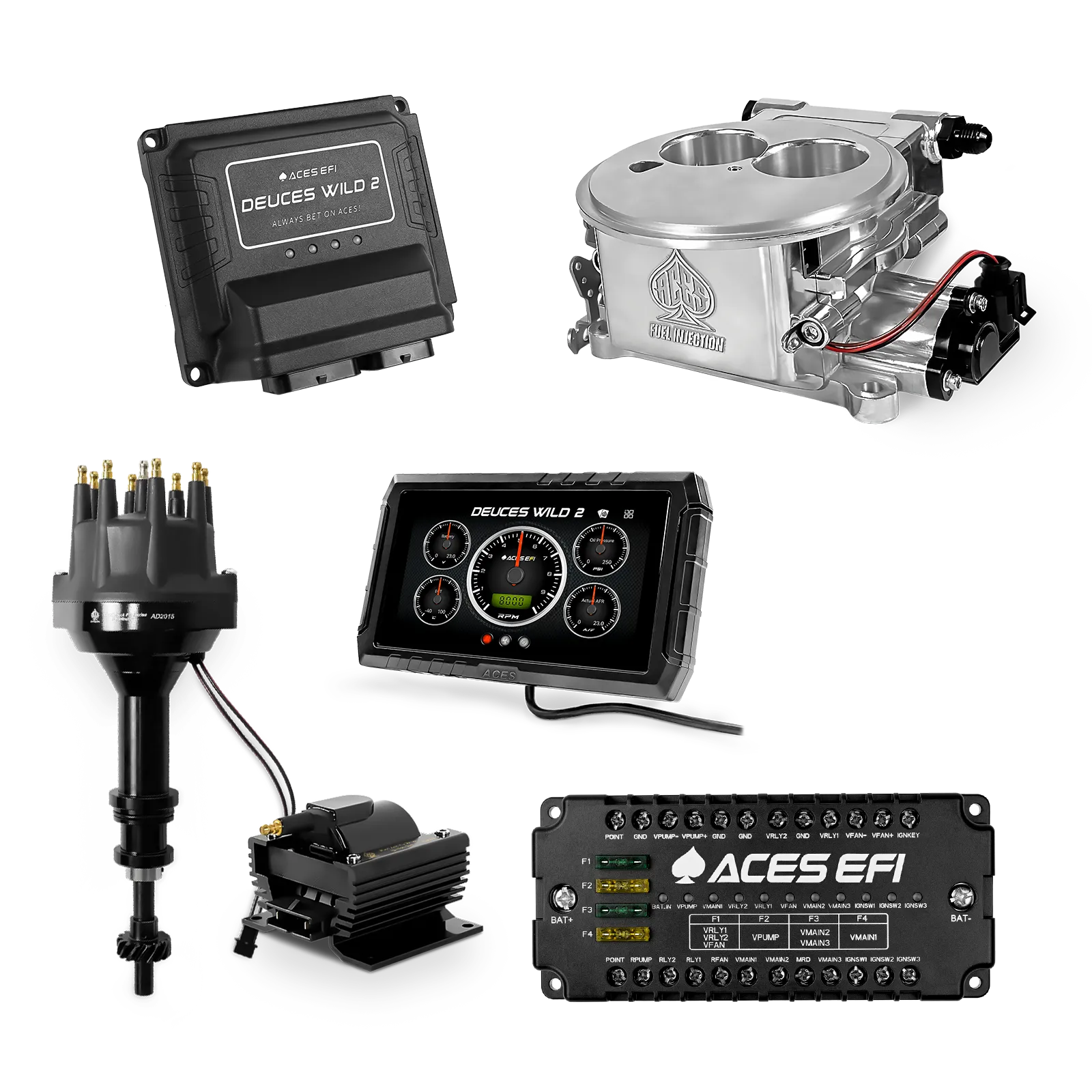

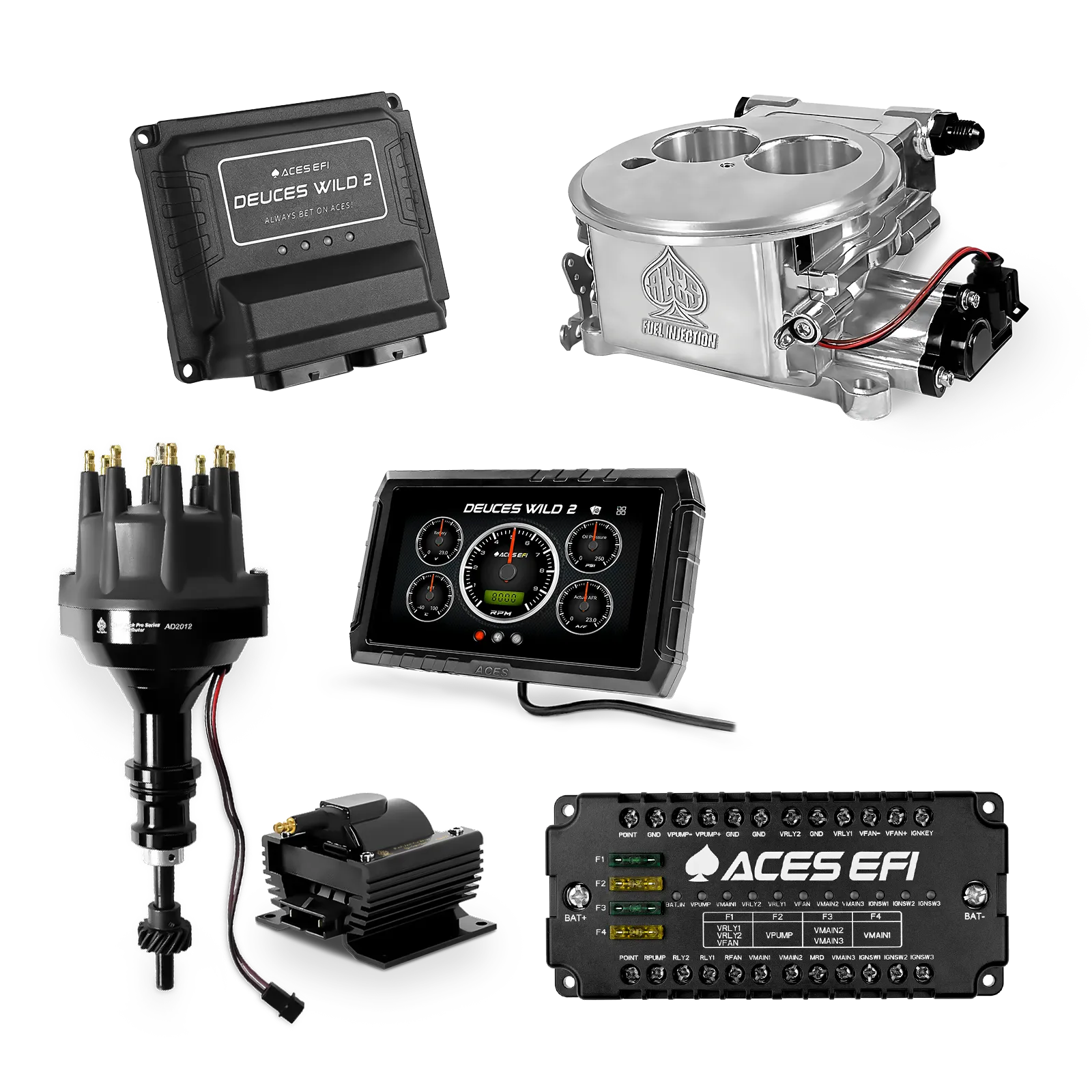

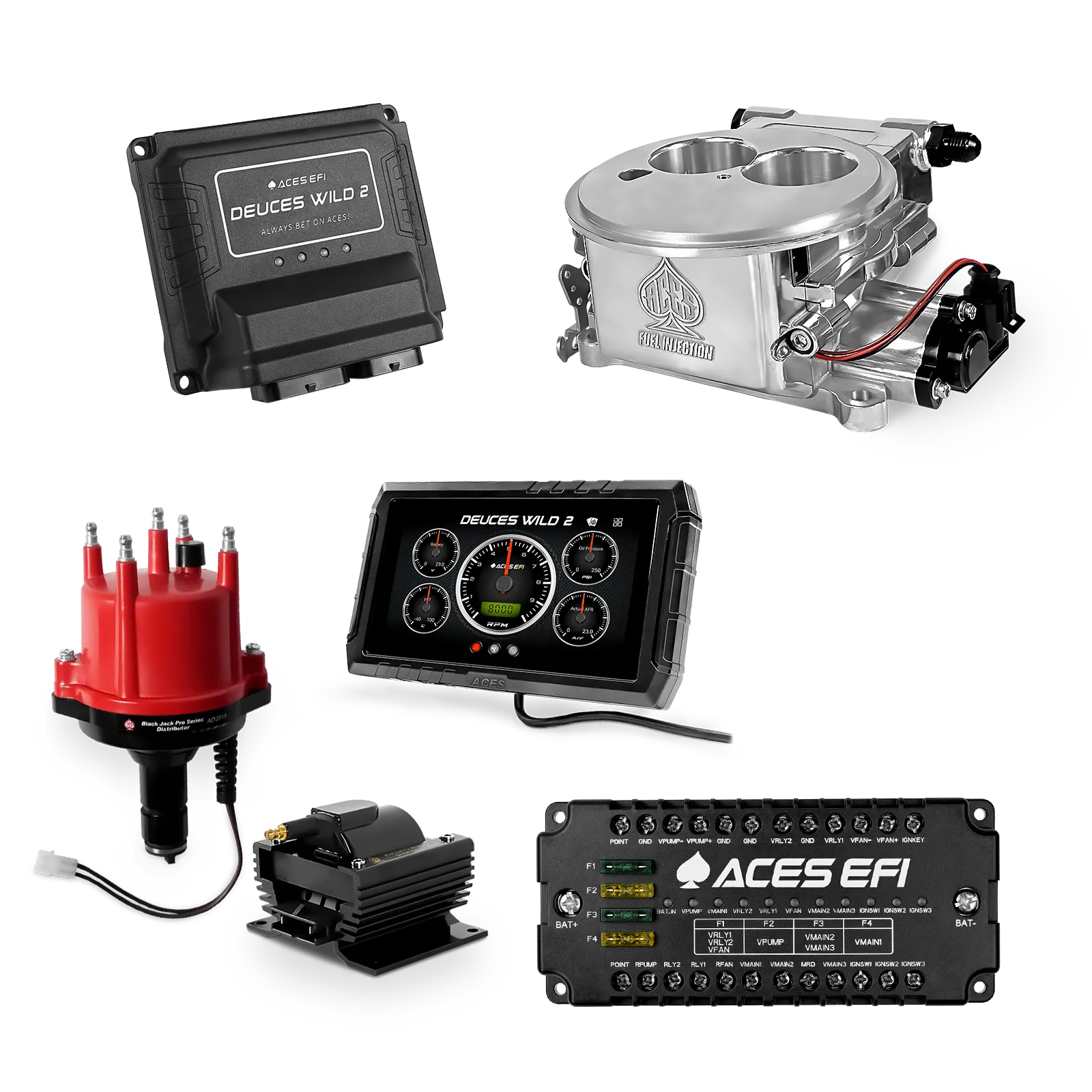

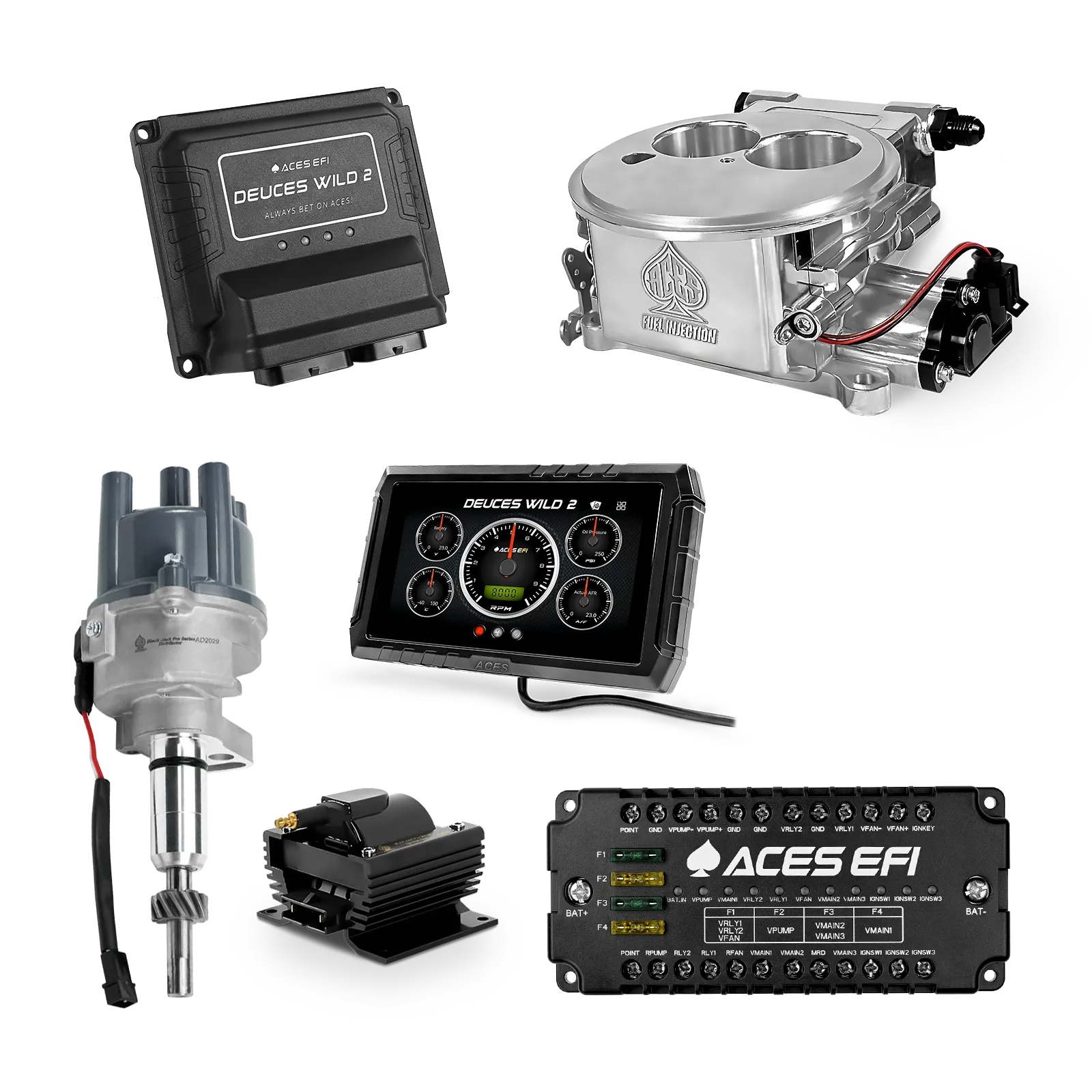

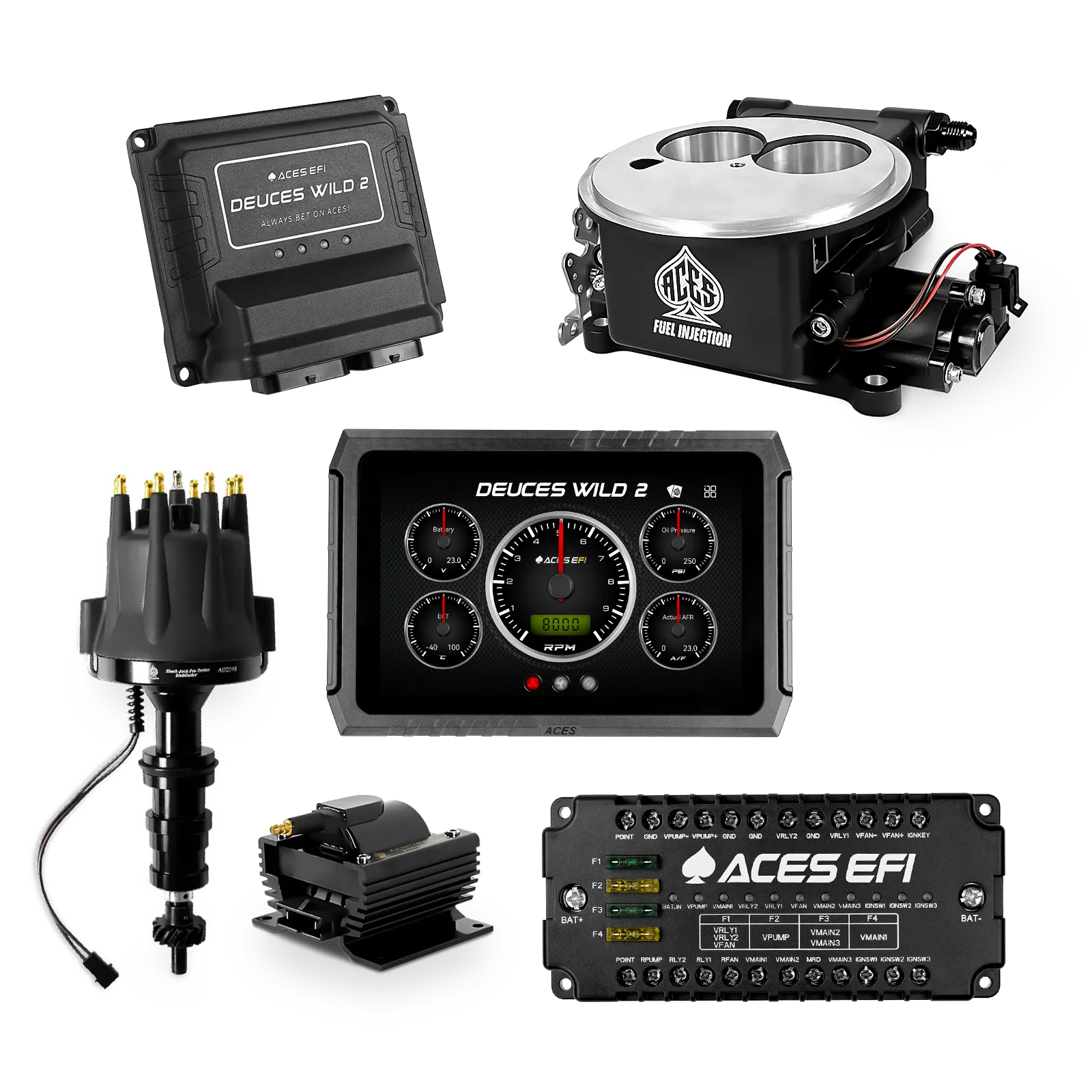

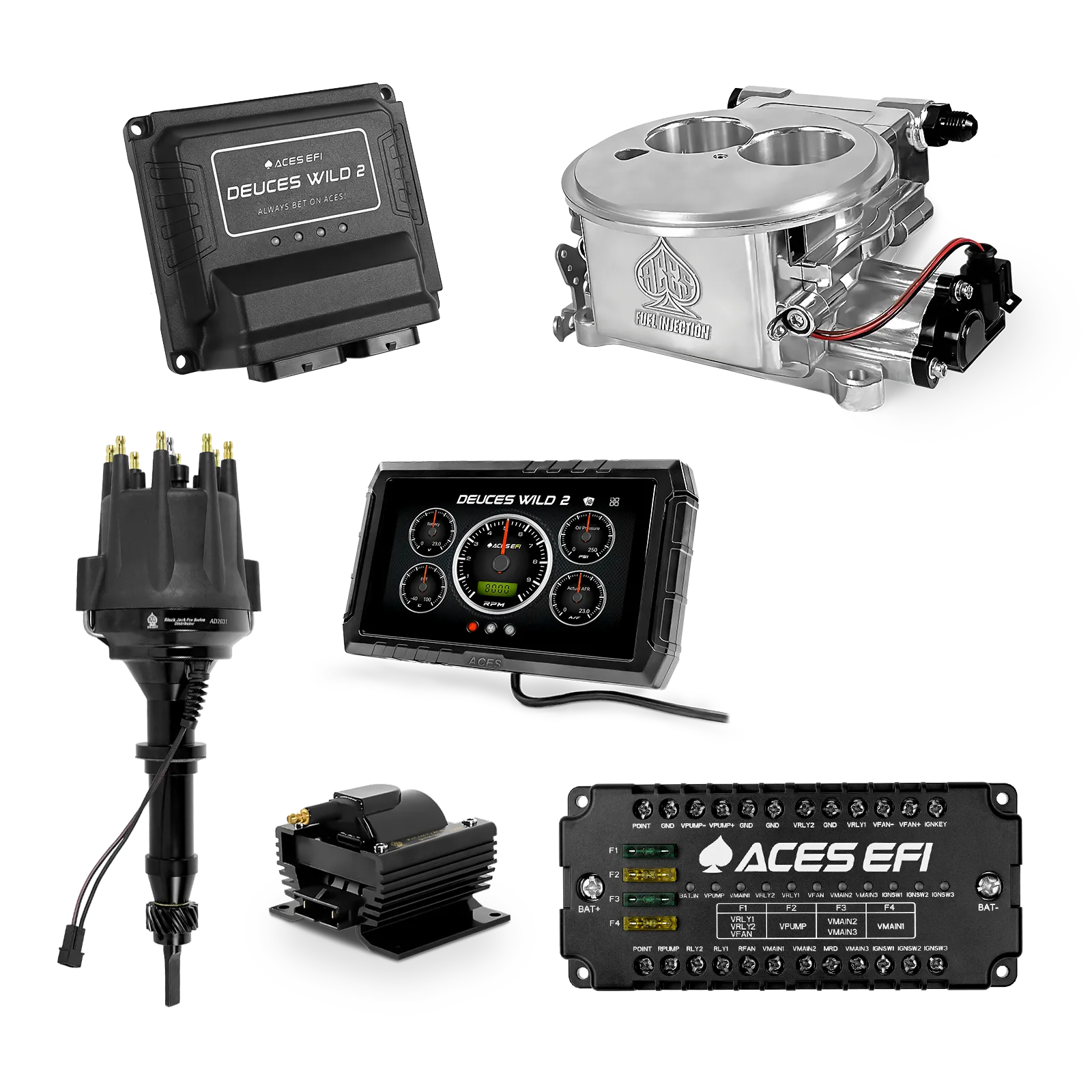

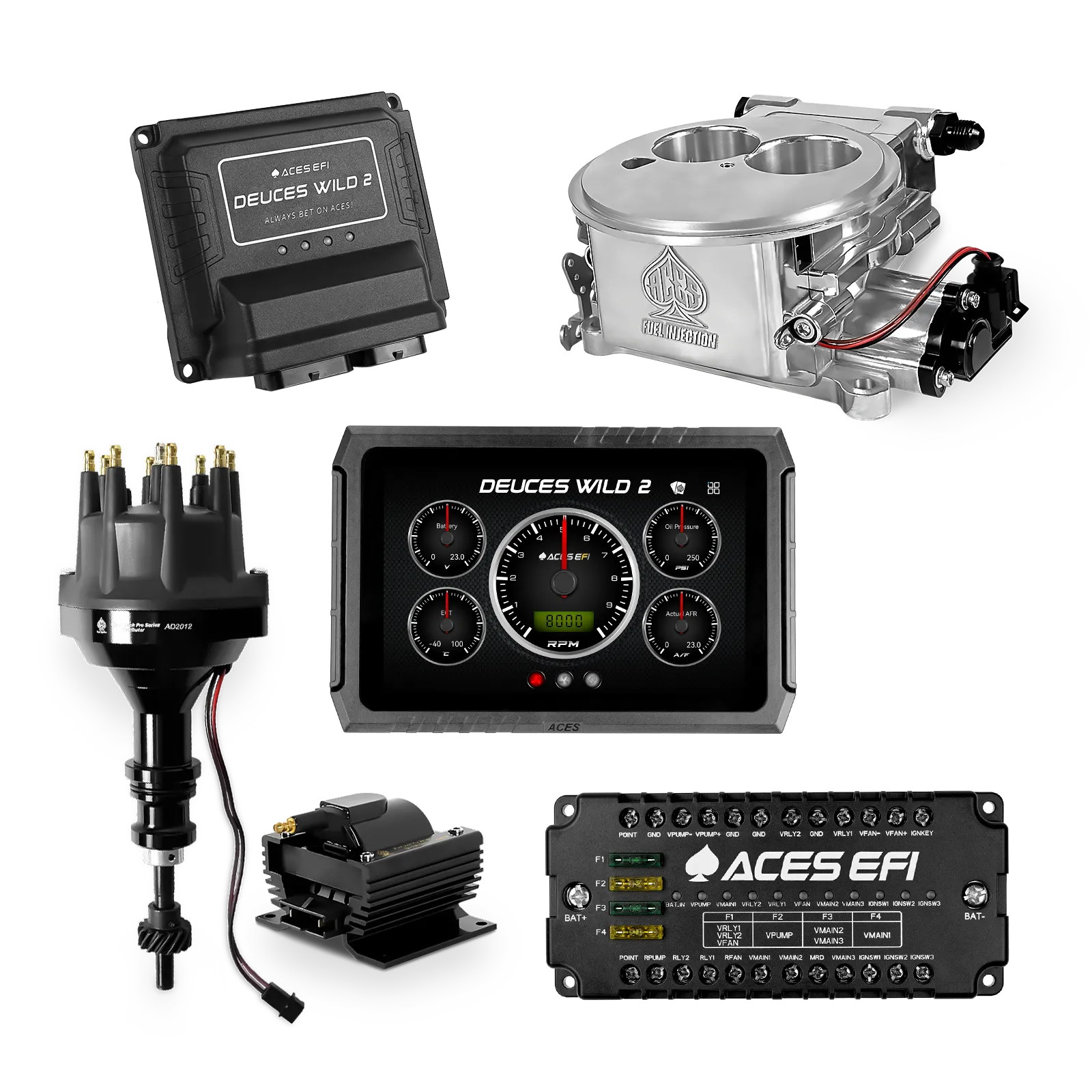

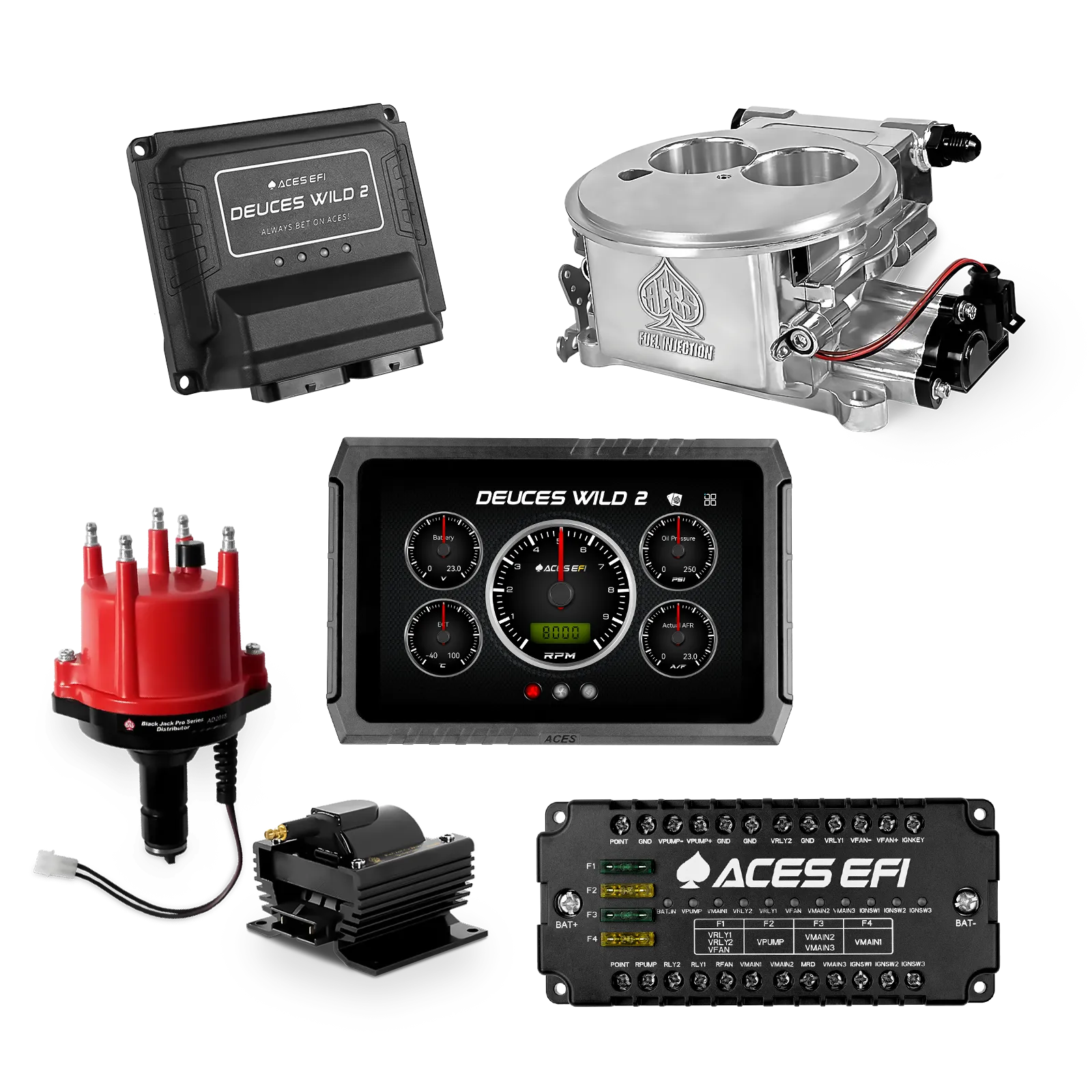

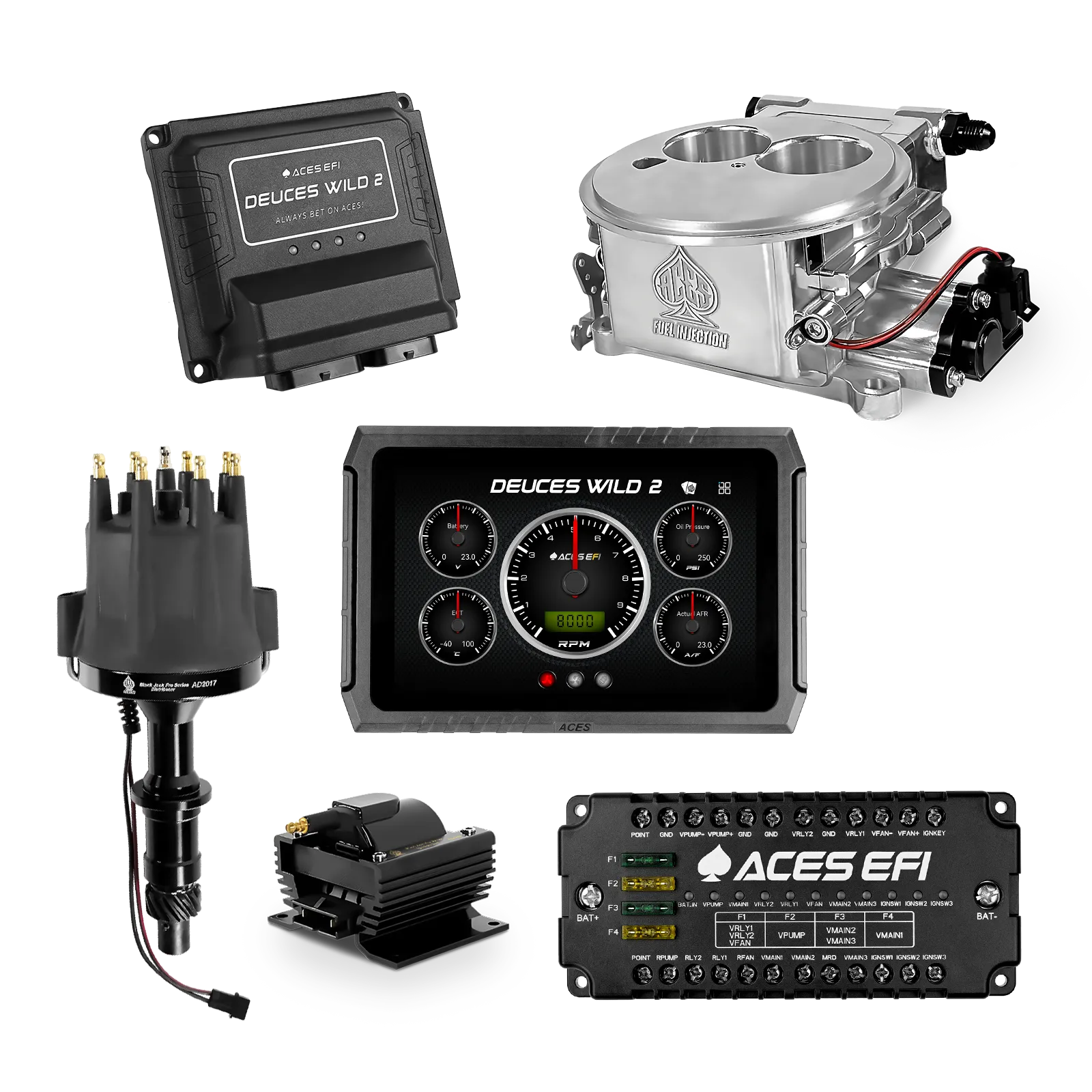

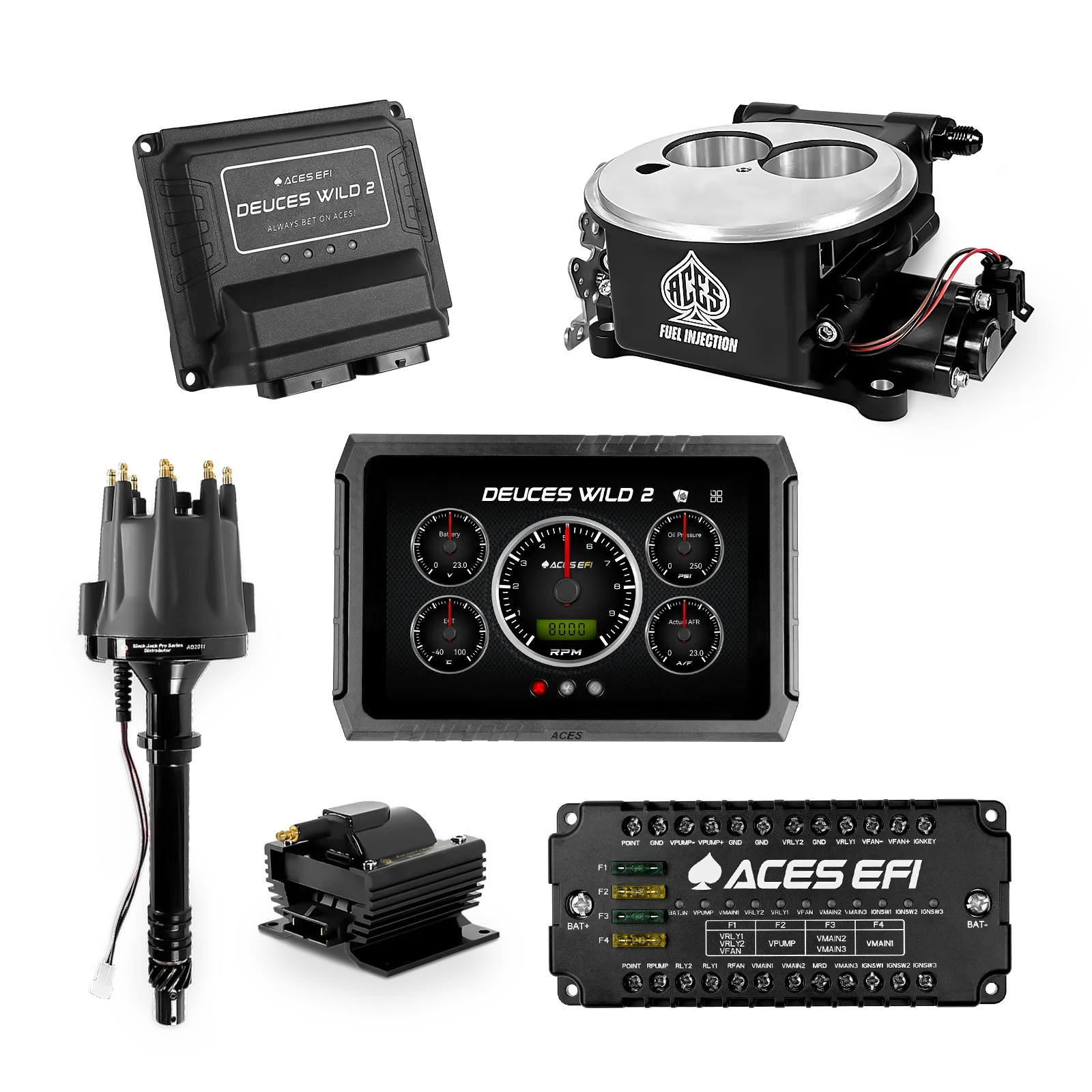

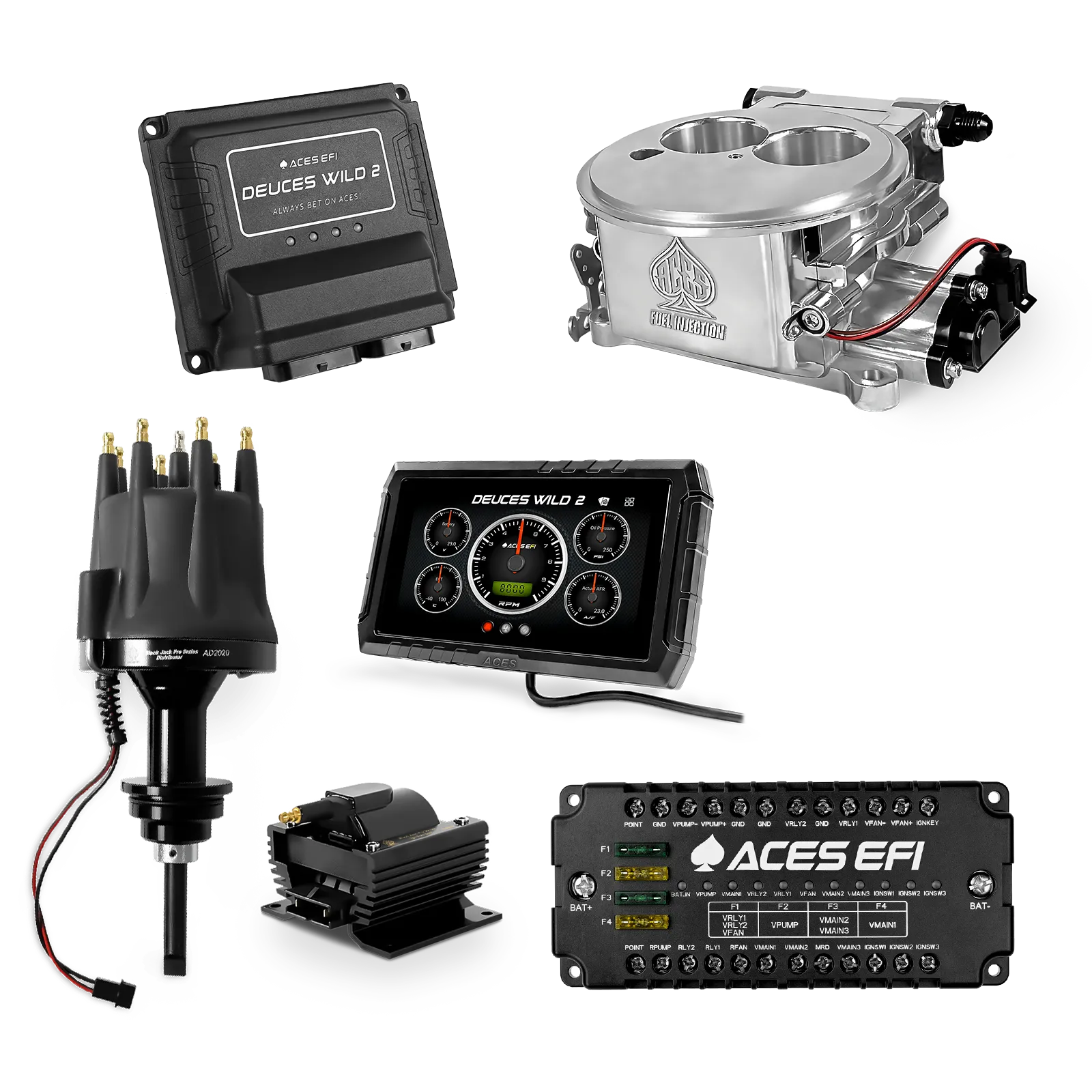

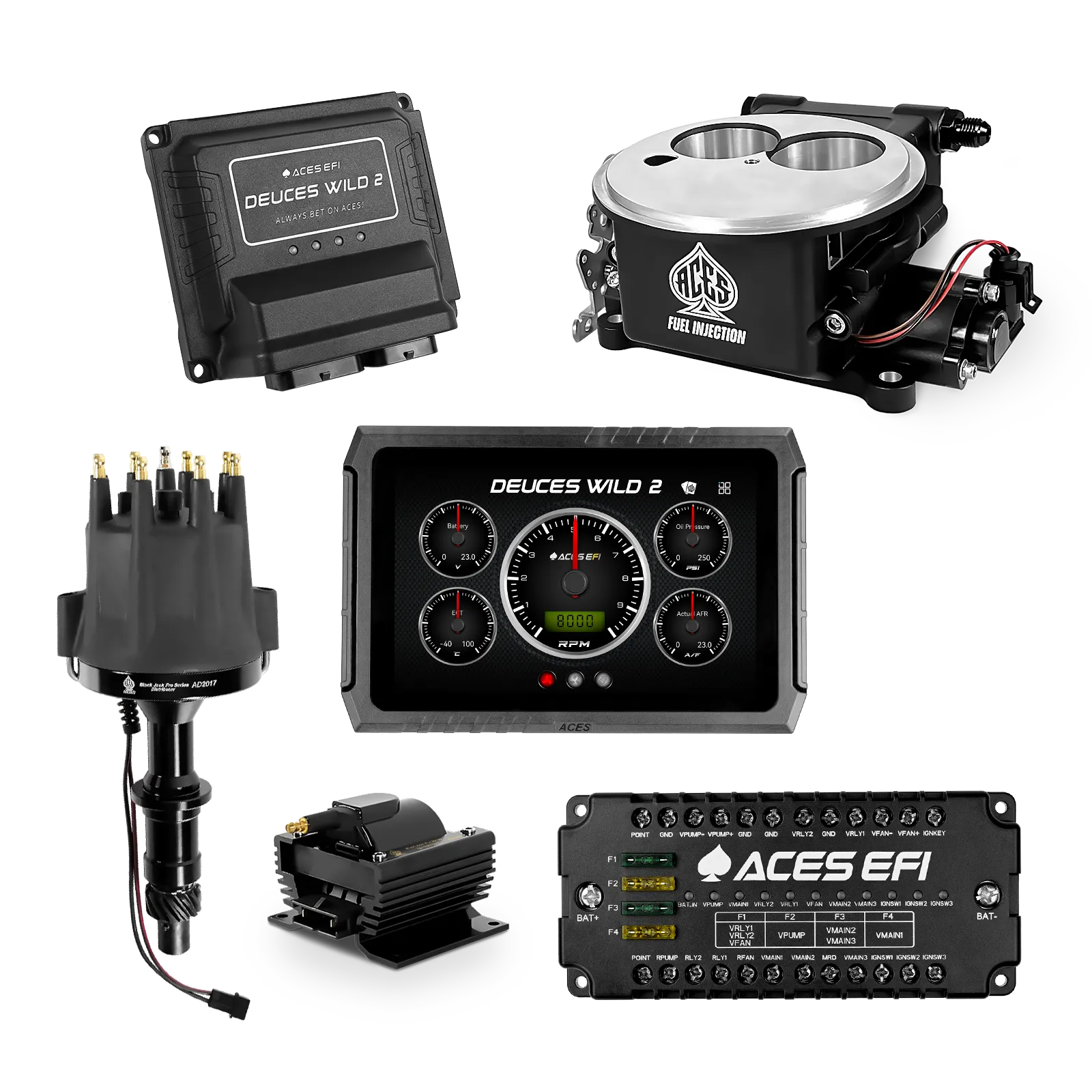

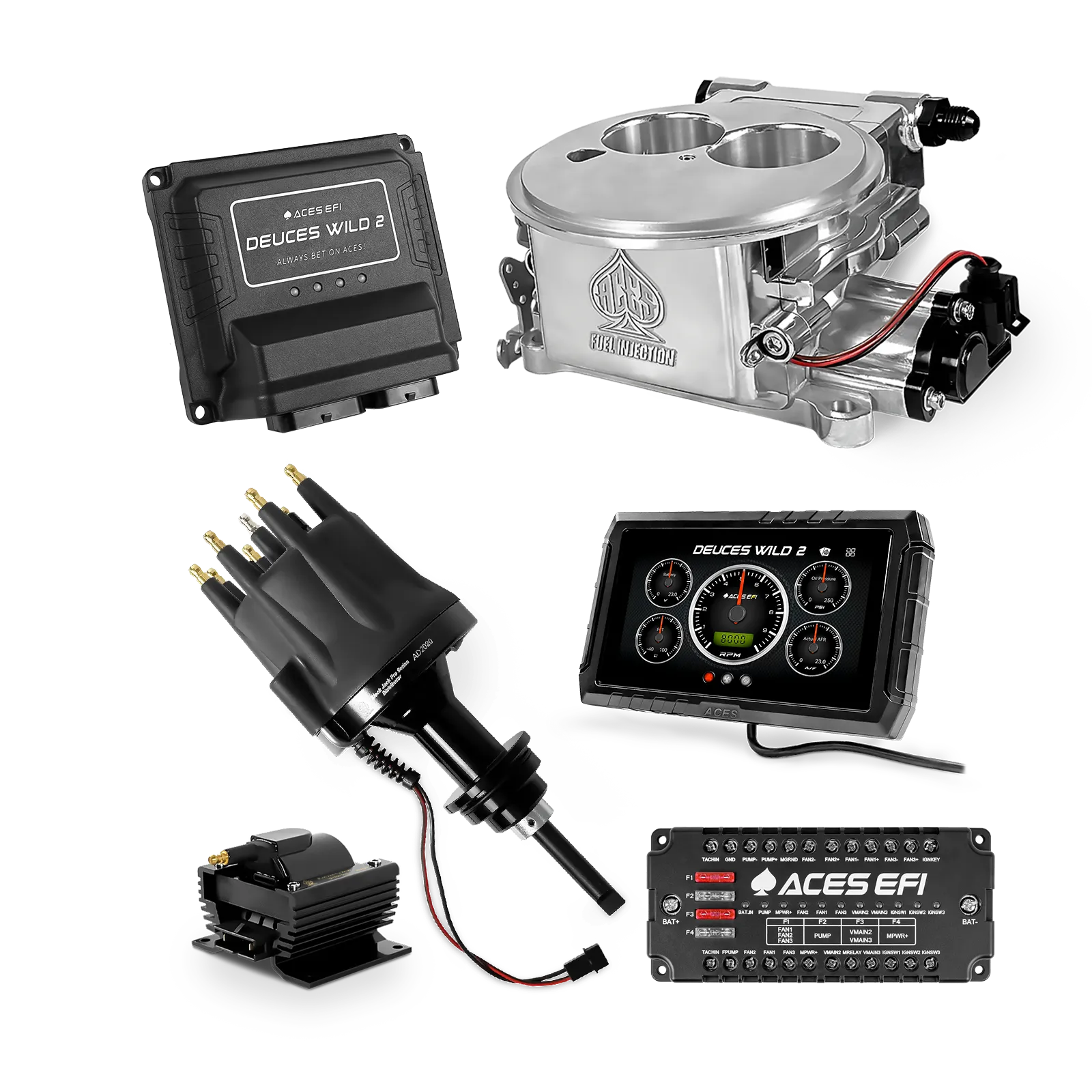

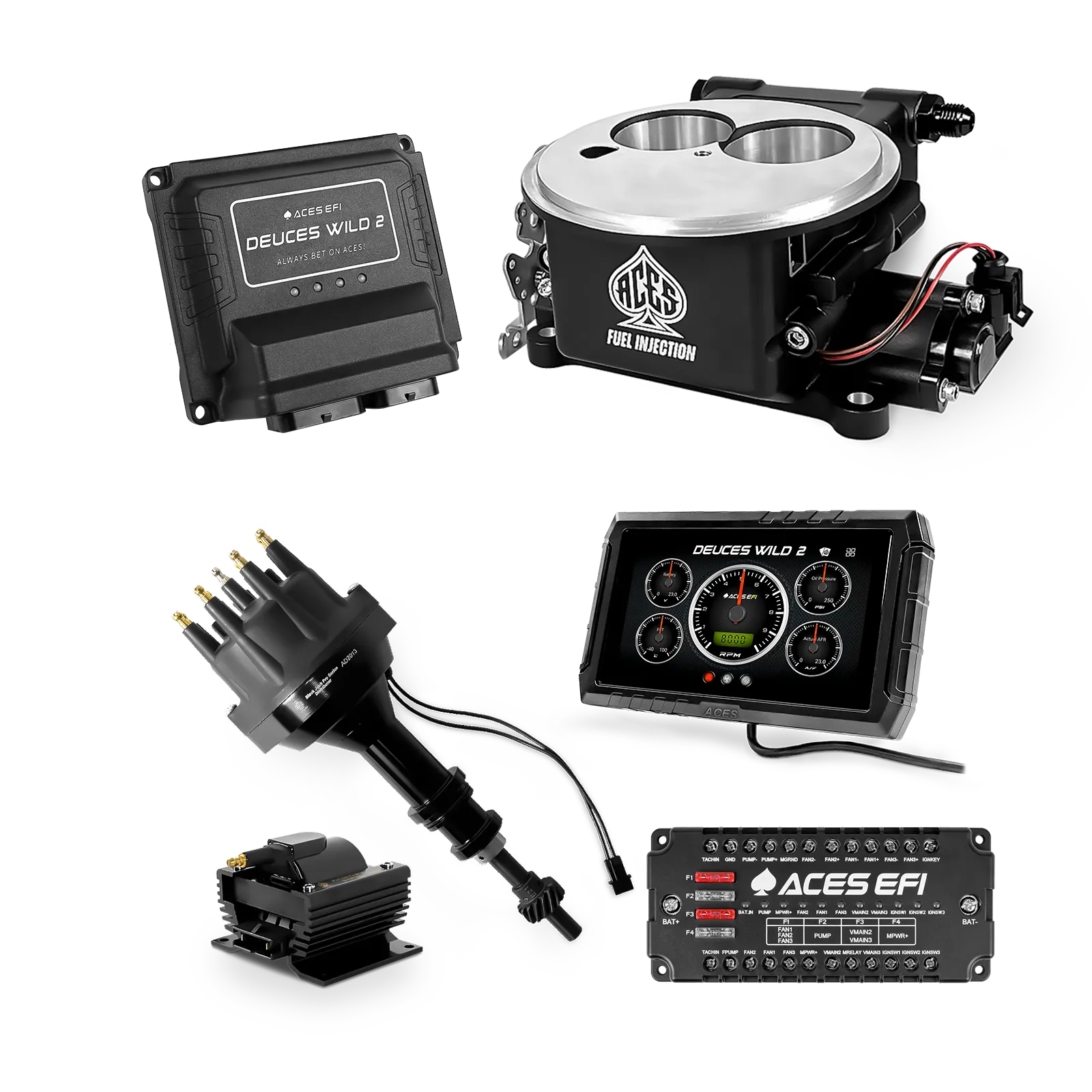

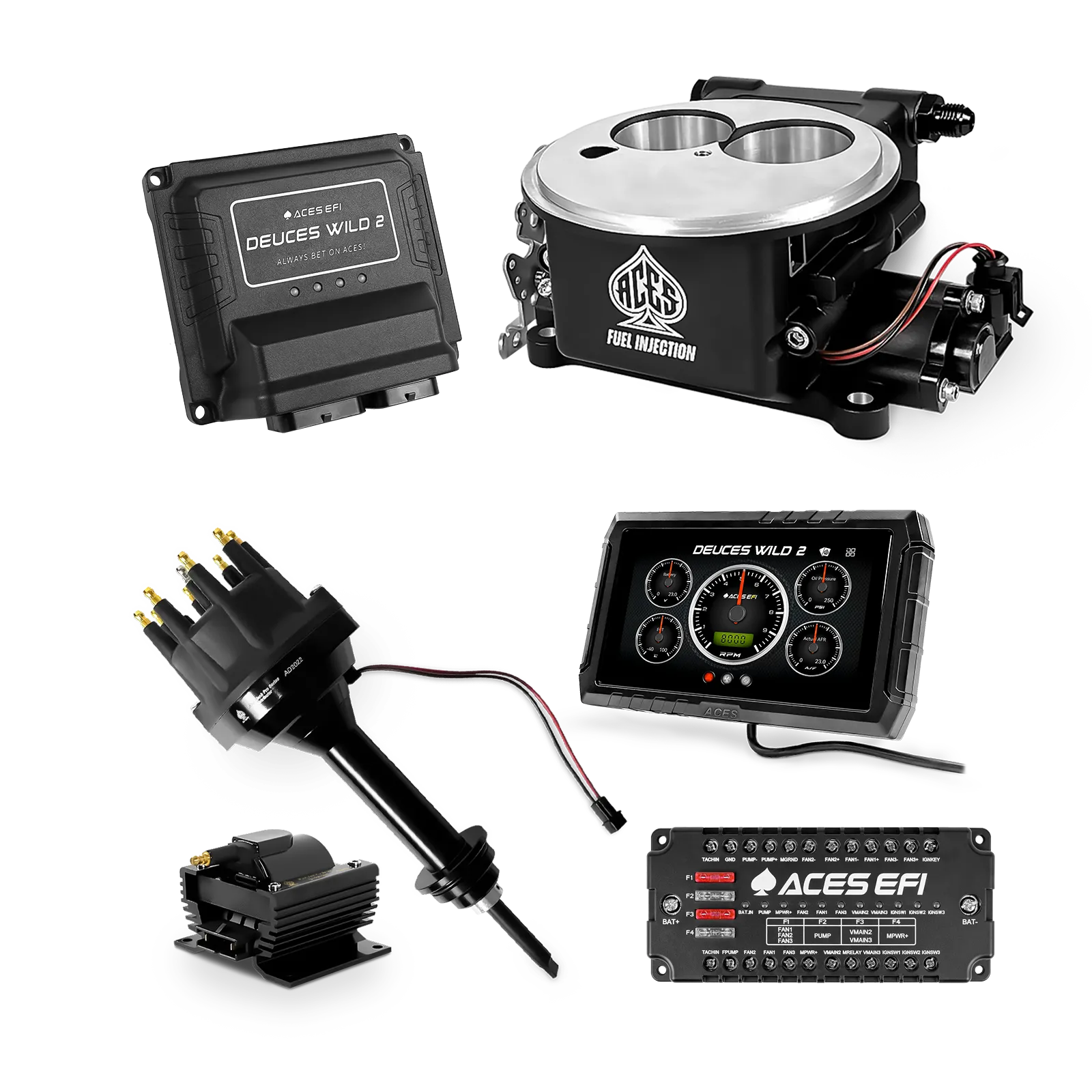

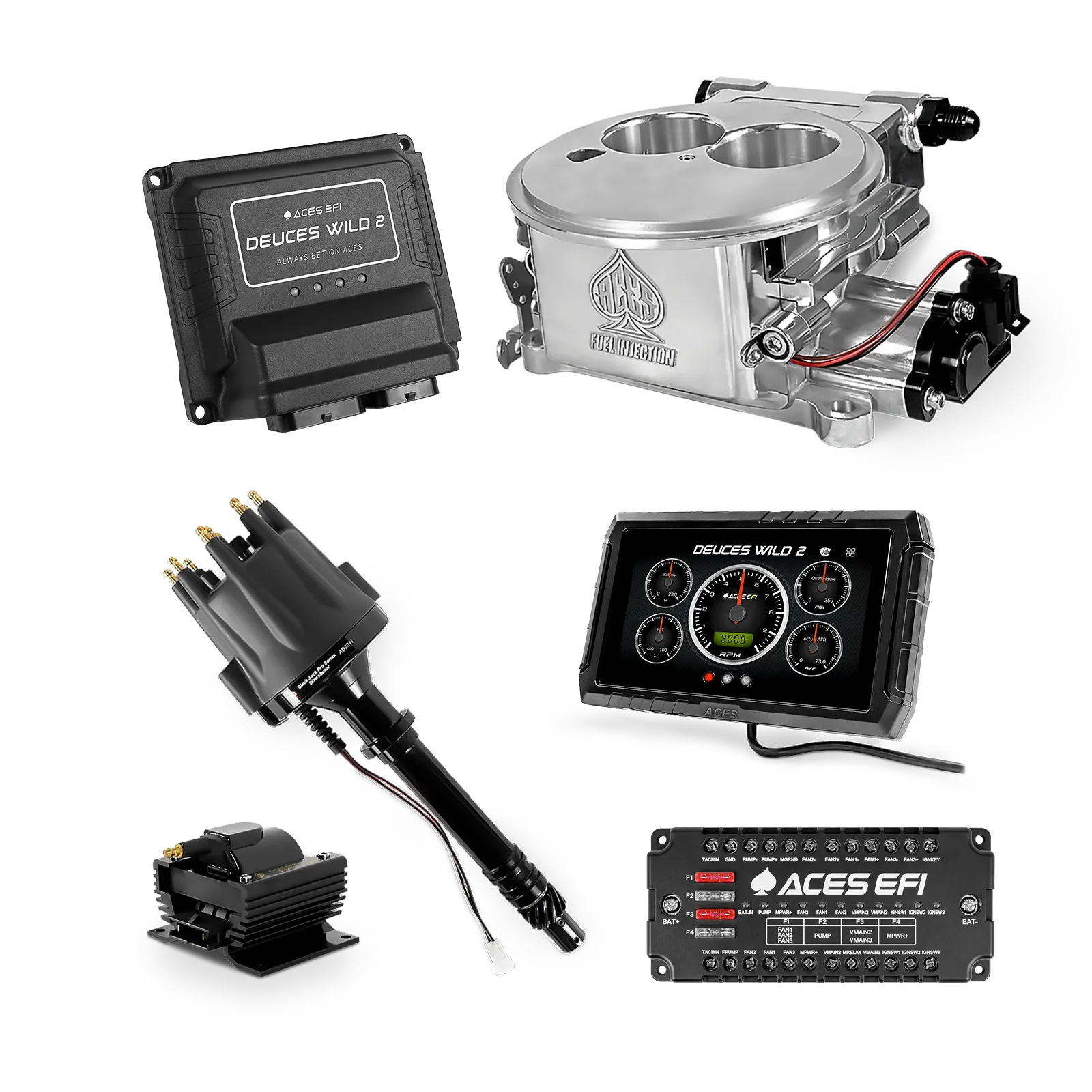

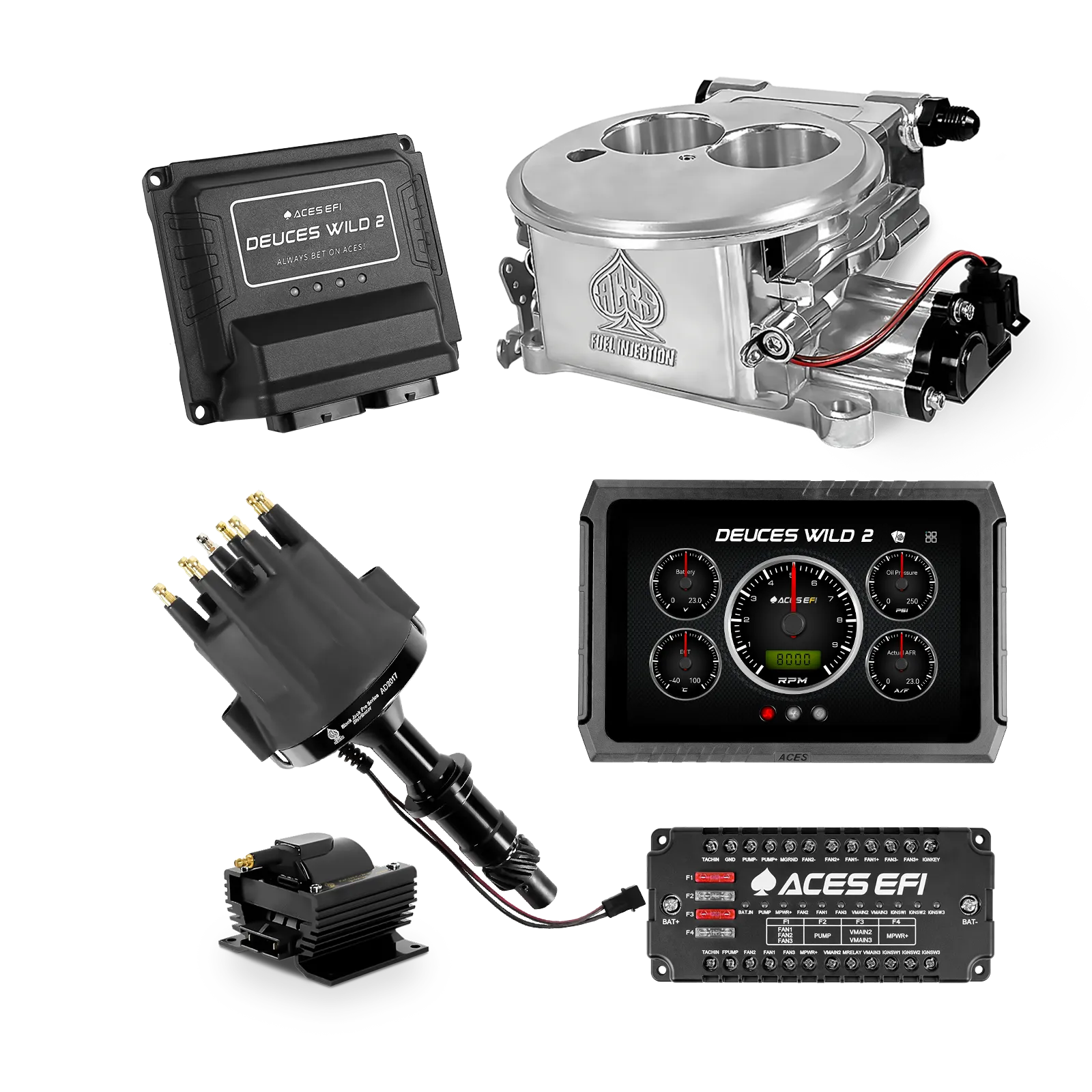

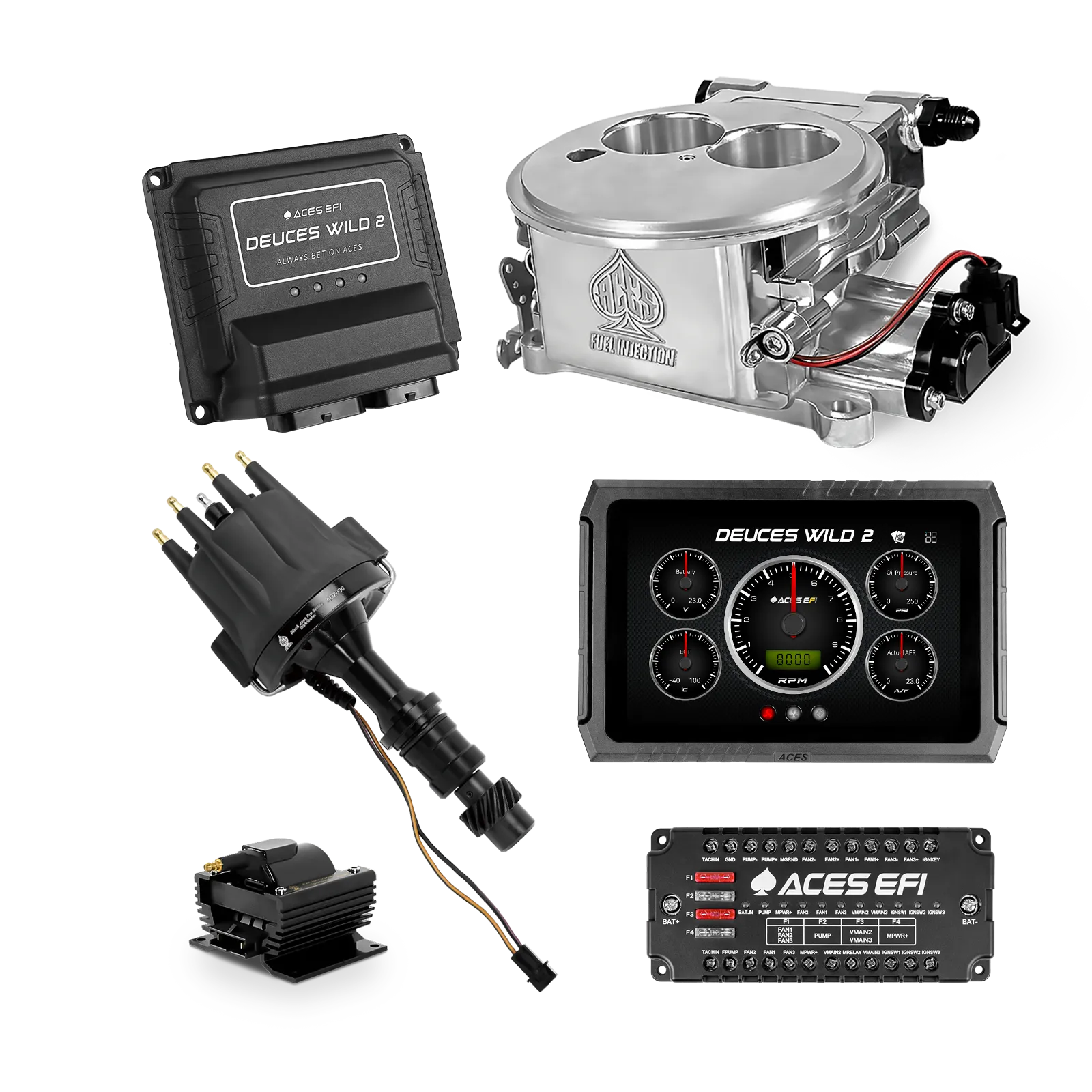

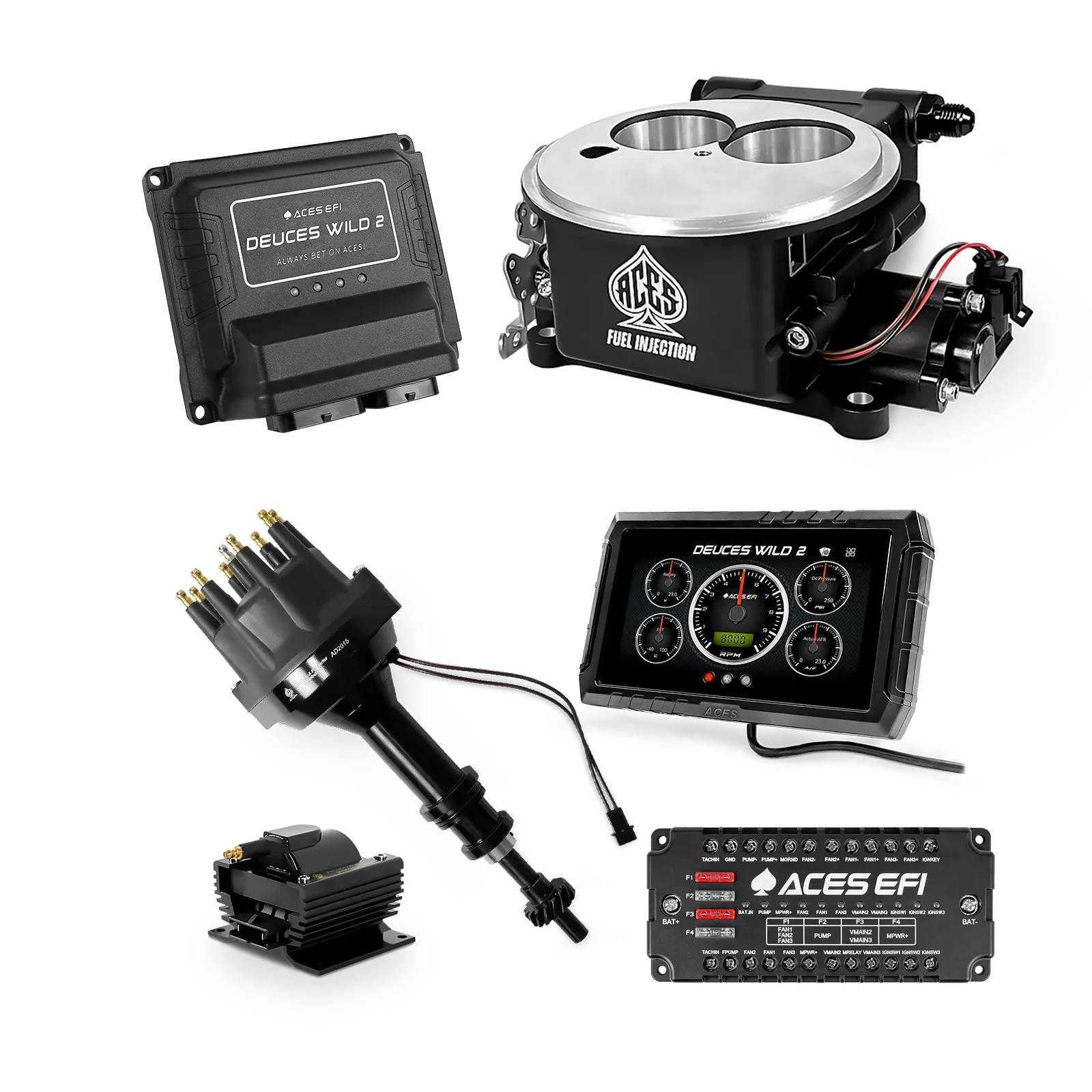

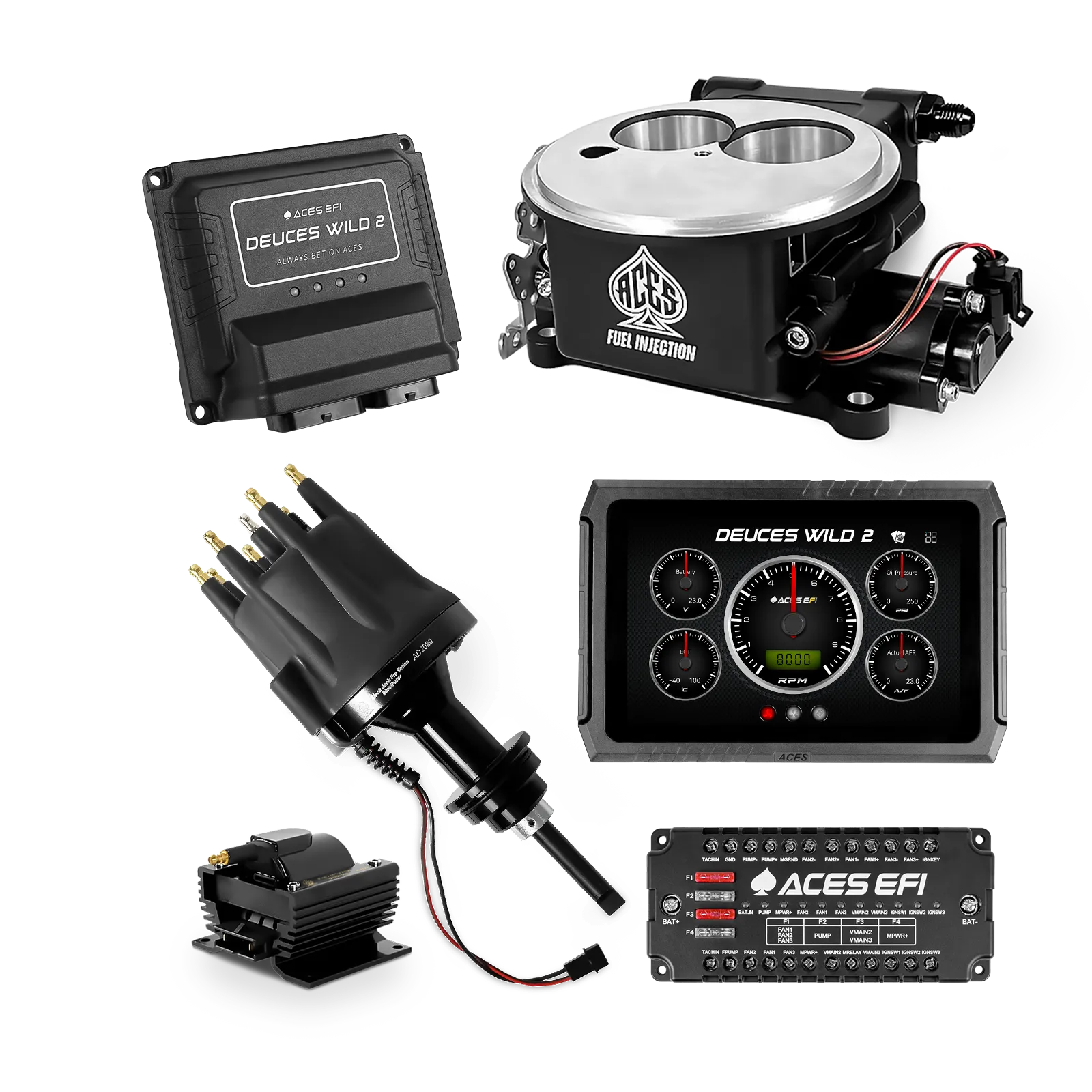

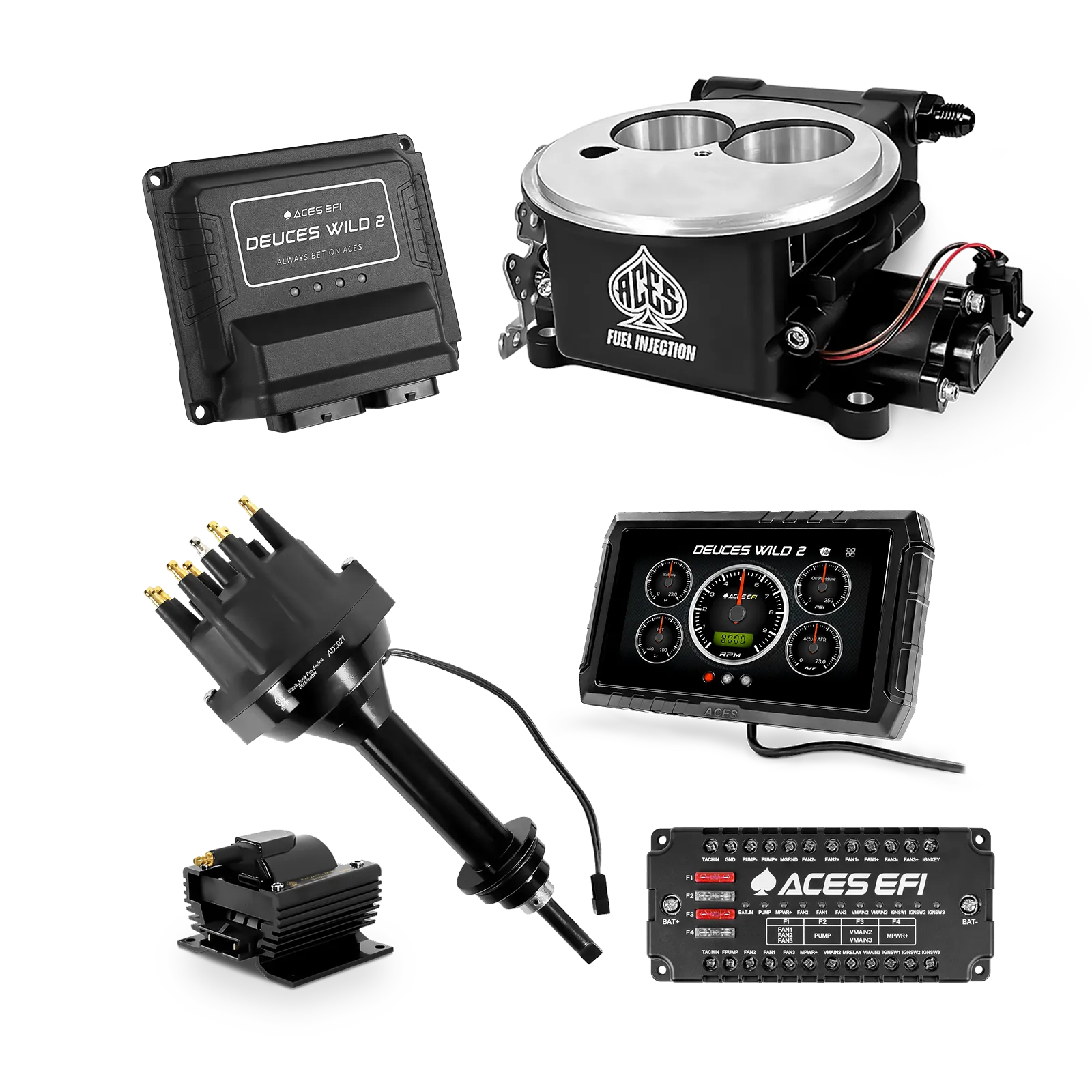

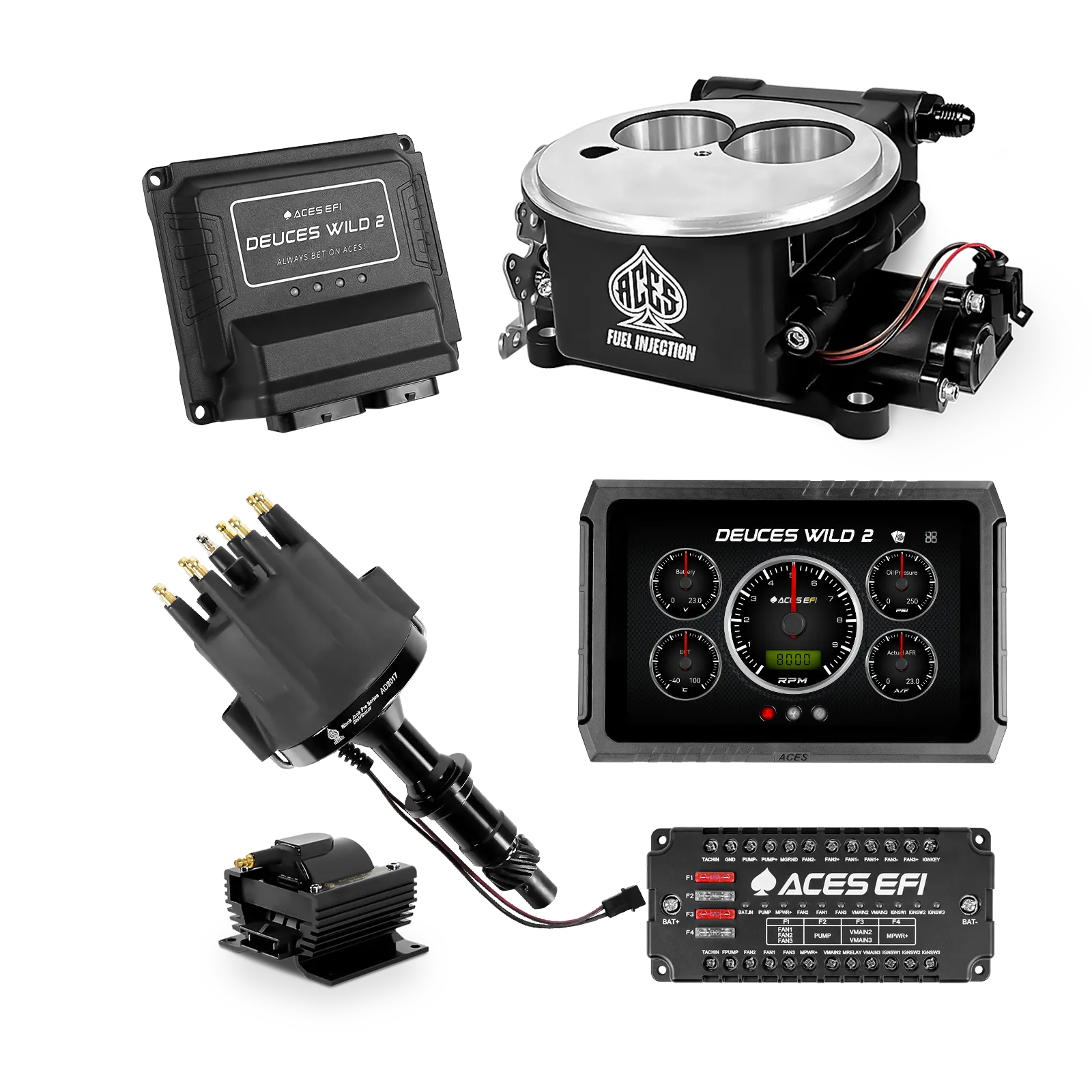

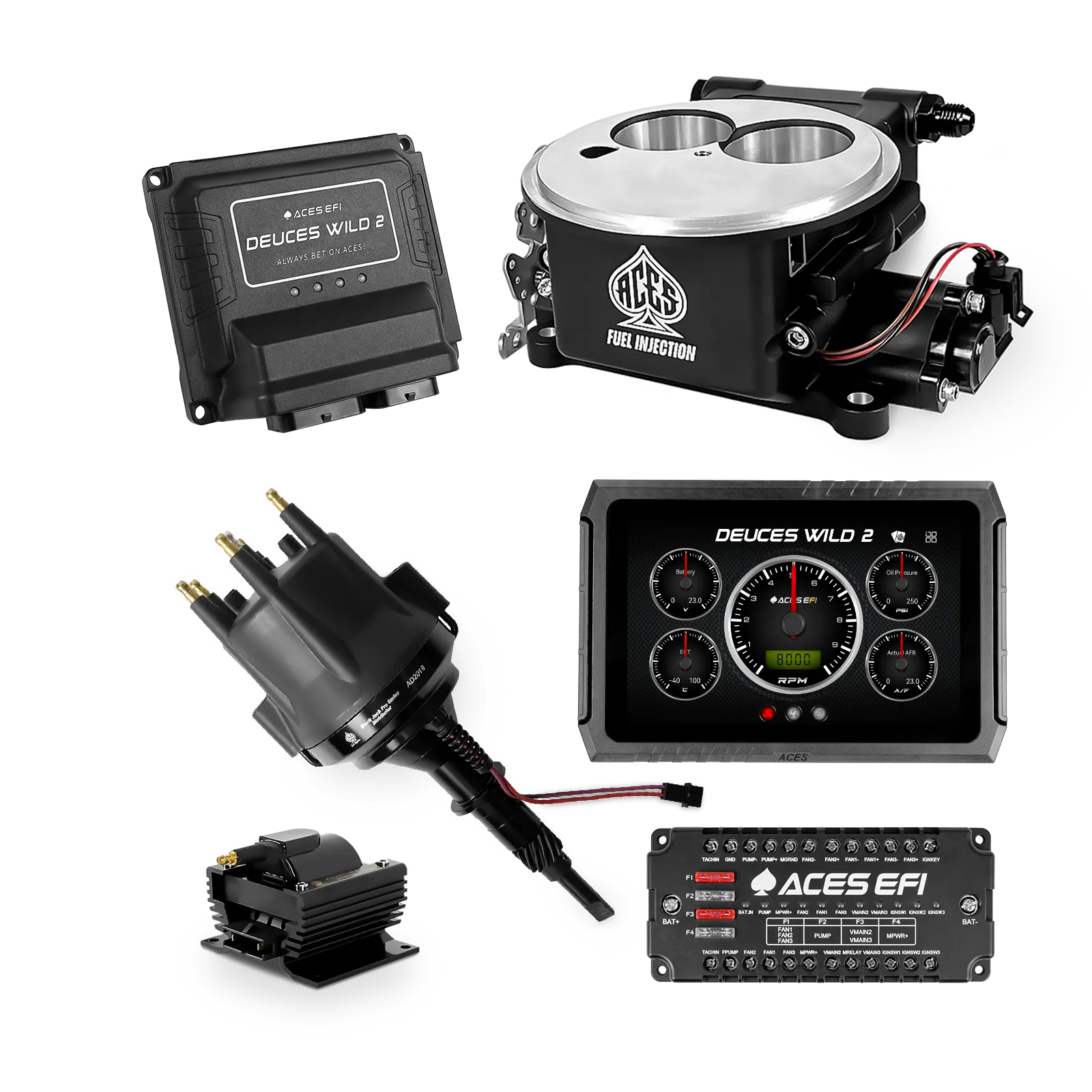

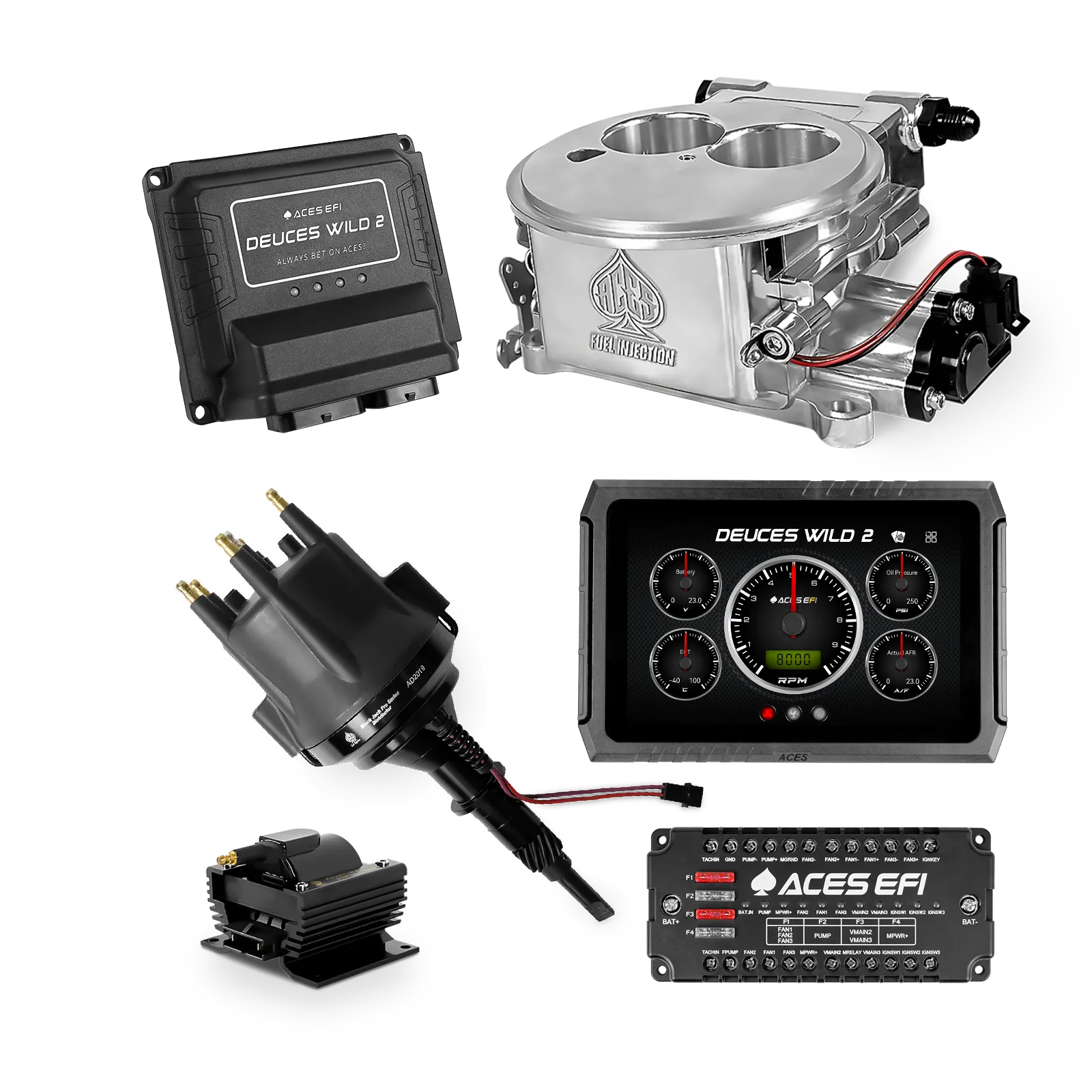

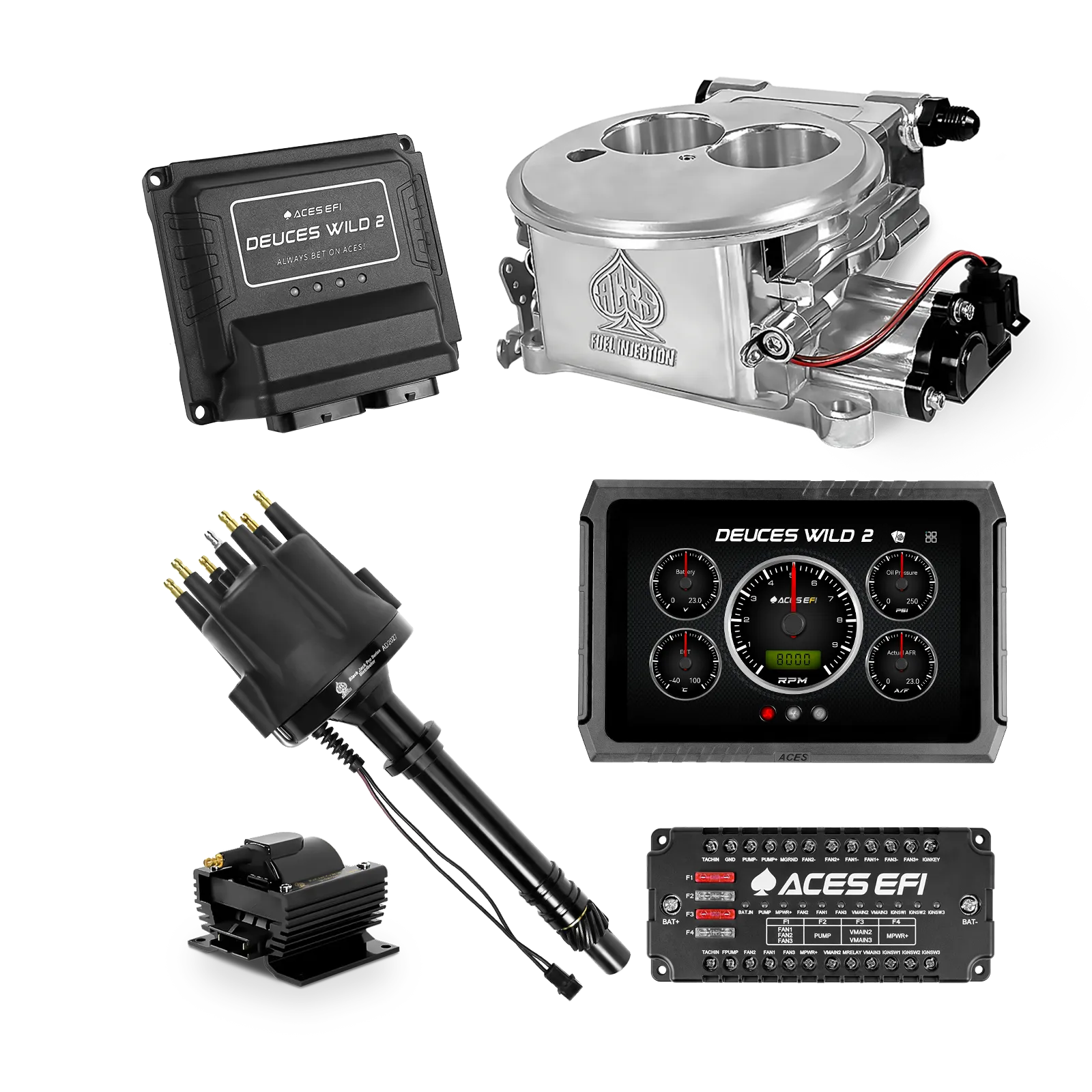

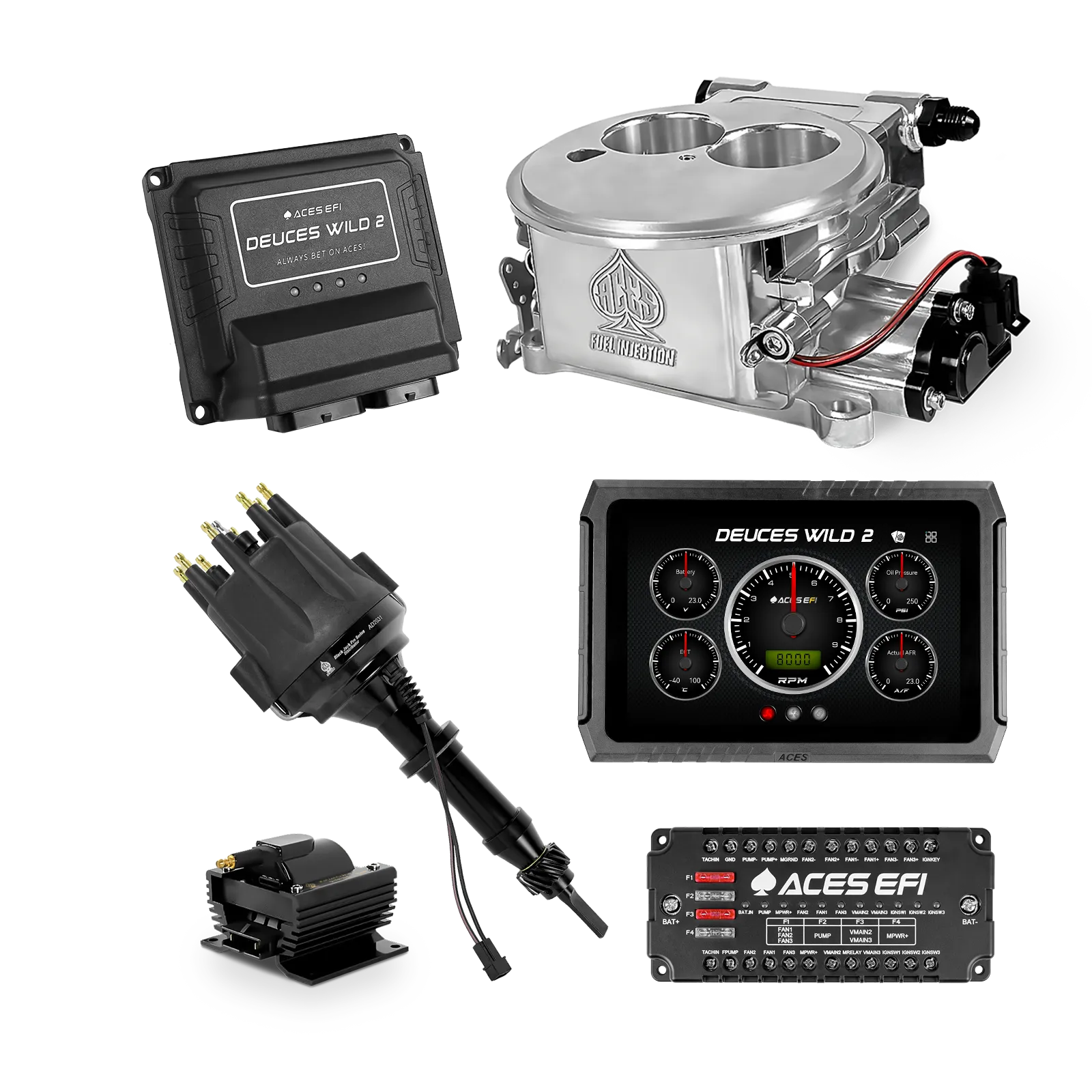

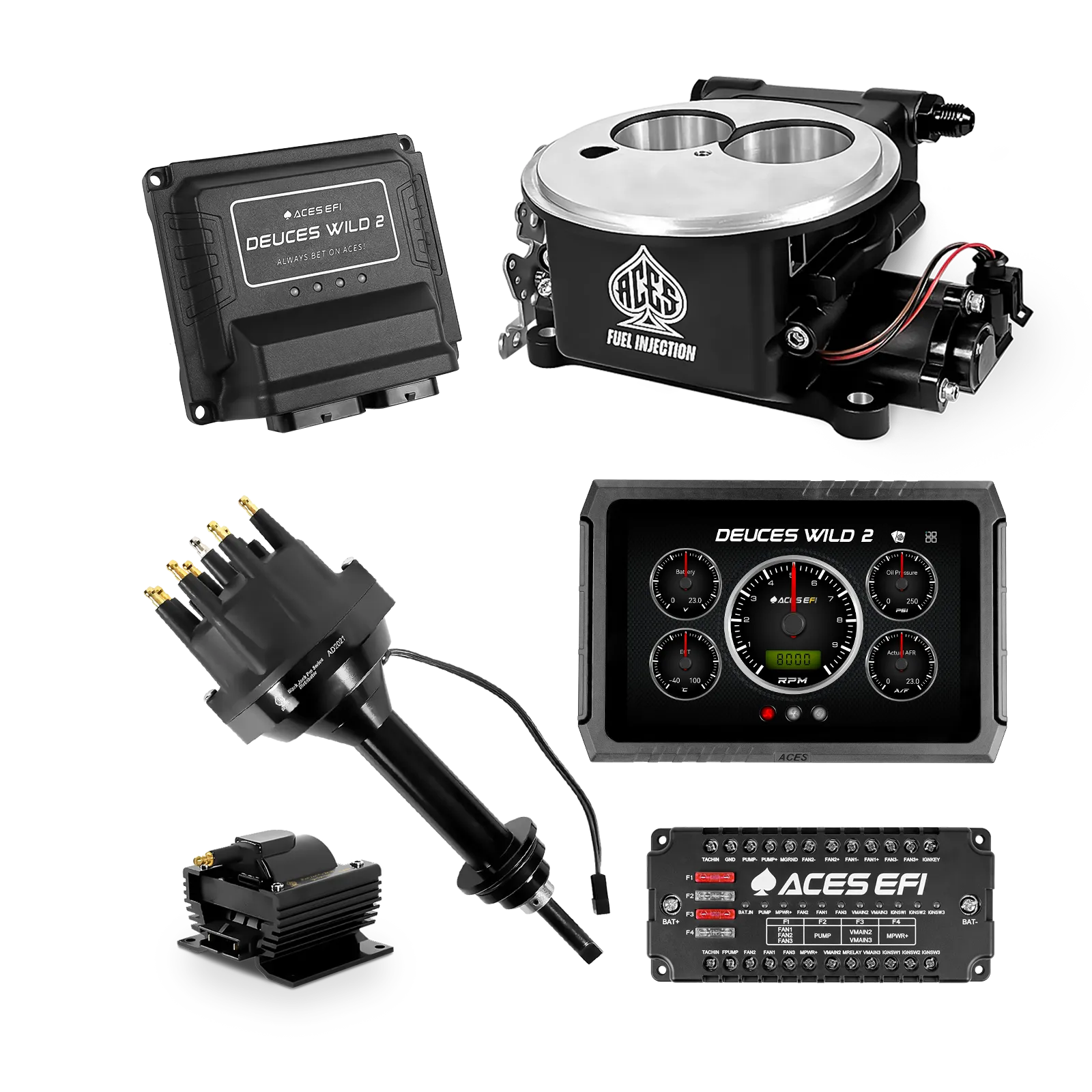

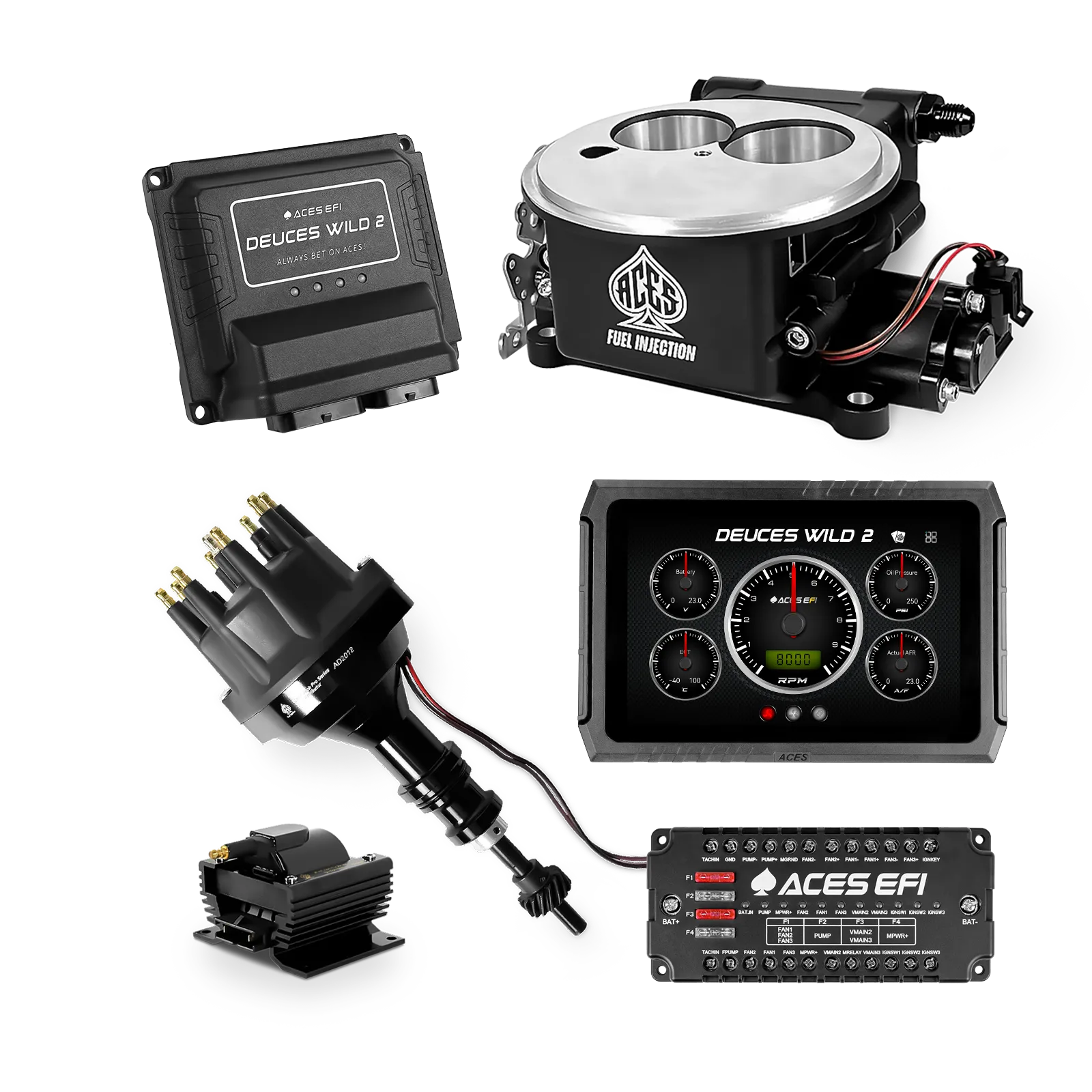

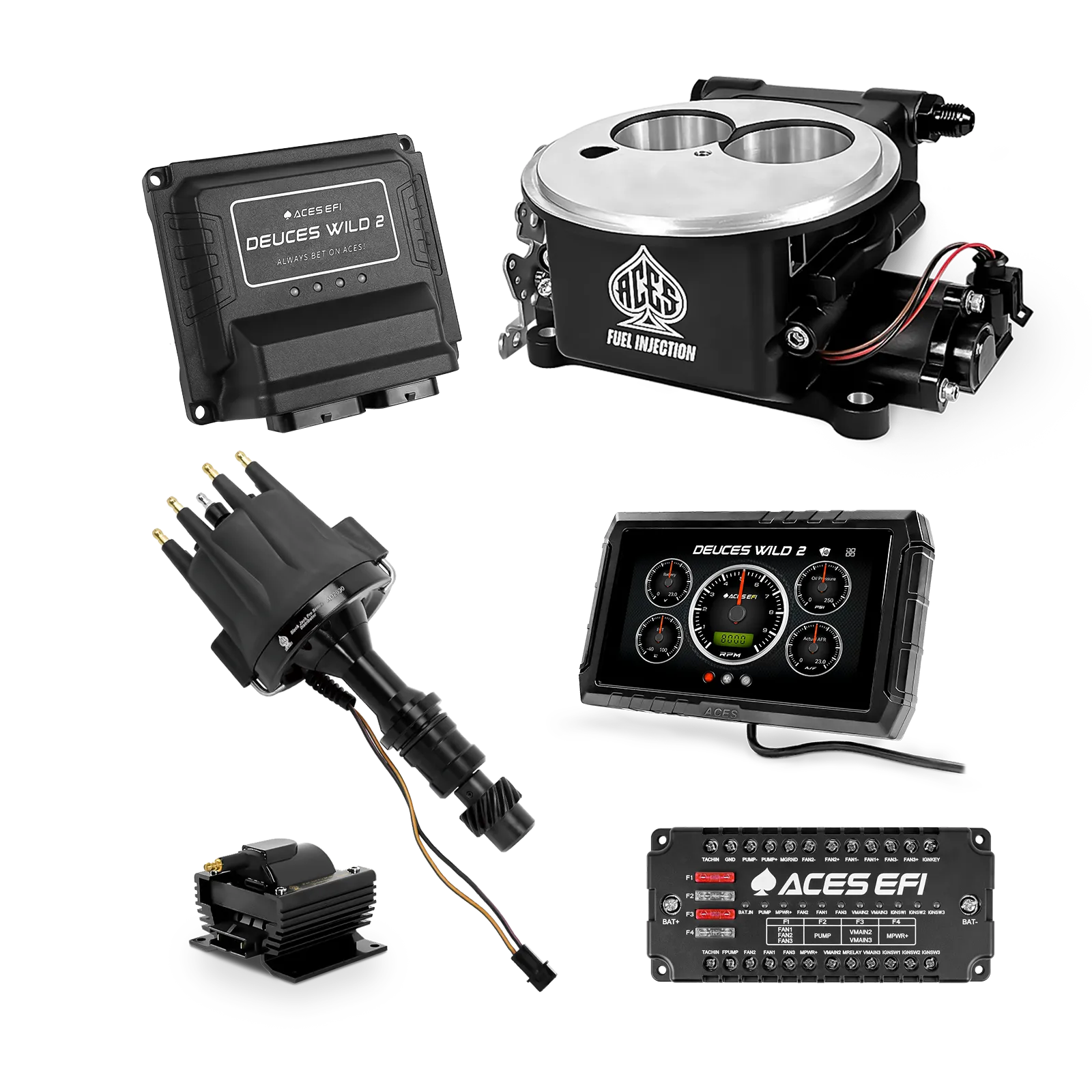

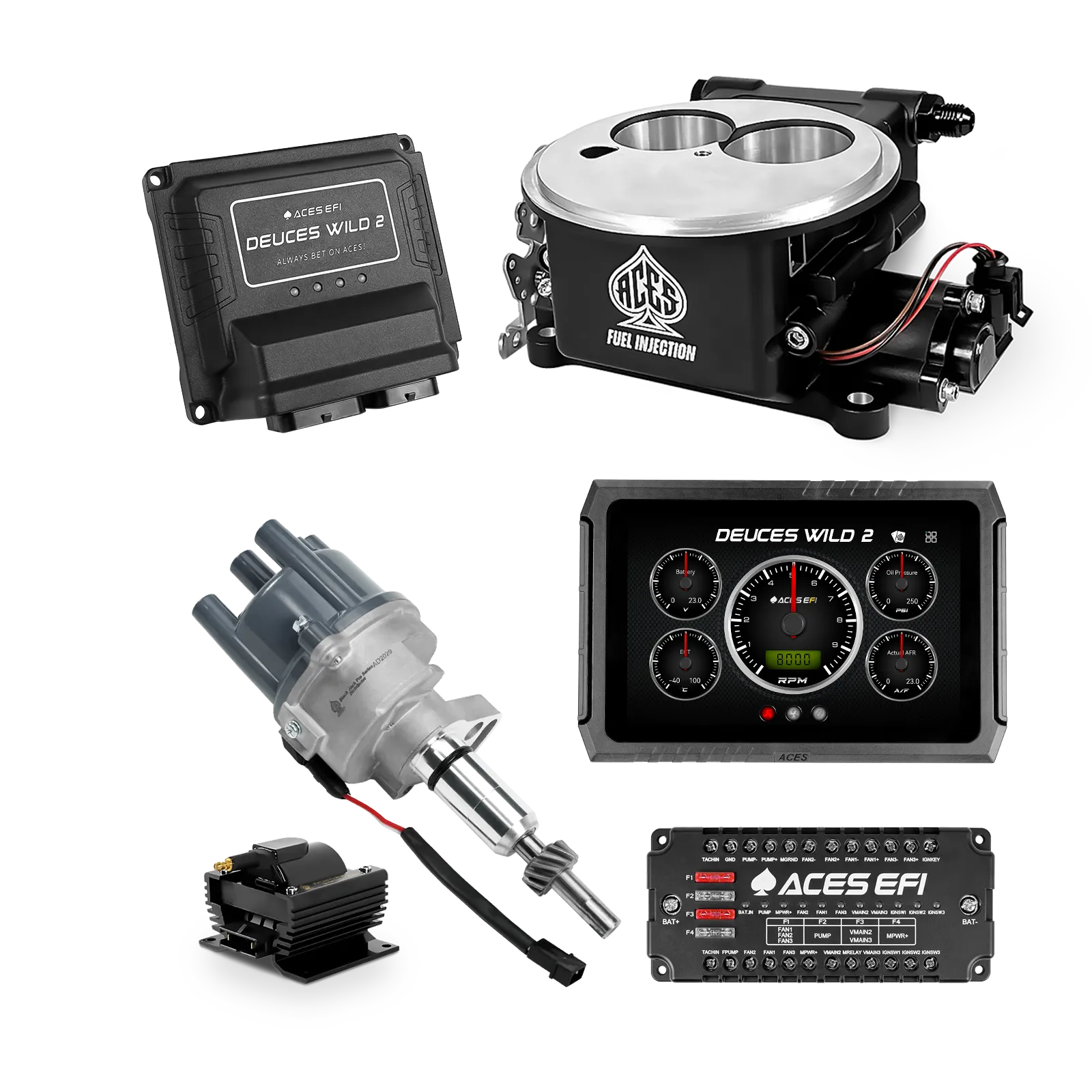

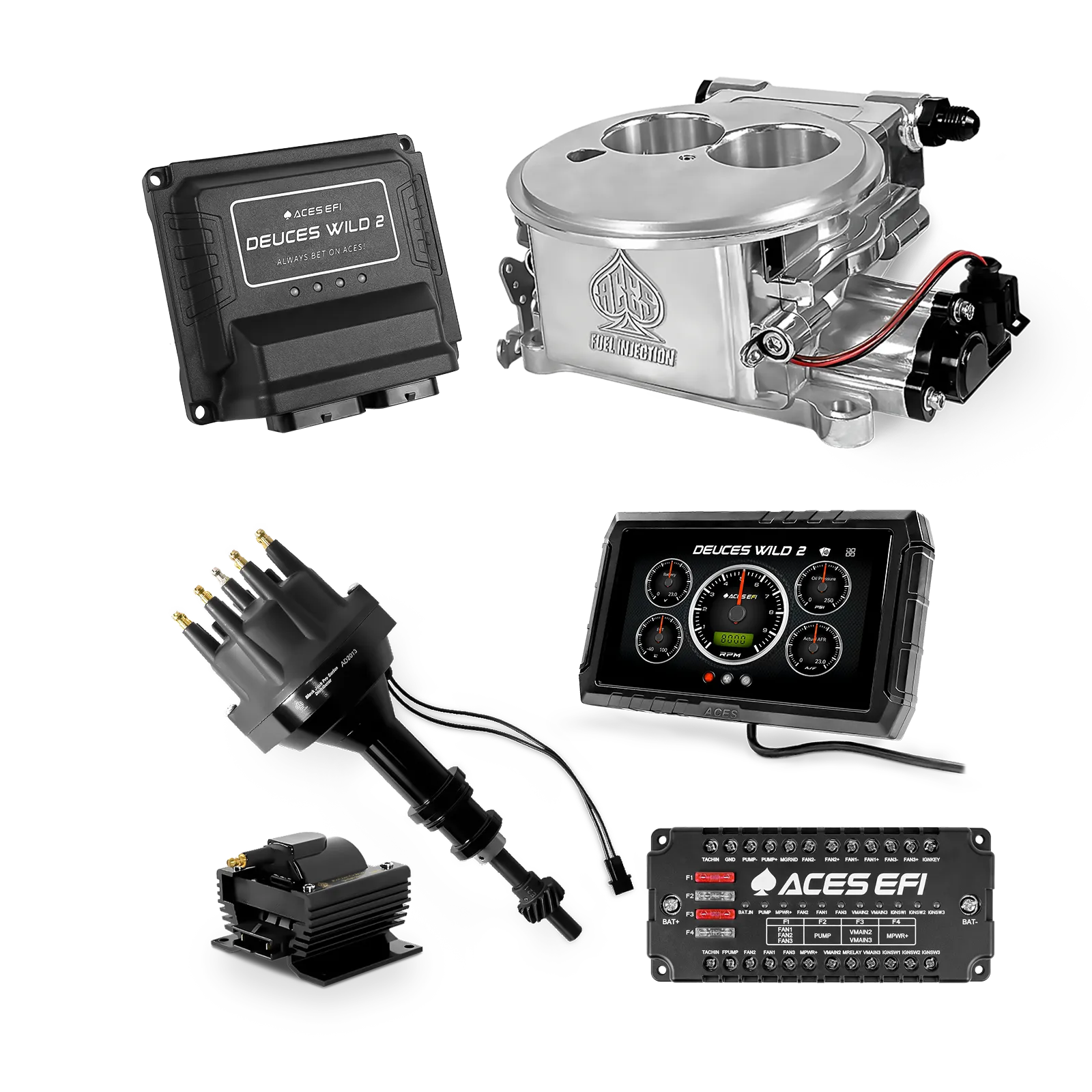

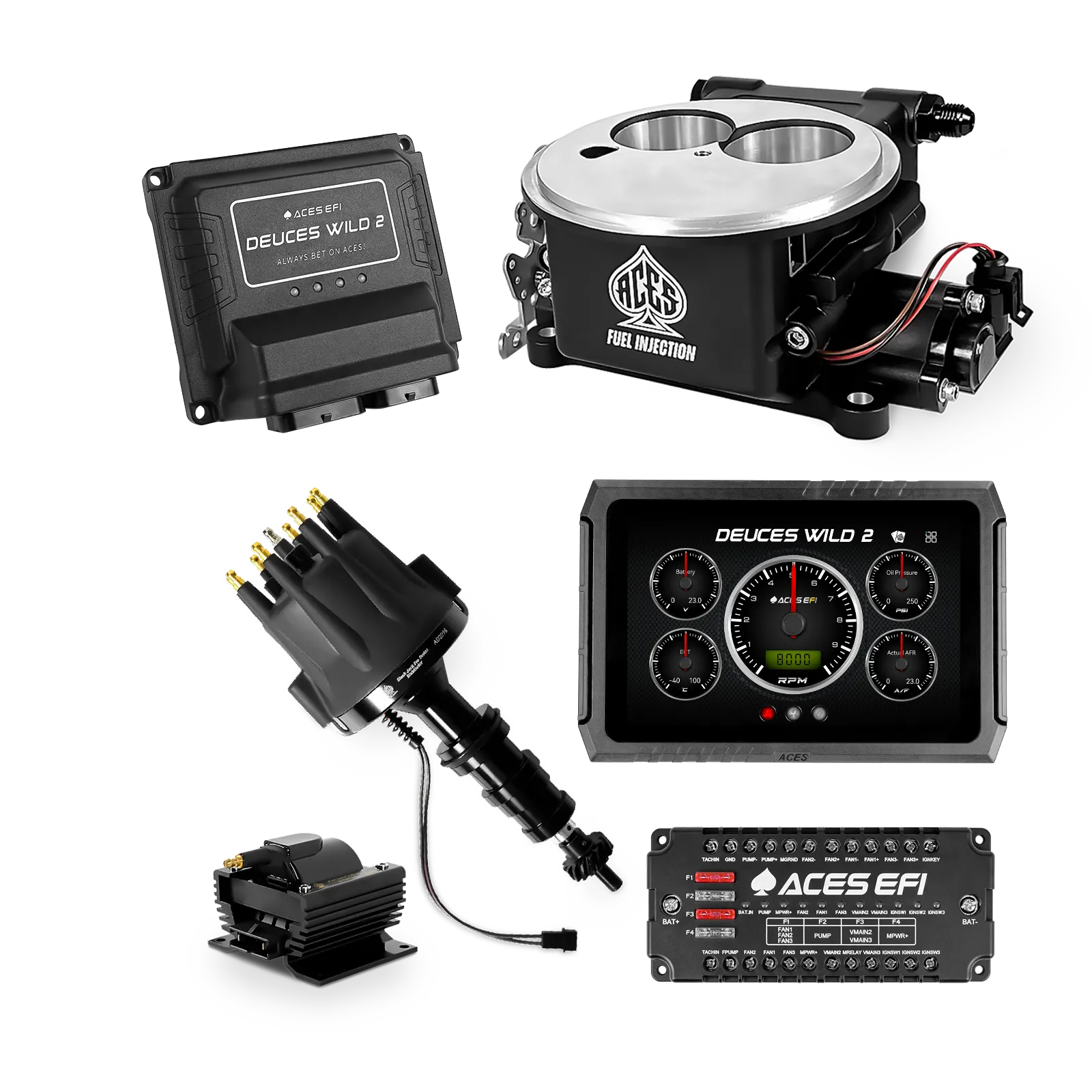

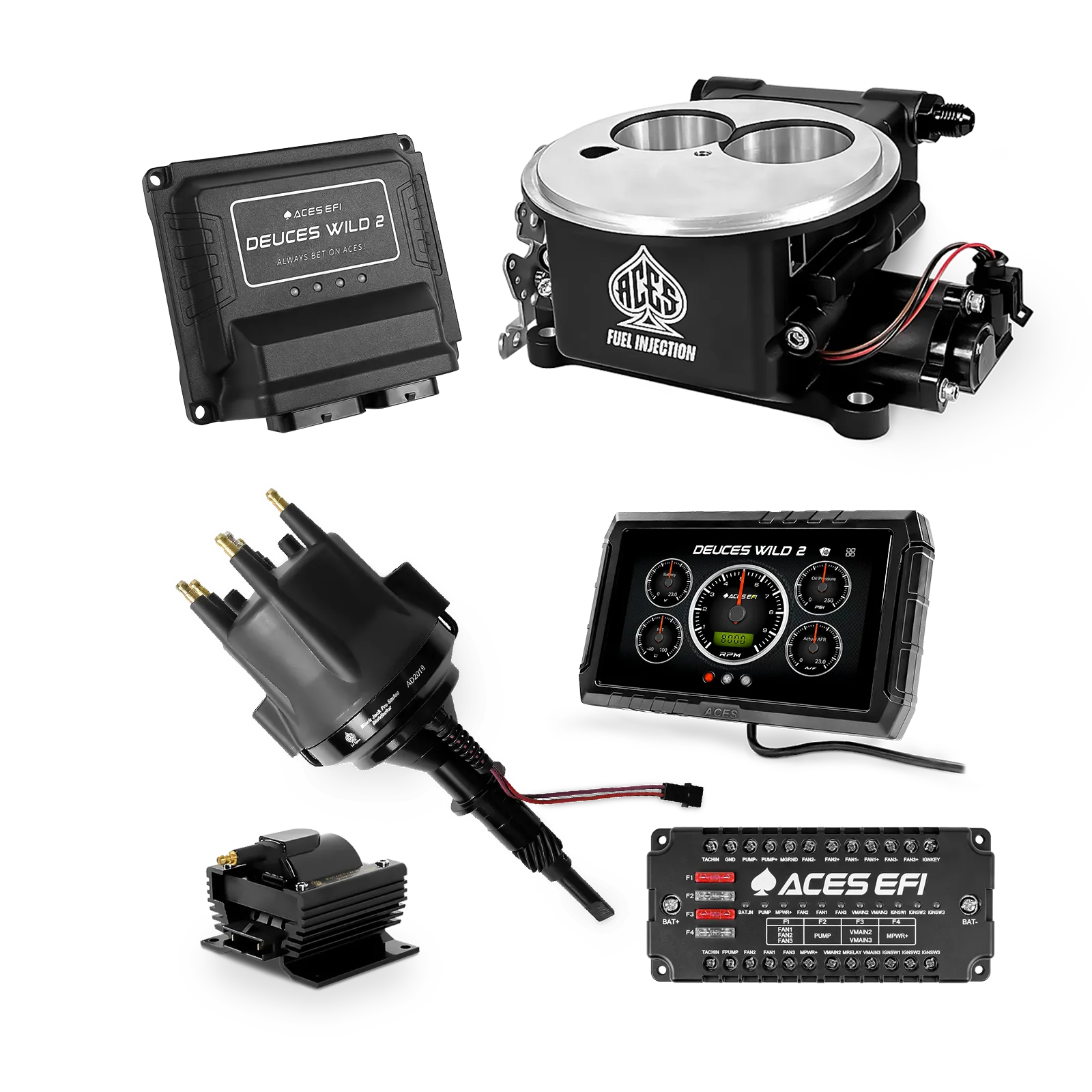

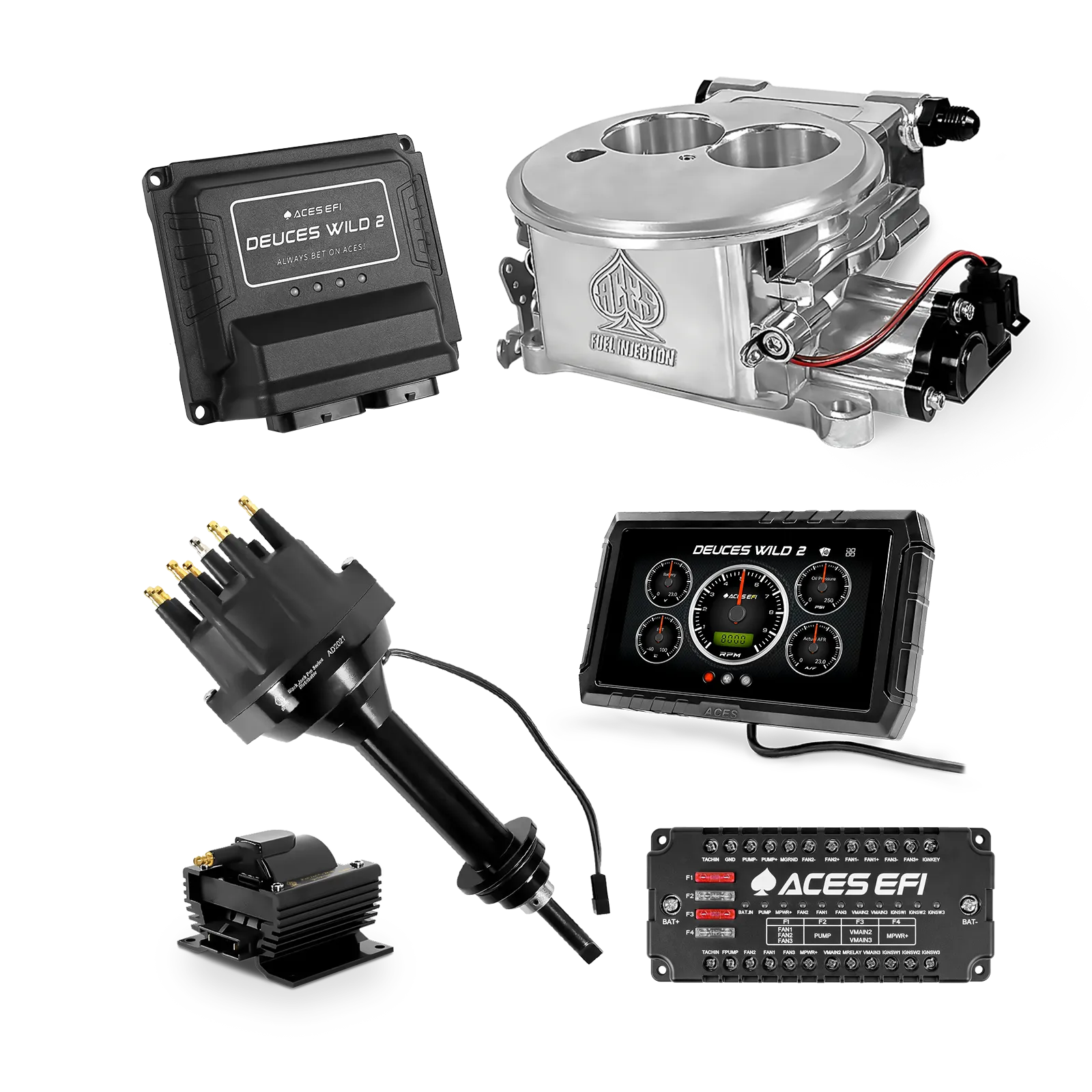

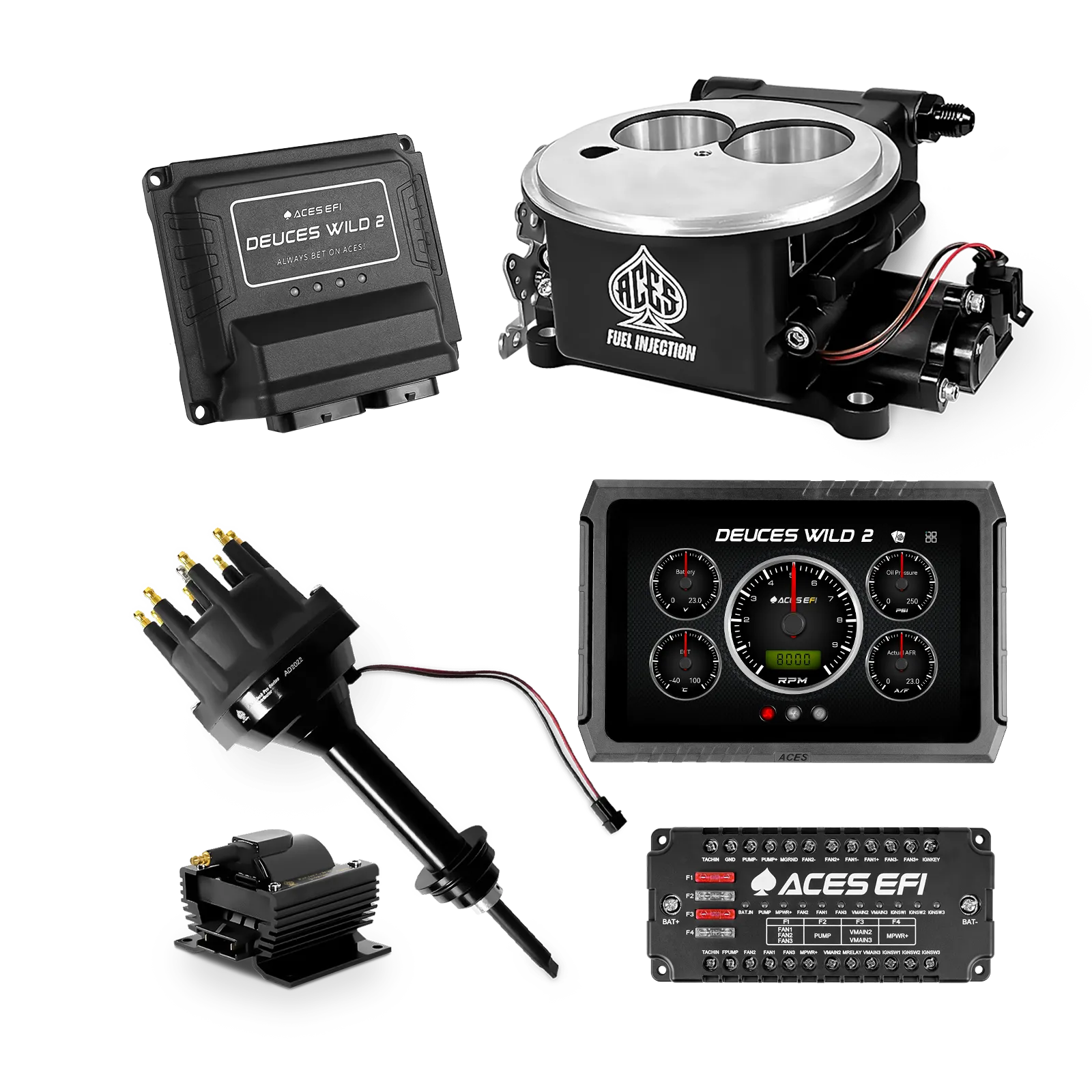

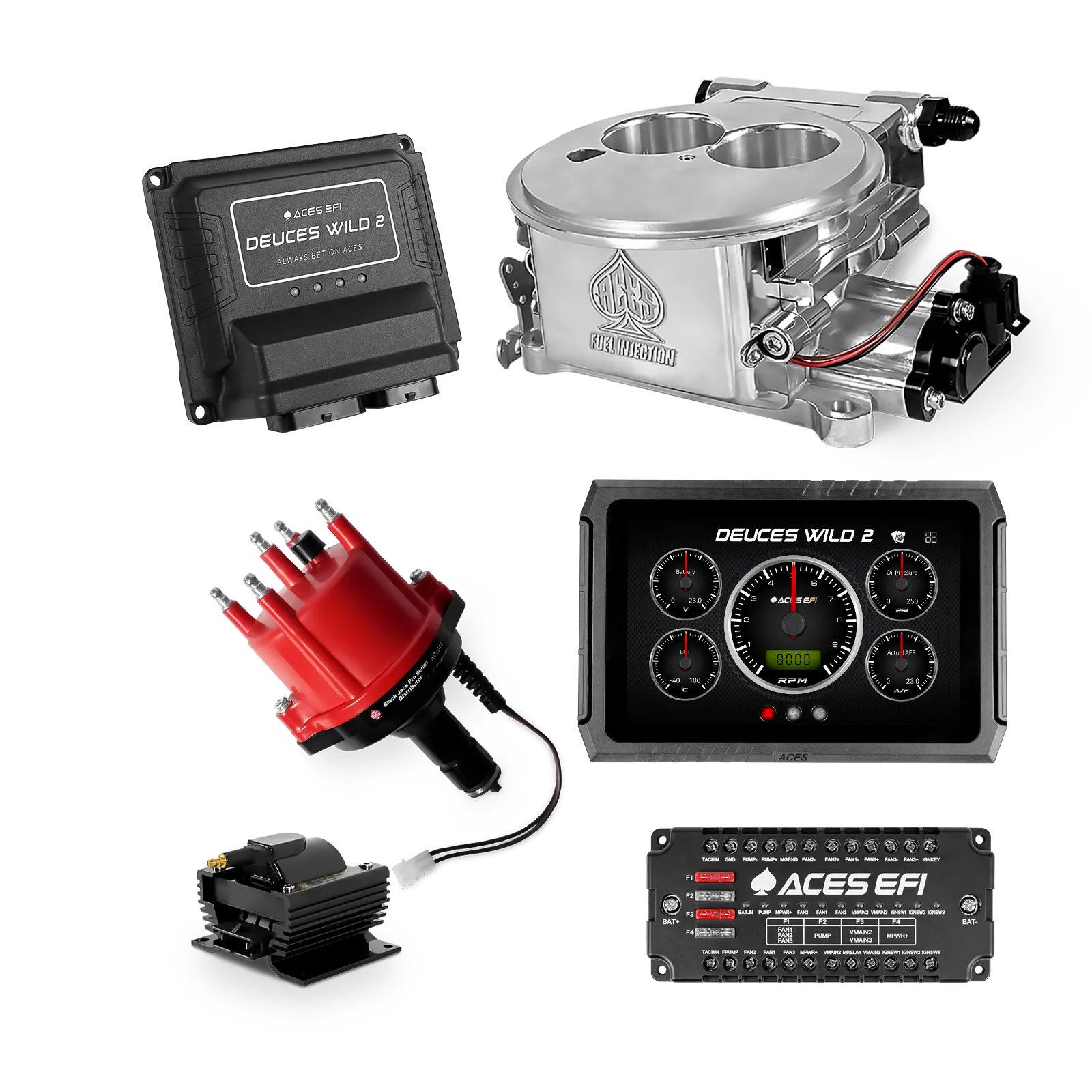

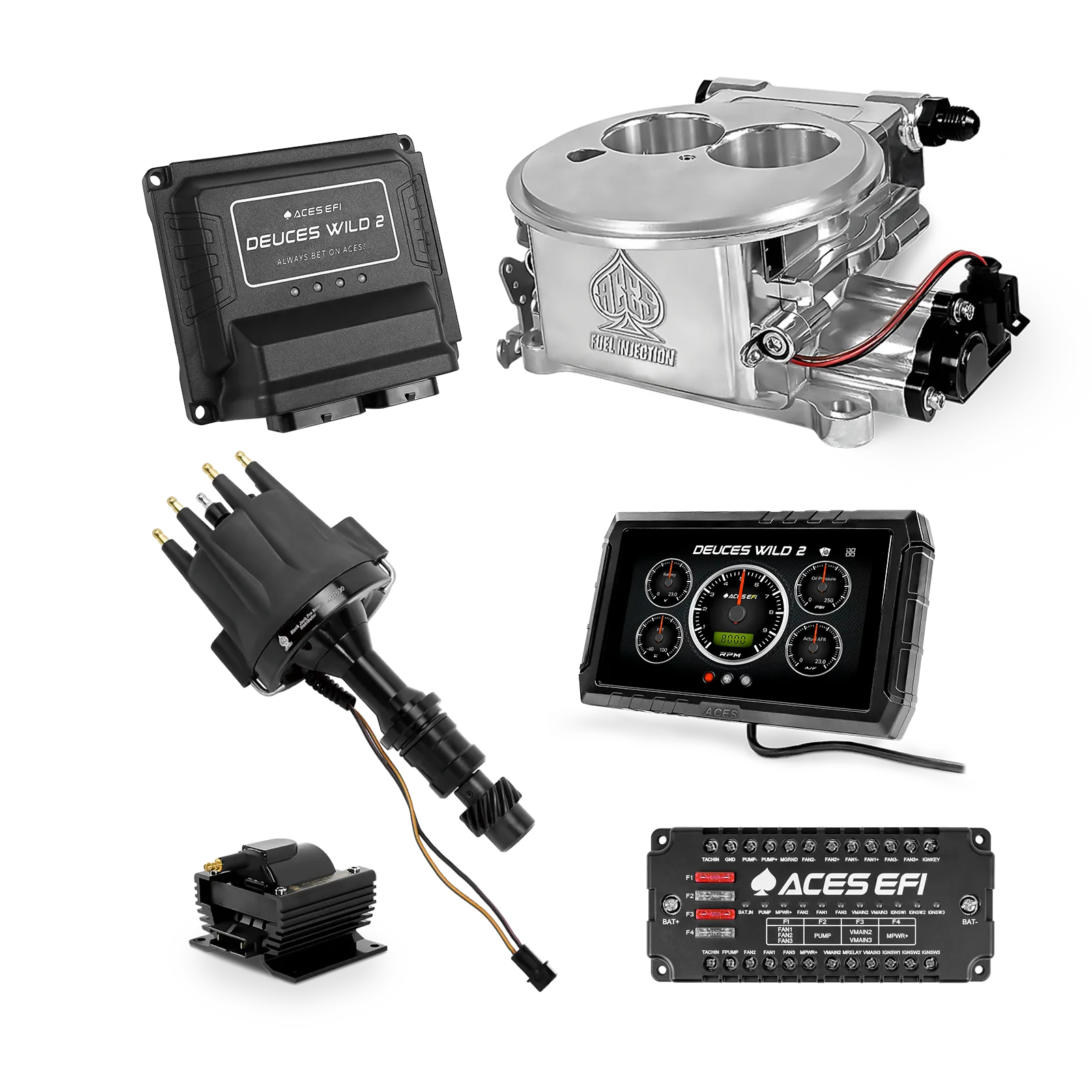

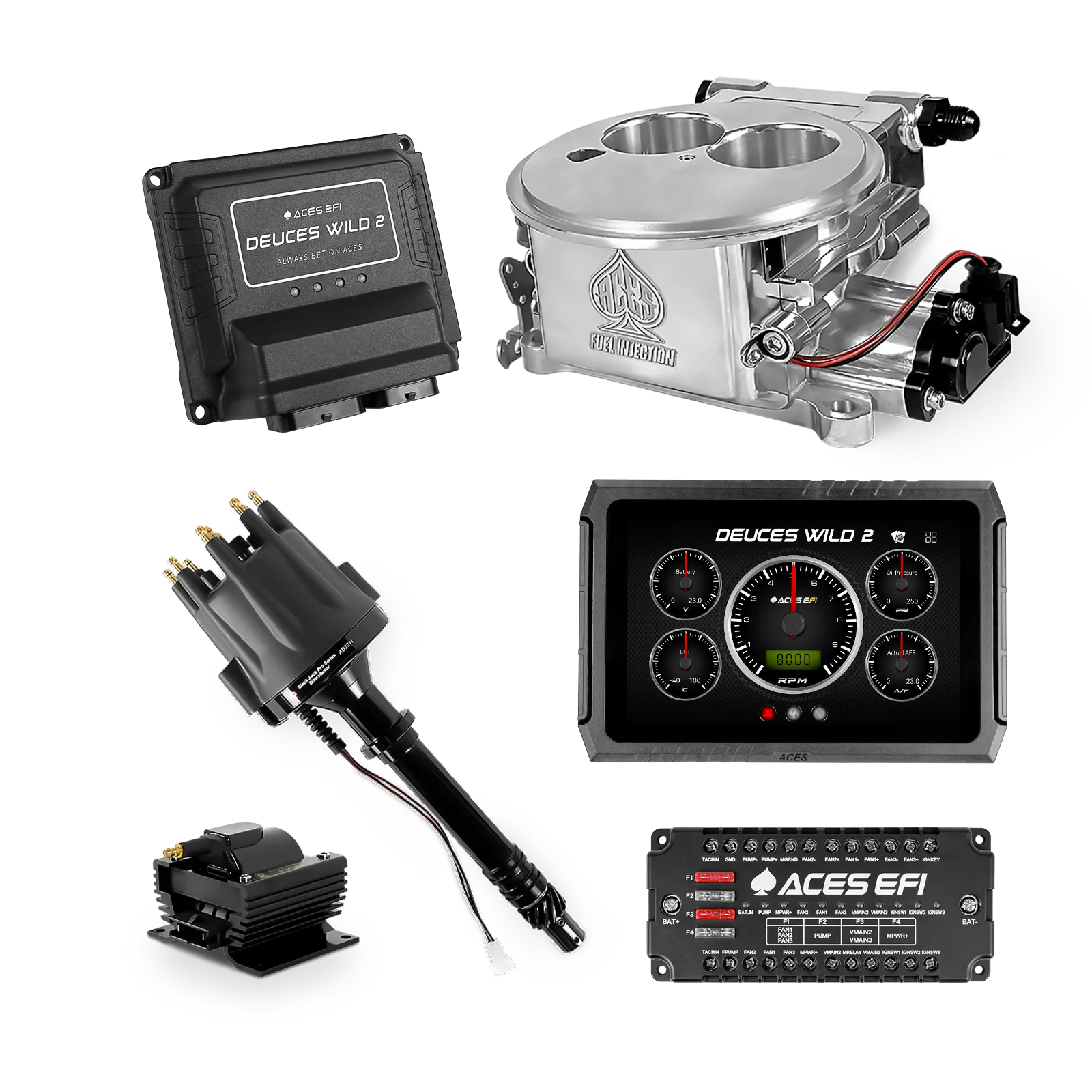

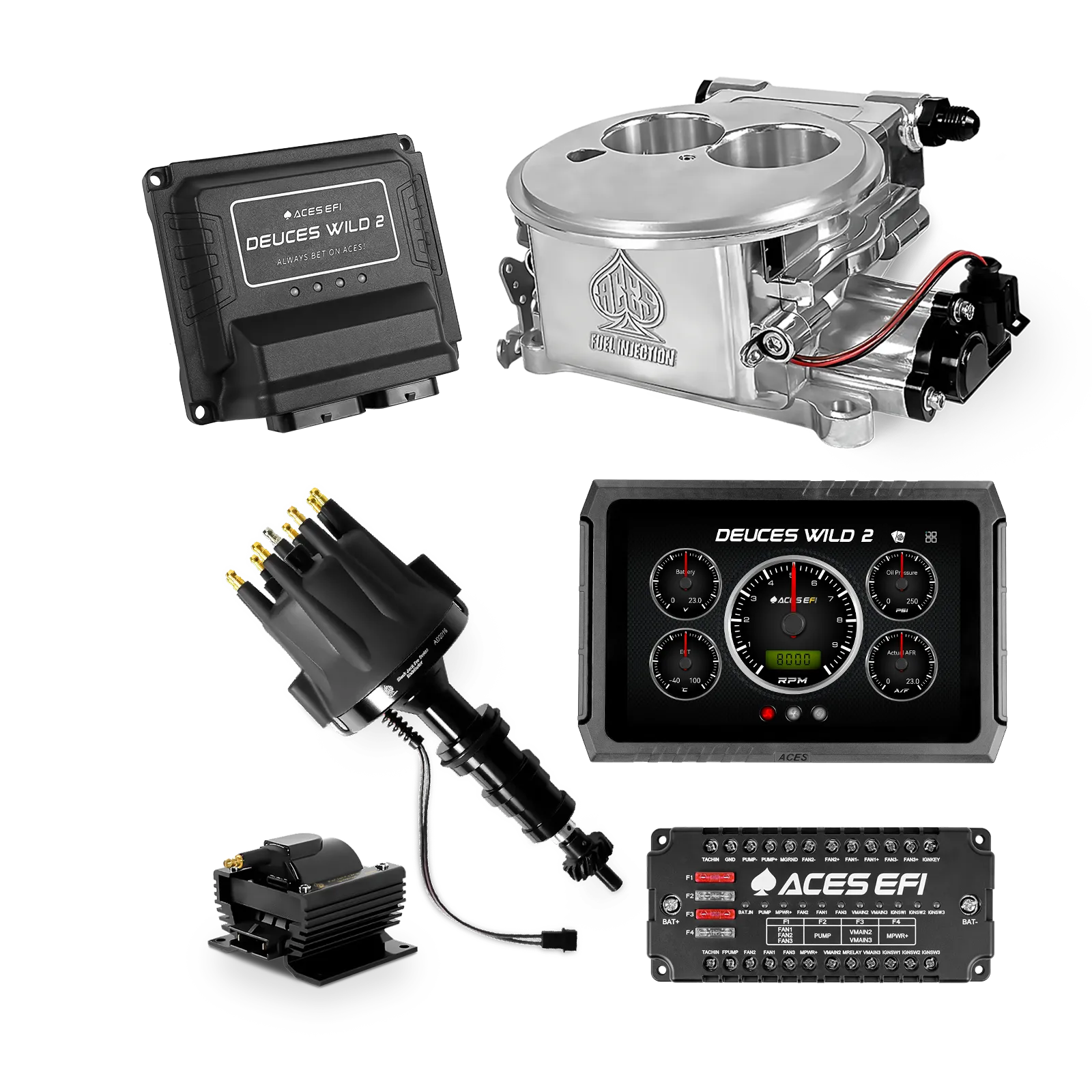

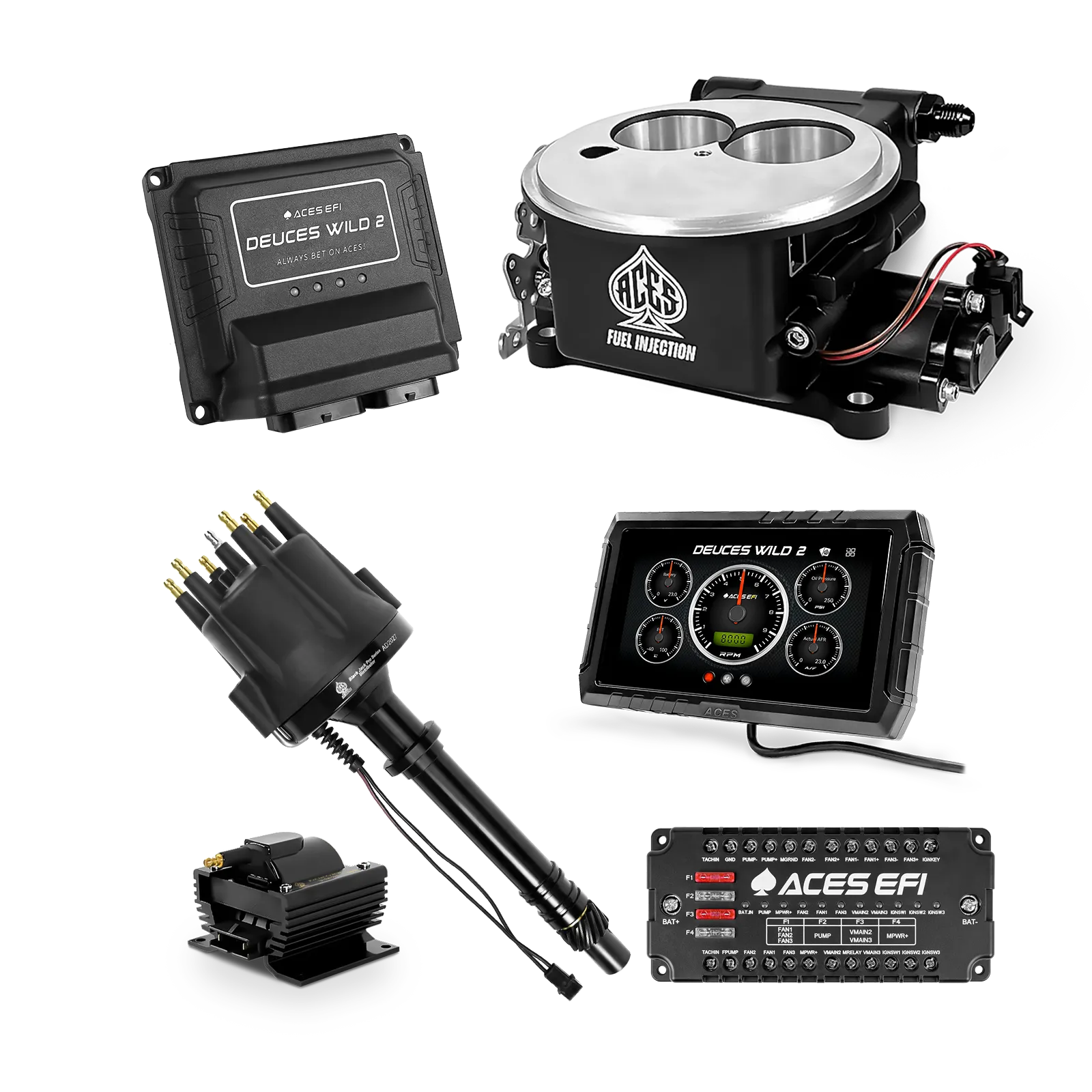

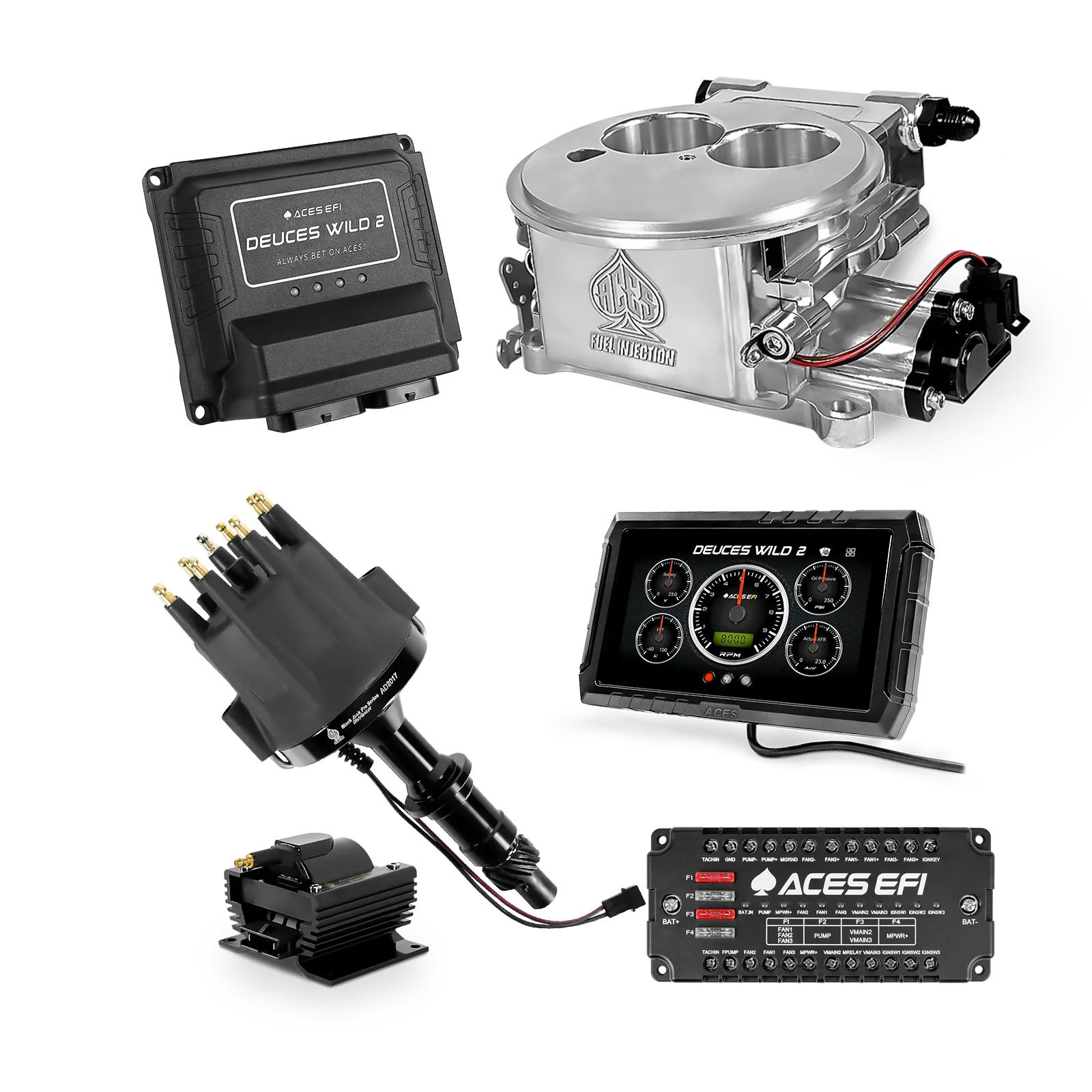

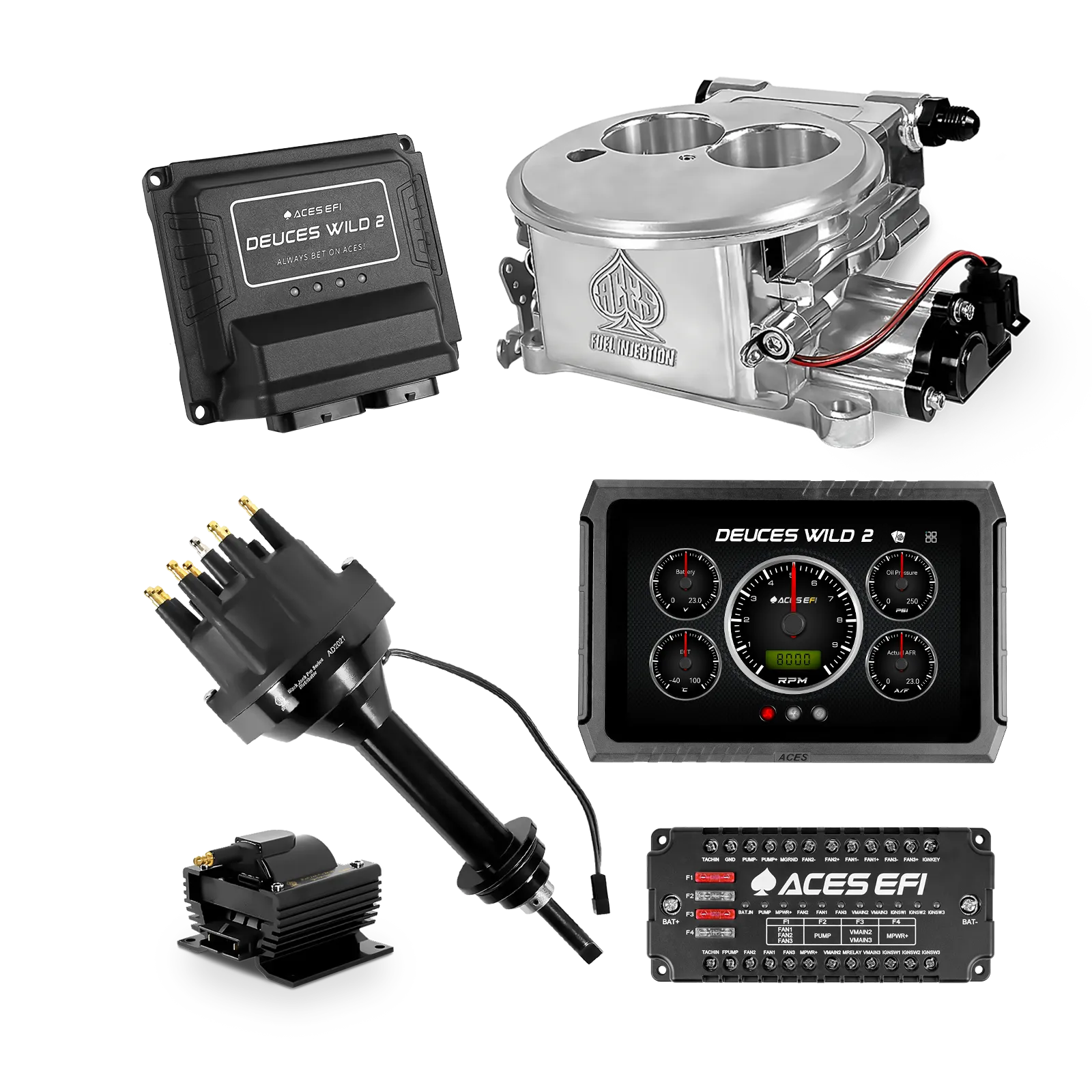

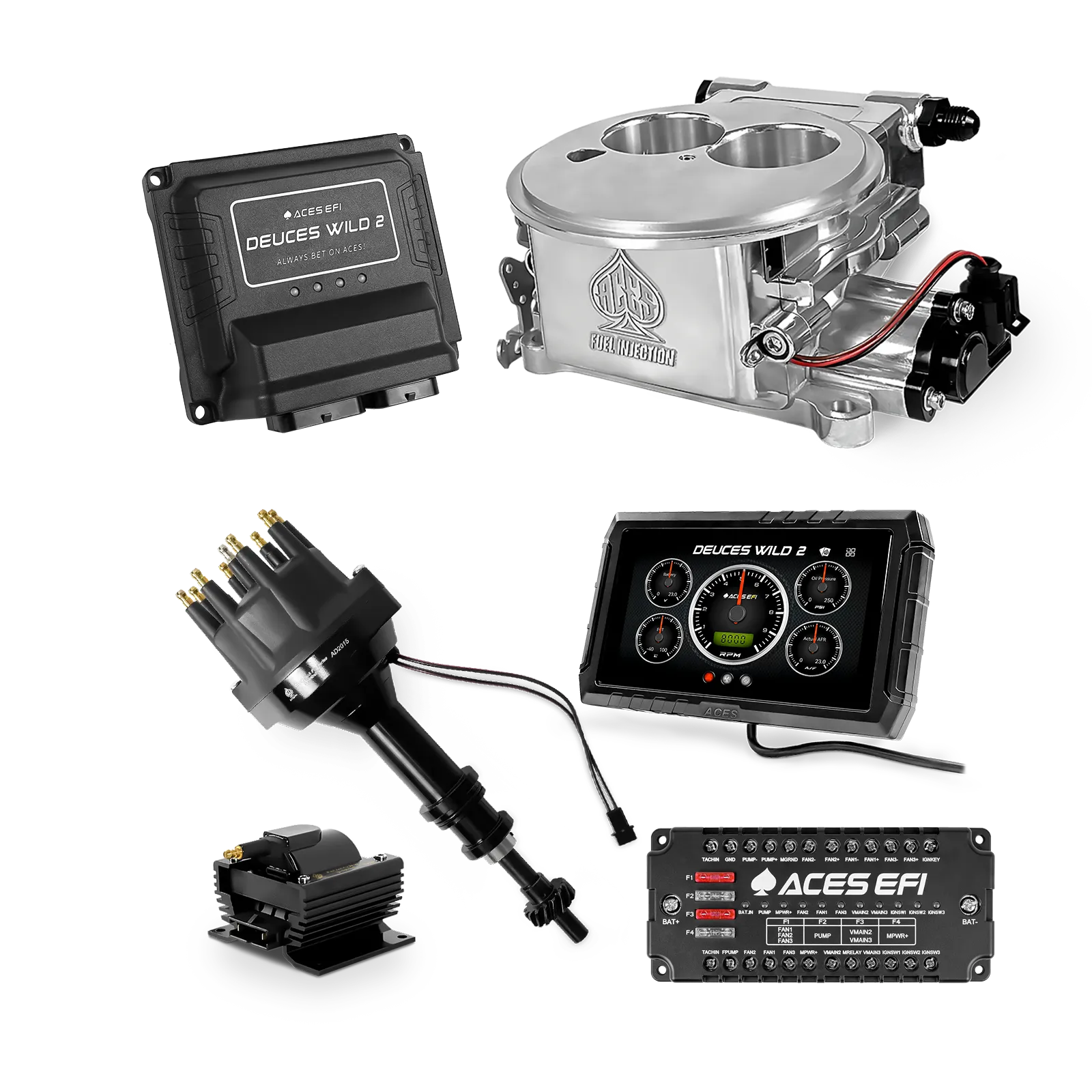

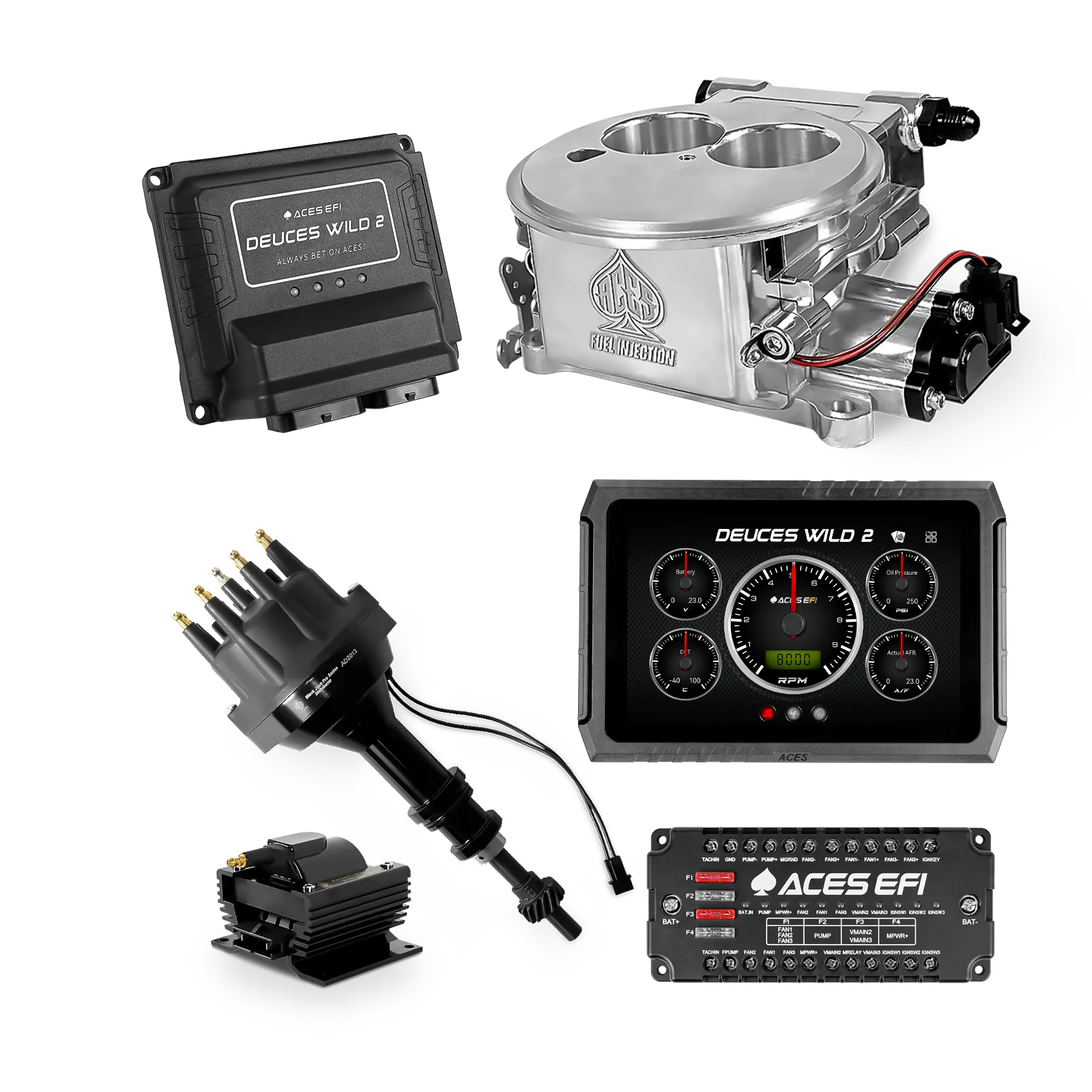

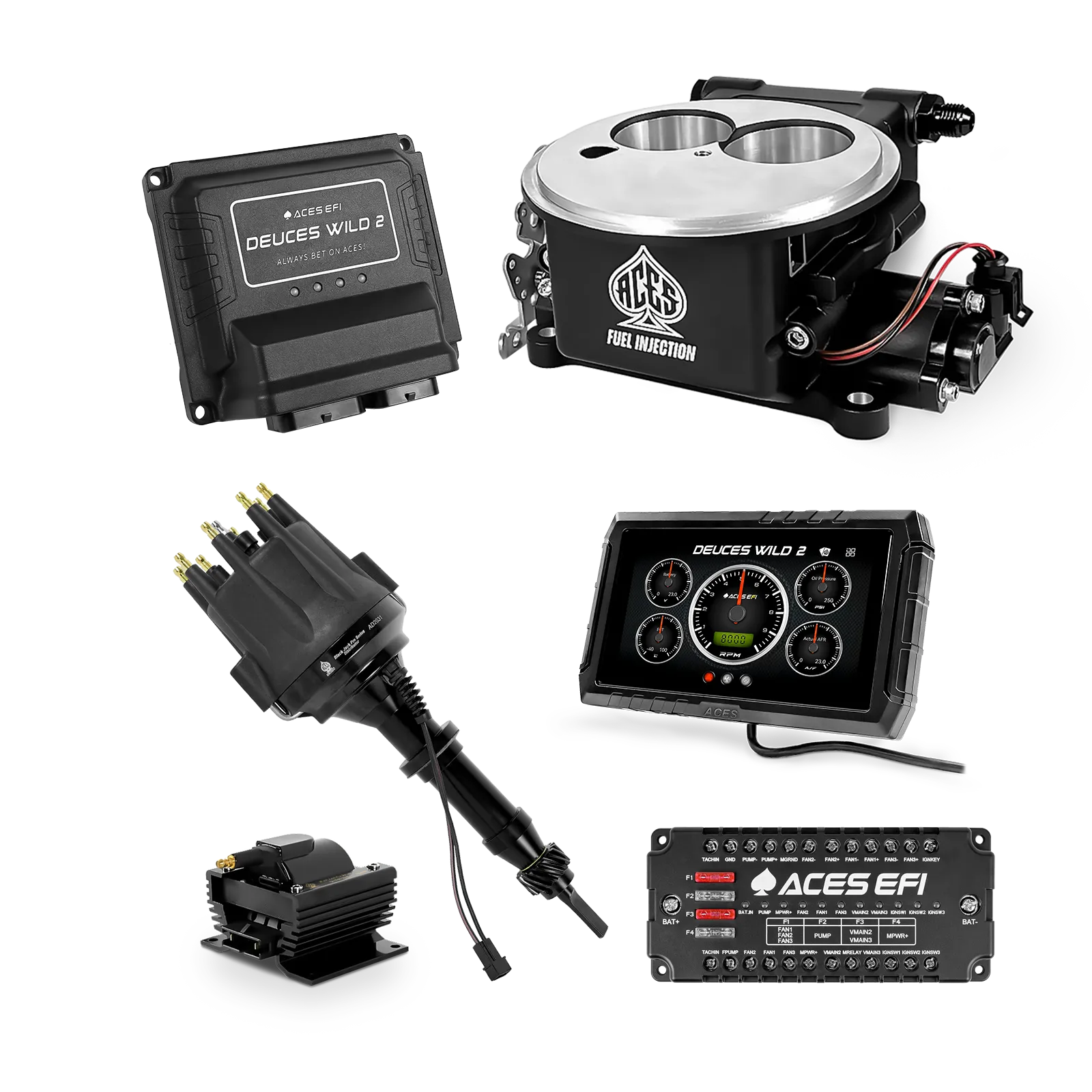

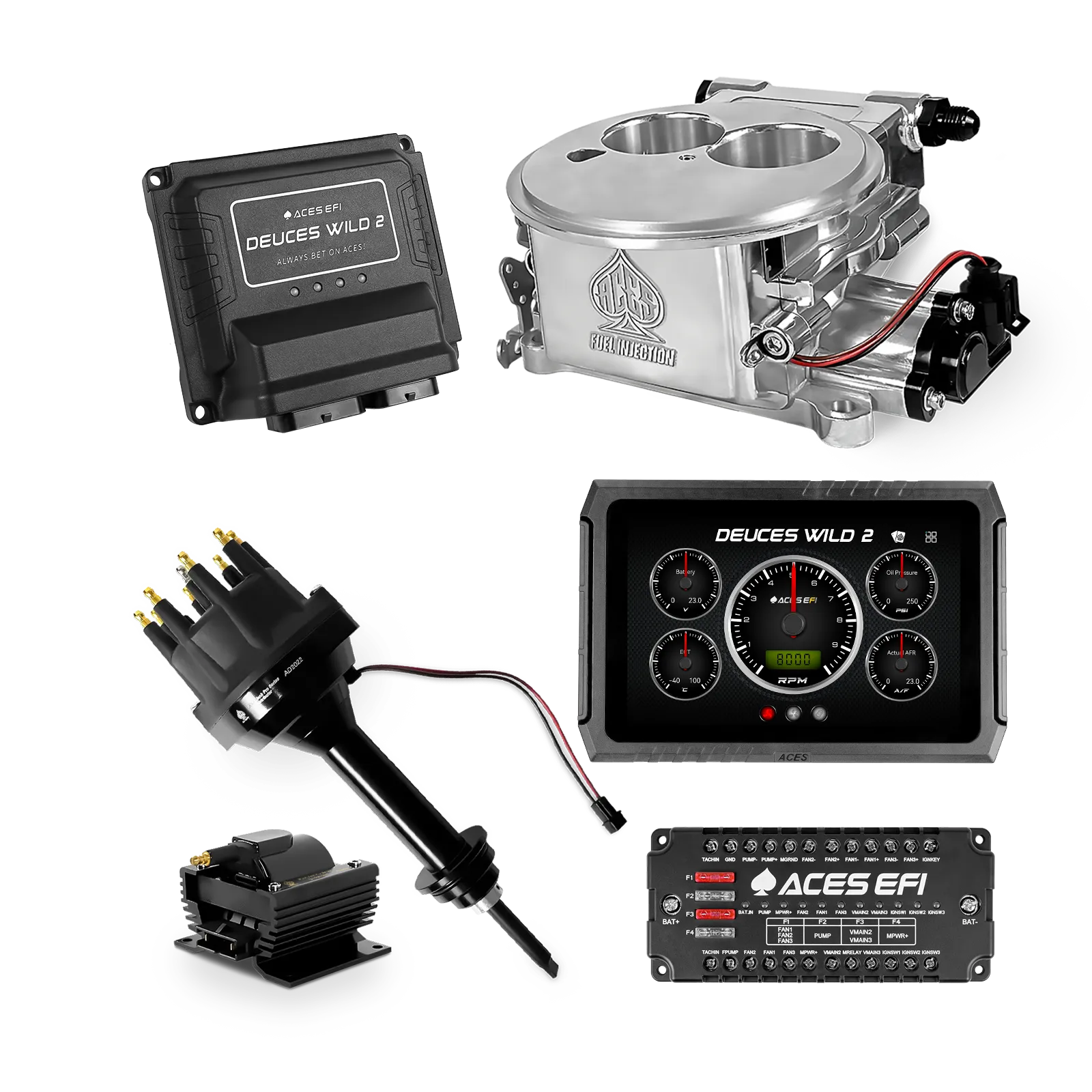

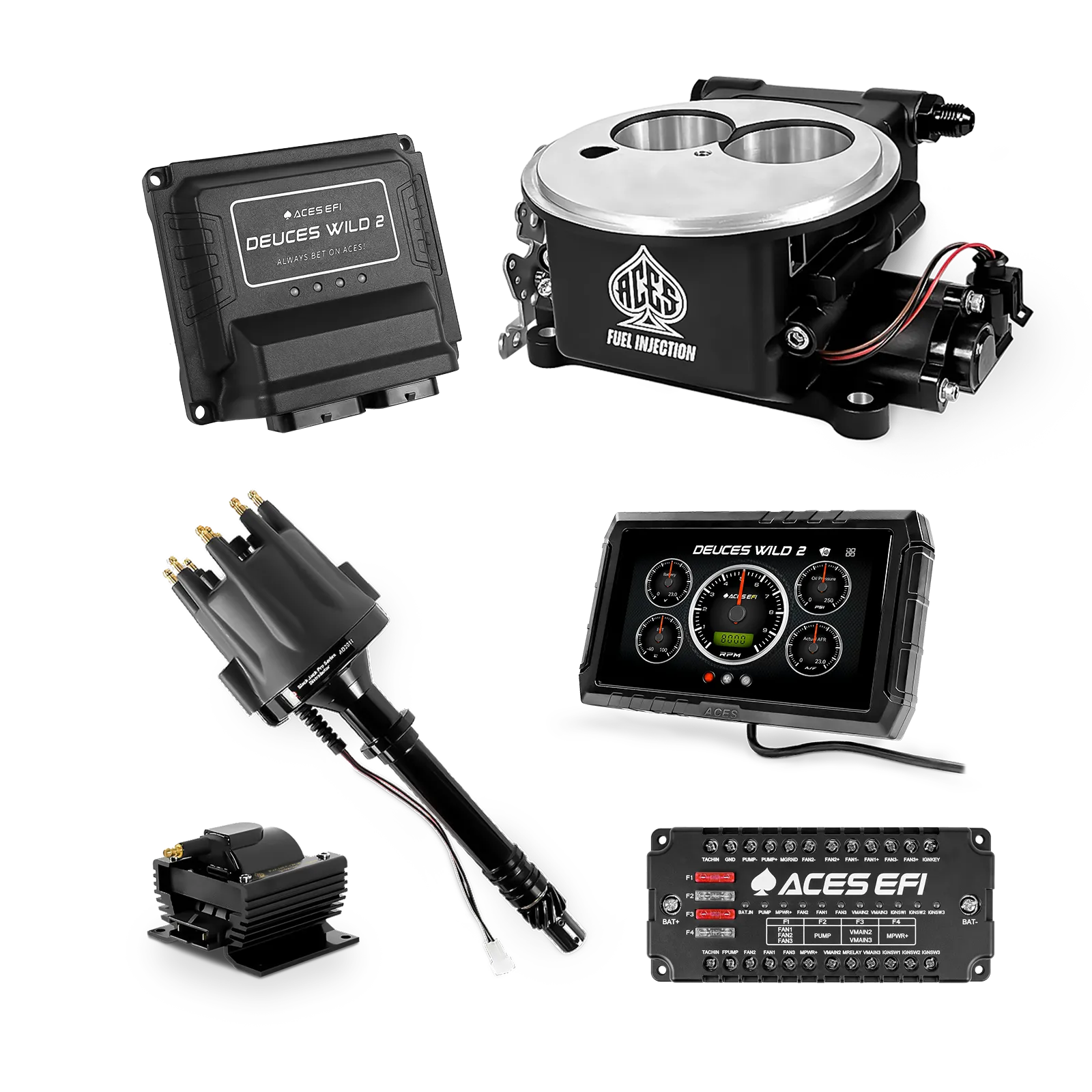

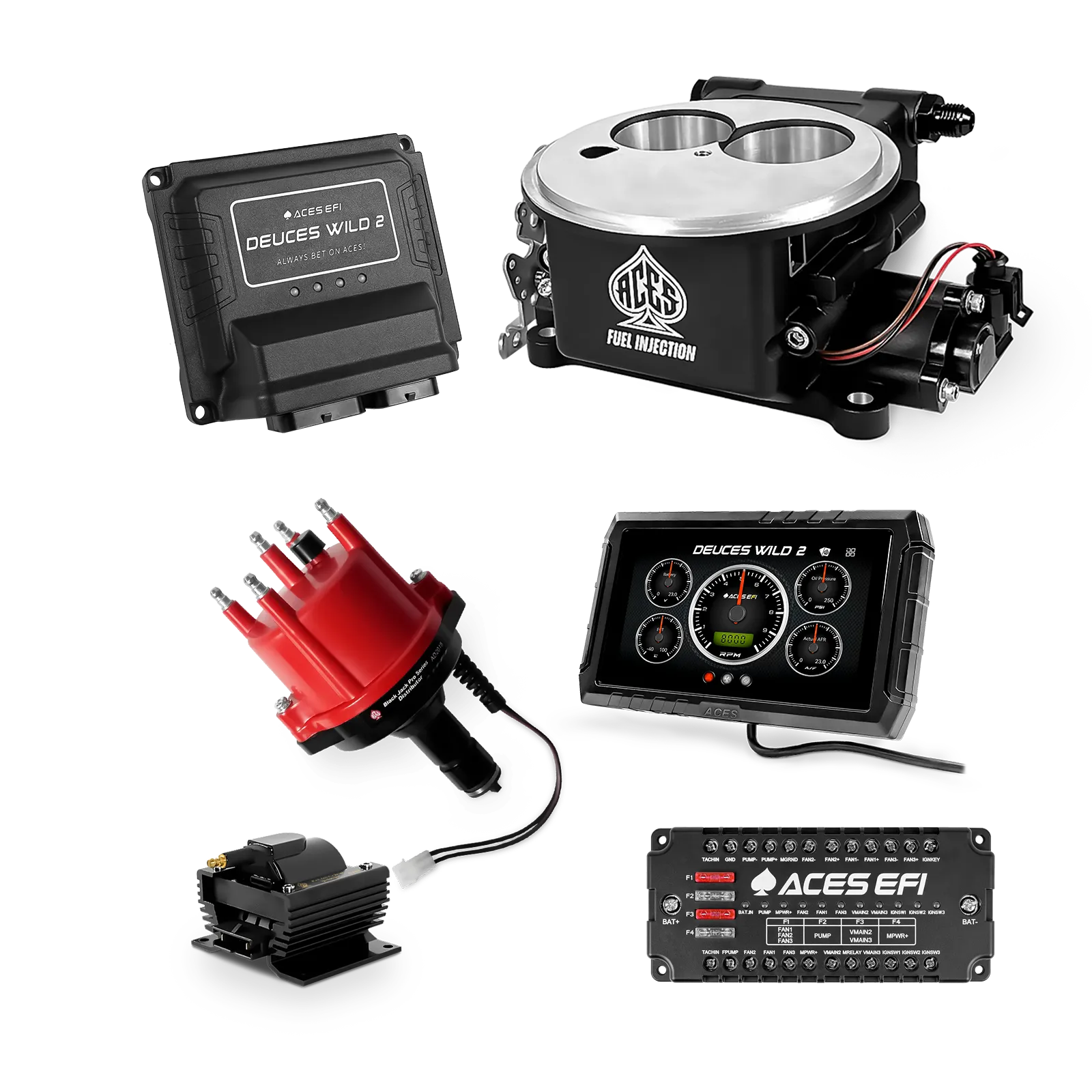

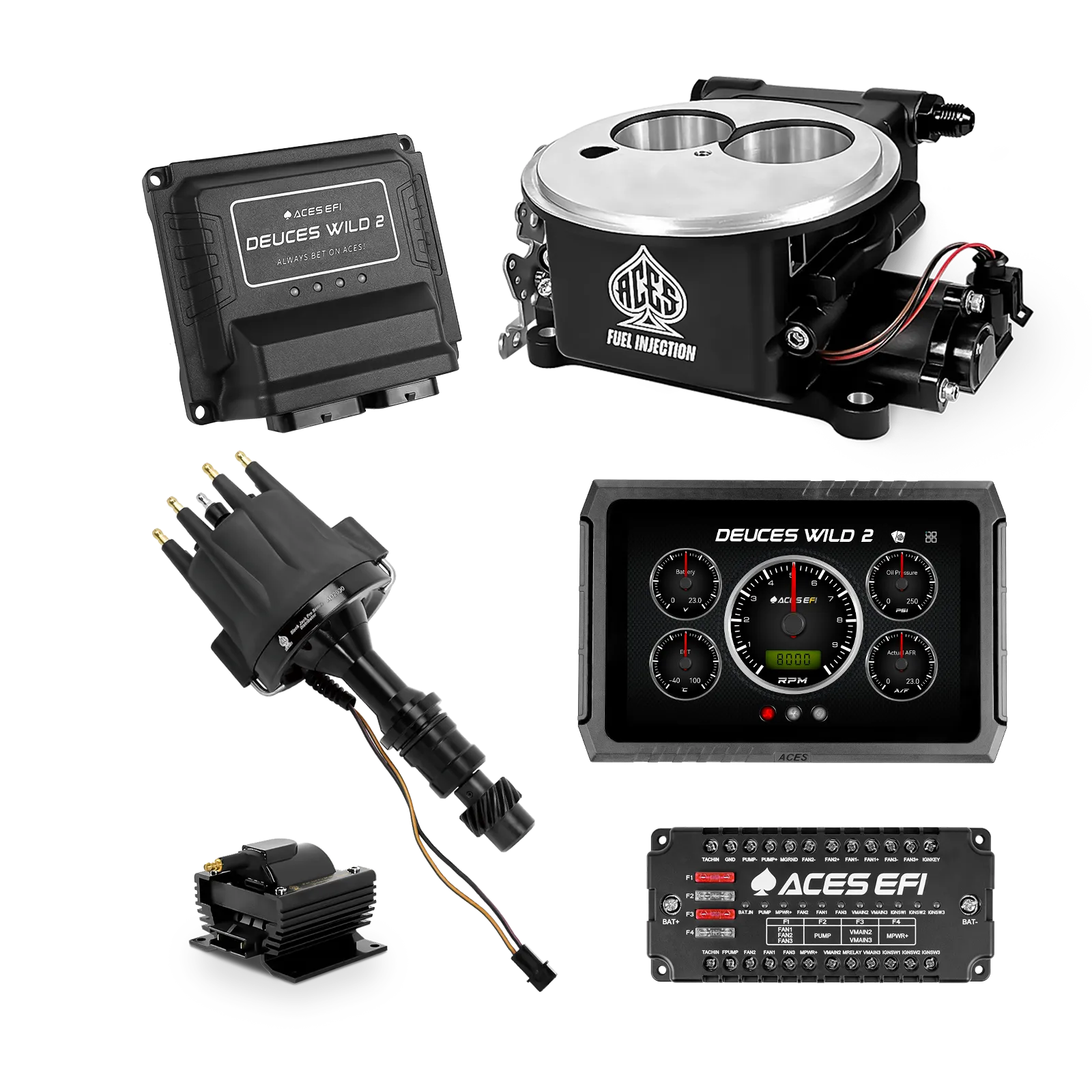

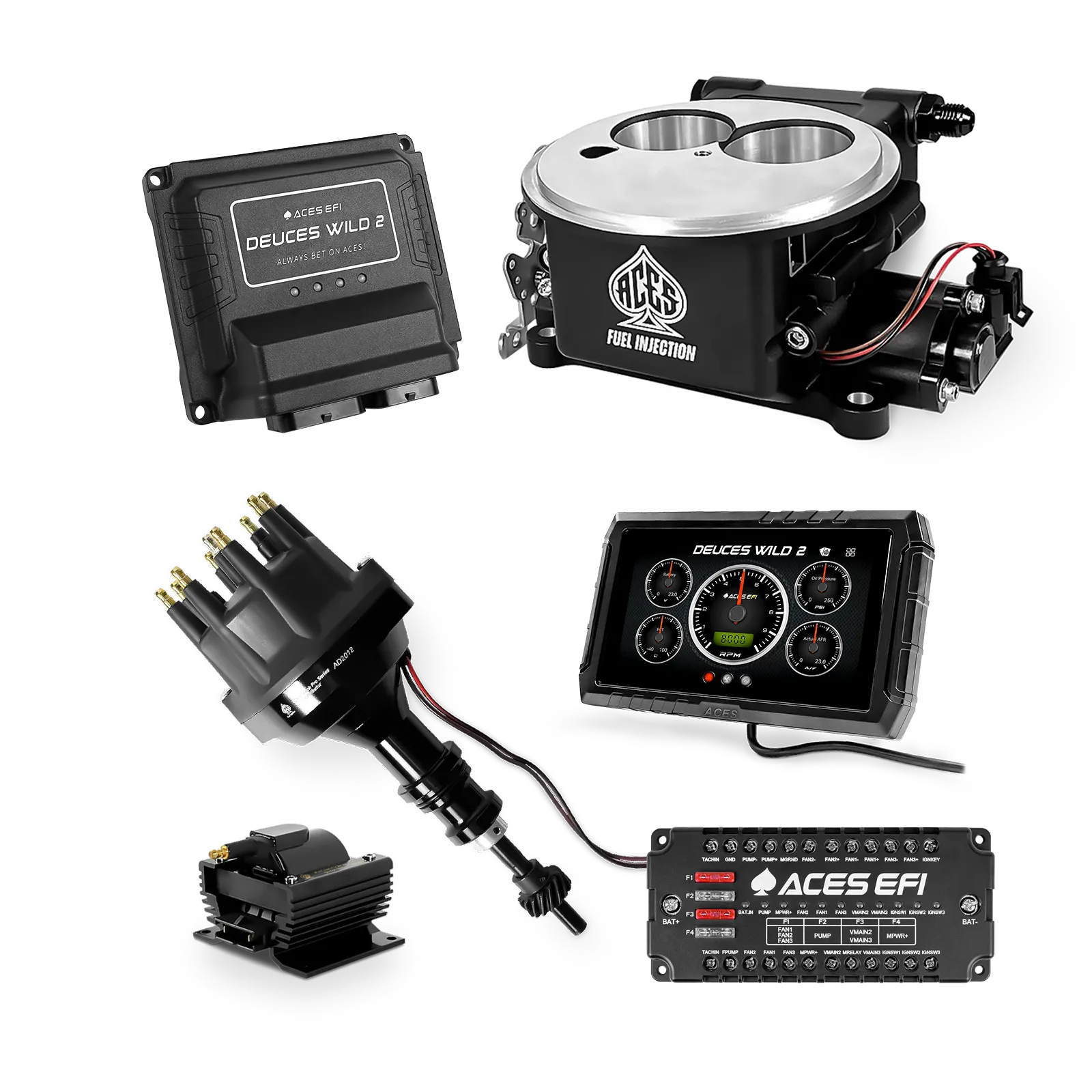

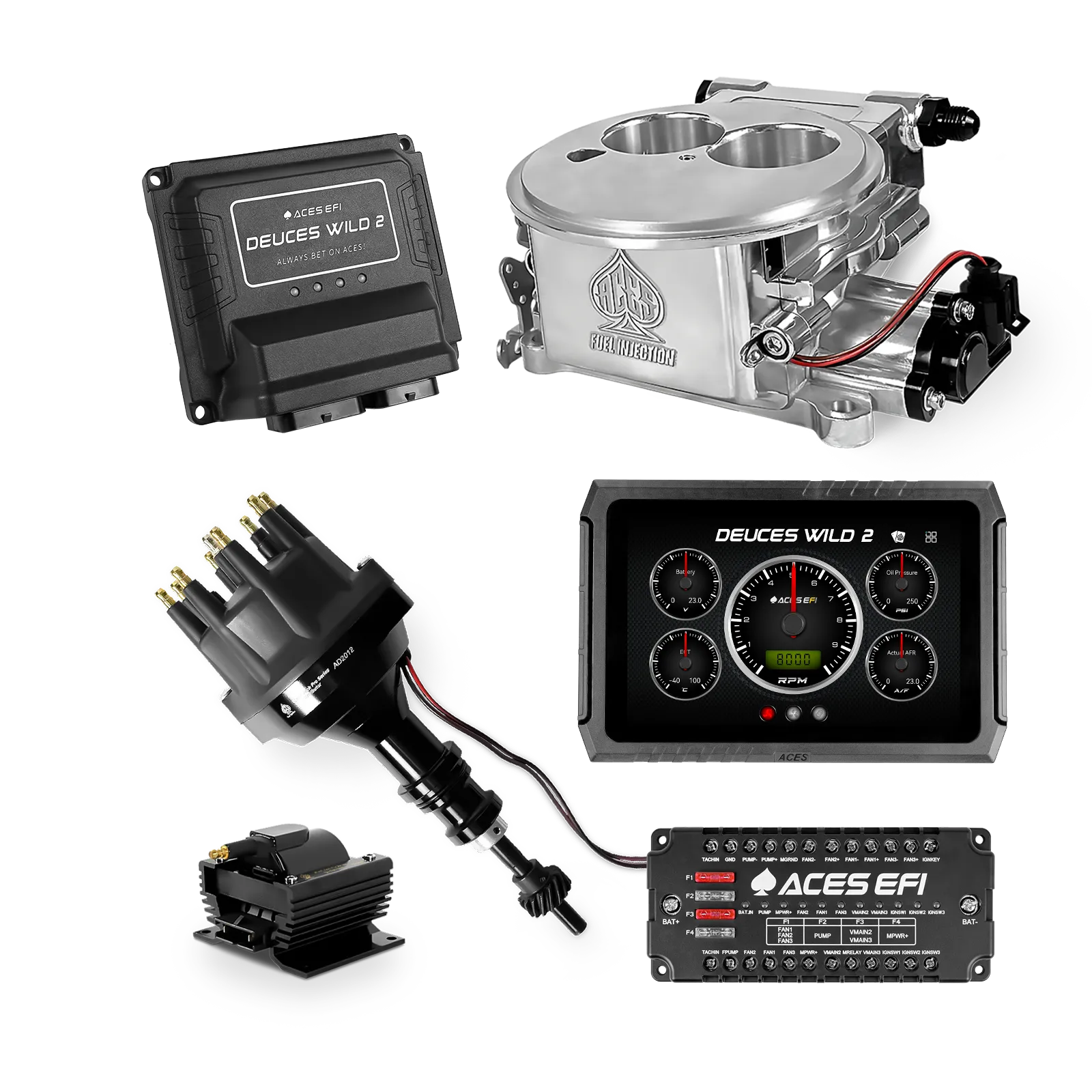

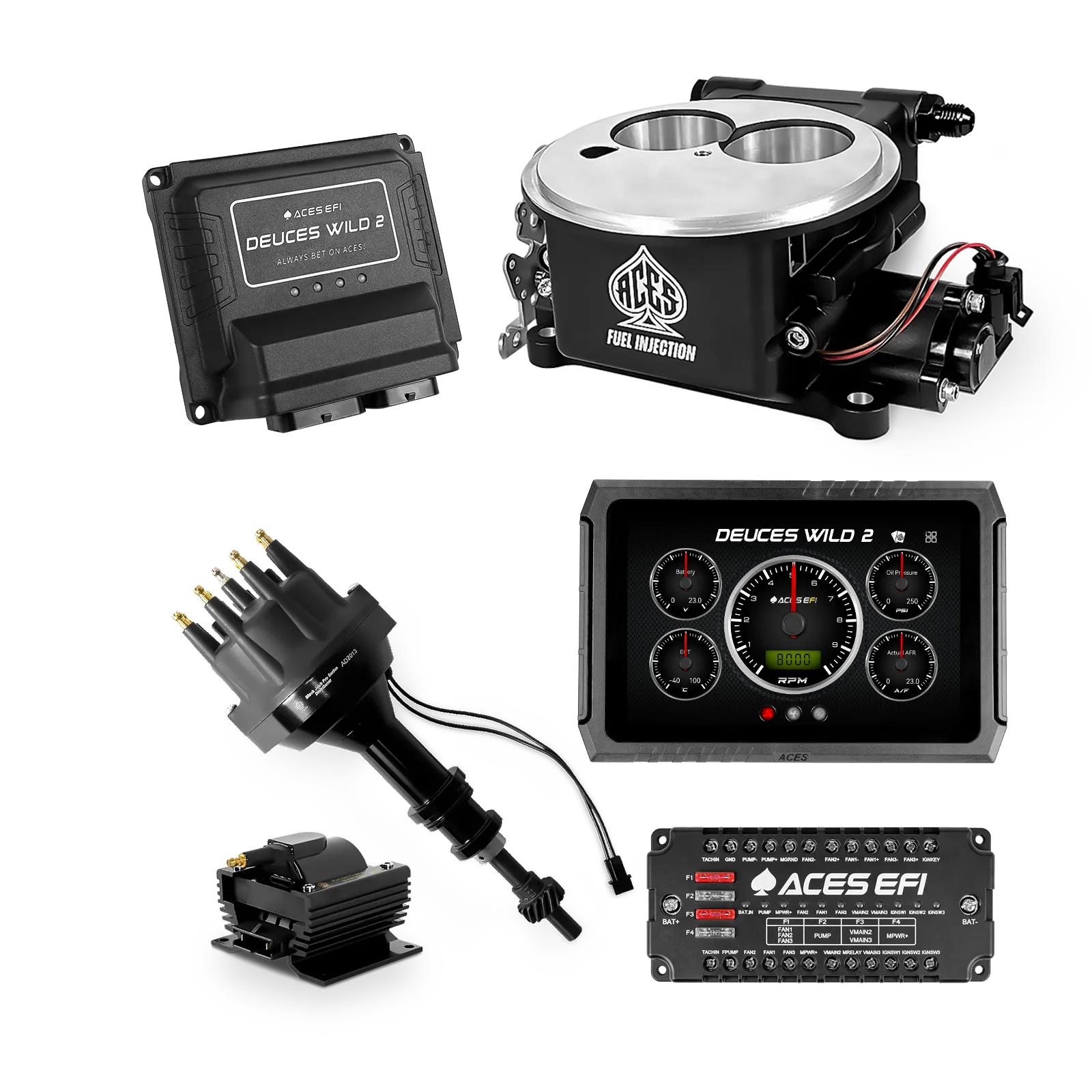

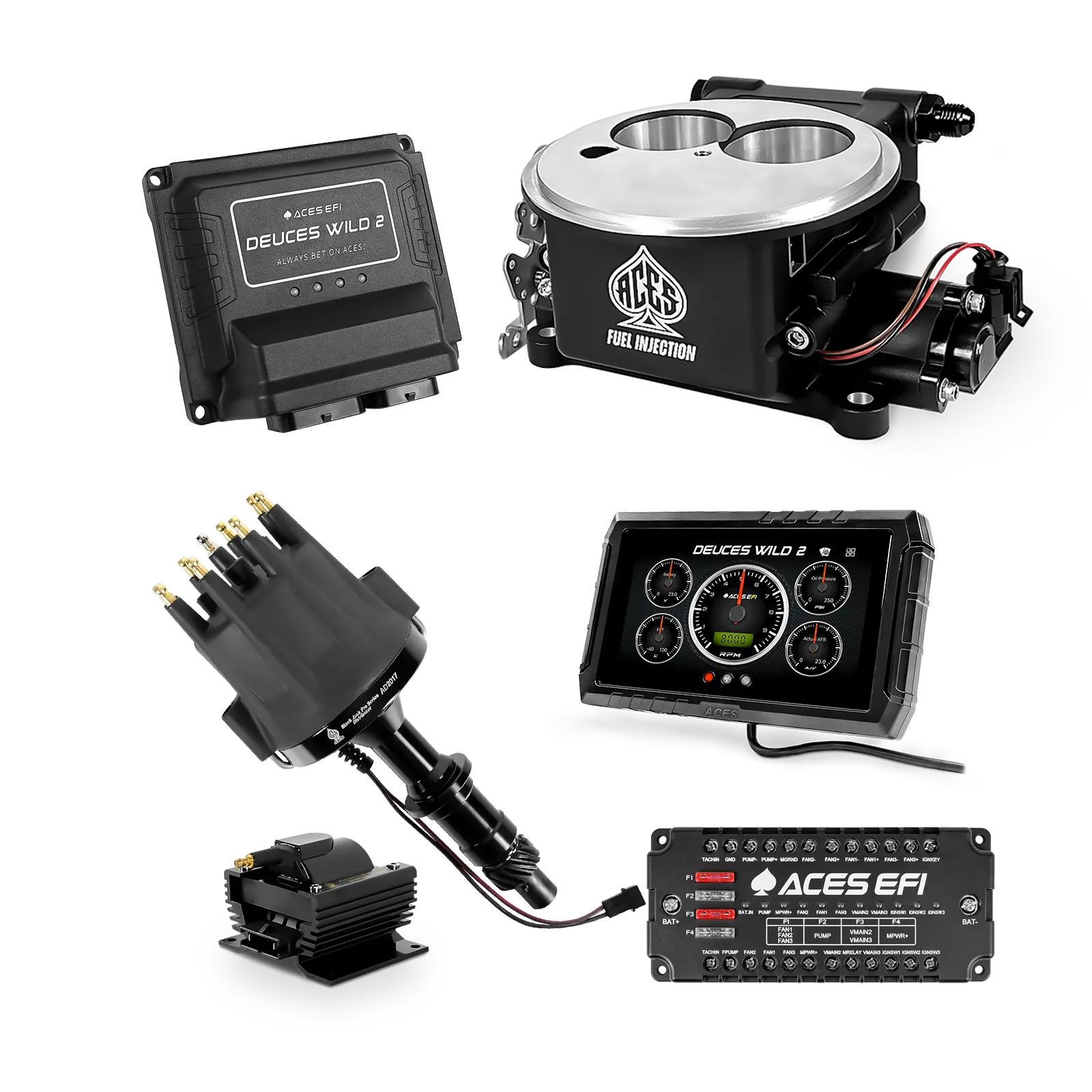

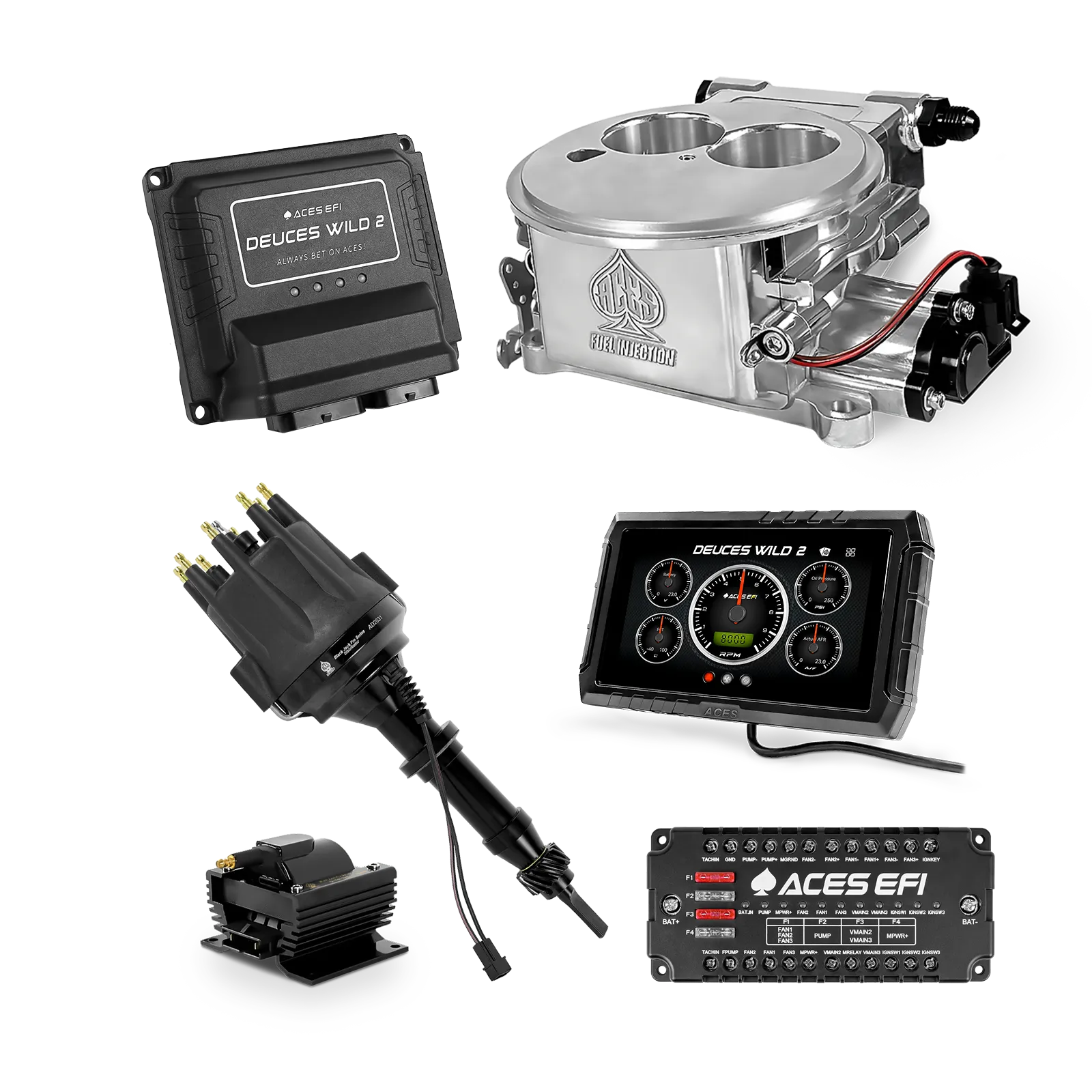

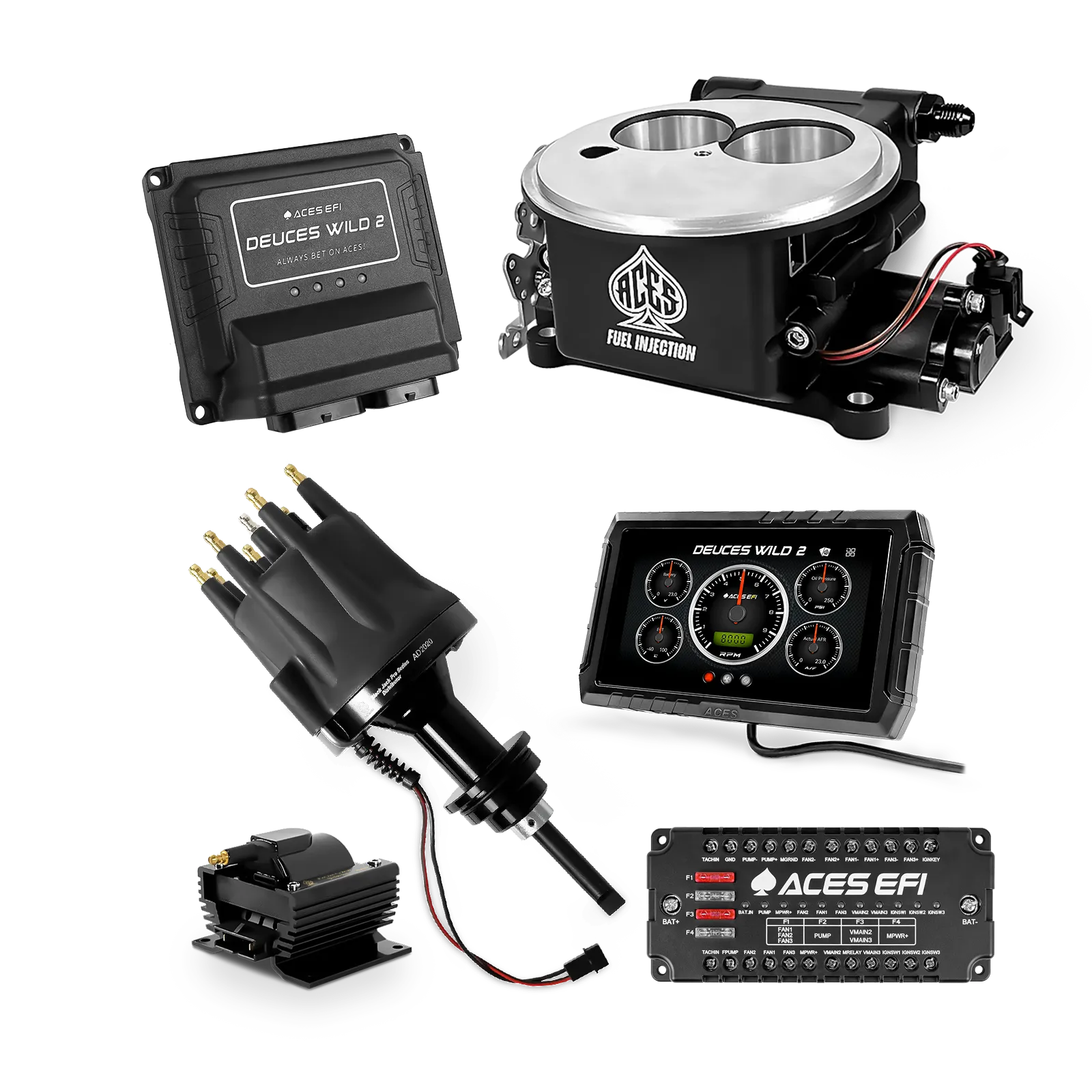

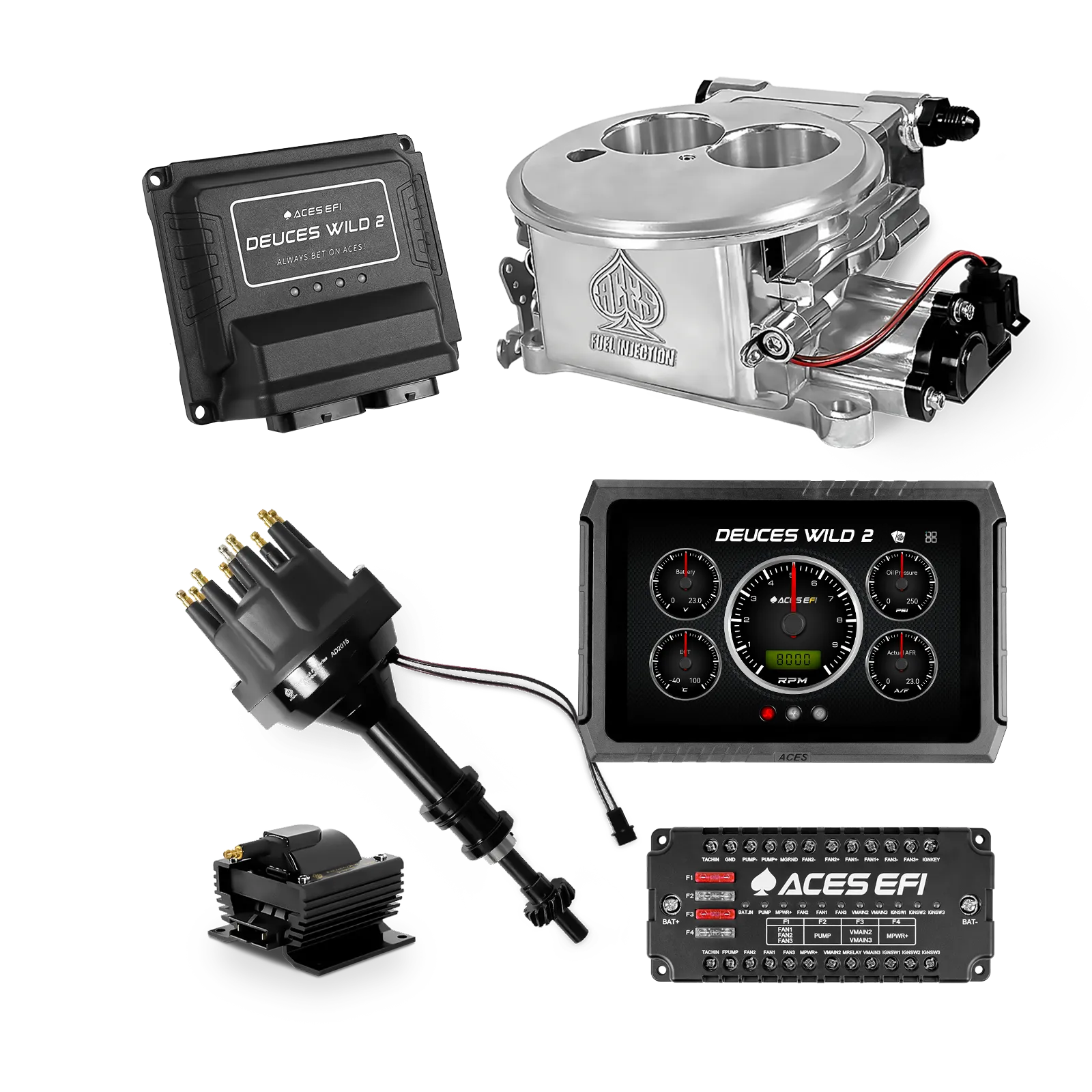

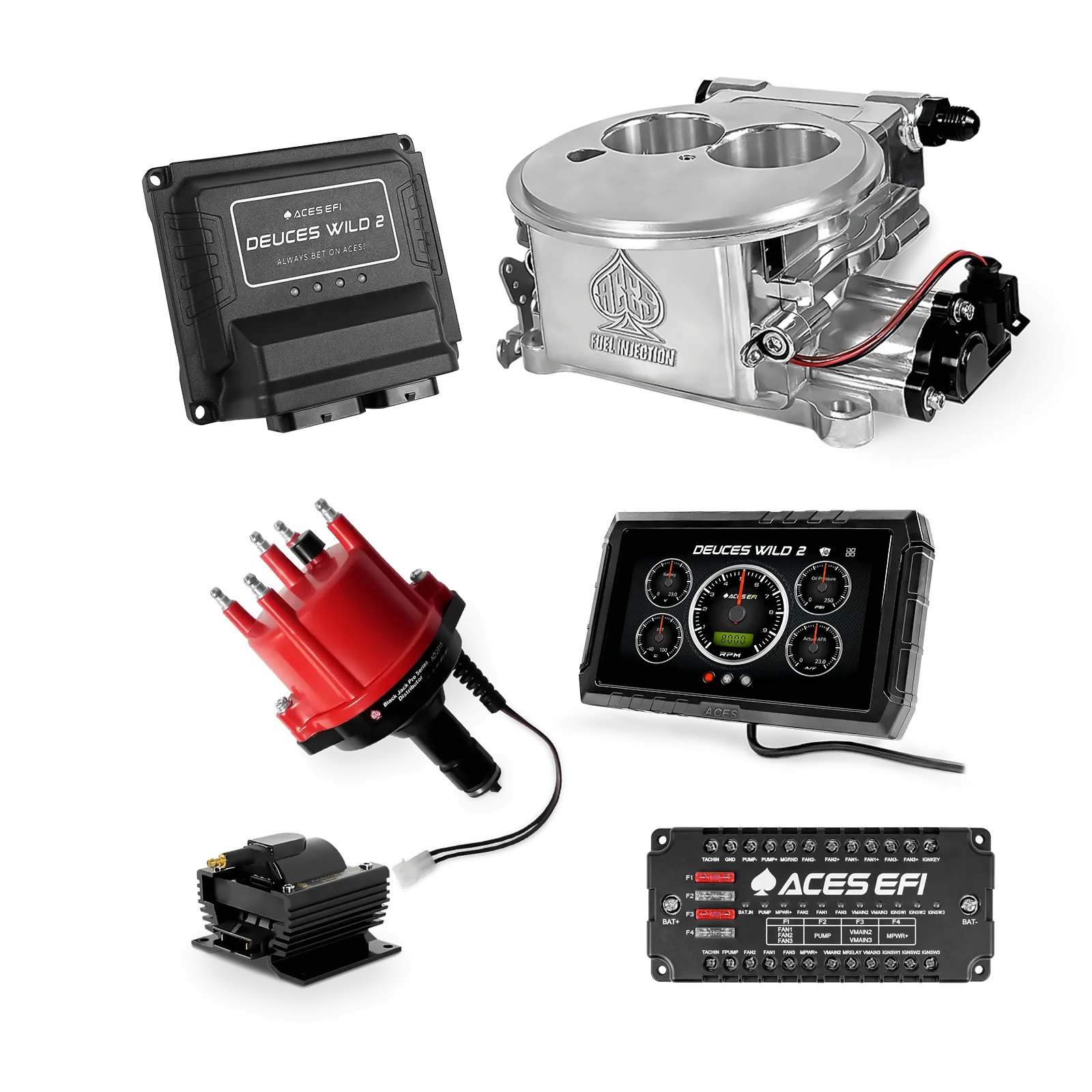

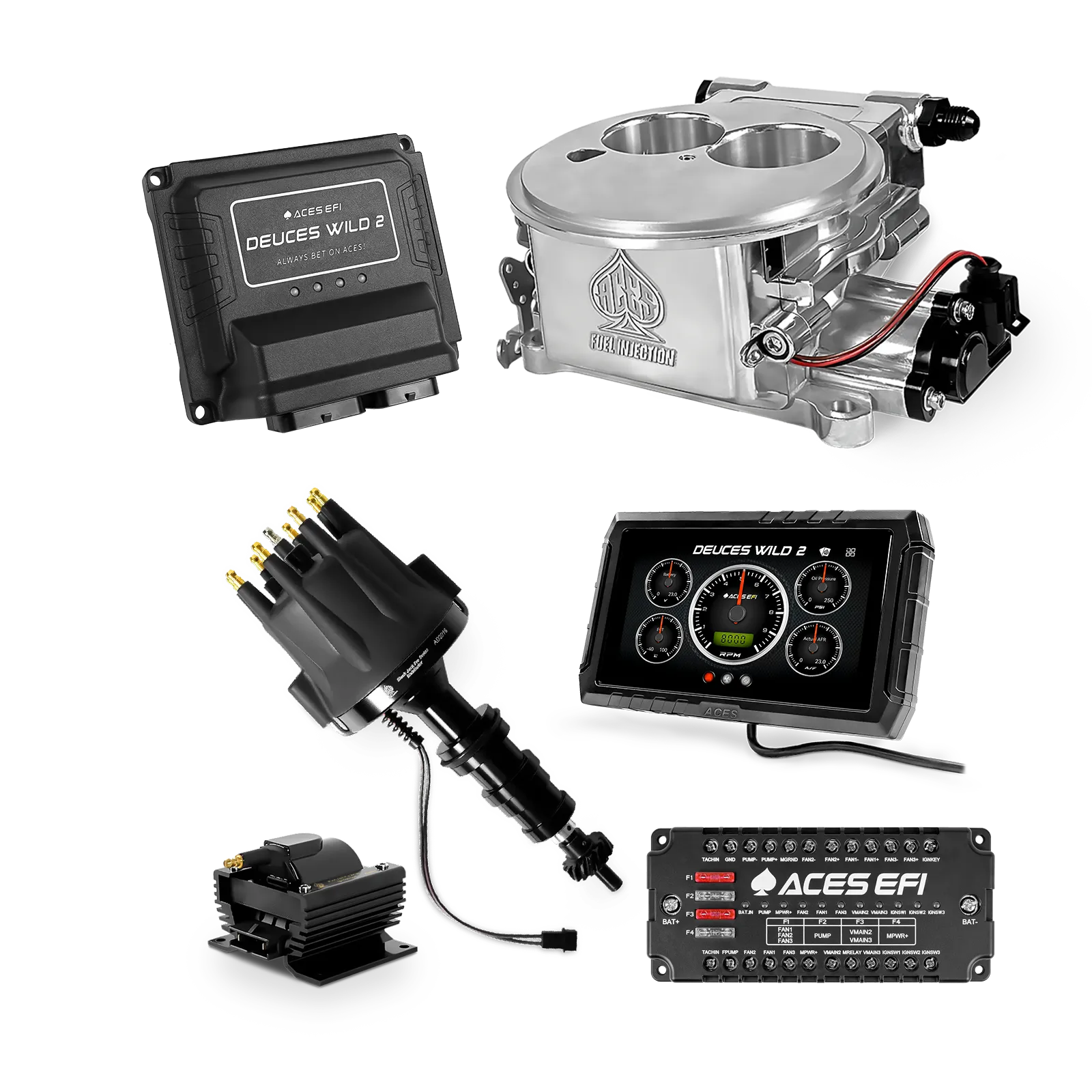

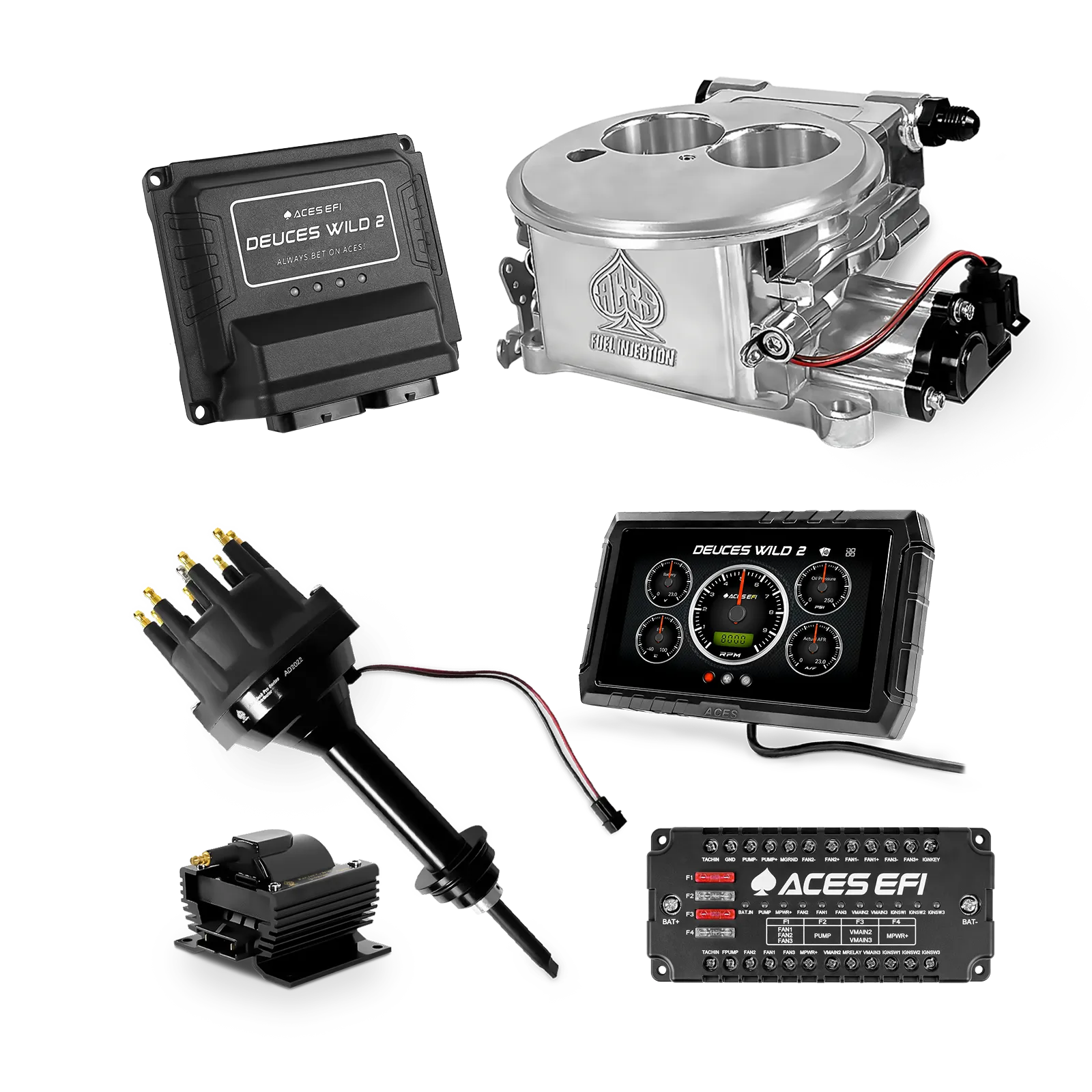

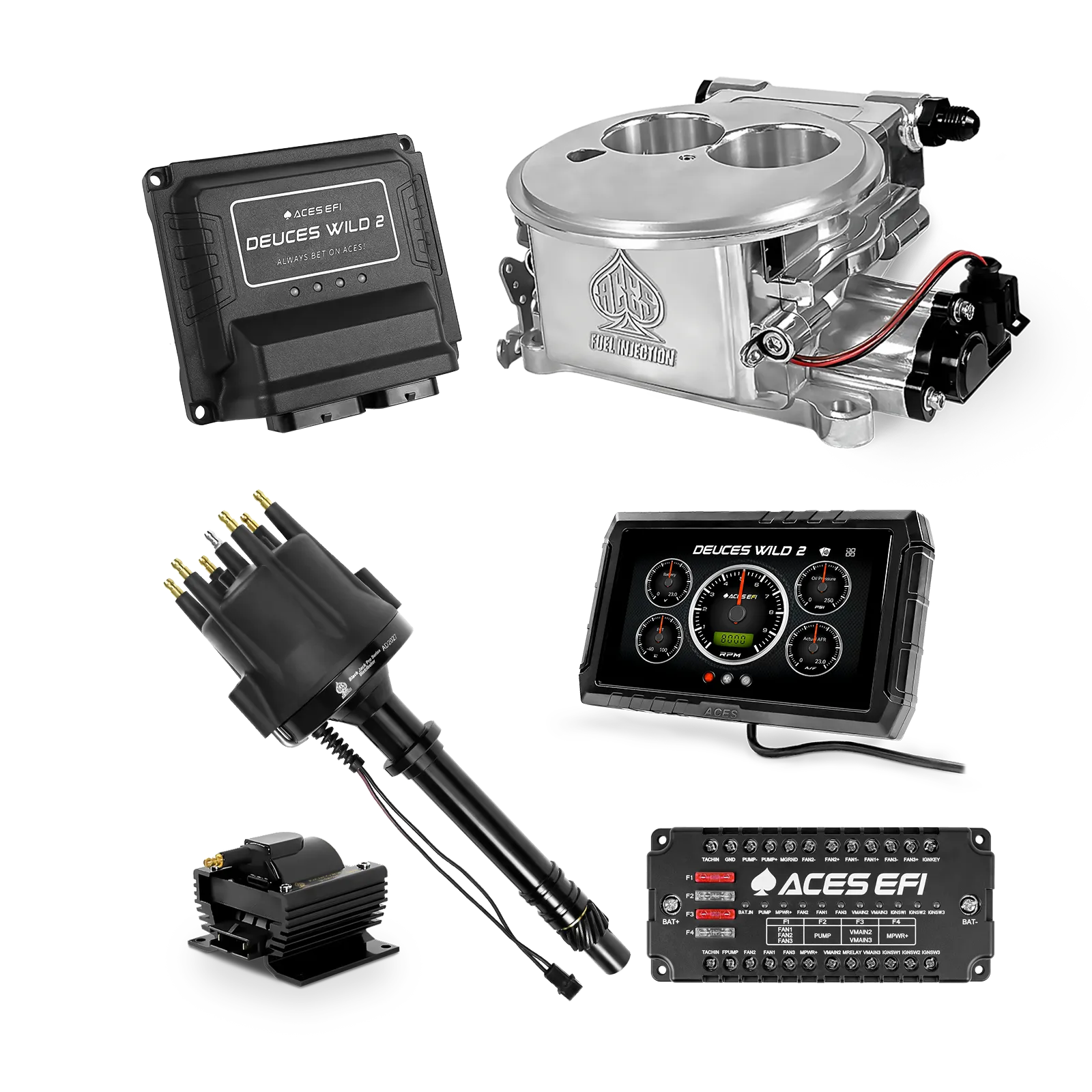

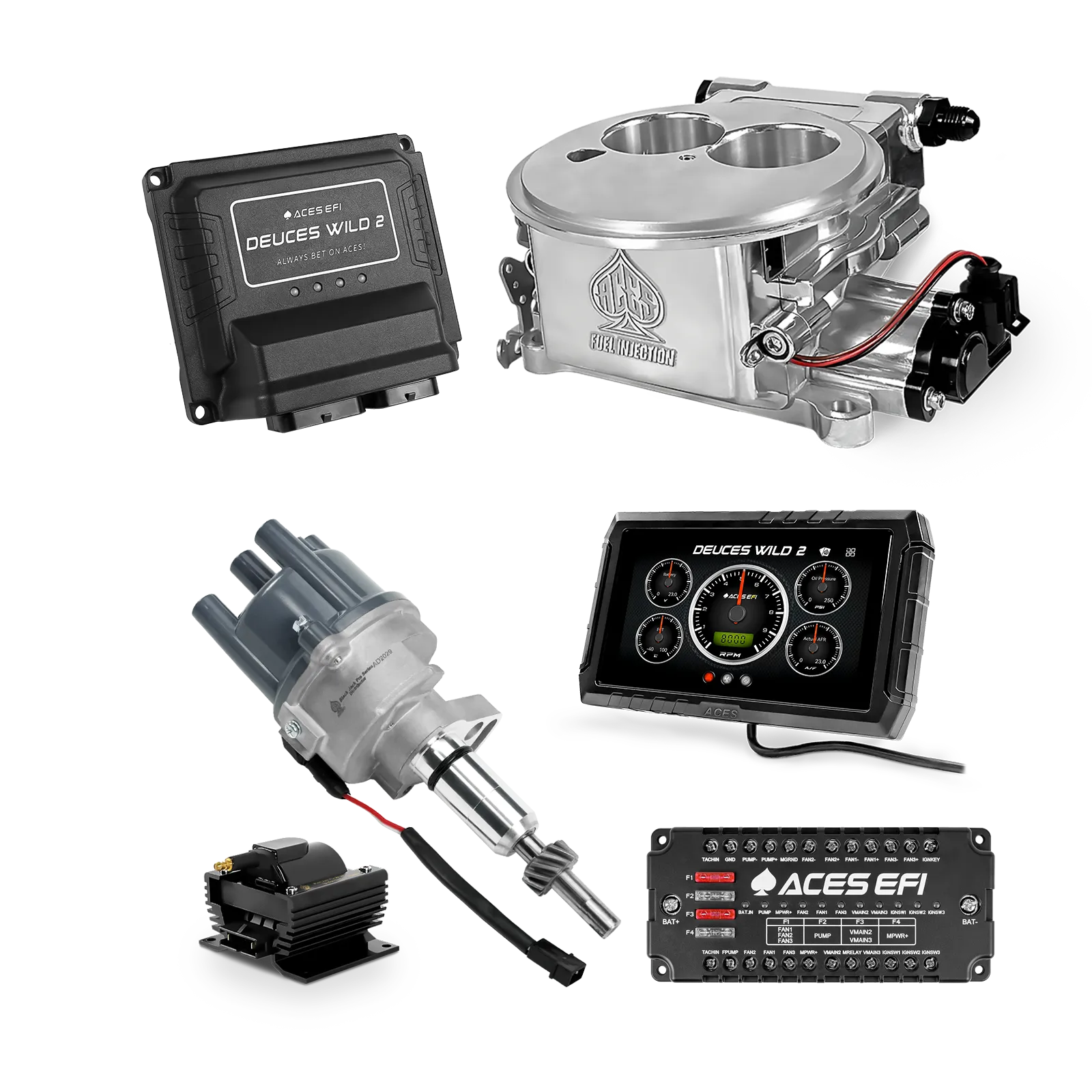

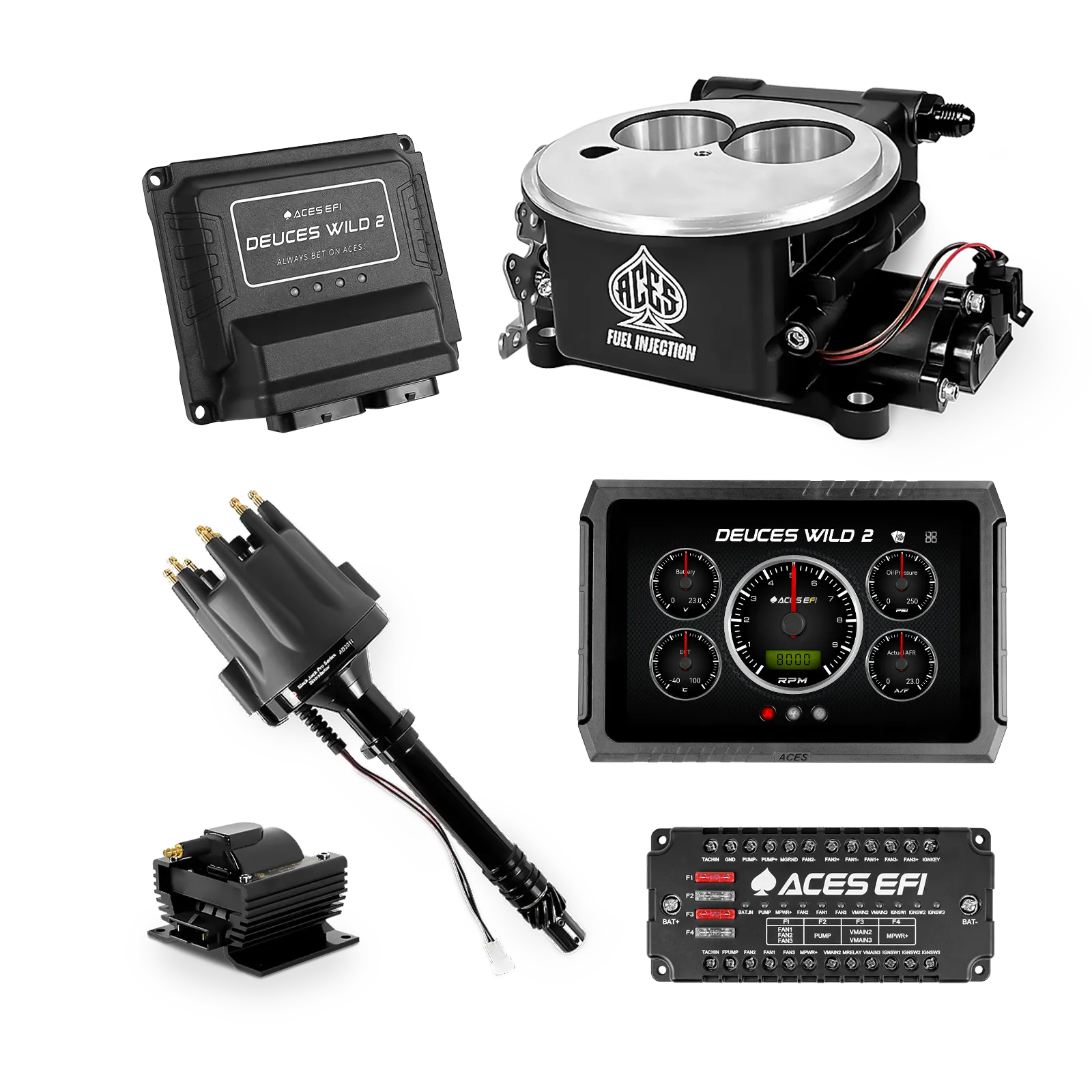

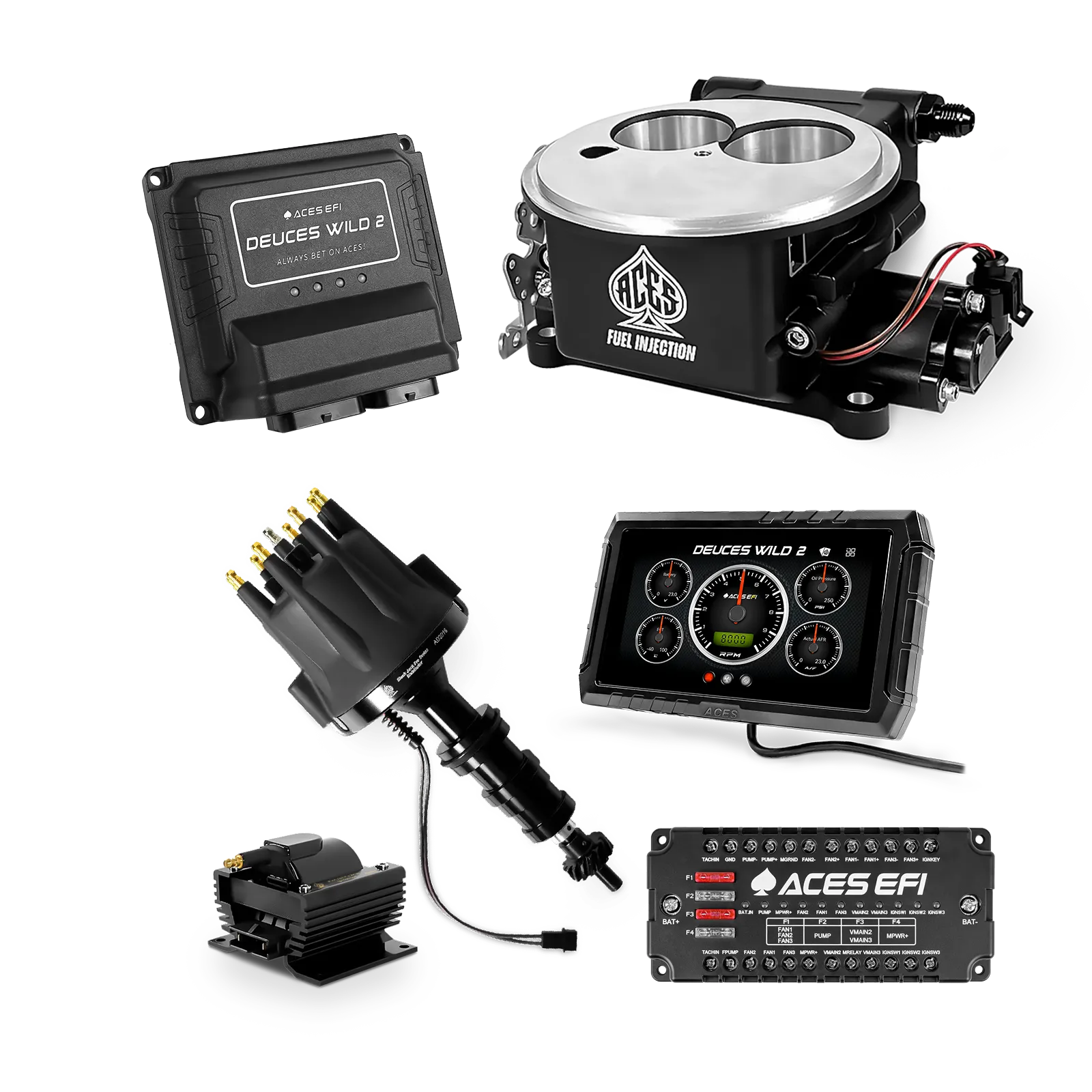

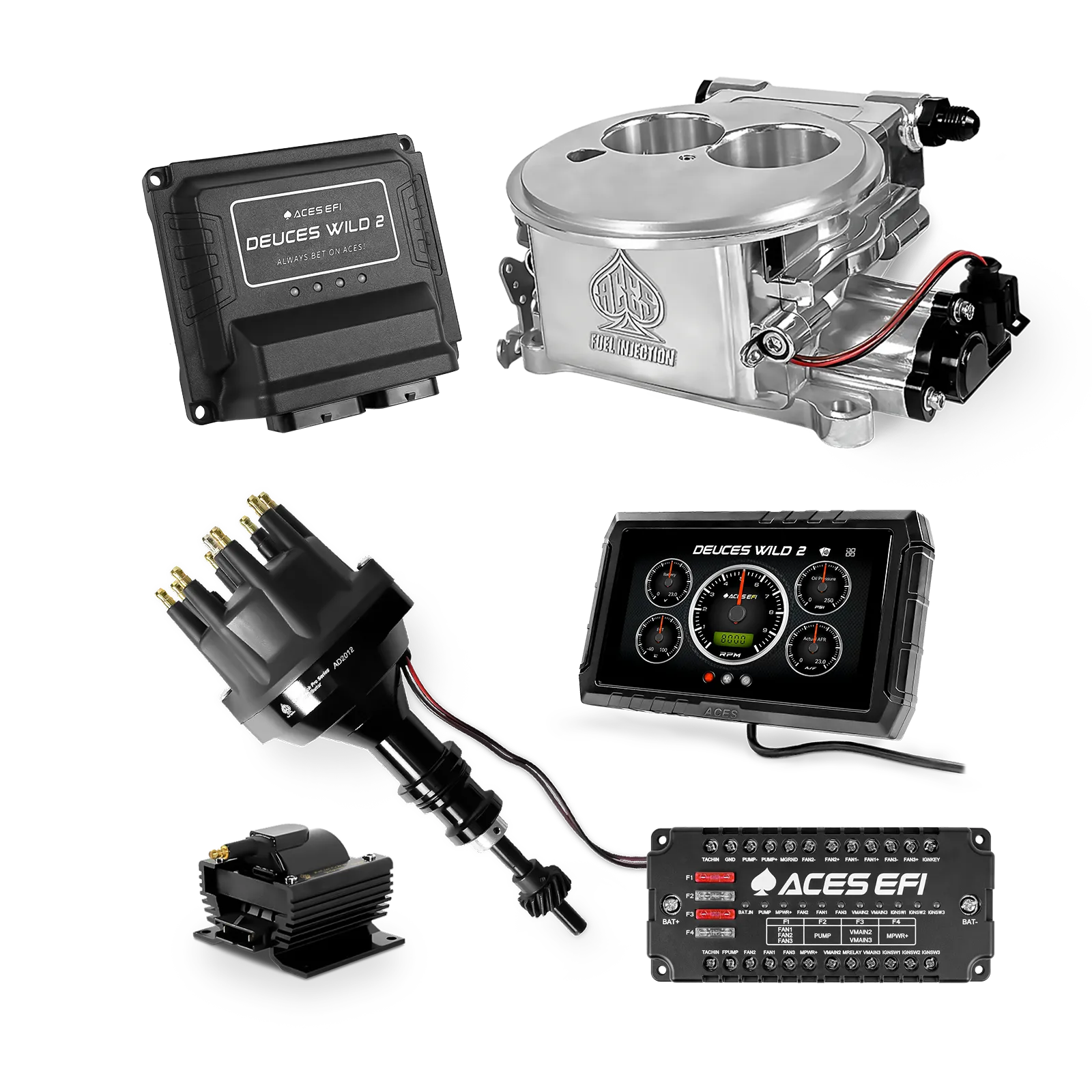

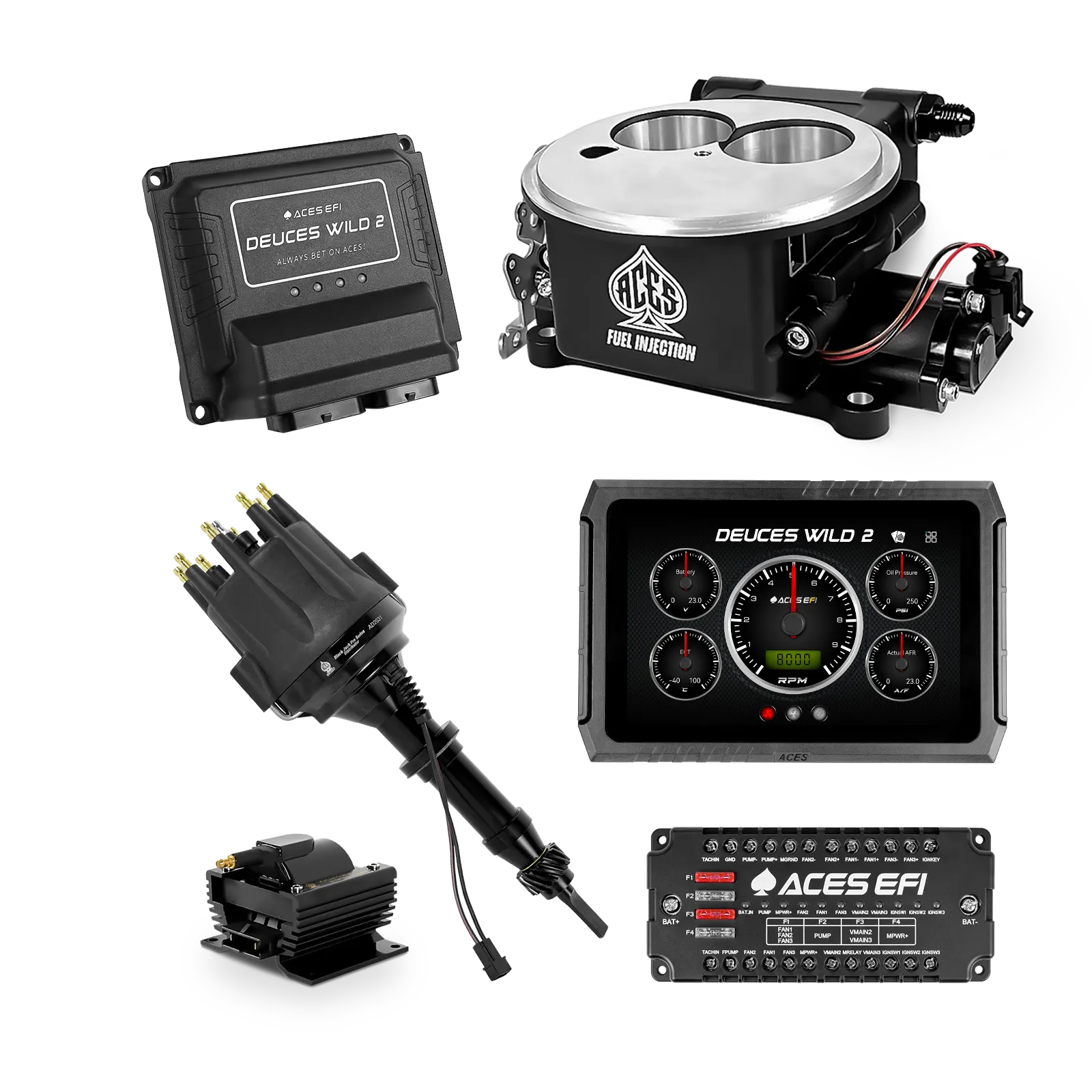

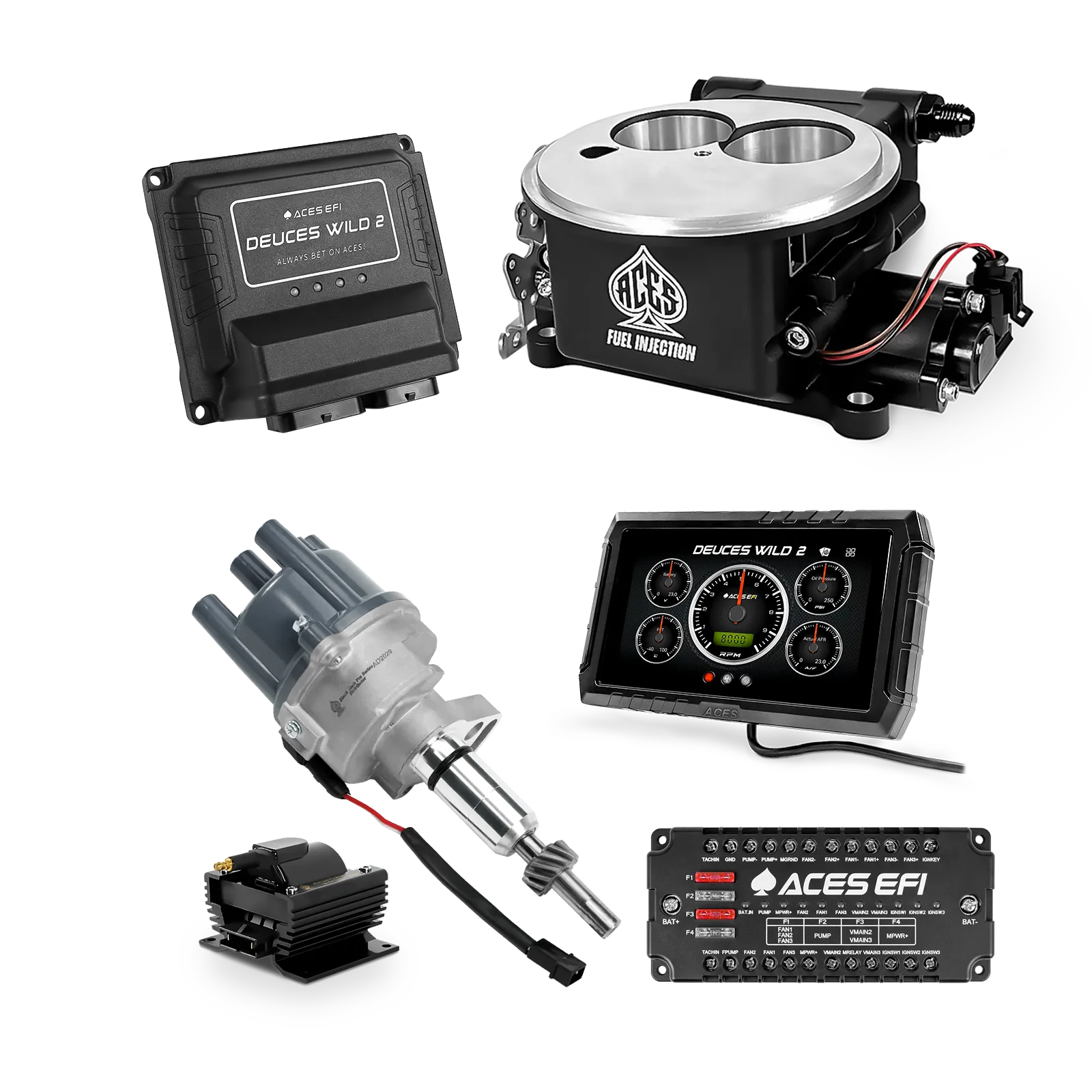

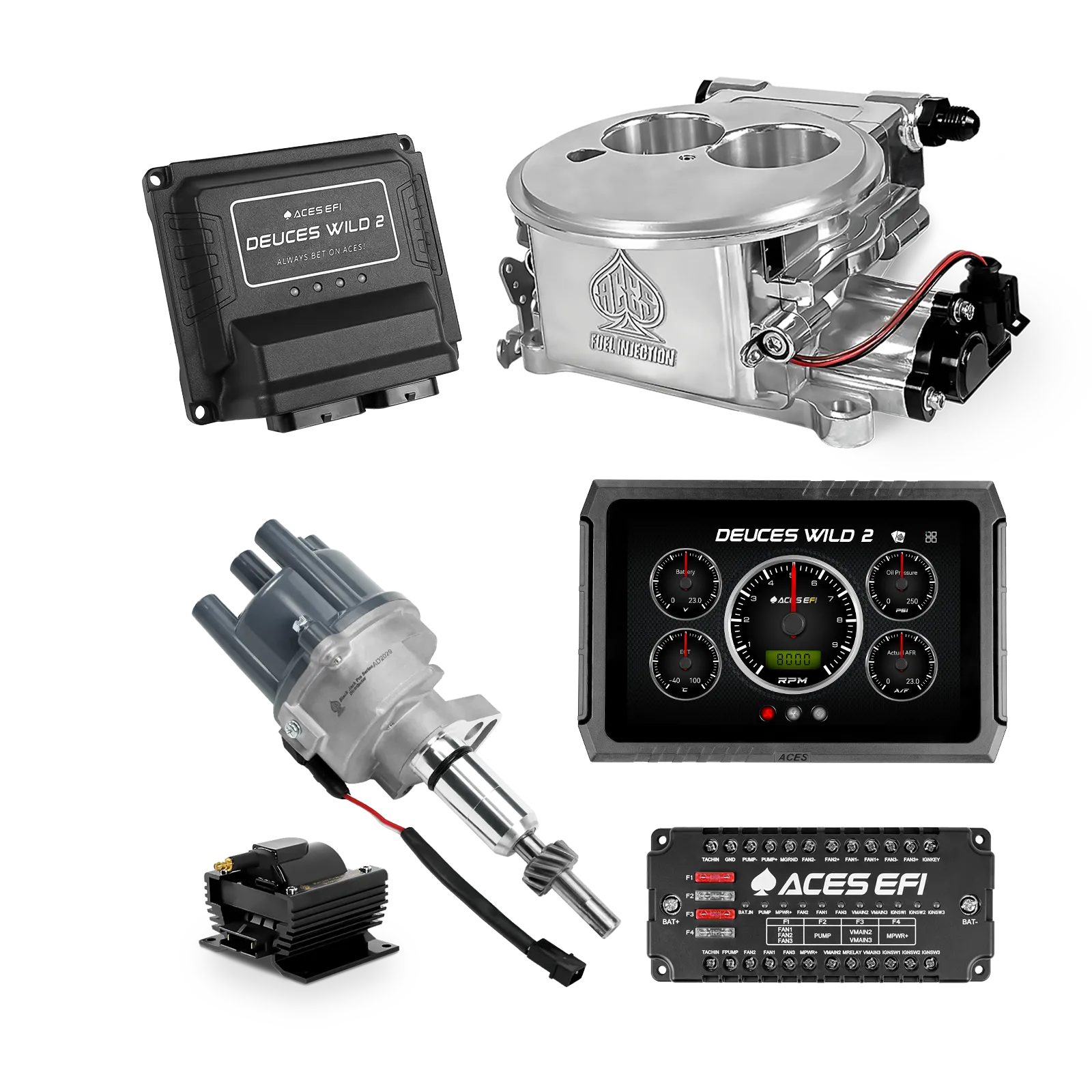

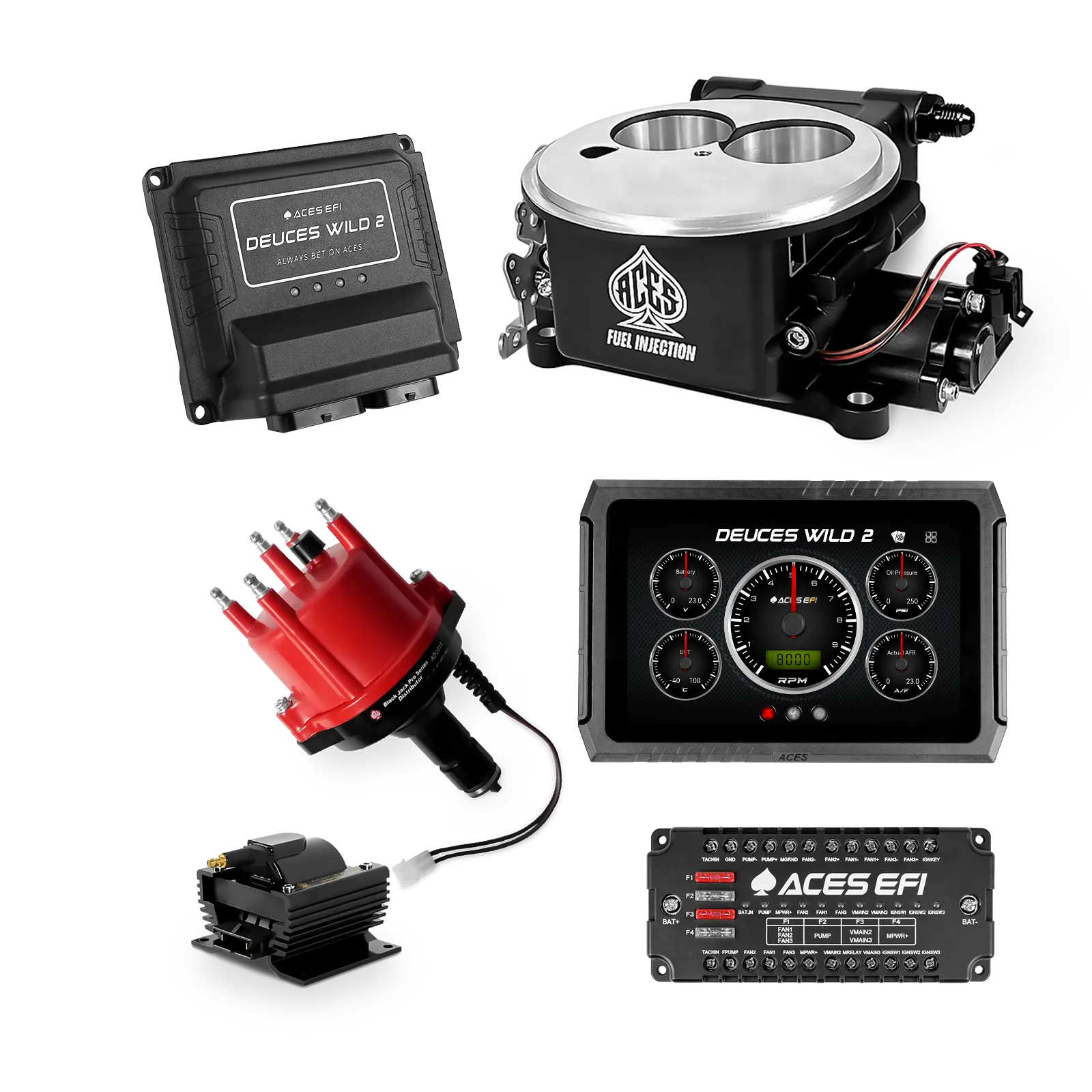

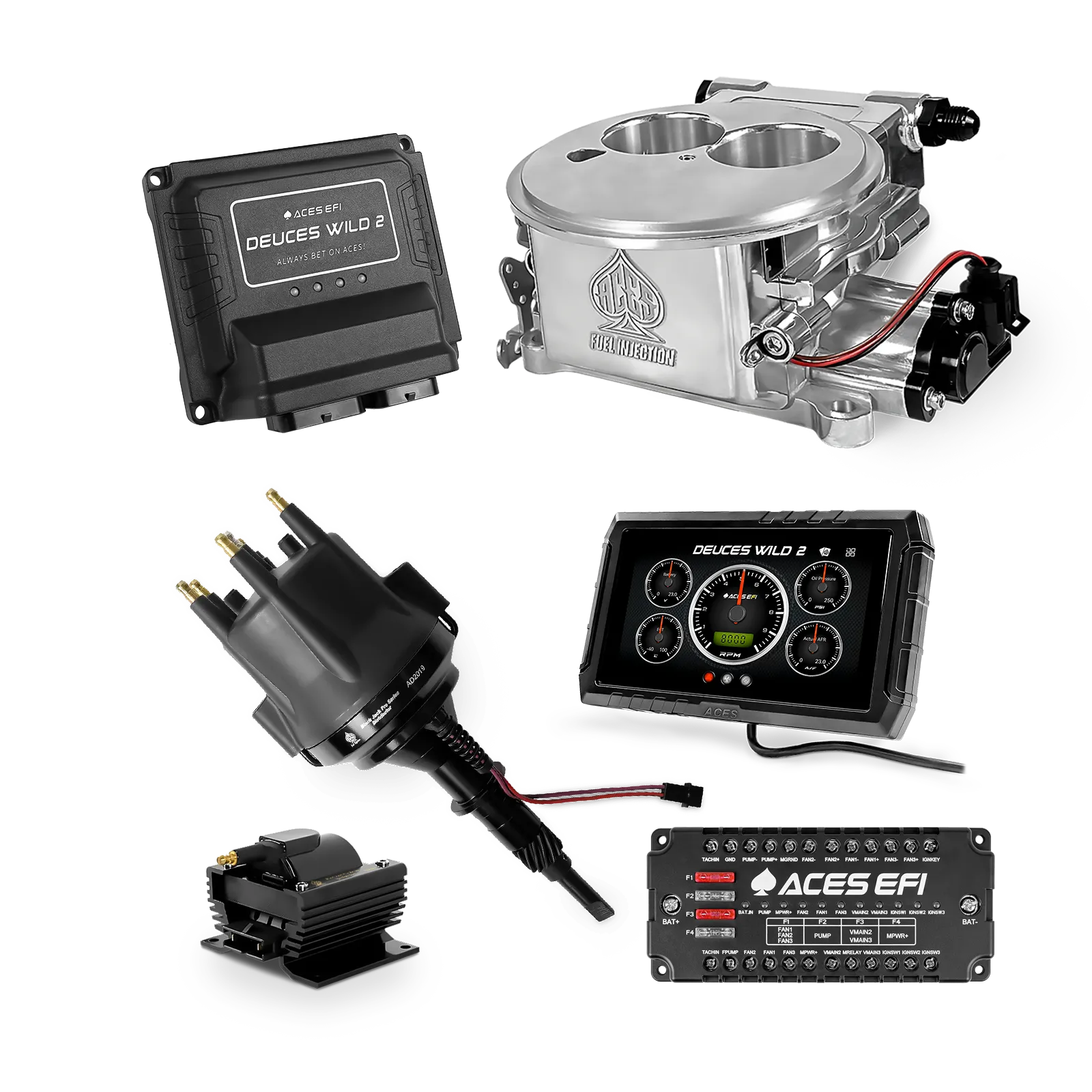

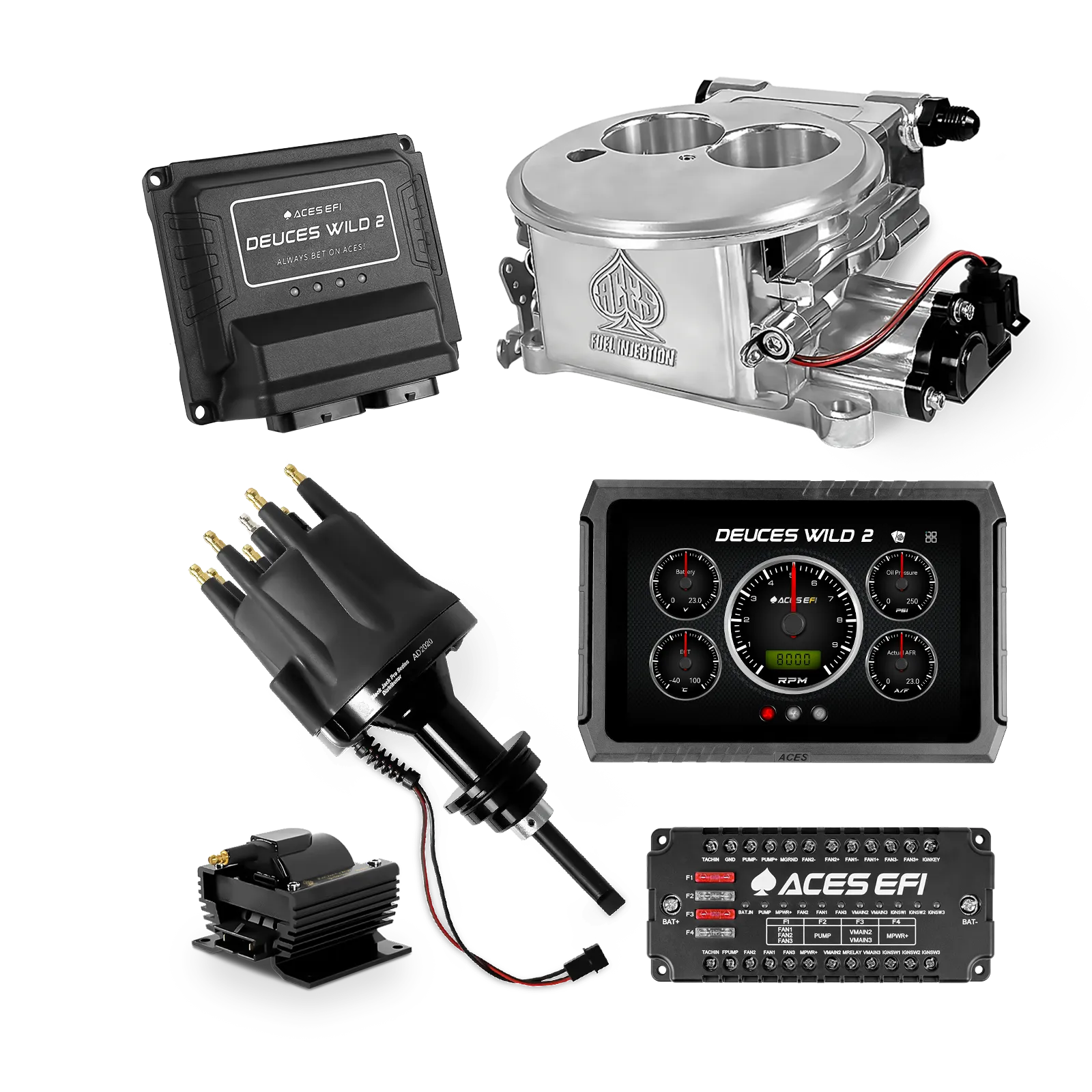

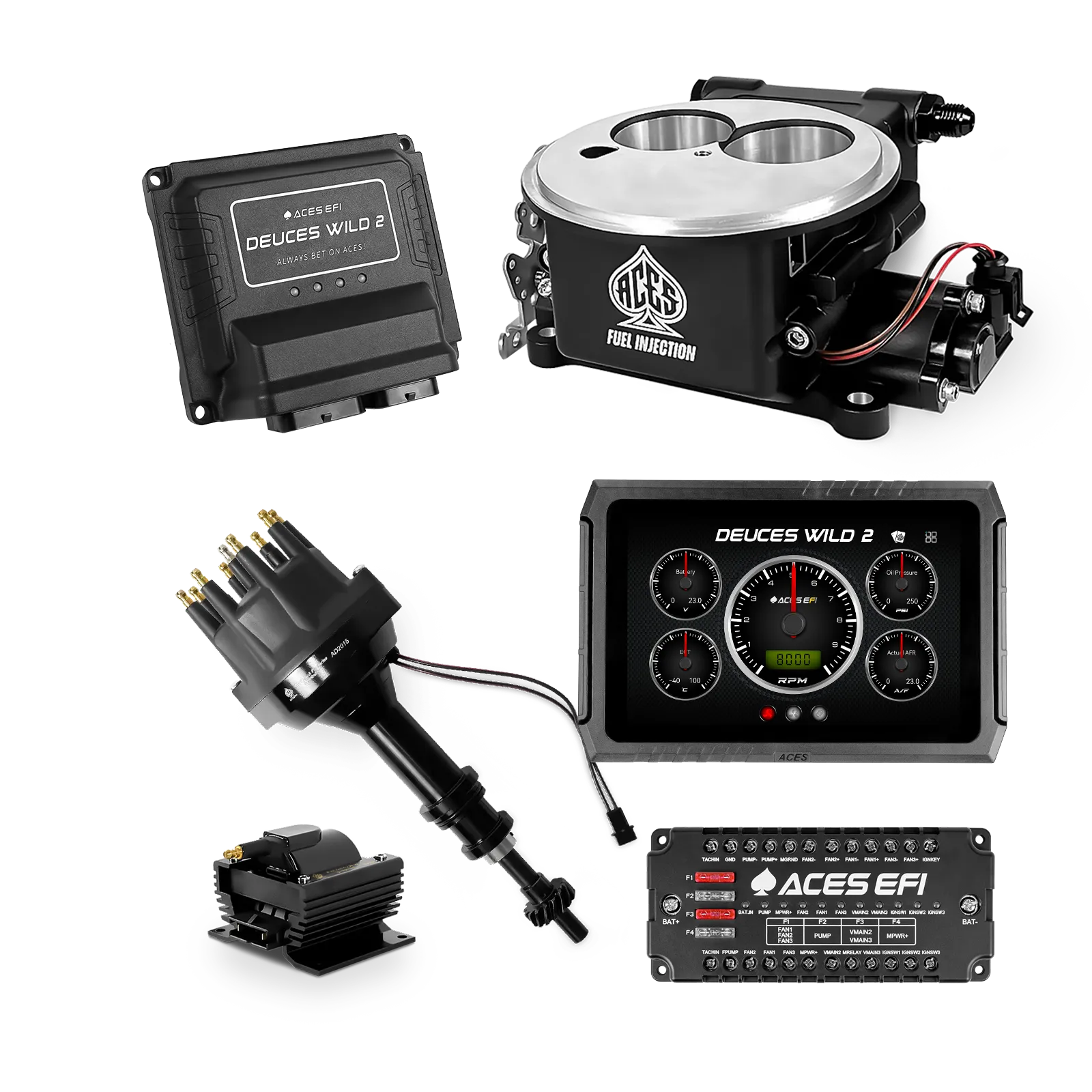

Deuces Wild EFI system with with 5" HD handheld, wideband O2, and the Aces Blackjack Pro distributor and coil.

Overview:

The Aces Deuces Wild 2 isn’t just an upgrade, it’s a statement.

Built for the driver who refuses to settle, this 2-barrel throttle body EFI system replaces your carb or outdated EFI with modern precision and raw power. Using a 2300-style flange and a recessed base, it drops right onto single or dual-plane manifolds. With support for up to 350 HP naturally aspirated and 300 HP under boost, the Deuces Wild 2 is made to feed whatever you’re building: street bruiser, boosted weekend warrior, or nitrous-hungry drag car.

An integrated 3-bar TMAP sensor supports up to 27 psi of boost for turbo and supercharged applications, while two 100 lb/hr injectors comfortably feed up to 350 HP. It’s already compatible with blow-through, draw-through, and nitrous setups right out of the box. And when our boost control software update lands in Fall 2025, the hardware inside is already ready to run with PWM boost solenoid control for true precision under pressure.

Power Meets Simplicity

At Aces, we build EFI systems that make serious power simple.

The Deuces Wild 2 is a DIY-friendly system designed for enthusiasts of all skill levels. Wire it in, answer a few setup questions, fire it up, and the self-learning ECU takes over by fine-tuning your fuel maps automatically. For most street builds, that’s all it takes. For the tuners who want total control, our free laptop software unlocks full manual tuning access, which is ideal for mild to aggressive builds running high-lift cams, forced induction, or nitrous.

Once your engine reaches operating temperature, the system goes closed-loop and starts learning in real time. After a few drives, your tune dials itself in, and when you’re happy with it, you can disable learning and lock it down. That’s confidence you can feel at every throttle blip.

Ignition Compatibility

Whether you’re running an HEI, canister coil, or aftermarket system like MSD or Holley, the Deuces Wild 2 plays nice. It can also digitally control timing with a Hall-effect or mechanically locked magnetic distributor and works seamlessly with CD ignition boxes.

If you’re looking to go all-in, Aces offers complete Hall-effect and magnetic distributors, ignition coils, and fuel systems designed to work together for maximum reliability and spark control.

Choose Your Setup

We know every build is different, so we made the Deuces Wild 2 modular. Build it your way and save while you do it.

• Standalone Kit
  Includes the throttle body, ECU, wiring harness, and your choice of interface.
• Fuel Kit (Standalone + Fuel System)
  Adds a complete fuel system to your existing ignition setup.
• Top End Kit (Standalone + Distributor + Coil)
  Adds ignition components to your existing fuel system.
• Master Kit (Standalone + Fuel System + Distributor + Coil)
  Everything you need for a full carb-to-EFI conversion.

Choose any of these pre-built options and save 5% off the whole kit.

Interface Options

Choose how you want to set up and monitor your system:

• Bluetooth Module
  Connects to Android (iOS support coming Fall 2025) through our free Aces Connect app.
• 5” Handheld Touchscreen
  Full-color display with built-in GPS for real-time MPH.
• 7” Handheld Touchscreen
  Bigger screen, same powerful features, also GPS-ready.

All three interfaces let you view RPM, speed, sensor data, live tuning metrics, and much more with customizable layouts. Bluetooth users will get GPS speed readouts with the Fall 2025 firmware update.

Engineered for Real Performance

The Deuces Wild 2 doesn’t just look tough; it’s built that way.

Every component is designed for precision, durability, and real-world performance.

• Remote-Mounted ECU: Unlike systems that bury electronics inside the throttle body, the Deuces Wild 2 keeps its ECU separate. This remote-mounted design protects it from heat and vibration, ensuring long-term reliability and easy serviceability.
• Cast Aluminum ECU Housing: Provides superior heat dissipation and RFI/EMI shielding. The ECU case doubles as a heatsink for internal drivers, improving reliability and lifespan.
• Bosch LSU 4.9 WBO2 Sensor: Faster, more accurate readings with the latest planar sensing technology.
• Ported Vacuum: Supports vacuum advance on non-timing-control distributors like HEI or mechanical setups.
• Roller Bearing Throttle Shafts: Reduce friction and eliminate idle issues caused by bushing wear.
• Low-Profile Design: Works with more air cleaner setups (including drop-base filters) while fitting easily under most factory and aftermarket air cleaners.

Next-Gen ECU Power (Gen 2 Technology)

This isn’t just another ECU refresh; it’s a total architecture upgrade.

The Gen 2 Aces ECU delivers faster processing, deeper tables, and smarter data handling for the most precise control we’ve ever offered.

Core System Upgrades:

• More Memory: Expanded program space for advanced control algorithms and adaptive strategies.
• DMA-Based ADC Acquisition: Faster, cleaner, and more accurate sensor readings.
• Enhanced Interrupt Handling: Responds quicker to changing conditions for smoother performance.
• Expanded Timer Functions: Greater precision for timing-critical events.

Mapping & Sensor Enhancements:

• 31x31 VE Tables: Almost triple the resolution for stock, mild, and race modes.
• 31x31 Self-Learning Tables: Sharper adaptive fuel control across every RPM band.
• 31x31 Ignition Maps: More detail means smoother spark transitions and better power delivery.
• Fuel Level Sensor Support: Integrates with your existing or aftermarket sender.
• Boost Control-Ready Hardware: Already compatible with boost setups and prepped for PWM boost control with software activation coming Fall 2025.
• Boost Pressure Monitoring: Direct sensor acquisition for live boost tracking.

System Integration

The Deuces Wild 2 connects seamlessly with Dakota Digital clusters using the Aces BIM-01-2-ACES module (sold separately). It outputs a clean tach signal for both factory and classic-style gauges and supports systems that don’t rely on CAN data.

If you’re moving from a stock or aftermarket EFI that uses CAN to drive your gauges, you may need to review those connections for compatibility.

All Aces ECUs are built on 32-bit automotive-grade processors, the same specs used by OEM manufacturers, not the slower, industrial-grade 16-bit chips common in other aftermarket systems.

The system runs at 43–60 PSI fuel pressure and supports return or returnless configurations, depending on your pump. Internally regulated in-tank pumps can run returnless, while external, inline, or surge setups will need a return line.

Easy Weekend Install

For most applications, we built the Deuces Wild 2 to install in a weekend. No crew, no laptop wizardry. Bolt it on, wire it up, answer a few setup questions, and let it learn. From the first startup to full throttle, it’s designed to be as straightforward as EFI gets.

When you’re ready to leave the carb behind, the Deuces Wild 2 gives you everything you love about old-school performance with all the brains of modern EFI.

No compromises. No headaches. Just results.
