Full House Pro 8 Channel EFI/CDI TBI System
Free shipping on orders over $200! (Lower 48 states)
Add a PDM to protect your system and clean up your wiring! See details here
Add a PSK for precise pressure monitoring and enhanced performance！ See details here
Technical support
.webp?)

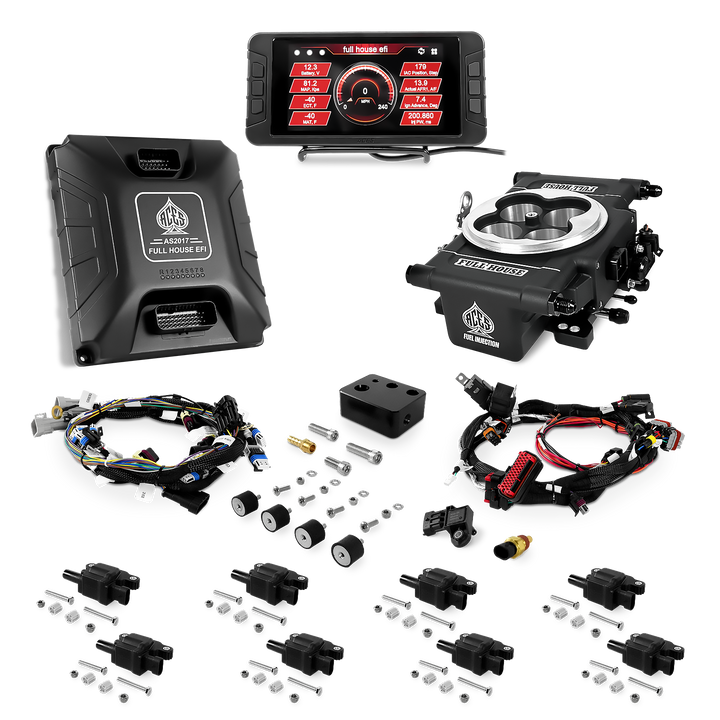

What's in the box?
Aces TBl throttle body

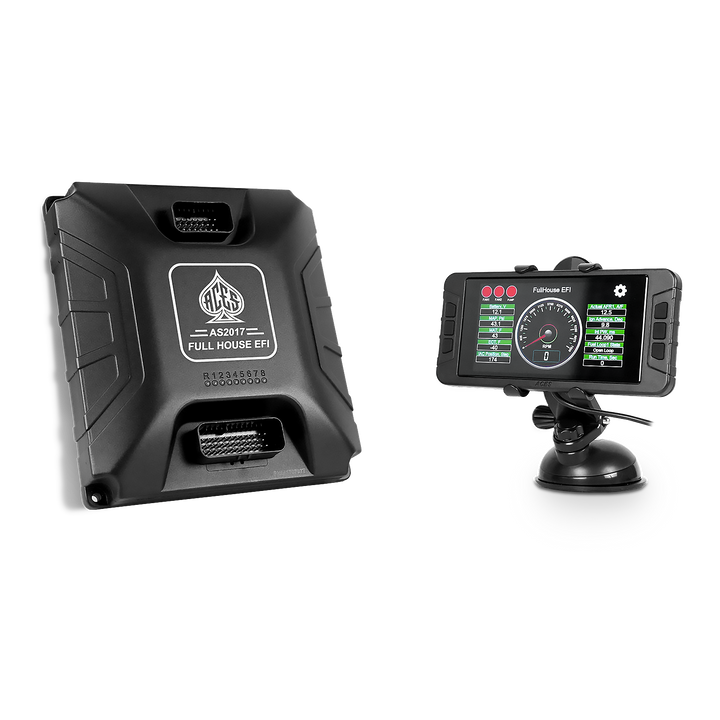

5" Handheld with GPS speedometor
5" Handheld Holder

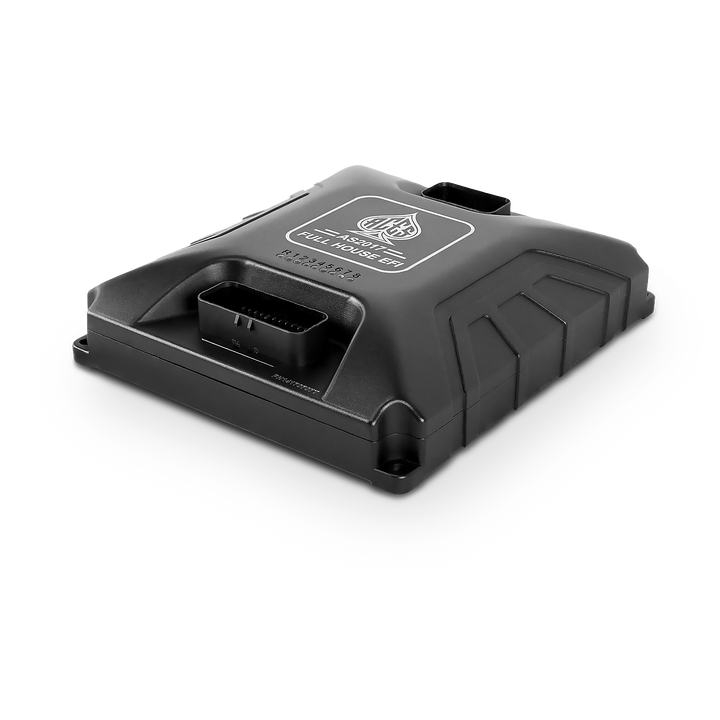

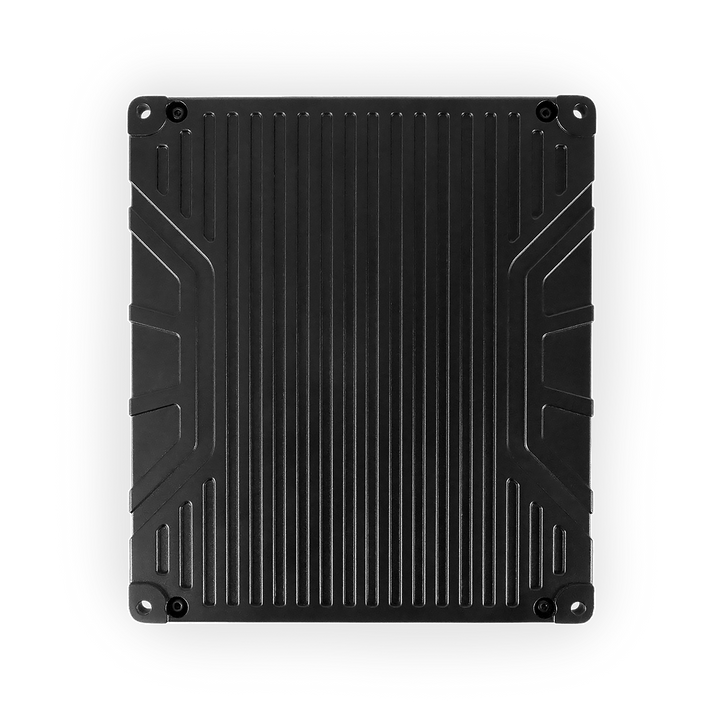

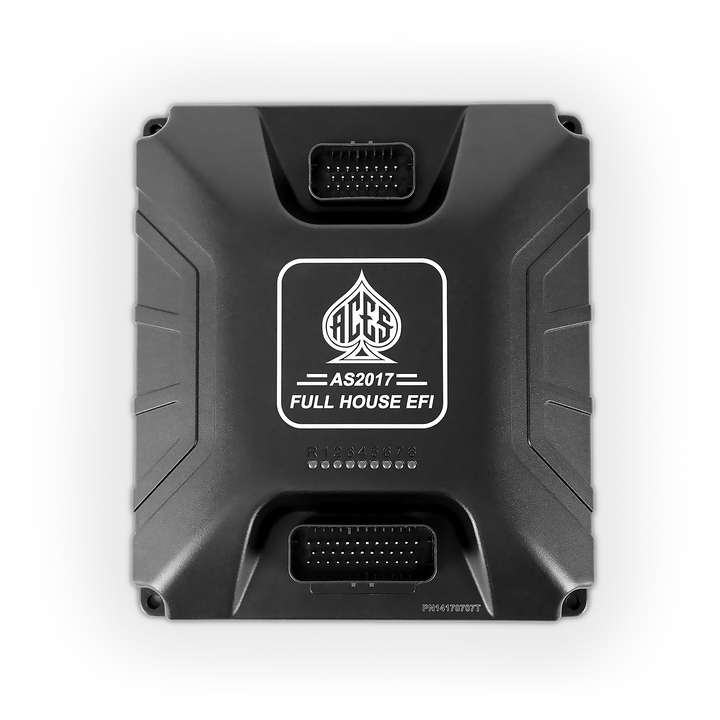

Full House EFl ECU
Aces cam sync distributor plug

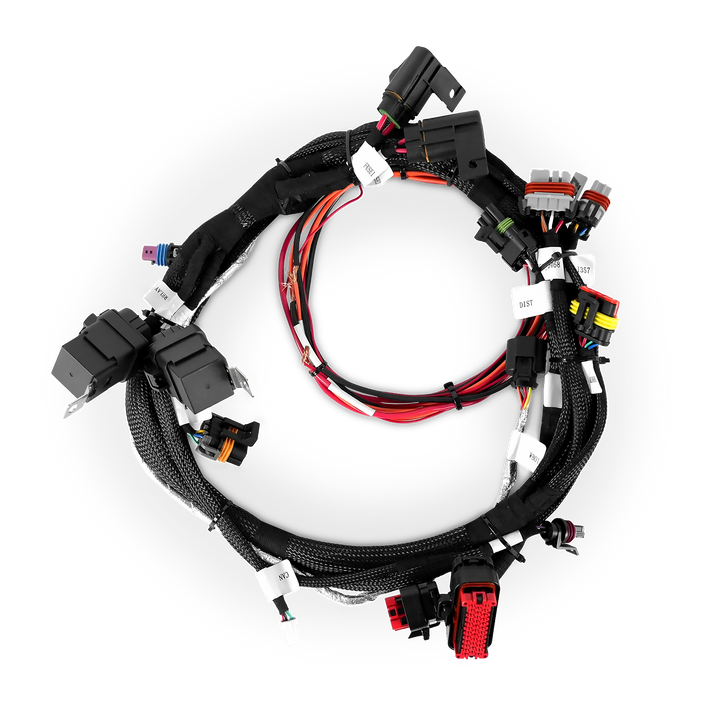

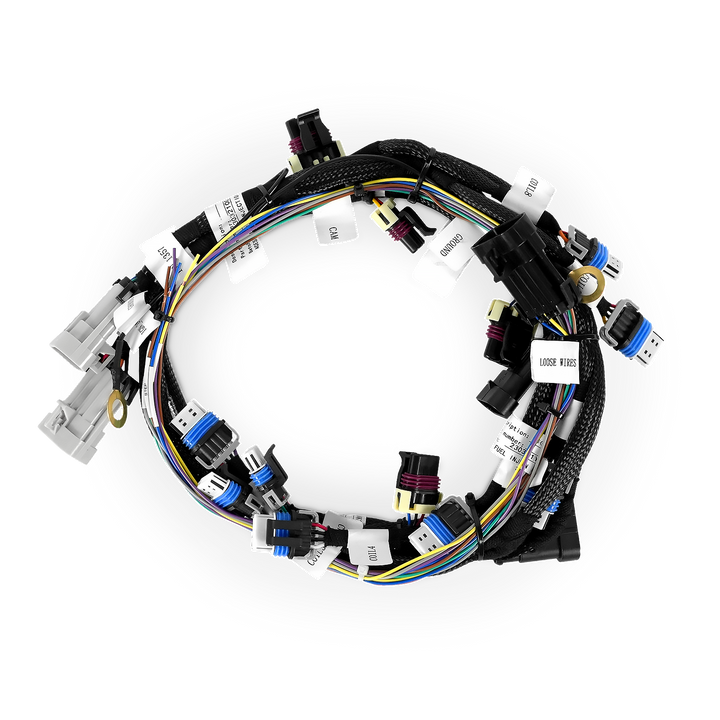

Full Harness

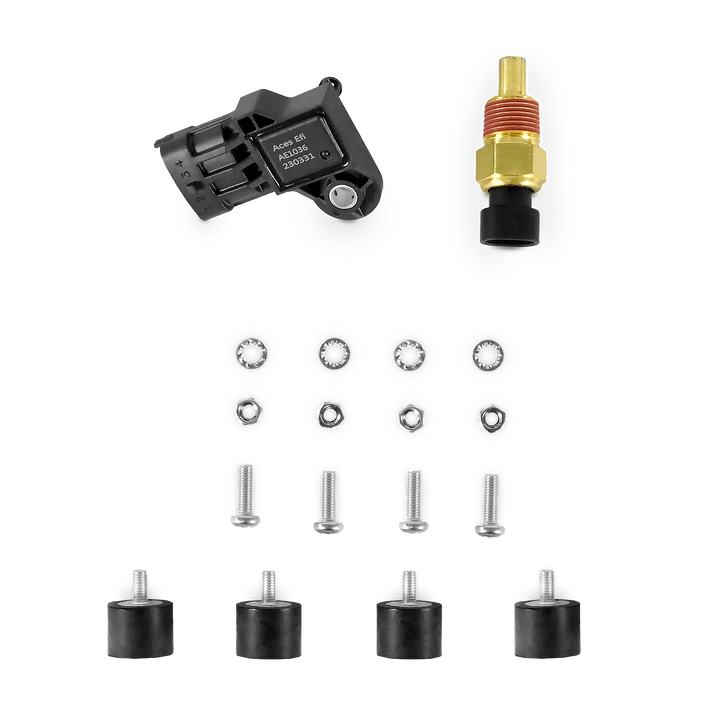

cT sensor
02 sensor
2.8 bar TMAP

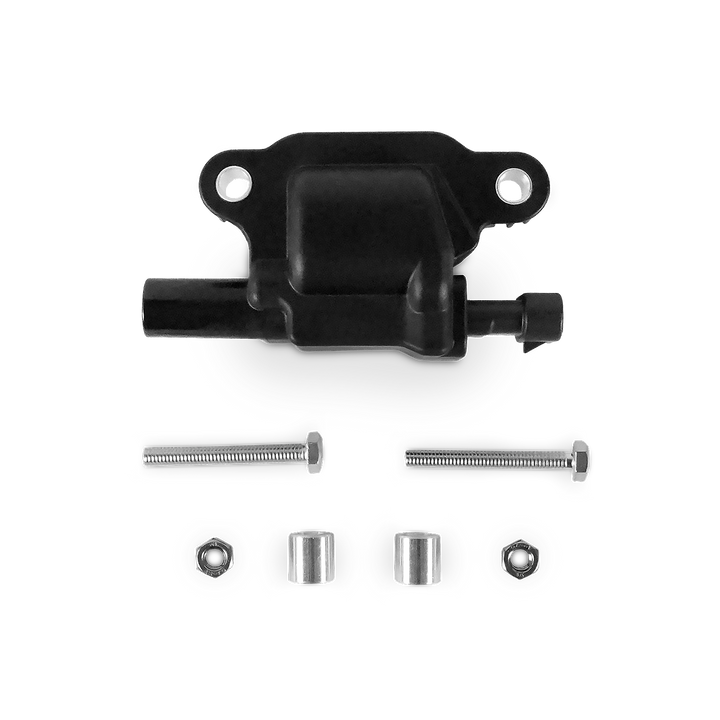

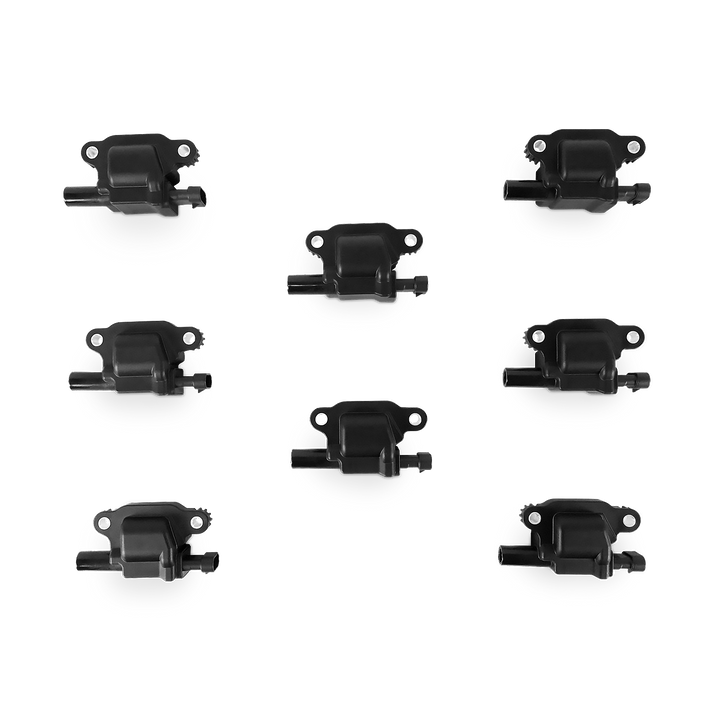

Aces high performance ignition coils
Power Distribution Module (PDM)
Discover the next evolution in performance and reliability with the Aces Fuel Injection Power Distribution Module (PDM) —your ultimate solution for seamless power management in high-performance EFI systems. The PDM uses IGBT transistors in the place of solid state or electro-mechanical relays which helps to filter bad transient voltage, ultimately providing greater protection for your electronics which are connected to the PDM.
Our PDM is engineered to integrate effortlessly with Aces Fuel Injection Systems, providing robust, efficient power distribution for essential components such as:
- Ignition Systems
- Fuel Pumps
- Cooling Fans
- Auxiliary Accessories
Key Features
- Comprehensive Power Management: Supports ignition, fuel pumps, fans, and more.
- Simplified Wiring: Clearly marked terminals for ease of installation.
- Enhanced Safety: Fuse-protected circuits for optimal performance and reliability.
- Flexibility: Tailored control for auxiliary devices with relay support.
Pressure Sensor Kit

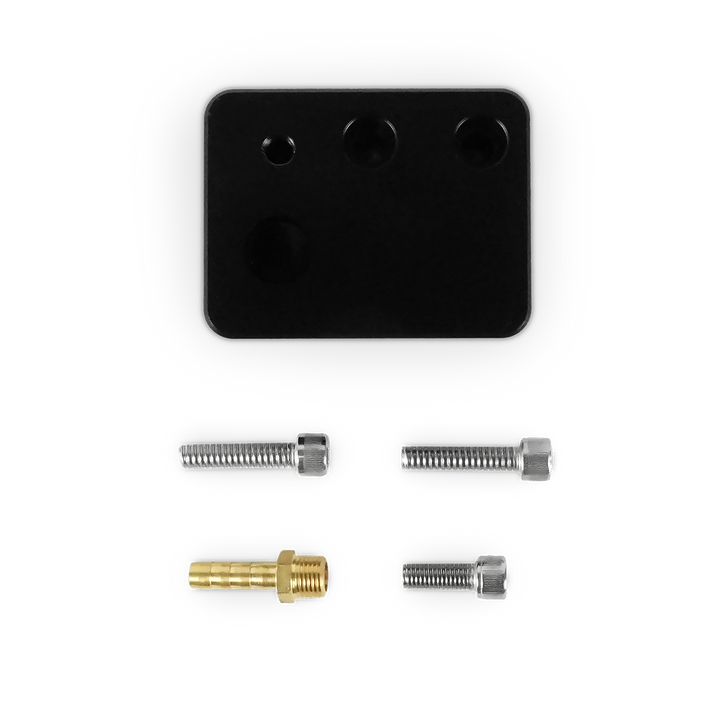

Aces EFI pressure sensor kits utilize top-quality parts for use with EFI systems. Kits include plastic/steel sensors with 1/8" -27 NPT threads and include a -6 AN fuel pressure take-off adapter fitting and 2 sets of 45 push lock hose ends.
Pressure sensors are great for logging oil pressure, fuel pressure, or boost pressure. Display the pressure reading on any Aces Handheld or Dash screen and on your data log files!
EGT CAN Module Kit
High-Performance Tuning with the Aces EGT Module
When it comes to high-performance tuning, accurate Exhaust Gas Temperature (EGT) monitoring is crucial. Whether you're running a naturally aspirated, turbocharged, or nitrous-fed setup, precise temperature data helps you optimize fuel tuning, prevent engine damage, and maximize efficiency. The Aces EGT Module is built for precision, durability, and seamless integration, ensuring you get real-time data to fine-tune your engine like never before.
Why You Need the Aces EGT Module
- Prevent Engine Damage – High exhaust temperatures can lead to pre-detonation, melted pistons, and turbo failures. Monitoring EGTs allows you to adjust fueling and timing before damage occurs.
- Optimize Air/Fuel Ratios – Fine-tune your AFRs based on real-time EGT data for better power, efficiency, and reliability.
- Monitor Cylinder Balancing – Detect uneven fuel distribution or ignition issues to avoid power loss and potential engine stress.
- Essential for Forced Induction & Nitrous Builds – Turbocharged, supercharged, and nitrous-fed engines run hotter. Accurate EGT readings ensure you're not pushing past safe limits.
- Seamless Integration with Aces EFI Systems – Easily expands via CAN connectivity to work with all Aces controllers and displays.
Aces EGT Module Features
- 32-bit RISC-V Core Processor – Ultra-fast processing for real-time data accuracy.
- 480MHz Multi-Stage Pipeline Processor – Handles high-speed temperature changes with precision.
- Hardware Floating-Point Unit (FPU) – Ensures stable, high-speed calculations for consistent performance.
- 16-bit ADC for High-Precision Signal Acquisition – Delivers accurate, reliable temperature readings.
- Supports 2 or 4 EGT Channels – Ideal for both single-bank and dual-bank monitoring setups. (2 channels for two banks, 4 channels for one bank but 4 per exhaust runner)
- Automotive-Grade Type N Thermocouple Sensor – High-durability sensor for extreme conditions.
- Wide Temperature Measurement Range – Capable of reading from -150°C to 1024°C with a rapid 150ms response per channel.
- High-Quality Construction – Silicone fiberglass sleeve, PTFE insulation, and Type N thermocouple conductor ensure long-term durability.
- CAN Expansion Accessory – Easily integrates with all Aces EFI units and display modules.
The Aces EGT Module is an essential tool for serious tuners and racers looking for accurate exhaust temperature data, better tuning capabilities, and enhanced engine protection. Take control of your performance with real-time monitoring and seamless EFI integration.
Full House
Click to watch
Click to watch
Full House Pro 8 Channel EFI/CDI TBI System
ACES Fuel Injection The Full House EFI system is the most powerful EFI system for traditional V8 engine and LS engine, it features 8 injectors output and 8 coils CDI high performance ignition output, This 32-bit controller is based on the hardware platform of the ACES FULL HOUSE ignition controller and integrates the EFI software of ACES. It is the Cutting-edge technology controller in the market and will remain the leading position for years to come. With the use of ACES Cam Sync distributor, the classic V8 engine can work with sequential ignition and sequential injection, more precise fuel distribution and high-energy ignition control.
Application 1: AS2017 Full House Pro 8 Channel EFI/CDI TBI system for tradition V8 engine
Kits Include: ACES TBI throttle body, Full House Pro 8 Channel EFI/CDI ECU, Harness, CTS sensor, O2 sensor, ACES cam sync distributor plug, ACES high performance ignition coils.
*Available for SBC and SBF kits (ACES Cam sync distributor plug needed)
Application 2: AS2017 Full House Pro 8 Channel EFI/CDI TBI system for LS engine
Kits Include: ACES TBI throttle body, Full House Pro 8 Channel EFI/CDI ECU, Harness, CTS sensor, O2 sensor, ACES high performance ignition coils.
The Full House EFI kits include a USB/CAN tuning cable and the 5" High Resolution Full Color Touchscreen Handheld LCD, these kits require the use of the free ACES fuel injection laptop tuning Software for initial setup. The ACES Turning Software includes multiple base calibrations to choose from for either naturally aspirated or boosted engines. Also, the tuning software provides an easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a drag racing or a boosted racing car, The Full House EFI kits has the advanced features and technology to you need.
- 32bit Power Architecture based MCU for automotive powertrain applications
- Works with 7x+1 ACES Cam sync distributor, 58x and 24x reluctor wheel
- High real-time ignition, ignition delay is less than 10us
- Eight channels ignition control of over to 750 mJ spark energy for sequential ignition
- Over 50 Kilovolts output voltage to drive ACES performance Coil
- Eight high-impedance injector drivers for sequential fuel injection
- Sequential fuel and spark control with individual cylinder trim
- High-efficiency Alternating Current (AC) power delivery
- Dual wideband O2 sensors for closed loop control
- Adaptive self-learn strategy for idle control and fuel control
- 3 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications
- Rev limiter setting for maximum RPM
- Launch control
- Step retard for Nitrous control
- Dual electric fan control and Fuel pump control
- Operating voltage is 6-22 volts
- ACES CAN module adds inputs and outputs and connects to digital dash displays
