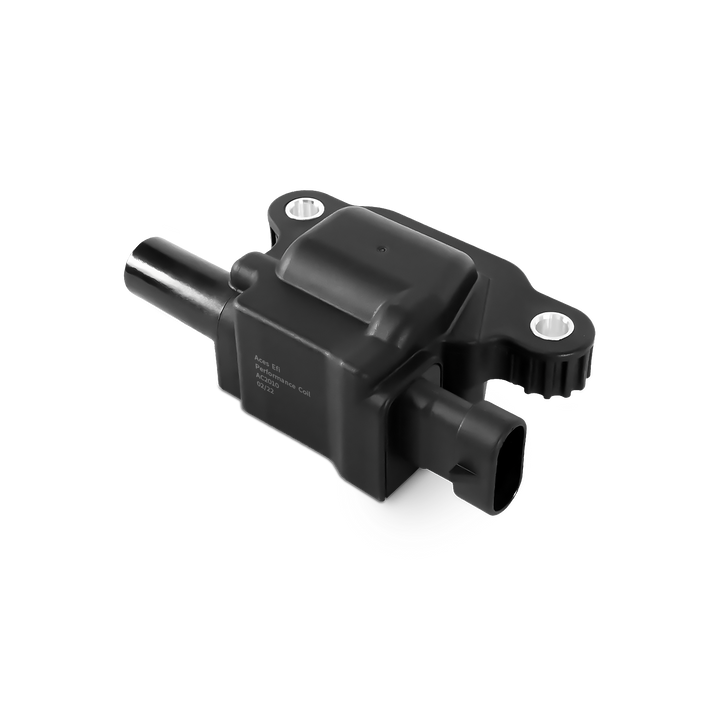

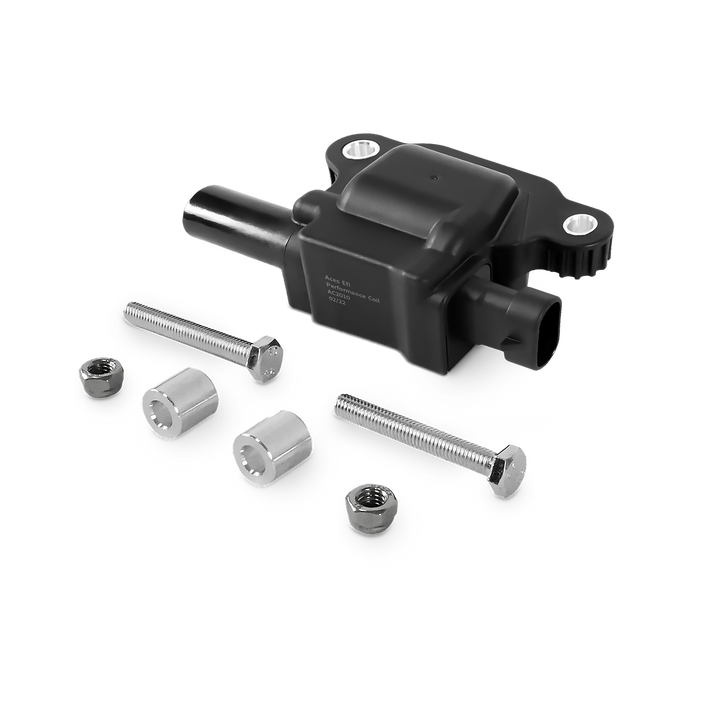

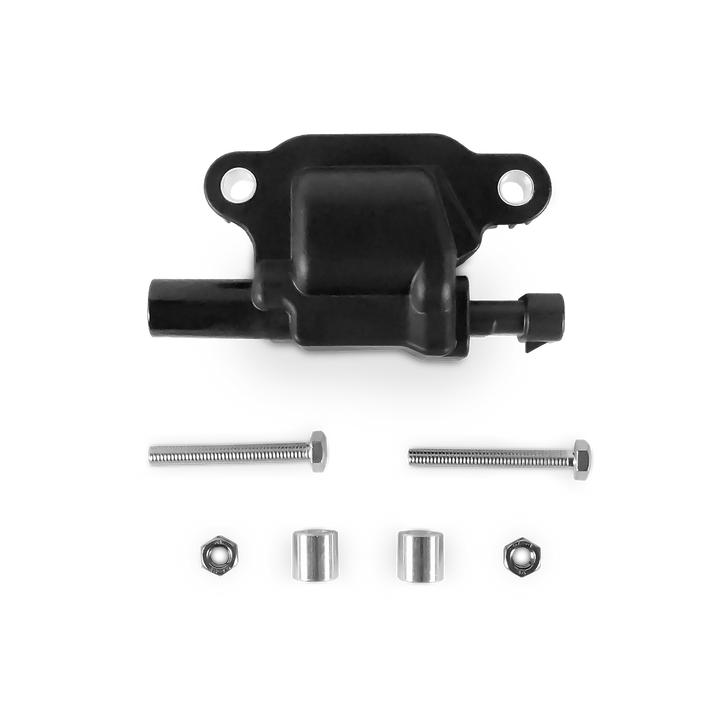

Performance Coil (for use with Aces Full House CDI Ignition)
Performance Coil (for use with Aces Full House CDI Ignition)
Performance Coil (for use with Aces Full House CDI Ignition)
Performance Coil (for use with Aces Full House CDI Ignition)
Performance Coil (for use with Aces Full House CDI Ignition)

Performance Coil (for use with Aces Full House CDI Ignition)

SKU: AC2010
Sale price$45.99 Regular price$54.99
May be sold out - call for availability.
Quantity:
Technical support
Product Manual
Software
Ask us a question
×

Power Distribution Module (PDM)

Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)

Discover the next evolution in performance and reliability with the Aces Fuel Injection Power Distribution Module (PDM) —your ultimate solution for seamless power management in high-performance EFI systems. The PDM uses IGBT transistors in the place of solid state or electro-mechanical relays which helps to filter bad transient voltage, ultimately providing greater protection for your electronics which are connected to the PDM.

Our PDM is engineered to integrate effortlessly with Aces Fuel Injection Systems, providing robust, efficient power distribution for essential components such as:

  • Ignition Systems
  • Fuel Pumps
  • Cooling Fans
  • Auxiliary Accessories

Key Features

  • Comprehensive Power Management: Supports ignition, fuel pumps, fans, and more.
  • Simplified Wiring: Clearly marked terminals for ease of installation.
  • Enhanced Safety: Fuse-protected circuits for optimal performance and reliability.
  • Flexibility: Tailored control for auxiliary devices with relay support.

PRODUCT TECHNOLOGIES

For best results couple the Full House CDI with our high-output ignition coil AC2010.

Ignition coil AC2010:

  • Primary Resistance: 0.273Ω
  • Primary Inductance: 2.63 mH
  • Secondary Resistance: 3.42 kΩ
  • Secondary Inductance: 15.77 H
  • Output (50pF load): 50 kV
  • Output Energy: 200 mJ
  • Peak Primary Current: 48A +/- 5%
  • Arc Duration: 200 uS
  • Turns Ratio 78:1
  • Base Dwell: 700uS

People also shop for

Full House Plus 8 Channel Ignition System

Full House Plus 8 Channel Ignition System

AS2016 Full House Plus 8 Channel CDI

ACES Fuel Injection has the latest innovation solution of Coil-Per-Plug CDI ignition system that will take your traditional V8 and LS engine to the next level performance.

The Full House Plus Ignition System make your traditional V8 engines operate with a distributor to benefit from running a Coil-Per-Plug CDI ignition system. The controller requires a ACES Cam Sync distributor. Benefits of Coil-Per-Plug CDI ignition system include the elimination of distributor cap and rotor wear, reduced spark energy losses caused by long spark plug wires, and the ability to tuning ignition table.

The Full House Plus is as safe as it is versatile, with built-in protection for accidental battery connection reversal and over-temperature protection, all in a water-resistant case. Troubleshooting is easy with LED diagnostics that can identify a problem with individual coils should one come up.

Whether you are building a budget beater or a boosted racing car, ACES EFI ’s Full House Plus 8 Channel CDI ignition system has the technology and advanced features to meet your need, in an easy-to-install package so you can take your ride to the next level!

  • 32bit Power Architecture® based MCU for automotive powertrain applications
  • Works with 7x+1 ACES Cam sync distributor 58x and 24x reluctor wheel
  • High real-time ignition, ignition delay is less than 10us
  • Eight channels ignition control of over to 750 mJ spark energy
  • High-efficiency Alternating Current (AC) power delivery
  • Over 50 Kilovolts output voltage to drive ACES performance Coil
  • 3 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications
  • Coolant temperature sensor input
  • 2-stage Rev limiter setting for maximum RPM
  • Launch control
  • Step retard for Nitrous control
  • 2D and 3D Ignition timing tables
  • Operating voltage is 6-22 volts
  • CAN communication for handheld calibration and display
Full House Pro 8 Channel EFI/CDI Port Injection System

Full House Pro 8 Channel EFI/CDI Port Injection System

Full House Pro 8 Channel EFI/CDI Port Injection System

ACES Fuel Injection The Full House EFI system is the most powerful EFI system for traditional V8 engine and LS engine, it features 8 injectors output and 8 coils CDI high performance ignition output, This 32-bit controller is based on the hardware platform of the ACES FULL HOUSE ignition controller and integrates the EFI software of ACES. It is the Cutting-edge technology controller in the market and will remain the leading position for years to come. With the use of ACES Cam Sync distributor plug, the classic V8 engine can work with sequential ignition and sequential injection, more precise fuel distribution and high-energy ignition control.



Application 1: AS2017 Full House EFI Port Injection system for tradition V8 engine

Kits Include: Full House EFI ECU, Harness, CT sensor, O2 sensor, 3bar TMAP, ACES cam sync distributor plug, ACES high performance ignition coils.

  *Available for SBC and SBF standalone EFI kits (ACES Cam sync distributor plug needed)

  *Available for SBC and SBF with Black 4150 Manifold kits(include intake manifold and cam sync distributor)



Application 2: AS2017 Full House EFI Port Injection system for LS engine

Kits Include: Full House EFI ECU, Harness, CT sensor, O2 sensor, 3bar TMAP,  ACES high performance ignition coils.





The Full House EFI kits include a USB/CAN tuning cable and the 5" High Resolution Full Color Touchscreen Handheld LCD, these kits require the use of the free ACES fuel injection laptop tuning Software for initial setup. The ACES Turning Software includes multiple base calibrations to choose from for either naturally aspirated or boosted engines. Also, the tuning software provides an easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a drag racing or a boosted racing car, The Full House EFI kits has the advanced features and technology to you need.



  • 32bit Power Architecture based MCU for automotive powertrain applications
  • Works with 7x+1 ACES Cam sync distributor, 58x and 24x reluctor wheel
  • High real-time ignition, ignition delay is less than 10us
  • Eight channels ignition control of over to 750 mJ spark energy for sequential ignition
  • Over 50 Kilovolts output voltage to drive ACES performance Coil
  • Eight high-impedance injector drivers for sequential fuel injection
  • Sequential fuel and spark control with individual cylinder trim
  • High-efficiency Alternating Current (AC) power delivery
  • Dual wideband O2 sensors for closed loop control
  • Adaptive self-learn strategy for idle control and fuel control
  • 3 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications
  • Rev limiter setting for maximum RPM
  • Launch control
  • Step retard for Nitrous control
  • Dual electric fan control and Fuel pump control
  • Operating voltage is 6-22 volts
  • ACES CAN module adds inputs and outputs and connects to digital dash displays
Full House Pro 8 Channel EFI/CDI TBI System

Full House Pro 8 Channel EFI/CDI TBI System

Full House Pro 8 Channel EFI/CDI TBI System

ACES Fuel Injection The Full House EFI system is the most powerful EFI system for traditional V8 engine and LS engine, it features 8 injectors output and 8 coils CDI high performance ignition output, This 32-bit controller is based on the hardware platform of the ACES FULL HOUSE ignition controller and integrates the EFI software of ACES. It is the Cutting-edge technology controller in the market and will remain the leading position for years to come. With the use of ACES Cam Sync distributor, the classic V8 engine can work with sequential ignition and sequential injection, more precise fuel distribution and high-energy ignition control.



Application 1: AS2017 Full House Pro 8 Channel EFI/CDI TBI system for tradition V8 engine

Kits Include: ACES TBI throttle body, Full House Pro 8 Channel EFI/CDI ECU, Harness, CTS sensor, O2 sensor, ACES cam sync distributor plug, ACES high performance ignition coils.

  *Available for SBC and SBF kits (ACES Cam sync distributor plug needed)



Application 2: AS2017 Full House Pro 8 Channel EFI/CDI TBI system for LS engine

Kits Include: ACES TBI throttle body, Full House Pro 8 Channel EFI/CDI ECU, Harness, CTS sensor, O2 sensor,  ACES high performance ignition coils.



The Full House EFI kits include a USB/CAN tuning cable and the 5" High Resolution Full Color Touchscreen Handheld LCD, these kits require the use of the free ACES fuel injection laptop tuning Software for initial setup. The ACES Turning Software includes multiple base calibrations to choose from for either naturally aspirated or boosted engines. Also, the tuning software provides an easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a drag racing or a boosted racing car, The Full House EFI kits has the advanced features and technology to you need.



  • 32bit Power Architecture based MCU for automotive powertrain applications
  • Works with 7x+1 ACES Cam sync distributor, 58x and 24x reluctor wheel
  • High real-time ignition, ignition delay is less than 10us
  • Eight channels ignition control of over to 750 mJ spark energy for sequential ignition
  • Over 50 Kilovolts output voltage to drive ACES performance Coil
  • Eight high-impedance injector drivers for sequential fuel injection
  • Sequential fuel and spark control with individual cylinder trim
  • High-efficiency Alternating Current (AC) power delivery
  • Dual wideband O2 sensors for closed loop control
  • Adaptive self-learn strategy for idle control and fuel control
  • 3 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications
  • Rev limiter setting for maximum RPM
  • Launch control
  • Step retard for Nitrous control
  • Dual electric fan control and Fuel pump control
  • Operating voltage is 6-22 volts
  • ACES CAN module adds inputs and outputs and connects to digital dash displays
