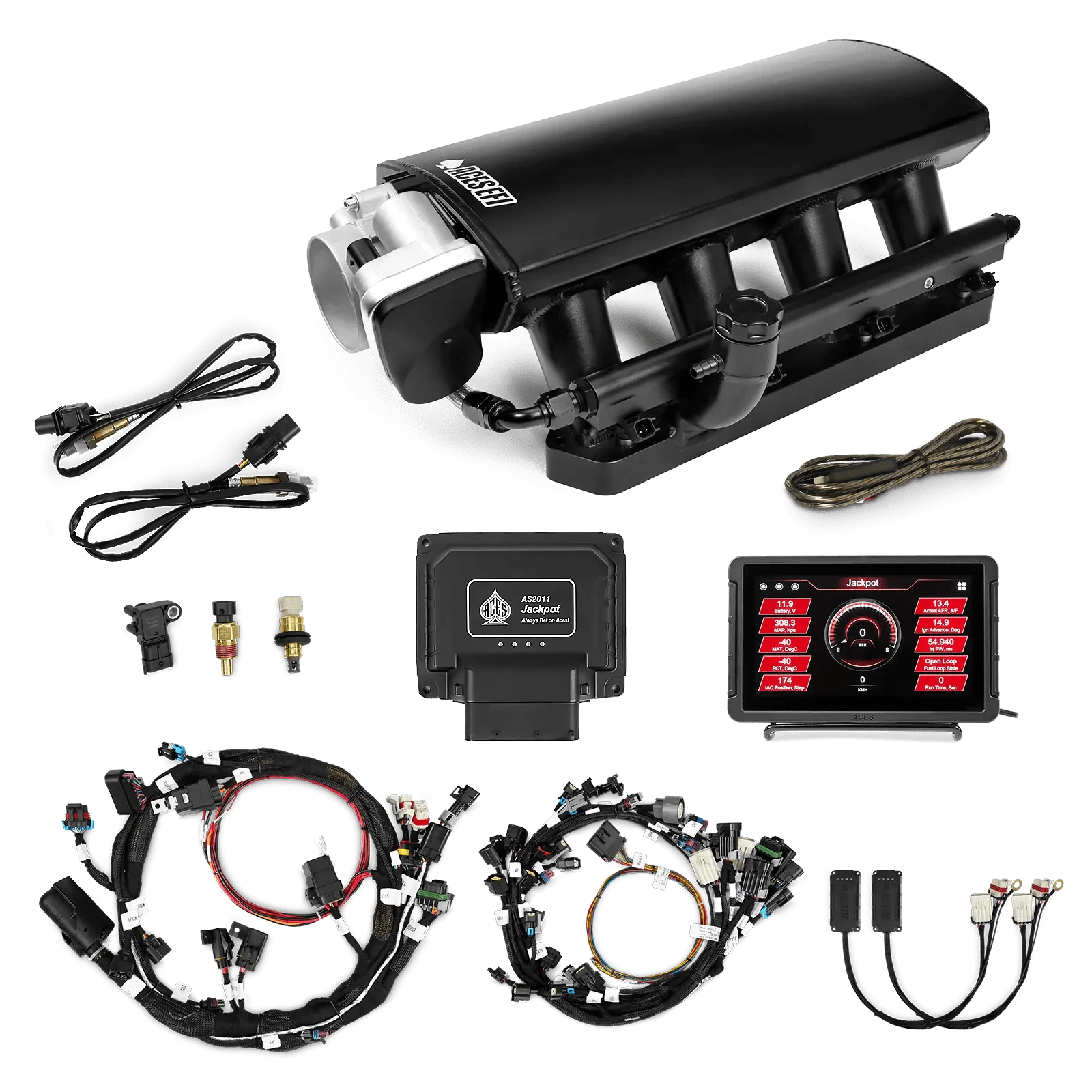

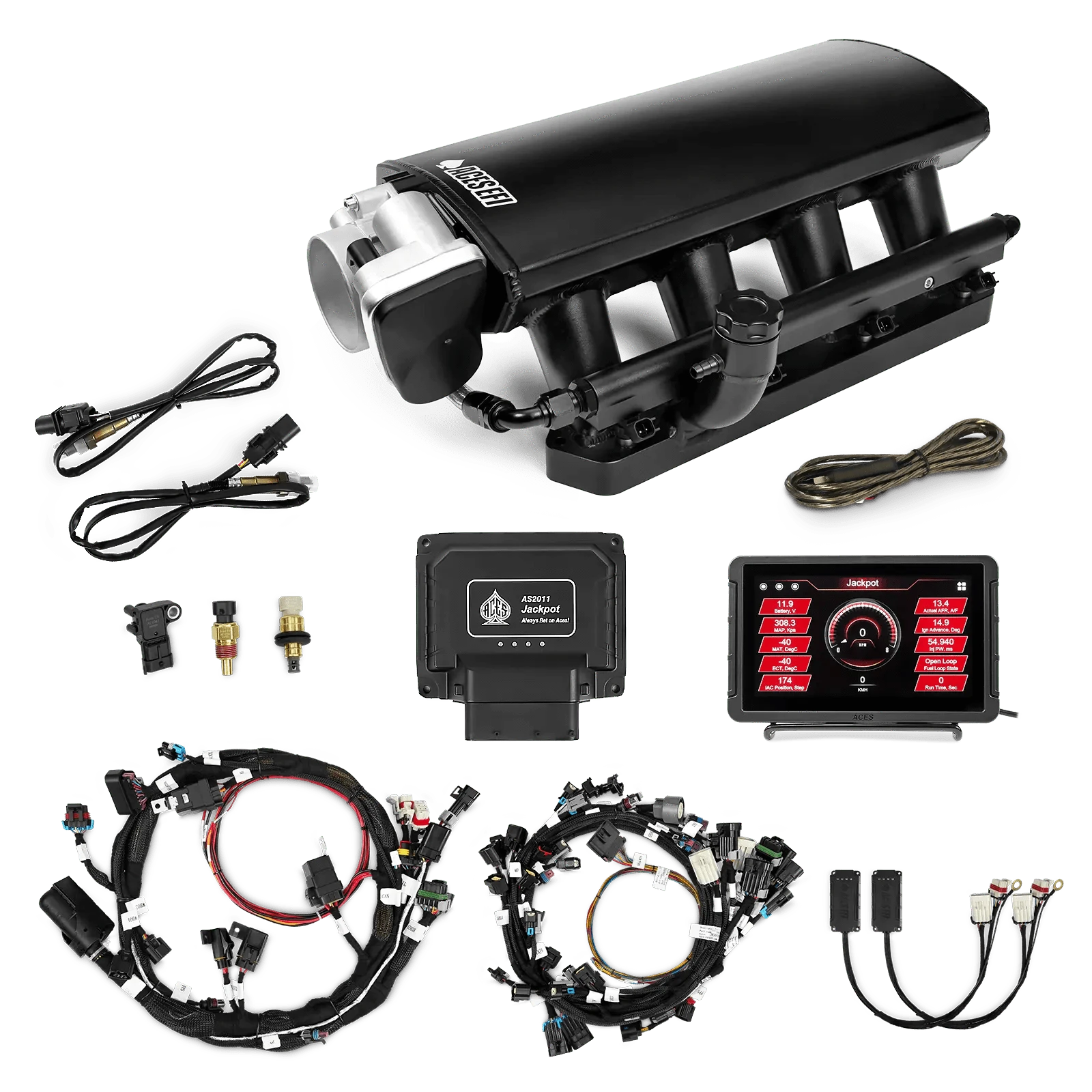

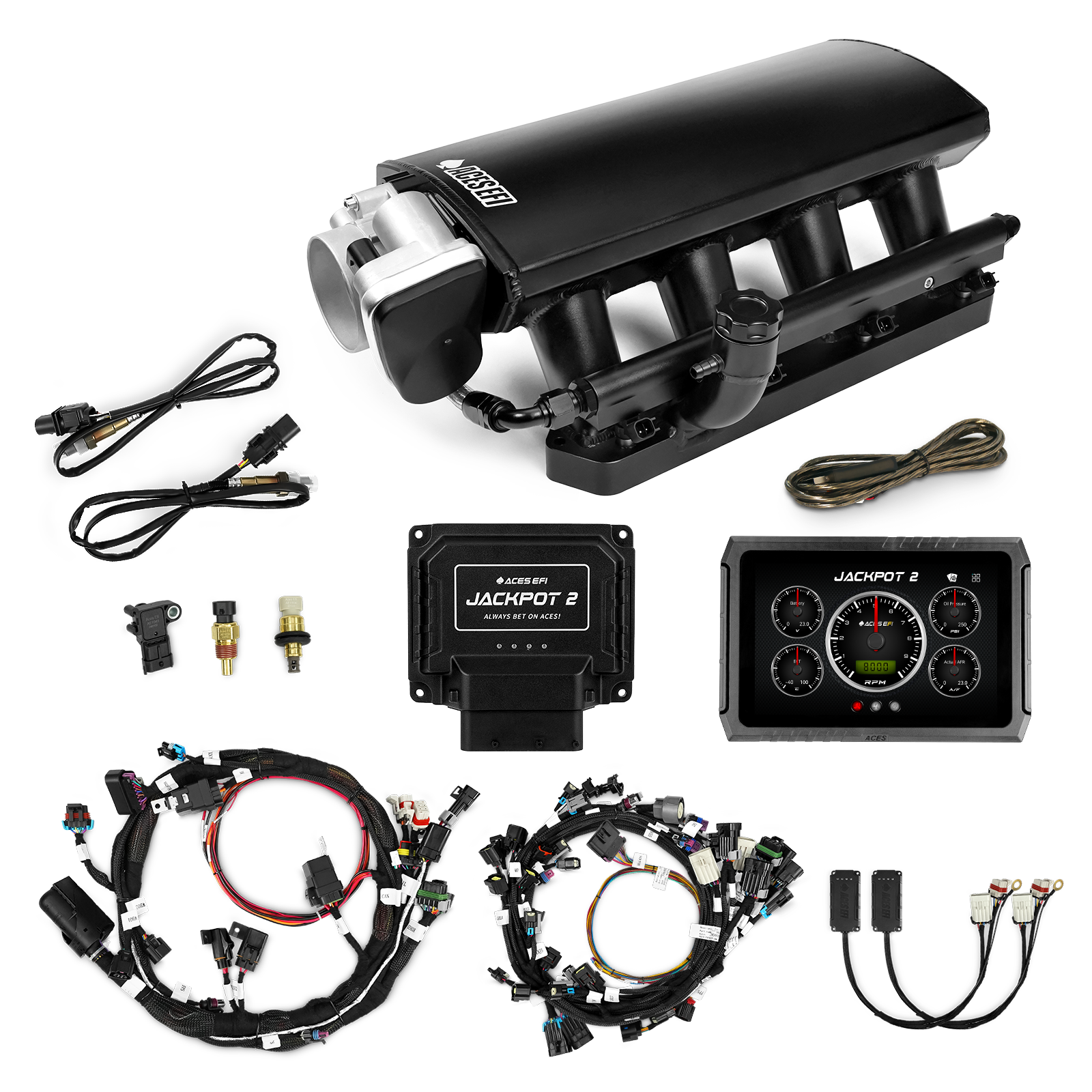

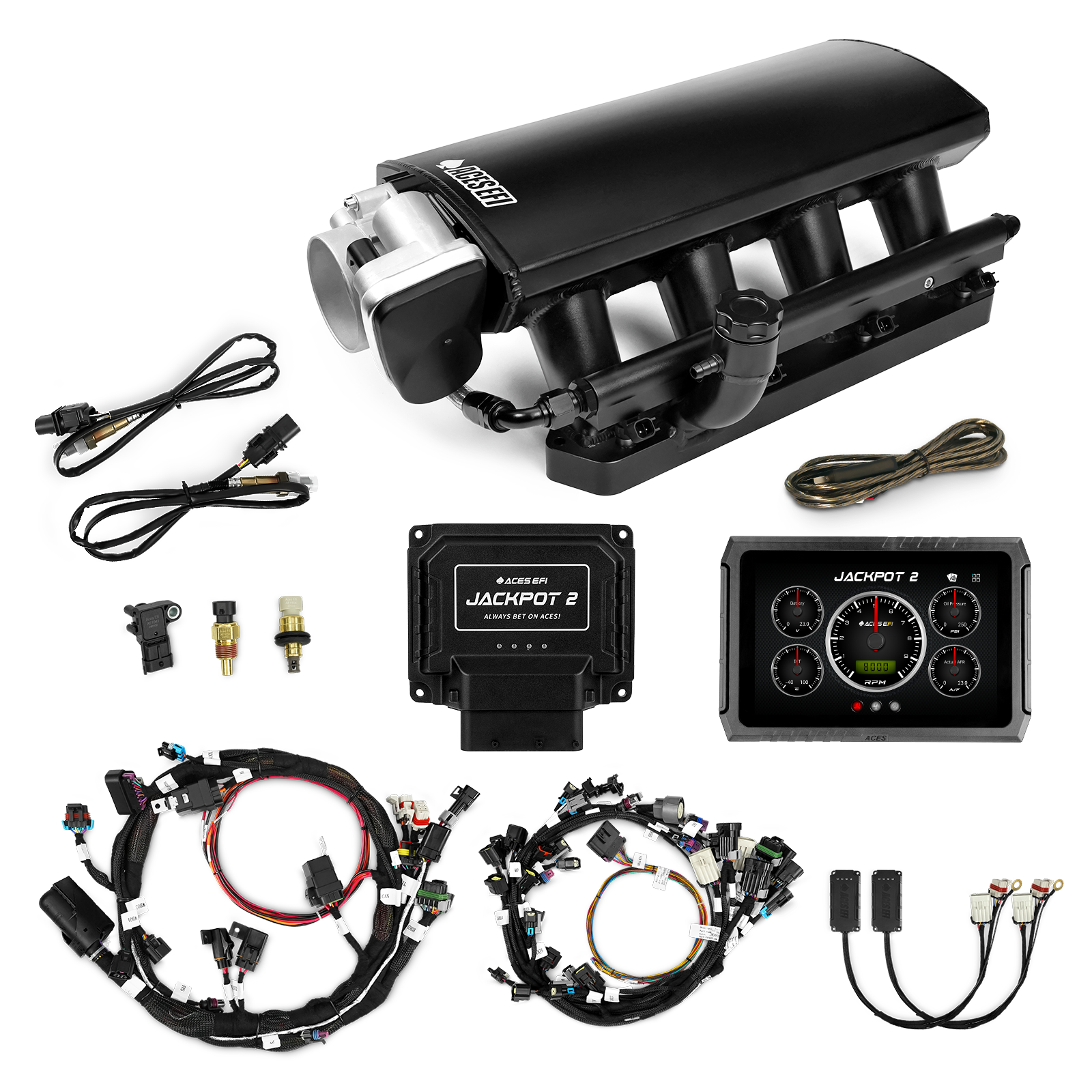

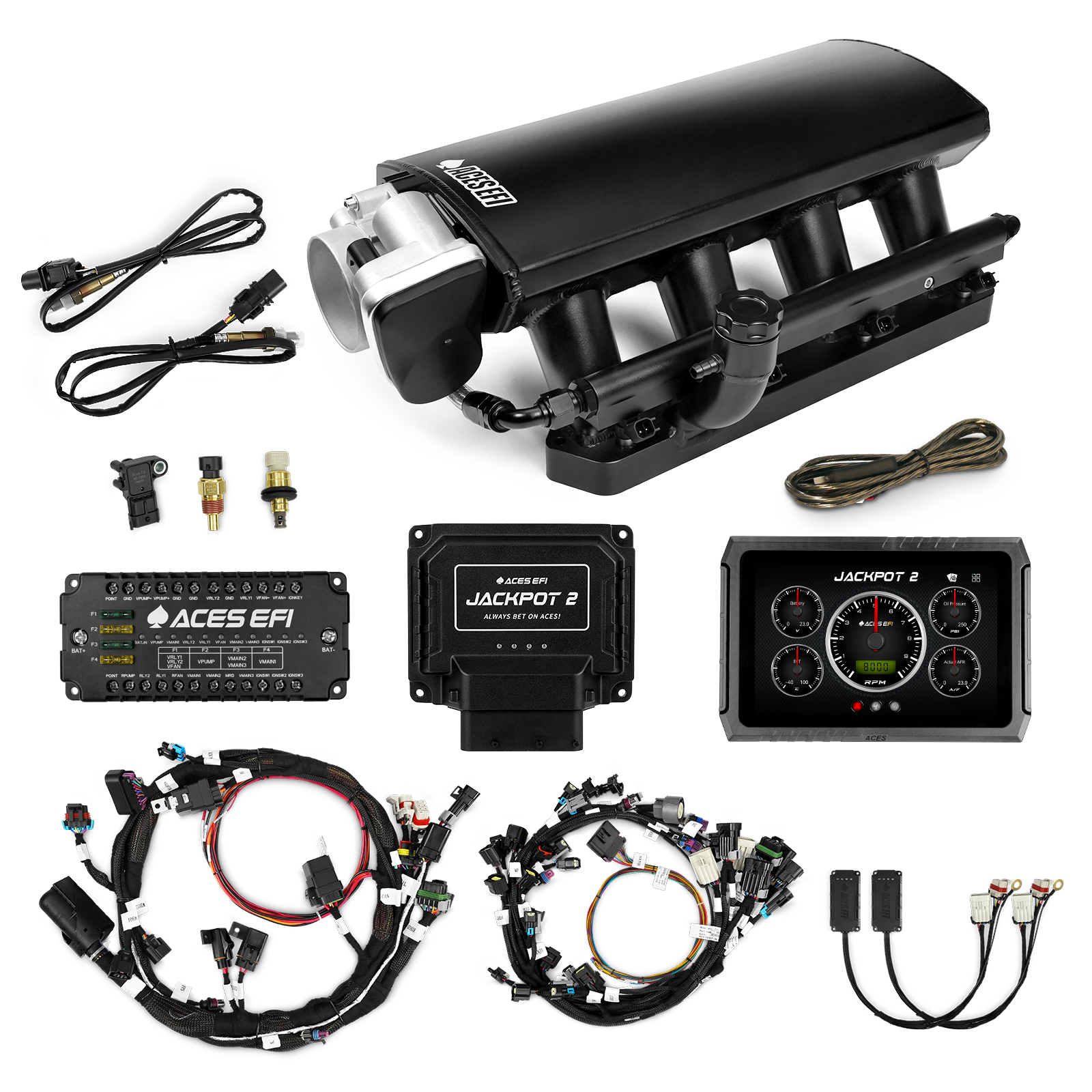

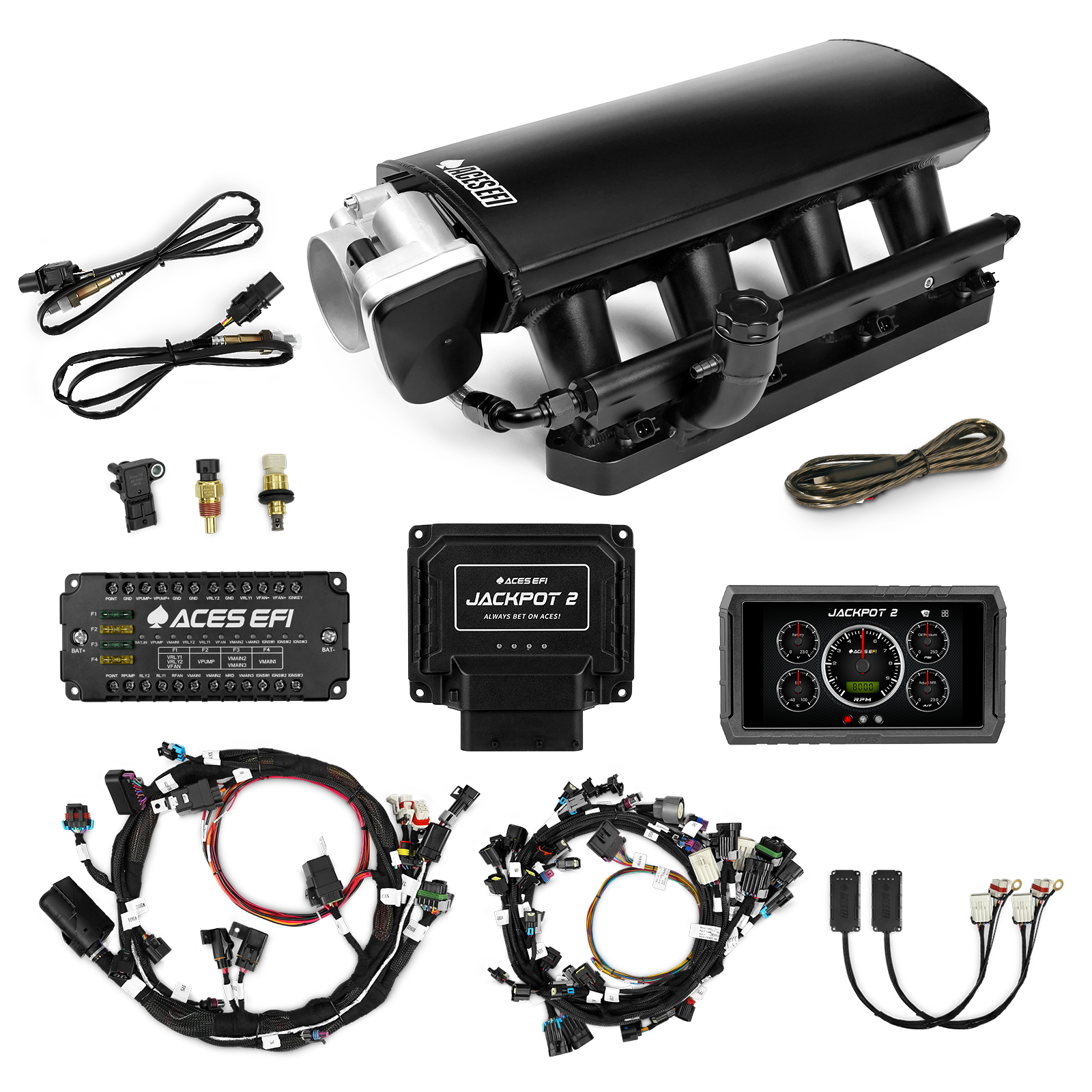

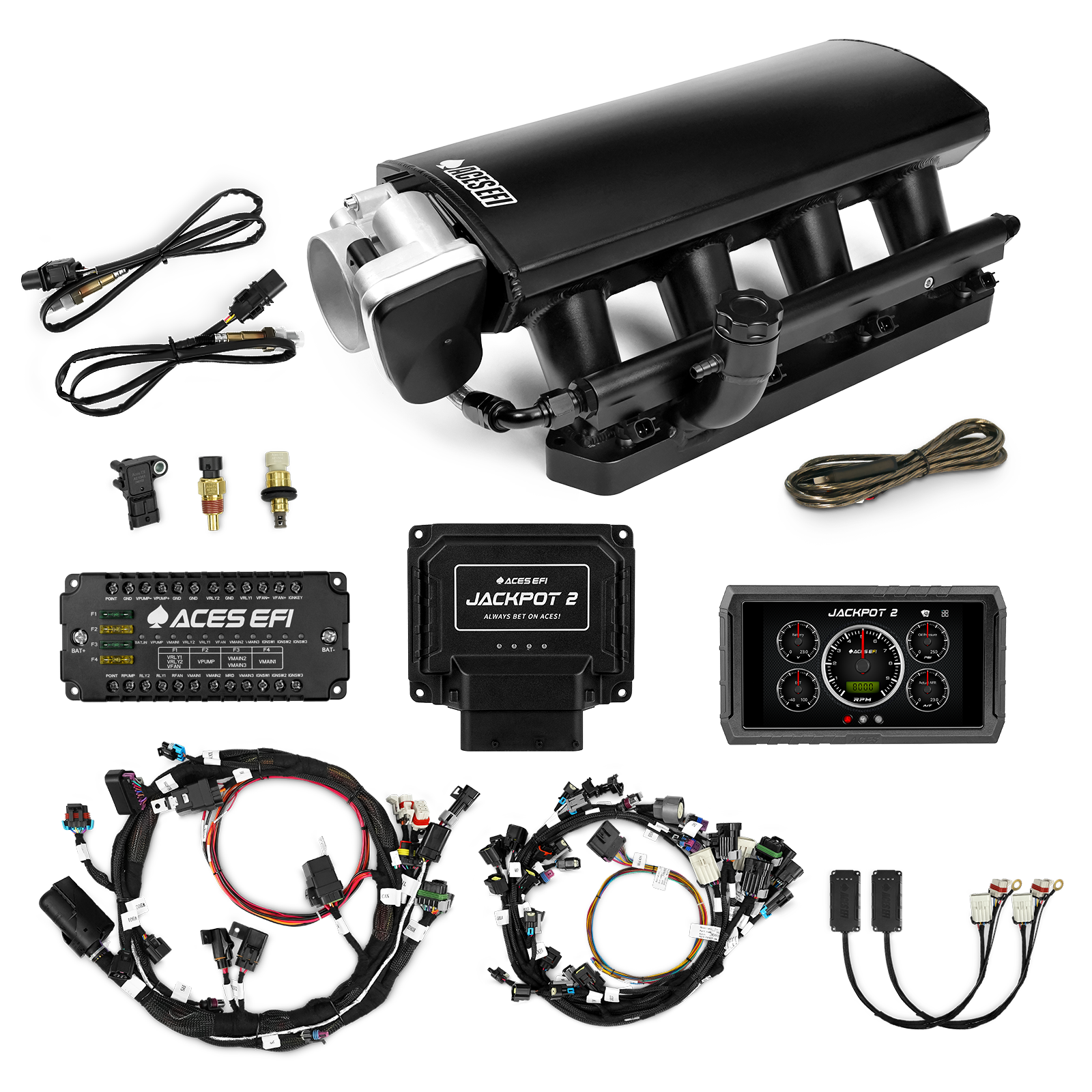

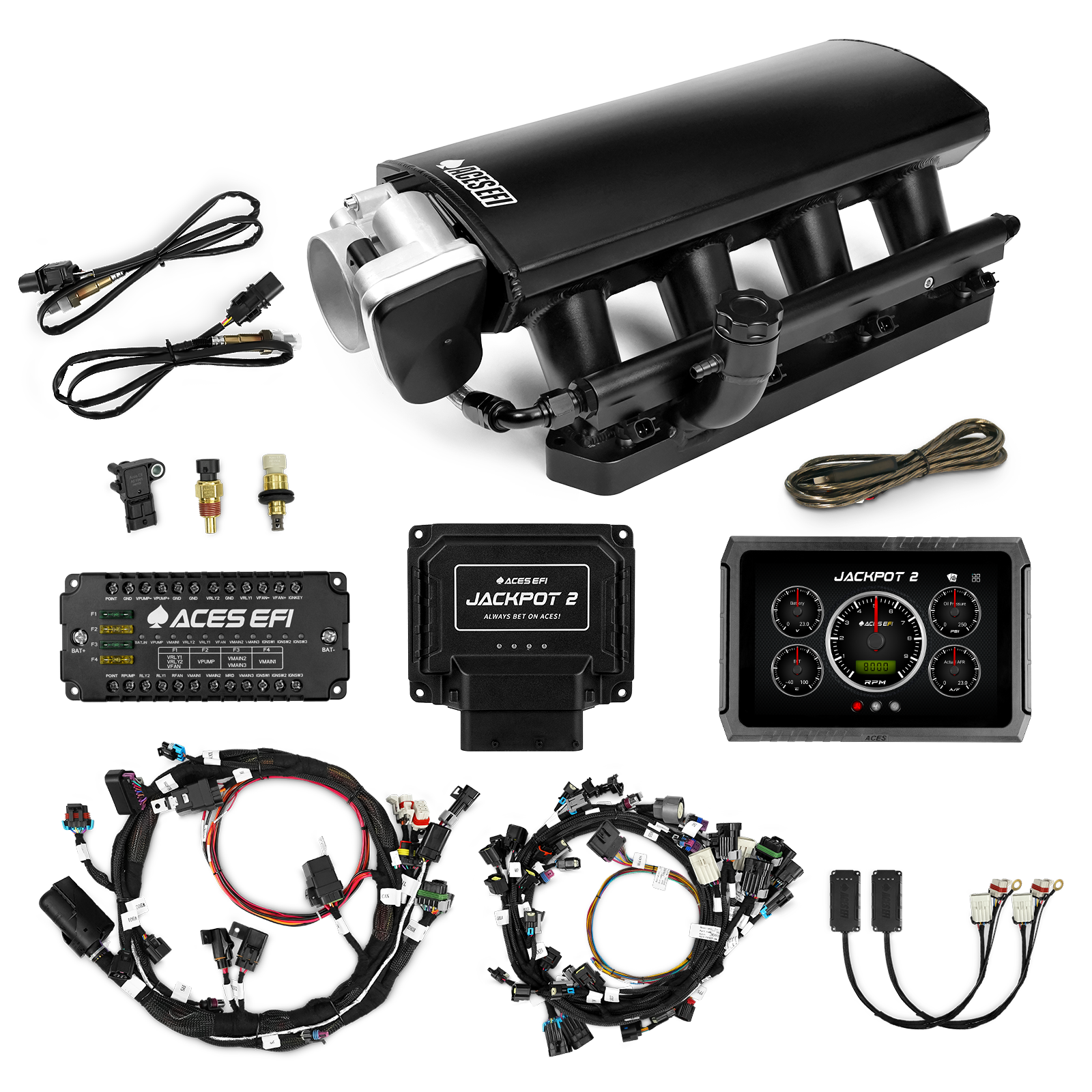

Jackpot Hemi EFI Top End Kits
Description
The Jackpot ECU brought high quality, yet affordable EFI to the GM LS crowd, and now
it is also available for the 2009 and newer Mopar Gen3 Hemi! This system works with
the popular 5.7 and 6.4 Hemi engines with the 58X (60-2) crank reluctor and allows for
the use of the original style Hemi 2-wire “dumb” coils with the included 4-Channel Coil
Drivers. The Jackpot works with many of the stock Mopar DBW throttle bodies. VVT (Variable Valve Timing) and MDS (Multiple Displacement System) will need to be deleted (most delete them anyway in a swap application). The supplied injector harness is compatible with the stock EV6/14 style injectors, as well as our own EV6 injectors and others.
Features
- Works with all 2009-newer 58X/60-2 Hemi engines except factory supercharged
6.2 - Includes 4-Channel Coil Drivers to work with original 2-wire coils
- Compatible with many Mopar DBW throttle bodies
- Dual wideband oxygen sensors
- OE Grade 32-bit Power Architecture™ processor
Computing Power
A robust ECU that utilizes our OEM standard 32-bit architecture. This allows the system to manage input/output signals, voltage, and RPM faster and more consistently than our competitors.
Plug 'n' Play
Not a tuning wiz? You don't need to be since we provide a wizard for you. Our self-learning* functionality means you only have to answer a few basic questions in the startup wizard and then the ECU takes care of the rest. After about 30-60 mins of idling and drive time, the system will build it's own tune so you don't have to. Click here to learn more about our handhelds and dashes and see all of their features.
*Self-learn works best for stock-mild applications. For more aggressive applications and even some stock-mild applications, we offer free tuning software on our website.
It takes two.
The Jackpot HEMI system utilizes two WBO2 sensors to read each bank of your V8 engine. Dual wide-band sensors allow precise calibration of each cylinder bank, optimizing performance and allowing more thorough tuning of your engine without any compromises.
Best Performance Intake
- operating RPM up to 6,500
- 500hp, 36lb/hr injectors, 800hp, 65lb/hr
- 80mm drive by wire throttle body
- 92mm,102mm drive by cable billet throttle boday
- billet aluminum fuel rail with black anodized finish
Performance injector and fuel rail
Aces EFI has designed its fuel injectors to meet the performance needs of all enthusiasts. Aces offers injectors in 36, 65, 80, 100, and 211 lb/hr flow rates for everyone from the basic cruisers to all-out race cars.
Fuel rails are CNC-machined from billet aluminum and topped off with a black anodized, They include the necessary hardware and fittings for installation.
Pedal to the metal...and the wire.
Whether you need drive-by-cable, drive-by-wire, or both in one, the Jackpot HEMI EFI system has you covered.
FAQs
Emissions Statement
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
Marine Applications?
Is it marine or coast guard approved/certified? No. None of our products are.
Do we recommend it? No, since water and engines don't generally mix and warrantying items in these conditions becomes tricky. These are also modified applications that are not 100% what the systems were designed for.
Will it work? Yes, with some modifications for the WBO2 sensor.
Is it E85 compatible?
Yes, you just would need to change some settings first in order for it to work.
Please note that damages to the system caused by the use of E85 or other racing fuels are not covered by our warranty policy. This is because E85 is known to corrode certain types of material over time and our systems were not designed for long-term E85 use.
Will it work with aftermarket or stock gauges?
The system is not generally setup to work with stock gauges which is why we provide the handheld to display all the readings. Aftermarket tachometers will work with the system, and we are working to provide support for other popular aftermarket gauges soon!
What is your warranty policy?
Aces offers general support on product setup, installation, troubleshooting, and basic diagnostic help.
While most stock-mild applications do not require tuning, some applications (usually more aggressive cams or boosted applications) may require additonal tuning beyond what the self-learn is capable of. Aces does not offer custom tuning though we can recommend Authorized Aces Tuners who may charge a fee for their services. Read more about our support services and what to expect here.
What kind of tech support do you offer?
Aces offers general support on product setup, installation, troubleshooting, and basic diagnostic help.
While most stock-mild applications do not require tuning, some applications (usually more aggressive cams or boosted applications) may require additonal tuning beyond what the self-learn is capable of. Aces does not generally offer custom tuning except at our discretion, though we can recommend Authorized Aces Tuners who may charge a fee for their services.
