The Joker 2
Sequential EFI system for classic engines with built-in CDI
The Joker 2 Sequential EFI/CDI Standalone System
Earn $23.40 in Store Credit!
3-Year Warranty
30-Day Returns
Free Shipping
Interface Themes
×
![]()
‹
›
- Self-learning fuel control with full laptop tunability
- True sequential multi-port fuel injection
- Integrated digital Capacitive Discharge Ignition
- Customizable firing order for compatible classic V8 engines
- Externally mounted 32-bit automotive-grade Gen 2 ECU
- Expanded 31 × 31 VE, fuel, and spark tables
- Designed for high-compression, boosted, nitrous, and high-RPM applications
- Boost compatible
- Dual electric fan control
- Two-stage rev limiter
- Built-in fuel-level sensor input
- Single-solenoid boost control coming soon through a firmware update
- Requires a 7+1 Hall-effect distributor
The Joker 2 Sequential EFI/CDI Standalone System
Sale price$1,169.99
Regular price$1,299.99
Product Info
Overview
The Joker 2 is a multiport EFI system with integrated CDI for classic, 8-cylinder engines. Aces is the only EFI manufacturer to produce integrated Capacitive Discharge Ignition (CDI) setups: no costly additional purchases Whether you're running high compression, forced induction, or aggressive racing setups, the Joker 2’s high-voltage CDI system ensures maximum power and efficiency.
Why CDI?
Unlike traditional EFI systems that rely on weaker inductive ignition, Joker 2’s CDI system produces a hotter, more consistent spark that burns fuel more efficiently, leading to:
- Superior combustion in high-boost or high-compression applications
- Increased power and throttle response
- Reduced misfires and improved fuel efficiency
Total Control for Performance Builds
Just like our Wild Card system, the Joker 2 EFI/CDI works with most classic 8-cylinder engines, offering a customizable firing order in the start wizard and requiring a 7+1 timing setup for accurate ignition control. But what sets Joker apart is its built-in CDI technology and racing-grade features:
- Integrated Digital CDI – Produces 150mJ spark energy output for maximum ignition performance
- Massive Voltage Output – Primary voltage: 450-530V / Secondary voltage: 50,000V
- 2-Stage Rev Limiter – Set a max RPM limit for engine protection, plus launch control for optimal starts
- Burnout Mode – Holds RPM at a set limit for consistent, controlled burnouts
Core Features
- Self-learning and full tuning capability
- Expanded 31 x 31 tuning tables
- Integrated digital CDI with 150mj spark energy output
- 2-stage Rev limiter setting for max RPM, launch control, and burn out
- 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors
- Easy setup and monitoring with your choice of bluetooth module or HD handheld
- Integrated coil driver for ignition timing control (when using Aces’ coil and distributor)
- Simple calibration wizard for initial setup- no laptop tuning required.
- Dual fan control
- Step retard for nitrous control
- Boost compatibility right out of the box, with boost control coming soon
- Free laptop software available for pro applications
- Compatible with all Aces’ handhelds, dashes, and modules
- Dual 4.9 WBO2 sensors
From street builds to high-boost race cars, Joker 2 EFI/CDI is the ultimate all-in-one ignition and fuel control solution. No need for a separate CDI box—Aces EFI is the only company to offer EFI and CDI in one ECU. If you’re serious about performance, The Joker 2 is the system you need!
Specs
The Joker 2 Sequential EFI/CDI Standalone System Specifications
| Specification | Value |
|---|---|
| Accelerometer Support | No |
| Boost Control | No |
| Boost Compatible | Yes |
| CAN-BUS Support | Yes |
| Coil Per Cylinder Ignition Support | No |
| Datalogging Support | Yes |
| Distributor Included | Not in the Standalone system unless that option is selected. |
| Dry Nitrous Control | No |
| Dry Nitrous Compatibility | No |
| e85 Support | Yes |
| EFI Type | Multi Port |
| EGT Support | Yes |
| Emission Code | 3 |
| Forced Induction Support | Yes |
| Fuel Filter Included | Only in EFI Fuel Kits & Master Kits |
| Fuel Hose Included | Only in EFI Fuel Kits & Master Kits |
| Fuel Injectors Included | Only in Top End & Master Kits |
| Fuel Pressure Regulator Included | Only in select EFI Fuel Kits & Master Kits |
| Fuel Pump Included | Only in EFI Fuel Kits & Master Kits |
| Grade Type | Performance |
| Handheld Included | Yes |
| Idle Air Control Motor Included | Only in Top End & Master Kits |
| Ignition Timing Control | Yes |
| Ignition Type | 7+1 Hall Effect Distributor |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | EV6 |
| Intake Manifold Included | Only in Top End & Master Kits |
| Knock Retard Support | No |
| MAP Sensor | 2.8 Bar or 3 Bar Depending on Kit |
| MAP Sensor Included | Only in Top End & Master Kits |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Progressive Nitrous Control | No |
| Sequential Injection | Yes |
| Self-Learning | Yes |
| Throttle Position Sensor Included | No |
| Transmission Control | Not built in |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes but non-progressive |
| UPC | |
| Part Number(s) | AS2015-1 |
Injector Specs
| Injectors | Rated Flow per Injector (lb/hr) | Rated Injector Pressure (psi) | Minimum Injector Opening Time (msec) | 8.0V | 8.8V | 9.6V | 10.4V | 11.2V | 12.0V | 12.8V | 13.6V | 14.4V | 15.2V | 16.0V | 16.8V | 17.6V | 18.4V | 19.2V | 20.0V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 lb/hr (500 hp kits) | 36 | 43.5 | 1.544 | 2.157 | 1.648 | 1.323 | 1.03 | 0.857 | 0.741 | 0.646 | 0.542 | 0.478 | 0.418 | 0.345 | 0.302 | 0.256 | 0.224 | 0.19 | 0.156 |
| 65 lb/hr (800 hp kits) | 65 | 43.5 | 1.555 | 2.081 | 1.761 | 1.417 | 1.161 | 0.992 | 0.833 | 0.763 | 0.677 | 0.597 | 0.511 | 0.462 | 0.407 | 0.342 | 0.359 | 0.328 | 0.291 |
Documents & Resources
The Joker 2 Installation & Setup Manual
The Joker Installation & User Guide
Last updated: March 9, 2026
PDM Wiring Diagram for The Joker
Last updated: April 2, 2026
PDM Wiring Diagram for The Joker 2
Last updated: July 7, 2026
The Jokerc 2 ECU CAD Drawing
Last updated: February 5, 2026
You can also visit our Manuals & Downloads page to browse all available resources.

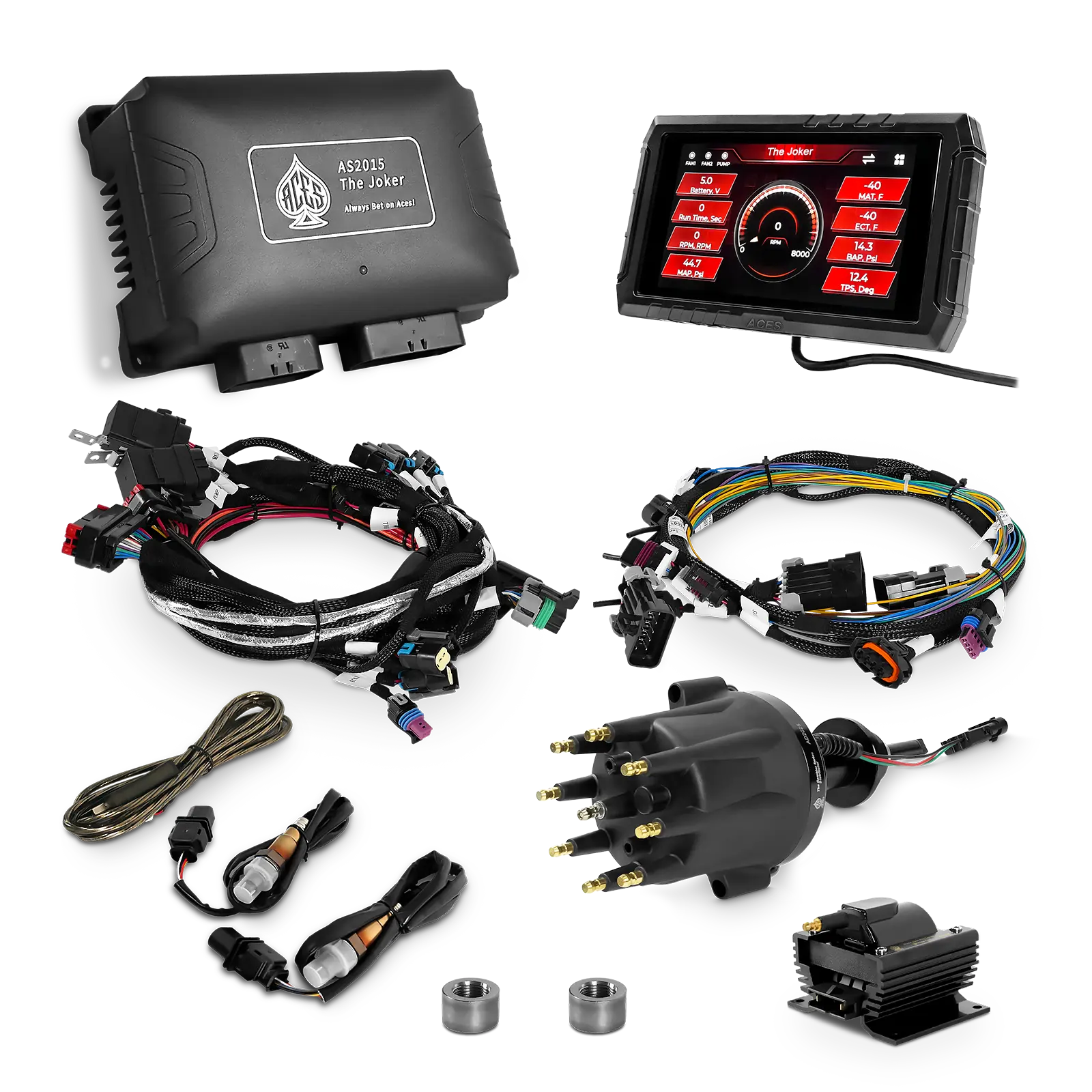

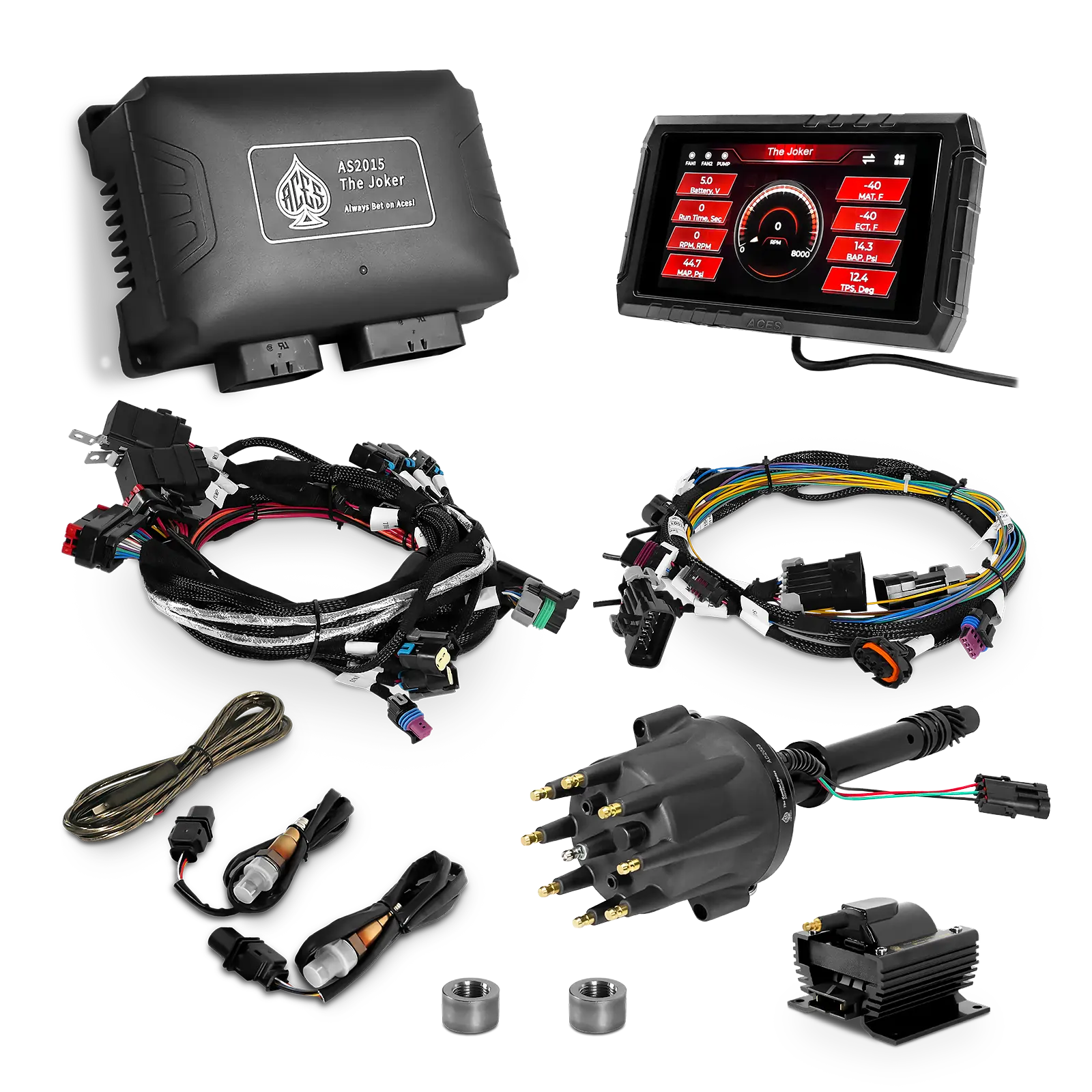

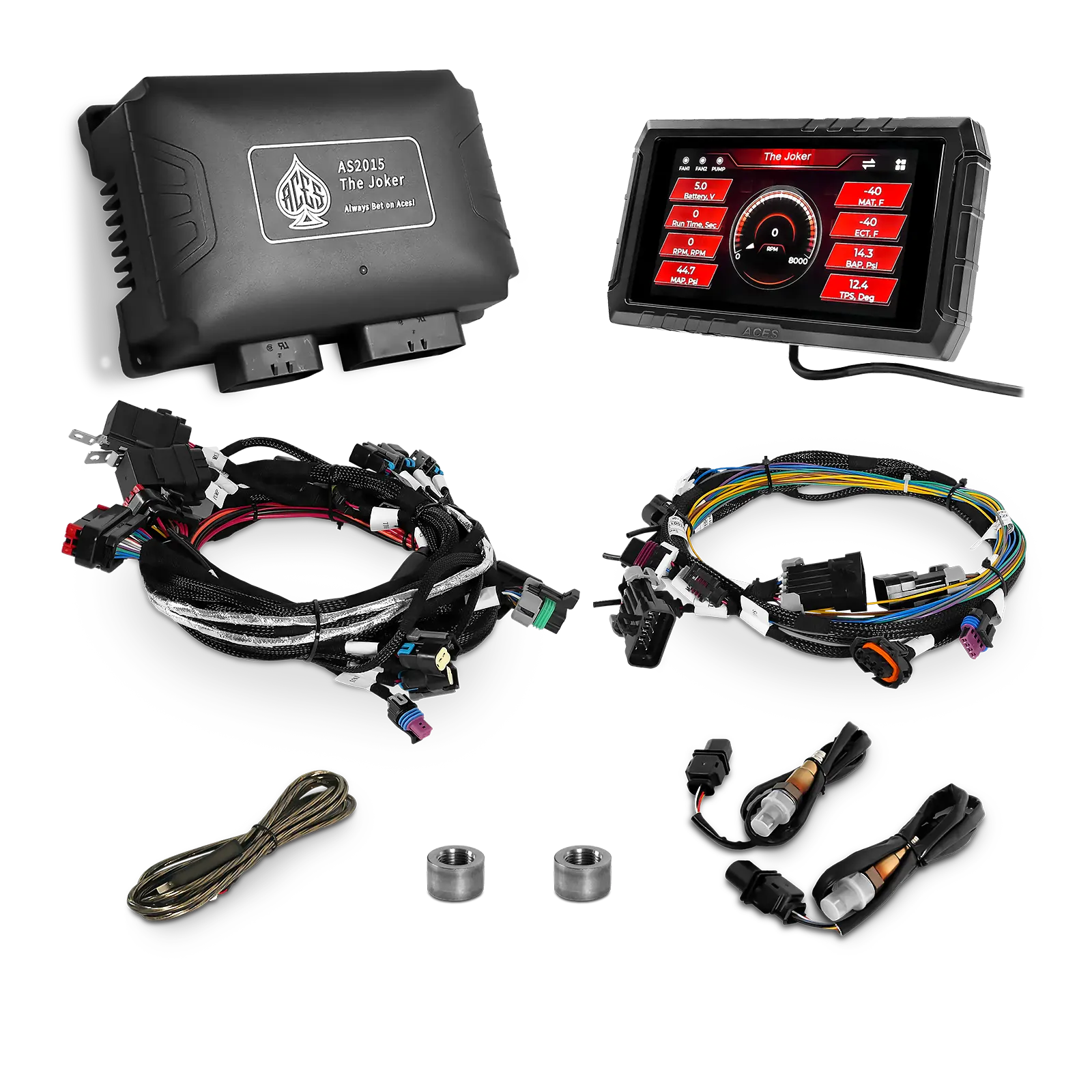

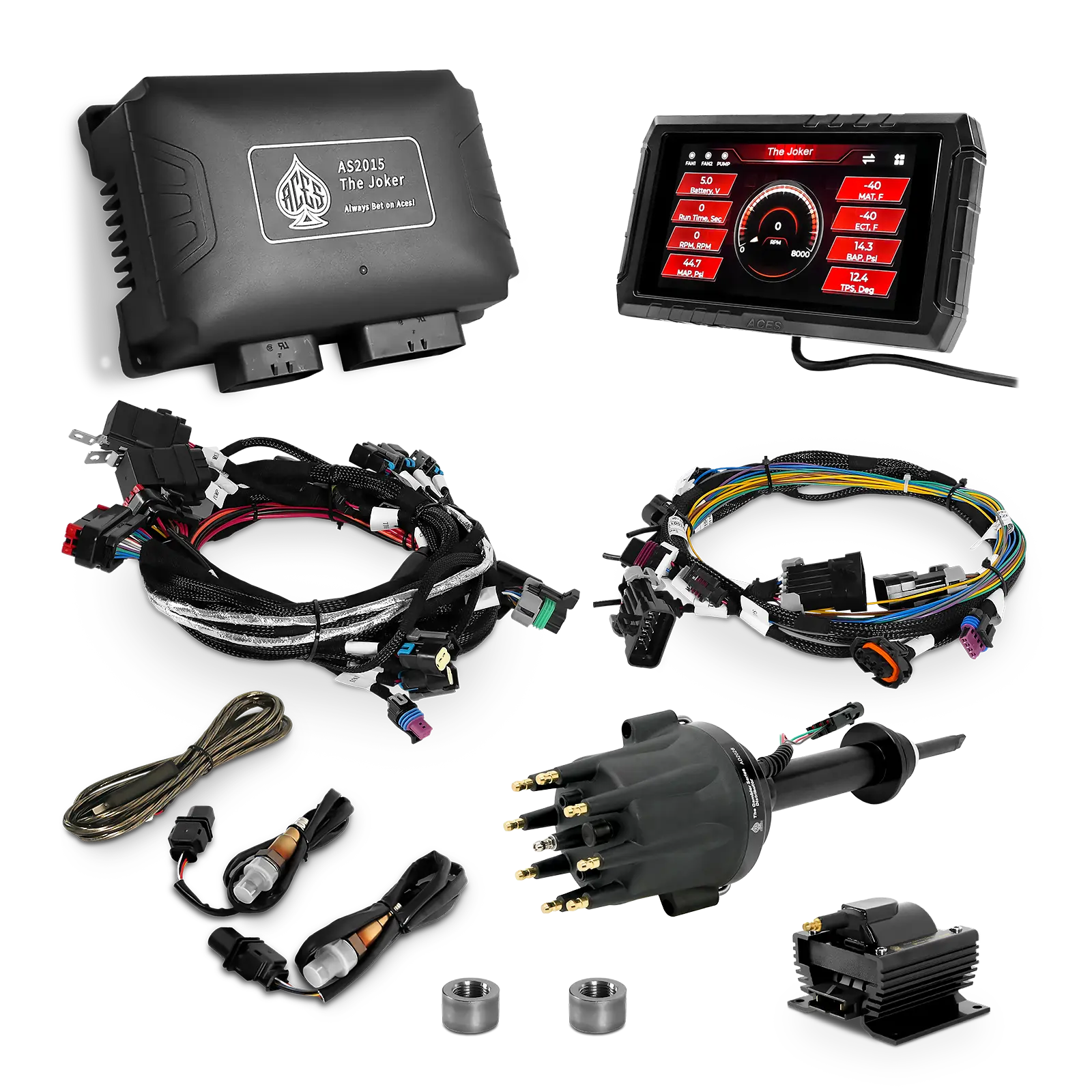

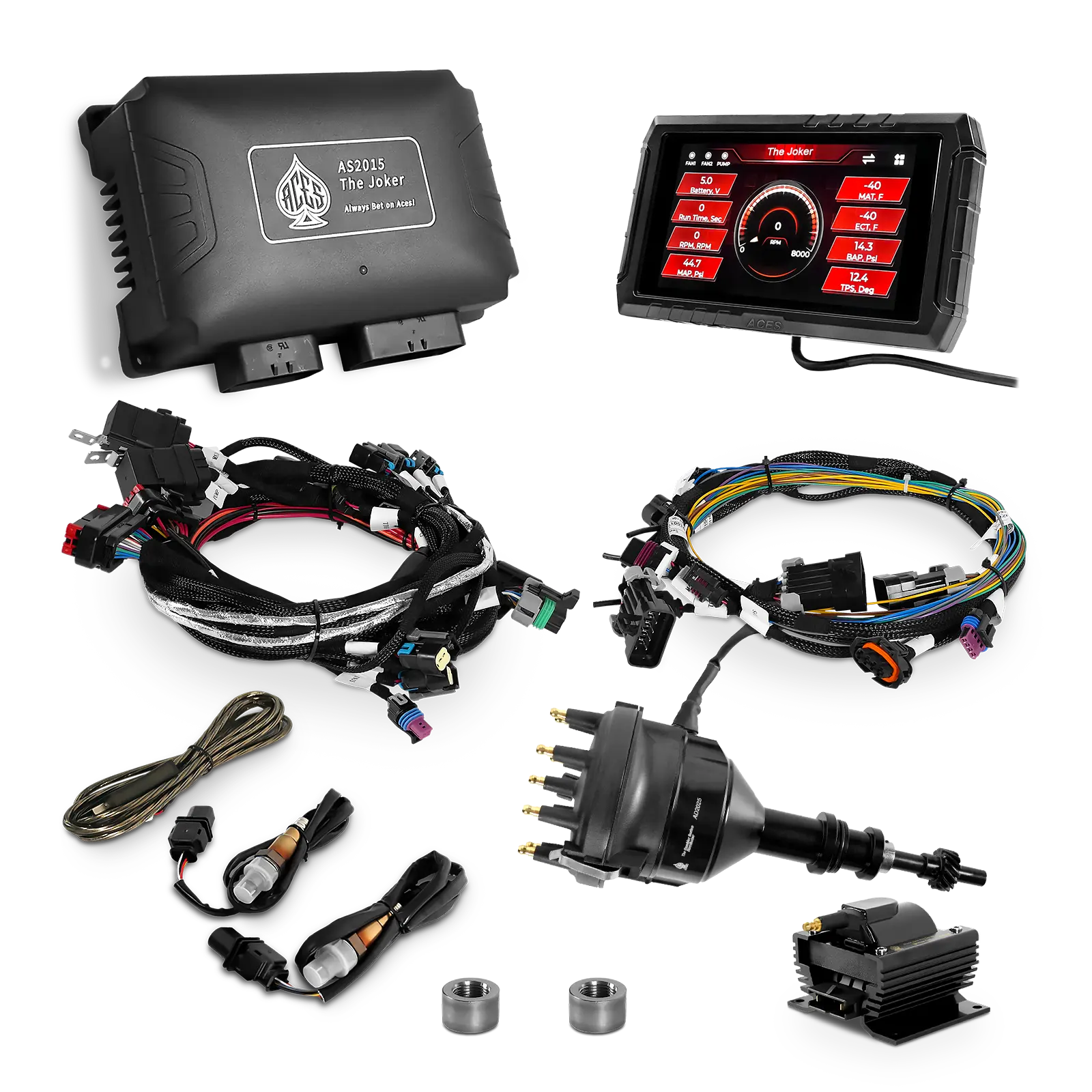

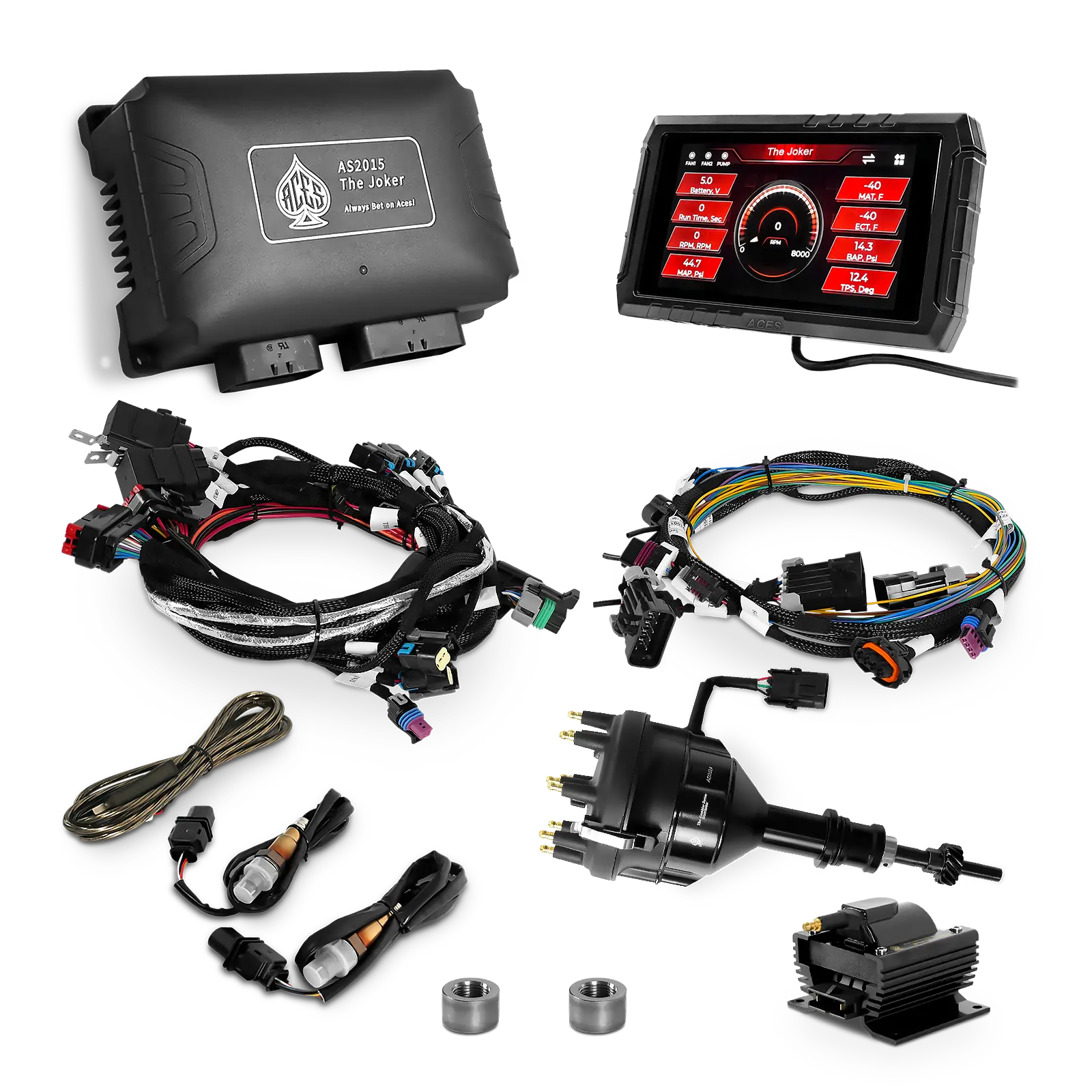

What's in the box?
Items shown below reflect what normally comes in the box for each kit and may vary during certain promotions schedules.

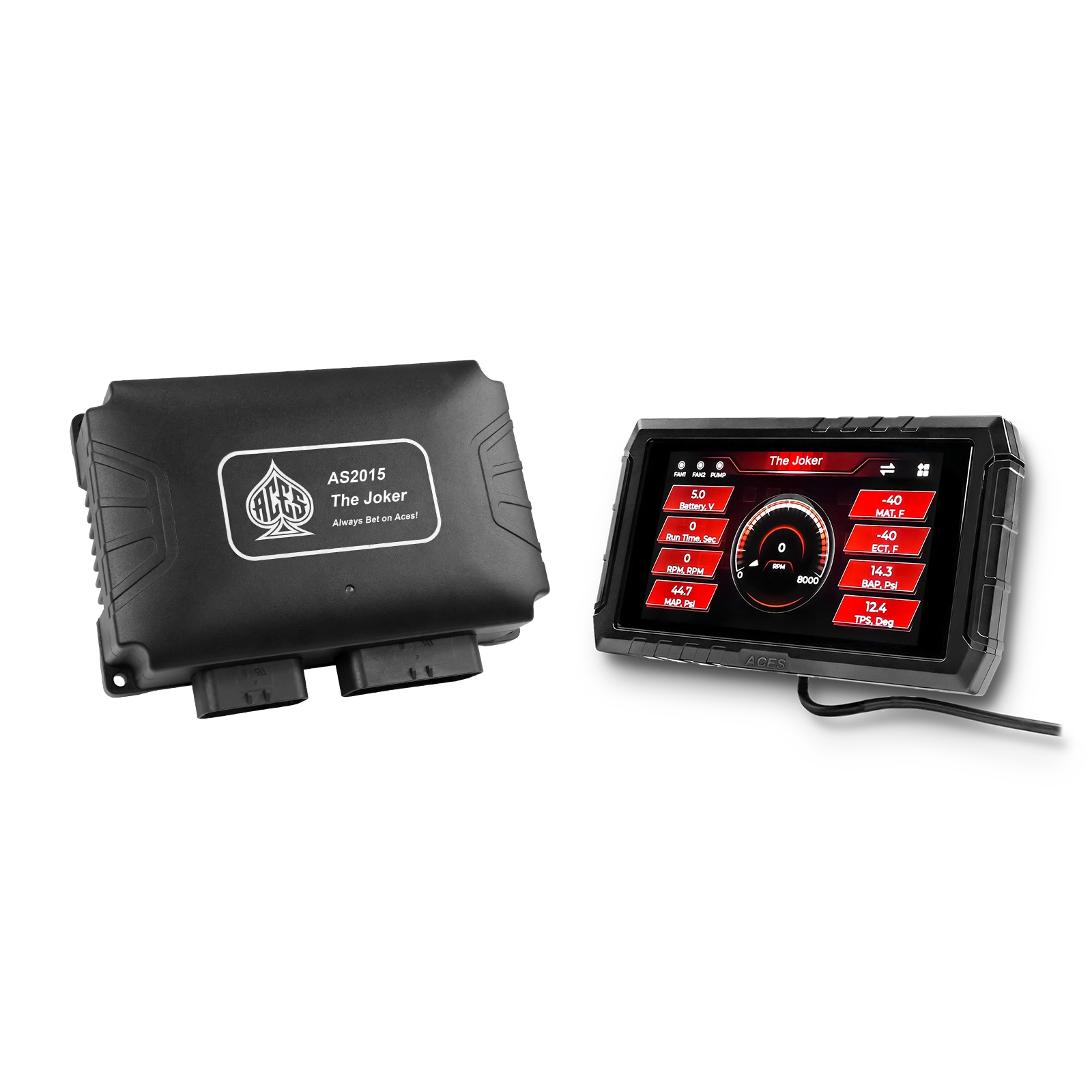

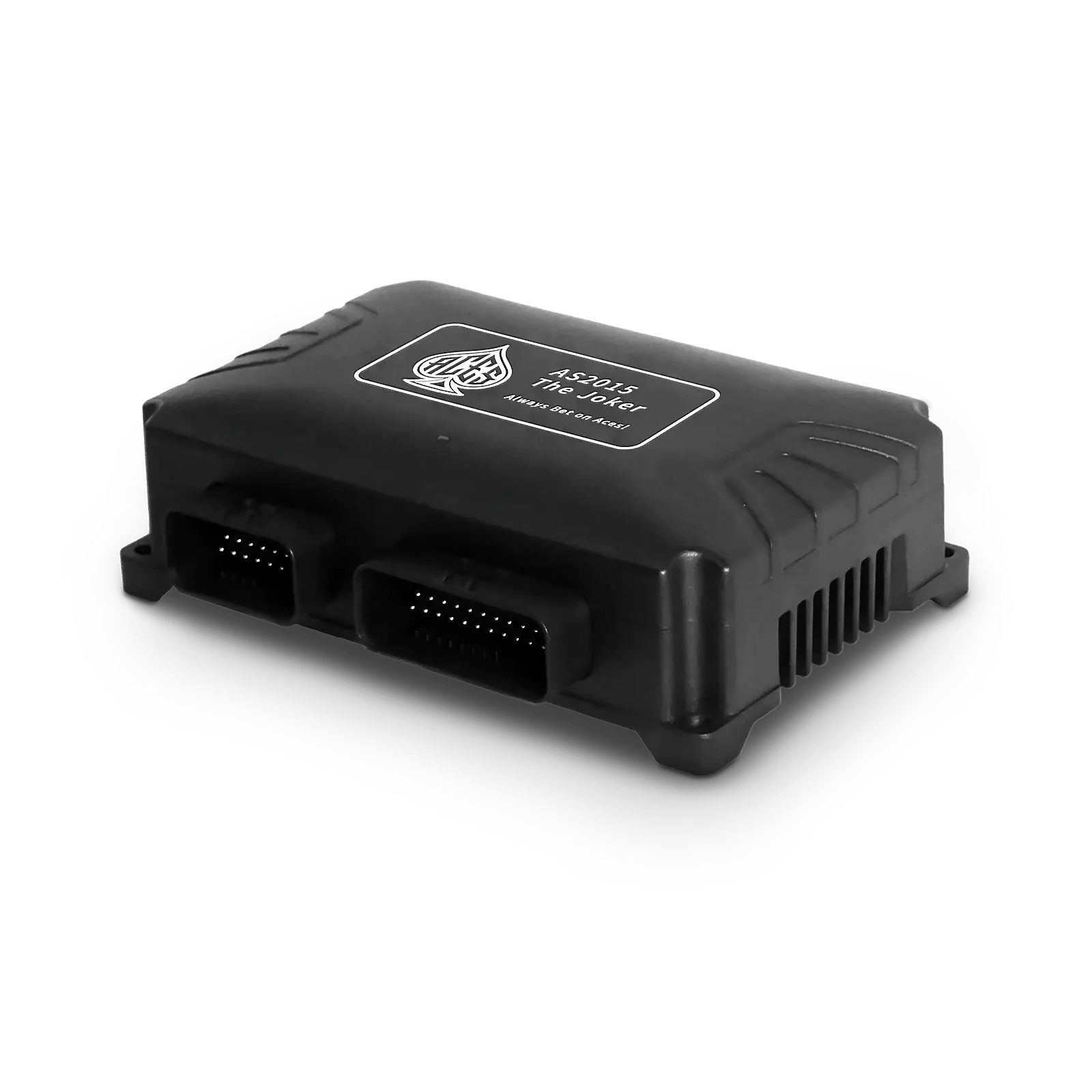

The Joker 2 ECU (x1)
Your choice of a handheld or bluetooth device (x1)

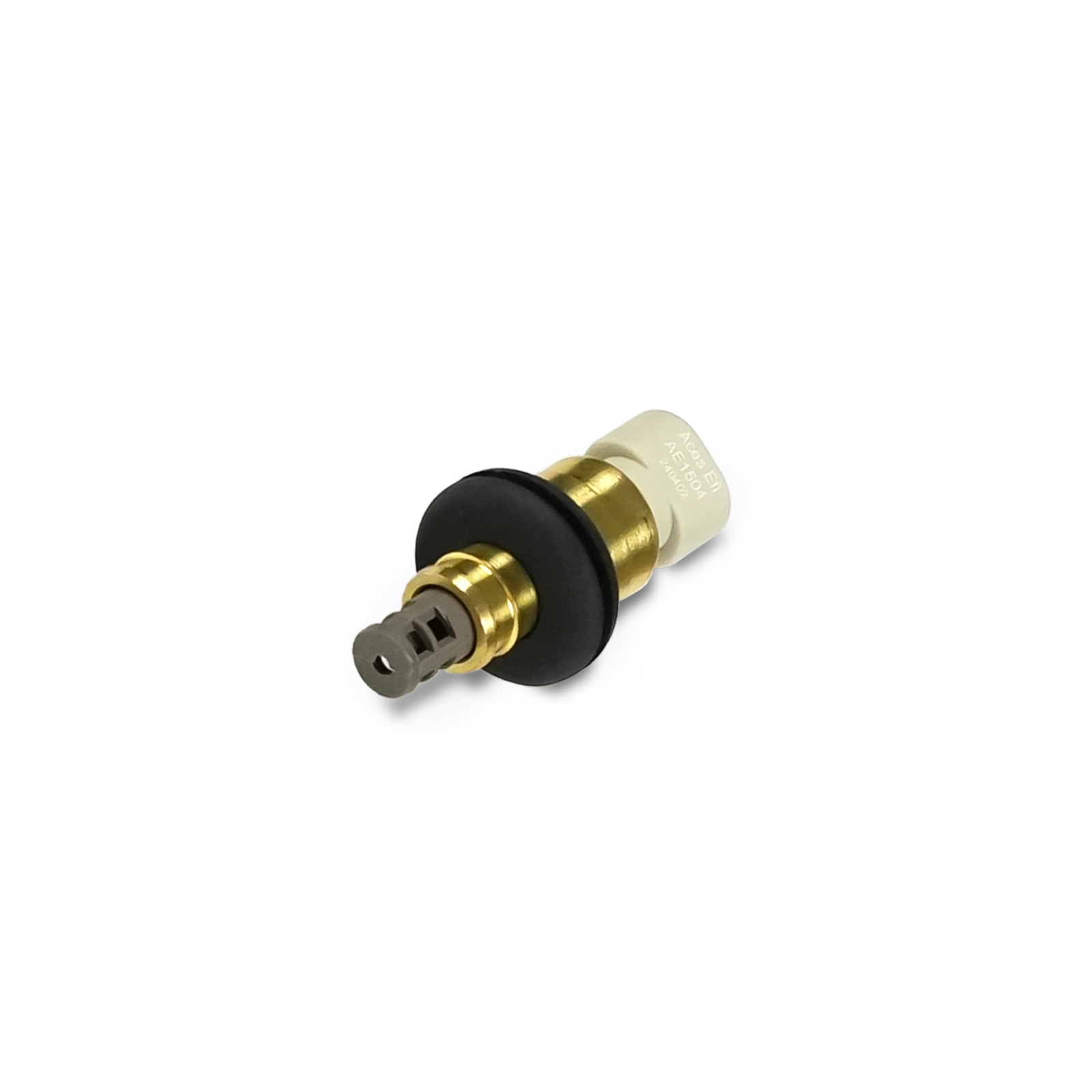

Coolant Temp Sensor (x1)

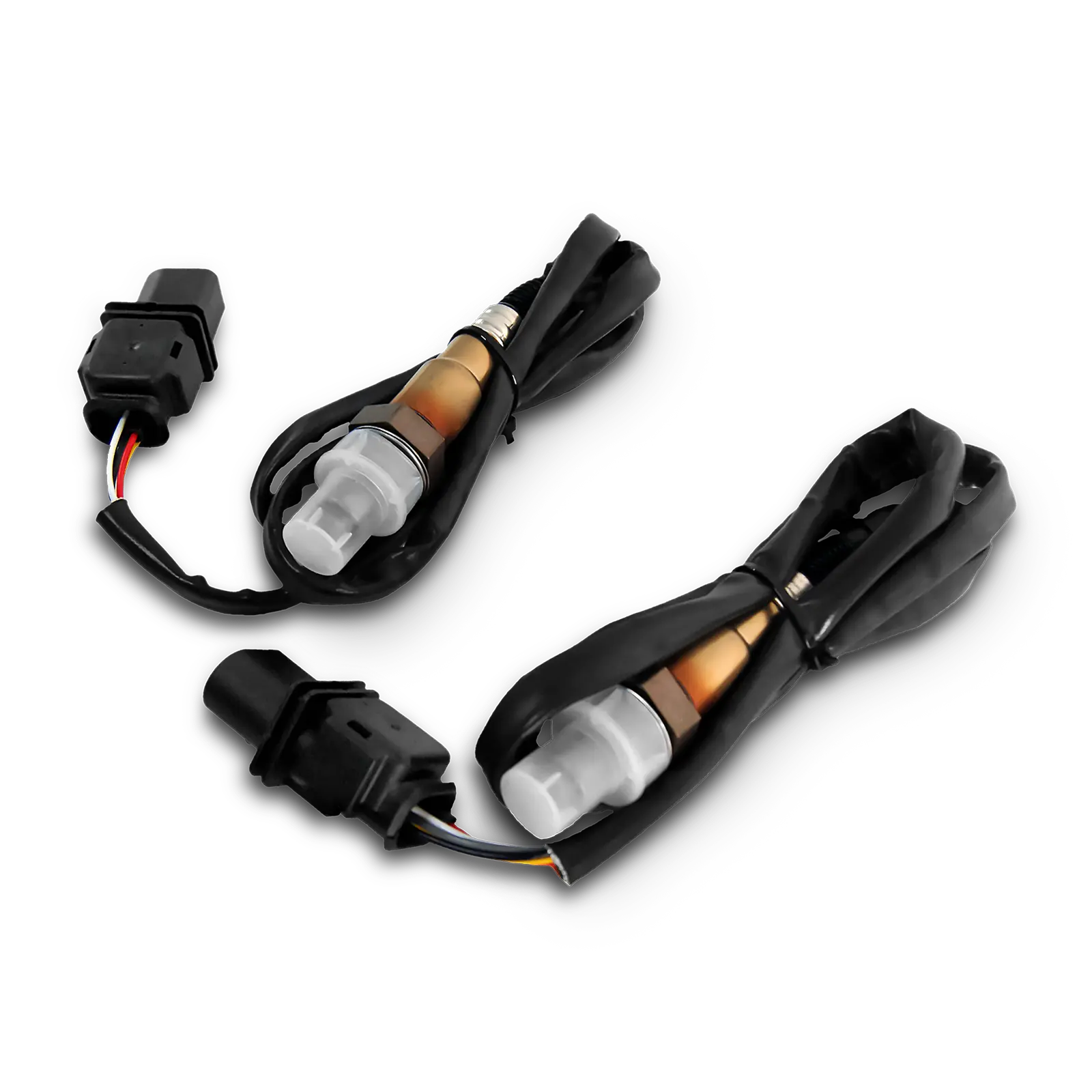

4.9 WBO2 Sensor (x2)
The Joker Main Harness (x1)
The Joker Sub-harnesses (x1)
Additional Accessories Pack (x1)

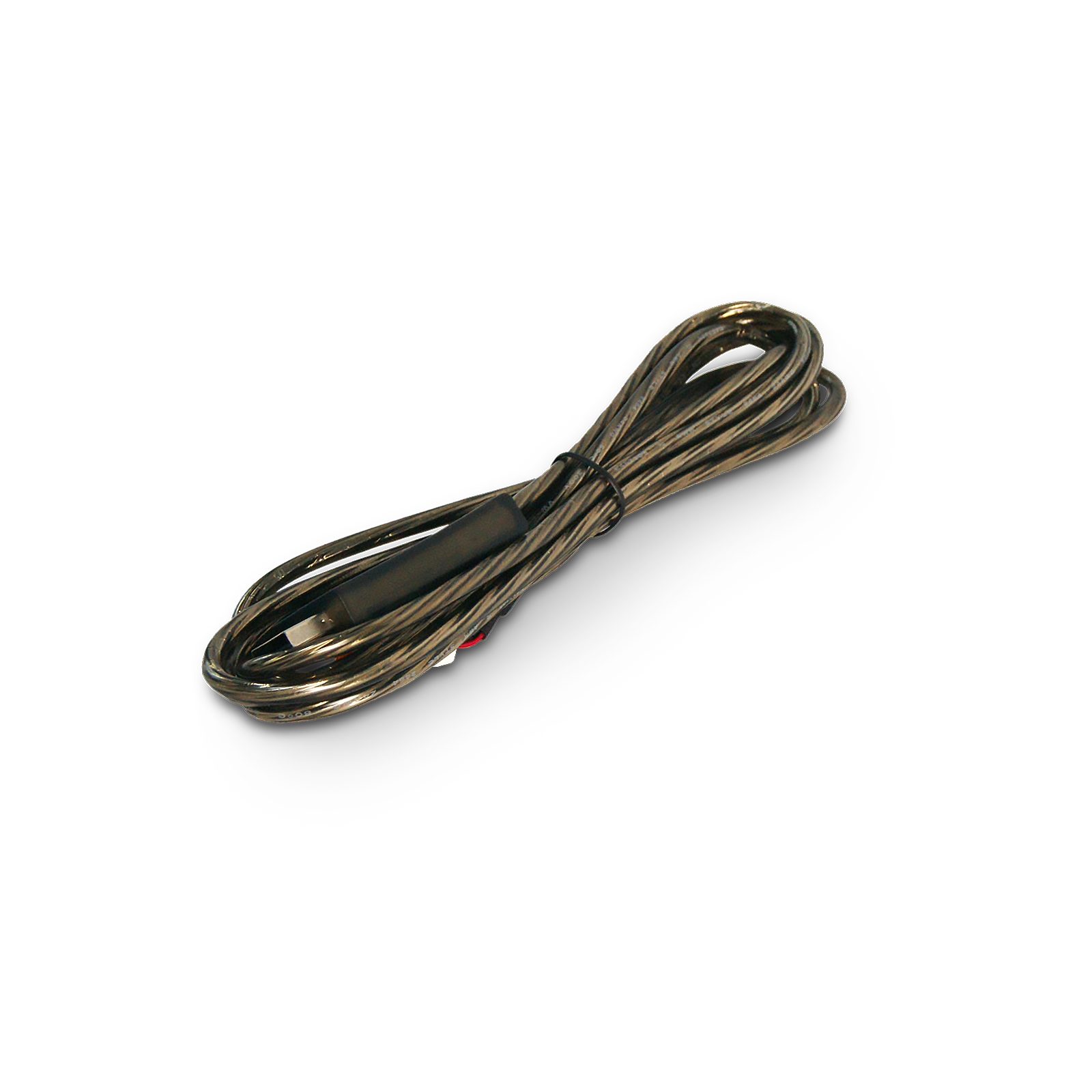

USB CAN Cable (for laptop software) (x1)
Power Distribution Module (PDM) (x1)
The Joker 2 is a multiport EFI system with integrated CDI for classic, 8-cylinder engines. Aces is the only EFI manufacturer to produce integrated Capacitive Discharge Ignition (CDI) setups: no costly additional purchases Whether you're running high compression, forced induction, or aggressive racing setups, the Joker 2’s high-voltage CDI system ensures maximum power and efficiency.
Why CDI?
Unlike traditional EFI systems that rely on weaker inductive ignition, Joker 2’s CDI system produces a hotter, more consistent spark that burns fuel more efficiently, leading to:
- Superior combustion in high-boost or high-compression applications
- Increased power and throttle response
- Reduced misfires and improved fuel efficiency
Total Control for Performance Builds
Just like our Wild Card system, the Joker 2 EFI/CDI works with most classic 8-cylinder engines, offering a customizable firing order in the start wizard and requiring a 7+1 timing setup for accurate ignition control. But what sets Joker apart is its built-in CDI technology and racing-grade features:
- Integrated Digital CDI – Produces 150mJ spark energy output for maximum ignition performance
- Massive Voltage Output – Primary voltage: 450-530V / Secondary voltage: 50,000V
- 2-Stage Rev Limiter – Set a max RPM limit for engine protection, plus launch control for optimal starts
- Burnout Mode – Holds RPM at a set limit for consistent, controlled burnouts
Core Features
- Self-learning and full tuning capability
- Expanded 31 x 31 tuning tables
- Integrated digital CDI with 150mj spark energy output
- 2-stage Rev limiter setting for max RPM, launch control, and burn out
- 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors
- Easy setup and monitoring with your choice of bluetooth module or HD handheld
- Integrated coil driver for ignition timing control (when using Aces’ coil and distributor)
- Simple calibration wizard for initial setup- no laptop tuning required.
- Dual fan control
- Step retard for nitrous control
- Boost compatibility right out of the box, with boost control coming soon
- Free laptop software available for pro applications
- Compatible with all Aces’ handhelds, dashes, and modules
- Dual 4.9 WBO2 sensors
From street builds to high-boost race cars, Joker 2 EFI/CDI is the ultimate all-in-one ignition and fuel control solution. No need for a separate CDI box—Aces EFI is the only company to offer EFI and CDI in one ECU. If you’re serious about performance, The Joker 2 is the system you need!
The Joker 2 Sequential EFI/CDI Standalone System Specifications
| Specification | Value |
|---|---|
| Accelerometer Support | No |
| Boost Control | No |
| Boost Compatible | Yes |
| CAN-BUS Support | Yes |
| Coil Per Cylinder Ignition Support | No |
| Datalogging Support | Yes |
| Distributor Included | Not in the Standalone system unless that option is selected. |
| Dry Nitrous Control | No |
| Dry Nitrous Compatibility | No |
| e85 Support | Yes |
| EFI Type | Multi Port |
| EGT Support | Yes |
| Emission Code | 3 |
| Forced Induction Support | Yes |
| Fuel Filter Included | Only in EFI Fuel Kits & Master Kits |
| Fuel Hose Included | Only in EFI Fuel Kits & Master Kits |
| Fuel Injectors Included | Only in Top End & Master Kits |
| Fuel Pressure Regulator Included | Only in select EFI Fuel Kits & Master Kits |
| Fuel Pump Included | Only in EFI Fuel Kits & Master Kits |
| Grade Type | Performance |
| Handheld Included | Yes |
| Idle Air Control Motor Included | Only in Top End & Master Kits |
| Ignition Timing Control | Yes |
| Ignition Type | 7+1 Hall Effect Distributor |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | EV6 |
| Intake Manifold Included | Only in Top End & Master Kits |
| Knock Retard Support | No |
| MAP Sensor | 2.8 Bar or 3 Bar Depending on Kit |
| MAP Sensor Included | Only in Top End & Master Kits |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Progressive Nitrous Control | No |
| Sequential Injection | Yes |
| Self-Learning | Yes |
| Throttle Position Sensor Included | No |
| Transmission Control | Not built in |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes but non-progressive |
| UPC | |
| Part Number(s) | AS2015-1 |
| Injectors | Rated Flow per Injector (lb/hr) | Rated Injector Pressure (psi) | Minimum Injector Opening Time (msec) | 8.0V | 8.8V | 9.6V | 10.4V | 11.2V | 12.0V | 12.8V | 13.6V | 14.4V | 15.2V | 16.0V | 16.8V | 17.6V | 18.4V | 19.2V | 20.0V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 36 lb/hr (500 hp kits) | 36 | 43.5 | 1.544 | 2.157 | 1.648 | 1.323 | 1.03 | 0.857 | 0.741 | 0.646 | 0.542 | 0.478 | 0.418 | 0.345 | 0.302 | 0.256 | 0.224 | 0.19 | 0.156 |
| 65 lb/hr (800 hp kits) | 65 | 43.5 | 1.555 | 2.081 | 1.761 | 1.417 | 1.161 | 0.992 | 0.833 | 0.763 | 0.677 | 0.597 | 0.511 | 0.462 | 0.407 | 0.342 | 0.359 | 0.328 | 0.291 |
The Joker 2 Installation & Setup Manual
The Joker Installation & User Guide
Last updated: March 9, 2026
PDM Wiring Diagram for The Joker
Last updated: April 2, 2026
PDM Wiring Diagram for The Joker 2
Last updated: July 7, 2026
The Jokerc 2 ECU CAD Drawing
Last updated: February 5, 2026
You can also visit our Manuals & Downloads page to browse all available resources.
Items shown below reflect what normally comes in the box for each kit and may vary during certain promotions schedules.
The Joker 2 ECU (x1)
Your choice of a handheld or bluetooth device (x1)
Coolant Temp Sensor (x1)
4.9 WBO2 Sensor (x2)
The Joker Main Harness (x1)
The Joker Sub-harnesses (x1)
Additional Accessories Pack (x1)
USB CAN Cable (for laptop software) (x1)
Power Distribution Module (PDM) (x1)
Computing Power
Plug 'n' Play
It Takes Two
Videos
Joker installation guide
How do I set up and program my system?
Interface Options
Our EFI systems are self-learning for most stock-to-mild engine builds. You’ll use one of the included interface modules (depending on the option selected at purchase) to complete the initial setup and make adjustments on the fly. The startup wizard will prompt you with 6–12 setup questions, after which the self-learn feature takes over.
Additional fine-tuning may be required later, depending on your specific build.

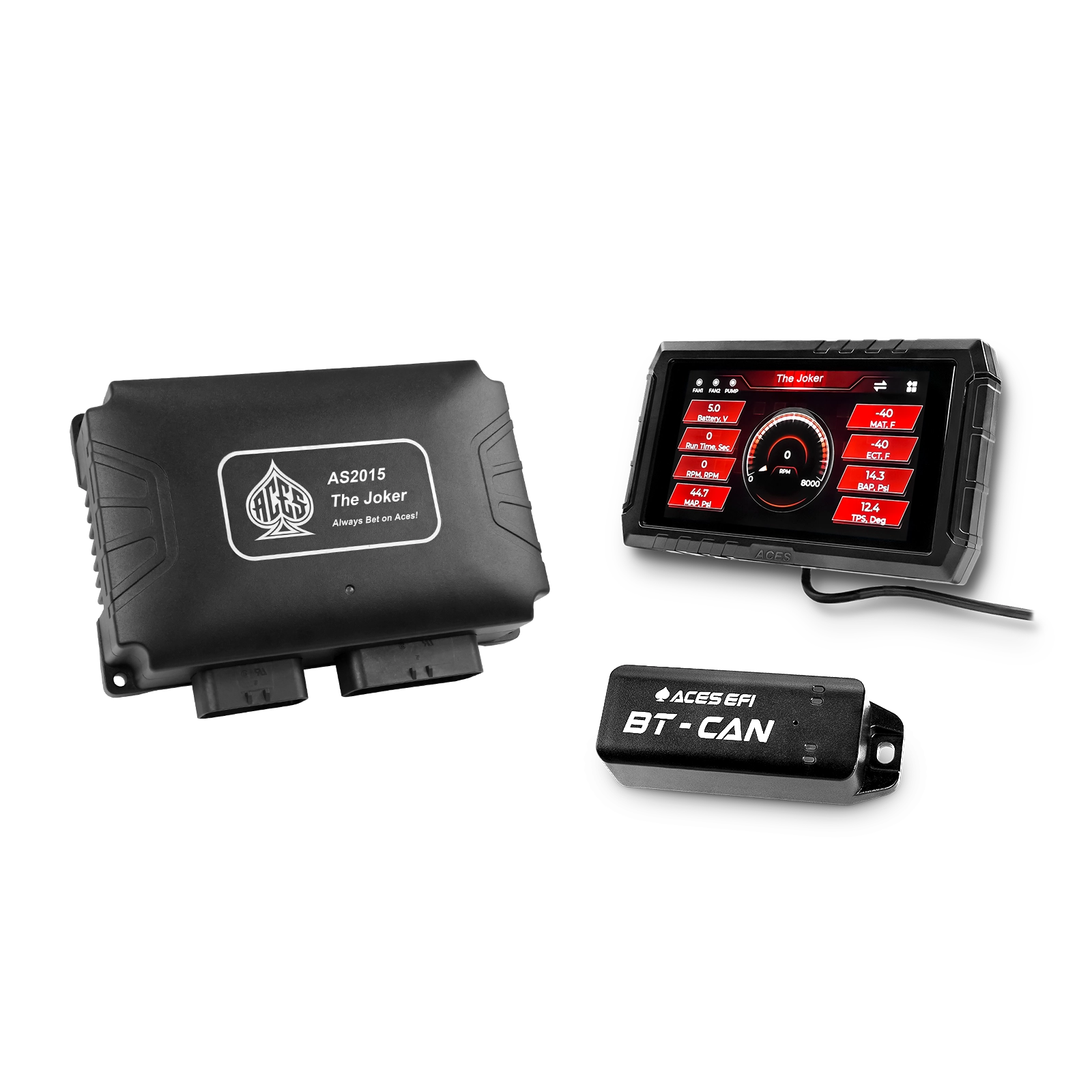

Bluetooth Module
Compatible with Android and iOS devices and plugs into the CAN connection on the main harness.

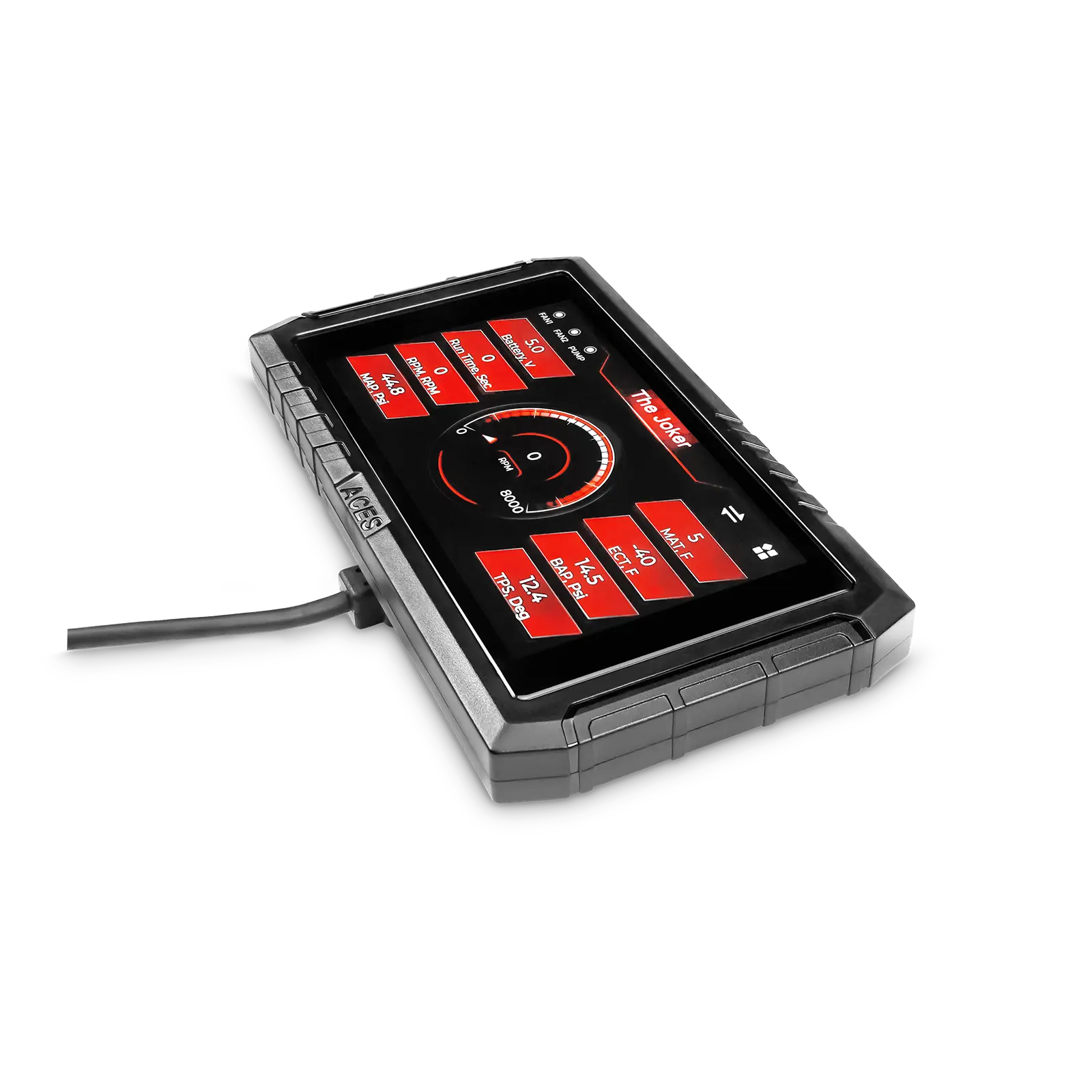

5" Handheld (3rd Gen)
- Capacitive touch screen
- 64-bit processor
- 1280x720 resolution
- Cable connection via main harness

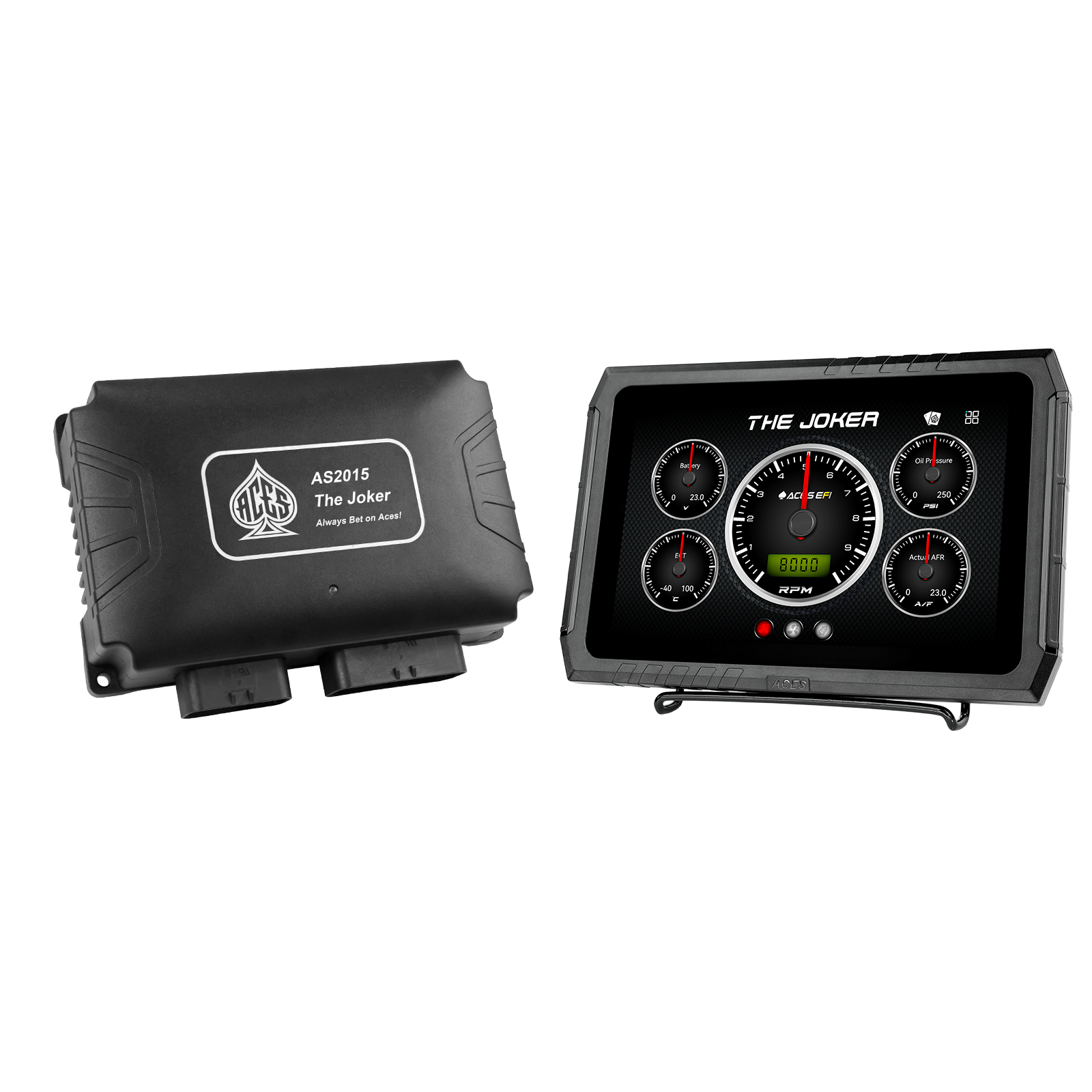

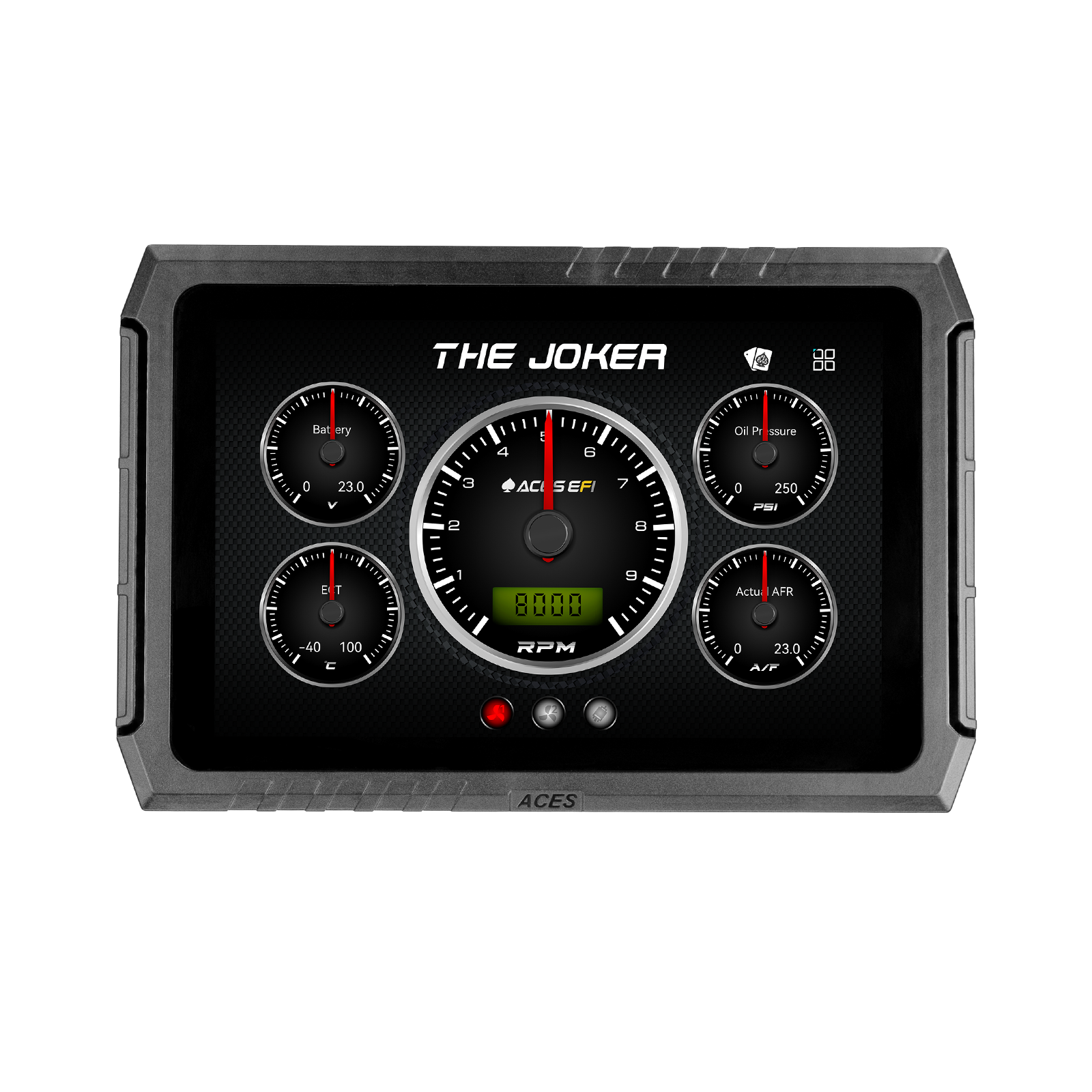

8" Handheld (1st Gen)
- Capacitive touch screen
- 64-bit processor
- 1280x800 resolution
- Wifi chip for software updates via the internet
- Cable connection via main harness
Most common questions
Quick answers to our most common queries for this product.
The The Joker 2 Sequential EFI/CDI Standalone System are designed to work with most stock or aftermarket ignition components. They will work with most tachometers and are compatible with Dakota Digital dashes using their Aces BIM Module (BIM-EFI-1).
Self-tuning is a common term used among aftermarket EFI companies, but we prefer the term "self-learning" as that is more accurate, even for our competitors who advertise "self-tuning."
Our systems are designed to self-learn the fuel MAPs and work best for stock-mild builds. Some mild builds and anything beyond that would require manual tuning, of which the system is fully capable. Additional features like nitrous and boost are also considered beyond stock and require manual adjustments to enable and configure these kinds of features.
Yes! You can make many changes using the Bluetooth or handheld interface, and we also offer a free PC app for more advanced tuning.
Yes to both! The The Joker 2 Sequential EFI/CDI Standalone System are compatible with both blow-through, draw-through, and nitrous applications and are also compatible with E85 Fuels. The The Joker 2 Sequential EFI/CDI Standalone System' MAP sensor can be scaled for up to 26 lbs of boost and can be set to retard timing.
Note that for boost, the system is compatible, but cannot control the boost. You will need to use a separate controller for things such as wastegate control or solenoid activation. Use of these features will require manual tuning.
