Killshot Classic 4-bbl EFI System
Includes the following free item!
(Only for Fuel Kit Versions)
(Only for Fuel Kit Versions)
Technical support
Dimensions
Killshot Classic
The Most Affordable!
The Killshot™ Classic is our most affordable upgrade to EFI yet!!
Easier Install!

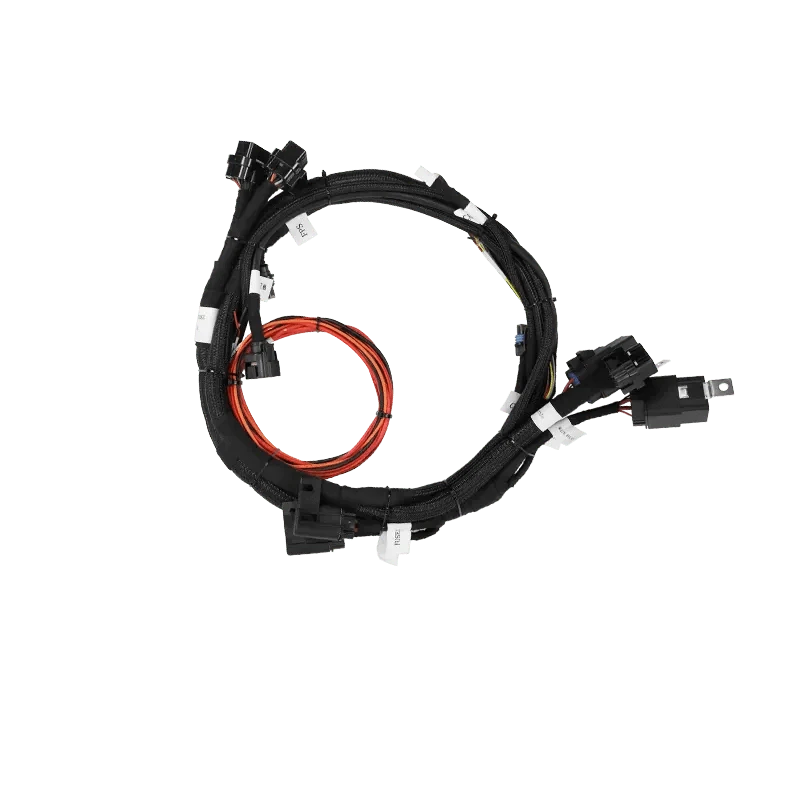

With a simplified wiring harness, the Killshot Classic makes upgrading to EFI super easy!
400 HP!
With four 65lb/hr injectors, you can support up to 400 HP on Naturally Aspirated applications!
Better Drivability!
Turn the key and experience a smoother drive than ever before with improved software design, EVEN WHEN ITS STILL COLD!!
Stock to Mild
If you have a stock or mild application, the Killshot Classic just might be your best fit for EFI conversion.
Versatile Fuel Module Options
Tailor your fuel delivery system to match your specific requirements with a choice of Fuel Module Systems, allowing you to optimize fuel flow and pressure for maximum engine performance.
255 In-line Fuel Pump System with PTFE Hose
Aces’ 255 In-line Fuel System is a complete gravity-fed fuel delivery kit to provide the proper fuel supply for most aftermarket EFI systems. The system includes the fuel pump, fuel pressure regulator, liquid-filled fuel pressure gauge, 100-micron pre-filter, 10-micron fuel filter, 40’ of –6 Teflon™ (PTFE) lined fuel line for the highest strength and resistance to gasoline and alcohol-based fuels, 6AN-8AN-HOSE Assmbly Tool, and all necessary fittings for a complete installation! This system is designed to match the power potential of EFI systems up to 650 HP. Aces’ 255 In-line Fuel System takes the guesswork out of acquiring the correct fuel system components for your EFI-equipped vehicle.
System Features:
•Complete EFI Fuel System with high quality Teflon™ (PTFE) lined –6 AN hose and all necessary fittings
•255 LPH In-line fuel pump
•Fuel Filters
•Adjustable fuel pressure regulator with gauge
•Supports EFI applications up 650hp
•6AN-8AN-HOSE Assmbly Tool for easier installation of the system
Command Center 2 Surge Tank
- Single high-volume 340LPH pump
- No needle seats or floats to get hung up or stuck!
- Can be mounted in multiple positions from vertical to horizontal
- Built-in 58 Psi Regulator no need for external regulator, can be switched to 43.5Psi regulator
Tight Fit In-tank Pump Module (255 LPH)
- Installs in almost any tank with a depth of 6 to 12 inches
- Low profile design for maximum clearance from the vehicle's floor pan
- Unique O-Ring 360-degree mounting flange for unlimited mounting options.
- Single high-quality 255 L/PH fuel pump for engines producing up to 600 HP.
Tank Conversion Pump Module (340 LPH)
- Can go from 14 in. deep pump to 6 in. by cutting tube
- Available with 340 LPH (89 GPH) fuel pump
- O-ring style 360-degree mounting flange for ease of maintenance
- Internally regulated
Have you ever thought about EFI for your project, but were intimidated by the installation process, or worried that the typical 650HP-rated TBI system was too much for your stock or lower-powered engine? ACES has listened and developed the Killshot Classic to better suit those applications.
Key Features:
- Plug and play
- 400 HP
- Easy install

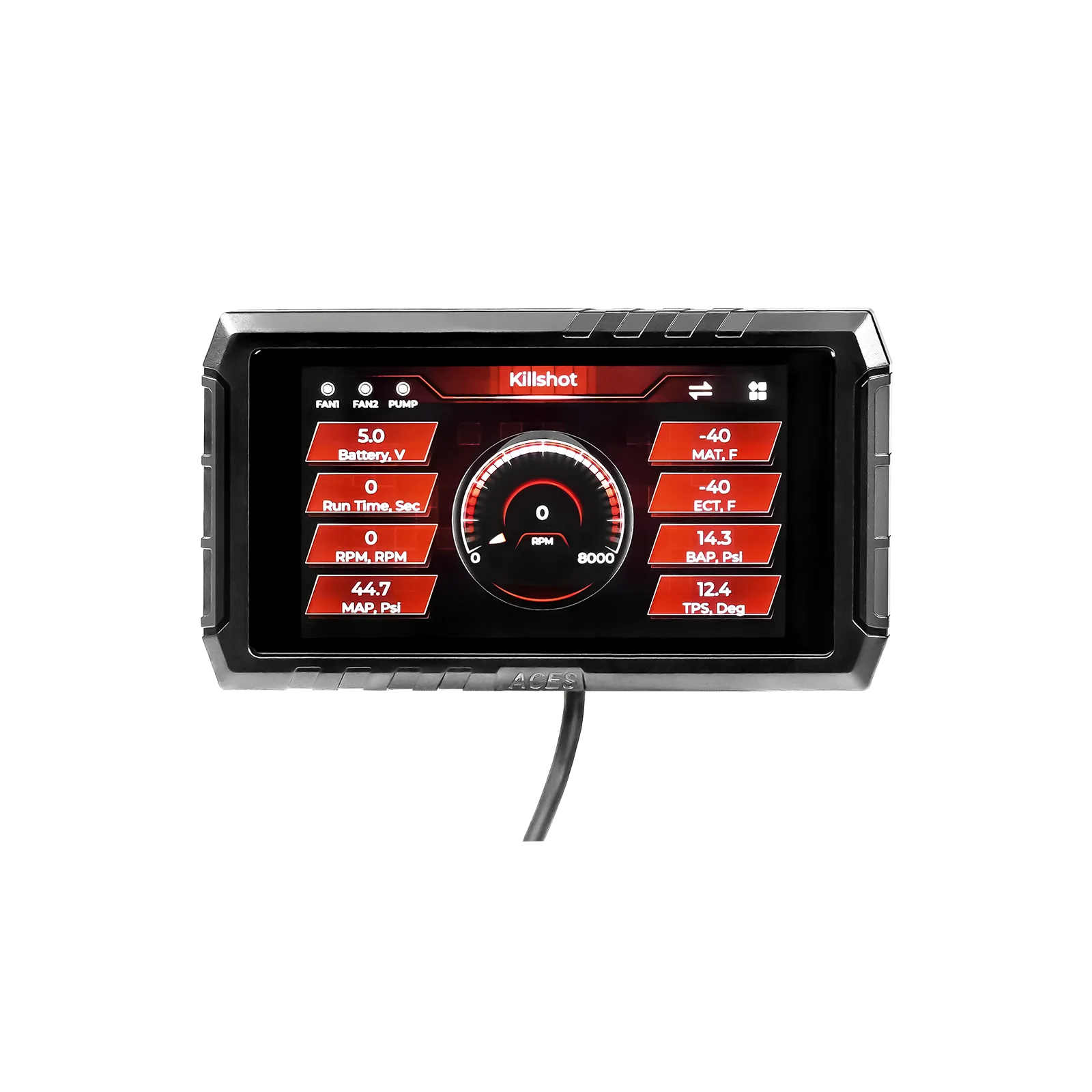

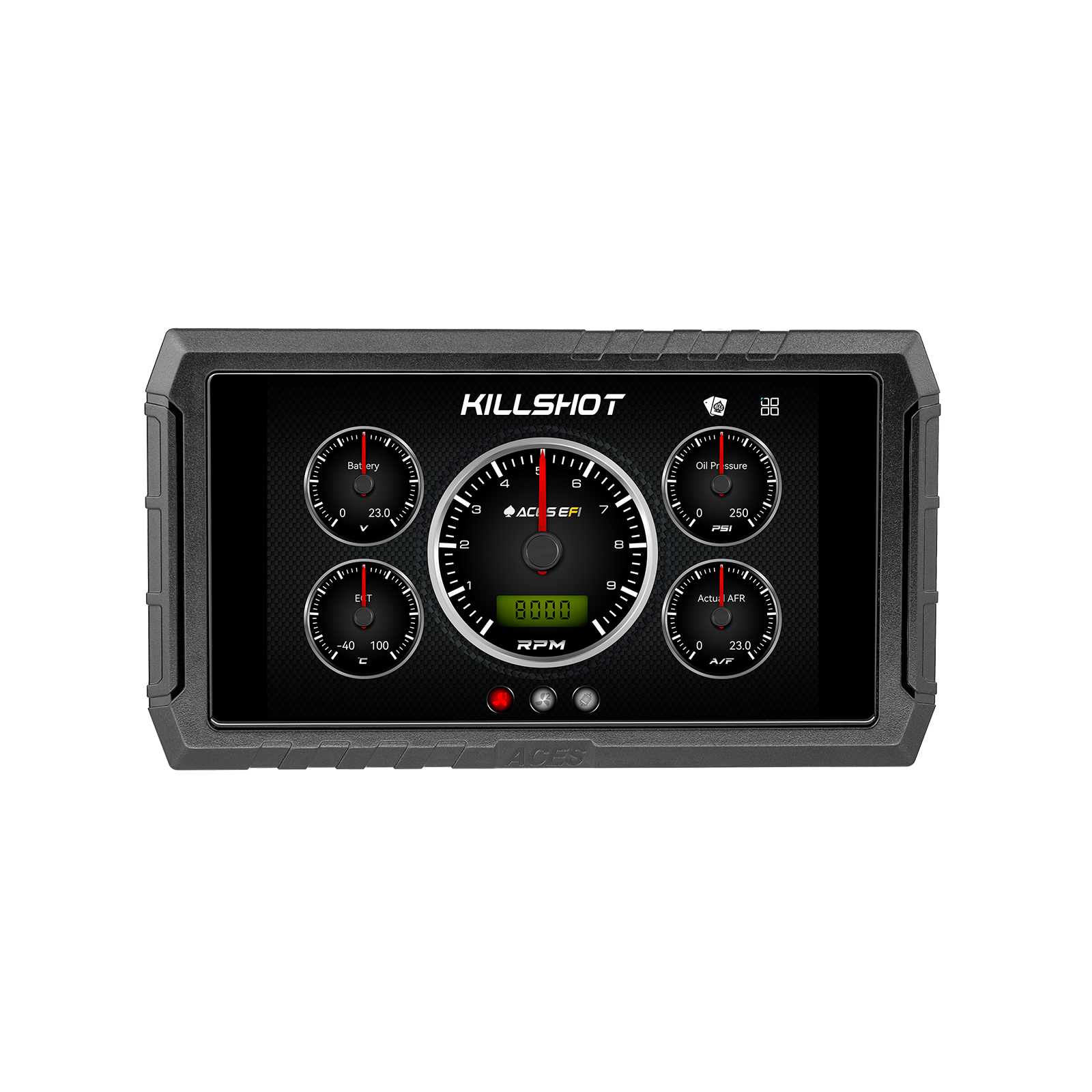

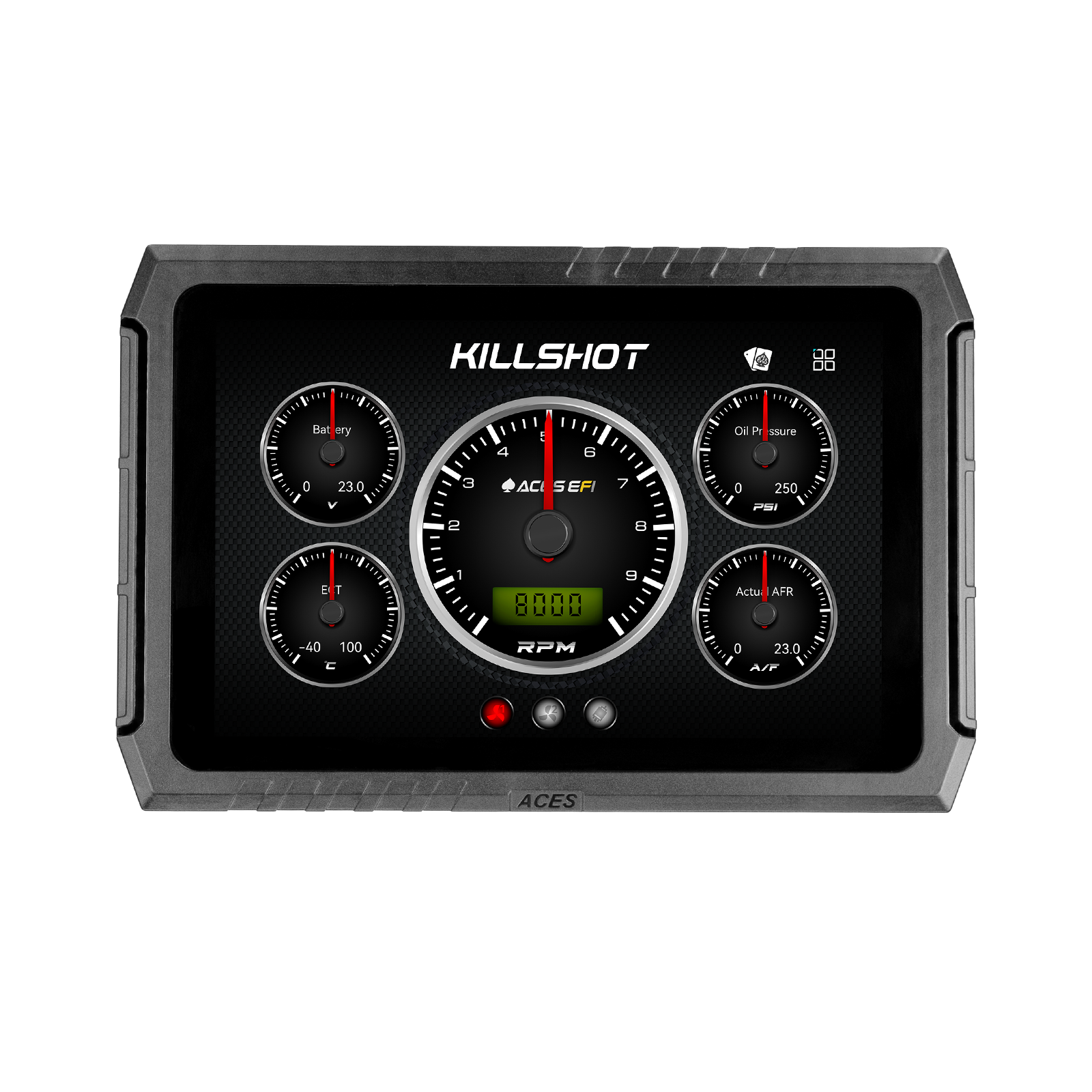

- 5”handheld with GPS speedometer
- Next level RFI / EMI protection
- Base calibrations set in a real world environment
- the most affordable upgrade

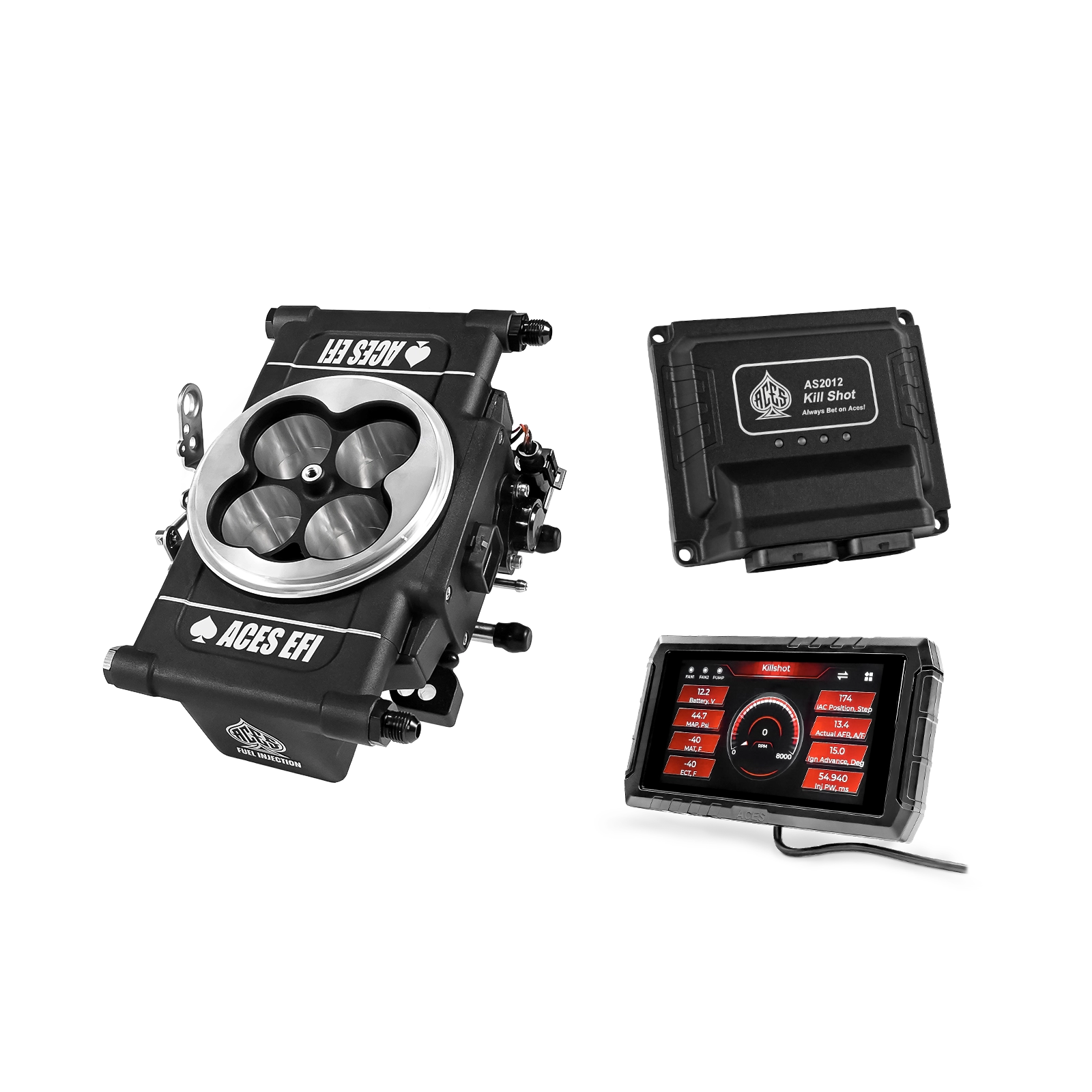

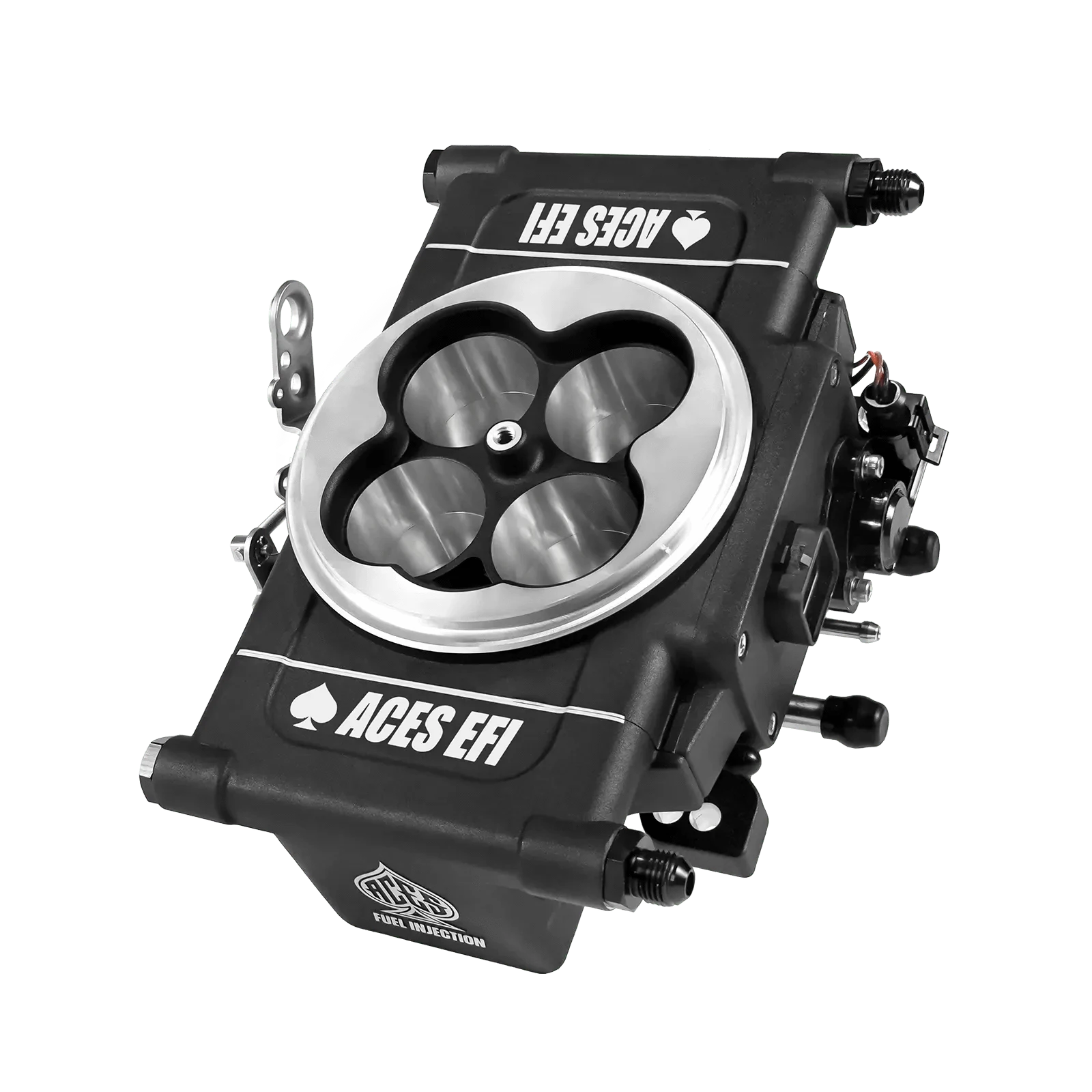

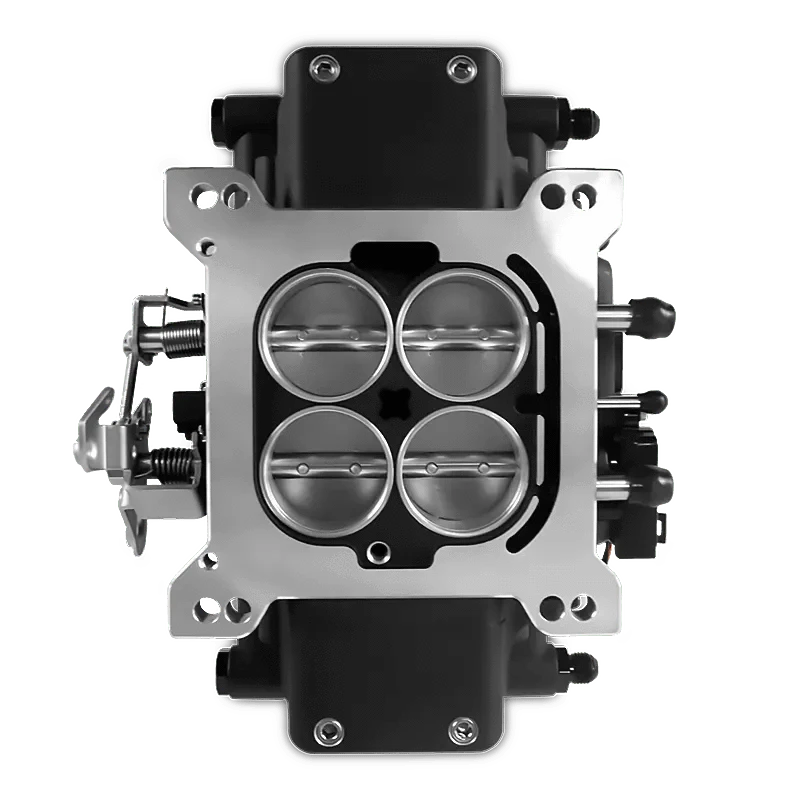

The Killshot Classic has 4 65 lb./hr. injectors and is 400 HP capable. Timing control has been removed, allowing an easier installation with your existing distributor. The base calibration installed in the unit is for a mild 350 SBC with an HEI distributor and is easily scaled for other displacements. The TPS, IAC, and TMAP sensors are integrated into the unit for simpler wiring. Dual electric fan controls are retained, as well as an easy-to-use touchscreen, handheld controller for initial setup, tuning, and gauge displays. All of this means that you will spend less time with setup and be able to get your vehicle back on the road quickly!
Simpler installation, improved drivability, and at a lower cost! The Killshot Classic is the best option for your truck, daily driver, or mild cruiser!
Holley Sniper 2
ECU Housing
ECU is mounted on the throttle body.
MCU
16-bit
Handheld
3.5" resistive touch screen
Appearance
Several separated cables & wires
Injectors
(4) 100 lb/hr injectors
HP
650 HP N/A
Timing Control & IGBT Driver
Has timing control but no IGBT driver
Spark Energy
-
Retail Price
$1,299.95
Killshot EFI System

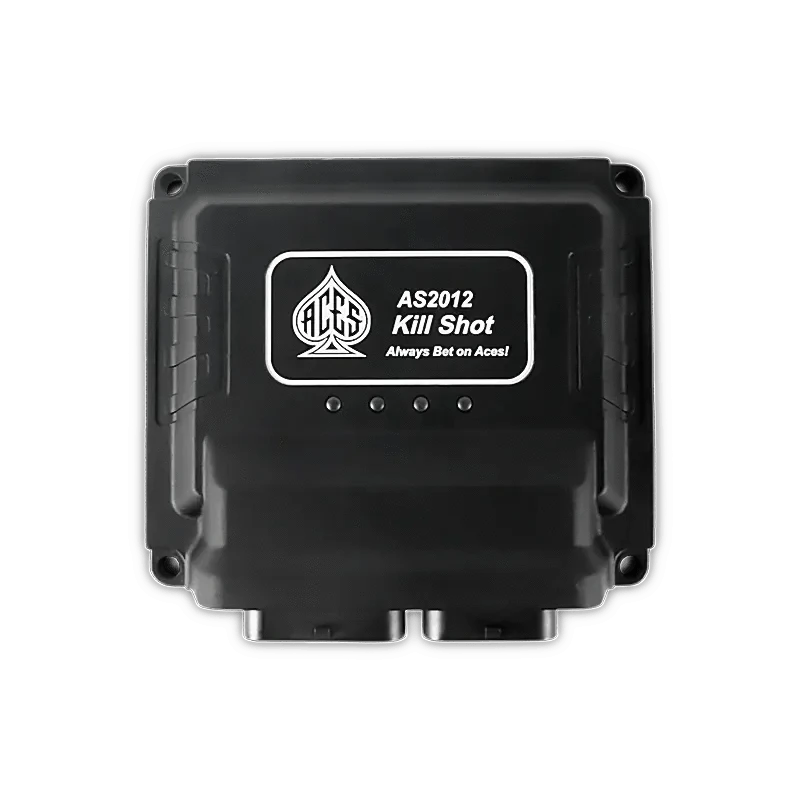

ECU Housing
External, automotive-grade, die-cast aluminum.
MCU
32-bit, ST56 series Power Architecture™ (OEM Standard)
Handheld
5", full-color, capacitive touch screen. Includes built-in GPS chip for speedometer.
Appearance
Only one connector to throttle body (bundled).
Injectors
(4) 100 lb/hr injectors
HP
650 HP N/A
Timing Control & IGBT Driver
Has timing control features and an integrated IGBT driver
Spark Energy
Programmable dwell time. Min. of 90 MJ spark energy when using our AC2008 ignition coil.
Retail Price
$959.99
FiTech GoEFI600
ECU Housing
ECU is mounted on the throttle body.
MCU
16-bit
Handheld
3.5" screen
Appearance
Several separated cables & wires
Injectors
(4) 100 lb/hr injectors
HP
600 HP N/A
Timing Control & IGBT Driver
-
Spark Energy
-
Retail Price
$999.99
CFM Rating
800 CFM
Material
Cast Aluminum (throttle body)
Ported Vacuum
Yes
Air Cleaner Diameter
5"
Throttle Body Height
3-5/16”
MAP Sensor Rating
3-bar
Inlet/Outlet Size
-6 AN
Injector Size
100 lb/hr
Fuel PSI Required
42-48 PSI, 60 PSI max
Boost/Nitrous Compatibility
Compatible, yes. Control requires a separate module.
Available Finishes
Black ceramic, gold, pink, or polished
HP Rating
650 HP (naturally aspirated)
People also shop for
Things to know
& other FAQs.
Emissions Statement
This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
1965 and older U.S. manufactured California Certified vehicles
1967 and older U.S. manufactured Federally Certified vehicles
1967 and older Foreign manufactured vehicle
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
The following vehicles are considered Emissions Controlled Vehicles:
1966 and newer U.S. manufactured California Certified vehicles
1968 and newer U.S. manufactured Federally Certified vehicles
1968 and newer Foreign manufactured vehicle
Marine Applications?
Is it marine or coast guard approved/certified? No. None of our products are.
Do we recommend it? No, since water and engines don't generally mix and warrantying items in these conditions becomes tricky. These are also modified applications that are not 100% what the systems were designed for.
Will it work? Yes, with some modifications for the WBO2 sensor.
Is it E85 compatible?
Yes, you just would need to change some settings first in order for it to work.
Please note that damages to the system caused by the use of E85 or other racing fuels are not covered by our warranty policy. This is because E85 is known to corrode certain types of material over time and our systems were not designed for long-term E85 use.
Will it work with aftermarket or stock gauges?
The system is not generally setup to work with stock gauges which is why we provide the handheld to display all the readings. Aftermarket tachometers will work with the system, and we are working to provide support for other popular aftermarket gauges soon!
What is your warranty policy?
All products have a limited one year warranty against any defects or quality of workmanship from date of purchase.
Our warranty is extended to the original consumer only. This limited warranty is not assignable or otherwise transferable. Customers must provide proof of purchase for warranty claims.
Aces’ warranty does not apply to products, which have been:
- Modified or altered from factory condition.
- Subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, or corrosion.
- Installed in other applications not recommended by Aces Fuel Injection.
What is your refund and return policy?
Aces Fuel Injection is happy to accept returns on orders returned to us inside our policy as long as they are new and unused. In general, items must be returned within 30 days for a full refund or within 60 days for a 10% restocking fee.
For our full Refund & Return Policy, that has all of the fine print, you can access it here.
What kind of tech support do you offer?
Aces offers general support on product setup, installation, troubleshooting, and basic diagnostic help.
While most stock-mild applications do not require tuning, some applications (usually more aggressive cams or boosted applications) may require additonal tuning beyond what the self-learn is capable of. Aces does not offer custom tuning though we can recommend Authorized Aces Tuners who may charge a fee for their services. Read more about our support services and what to expect here.
