4-Barrel Throttle Body

ACES EFI 4-barrel throttle body is designed to fit on any square bore (4150 style) intake manifold. It has four 1-3/4”throttle plates. They also make affordably priced replacements for similar throttle bodies. These units include four 1.75 in. throttle bores for a 1,000 cfm flow rating. These throttle bodies are diecast and fully machined with high-quality components including the Throttle Position Sensor (TPS), MAP sensor and Idle Air Control (IAC) motor.

System ECUs

Killshot ECU
This ECU is the service replacement for all ACES Killshot EFI systems, including Killshot Classic and is compatible with all ACES handhelds, dashes, CAN modules, and TCMs. The Killshot ECU features 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors.

Royal Flush ECU
This ECU is the service replacement for all ACES Royal Flush EFI/CDI systems and is compatible with all ACES handhelds, dashes, CAN modules, and TCMs. The Royal Flush ECU features 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors, and features an integrated CDI ignition system.

Deuces Wild ECU
This ECU is the service replacement for all ACES Deuces Wild EFI systems and is compatible with all ACES handhelds, dashes, CAN modules, and TCMs. The Deuces Wild ECU features 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors.

Wild Card ECU
This ECU is the service replacement for all ACES Wild Card EFI systems and is compatible with all ACES handhelds, dashes, CAN modules, and TCMs. The Wild Card ECU features 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors.

The Joker ECU
This ECU is the service replacement for all ACES The Joker EFI/CDI systems, and is compatible with all ACES handhelds, dashes, CAN modules, and TCMs. The Joker ECU features 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors, and features an integrated CDI ignition system.

255 In-line Fuel Pump System with PTFE Hose

Aces' 255 In-line Fuel System is a complete gravity-fed fuel delivery kit to provide the proper fuel supply for most aftermarket EFI systems. The system includes the fuel pump, fuel pressure regulator, liquid-filled fuel pressure gauge, 100-micron pre-filter, 10-micron fuel filter, 40’ of –6 Teflon (PTFE)lined fuel line for the highest strength and resistance to gasoline and alcohol-based fuels, 6AN-8AN-HOSE Assembly Tool, and all necessary fittings for a complete installation! This system is designed to match the power potential of EFI systems up to 650 HP. Aces’ 255 In-line Fuel System takes the guesswork out of acquiring the correct fuel system components for your EFI-equipped vehicle.

System Features:

Complete EFI Fuel System with high quality Teflon (PTFE) lined –6 AN hose and all necessary fittings
255 LPH In-line fuel pump
Fuel Filters
Adjustable fuel pressure regulator with gauge
Supports EFI applications up 650hp
6AN-8AN-HOSE Assembly Tool for easier installation of the system

7" Handheld (2nd gen)

The ACES 7" Handheld is designed for handheld and dash applications. It features a 7" 1024x600 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun, plug and play connection to all ACES EFI systems.

Features:

32 Bit microcontroller embeds an outstanding CPU core ARM926EJ-S, runs up to 300 MHz3

High-strength plastic housing, lightweight design

Plug-and-play Display support for ACES EFI system

Quickly swipe between multiple active screens

Built-in ACES EFI software and calibration allows you to update your ECU and quickly build a base engine calibration for your ACES EFI system without the need of a laptop

Built-in GPS Speedometer

Provides Real-time ECU tuning, allowing you to dial in your AFR, Ignition Timing, or any other handheld tune able value, such as IAC or Acceleration Enrichment

User definable channel alarms and warnings

Manual brightness features

Capacitive touch screen, just like your smart phone.

Upgradable with future software enhancements

CAN communication for Handheld calibration and display

Available ACES CAN module add inputs and outputs

Aces EFI GM LS Ignition Coil

ACES OE-style replacement coils that mount easily and acceptable OEM connectors provide the performance needed to help keep engine running the way that they were designed.

TECHNICAL SPECIFICATIONS

Primary Current: 5A
Output (25pF load): 40 kV
Output Energy: 45 mJ (Zener Energy@1000V)
Turns Ratio 75:1
Base Dwell: 3ms
Smart Coil integrated with IGBT driver

Aces Gambler Series CAM Sync V8 Distributor

The Gambler Pro Series Billet Distributor features a high-quality, CNC-machined black anodized aluminum body and hardened steel shaft, guided by a sealed ball-bearing on top and a sintered steel bushing on the bottom to ensure stability up to 10,000 RPM.

AD2023 Fits Small Block Chevy 262-400 and Big Block Mark IV 396-454
AD2024 Fits Small Block Ford 260-302 Engines
AD2025 Fits Ford 351W Engines

Black Jack Pro Ceramic Boot Spark Plug Wires

The Blackjack Pro Series Ceramic Boot Spark Plug Wires use a high silicone jacket over a low-resistance shielded resistor core. These high-performance wires are the best way to ensure you get full voltage to your spark plugs. All wires are custom cut to fit, so you get that custom look with your set. We include both male and female style terminals.

8mm Silicon Spark Plug Wire
Carbon Suppression Core
Ceramic Boots to prevent burning on exhaust
50 ohms resistance per foot
Custom Fit Cut to Length
Available with 180°, 135°, or 90° boot jackets

Black Jack Pro Series Ignition Coils

ACES Fuel Injection’s Blackjack Pro Ignition Coil

Aces Fuel Injection’s Blackjack Pro Ignition Coil is the ignition upgrade to complete your EFI conversion. This extremely powerful ignition coil’s unique design better dissipates heat, and its square shape allows for easy mounting on a firewall or fender. The high-output magnet creates 50,000 volts, or about 70% more spark energy over most stock-style applications, giving you a significantly hotter and larger spark for more complete combustion. This helps create more horsepower and torque, providing smooth acceleration throughout the entire RPM band.

Command Center 2 Surge Tank

Introducing the Command Center 2 Surge Tank – Maximize Performance with Precision

Elevate your vehicle's fuel delivery system with the Command Center 2, engineered to optimize performance and reliability for high-demand applications. Whether you're pushing the limits on the track or upgrading your street machine, this surge tank is your key to unlocking unparalleled fuel delivery efficiency.

Crafted from high-quality materials and precision-engineered for durability, the Command Center 2 is built to withstand the rigors of extreme driving conditions. Its robust construction ensures consistent fuel flow, preventing fuel starvation and safeguarding your engine against potential damage.

Equipped with advanced features, including a built-in fuel pump bracket and integrated baffles, this surge tank delivers unrivaled stability and efficiency. The optimized design minimizes sloshing and foaming, maintaining a steady supply of fuel to your engine even during aggressive cornering and acceleration.

Designed for seamless integration, the Command Center 2 is compatible with a wide range of systems, making it the ideal choice for enthusiasts and professionals alike. Whether you're upgrading an existing setup or building a custom fuel system from scratch, this surge tank offers versatility and adaptability to meet your specific requirements.

Experience unmatched performance and reliability on the road or track – choose the Command Center 2 Surge Tank and unleash the full potential of your vehicle's fuel delivery system.

See the plumbing diagram in the manual here.

Performance Coil (for use with Aces Full House CDI Ignition)

For best results couple the Full House CDI with our high-output ignition coil AC2010.

Ignition coil AC2010:

Primary Resistance: 0.273Ω
Primary Inductance: 2.63 mH
Secondary Resistance: 3.42 kΩ
Secondary Inductance: 15.77 H
Output (50pF load): 50 kV
Output Energy: 200 mJ
Peak Primary Current: 48A +/- 5%
Arc Duration: 200 uS
Turns Ratio 78:1
Base Dwell: 700uS

Pressure Sensor Kit

Aces EFI pressure sensor kits utilize top-quality parts for use with EFI systems. Kits include plastic/steel sensors with 1/8" -27 NPT threads and include a -6 AN fuel pressure take-off adapter fitting and 2 sets of 45 push lock hose ends.

Pressure sensors are great for logging oil pressure, fuel pressure, or boost pressure. Display the pressure reading on any Aces Handheld or Dash screen and on your data log files!

Single Blade Throttle Body

Aces EFI’s single bore throttle bodies are designed to fit most GM LS intake manifolds, including ACES’ Low-Ram LS Intake Manifold and fabricated aluminum manifolds. These throttle bodies are fully CNC-machined, and come complete with a high-quality Throttle Position Sensor (TPS) and Idle Air Control (IAC) for the DBC versions. We also have a DBW versions that is compatible with most popular factory GM pedals. Aces’ Single-Bore Throttle Bodies are available in 92mm and 102mm versions, giving you the maximum amount of air flow regardless of the application.

Whether you are building a budget beater or a boosted race car, Aces EFI’s single bore billet throttle bodies have the technology and advanced features you need, in an easy-to-install package so you can take your ride to the next level!

Aces EFI’s Billet Single Blade Throttle Body Benefits

Billet aluminum construction

92mm throttle opening

Includes integrated Throttle Position Sensor and IAC (DBC version)

DBC and DBW versions available

Fully CNC-machined

Black anodized for long-lasting great looks

Tank Conversion Pump Module w/Internal Regulator (340 LPH)

Introducing the Tank Conversion Pump Module with Internal Regulator – Transform Your Fuel System with Precision Performance

Upgrade your vehicle's fuel system with the Tank Conversion Pump Module featuring an Internal Regulator, meticulously engineered to deliver optimal performance and reliability. Designed to convert your existing fuel tank into a high-performance powerhouse, this module offers unparalleled convenience and efficiency for enthusiasts and professionals alike.

Crafted with precision engineering and premium-grade materials, the Tank Conversion Pump Module ensures durability and longevity in the most demanding driving conditions. Its robust construction and integrated regulator provide consistent fuel pressure, eliminating the need for additional external components and simplifying installation.

Equipped with an internal regulator, this pump module offers precise fuel pressure control, ensuring optimal engine performance and reliability. Whether you're running a naturally aspirated setup or boosting with forced induction, the Tank Conversion Pump Module delivers the fuel flow and pressure required to support increased horsepower and torque.

Designed for easy installation and compatibility with a wide range of vehicles, this module seamlessly integrates into your existing fuel system without the need for extensive modifications. Its compact size and versatile design make it the perfect choice for custom builds, restoration projects, and performance upgrades.

Experience the ultimate in fuel system performance and convenience with the Tank Conversion Pump Module featuring an Internal Regulator – the perfect solution for transforming your vehicle's fuel delivery system with precision and efficiency.

The Joker EFI - Top End Kits

Joker EFI/CDI - The Most Powerful Multi-Port EFI System

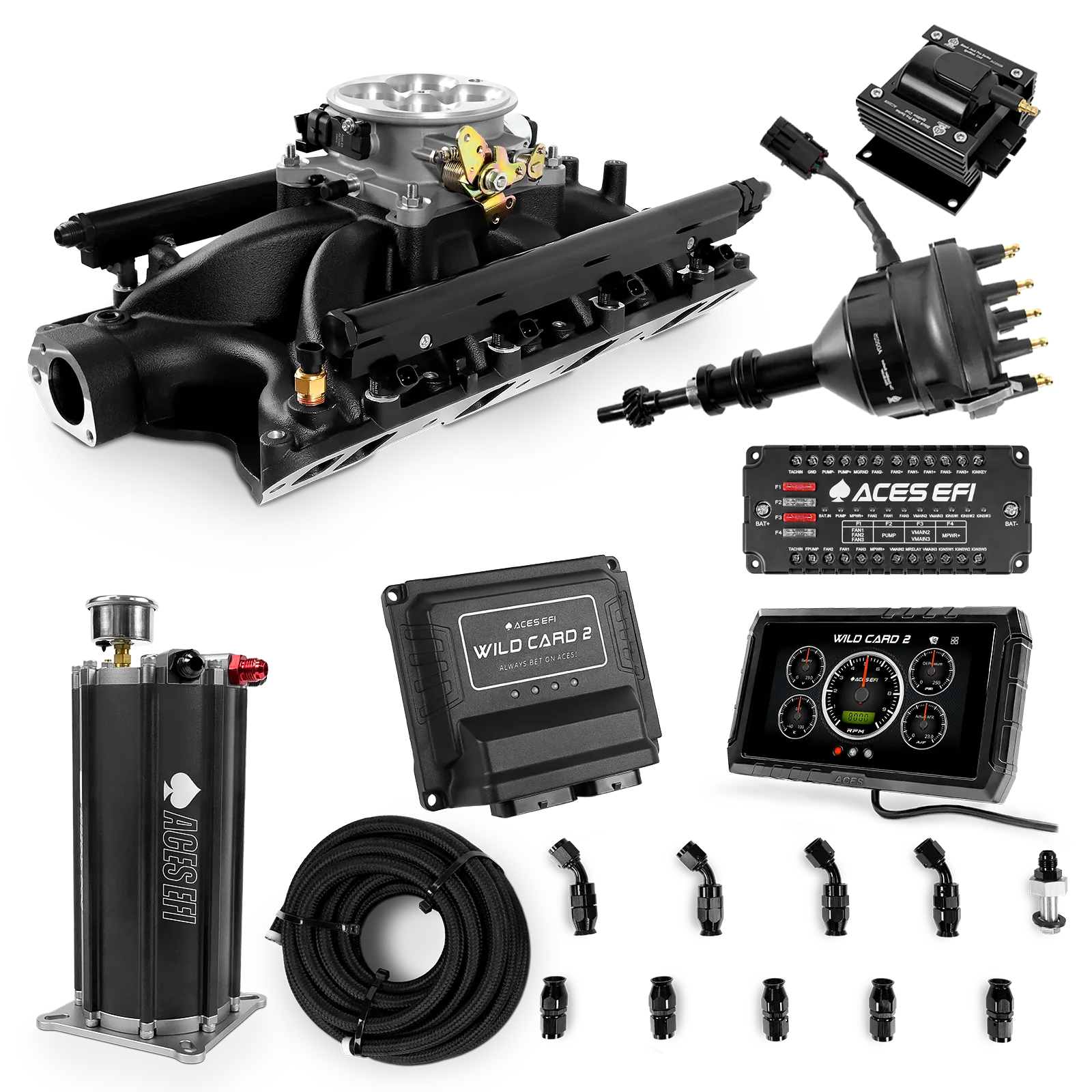

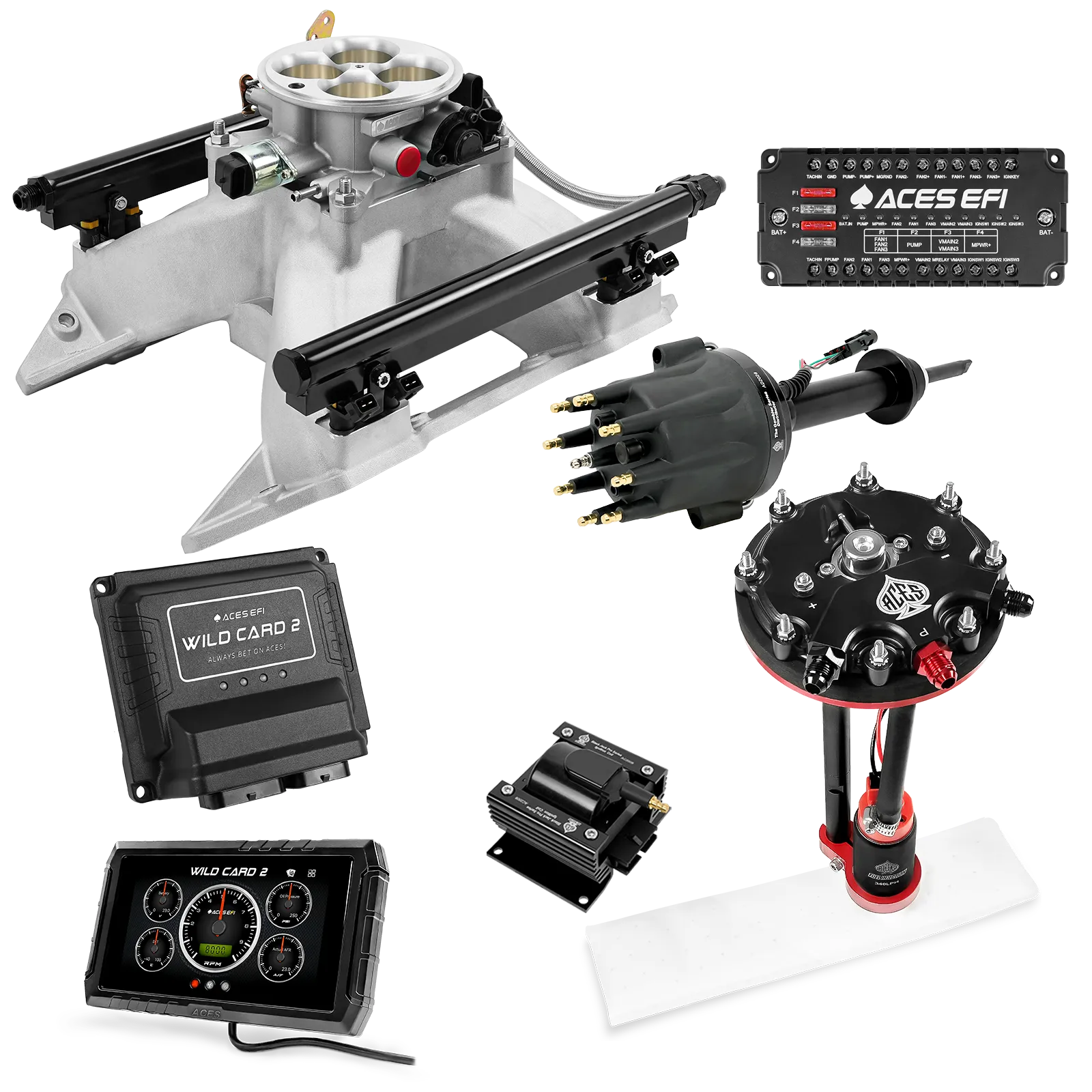

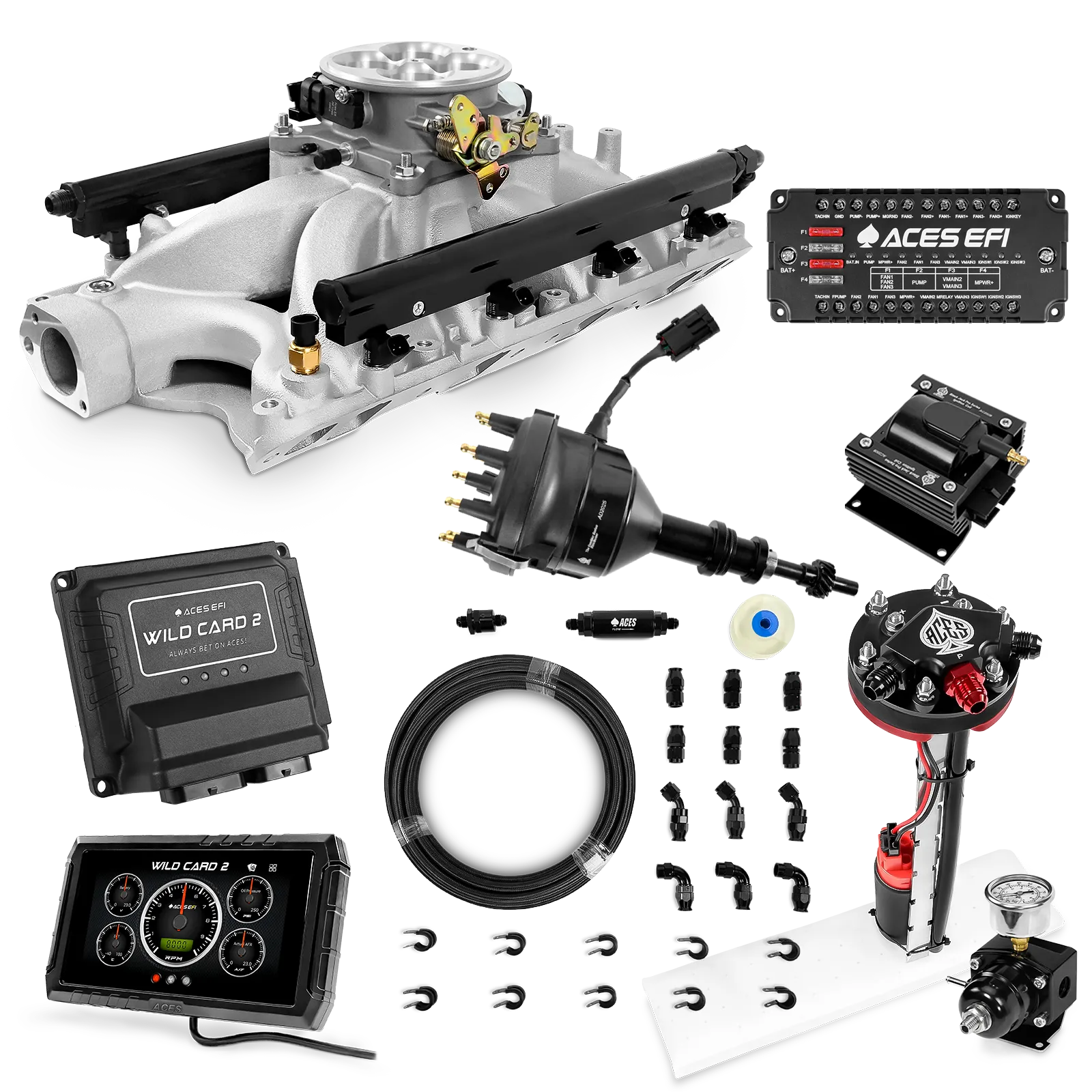

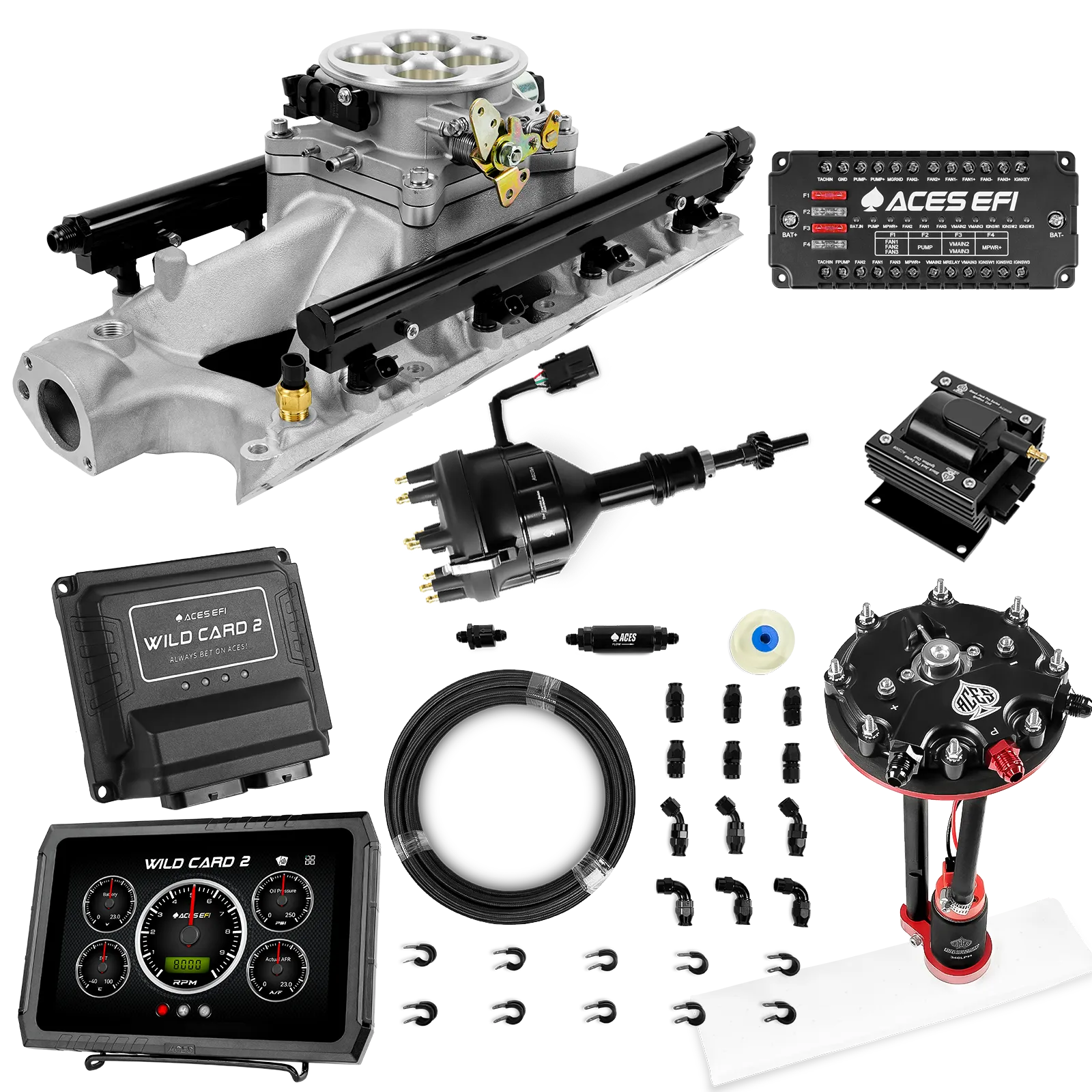

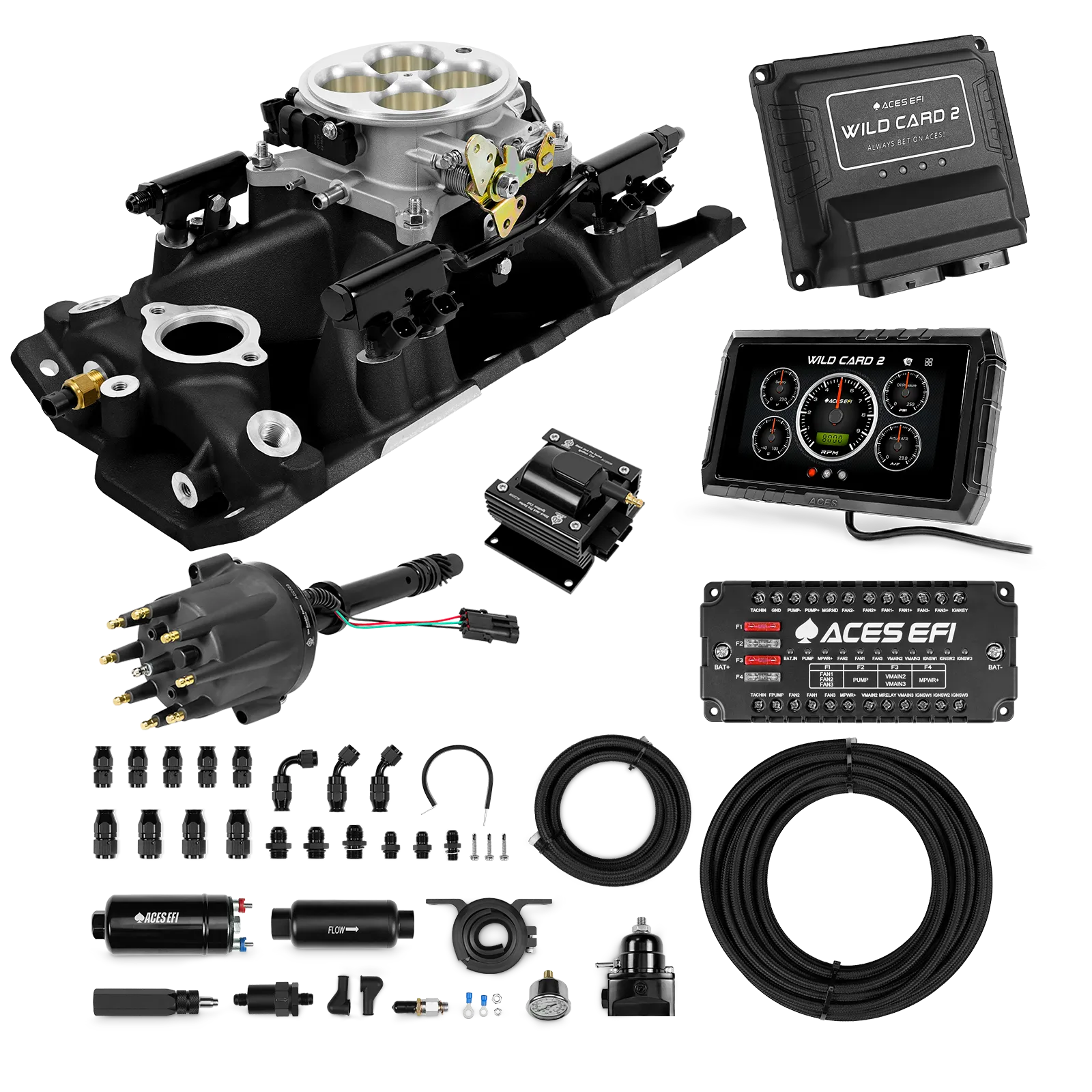

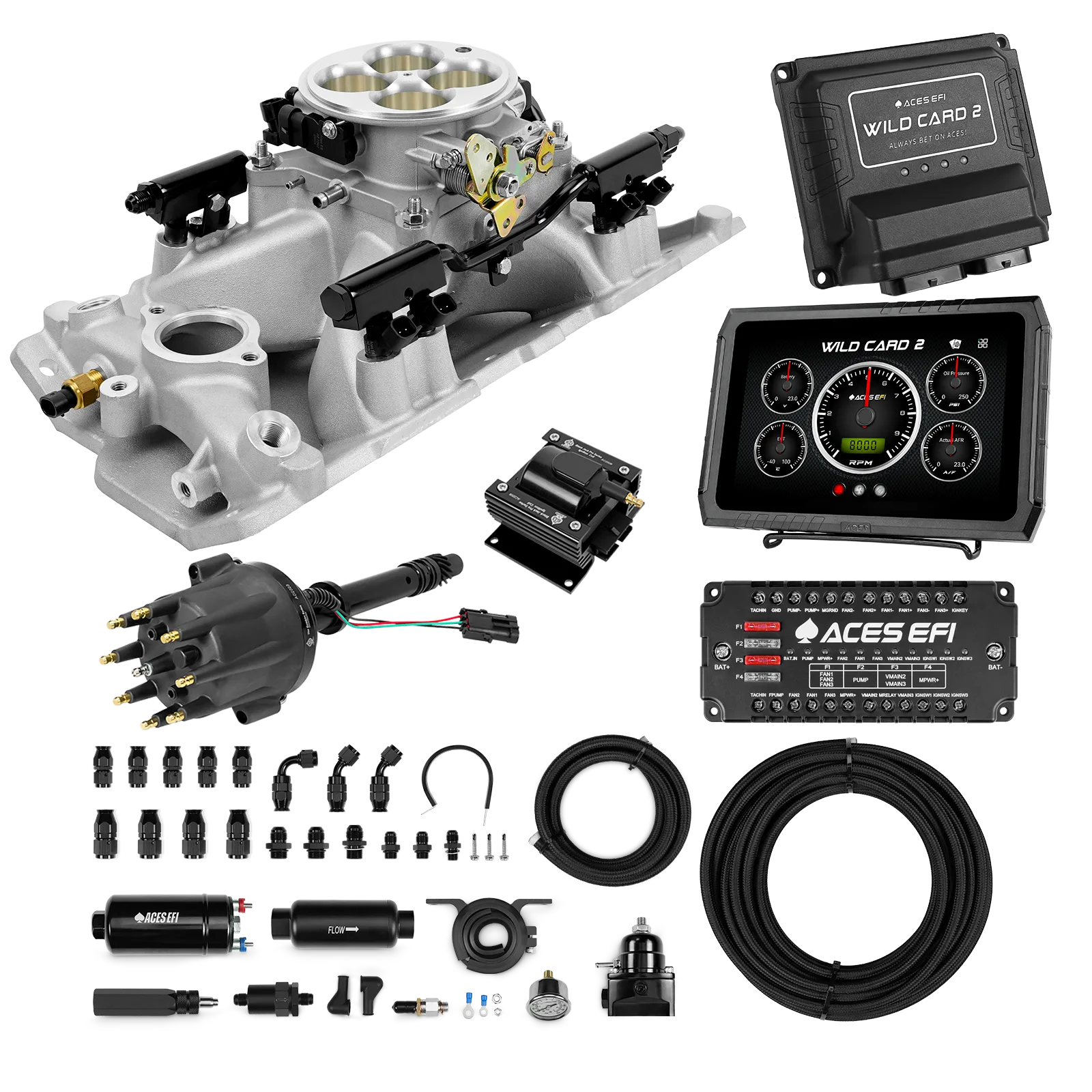

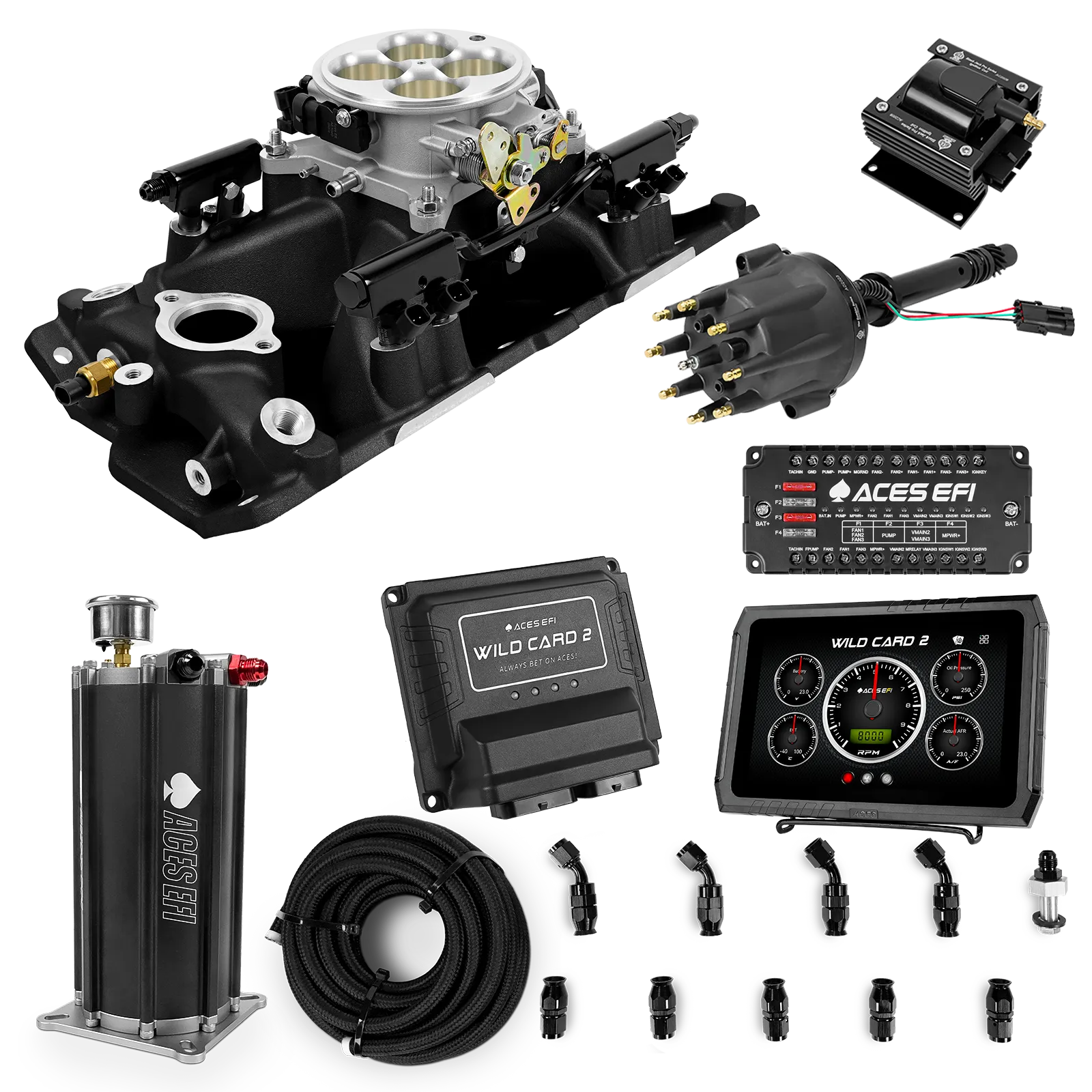

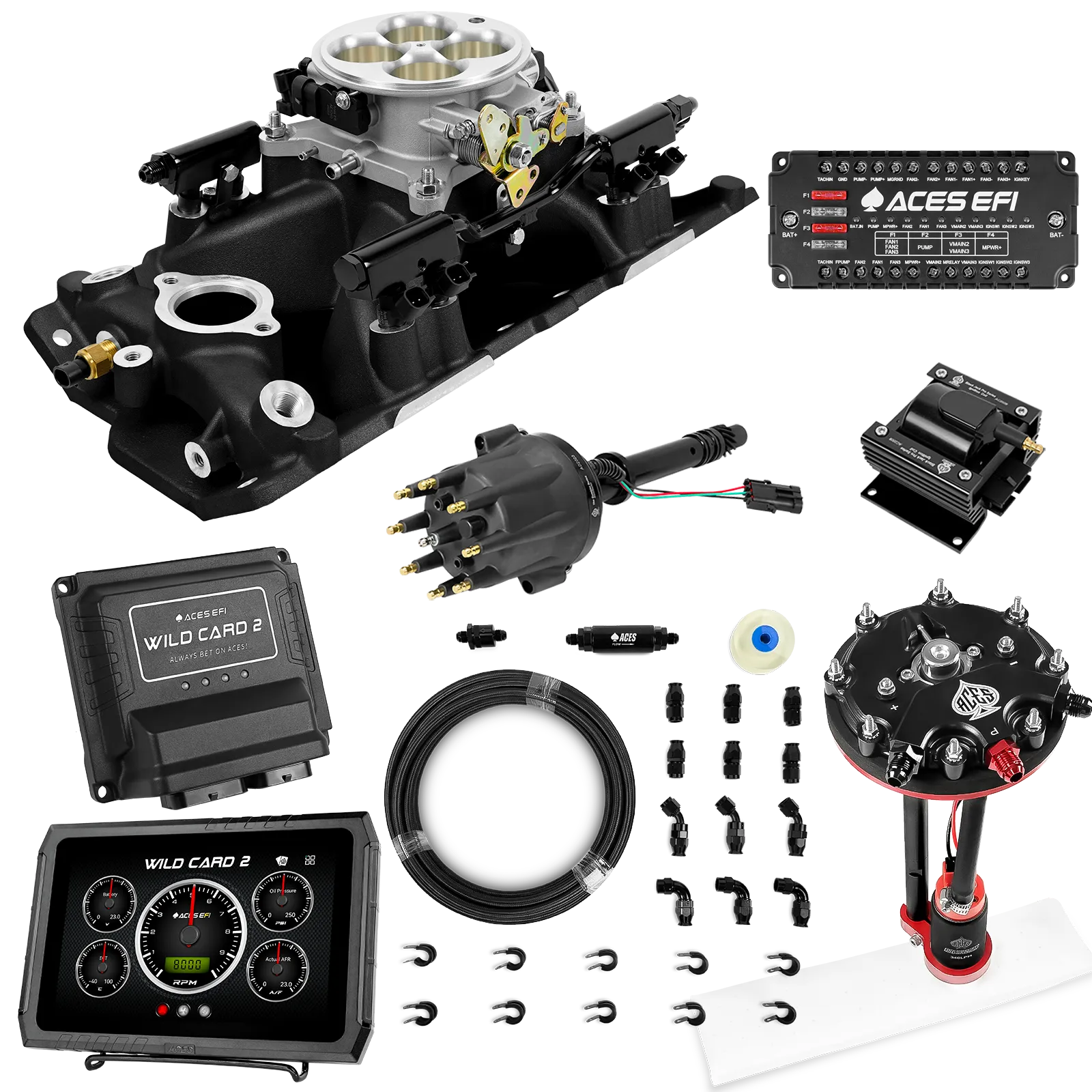

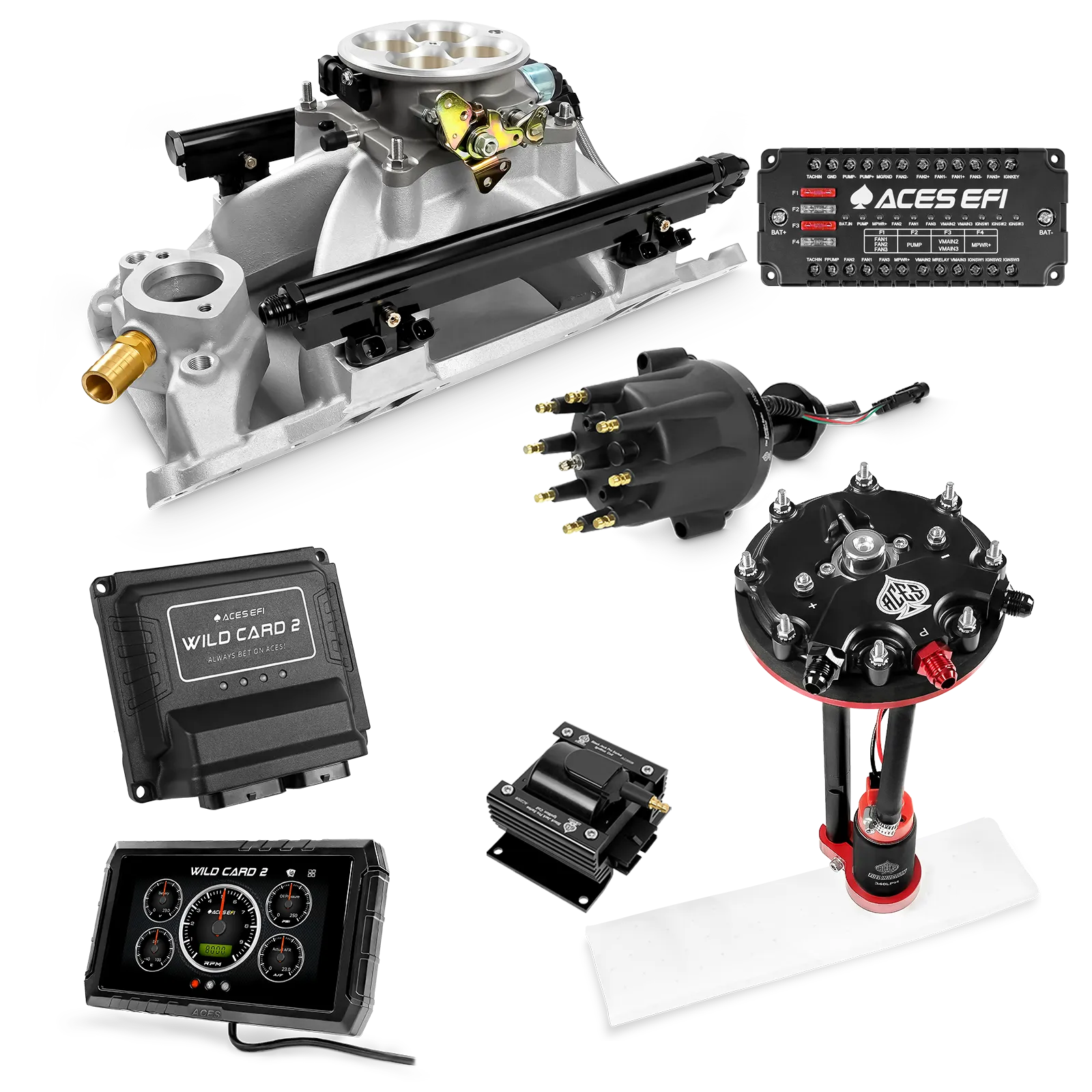

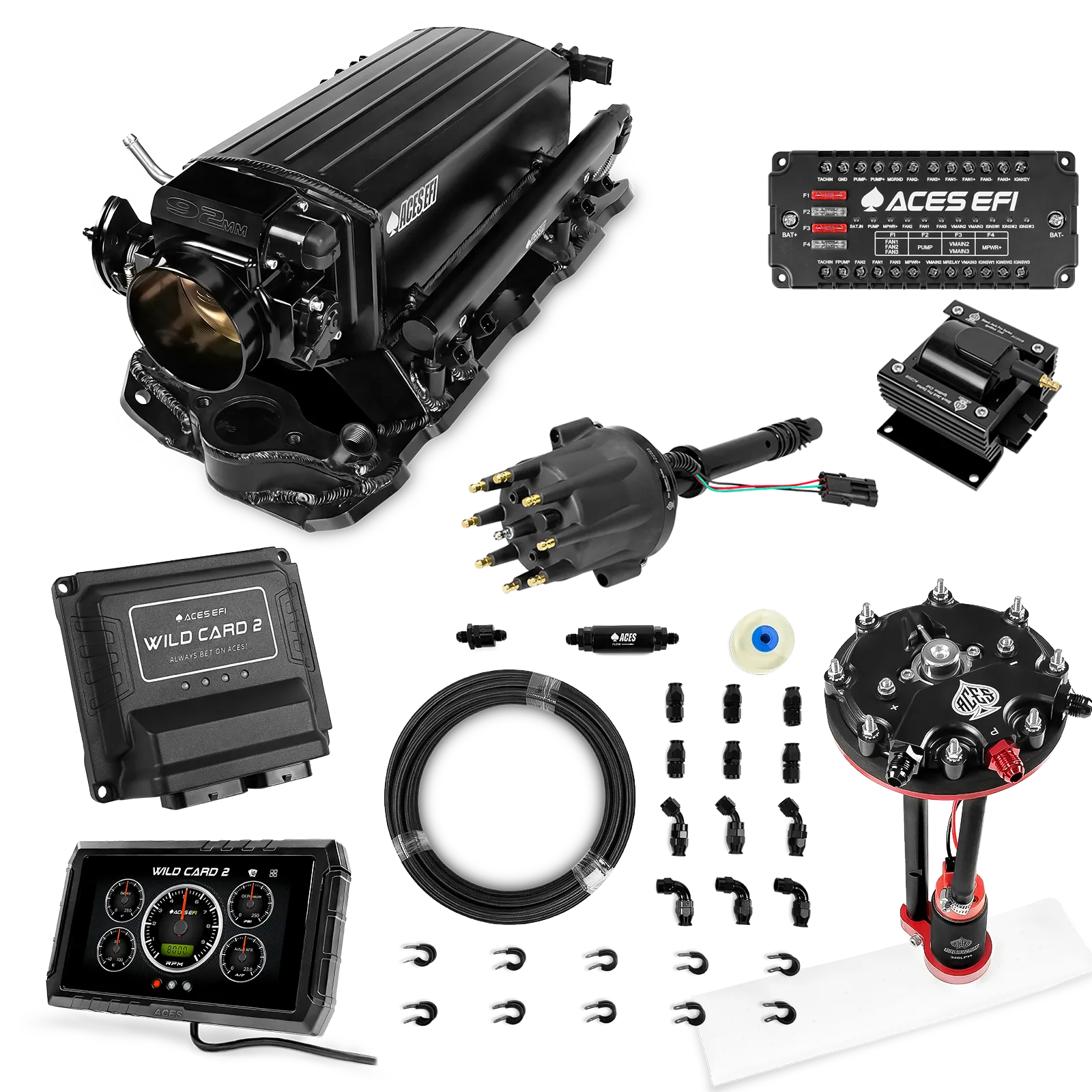

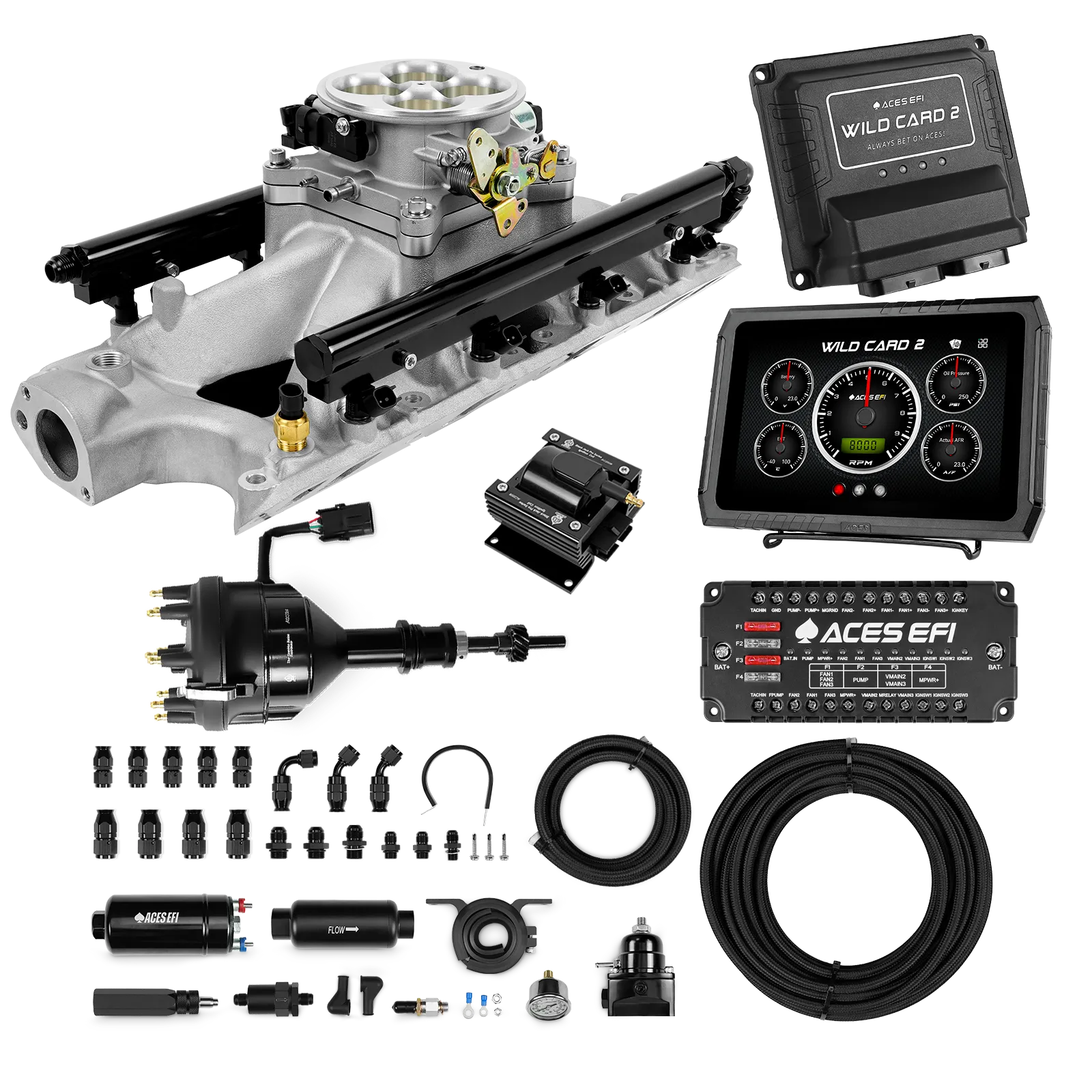

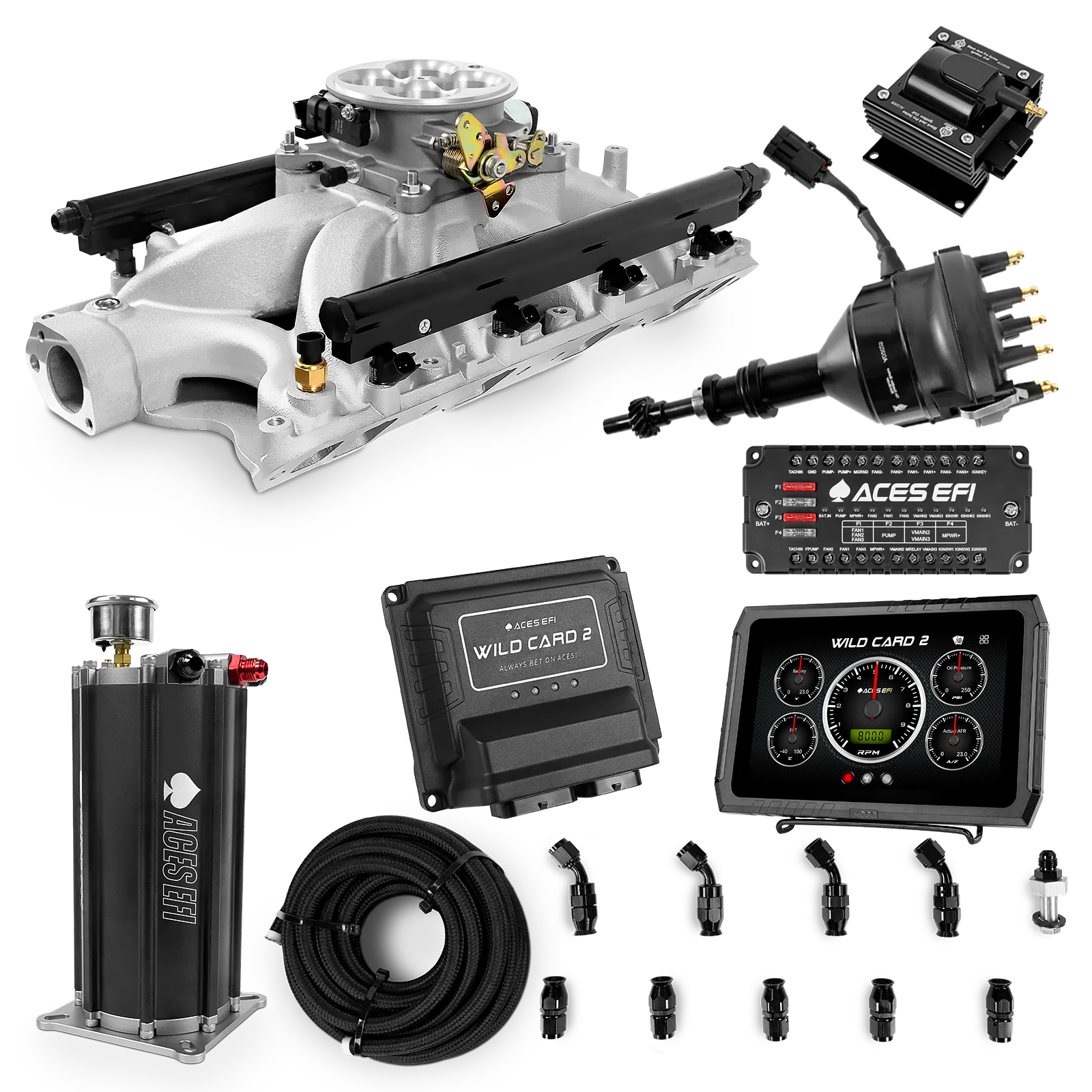

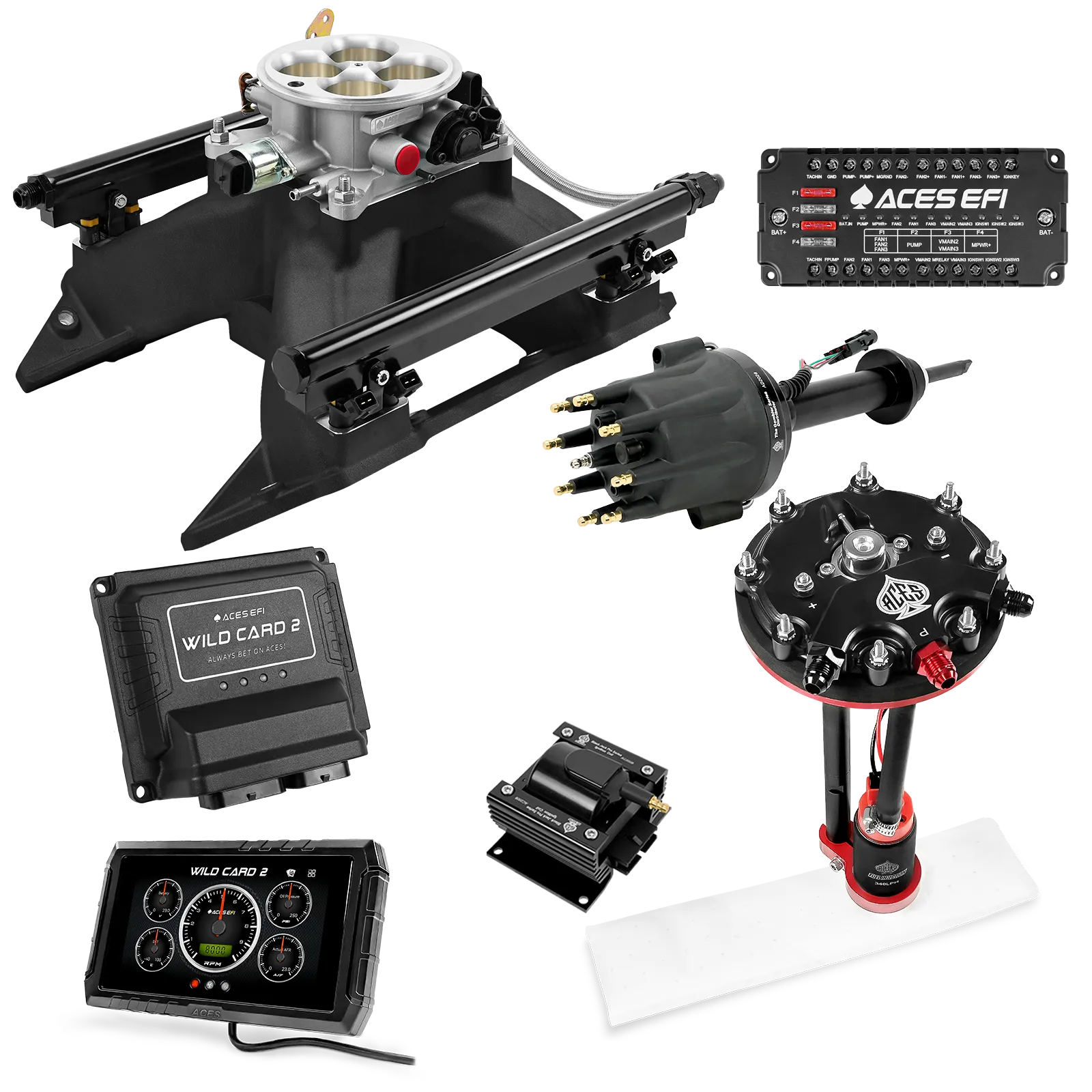

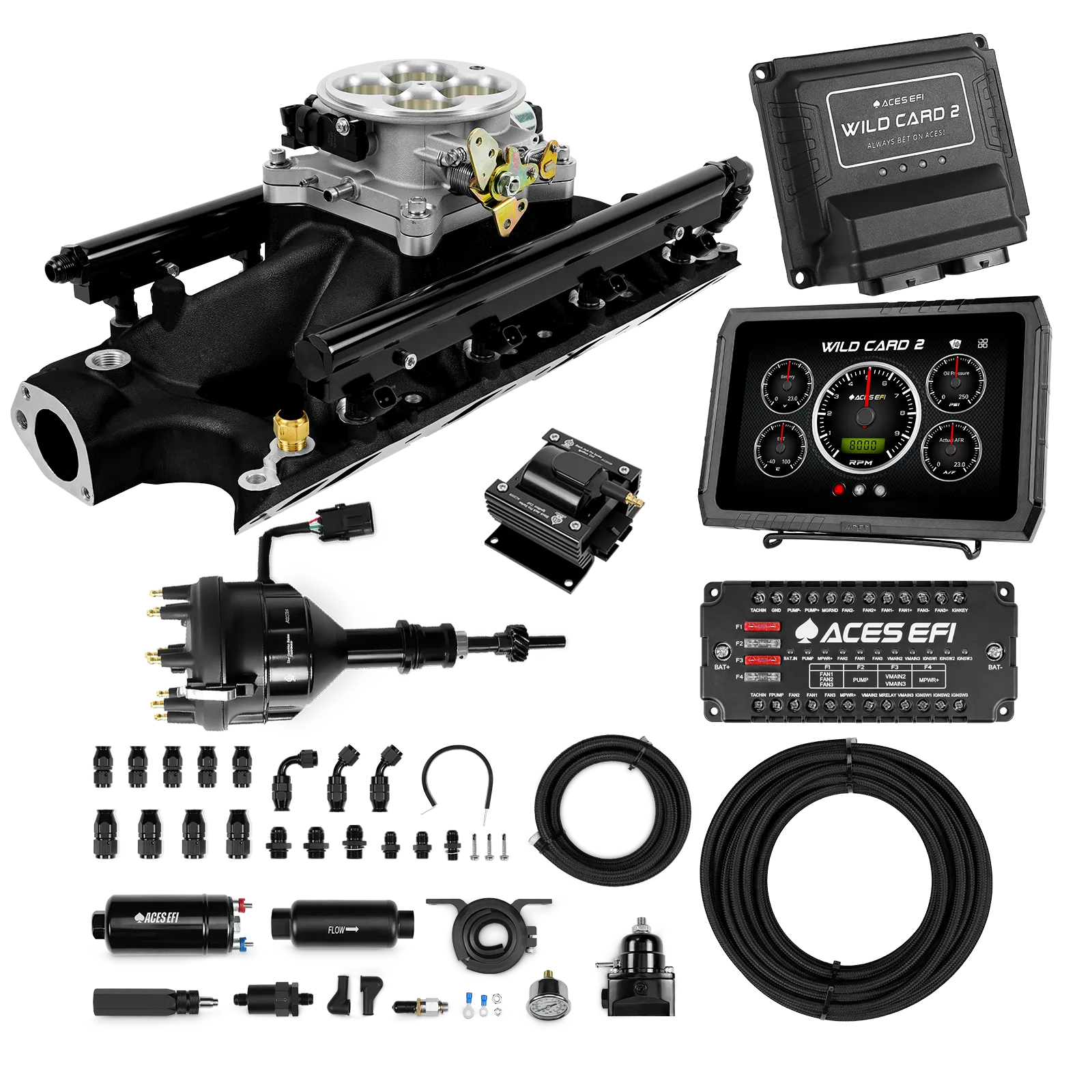

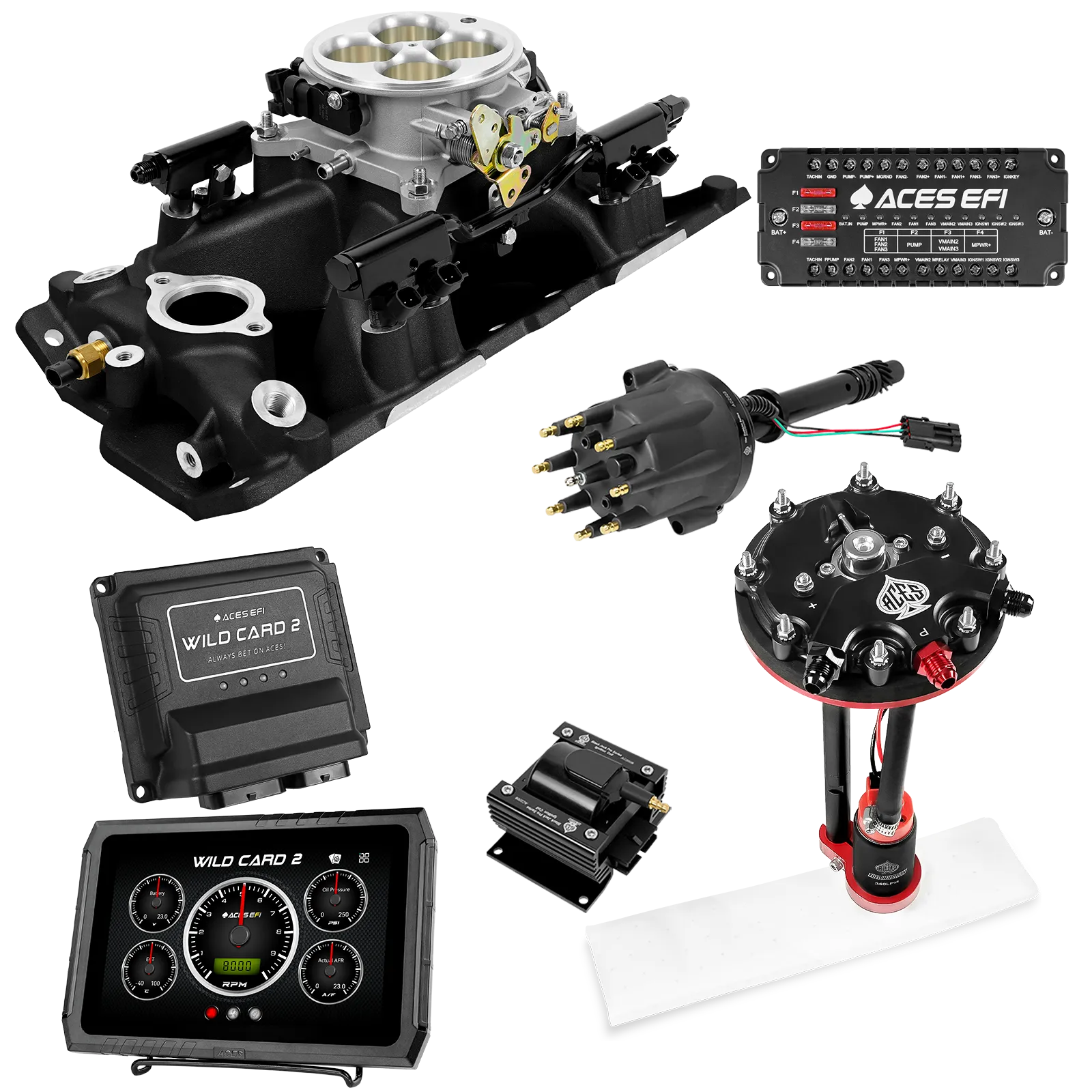

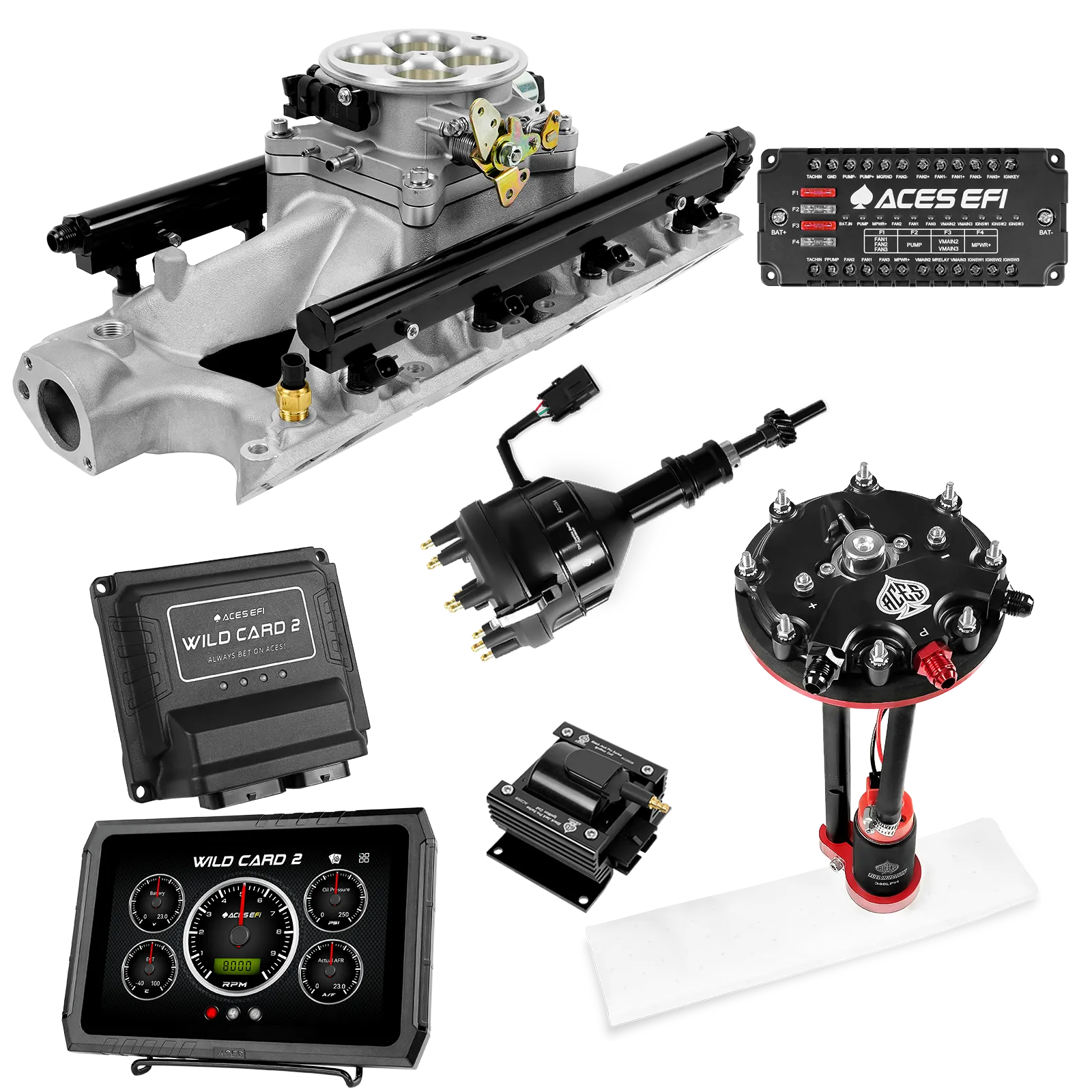

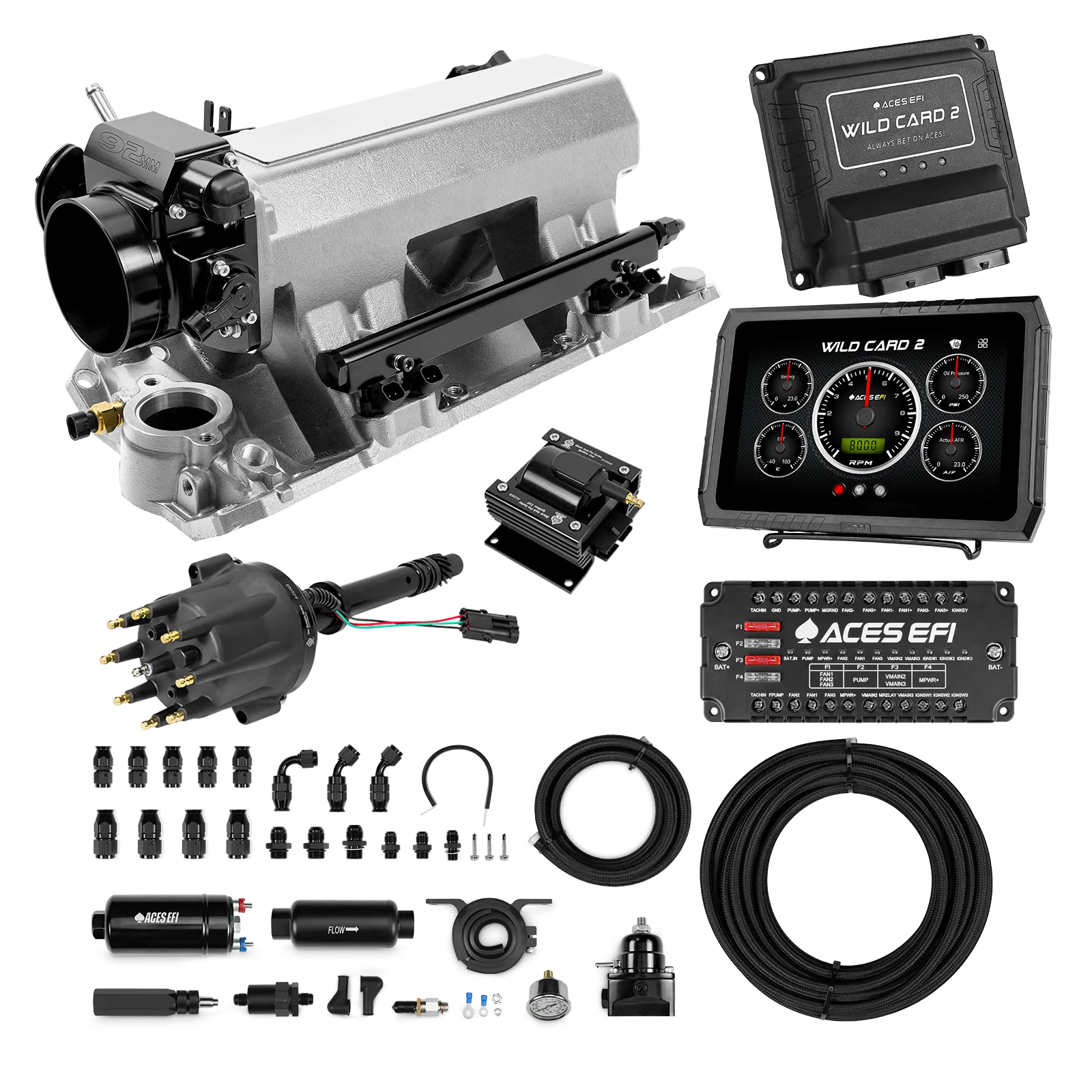

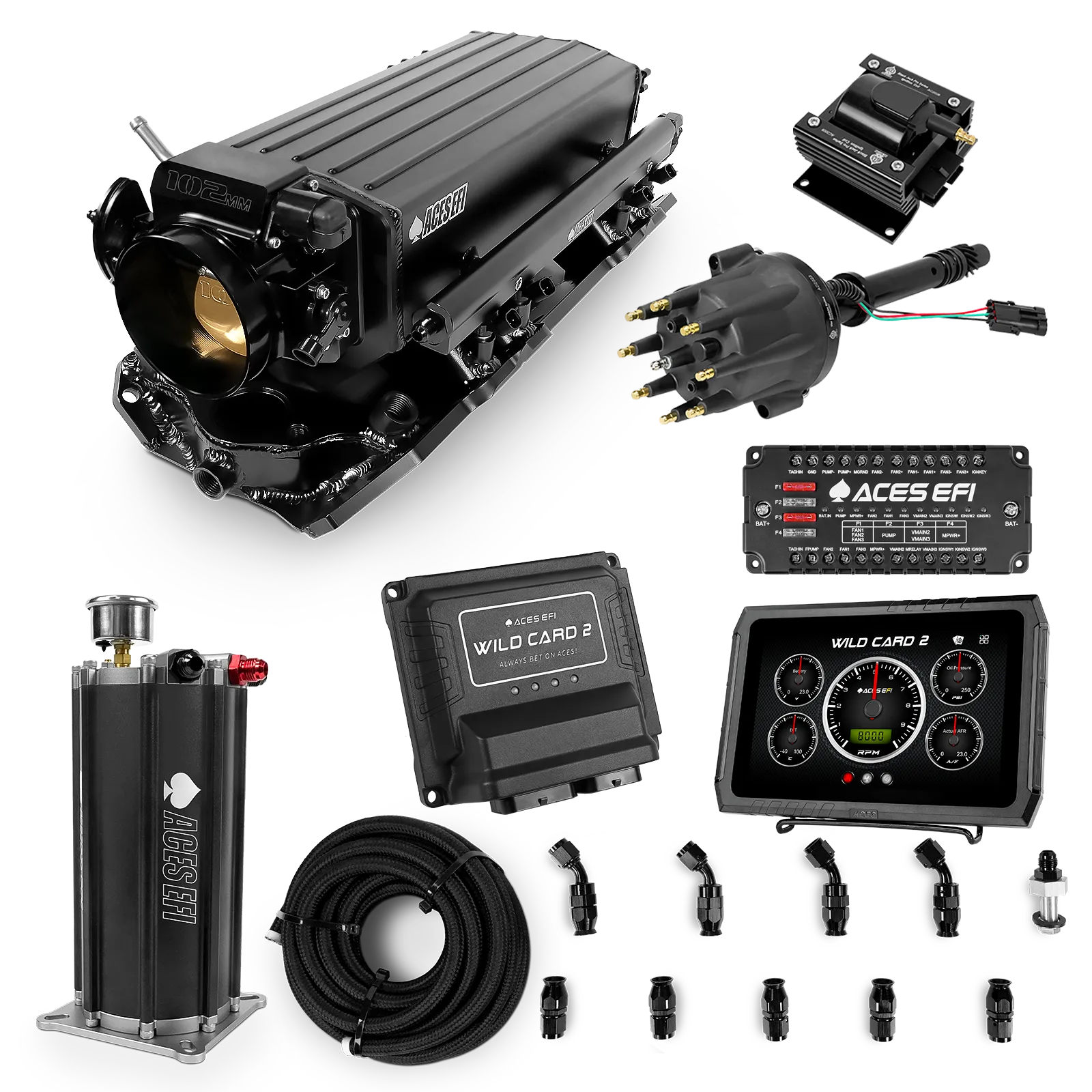

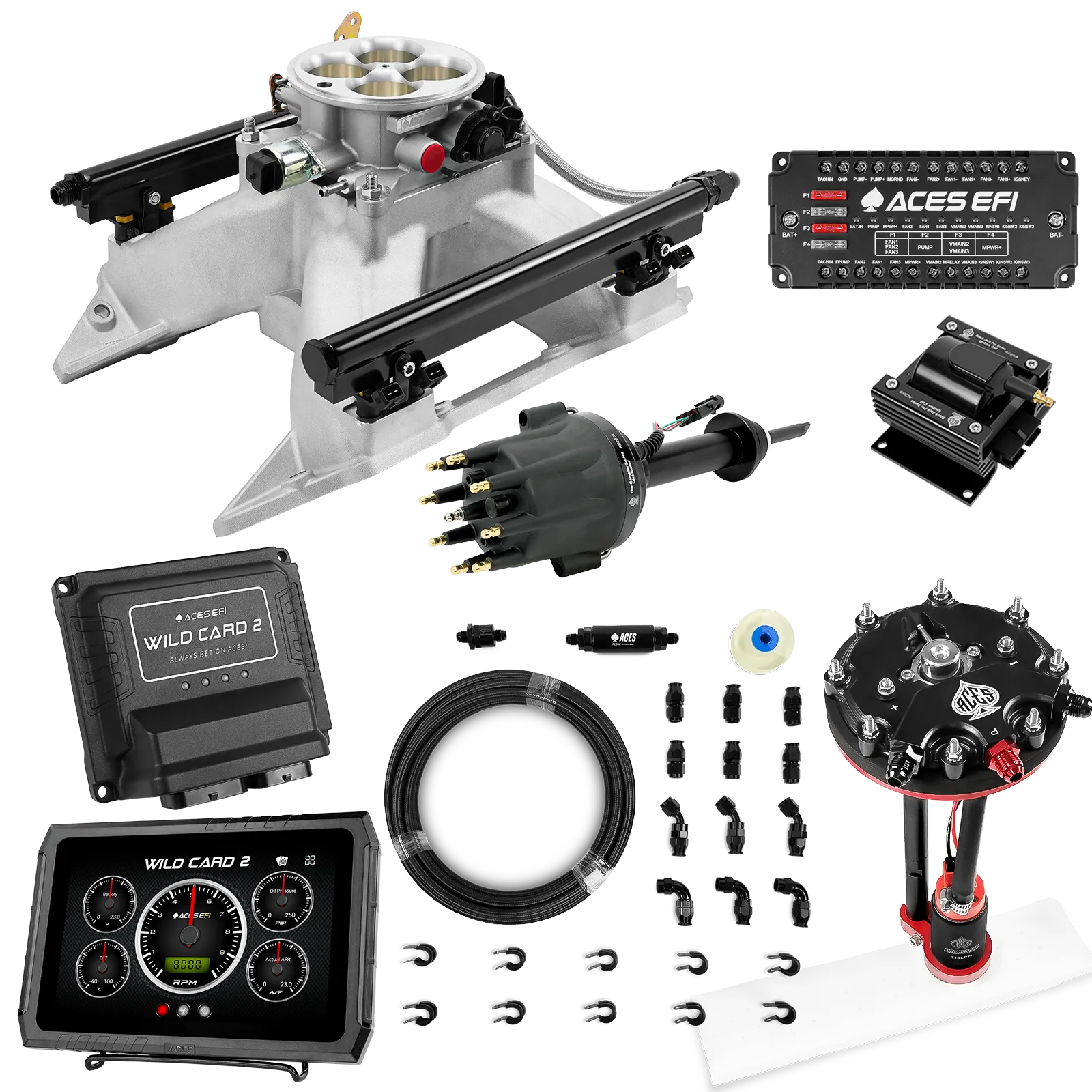

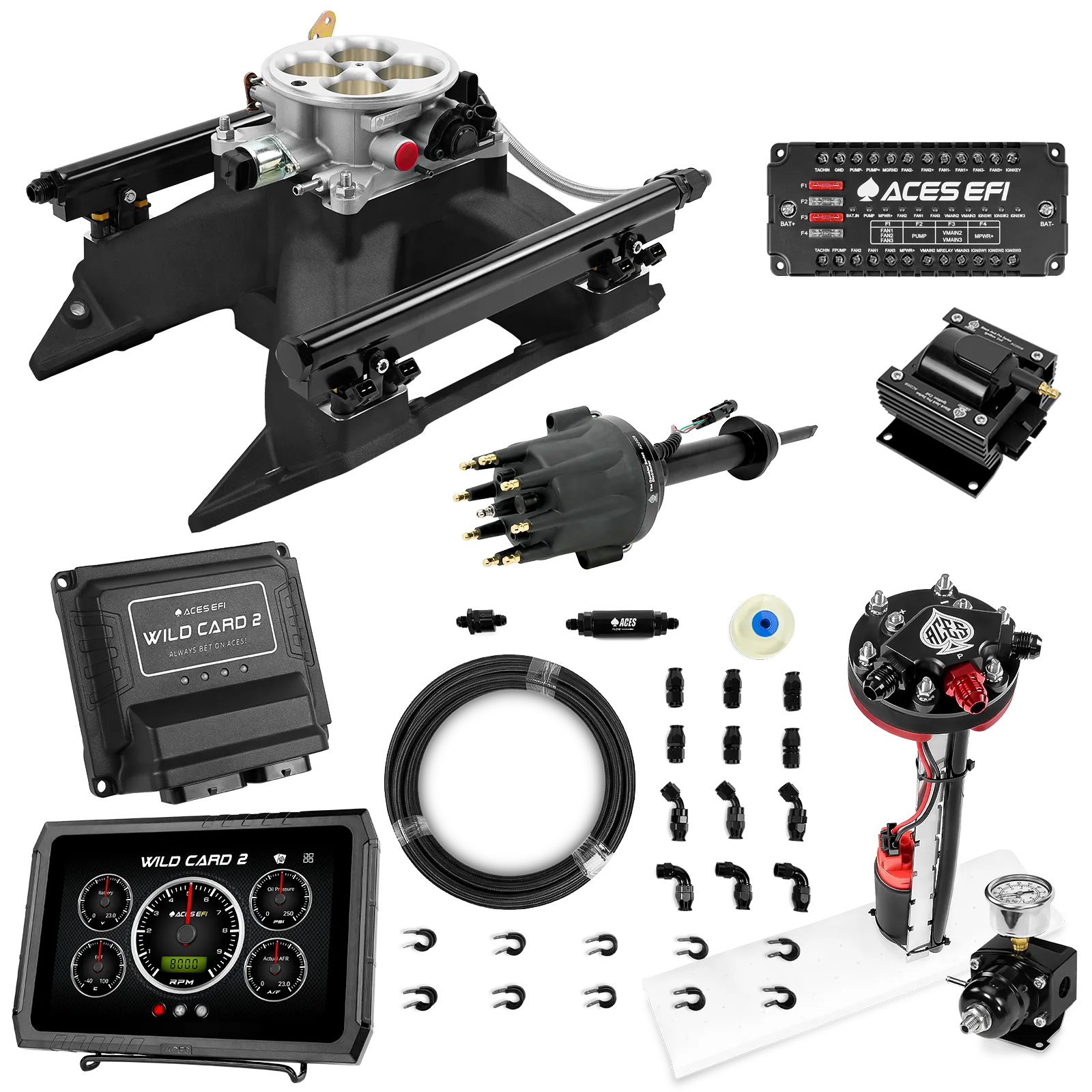

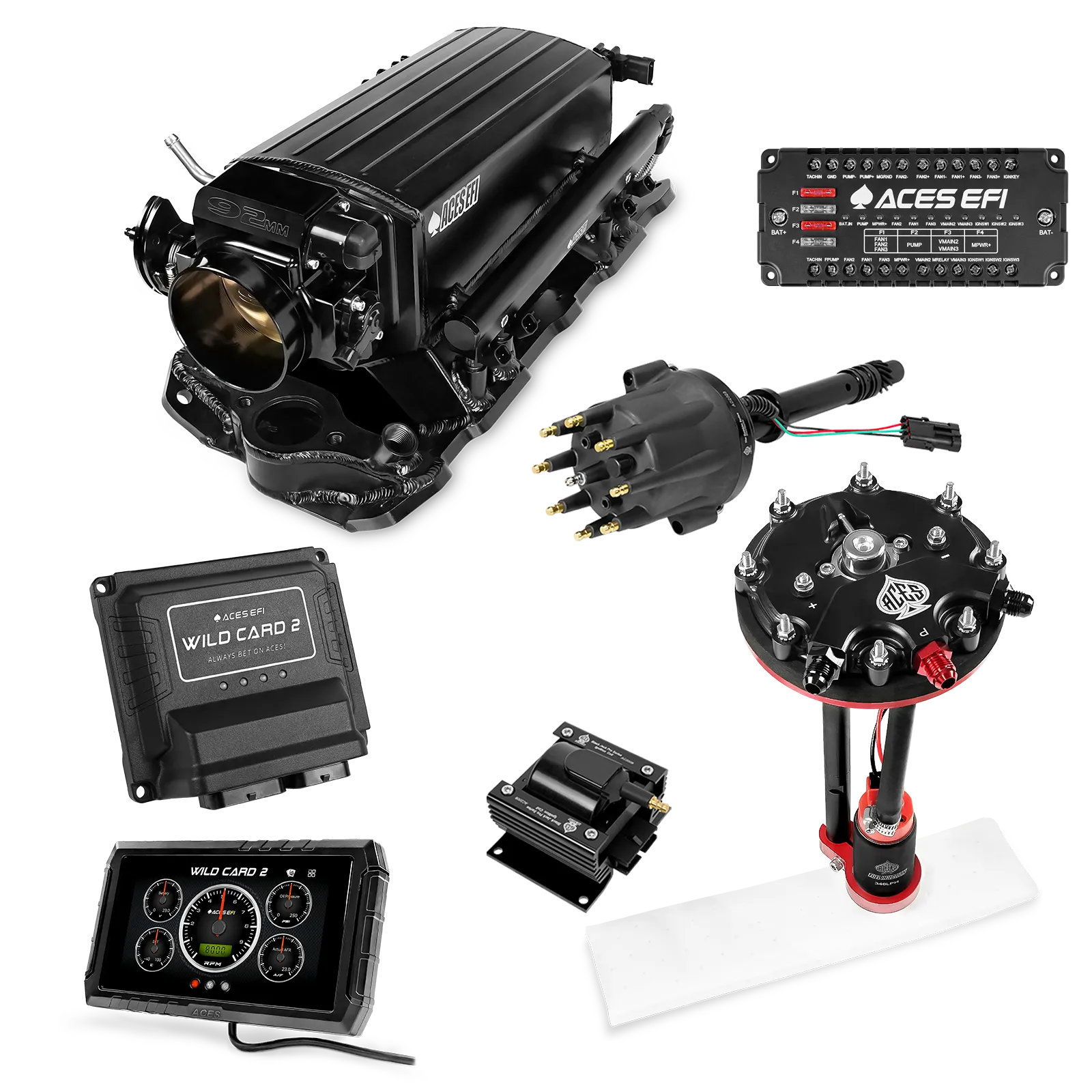

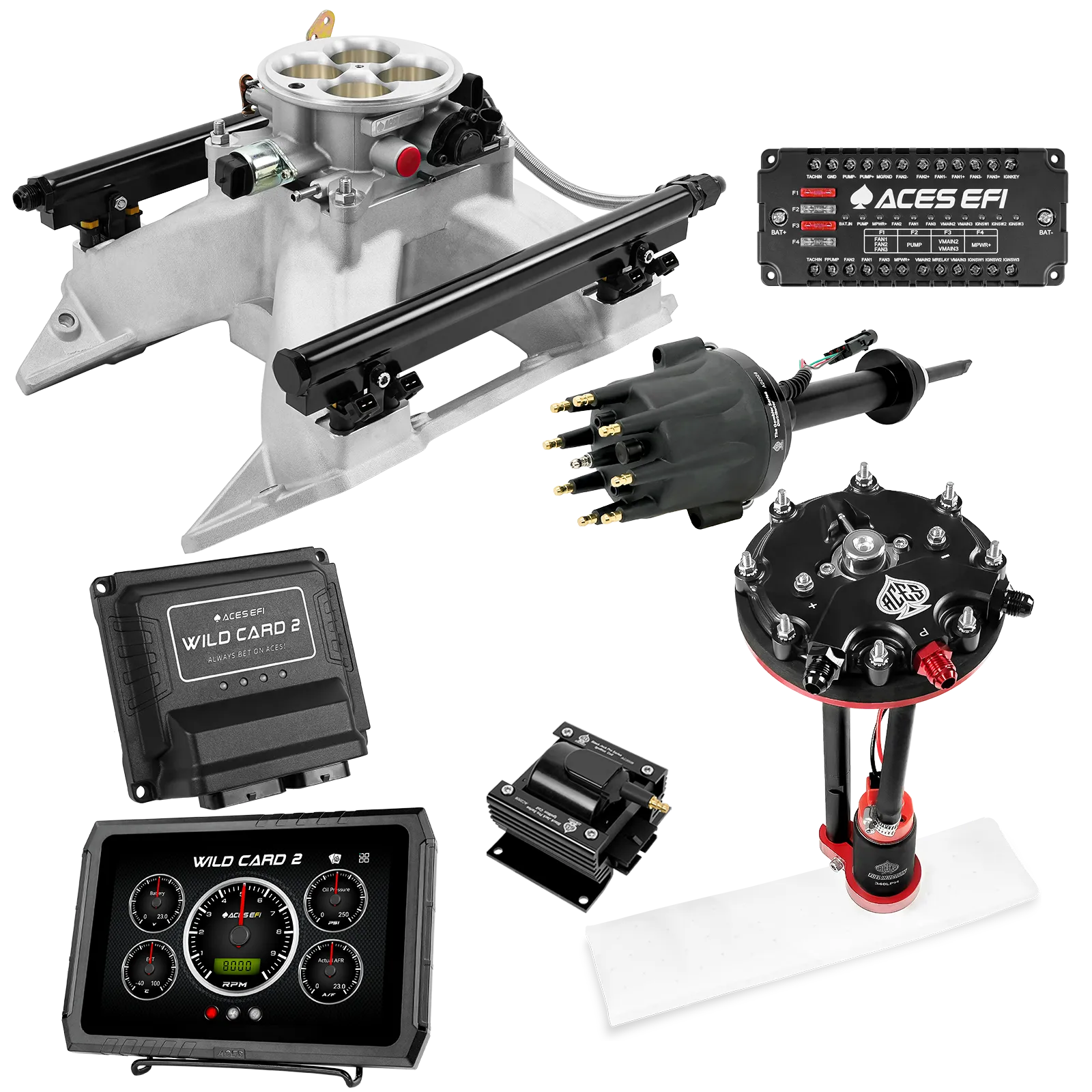

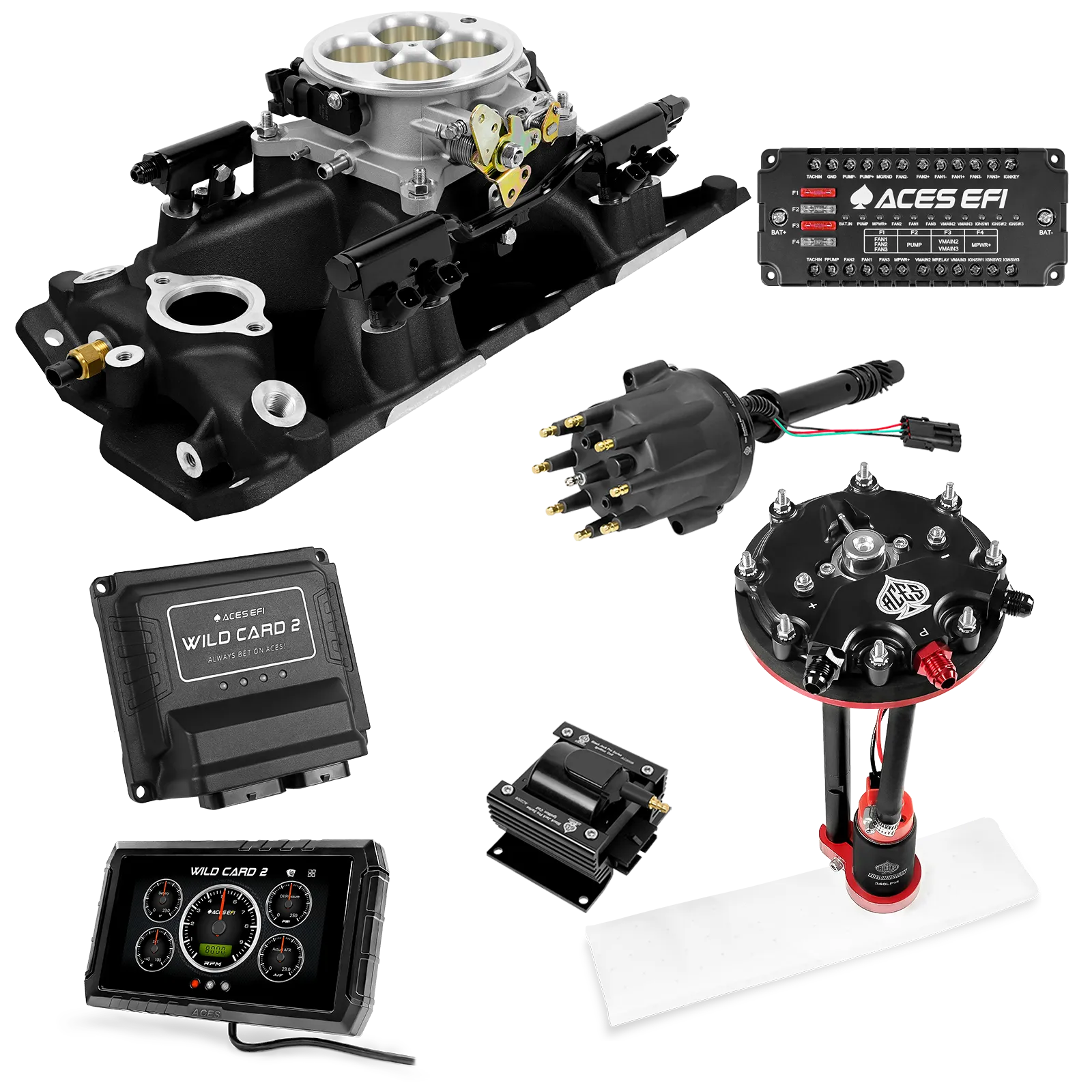

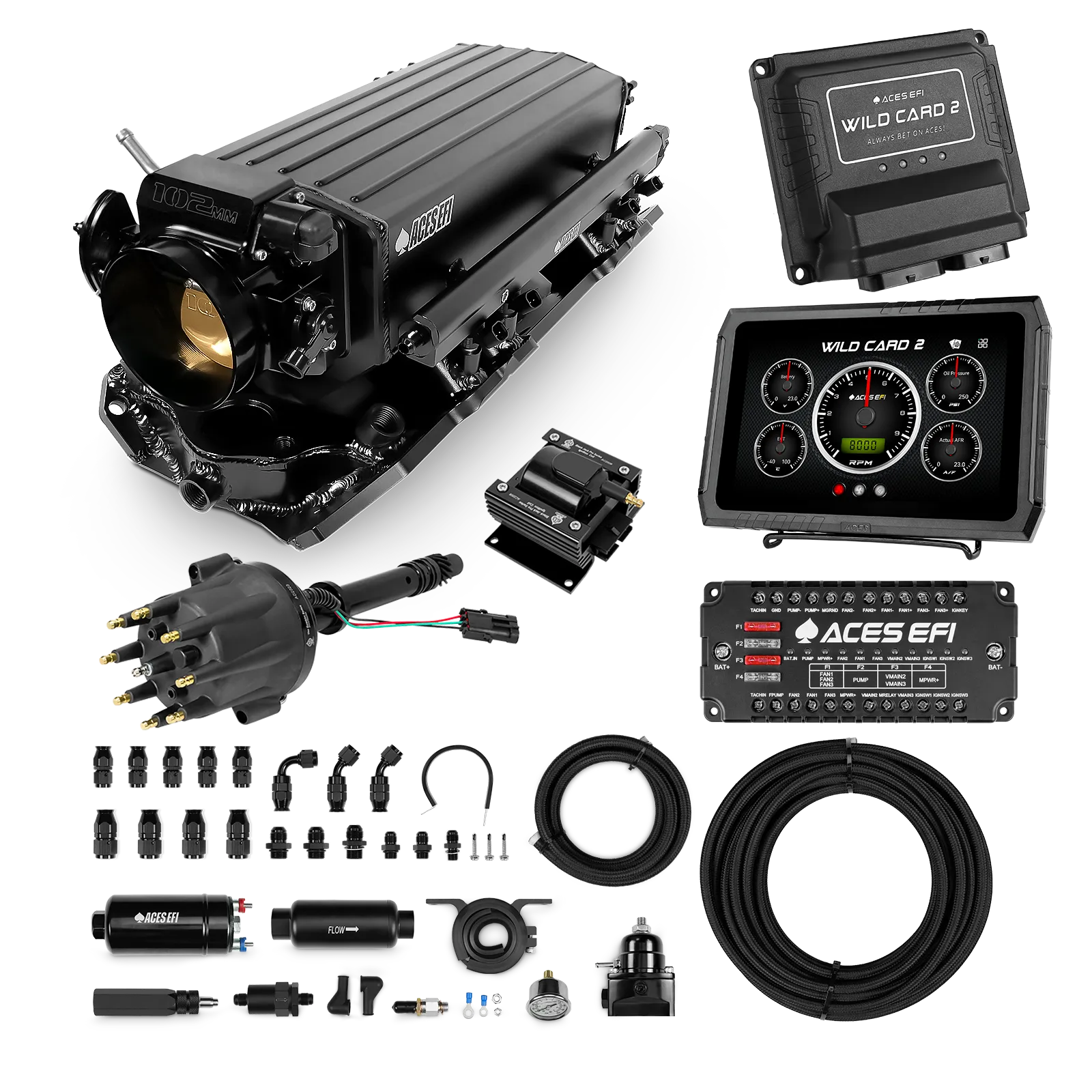

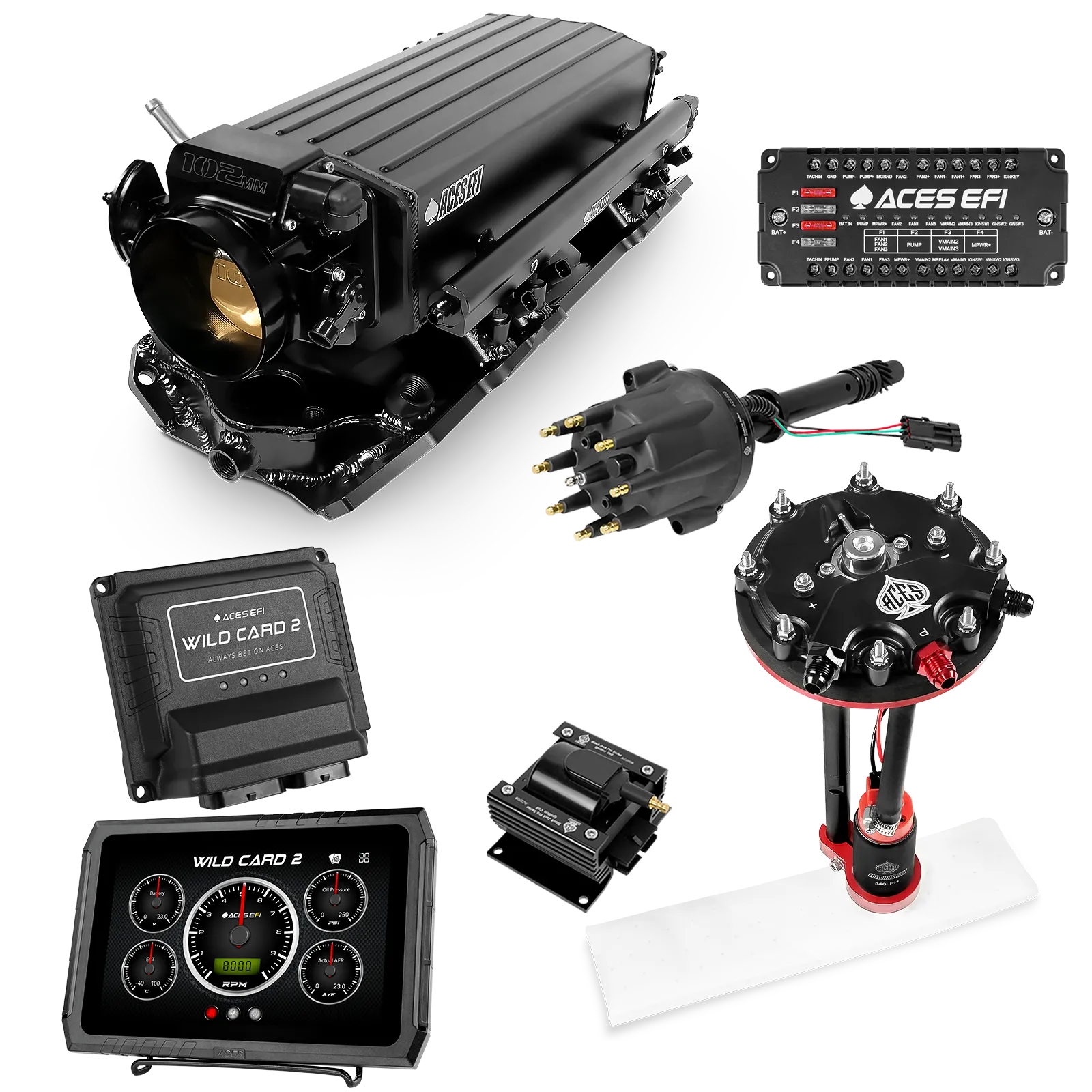

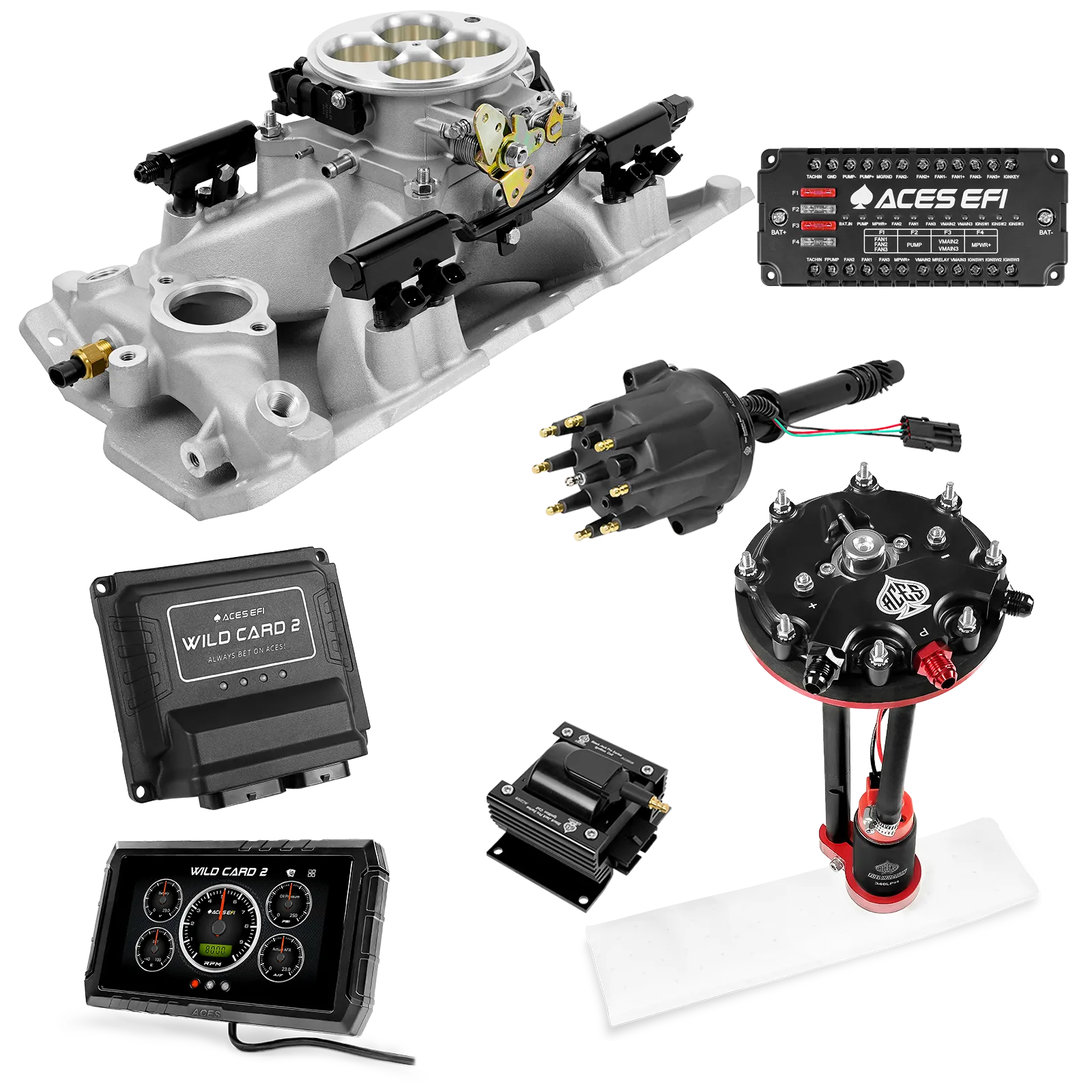

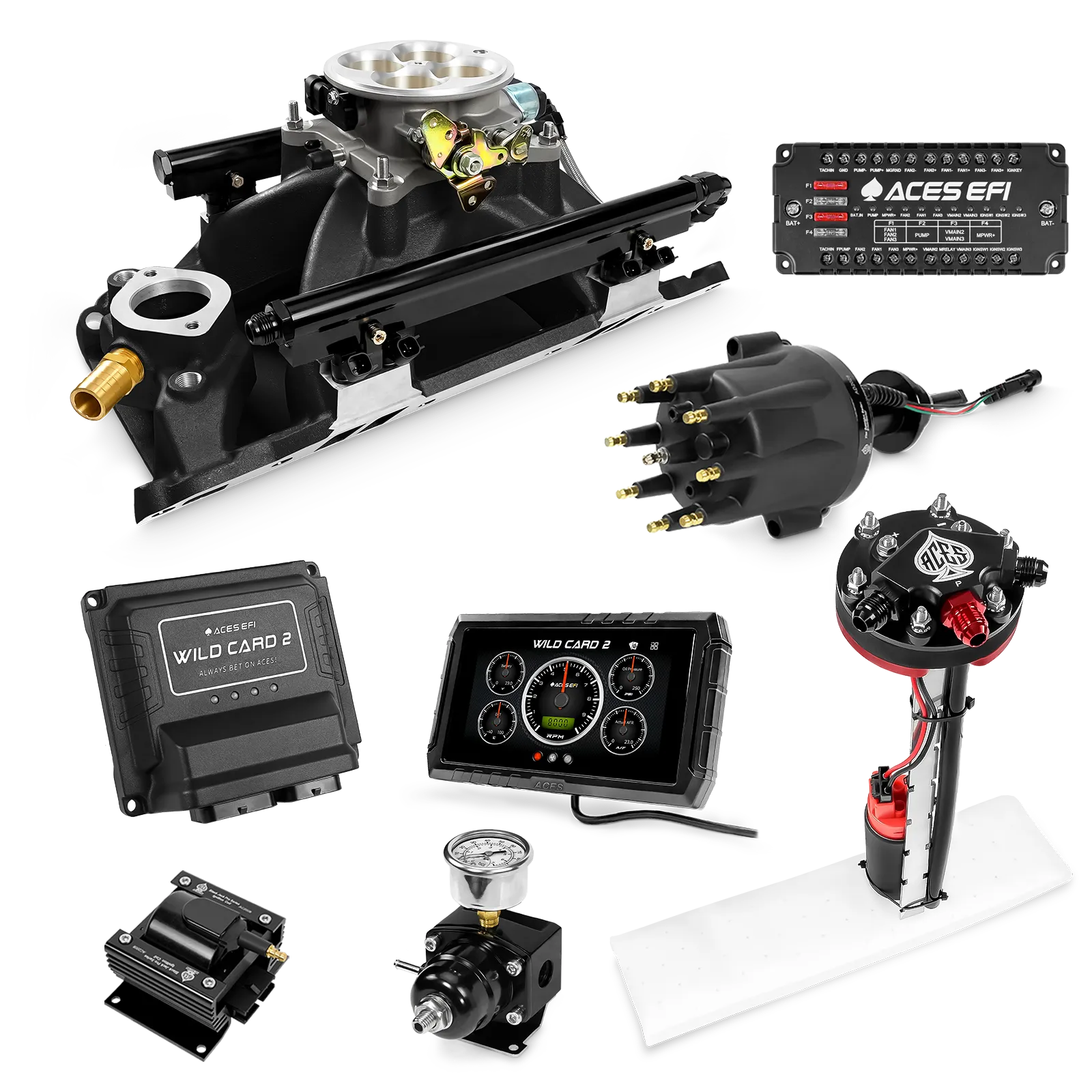

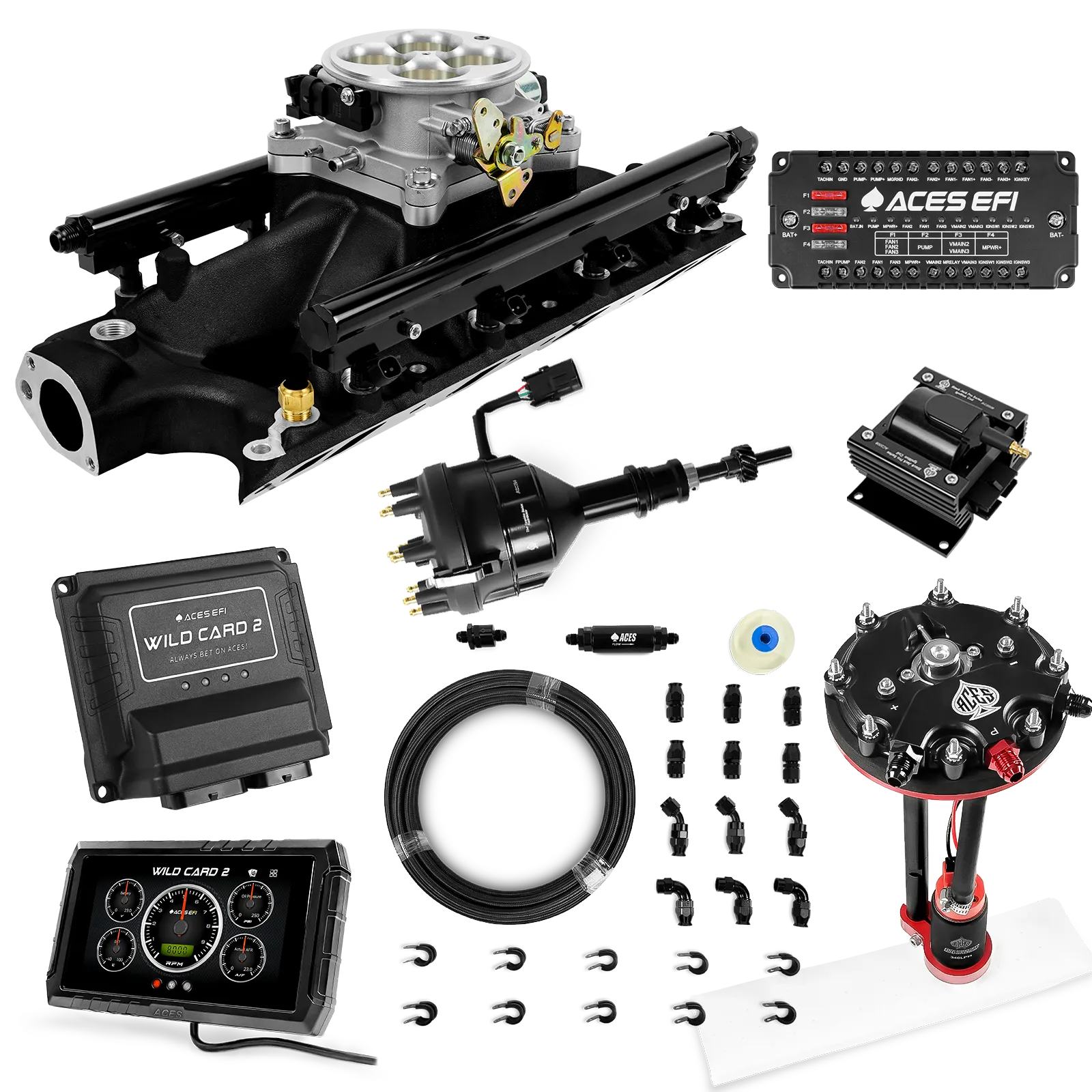

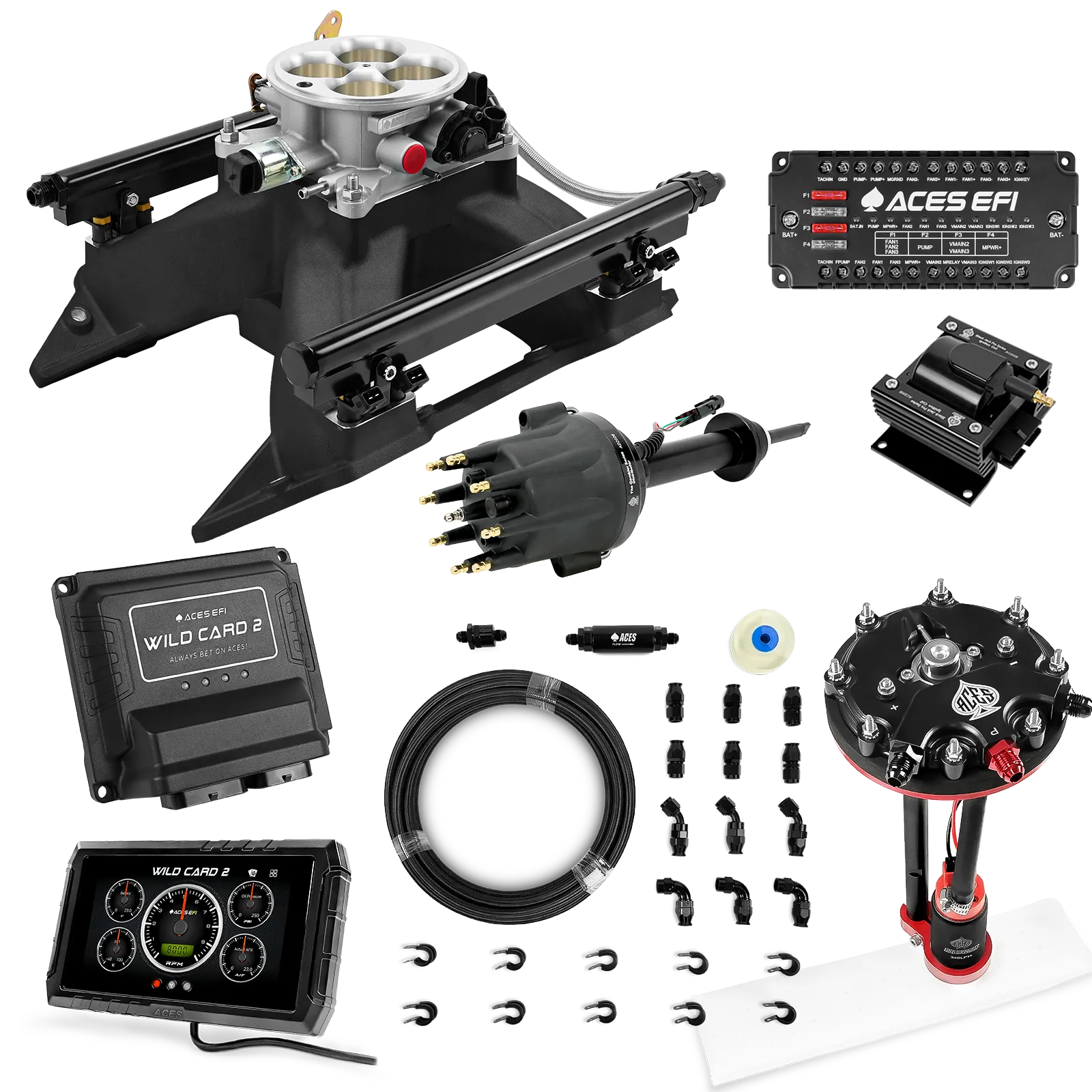

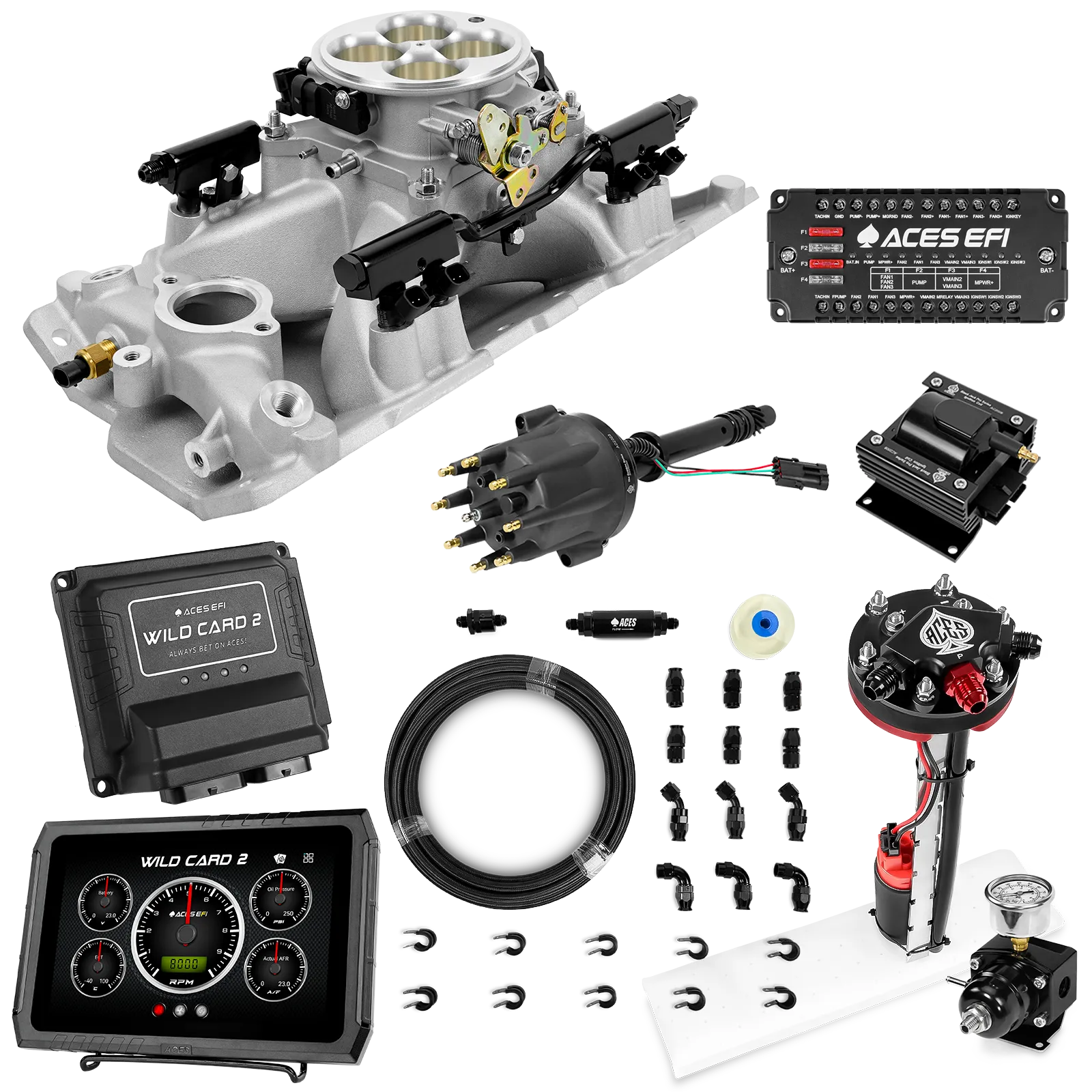

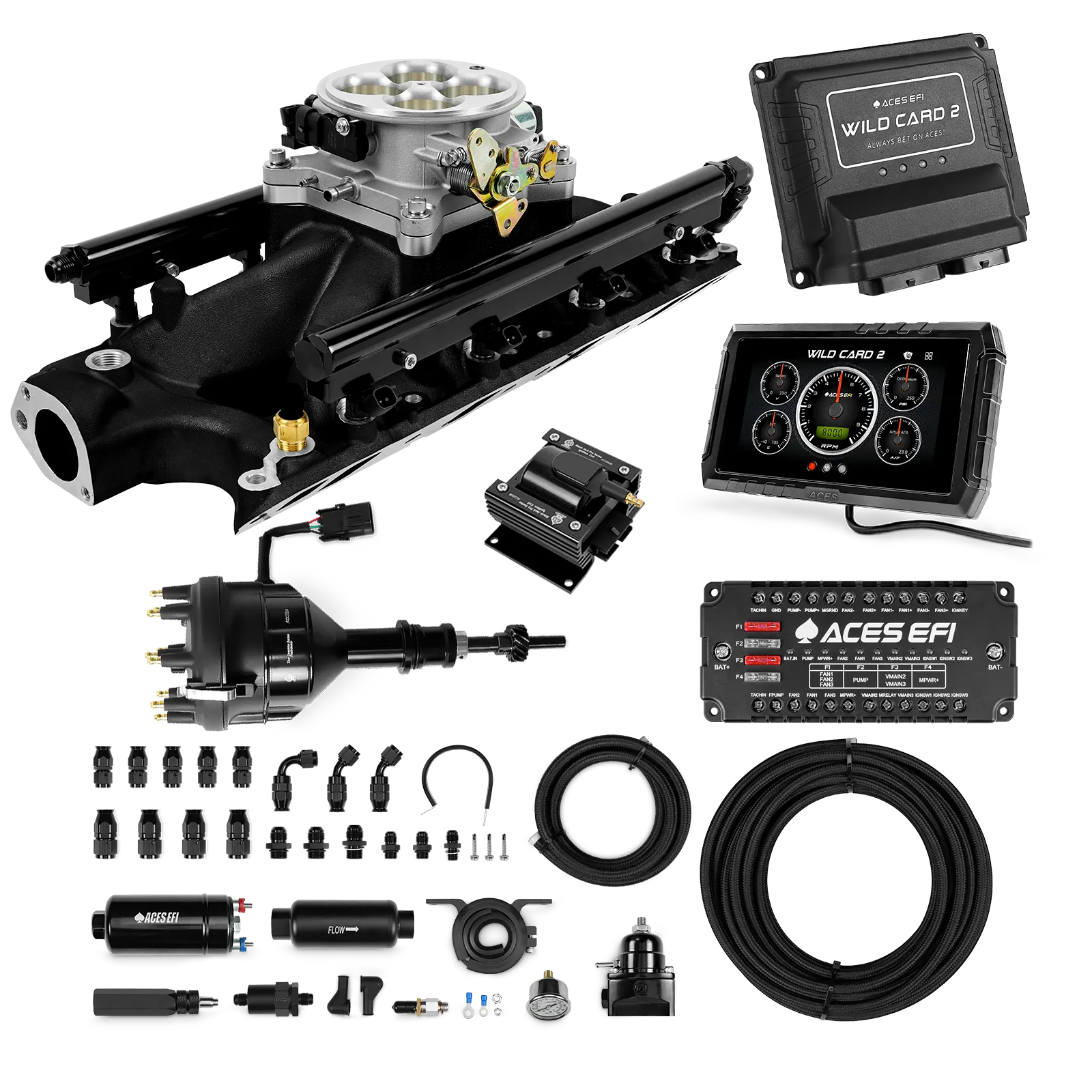

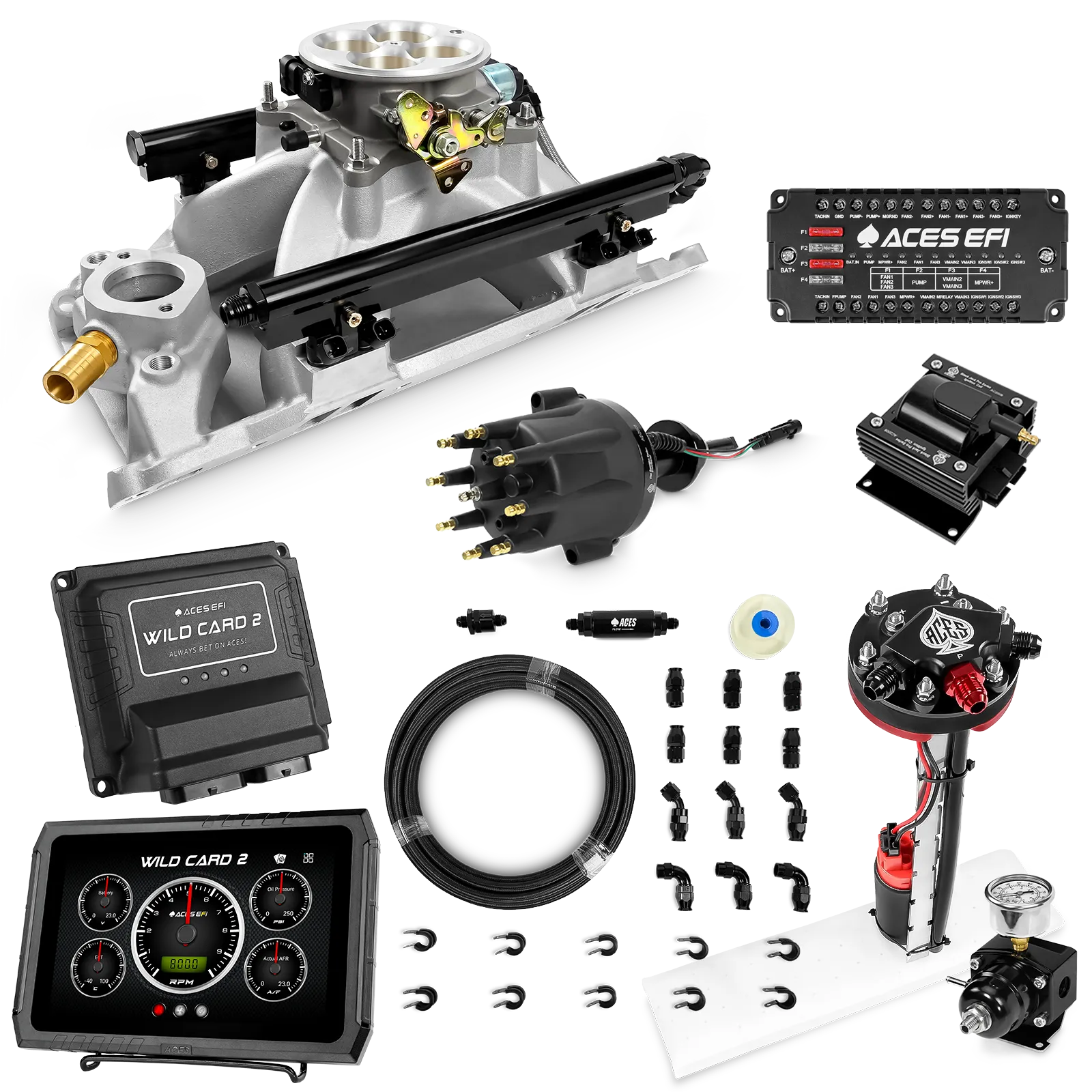

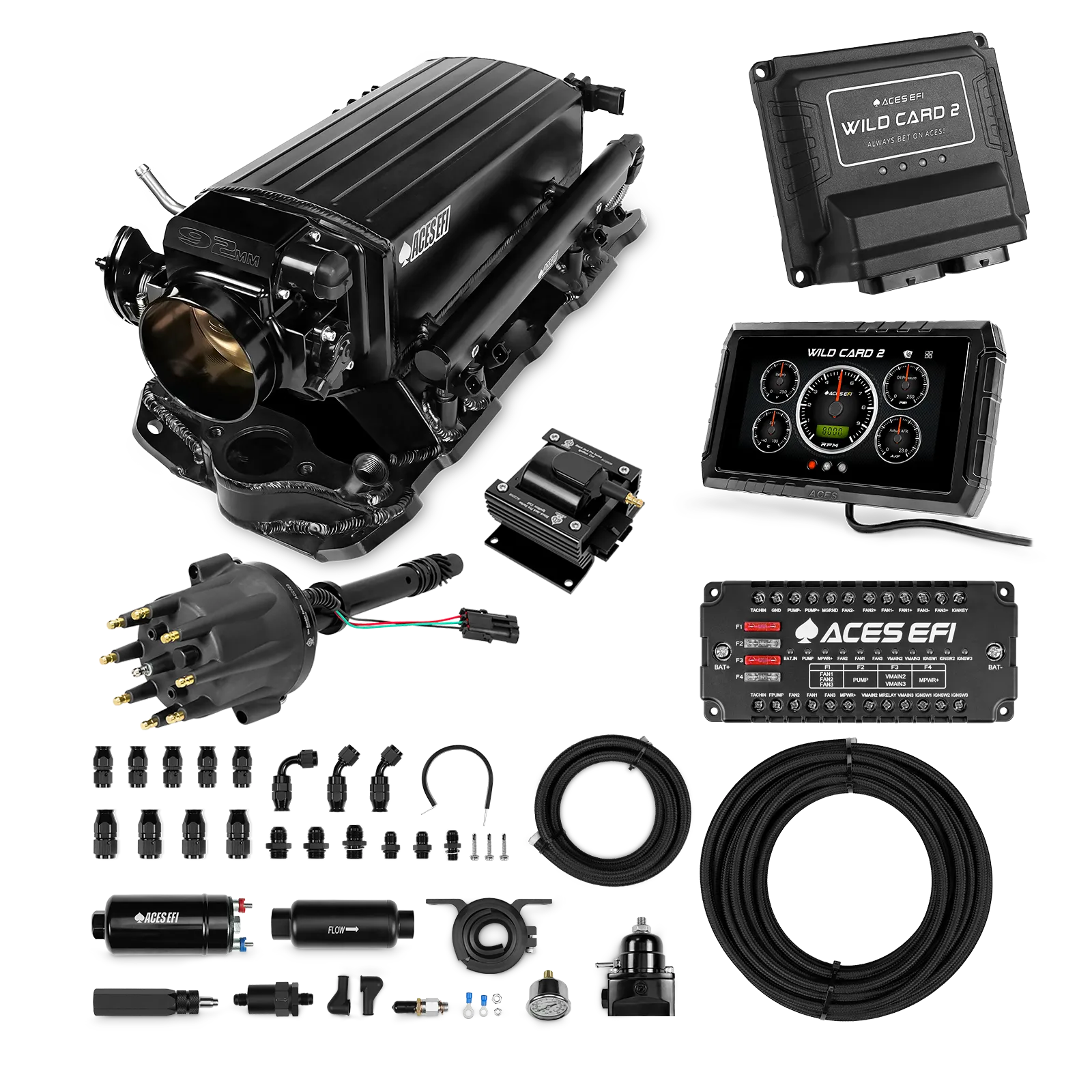

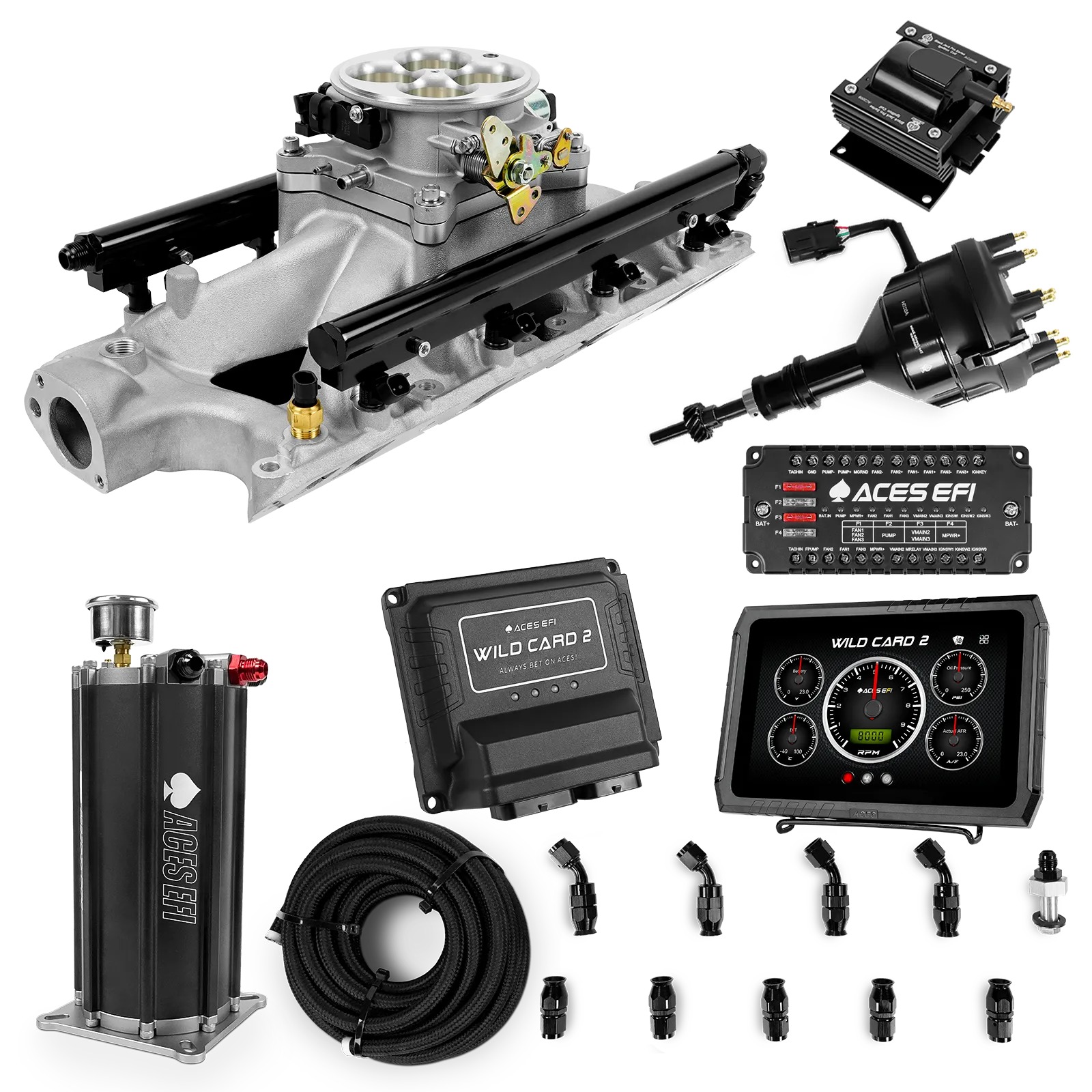

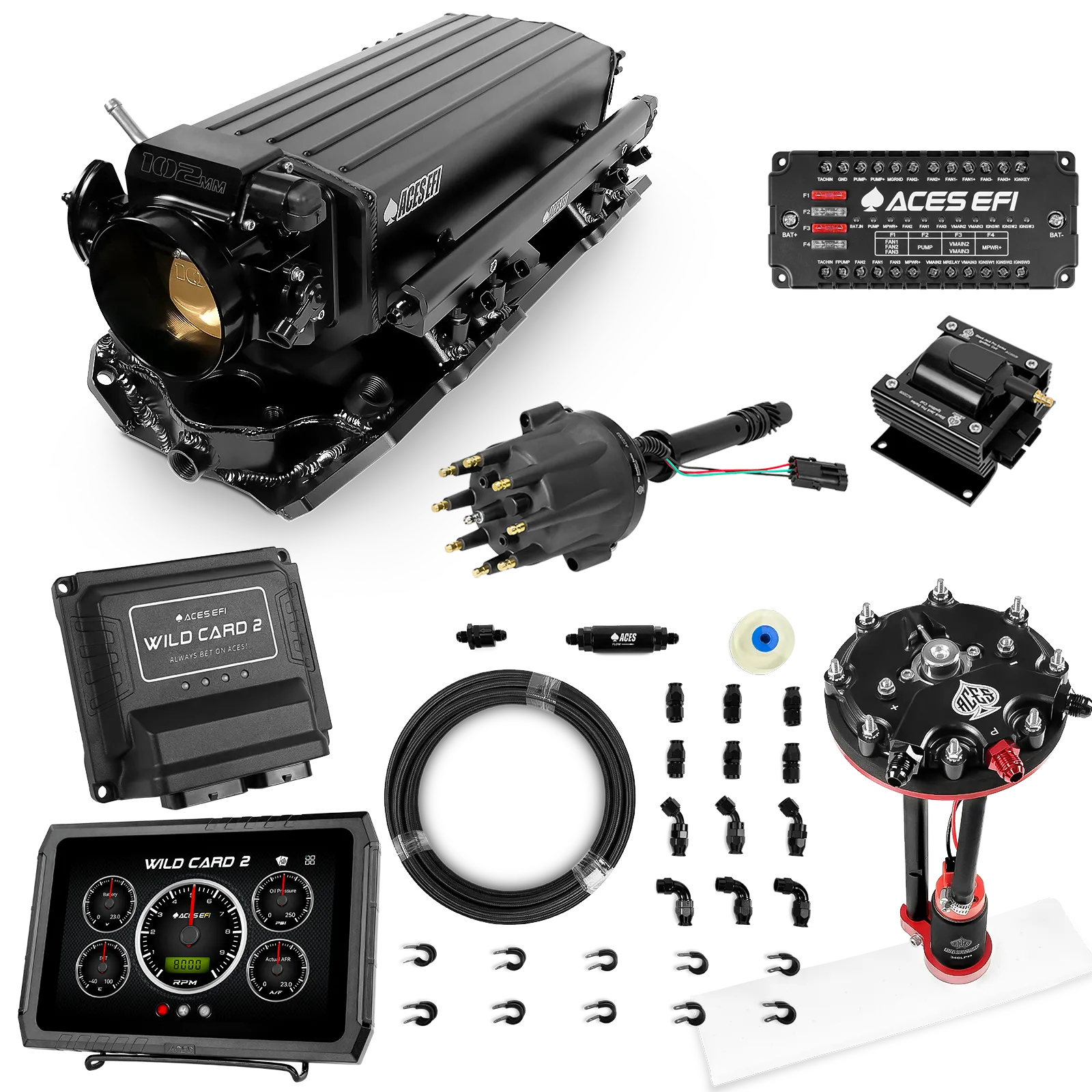

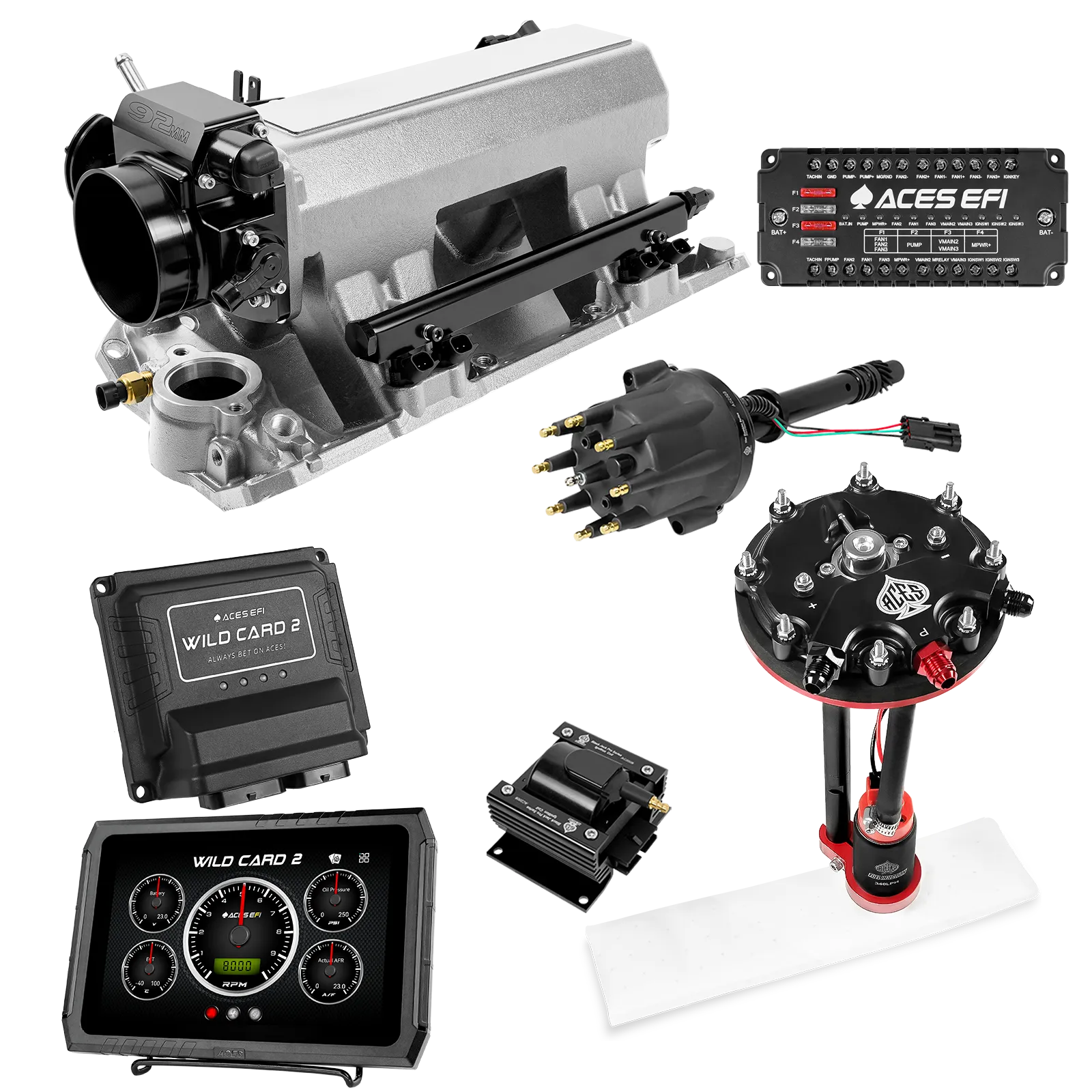

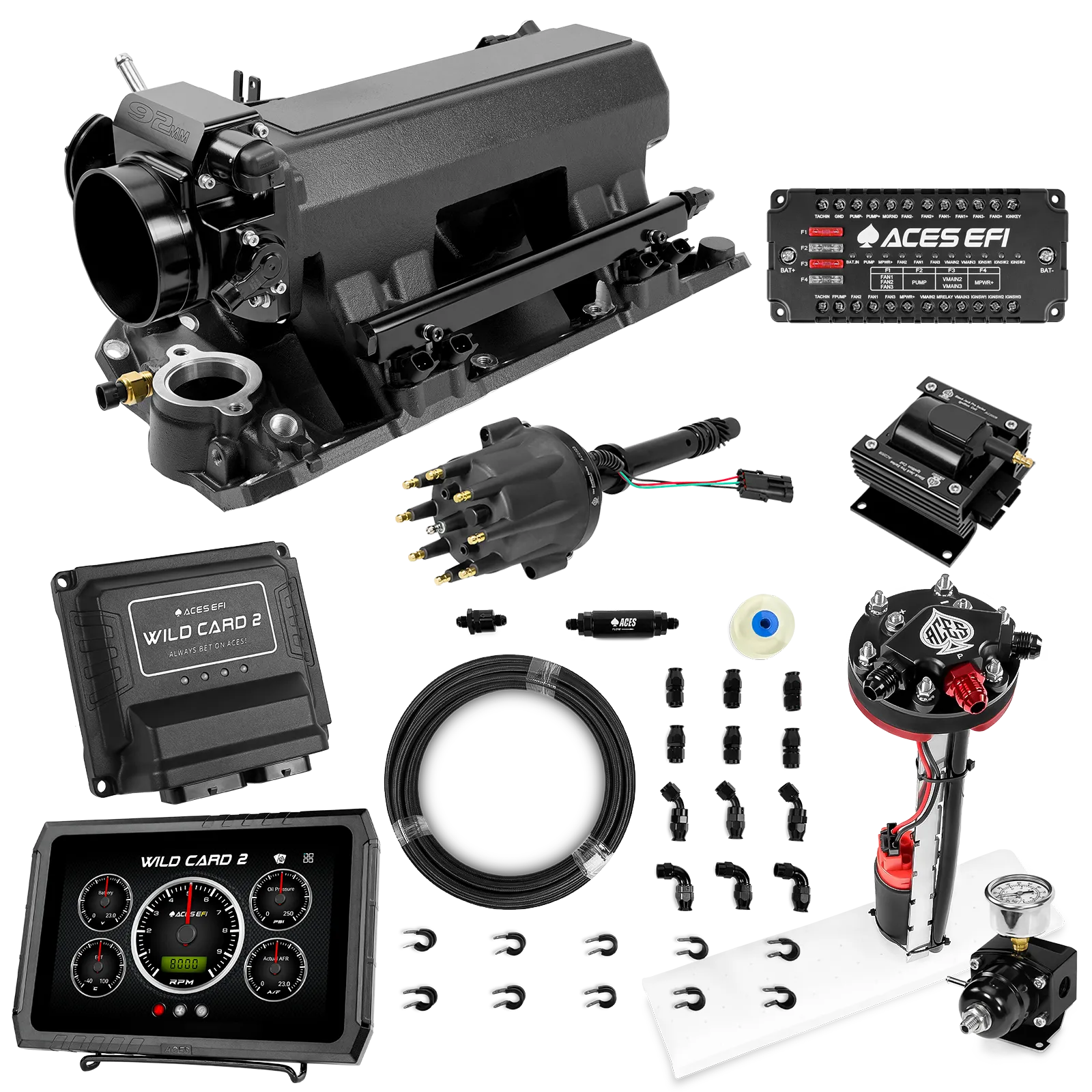

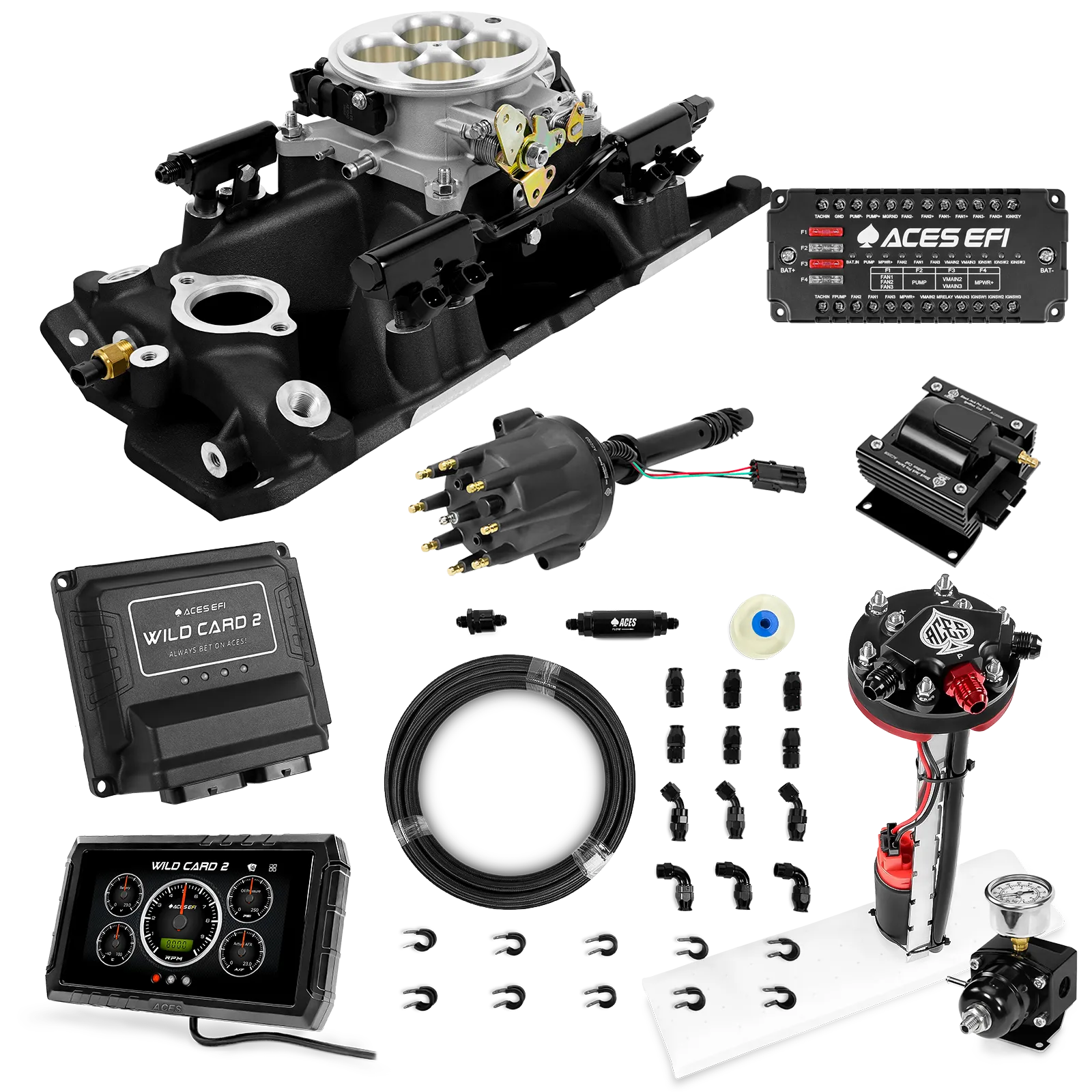

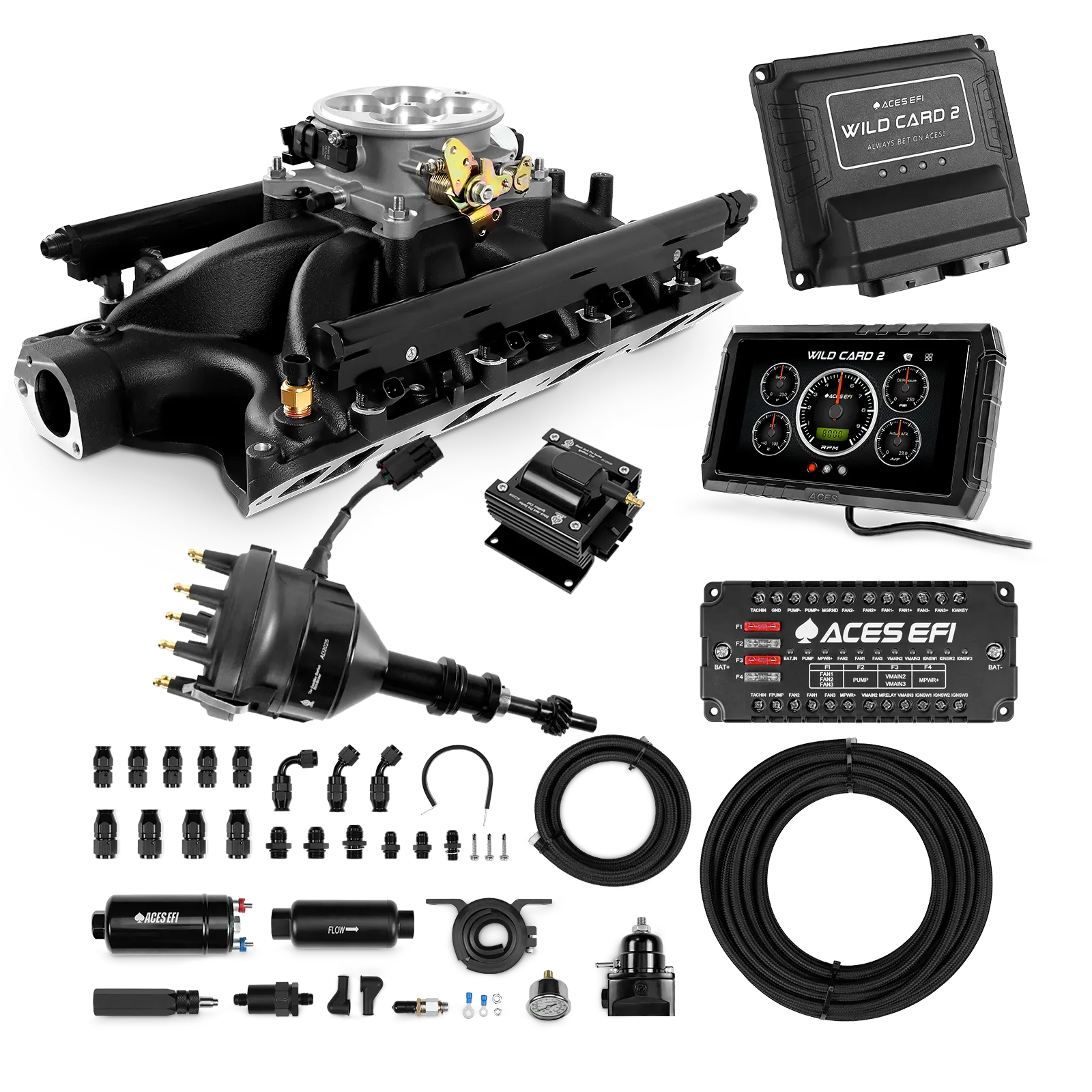

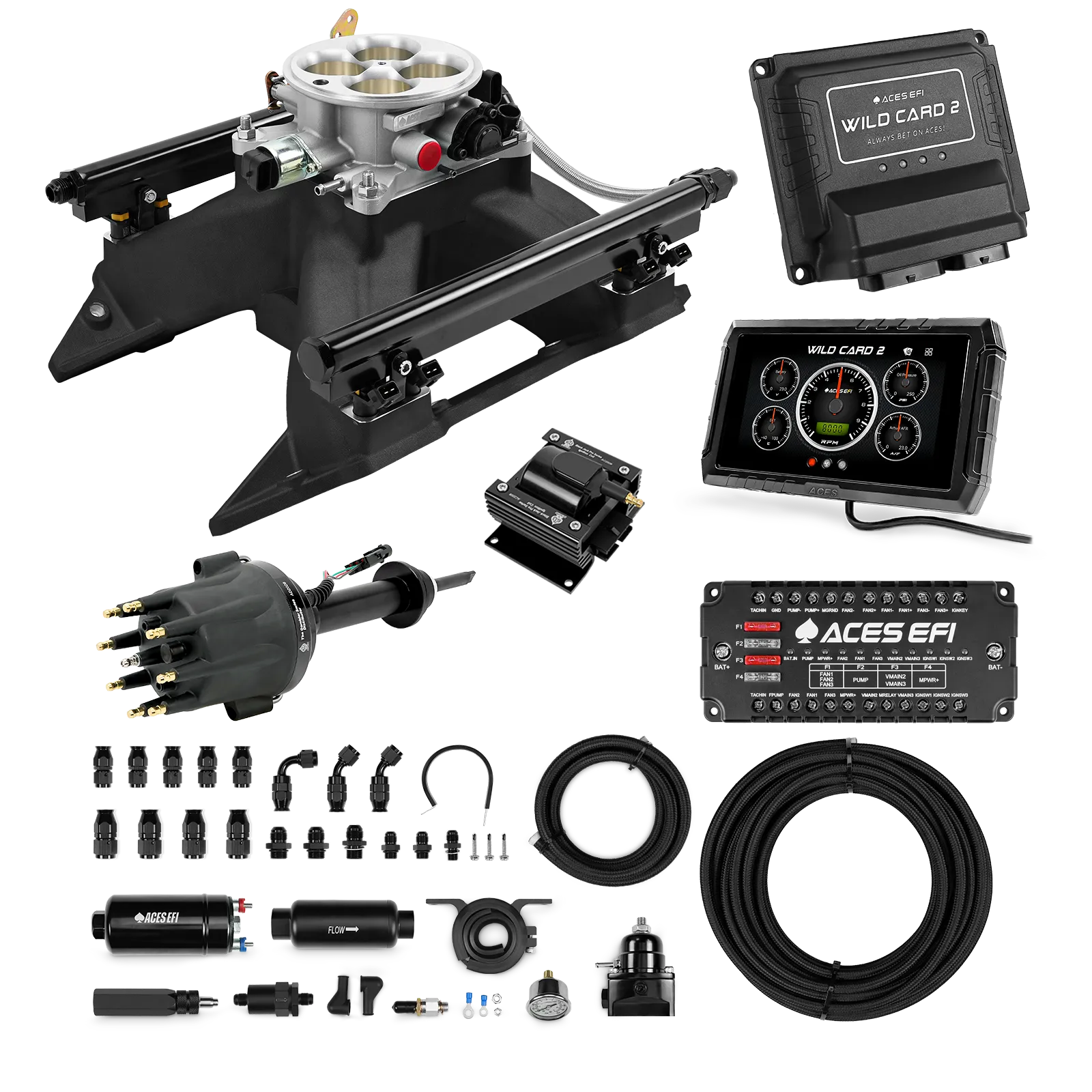

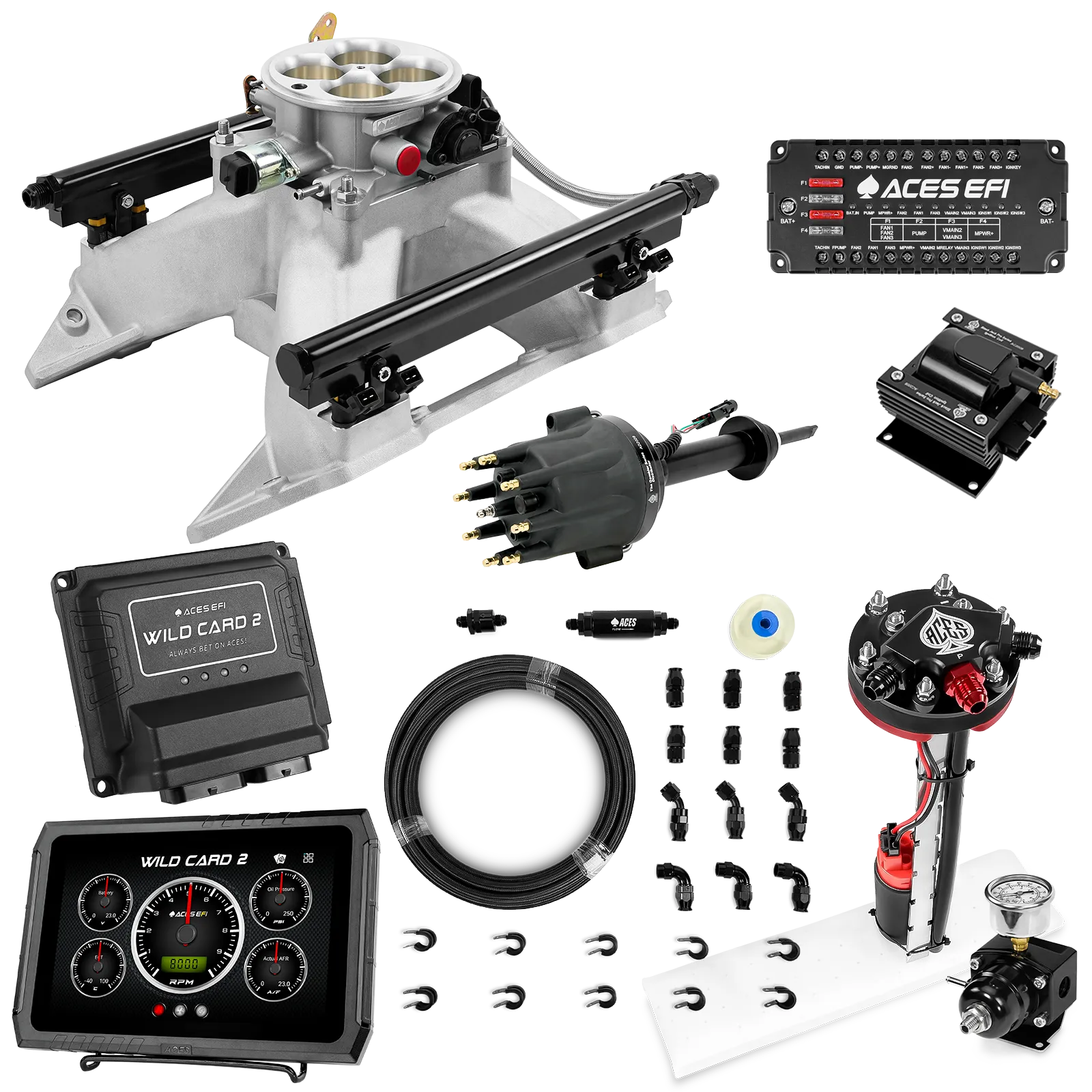

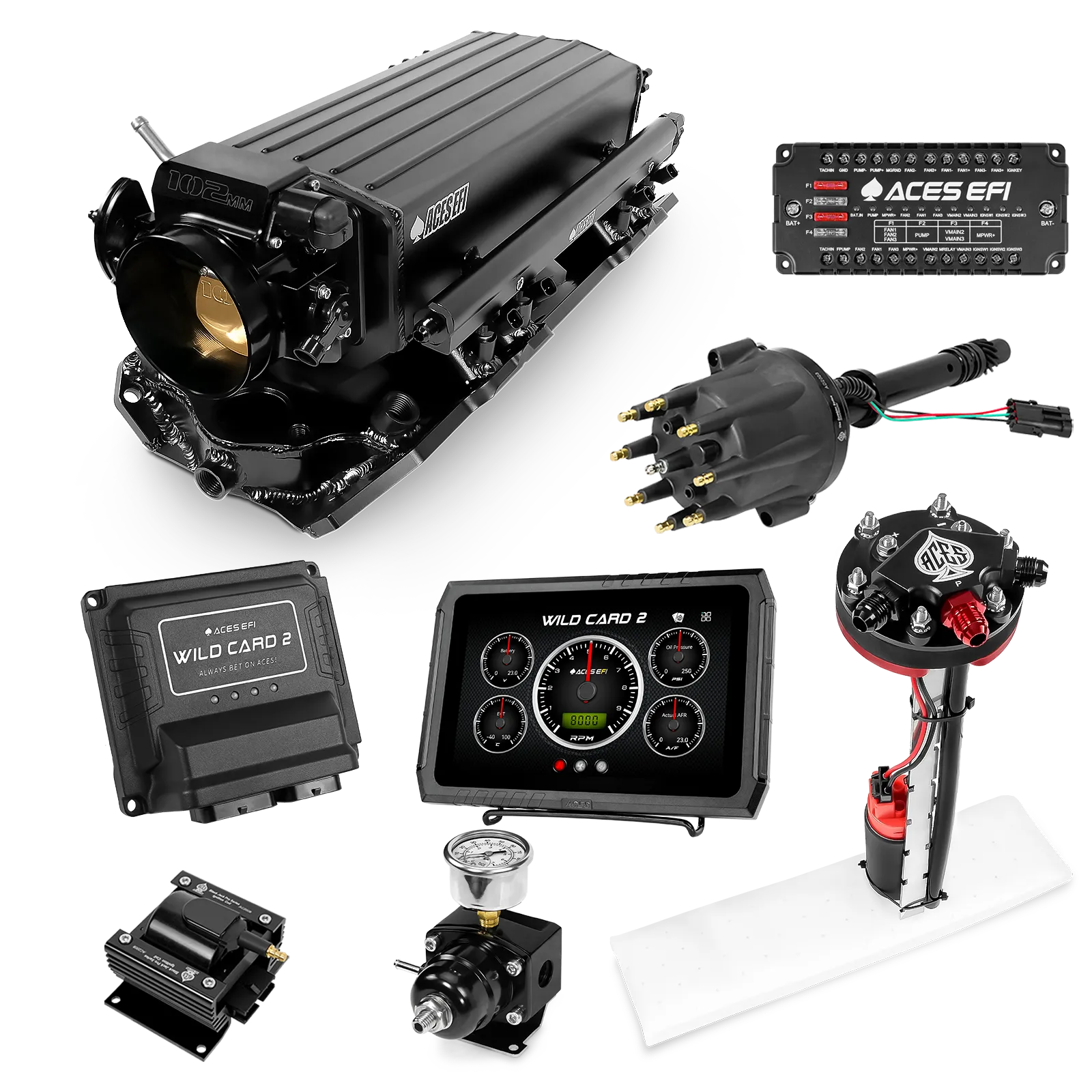

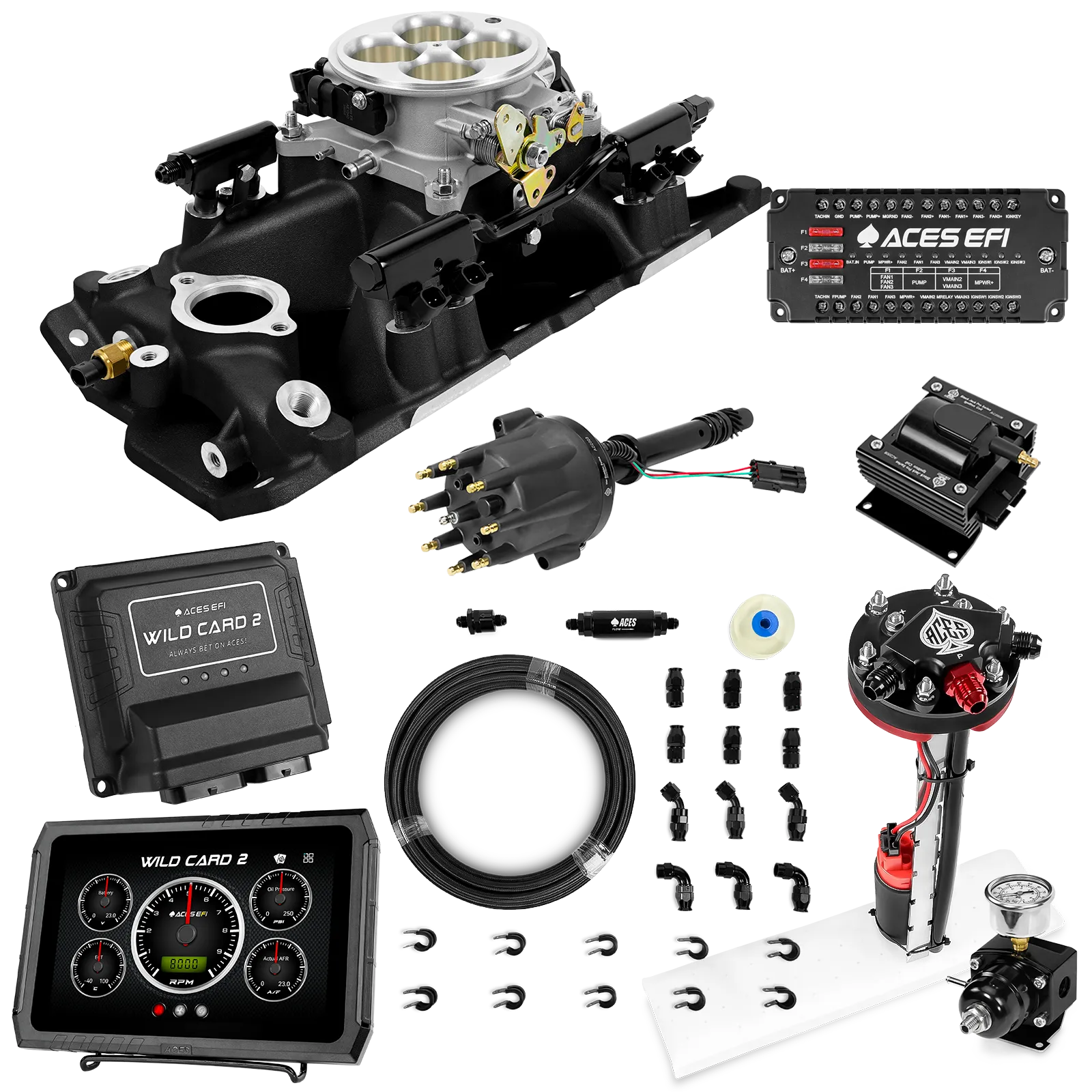

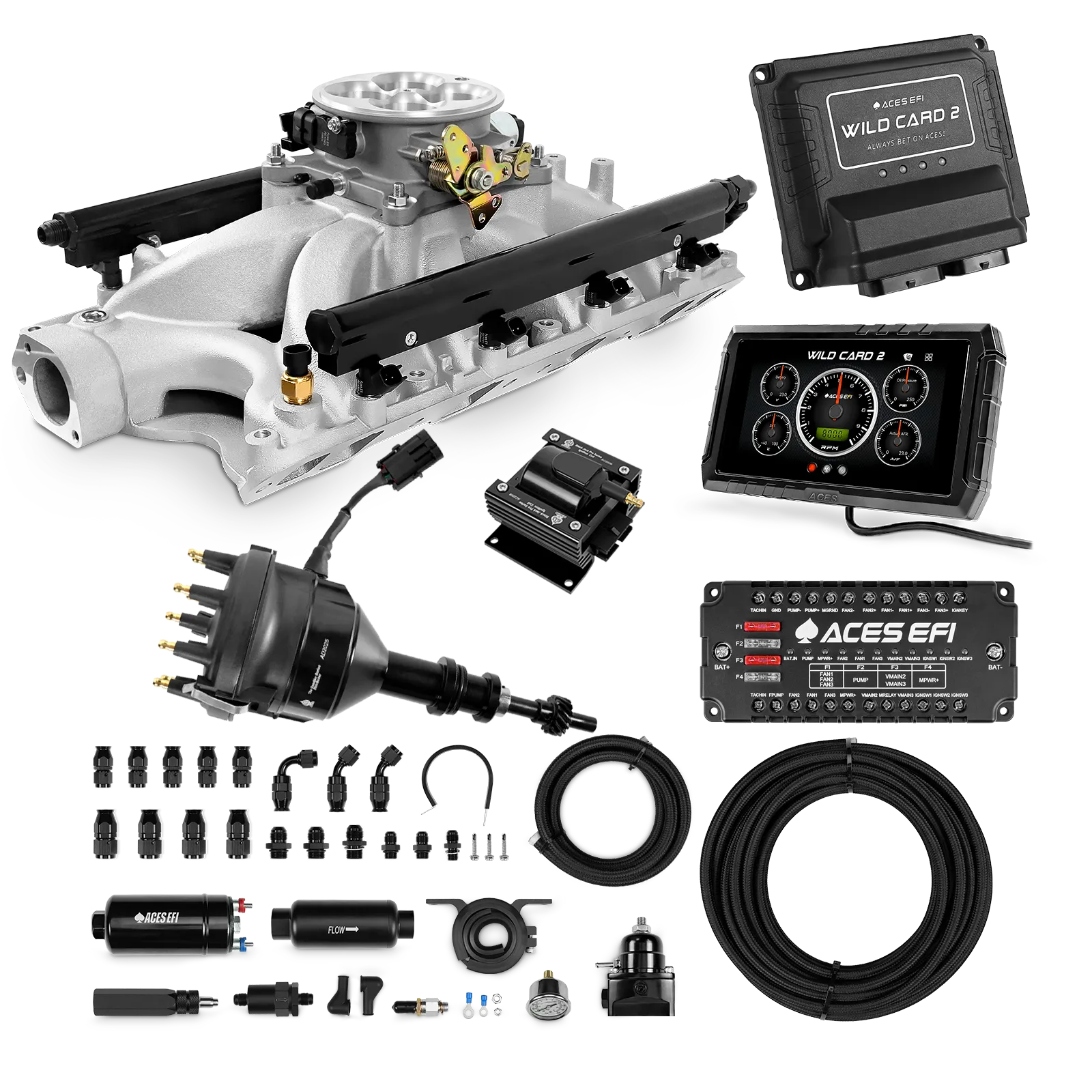

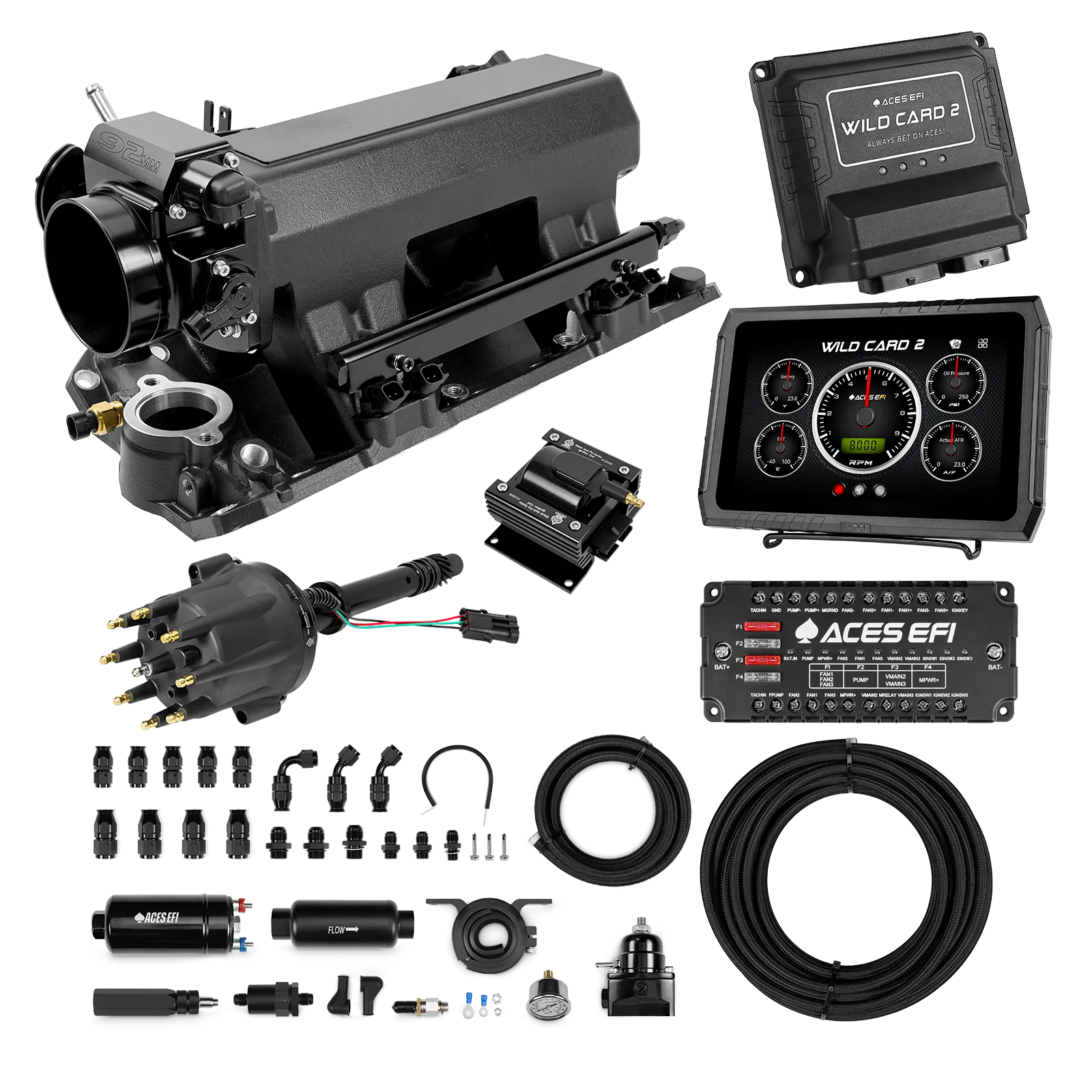

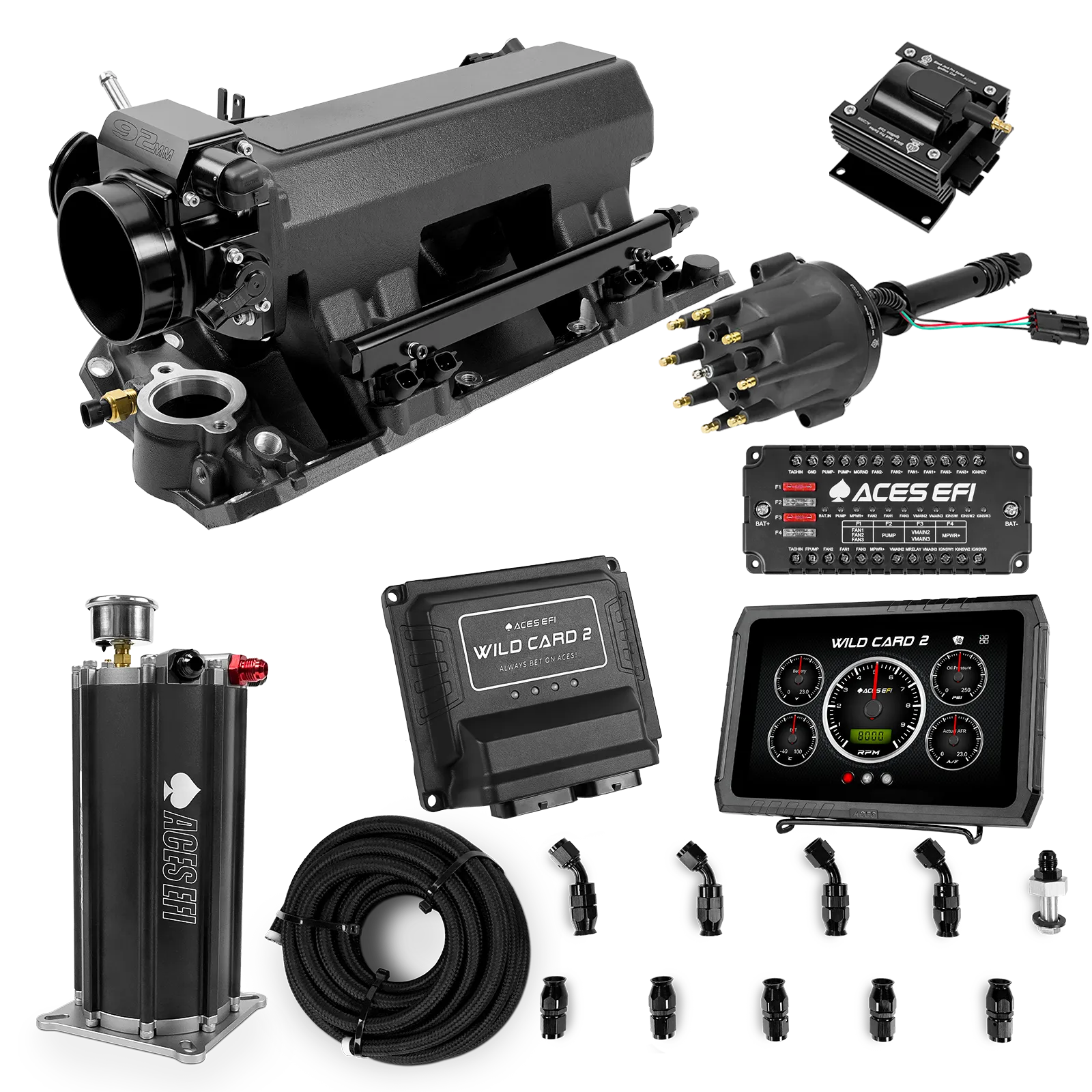

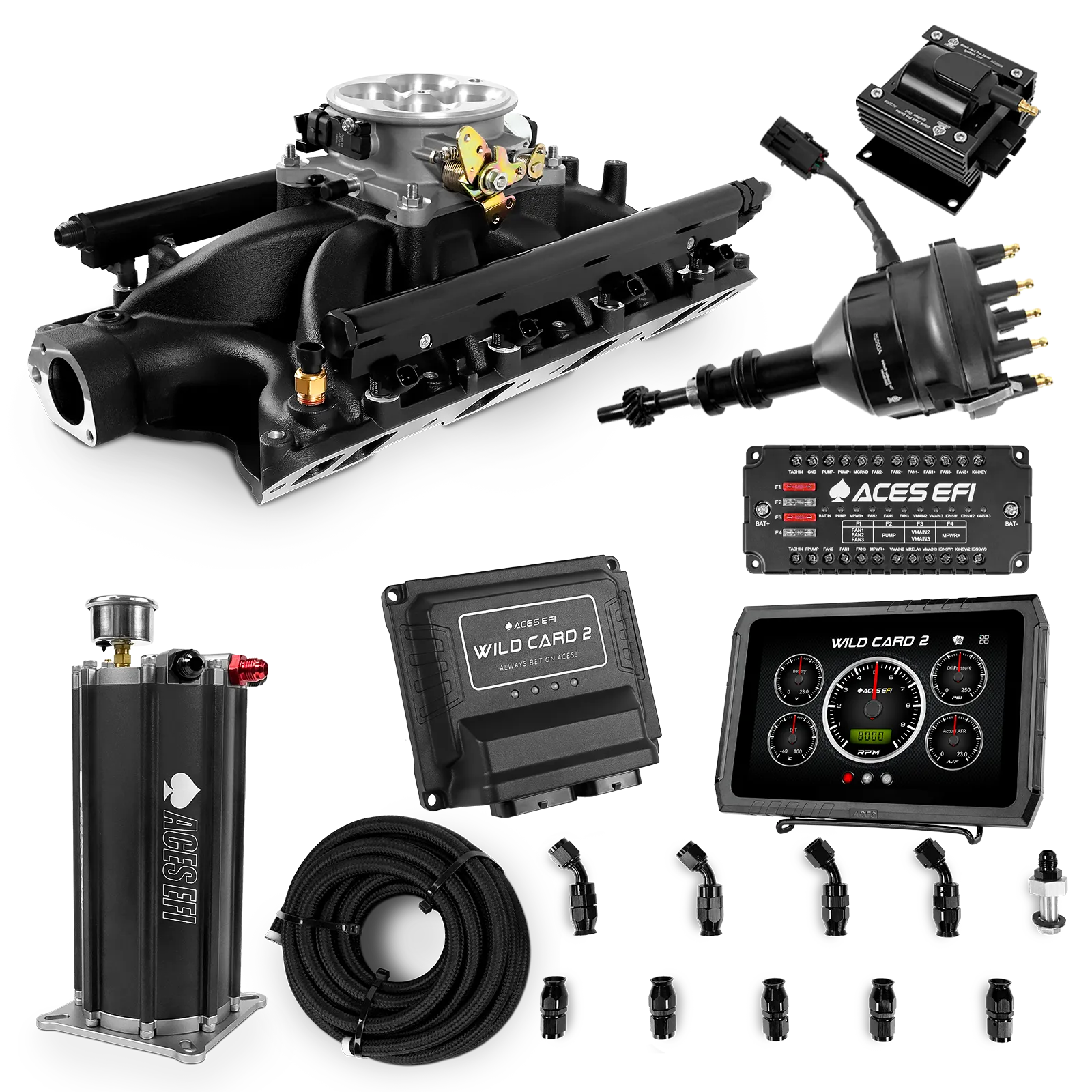

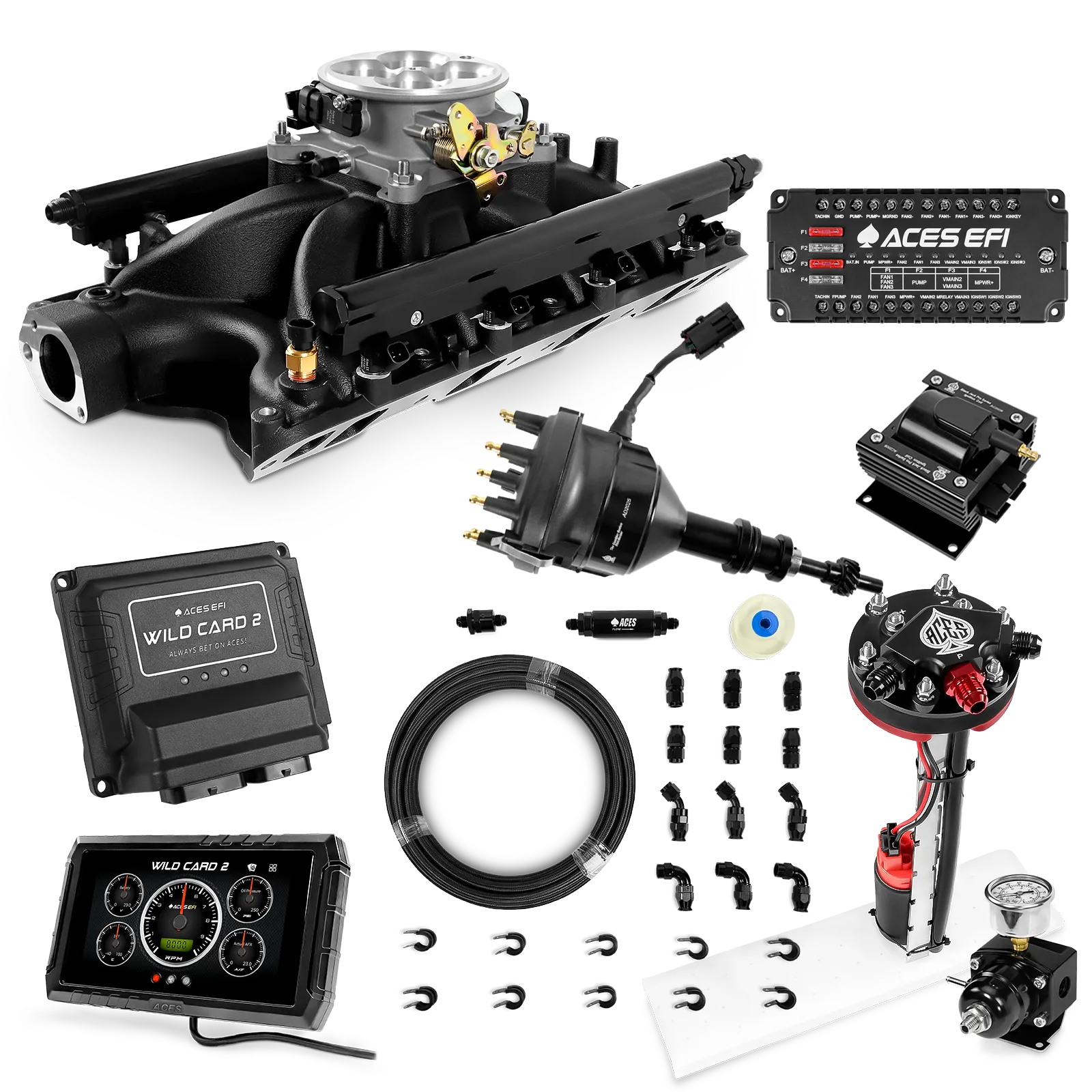

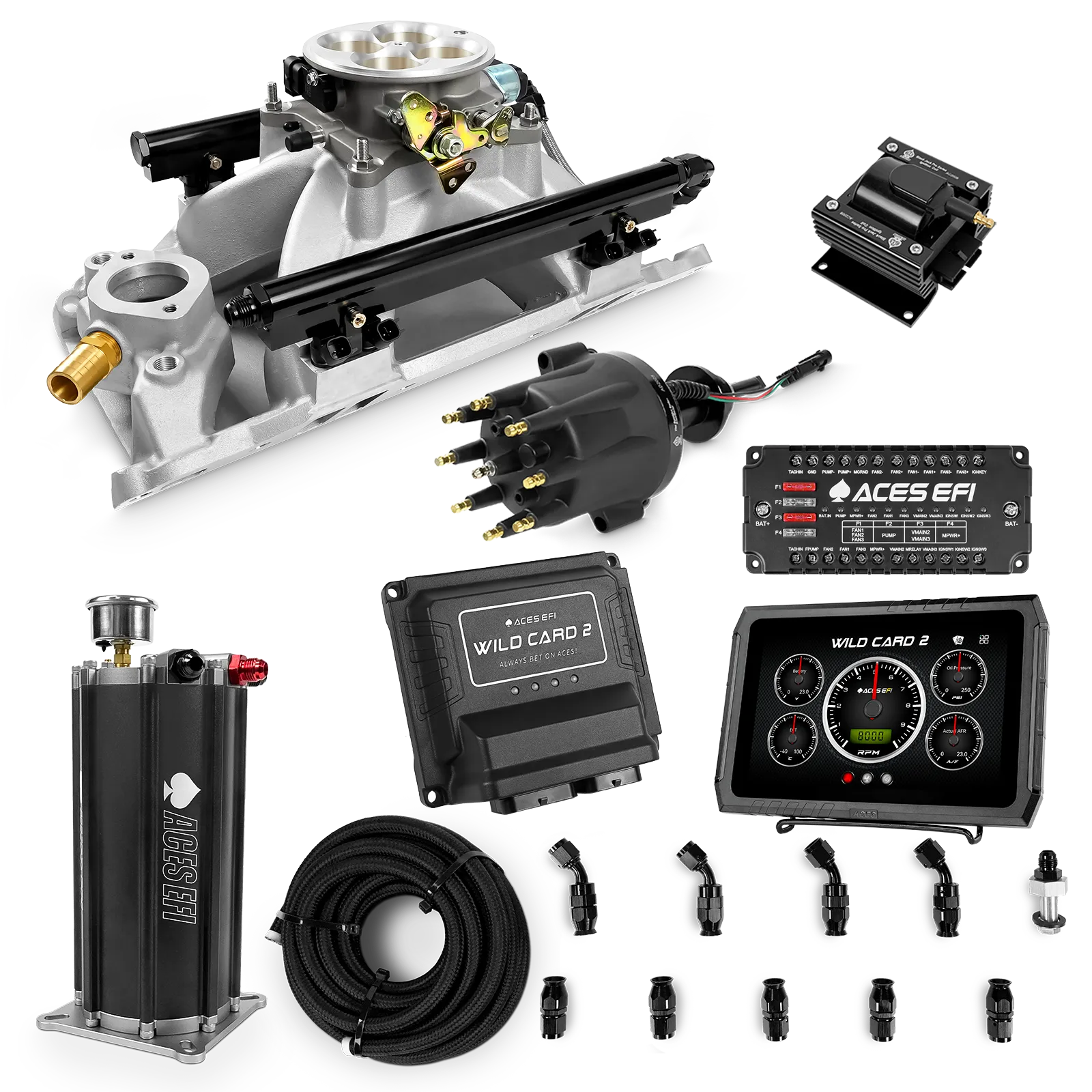

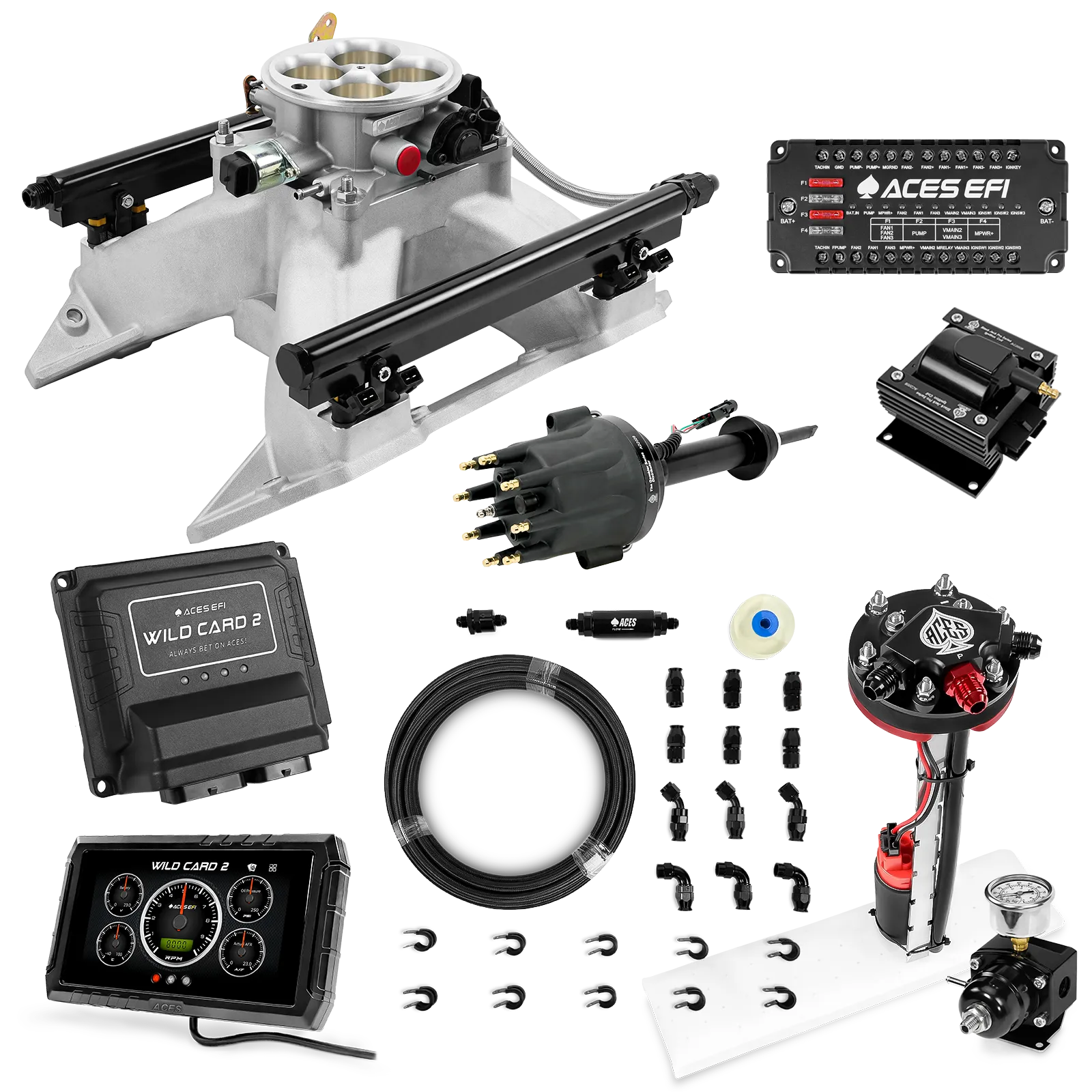

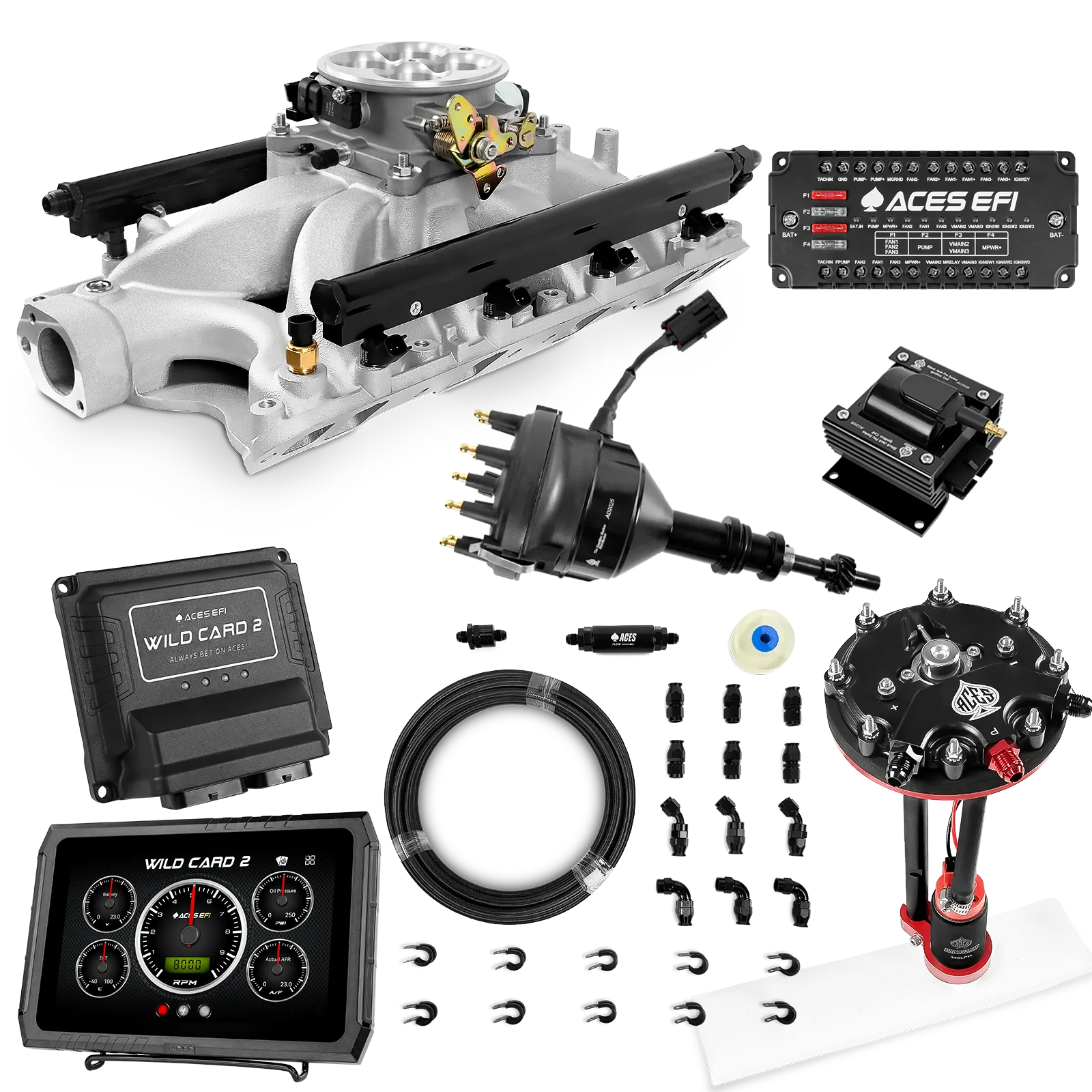

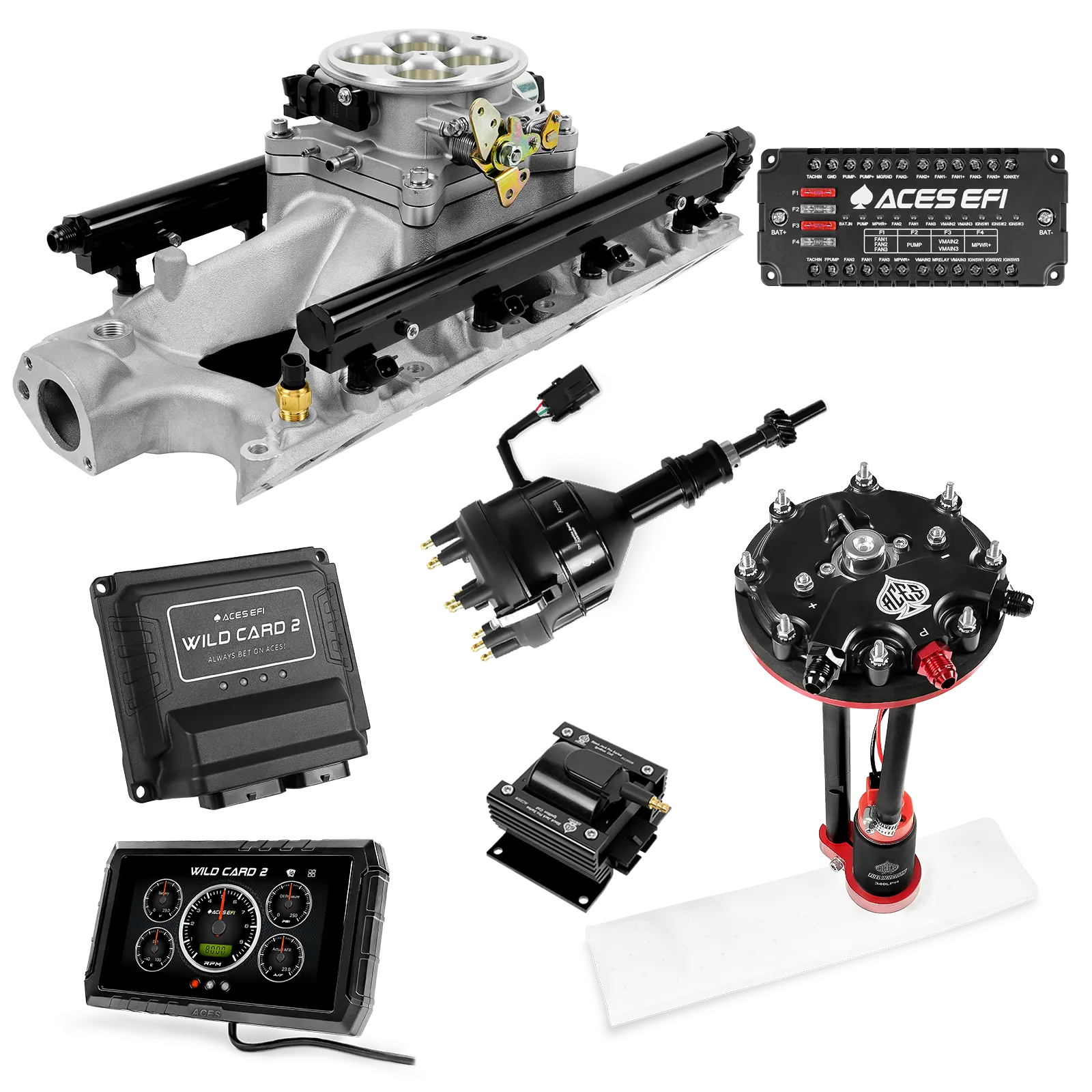

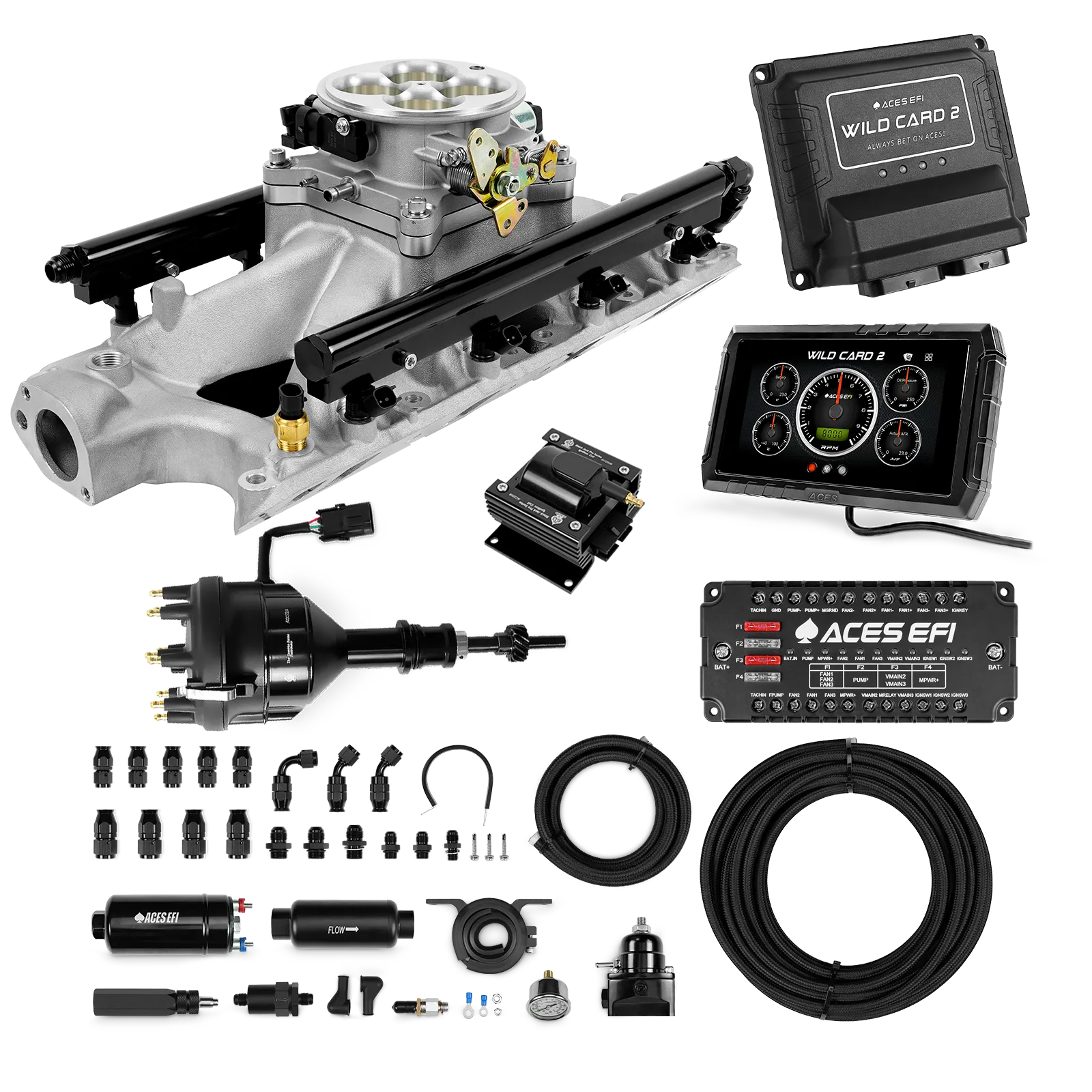

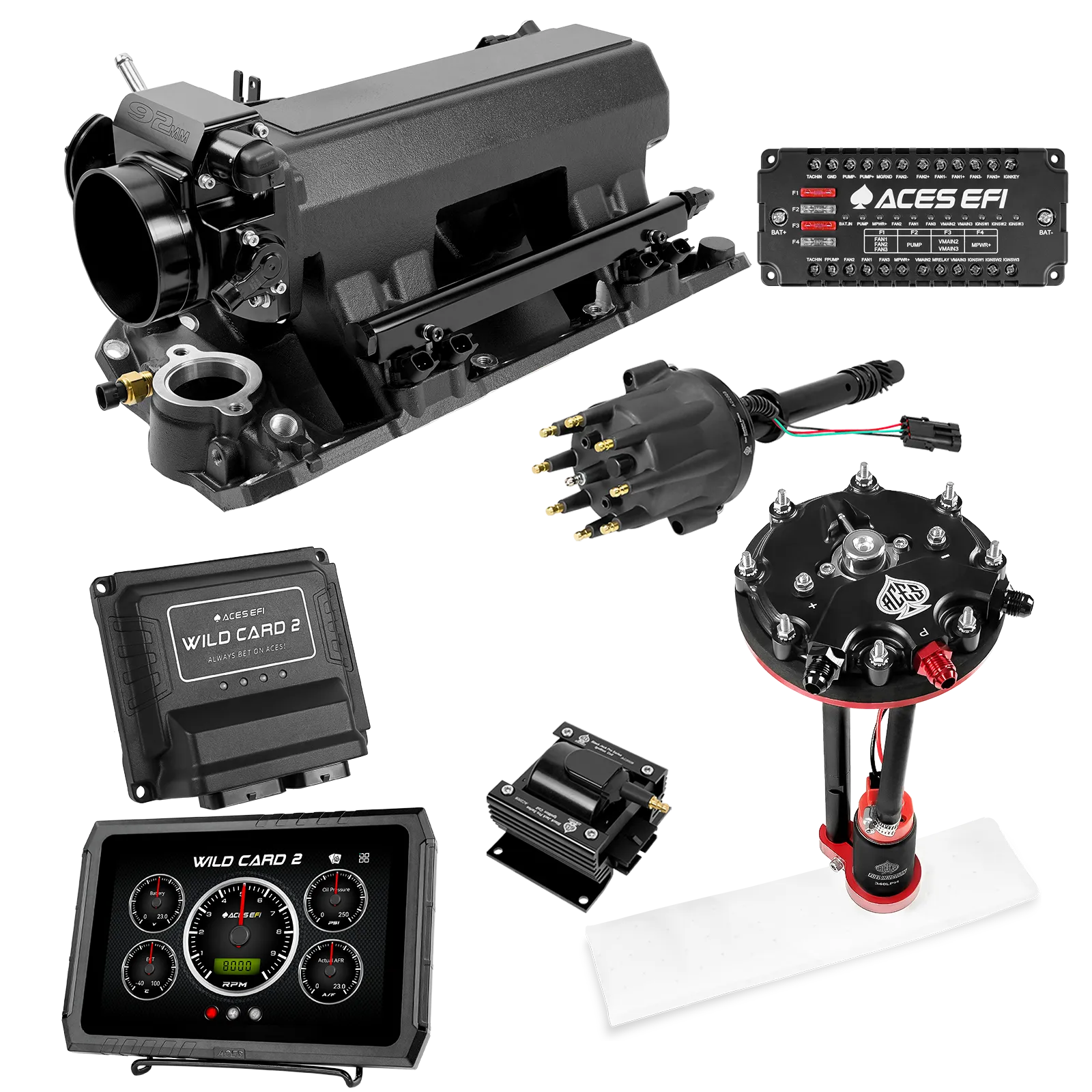

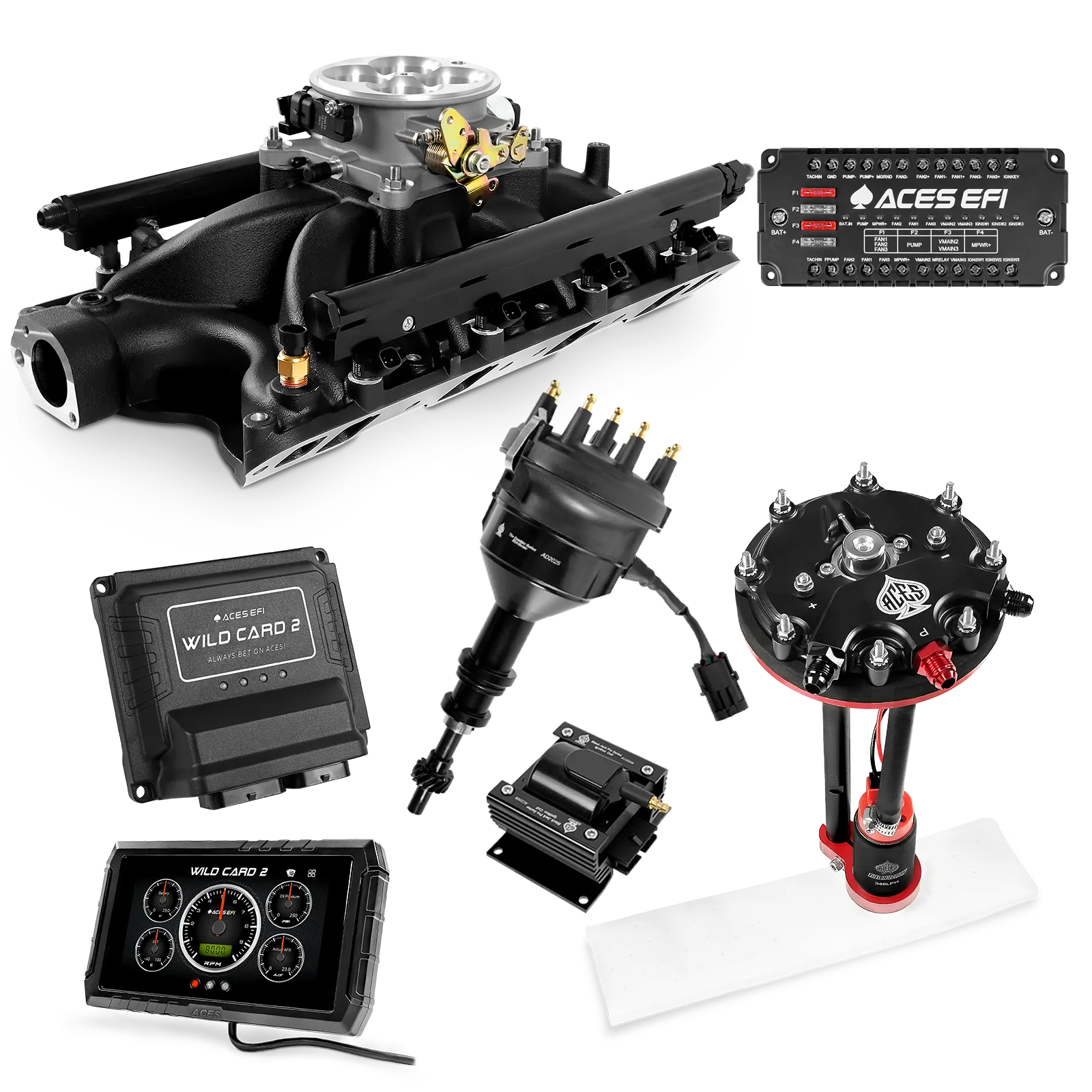

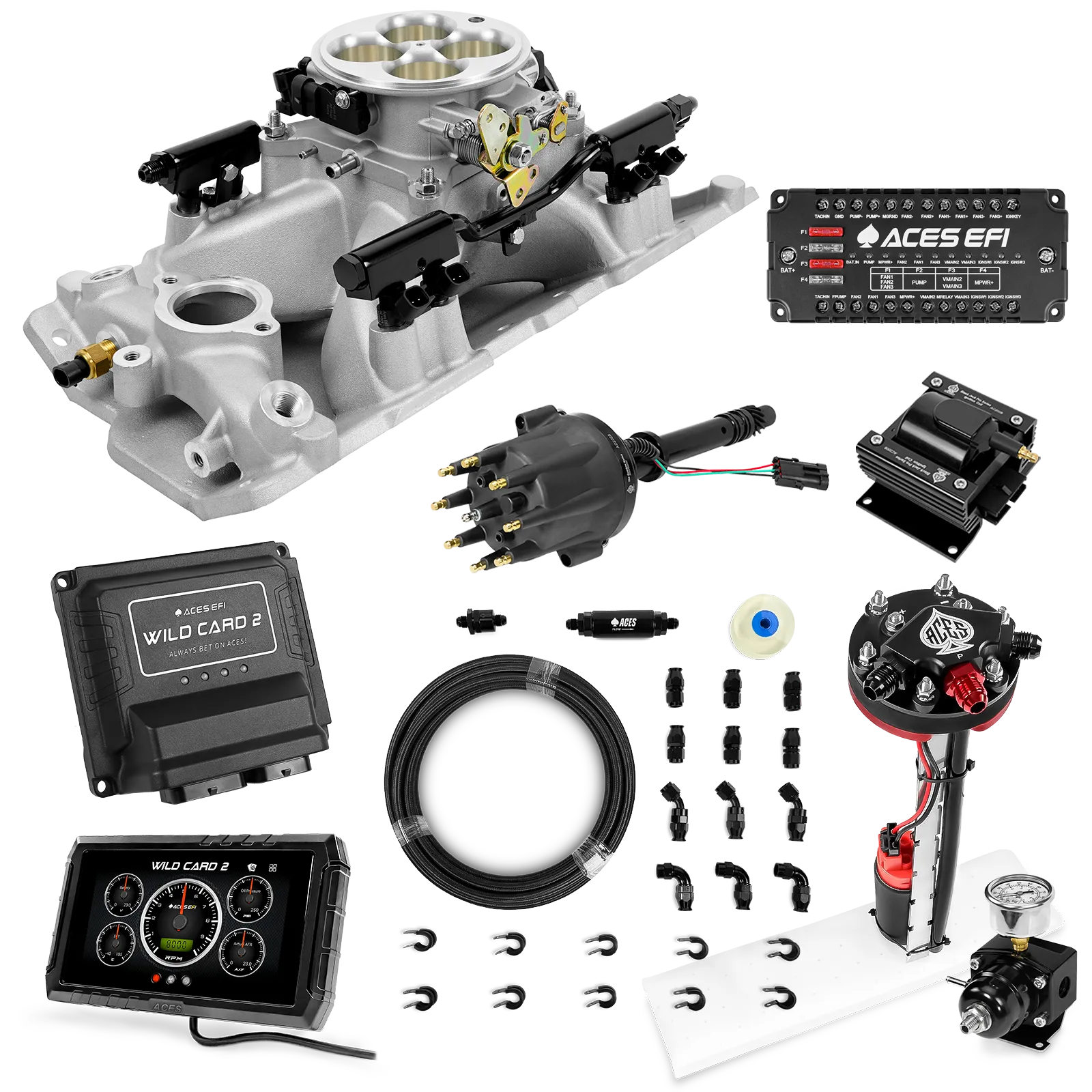

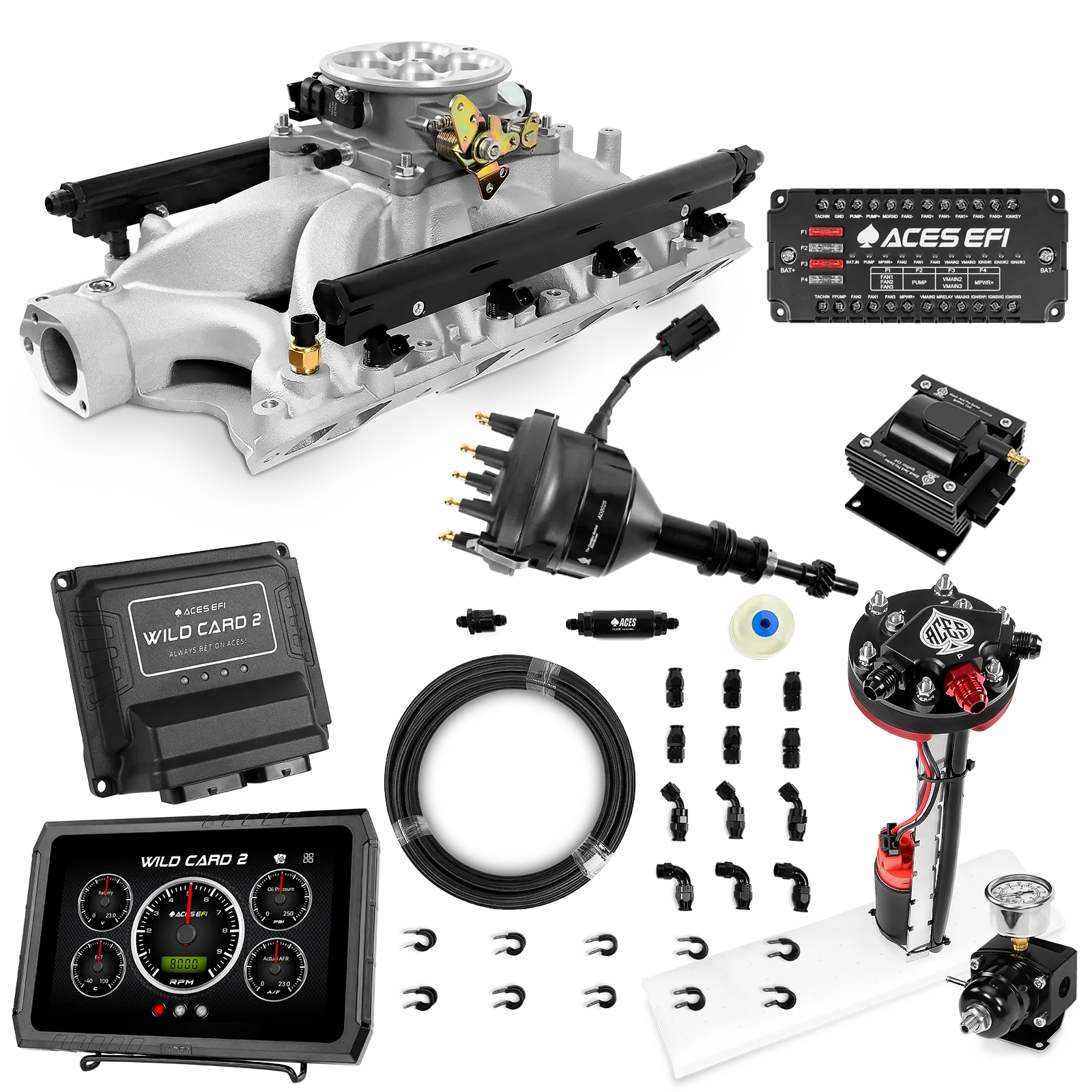

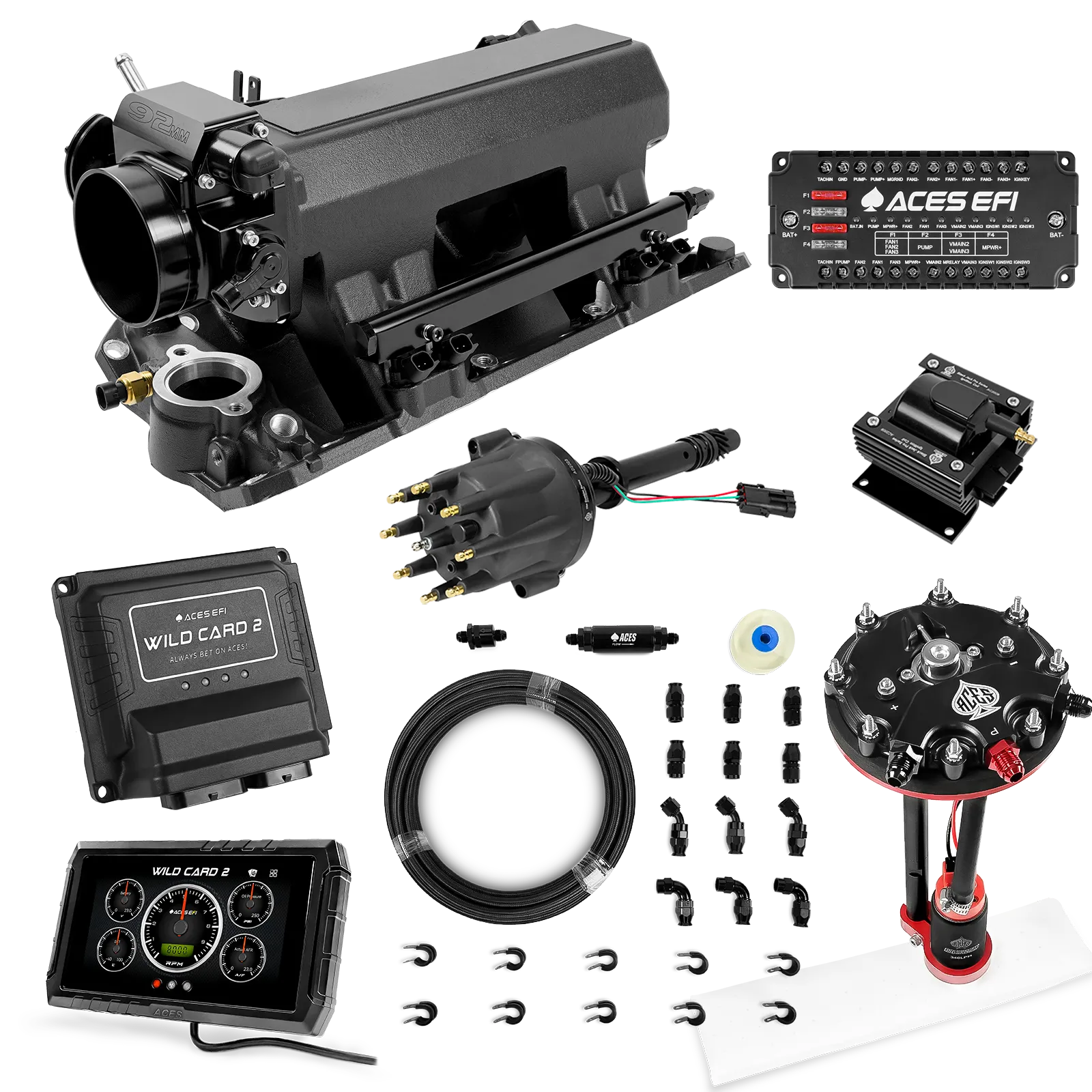

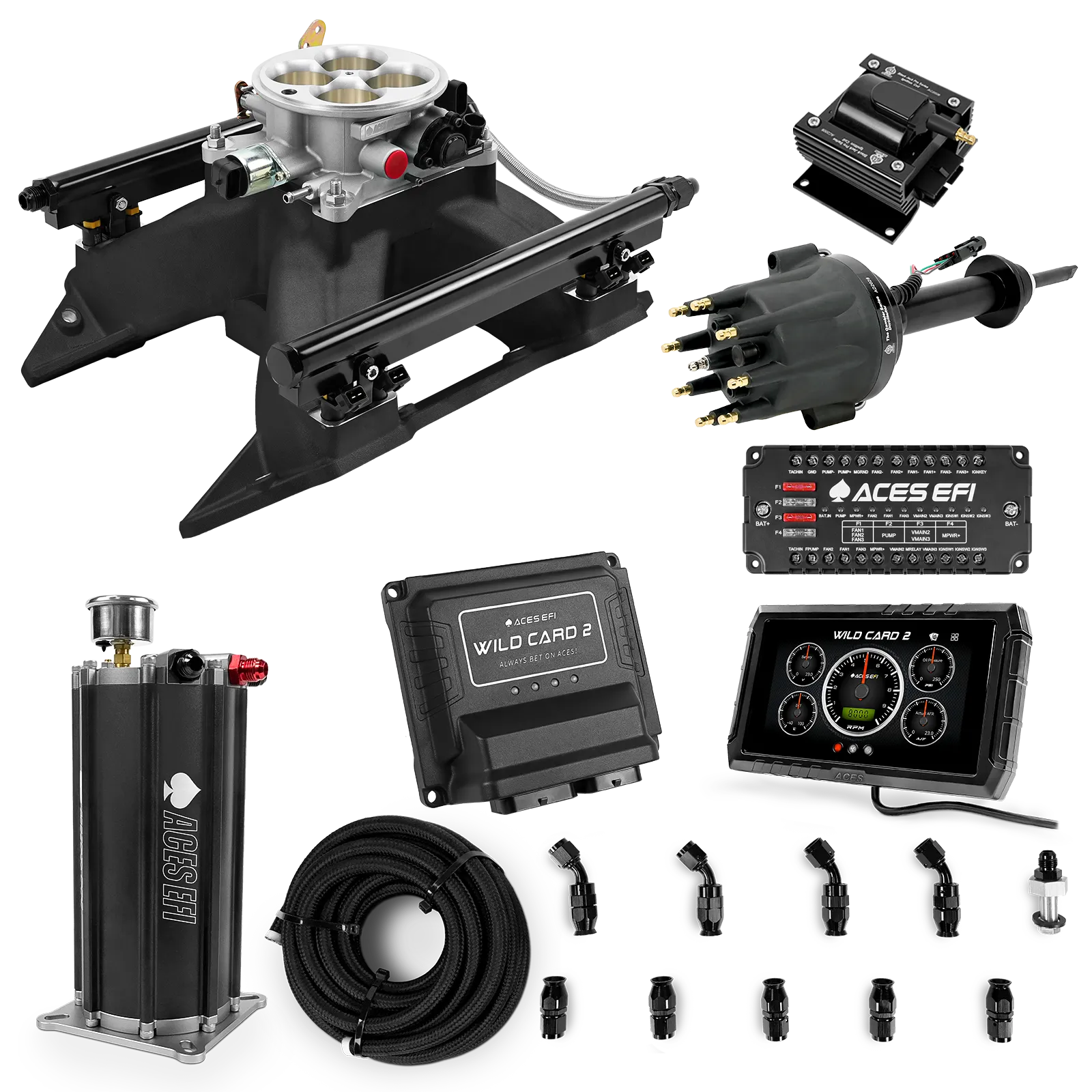

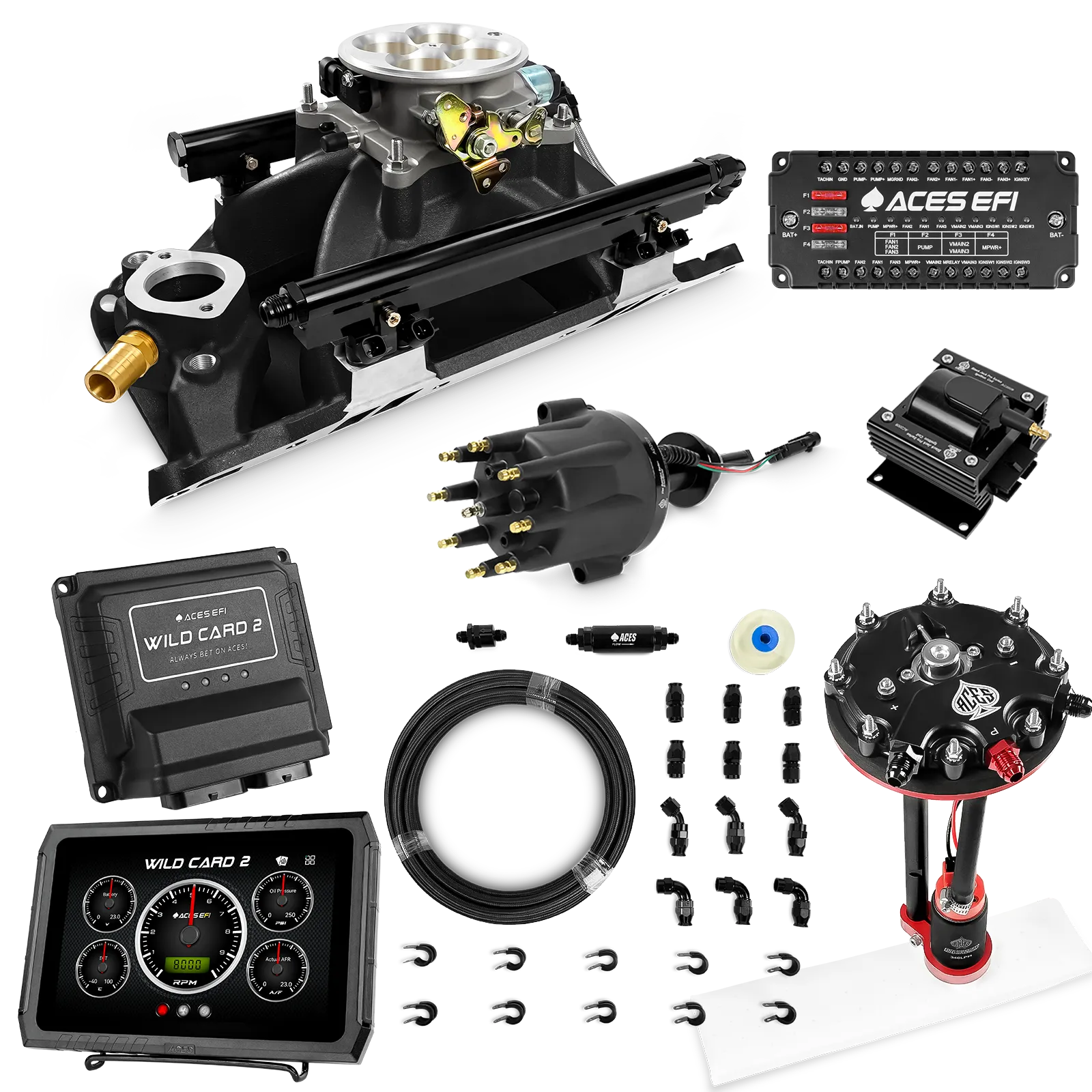

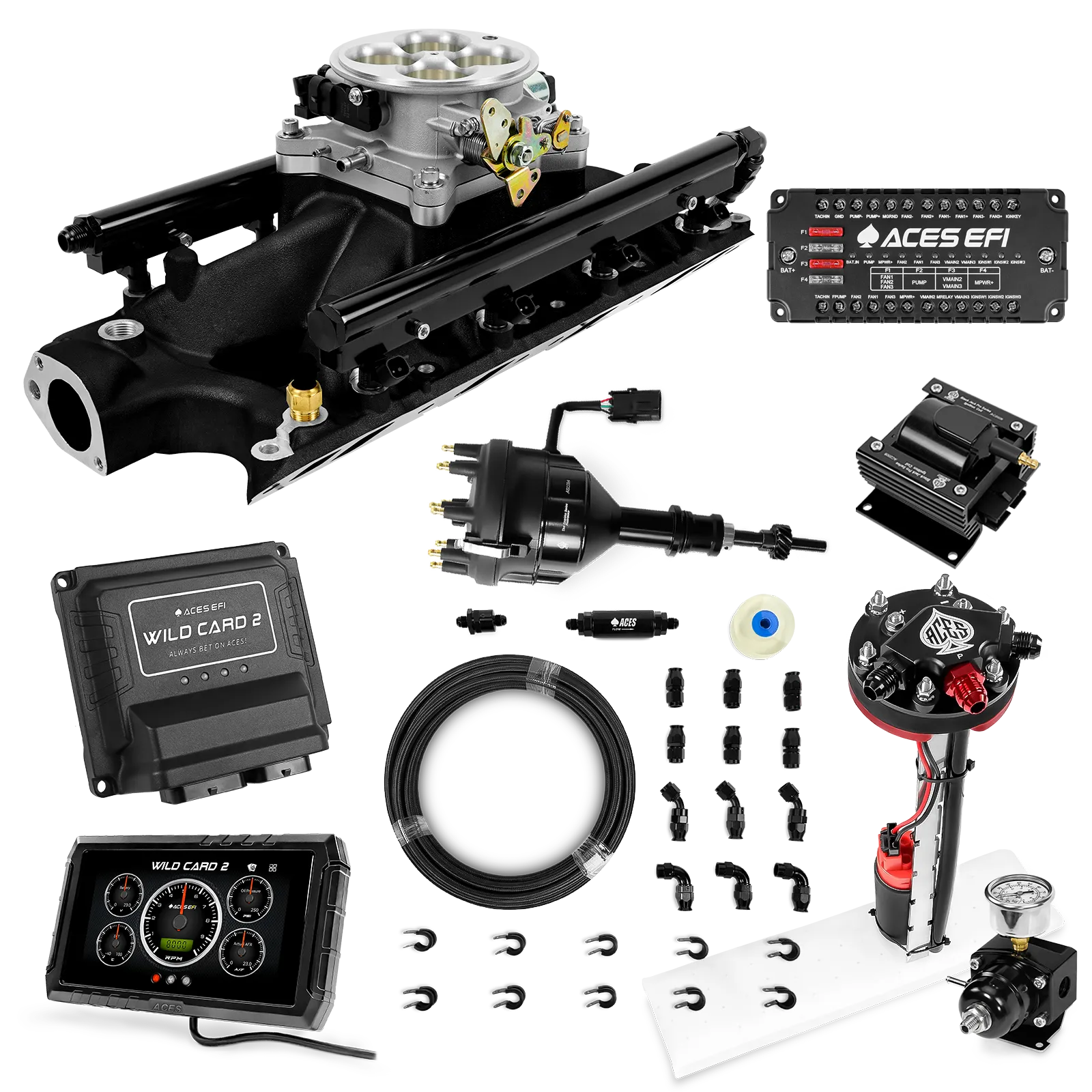

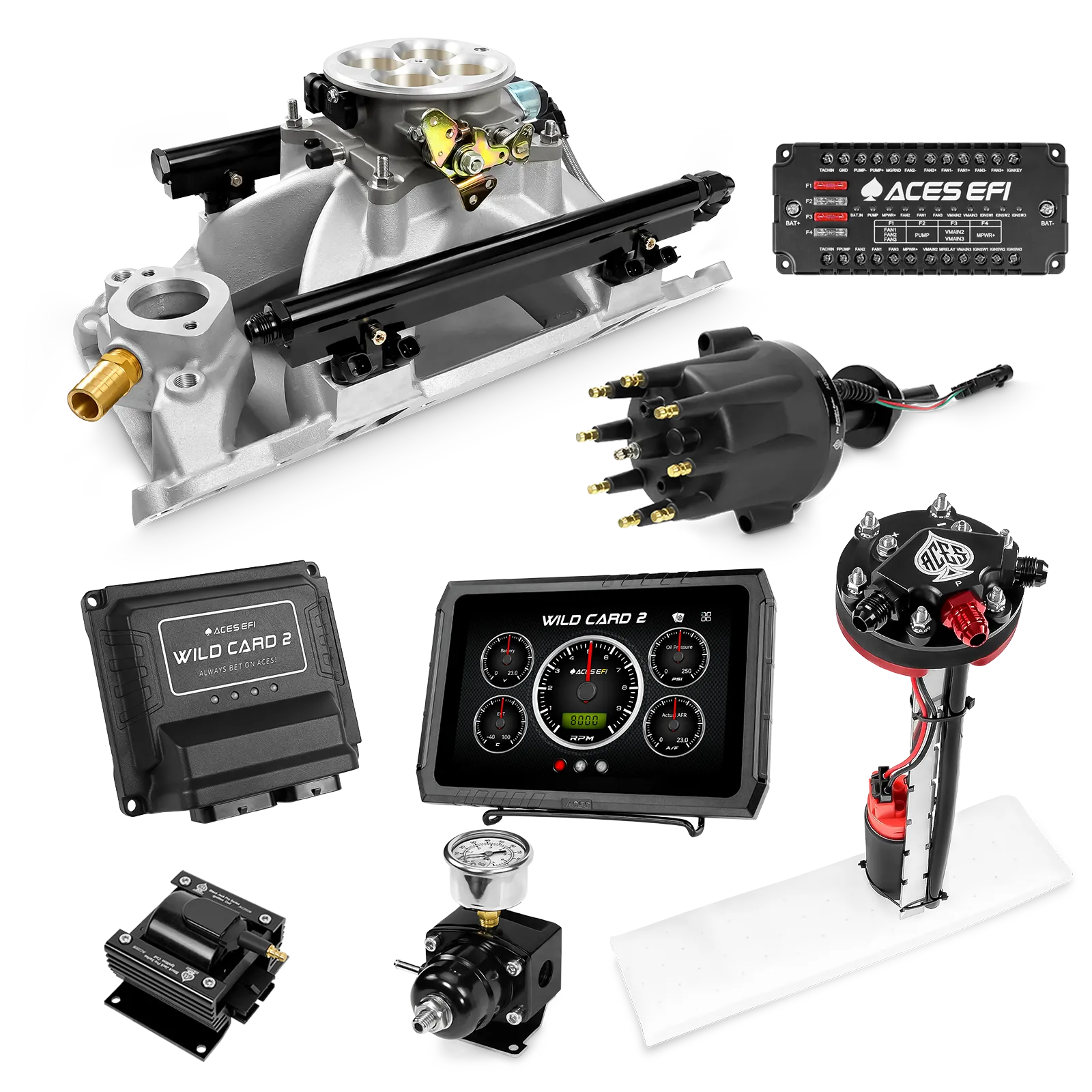

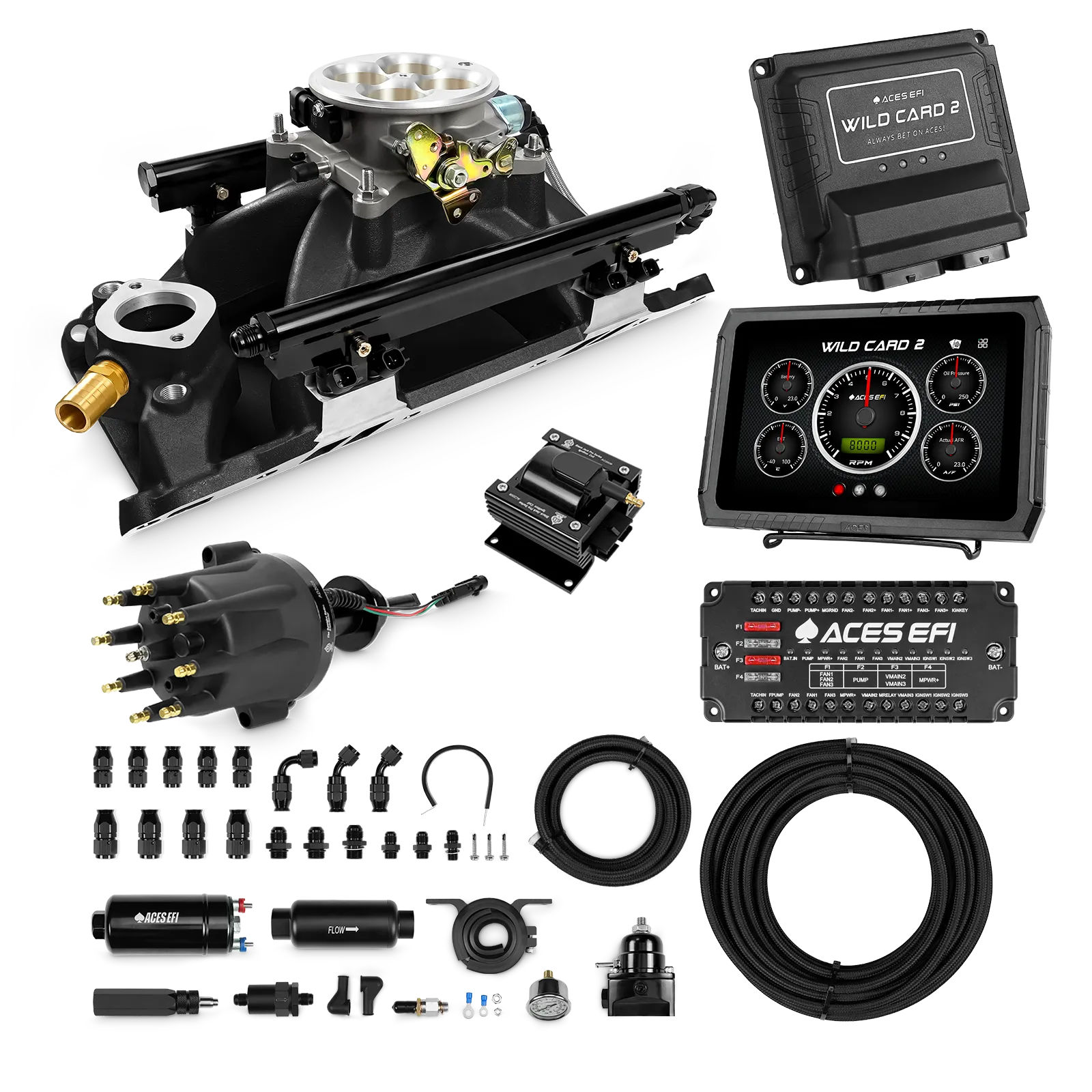

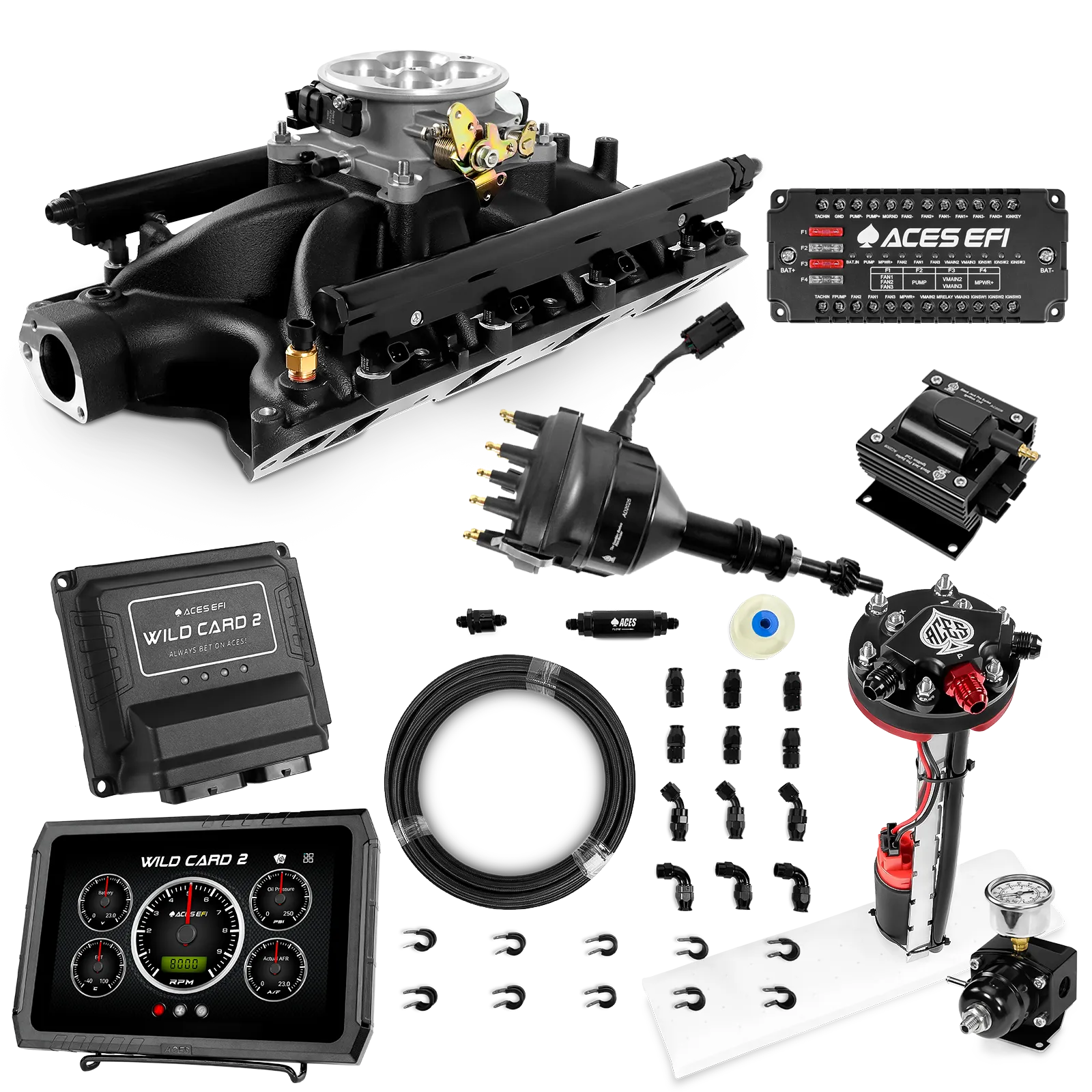

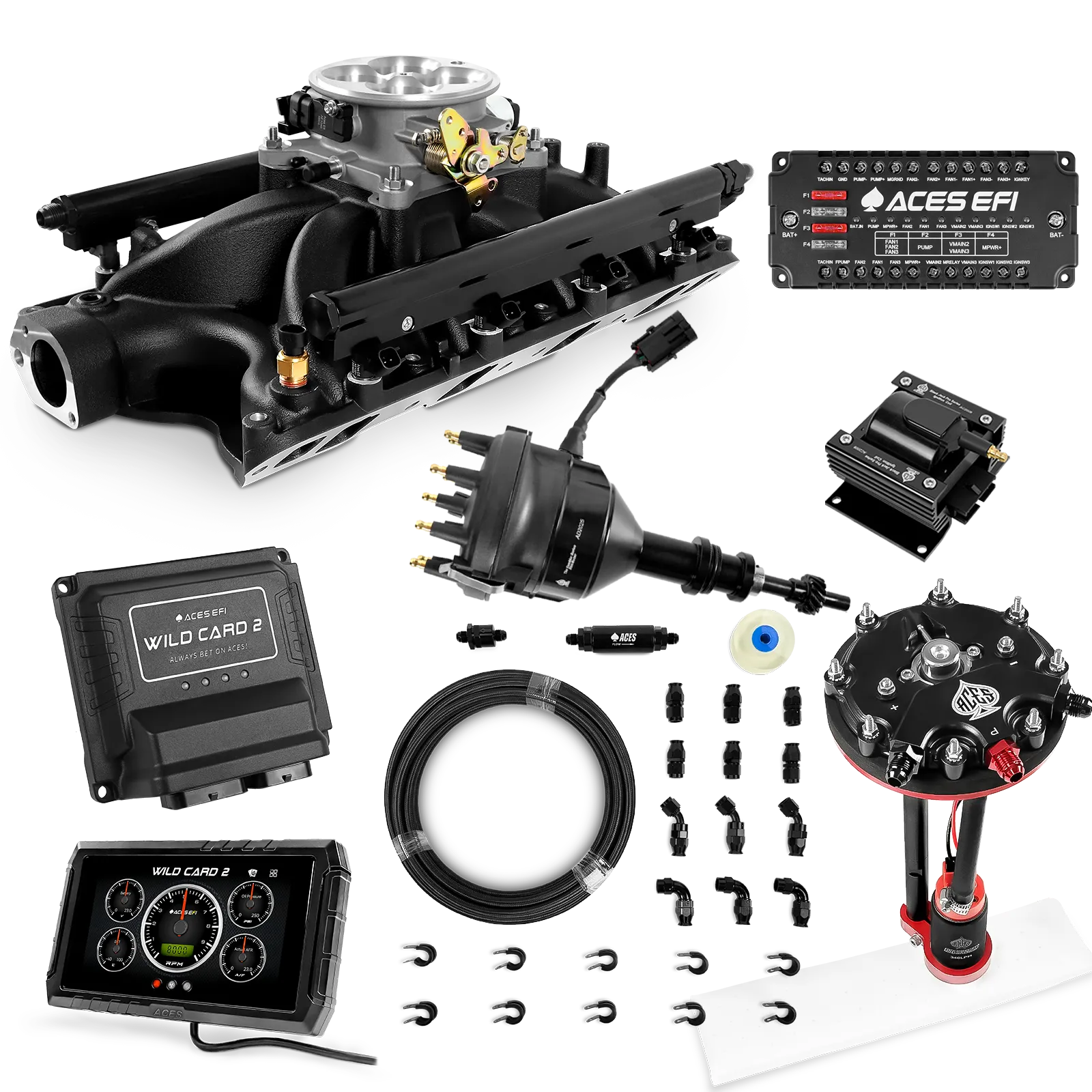

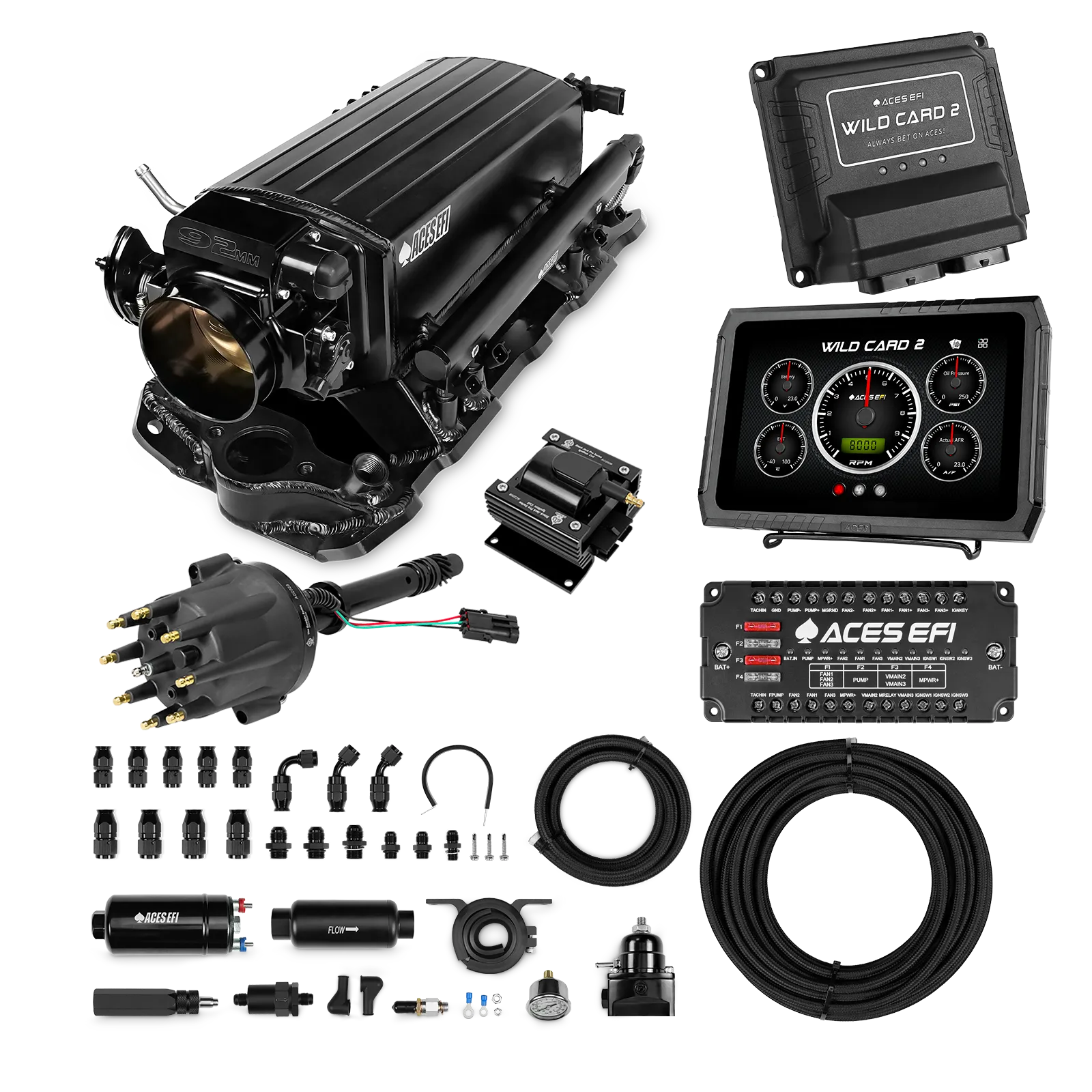

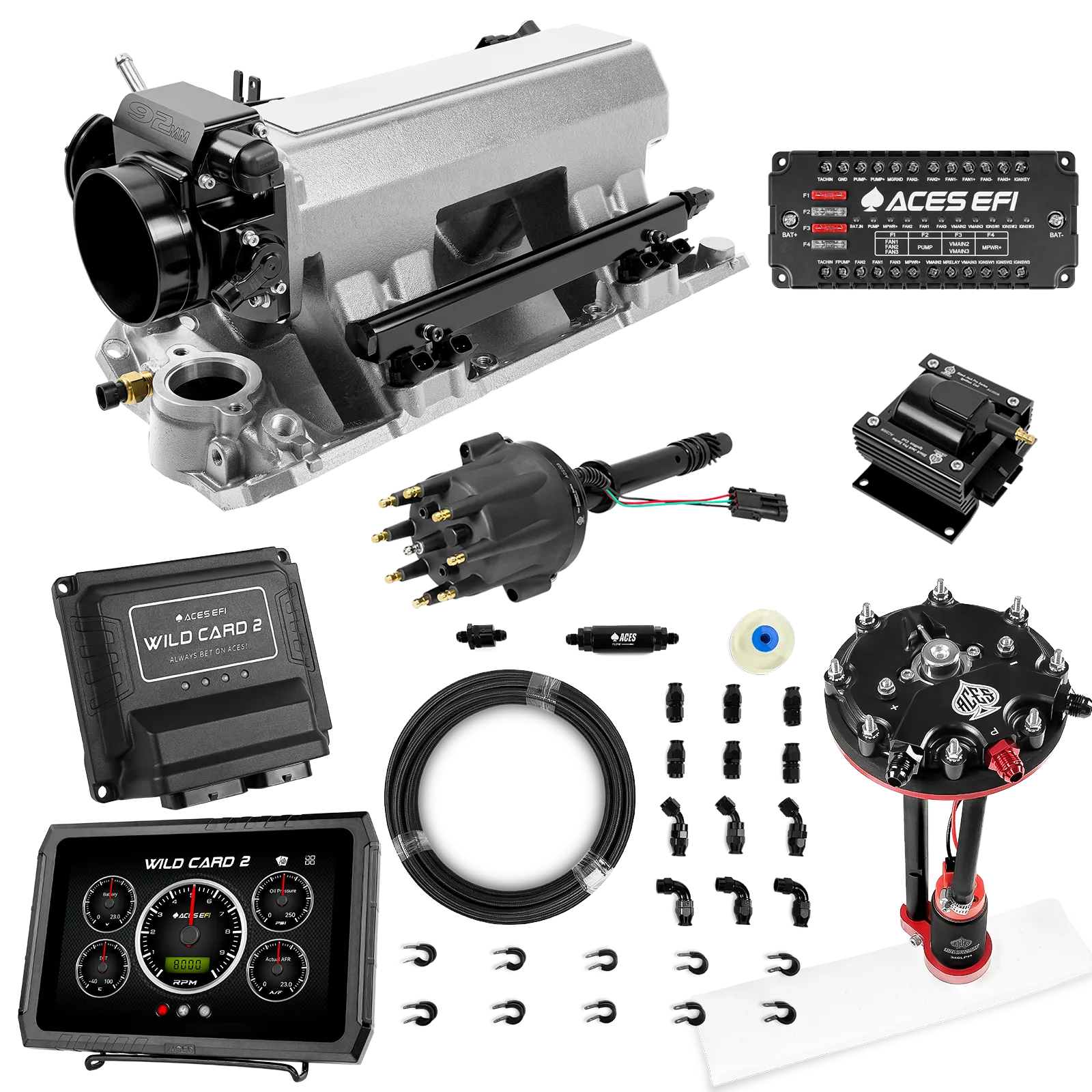

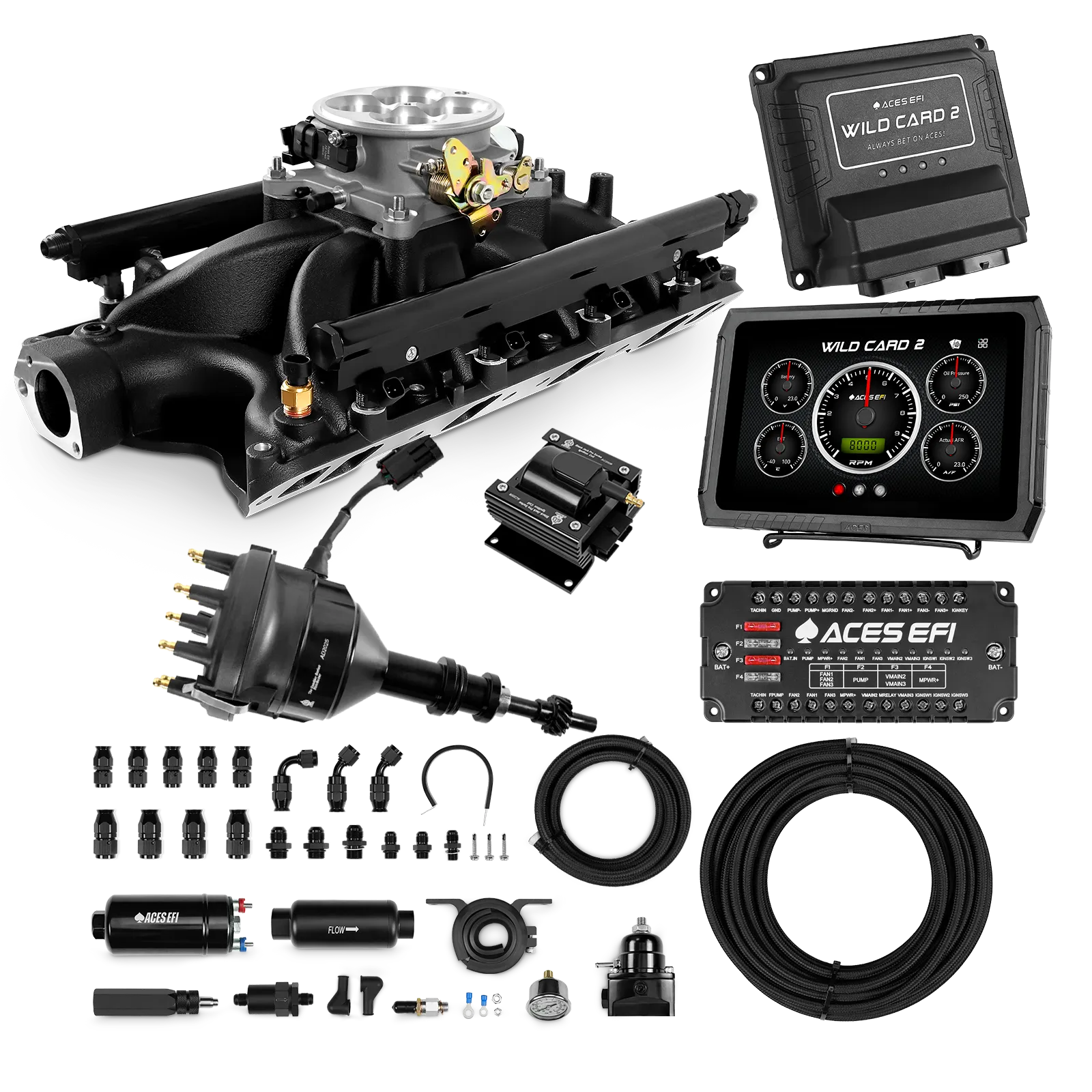

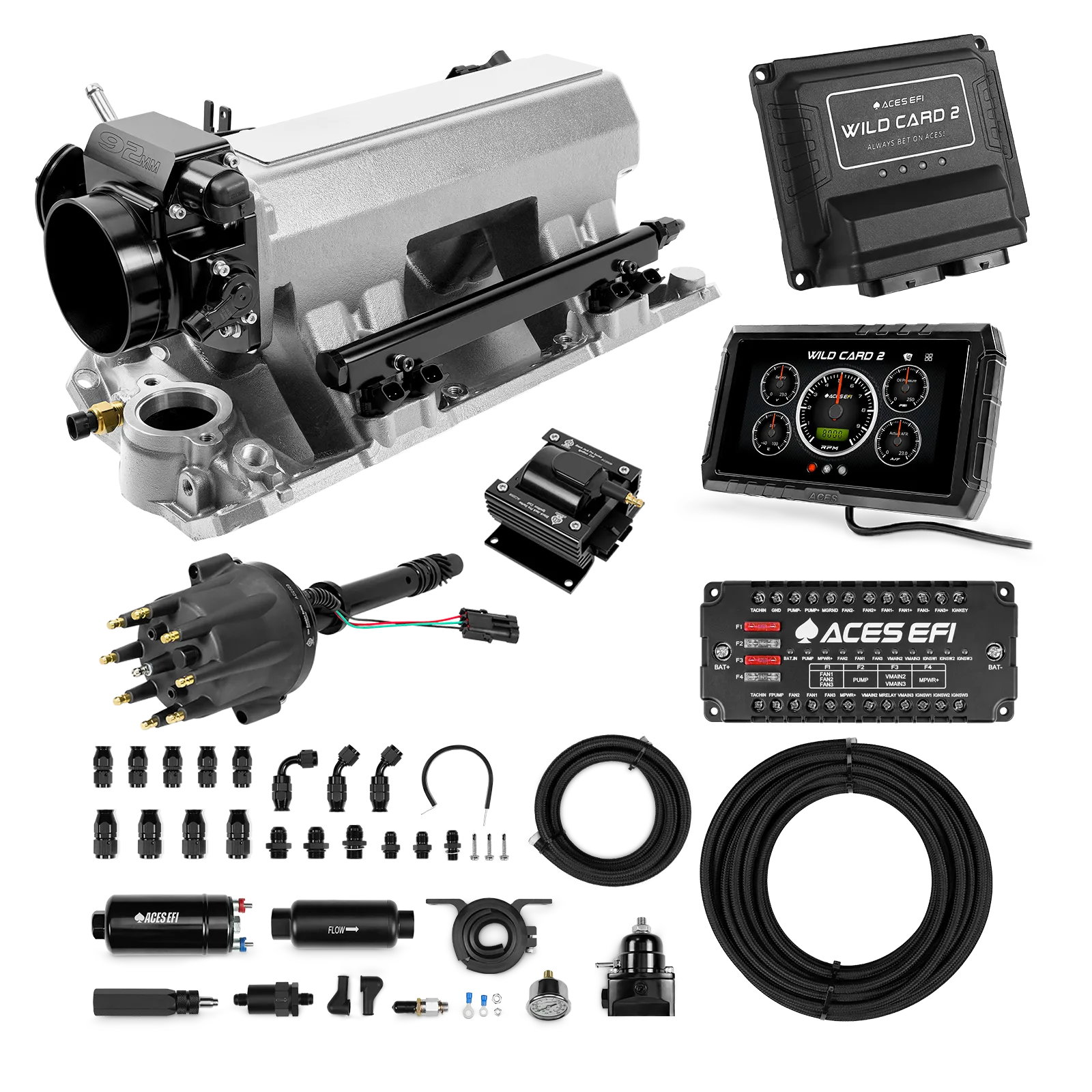

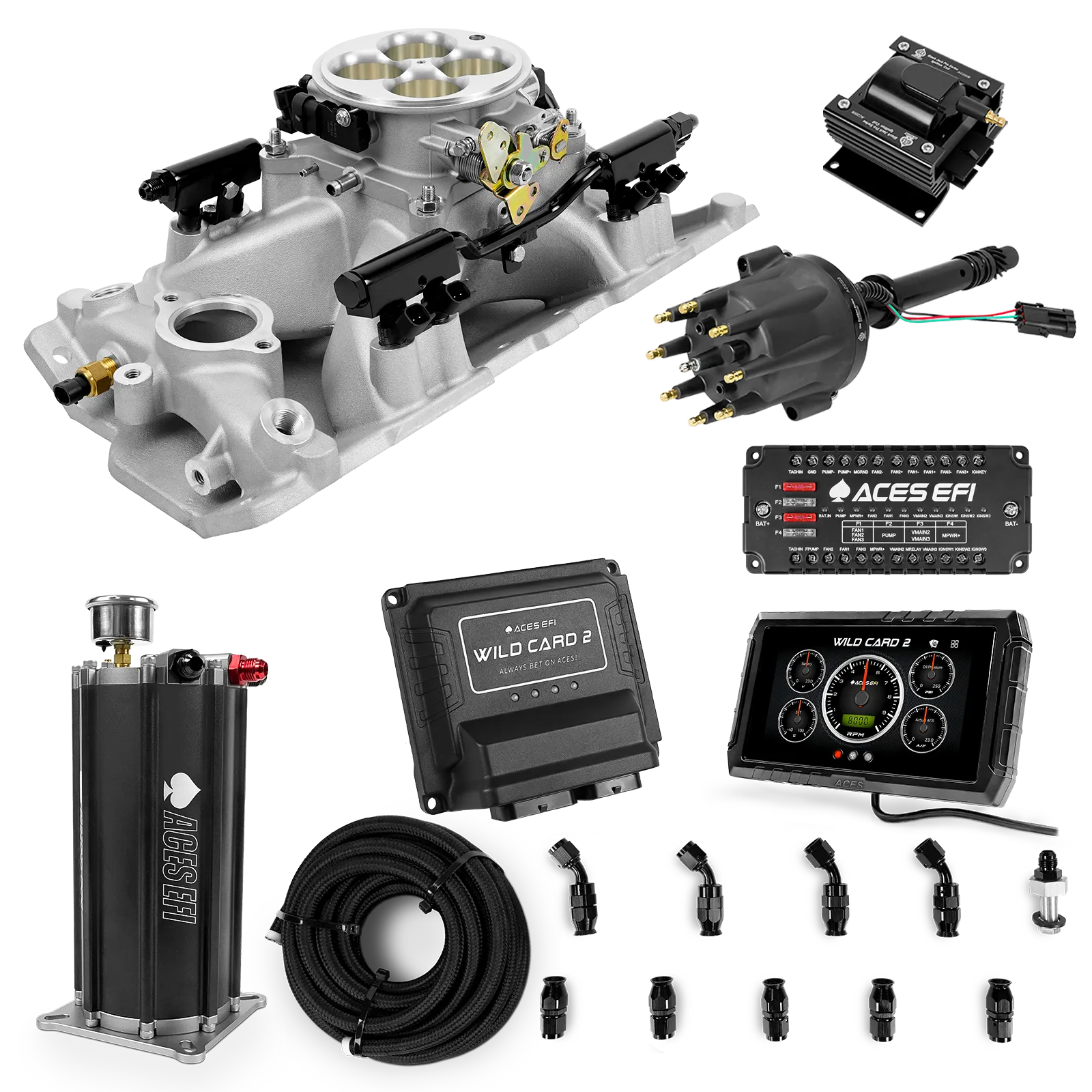

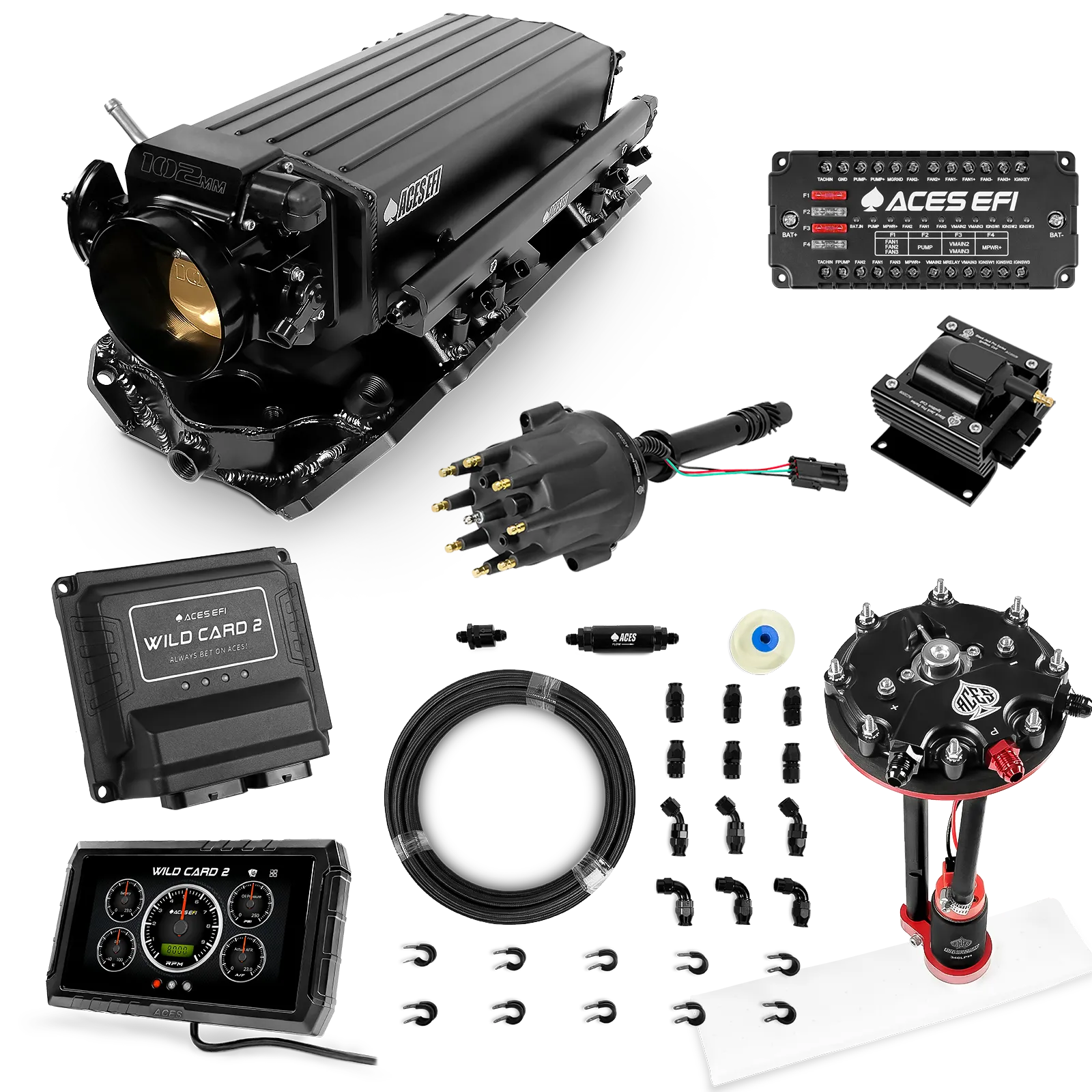

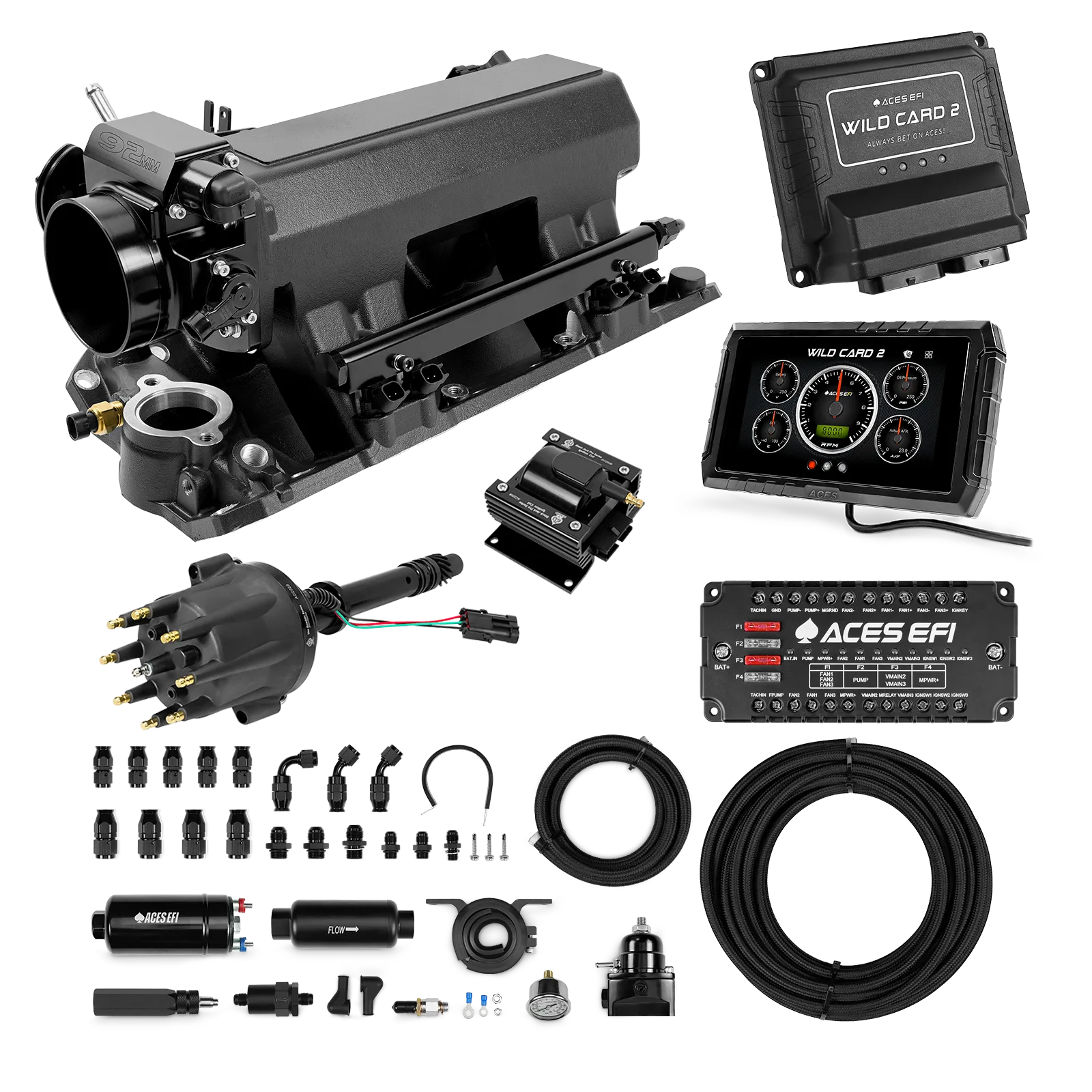

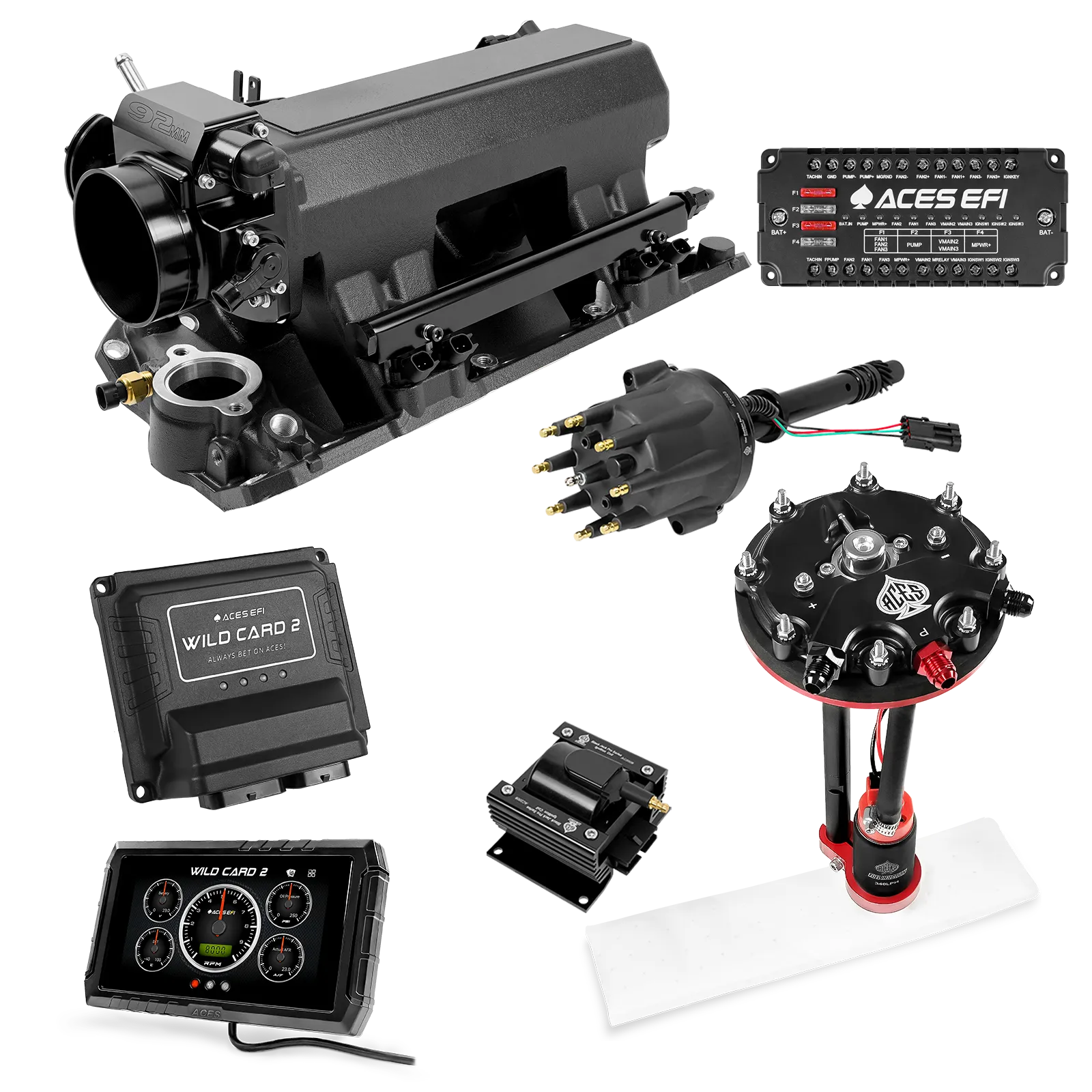

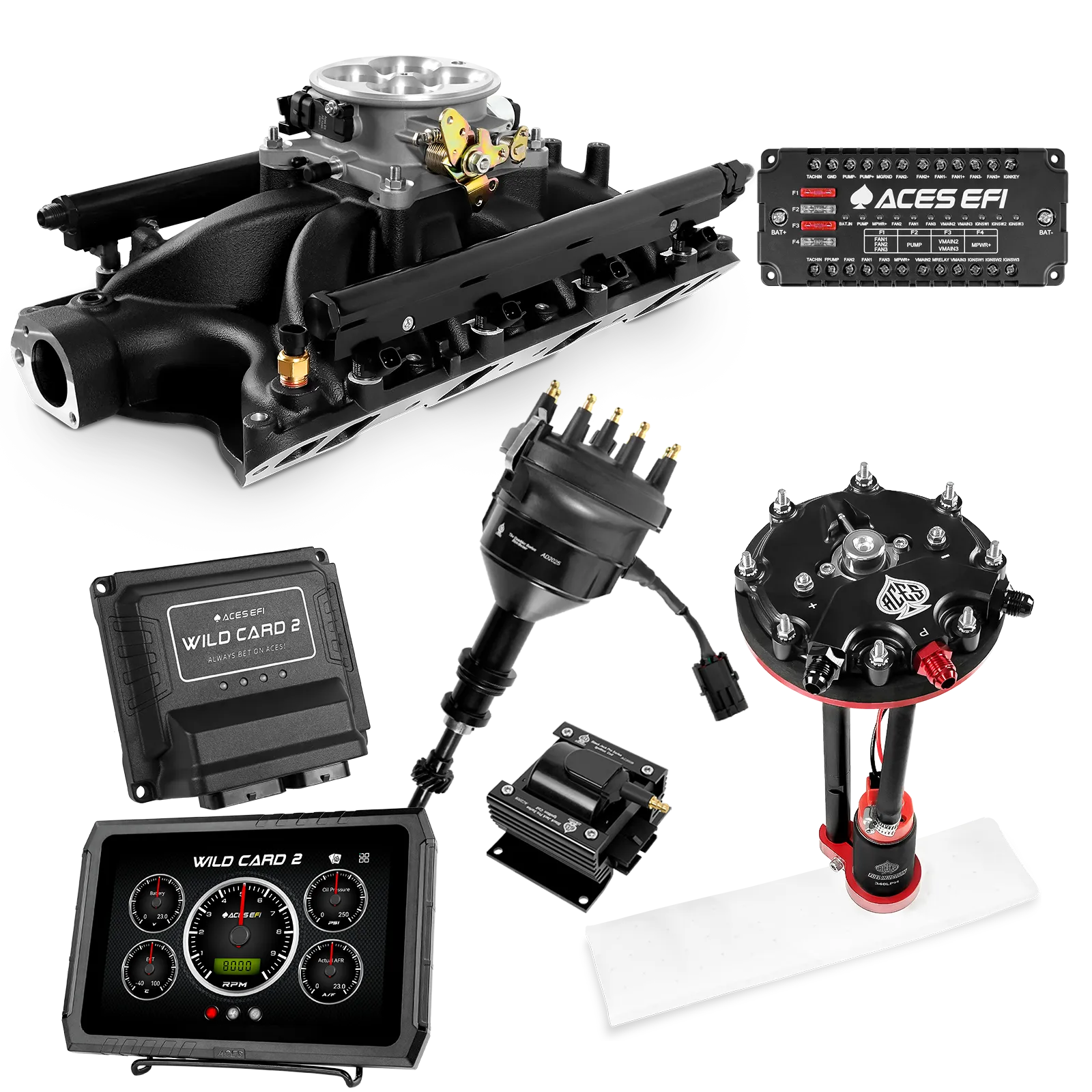

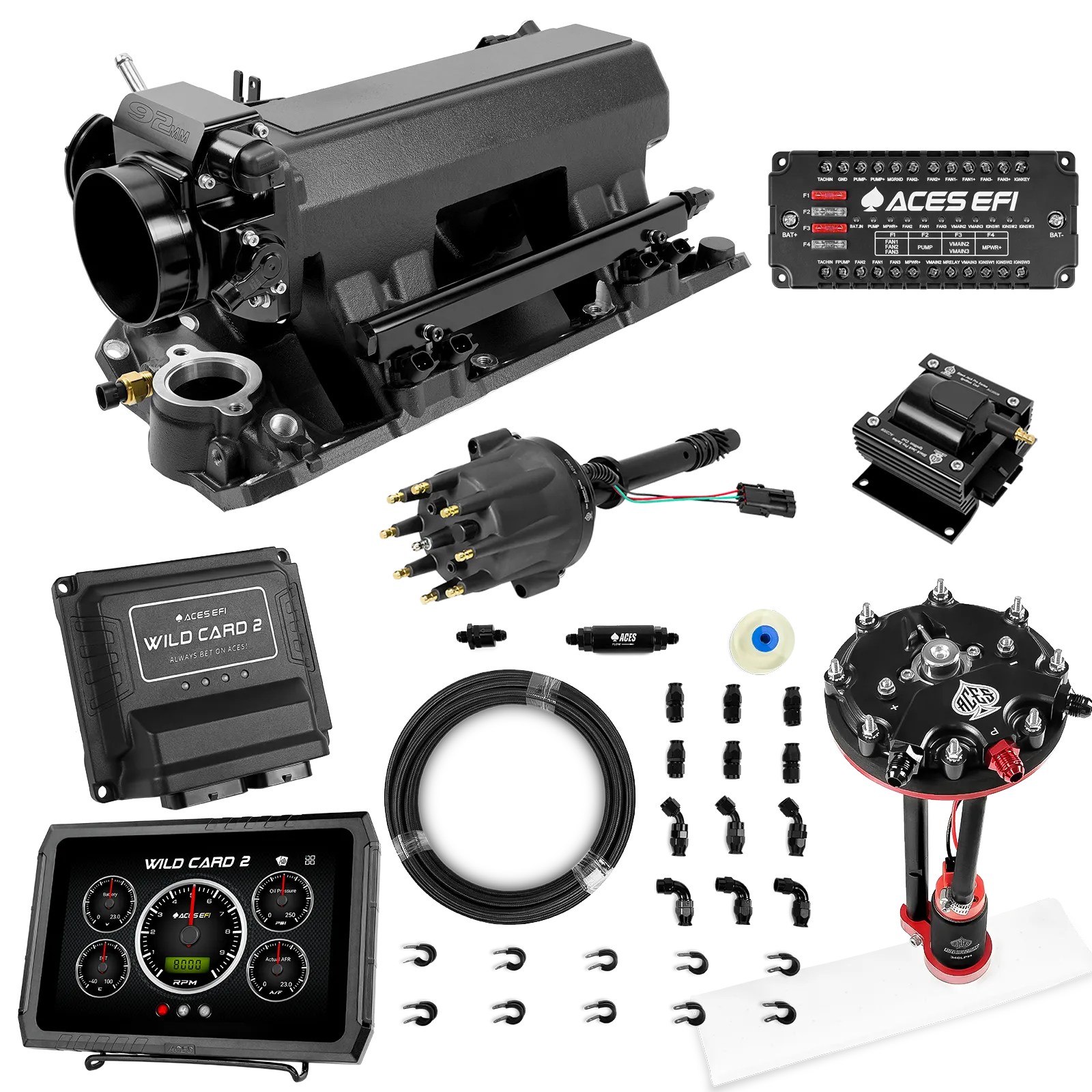

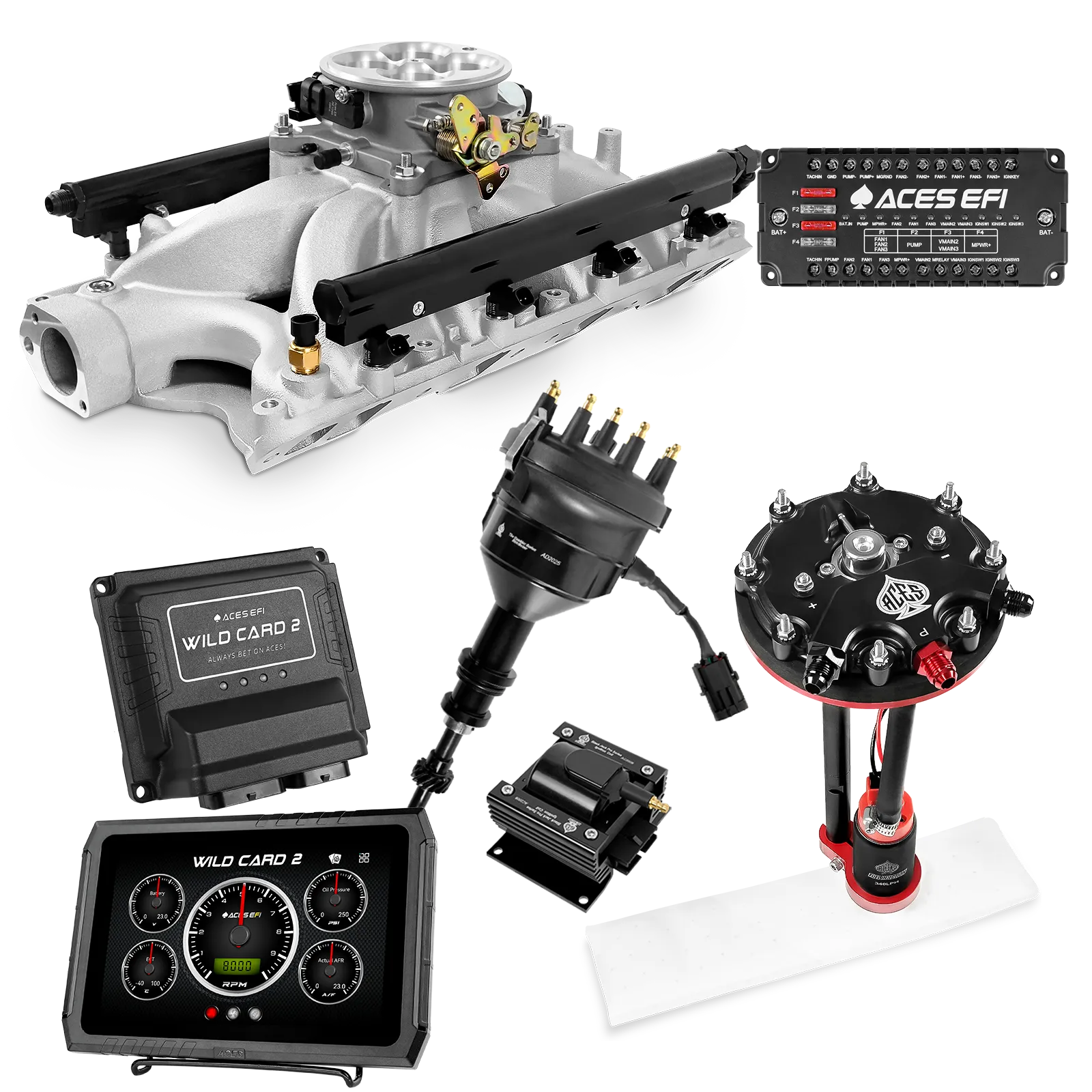

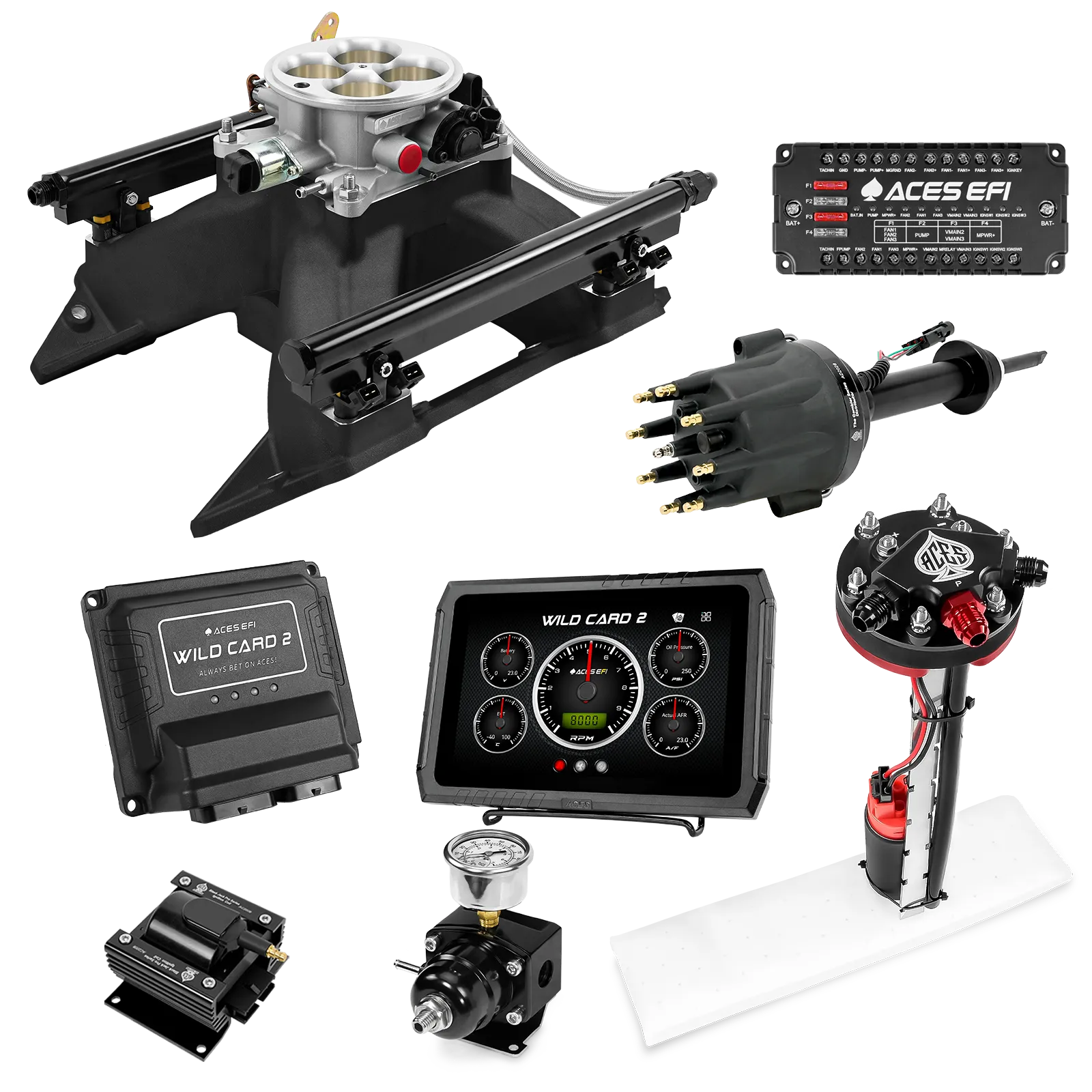

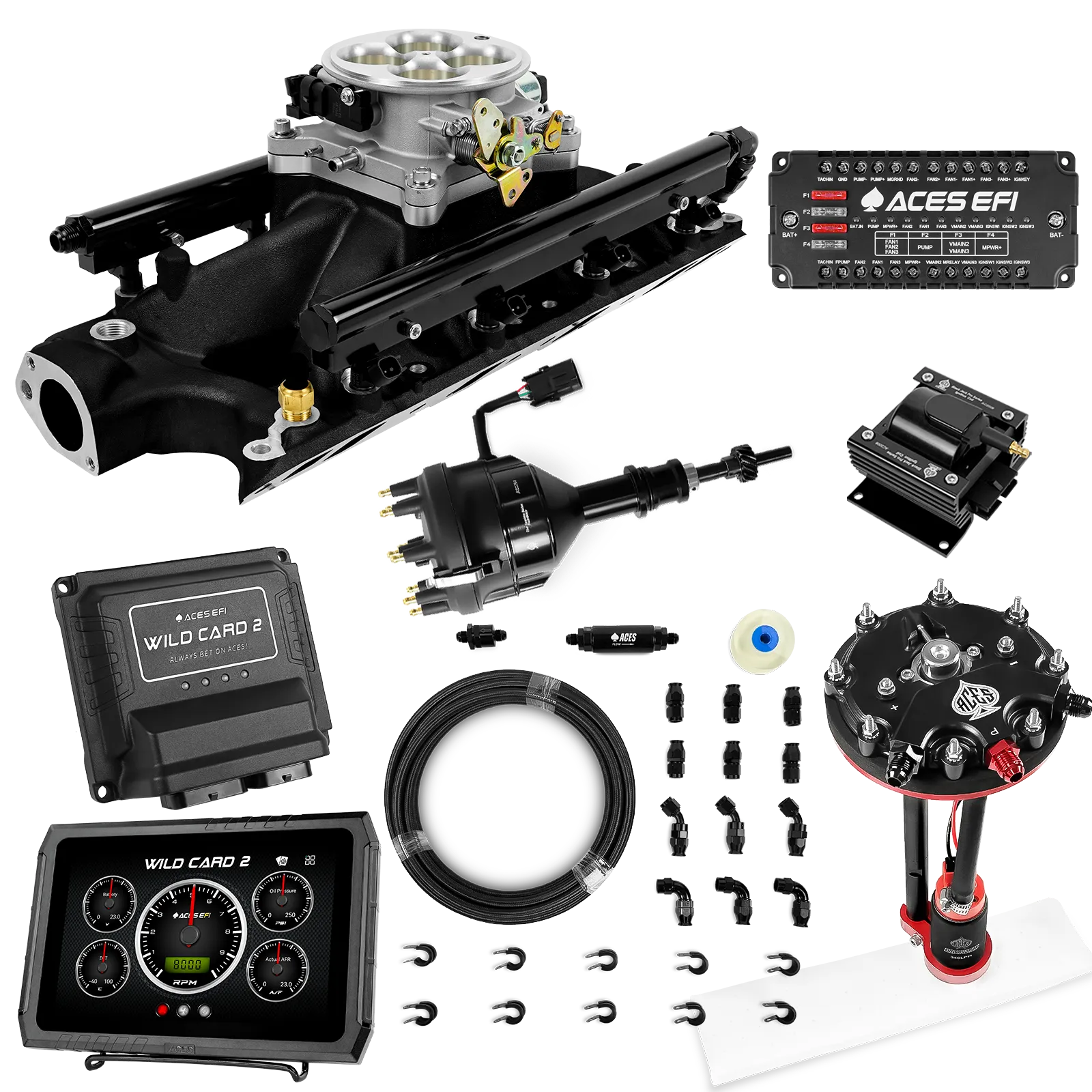

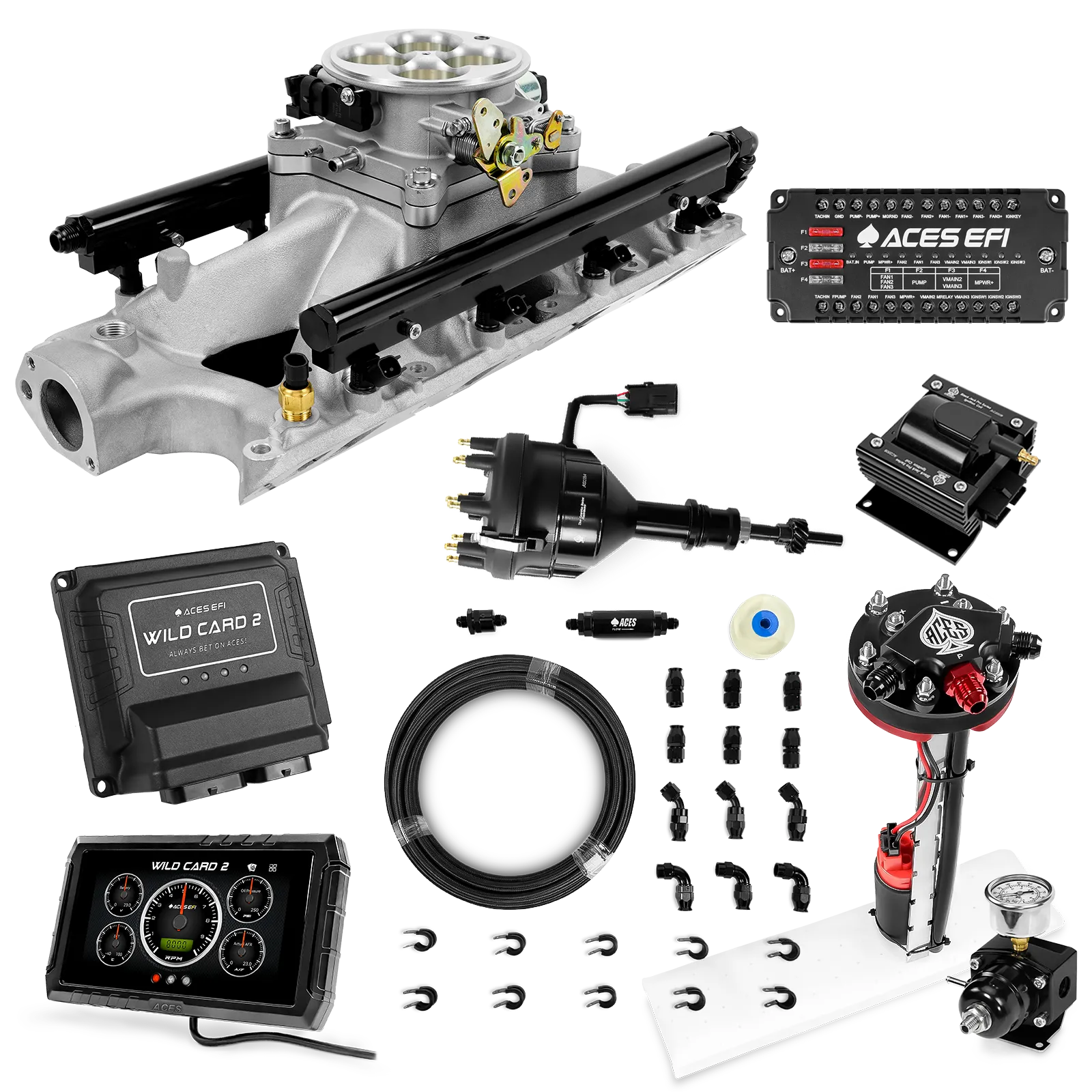

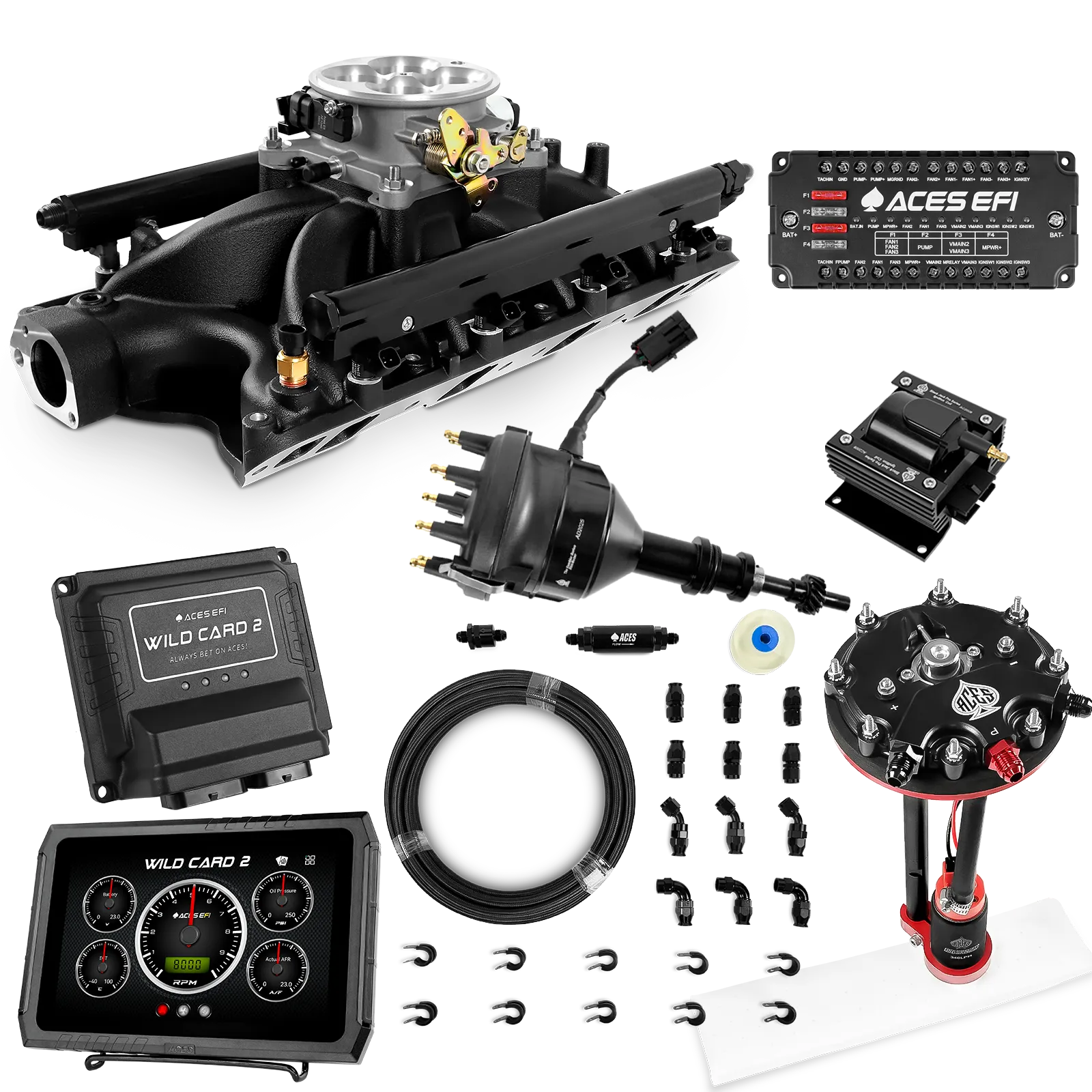

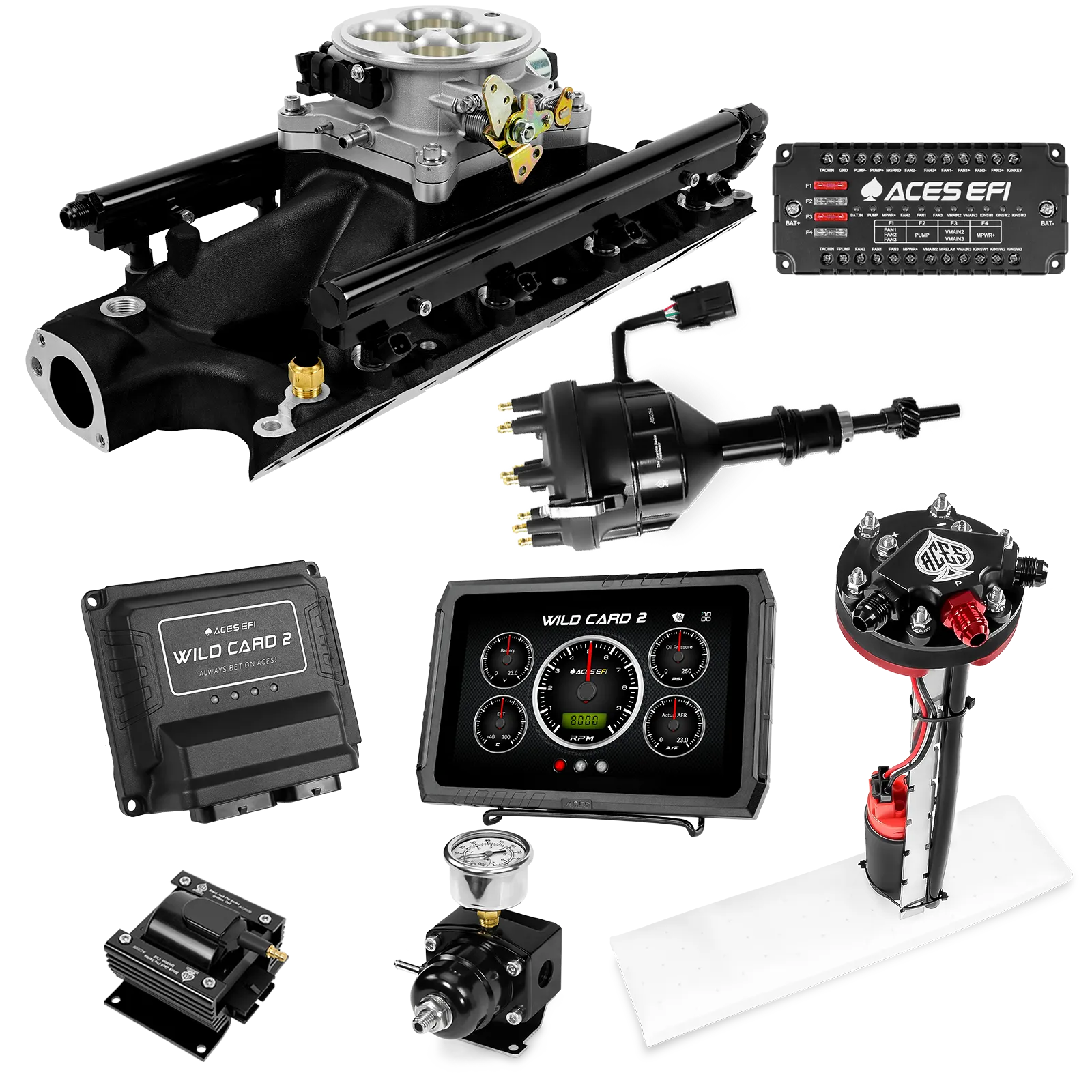

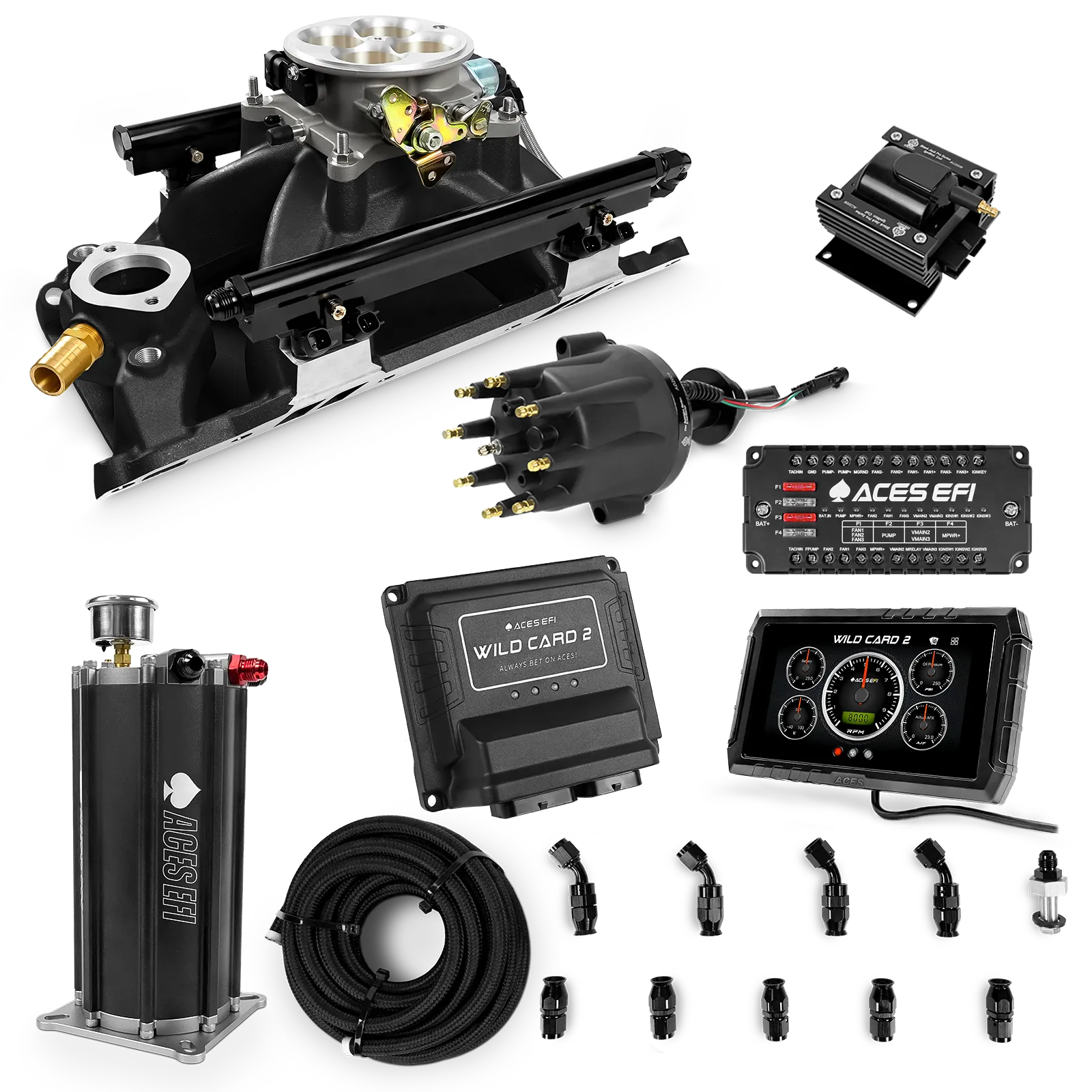

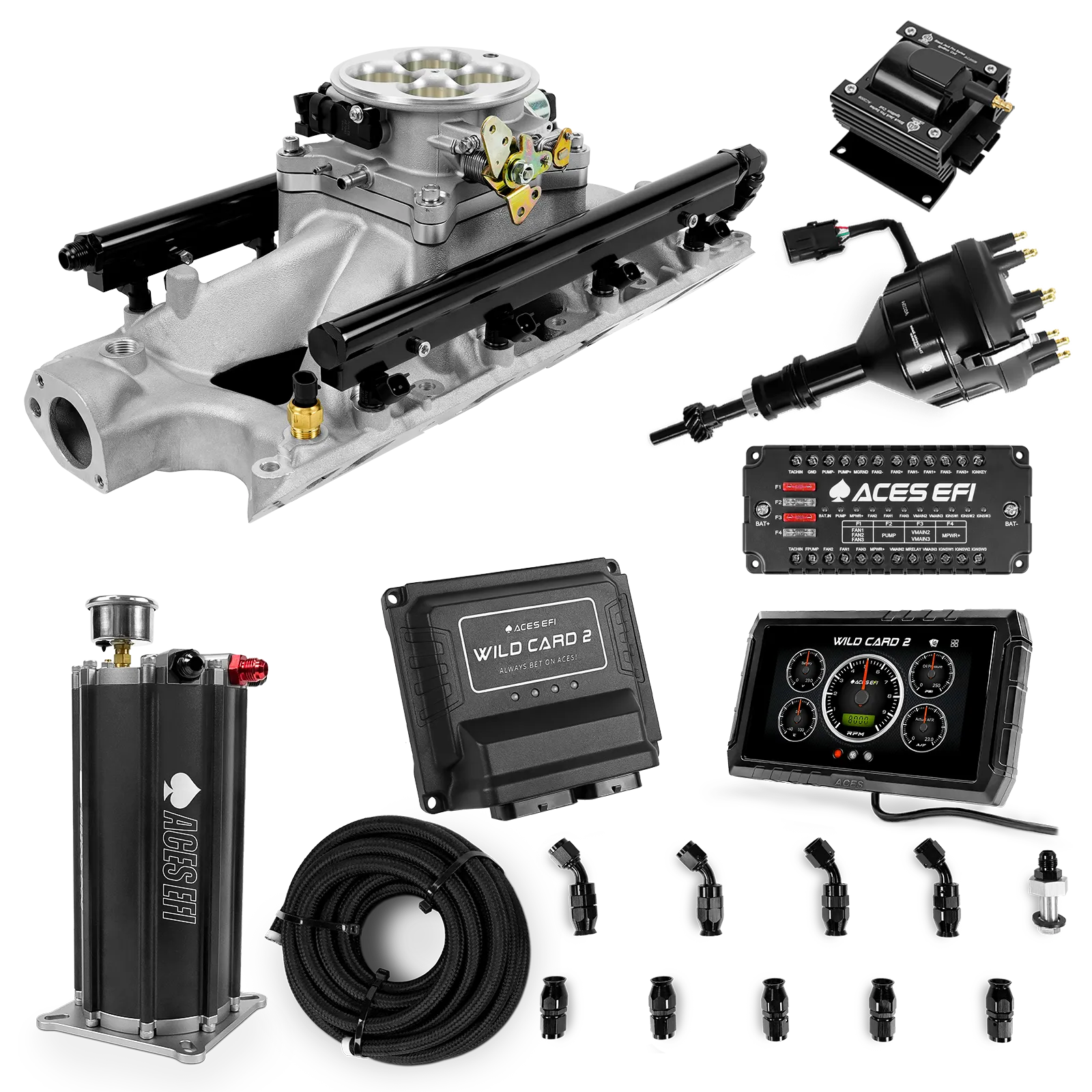

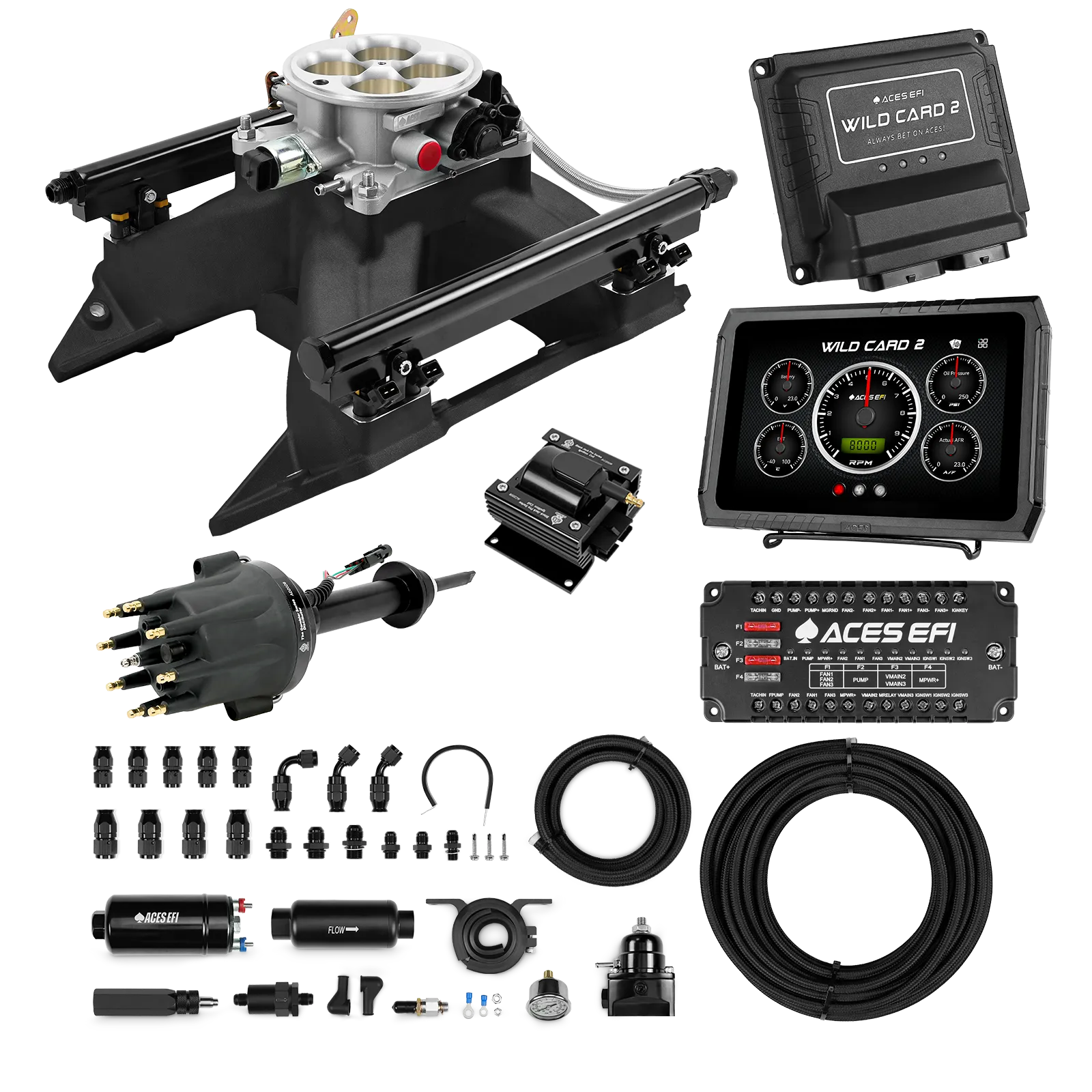

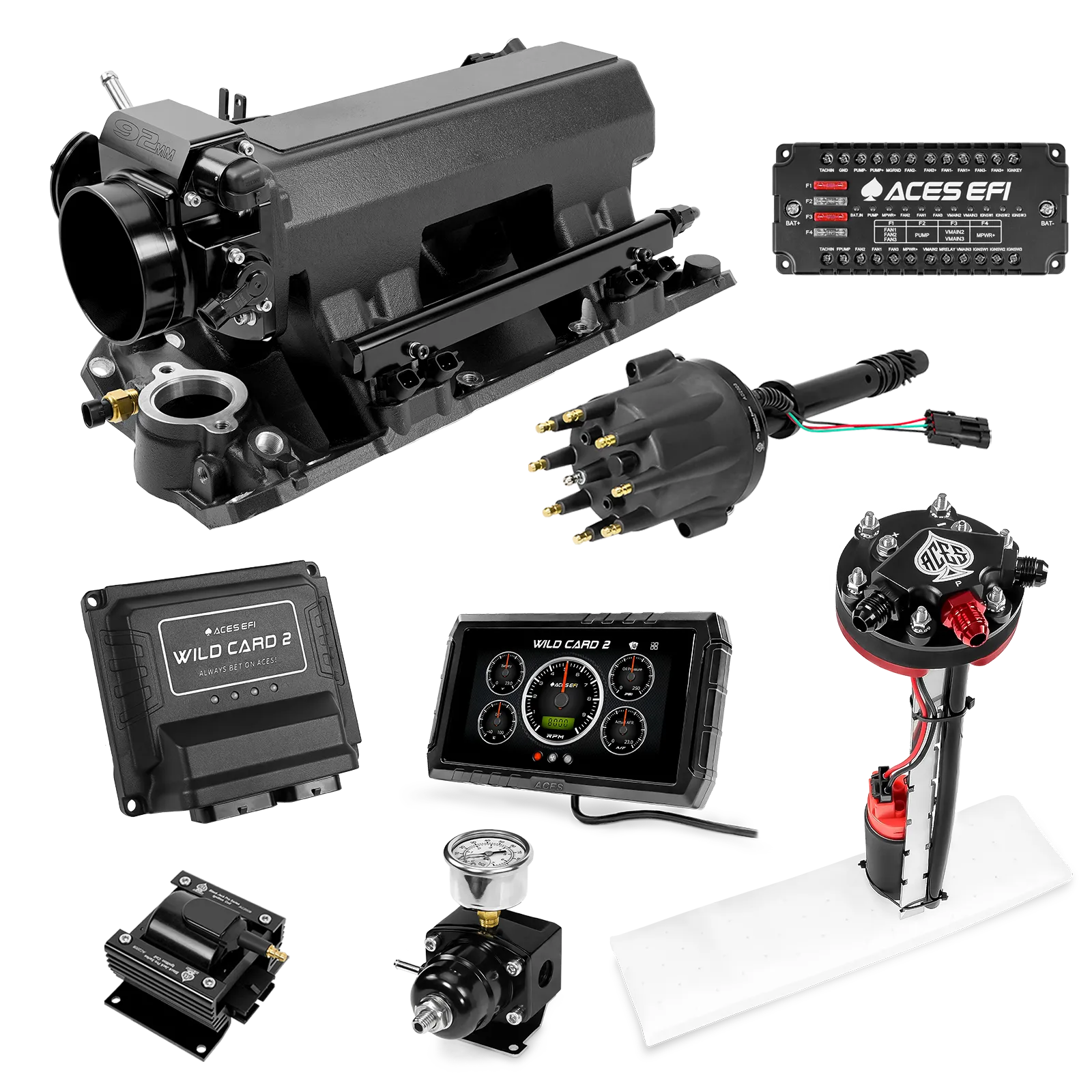

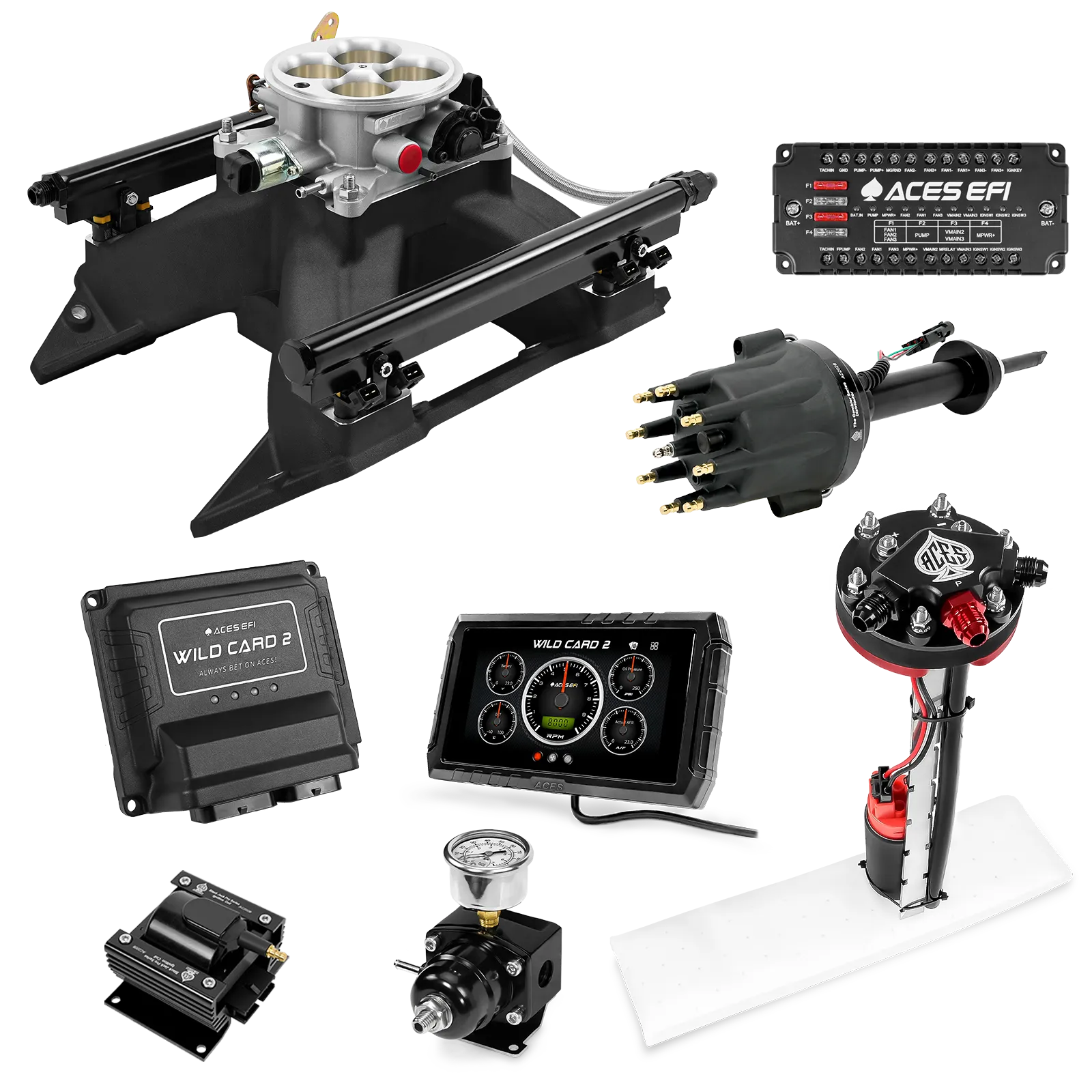

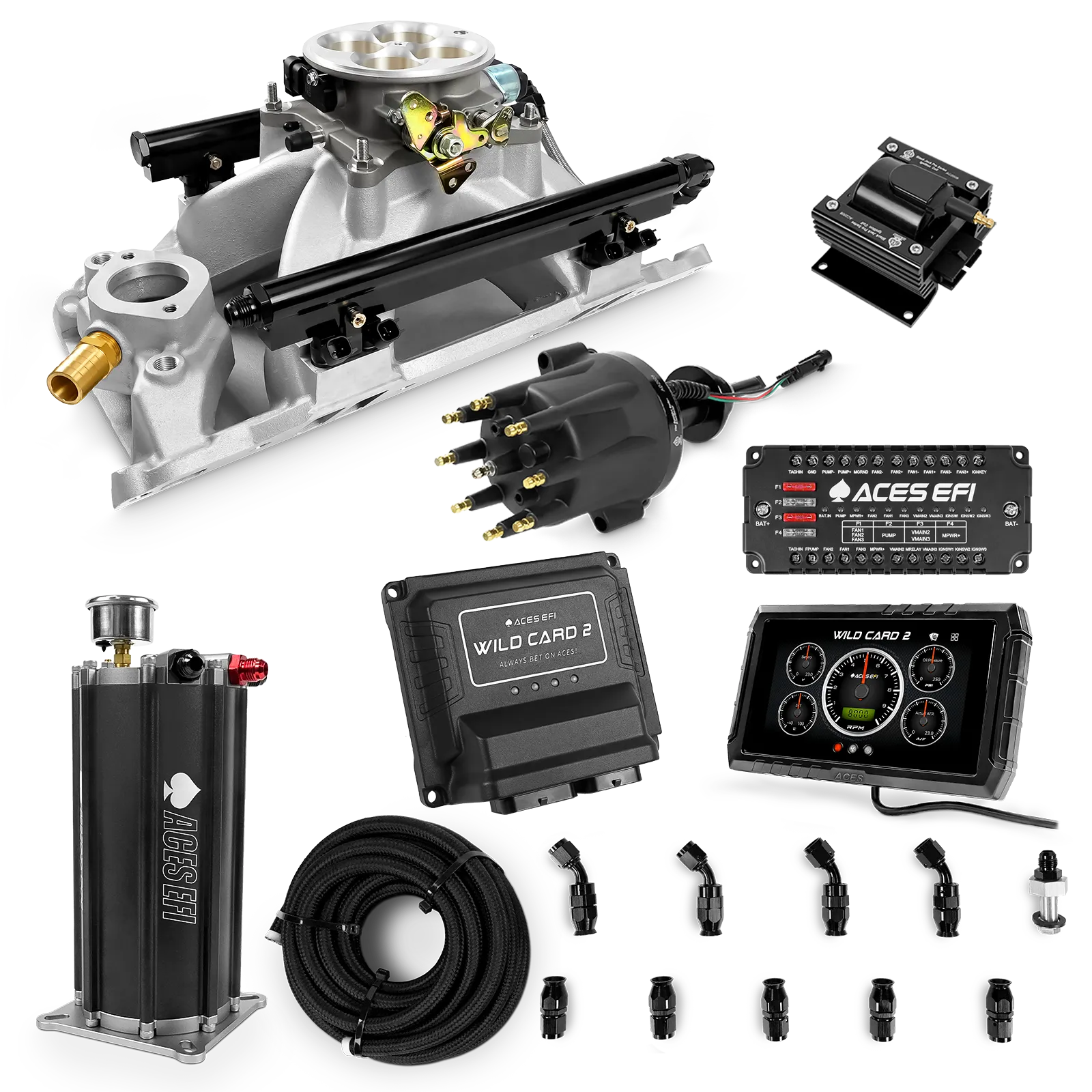

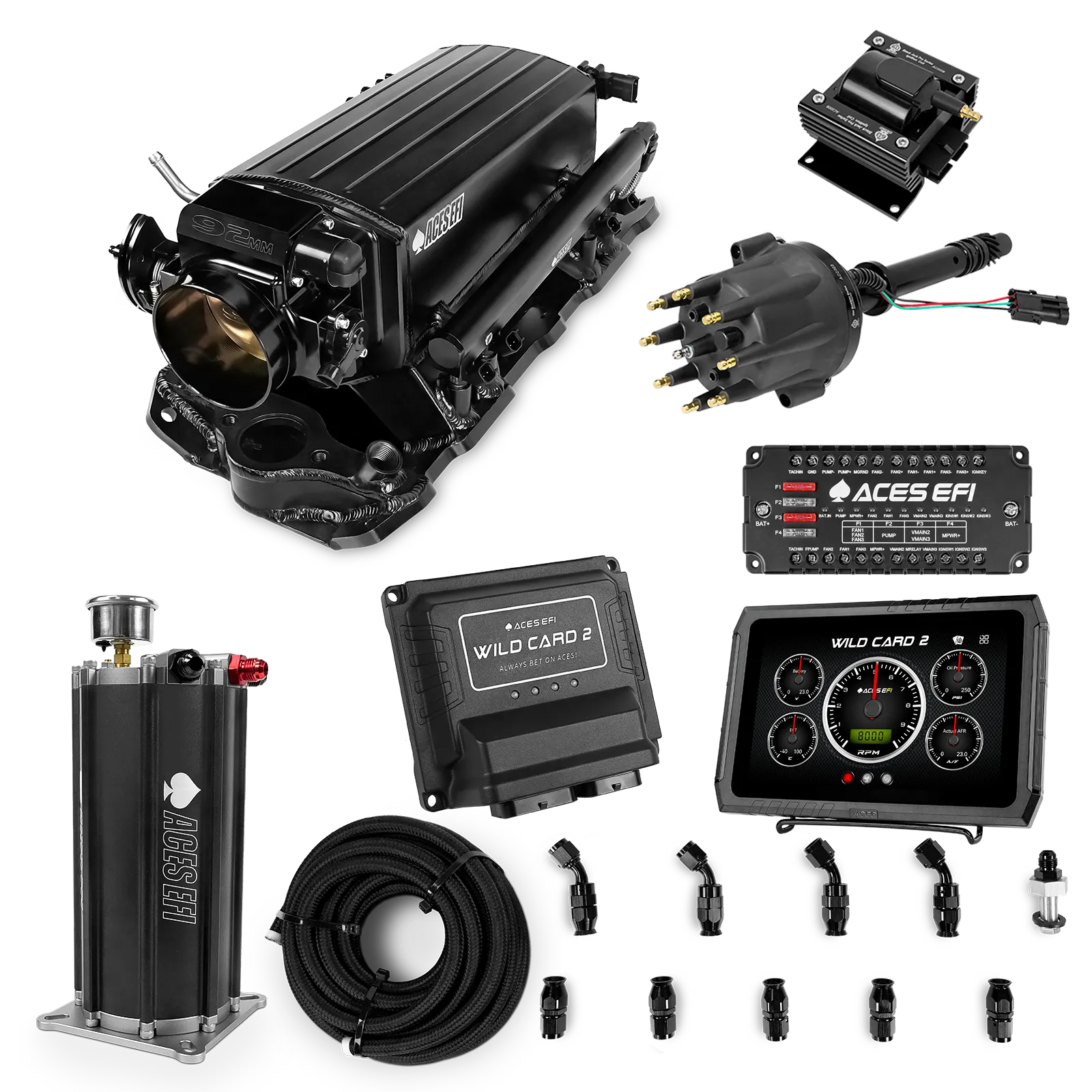

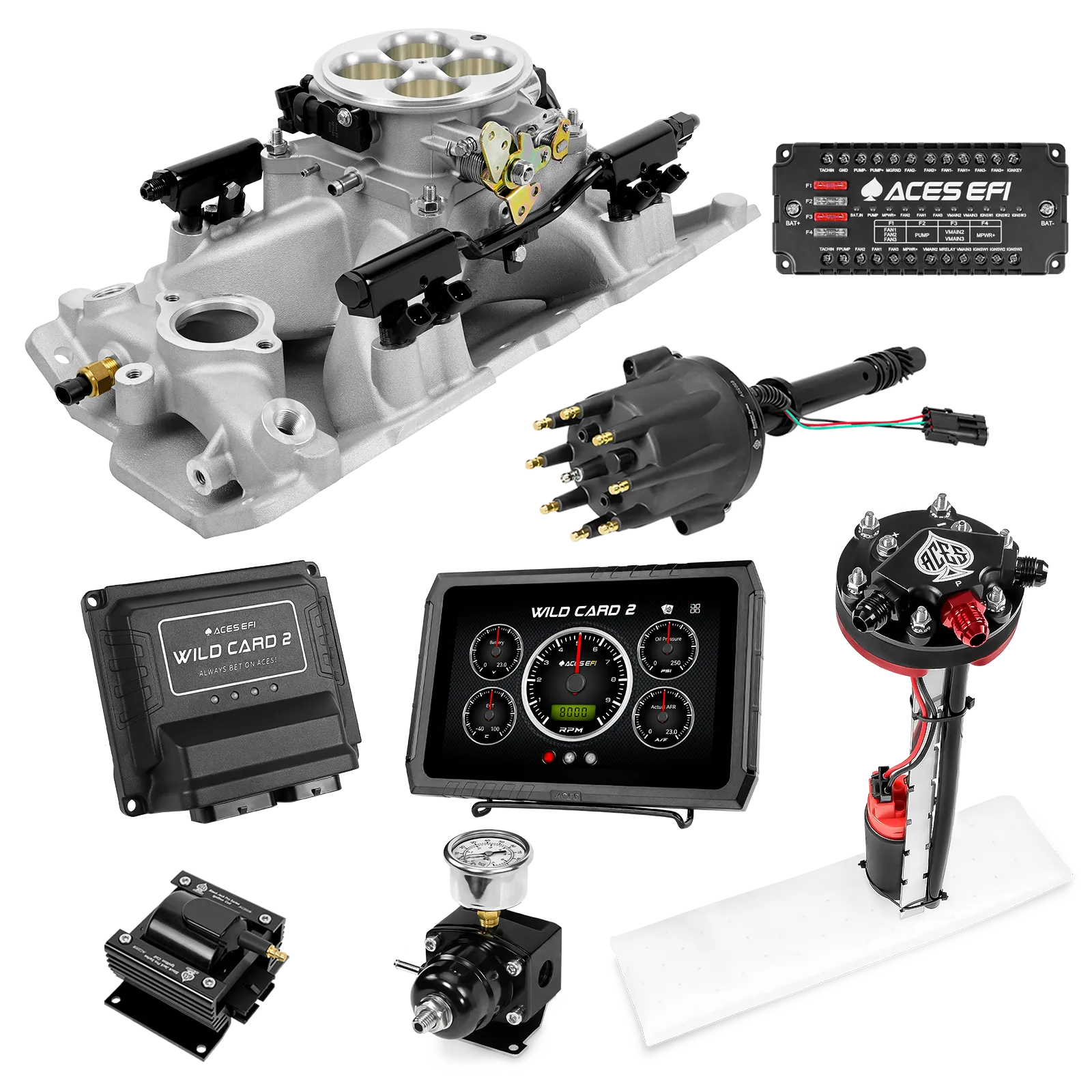

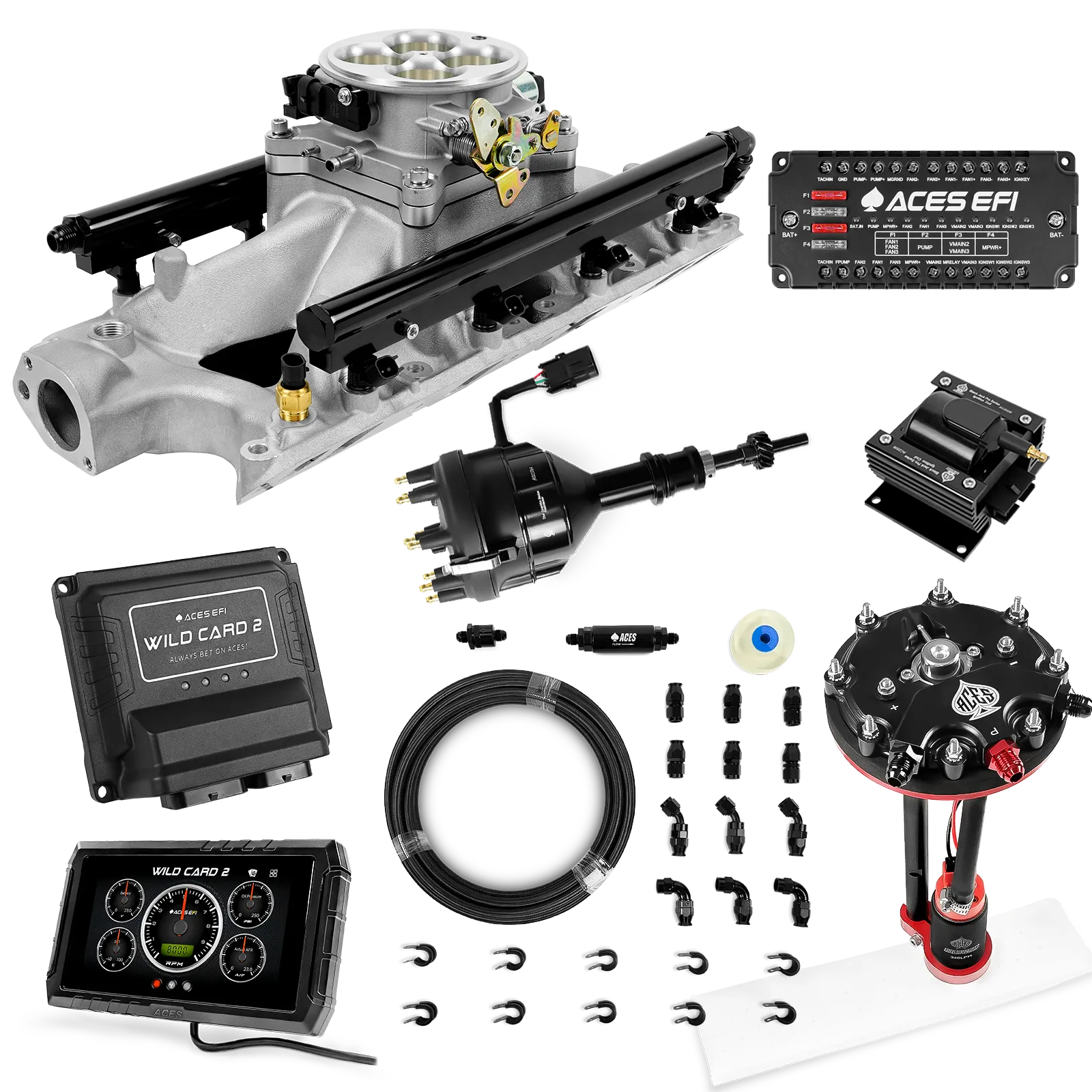

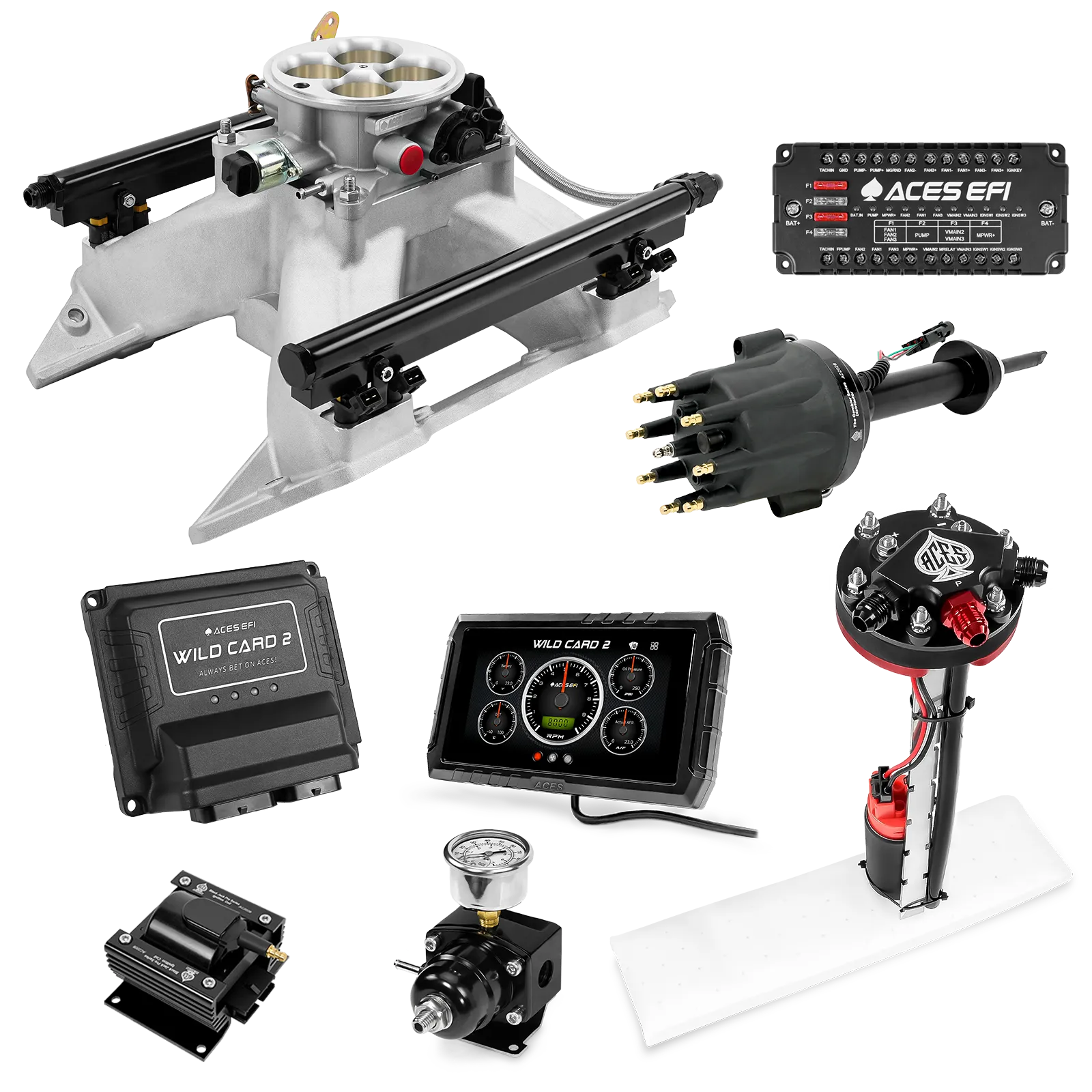

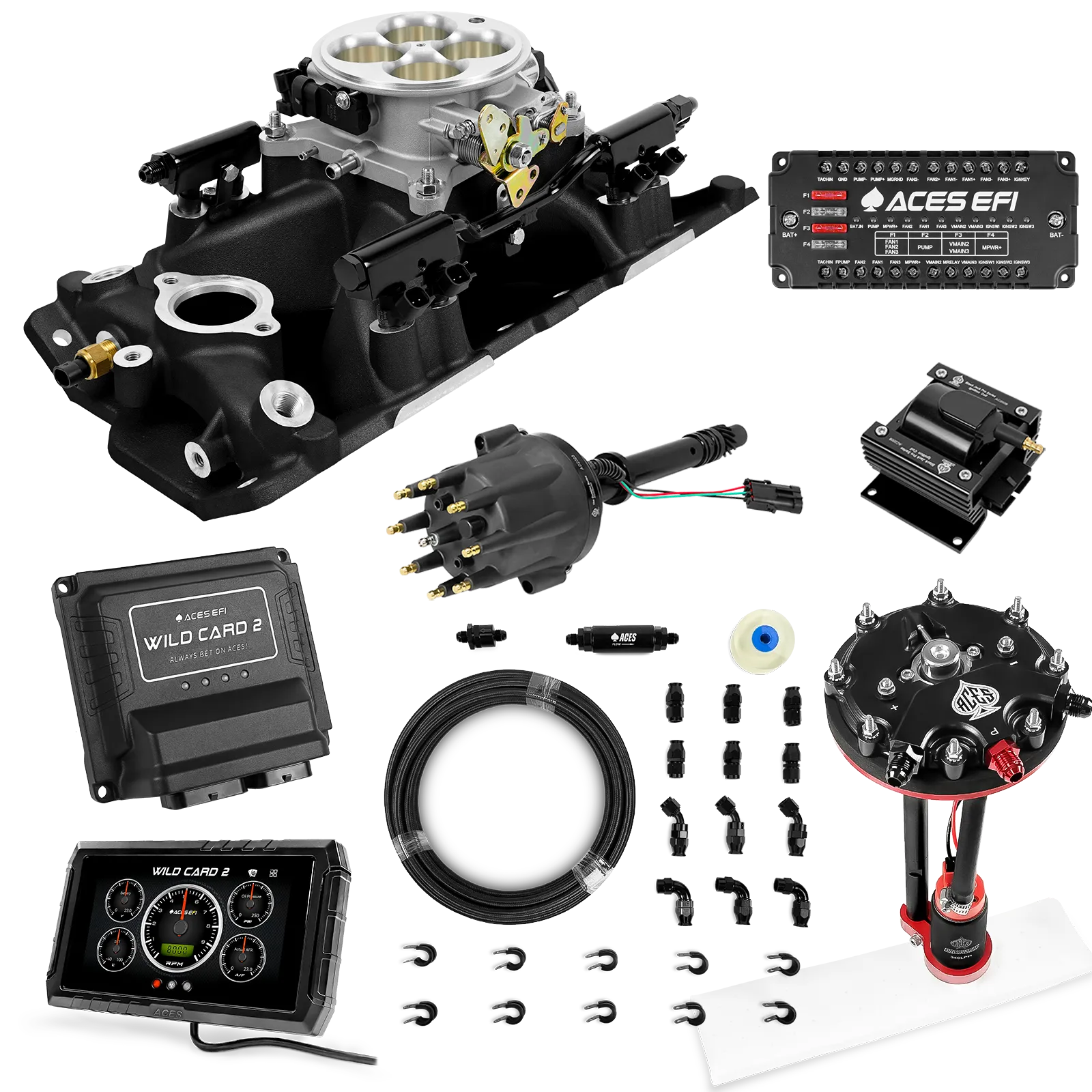

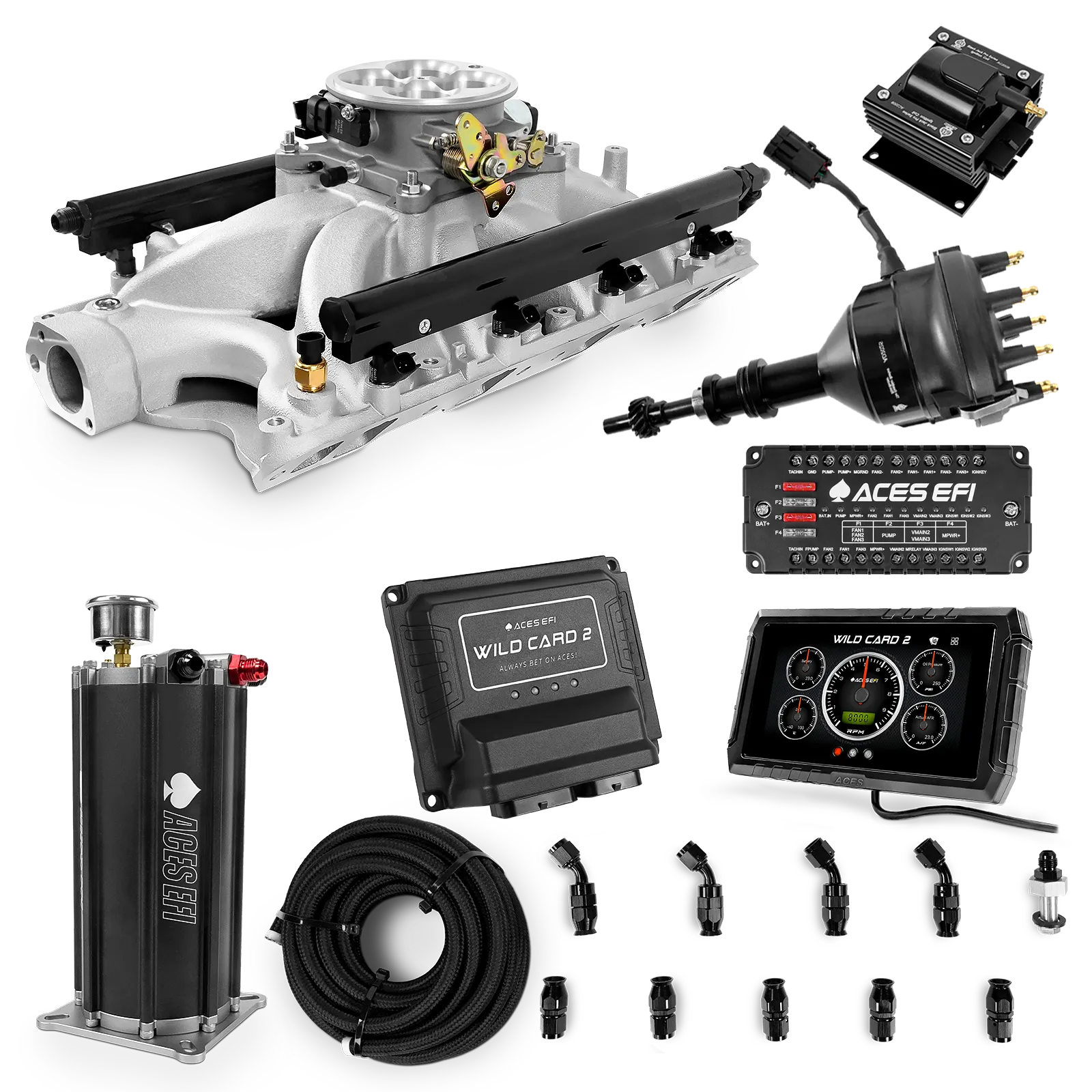

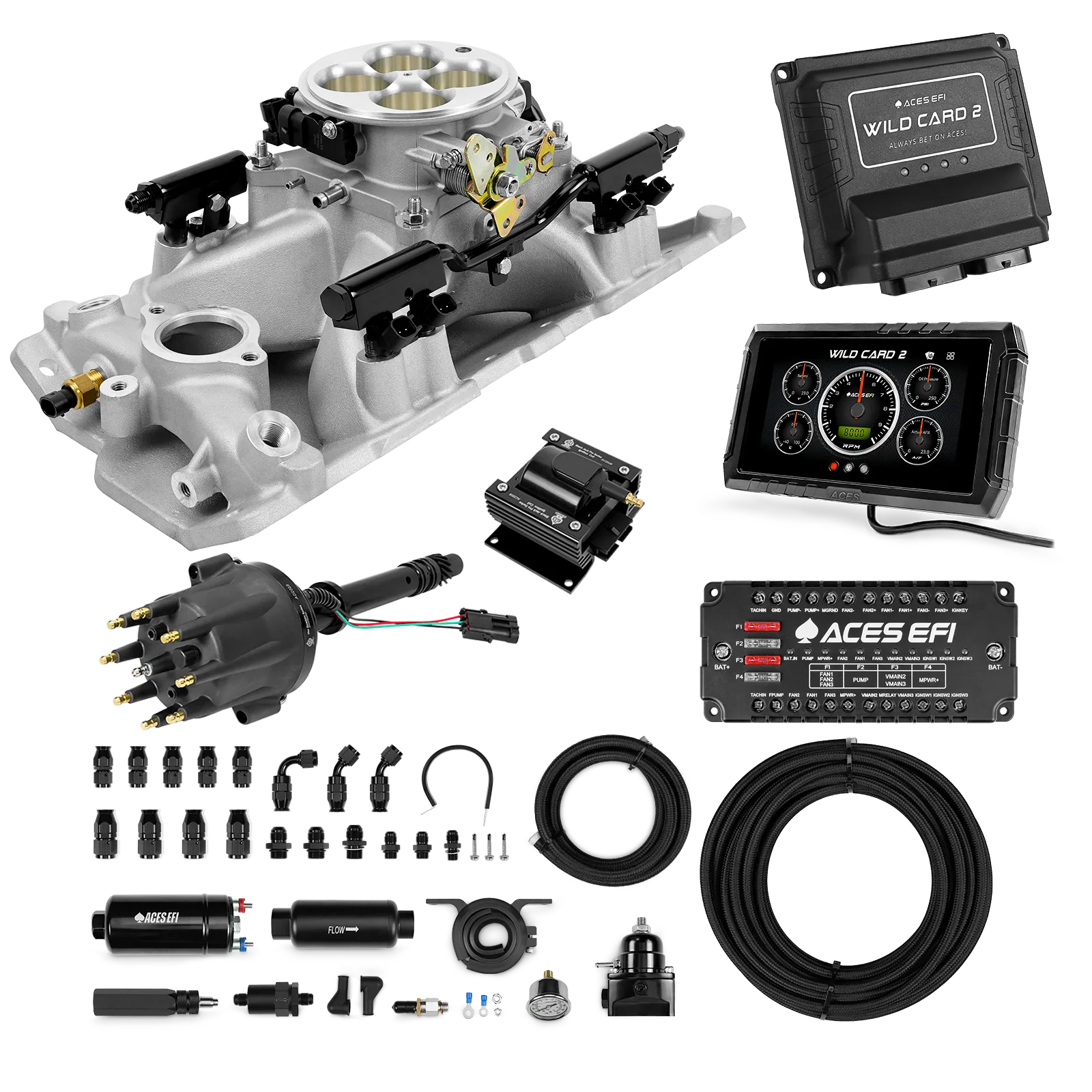

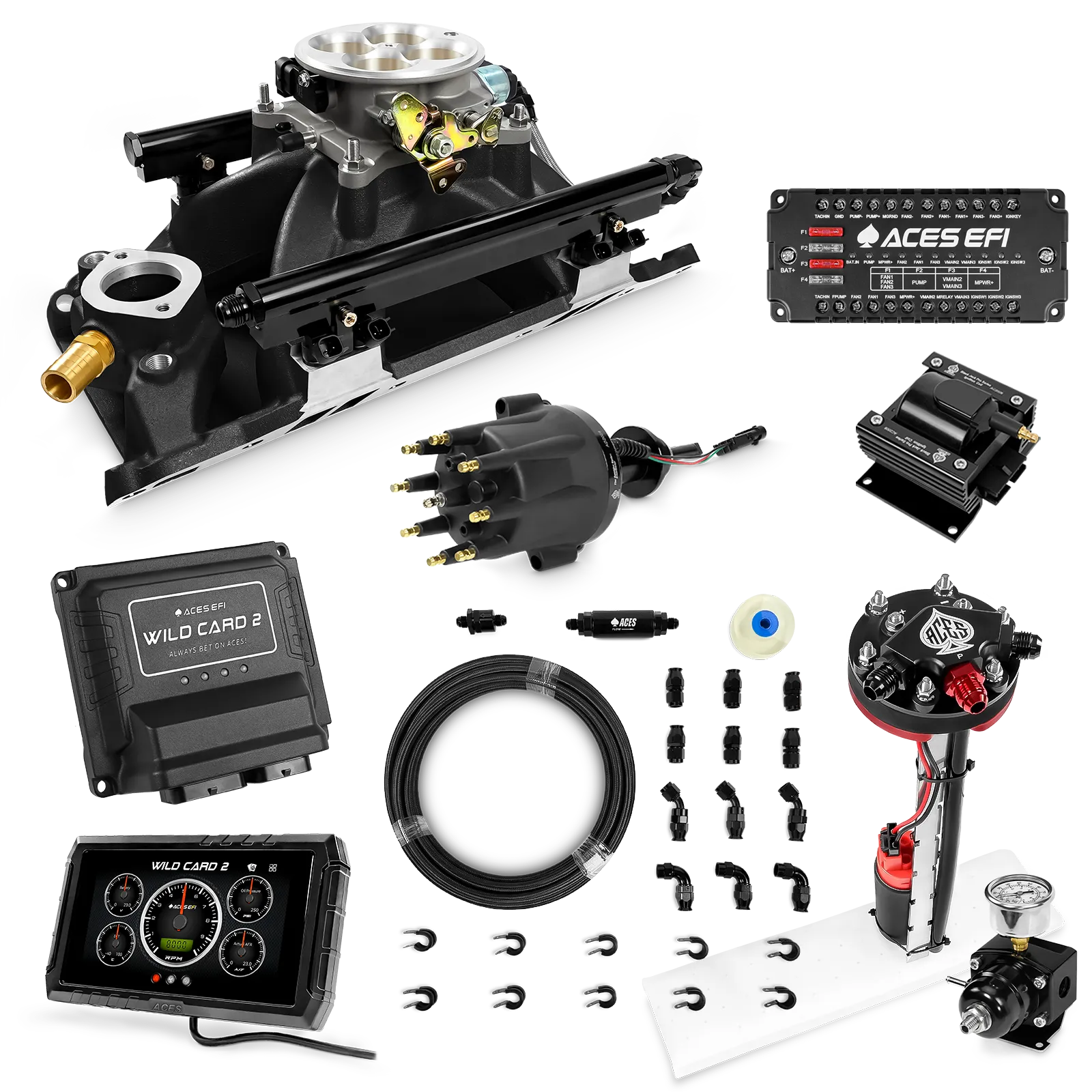

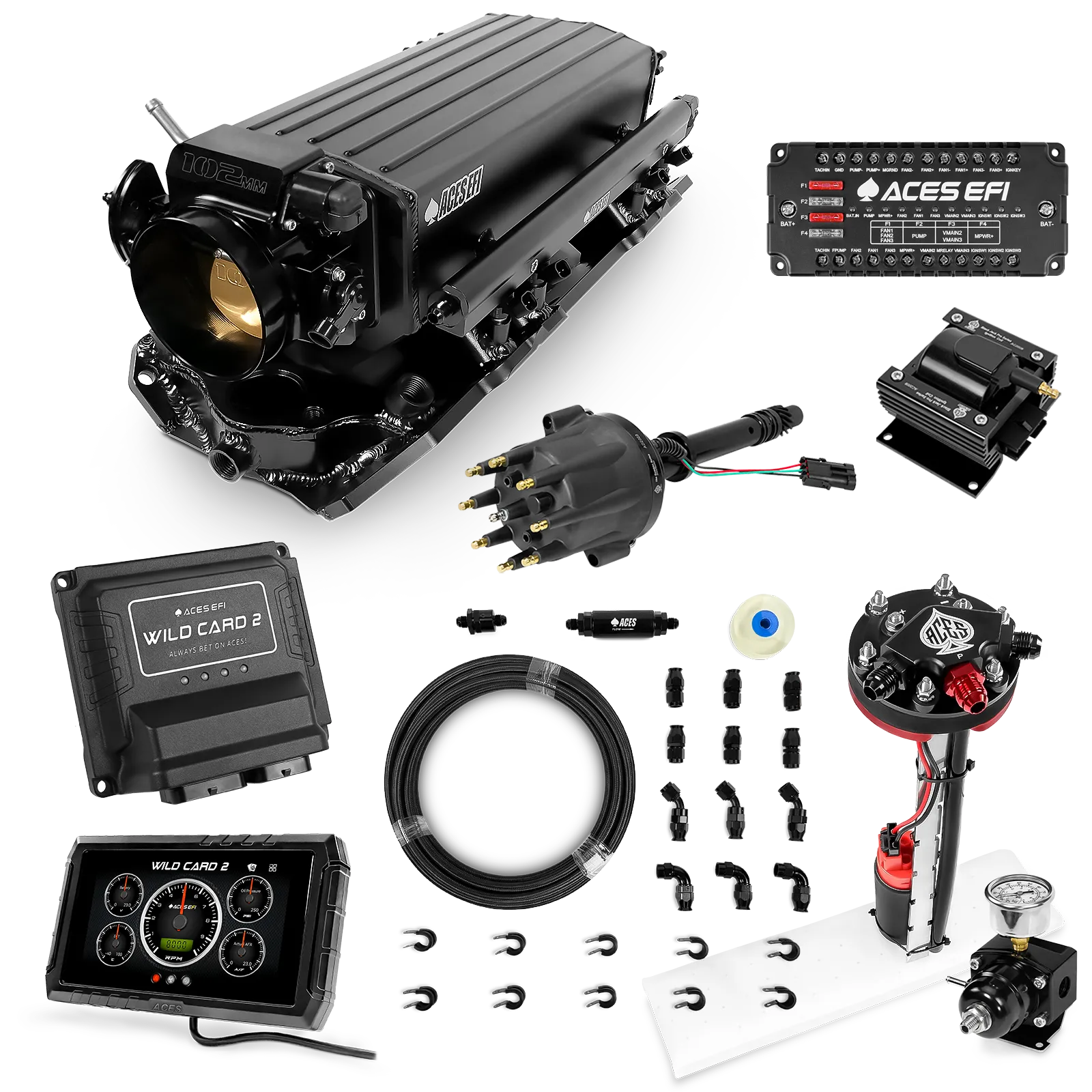

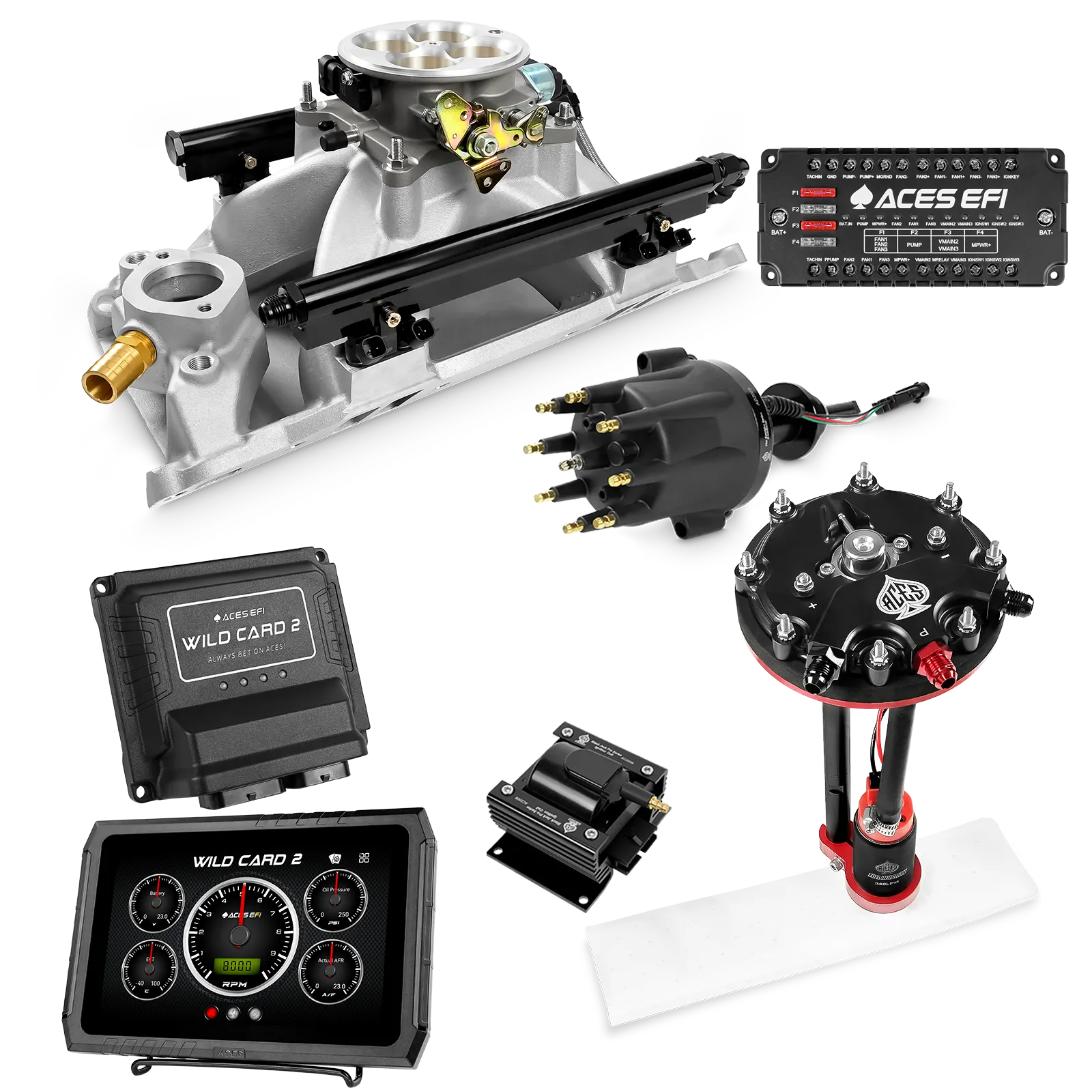

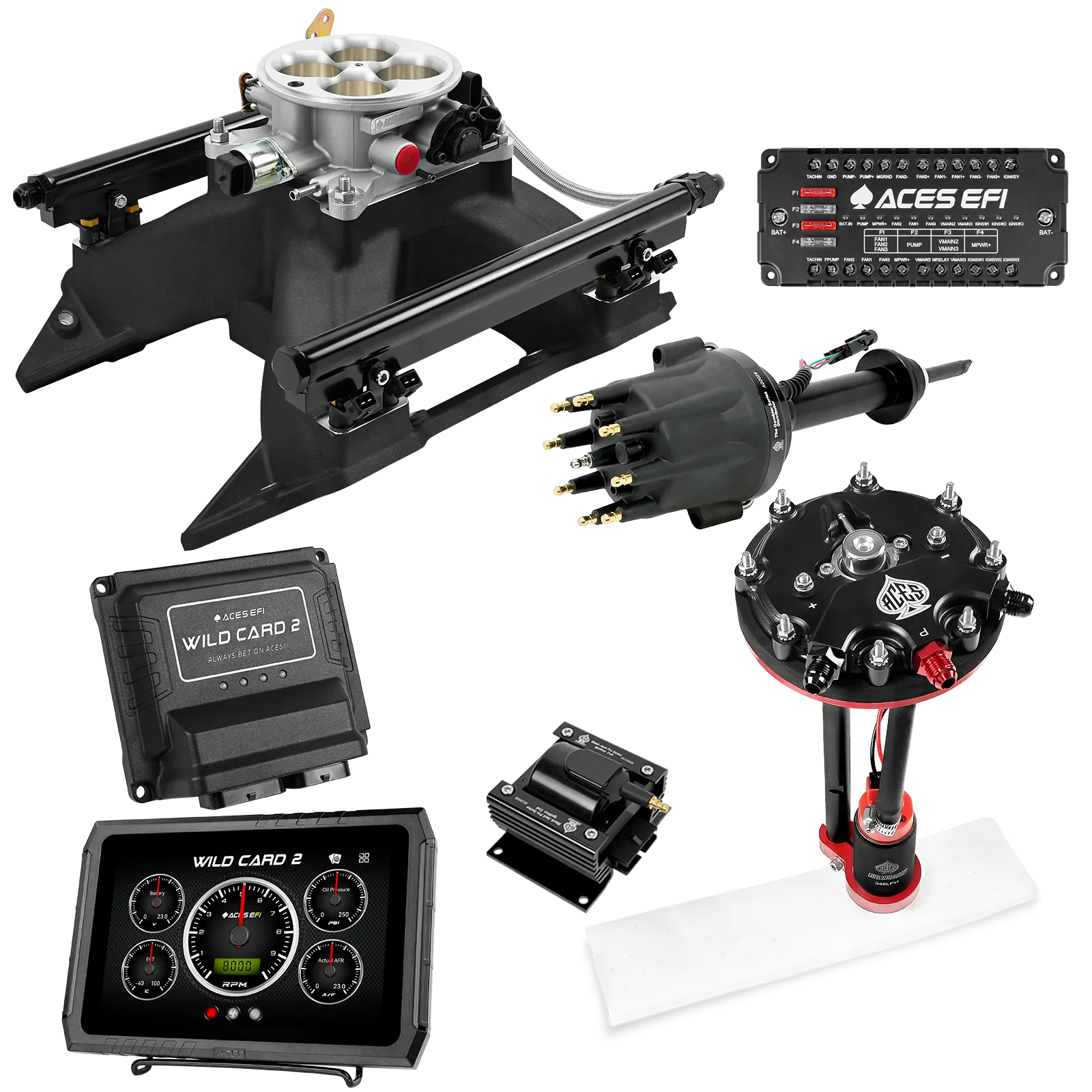

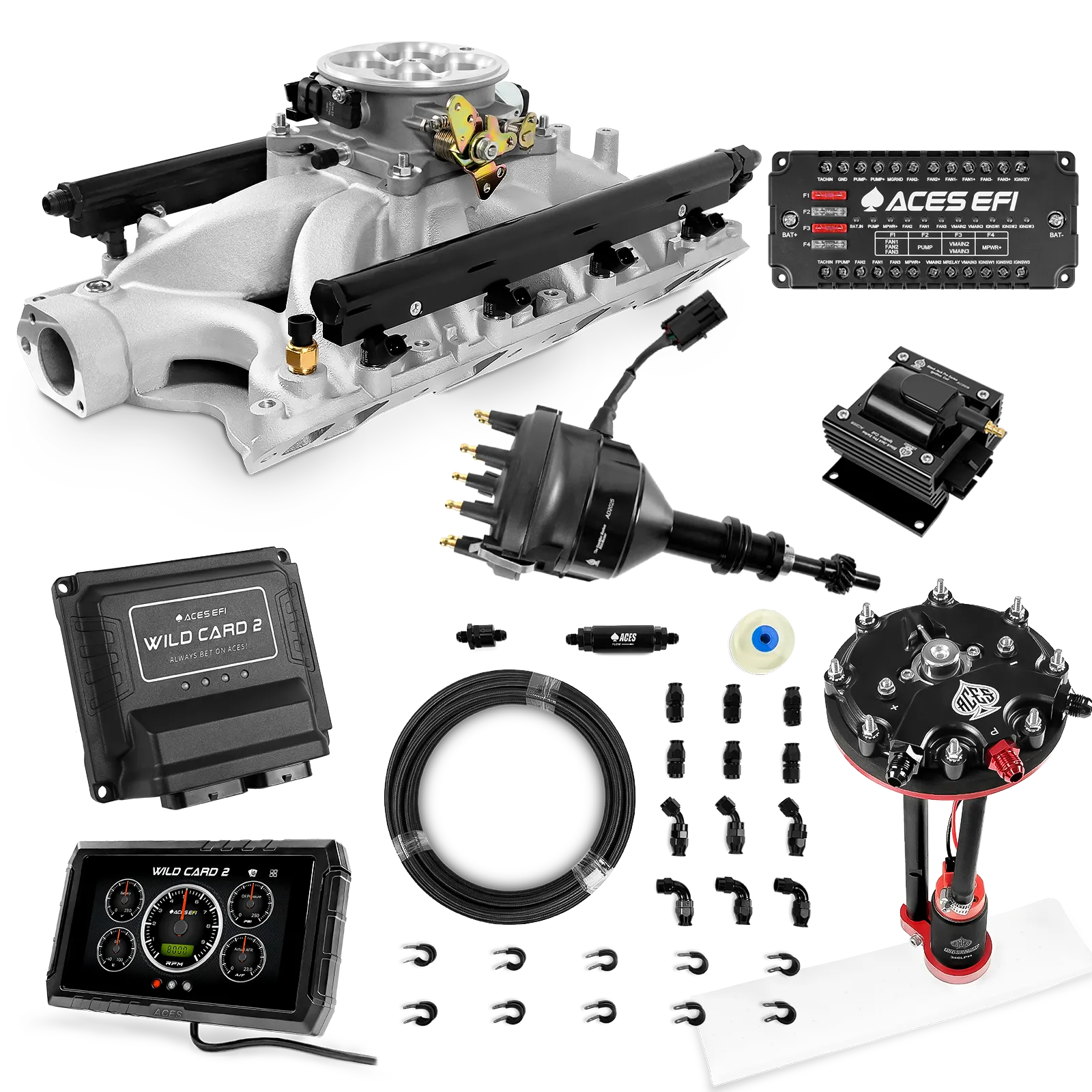

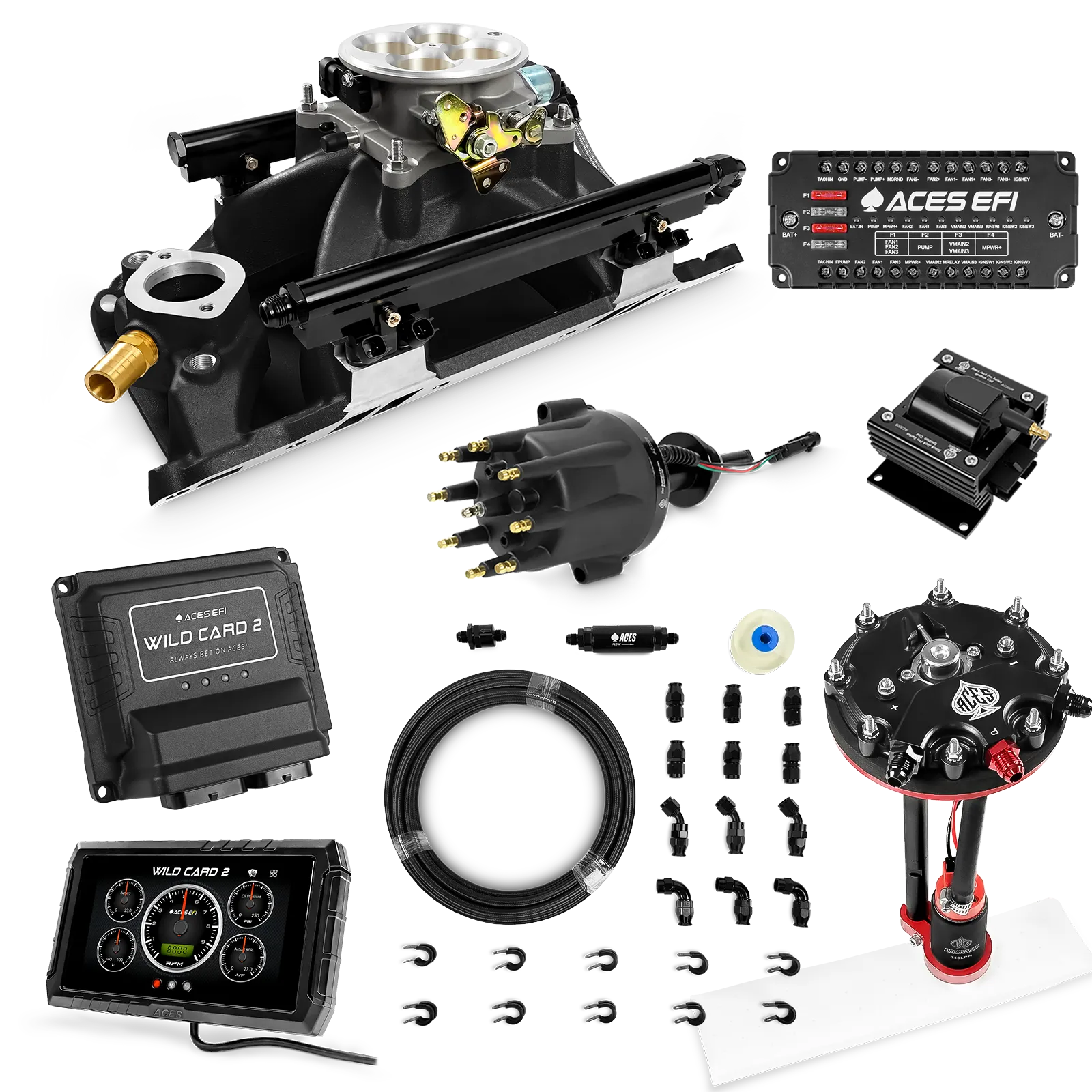

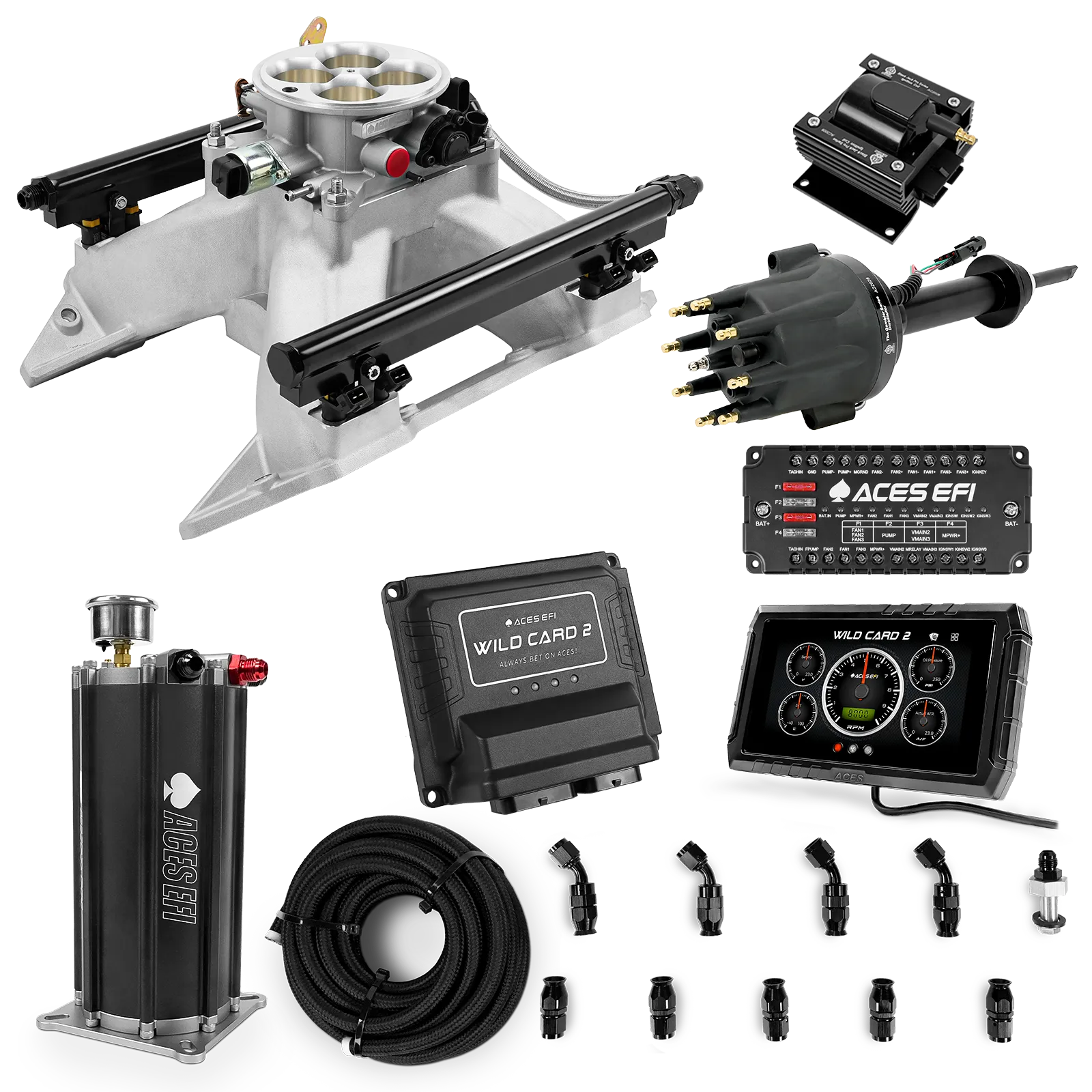

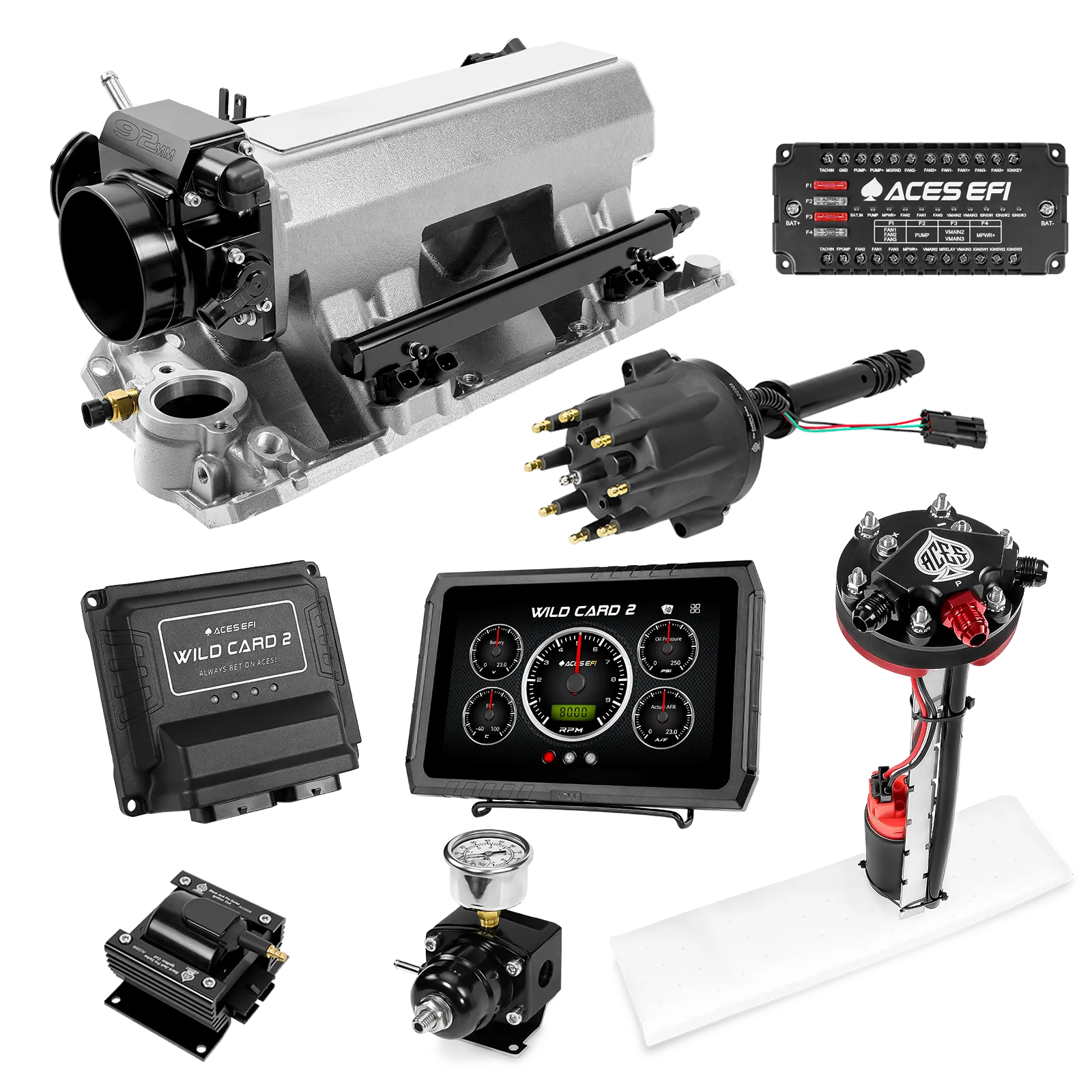

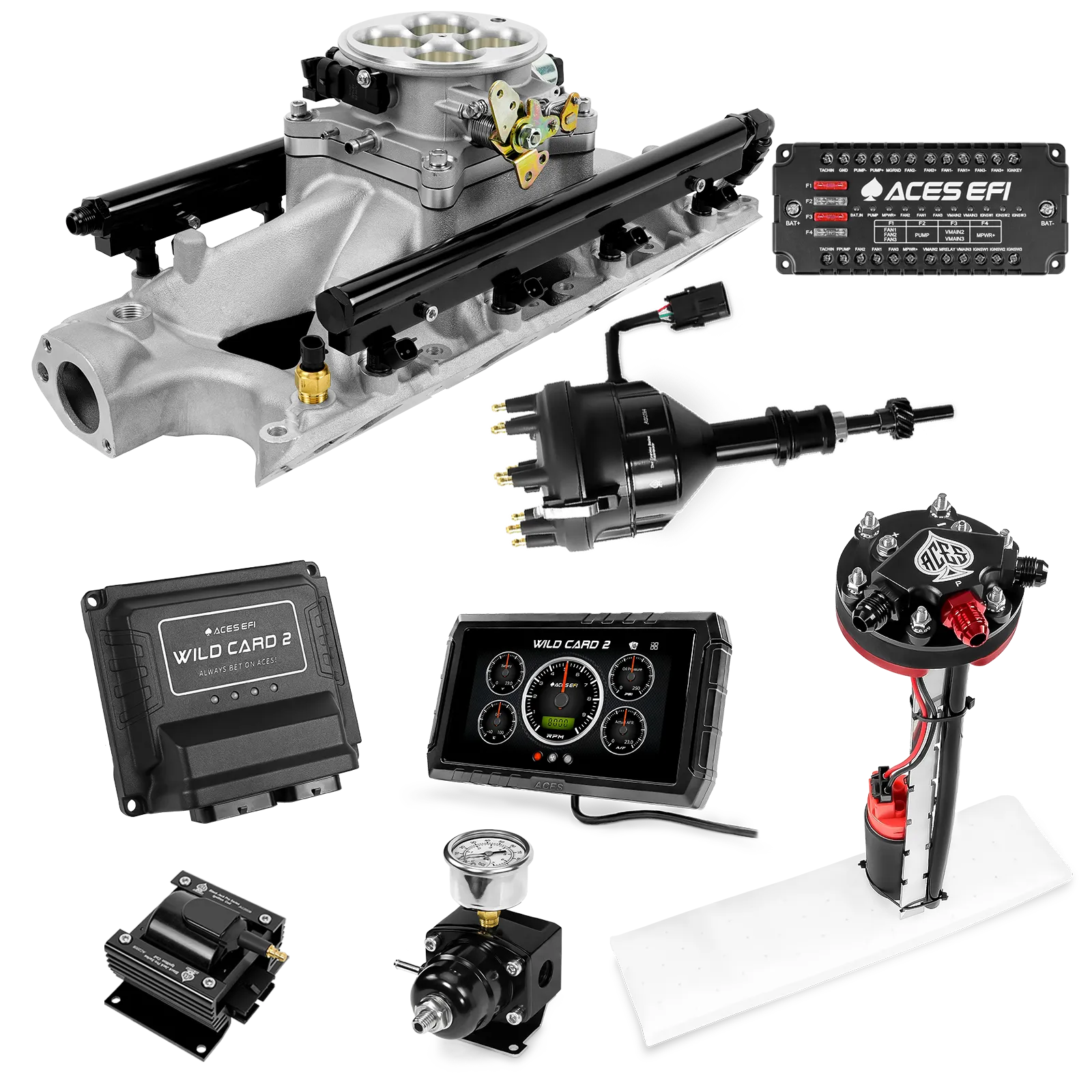

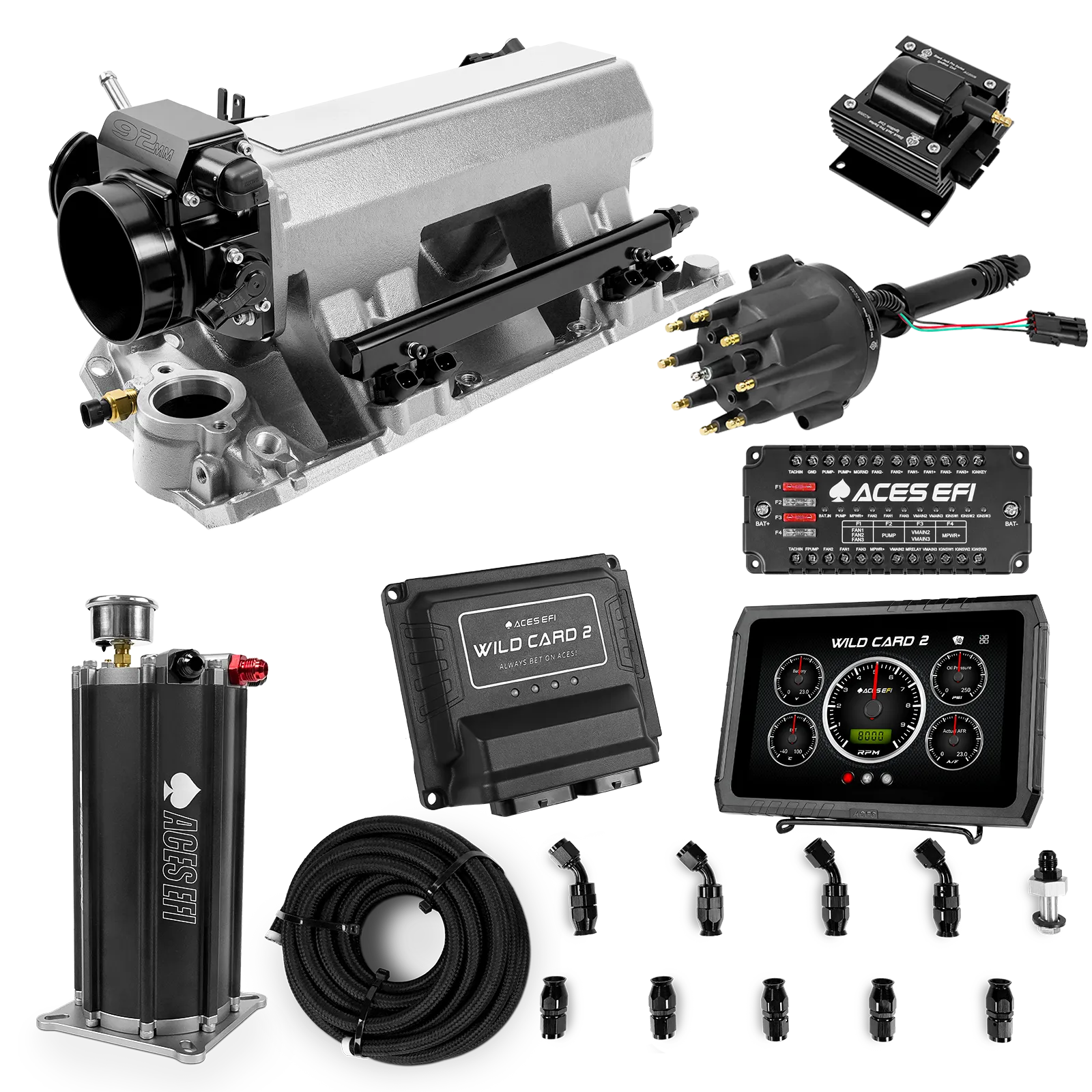

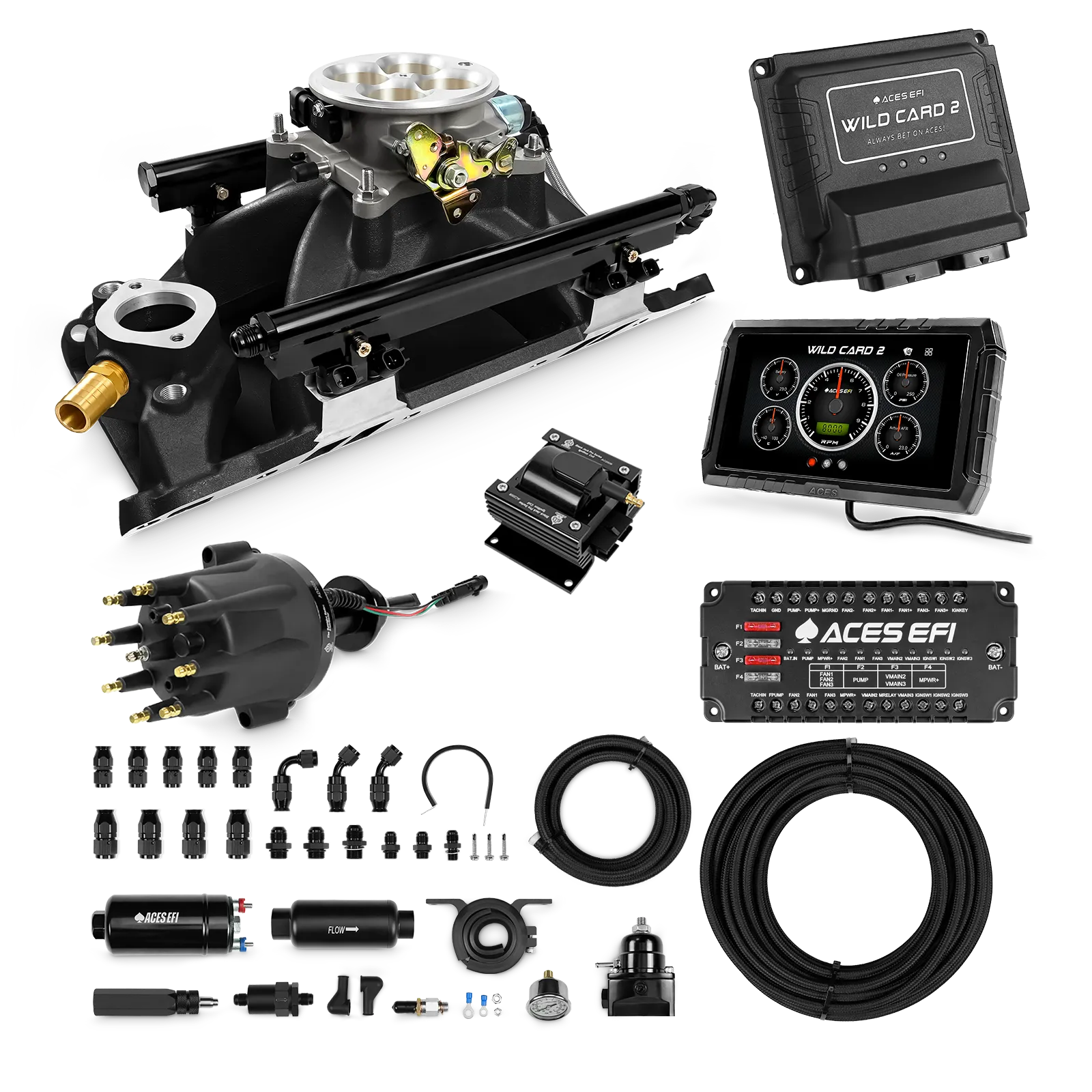

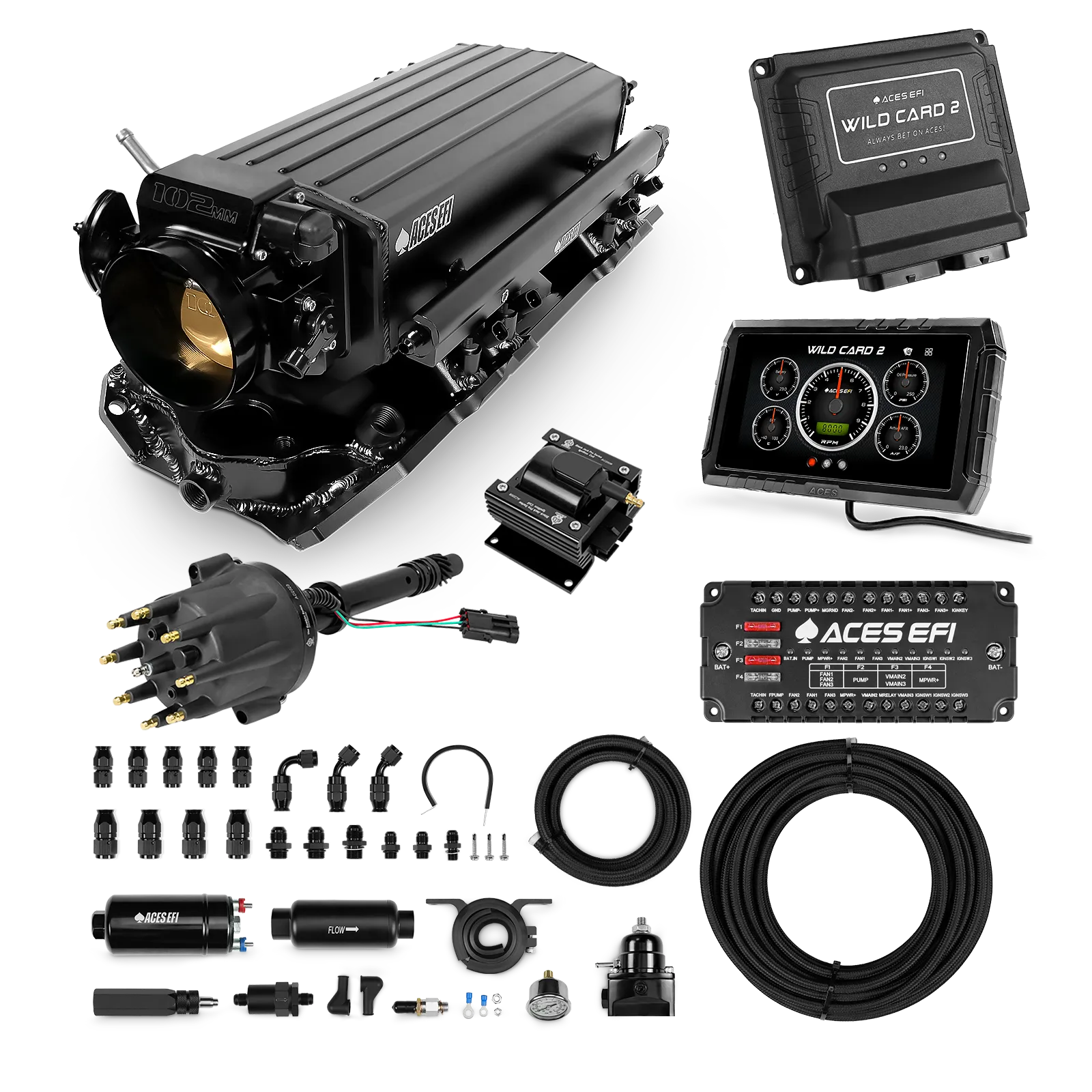

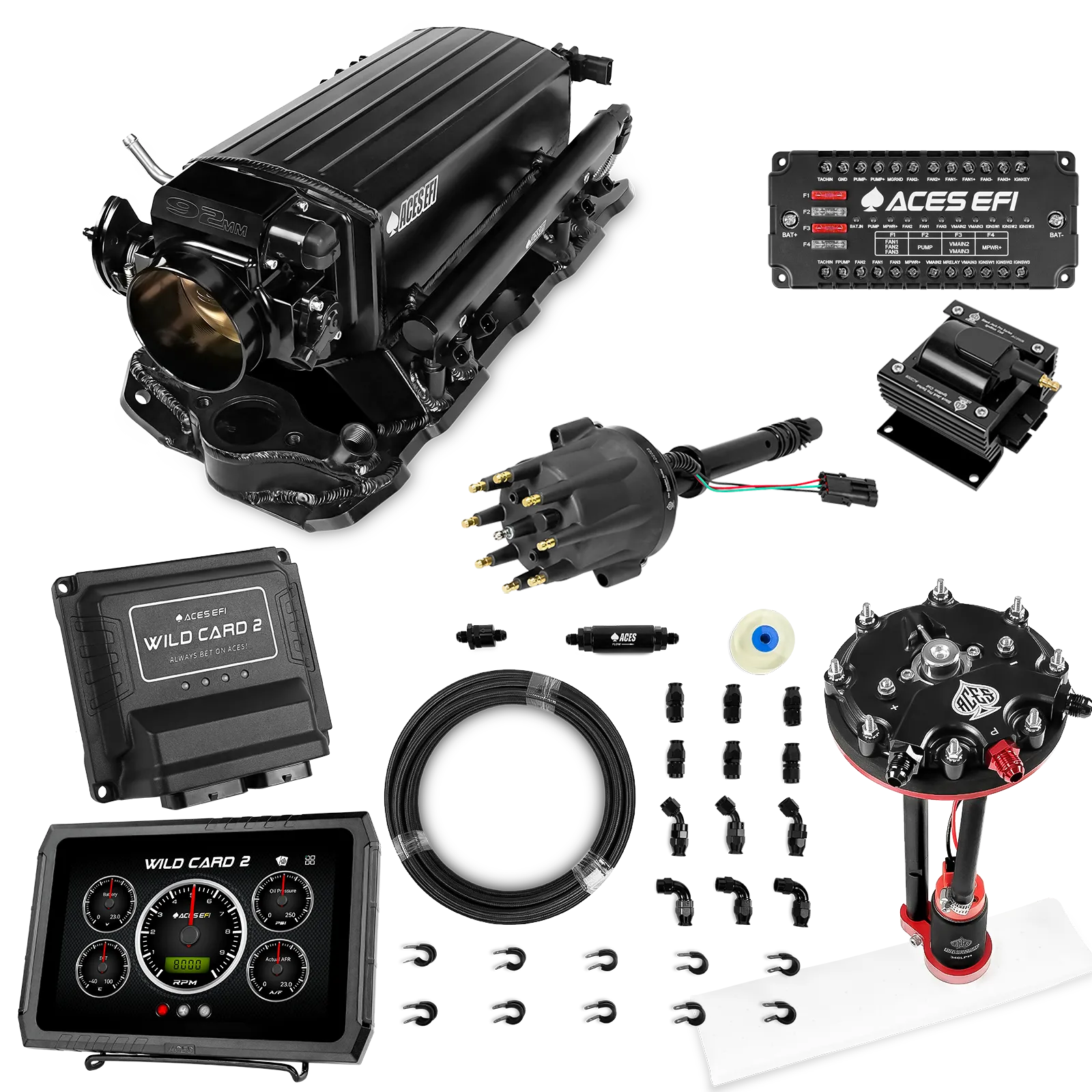

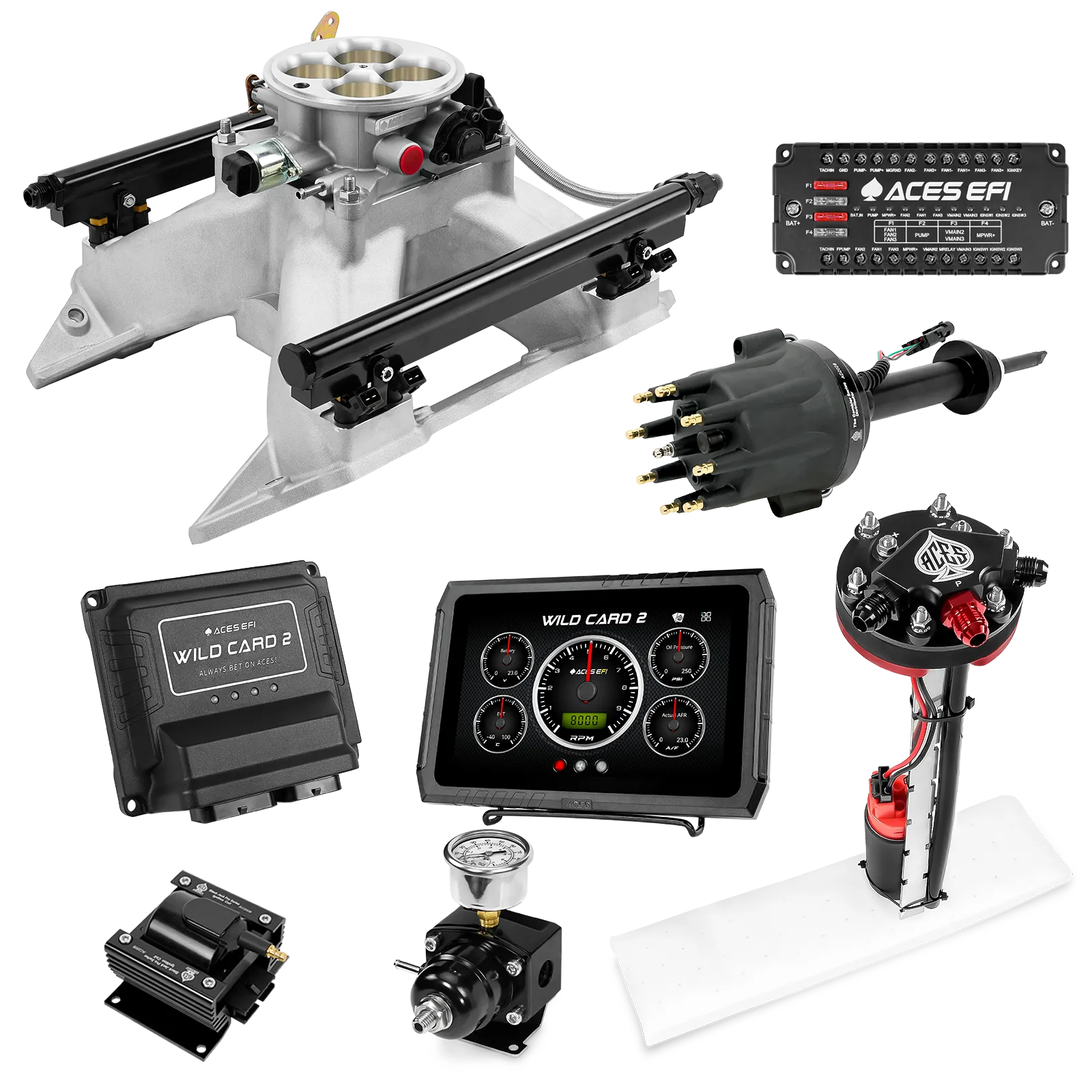

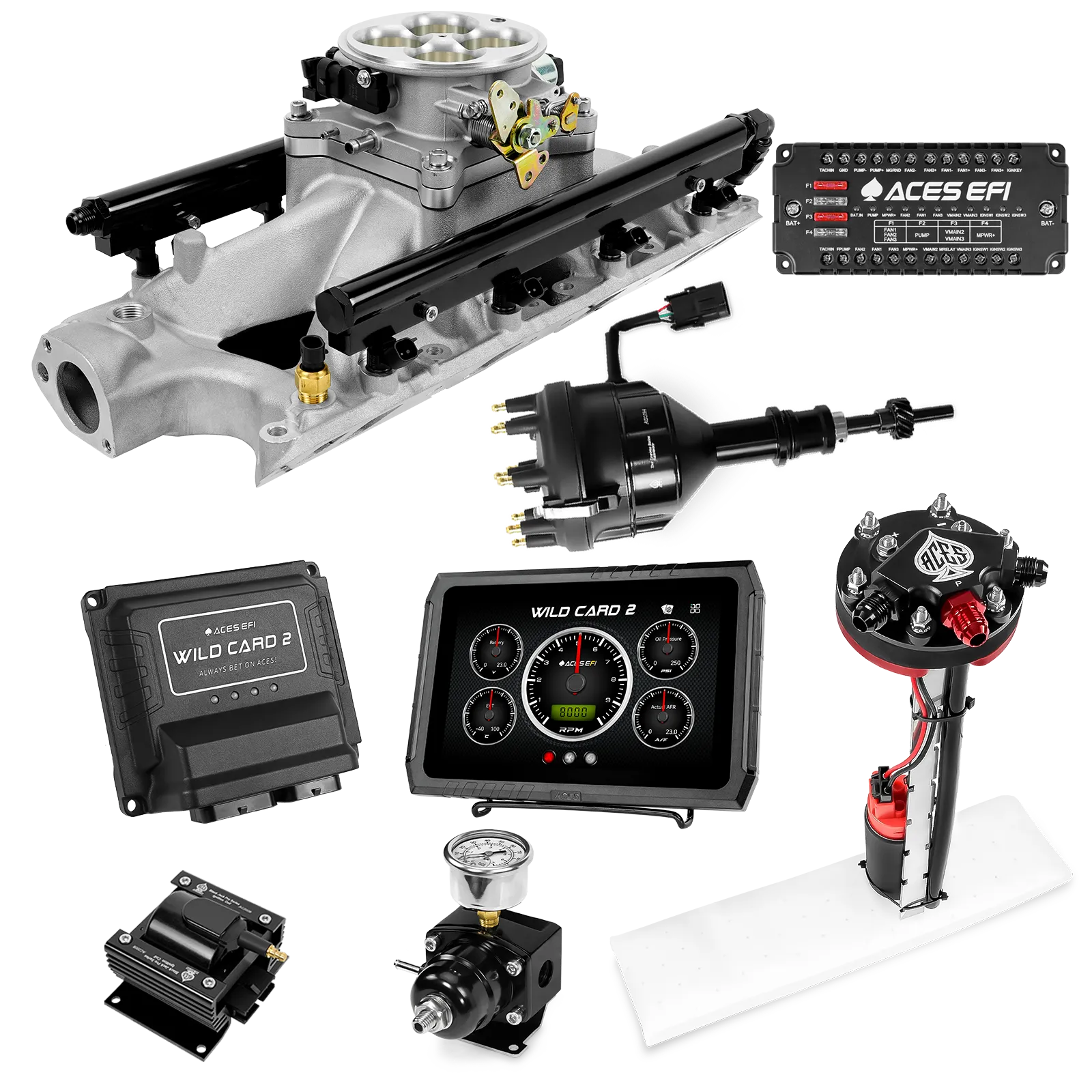

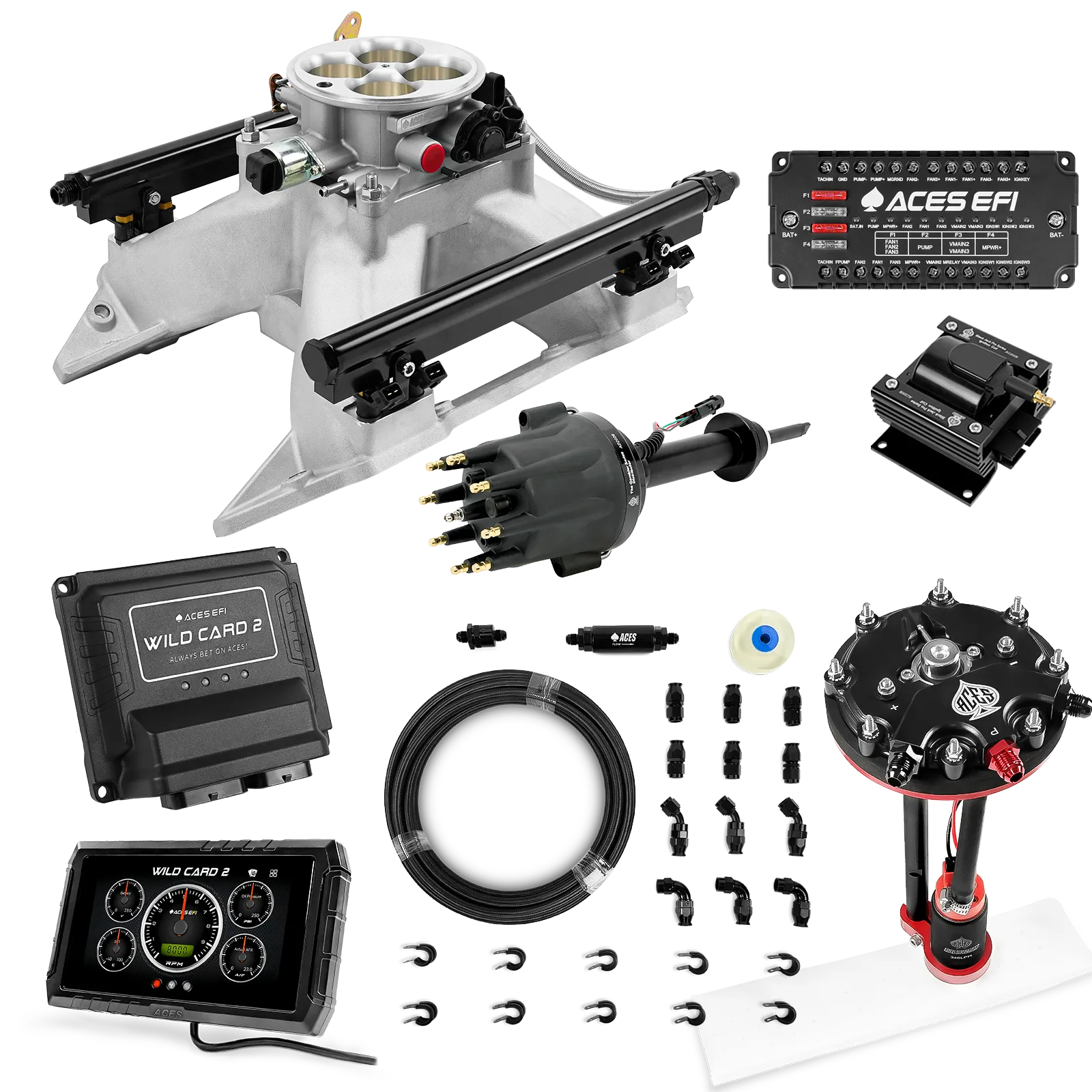

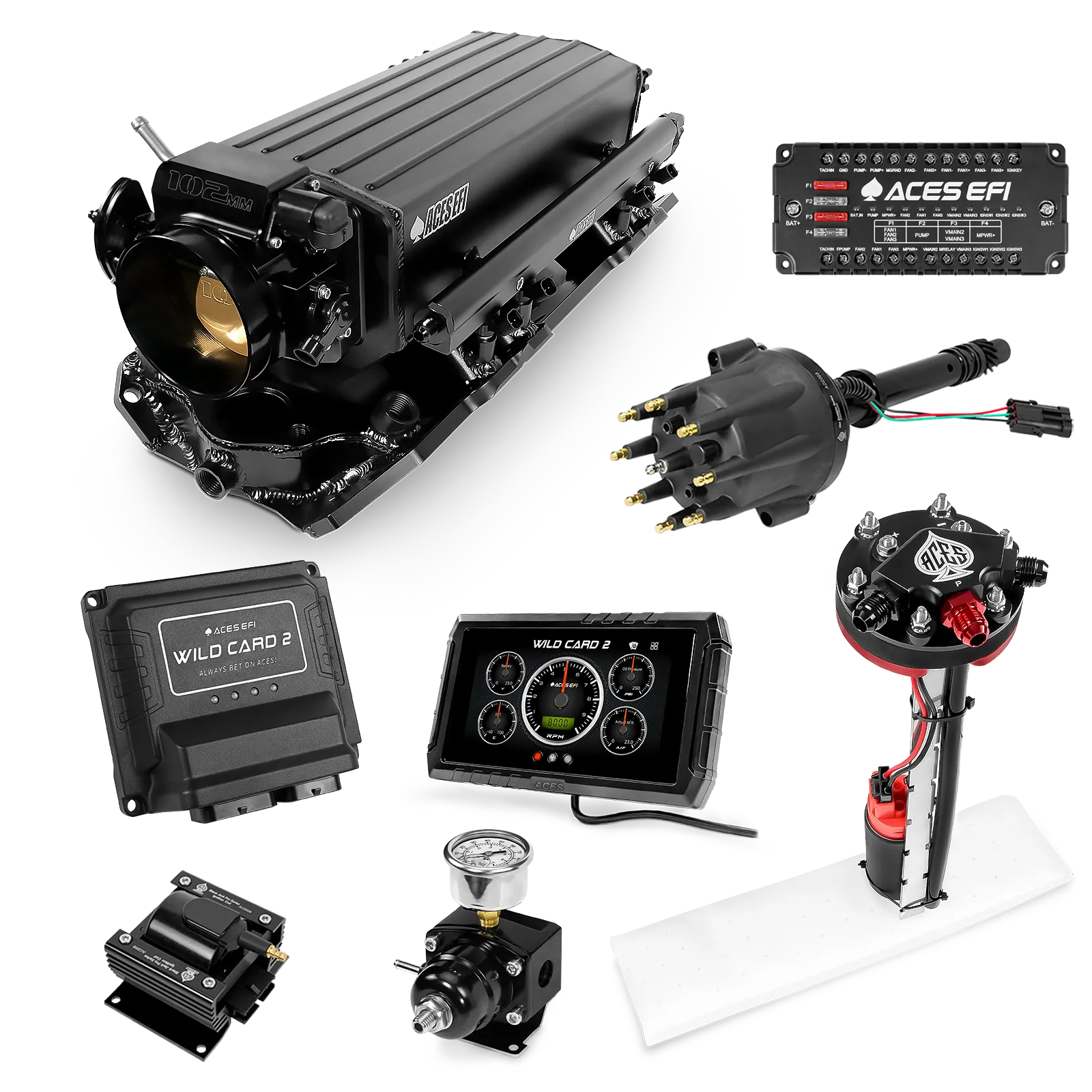

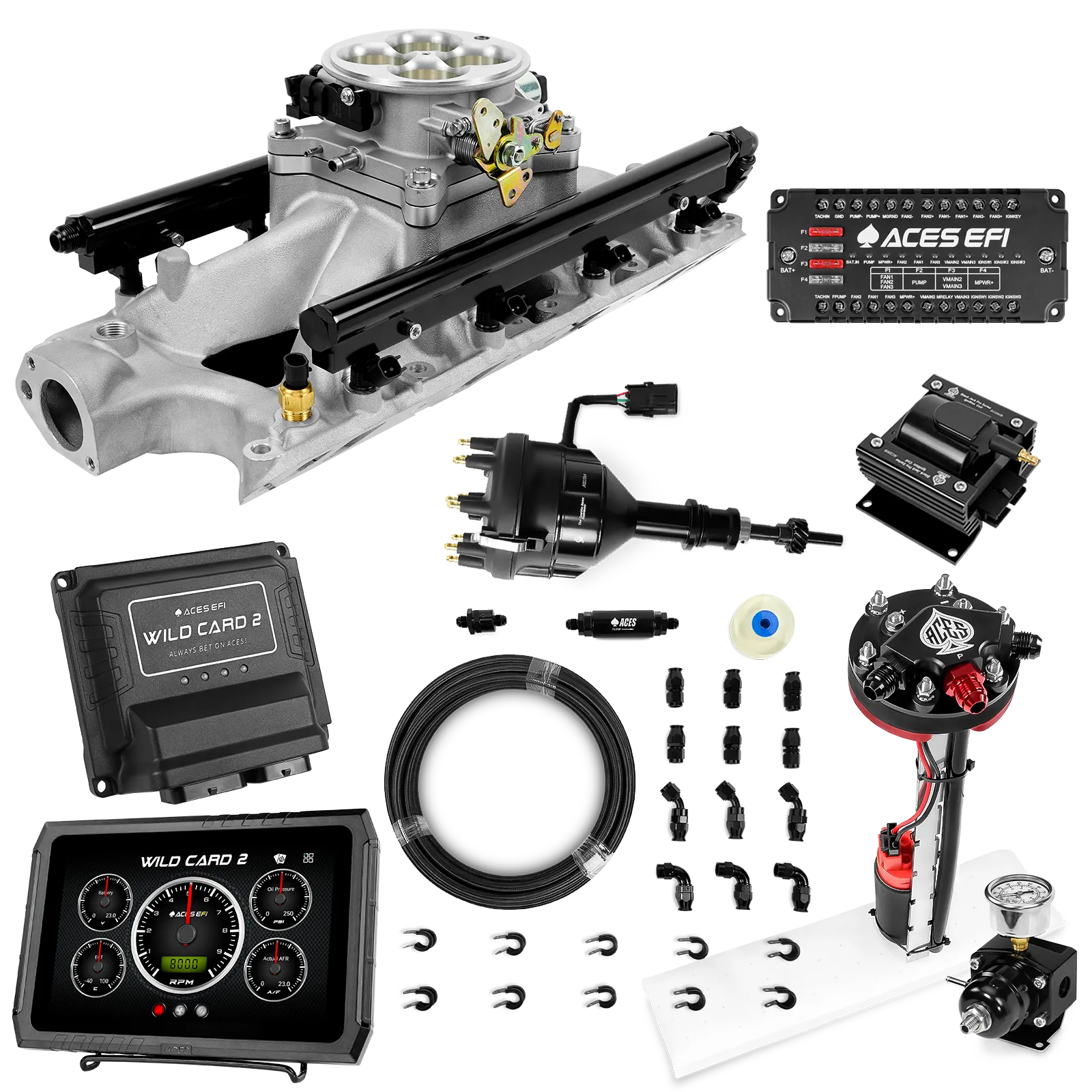

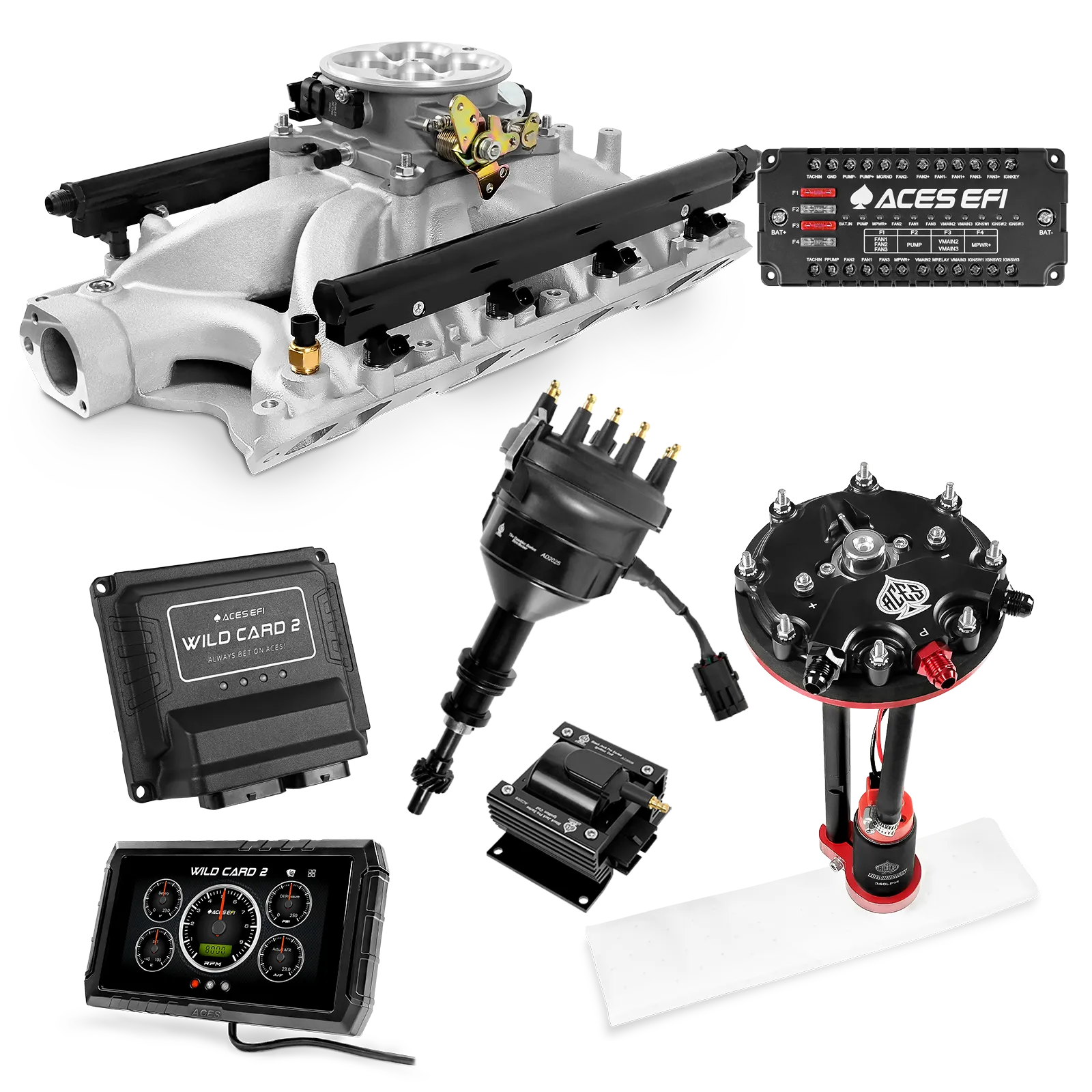

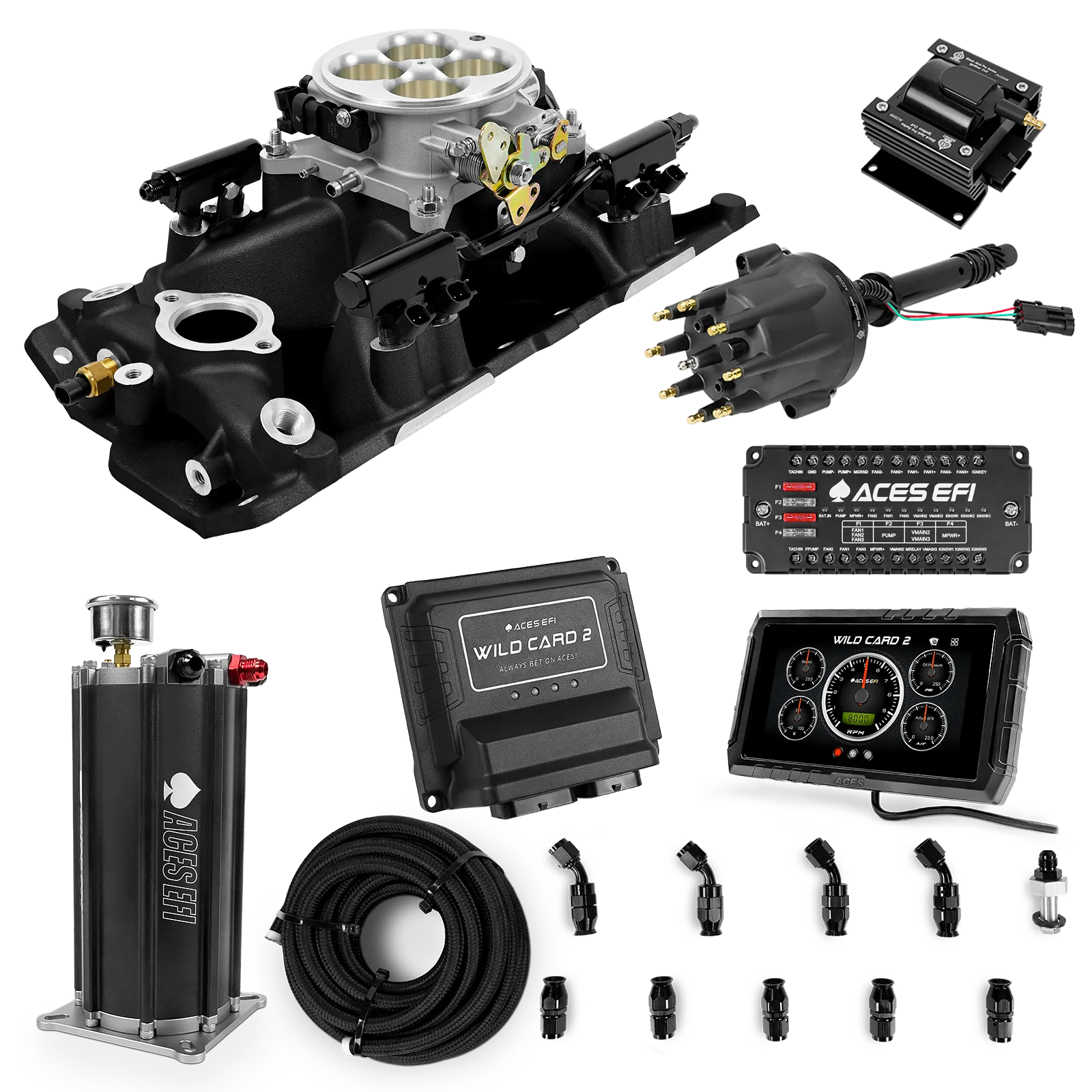

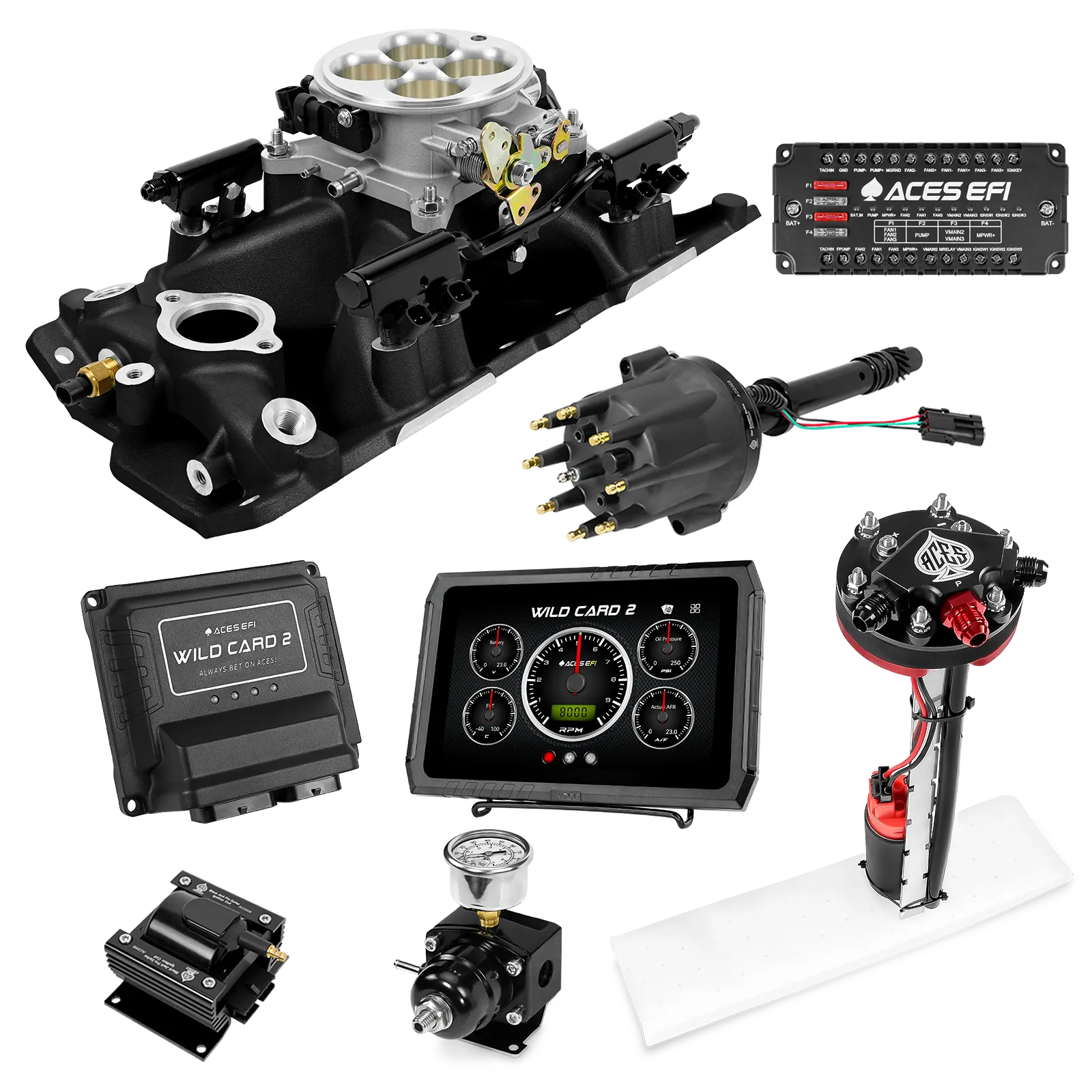

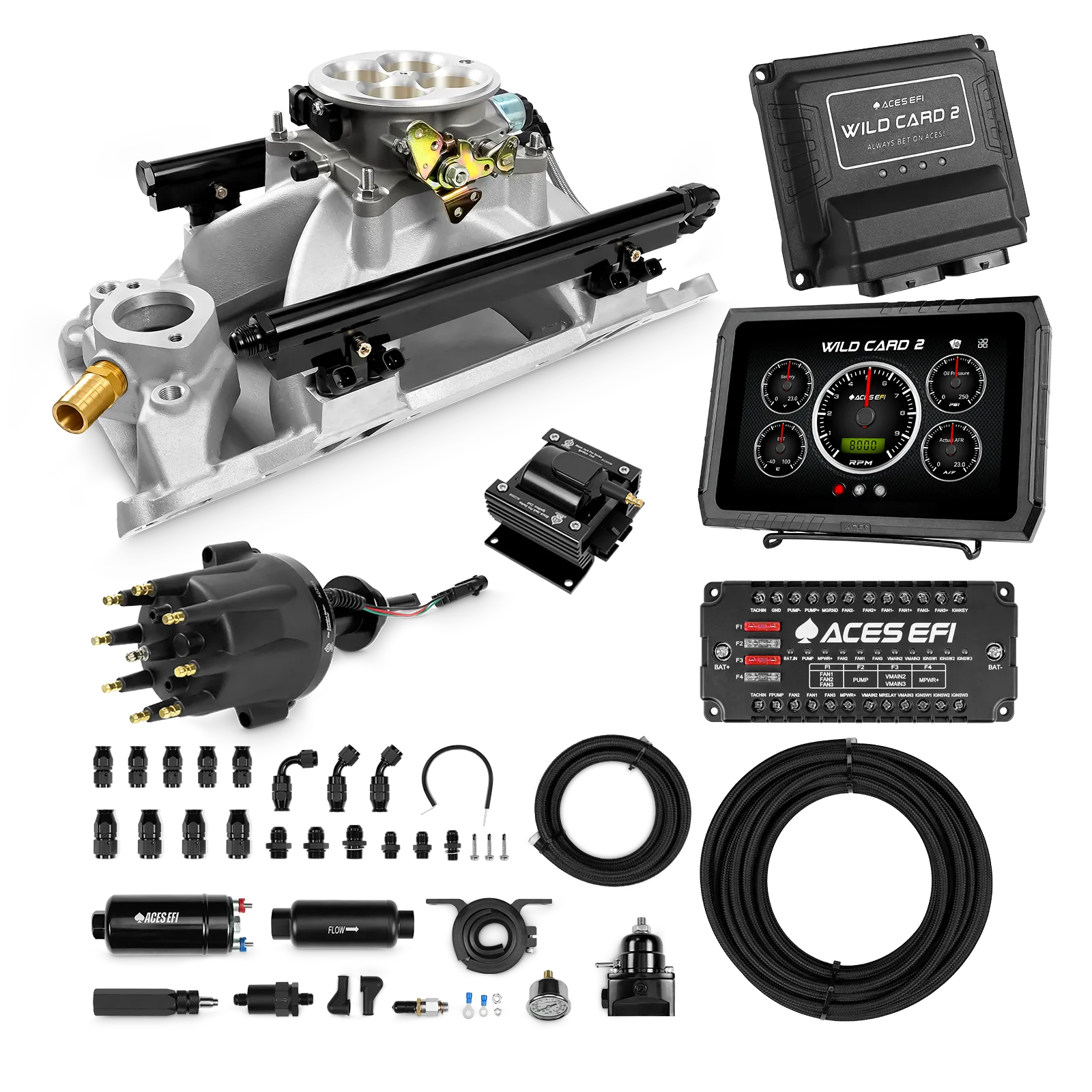

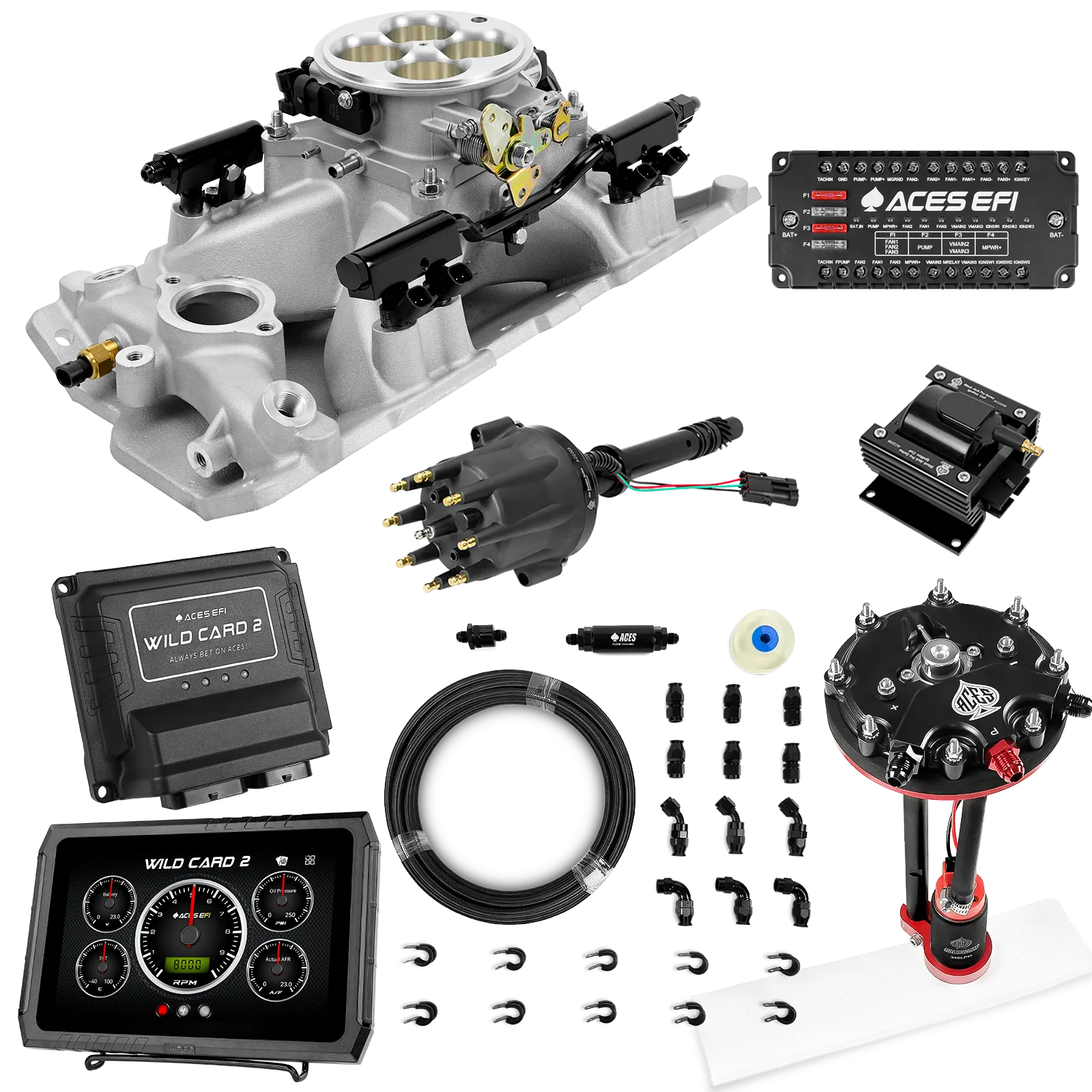

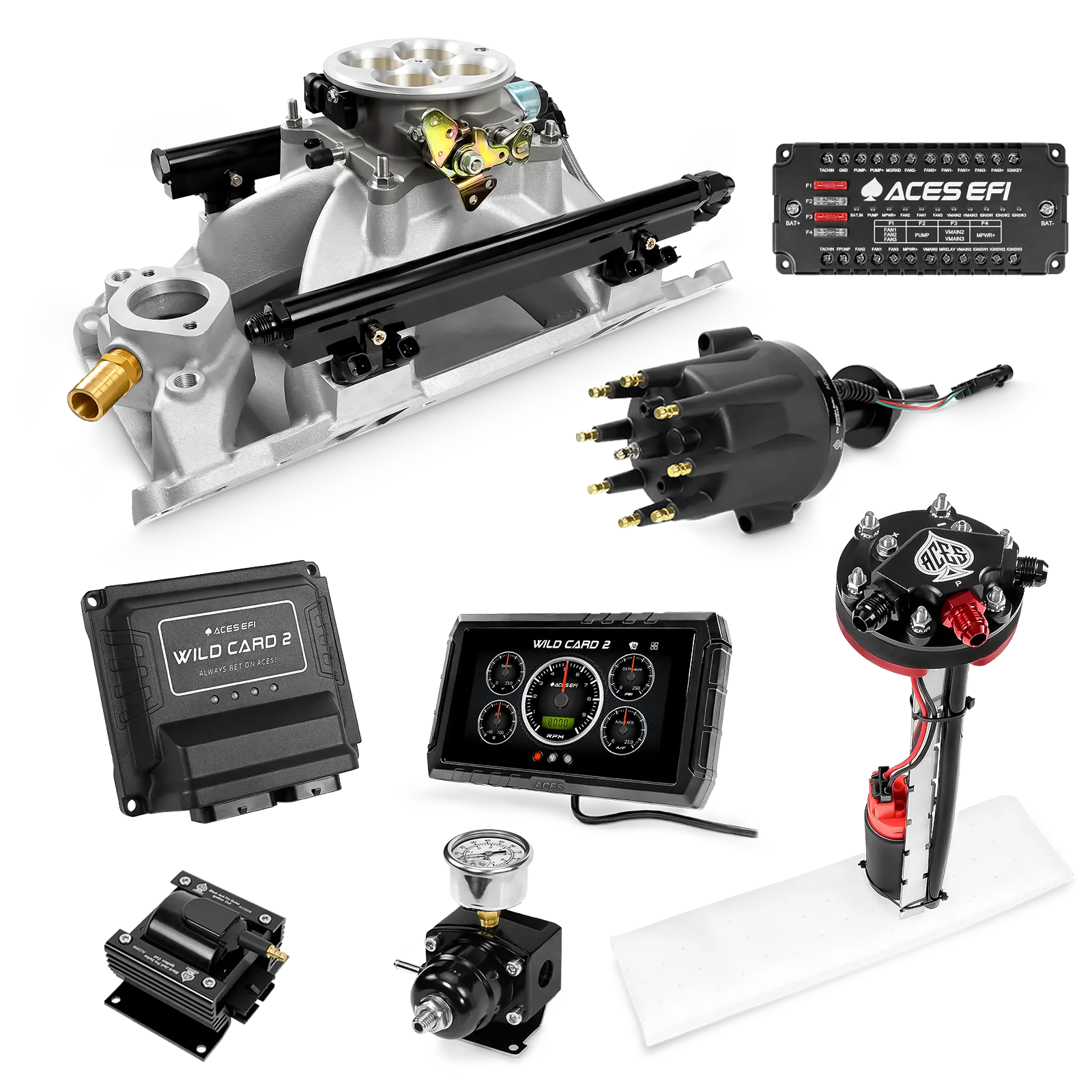

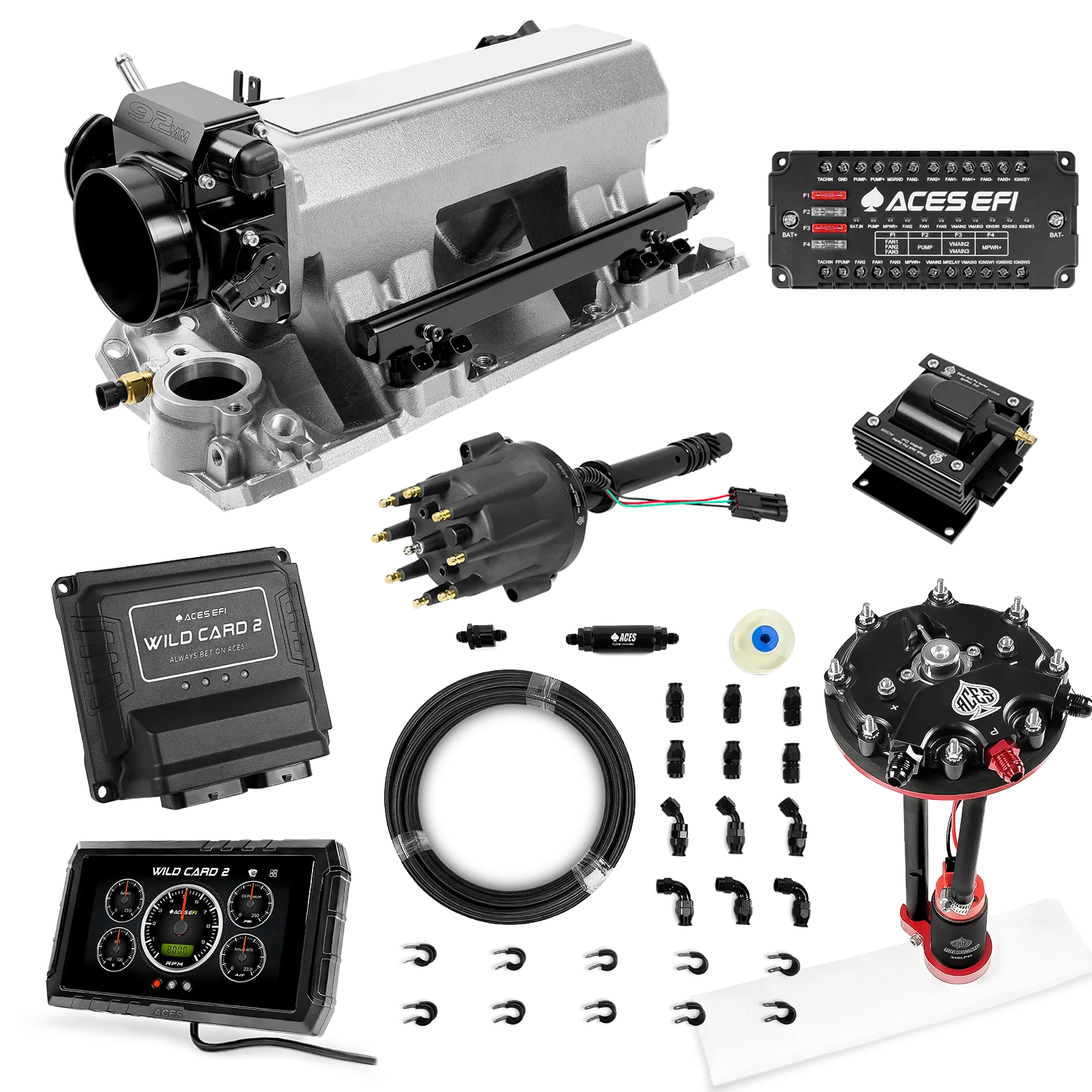

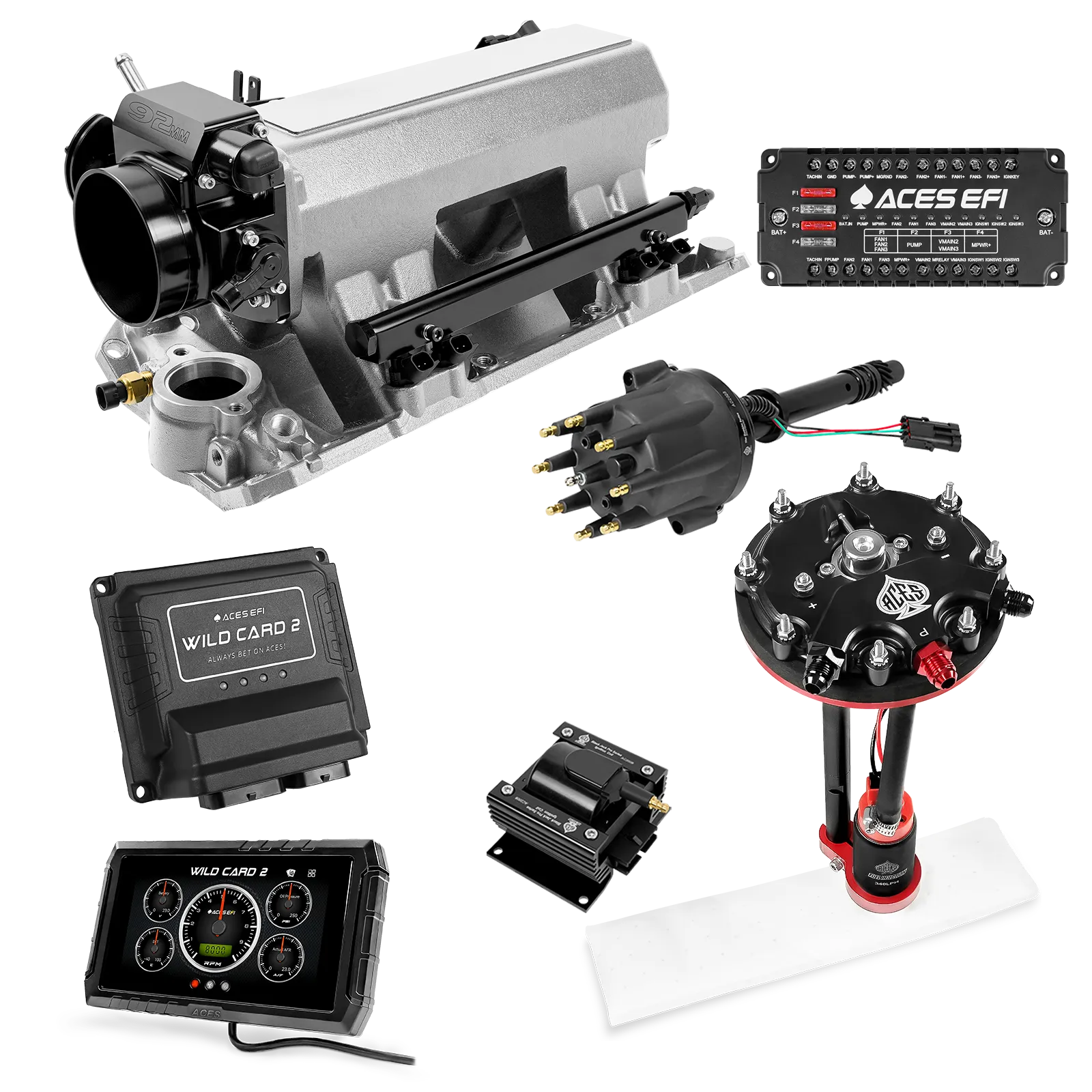

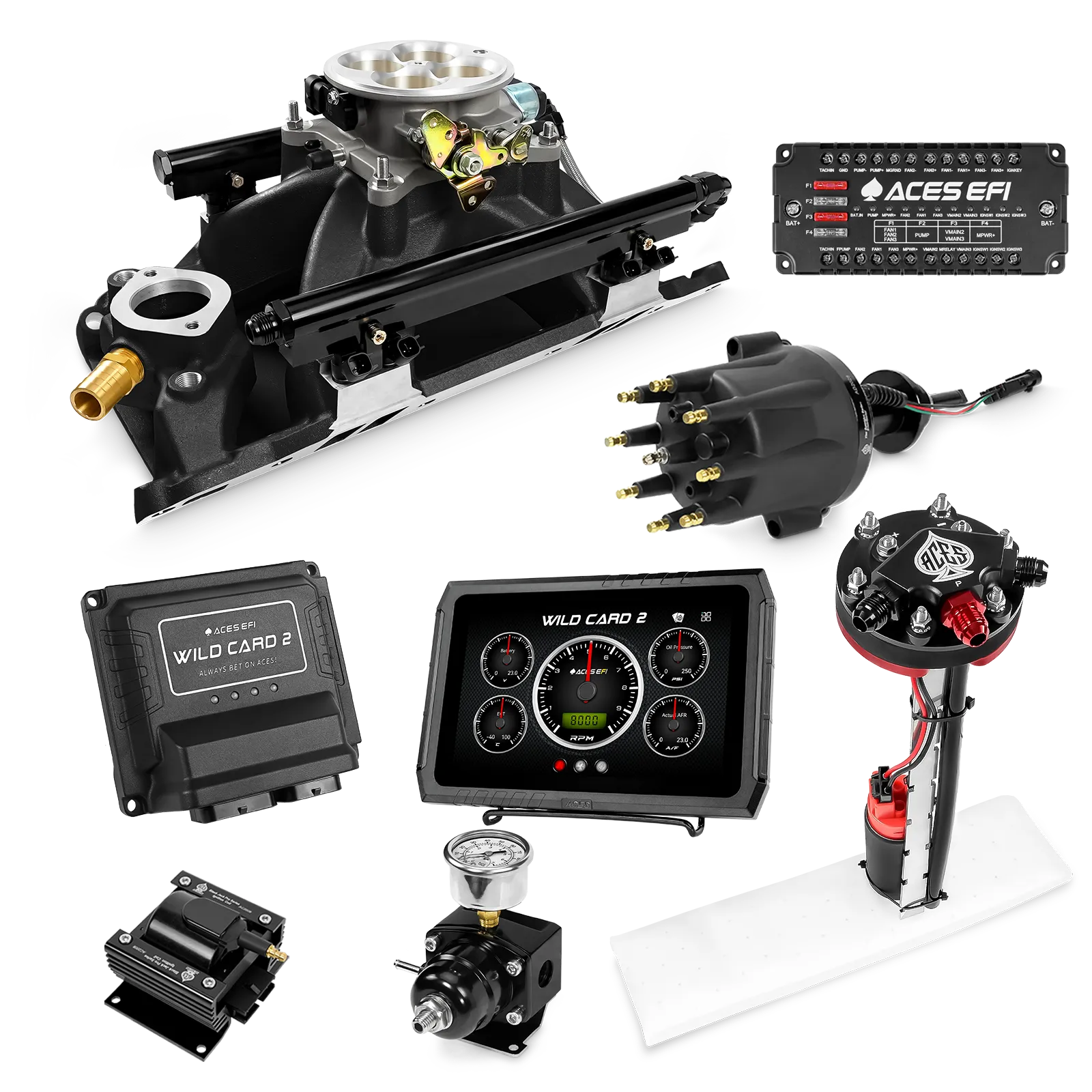

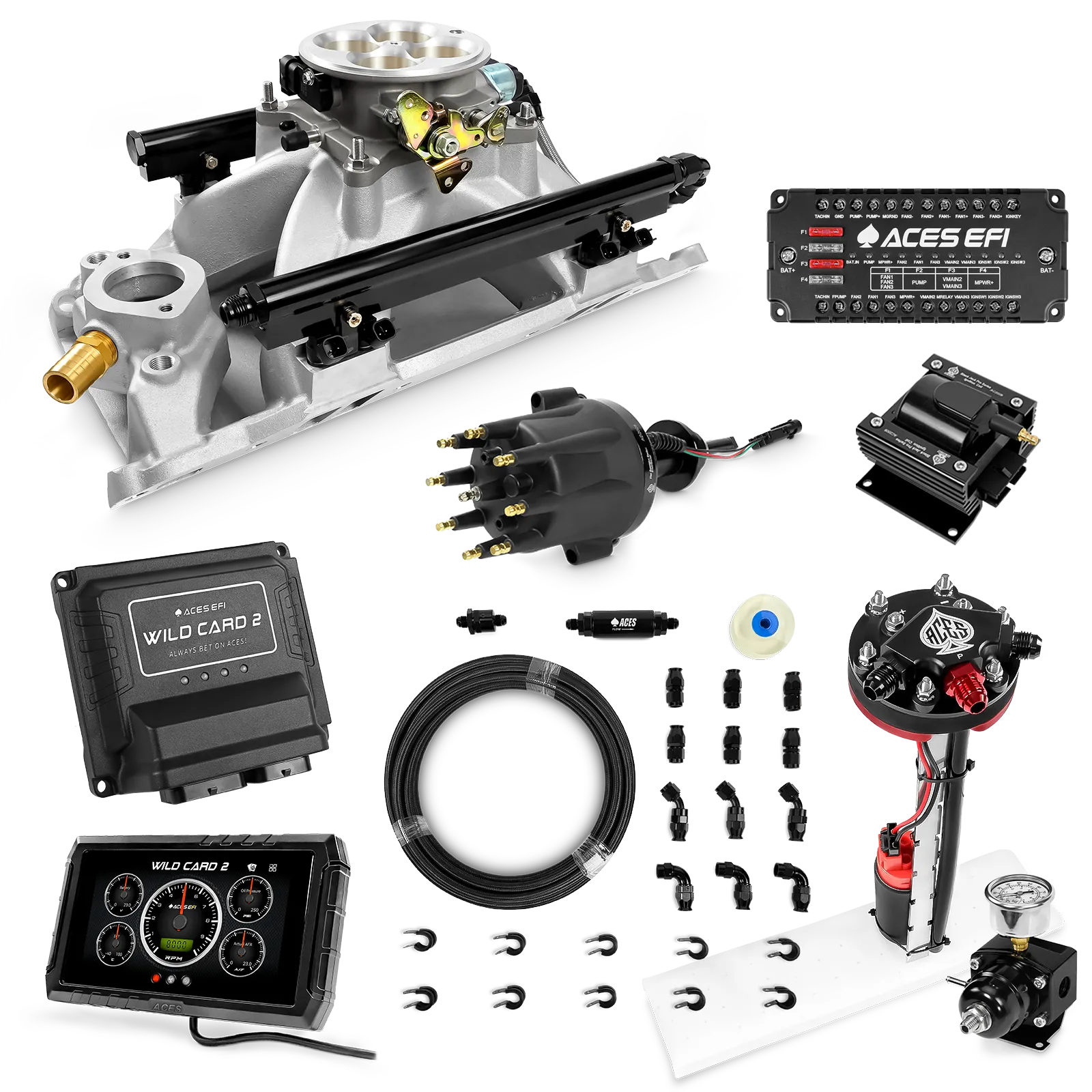

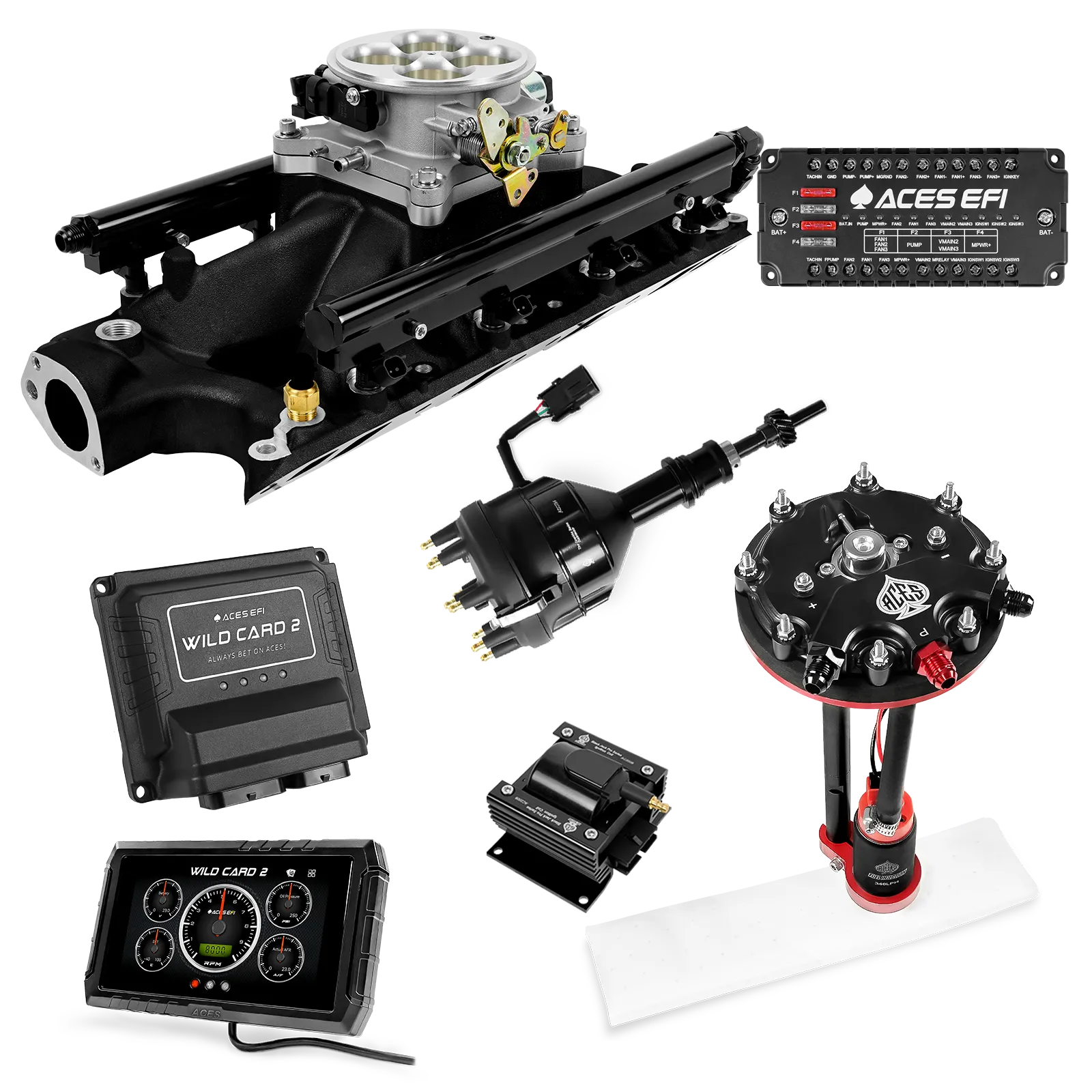

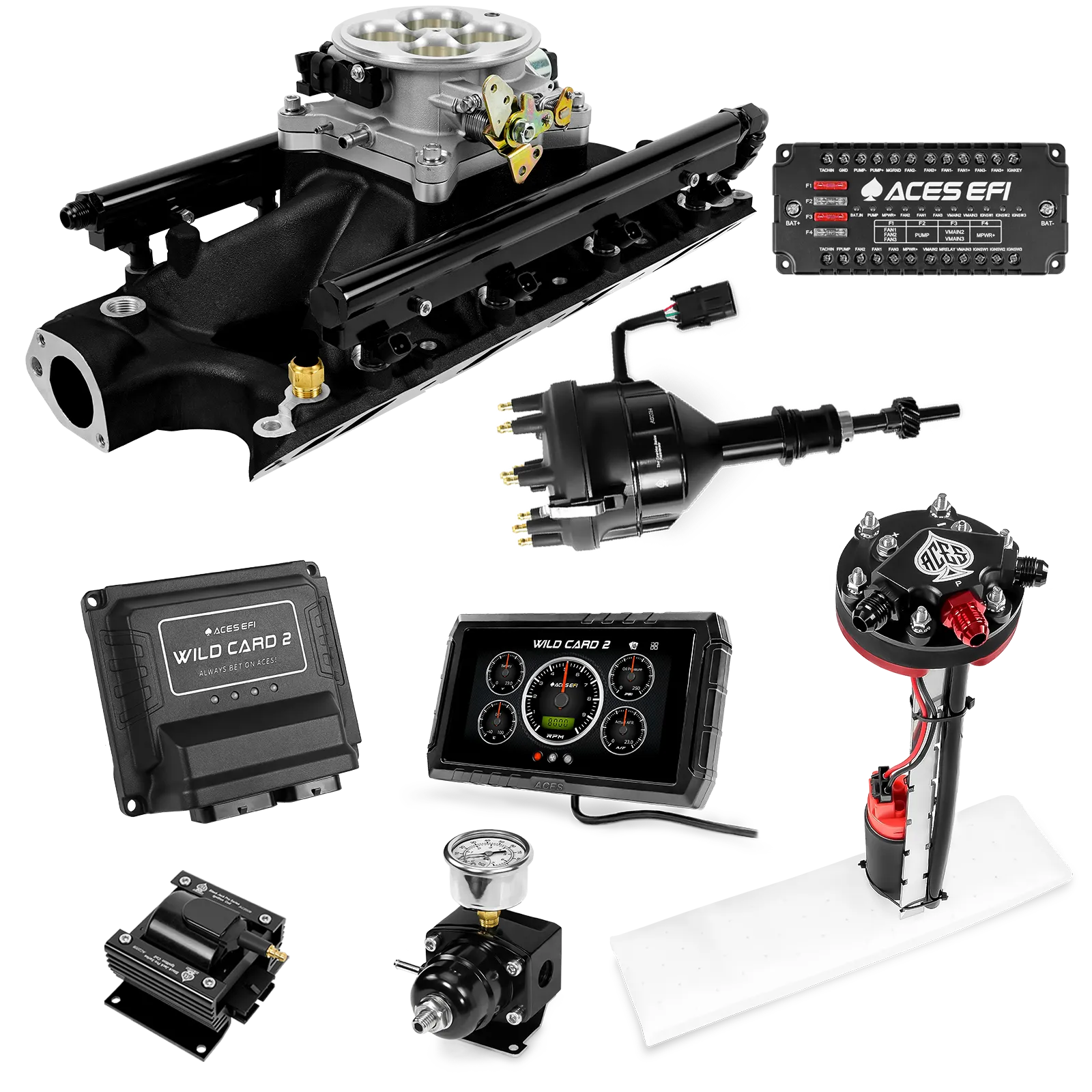

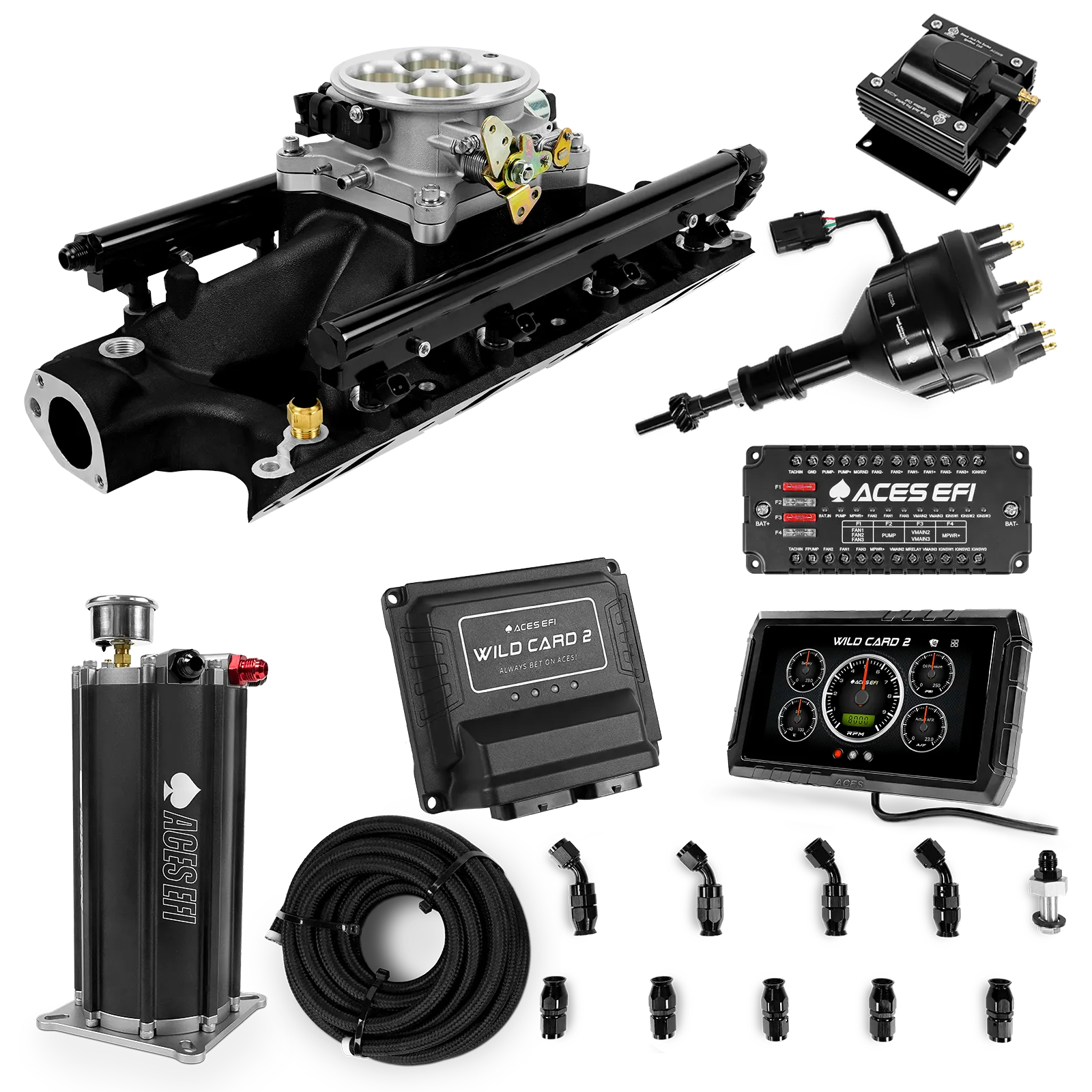

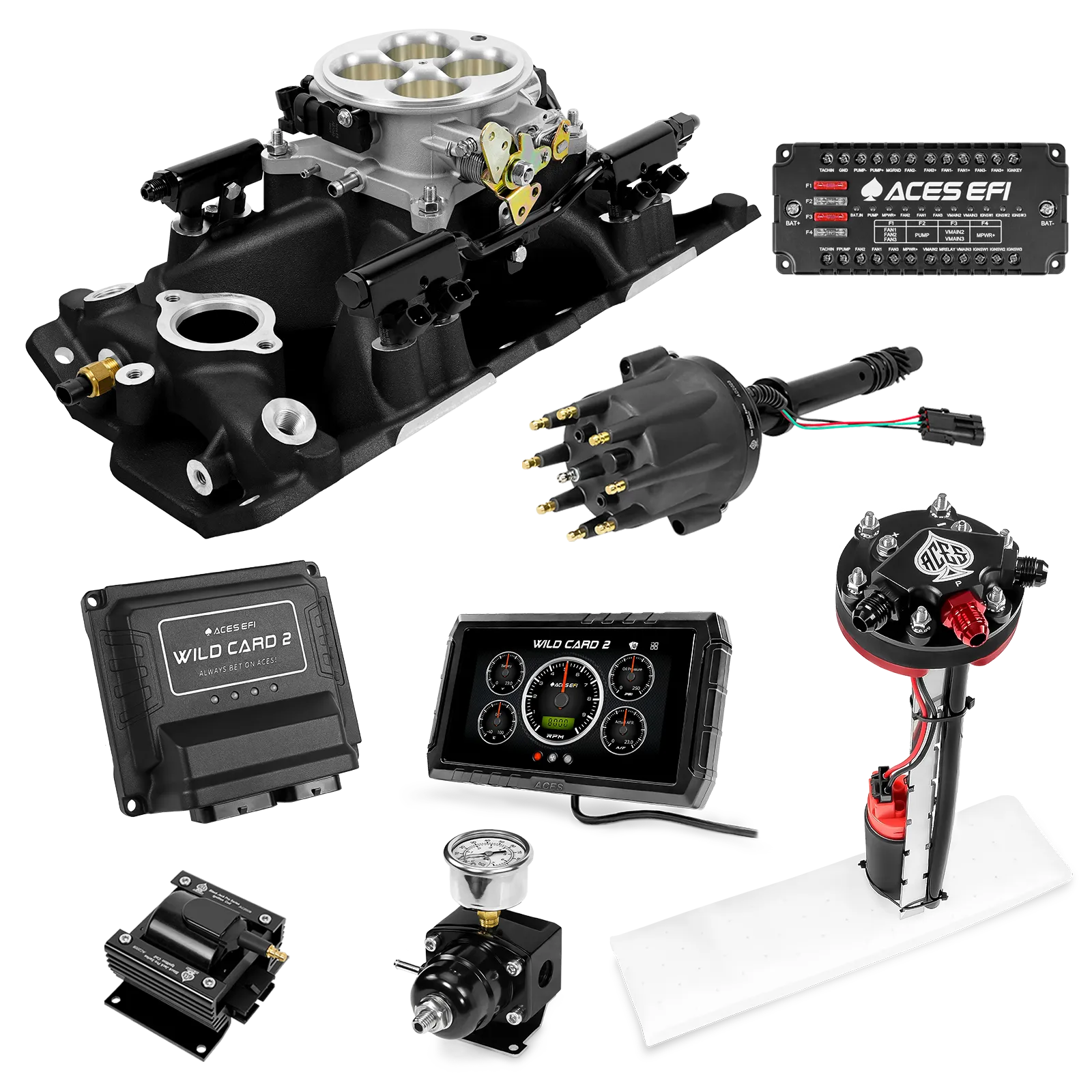

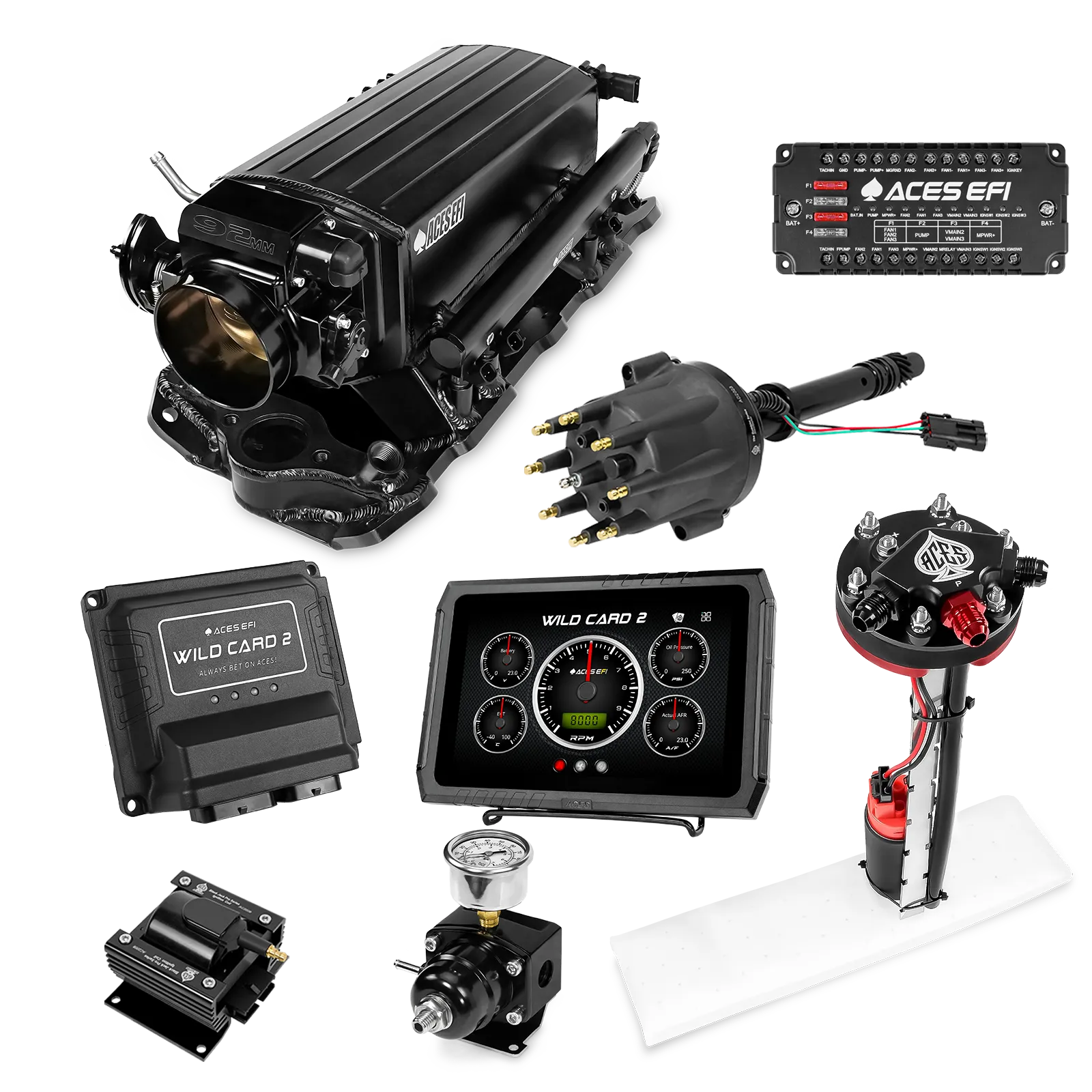

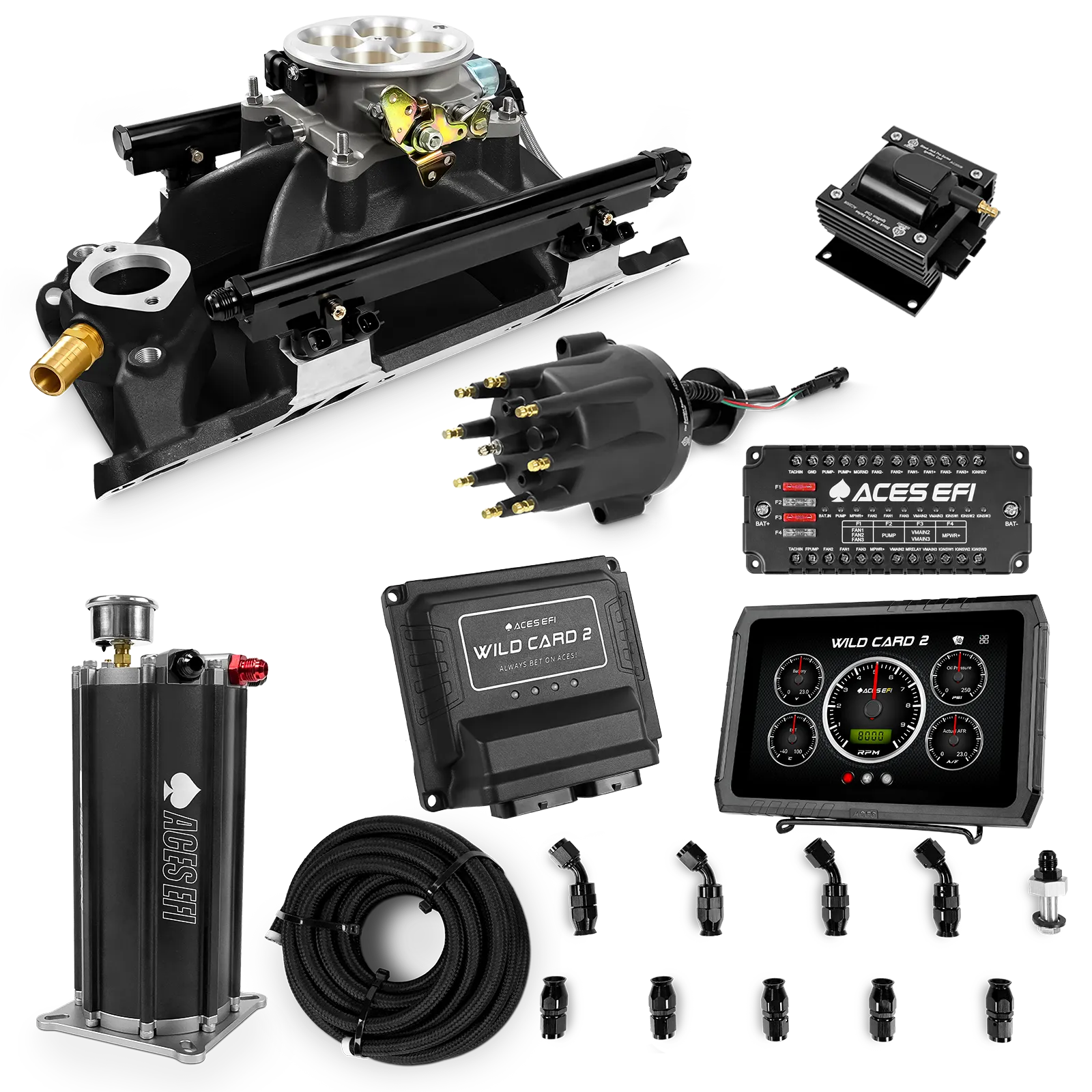

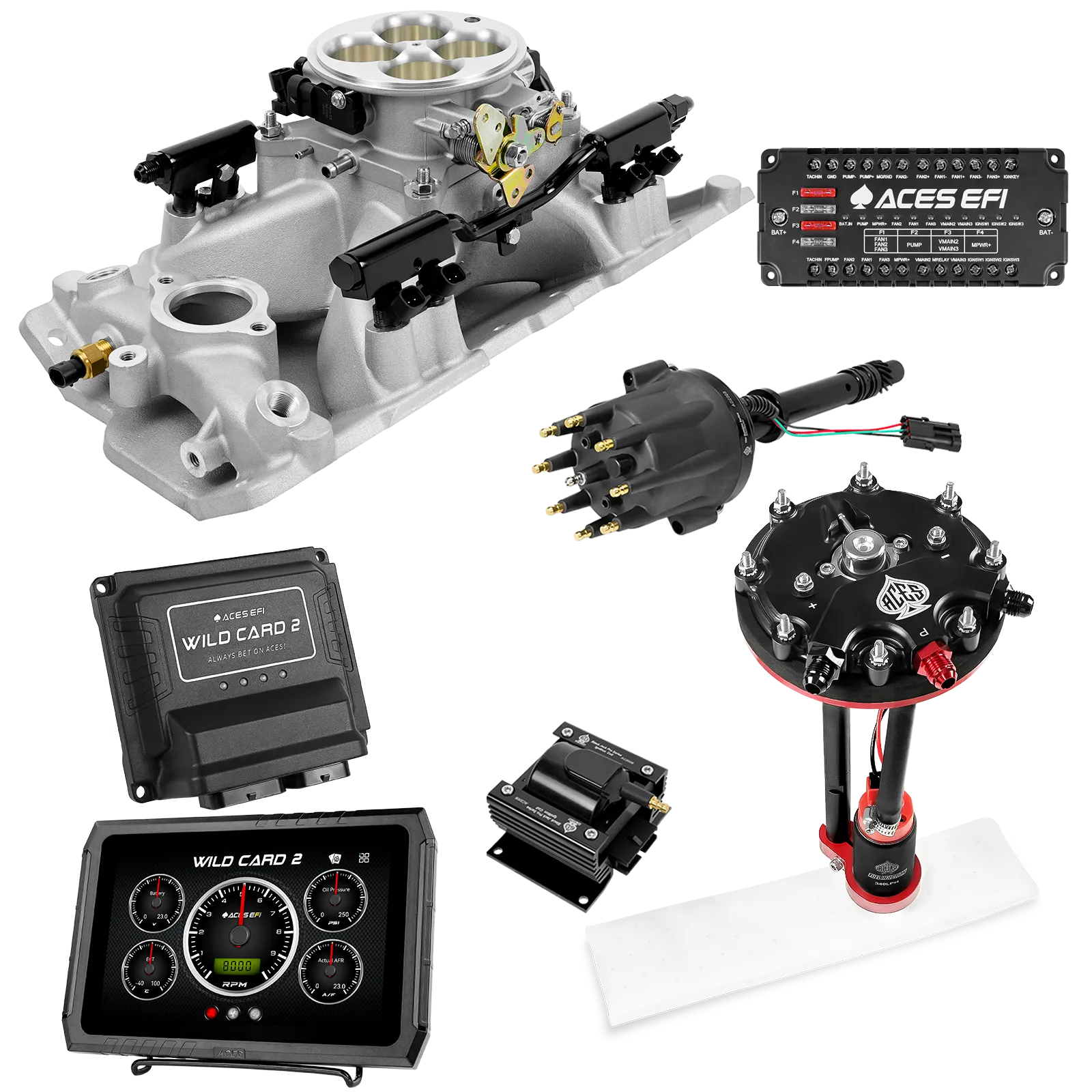

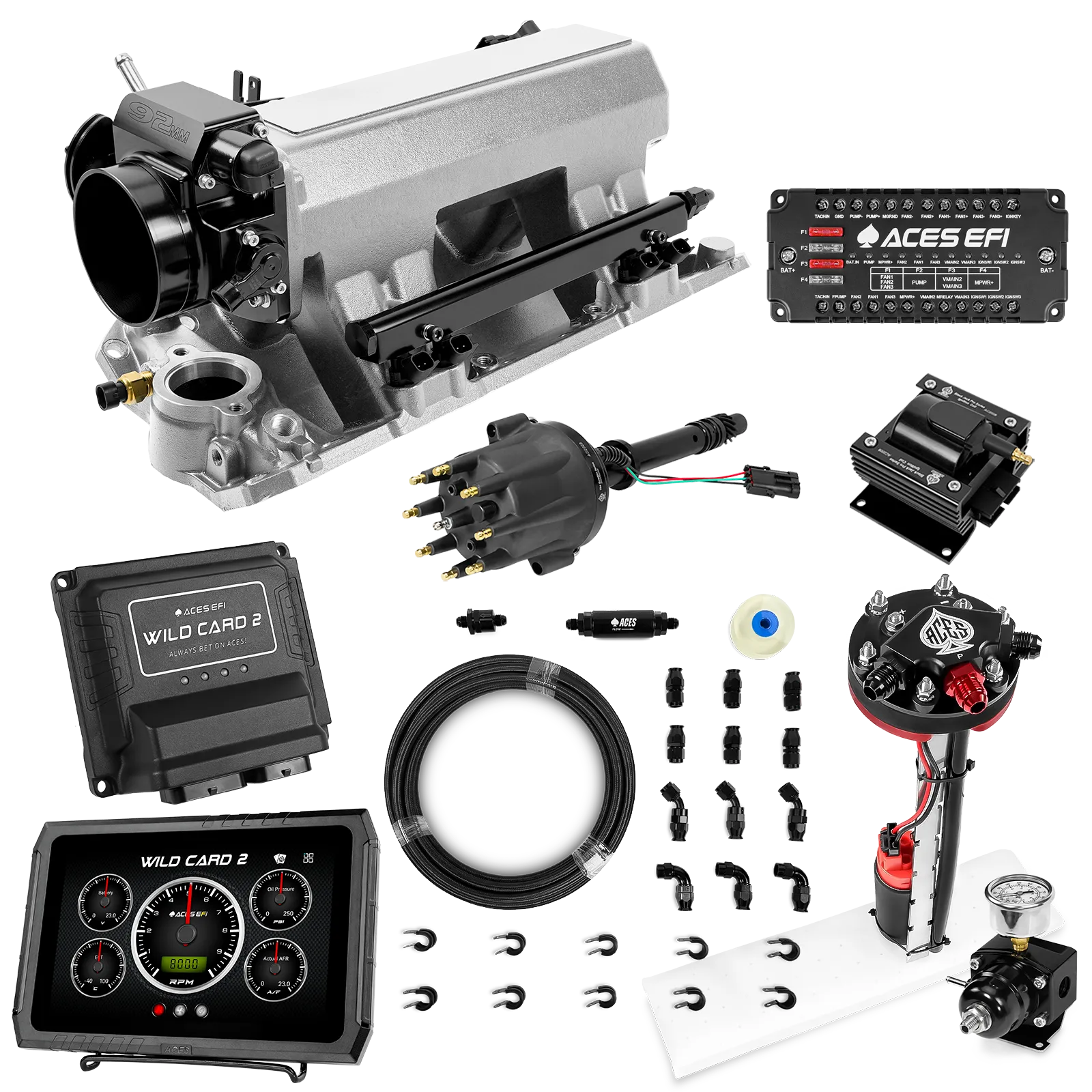

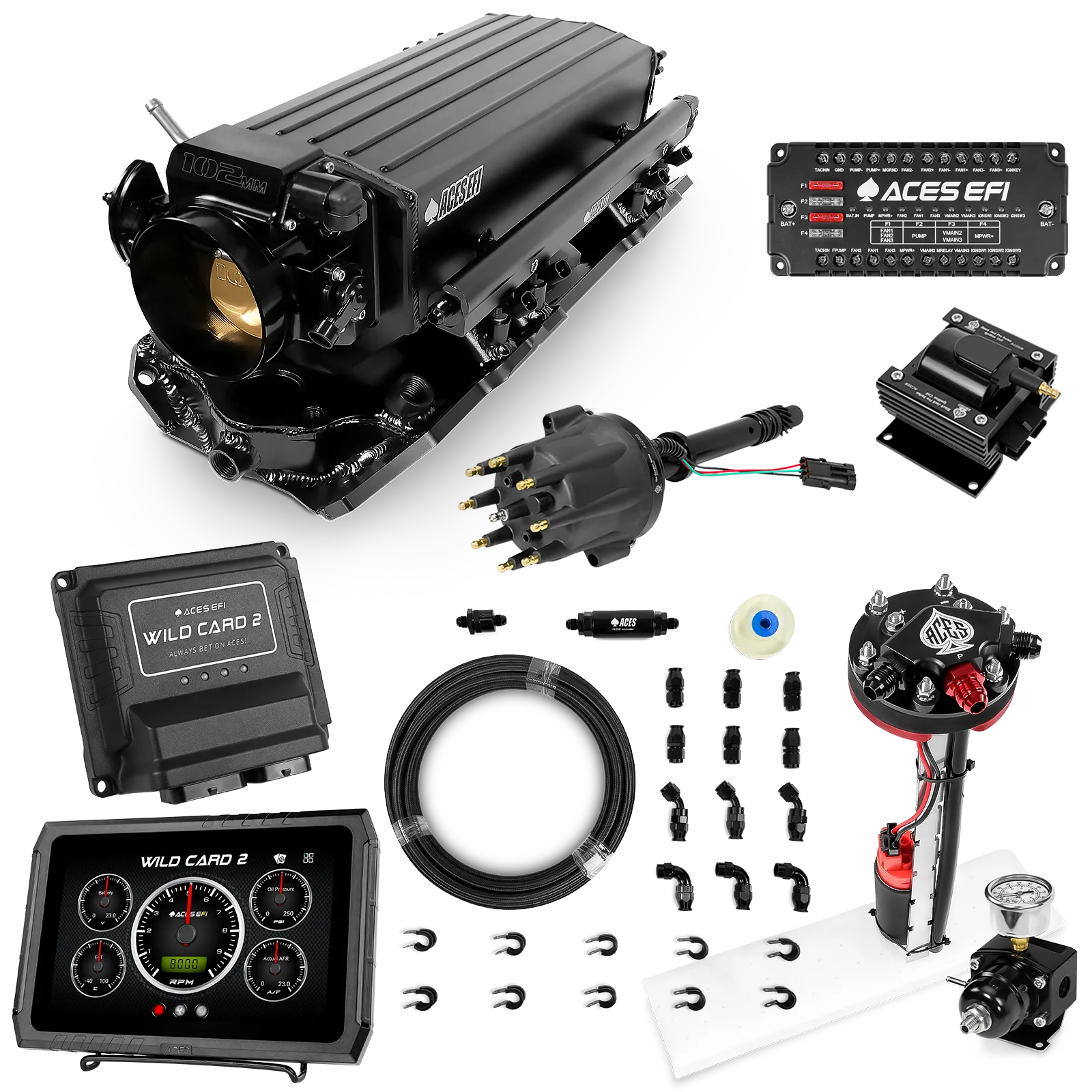

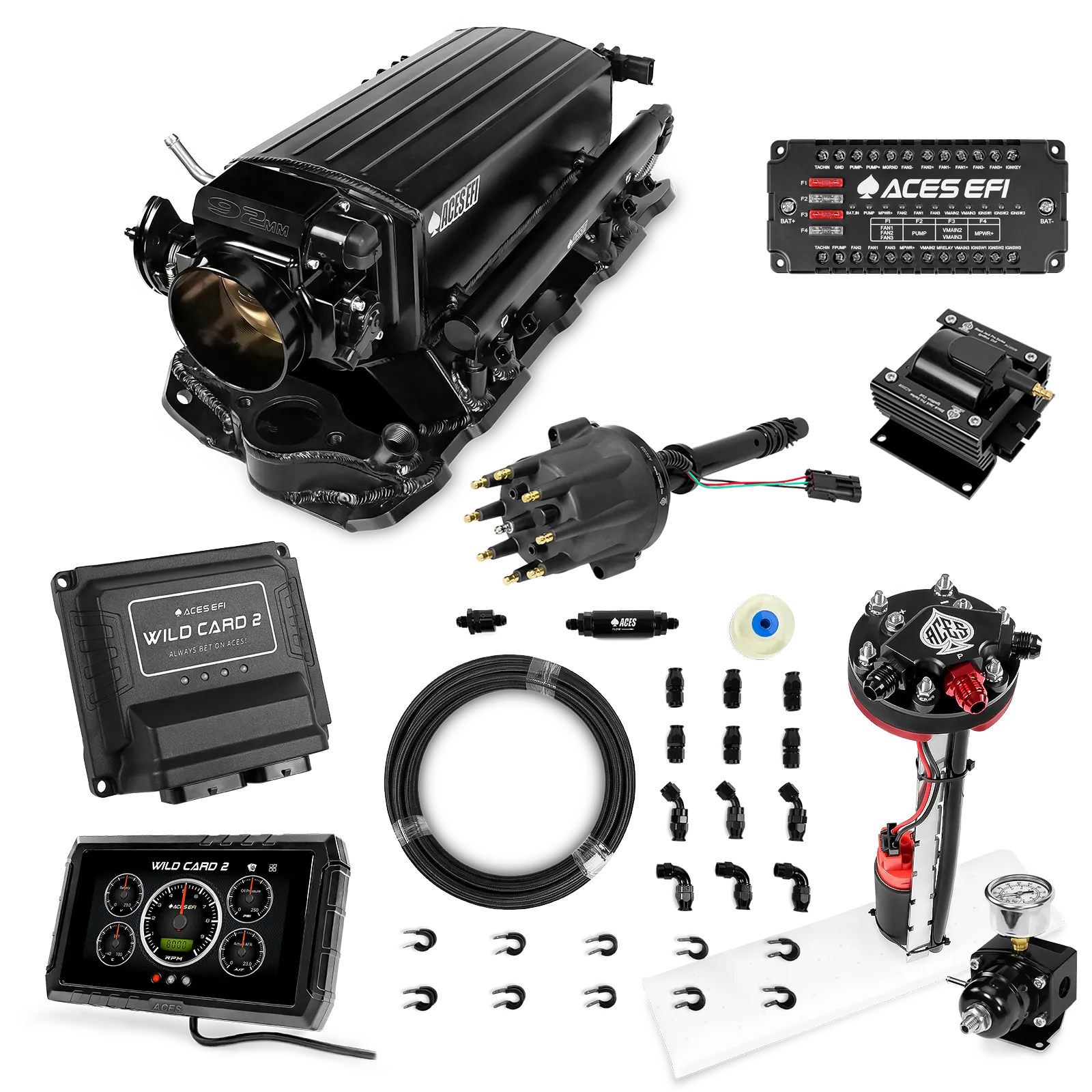

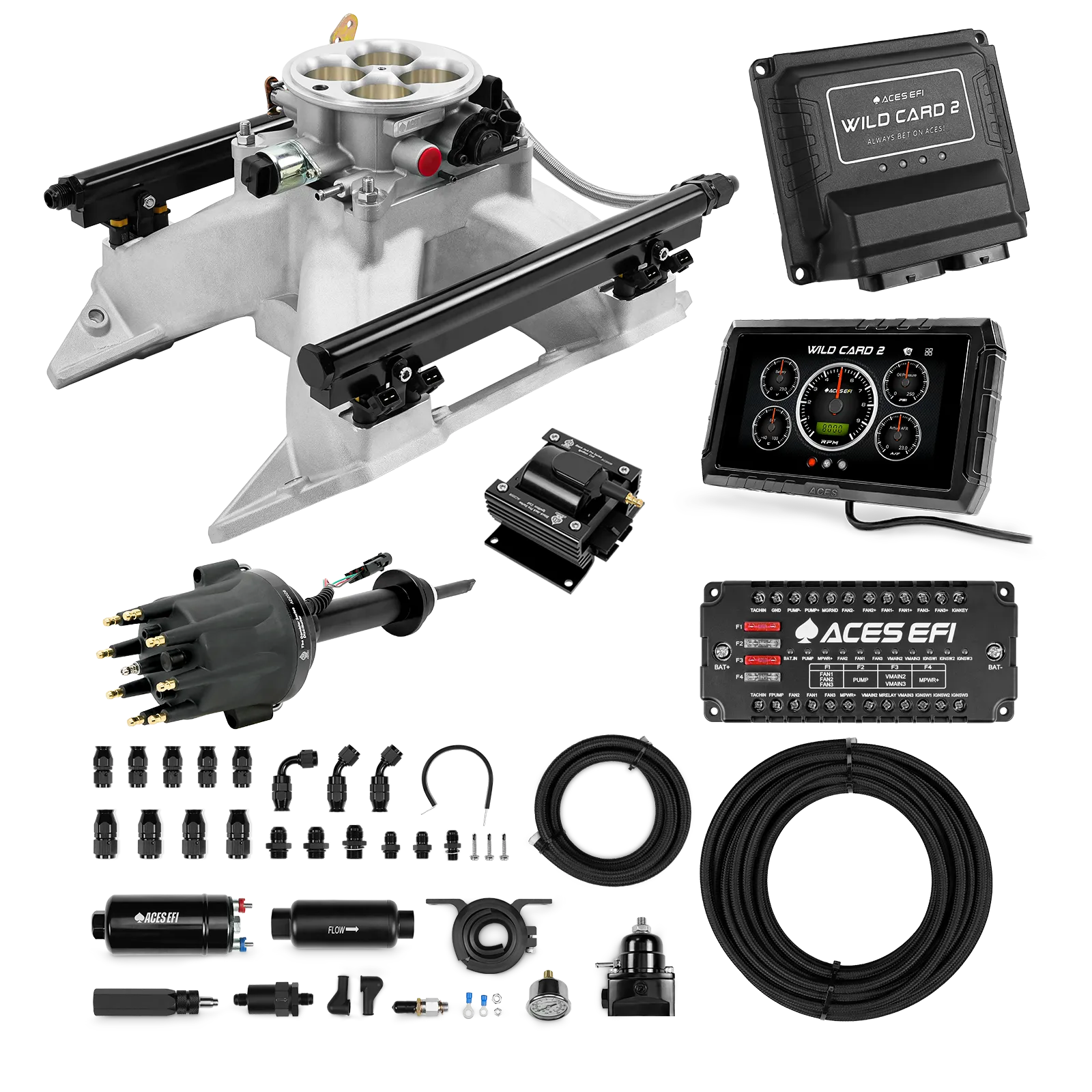

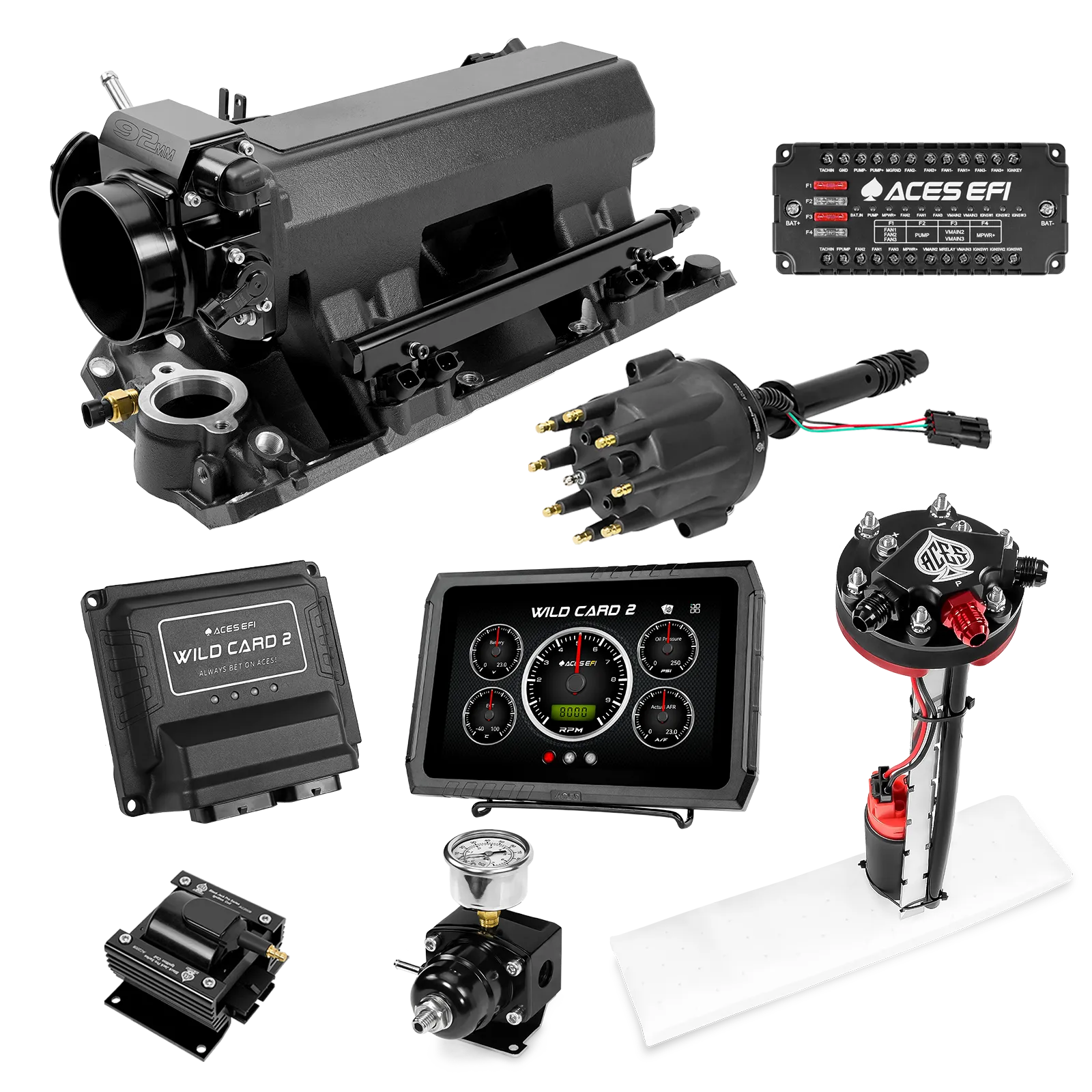

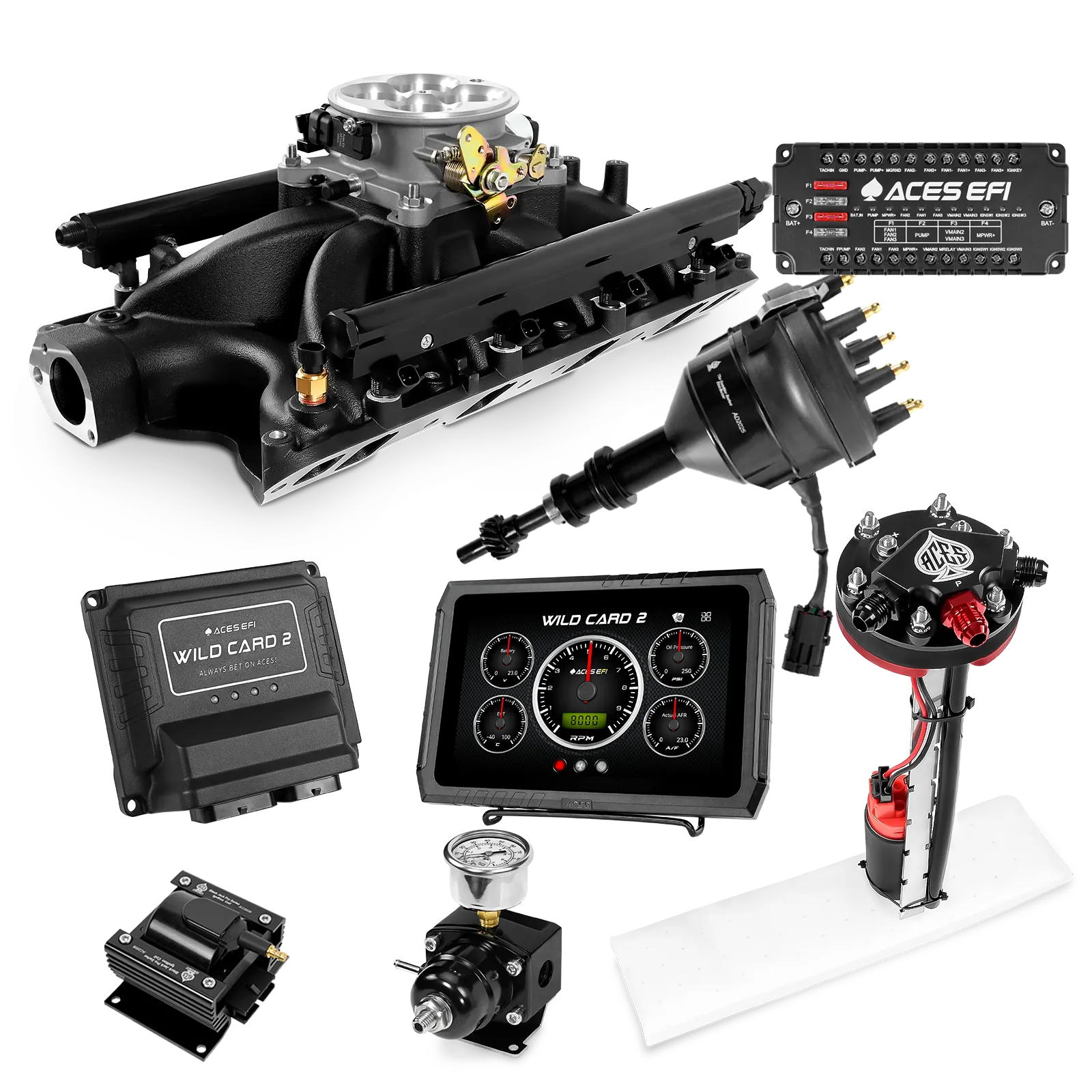

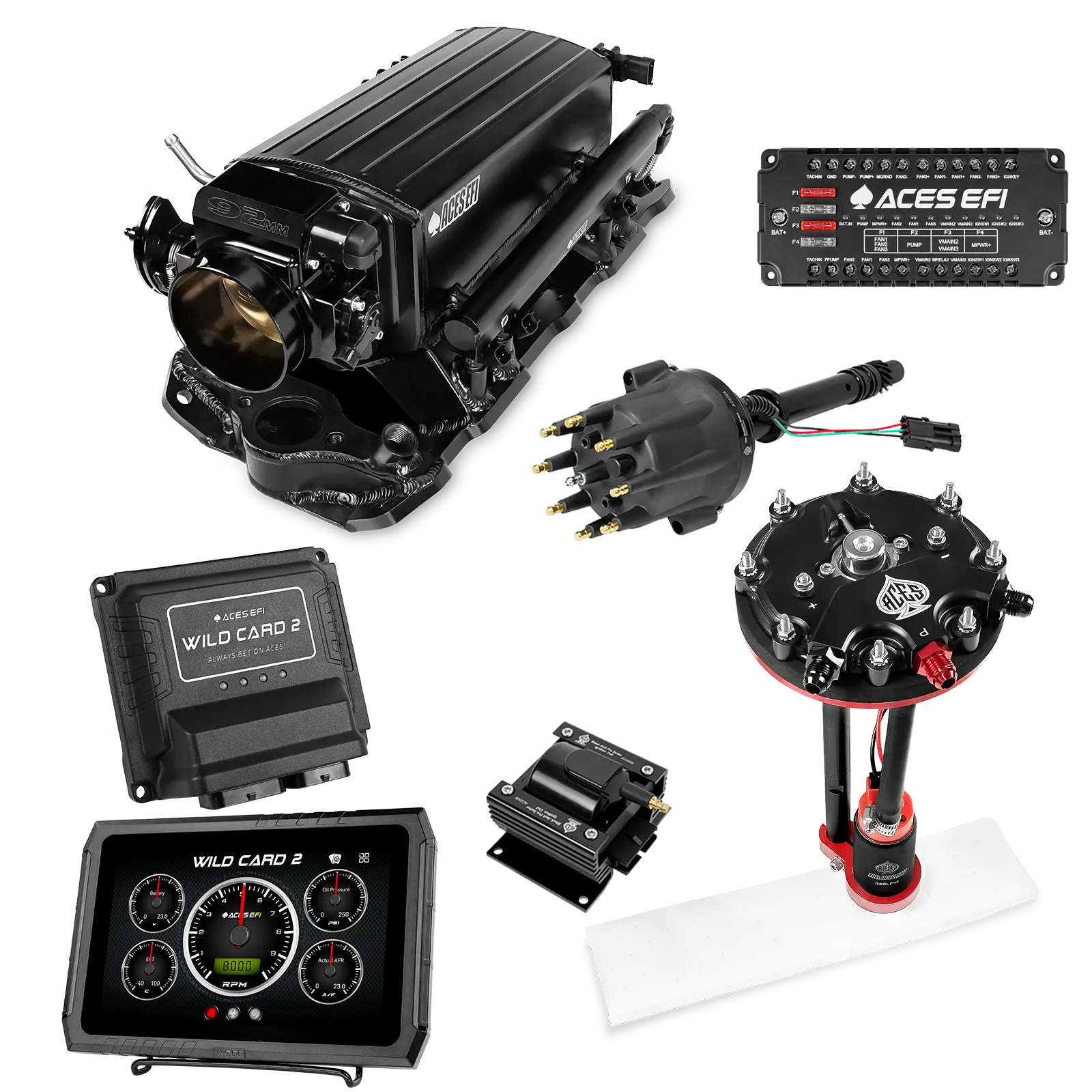

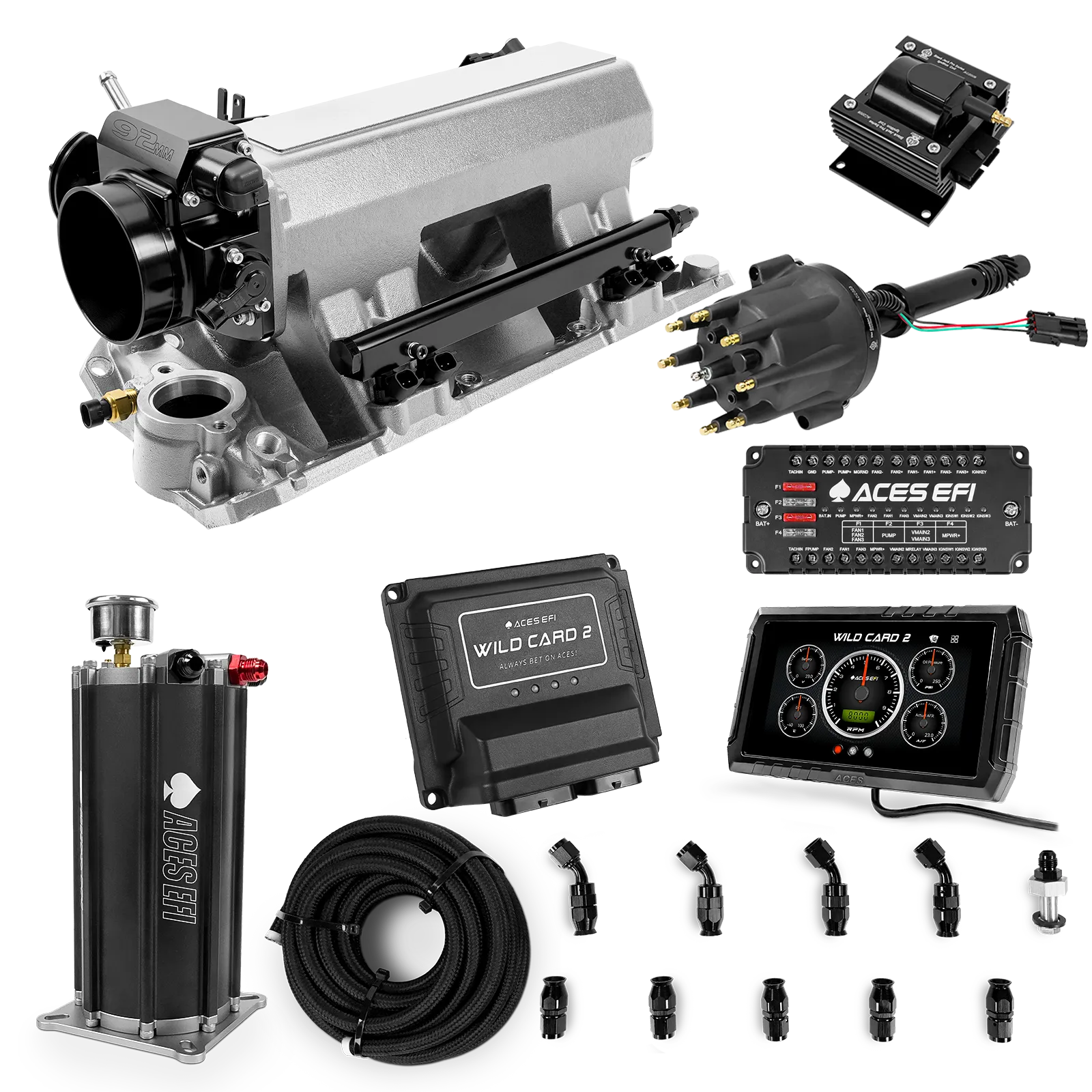

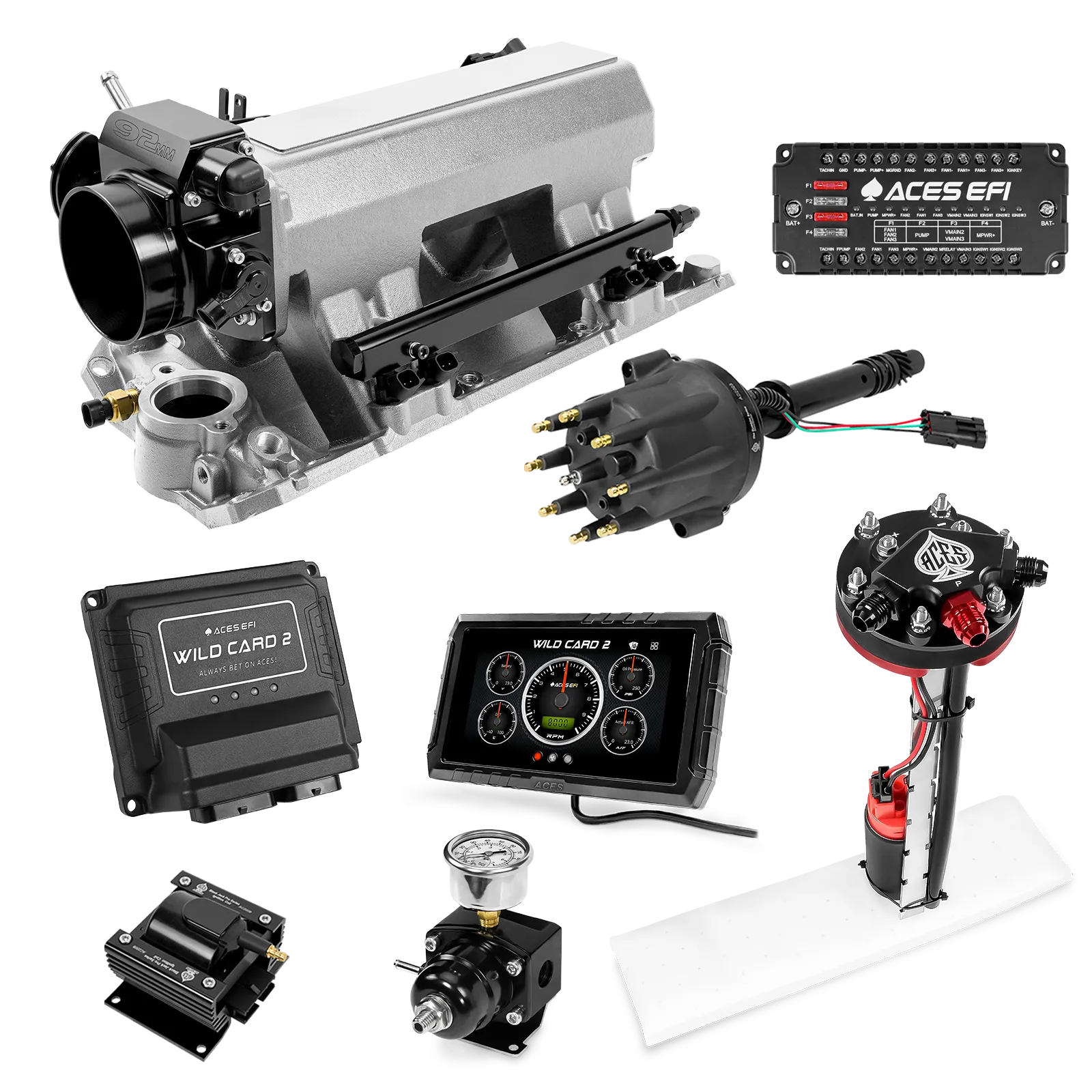

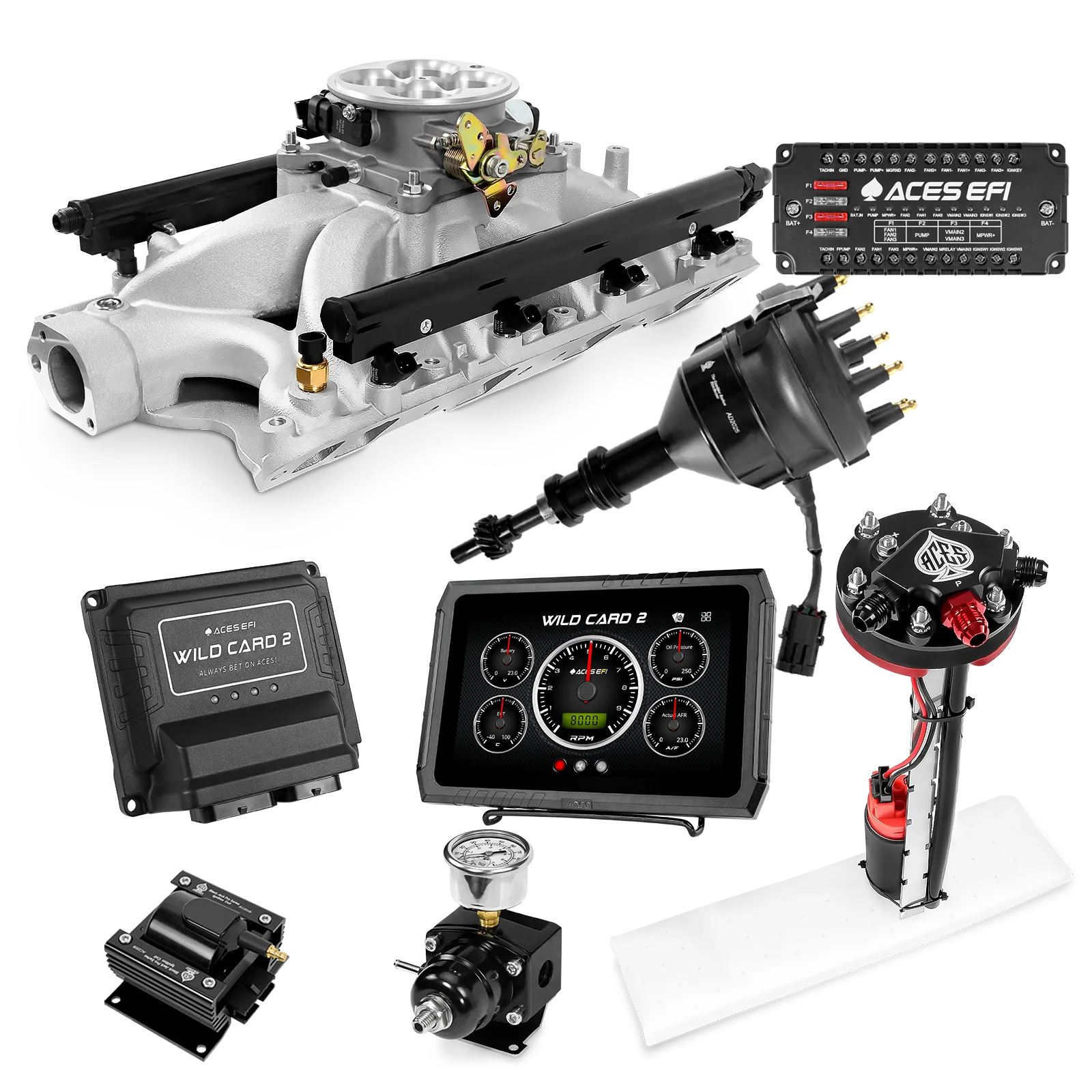

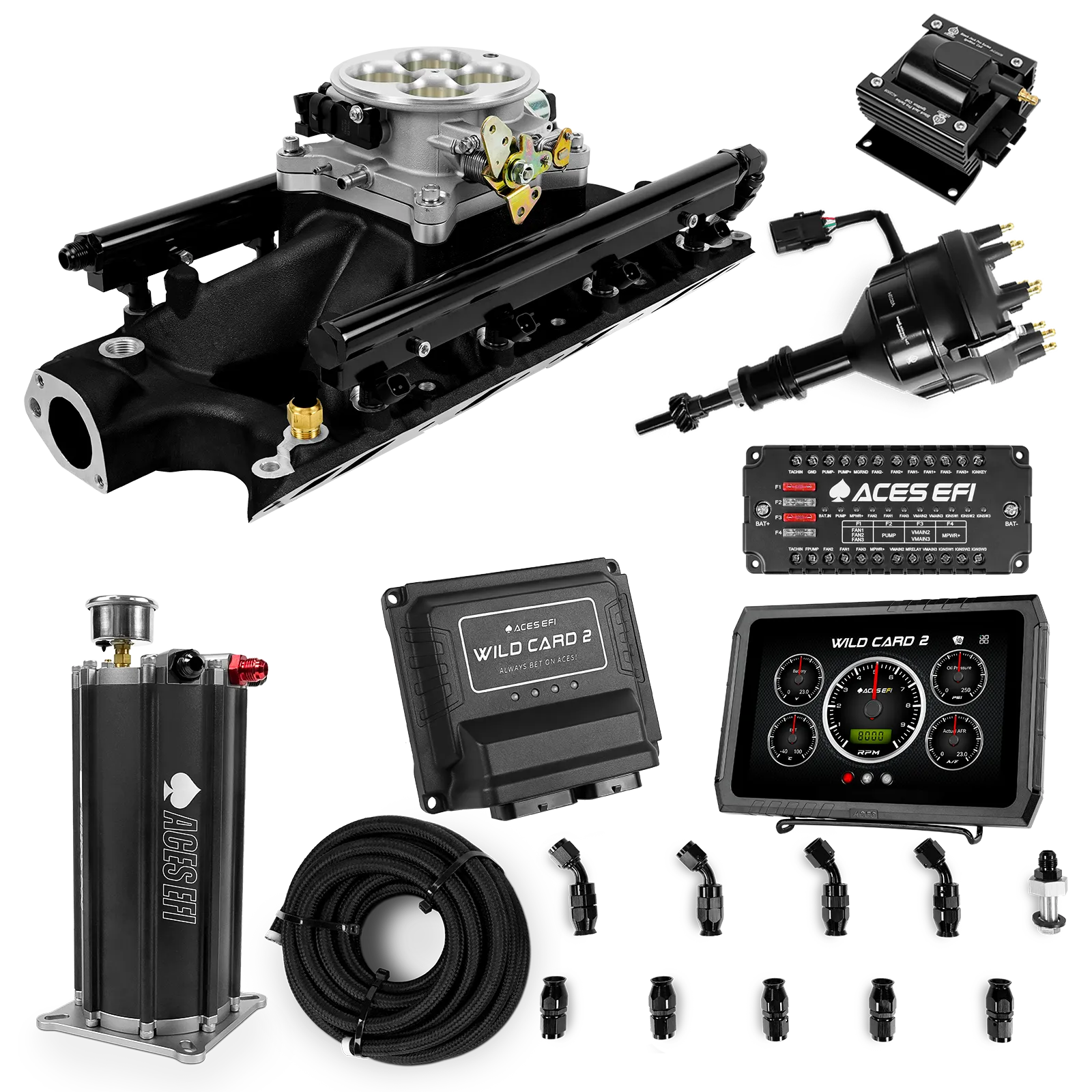

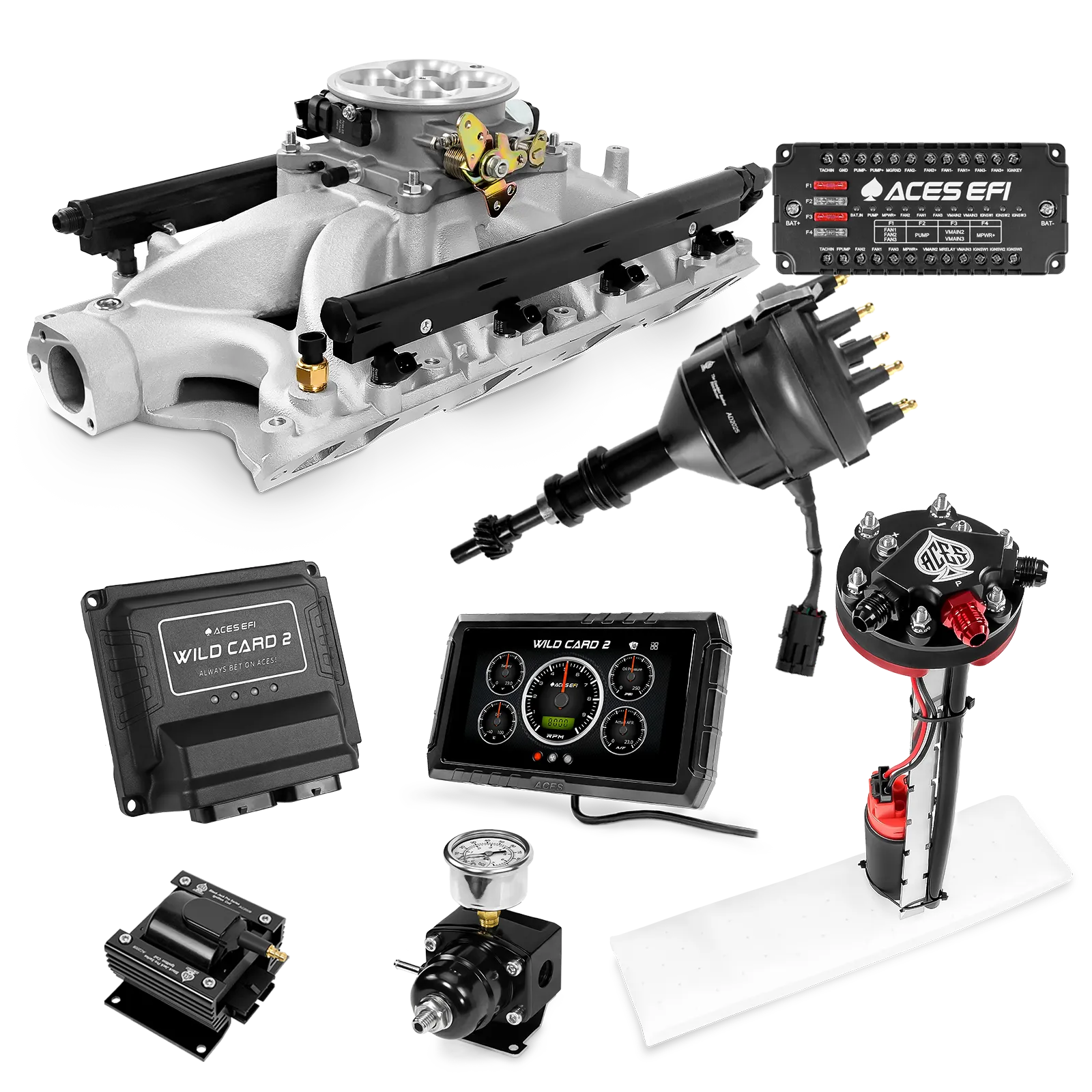

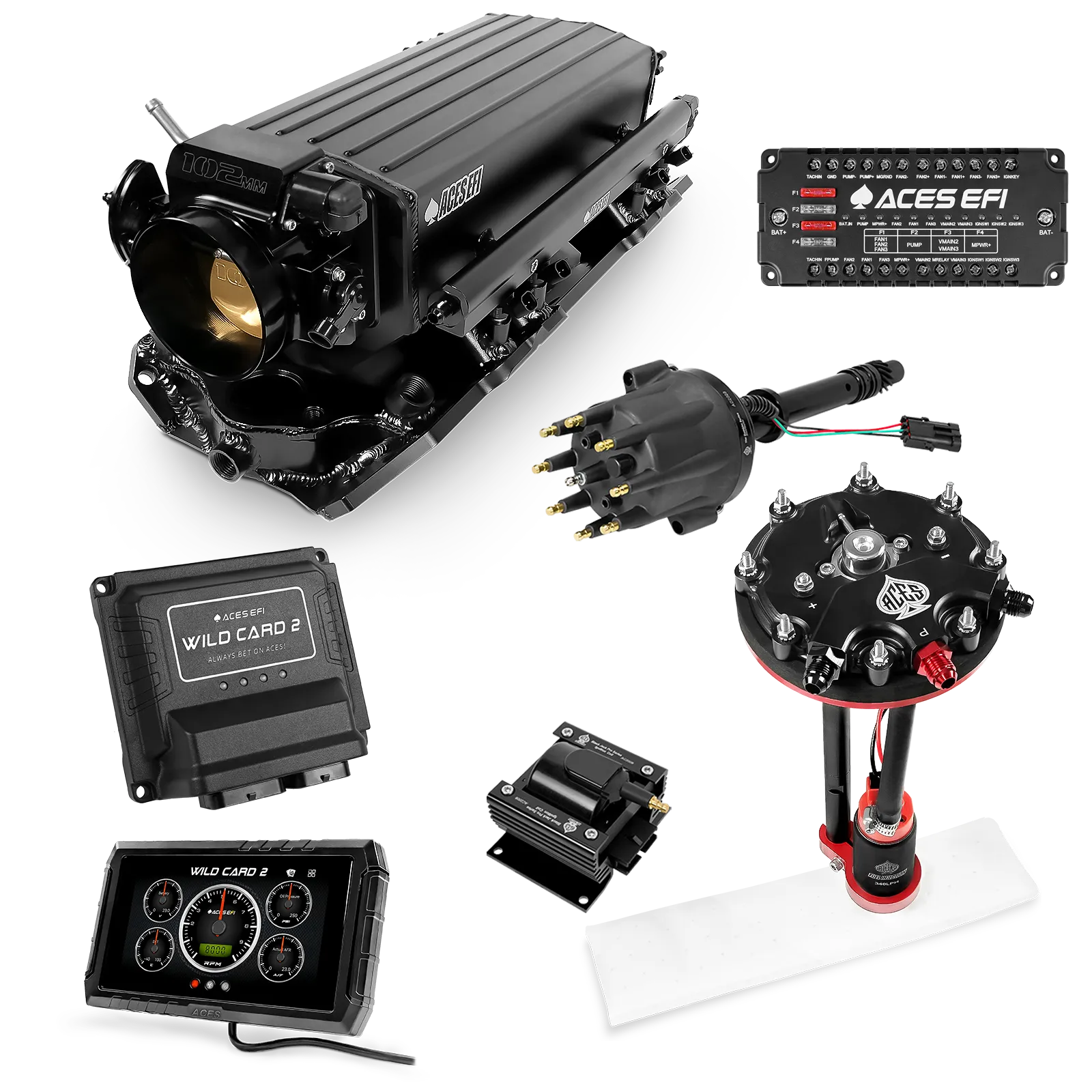

Name: Wild Card Sequential EFI Master Kits (500 HP)
Brand: Aces Fuel Injection
SKU: AY0937-D
Price: 1899.99 USD
Availability: InStock

Take your high-performance or boosted V8 to the next level with ACES EFI’s Joker EFI/CDI—the most powerful Multi-Port EFI system on the market! The Joker is the only EFI system that integrates a Digital Capacitive Discharge Ignition (DCDI) system inside the ECU, delivering unmatched spark energy, precision, and control. Whether you're running high compression, forced induction, or aggressive racing setups, the Joker’s high-voltage CDI system ensures maximum power and efficiency.

What Makes Joker EFI/CDI Unique?

Unlike traditional EFI systems that rely on weaker inductive ignition, Joker’s CDI system produces a hotter, more consistent spark that burns fuel more efficiently, leading to:

Superior combustion in high-boost or high-compression applications
Increased power and throttle response
Reduced misfires and improved fuel efficiency

Total Control for Performance Builds

Just like our Wild Card system, the Joker EFI/CDI works with most classic 8-cylinder engines, offering a customizable firing order in the start wizard and requiring a 7+1 timing setup for accurate ignition control. But what sets Joker apart is its built-in CDI technology and racing-grade features:

Integrated Digital CDI – Produces 150mJ spark energy output for maximum ignition performance
Massive Voltage Output – Primary voltage: 450-530V / Secondary voltage: 50,000V
2-Stage Rev Limiter – Set a max RPM limit for engine protection, plus launch control for optimal starts
Burnout Mode – Holds RPM at a set limit for consistent, controlled burnouts

Three Configurations to Match Your Build

Standalone System – Includes ECU, wiring harness, handheld controller, and basic sensors
Top-End Kit – Adds an aluminum intake manifold (black or raw finish), Gambler Series distributor, ignition coil, injectors, throttle body, and fuel rails
Master Kit – Includes everything from the Top-End Kit plus a fuel delivery system of your choice

MP-EFI vs. TBI: Why Multi-Port is Superior

Throttle Body Injection (TBI) is outdated. It sprays fuel above the throttle blades, leading to uneven fuel distribution and weaker throttle response. In contrast, Joker’s true sequential MP-EFI meters fuel cylinder-by-cylinder, optimizing:

Fuel economy
Power output
Drivability

Built for All Power Levels – Stock to Race-Ready

Power Levels: Available in 500 HP and 800 HP configurations
Self-Learning: Stock to mild builds benefit from automatic tuning, while high-performance setups require custom tuning
Injector Options: Choose between EV1 or EV6 style injector harnesses (coming soon!)
Dual Wideband O2 Sensors: Ensures proper fueling across both banks for ultimate performance.

From street builds to high-boost race cars, Joker EFI/CDI is the ultimate all-in-one ignition and fuel control solution. No need for a separate CDI box—Aces EFI is the only company to offer EFI and CDI in one ECU. If you’re serious about performance, The Joker is the system you need!

Features:

Integrated digital CDI with 150mj spark energy output
2-stage Rev limiter setting for max RPM, launch control, and burn out
32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors
Primary voltage 450-530 Volts, secondary Voltage 50000 Volts
5” full-color touchscreen handheld with built-in GPS speedometer
Integrated coil driver for ignition timing control (when using Aces’ coil and distributor)
Simple calibration wizard for initial setup- no laptop tuning required.
Self-learning fuel table
Dual fan control
Step retard for nitrous control
Boost compatibility (using laptop software)
Free laptop software available for pro applications
Compatible with Aces’ handhelds, dashes, CAN modules, and TCMs.
Bosch 4.9 WBO2 sensor

The Joker Sequential EFI/CDI Master Kits (500 HP)

Joker EFI/CDI - The Most Powerful Multi-Port EFI System

Take your high-performance or boosted V8 to the next level with ACES EFI’s Joker EFI/CDI—the most powerful Multi-Port EFI system on the market! The Joker is the only EFI system that integrates a Digital Capacitive Discharge Ignition (DCDI) system inside the ECU, delivering unmatched spark energy, precision, and control. Whether you're running high compression, forced induction, or aggressive racing setups, the Joker’s high-voltage CDI system ensures maximum power and efficiency.

What Makes Joker EFI/CDI Unique?

Unlike traditional EFI systems that rely on weaker inductive ignition, Joker’s CDI system produces a hotter, more consistent spark that burns fuel more efficiently, leading to:

Superior combustion in high-boost or high-compression applications
Increased power and throttle response
Reduced misfires and improved fuel efficiency

Total Control for Performance Builds

Just like our Wild Card system, the Joker EFI/CDI works with most classic 8-cylinder engines, offering a customizable firing order in the start wizard and requiring a 7+1 timing setup for accurate ignition control. But what sets Joker apart is its built-in CDI technology and racing-grade features:

Integrated Digital CDI – Produces 150mJ spark energy output for maximum ignition performance
Massive Voltage Output – Primary voltage: 450-530V / Secondary voltage: 50,000V
2-Stage Rev Limiter – Set a max RPM limit for engine protection, plus launch control for optimal starts
Burnout Mode – Holds RPM at a set limit for consistent, controlled burnouts

Three Configurations to Match Your Build

Standalone System – Includes ECU, wiring harness, handheld controller, and basic sensors
Top-End Kit – Adds an aluminum intake manifold (black or raw finish), Gambler Series distributor, ignition coil, injectors, throttle body, and fuel rails
Master Kit – Includes everything from the Top-End Kit plus a fuel delivery system of your choice

MP-EFI vs. TBI: Why Multi-Port is Superior

Throttle Body Injection (TBI) is outdated. It sprays fuel above the throttle blades, leading to uneven fuel distribution and weaker throttle response. In contrast, Joker’s true sequential MP-EFI meters fuel cylinder-by-cylinder, optimizing:

Fuel economy
Power output
Drivability

Built for All Power Levels – Stock to Race-Ready

Power Levels: Available in 500 HP and 800 HP configurations
Self-Learning: Stock to mild builds benefit from automatic tuning, while high-performance setups require custom tuning
Injector Options: Choose between EV1 or EV6 style injector harnesses (coming soon!)
Dual Wideband O2 Sensors: Ensures proper fueling across both banks for ultimate performance.

From street builds to high-boost race cars, Joker EFI/CDI is the ultimate all-in-one ignition and fuel control solution. No need for a separate CDI box—Aces EFI is the only company to offer EFI and CDI in one ECU. If you’re serious about performance, The Joker is the system you need!

Features:

Integrated digital CDI with 150mj spark energy output
2-stage Rev limiter setting for max RPM, launch control, and burn out
32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors
Primary voltage 450-530 Volts, secondary Voltage 50000 Volts
5” full-color touchscreen handheld with built-in GPS speedometer
Integrated coil driver for ignition timing control (when using Aces’ coil and distributor)
Simple calibration wizard for initial setup- no laptop tuning required.
Self-learning fuel table
Dual fan control
Step retard for nitrous control
Boost compatibility (using laptop software)
Free laptop software available for pro applications
Compatible with Aces’ handhelds, dashes, CAN modules, and TCMs.
Bosch 4.9 WBO2 sensor

Tight Fit In-Tank Pump Module (255 LPH)

Introducing the Tight Fit In-Tank Pump Module – Precision Engineering for Optimal Performance

Upgrade your vehicle's fuel delivery system with the Tight Fit In-Tank Pump Module, engineered to provide exceptional performance and reliability in a compact package. Designed to fit seamlessly into your vehicle's fuel tank, this innovative module maximizes space efficiency while delivering the fuel flow and pressure required for high-performance applications.

Crafted with precision engineering and premium materials, the Tight Fit In-Tank Pump Module ensures durability and longevity, even in the most demanding driving conditions. Its robust construction and high-quality components guarantee consistent fuel delivery, eliminating the risk of fuel starvation and engine damage.

Featuring a space-saving design, this pump module offers a snug fit within your vehicle's fuel tank, optimizing available space without compromising performance. The compact size allows for easy installation and compatibility with a wide range of vehicles, making it the ideal choice for enthusiasts and professionals alike.

Equipped with a high-performance fuel pump and integrated components, the Tight Fit In-Tank Pump Module delivers reliable fuel flow and pressure to support increased horsepower and torque. Whether you're upgrading your daily driver or building a high-performance race car, this module provides the precision and efficiency you need to achieve your performance goals.

Experience enhanced fuel delivery and engine performance with the Tight Fit In-Tank Pump Module – the ultimate solution for maximizing space efficiency and optimizing performance in your vehicle's fuel system.

USB-CAN Cable

ACES EFI designs and builds its systems to be easy to install without the need for custom tuning. While this works for the average enthusiast, there are times you simply need more access. For this, ACES offers its Advanced Tuning Software.

ACES Advanced Tuning Software is available as a free download, but to connect your laptop to the ECU, the ACES CAN Cable is required. This cable connects to the wiring harness in place of the handheld controller, linking your EFI system to your PC Laptop. Once this connection is made, the full suite of advance tuning features is available.

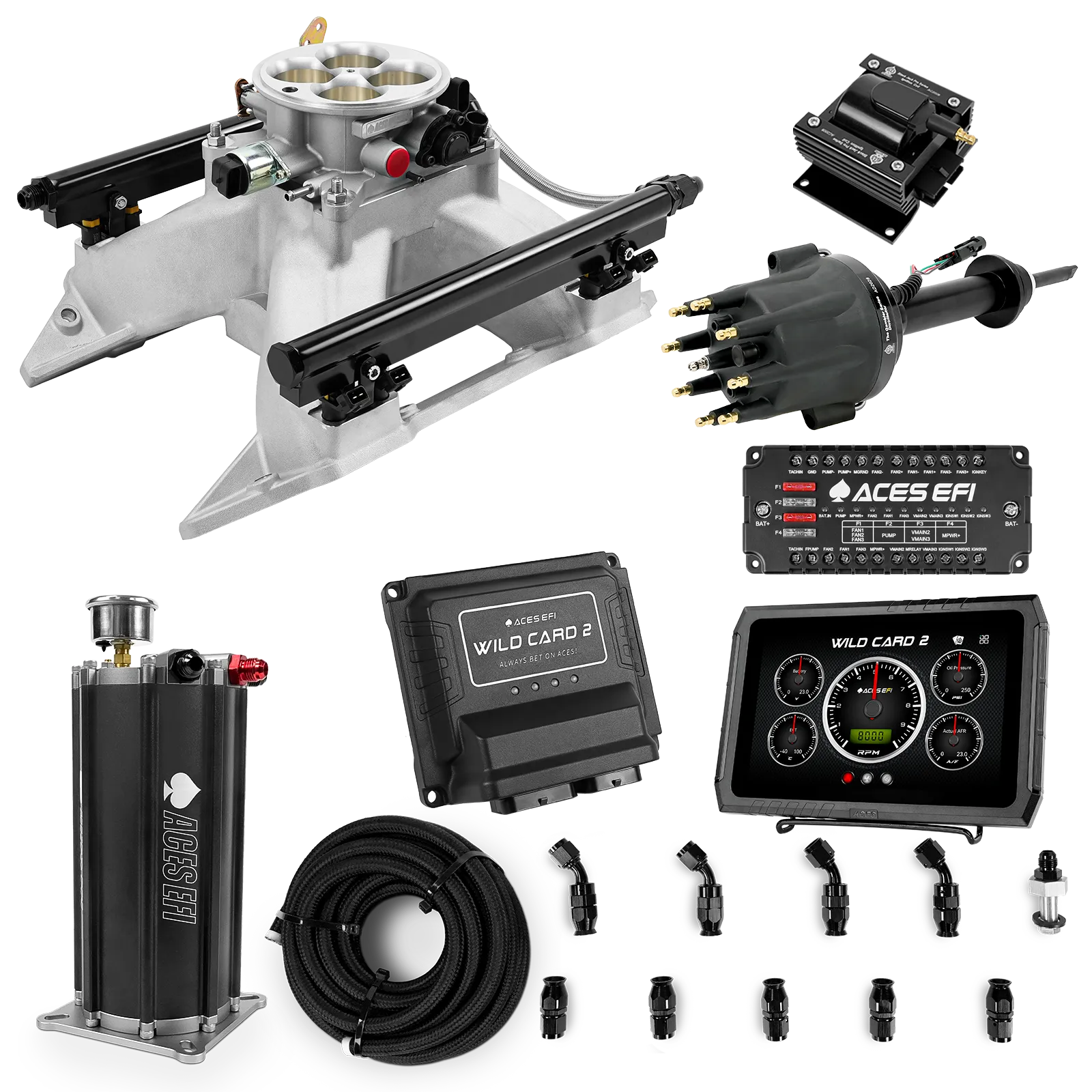

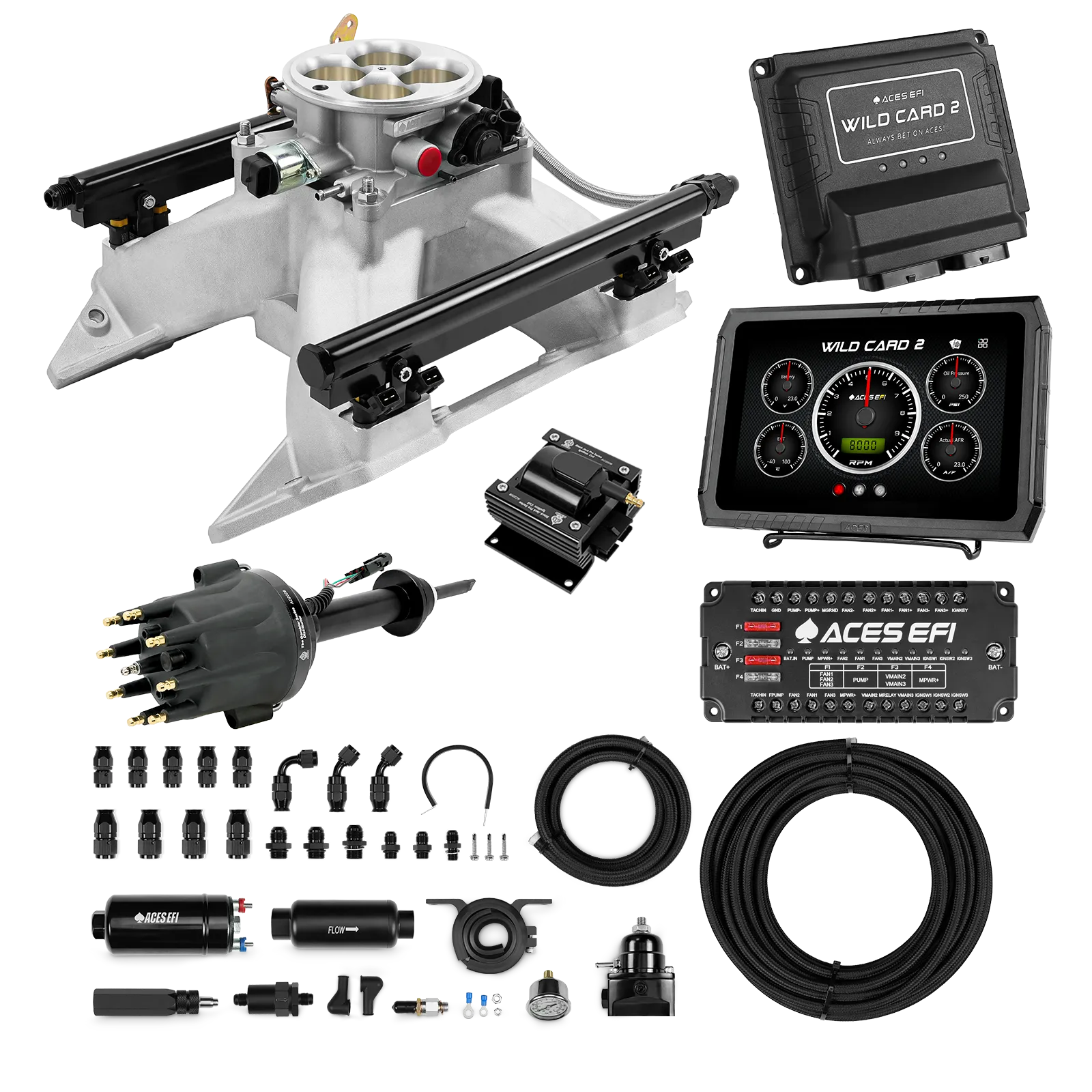

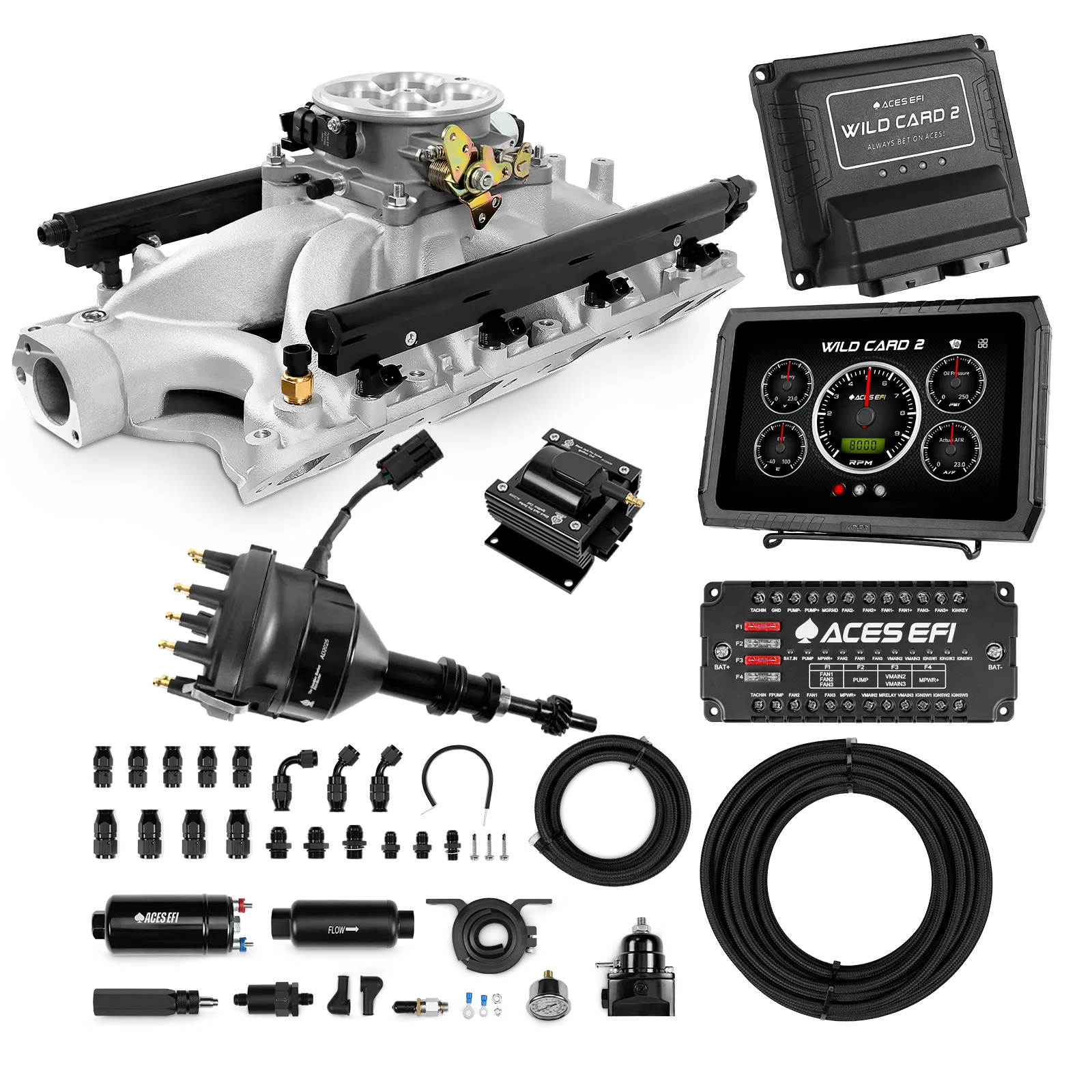

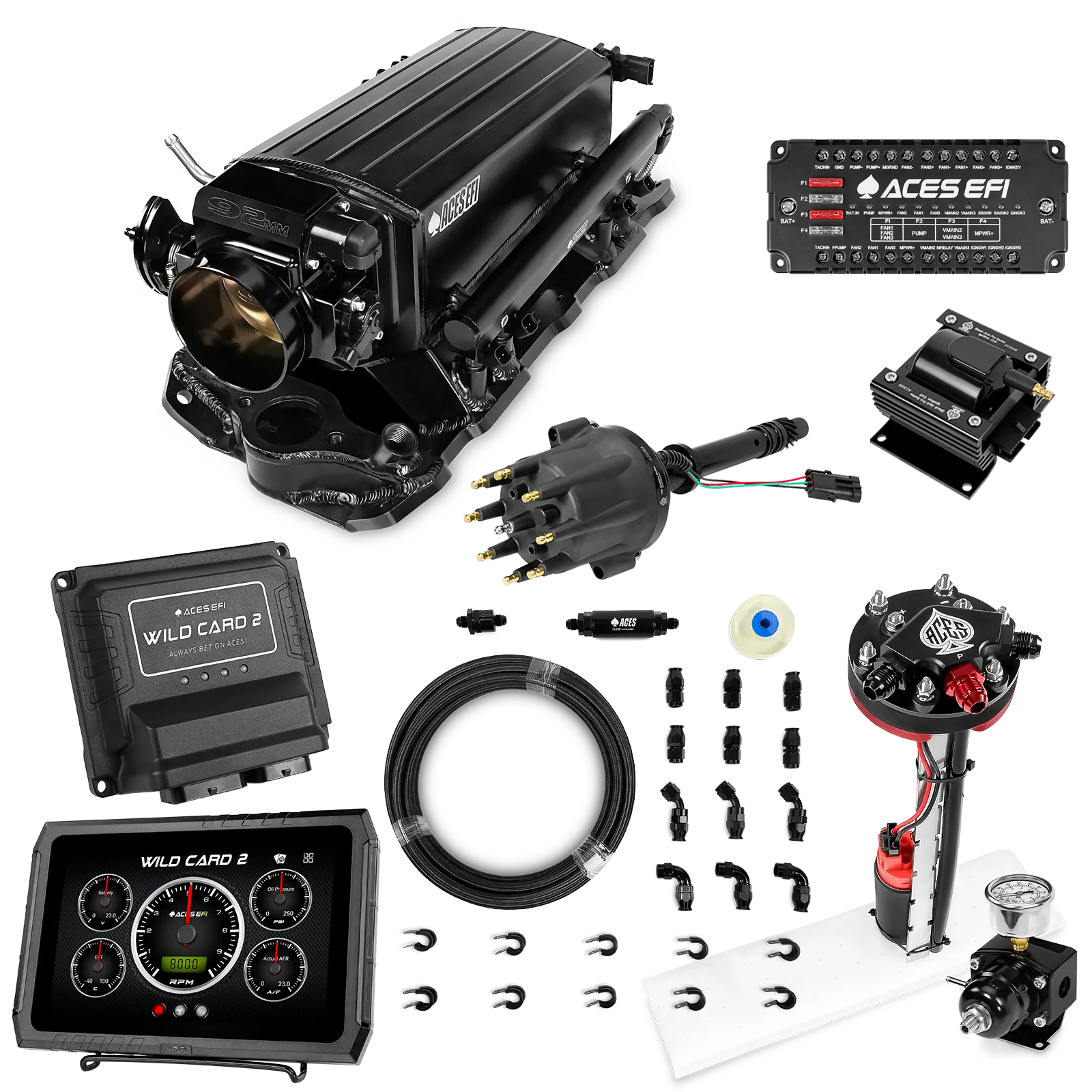

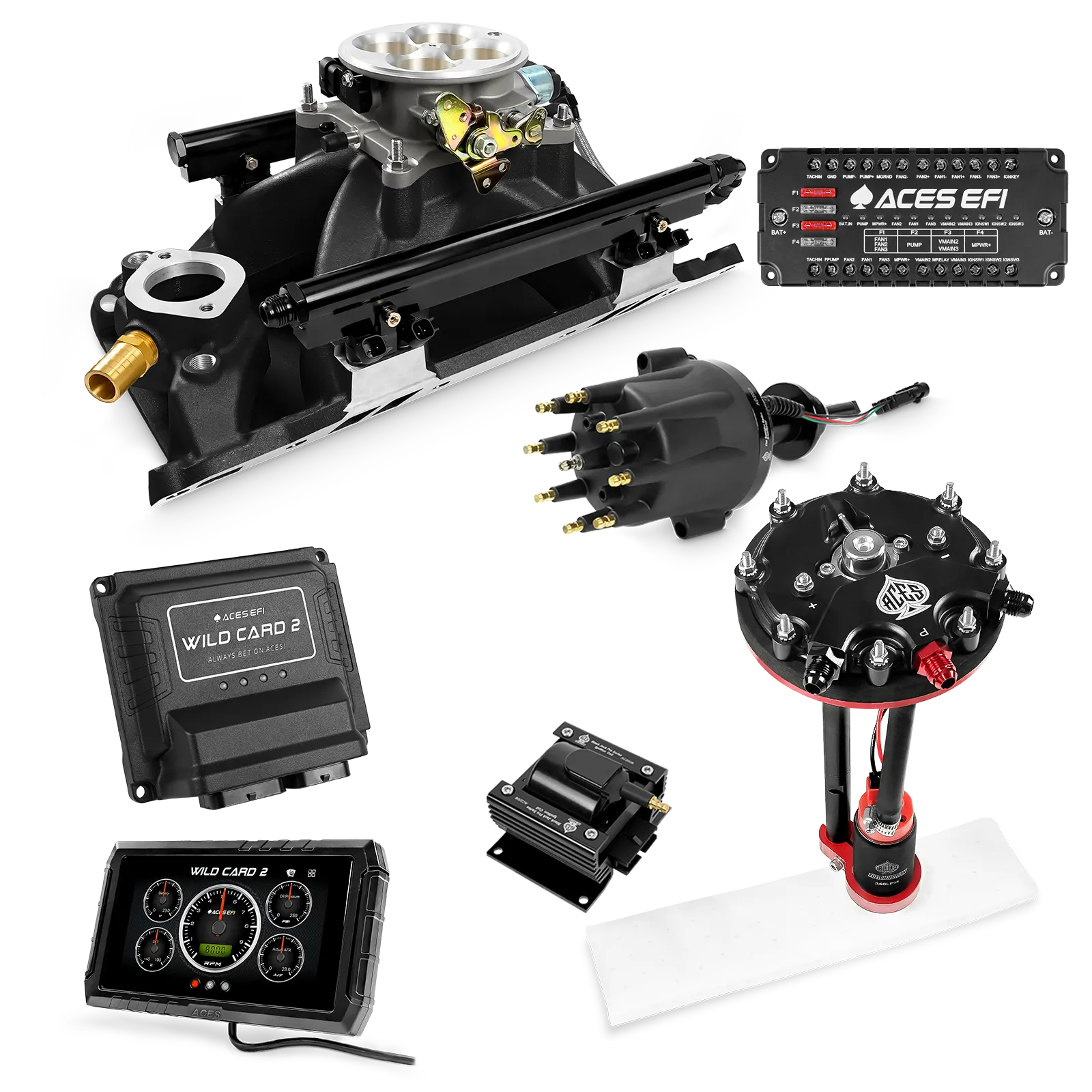

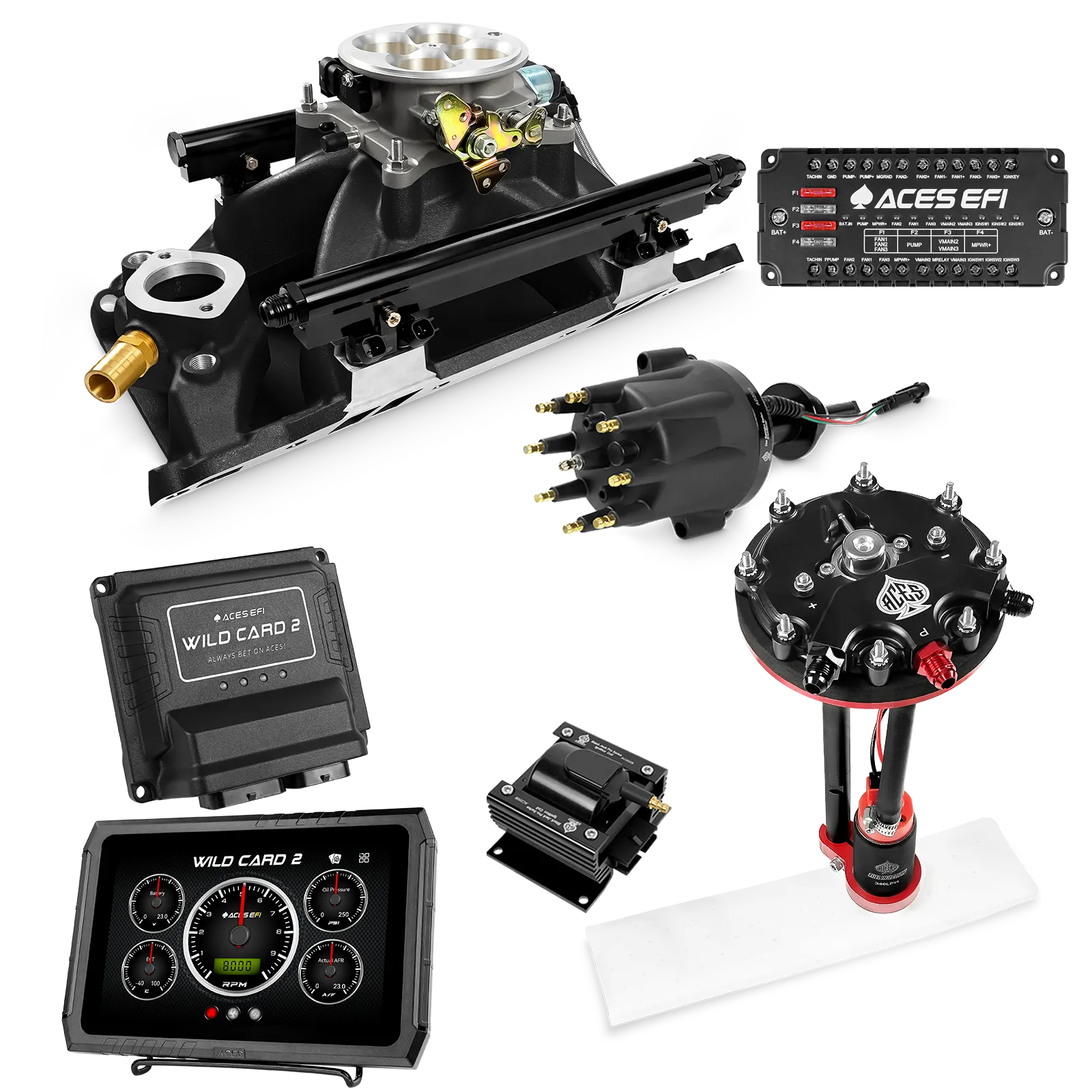

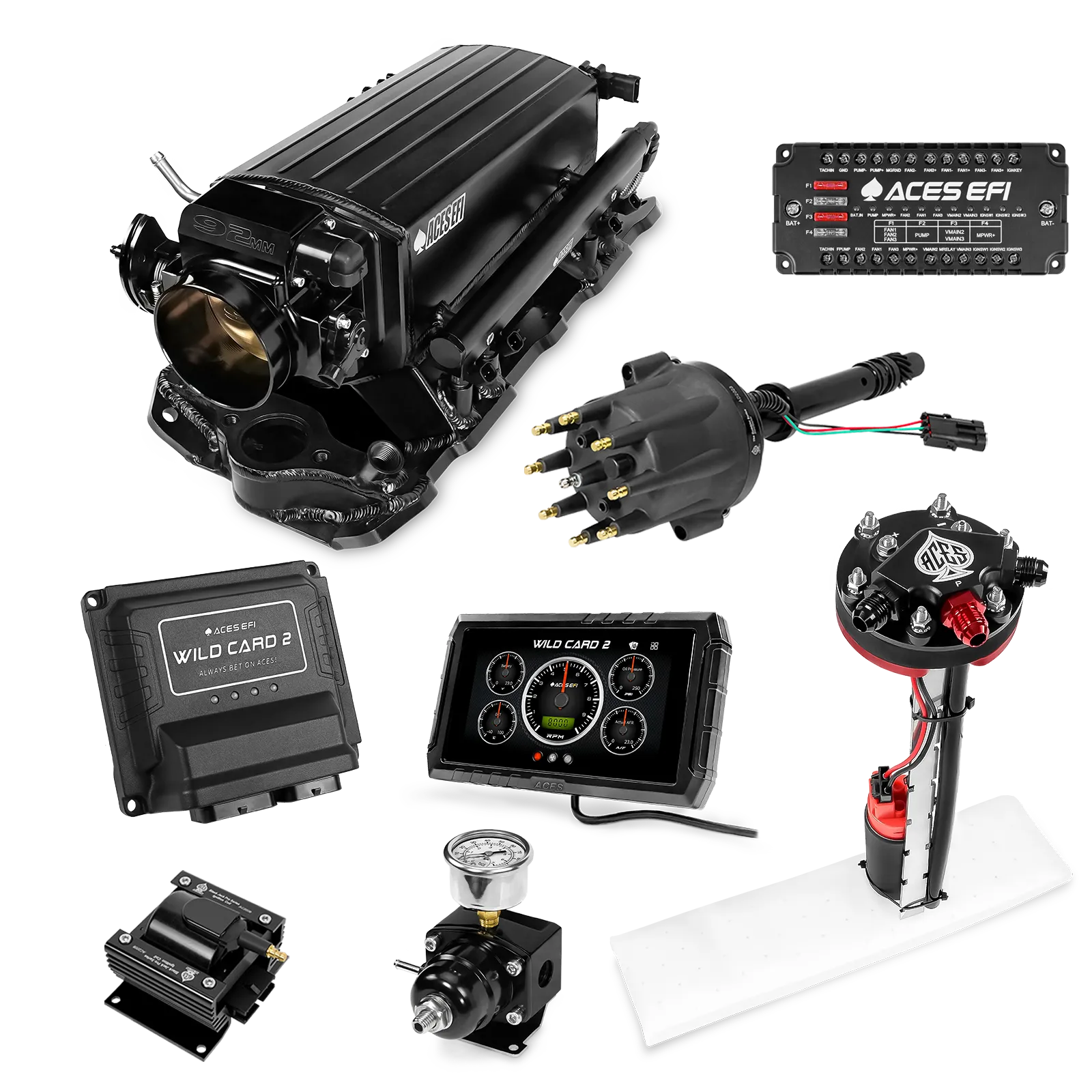

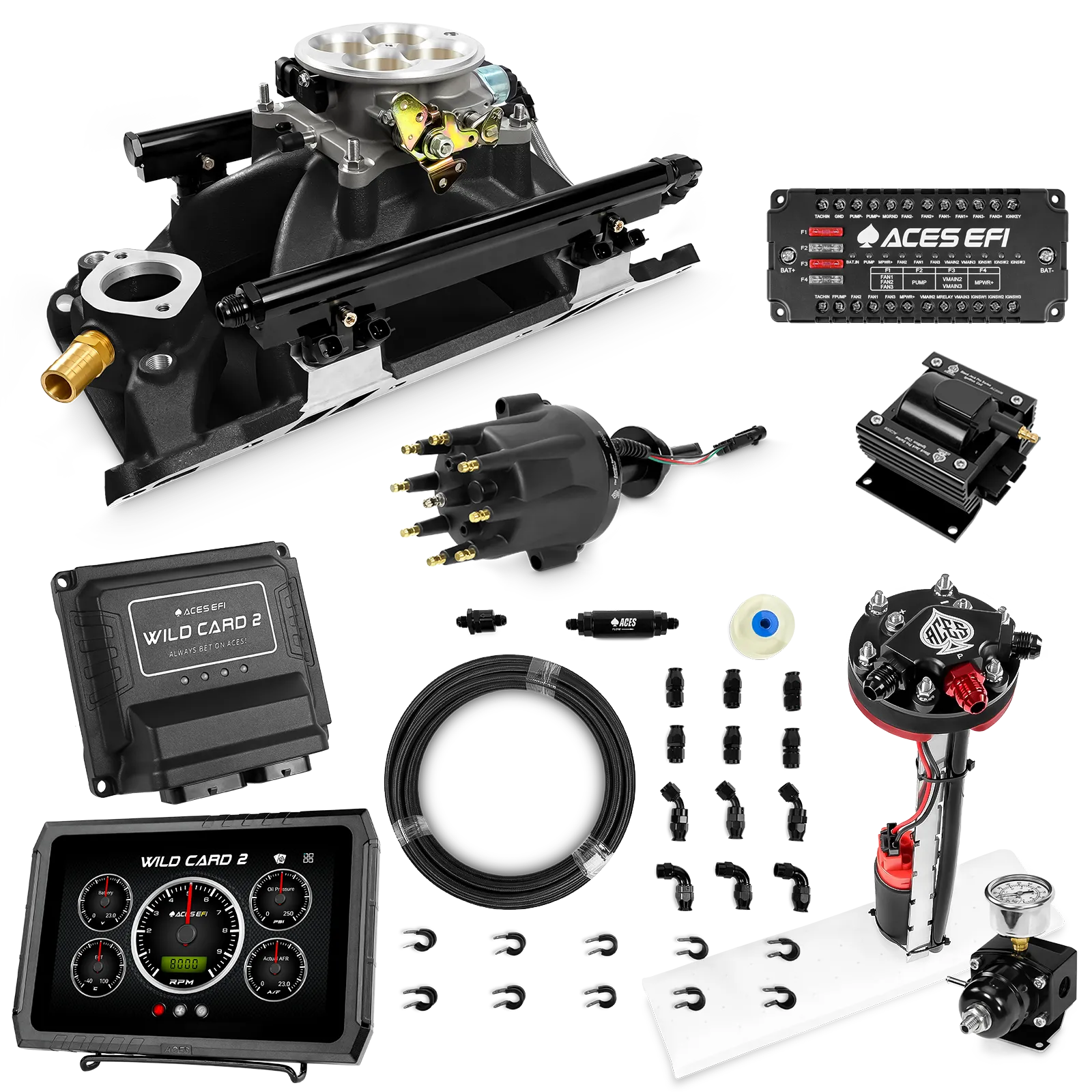

Wild Card Sequential EFI Master Kits (500 HP)

Power Distribution Module (PDM)

Pressure Sensor Kit

EGT CAN Module Kit

Wild Card

Wild Card

Computing Power

A robust ECU that utilizes our OEM standard 32-bit architecture. This allows the system to manage input/output signals, voltage, and RPM faster and more consistently than our competitors.

Plug 'n' Play

BLACKJACK Pro Ignition Coil

- Primary Resistance:0.273Ω - Primary Inductance:2.63 MHz - Secondary Resistance: 3.42kΩ - Secondary Inductance:15.77 Hz - Output (50pF load): 47 kV - Output Energy:150 mJ - Peak Secondary Current:100 mA +/-7% - Arc Duration: 200 uS - Turns Ratio 78:1

Powerful ignition

The Gambler Pro Series Billet Distributor features a high-quality, CNC-machined black anodized aluminum body and hardened steel shaft, guided by a sealed ball-bearing on top and a sintered steel bushing on the bottom to ensure stability up to 10,000 RPM.

Performance injector and fuel rail

Best Performance Intake

- operating RPM up to 8,000 - 500hp, 36lb/hr injectors, 800hp, 65lb/hr - 4-bbl throttle body - 92mm,102mm drive by cable billet throttle boday - billet aluminum fuel rail with black anodized finish

Pedal to the metal...

Wild Card Top End and Master Kits come equipped with either a single blade 92/102mm throttle body or 4 barrel throttle body.

It takes two.

The Wild Card EFI system utilizes two WBO2 sensors to read each bank of your V8 engine. Dual wide-band sensors allow precise calibration of each cylinder bank, optimizing performance and allowing more thorough tuning of your engine without any compromises.

Versatile Fuel Module Options

Tailor your fuel delivery system to match your specific requirements with a choice of Fuel Module Systems, allowing you to optimize fuel flow and pressure for maximum engine performance.

255 In-line Fuel Pump System with PTFE Hose

Command Center 2 Surge Tank

- Single high-volume 340LPH pump - No needle seats or floats to get hung up or stuck! - Can be mounted in multiple positions from vertical to horizontal - Built-in 58 Psi Regulator no need for external regulator, can be switched to 43.5Psi regulator

Tight Fit In-tank Pump Module (255 LPH)

- Installs in almost any tank with a depth of 6 to 12 inches - Low profile design for maximum clearance from the vehicle's floor pan - Unique O-Ring 360-degree mounting flange for unlimited mounting options. - Single high-quality 255 L/PH fuel pump for engines producing up to 600 HP.

Tank Conversion Pump Module (340 LPH)

- Can go from 14 in. deep pump to 6 in. by cutting tube - Available with 340 LPH (89 GPH) fuel pump - O-ring style 360-degree mounting flange for ease of maintenance - Internally regulated

PRODUCT TECHNOLOGIES

Wild Card Sequential Multi-Port EFI System

Total Customization for Your Build

More Than Just EFI – A System Built for Performance

MP-EFI vs. TBI: Why Multi-Port is Superior

Built for Your Needs – Stock to High Performance

Features:

Things to know

People also shop for

Joker EFI/CDI - The Most Powerful Multi-Port EFI System

What Makes Joker EFI/CDI Unique?

Total Control for Performance Builds

Three Configurations to Match Your Build

MP-EFI vs. TBI: Why Multi-Port is Superior

Built for All Power Levels – Stock to Race-Ready

Joker EFI/CDI - The Most Powerful Multi-Port EFI System

What Makes Joker EFI/CDI Unique?

Total Control for Performance Builds

Three Configurations to Match Your Build

MP-EFI vs. TBI: Why Multi-Port is Superior

Built for All Power Levels – Stock to Race-Ready

- Primary Resistance:0.273Ω
- Primary Inductance:2.63 MHz
- Secondary Resistance: 3.42kΩ
- Secondary Inductance:15.77 Hz
- Output (50pF load): 47 kV
- Output Energy:150 mJ
- Peak Secondary Current:100 mA +/-7%
- Arc Duration: 200 uS
- Turns Ratio 78:1

- operating RPM up to 8,000
- 500hp, 36lb/hr injectors, 800hp, 65lb/hr
- 4-bbl throttle body
- 92mm,102mm drive by cable billet throttle boday
- billet aluminum fuel rail with black anodized finish

- Single high-volume 340LPH pump
- No needle seats or floats to get hung up or stuck!
- Can be mounted in multiple positions from vertical to horizontal
- Built-in 58 Psi Regulator no need for external regulator, can be switched to 43.5Psi regulator

- Installs in almost any tank with a depth of 6 to 12 inches
- Low profile design for maximum clearance from the vehicle's floor pan
- Unique O-Ring 360-degree mounting flange for unlimited mounting options.
- Single high-quality 255 L/PH fuel pump for engines producing up to 600 HP.

- Can go from 14 in. deep pump to 6 in. by cutting tube
- Available with 340 LPH (89 GPH) fuel pump
- O-ring style 360-degree mounting flange for ease of maintenance
- Internally regulated
