Killshot EFI Master Kits (Black)
Includes the following free items!
Technical support
.webp)
.webp?)
.webp?)

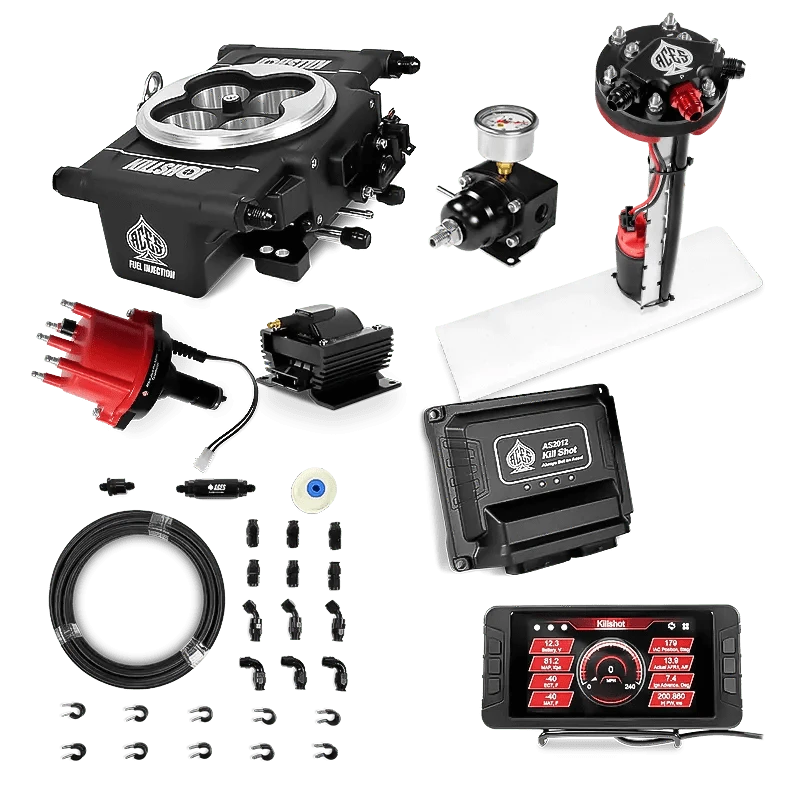

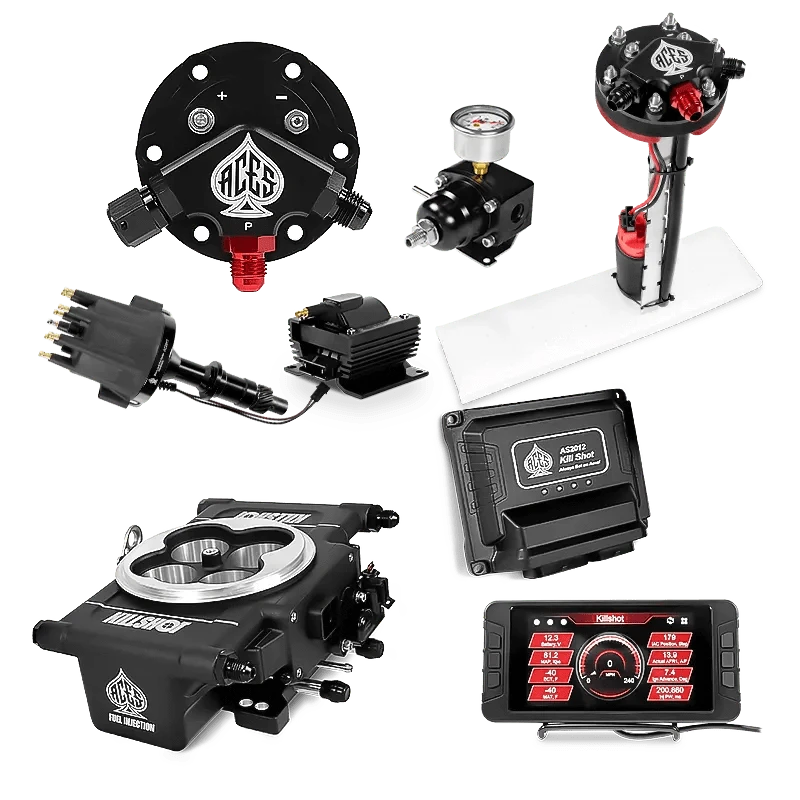

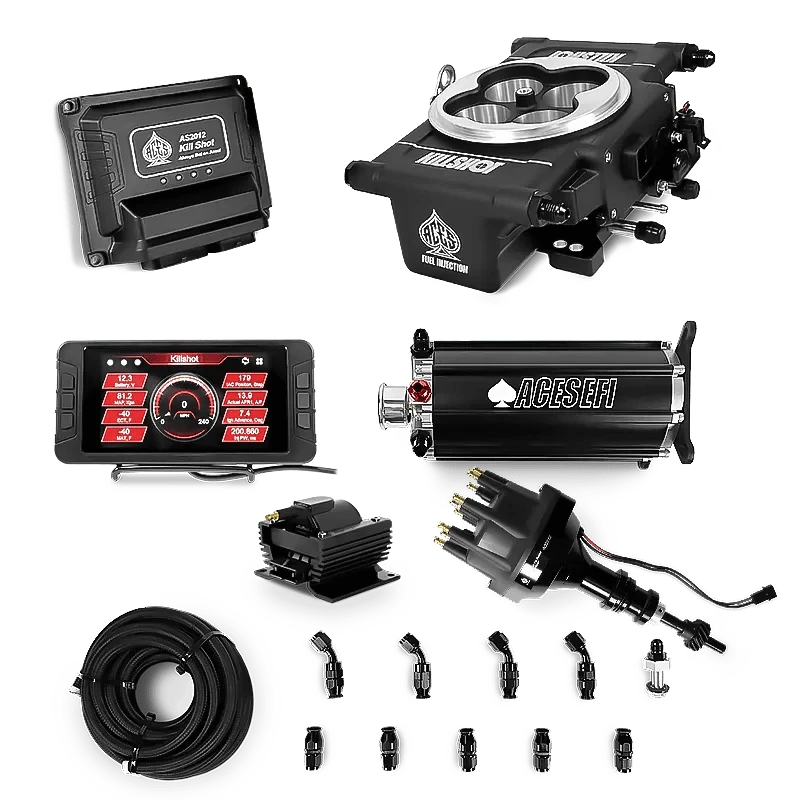

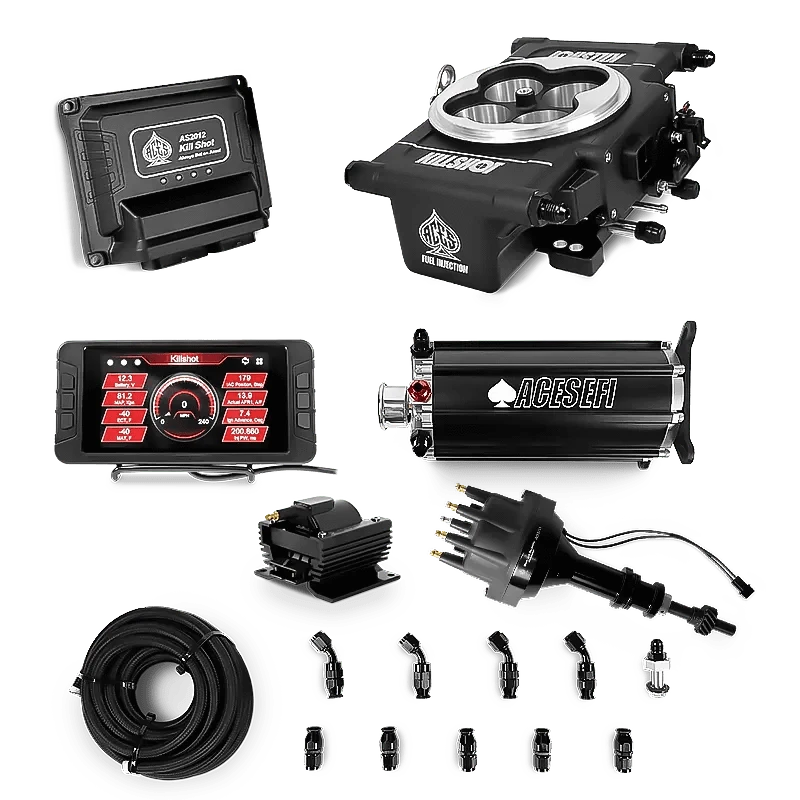

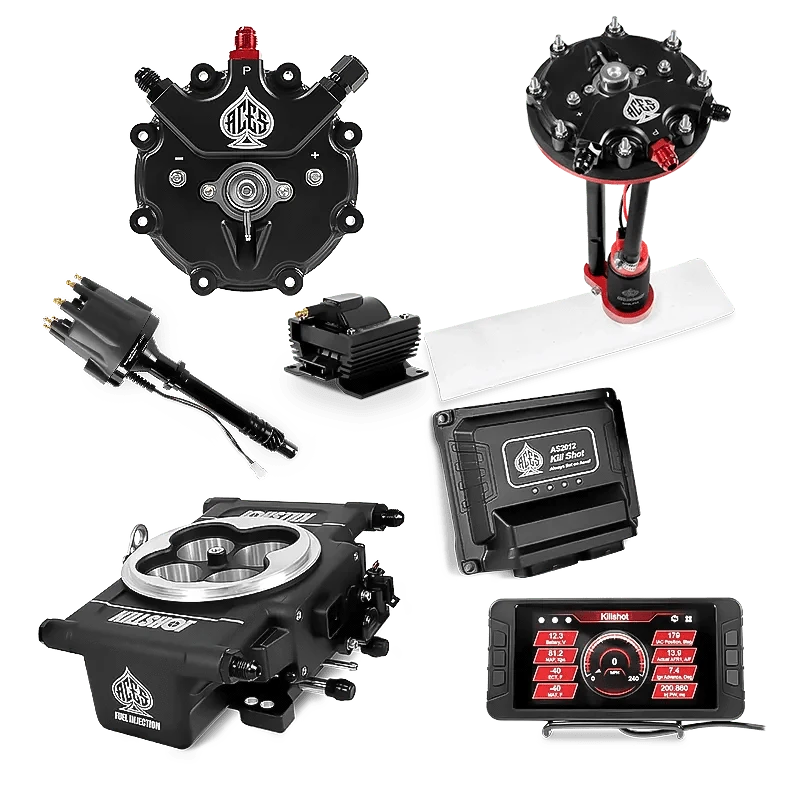

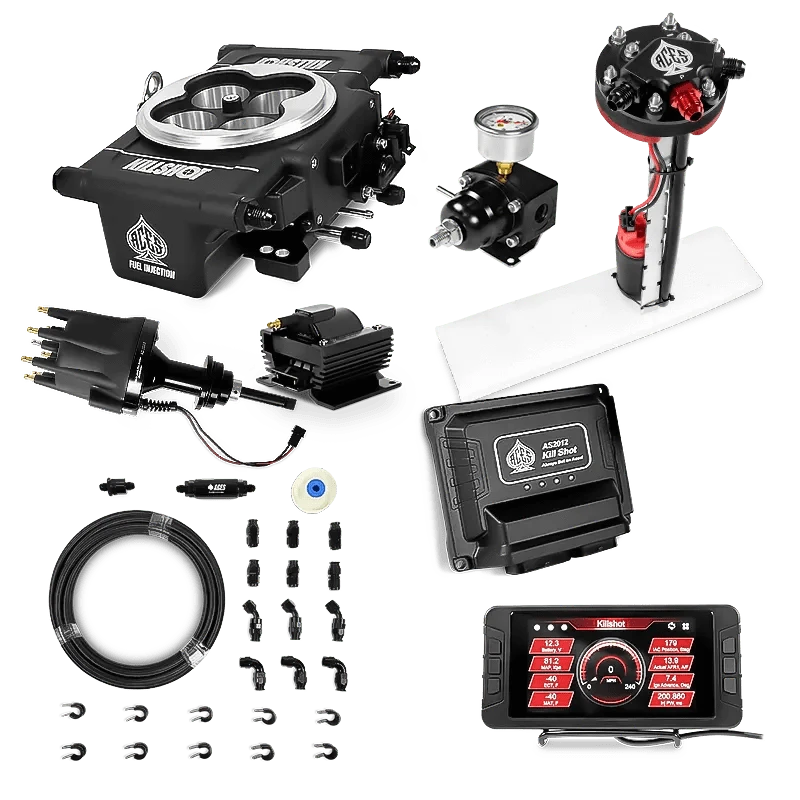

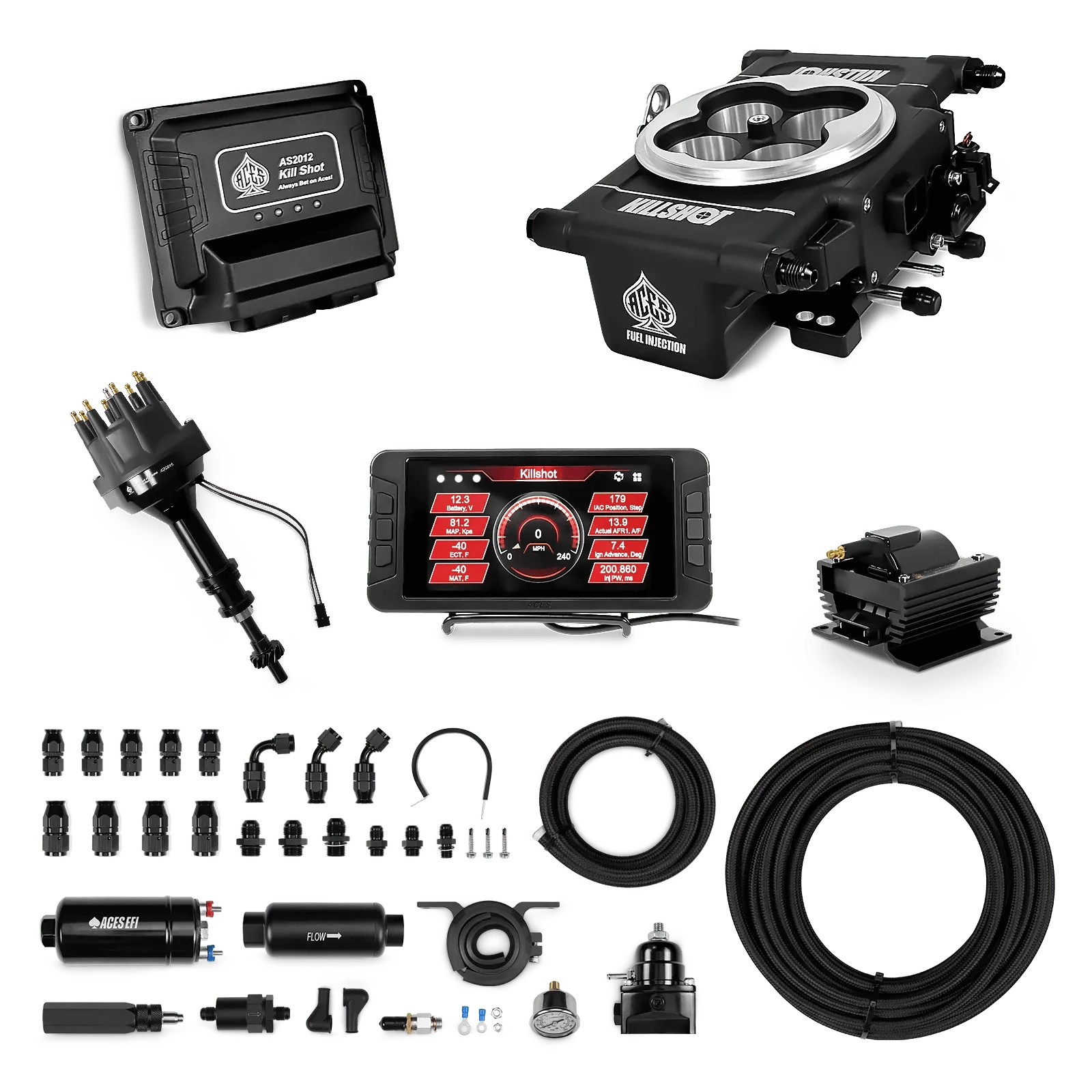

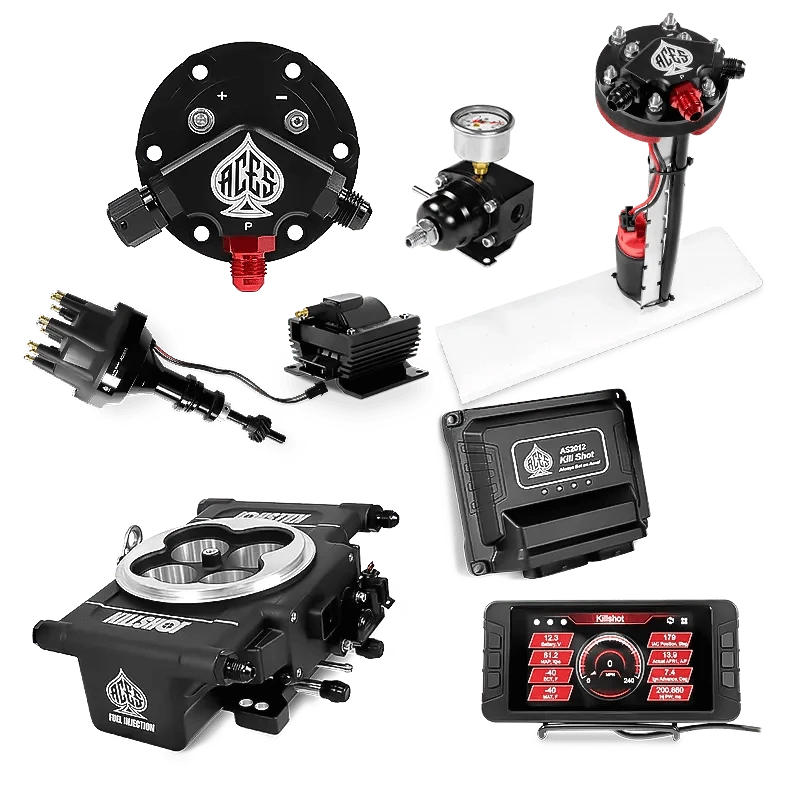

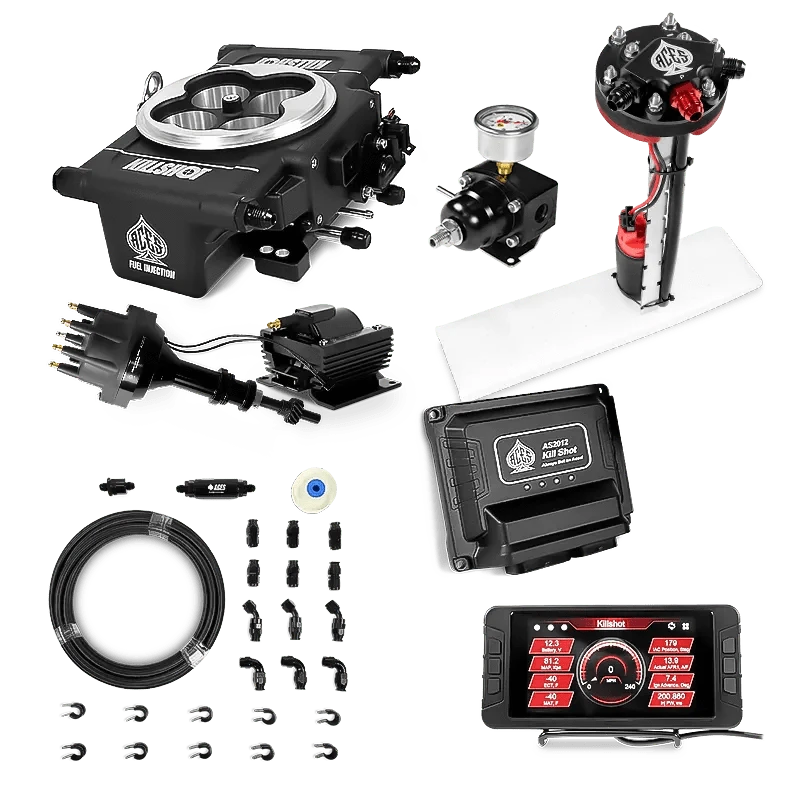

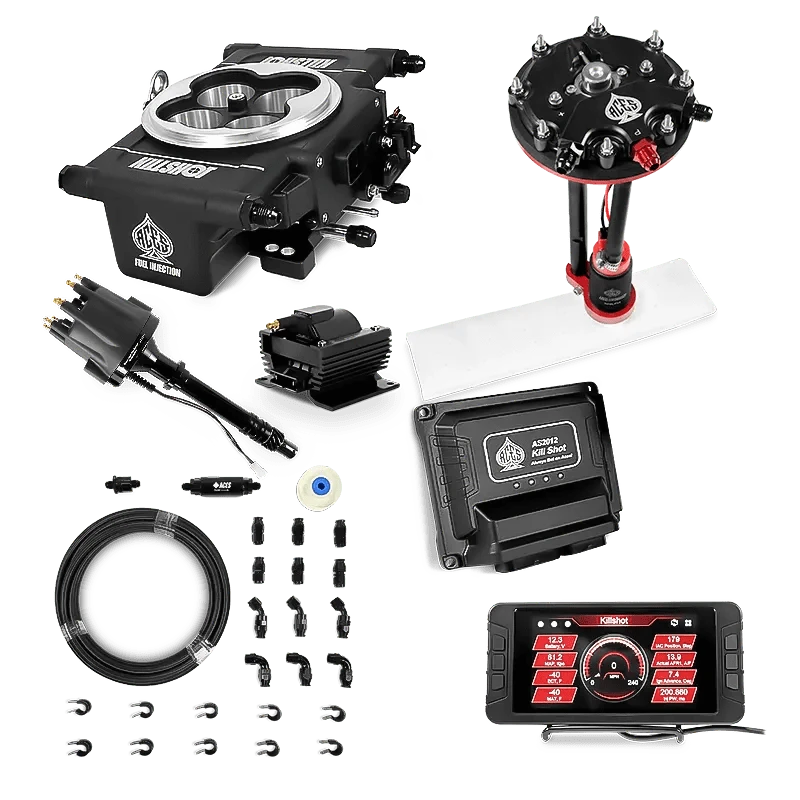

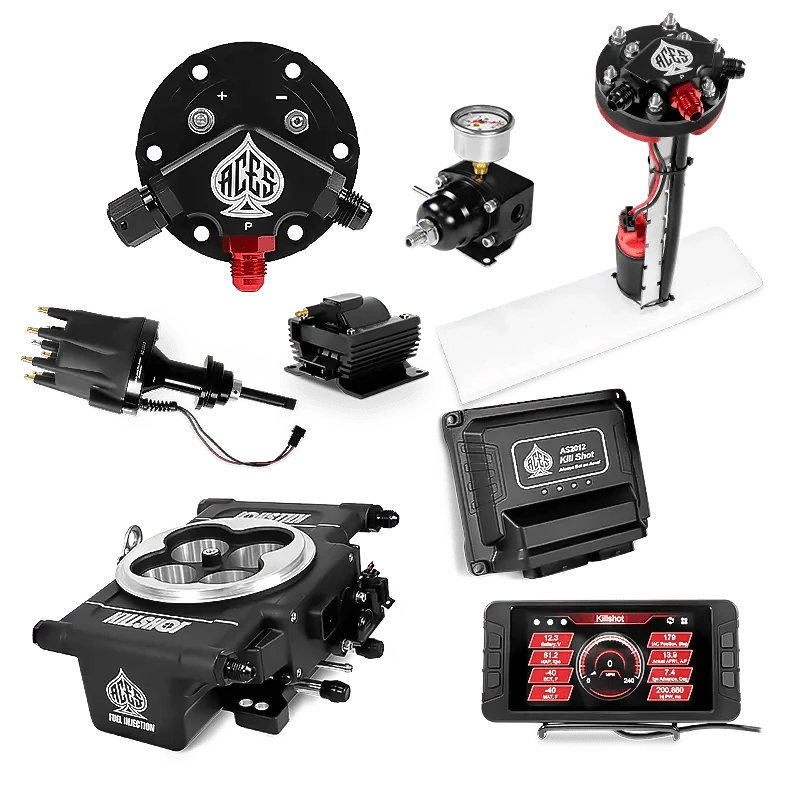

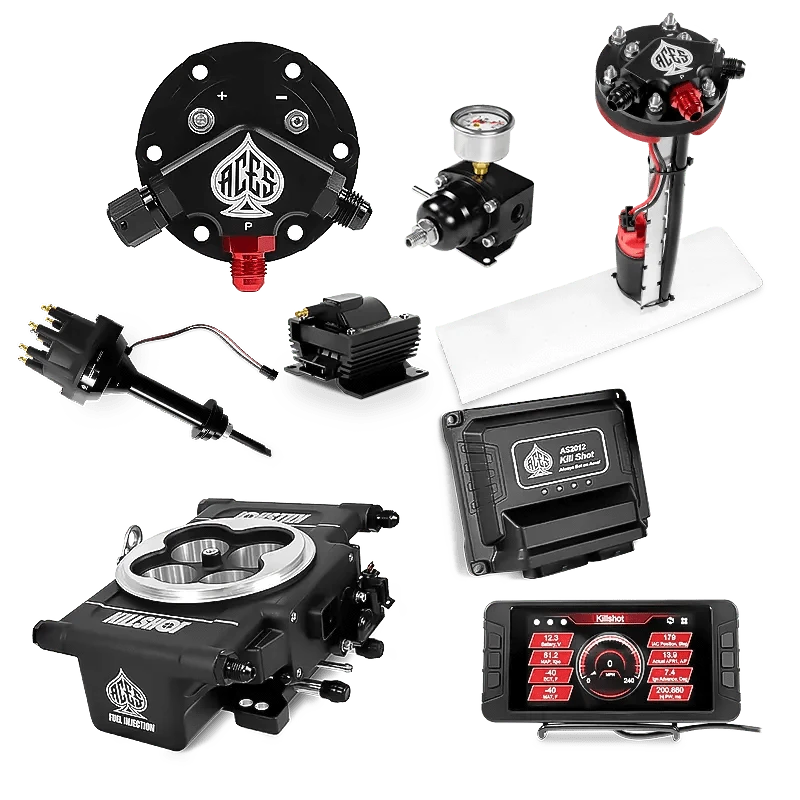

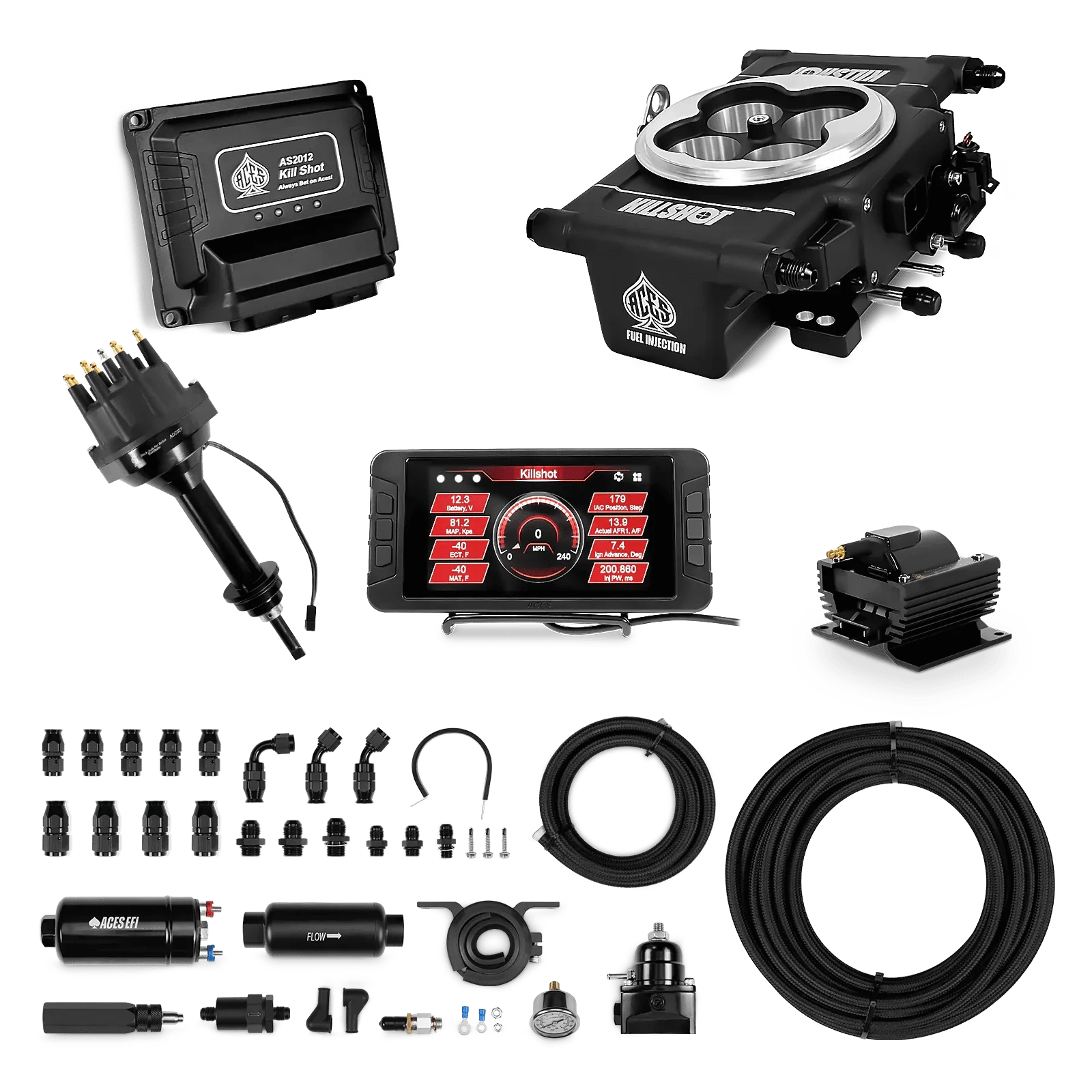

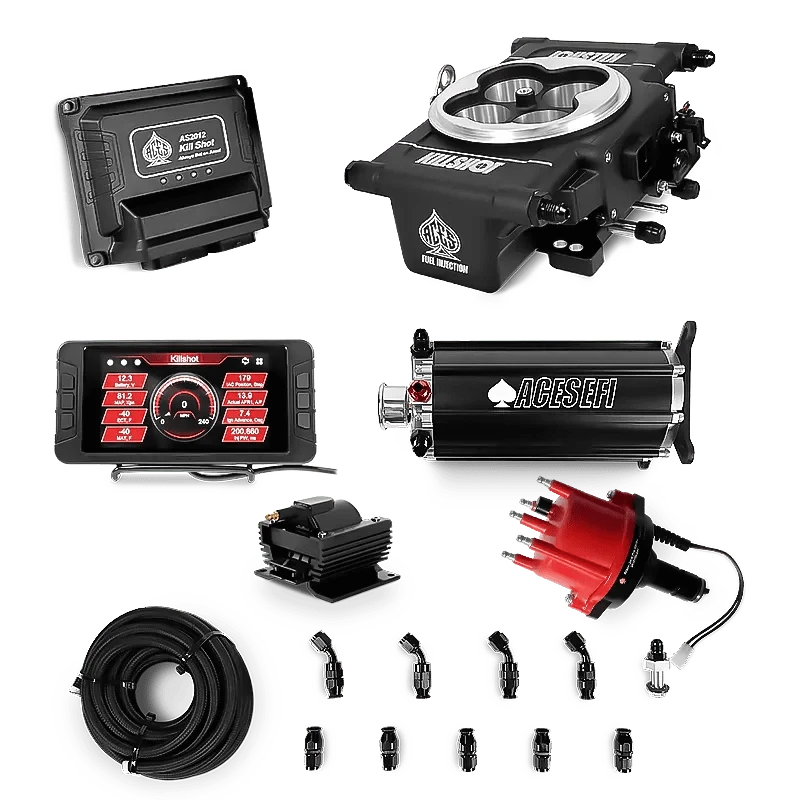

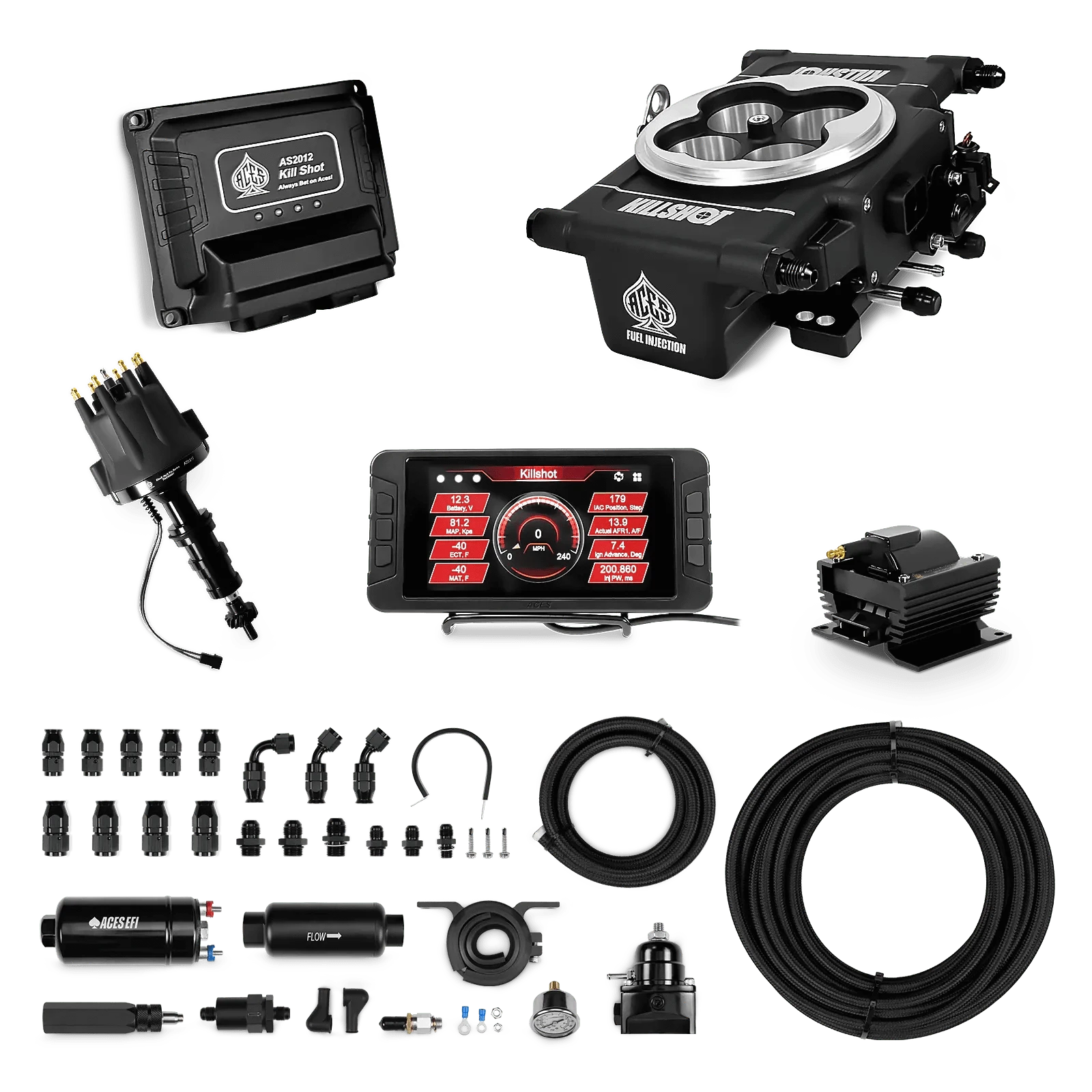

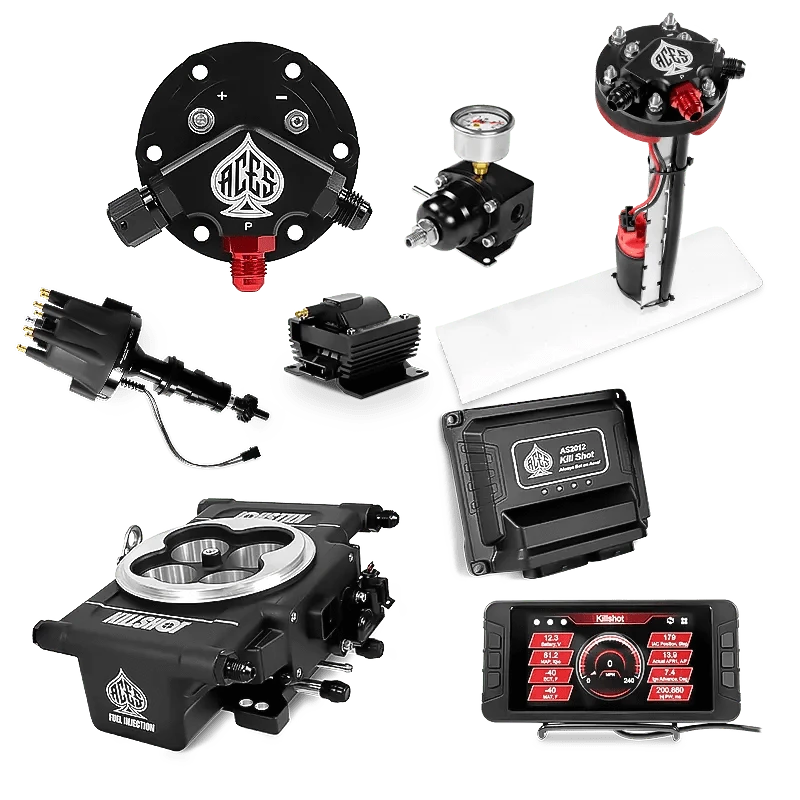

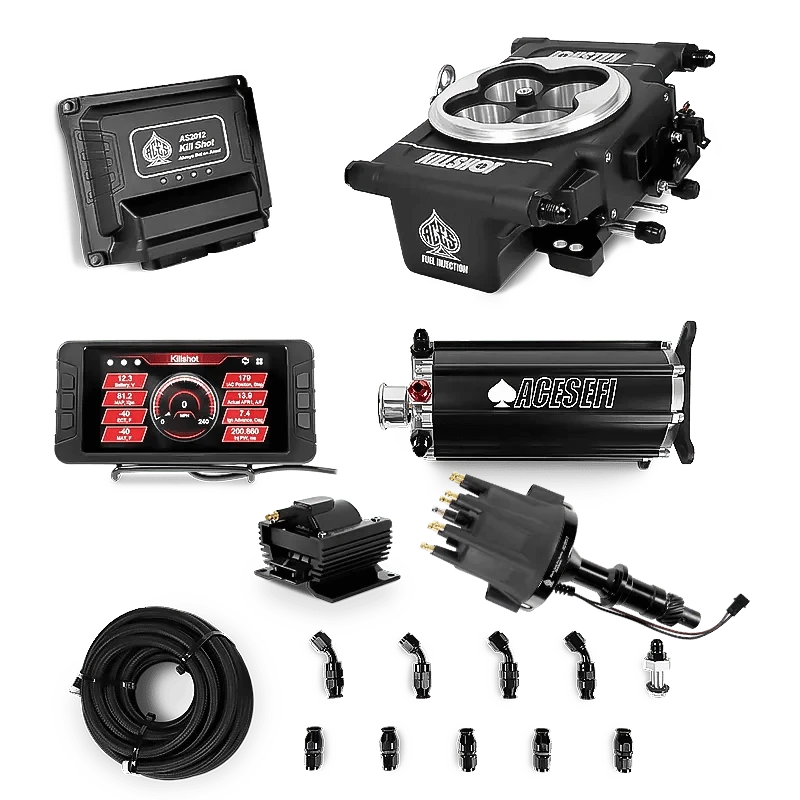

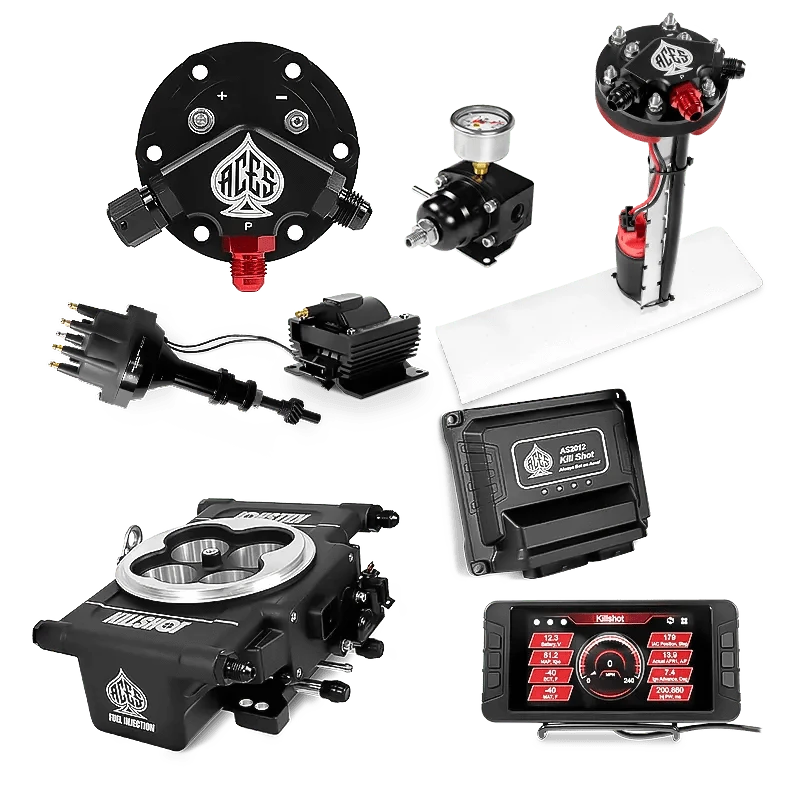

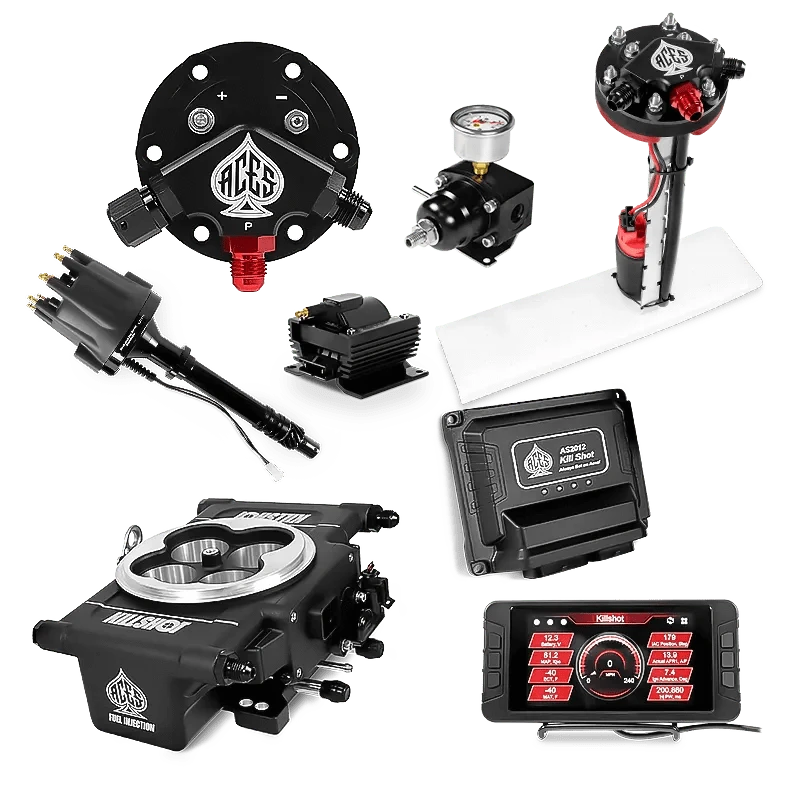

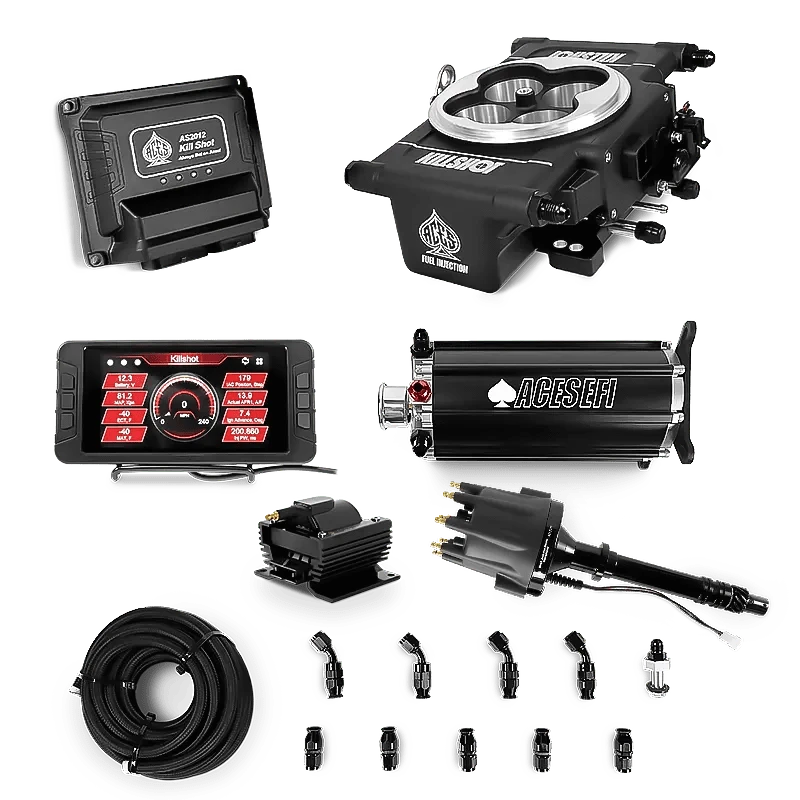

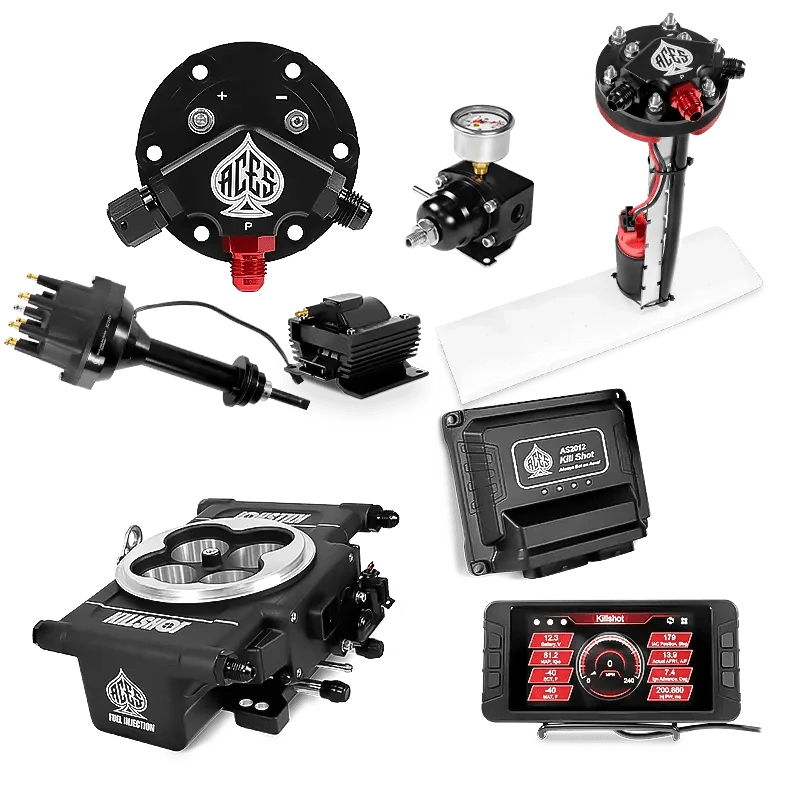

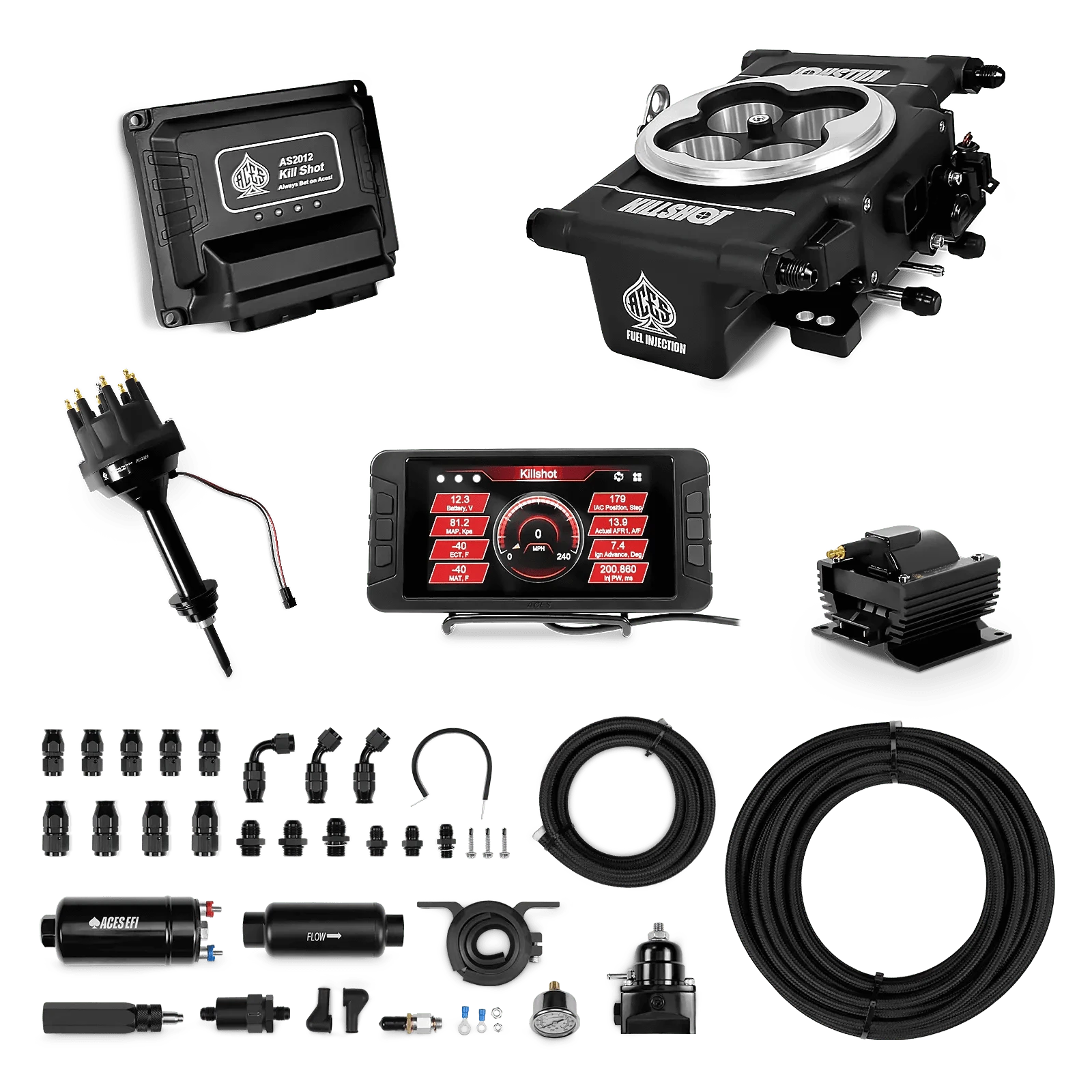

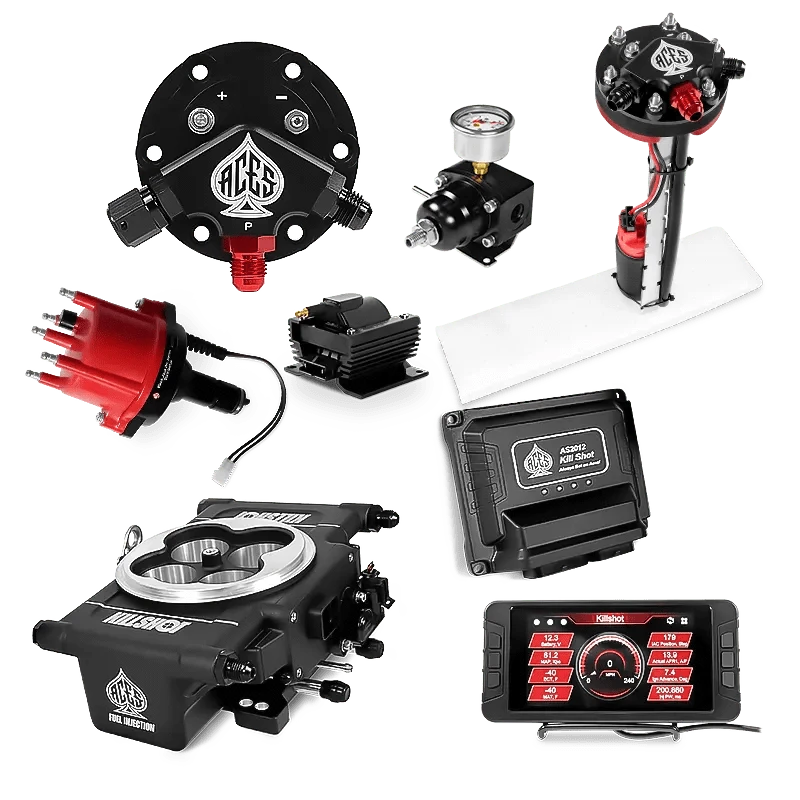

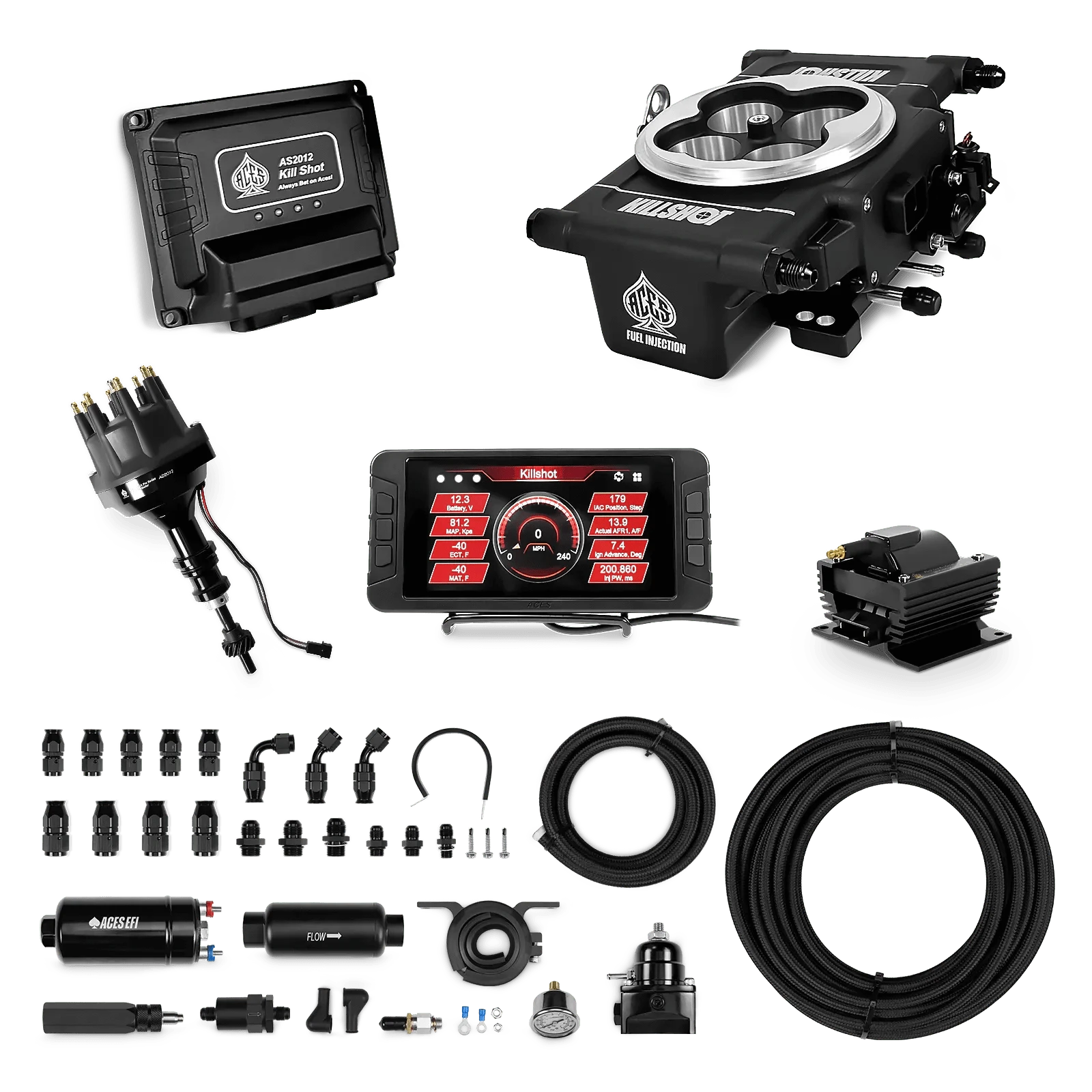

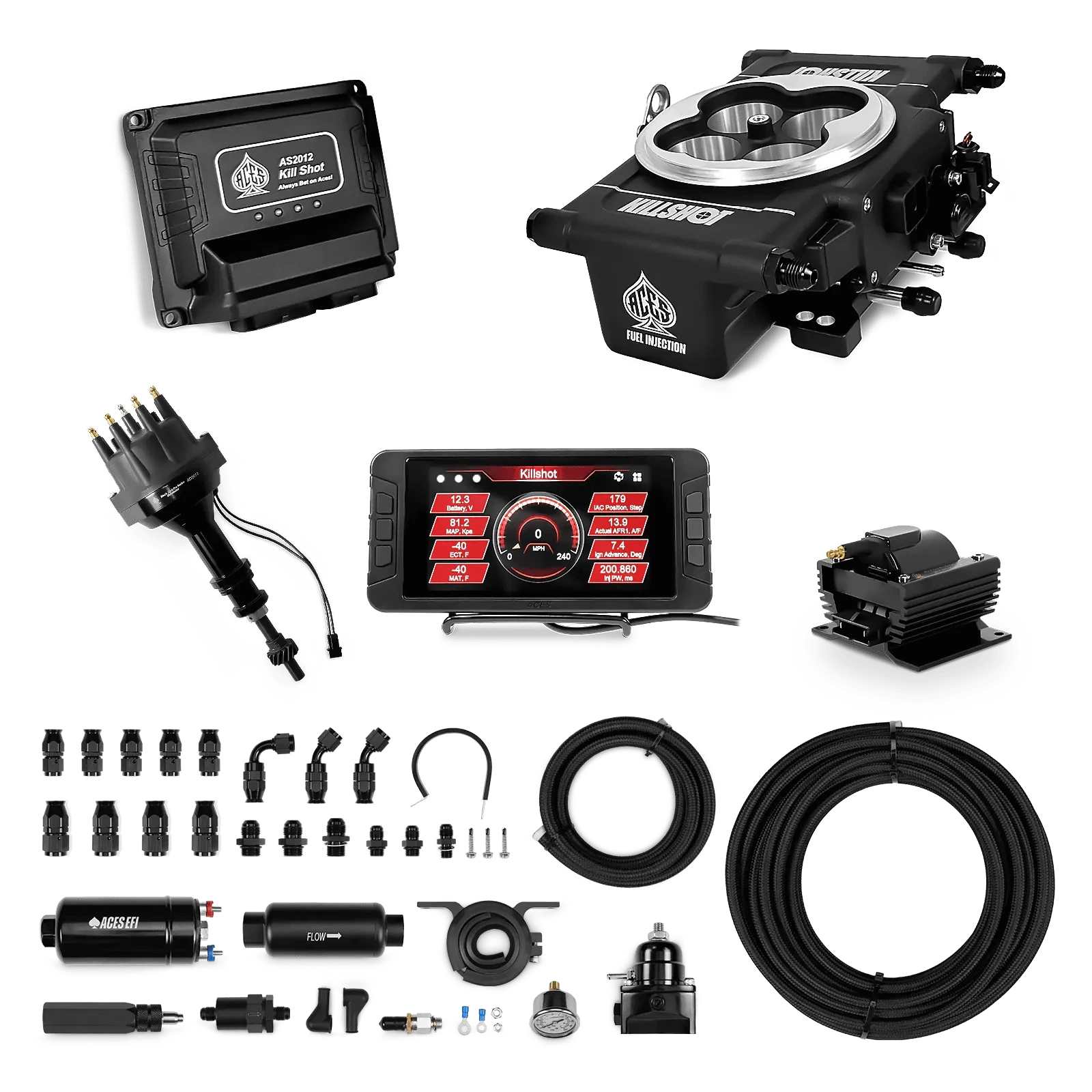

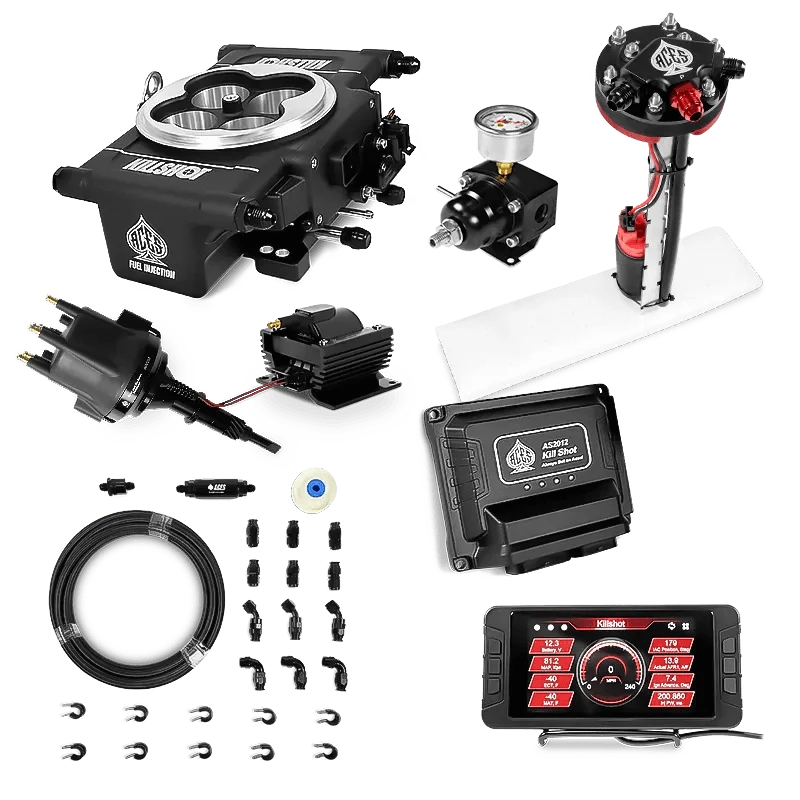

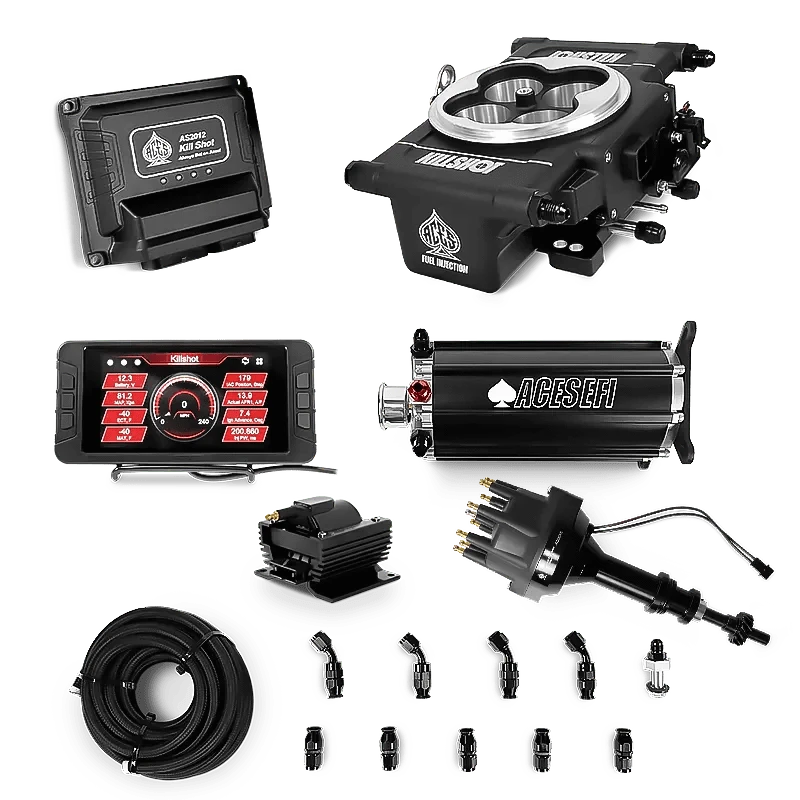

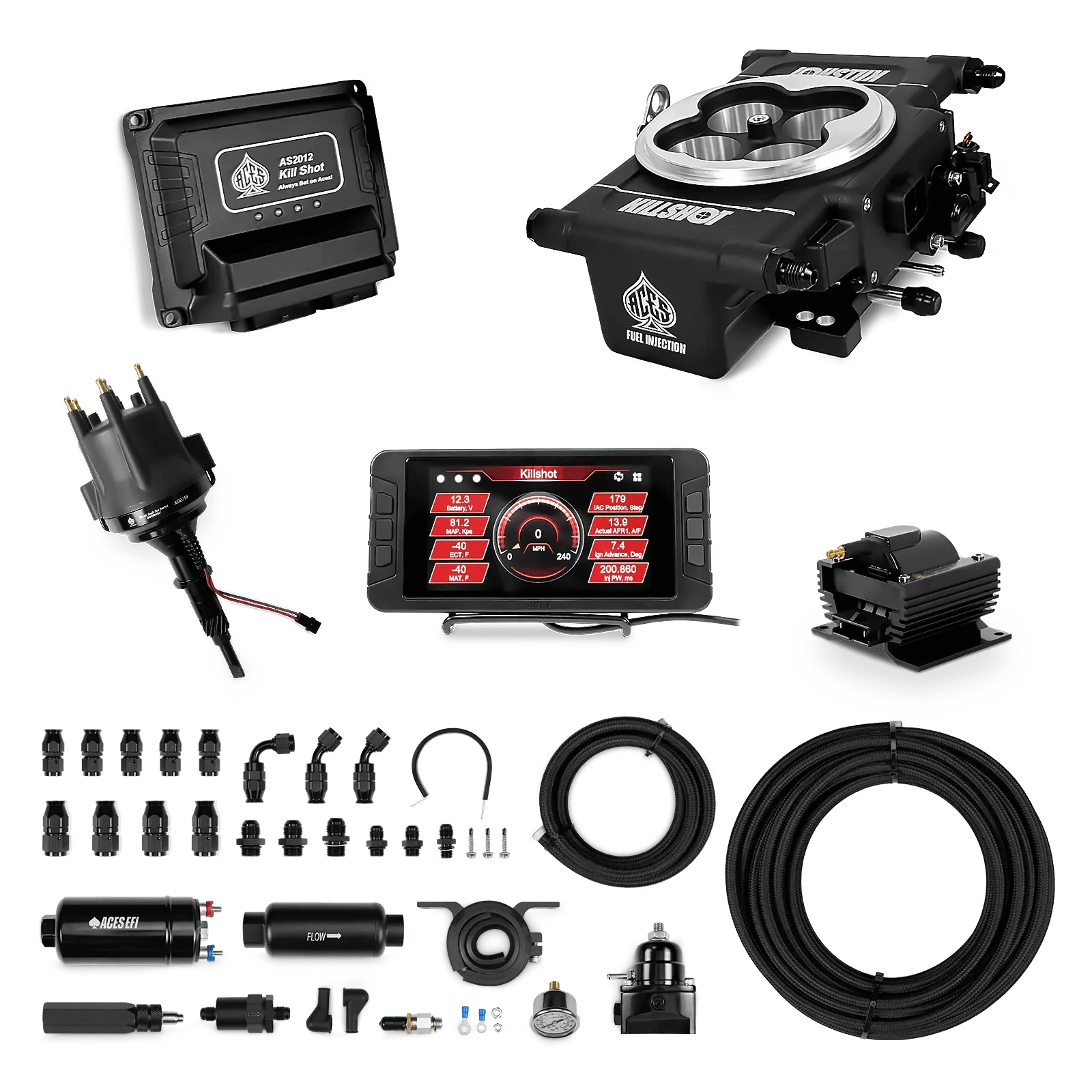

What's in the box?
4-bbl Throttle Body
Fuel Delivery System-Choose from 4 options
Magnetic Distributor
Ignition Coil
Killshot ECU
5" Handheld with GPS speedometor

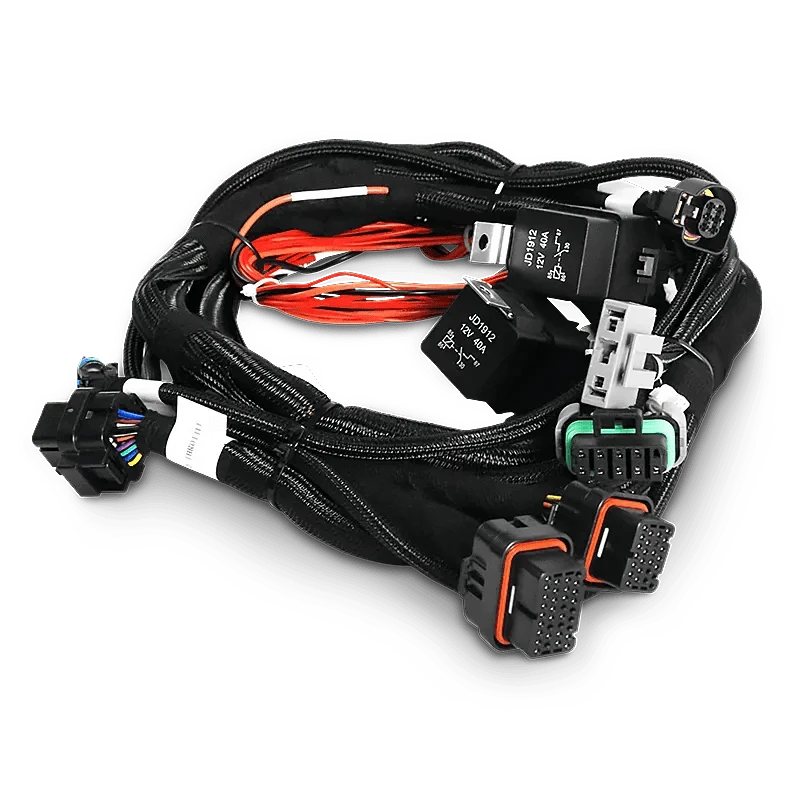

Main Harness
USB-CAN Cable
4.9 WBO2 Sensor
Coolant Temp Sensor

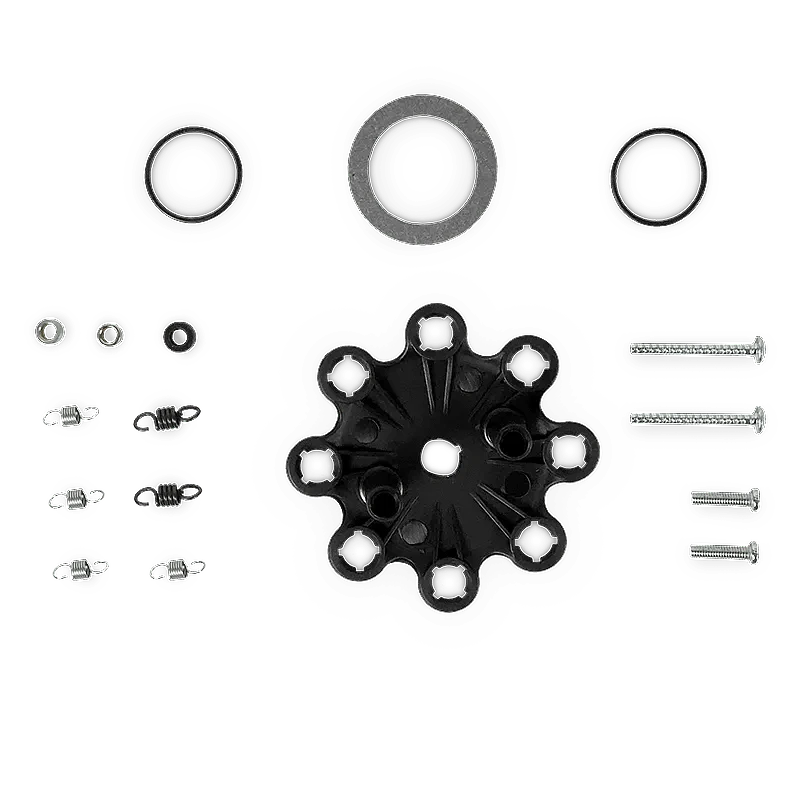

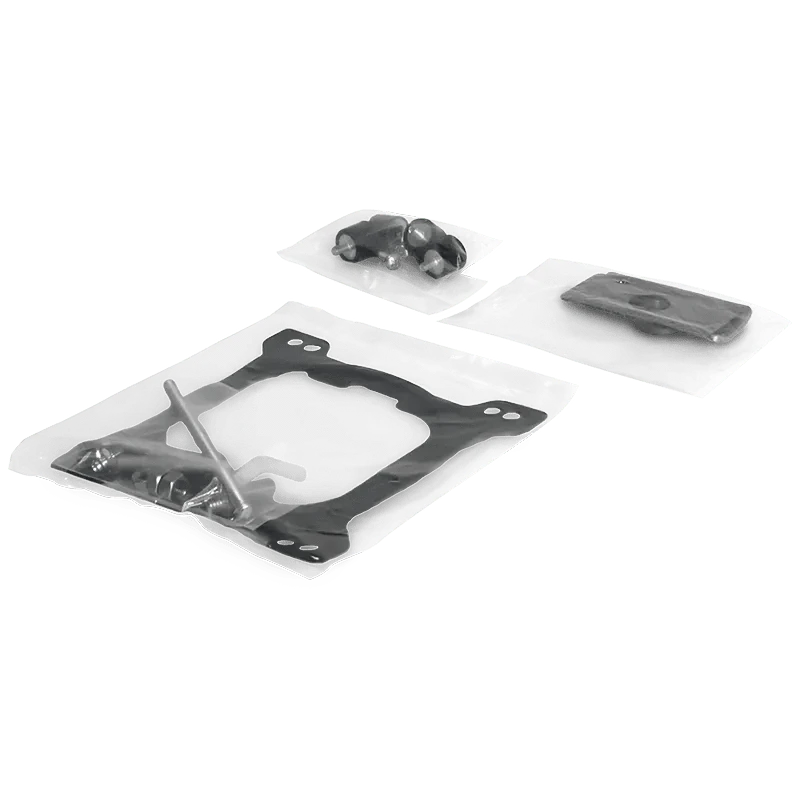

Additional Hardware

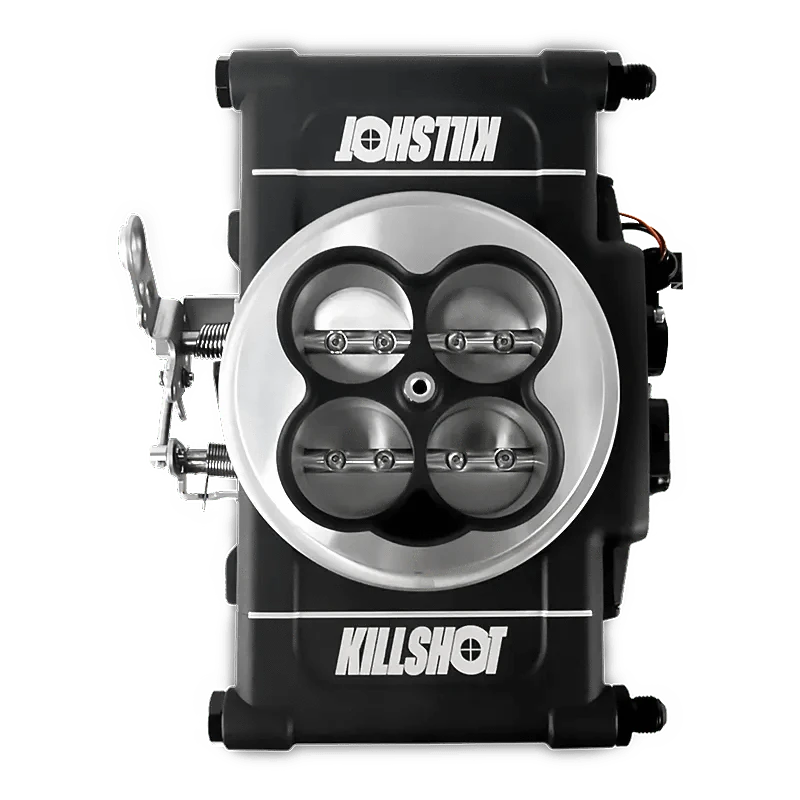

If the Shoe (throttle body) Fits..
The Killshot system was designed with a 4150 style flange making it an exact fit for the majority of small and big block applications. If your manifold is different, you can simply use a flange adaptor to make it work. The system is generally compatible with stock ignition, but to take advantage of timing control features that the system offers, you'll want to use a magnetic pickup distributor and separate ignition coil- both of which are included in our Top End and Master Kits!

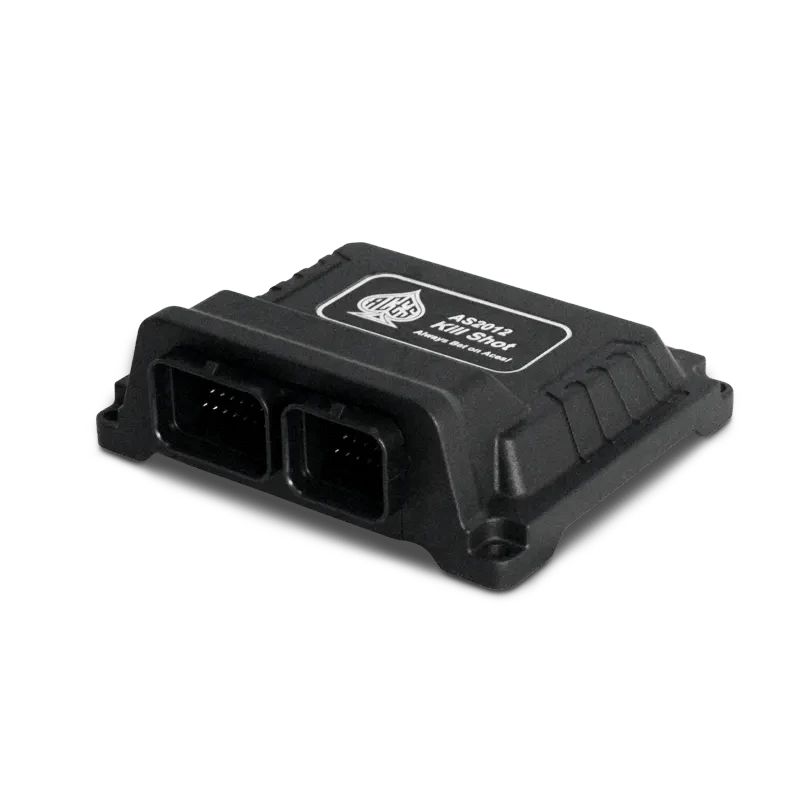

Computing Power
A robust remote-mounted ECU that utilizes our OEM standard 32-bit architecture. This allows the system to manage input/output signals, voltage, and RPM faster and more consistently than our competitors. A remote-mounted ECU allows it to avoid dreaded heat-and-vibration induced hardware failures that are prevelant in other aftermarket systems.
Plug 'n' Play
Not a tuning wiz? You don't need to be since we provide a wizard for you. Our self-learning* functionality means you only have to answer a few basic questions in the startup wizard and then the ECU takes care of the rest. After about 30-60 mins of idling and drive time, the system will build it's own tune so you don't have to. Click here to learn more about our handhelds and dashes and see all of their features.
*Self-learn works best for stock-mild applications. For more aggressive applications and even some stock-mild applications, we offer free tuning software on our website.
Boost it, baby!
Each TBI unit comes with a built in 3 bar MAP sensor that will allow you to run up to 27lbs of boost!
Versatile Fuel Module Options
Tailor your fuel delivery system to match your specific requirements with a choice of Fuel Module Systems, allowing you to optimize fuel flow and pressure for maximum engine performance.
255 In-line Fuel Pump System with PTFE Hose
Aces’ 255 In-line Fuel System is a complete gravity-fed fuel delivery kit to provide the proper fuel supply for most aftermarket EFI systems. The system includes the fuel pump, fuel pressure regulator, liquid-filled fuel pressure gauge, 100-micron pre-filter, 10-micron fuel filter, 40’ of –6 Teflon™ (PTFE) lined fuel line for the highest strength and resistance to gasoline and alcohol-based fuels, 6AN-8AN-HOSE Assmbly Tool, and all necessary fittings for a complete installation! This system is designed to match the power potential of EFI systems up to 650 HP. Aces’ 255 In-line Fuel System takes the guesswork out of acquiring the correct fuel system components for your EFI-equipped vehicle.
System Features:
•Complete EFI Fuel System with high quality Teflon™ (PTFE) lined –6 AN hose and all necessary fittings
•255 LPH In-line fuel pump
•Fuel Filters
•Adjustable fuel pressure regulator with gauge
•Supports EFI applications up 650hp
•6AN-8AN-HOSE Assmbly Tool for easier installation of the system

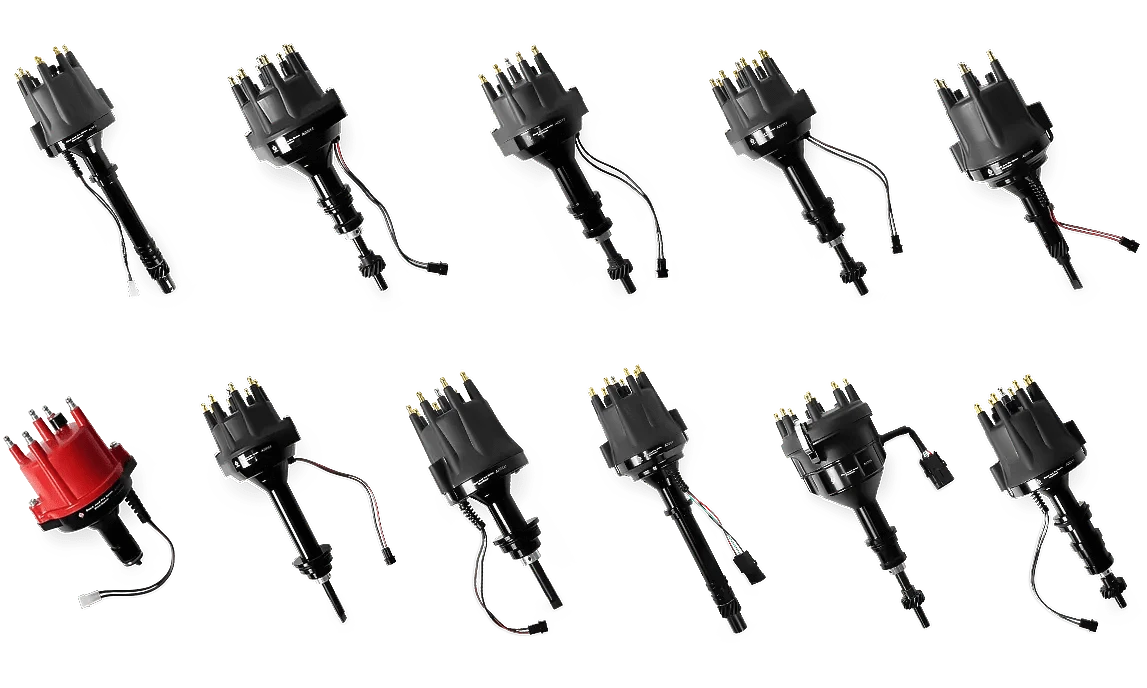

Powerful ignition
The Blackjack Pro Series Billet Distributor features a high-quality, CNC-machined black anodized aluminum body and hardened steel shaft, guided by a sealed ball-bearing on top and a sintered steel bushing on the bottom to ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer.

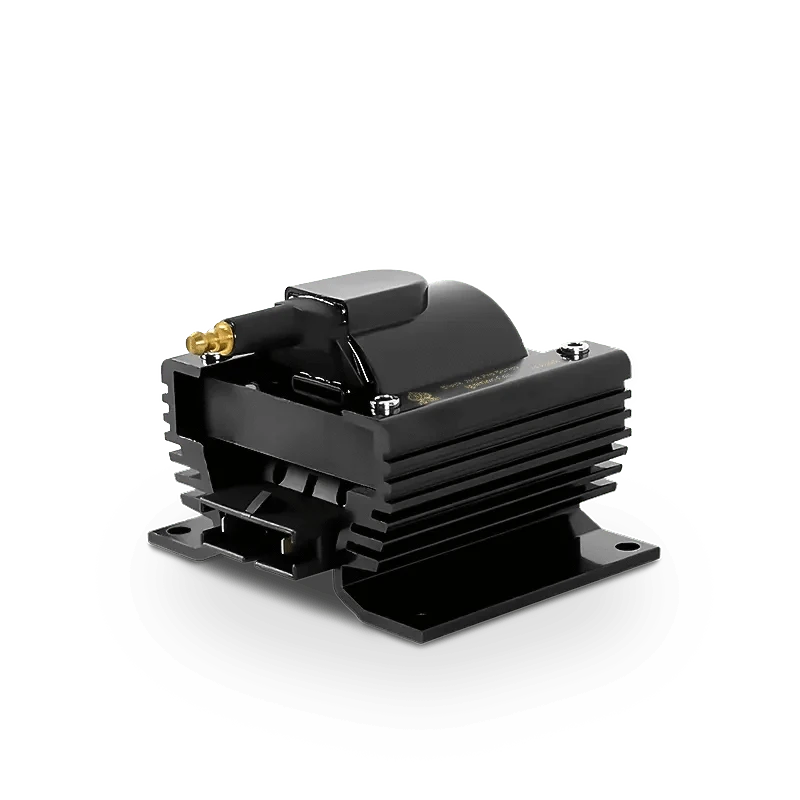

BLACKJACK Pro Ignition Coil
- Primary Resistance:0.273Ω
- Primary Inductance:2.63 MHz
- Secondary Resistance: 3.42kΩ
- Secondary Inductance:15.77 Hz
- Output (50pF load): 47 kV
- Output Energy:150 mJ
- Peak Secondary Current:100 mA +/-7%
- Arc Duration: 200 uS
- Turns Ratio 78:1
Aces' Killshot EFI system is one of the most advanced throttle body injection (TBI) systems on the market. The Killshot utilizes four 100 lb/hr fuel injectors, giving the system the capability of supporting up to 650 horsepower. The system includes the throttle body (with integrated fuel injectors, TPS sensor, MAP sensor, IAT sensor, and stepper motors), wiring harness, WBO2 sensor, ECU, and a 5” touchscreen handheld programmer for easy tuning and monitoring of engine data.
The Killshot system fits most 4150-flange 4-barrel intake manifolds and is designed for easy installation and tuning. For stock to mild applications, the calibration wizard and self-learning features mean advanced tuning knowledge or experience is not required. But for more aggressive or performance oriented applications, Aces offers a full tuning software suite and USB data cable for advanced manual tuning.
Aces designed its throttle body systems with the ECU separate from the throttle body. This alleviates any issues with possible damage to the ECU from unwanted engine heat or vibration. This is a common problem with other “all-in-one” style systems on the market.
Whether you are building a budget beater or a boosted racing car, Aces EFI’s Killshot system has the technology and advanced features you need, in an easy-to-install, easy-to-tune package so you can take your ride to the next level!
For timing control, the Killshot requires a magnetic pickup or hall effects distributor and separate ignition coil. We recommend our Black Jack Pro series distributor and ignition coil for a plug & play experience.
Aces EFI Killshot™ TBI System Features
- 32-bit software (OEM standard) that manages input/output signals, voltage, and RPM faster and more consistently than competitors
- 5” full-color touchscreen handheld with built-in GPS speedometer
- Integrated coil driver for ignition timing control
- Simple calibration wizard for initial setup- no laptop tuning required.
- Self-learning fuel table
- Dual fan control
- Step retard for nitrous control
- Boost compatibility (using laptop software)
- Remote-mounted ECU to avoid common heat/vibration-induced hardware failures
- 3-bar TMAP sensor for boost & nitrous compatible (using laptop software)
- Free laptop software available for pro applications
- Compatible with Aces’ handhelds, dashes, CAN modules, and TCMs.
- Bosch 4.9 WBO2 sensor
- (4) 100 lb/hr injectors
Holley Sniper 2
ECU Housing
ECU is mounted on the throttle body.
MCU
16-bit
Handheld
3.5" resistive touch screen
Appearance
Several separated cables & wires
Injectors
(4) 100 lb/hr injectors
HP
650 HP N/A
Timing Control & IGBT Driver
Has timing control but no IGBT driver
Spark Energy
-
Retail Price
$1,299.95
Killshot EFI System
ECU Housing
External, automotive-grade, die-cast aluminum.
MCU
32-bit, ST56 series Power Architecture™ (OEM Standard)
Handheld
5", full-color, capacitive touch screen. Includes built-in GPS chip for speedometer.
Appearance
Only one connector to throttle body (bundled).
Injectors
(4) 100 lb/hr injectors
HP
650 HP N/A
Timing Control & IGBT Driver
Has timing control features and an integrated IGBT driver
Spark Energy
Programmable dwell time. Min. of 90 MJ spark energy when using our AC2008 ignition coil.
Retail Price
$959.99
FiTech GoEFI600
ECU Housing
ECU is mounted on the throttle body.
MCU
16-bit
Handheld
3.5" screen
Appearance
Several separated cables & wires
Injectors
(4) 100 lb/hr injectors
HP
600 HP N/A
Timing Control & IGBT Driver
-
Spark Energy
-
Retail Price
$999.99
CFM Rating
800 CFM
Material
Cast Aluminum (throttle body)
Ported Vacuum
Yes
Air Cleaner Diameter
5"
Throttle Body Height
3-5/16”
MAP Sensor Rating
3-bar
Inlet/Outlet Size
-6 AN
Injector Size
100 lb/hr
Fuel PSI Required
42-48 PSI, 60 PSI max
Boost/Nitrous Compatibility
Compatible, yes. Control requires a separate module.
Available Finishes
Black ceramic, gold, pink, or polished
HP Rating
650 HP (naturally aspirated)
