Killshot 2 Pro EFI System (flash sale)
Save 5% when you build out a kit with any of these add-ons!
Chosen by 80% of our customers
$119.99
$169.99
Details

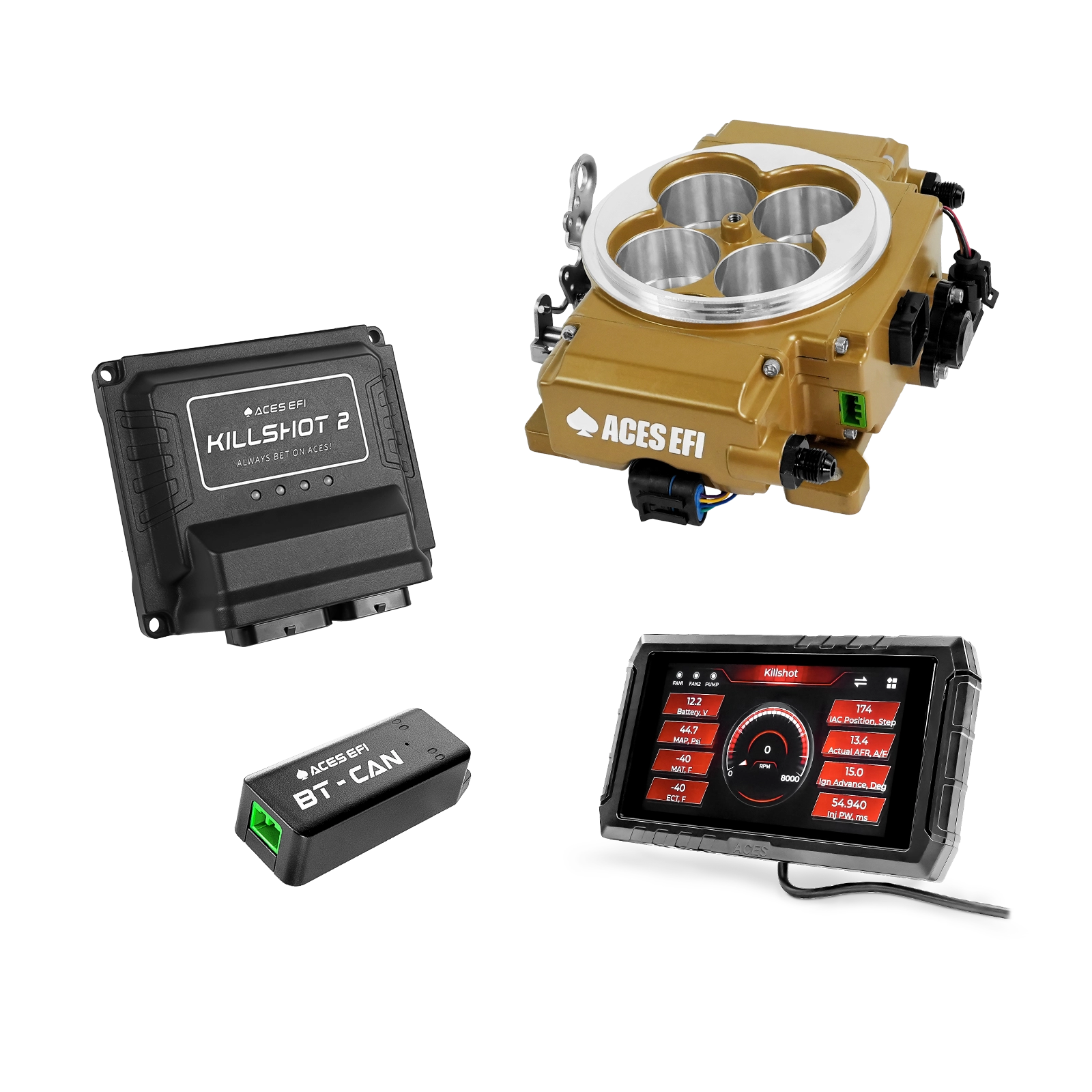

What's in the box?

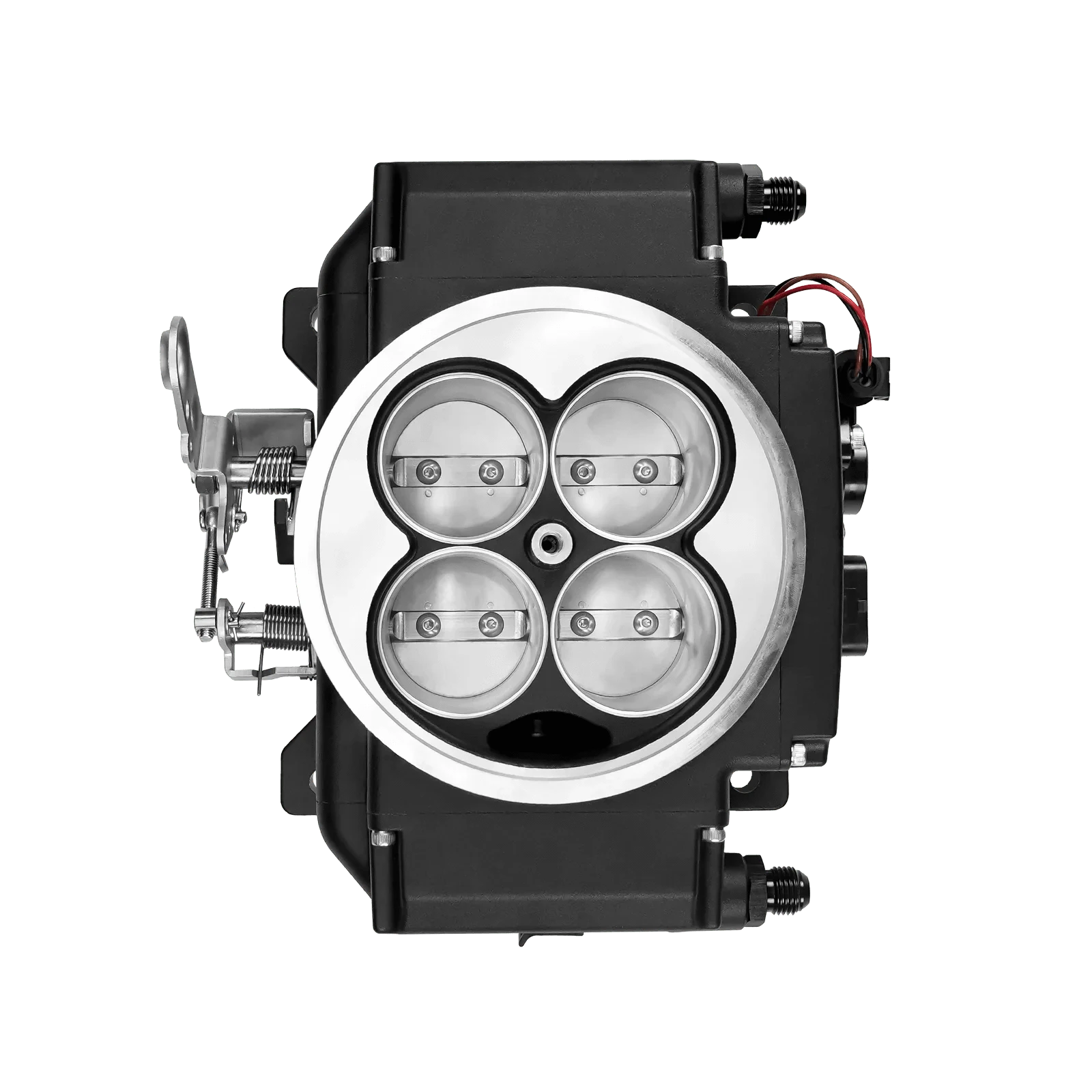

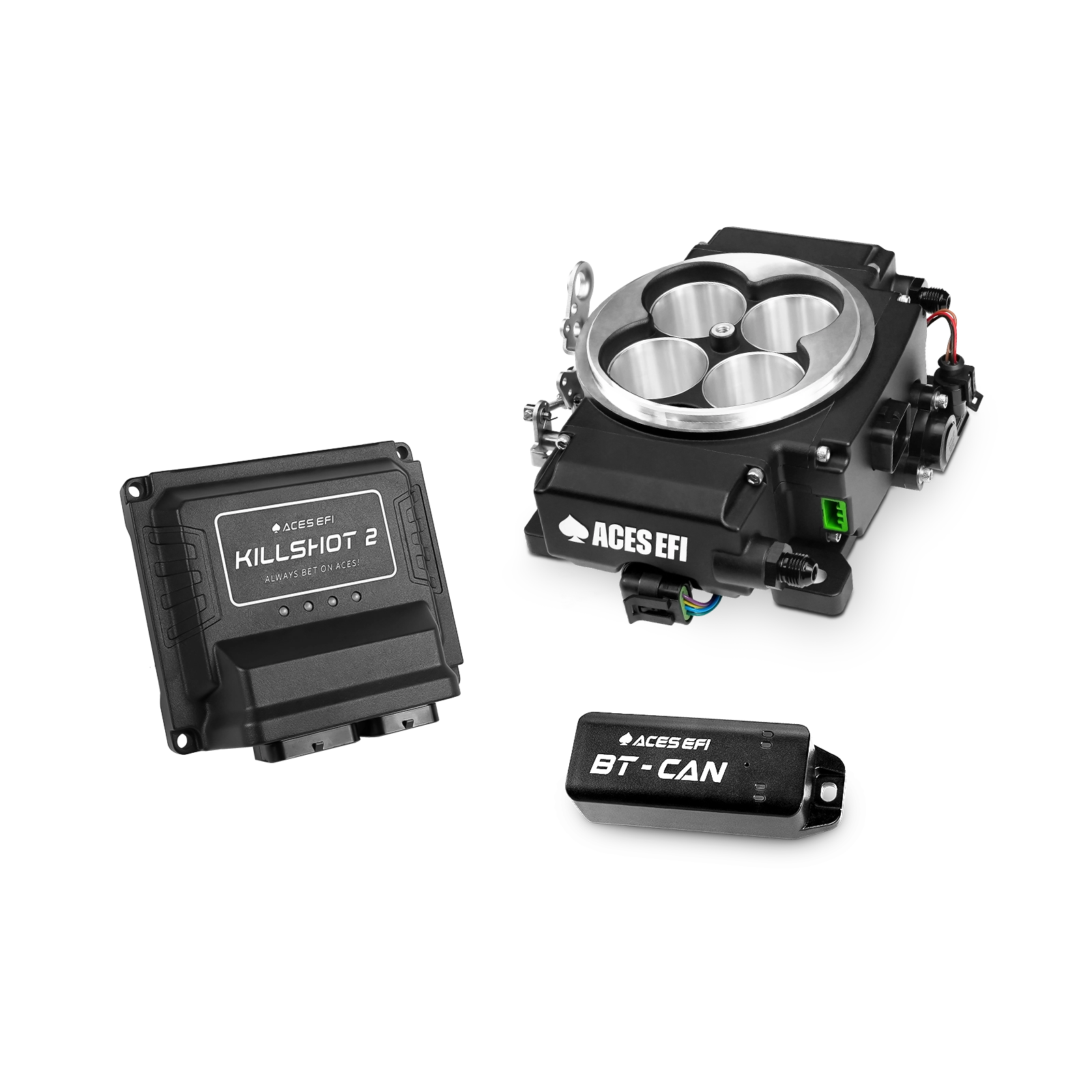

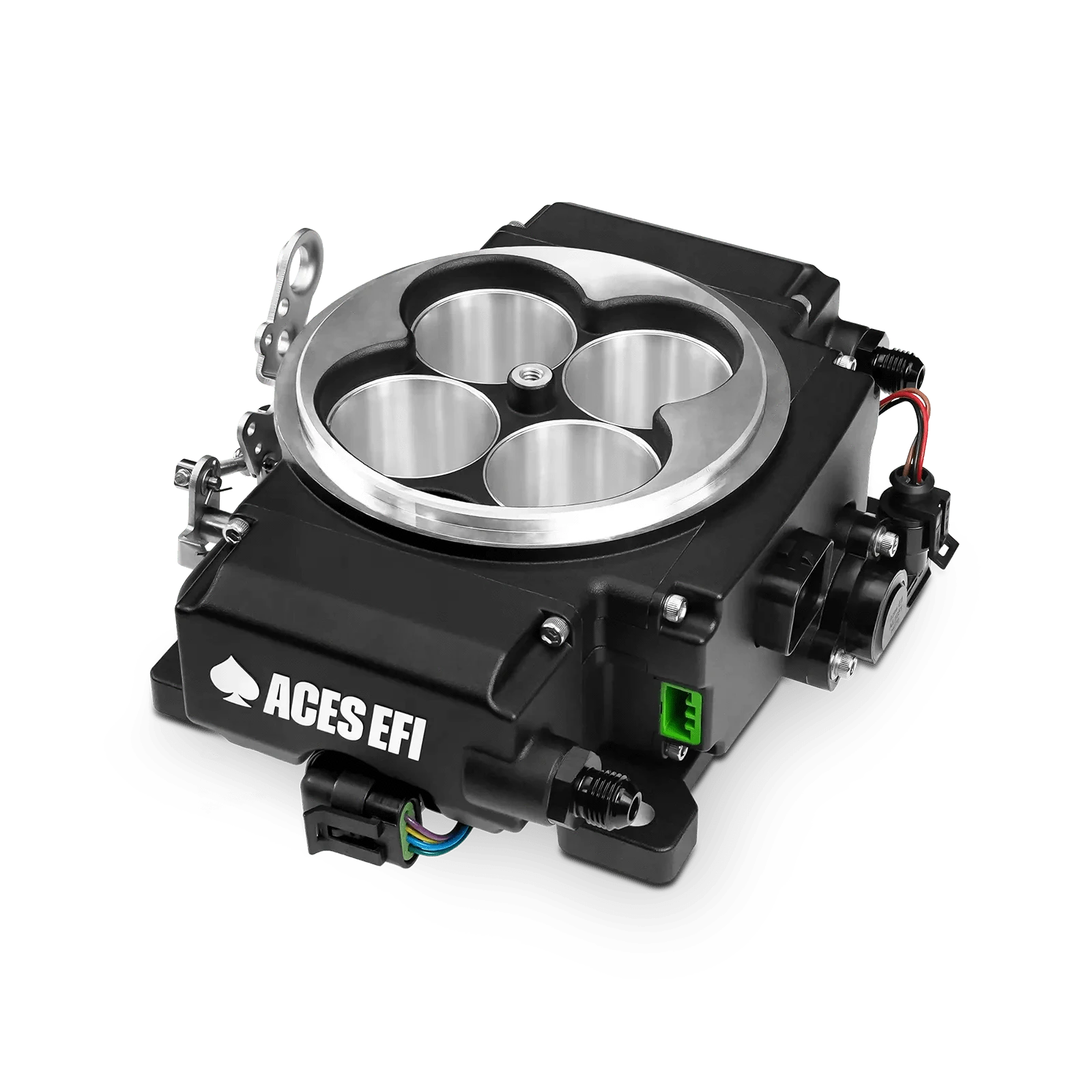

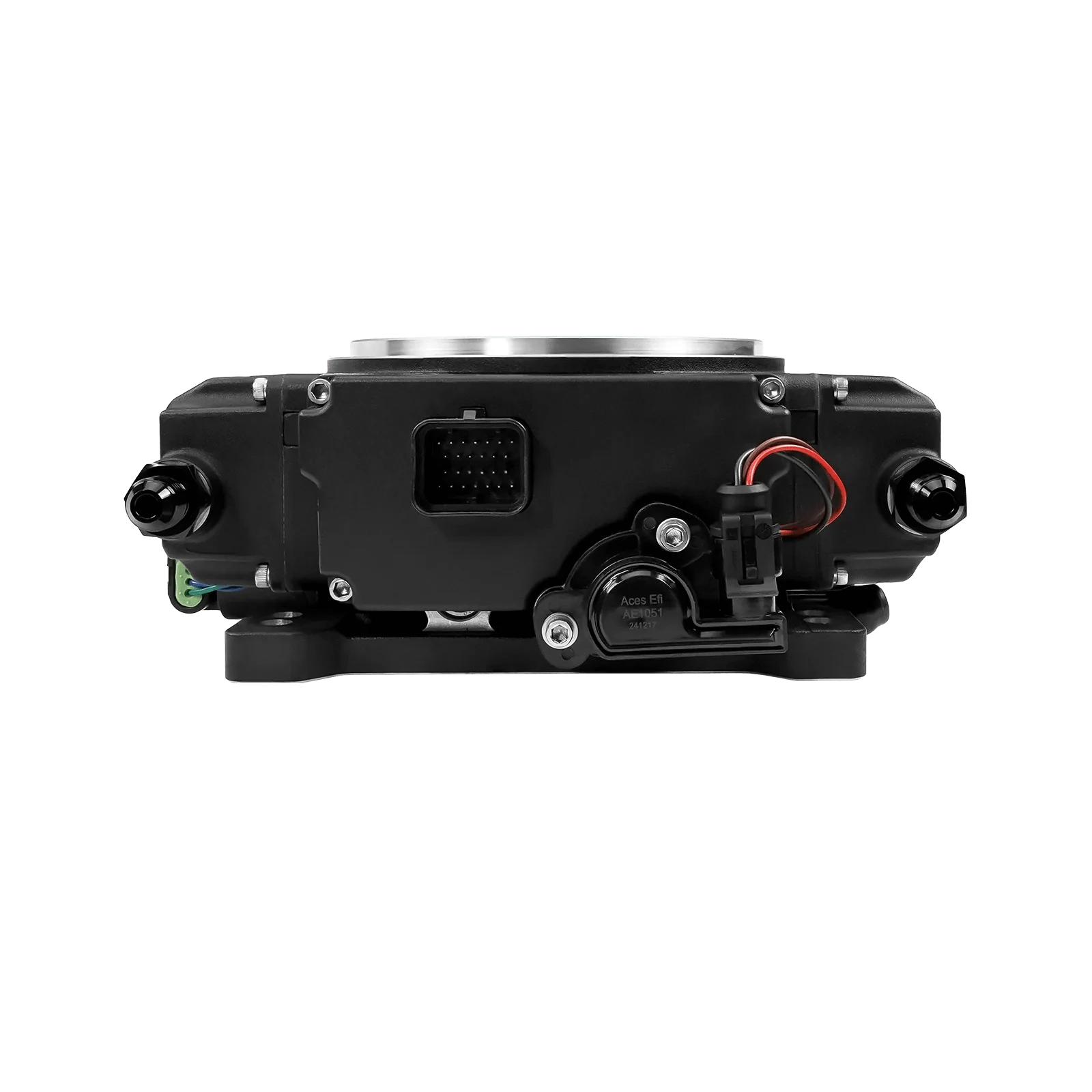

Killshot II Throttle Body

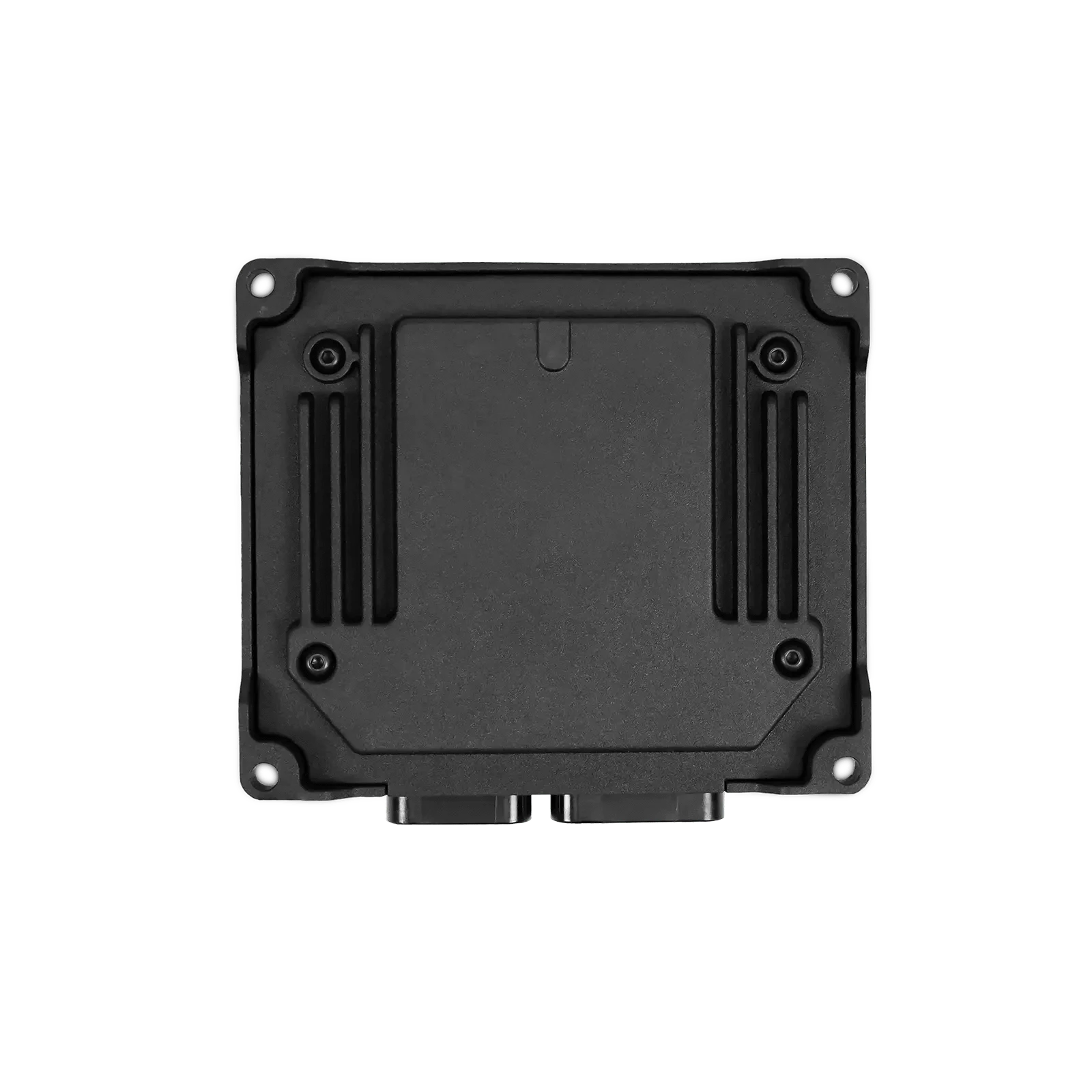

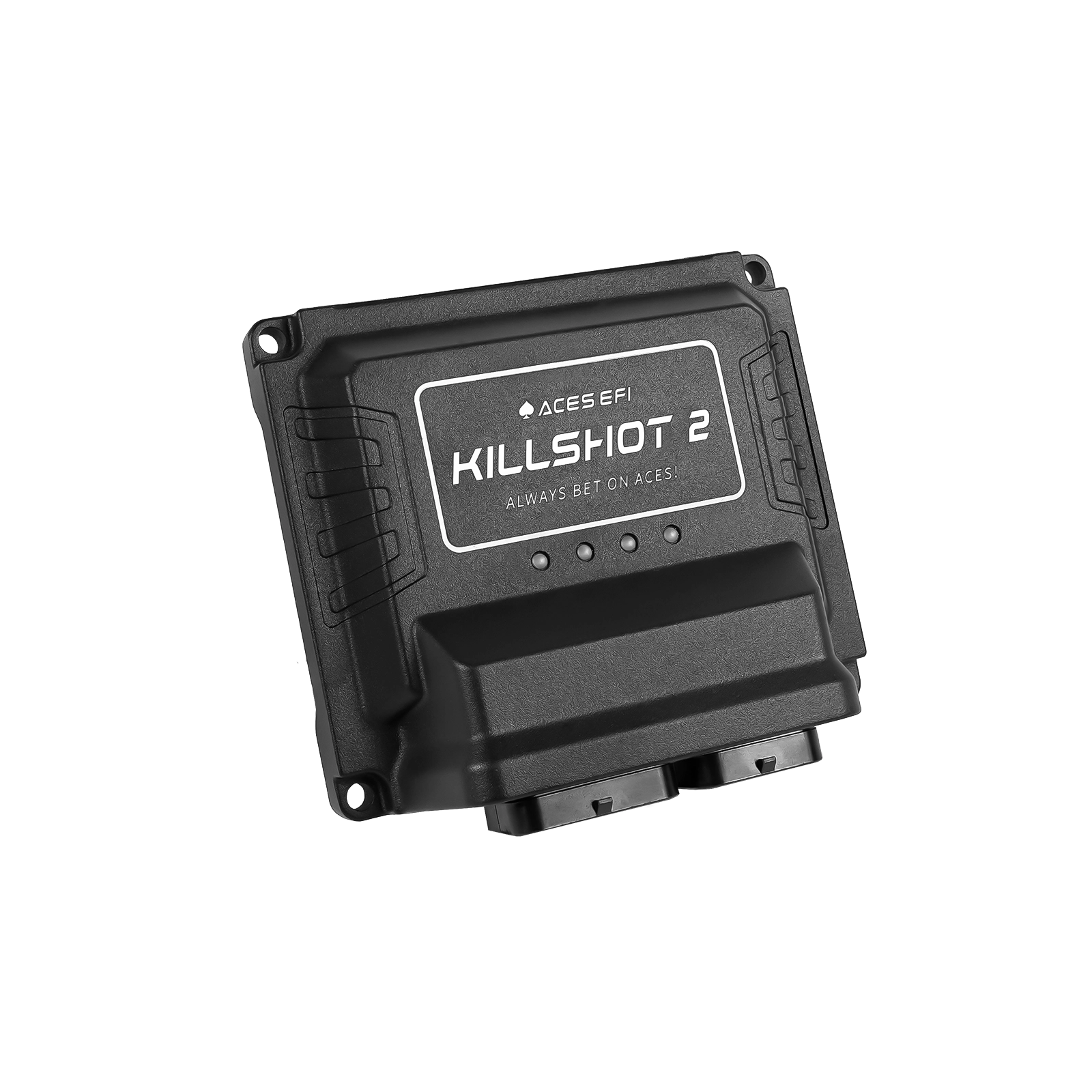

Killshot II ECU

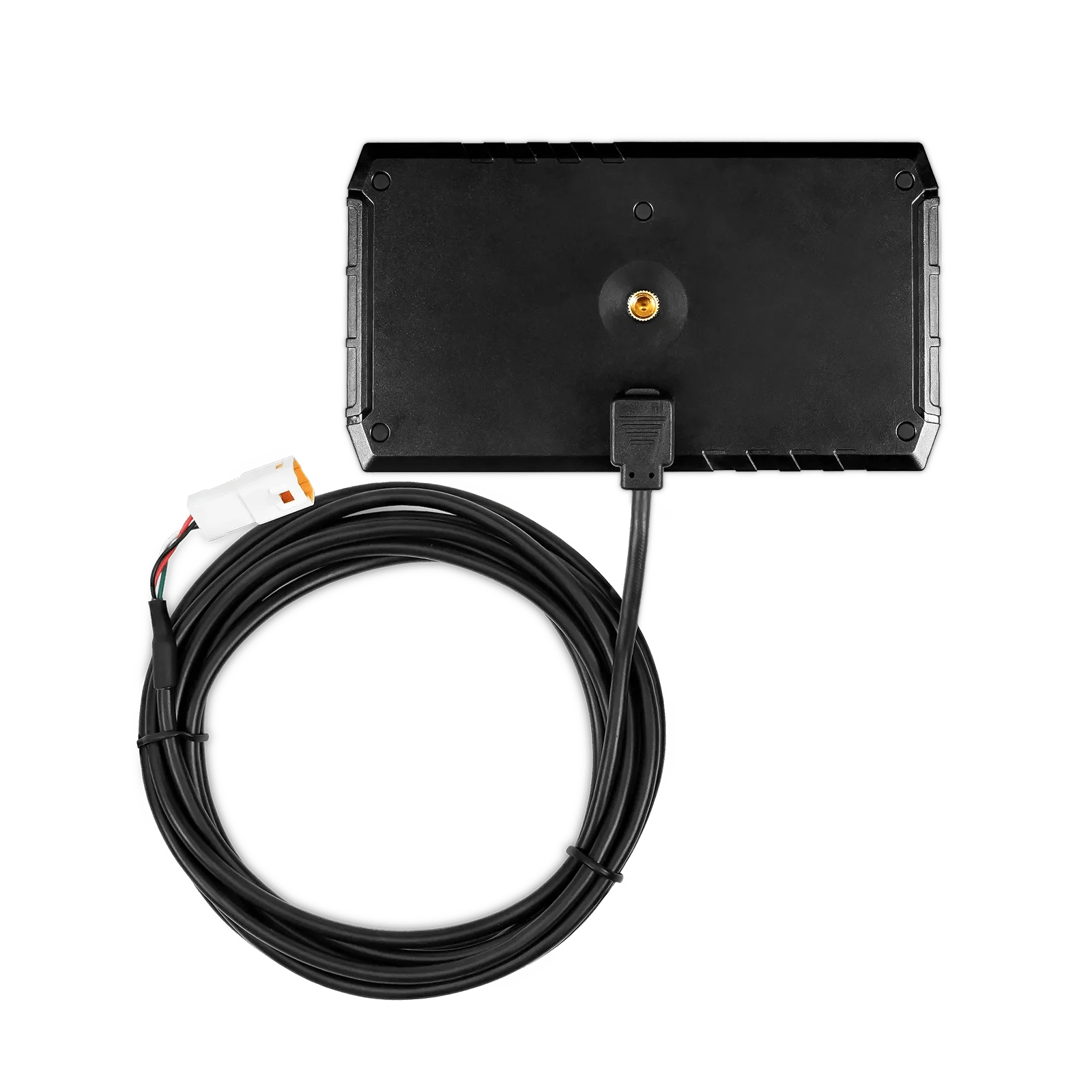

5” HD Handheld with built-in GPS

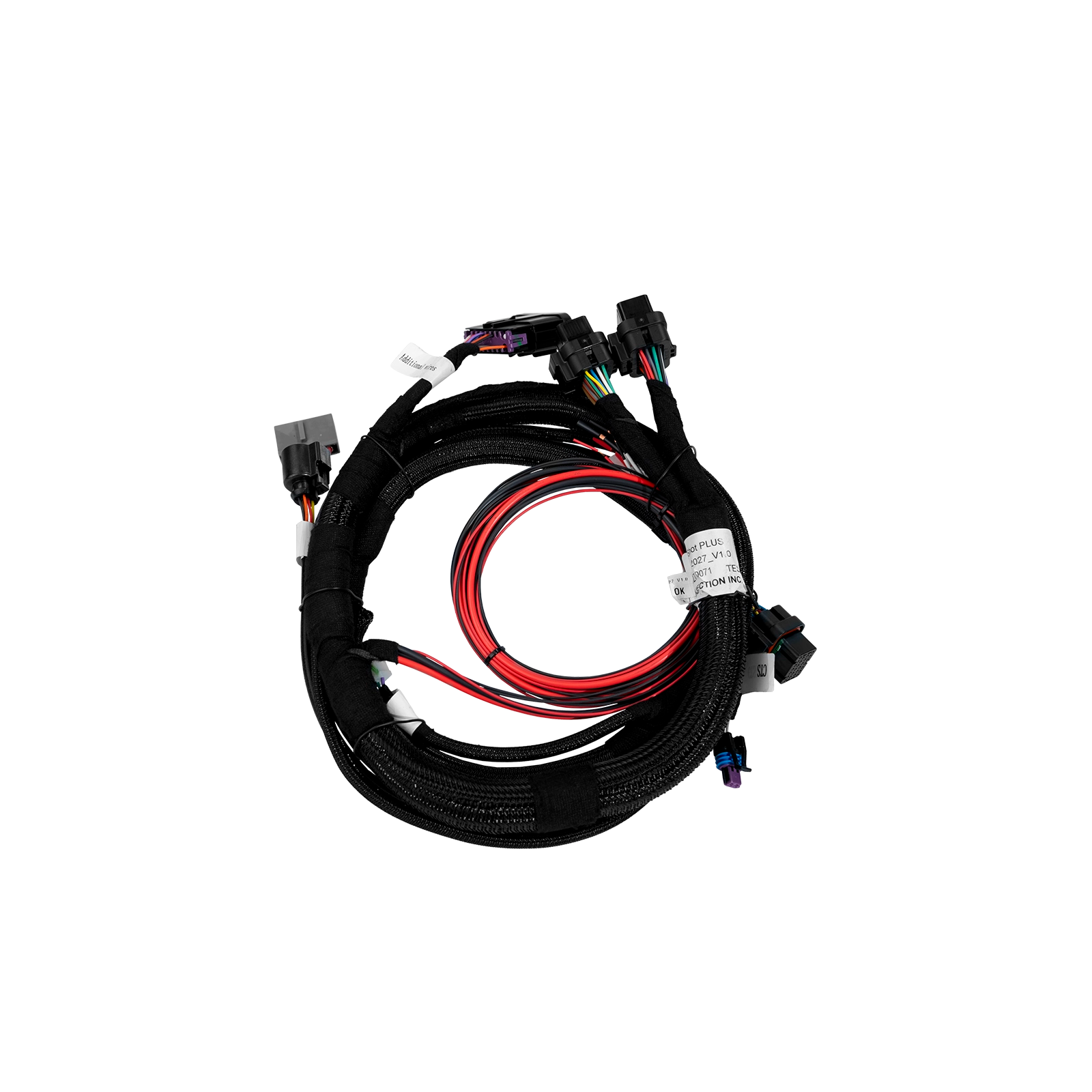

Main Harness

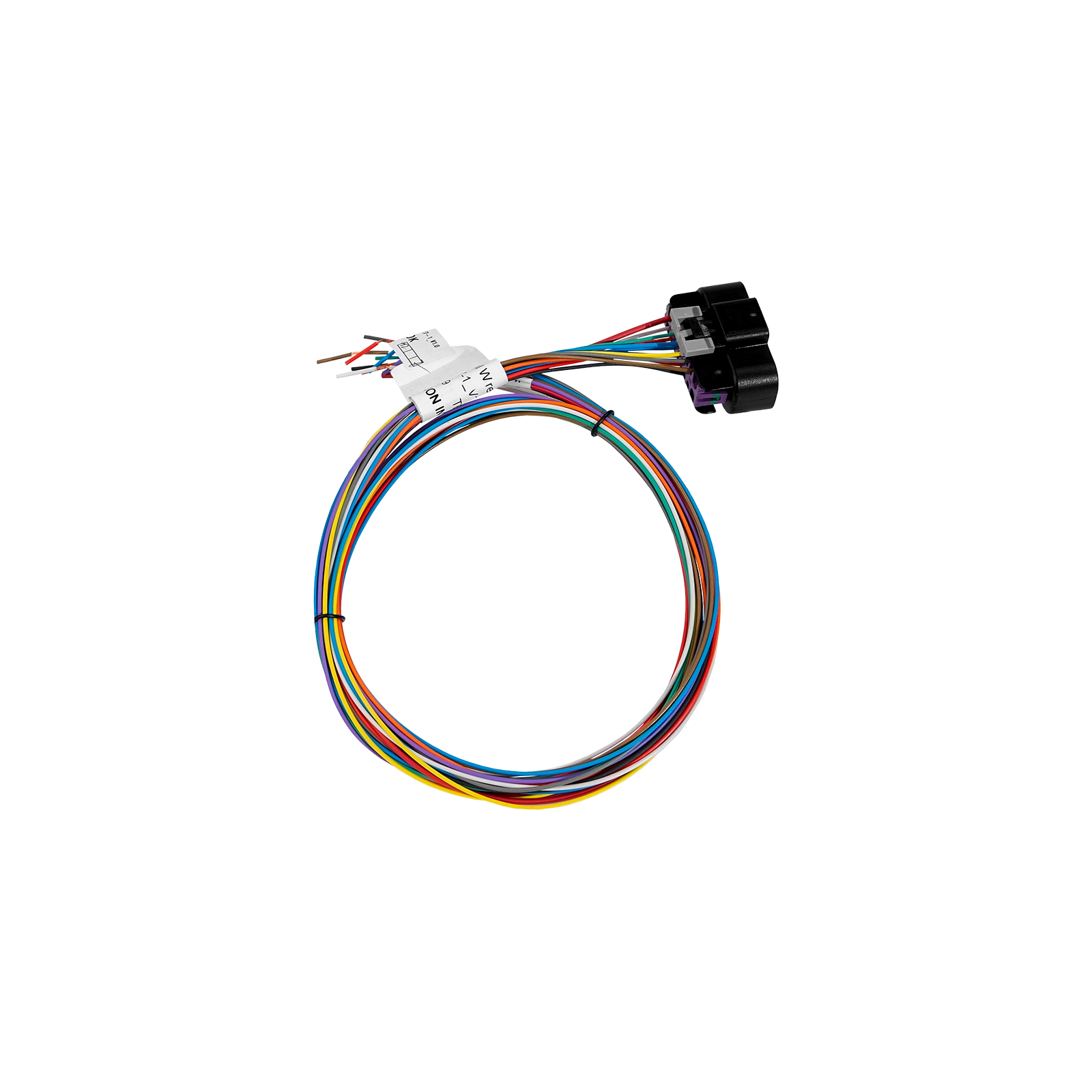

Sub-harnesses
USB CAN Cable

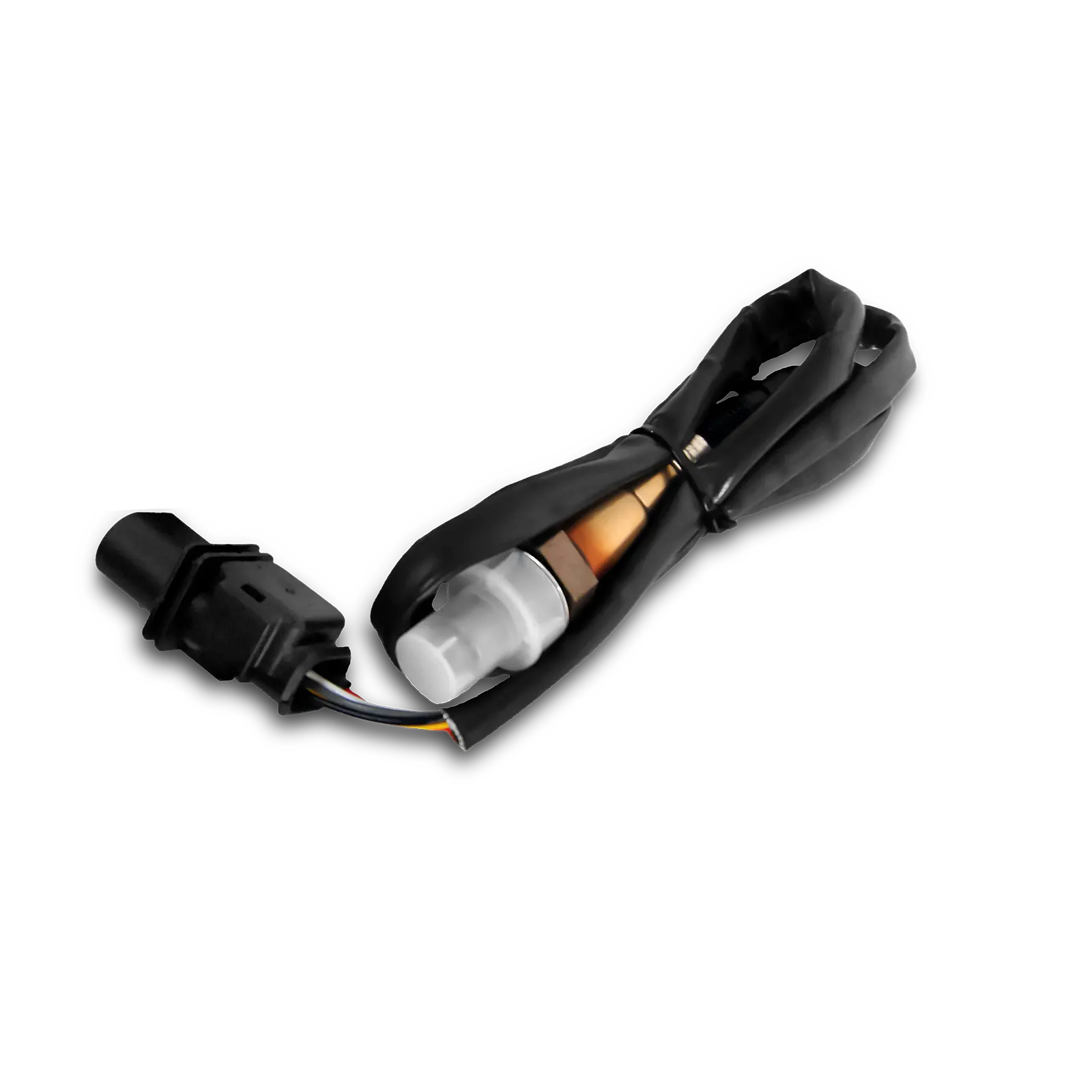

4.9 WBO2 Sensor

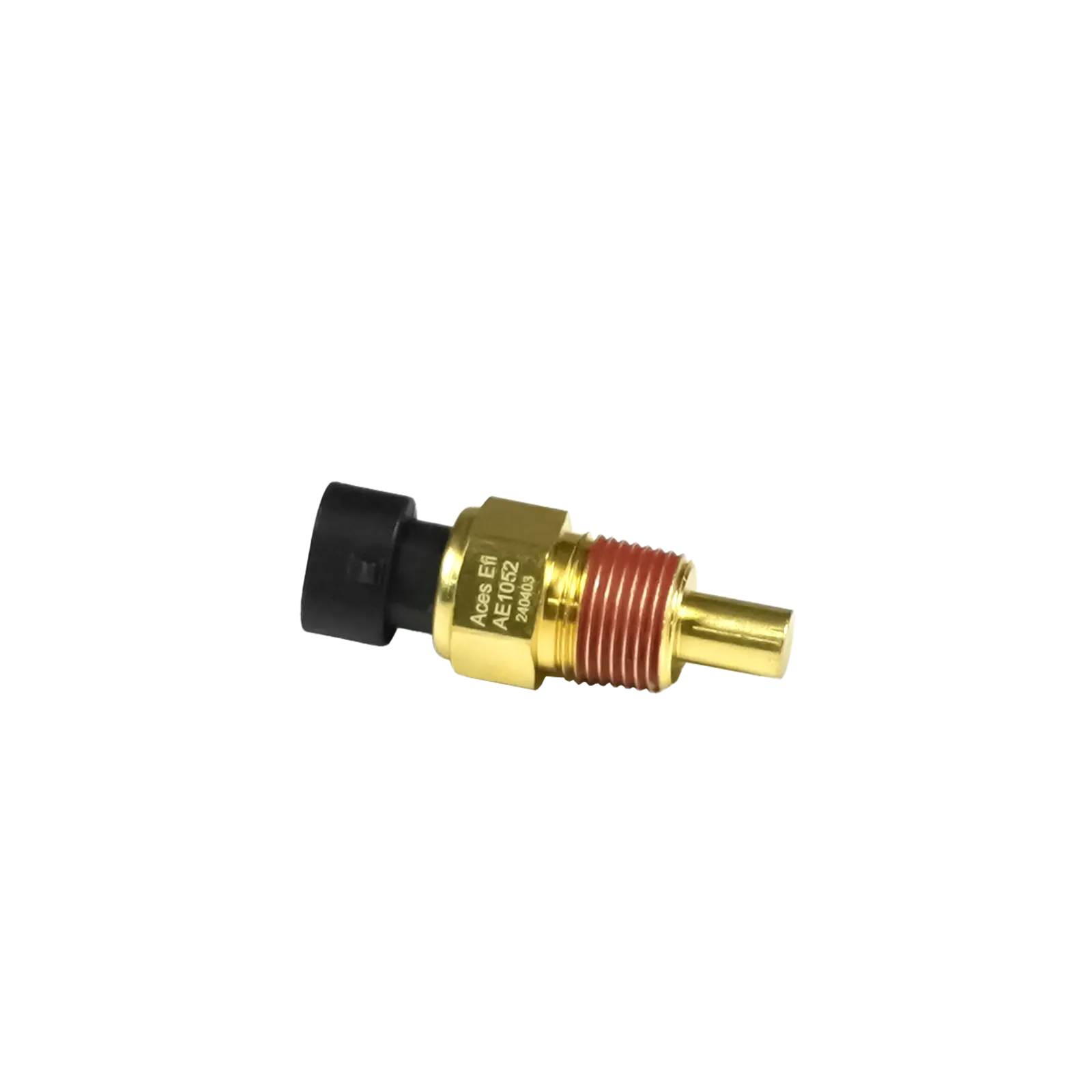

Coolant Temp Sensor
Weld-in O2 Bung

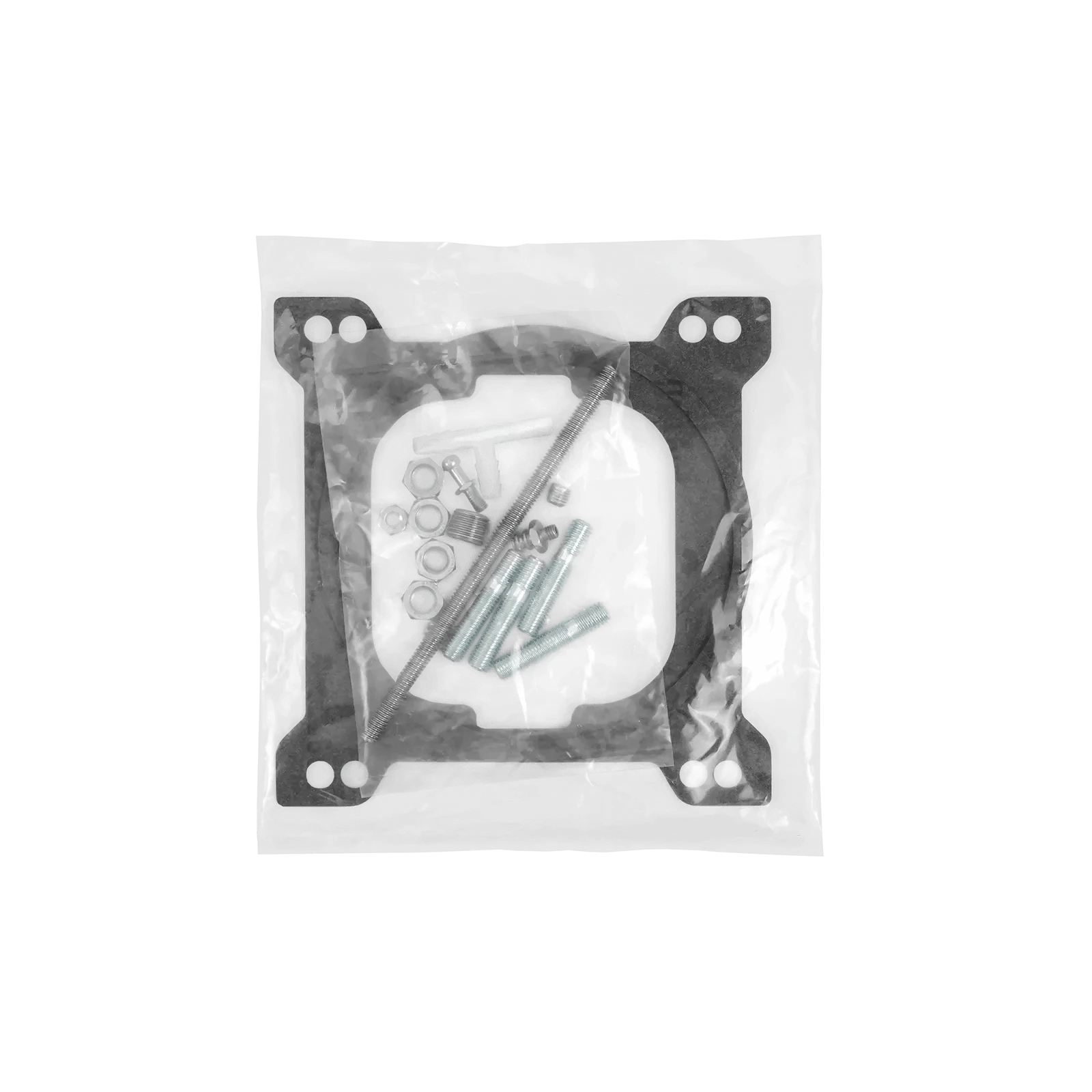

Additional Hardware

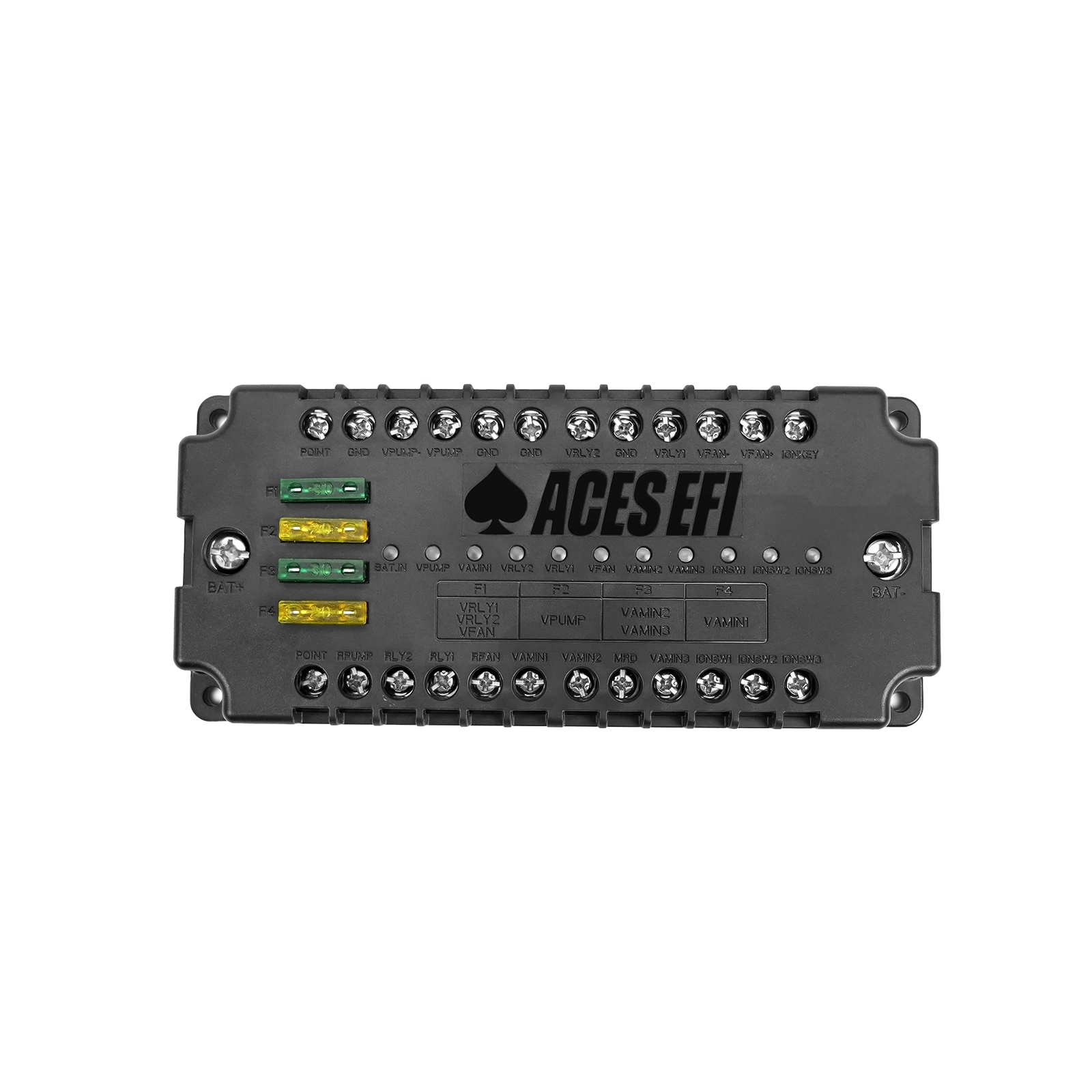

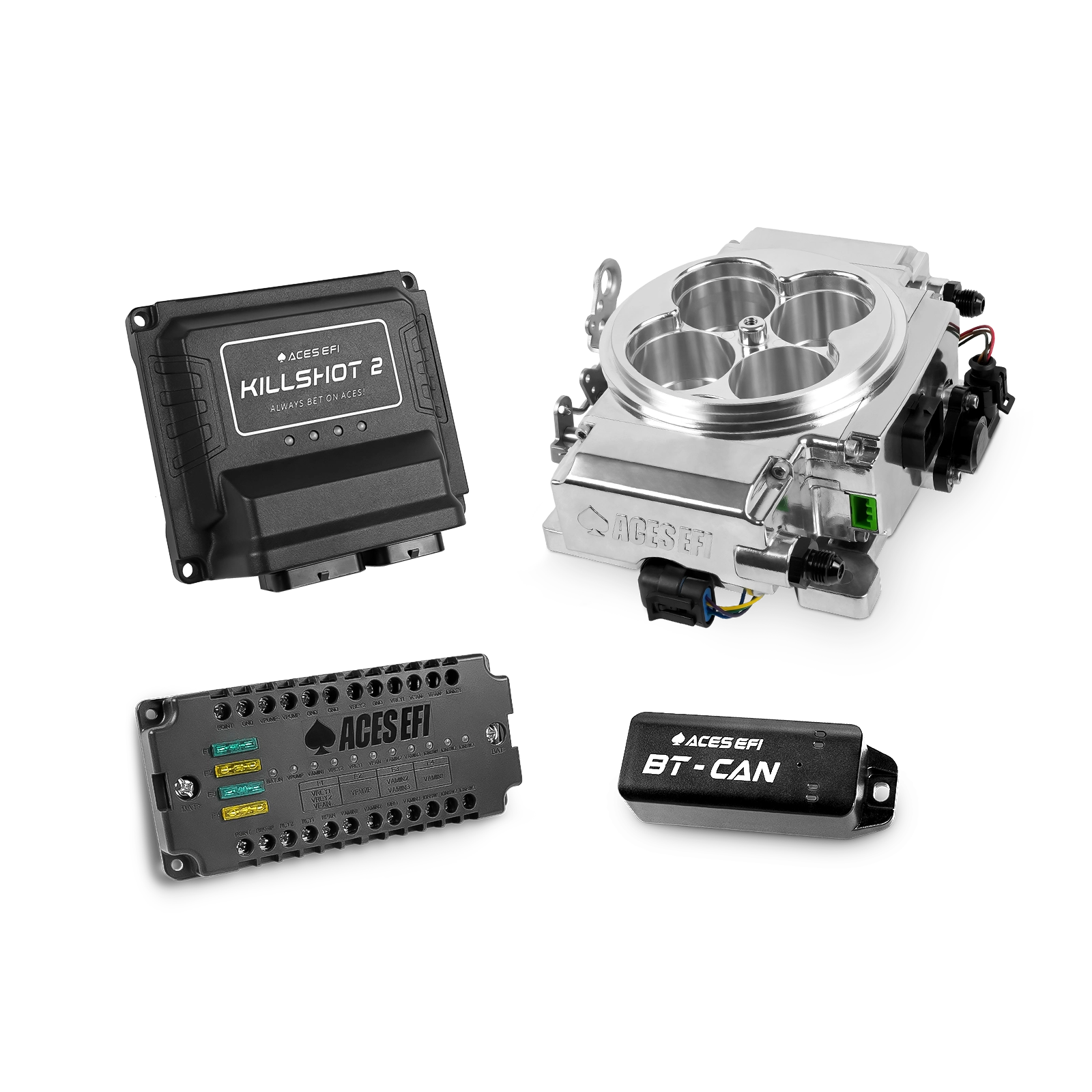

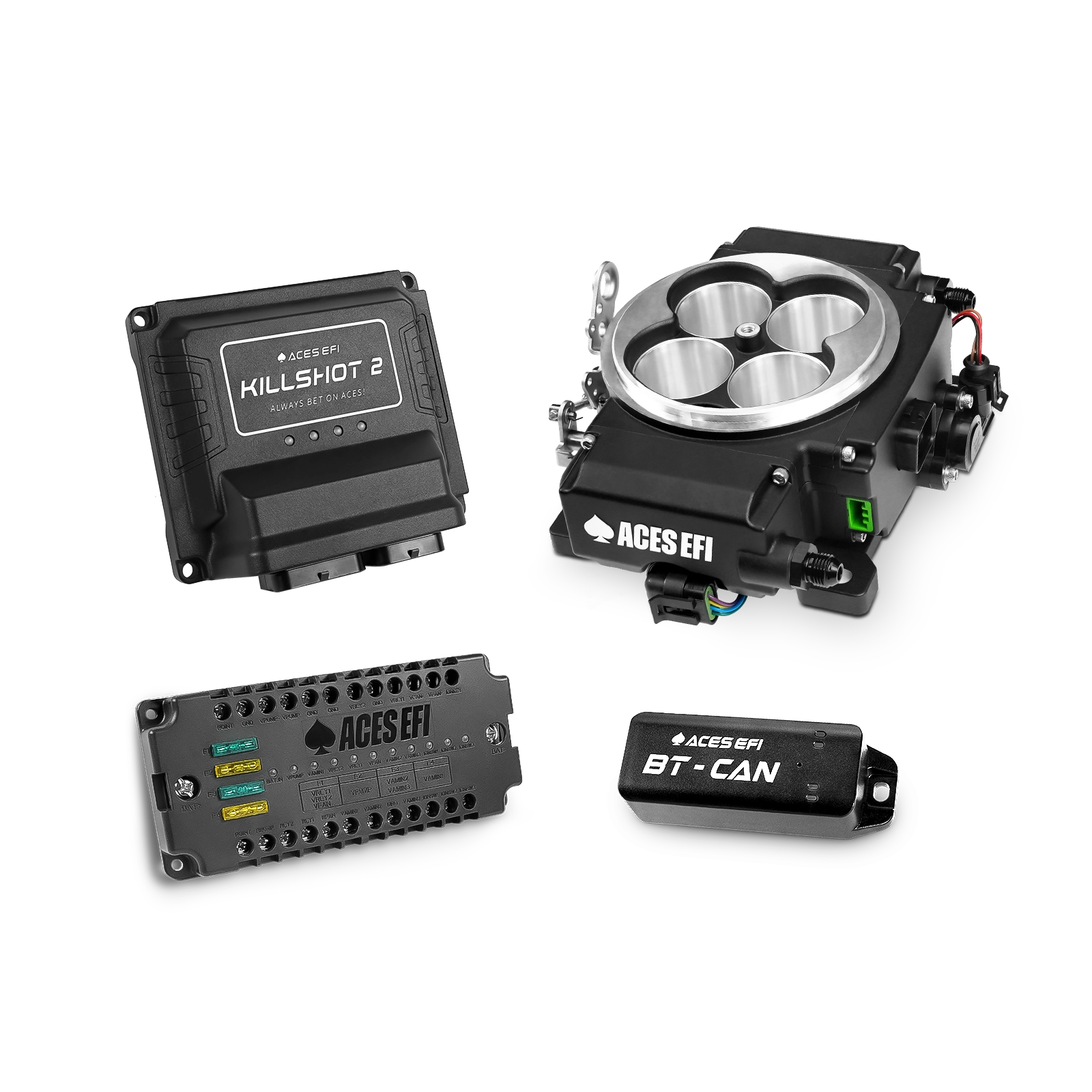

Power Distribution Module (PDM)
Discover the next evolution in performance and reliability with the Aces Fuel Injection Power Distribution Module (PDM) —your ultimate solution for seamless power management in high-performance EFI systems. The PDM uses IGBT transistors in the place of solid state or electro-mechanical relays which helps to filter bad transient voltage, ultimately providing greater protection for your electronics which are connected to the PDM.
Our PDM is engineered to integrate effortlessly with Aces Fuel Injection Systems, providing robust, efficient power distribution for essential components such as:
- Ignition Systems
- Fuel Pumps
- Cooling Fans
- Auxiliary Accessories
Key Features
- Comprehensive Power Management: Supports ignition, fuel pumps, fans, and more.
- Simplified Wiring: Clearly marked terminals for ease of installation.
- Enhanced Safety: Fuse-protected circuits for optimal performance and reliability.
- Flexibility: Tailored control for auxiliary devices with relay support.
Pressure Sensor Kit
Aces EFI pressure sensor kits utilize top-quality parts for use with EFI systems. Kits include plastic/steel sensors with 1/8" -27 NPT threads and include a -6 AN fuel pressure take-off adapter fitting and 2 sets of 45 push lock hose ends.
Pressure sensors are great for logging oil pressure, fuel pressure, or boost pressure. Display the pressure reading on any Aces Handheld or Dash screen and on your data log files!
EGT CAN Module Kit
High-Performance Tuning with the Aces EGT Module
When it comes to high-performance tuning, accurate Exhaust Gas Temperature (EGT) monitoring is crucial. Whether you're running a naturally aspirated, turbocharged, or nitrous-fed setup, precise temperature data helps you optimize fuel tuning, prevent engine damage, and maximize efficiency. The Aces EGT Module is built for precision, durability, and seamless integration, ensuring you get real-time data to fine-tune your engine like never before.
Why You Need the Aces EGT Module
- Prevent Engine Damage – High exhaust temperatures can lead to pre-detonation, melted pistons, and turbo failures. Monitoring EGTs allows you to adjust fueling and timing before damage occurs.
- Optimize Air/Fuel Ratios – Fine-tune your AFRs based on real-time EGT data for better power, efficiency, and reliability.
- Monitor Cylinder Balancing – Detect uneven fuel distribution or ignition issues to avoid power loss and potential engine stress.
- Essential for Forced Induction & Nitrous Builds – Turbocharged, supercharged, and nitrous-fed engines run hotter. Accurate EGT readings ensure you're not pushing past safe limits.
- Seamless Integration with Aces EFI Systems – Easily expands via CAN connectivity to work with all Aces controllers and displays.
Aces EGT Module Features
- 32-bit RISC-V Core Processor – Ultra-fast processing for real-time data accuracy.
- 480MHz Multi-Stage Pipeline Processor – Handles high-speed temperature changes with precision.
- Hardware Floating-Point Unit (FPU) – Ensures stable, high-speed calculations for consistent performance.
- 16-bit ADC for High-Precision Signal Acquisition – Delivers accurate, reliable temperature readings.
- Supports 2 or 4 EGT Channels – Ideal for both single-bank and dual-bank monitoring setups. (2 channels for two banks, 4 channels for one bank but 4 per exhaust runner)
- Automotive-Grade Type N Thermocouple Sensor – High-durability sensor for extreme conditions.
- Wide Temperature Measurement Range – Capable of reading from -150°C to 1024°C with a rapid 150ms response per channel.
- High-Quality Construction – Silicone fiberglass sleeve, PTFE insulation, and Type N thermocouple conductor ensure long-term durability.
- CAN Expansion Accessory – Easily integrates with all Aces EFI units and display modules.
The Aces EGT Module is an essential tool for serious tuners and racers looking for accurate exhaust temperature data, better tuning capabilities, and enhanced engine protection. Take control of your performance with real-time monitoring and seamless EFI integration.
Low Profile Design
A smaller footprint design makes it easier to work with drop-base air cleaners.

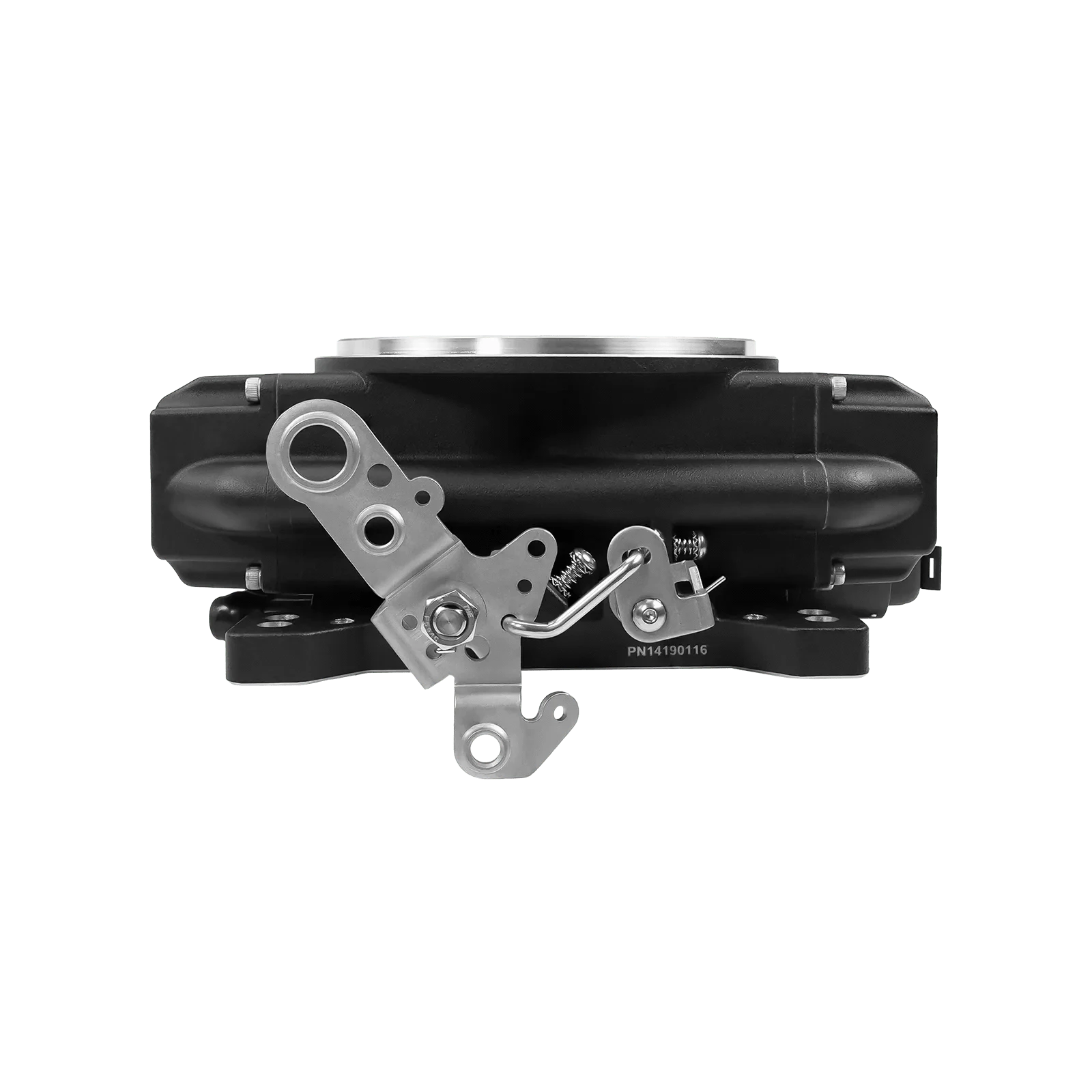

Progressive Linkage
Ensures a more gradual and less jarring tip-in response.
650 HP
Single Throttle Body¹
1,200 HP
Ran as dual quads²
Fuel Pressure Sensor
Built-in for less plumbing hassle and a precise reading of your fuel pressure at all times, displayed in the handheld.
Secondary Throttle Body Connection
Enables the use of a dedicated secondary unit³ making the system expandable for dual quad options.
(Requires purchase of secondary unit available early Spring 2025)
Hold your horses
Supporting up to 650 HP and expandable to 1,200 HP by using a dedicated secondary unit, the Killshot 2 is capable of holding down the fort, and the horses.
Boost it, baby.
The Killshot 2 has a built-in 3-bar TMAP sensor that allows you to run draw-through or blow-through setups and support up to 27 lbs of boost.
Twice the Killshot. Twice the resolution.

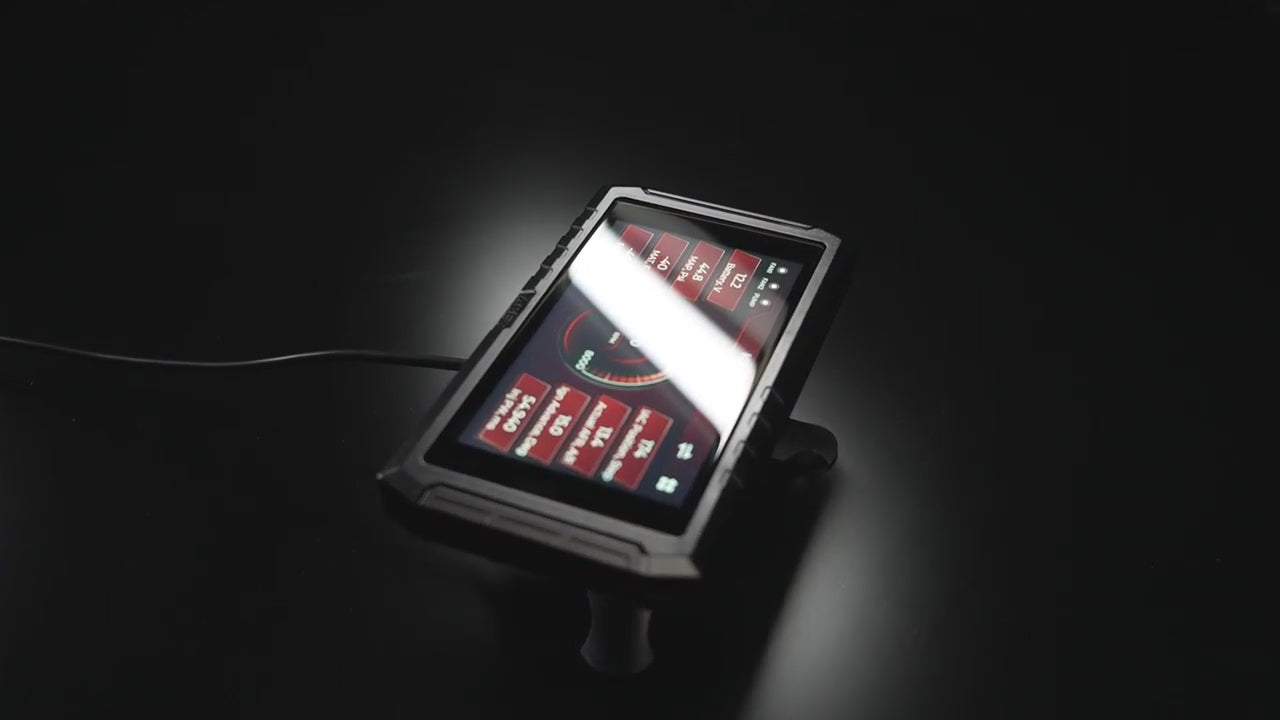

Introducing the 3rd generation of our 5" Handheld, now in full 1080 HD. This new generation of handheld is built on a 64-bit RISC-V core processor. This means that graphics load faster, clearer, and smoother, much like a modern smartphone.
If the shoe (throttle body) fits

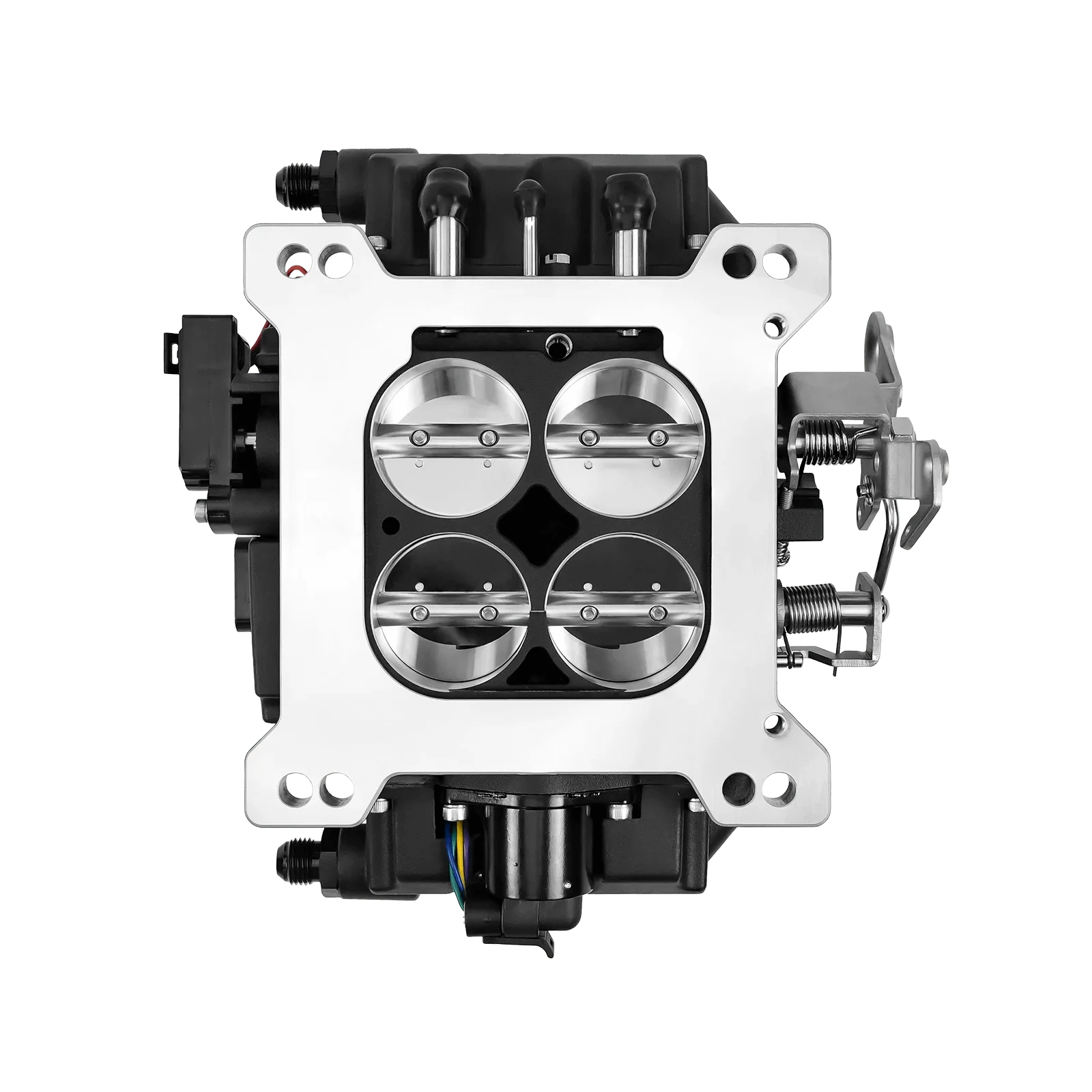

The Killshot 2 still uses the common 4150 style flange found on many classic engine manifolds, making it very versatile when it comes to compatibility. As long as the TBI unit fits, is within the appropriate HP range, and your engine uses a classic distributor, it's a match made in heaven...or the garage.
Know with the flow
A built-in pressure sensor gives you real-time, accurate fuel pressure readings at the throttle body, ensuring optimal performance and peace of mind. No guesswork, just precision.
Product Info
Overview
Killshot 2 Pro EFI System
The Killshot 2 Pro is the ultimate evolution of our throttle body EFI lineup. Built for enthusiasts and racers who demand more from their engine management system. By combining everything users love about the Killshot 2 with advanced tuning features, dual-quad capability, and upgraded hardware, the Killshot 2 Pro offers unmatched performance, flexibility, and control in a single intelligent package.
At the core of the Killshot 2 Pro is a 32-bit, high-speed ECU with support for up to 1,200 horsepower in dual-quad configuration (second unit sold separately). Each throttle body includes four 100 lb/hr fuel injectors, easily supporting up to 650 HP in single-unit form. Thanks to its integrated 3-bar TMAP sensor, the system handles up to 27 psi of boost, making it ideal for turbocharged and supercharged applications.
Expanded Tuning, Precision Control
Killshot 2 Pro takes tuning to the next level with expanded tables and advanced strategies designed for performance enthusiasts:
- 31x31 VE Fuel Tables: Greater resolution for fueling across the full load and RPM range
- 31x31 MBT Spark Tables: More precise ignition timing control under all engine conditions
- Closed-Loop Learning with Expanded Resolution: Improved learning accuracy for street and mild builds
- Built-In Fuel Pressure Sensor: Real-time fuel pressure data at your fingertips, no need for external gauges
- Progressive Throttle Linkage: Smoother part-throttle drivability and superior pedal feel
- Boost Control & Fuel Level Inputs: Future-ready for software unlocks like boost solenoid control and dash integration
Complete Monitoring & Manual Control
Each Killshot 2 Pro comes with our 3rd-generation 5” HD touchscreen handheld, giving you full access to system data, tuning parameters, and real-time diagnostics. Whether you're fine-tuning idle quality or dialing in boost timing, you’ll have complete control at your fingertips.
Want even more precision? Our PC Tuning Suite gives experienced users full manual access to every aspect of the EFI system, including AFR targets, ignition strategies, boost enrichment, and more.
System Features:
- Supports up to 650 HP (single) / 1,200 HP (dual-quad NA)
- Four 100 lb/hr fuel injectors per throttle body
- 3-bar TMAP Sensor – Supports up to 27 psi boost
- Built-in Fuel Pressure Sensor – Live data for accurate fuel control
- Progressive Throttle Linkage – Smooth response at any speed
- TPS Output – For transmission controllers, nitrous activation, and more
- Available in Black, Polished, or Gold finishes
- Standalone or Complete Kit Options available
- Compatible with all 4150-flange 4-barrel intake manifolds
Whether you’re upgrading from a carburetor or stepping up from a basic EFI system, the Killshot 2 Pro gives you everything you need to fuel, tune, and dominate with confidence. It’s the perfect solution for serious builders who want the reliability of modern EFI with the power and simplicity of a throttle body system.
System Specs
Killshot 2 Pro EFI System (flash sale) Specifications
| Specification | Value |
|---|---|
| Series | Killshot 2 |
| Application | Classic small/big block engines under 650 HP (NA) or 550 HP (boosted). Dual quad setups support 1,200 HP (NA) or 1,000 HP (boosted). |
| Why you would buy one over the other | Includes all the features of the Killshot 1, plus: Dual quad capabilities, lower profile design for more universal air cleaner fitment, built-in fuel pressure sensor, progressive linkage, B60 Chip, expanded VE tables (31x31), expanded spark tables (31x31), Boost Control*, fuel level input, additional I/O wires for future expansion. |
| Accelerometer Support | No |
| Accepts Firmware Updates | Yes |
| Advanced Tuning Software Compatible | Yes |
| Air Cleaner Diameter | 5-1/8" |
| Boost Compatible | Yes |
| Boost Control | Yes* (via firmware update) |
| CAN-BUS Support | Yes |
| CFM | 1,000 |
| Chip Set | B60 Series |
| Coil Per Cylinder Ignition Support | No |
| Data Cable Included | Yes |
| Datalogging Support | Yes |
| Distributor Compatibility | MAG, Hall-Effect, Coil-, CDI |
| Dry Nitrous Compatibility | No |
| Dual Quad Capable | Yes |
| E85 Compatible | Yes, with proper fuel tuning (not out of the box) |
| ECU Location | External |
| EFI Type | Throttle Body Injection |
| EGT Support | Yes |
| Emission Code | 3 |
| Fan Control | Yes |
| Flange Size | 4150 / Square-bore |
| Forced Induction Compatibility | Yes |
| Fuel Injectors Included | Yes, built in |
| Fuel Level Input | Yes |
| Fuel/Oil Pressure Input | Yes |
| Grade Type | Automotive |
| Handheld Included | Yes |
| Idle Air Control Motor Included | Built-in |
| Ignition Timing Control | Yes |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Inlet/Outlet Size | -6 AN |
| MAP Sensor Included | Yes |
| MAP Sensor Rating | 3 Bar |
| Material | Cast Aluminum (throttle body) |
| Max HP Support | 650 HP (single quad NA), 1,250 HP (dual quad NA) |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Retard | Yes |
| Ported Vacuum | Yes |
| Progressive Linkage | Yes |
| Progressive Nitrous Control | No |
| Recommended Fuel PSI Range | 43–58 PSI |
| Release Date | Spring 2025 |
| Self-Learning | Yes |
| Throttle Body Height | 3-5/16" |
| Throttle Position Sensor Included | Yes, built in |
| Transmission Control | Not built in, but compatible with Aces Trans Control Modules |
| WBO2 Sensor | 1 |
| Wet Nitrous Control | Yes, but non-progressive |
Killshot 2 Pro EFI System
The Killshot 2 Pro is the ultimate evolution of our throttle body EFI lineup. Built for enthusiasts and racers who demand more from their engine management system. By combining everything users love about the Killshot 2 with advanced tuning features, dual-quad capability, and upgraded hardware, the Killshot 2 Pro offers unmatched performance, flexibility, and control in a single intelligent package.
At the core of the Killshot 2 Pro is a 32-bit, high-speed ECU with support for up to 1,200 horsepower in dual-quad configuration (second unit sold separately). Each throttle body includes four 100 lb/hr fuel injectors, easily supporting up to 650 HP in single-unit form. Thanks to its integrated 3-bar TMAP sensor, the system handles up to 27 psi of boost, making it ideal for turbocharged and supercharged applications.
Expanded Tuning, Precision Control
Killshot 2 Pro takes tuning to the next level with expanded tables and advanced strategies designed for performance enthusiasts:
- 31x31 VE Fuel Tables: Greater resolution for fueling across the full load and RPM range
- 31x31 MBT Spark Tables: More precise ignition timing control under all engine conditions
- Closed-Loop Learning with Expanded Resolution: Improved learning accuracy for street and mild builds
- Built-In Fuel Pressure Sensor: Real-time fuel pressure data at your fingertips, no need for external gauges
- Progressive Throttle Linkage: Smoother part-throttle drivability and superior pedal feel
- Boost Control & Fuel Level Inputs: Future-ready for software unlocks like boost solenoid control and dash integration
Complete Monitoring & Manual Control
Each Killshot 2 Pro comes with our 3rd-generation 5” HD touchscreen handheld, giving you full access to system data, tuning parameters, and real-time diagnostics. Whether you're fine-tuning idle quality or dialing in boost timing, you’ll have complete control at your fingertips.
Want even more precision? Our PC Tuning Suite gives experienced users full manual access to every aspect of the EFI system, including AFR targets, ignition strategies, boost enrichment, and more.
System Features:
- Supports up to 650 HP (single) / 1,200 HP (dual-quad NA)
- Four 100 lb/hr fuel injectors per throttle body
- 3-bar TMAP Sensor – Supports up to 27 psi boost
- Built-in Fuel Pressure Sensor – Live data for accurate fuel control
- Progressive Throttle Linkage – Smooth response at any speed
- TPS Output – For transmission controllers, nitrous activation, and more
- Available in Black, Polished, or Gold finishes
- Standalone or Complete Kit Options available
- Compatible with all 4150-flange 4-barrel intake manifolds
Whether you’re upgrading from a carburetor or stepping up from a basic EFI system, the Killshot 2 Pro gives you everything you need to fuel, tune, and dominate with confidence. It’s the perfect solution for serious builders who want the reliability of modern EFI with the power and simplicity of a throttle body system.
Killshot 2 Pro EFI System (flash sale) Specifications
| Specification | Value |
|---|---|
| Series | Killshot 2 |
| Application | Classic small/big block engines under 650 HP (NA) or 550 HP (boosted). Dual quad setups support 1,200 HP (NA) or 1,000 HP (boosted). |
| Why you would buy one over the other | Includes all the features of the Killshot 1, plus: Dual quad capabilities, lower profile design for more universal air cleaner fitment, built-in fuel pressure sensor, progressive linkage, B60 Chip, expanded VE tables (31x31), expanded spark tables (31x31), Boost Control*, fuel level input, additional I/O wires for future expansion. |
| Accelerometer Support | No |
| Accepts Firmware Updates | Yes |
| Advanced Tuning Software Compatible | Yes |
| Air Cleaner Diameter | 5-1/8" |
| Boost Compatible | Yes |
| Boost Control | Yes* (via firmware update) |
| CAN-BUS Support | Yes |
| CFM | 1,000 |
| Chip Set | B60 Series |
| Coil Per Cylinder Ignition Support | No |
| Data Cable Included | Yes |
| Datalogging Support | Yes |
| Distributor Compatibility | MAG, Hall-Effect, Coil-, CDI |
| Dry Nitrous Compatibility | No |
| Dual Quad Capable | Yes |
| E85 Compatible | Yes, with proper fuel tuning (not out of the box) |
| ECU Location | External |
| EFI Type | Throttle Body Injection |
| EGT Support | Yes |
| Emission Code | 3 |
| Fan Control | Yes |
| Flange Size | 4150 / Square-bore |
| Forced Induction Compatibility | Yes |
| Fuel Injectors Included | Yes, built in |
| Fuel Level Input | Yes |
| Fuel/Oil Pressure Input | Yes |
| Grade Type | Automotive |
| Handheld Included | Yes |
| Idle Air Control Motor Included | Built-in |
| Ignition Timing Control | Yes |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Inlet/Outlet Size | -6 AN |
| MAP Sensor Included | Yes |
| MAP Sensor Rating | 3 Bar |
| Material | Cast Aluminum (throttle body) |
| Max HP Support | 650 HP (single quad NA), 1,250 HP (dual quad NA) |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Retard | Yes |
| Ported Vacuum | Yes |
| Progressive Linkage | Yes |
| Progressive Nitrous Control | No |
| Recommended Fuel PSI Range | 43–58 PSI |
| Release Date | Spring 2025 |
| Self-Learning | Yes |
| Throttle Body Height | 3-5/16" |
| Throttle Position Sensor Included | Yes, built in |
| Transmission Control | Not built in, but compatible with Aces Trans Control Modules |
| WBO2 Sensor | 1 |
| Wet Nitrous Control | Yes, but non-progressive |
¹System will support up to 650 HP in naturally aspirated applications which are capable of 650 HP.
²System will support up to 1,200 HP in naturally aspirated applications which are capable of 1,200 HP and when using a Killshot II kit in conjucntion with a dedicated Secondary Killshot II throttle body.
³Secondary throttle body not included in the kit by default but is available for purchase
