Aces' 255 In-line Fuel System is a complete gravity-fed fuel delivery kit to provide the proper fuel supply for most aftermarket EFI systems. The system includes the fuel pump, fuel pressure regulator, liquid-filled fuel pressure gauge, 100-micron pre-filter, 10-micron fuel filter, 40’ of –6 Teflon™ (PTFE)lined fuel line for the highest strength and resistance to gasoline and alcohol-based fuels, 6AN-8AN-HOSE Assmbly Tool, and all necessary fittings for a complete installation! This system is designed to match the power potential of EFI systems up to 650 HP. Aces’ 255 In-line Fuel System takes the guesswork out of acquiring the correct fuel system components for your EFI-equipped vehicle.

 System Features:

• Complete EFI Fuel System with high quality Teflon™ (PTFE) lined –6 AN hose and all necessary fittings
• 255 LPH In-line fuel pump
• Fuel Filters
• Adjustable fuel pressure regulator with gauge
• Supports EFI applications up 650hp
• 6AN-8AN-HOSE Assembly Tool for easier installation of the system

ACES OE-style replacement coils that mount easily and acceptable OEM connectors provide the performance needed to help keep engine running the way that they were designed.

TECHNICAL SPECIFICATIONS

• Primary Current: 5A
• Output (25pF load): 40 kV
• Output Energy: 45 mJ (Zener Energy@1000V)
• Turns Ratio 75:1
• Base Dwell: 3ms
• Smart Coil integrated with IGBT driver

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

The Blackjack Pro Series Billet Distributor features a high-quality, CNC-machined black anodized aluminum body and hardened steel shaft, guided by a sealed ball-bearing on top and a sintered steel bushing on the bottom to ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer.

• AD2011 Fits Small Block 262-400 and Big Block Mark IV 396-454 Chevrolet Engines
• AD2012 Fits Small Block Ford 260-302 Engines
• AD2013 Fits Small Block Ford 351W Engines
• AD2015 Fits Ford 351C/460 BBF Engines
• AD2016 Fits Ford FE Motor Engines
• AD2017 Fits Pontiac 326-455 Engines
• AD2018 Fits VW Type 1 Engines
• AD2019 Fits AMC/Jeep 232-258 6 Cylinder Engines
• AD2020 Fits SB LA 273-360 Engines
• AD2021 Fits BB Mopar 383/400 Engines
• AD2022 Fits BB Mopar 426/440 Engines

• Fully adjustable mechanical advance with additional springs and bushings included

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

ACES Fuel Injection’s Blackjack™ Pro Ignition Coil

Aces Fuel Injection’s Blackjack™ Pro Ignition Coil is the ignition upgrade to complete your EFI conversion. This extremely powerful ignition coil’s unique design better dissipates heat, and its square shape allows for easy mounting on a firewall or fender. The high-output magnet creates 50,000 volts, or about 70% more spark energy over most stock-style applications, giving you a significantly hotter and larger spark for more complete combustion. This helps create more horsepower and torque, providing smooth acceleration throughout the entire RPM band.

ACES Fuel Injection’s Blackjack™ Pro Ignition Coil Benefits

Universal application for high-performance distributor-style ignition systems

50,000-Volt output

Designed for quick heat dissipation

Male terminal

Includes mounting hardware

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

Aces EFI Fuel Injectors

Quality fuel injectors are the backbone of any EFI system. If your injectors are not accurately delivering fuel, the engine will never run correctly. Aces EFI has designed its fuel injectors to meet the performance needs of all enthusiasts. Aces offers injectors in 36, 65, 80, 100, and 211 lb/hr flow rates for everyone from the basic cruisers to all-out race cars.

Aces EFI fuel injectors are designed to be OE-style GM LS replacement injectors. These injectors utilize EV6 connectors for plug-and-play installation with Aces MPFI systems or any EV6 injector harness.

Whether you are building a budget beater or a boosted racing car, ACES EFI’s EV6 Fuel Injectors are the high-quality OE-style replacement, easy-to-install injectors that will take your ride to the next level!

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

Our durable anodized billet aluminum fuel pressure regulator features -6 AN ORB fuel fittings, and an adjustment range of 40-75 PSI making it suitable for all of the ACES EFI systems and most competing systems. The regulator features a 1/8" NPT port for vacuum or boost referencing (fuel pressure rises at a 1: 1 ratio with boost), and a gauge mounted directly to the unit to assist with quick adjustments. The unit is compatible with all gasoline and ethanol-based fuels.

For best results couple the Full House CDI with our high-output ignition coil AC2010.

Ignition coil AC2010:

• Primary Resistance: 0.273Ω
• Primary Inductance: 2.63 mH
• Secondary Resistance: 3.42 kΩ
• Secondary Inductance: 15.77 H
• Output (50pF load): 50 kV
• Output Energy: 200 mJ
• Peak Primary Current: 48A +/- 5%
• Arc Duration: 200 uS
• Turns Ratio 78:1
• Base Dwell: 700uS

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.

The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

Aces EFI pressure sensor kits utilize top-quality parts for use with EFI systems. Kits include plastic/steel sensors with 1/8" -27 NPT threads and include a -6 AN fuel pressure take-off adapter fitting and 2 sets of 45 push lock hose ends.

Pressure sensors are great for logging oil pressure, fuel pressure, or boost pressure. Display the pressure reading on any Aces Handheld or Dash screen and on your data log files!

The Aces EFI PTFE hose is adept at handling various automotive fluids, including diverse fuels like gasoline, eth anol, or flex fuels (E85), as well as oil and coolant, Equipped with an anti static liner within the PTFE tube, it mit igates the risk of electrostatic accumulation and subsequent discharge, which might lead to leakage.

Aces EFI’s single bore throttle bodies are designed to fit most GM LS intake manifolds, including ACES’ Low-Ram LS Intake Manifold and fabricated aluminum manifolds. These throttle bodies are fully CNC-machined, and come complete with a high-quality  Throttle Position Sensor (TPS) and Idle Air Control (IAC) for the DBC versions. We also have a DBW versions that is compatible with most popular factory GM pedals.  Aces’ Single-Bore Throttle Bodies are available in 92mm and 102mm versions, giving you the maximum amount of air flow regardless of the application.

Whether you are building a budget beater or a boosted race car, Aces EFI’s single bore billet throttle bodies have the technology and advanced features you need, in an easy-to-install package so you can take your ride to the next level!

Aces EFI’s Billet Single Blade Throttle Body Benefits

Billet aluminum construction

92mm throttle opening

Includes integrated Throttle Position Sensor and IAC (DBC version)

DBC and DBW versions available

Fully CNC-machined

Black anodized for long-lasting great looks

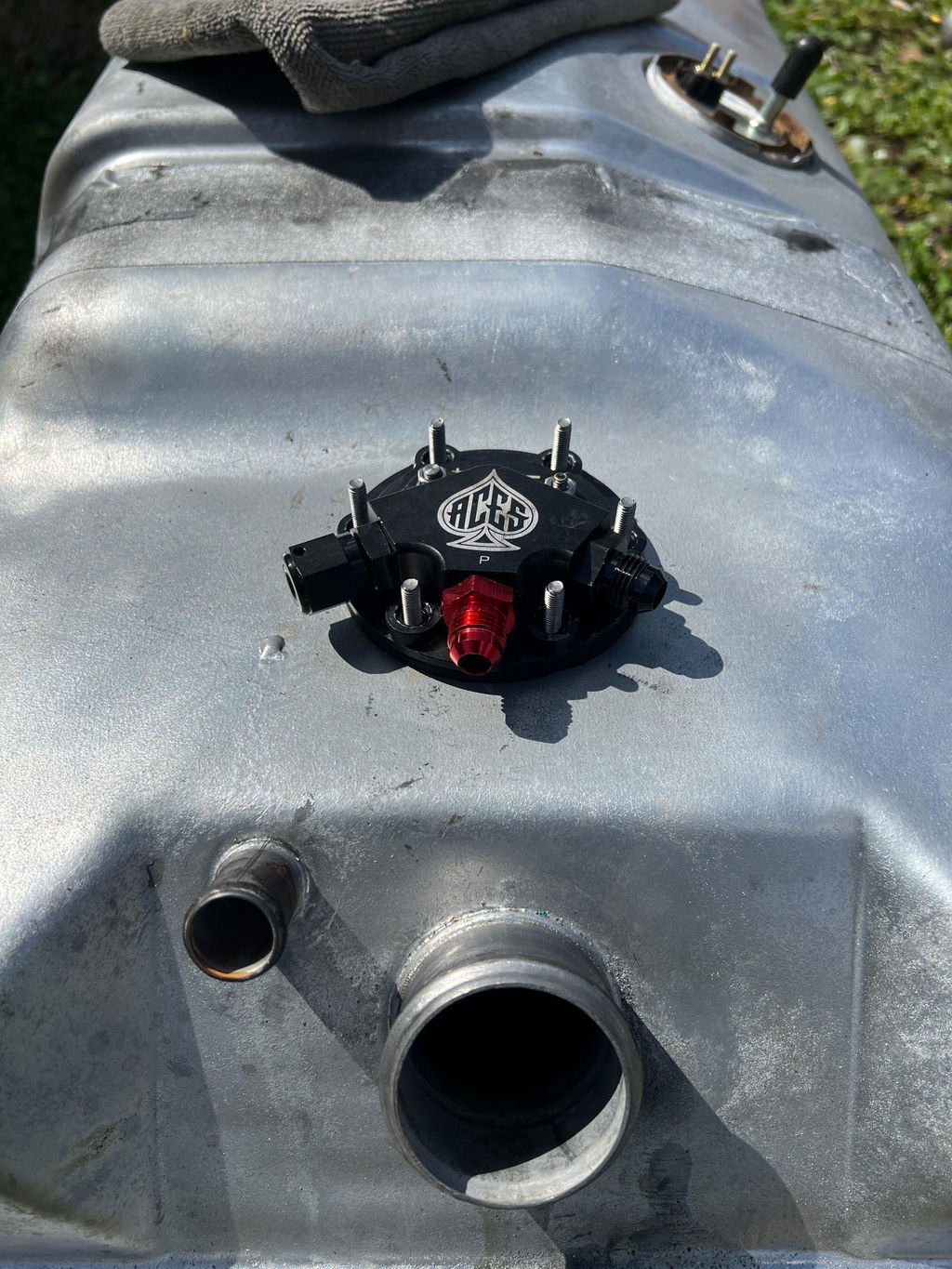

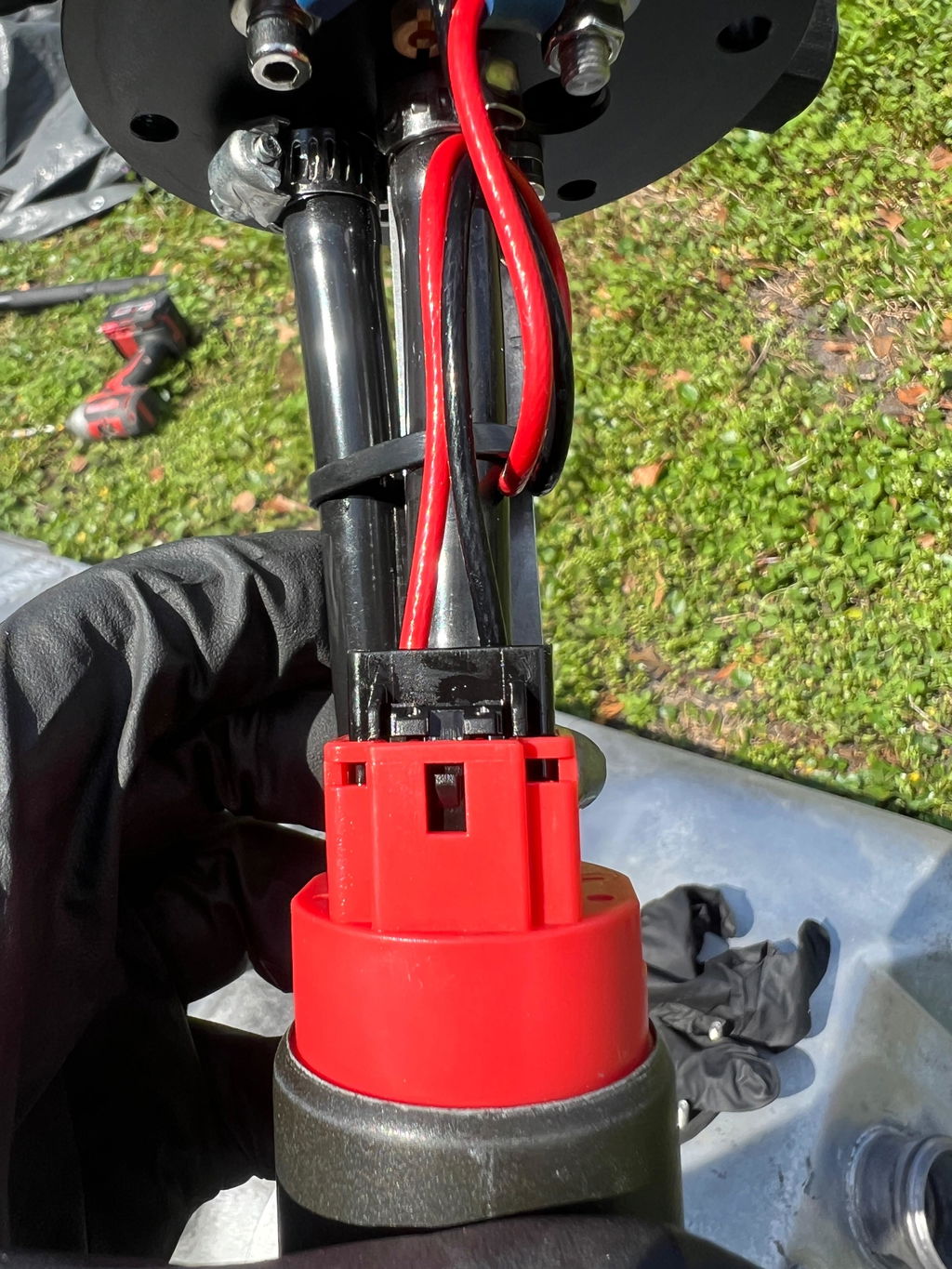

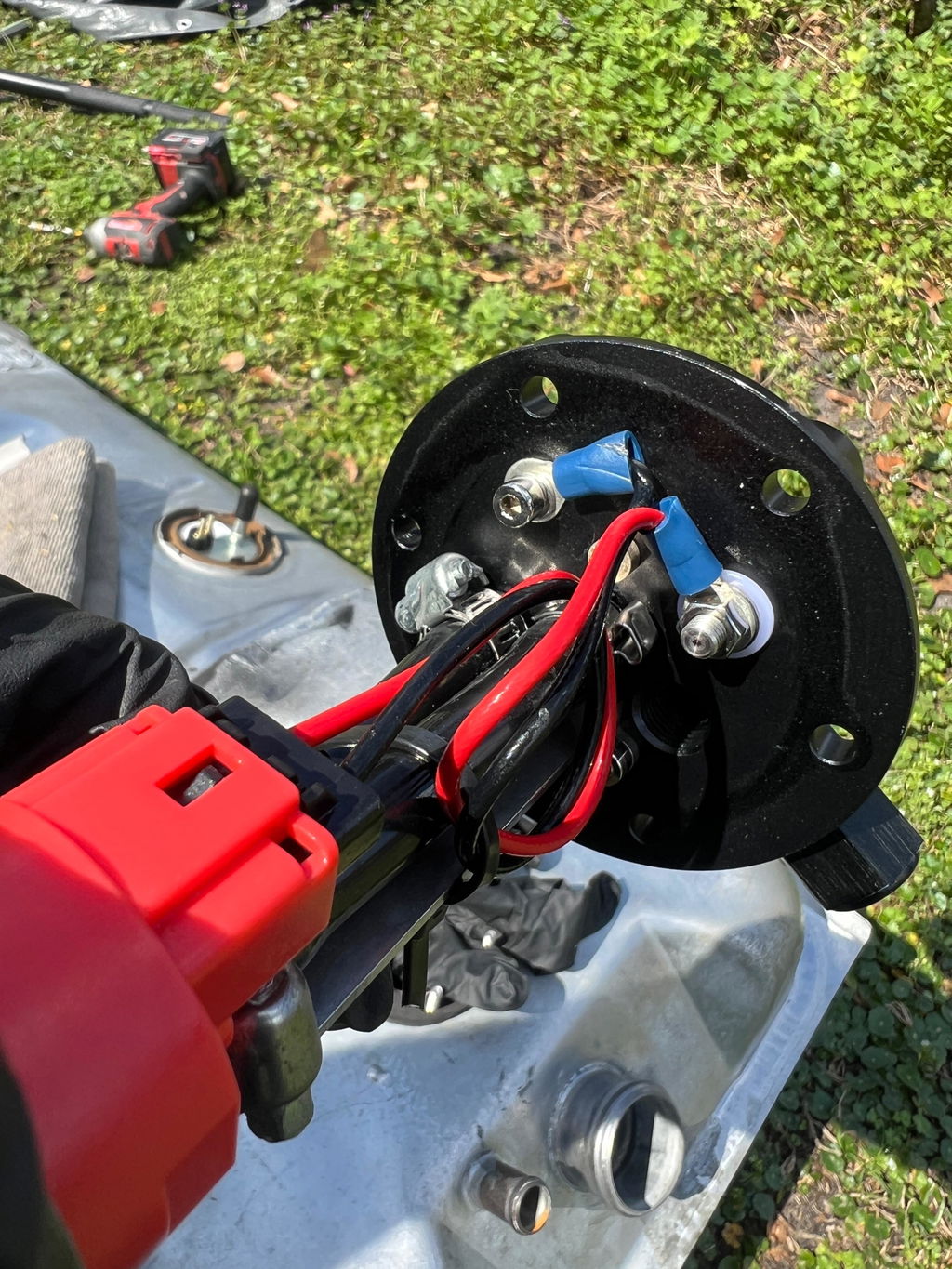

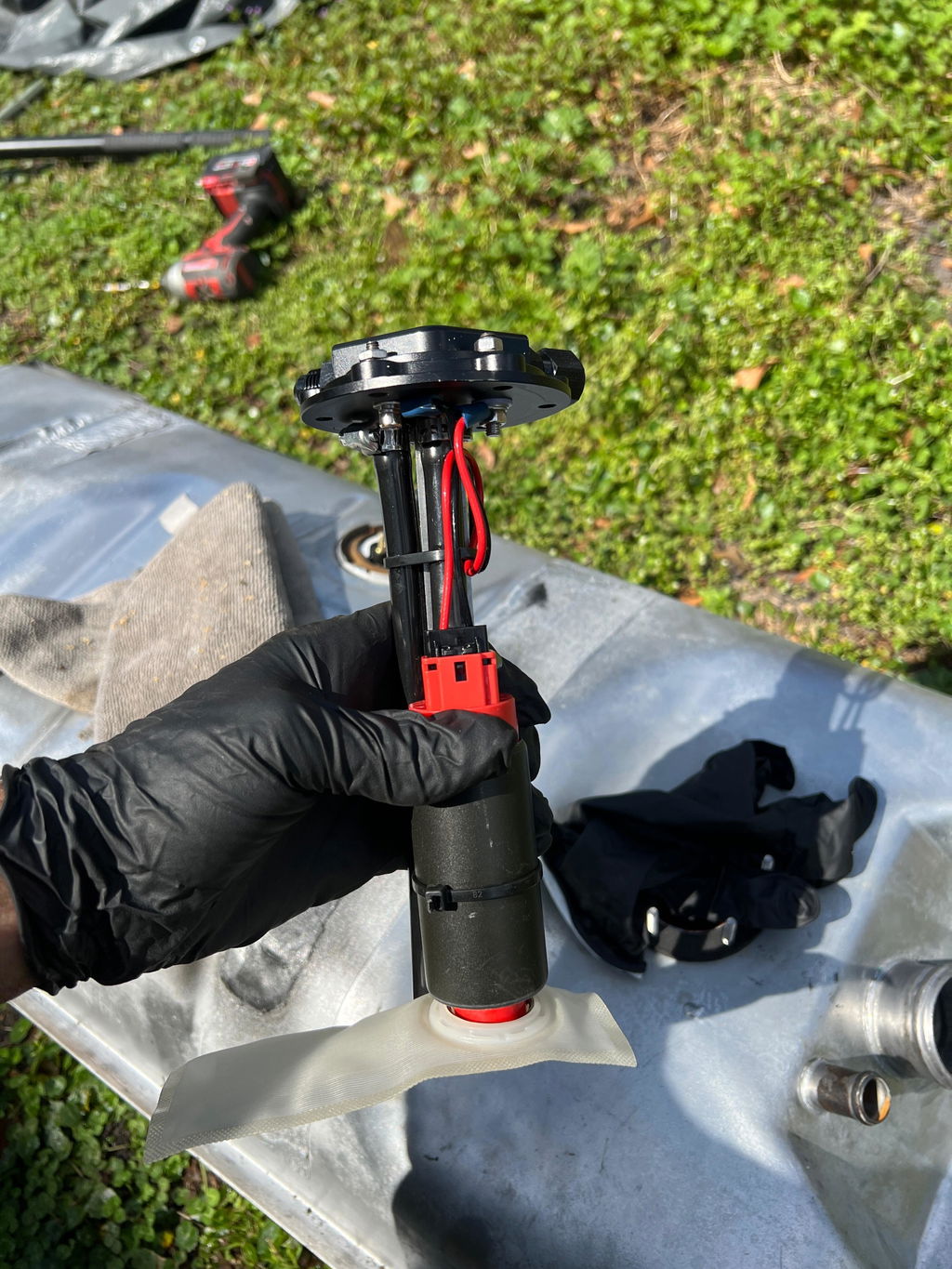

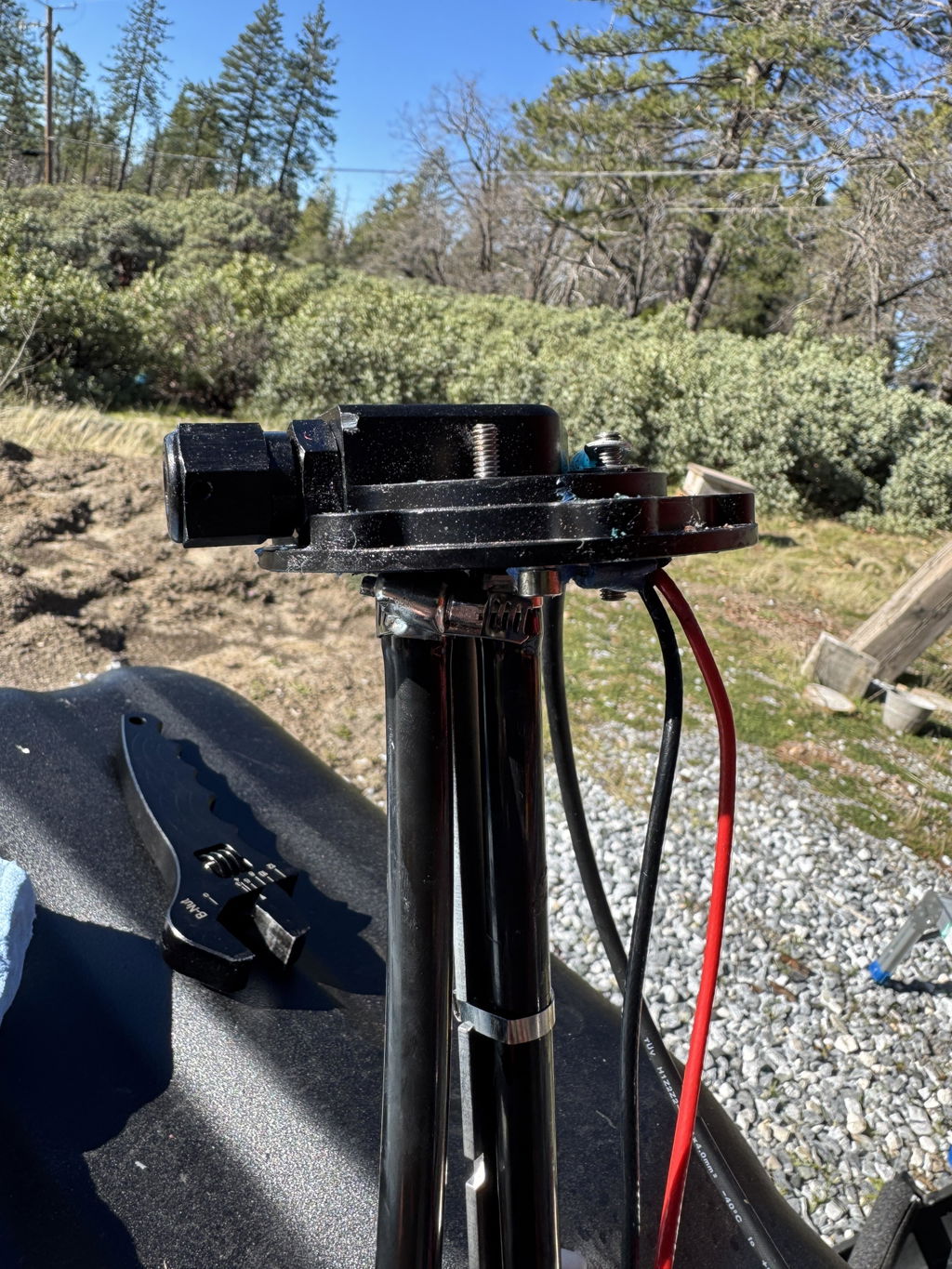

Introducing the Tank Conversion Pump Module with Internal Regulator – Transform Your Fuel System with Precision Performance

Upgrade your vehicle's fuel system with the Tank Conversion Pump Module featuring an Internal Regulator, meticulously engineered to deliver optimal performance and reliability. Designed to convert your existing fuel tank into a high-performance powerhouse, this module offers unparalleled convenience and efficiency for enthusiasts and professionals alike.

Crafted with precision engineering and premium-grade materials, the Tank Conversion Pump Module ensures durability and longevity in the most demanding driving conditions. Its robust construction and integrated regulator provide consistent fuel pressure, eliminating the need for additional external components and simplifying installation.

Equipped with an internal regulator, this pump module offers precise fuel pressure control, ensuring optimal engine performance and reliability. Whether you're running a naturally aspirated setup or boosting with forced induction, the Tank Conversion Pump Module delivers the fuel flow and pressure required to support increased horsepower and torque.

Designed for easy installation and compatibility with a wide range of vehicles, this module seamlessly integrates into your existing fuel system without the need for extensive modifications. Its compact size and versatile design make it the perfect choice for custom builds, restoration projects, and performance upgrades.

Experience the ultimate in fuel system performance and convenience with the Tank Conversion Pump Module featuring an Internal Regulator – the perfect solution for transforming your vehicle's fuel delivery system with precision and efficiency.
