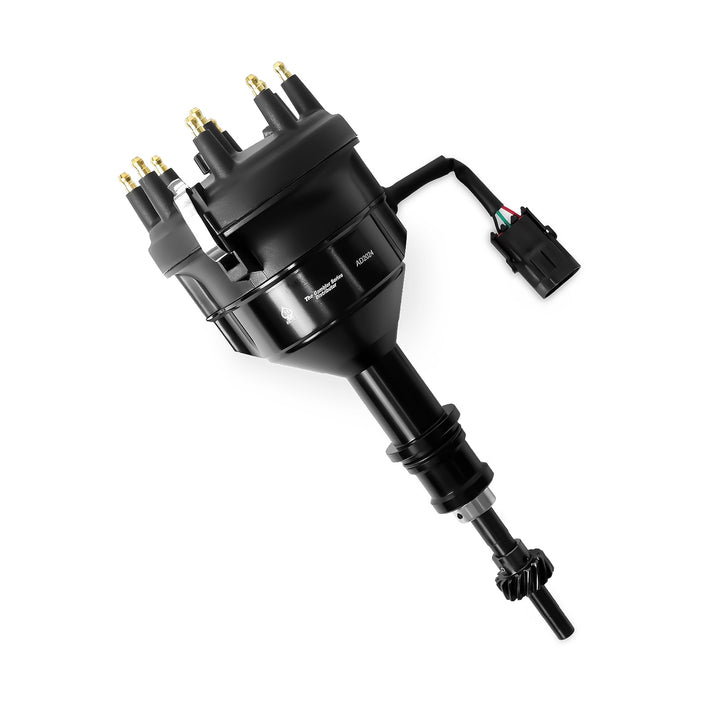

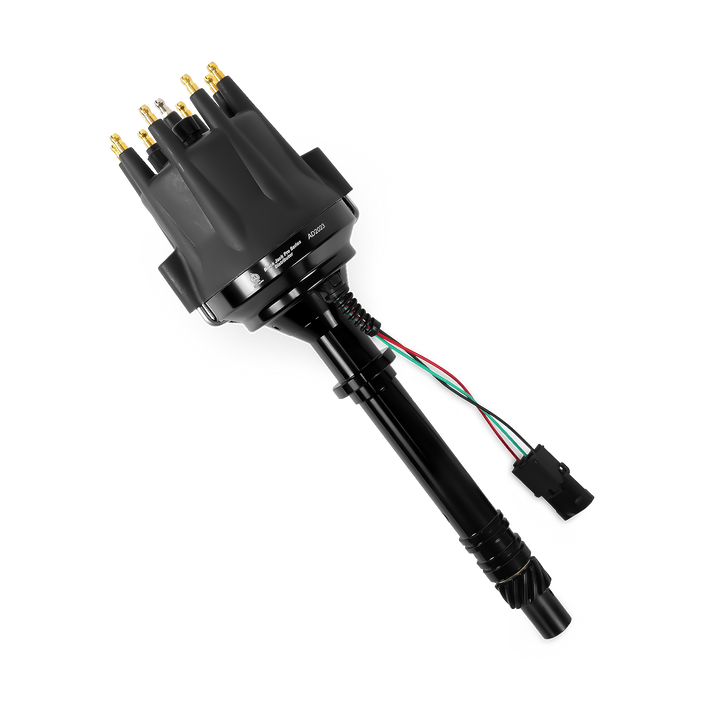

Aces Gambler Series CAM Sync V8 Distributor

Full House Pro 8 Channel EFI/CDI TBI System

ACES Fuel Injection The Full House EFI system is the most powerful EFI system for traditional V8 engine and LS engine, it features 8 injectors output and 8 coils CDI high performance ignition output, This 32-bit controller is based on the hardware platform of the ACES FULL HOUSE ignition controller and integrates the EFI software of ACES. It is the Cutting-edge technology controller in the market and will remain the leading position for years to come. With the use of ACES Cam Sync distributor, the classic V8 engine can work with sequential ignition and sequential injection, more precise fuel distribution and high-energy ignition control.

Application 1: AS2017 Full House Pro 8 Channel EFI/CDI TBI system for tradition V8 engine

Kits Include: ACES TBI throttle body, Full House Pro 8 Channel EFI/CDI ECU, Harness, CTS sensor, O2 sensor, ACES cam sync distributor plug, ACES high performance ignition coils.

  *Available for SBC and SBF kits (ACES Cam sync distributor plug needed)

Application 2: AS2017 Full House Pro 8 Channel EFI/CDI TBI system for LS engine

Kits Include: ACES TBI throttle body, Full House Pro 8 Channel EFI/CDI ECU, Harness, CTS sensor, O2 sensor,  ACES high performance ignition coils.

The Full House EFI kits include a USB/CAN tuning cable and the 5" High Resolution Full Color Touchscreen Handheld LCD, these kits require the use of the free ACES fuel injection laptop tuning Software for initial setup. The ACES Turning Software includes multiple base calibrations to choose from for either naturally aspirated or boosted engines. Also, the tuning software provides an easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a drag racing or a boosted racing car, The Full House EFI kits has the advanced features and technology to you need.

• 32bit Power Architecture based MCU for automotive powertrain applications
• Works with 7x+1 ACES Cam sync distributor, 58x and 24x reluctor wheel
• High real-time ignition, ignition delay is less than 10us
• Eight channels ignition control of over to 750 mJ spark energy for sequential ignition
• Over 50 Kilovolts output voltage to drive ACES performance Coil
• Eight high-impedance injector drivers for sequential fuel injection
• Sequential fuel and spark control with individual cylinder trim
• High-efficiency Alternating Current (AC) power delivery
• Dual wideband O2 sensors for closed loop control
• Adaptive self-learn strategy for idle control and fuel control
• 3 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications
• Rev limiter setting for maximum RPM
• Launch control
• Step retard for Nitrous control
• Dual electric fan control and Fuel pump control
• Operating voltage is 6-22 volts
• ACES CAN module adds inputs and outputs and connects to digital dash displays

ACES EFI High Roller Digital CDI Ignition System

ACES EFI High Roller digital capacitive discharge ignition (DCDI) system is the ultimate component to complete your high-performance ignition system. Built on ACES’ 32-bit Power Architecture, the High Roller offers advanced technology and the most powerful spark available. The High Roller DCDI ignition system offers unrivaled spark energy and dependability, making it ideal for street/strip, full race, or any other high-performance application.

ACES High Roller DCDI ignition components are designed to be easy to install and easy to tune via the included 5" LCD high-resolution, full-color, touchscreen handheld controller. The system is easy to program and adjust, with full control of the timing curve at your fingertips in real-time. The handheld controller also gives you the ability to monitor ignition data in addition to on-the-fly changes.

Packed full of features, the ACES High Roller DCDI ignition gives multiple spark capability with the highest spark energy available for complete combustion in the most extreme conditions. The system is compatible with 4-, 6-, and 8-cylinder applications, electronic or points-style ignitions systems, and features multiple user-configurable rev limiters, giving you complete control.

Whether you are building a budget beater or a boosted racing car, ACES EFI’s High Roller Digital CDI Ignition has the technology and advanced features to meet your needs, in an easy-to-install, easy-to-tune package so you can take your ride to the next level!

ACES EFI High Roller Digital CDI Ignition Features

32-bit Power Architecture based MCU and IC driver chips for automotive powertrain applications. This technology manages input/output signals and voltage, and RPM faster and more consistently than the competition

Advanced innovations make this system the perfect ignition for any high-performance application

Easy-to-install design, can easily be done by the average enthusiast

5" LCD high-resolution, full-color, touchscreen handheld controller allows for easy setup, quick real-time timing changes, and monitoring of ignition-based engine parameters

Sealed, locking connector for primary harness

2-step rev limiter setting for burnout and launch RPM control

150mJ spark energy when used with ACES Blackjack Pro Series high-performance coil

Primary voltage 450-530 volts, secondary voltage 50000 volts

Compatible with 4-, 6-, and 8-cylinder engines

Works with electronic or points-style ignition systems

The following engine configurations are now available!
