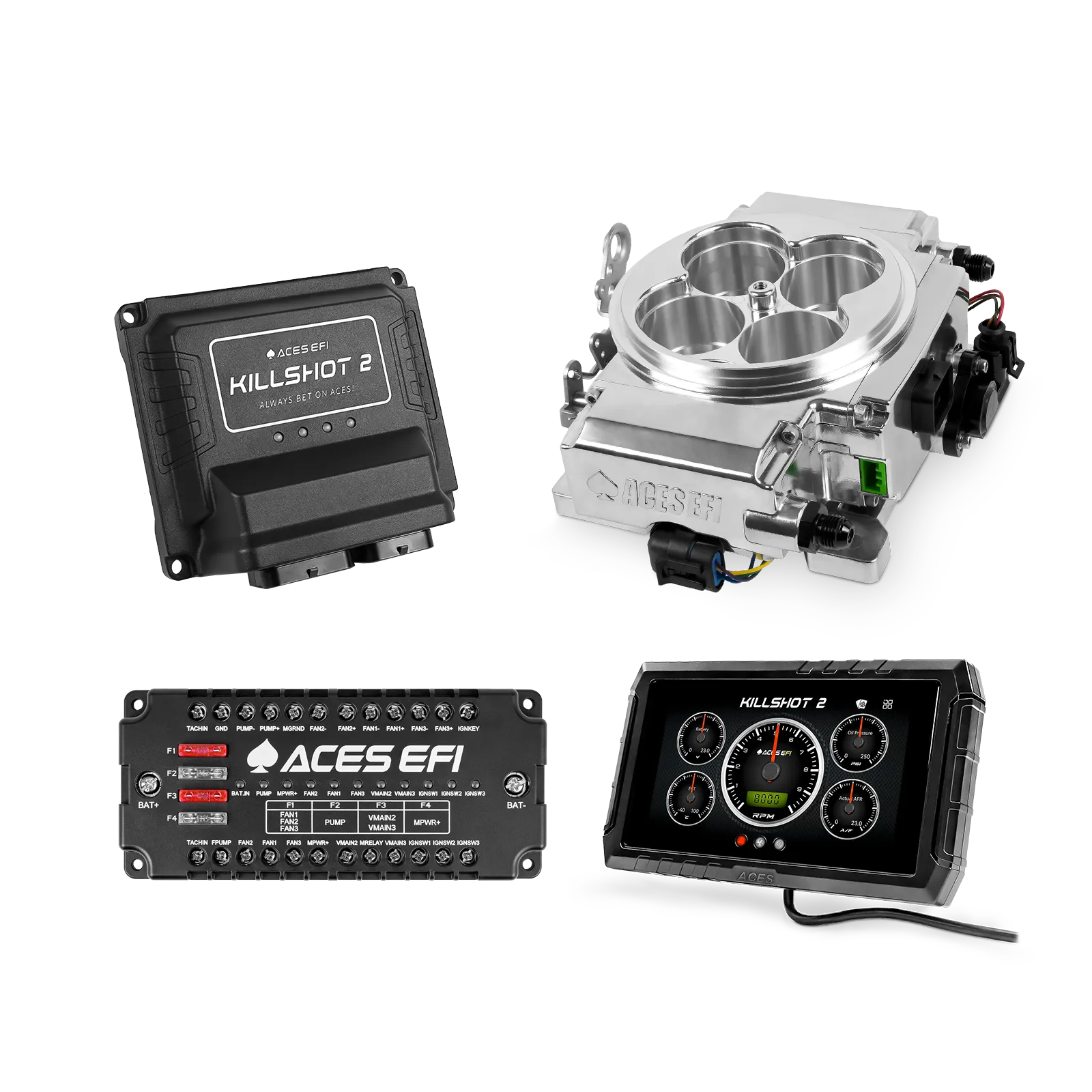

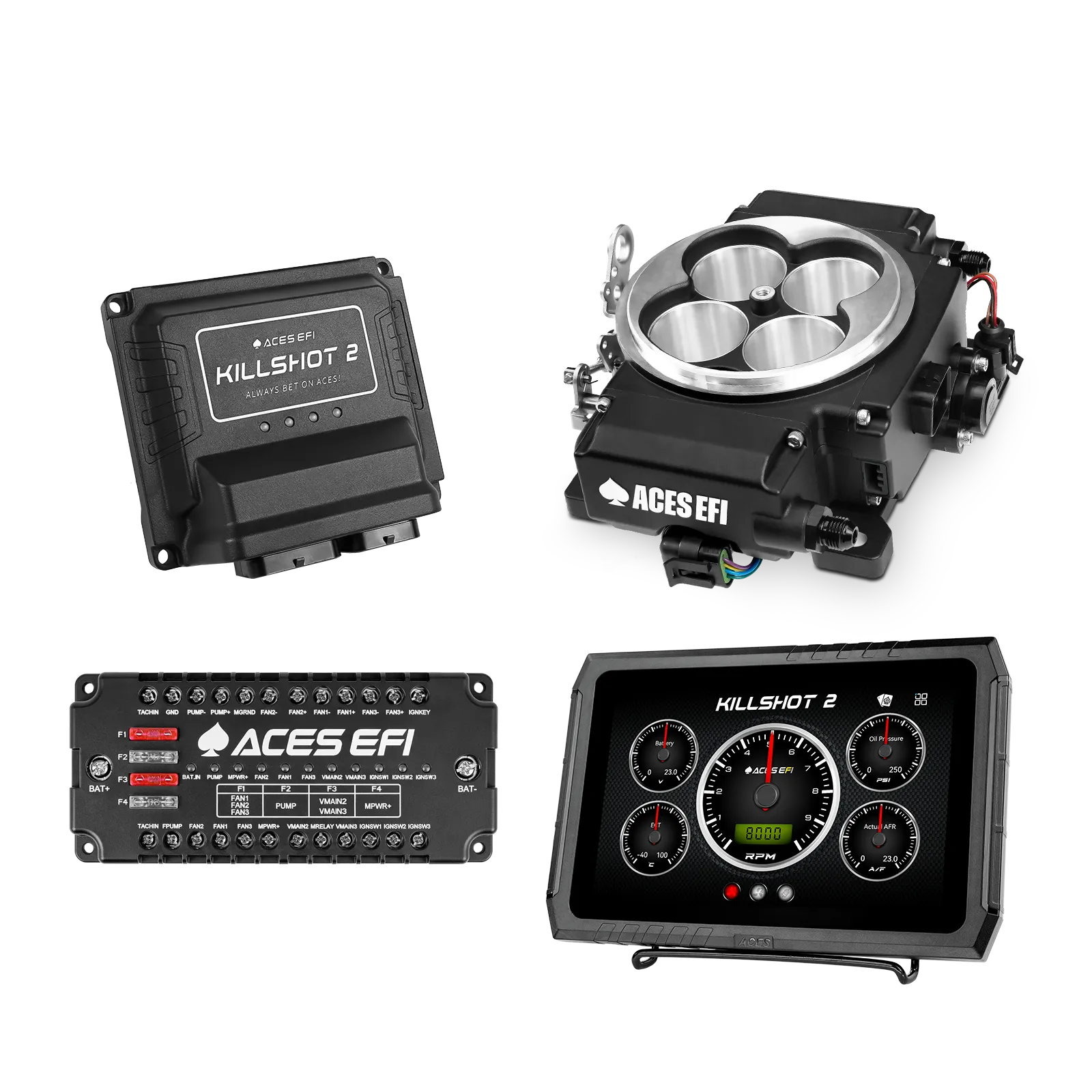

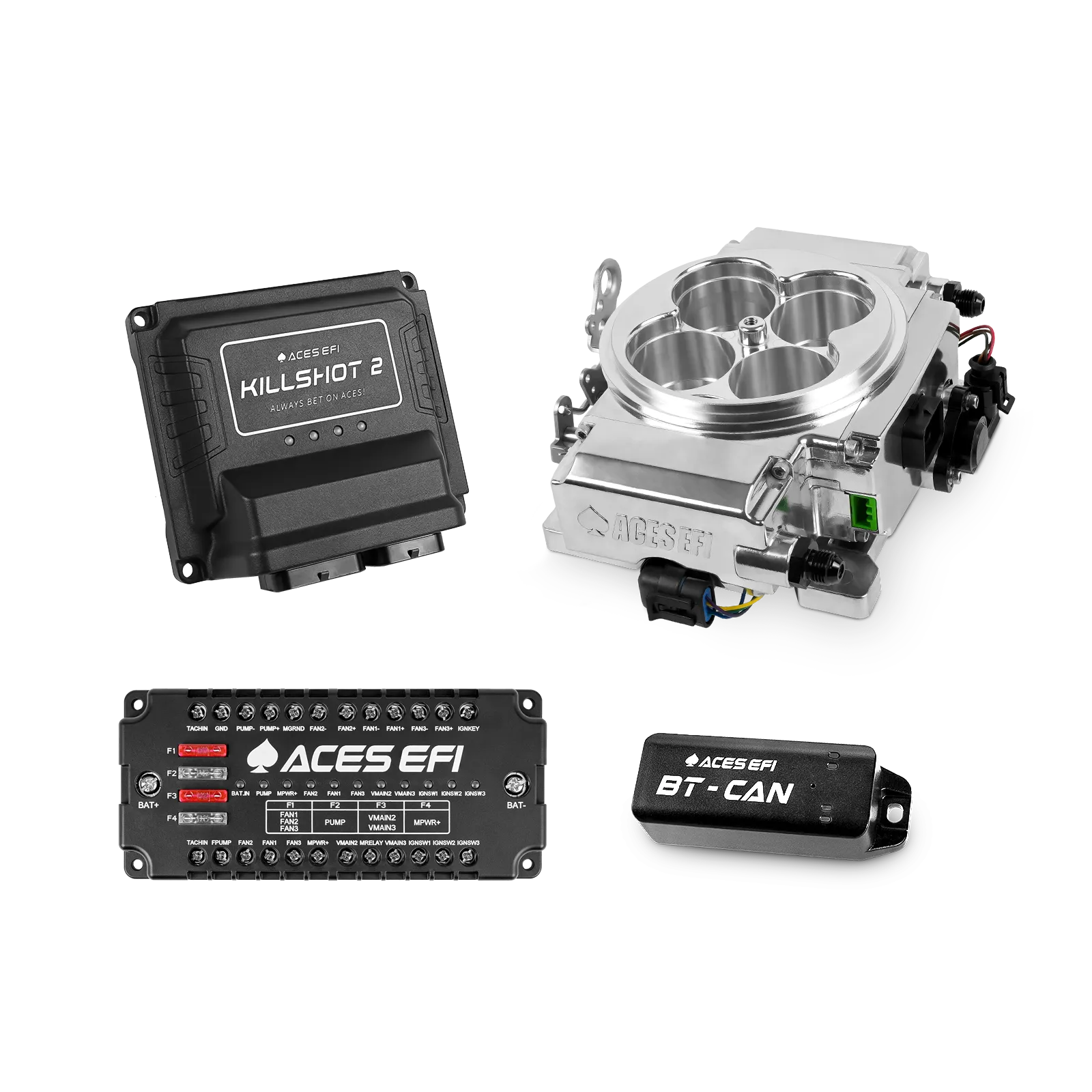

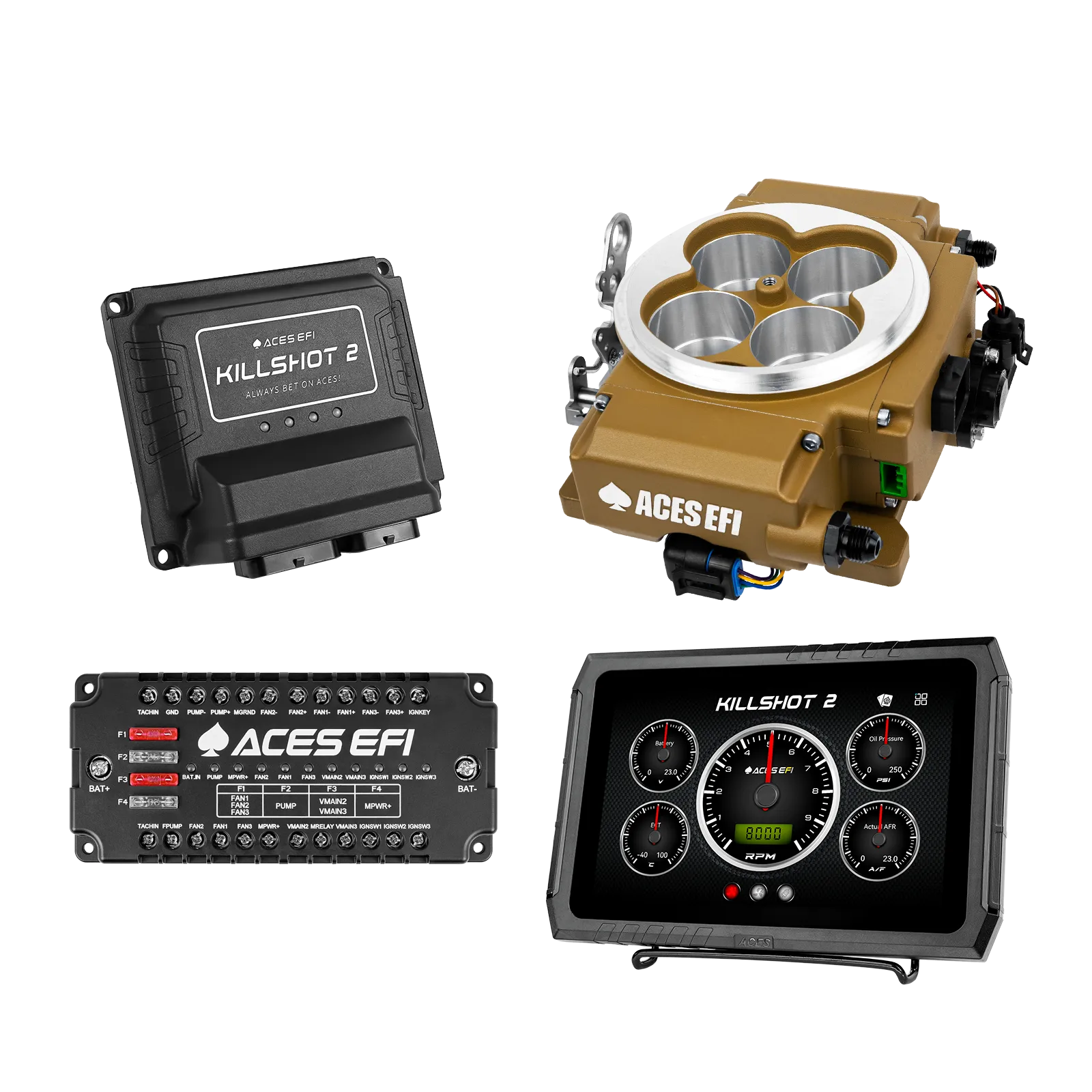

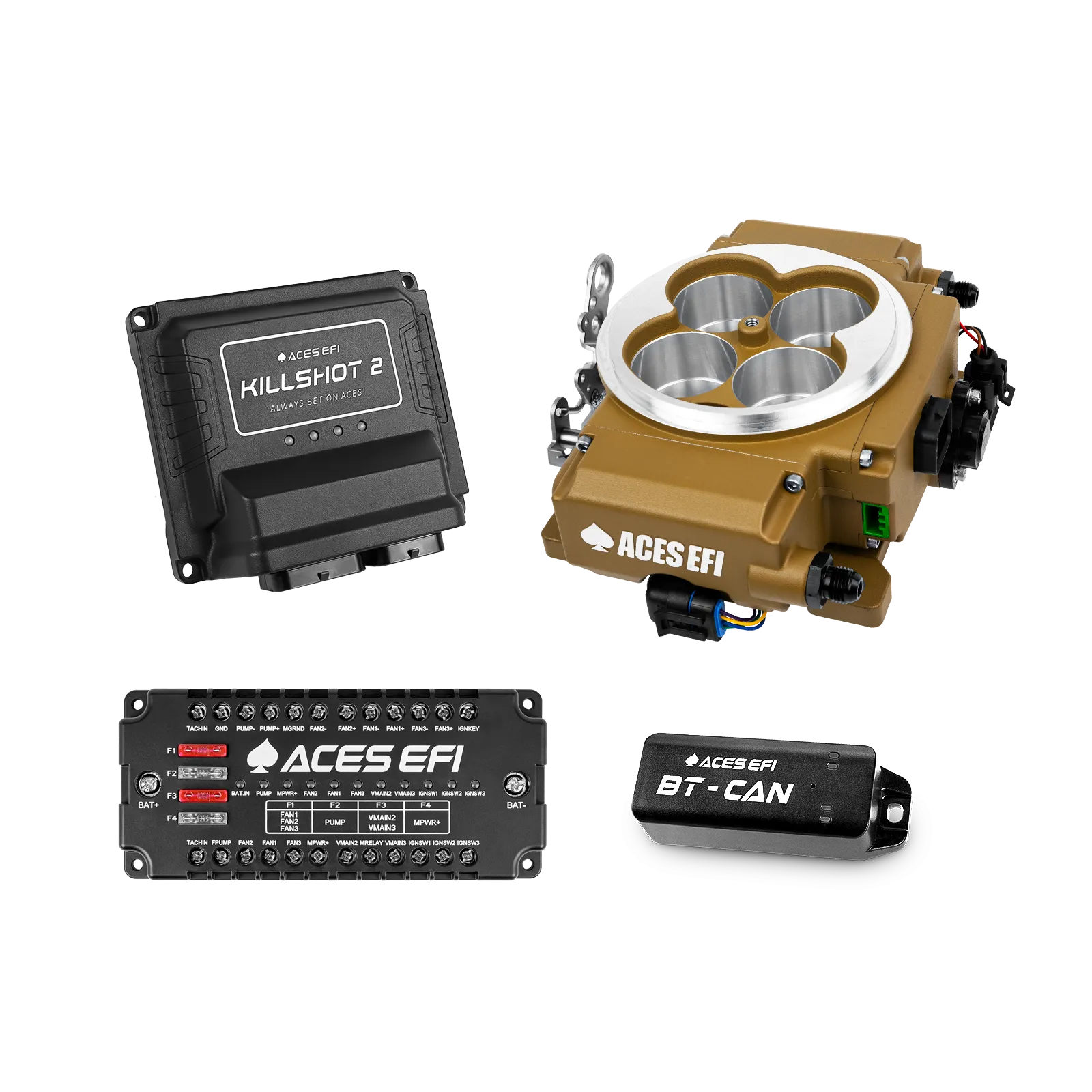

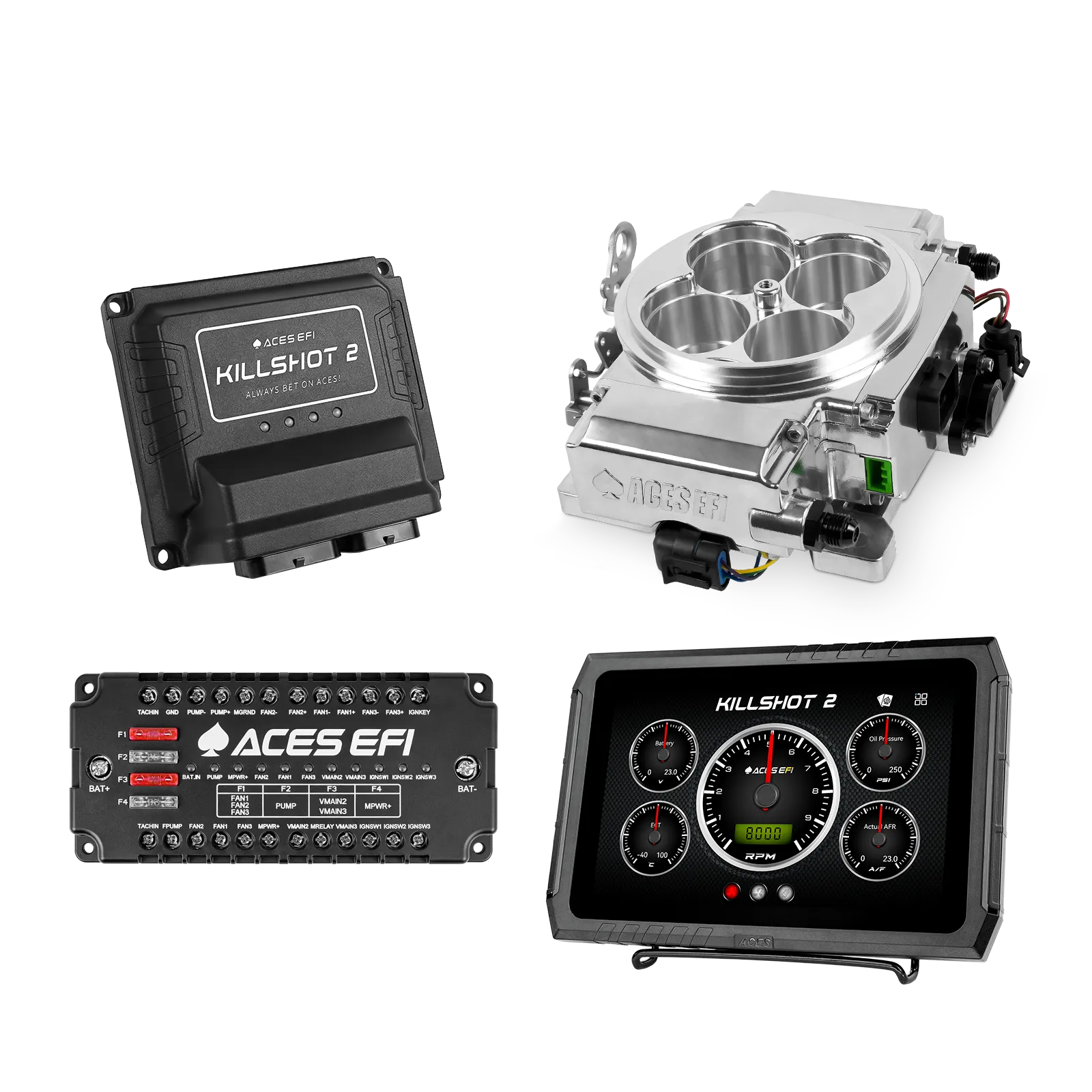

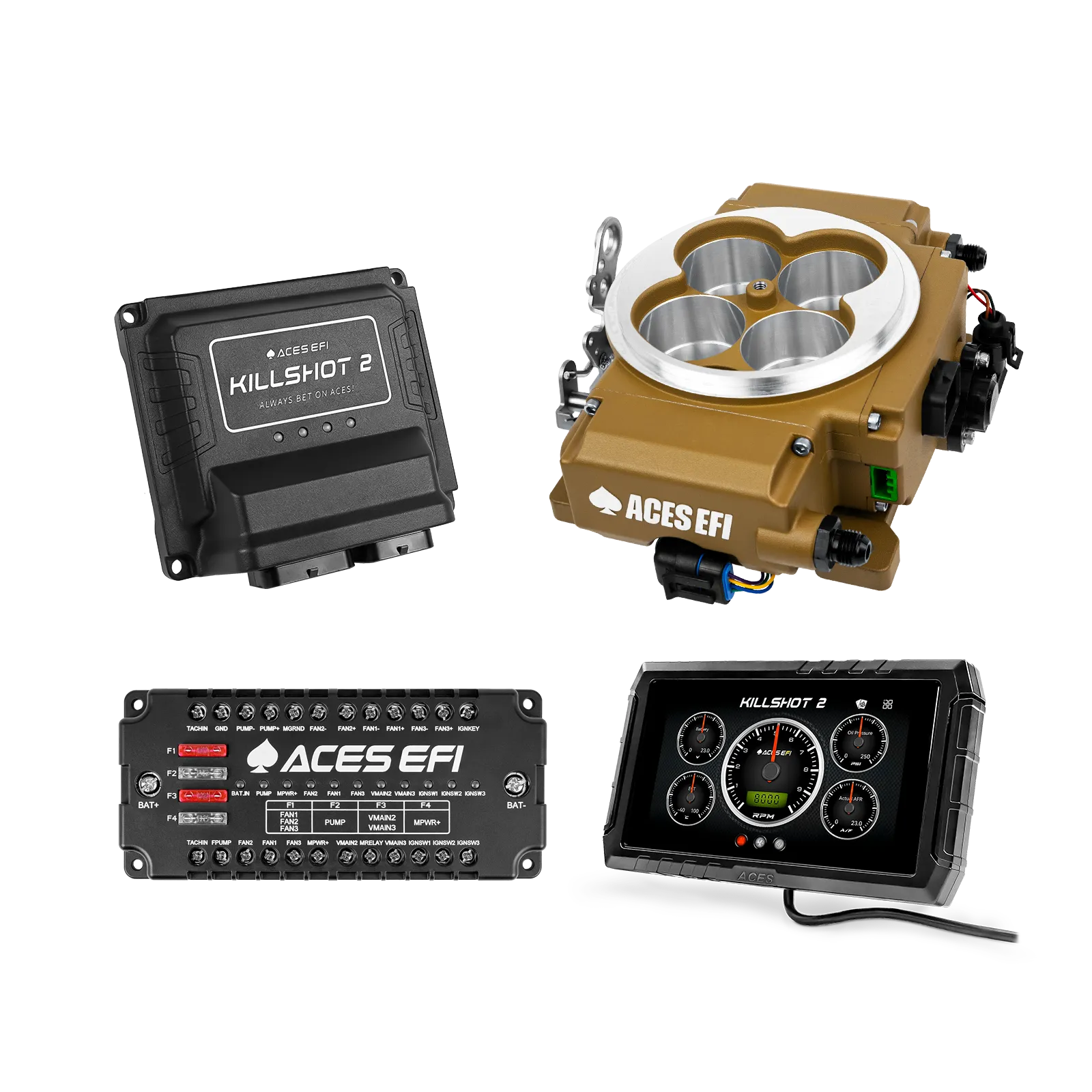

Killshot 2 Pro
4-bbl TBI system with an external ECU for classic engines up to 650 hp
Killshot 2 Pro EFI System
3-Year Warranty
30-Day Returns
Secure Payment
Kit Types Explained
Bundle & Save!
Save 5% automatically when you purchase a Fuel Kit, Top End Kit, or Master Kit!
- 1. Standalone Kits
Perfect if you already have a high pressure fuel system (43 PSI+) and want to use your stock ignition or if you already have an aftermarket distributor. (Note that a distributor must be locked out to run timing control.)
- Includes the following:
- Throttle body
- ECU
- Handheld or Bluetooth Module
- Full Harness
- Sensors
- Accessories
- 2. Fuel Kits
Perfect if you want to use your stock ignition or if you already have an aftermarket distributor. (Note that a distributor must be locked out to run timing control.)
- Includes the following:
- A complete Standalone Kit
- A Fuel Delivery System of your choosing
- 3. Top End Kits
Perfect if you already have a high pressure fuel system (43 PSI+) and want to run timing control.
- Includes the following:
- A complete Standalone Kit
- A Magnetic Distributor of your choosing
- An AC2008 Ignition Coil
- 4. Master Kits
These include everything you need to go from carb to EFI and run timing control.
- Includes the following:
- A complete Standalone Kit
- A Fuel Delivery System of your choosing
- A Magnetic Distributor of your choosing
- An AC2008 Ignition Coil
Killshot 2 Pro EFI System
The Killshot 2 Pro is the ultimate evolution of our throttle body EFI lineup—built on the proven foundation of Killshot 2 and enhanced with deeper tuning control, dual-quad capability, and upgraded hardware. It includes every feature of Killshot 2 plus expanded tables and strategies for serious builders who want maximum flexibility and precision. Over the past two years, we’ve gathered real-world feedback from tuners, racers, and street enthusiasts to refine and improve every aspect of the system. The result is an EFI package that’s more powerful, more versatile, and even easier to install and tune.
Why upgrade from a carburetor?
Carburetors demand constant compromise. EFI doesn’t. Killshot 2 Pro dynamically adjusts fuel delivery in real time for weather, altitude, and load—eliminating hesitation, cold-start issues, and the need to re-jet for changing conditions. Expect precision fuel control, improved throttle response, and seamless adaptability whether you’re cruising in traffic, blasting down the strip, or hunting laps at the track.
Engineered for power and durability
At the core is a high-speed 32-bit ECU delivering fast, accurate engine management for naturally aspirated and boosted combos. An integrated 3-bar TMAP sensor supports up to 27 psi of boost for turbo and supercharged applications. Each throttle body carries four 100 lb/hr injectors, comfortably supporting up to 650 HP per unit. Need more? Run dual-quad and fuel up to 1,200 HP (requires an additional slave unit; second unit sold separately).
Maintaining proper fuel pressure is critical for EFI performance. The Pro’s built-in fuel pressure sensor gives you real-time fuel pressure monitoring, ensuring consistent delivery under all conditions—no external sensors or guessing.
Remote-mounted ECU for reliability
Many EFI systems bury the ECU inside the throttle body, where heat and vibration shorten lifespan. Killshot 2 Pro uses a separate, remote-mounted ECU to keep electronics cool, stable, and serviceable for the long haul.
Expanded tuning & control
Killshot 2 Pro takes tuning further while keeping day-to-day operation simple:
- 31×31 VE Fuel Tables – Higher resolution across the full load/RPM range.
- 31×31 MBT Spark Tables – More precise ignition control under any condition.
- Closed-Loop Learning (expanded resolution) – Smarter corrections for street and mild builds.
- Self-Learning Strategy (clarified): The system does not “self-tune” end-to-end. You select a base calibration matched to your combo; the ECU refines fueling as you drive. Ideal for stock-to-mild engines. Aggressive setups—high-lift cams, forced induction, or nitrous—benefit from manual tuning for optimal results.
- Progressive Throttle Linkage – Smoother, more linear tip-in for excellent street manners versus “on/off” TBI behavior.
- Boost Control & Fuel Level Inputs – Hardware-ready for future software unlocks (e.g., boost-solenoid control, dash integration).
Handheld + PC software
Every Pro system includes our 3rd-generation 5" HD touchscreen handheld for setup, data viewing, and real-time diagnostics. For advanced users, the Pro PC Tuning Suite provides manual access to AFR targets, ignition strategies, boost enrichment, and more.
Built for easy installation & maximum compatibility
EFI conversions shouldn’t be complicated. Killshot 2 Pro is designed for straightforward installs and broad compatibility:
- Fits 4150-flange 4-barrel intake manifolds (universal 4-barrel fitment)
- Low-profile throttle body design works with more air cleaner setups—including drop-base filters
- Standalone or Complete Kit options to match your build plan
Who it’s for
Whether you’re refining a weekend cruiser, dialing in a high-compression race motor, or pushing a turbocharged street car, Killshot 2 Pro delivers the reliability and power of modern EFI with the simplicity of a 4-barrel TBI—plus headroom to grow.
System features (all the benefits of Killshot 2, plus more)
- Supports up to 650 HP per unit (NA) / up to 1,200 HP in dual-quad (NA)
- Four 100 lb/hr fuel injectors per throttle body
- Integrated 3-bar TMAP sensor – Supports up to 27 psi boost
- Built-in fuel pressure sensor – Real-time fuel pressure monitoring for precise control
- Progressive throttle linkage – Smooth response and drivability
- Remote-mounted ECU – Improved reliability and serviceability
- TPS output – For transmission controllers, nitrous activation, and other external modules
- 4150 flange – Universal fitment for 4-barrel intake manifolds
- Low-profile design – Compatible with more air cleaner options, including drop-base filters
- Available finishes: Black, Polished, Gold
- Standalone or Complete Kit Options – Choose the package that fits your build
What you can expect
- Faster starts in all weather, stable idle quality, and crisp throttle response
- Consistent fueling on the street, track, or strip—even with altitude and temperature swings
- Easy initial setup with room to grow into advanced tuning as your combo evolves
Killshot 2 Pro gives you everything enthusiasts love about Killshot 2—and then some. If you’re upgrading from a carburetor or stepping up from a basic EFI, the Pro is the intelligent path to fuel, tune, and dominate with confidence.
Product Info
Overview
Killshot 2 Pro EFI System
The Killshot 2 Pro is the ultimate evolution of our throttle body EFI lineup—built on the proven foundation of Killshot 2 and enhanced with deeper tuning control, dual-quad capability, and upgraded hardware. It includes every feature of Killshot 2 plus expanded tables and strategies for serious builders who want maximum flexibility and precision. Over the past two years, we’ve gathered real-world feedback from tuners, racers, and street enthusiasts to refine and improve every aspect of the system. The result is an EFI package that’s more powerful, more versatile, and even easier to install and tune.
Why upgrade from a carburetor?
Carburetors demand constant compromise. EFI doesn’t. Killshot 2 Pro dynamically adjusts fuel delivery in real time for weather, altitude, and load—eliminating hesitation, cold-start issues, and the need to re-jet for changing conditions. Expect precision fuel control, improved throttle response, and seamless adaptability whether you’re cruising in traffic, blasting down the strip, or hunting laps at the track.
Engineered for power and durability
At the core is a high-speed 32-bit ECU delivering fast, accurate engine management for naturally aspirated and boosted combos. An integrated 3-bar TMAP sensor supports up to 27 psi of boost for turbo and supercharged applications. Each throttle body carries four 100 lb/hr injectors, comfortably supporting up to 650 HP per unit. Need more? Run dual-quad and fuel up to 1,200 HP (requires an additional slave unit; second unit sold separately).
Maintaining proper fuel pressure is critical for EFI performance. The Pro’s built-in fuel pressure sensor gives you real-time fuel pressure monitoring, ensuring consistent delivery under all conditions—no external sensors or guessing.
Remote-mounted ECU for reliability
Many EFI systems bury the ECU inside the throttle body, where heat and vibration shorten lifespan. Killshot 2 Pro uses a separate, remote-mounted ECU to keep electronics cool, stable, and serviceable for the long haul.
Expanded tuning & control
Killshot 2 Pro takes tuning further while keeping day-to-day operation simple:
- 31×31 VE Fuel Tables – Higher resolution across the full load/RPM range.
- 31×31 MBT Spark Tables – More precise ignition control under any condition.
- Closed-Loop Learning (expanded resolution) – Smarter corrections for street and mild builds.
- Self-Learning Strategy (clarified): The system does not “self-tune” end-to-end. You select a base calibration matched to your combo; the ECU refines fueling as you drive. Ideal for stock-to-mild engines. Aggressive setups—high-lift cams, forced induction, or nitrous—benefit from manual tuning for optimal results.
- Progressive Throttle Linkage – Smoother, more linear tip-in for excellent street manners versus “on/off” TBI behavior.
- Boost Control & Fuel Level Inputs – Hardware-ready for future software unlocks (e.g., boost-solenoid control, dash integration).
Handheld + PC software
Every Pro system includes our 3rd-generation 5" HD touchscreen handheld for setup, data viewing, and real-time diagnostics. For advanced users, the Pro PC Tuning Suite provides manual access to AFR targets, ignition strategies, boost enrichment, and more.
Built for easy installation & maximum compatibility
EFI conversions shouldn’t be complicated. Killshot 2 Pro is designed for straightforward installs and broad compatibility:
- Fits 4150-flange 4-barrel intake manifolds (universal 4-barrel fitment)
- Low-profile throttle body design works with more air cleaner setups—including drop-base filters
- Standalone or Complete Kit options to match your build plan
Who it’s for
Whether you’re refining a weekend cruiser, dialing in a high-compression race motor, or pushing a turbocharged street car, Killshot 2 Pro delivers the reliability and power of modern EFI with the simplicity of a 4-barrel TBI—plus headroom to grow.
System features (all the benefits of Killshot 2, plus more)
- Supports up to 650 HP per unit (NA) / up to 1,200 HP in dual-quad (NA)
- Four 100 lb/hr fuel injectors per throttle body
- Integrated 3-bar TMAP sensor – Supports up to 27 psi boost
- Built-in fuel pressure sensor – Real-time fuel pressure monitoring for precise control
- Progressive throttle linkage – Smooth response and drivability
- Remote-mounted ECU – Improved reliability and serviceability
- TPS output – For transmission controllers, nitrous activation, and other external modules
- 4150 flange – Universal fitment for 4-barrel intake manifolds
- Low-profile design – Compatible with more air cleaner options, including drop-base filters
- Available finishes: Black, Polished, Gold
- Standalone or Complete Kit Options – Choose the package that fits your build
What you can expect
- Faster starts in all weather, stable idle quality, and crisp throttle response
- Consistent fueling on the street, track, or strip—even with altitude and temperature swings
- Easy initial setup with room to grow into advanced tuning as your combo evolves
Killshot 2 Pro gives you everything enthusiasts love about Killshot 2—and then some. If you’re upgrading from a carburetor or stepping up from a basic EFI, the Pro is the intelligent path to fuel, tune, and dominate with confidence.
Specs
Killshot 2 Pro EFI System Specifications
| Specification | Value |
|---|---|
| Series | Killshot 2 |
| Application | Classic small/big block engines under 650 HP (NA) or 550 HP (boosted). |
| Why you would buy one over the other | Includes all the features of the Killshot 1, plus: Lower profile design for more universal air cleaner fitment, built-in fuel pressure sensor, progressive linkage, B60 Chip, expanded VE tables (31x31), expanded spark tables (31x31), Boost Control*, fuel level input, additional I/O wires for future expansion. |
| Accelerometer Support | No |
| Accepts Firmware Updates | Yes |
| Advanced Tuning Software Compatible | Yes |
| Air Cleaner Diameter | 5-1/8" |
| Boost Compatible | Yes |
| Boost Control | Yes* (via firmware update) |
| CAN-BUS Support | Yes |
| CFM | 1,000 |
| Chip Set | B60 Series |
| Coil Per Cylinder Ignition Support | No |
| Data Cable Included | Yes |
| Datalogging Support | Yes |
| Distributor Compatibility | MAG, Hall-Effect, Coil-, CDI |
| Dry Nitrous Compatibility | No |
| E85 Compatible | Yes, with proper fuel tuning (not out of the box) |
| ECU Location | External |
| EFI Type | Throttle Body Injection |
| EGT Support | Yes |
| Emission Code | 3 |
| Fan Control | Yes |
| Flange Size | 4150 / Square-bore |
| Forced Induction Compatibility | Yes |
| Fuel Injectors Included | Yes, built in |
| Fuel Level Input | Yes |
| Fuel/Oil Pressure Input | Yes |
| Grade Type | Automotive |
| Handheld Included | Yes |
| Idle Air Control Motor Included | Built-in |
| Ignition Timing Control | Yes |
| Injector Quantity | 4 |
| Injector Size | 100 lb/hr |
| Inlet/Outlet Size | -6 AN |
| MAP Sensor Included | Yes |
| MAP Sensor Rating | 3 Bar |
| Material | Cast Aluminum (throttle body) |
| Max HP Support | 650 HP (single quad NA) |
| Mounting Hardware Included | Yes |
| Multi-Stage Nitrous Control | No |
| Nitrous Retard | Yes |
| Ported Vacuum | Yes |
| Progressive Linkage | Yes |
| Progressive Nitrous Control | No |
| Recommended Fuel PSI Range | 43–58 PSI |
| Release Date | Spring 2025 |
| Self-Learning | Yes |
| Throttle Body Height | 3-5/16" |
| Throttle Position Sensor Included | Yes, built in |
| Transmission Control | Not built in, but compatible with Aces Trans Control Modules |
| WBO2 Sensor | 1 |
| Wet Nitrous Control | Yes, but non-progressive |
