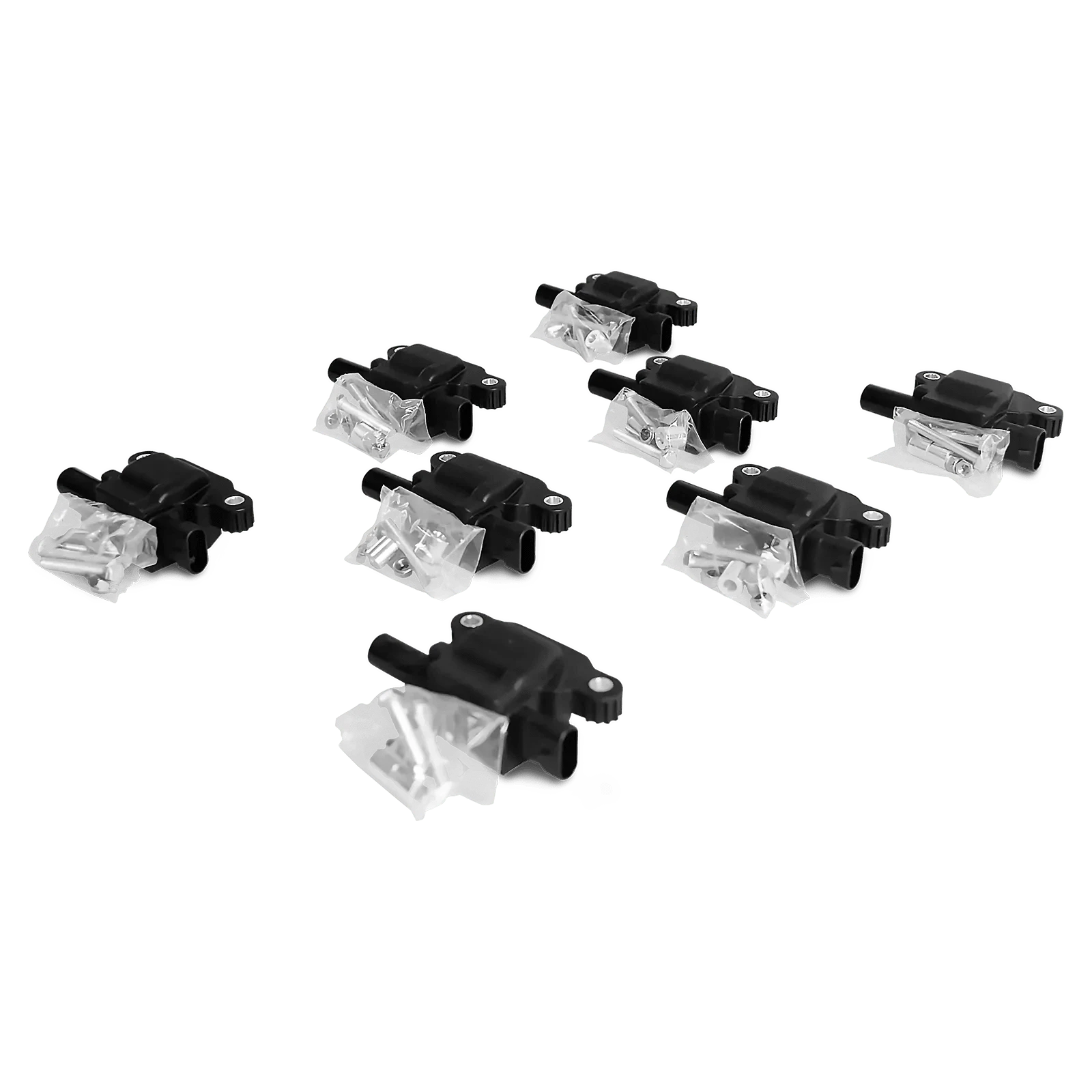

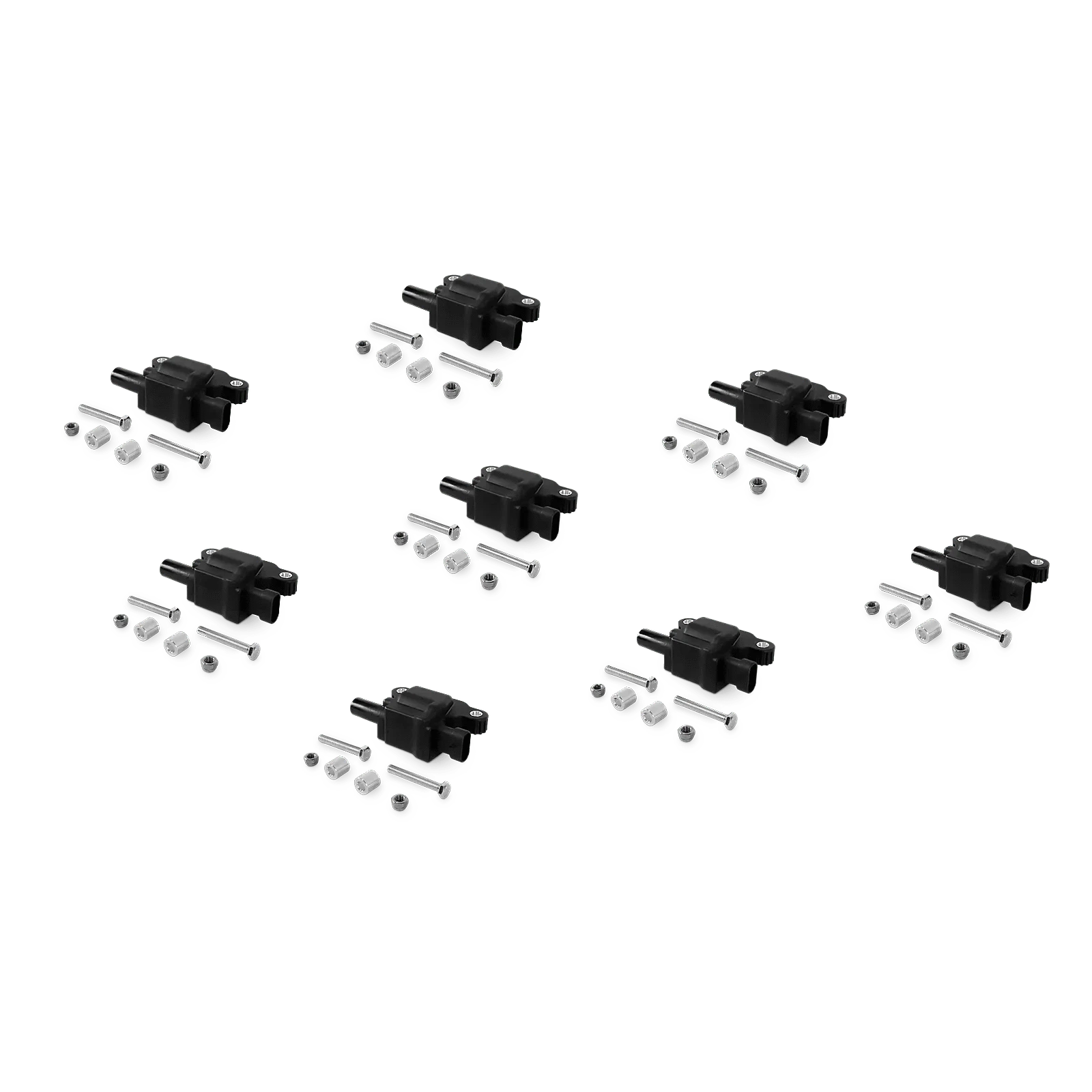

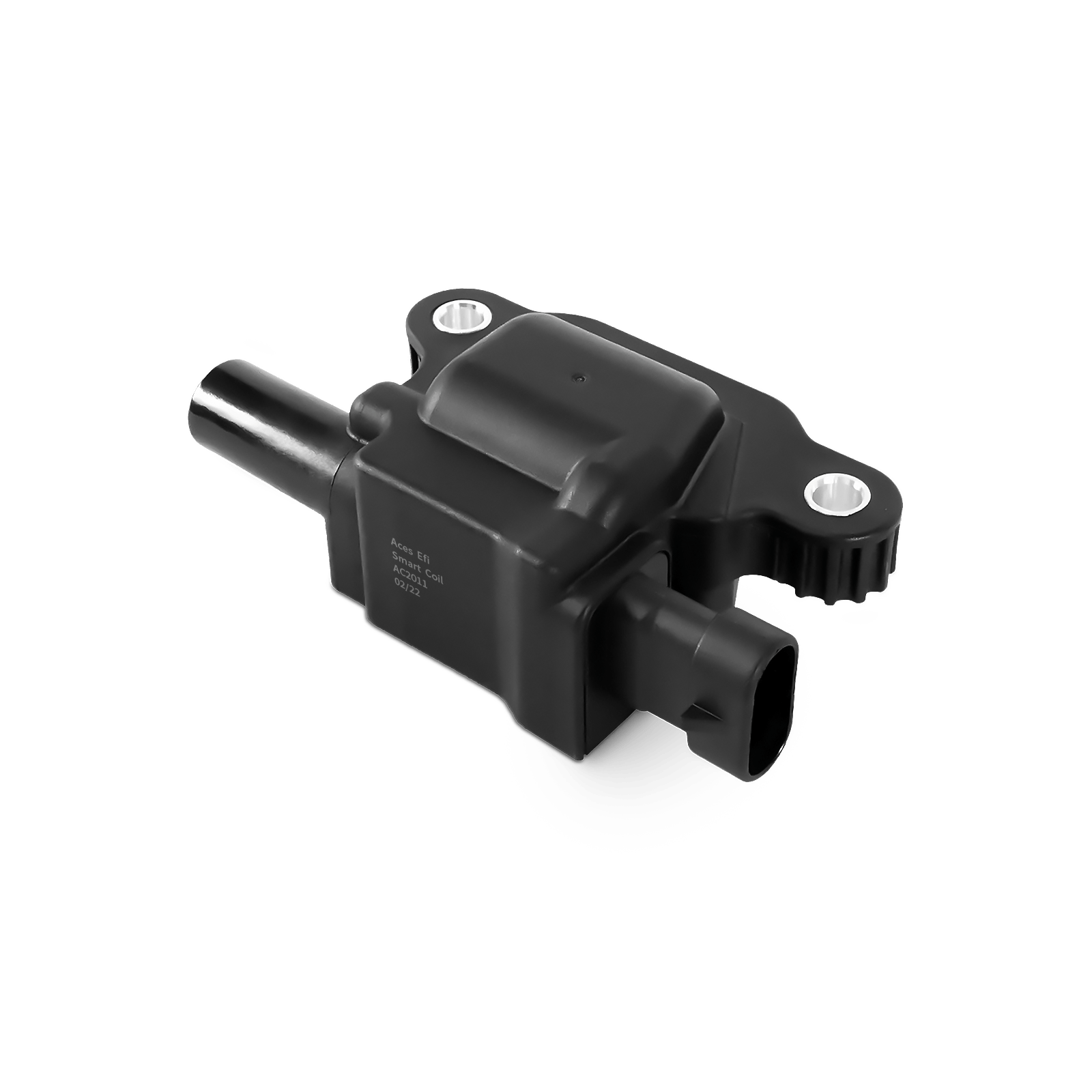

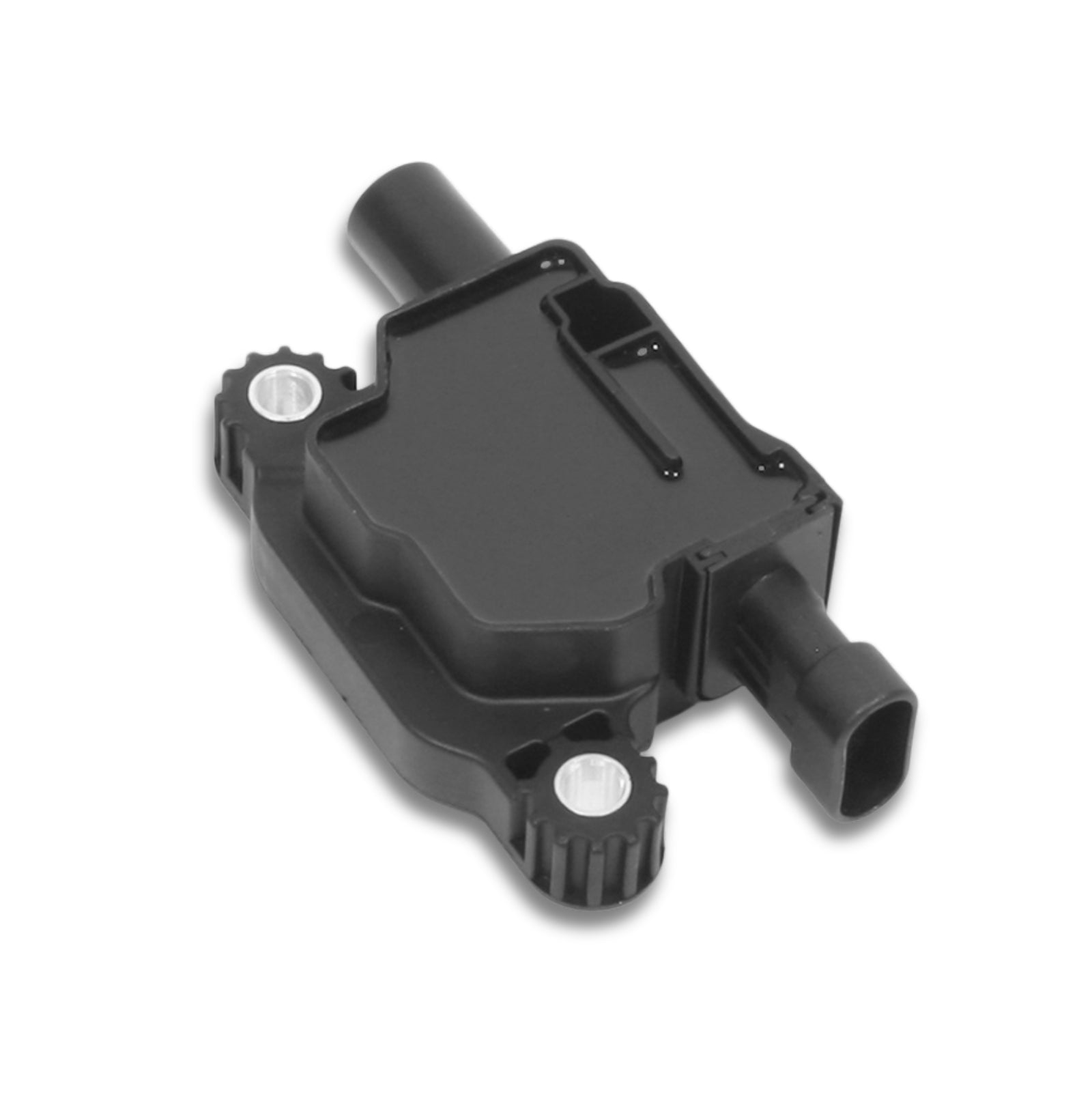

Aces EFI GM LS Ignition Coil
Aces EFI GM LS Ignition Coil
Aces EFI GM LS Ignition Coil
Aces EFI GM LS Ignition Coil
Aces EFI GM LS Ignition Coil
Aces EFI GM LS Ignition Coil

Aces EFI GM LS Ignition Coil

SKU: AC2011
Disponible
Precio de oferta$42.99 Precio normal$49.99
Quantity:
Technical support
Product Manual
Software
Ask us a question
×

Power Distribution Module (PDM)

Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)
Power Distribution Module (PDM)

Discover the next evolution in performance and reliability with the Aces Fuel Injection Power Distribution Module (PDM) —your ultimate solution for seamless power management in high-performance EFI systems. The PDM uses IGBT transistors in the place of solid state or electro-mechanical relays which helps to filter bad transient voltage, ultimately providing greater protection for your electronics which are connected to the PDM.

Our PDM is engineered to integrate effortlessly with Aces Fuel Injection Systems, providing robust, efficient power distribution for essential components such as:

  • Ignition Systems
  • Fuel Pumps
  • Cooling Fans
  • Auxiliary Accessories

Key Features

  • Comprehensive Power Management: Supports ignition, fuel pumps, fans, and more.
  • Simplified Wiring: Clearly marked terminals for ease of installation.
  • Enhanced Safety: Fuse-protected circuits for optimal performance and reliability.
  • Flexibility: Tailored control for auxiliary devices with relay support.

×

Pressure Sensor Kit

Pressure Sensor Kit
Pressure Sensor Kit
Pressure Sensor Kit
Pressure Sensor Kit
Pressure Sensor Kit
Pressure Sensor Kit



Aces EFI pressure sensor kits utilize top-quality parts for use with EFI systems. Kits include plastic/steel sensors with 1/8" -27 NPT threads and include a -6 AN fuel pressure take-off adapter fitting and 2 sets of 45 push lock hose ends.

Pressure sensors are great for logging oil pressure, fuel pressure, or boost pressure. Display the pressure reading on any Aces Handheld or Dash screen and on your data log files!

PRODUCT TECHNOLOGIES

ACES OE-style replacement coils that mount easily and acceptable OEM connectors provide the performance needed to help keep engine running the way that they were designed.

TECHNICAL SPECIFICATIONS

  • Primary Current: 5A
  • Output (25pF load): 40 kV
  • Output Energy: 45 mJ (Zener Energy@1000V)
  • Turns Ratio 75:1
  • Base Dwell: 3ms
  • Smart Coil integrated with IGBT driver

People also shop for

Full House Plus 8 Channel Ignition System

Full House Plus 8 Channel Ignition System

AS2016 Full House Plus 8 Channel CDI

ACES Fuel Injection has the latest innovation solution of Coil-Per-Plug CDI ignition system that will take your traditional V8 and LS engine to the next level performance.

The Full House Plus Ignition System make your traditional V8 engines operate with a distributor to benefit from running a Coil-Per-Plug CDI ignition system. The controller requires a ACES Cam Sync distributor. Benefits of Coil-Per-Plug CDI ignition system include the elimination of distributor cap and rotor wear, reduced spark energy losses caused by long spark plug wires, and the ability to tuning ignition table.

The Full House Plus is as safe as it is versatile, with built-in protection for accidental battery connection reversal and over-temperature protection, all in a water-resistant case. Troubleshooting is easy with LED diagnostics that can identify a problem with individual coils should one come up.

Whether you are building a budget beater or a boosted racing car, ACES EFI ’s Full House Plus 8 Channel CDI ignition system has the technology and advanced features to meet your need, in an easy-to-install package so you can take your ride to the next level!

  • 32bit Power Architecture® based MCU for automotive powertrain applications
  • Works with 7x+1 ACES Cam sync distributor 58x and 24x reluctor wheel
  • High real-time ignition, ignition delay is less than 10us
  • Eight channels ignition control of over to 750 mJ spark energy
  • High-efficiency Alternating Current (AC) power delivery
  • Over 50 Kilovolts output voltage to drive ACES performance Coil
  • 3 Bar MAP sensor that can be used with Naturally Aspirated or boosted applications
  • Coolant temperature sensor input
  • 2-stage Rev limiter setting for maximum RPM
  • Launch control
  • Step retard for Nitrous control
  • 2D and 3D Ignition timing tables
  • Operating voltage is 6-22 volts
  • CAN communication for handheld calibration and display
